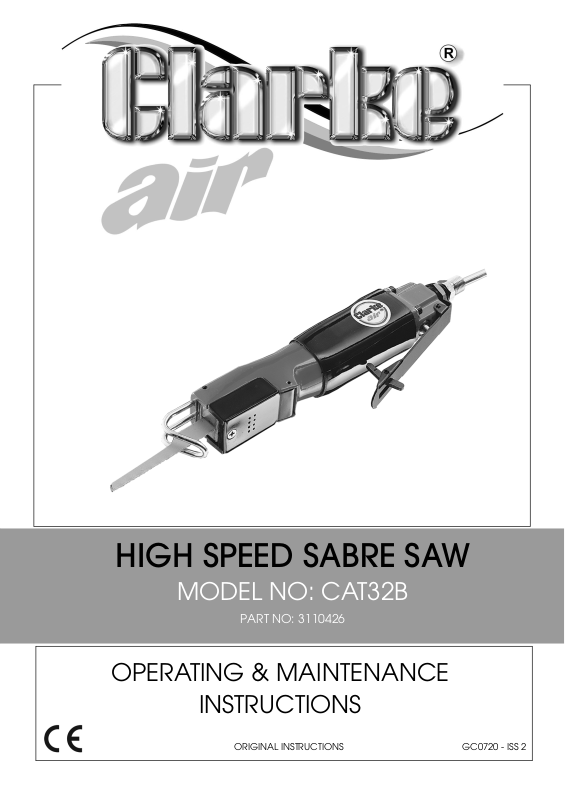

Page 1
HIGH SPEED SABRE SAW
MODEL NO: CAT32B
PART NO: 3110426
OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0720 - ISS 2
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Sabre Saw, suitable for cutting metal,
wood, polymers and other materials.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Please keep these instructions for future reference.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Do not dispose of this product with general household waste. All tools,
accessories and packaging should be sorted, taken to a re-cycling centre
and disposed of appropriately.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
TABLE OF CONTENTS
INTRODUCTION................................................................................... 2
GUARANTEE........................................................................................ 2
ENVIRONMENTAL PROTECTION.......................................................2
TABLE OF CONTENTS......................................................................... 3
SAFETY PRECAUTIONS...................................................................... 4
OVERVIEW........................................................................................... 6
AIR SUPPLY REQUIREMENTS............................................................. 7
ASSEMBLY........................................................................................... 8
OPERATION.........................................................................................9
MAINTENANCE.................................................................................10
TROUBLESHOOTING........................................................................ 11
PARTS LIST & DIAGRAM...................................................................12
SPECIFICATIONS.............................................................................. 14
DECLARATION OF CONFORMITY................................................. 15
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
GENERAL SAFETY RULES
CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.
WORK ENVIRONMENT
1. Keep the work area clean and tidy.
2. Dress appropriately: - do not wear loose clothing or jewellery. Tie long hair
out of the way.
3. Keep children and visitors away - do not let children handle the drill.
4. Do not operate the saw where there are flammable liquids or gases.
5. Stay alert and use common sense - do not operate the saw when you are
tired or under the influence of alcohol, drugs or medication.
6. Always wear eye protectors when using the saw - Eye protection must
provide protection from flying particles from the front and the side.
7. Always wear ear protectors and face mask when using the saw.
8. Do not overreach - Keep proper footing and balance at all times.
USE OF AIR POWERED TOOLS
1. Never use any type of bottled gas as a source of power for an air tool.
2. Do not connect the air supply hose with your finger on the trigger.
3. Do not exceed the maximum pressure for the saw 90 psi / 6.2 bar.
4. Check hoses for leaks or worn condition before use and ensure that all
connections are secure.
5. Keep the air supply hose away from heat, oil and sharp edges.
6. Do not use this saw for any other purpose than that described in this
manual.
7. Do not fit this saw to any stand or clamping device that may damage it.
8. Do not carry out any alterations or modifications to this saw.
9. Always disconnect from the air supply when:
• Performing any maintenance
• The saw is not in use.
• The saw will be left unattended.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
• Moving to another work area.
• Passing the saw to another person.
10. Never use the saw if it is defective or operating abnormally.
11. Always ensure the saw has stopped before putting it down.
12. The saw should be repaired if required by qualified service personnel.
13. Avoid damaging the saw for example by applying excessive force.
14. ALWAYS maintain the saw with care. Keep it clean for the best and safest
performance.
15. Quick change couplings should not be located at the air tool. They add
weight and could fail due to vibration.
16. Do not force or misuse the saw. It will do a better and safer job at the rate
for which it was designed.
17. Do not remove any labels. Damaged labels should be replaced.
18. This saw vibrates with use. Vibration may be harmful to your hands or arms.
Stop using the saw if discomfort, a tingling feeling or pain occurs. Seek
medical advice before resuming use.
19. Never carry the saw by the air hose.
20. Never carry the saw with your finger on the trigger.
21. When not in use the tool must be disconnected from the air supply and
stored in a dry place out of the reach of children (preferably in a locked
cabinet).
22. Avoid storage in environments where the temperature is below 0
o
C.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
PRODUCT DESCRIPTION
NO DESCRIPTION NO DESCRIPTION
1 Air Inlet 4 Blade Holder
2 Locking Setscrew 5 Safety Trigger
3 Work Guide
The CAT32B Sabre Saw is ideal for use in garages and workshops for cutting
body panels, exhausts, plastics etc.
Should you require any component parts, refer to pages 12 and 13 in the
manual and contact your Clarke dealer.
When unpacking the tool, any damage or deficiency should be reported to
your CLARKE dealer immediately. The carton contains:
• Heavy Duty Sabre Saw
• Set of 3 Blades
• 2 x Hex Keys
Your sabre saw has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local CLARKE dealer.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
COMPRESSED AIR REQUIREMENTS
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND A COMPRESSED AIR SUPPLY.
• Use only clean, dry, regulated compressed air as a power source.
• Air compressors used with the tool must comply with the appropriate
European Community Safety Directives.
• A build-up of moisture or oil in the air compressor will accelerate
wear and corrosion in the tool. Ensure any moisture is drained from
the compressor daily and the inlet filter is kept clean.
• If an unusually long air hose is required, (over 8 metres), the line
pressure or the hose inside diameter may need to be increased.
• The air hose must be rated at least 150% of the maximum operating
pressure of the tool.
• A typical air line layout is shown above. If an automatic in-line filter/
regulator is used, it will keep the air tool in good condition, but
should be regularly checked and topped up with oil. SAE 10 oil
should be used and the lubricator adjusted to approx 2 drops per
minute.
• The minimum hose diameter should be 5/16”(8mm) ID and fittings
should have the same internal dimensions.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
• Never exceed the maximum operating pressure for the air tool. It is
recommended that air pressure to this tool does not exceed 90 psi
(6.2 bar) at the tool when running. Higher pressures and unclean air
will shorten the life of the tool due to faster wear and is a possible
safety hazard.
BEFORE USE
WARNING: MAKE SURE THAT THE SAW IS DISCONNECTED FROM THE AIR
SUPPLY BEFORE INSTALLING, REMOVING OR REPLACING THE BLADE.
FITTING/REPLACING THE BLADE
1. Slide the blade into the saw as
shown.
2. Remove the protective cover by
undoing the screw shown.
3. Secure the blade by tightening the
two hex screws using the hex key
supplied.
CONNECTING THE AIR LINE
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR SUPPLIES.
1. Removethe plastic blanking plug
from the connection port of the
tool.
2. Pour 2-3 drops of CLARKE airline oil
into the air inlet. This should be
done regardless of whether or not
a lubricated air supply is to be
used.
3. Connect a suitable hose to the
tool as shown.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
4. Connect the other end of the hose to the compressor. (A whip hose with a
quick fit coupling is available from your CLARKE dealer).
5. Turn on the air supply and check for air leaks. Rectify any found before
proceeding. The tool is now ready for use.
USEFUL AIRLINE ITEMS FROM THE CLARKE RANGE
CAT150 Mini-Oiler:- Part No 3120164
8mm Rubber Whip Hose:-Part No 3120104
CAT58 6mm Recoil Hose with 1/4”bsp connectors (25 feet):-Part No 3110458
CAT59 6mm Recoil Hose with 1/4”bsp connectors (50 feet):-Part No 3110459
CRH9 9metres professional recoil hose:-Part No 3120100
CAR20PC Manual Air Hose Reel:-Part No 3126250
CAR15PC PVC hose in moulded case with auto re-wind:-Part No 3126000
See the latest catalogue for details of snap couplings & pressure gauges.
OPERATION
1. Slide the safety lock forward.
2. Squeeze the trigger.
• Allow the saw to reach full
speed before use.
3. Release the trigger to stop the
saw. When the blade has stopped
remove it from the workpiece.
4. Release the trigger to stop the tool.
5. Always ensure the tool has
stopped before putting it down.
DISCONNECTING THE AIR SUPPLY
1. Do not disconnect the air supply hose until the air supply has been shut
down and the compressed air released from the hose.
• Refer to the compressor instruction manual for the procedure to shut
down and release the compressed air.
• Once the pressure has been released, disconnect the air supply
hose from the saw.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
MAINTENANCE
WARNING: MAKE SURE THAT THE SAW IS DISCONNECTED FROM THE AIR
SUPPLY BEFORE STARTING ANY CLEANING OR MAINTENANCE
PROCEDURES.
Please note that factors other than the tools condition may effect its operation
and efficiency, such as reduced compressor output, excessive drain on the
airline, moisture or restrictions in the air-line, or the use of connectors improper
size or poor condition which will reduce air supply.
DAILY
1. Before use, drain water from the air-line and compressor.
2. Lubricate the saw daily for optimum performance. Use a high quality airline
oil either via a lubricator in the air supply system or by placing a few drops
into the air inlet immediately before use. This should be carried out
regardless of whether or not an in-line lubricator is used.
CLEANING & OVERHAUL
1. Keep the saw clean and free from debris.
2. If the saw becomes sluggish and the air supply is of good quality, it may be
necessary to replace worn or damaged parts.
3. Grit or gum deposits in the mechanism may eventually reduce efficiency.
This condition can be corrected by cleaning the air inlet filter and flushing
out the saw with gum solvent oil or an equal mixture of SAE No10 oil and
paraffin.
4. Failing this, the saw should be disassembled, thoroughly cleaned, dried
and reassembled. You may prefer to take the saw to your CLARKE dealer if
internal maintenance is required.
STORAGE
If the saw is to be stored or is idle for longer than 24 hours, run a few drops of
Clarke air-line oil into the air inlet and depress the trigger in order to lubricate
the internal parts.
When not in use, the saw should be disconnected from the air supply and
stored in a dry place out of the reach of children. Avoid storing in a damp
environment.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
TROUBLESHOOTING
SYMPTOM PROBLEM SOLUTION
Tool runs at normal
speed but slows down
under any load.
Tool runs slowly. Air flows
weakly from exhaust.
Tool will not run. Air flows
freely from exhaust.
1. Excessive pressure on
drill.
2. Motor parts worn.
3. Worn or sticking
mechanism due to
lack of lubricant.
1. Motor parts jammed
with gum/dirt.
2. Regulator in closed
position.
3. General airflow
blocked by dirt.
1. Motor vanes stuck
due to buildup of
foreign material.
1. Reduce the force
applied to the drill.
2. Return to Clarke dealer
for repair.
3. Drip air tool lubricating
oil into air inlet. Allow oil
to soak moving parts
before using.
1. Examine inlet air filter for
cleanliness.
2. Adjust regulator to open
position.
3. Operate tool in short
bursts.
1. Disconnect air supply
and rotate tool assembly
manually.
2. Try operating tool in
short bursts.
3. Tap motor housing gently
with a rubber mallet.
4. Drip a few drops of air
tool lubricating oil into air
inlet to soak moving
parts.
Tool will not shut off. 1. O-rings damaged or
ill-fitting in seat.
1. Return to Clarke dealer
for repair.
REPLACEMENT BLADES
Replacement blades are available from your CLARKE dealer:
• Part no. 3110429
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
Page 13
COMPONENT PARTS
No Description No Description
1 Valve screw cap 26 Blade chuck cover
2O-ring 27Screw
3 O-ring 28 Housing
4 Air controller 29 Piston assembly
5 Valve spring 30 Set screw
6 Valve stem 31 Hexagonal key
7 O-ring 32 Guide plate
7a O-ring 33 Blade chuck
8 Valve bush 34 Work guide
9 Inlet bush 35 Saw blade (24 or 32 teeth)
10 Cap screw 36 Hexagonal key
11 Washer 37 N/a
12 Lever hinge pin 38 Screw
13 Throttle lever 39 Upper wear shoe
14 N/a 40 Blade guide
15 Valve body 41 Bridge
16 Bush 42 Front bumper
17 Cylinder 43 Rear bumper
18 Valve sleeve 44 Roll pin
19 Valve actuator 45 Spring
20 Washer 46 Packer
21 Cap headed screw 47 Packer
22 Gasket 48 Packer
23 Valve body 49 Set screw
24 Set screw 50 Plastic cover
25 Bush
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
SPECIFICATION
Model Numbers CAT32B
Minimum Hose Size (ID) 6 mm (1/4”)
Air Inlet Size 1/4“ BSP Female
Max Operating Pressure 90 psi (6.2 bar)
Air Consumption (Average) 5 cfm
Max Speed 10,000 strokes/pm @ 90psi
Sound Pressure Level (LpA dB) 89 dB(A)
Sound Power Level (LwA dB) 100 dB(A)
Vibration Levels
Vibration Uncertainty K:
27.95 m/s
3.26 m/s
2
2
Weight 0.5 kg
Stroke length 13 mm
Please note that the details and specifications contained herein are correct
at the time of going to print. However CLARKE International reserve the right to
change specifications at any time without prior notice.
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
DECLARATION OF CONFORMITY
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
Loading...
