50L BELT DRIVEN AIR COMPRESSOR
MODEL NO: AIRMASTER 14/50P
PART NO: 2245306
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0721
Page 2
INTRODUCTION
Thank you for purchasing this 50L Belt Driven Air Compressor.
Read this manual fully before use and follow the instructions carefully. In doing
so you will ensure the safety of yourself and those around you, and you can
look forward to your purchase giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
Before using your compressor it is in your own interest to read and pay
attention to the following safety precautions.
1. Compressed air is dangerous. DO NOT point a jet of air at persons or animals, and
DO NOT discharge compressed air against the skin.
2. DO NOT operate your compressor with the guard removed.
3. Repairs must only be carried out by a qualified engineer. If problems occur, contact
your MACHINE MART dealer.
4. Before carrying out any maintenance make sure that the pressure is released from
the air reservoir and that the compressor is disconnected from the electrical supply.
5. DO NOT leave pressure in the receiver overnight or when transporting.
6. DO NOT adjust or tamper with the safety valves. The maximum pressure is factory set
and clearly marked on the compressor.
7. DO NOT operate in wet or damp conditions. Keep the compressor dry at all times.
Similarly, clean air will allow the compressor to work efficiently. DO NOT use in dusty
or otherwise dirty locations.
8. Some of the metal parts can become quite hot during operation. DO NOT touch/
remove these until the compressor has cooled down.
9. ALWAYS set the pressure regulator to the recommended setting for the tool.
10. When spraying flammable materials e.g. cellulose paint, ensure that there is
sufficient airflow and keep clear of any source of ignition.
11. Before spraying any material always consult paint manufacturers instructions for
safety and usage.
12. Protect yourself. Goggles will protect your eyes from flying particles. Face masks will
protect you against paint spray and fumes.
13. DO NOT apply strain to electrical cables and make sure that air hoses are not kinked
or wrapped around the compressor.
14. When disconnecting air hoses or other equipment from your compressor, make sure
that the air supply is turned off at the outlet and vent all pressurised air from within
the reservoir and other equipment attached to it.
15. Make sure that children and animals are kept well away from the compressor and
any equipment attached to it.
16. Make sure that all individuals using the compressor have had the necessary training
and have read and fully understand these operating instructions.
17. Make sure that any equipment or tool used in conjunction with your compressor, has
a safe working pressure exceeding that of the compressor.
18. Be careful when transporting the compressor to prevent tipping over
19. Permanently installed systems must be installed by a competent engineer.
20. These compressors produce noise levels in excess of 70dB(A). Persons working near
the compressor must be supplied with ear protection.
3
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 4

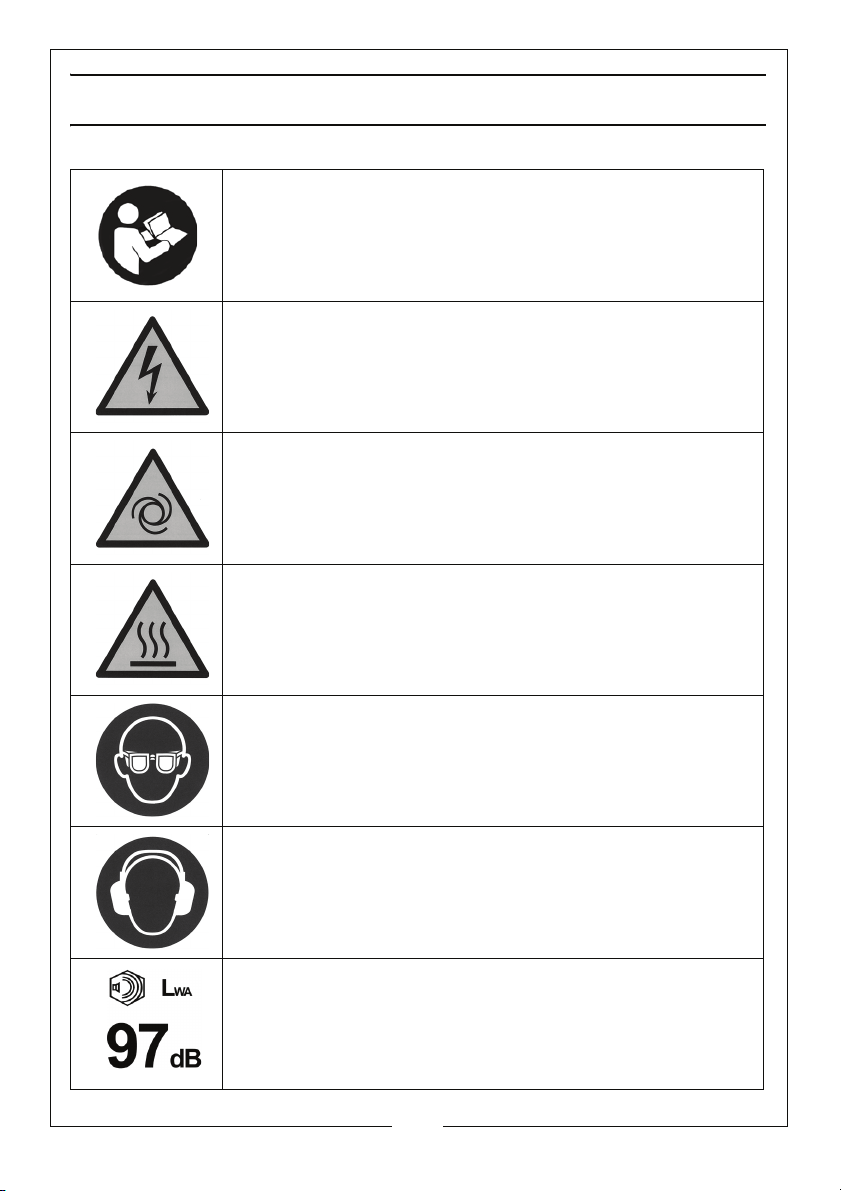

SAFETY SYMBOLS
Read this instruction booklet carefully before positioning,
operating or adjusting the compressor.
Risk of electric shock. The compressor must be
disconnected from the mains supply before removing any
covers. Do not use in a damp environment.
Risk of accidental start-up. The compressor could start
automatically in the event of a power cut and subsequent
reset. Do not carry the compressor while it is connected to
the power source, or when the tank is filled with
compressed air.
This compressor contains surfaces which may reach a high
temperature during operation. Never operate with the
motor housing removed.
Wear safety goggles when using this compressor
Wear ear protectors when using this compressor
This compressor produces a high sound level during
operation. Ear protection should be worn.
4
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 5
ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 13 Amp
the cable is firmly held by the clamp
fuse.
Yellow)
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.

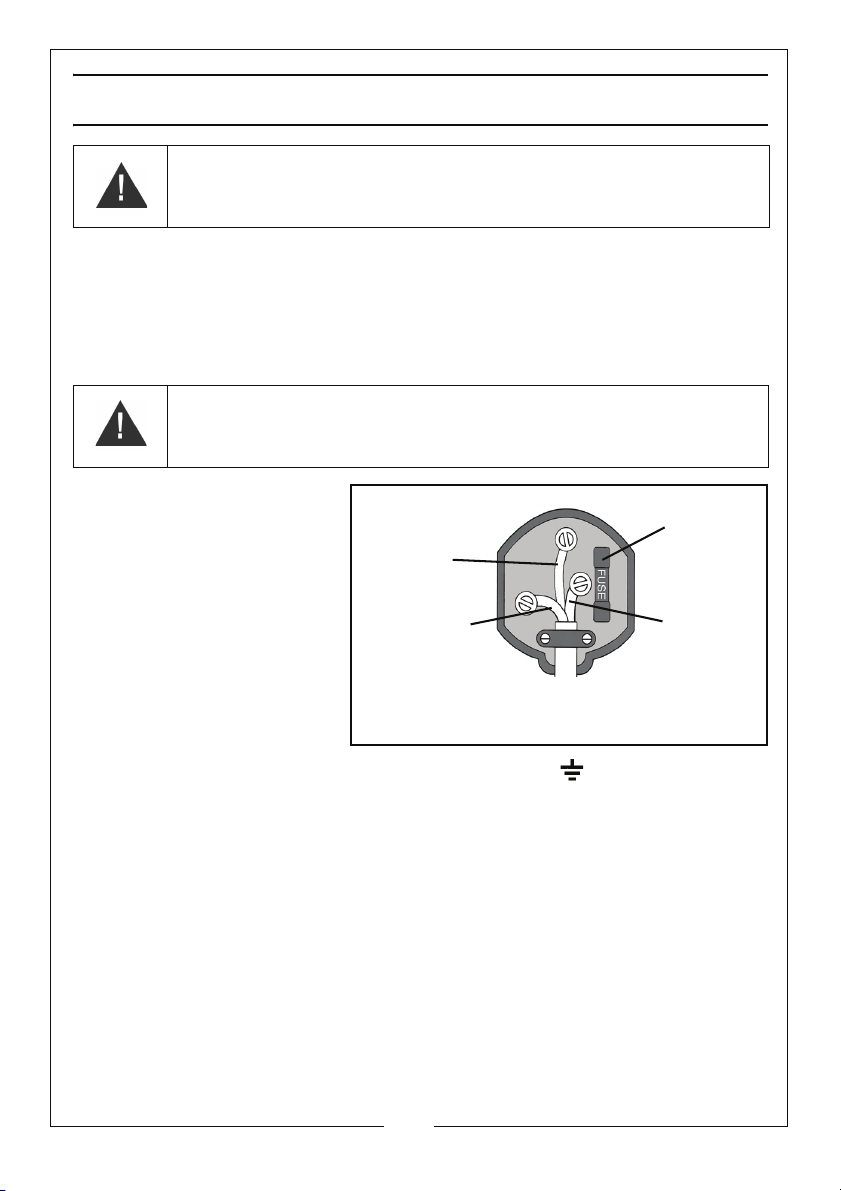

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazar
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
• The BLUE wire must be
connected to the
terminal which is
marked N or coloured
black.
• The BROWN wire must
be connected to the
terminal which is
marked L or coloured
red.
• The YELLOW AND
GREEN wire must be
connected to the terminal which is marked E or or coloured green.
We strongly recommend that this machine is connected to the mains supply
through a Residual Current Device (RCD)
If you are not sure, consult a qualified electrician. DO NOT try to do any repair
d.
s.
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
5
Page 6
ASSEMBLY
CAUTION: TO PREVENT INJURY, GET ASSISTANCE WHEN LIFTING THIS
COMPRESSOR.

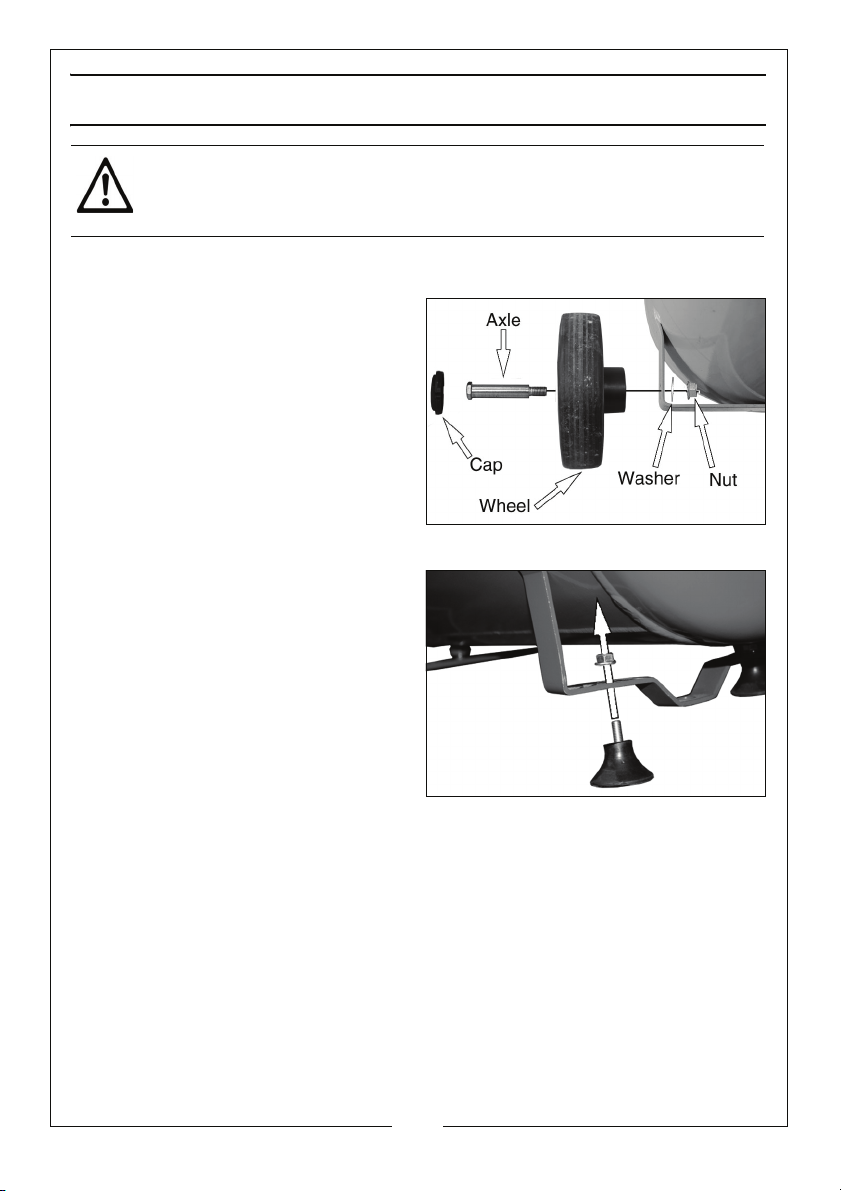

ATTACH THE WHEELS
1. Slide the axle through the wheel
and hole in the wheel frame.
2. Lock the wheel in place using the
washer and nut provided.
3. Fit the cap into the position
shown.
ATTACH THE SUPPORT FEET
Insert the support feet into the
position shown and secure using the
nut supplied.
6
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 7
BEFORE USE
Before connecting your compressor to the power supply, check the following:-
• Push down the OFF button.
• Remove the protective plastic
moulding from the top of the
cylinder head.
• Make sure that the compressor
is on level ground.
• Make sure that the supply
voltage matches the voltage
shown on the data label.
CHECK THE OIL LEVEL

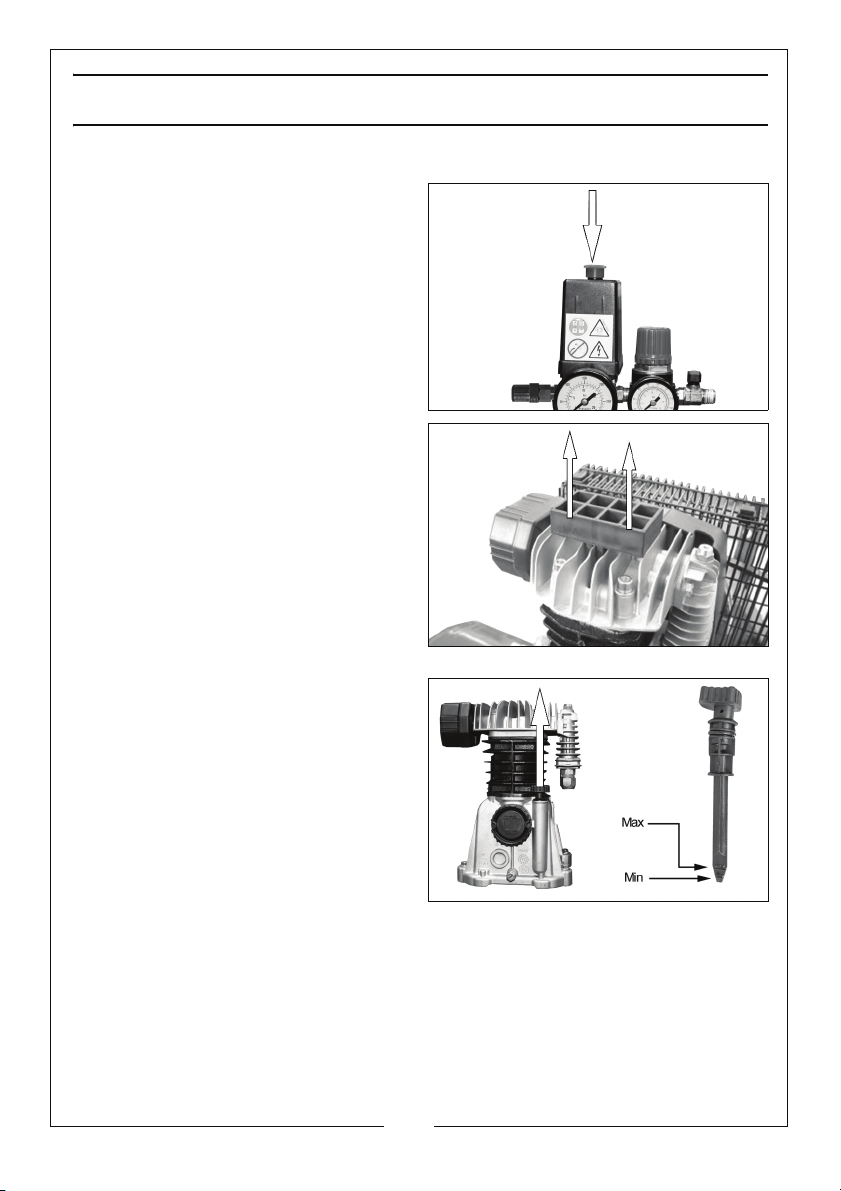

1. Remove the dipstick from the oil
reservoir.
2. Ensure the oil level is between the
min
and max marks on the
dipstick.
• Only use ISO100 (SAE30)
compressor oil, available from
your Machine Mart dealer, Part No. 3050796.
• Take care not to exceed the
maximum mark.
7
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 8
OPERATION
If the compressor has not been used for more then 24 hours, open the drain
valve (on the bottom of the reservoir) and drain any condensate which has
collected. See page 11.
MOVING THE COMPRESSOR
• Stop the compressor and disconnect it from the power supply
before you move it.
• Always use the handle.
• Do not lift by (or put strain on) valves or hoses.
CONNECTING AIR TOOLS
WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU
READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL, ALSO ENSURE THAT
THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE
SPECIFICATIONS.
1. Attach the air hose to the outlet
valve.
2. Attach the air tool to the other
e
nd of the air hose.
3. Turn the outlet valve handle to the
on position.
NOTE: The outlet valve is shown
without the air hose fitted for
clarity.
8
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 9
TURNING THE COMPRESSOR ON
1. Plug the compressor into the power supply.
2.
Lift the On/Off button.
• The compressor will operate
until the reservoir is fully
pressurised. It will then shut
down.
• The compressor will start up
again when the pressure in the
reservoir decreases.

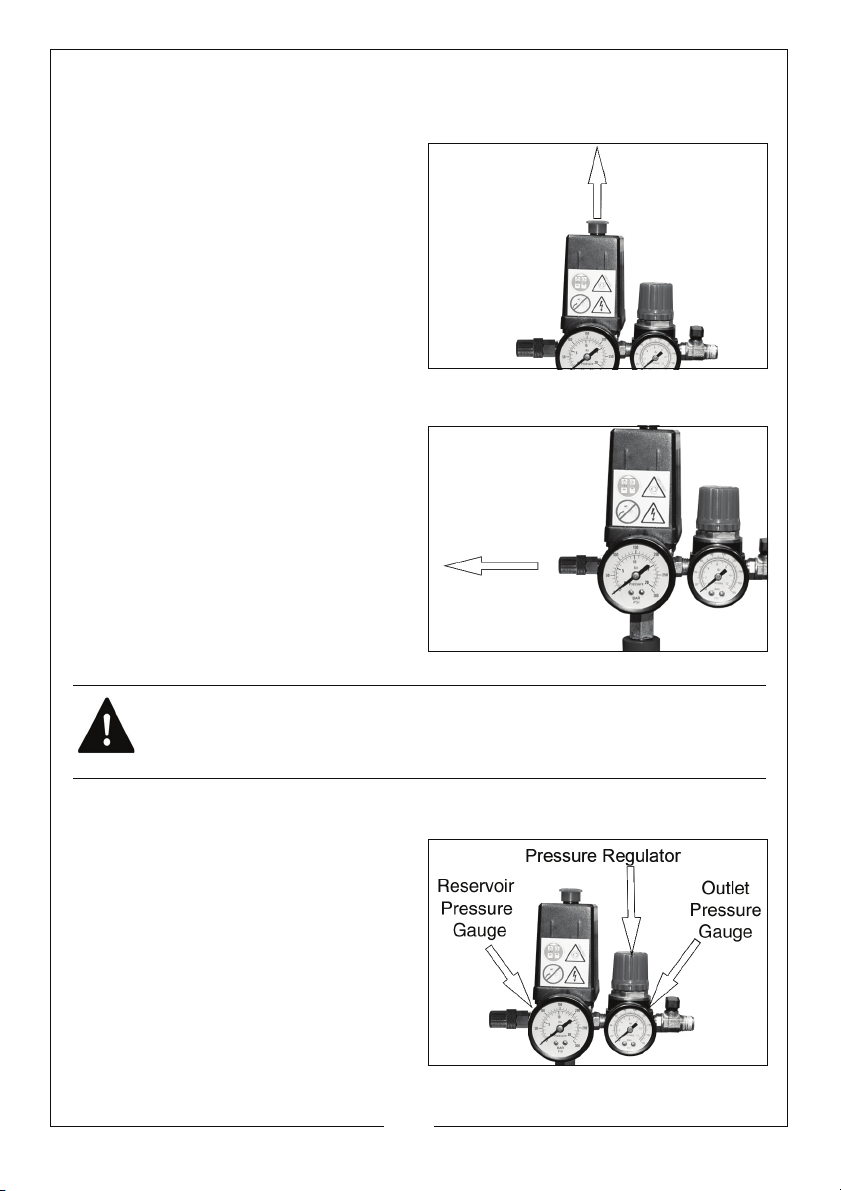

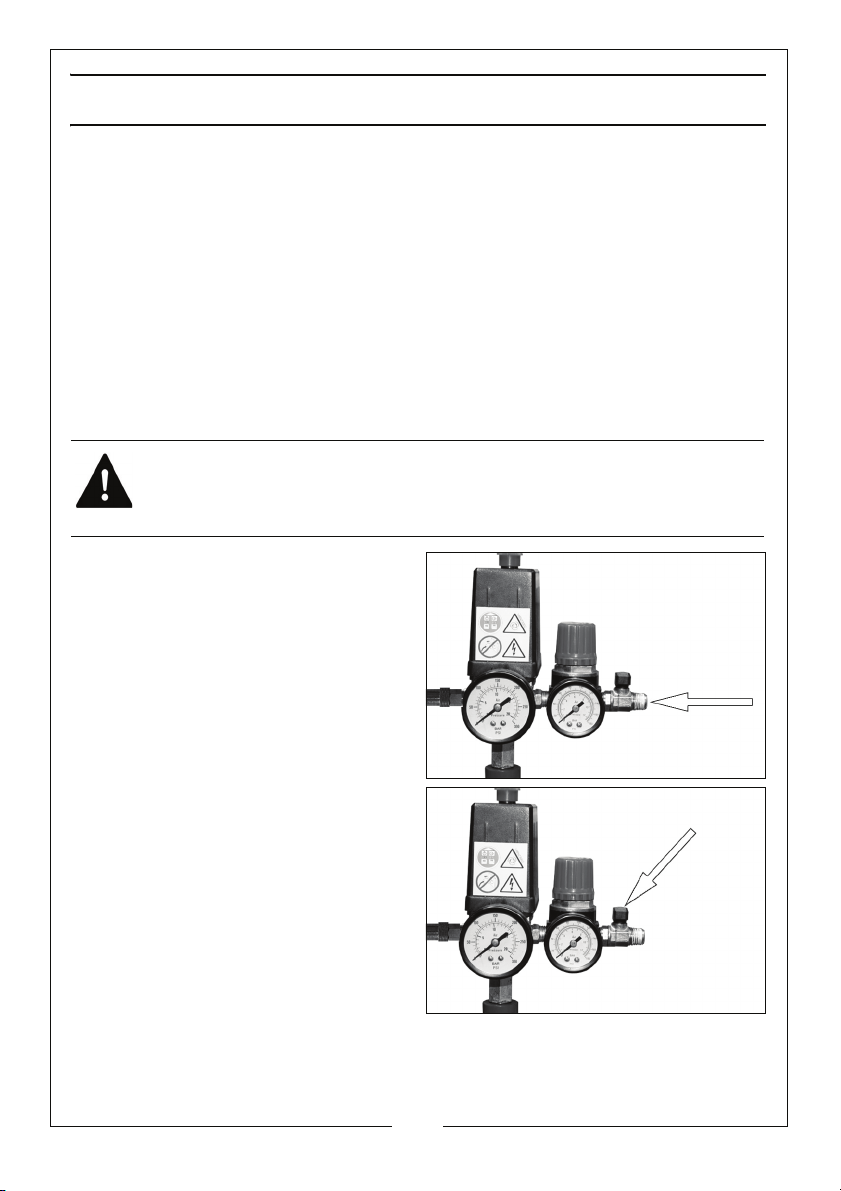

CHECKING THE SAFETY VALVE
To make sure that the safety valve works correctly;
1.
Unscrew and pull the knurled part
of the safety valve.
1. Air will be released when you twist
a
nd stop when release.
2. If the valve does not operate in
this way, do not use the
compressor. The compressor must
be repaired by a qualified service
agent.
WARNING: DO NOT REMOVE OR TRY TO ADJUST THE SAFETY VALVE.
SETTING THE OUTLET PRESSURE
1. Use the pressure regulator to set
the outlet pressure.
• Turn clockwise to increase the
pressure.
• Turn counterclockwise to
decrease the pressure.
9
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 10
REMOVING TOOLS FROM THE AIR HOSE
WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU
REMOVE OR REPLACE A TOOL.
1. Push down on the On/Off button
to stop the compressor.
2. Turn the outlet valve handle to the
off position.
3. Operate the tool to depressurise
th
e air hose.
4. Disconnect the tool from the hose.
TURNING THE COMPRESSOR OFF
1. Follow steps 1-3 in “Removing Tools
From The Air Hose” above.
2. Disconnect the compressor from
the power supply.
3. Slowly open the outlet valve to
depress
• You will hear a hissing sound as
4. Do not leave the compressor
unattended if the reservoir is pressurised.
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
urise the reservoir.
the reservoir dep
ressurises.
10
Page 11

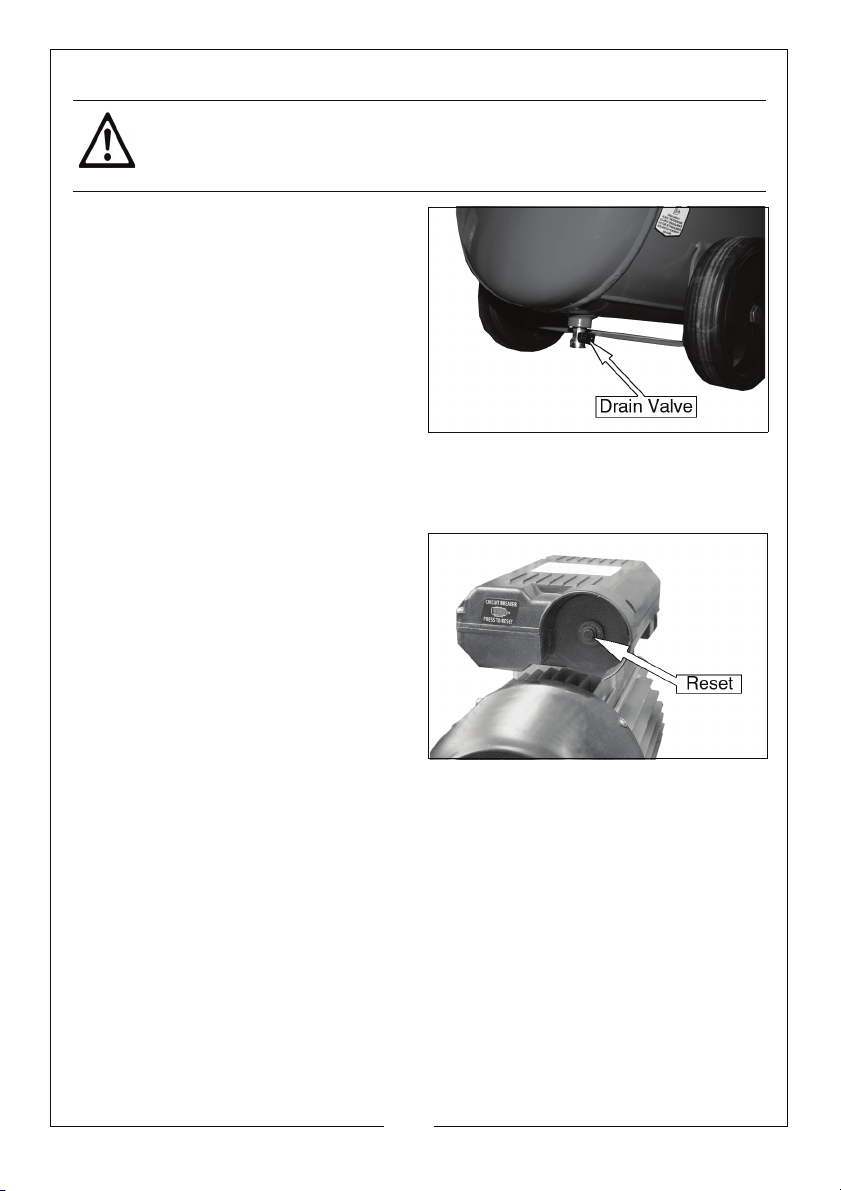

DRAINING THE RESERVOIR
CAUTION: YOU MUST DRAIN THE RESERVOIR AFTER EACH DAYS USE AND
BEFORE YOU PUT YOUR COMPRESSOR INTO STORAGE.
1. Turn the compressor off and
disconnect from the power
sup
ply.
2. Put a container below the drain
va
lve to collect the condensate.
3. Open the drain valve slowly.
• Condensation will drain from
the reservoir
4. Close the drain valve when the
reservoir has fully drained.
.
USING THE RESET BUTTON
This compressor has a thermal
overload device.
If the motor gets too hot, the thermal
overload device cuts the power
which prevents damage to the motor.
If the thermal overload device
operates, let the motor cool down for
5 minutes and push the reset button.
If you start the compressor and the
overload cutout operates again, stop
the compressor and disconnect from the power supply and have your
compressor examined by a qualified service agent.
11
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 12
MAINTENANCE
WARNING: MAKE SURE THAT THE COMPRESSOR IS DISCONNECTED FROM
THE ELECTRICAL SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE

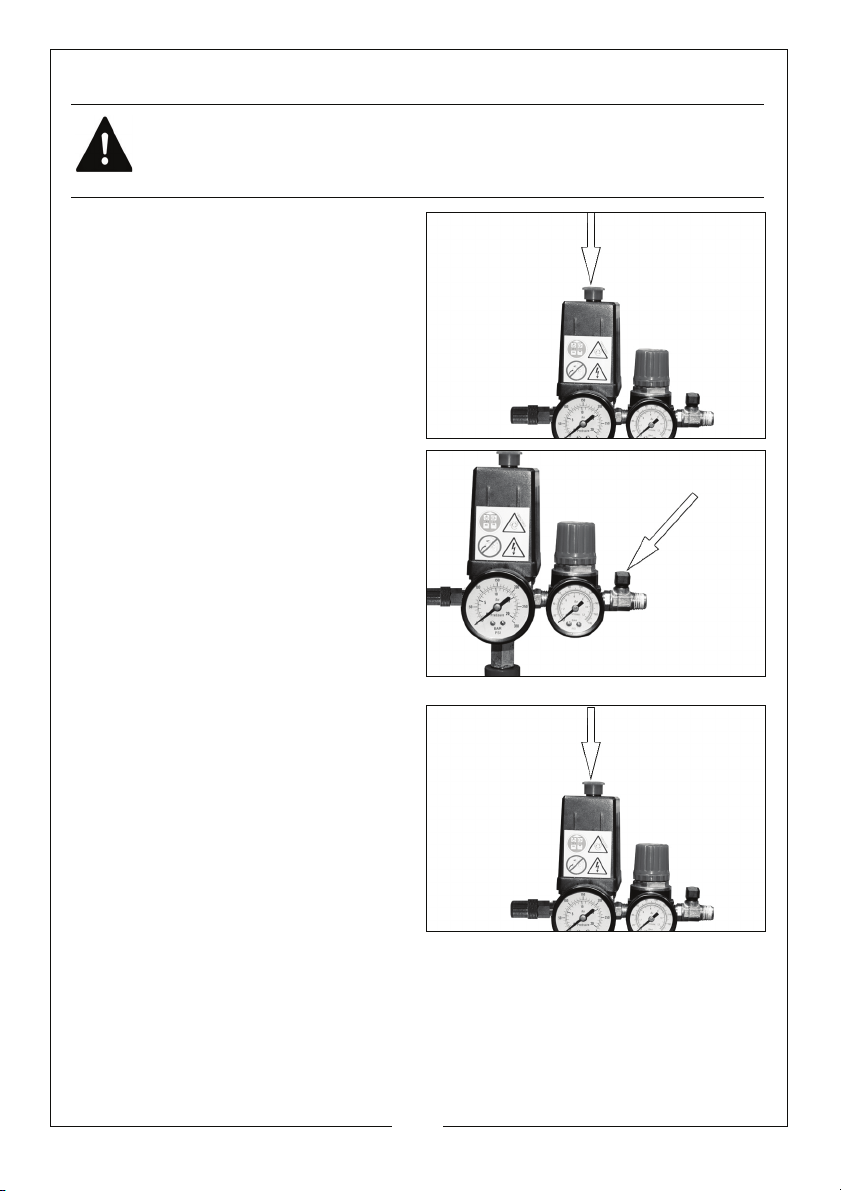

DRAIN THE RESERVOIR
After use, always open the drain valve to make sure that any condensate is
drained off.
CHECK OIL
Ensure the oil level is between the min and max marks on the dipstick. See
“Check the Oil level” on page 7 and top-up if necessary - (use ISO100 (SAE30)
compressor oil, available from your MACHINE MART dealer).

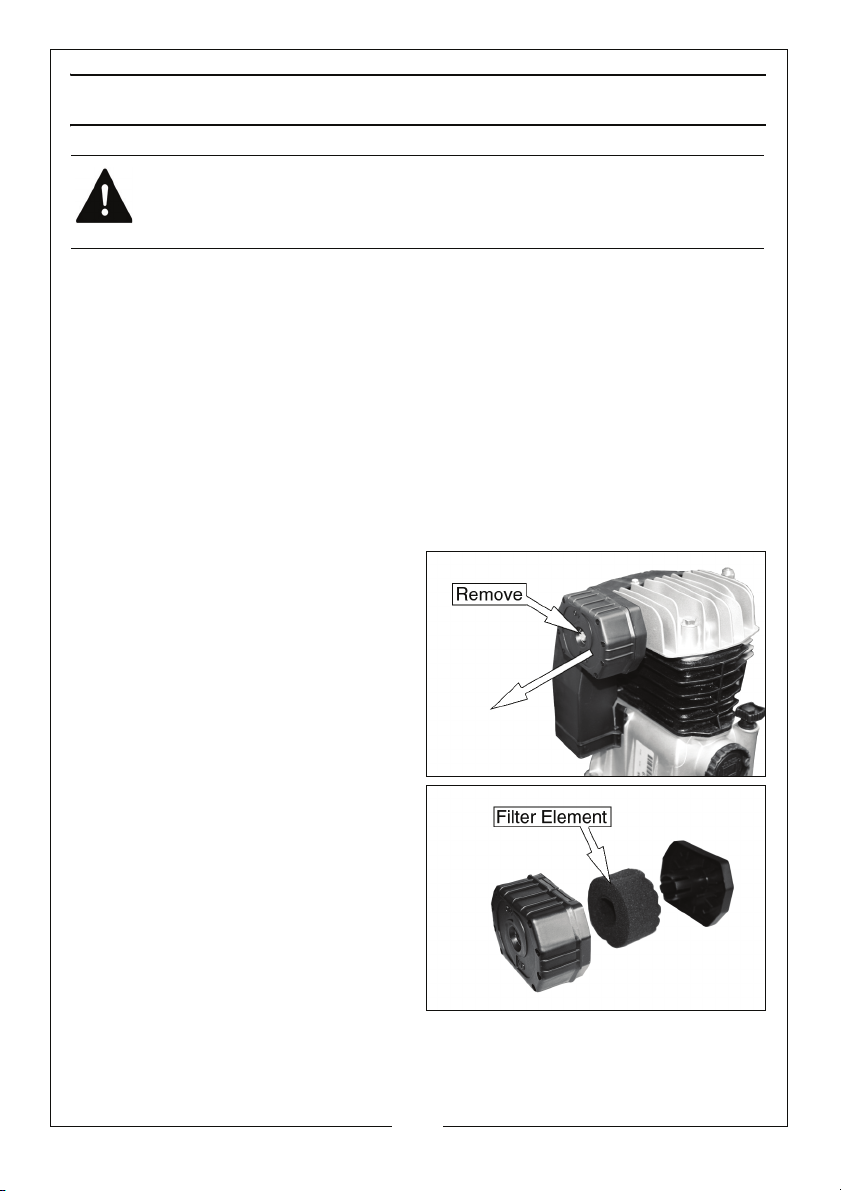

CLEAN THE AIR FILTER
The air filter must be examined monthly or more often in dusty conditions.
1. Remove the securing bolt and pull
the filter from the compressor.
2. Unclip the front and rear of the
filter and pull out the filter
element.
3. Clean the filter using a soft brush.
• If necessary, the filter can be
car
efully cleaned in warm
soapy water.
• Rinse and let the filter dry
completely before refitting.
• If the filter or filter element is damaged, you must replace it.
4. Reassemble the filter and refit it to
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
the compressor using the securing bolt.
12
Page 13
REPLACING THE OIL
After the first 100 hours use, replace
the oil using SAE30 compressor oil.
Then replace the oil after every 500
hours of operation or every 6 months.
To empty the oil from the machine,
remove the oil drain plug from the
crankcase.

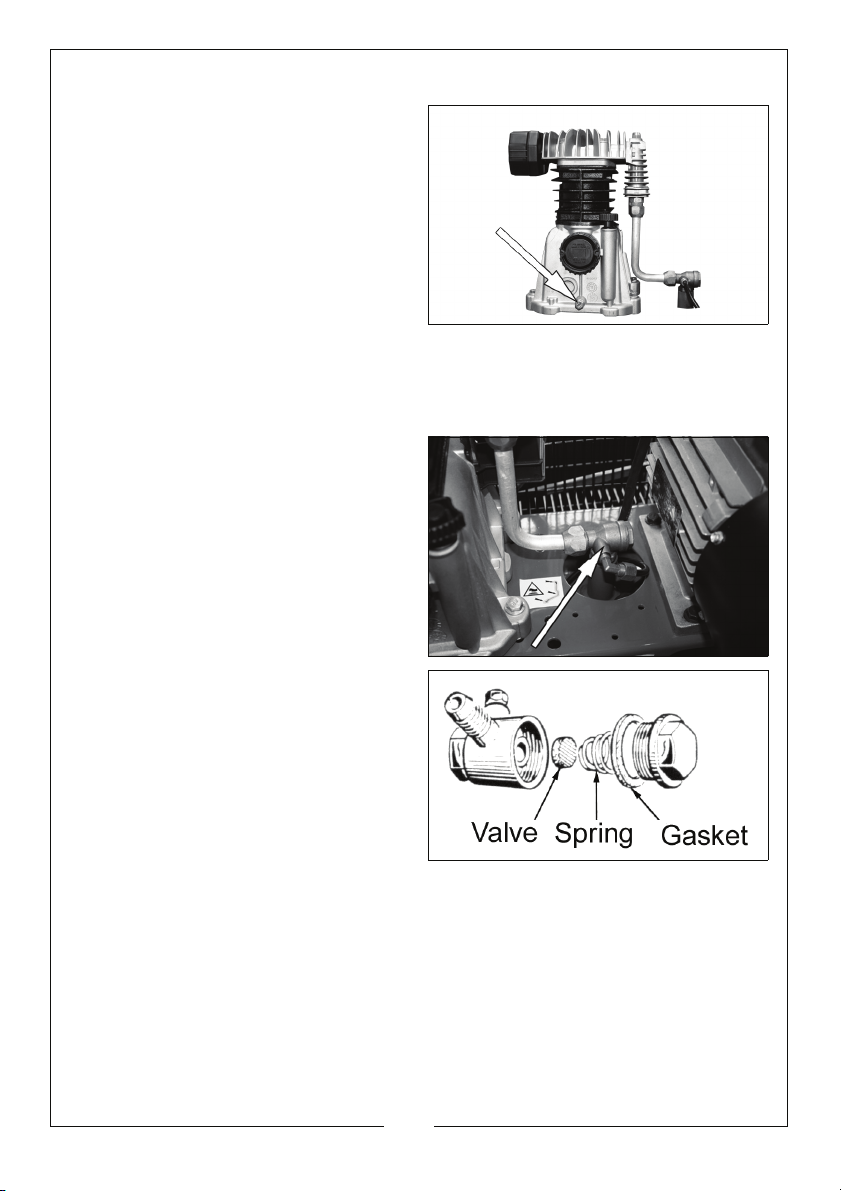

CHECKING THE NON-RETURN
VALVE
If the reservoir pressure decreases for no apparent reason it is possible that the
non-return valve is leaking. To check this:
1. Make sure that the reservoir is not
under pressure and the
compressor is switched OFF.
2. Examine the non-return valve,
and replace the gasket and valve
if necessary.
13
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 14

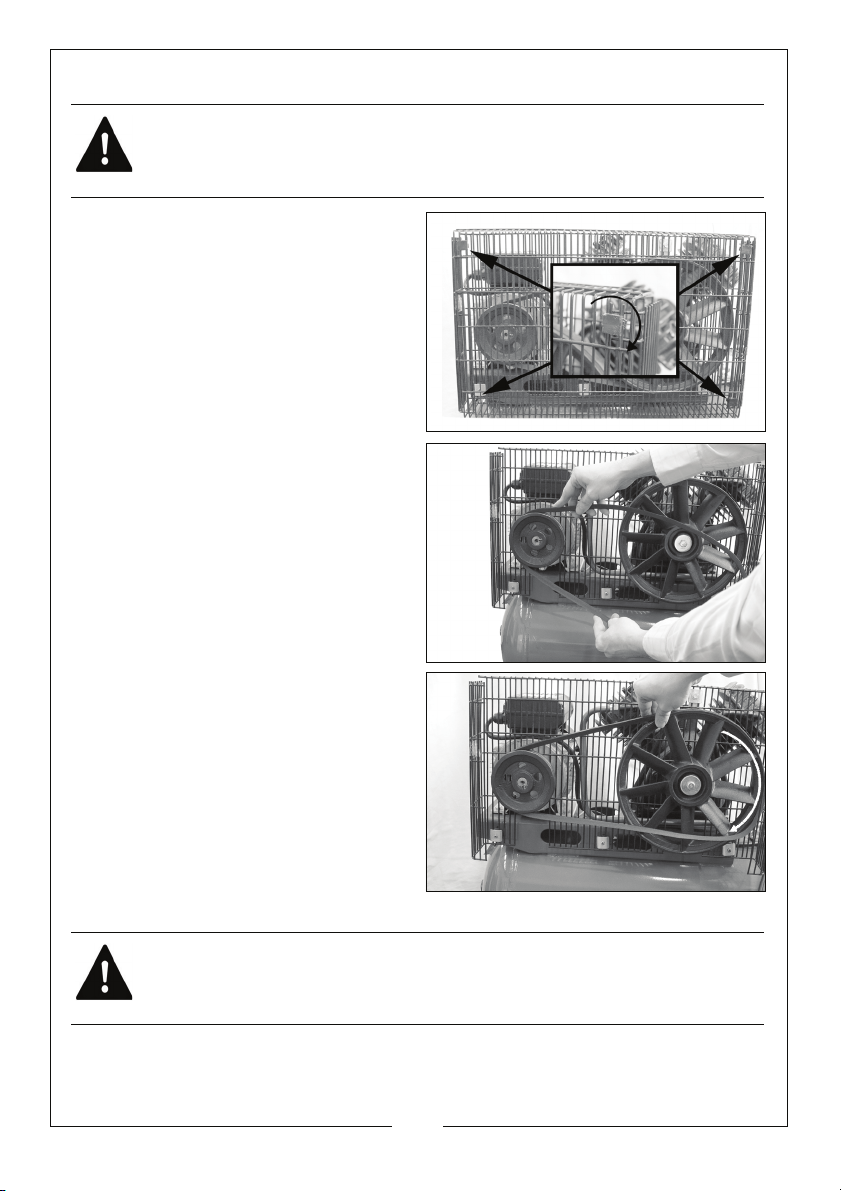

REPLACING THE DRIVE BELT
WARNING: MAKE SURE THAT THE COMPRESSOR IS DISCONNECTED FROM
THE ELECTRICAL SUPPLY BEFORE REPLACING THE DRIVE BELT.
1. Rotate the clips on the front of the
safety cage.
2. Remove the front of the cage
and take out
drive belt.
3. Place the new drive belt over the
small wheel.
the worn or broken
4. Position part of the drive belt over
the large belt wheel as shown.
5. Rotate the large belt wheel by
hand in a clockwise direction
whilst guiding the belt on to it.
• Take care to avoid trapping
y
our fingers between the wheel
and belt.
6. Replace the cage and secure
before use.
WARNING: NEVER USE THE COMPRESSOR WITH THE GUARD REMOVED.
14
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 15
SPECIFICATIONS
MODEL AIRMASTER 14/50P
Part Number 2245306
Motor Size 3 hp
Voltage 230 VAC
Air Displacement 394 L/min (14 cfm)
Max pressure 10 Bar/145psi
Receiver Capacity 50 L
Ingress protection rating IP20
Fuse rating 13A
Duty cycle S3/50%
Oil requirements ISO100 (SAE30) compressor oil
Oil capacity 0.4L
Dimensions (L x W x H) 800 x 350 x 670 mm
Guaranteed Sound Power Level 97 dB LWA
Weight 60 kg
Please note that the details and specifications contained herein, are correct
at the time of going to print. We reserve the right to change specifications at
any time without prior notice.
15
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 16
TROUBLESHOOTING
CAUTION: DO NOT TRY TO REPAIR OR ADJUSTMENT IF YOU ARE
UNCERTAIN. IF YOU HAVE ANY QUERIES, CONTACT YOUR CLARKE
DEALER.
PROBLEM PROBABLE CAUSE REMEDY
The compressor
has stopp
and does not
start.
The compressor
does not
the set pressure
and overheats
easily.
Compressor
does not start.
Air leaking from
the
valve when the
compressor is
not running.
Air pressure
from the
egulator will
r
not adjust.
The compressor
is very
makes metallic
knocking sound
ed
reach
non-return
noisy and
Bad electrical
connections.
Overload cutout switch
s tripped.
ha
Motor windings burnt out. 1. Contact your Machine
Compressor head gasket
or valve broken.
blown
The reservoir has already
fully pressurised.
Faulty non-return valve. 1. Drain all air from receiver.
The diaphragm within the
regulator body is broken.
Compressor damaged
and needs overhaul.
1. Check electrical
connections.
2. Clean and tighten if
necessary.
1. Switch off and wait approx
5 minutes.
2. Press the reset button and
swit
Mart dealer
replacement motor.
1. Return the machine to your
nearest Machine Mart
dealer.
1. Open drain valve to expel
air. Compressor should start
again when pressure
reduces.
2. Remove valve end plug.
3. Carefully clean the valve
se
4. Reassemble.
1. Replace regulator
1. Return the machine to your
nearest Machine Mart
dealer.
ch on again.
for a
at and the gasket
16
Parts & Service: 0871 410 1270 / e-mail: [email protected] or [email protected]
Page 17
Page 18

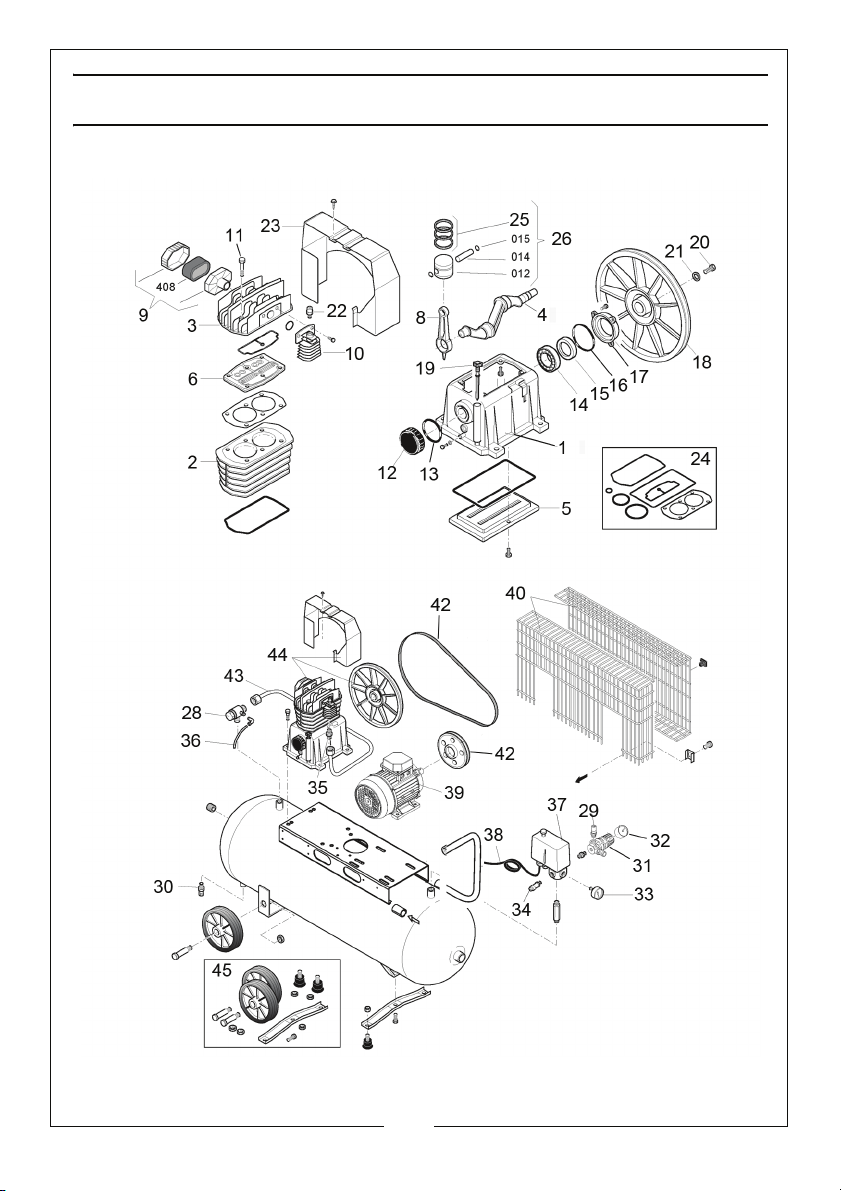

COMPONENT PARTS
NO DESCRIPTION NO DESCRIPTION
1 CRANKCASE 24 GASKETS SET 213167002
2 CYLINDER 25 PISTON RING SET
3 CYLINDER HEAD 26 PISTON ASSEMBLY
4 CRANKSHAFT 27 n/a
5 LOWER COVER 28 NON RETURN VALVE
6 VALVE HOLDER ASSEMBLY 29 TAP BAL L VALVE
7 GASKET 30 DRAIN.VALVE 3/8
8 CONROD 31 PRESSURE REGULATOR
9 INTAKE FILTER ASSEMBLY 32 GAUGE 50mm 10BAR
10 AIR COOLER 33 GAUGE 40mm
11 CYLINDER HEAD BOLT 34 SAFETY VALVE 10BAR
12 END COVER 35 CONNECTOR 199021000
13 O-RING 36 RILSAN PIPE 4/6 BLACK
14 BEARING 6205 XL 37 PRESSURE SWITCH
15 OIL SEAL D3760 38 POWER CABLE
16 O-RING 39 MOTOR 540E150605
17 BEARING RETAINER 40 BELT GUARD
18 FLYWHEEL 41 DRIVE PULLEY
19 DIPSTICK ASSEMBLY 42 DRIVE BELT
20 SCREW M8X25 8.8 LEFT (GB5781) 43 AIR PIPE
21 WASHER 9.2X36X4 44 PUMP ASSEMBLY COMPLETE
22 COLD START VALVE R1/4X2.2BAR 45 WHEEL KIT COMPLETE
23 SHROUD
Parts & Service: 0871 410 1270 / e-mail: parts@machin emart.co.uk or [email protected]
18
Page 19

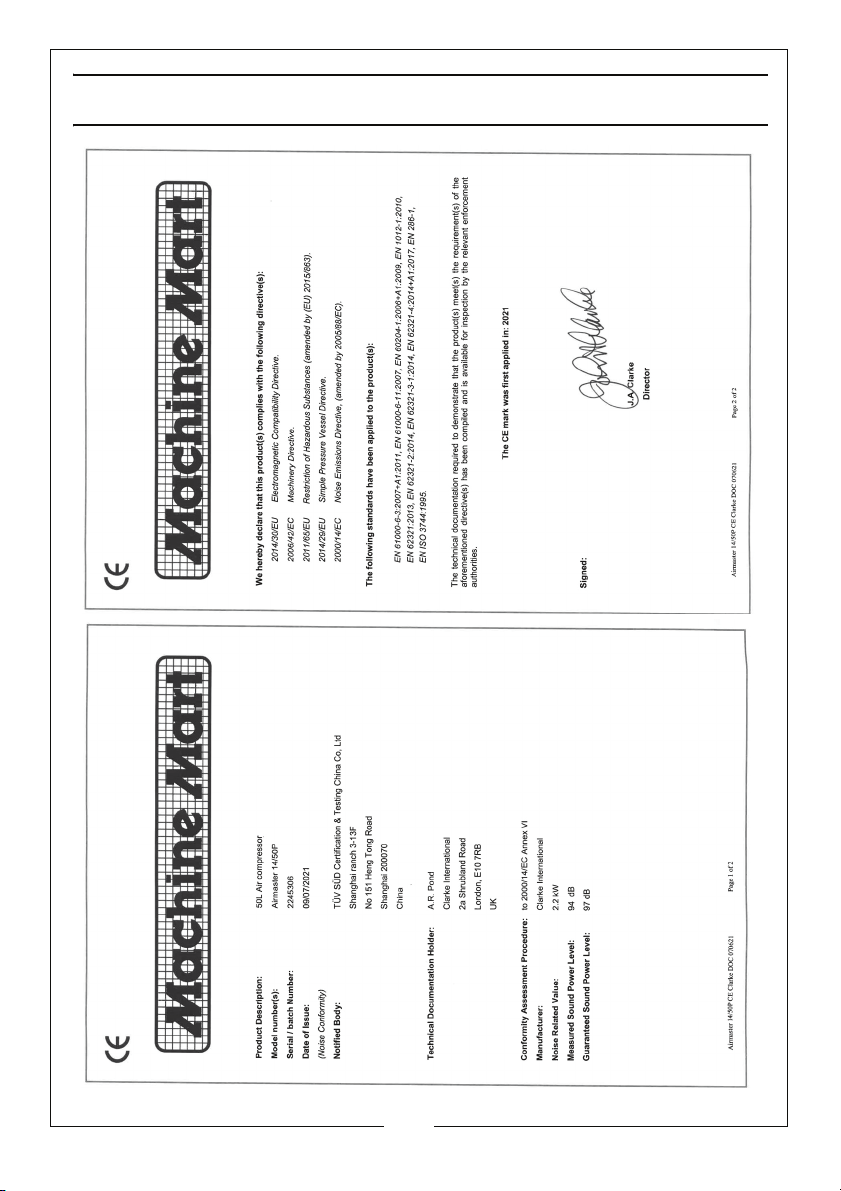

DECLARATION OF CONFORMITY
19
Parts & Service: 0871 410 1270 / e-mail: parts@machin emart.co.uk or [email protected]
Page 20
Loading...
