100L BELT DRIVEN AIR COMPRESSOR
MODEL NO: RACER 9/100P (3PH)
PART NO: 2245025
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
LS0118 - ISS 3
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE 100L Belt Driven Air Compressor.
Read this manual fully before use and follow the instructions carefully. In doing
so you will ensure the safety of yourself and those around you, and you can
look forward to your purchase giving you long and satisfactory service.
Due to our policy of continual product improvement, the images in this
manual may not match the product exactly.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
Before using your compressor it is in your own interest to read and pay attention
to the following safety rules.
1. Compressed air is dangerous. Do not point a jet of air at persons or animals, and do
not discharge compressed air against the skin.
2. DO NOT operate your compressor with the guard removed.
3. Repairs must only be carried out by a qualified engineer. If problems occur, contact
your Clarke dealer.
4. Before carrying out any maintenance, make sure that the pressure is released from
the air reservoir, and that the compressor is disconnected from the electrical supply.
5. DO NOT leave pressure in the receiver overnight, or when transporting.
6. DO NOT adjust, or tamper with the safety valves. The maximum pressure is factory
set, and clearly marked on the compressor.
7. DO NOT operate in wet or damp conditions. Keep the compressor dry at all times.
Similarly, clean air will allow the compressor to work efficiently. Do not use in dusty or
otherwise dirty locations.
8. Some of the metal parts can become quite hot during operation. Do not to touch
these until the compressor has cooled down.
9. Always set the pressure regulator to the recommended setting for the tool.
10. When spraying flammable materials e.g. cellulose paint, ensure that there is
sufficient airflow and keep clear of any source of ignition.
11. Before spraying any material always consult paint manufacturers instructions for
safety and usage.
12. Protect yourself. Goggles will protect your eyes from flying particles. Face masks will
protect you against paint spray and fumes.
13. Do not apply strain to electrical cables and make sure that air hoses are not kinked
or wrapped around the compressor.
14. When disconnecting air hoses or other equipment from your compressor, make sure
that the air supply is turned off at the outlet and vent all pressurised air from within
the reservoir and other equipment attached to it.
15. Make sure that children and animals are kept well away from the compressor and
any equipment attached to it.
16. Make sure that all individuals using the compressor have had the necessary training
and have read and fully understand these operating instructions.
17. Make sure that any equipment or tool used in conjunction with your compressor, has
a safe working pressure exceeding that of the compressor.
18. Be careful when transporting the compressor to prevent tipping over
19. Permanently installed systems must be installed by a competent engineer.
20. These compressors produce noise levels in excess of 70dB(A). Persons working near
the compressor must be supplied with ear protection.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

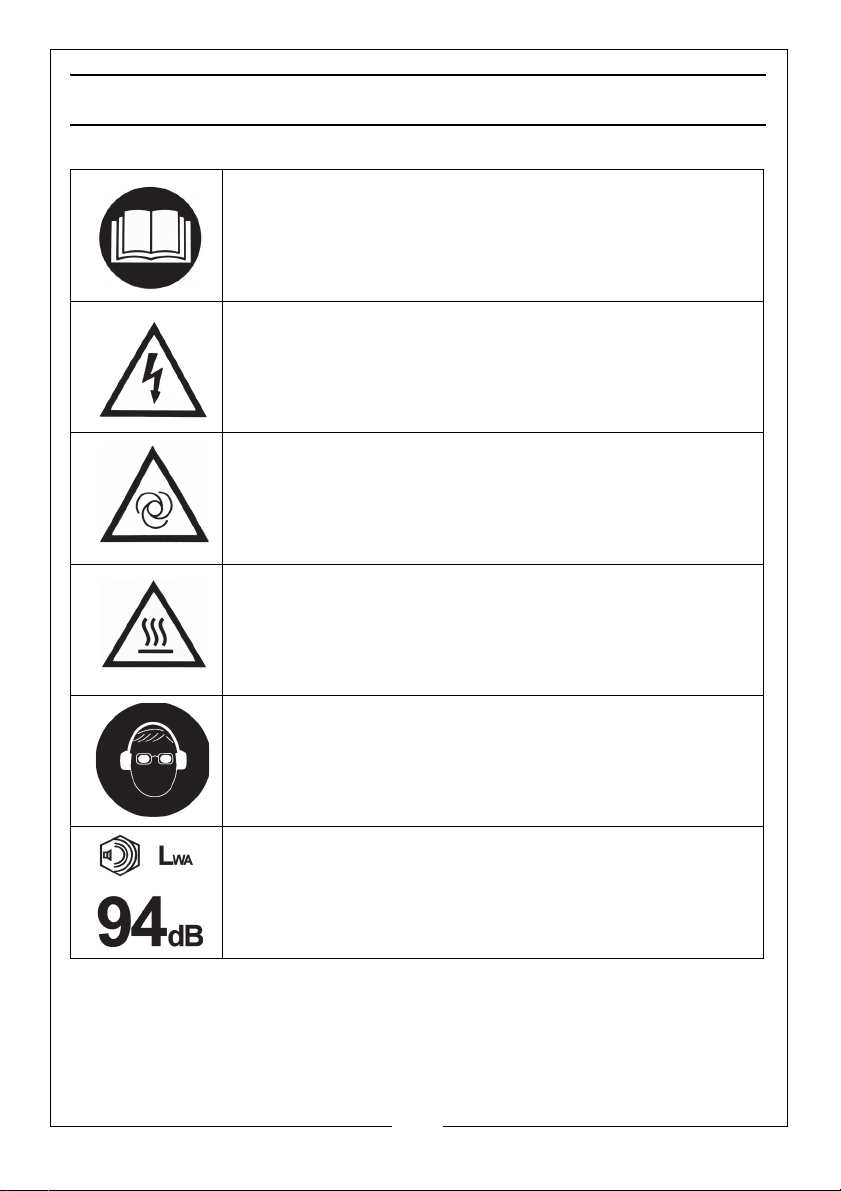

SAFETY SYMBOLS
Read this instruction booklet carefully before positioning,
operating or adjusting the compressor.
Risk of electric shock. The compressor must be
disconnected from the mains supply before removing any
covers. Do not use in a damp environment.
Risk of accidental start-up. The compressor could start
automatically in the event of a power cut and subsequent
reset. Do not mover the compressor while it is connected
to the power source, or when the tank is filled with
compressed air.
This compressor contains surfaces which may reach a high
temperature during operation. Never operate with the
motor housing removed.
Wear safety goggles and ear protectors when using this
compressor.
This compressor produces a high sound level during
operation. Ear protection should be worn.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
ELECTRICAL CONNECTIONS
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
The power cable from the main supply must be large enough to carry the
starting and running load of the electric motor. This is particularly relevant if the
compressor is some distance from the source of supply.
Electrical installations should be completed by a qualified electrician.
Electrical connection to the mains supply must be via a suitably fused (see
table below) approved plug or isolator (allowing sufficient capacity for motor
starting). If using a circuit breaker, ensure it is motor rated and of sufficient size
to allow for motor starting.
Compressors should be connected to mains electricity supply via an earth
leakage protection device (RCD).
SUGGESTED FUSE RATINGS
MOTOR SIZE SINGLE PHASE
KW HP D.O.L. STAR DELTA
0.75 1.0 13 amp 10 amp
1.1 1.5 13/15 amp 10 amp
1.5 2.0 20 amp 10 amp
1.9 2.5 20 amp
2.2 3.0 30 amp 16 amp
3.0 4.0 40 amp 20 amp
4.0 5.5 50 amp 25 amp
5.5 7.5 30 amp
7.5 10.0 25 amp
11.0 15.0 30 amp
MOTOR D.O.L.
15.0 20.0 35 amp
THREE PHASE MOTORS 415V
5
Page 6

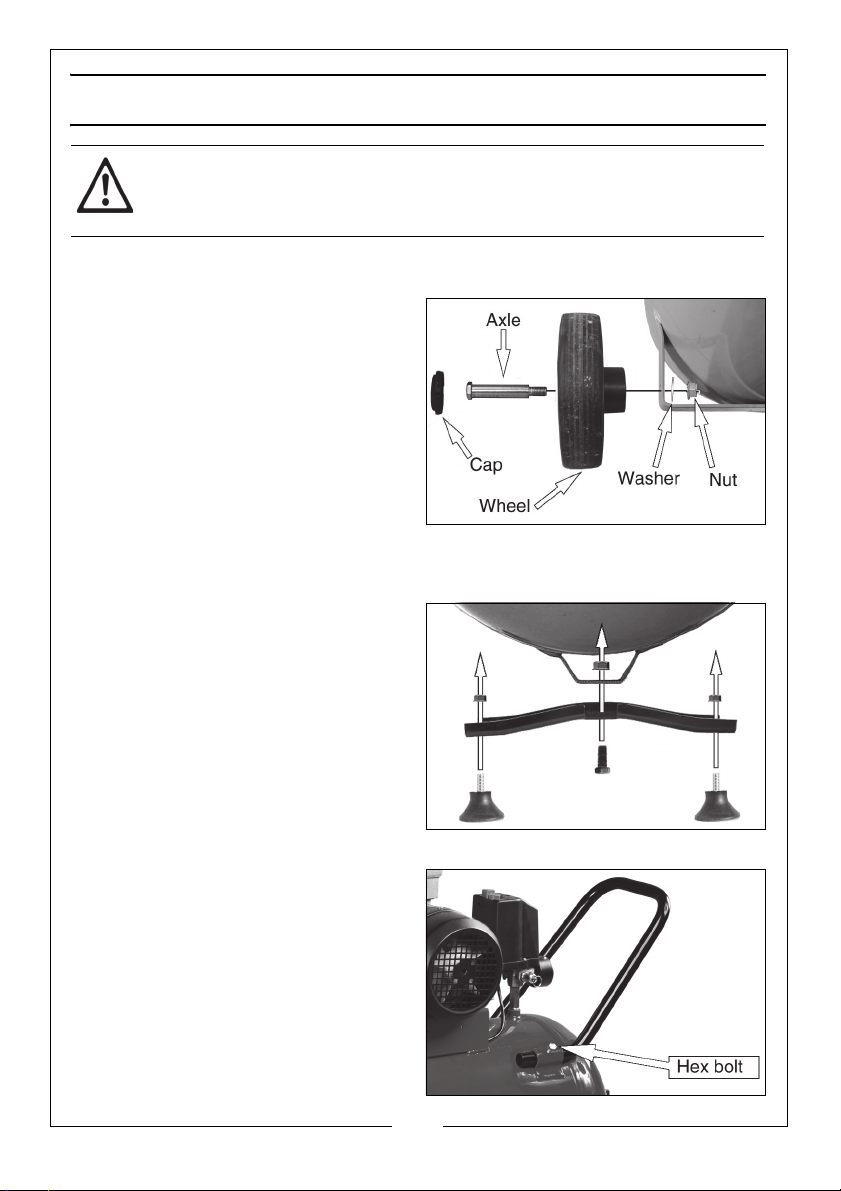

ASSEMBLY
CAUTION: TO PREVENT INJURY, GET ASSISTANCE WHEN LIFTING THIS
COMPRESSOR.
ATTACH THE WHEELS
1. Slide the axle through the wheel
and hole in the wheel frame.
• Use the same hole on each
side and make sure that the
machine is horizontal to the
floor.
2. Lock the wheel in place using the
washer and nut provided.
3. Fit the cap into the position
shown.
ATTACH THE SUPPORT FEET
Insert the support feet into the
position shown.
FIT THE HANDLE
4. Loosen the hex bolts and insert
the handle into the brackets as
shown.
5. Tighten the hex bolts.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
BEFORE USE
Before connecting your compressor to the power supply, check the following:-
• Push Down the OFF button
• Remove the protective plastic
moulding from the top of the
cylinder head.
• Make sure that the compressor
is on level ground.
• Make sure that the supply
voltage matches the voltage
shown on the data label.
CHECK THE OIL LEVEL

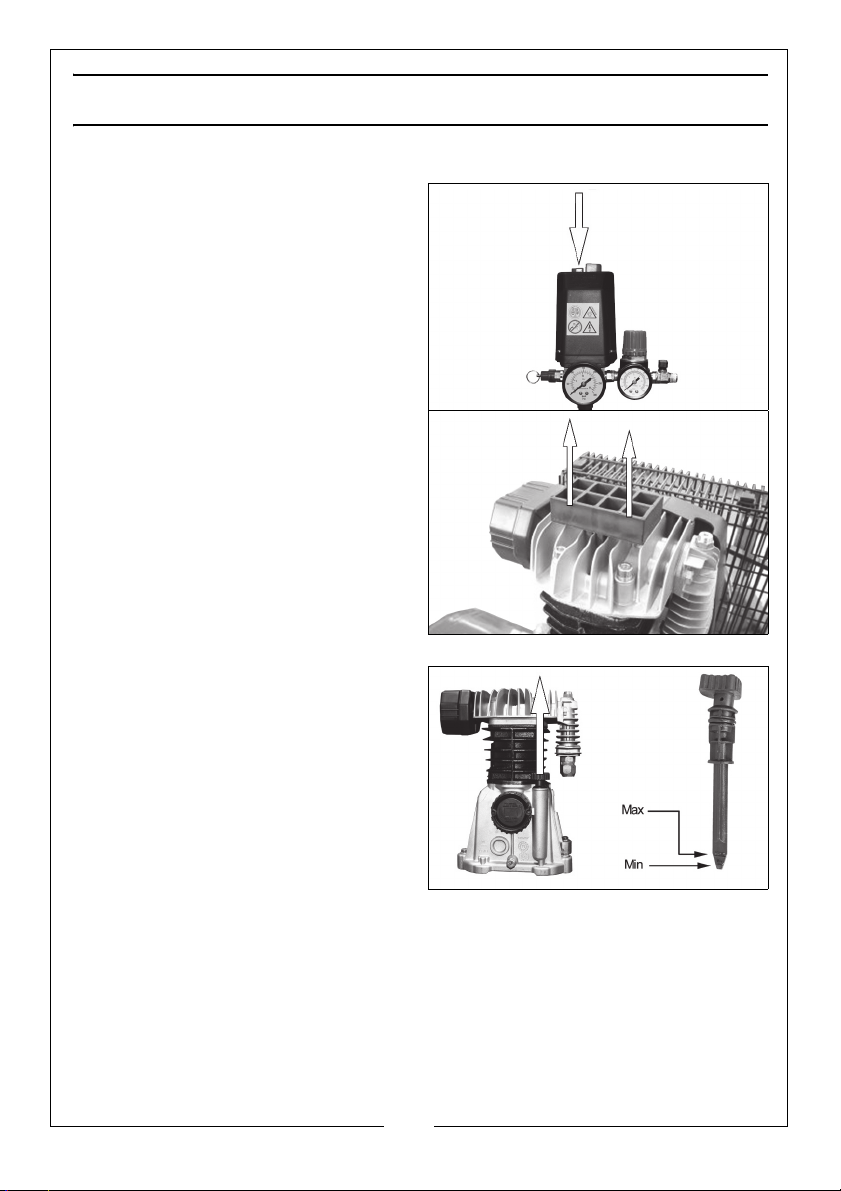

1. Remove the dipstick from the oil
reservoir.
2. Ensure the oil level is between the
min and max marks on the
dipstick.
• Only use SAE30 compressor oil,
available from your Clarke
dealer Part No. 3050801
• Take care not to exceed the
maximum mark.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
OPERATION
If the compressor has not been used for more then 24 hours, open the drain
valve (on the bottom of the reservoir) and drain any condensate which has
collected. See page 11
MOVING THE AIR COMPRESSOR
• Stop the compressor and disconnect it from the power supply
before you move it.
• Always use the handle.
• Do not lift by (or put strain on) valves or hoses.
ATTACHING AIR TOOLS
WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU
READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL, ALSO ENSURE THAT
THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE
SPECIFICATIONS.

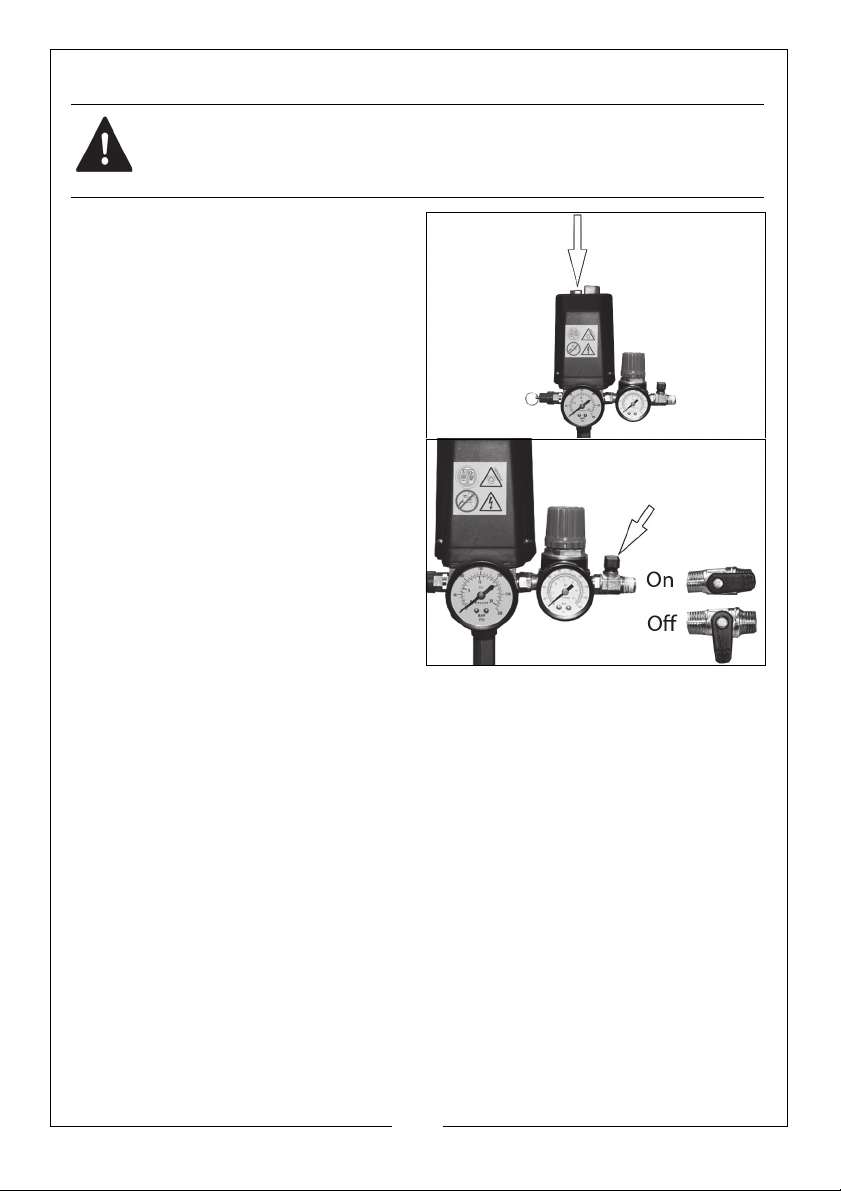

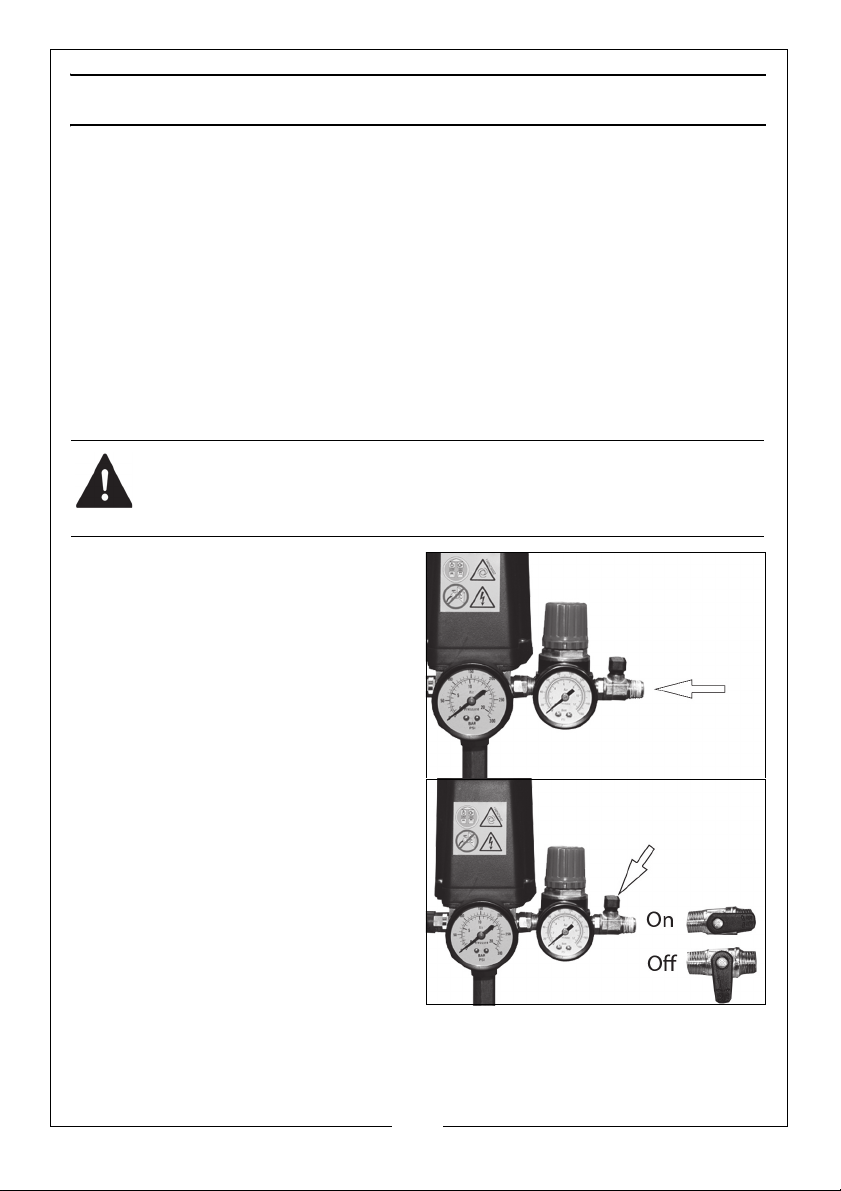

1. Attach the air hose to the outlet
valve.
2. Attach the air tool to the other
e
nd of the air hose.
Turn the outlet valve handle to the
3.
on position.
NOTE: The outlet valve is shown
without the air hose fitted for
clarity.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
TURNING THE COMPRESSOR ON
1. Plug the compressor into the power supply.
2.
Lift the On/Off button.
• The compressor will operate
until the reservoir is fully
pressurised. It will then shut
down.
• The compressor will start up
again when the pressure in the
reservoir decreases.
CHECK THE SAFETY VALVE
To make sure that the safety valve works correctly.
1.
Pull on the ring attached.
• Air will be released when you
pull on the ring and
released.
2. If the valve does not operate in
this way, do not use the
compressor. The compressor must
be repaired by a qualified service
agent.
stop when
WARNING: DO NOT REMOVE OR TRY TO ADJUST THE SAFETY VALVE.
SET THE OUTLET PRESSURE

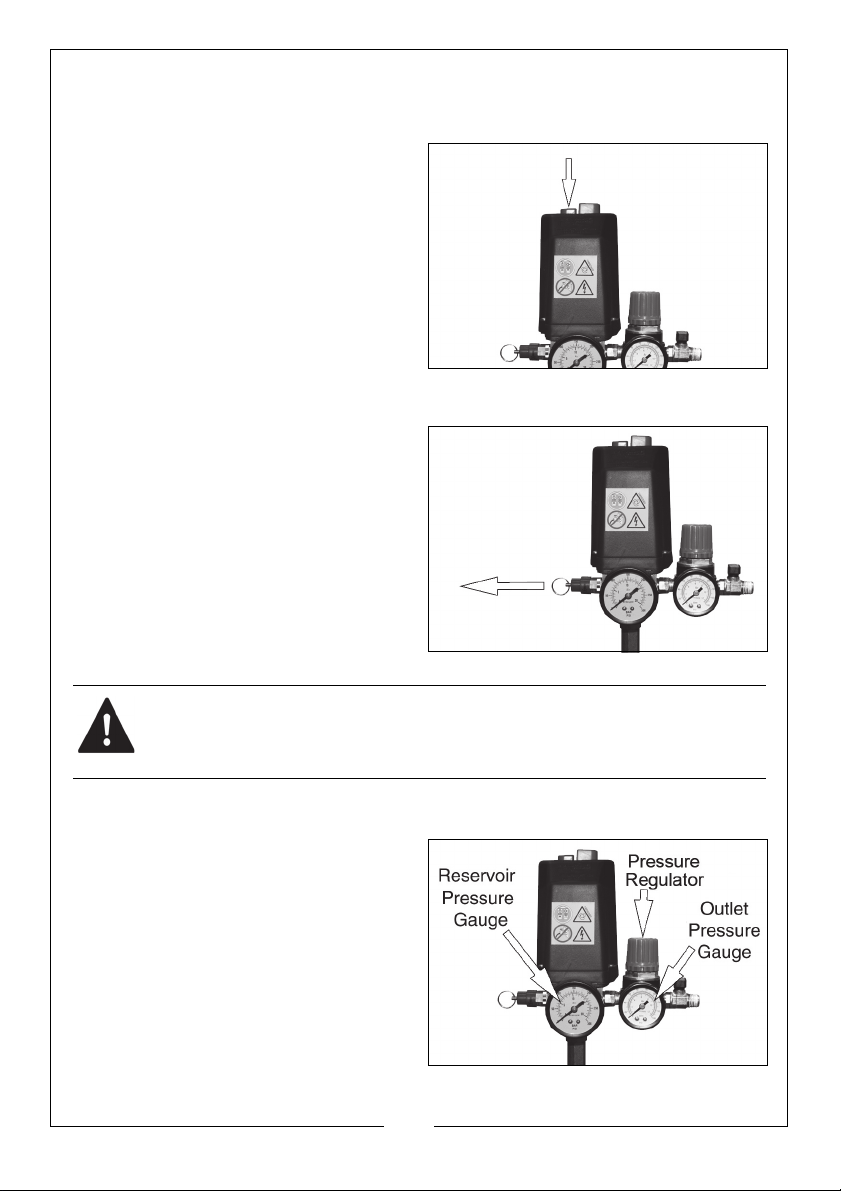

1. Use the pressure regulator to set
the outlet pressure.
• Turn clockwise to increase the
pressure.
• Turn counterclockwise to
decrease the pressure.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
REMOVING TOOLS FROM THE AIR HOSE
WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU
REMOVE OR REPLACE A TOOL.
1. Push down on the On/Off button
to stop the compressor.
2. Turn the outlet valve handle to the
off position.
3. Operate the tool to depressurise
th
e air hose.
4. Disconnect the tool from the hose.
TURNING THE COMPRESSOR OFF
1. Follow steps 1-3 in “Removing Tools From The Air Hose” above.
2. Disconnect the compressor from the power supply.
3. Slowly open the outlet valve to
• You will hear a hissing sound as the reservoir depressurises.
4. Do not leave the compressor unattended
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
depressurise the reservoir.
if the reservoir is pressurised.
10
Page 11
DRAINING THE RESERVOIR
CAUTION: YOU MUST DRAIN THE RESERVOIR AFTER EACH DAYS USE AND
BEFORE YOU PUT YOUR COMPRESSOR INTO STORAGE.
1. Turn the compressor off and disconnect from the power supply.
2. Put a container below the drain valve to collect the condensate.
• The drain valve is located on the bottom of the reservoir
3. Open the drain valve slowly.
• Condensation will drain from the reservoir.
4. Close the drain valve when the reservoir has fully drained.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
MAINTENANCE
DRAIN THE RESERVOIR (DAILY)
After use, always open the drain valve to make sure that any condensate is
drained off.
CHECK OIL (DAILY)
Ensure the oil level is between the min and max marks on the dipstick. See
“Check the Oil level” on page 7 and top-up if necessary - (use Clarke SAE 30
compressor oil, available from your local dealer).

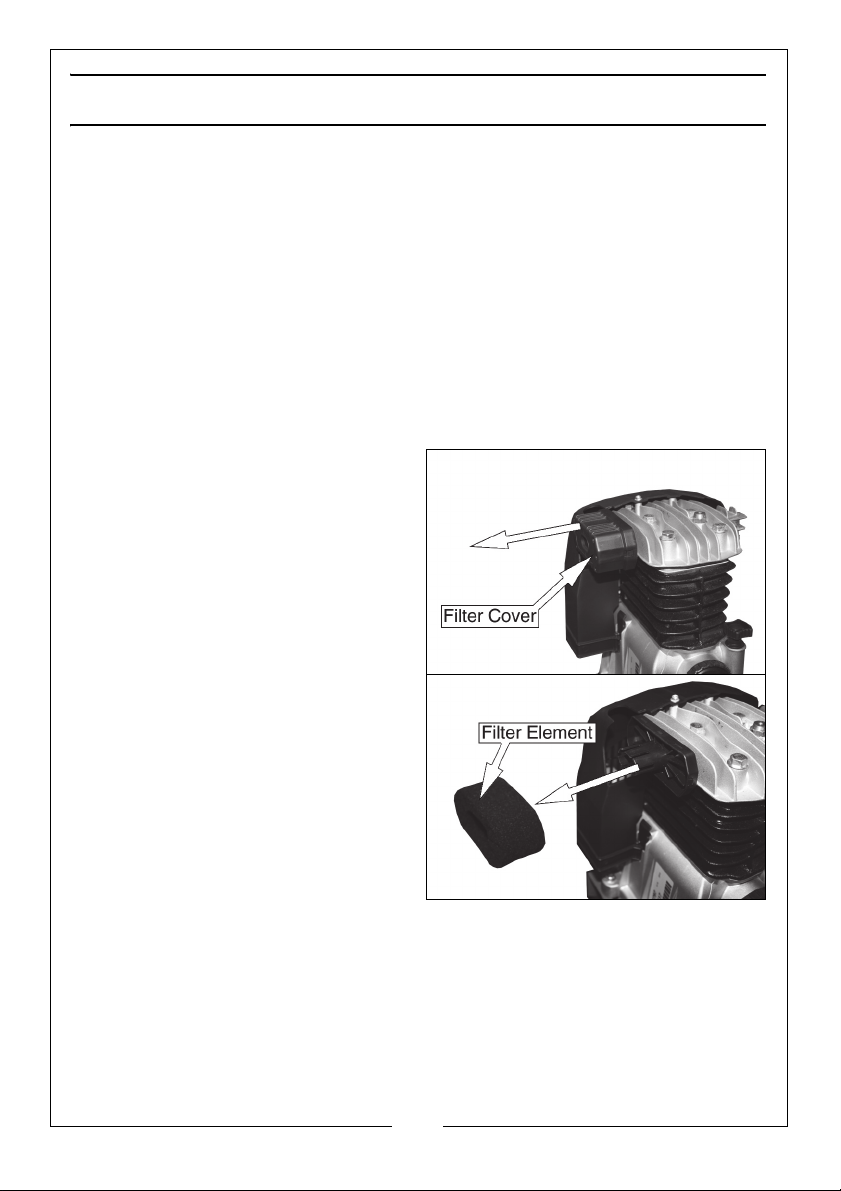

CLEAN THE AIR FILTER (MONTHLY)
The air filter must be examined monthly, more often in dusty conditions,
1. Pull the filter cover away from the
compressor
2. Pull out the filter element.
3. Clean the filter using a soft brush.
• If necessary, the filter can be
car
efully cleaned in warm
soapy water.
• Rinse and let the filter dry
completely before refitting.
• If the filter or filter element is
damaged, you must replace it.
4. Reassembly the filter and replace it o
bolt.
nto the compressor using the securing
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
REPLACING THE OIL
After the first 100 hours use, replace
the oil using Clarke SAE30 compressor
oil. Then replace the oil after every
500 hours of operation or every 6
months.
To empty the oil from the machine,
remove the oil drain plug from the
crankcase cover.

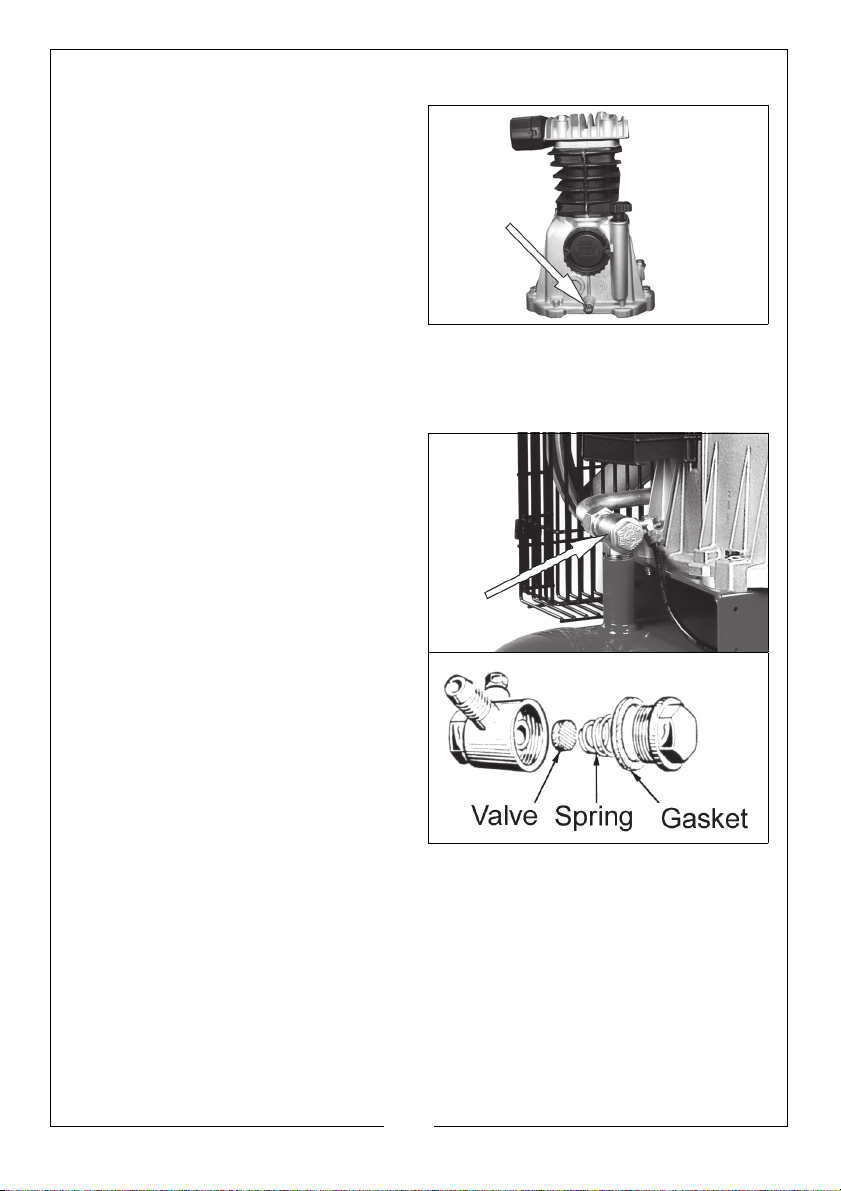

CHECK THE NON-RETURN VALVE (EVERY 6 MONTHS)
If the reservoir pressure decreases for no apparent reason, it is possible that the
non-return valve is leaking. To check,
1. Make sure that the reservoir is not
under pressure and the
compressor is switched OFF.
2. Examine the non-return valve,
and replace the gasket and valve
if nece
ssary.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
REPLACING THE DRIVE BELT

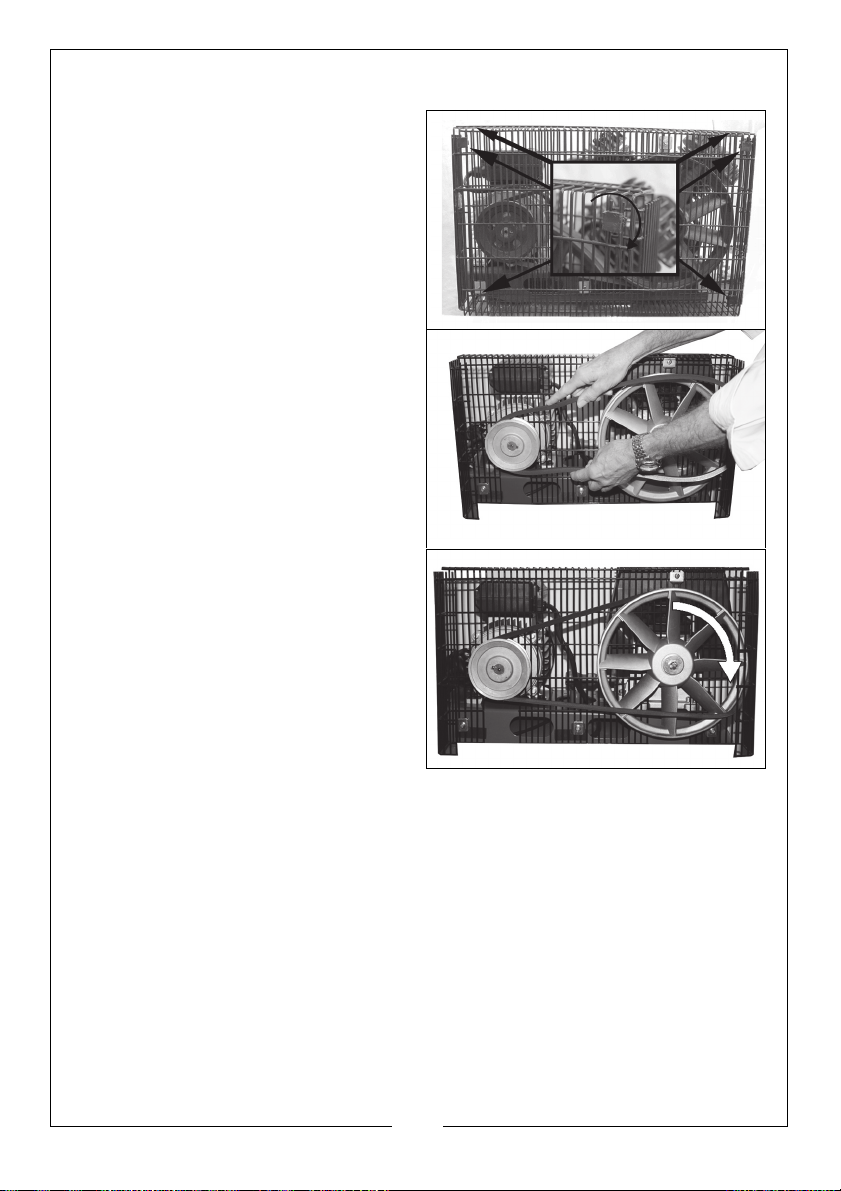

1. Rotate the clips shown 90
degrees.
2. Remove the front of the cage
and take out the worn or broken
drive belt.
Place the new drive belt over the
3.
small pully.
Position part of the drive belt over
4.
the large belt pulley as shown.
5. Rotate the large pulley by hand in
a clockwise direction whilst
guiding the belt on to the large
pulley.
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
SPECIFICATIONS
MODEL
Part Number 2245025
Max Pressure 10 Bar
Vo lt ag e 400 VAC (50/60Hz)
Air Displacement 9 CFM
Receiver Capacity 100 L
Dimensions (L x W x H) 1070 x 450 x 770 mm
Guaranteed Sound Power Level 94 dB(A)
Weight 64.5 kg
RACER 9/100P (3PH)
Please note that the details and specifications contained herein, are correct at
the time of going to print. We reserve the right to change specifications at any
time without prior notice.
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
TROUBLESHOOTING
CAUTION: DO NOT TRY TO REPAIR OR ADJUST THIS COMPRESSOR IF YOU
ARE UNCERTAIN. IF YOU HAVE ANY QUERIES, CONTACT YOUR DEALER.
PROBLEM PROBABLE CAUSE REMEDY
The compressor
has stoppe
does not start.
The compressor
do
es not reach
the set pressure
and overheats
easily.
Compressor does
t start.
no
Air leaking from
non-return
the
valve when the
compressor is not
running.
Air pressure from
the re
not adjust.
The compressor is
ver
y noisy and
makes a metallic
knocking sound.
d and
gulator will
Bad electrical connections. 1. Check electrical connections.
2. Clean and tighten if necessary.
Overload cutout switch has
trippe
d.
Motor windings burnt out. 1. Contact your Clarke dealer for
Compressor head gasket
blown or valve br
The reservoir has already fully
pressurised.
Faulty non-return valve. 1. Drain receiver completely of
The diaphragm within the
regulator bod
Compressor damaged and
eeds overhaul.
n
oken.
y is broken.
1. Switch off and wait approx 5
minutes.
a replacemen
1. Return the machine to your
nearest service agent.
1. Open drain valve to expel air.
Compressor should start again
when pressure reduces.
air
2. Remove the valve end plug,
3. Carefully clean the valve seat
an
4. Reassemble.
1. Replace regulator
1. Return the machine to your
nearest service agent.
t motor.
.
d the gasket
16
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 17
Page 18

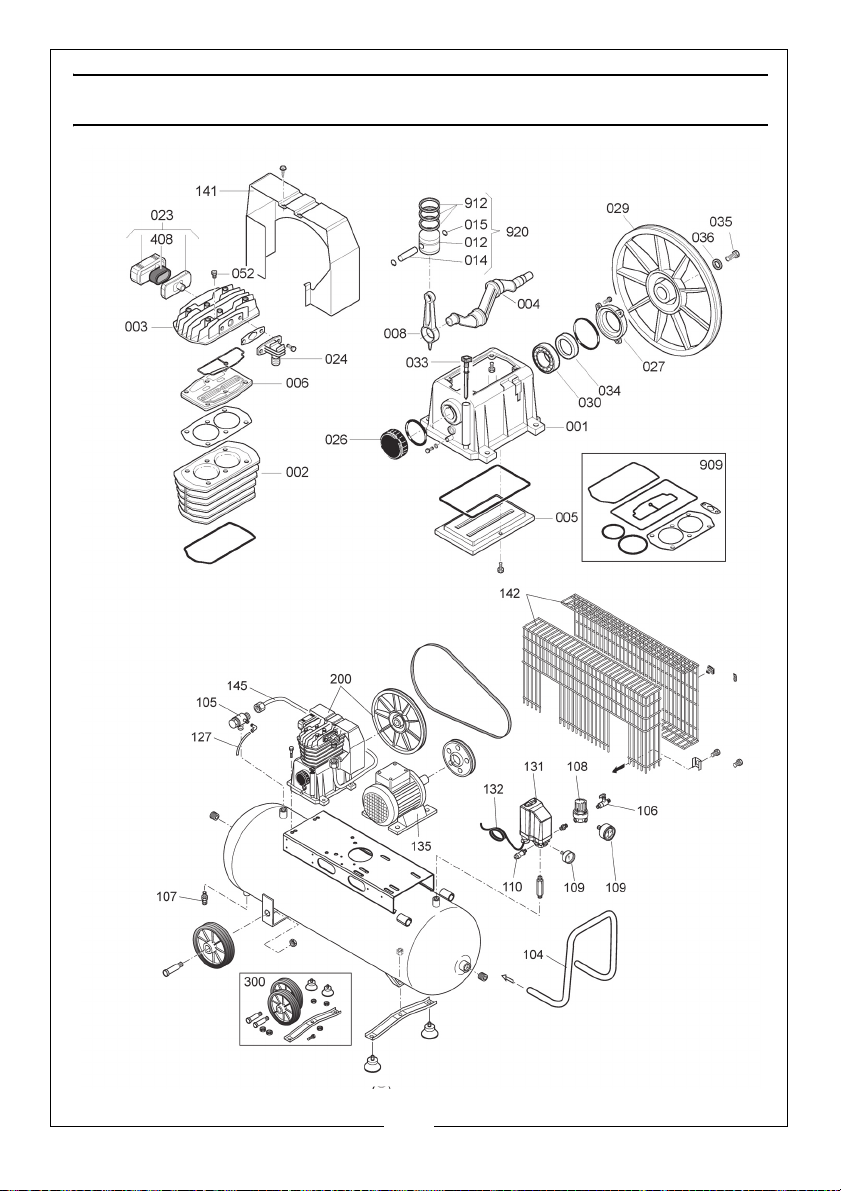

PARTS LIST
NO DESCRIPTION PAR T NO
1 CRANKCASE FN4105267
2 CYLINDER FN4105275
3 HEAD FN4105259
4 CRANKSHAFT FN4105269
5 LOWER COVER FN4105257
6 KIT VALVE HOLDER FN4105292
8 CONROD FN4105262
23 KIT INT.FILTER FN4105291
24 AFTERCOOLER FN4105230
26 END COVER FN4105254
27 FRONT SUPPORT FN4105253
29 FLYWHEEL FN4105228
30 BEARING FN9170116
33 DIPSTICK ASSEMBLY FN4105289
34 GASKET FN9163010
35 SCREW FN4105231
36 WAS HER FN4105234
52 COLD START VALVE FN4101047
141 SHROUD FN4105261
909 GASKET KIT FN4105851
912 PISTON RING KIT FN4105287
920 PISTON KIT FN416025017
104 HANDLE FN9083711
105 NON RETURN VALVE FN9048052
106 TAP BALL VALVE FN9047077
107 DRAIN.VALVE FN9053063
108 PRESSURE REDUCER FN9051116
109 GAUGE 50 FN9052013
109 GAUGE 40 FN9052019
110 SAFETY VALVE FN9049019
127 RILSAN PIPE FN9270006
131 PRESS SWITCH +
ST
ARTER
FN9063146
NO DESCRIPTION PART NO
132 CORD FN9065001
135 MOTOR FN844S000
142 BELT GUARD FN9416978
145 SEND PIPE FN4101150
200 PUMP FN41P0017SGL
300 KIT WHEELS FN41K0057
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19

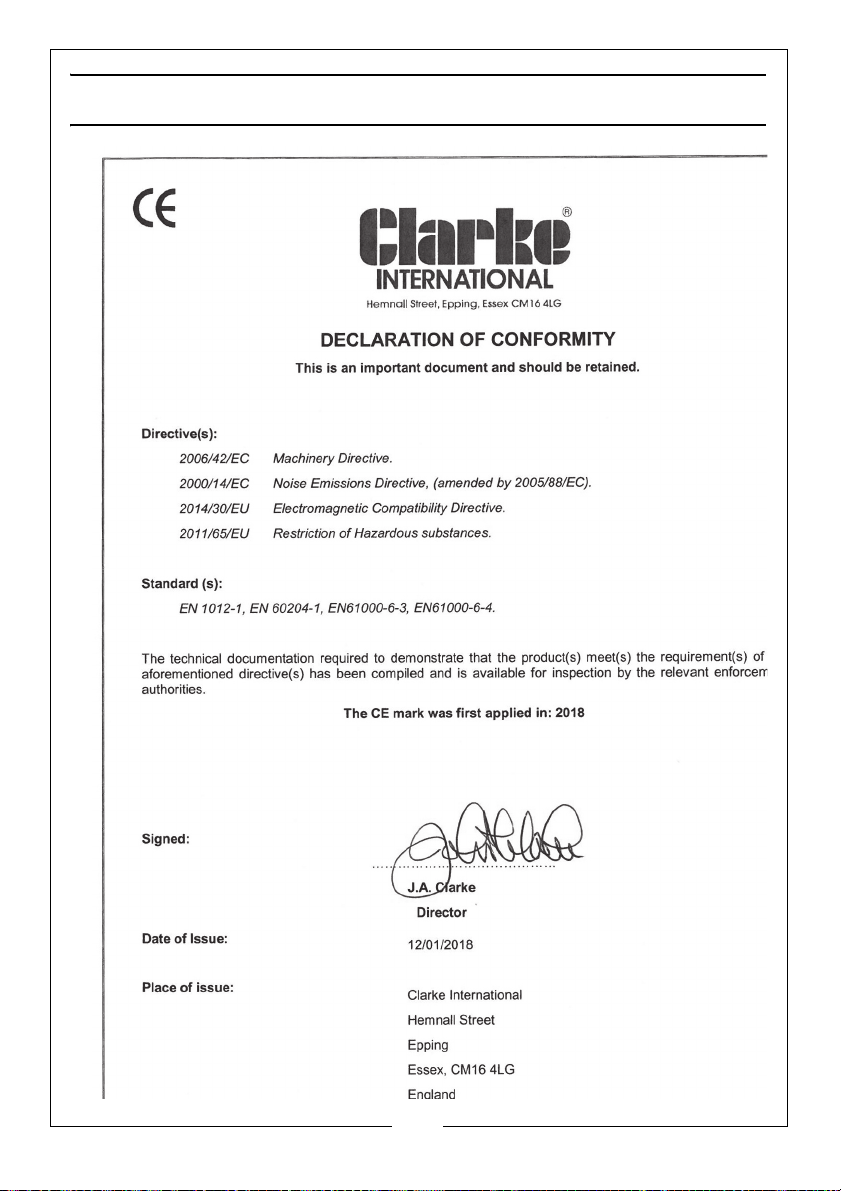

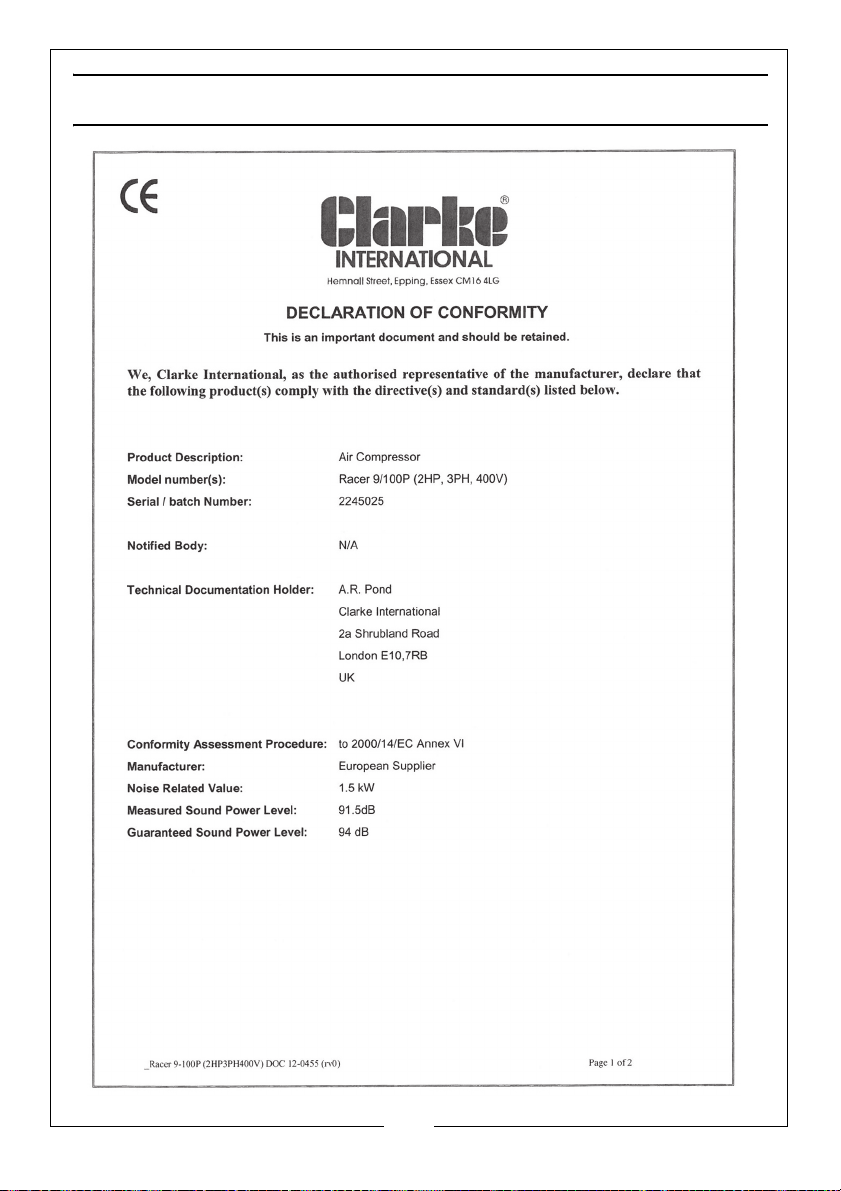

DECLARATION OF CONFORMITY
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20
DECLARATION OF CONFORMITY
20
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 21

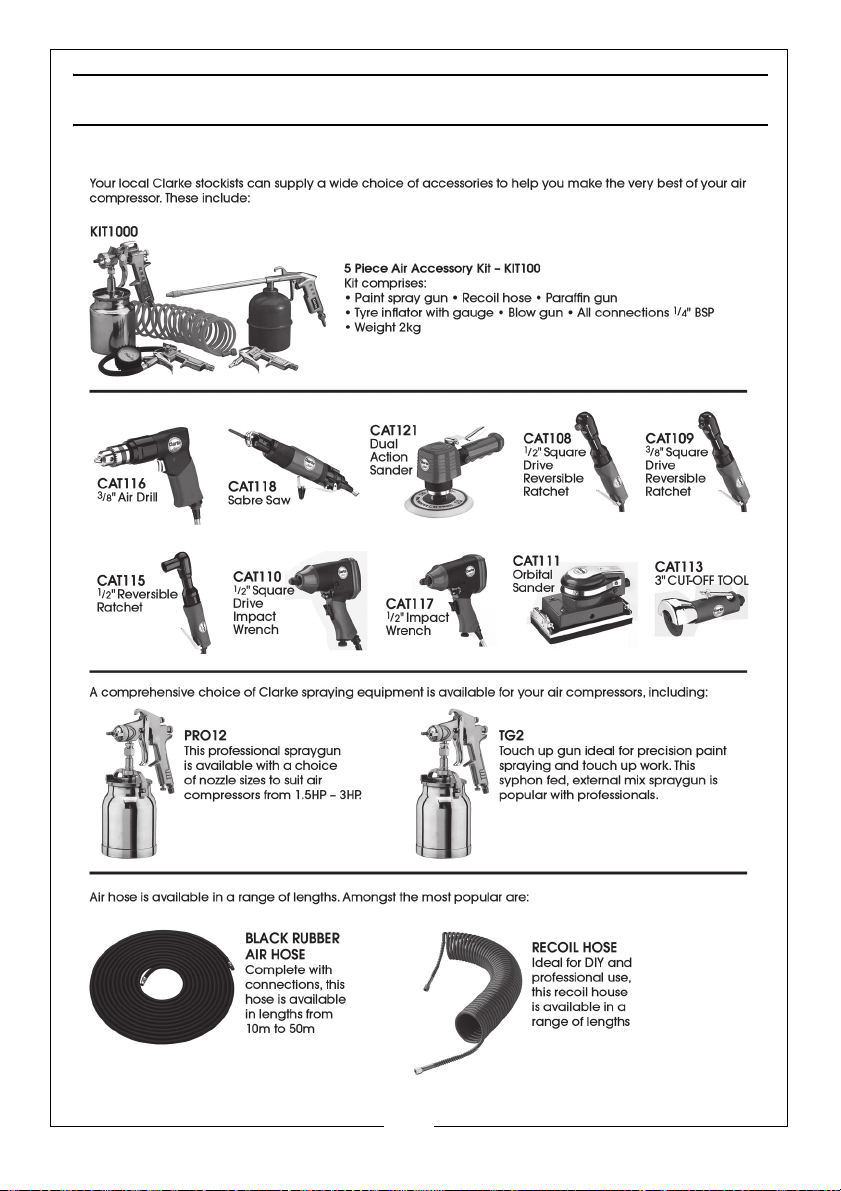

POPULAR ACCESSORIES
21
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 22
Page 23
Page 24
Loading...
