Clarion TVS5091 User Manual

TVS5091

5” LCD

Color TV

OWNER’S MANUAL

INTRODUCTION

The Clarion TVS5091 is a full-featured 5" LCD Color TV. It can be used as a
stand-alone unit or integrated into a mobile multimedia system.

ABOUT THE MANUAL AND WARRANTY

To start enjoying your new Clarion TVS5091, please read the instructions listed
in this manual. Keep all instructions for future reference. Please fill out and
send in the enclosed warranty card to protect your purchase and aid in warranty
service. Also, save your original sales receipt as proof of purchase.

TABLE OF CONTENTS

Precautions • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 2
Package Contents • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 3
Button Locations • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 4

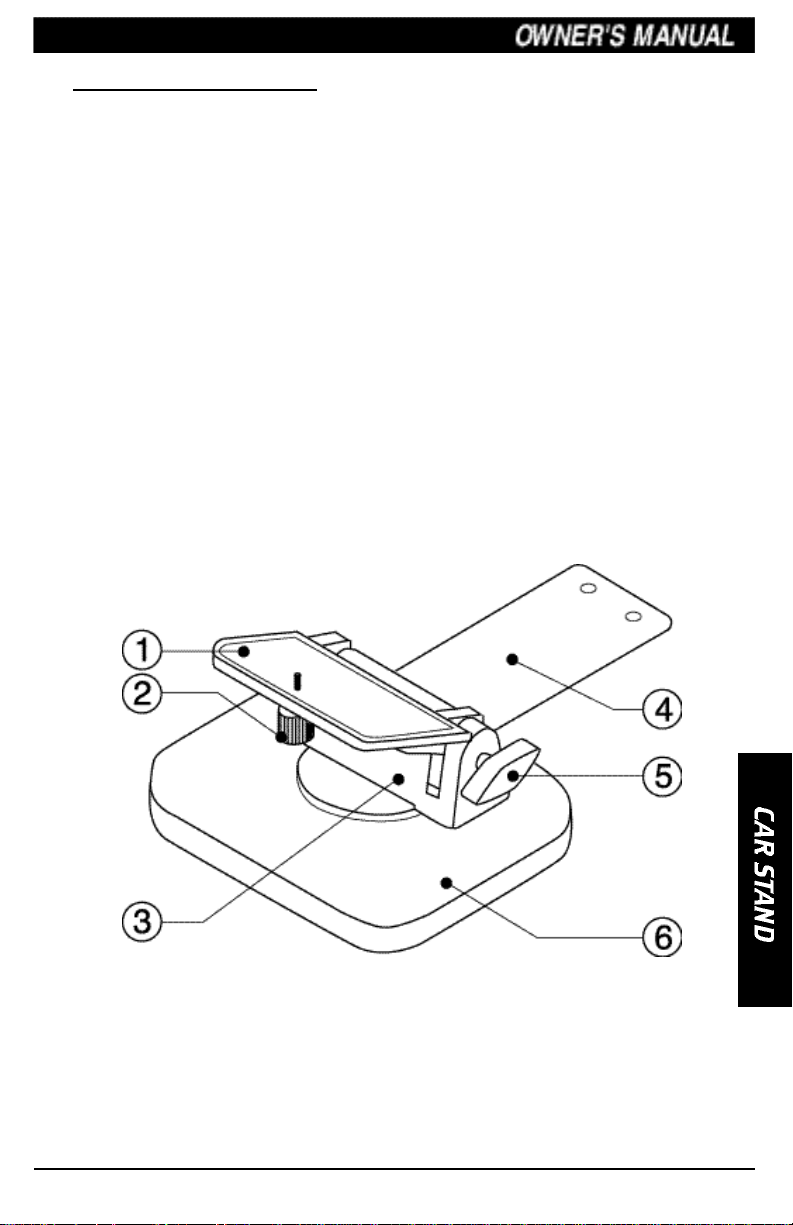

Car Stand Installation • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 5
Remote Control Battery Installation • • • • • • • • • • • • • • • • • • • • • 6
Installation • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 6
TV Operation • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 6

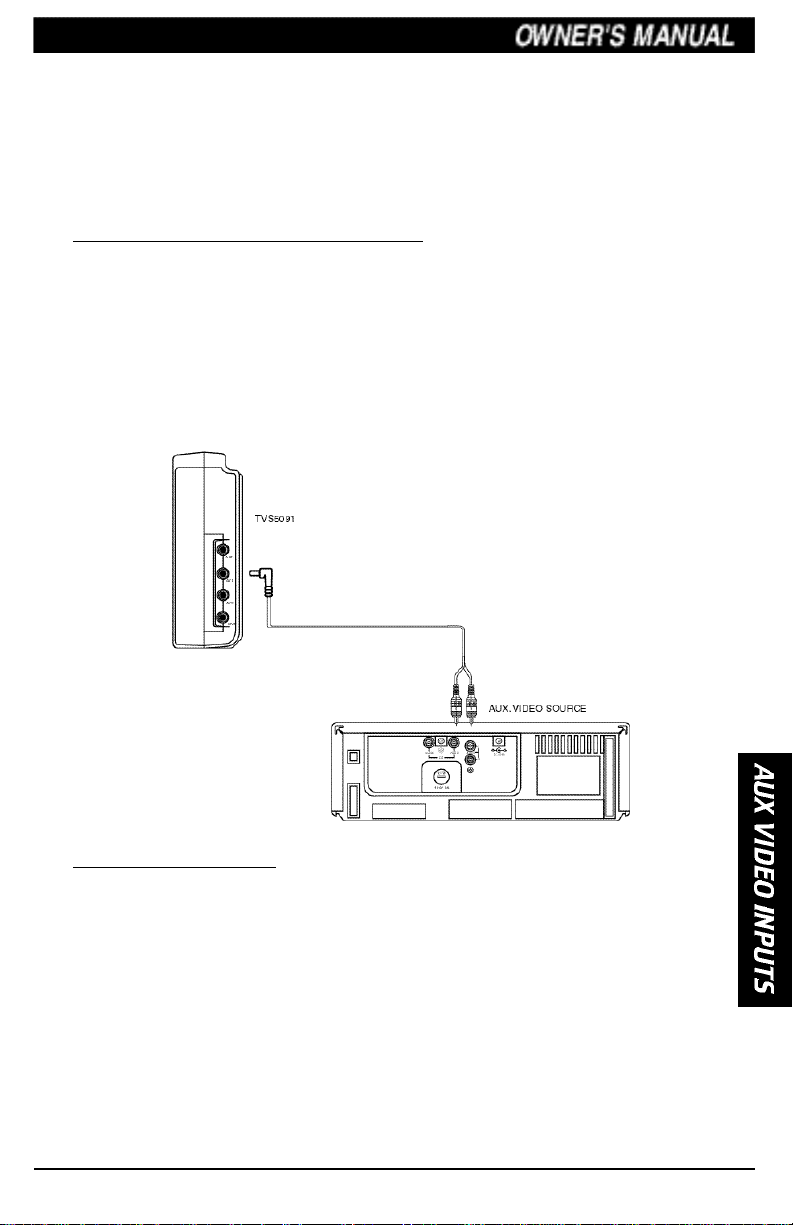

Auxiliary Video Inputs Operation • • • • • • • • • • • • • • • • • • • • • • 7
Picture Adjustment • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 7
Audio Adjustment • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 8
FM Transmitter • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 8
Care and Maintenance • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 8
Troubleshooting • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 8
Product Specs • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 10
Notes • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 10

PRECAUTIONS

• This set is for use in DC 12V, negative ground vehicles.

• Do not operate the set in ways other than described in this guide. Doing so

may damage it and may void your warranty.

• SAFETY FIRST! For rear seat use only. Do not install on dashboard or

anywhere else that would permit monitor to be viewed by the driver.
Monitor must not be located in the motor vehicle at any point forward of
the back of the front seats. Monitor must never be used in any manner that
will distract driver or interfere with driver’s safe operation of the motor
vehicle.

• Be careful not to run down the car battery while using the set with the car

stopped.

2

• Do not disassemble or modify the set. Doing so may damage it and voids

your warranty.

•. Keep drinks and drops from umbrellas away from the set. Water may

damage the internal circuitry

• Do not let lit cigarettes or other hot objects touch the set. Doing so may

damage or deform the cabinet.

• Do not let the set become hot. If temperature in the car is high or the set has

been exposed to direct sunlight and is hot, lower the temperature before
using it. (The liquid crystal panel will work properly within a temperature
range of 30 – 113 degrees F.)

• In extremely cold temperatures, the movement of the picture may be slow

and the picture may be dark, but this is not a malfunction. The set will work
normally once the temperature increases.

• Small black and shiny dots inside the liquid crystal panel are normal for

liquid crystal products.

PACKAGE CONTENTS

The Clarion TVS5091 comes with the following items:

• IR Remote Control

• Car Stand

• A/V Input Cord

• Power Cord

• AC Power Adapter

Available Options:

• Additional A/V Input Cord for second A/V Input (AV100)

• Additional Car Mount Antenna for optimum TV reception (ZCB003)

3

BUTTON LOCATIONS

1 Power ON/OFF Switch
2 DC Power Connector
3 Diversity Input (Future Use)
4 Internal Speaker
5 FM Transmit Switch
6 IR Remote Sensor
7 Stand-By Indicator
8 Rod Antenna
9 Power Button

0 Auto Program Button
q Input Selection Button
w Picture Selection Button
e Volume Up/Down Buttons
r Channel Up/Down Buttons
t Optional Antenna Input Connector
y AV1 Input Connector
u AV2 Input Connector
i Earphone Connector

1 Number Pad
2 Skip
3 Erase/Write
4 Volume Up
5 Volume Down
6 TV/Video
7 Power
8 Channel Up
9 Mute
0 Channel Down
q Picture Select
w Auto Memory
e TV/CATV

4
