SIRCR
Vehicle Installation Kit
Vehicle Installation Guide
Sirius_Shuttle_Vehicle_Installation.book Page 1 Friday, March 12, 2004 4:56 PM
Sirius_Shuttle_Vehicle_Installation.book Page 2 Friday, March 12, 2004 4:56 PM
SIRCR
1
Dear Customer
Congratulations on your purchase of the world’s
finest brand in the electronic industry. At Clarion we
are committed to high-quality sound reproduction,
and are confident that you will be pleased with your
purchase.
Clarion’s Sirius Satellite Plug and Play Receiver
provides entertainment with the flexibility of both
home and car use.
100 streams (channels) of original programming
received in high-quality digital sound provide:
• 60 channels of commercial-free music
• 40 channels of news, sports and entertainment
This SIRCR Vehicle Installation Kit contains the
antenna and power adapter required to provide
satellite radio in your automobile. The antenna
connects to the Plug and Play receiver cradle.
When not traveling by car, you can disconnect the
Plug and Play receiver from its vehicle cradle and
connect it to the cradle at home (using the optional
SIRHM Home Installation Kit)
Clarion and Sirius Satellite Radio welcome you to an
experience like no other.
To learn more about Clarion’s complete line of audio
products, please visit us at our Website:
www.clarion.com
Sirius_Shuttle_Vehicle_Installation.book Page 1 Friday, March 12, 2004 4:56 PM
Vehicle Installation Guide
2
Vehicle Precautions
Follow these precautions to avoid serious auto
accident or personal injury:
• Do not mount the Plug and Play receiver where
it will block your view through the windshield or
your view of dashboard indicators and displays.
• Do not mount the Plug and Play receiver where
it might obstruct the operation of a safety
device, such as air bags, etc.
• Do not let the receiver distract you as you drive.
You are responsible for the vehicle. Always
drive safely and follow traffic rules.
FCC Notice
This receiver complies with the interference limits
relative to a Class B digital device, applicable under
Part 15 of the FCC Rules regarding installation in a
residential environment. If the receiver is not
installed in accordance with these instructions, it
could cause harmful interference to radio or
television reception. If this condition persists after
corrective action, consult your dealer or experienced
installation facility.
Copyright and Trademarks
This document is copyrighted by Clarion. You may
not copy any portion of it without permission.
SIRIUS is a registered trademark of SIRIUS
Satellite Radio.
Sirius_Shuttle_Vehicle_Installation.book Page 2 Friday, March 12, 2004 4:56 PM
SIRCR
3
Contents
Installation cautions ................................ 5
Listening options ..................................... 6
Connecting using an audio cable ............... 6
Connecting using FM transmission ............. 7
Install the cradle ....................................... 7
Install the cradle in the base ....................... 9
Using other manufacturer’s mounts .......... 10
Install the receiver .................................. 10
Removing the receiver ........................... 11
Mount the antenna ................................. 11
Determine the best position ......................11
Route the cable .........................................12
Limited warranty information ................ 15
Sirius_Shuttle_Vehicle_Installation.book Page 3 Friday, March 12, 2004 4:56 PM
Vehicle Installation Guide
4
In addition to this manual, this kit includes the following:
1. Package contents
Car antenna
Power adapter
Audio cable
4 Phillips machine
screws (M4 x 8 mm)
4 split lock washers (M4) 4 flat washers (M4) 1 alcohol swab
Cradle installed on base
Sirius_Shuttle_Vehicle_Installation.book Page 4 Friday, March 12, 2004 4:56 PM
SIRCR
5
• To prevent a short-circuit, turn off the ignition
and remove the negative (-) battery cable
before starting to install. Connect the power
wires last.
• Do not install the receiver where it will receive
direct sunlight or be subject to extreme
temperatures.
• Mount the receiver firmly in place using the
hardware supplied. Incorrect installation may
cause damage to the system.
2. Installation cautions
• Do not damage the vehicle wiring.
• Use the supplied screws and washers.
• Do not snag any wires when tightening the
screws.
In addition to the components in the kit, you will
need a dry, clean, lint-free cloth. If it’s cold outside
you may also need a hair dryer to warm the
adhesive backing on the mounting base.
Sirius_Shuttle_Vehicle_Installation.book Page 5 Friday, March 12, 2004 4:56 PM
Vehicle Installation Guide
6
If you are uncomfortable installing
components in your car, enlist the
help of a professional installer.
The Plug and Play receiver and cradle provide an
audio output signal that you may connect:
• Directly using the audio cable supplied.
The audio signal travels from the cradle to the
auxiliary inputs of a radio or other system.
• Wirelessly using the Plug and Play receiver’s
FM Transmitter feature.
The satellite radio plays through your car radio
when the radio is tuned to one of ten FM
frequencies.
3. Listening options
Note
Connecting using an audio cable
To use the wireless connection, do
not connect the audio cable.
Use an audio cable when connecting to
entertainment systems other than a radio.
Audio cable connections
Note
Power adapter
Audio cable
Car antenna
Left side
of cradle
Sirius_Shuttle_Vehicle_Installation.book Page 6 Friday, March 12, 2004 4:56 PM
SIRCR
7

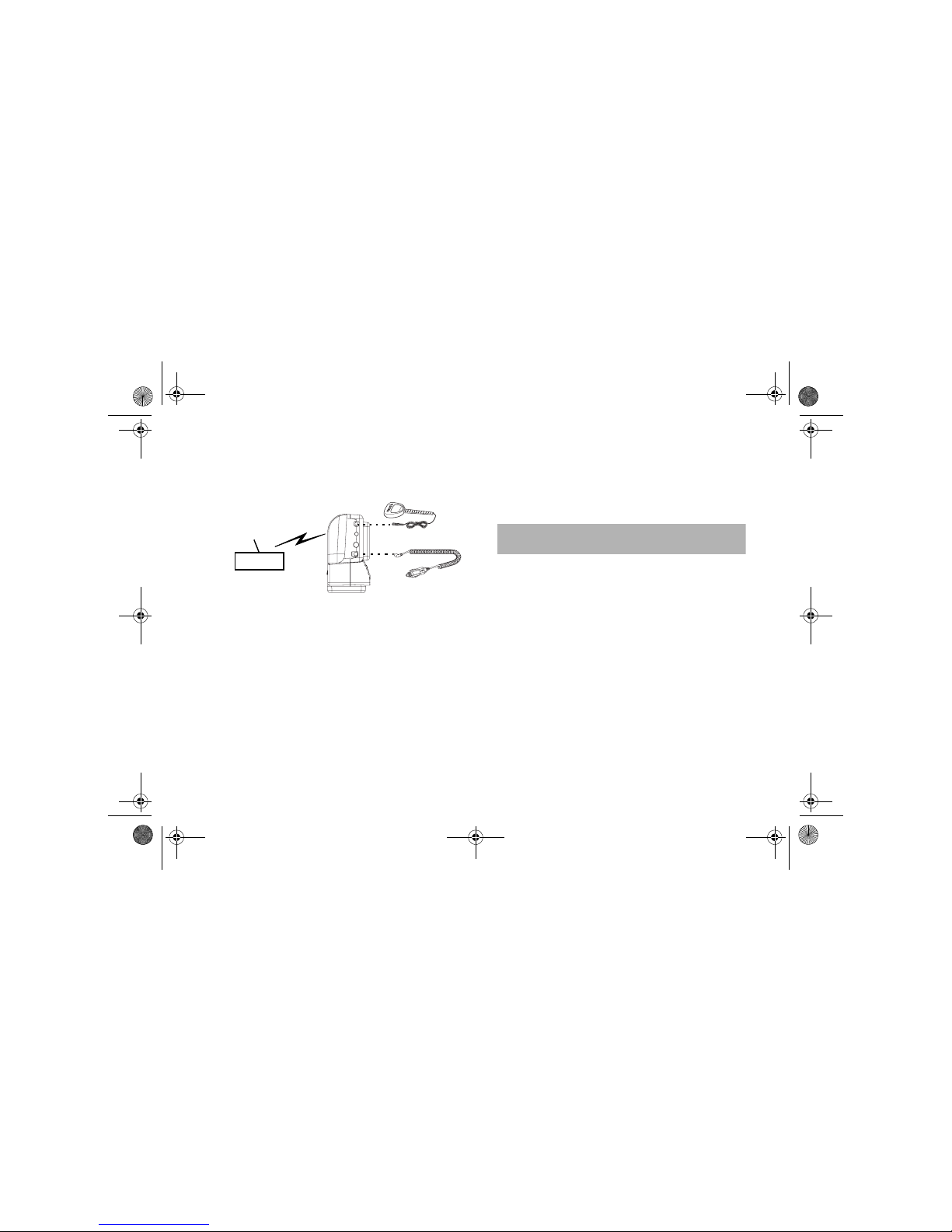

Connecting using FM transmission
Wireless connection
The cradle supports ten FM transmission
frequencies.
1. Turn the Plug and Play receiver on.
2. Confirm that the FM Transmitter option is set to
FM ON. This is the default setting.
3. Select a frequency on the Plug and Play
receiver using the FM Transmitter option.
Vehicle FM radio
Power adapter
Vehicle
radio
antenna
Left side
of cradle
Car antenna
For more information, see the Plug and Play
Receiver User’s Guide.
4. Set your car radio to the same frequency.
You can mount the cradle directly to the dashboard
or another flat surface or you may mount it using the
mounting base in this kit.
1. Locate a firm, reasonably flat surface within
your vehicle to permit optimum viewing and
line-of-sight access by the supplied remote
control.
4. Install the cradle
Sirius_Shuttle_Vehicle_Installation.book Page 7 Friday, March 12, 2004 4:56 PM
Vehicle Installation Guide
8
Do not install the cradle or mounting
base on a leather or fabric surface, or
in a position that could impair your
vision, block air bags or obstruct
vehicle dashboard controls, including
radio CD/cassette operational
displays.
Be very careful and plan ahead when selecting
the mounting location. If you use the adhesive
backing on the base you won’t be able to
reposition the receiver once you mate the
backing to the mounting surface.
To screw the base to the surface, avoid
unintentional damage by making sure the area
behind the mounting surface is clear of wires or
other items.
Caution
The fins on the mounting base are
pliable and can be bent to conform to
most mounting surfaces.
2. Using the alcohol swab, clean the mounting
surface and thoroughly wipe the area dry with a
clean, lint-free cloth.
3. Decide how to mount the cradle. Your choices
are:
• Install the cradle in the mounting base and
use the adhesive backing to fix the mounting
base to the mounting surface.
• Install the cradle in the mounting base and
use screws to fix the base to the mounting
surface.
Note
Sirius_Shuttle_Vehicle_Installation.book Page 8 Friday, March 12, 2004 4:56 PM
SIRCR
9
Install the cradle in the base
The cradle comes with two mounting plates, one on
the rear and the other on the bottom of the receiver.

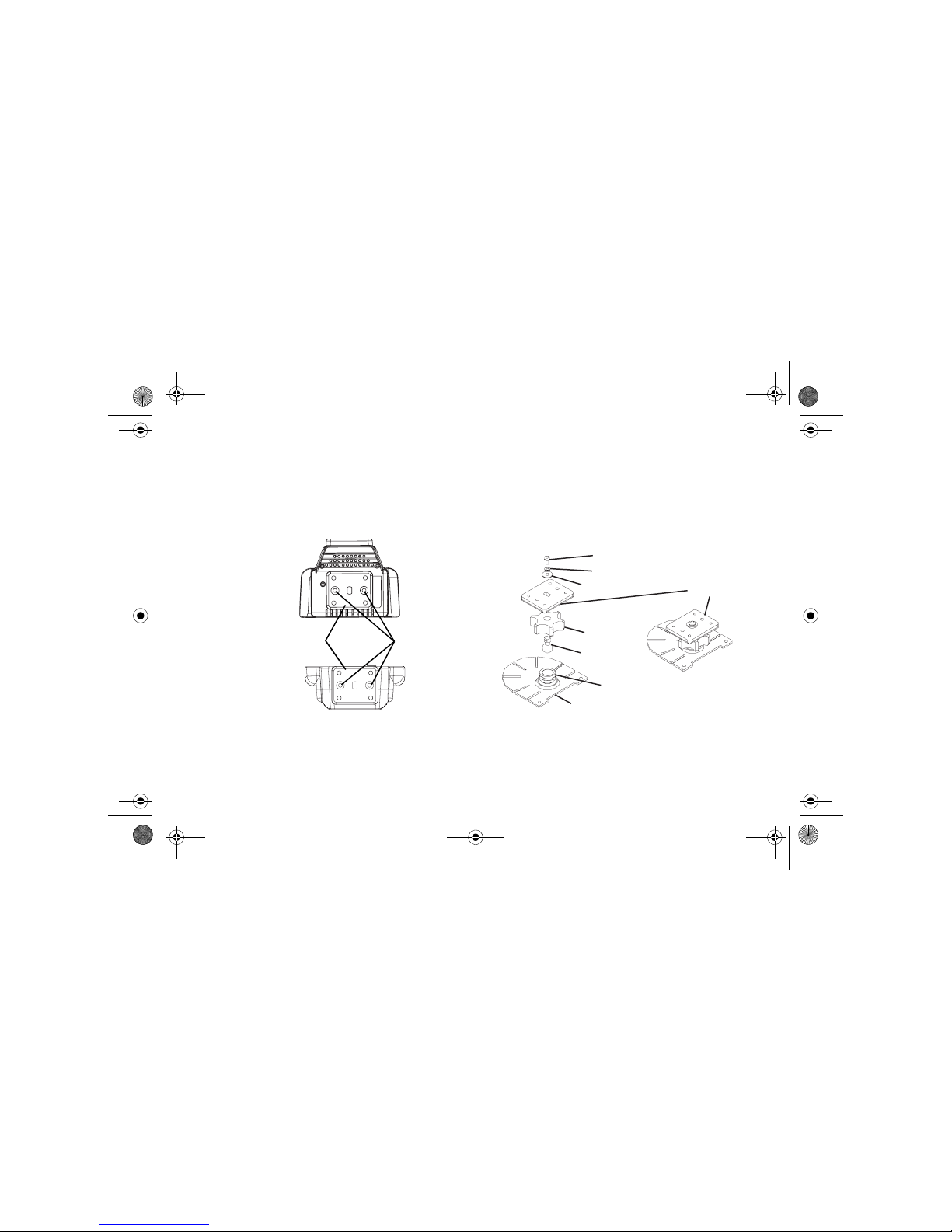

Mounting plates and screws
Bottom mounting plate
Screws
Rear view of cradle
Bottom of cradle
1. Choose one of the mounting plates, loosen and
remove the two screws that secure the plate to
the cradle.
2. Save the screws for reassembly and remove
the plate.
Mounting plate installed on base
Star nut
Ball strut assembly
Threaded socket
Flat-head screw
Lockwasher
SCREW
LOCKWASHER
FLATWASHER
BALL STRUT
STAR NUT
MOUNTING BASE
THREADED SOCKET
CRADLE
MOUNTING
PLATE
Sirius_Shuttle_Vehicle_Installation.book Page 9 Friday, March 12, 2004 4:56 PM
Vehicle Installation Guide
10
3. Unscrew the star nut and ball strut assembly
from the mounting base threaded socket.
4. Remove the screw, lockwasher and flatwasher
from the end of the ball strut.
5. Insert the end of the ball strut into the keyed
opening on the cradle mounting plate.
6. Secure the plate to the ball strut using the
flatwasher, lockwasher and screw.
7. Reattach the mounting plate assembly to the
rear or bottom of the cradle assembly, using the
two flat-head screws you previously removed.
Using other manufacturer’s mounts
You may install the cradle using other mounts. The
mounting plates on the rear and bottom of the cradle
provide multiple mounting options using various
vehicle-specific aftermarket brackets, such as those
you may purchase separately from your local
dealer.
1. Place the Plug and Play receiver in the cradle
so that the connectors are lined up.
Plug and Play receiver and cradle connectors
Using the guides, gently slide the Plug and Play
receiver to engage the connectors and lock into
place.
5. Install the receiver
Bottom of receiver
Front of cradle
This connector fits in this receptacle
Front of receiver
Guides
Sirius_Shuttle_Vehicle_Installation.book Page 10 Friday, March 12, 2004 4:56 PM
SIRCR
11
You may adjust the orientation of the cradle by
loosening the star nut and tightening it when the
cradle is in the desired viewing position.
When it’s time to take the Plug and Play receiver
with you, press the release button to remove it from
the cradle and slide the receiver upwards.
Plug and Play release button
6. Removing the receiver
Release button
Front of cradle
Your goal is to place the antenna on a relatively flat
surface on the exterior of the vehicle, preferably on
the roof (the high point) or on the trunk, if the car is a
convertible.
Determine the best position
1. Plug the antenna into the connector on the side
of the cradle.
Antenna and power connectors
7. Mount the antenna
Antenna
Power
Left side
of cradle
Sirius_Shuttle_Vehicle_Installation.book Page 11 Friday, March 12, 2004 4:56 PM
Vehicle Installation Guide
12
When connected to the Plug and Play
receiver’s cradle, the antenna can receive the
SIRIUS signal virtually anywhere as long as no
obvious obstructions, such as buildings, high
terrain, parking garages and tunnels block the
satellite signal.
2. Mount the antenna on the roof or trunk.
If the vehicle has a roof or trunk rack, you may
have to mount the antenna off-center. The
magnet secures the antenna in place.
3. Connect the power adapter to the cradle and
the vehicle’s +12 VDC power receptacle
(cigarette lighter).
4. Press the power button to turn the Plug and
Play receiver’s power on.
5. If you don’t hear anything, check the signal
strength indicator in the bottom left corner of the
display.
If necessary, move the antenna to different
positions until the signal comes loud and clear.
6. Mark this position with masking tape or use
some other method that won’t scratch the body
work.
Route the cable
1. Plan the routing of the antenna cable to the
Plug and Play receiver’s antenna input.
Avoid any obstructions that could crimp, kink or
twist the cable. Use protective grommets
wherever you encounter rough openings.
2. At the lowest point of the rear window, route the
cable into the trunk, taking advantage of
existing cable conduits.
3. Snake the cable around the passenger
compartment to the back of the SIRIUS cradle.
Sirius_Shuttle_Vehicle_Installation.book Page 12 Friday, March 12, 2004 4:56 PM
SIRCR
13
In SUVs and minivans, route the cable into the
vehicle under the rubber molding of the hatch
door or tailgate, and then under the interior trim.
Avoid exposing the cable in the driver
or passenger areas where it could
become entangled in feet or other
objects.
4. Plug the antenna cable into the connector on
the side of the cradle.
5. Plug the cigarette lighter adapter into the
+12VDC power receptacle.
The power LED on the power button glows red.
You’re ready to enjoy SIRIUS programming.
Note
If you leave the cigarette lighter
adapter plugged in when the ignition
is off you could drain the vehicle’s
battery. Unplug the adapter when
you leave the vehicle.
Caution
Sirius_Shuttle_Vehicle_Installation.book Page 13 Friday, March 12, 2004 4:56 PM
Vehicle Installation Guide
14
NOTES
Sirius_Shuttle_Vehicle_Installation.book Page 14 Friday, March 12, 2004 4:56 PM
SIRCR
15
For USA and Canada onl y
This product is warran ted against all defects in ma terial workmanship for a period of one year from the date of original purchase.
Clarion ProAudio products, exce pt for speakers, are covered b y a
two year limited warrant y when installed by an autho rized Clarion
dealer. The conditions of this limited warranty and the extent of
responsibility of Clarion Corporation of America (“Clarion”) under
this limited warranty are as follows:
1. PROOF OF DATE OF PURCHASE WILL BE REQUIRED FOR
WARRANTY SERVICE OF THIS PRODUCT. IN THE CASE OF
THE TWO (2) YEAR LIMITED WARRANTY FOR CLARION
PROAUDIO PRODUCT, PROOF OF INSTALLATION BY AN
AUTHORIZED DEALER IS REQUIRED. INFORMATION
ABOUT CLARION AUTHORIZED WARRANTY SERVICE
CENTERS MAY BE OBTAINED BY CONTACTING CLARION
AT THE ADDRESS BELOW.
2. This limited warranty will become void if service performed by
anyone other than an approved Clarion Warranty Service Center results in damage to the product.
3. This limited warranty do es not apply to any produ ct which has
been subject to misuse, ne glect or accident, or which ha s had
the serial number altere d, defaced or removed, or w hich has
been connected, installed, adjusted or repaired, oth er than in
accordance with the instruct ions furnished by Clarion.
4. This limited warranty does n ot cover car static or other electrical
interferences, tape head or laser pick-up cleaning or adjustments, or labor costs for the removal or reinstalla tion of the unit
for repair.
5. The sole responsibility of Clarion under this limited warranty
shall be limited to the repair of the product or replacement of the
product, at the sole discretion of Clarion.
1. Limited warranty information
6. Product must be shipped in its original carton or equiva lent carton, fully insured, with shipping charge s prepaid. Clarion will not
assume any responsibility for any loss or damage incurred in
shipping.
7. ALL IMPLIED WARRANTIES EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW SHALL HAVE NO GREATER
DURATION THAN THE WARRANTY PERIOD SET FORTH
ABOVE. UNDER NO CIRCUMSTANCES SHALL CLARION BE
LIABLE FOR ANY LOSS OR DAMAGE, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INABILITY TO
USE THE PRODUCT. BECAUSE SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LO NG AN IMPLIED WARRANTY LASTS OR EXCLUSIONS OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
8. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
9. Should you have any diffi culties with the performance of this
product during the warrant y period, please call or vi sit our web
site (www.clarion.com) for a listing of Authorized Warranty Service Centers in your area. You may also contact Clarion at the
address listed below.
In USA:
Clarion Corporation of A merica
Attn: Customer Service Manager
661 W. Redondo Beach Blvd.
Gardena, CA. 90247-4201
1-800-GO-CLARION
(310)327-9100
In Canada:
Clarion Canada, Inc.
Warranty Service Center
2239 Winston Park Drive
Oakville, Ontario L6H 5R1
(905)829-4600
Sirius_Shuttle_Vehicle_Installation.book Page 15 Friday, March 12, 2004 4:56 PM
User’s Guide
16
Sirius_Shuttle_Vehicle_Installation.book Page 16 Friday, March 12, 2004 4:56 PM
Sirius_Shuttle_Vehicle_Installation.book Page 1 Friday, March 12, 2004 4:56 PM
200402-SIRCR-10 Rev2.0
Clarion Corporation of America
661 West Redondo Beach Blvd.
www.clarion.com
Sirius_Shuttle_Vehicle_Installation.book Page 2 Friday, March 12, 2004 4:56 PM
Loading...
