Clarion SRW, SFW, SW User Manual

SFW/SRW/SW

SUBWOOFER

Congratulations, you have just purchased one of the most refined products
Clarion has ever produced. The SFW/SRW/SW line of subwoofers offers
benchmark levels of performance, reliability and style.

We highly recommend that an Authorized Clarion dealer construct an application
specific enclosure. This will ensure that the speaker offers the best possible
performance for your application, while consuming the least amount of space in
the your vehicle.

To achieve the maximum possible performance from this speaker, we highly
recommend that an Authorized Clarion Dealer construct an application specific
enclosure that maximizes the space in your vehicle, while offering the best
possible performance from this product.

This manual contains all the information required to design your own enclosure
with appropriate computer modeling software as well as several highly effective
applications, including the intended purpose of each. If you have any hesitation
or concern regarding the construction of these enclosures, please consult your
authorized Clarion Dealer.

Content

1. Thiele Small Parameters ................................................................ 2

2. Mounting Information ..................................................................... 3

3. Subwoofer Break-In Period ............................................................ 3

4. Subwoofer Enclosure Applications
SFW1051 Single 4 Ohm Voice Coil Shallow Mount

10” Subwoofer .................................................................................. 4

SRW1051/SRW1052 10” Subwoofers ............................................ 5

SRW1251/SRW1252 12” Subwoofers ............................................. 6

SW1051 Single Voice Coil 10” Subwoofer .................................... 7

SW1251 Single Voice Coil 12” Subwoofer .................................... 8

5. Subwoofer Application Comparison ............................................. 9

6. Calculating Enclosure Dimensions ............................................... 10

7. Limited Warranty Information ........................................................ 12

1. Thiele Small Parameters

Model: SFW1051 SRW1051 *SRW1052 SRW1251 *SRW1252 SW1051 SW1251

Revc (Ohm) 3.75 3.67 3.68+3.68 3.72 3.68+3.68 3.7 3.66

Fo (Hz) 37.317 31.475 32.487 31.745 31.034 30.811 29.891

Sd (sqM) 0.031416 0.031416 0.031416 0.049087 0.049087 0.034636 0.053913

Vas (Ltr) 19.081 29.005 30.595 59.009 68.690 35.598 67.924

Cms (M/N) 136.15 206.957 218.307 172.46 199.356 208.971 164.568

Mmd (g) 130.399 118.254 106.740 139.493 125.677 124.517 157.877

Mms (g) 133.601 121.455 109.942 145.746 131.930 131.930 172.273

BL (TM) 13.771 13.351 18.916 13.556 17.012 13.245 13.150

Qms 8.635 9.020 7.243 7.227 7.200 5.287 6.573

Qes 0.619 0.499 0.499 0.592 0.641 0.530 0.685

Qts 0.578 0.473 0.467 0.547 0.592 0.482 0.620

Levc (m H) 1.104 1.410 2.465 1.505 2.721 1.600 1.845

No (%) 0.155 0.187 0.203 0.3133 0.311 0.181 0.256

SPLo (dB) 83.916 84.768 85.101 86.96 86.92 84.592 86.103

Xmax (mm) 5.25 12 12 12 12 12 12

Vd (ft3) 0.16 0.045 0.045 0.06 0.06 0.045 0.06

* ALL DUAL VOICE COIL SUBWOOFERS ARE MEASURED IN SERIES ONLY

2

SFW/SRW/SW

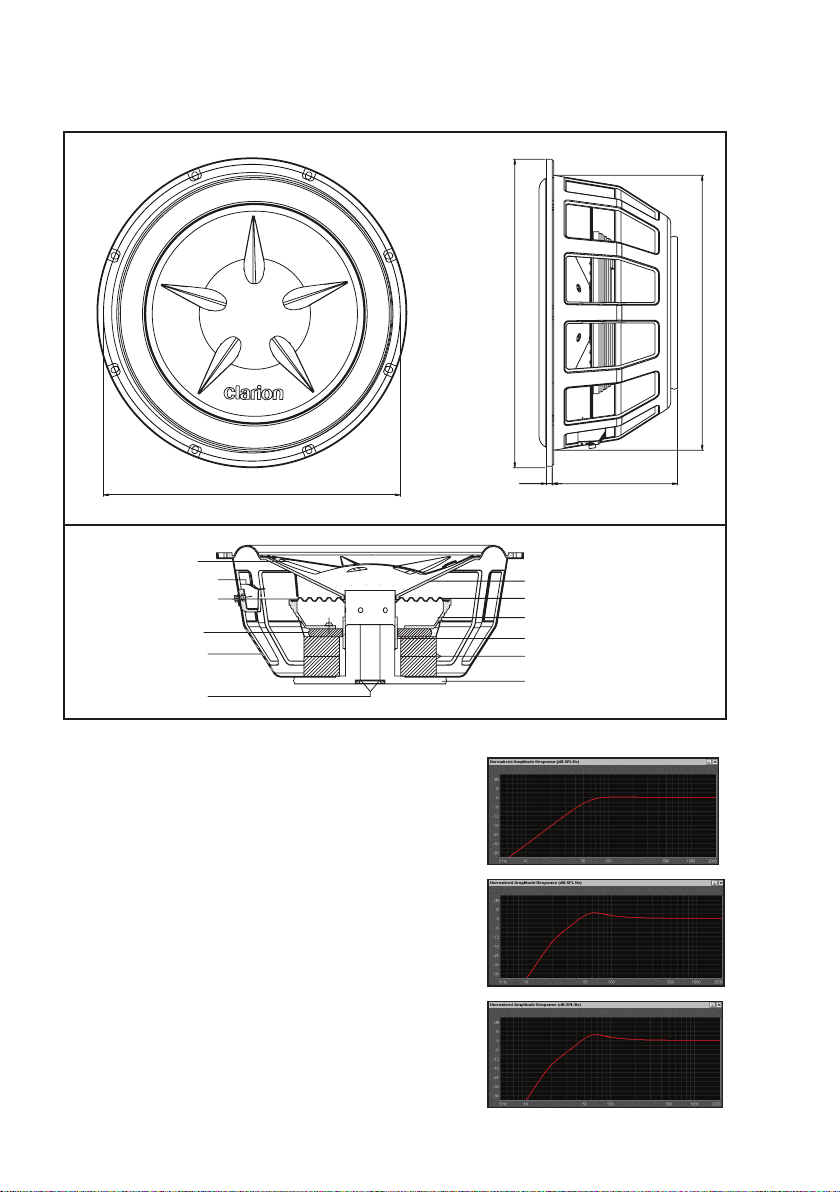

2. Mounting Information

Model: SFW1051 SRW1051/SRW1052 SRW1251/SRW1252 SW1051 SW1251

Outside
Diameter

Subwoofer
Basket
Diameter

Mounting
Depth •

Total
Height

NOTES:

• This is the exact mounting depth of the driver, and does not include provisions
for air flow from the vented pole piece. Clarion recommends at least 1” of clearance
behind the driver to facilitate air flow and proper cooling.

10-5/16” 10-5/16” 12-9/32” 10-5/16” 12-9/32”

9-1/32” 9-1/32” 10-31/32” 9-1/8” 11-1/16”

3” 4-25/32” 5” 5-3/4” 6-7/16”

3-3/4” 5-1/32” 5-1/4” 6” 6-11/16”

3. Subwoofer Break-In Period

All new speakers require some amount of time to break in. Depending on the applica­tion, this may take between one and four weeks. To accelerate this process, you can
manually ‘break in’ your subwoofer before installing it. With the subwoofer sitting on
a scratch-resistant surface, connect it to an amplifier and play a 25Hz sine wave at a
level of 10V (8V for SFW) for a period of four to six hours. If you have any questions or
concerns, please do not hesitate to contact your Authorized Clarion Dealer.

SFW/SRW/SW

3
