RDX555D
AM 530-1710kHz/FM 87.9-107.9MHz
12V GROUND
MODEL
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS
DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS
DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS PRODUCTION COMPLIES DHHS RULES 21 CFR SUBCHAPTER J
APPLICABLE AT DATE OF MANUFACTURE.
CLARION CO.,LTD.
50 KAMITODA,TODA-SHI,SAITAMA-KEN,JAPAN
MANUFACTURED:
SERIAL No.
PE-2193B
286-9166-00
Clarion Co.,Ltd.
MADE IN CHINA
RDX455D
AM 530-1710kHz/FM 87.9-107.9MHz
12V GROUND
MODEL
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS
DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS
DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS PRODUCTION COMPLIES DHHS RULES 21 CFR SUBCHAPTER J
APPLICABLE AT DATE OF MANUFACTURE.
CLARION CO.,LTD.
50 KAMITODA,TODA-SHI,SAITAMA-KEN,JAPAN
MANUFACTURED:
SERIAL No.
PE-2197B
286-9165-00
Clarion Co.,Ltd.
MADE IN CHINA
Bottom View of Source Unit
or
1999/1 (S•C)
Clarion Co., Ltd.
All Rights Reserved. Copyright © 1999: Clarion Co., Ltd.
Printed in China / Imprimé en Chine / Impreso en China
PE-2193B
PE-2197B
280-7280-01
■Contents
English
1. PRECAUTIONS...........................................................2
2. CONTROLS.................................................................3
3. FEATURES..................................................................4
4. DCP (Detachable Control Panel)..............................4
5. HANDLING COMPACT DISCS...................................5
6. BUTTON TERMINOLOGY..........................................6
7. REMOTE CONTROL (RDX555D only)......................7
8. OPERATION................................................................9
9. TROUBLESHOOTING..............................................16
10.SPECIFICATIONS.....................................................17
■Table des matières
Français
1. PRÉCAUTIONS.........................................................19
2. COMMANDES.............................................................3
3. CARACTÉRISTIQUES..............................................20
4. CLAVIER DE COMMANDE AMOVIBLE (DCP) .......20
5. MANIPULATION DES DISQUES COMPACTS........21
6. NOMENCLATURE DES TOUCHES .........................22
7. TÉLÉCOMMANDE (RDX555D uniquement)...........23
8. FONCTIONNEMENT.................................................25
9. DÉPISTAGE DES PANNES......................................32
10.SPÉCIFICATIONS.....................................................33
■Índice
Español
1. PRECAUCIONES......................................................35
2. CONTROLES..............................................................3
3. CARACTERÍSTICAS ................................................36
4. PANEL DE CONTROL DESMONTABLE (DCP) ......36
5. MANEJO DE LOS DISCOS COMPACTOS..............37
6. NOMENCLATURA DE LOS BOTONES...................38
7.
CONTROLADOR REMOTO (RDX555D solamente)
8. OPERACIÓN.............................................................41
9. SOLUCIÓN DE PROBLEMAS..................................48
10.ESPECIFICACIONES ...............................................49
...39

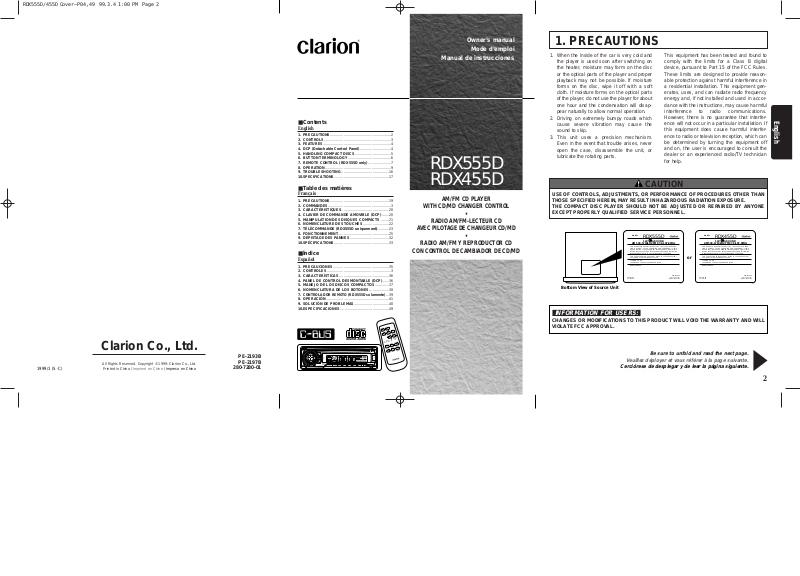

Owner’s manual
Mode d’emploi
Manual de instrucciones
RDX555D
RDX455D
AM/FM CD PLAYER
WITH CD/MD CHANGER CONTROL
•
RADIO AM/FM-LECTEUR CD
AVEC PILOTAGE DE CHANGEUR CD/MD
•
RADIO AM/FM Y REPRODUCTOR CD
CON CONTROL DE CAMBIADOR DE CD/MD
1. PRECAUTIONS
1. When the inside of the car is very cold and
the player is used soon after switching on
the heater, moisture may form on the disc
or the optical parts of the player and proper
playback may not be possible. If moisture
forms on the disc, wipe it off with a soft
cloth. If moisture forms on the optical parts
of the player , do not use the pla y er f or about
one hour and the condensation will disappear naturally to allow normal operation.
2. Driving on extremely bumpy roads which
cause severe vibration may cause the
sound to skip.
3. This unit uses a precision mechanism.
Even in the event that trouble arises, never
open the case, disassemble the unit, or
lubricate the rotating parts.
CAUTION
USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
INFORMATION FOR USERS:
CHANGES OR MODIFICA TIONS T O THIS PRODUCT WILL V OID THE WARRANTY AND WILL
VIOLATE FCC APPROVAL.
Veuillez déployer et vous référer à la page suivante.
Cerciórese de desplegar y de leer la página siguiente.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off
and on, the user is encouraged to consult the
dealer or an experienced radio/TV technician
for help.
Be sure to unfold and read the next page.
English
2
DCP Rear Panel Source Unit Front
Source unit connector
DCP
connector
2.
SOURCE UNIT / APPAREIL PILOTE / UNIDAD FUENTE
%
1
&
2
8
CD Insertion Slot
Fente d’insertion de CD
Ranura de inserción del disco compacto
DISPLAY
AFFICHEUR
VISUALIZADOR
53
¥
6
9
0!@#$* 7
4
2”
2-1/4”
7”
7-3/8”
6”
(50 mm)(178 mm)
(58 mm)(188 mm)
(152 mm)
CONTROLS / COMMANDES / CONTROLES
Note:
Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque:
Nota:
Veuillez déployer cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
English
Français
Español
Note:
The illustration represents the model RDX555D.
Remarque:
Nota:
L'illustration représente le modèle RDX555D.
La ilustración muestra el modelo RDX555D.
3. FEATURES
■ DIN Chassis with Detachable Control Panel
■ Z-Enhancer 3 Mode Sound Selector
■
■ AM/FM Bands-1 AM, 3 FM/18 FM/6 AM Touchbutton Memory
■ 8-Times Oversampling Digital Filter/Dual 1-Bit D/A Converters
■ Zero-Bit Detector™ Mute Circuit
■ Repeat/Random Play/Intro Music Scan
■ Bass Control Center Frequency: 30 Hz/Boost Level: ±15 dB
■ 140 W (35 W × 4) Maximum Power Output (RDX455D only)
■ 4-Channel RCA Line Level Output with Fader Control (RDX555D only)
English
■ 160 W (40 W × 4) Maximum Power Output (RDX555D only)
®
FM Reception System
10. ESPECIFICACIONES
Sintonizador de FM
Game de frecuencias
Sensibilidad útil: 11 dBf
Sensibilidad a 50 dB de silenciamiento: 17 dBf
Selectividad de canal alternativo: 75 dB
Separación estéreo (1 kHz): 35 dB
Respuesta en frecuencia (±3 dB)
: 87,9 MHz a 107,9 MHz
: 30 Hz a 15 kHz
Sintonizador de AM
Respuesta en frecuencia: 530 kHz a 1.710 kHz
Sensibilidad útil: 25 µV
Generales
Tensión de alimentación: 14,4 V CC (permisible
de 10,8 V a 15,6 V), negativo a masa
Consumo de corriente: Menos de 10 A
Impedancia de los altavoces: 4 Ω (permisible de
4 Ω a 8 Ω)
Peso: 3,97 lb. (1,8 kg)

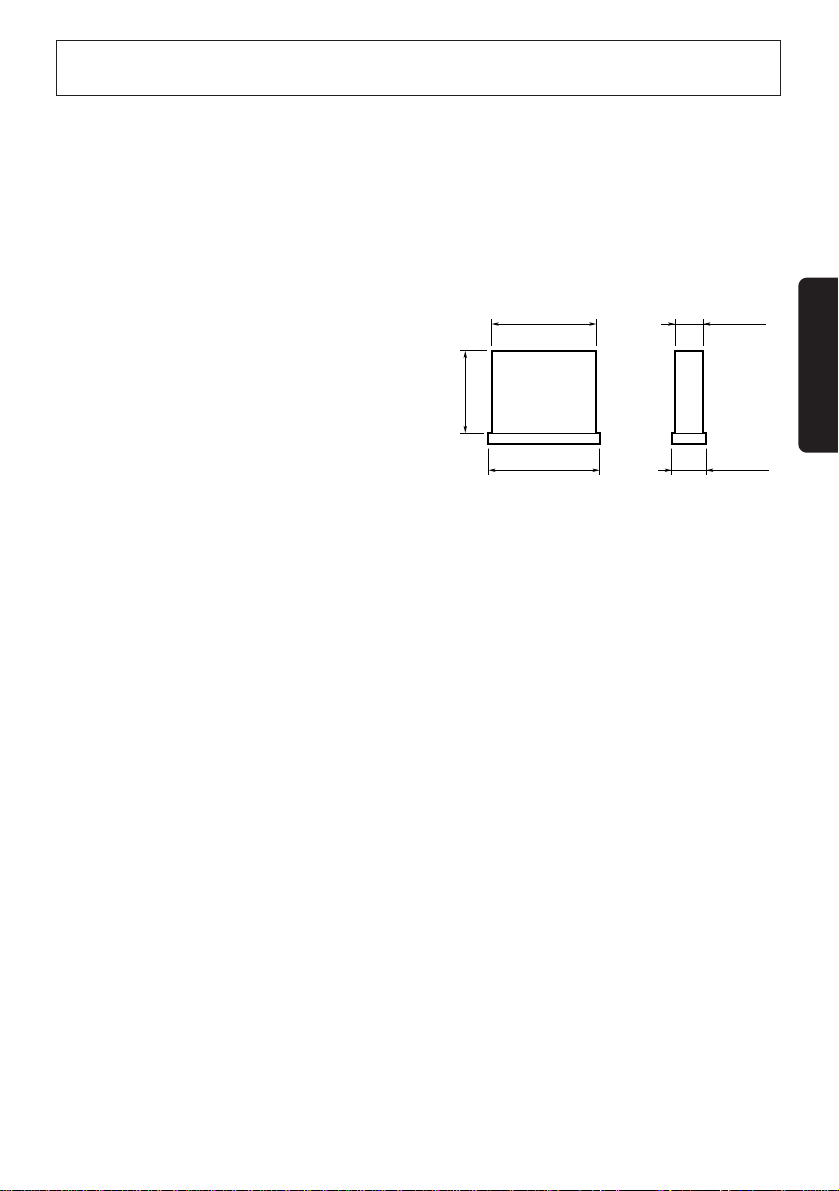

Dimensiones:
7” (178 mm) de anchura ×2” (50 mm) de
altura × 6” (152 mm) de fondo
Reproductor de discos compactos
Sistema: Sistema de audio de discos compactos
4. DCP (Detachable Control Panel)
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the included DCP case to prevent scratches.
We recommend taking the detachable control
panel with you when leaving the car.
Removing the DCP
1. Turn off the power.
2. Press the DCP Release button .
1
The DCP is unlocked.
*
3. Remove the DCP.
Attaching the DCP
Insert the DCP into the right side of the source
unit and press the left side to lock it.
CAUTION
Do not insert the DCP from the left side. Doing so
may damage it.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct orientation.)
CAUTION
• The DCP can easily be damaged by shocks. After
removing it, place it in a protective case and be
careful not to drop it or subject it to strong shocks.
When the release button is pressed and the DCP is
•
unlocked, the car’s vibrations may cause it to fall.
To prevent damage to the DCP, always store it in a
protective case after detaching it.
The rear connector that connects the source unit
•
and the DCP is an extremely important part. Be
careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.
Discos utilizables: Discos compactos
Respuesta en frecuencia: 10 Hz a 20 kHz (±1dB)
Relación señal-ruido: 96 dB (1 kHz) IHF-A
Gama dinámica: 95 dB (1 kHz)
Audio
Salida de potencia máxima:
160 W (40 W × 4 canales) (RDX555D)
140 W (35 W × 4 canales) (RDX455D)
Salida de potencia media continua:
14 W × 4, con 4 Ω, 20 Hz a 20 kHz,1% de
distorsión armónica total
Acción de control de graves (100 Hz): ±10 dB
Acción de control de agudos (10 kHz): ±10 dB
Salida de línea (con CA, 1 kHz, 10 kΩ):
1,8 V (RDX555D) solamente
Notas:
Las especificaciones están de acuerdo con las nor-
•
mas de la EIA.
Las especificaciones y el diseño están sujetos a cam-
•
bio sin previo aviso por motivo de mejoras.
Español
3 4
Note:
If the DCP is dirty, wipe off with a soft, dry cloth only.
•
49
English
5
5. HANDLING COMPACT DISCS
This unit has been designed specifically for playback of compact discs bearing the mark.
No other discs can be played.
To remove the compact disc from its storage
case, press down on the center of the case and
lift the disc out, holding it carefully by the edges.
Always handle the compact disc by the edges.
Never touch the surface.
To remove fingermarks and dust, use a soft
cloth, and wipe in a straight line from the center
of the compact disc to the circumference.
New discs may have some roughness around
the edges. The unit may not work or the sound
may skip if such discs are used. Use a ball-point
pen, etc. to remove roughness from the edge of
the disc.
Note on Compact Discs
Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.
Do not use any solvents such as commercially
available cleaners, anti-static spray, or thinner to
clean compact discs.
Do not use compact discs that have large
scratches, are misshapen, or cracked, etc. Use
of such discs will cause misoperation or damage.
Do not expose compact discs to direct sunlight
or any heat source.
No
No
No
No
Ball-point pen
Roughness
No
Proper way to hold
the compact disc
Removing the disc
Note:
•
Do not use commercially available CD protection sheets or discs equipped with stabilizers , etc. These
may get caught in the internal mechanism and damage the disc.
Note:
•
Be sure to read this chapter referring to the front diagrams of chapter 2. CONTROLS on page 3 (unfold).
DCP Release Button
Up and Down ( and ) Buttons
POWER Button
FNC (Function) Button
Eject ( ) Button [ ]
PS (Preset Station Scan) Button [ ]
DISC Up (UP) Button [ ], [ ]
AS (Automatic Station Store) Button [ ]
DISC Down (DN) Button [ ], [ ]
ISR (Instant Station Recall) Button [ ]
Z-EHCR (z-enhancer) button [ ], [ ], [ ], [ ]
Preset Buttons [ ]
TOP (Top Play) Button [ ], [ ], [ ]
Play/Pause ( ) Button [ ], [ ], [ ]
DISP (Display) Button
RDM (Random) Button [ ], [ ], [ ]
RPT (Repeat Play) Button [ ], [ ], [ ]
SCN (Intro Music Scan) Button [ ], [ ], [ ]
BND (Tuning Mode) Button [ ]
MAG (Magazine) Button [ ]
A-M (Audio Mode) Button
LD (Loudness) Button
Left and Right ( and ) Buttons
[ ] : In Radio Mode
[ ] : In CD Mode
[ ] : In CD Changer Mode
[ ] : In MD Changer Mode
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
6
English
6. BUTTON TERMINOLOGY
1. Turn the remote control unit over, then slide
the rear cover in the direction of the arrow.
2. Insert the AA (UM-3/1.5V) batteries that
came with the remote control unit facing in
the directions shown in the figure, then close
the rear cover.
Notes:
Using batteries improperly can cause them to explode.
Take note of the following points:
•
When replacing batteries, replace both batteries with
new ones.
•
Do not short-circuit, disassemble or heat batteries.
•
Do not dispose of batteries into fire or flames.
•
Dispose of spent batteries properly.
7
English
7.
REMOTE CONTROL (RDX555Donly)
Receiver for remote control unit
Signal transmitter
Operating range: 30° in all directions
Remote control unit
Inserting the Batteries
Rear side
AA (UM-3/1.5V)
Batteries
Rear cover
Note:
•
The remote control function is only available
on the RDX555D.
The remote control function is not provided
with the RDX455D.
Functions of Remote Control Unit Buttons
8
English
Mode
Button
FUNC
BAND
DISC UP
PROG
TOP
Radio
Turns power on and off. When pressed and held for 1 second: Turns power off.
Switches between radio, CD, CD changer and MD changer.
VOLUME
* Some of the corresponding buttons on the source unit and remote control unit have different functions.
Increases and decreases volume (in all modes).
MUTE Turns mute on and off.
ISR Recalls ISR radio station in memory.
Press and hold for more than 2 seconds: Stores current station into ISR memory
(radio mode only).
DISP Switches among main display, sub display and clock display.
CD
CD changer
MD changer
Switches reception band. Plays the first track.
Top play.
Moves the next disc in
increasing order.
PLAY/PAUSE No function. Switches between
playback and pause.
Switches between
playback and pause.
SCAN
PS/AS
Preset scan.
When pressed and held for
2 seconds: Auto store.
Scan play. Scan play.
When pressed and held for
2 seconds: Disc scan play.
RPT
BLS
No function. Repeat play. Repeat play.
When pressed and held for
2 seconds: Disc repeat
play.
RDM
DOLBY NR
MONI
No function. Random play. Random play.
When pressed and held for
2 seconds: Disc random
play.
SEARCH Moves preset channels up
and down.
Moves tracks up and
down.
When pressed and held for
1 second:
Fast-forward/
fast-backward.
Moves tracks up and
down.
When pressed and held for
1 second:
Fast-forward/
fast-backward.
(
)
¡
™
£
¢
∞
§
¶
•
ª
9
English
Basic Operations
When this unit is turned on, starting and stopping the engine of a car with its volume raised
to the maximum level may harm your hearing.
Be careful about adjusting the volume.
Turning ON the Power and Adjusting
the Volume
1) Press the POWER button .
*
To turn off the power, press the POWER button
for 1 second or longer.
2) Press the FNC button and select another
operation mode. Every time the FNC button
is pressed, the display changes the operation mode as:
Radio ➜ CD ➜ CD changer ➜ MD changer
➜ Radio
Notes:
•
The operation mode not connected to the unit will not
be selected.
•
If the CD mode is selected when no disc is inserted,
the display flashes “
DISC
” and the mode will be
switched to the radio mode instead.
3) Adjust the volume by pressing the Up/Down
button .
: Sets the volume up.
: Sets the volume down.
Audio Mode Adjustments
1) Press the A-M b utton and select the mode
you want to adjust. Every time the A-M button
is pressed, the display changes as:
BASS/TRE ➜ BAL/FAD ➜ originally selected
mode
2) After selecting a mode, adjust the mode by
using either the Left/Right button , or the
Up/Down button .
<Bass adjustment>
: Increases the bass.
: Decreases the bass.
<Treble adjustment>
: Increases the treble.
: Decreases the treble.
<Balance adjustment>
: The volume of the right speakers are
increased.
: The volume of the left speakers are
increased.
<Fader adjustment>
: The volume of the front speakers are
increased.
: The volume of the rear speakers are
increased.
Setting the Z-enhancer
This unit comes with three types of sound tone
effects stored in memory . Select the one y ou pref er .
*
The factory default setting is “Z-EHCR OFF”.
Each time you press Z-EHCR button , the
tone effect changes in the following order.
“Z-ENHANCER 1” ➜ “Z-ENHANCER 2” ➜
“Z-ENHANCER 3” ➜ “Z-EHCR OFF” ➜
“Z-ENHANCER 1”...
• Z-ENHANCER 1: bass emphasized
• Z-ENHANCER 2: treble emphasized
• Z-ENHANCER 3: bass and treble emphasized
• Z-EHCR OFF: no sound effect
Loudness Effect
In order to turn on/off the loudness effect, use
the LD button for 2 seconds or longer. Every
time the LD button is pressed and held for 2
seconds or longer, the loudness effect switches
on and off.
*
When the loudness effect is on, the display will show
“LOUD.”
Switching the Clock Display
While pressing the BND button , every time
the DISP button is pressed, the display will
change between the operation mode and the
clock display.
Setting the Clock
1) While pressing the BND button , press the
DISP button to display the clock
display.
2) While pressing the BND b utton , press and
hold the DISP button for 2 seconds or
longer.
3) Press the Left button , then set the current
hour.
18
12
16
12
16
12
16
17
17
8
2
18
17
17
2
3
3
3
3
8. OPERATION
CAUTION
10
English
4) Press the Right button , then set the
current minute.
5) Press the BND button , then the clock is
set.
Notes:
•
If you select another operation mode while you are
setting the clock, the clock setting operation will be
canceled.
•
If you remove the vehicle’s battery for a check or
repair, the clock will be reset, so y ou must set it again.
Radio Mode Operations
FM Reception
For enhanced FM performance the
®
tuner includes signal actuated stereo control and
Multipath noise reduction circuits.
Listening to the Radio
1) Press the FNC button to select the radio
mode, then the radio will be on.
2) To select a preset band, press the BND button , then select one of the preset bands
such as FM1, FM2, FM3, or AM. Every time
the BND button is pressed, the display will
change as:
FM1
➜ FM2 ➜ FM3 ➜ AM ➜ FM1
3) Press the Left/Right button , then the station at which there is a broadcast will be
selected (Seek selection).
Manual Tuning
1) Press the BND button , then select FM1,
FM2, FM3 or AM.
2) Press and hold the BND button for 2 seconds or longer, then the display will show
“
MANU,” which means that a manual selec-
tion function is on.
3) Press the Left/Right button and select the
right station.
Seek Tuning
1) Press the BND button , then select FM1,
FM2, FM3 or AM.
2) If the “
MANU” on the display is on, press and
hold the BND button for 2 seconds or
longer. When the “MANU” display is off, the
Seek Selection function is on.
3) Press the Left/Right button , then when it
selects the station in which there is a broadcast, it automatically stops.
Preset Memory Function
Preset Memory Function can store up to 24 stations: six stations for each of FM1, FM2, FM3
and AM.
Note:
•
When the present memory function is used, all the
content of the memory will be erased.
18
16
16
18
16
16
18
16
16
3
16
18
11
English
Manual memory function
1) Press the BND button , and select the
band you want to store in the memory.
2) Press the Left/Right button then select
the station you want to store in the memory.
3) Press and hold the Preset button for 2
seconds or longer, then the station will be
stored in the memory.
Auto store function (Automatic Station Store)
1) Press the BND button , then select the
band you want to store in the memory.
2) Press and hold the AS button for 2 seconds or longer, then the station at which the
reception is the strongest will be automatically stored in the memory.
Note:
•
When the number of stations stored is less than six,
the previous content of the memory for each direct
button will be retained.
Preset Scanning (Preset Station Scan)
When the PS button is pressed, the preset
memory numbers flash and the stations are
tuned in for 7 seconds each in the order in which
they were stored. Press the PS button again to
cancel the preset scanning mode.
Instant Station Recall (ISR)
With this function, a specific radio station can be
recalled from any mode.
ISR memory
1) Press the FNC button , then select the
radio mode.
2) Select the radio station which you want to
store in the memory.
3) Press and hold the ISR button for 2 seconds or longer.
Recalling ISR
Press the ISR button then the display will
show “ISR,” then the radio station previously
memorized will be selected. Press the ISR button again to disengage the unit from the
Recalling ISR function.
Area Change
Use this function when you are using the car
stereo anywhere outside the U.S.
Switchable frequency spacing
This car stereo is initially set to tune in frequency intervals of 10 kHz for AM and 200 kHz for
FM, the standard calibrations in the U.S. When
using the unit outside the U.S., use the following
procedure to switch the frequency range.
The table below lists the frequency specifications for the U.S. and other countries.
Switching the area change
Outside U.S. (New Setting)
While pressing the BND button , press the RPT
button , then “outside U.S.” will be selected.
Inside U.S. standard (Initial Setting)
While pressing the BND button , press the
RDM button , then the “U.S. standard” will be
selected.
13
16
14
16
AM
FM
Frequency
spacing
Frequency
range
Frequency
spacing
Frequency
range
Initial Setting
(U.S. standard)
New Setting
(outside U.S.)
10 kHz
530 to
1,710 kHz
200 kHz
87.9 to
107.9 MHz
9 kHz
531 to
1,629 kHz
50 kHz
87.5 to
108 MHz
7
7
7
3
5
6
16
9
18
16
12
English

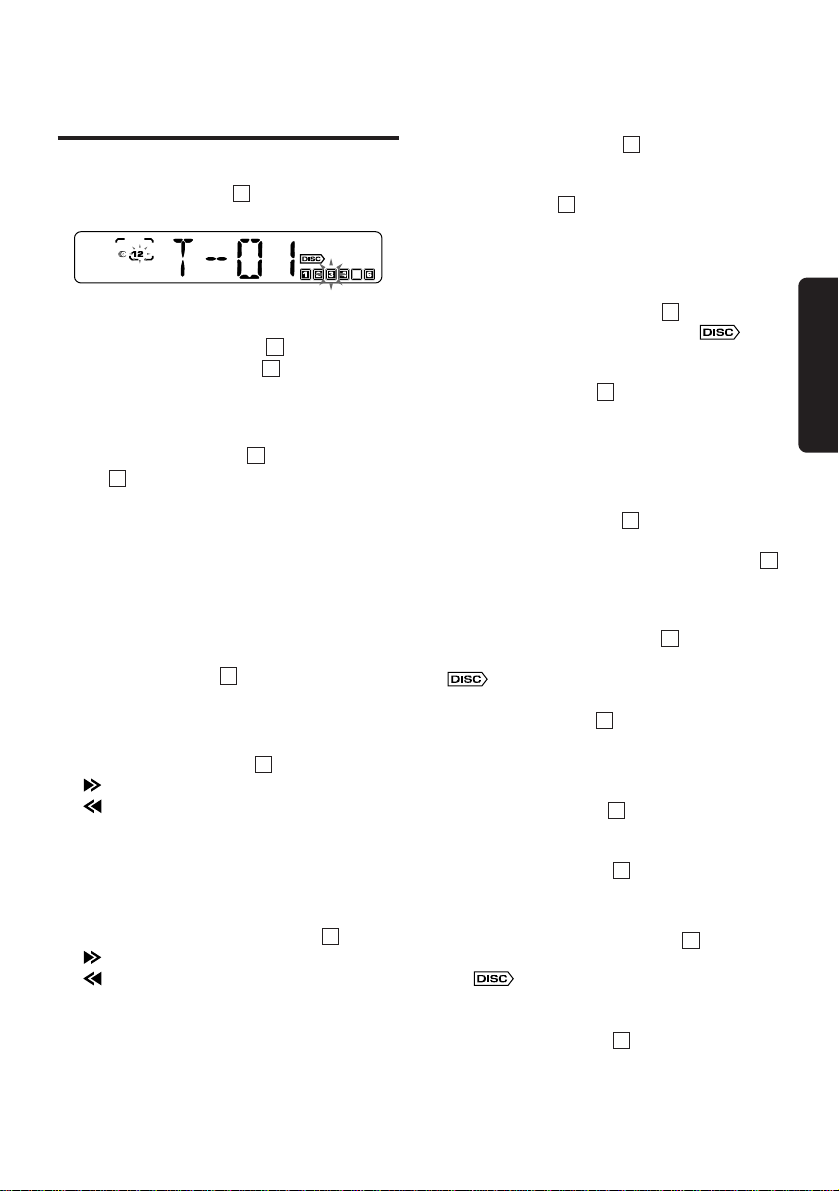

CD Mode Operations
Loading a Disc
Insert the disc into the CD insertion slot with its
label side up, then the CD will start playing.
*
When inserting a single CD (3”(8cm)), insert it from
the center of the slot.
*
When inserting a single CD (3”(8cm)), do not connect
an adapter.
*
Press the DISP button , then the display will show
the play time.
Listening to the Disc already Inserted
Press the BND button to select the CD mode,
the CD will start playing.
Stopping (pausing) Playback
Press the Play/Pause button .
Press the Play/Pause b utton again to resume
playback.
Ejecting the CD
Press the Eject button , then the CD will be
ejected.
Note:
•
If the ejected CD is left as it is, it will be reloaded after
15 seconds. However, single CDs will not be
reloaded, so make sure to remove them.
Top Function
Press the TOP button , then the CD will start
playing from the first song (track number 1).
Selecting Tracks (songs)
Press the Left/Right button .
: Playback will start from the next track.
: Playback will start from the beginning of
the track currently playing. When this
button is pressed again, the CD will play
from the previous track.
Fast-Forward and Fast-Backward
Press and hold the Left/Right button .
: To fast-forward
: To fast-backward
*
Pressing the Left/Right button for 1 second or longer
will move forward or bac kward 5 times f aster than normal play, and pressing it for 3 seconds or longer will
do the operation 30 times faster.
Scan Play (Intro Music Scan)
Press the SCN button , then the display
shows “SCN,” then the CD will play the first 10
seconds of each track of the whole disc. Press
the SCN button again to disengage the unit
from scan play.
*
A scan play will start from the track following the one
currently playing.
Repeat Play
Press the RPT button , then the display
shows “RPT,” then the track currently playing will
be played repeatedly. Press the RPT button
again to disengage the unit from repeat play.
Random Play
Press the RDM button , then the display will
show “RDM,” then the entire tracks on the disc
will be played at random. Press the RDM button
again to disengage the unit from random
play.
13
13
14
14
15
15
18
18
10
4
11
11
16
12
For 5-inch (12 cm) CD For 3-inch (8 cm) single CD
13
English
CD Changer Mode Operations
Listening to the Disc
Press the FNC button and select the CD
changer mode, then the CD starts playing.
Stopping (pausing) Playback
Press the Play/Pause button .
Press the Play/Pause b utton again to resume
playback.
Selection of CDs
Press the DISC Up button or the DISC Down
button , then select the CD you wish to play.
UP: Every time you press the button, the
CDs will be selected as:
1 ➜ 2 ➜ 3 ➜ 4 ➜ 5 ➜ 6 ➜ 1....
DN: Every time you press the button, the
CDs will be selected as:
1 ➜ 6 ➜ 5 ➜ 4 ➜ 3 ➜ 2 ➜ 1.....
Top Function
Press the TOP button , then the CD will start
playing from the first song (track number. 1).
Selecting Tracks (songs)
Press the Left/Right button .
: Playback will start from the next track.
: Playback will start from the beginning of
the track currently playing. When this
button is pressed again, the CD will play
from the previous track.
Fast-Forward and Fast-Backward
Press and hold the Left/Right button .
: To fast-forward
: To fast-backward
*
Pressing the Left/Right button for 1 second or longer
will move forward or backward 5 times faster than
normal play, and pressing it for 3 seconds or longer
will do the operation 30 times faster.
Scan Play (Intro Music Scan)
Press the SCN button , then the display
shows “SCN,” then the CD will play the first 10
seconds of each track of the whole disc. Press
the SCN button again to disengage the unit
from scan play.
*
A scan play will start from the track following the one
currently playing.
Disc scan play
Press and hold the SCN button for 2 seconds
or longer, then the display will sho w “ ” and
“SCN”, and plays the first 10 seconds of all the
tracks of all the CDs in the CD changer.
Press the SCN button again to disengage the
unit from disc play.
*
A scan play will start from the track following the one
currently playing.
Repeat Play
Press the RPT button , then the display
shows “RPT,” then the track currently playing will
be played repeatedly. Press the RPT button
again to disengage the unit from repeat play.
Disc repeat play
Press and hold the RPT button for 2 seconds
or longer, then the display shows both the
“ ” and “RPT,” then the disc currently being
played will be played repeatedly.
Press the RPT button again to disengage the
unit from disc repeat play.
Random Play
Press the RDM button , then the display will
show “RDM,” then the entire tracks on the disc
will be played at random.
Press the RDM button again to disengage
the unit from disc random play.
Disc random playback
Press and hold the RDM button for 2 seconds or longer, then the display will show both
the “ ” and “RDM,” then the entire trac ks of
all the discs in the CD changer will be played at
random.
Press the RDM button again to disengage
the unit from disc play.
13
13
13
13
14
14
14
14
15
15
15
15
18
18
10
6
5
11
11
3
14
English
Switching Magazine
This function can be used only when the connected CD changer can store a multiple number
of magazines.
Every time the MAG button is pressed, the
next magazine will be selected.
Magazine lock
Press and hold the MAG button for 2 seconds or longer, then the display shows “ ,”
then the magazine being displayed will be
played.
Press and hold the MAG button again for 2
seconds or longer to disengage the unit from the
Magazine Lock function.
*
While the magazine lock function is on, a new magazine can be selected. At that time, the new magazine
will be locked.
Note:
•
While the magazine lock function is on, the Scan Play
function or Random Play function will be performed
among the locked magazines.
MD Changer Mode Operations
Listening to the Disc
Press the FNC button and select the MD
changer mode, then the MD starts playing.
Stopping (pausing) Playback
Press the Play/Pause button .
Press the Play/Pause b utton again to resume
playback.
Selection of MDs
Press the DISC Up button or the DISC Down
button , then select the MD you wish to play.
UP: Every time you press the button, the
MDs will be selected as:
1 ➜ 2 ➜ 3 ➜ 4 ➜ 5 ➜ 6 ➜ 1....
DN: Every time you press the button, the
MDs will be selected as:
1 ➜ 6 ➜ 5 ➜ 4 ➜ 3 ➜ 2 ➜ 1.....
Top Function
Press the TOP button , then the MD will start
playing from the first song (track number. 1).
Selecting Tracks (songs)
Press the Left/Right button .
: Playback will start from the next track.
: Playback will start from the beginning of
the track currently playing. When this
button is pressed again, the MD will play
from the previous track.
Fast-Forward and Fast-Backward
Press and hold the Left/Right button .
: To fast-forward
: To fast-backward
*
Pressing the Left/Right button for 1 second or longer
will move forward or bac kward 5 times f aster than normal play, and pressing it for 3 seconds or longer will
do the operation 30 times faster.
18
18
10
6
5
11
11
3
16
[ ]
16
16
Scan Play (Intro Music Scan)
Press the SCN button , then the display
shows “SCN,” then the MD will play the first 10
seconds of each track of the whole disc. Press
the SCN button again to disengage the unit
from scan play.
*
A scan play will start from the track following the one
currently playing.
Disc scan play
Press and hold the SCN button for 2 seconds
or longer, then the display will sho w “ ” and
“SCN”, and plays the first 10 seconds of all the
tracks of all the MDs in the MD changer.
Press the SCN button again to disengage the
unit from disc play.
*
A scan play will start from the track following the one
currently playing.
Repeat Play
Press the RPT button , then the display
shows “RPT,” then the track currently playing will
be played repeatedly. Press the RPT button
again to disengage the unit from repeat play.
Disc repeat play
Press and hold the RPT button for 2 seconds
or longer, then the display shows both the
“ ” and “RPT,” then the disc currently being
played will be played repeatedly.
Press the RPT button again to disengage the
unit from disc repeat play.
Random Play
Press the RDM button , then the display will
show “RDM,” then the entire tracks on the disc
will be played at random.
Press the RDM button again to disengage
the unit from disc random play.
Disc random playback
Press and hold the RDM button for 2 seconds or longer, then the display will show both
the “ ” and “RDM,” then the entire trac ks of
all the discs in the MD changer will be played at
random.
Press the RDM button again to disengage
the unit from disc play.
13
13
13
13
14
14
14
14
15
15
15
15
15
English
16
English
■ To protect the system, this unit has been equipped with self diagnostic functions. If a fault
arises, a warning is issued by various error displays. Follow the corrective measures and
remove the fault.
Error Display Corrective Measure
This error display indicates that a fault has arisen in the
mechanism of the source unit or CD/MD changer (for
example, the disc cannot be changed or ejected).
➜ Check the source unit and CD/MD changer.
This error display indicates that the pickup focus is off
because of a scratched disc or some other factor during
source unit or CD/MD changer play.
➜ Check the compact disc and minidisc.
This indicates that the CD’s and MD’s TOC (table of
contents) cannot be read, for example because the
selected disc is upside-down.
Symptom Cause Measure
Power does not switch on.
(There is no sound
produced.)
The fuse has blown.
Replace the fuse with one of the
same rating. If the fuse blows again,
contact your store of purchase.
Wiring is incomplete.
Read the attached “Installation/Wire
Connection Guide” once again and
wire properly.
The compact disc does
not enter.
There is already a
compact disc inside the
disc insertion slot.
Eject the compact disc and then insert
another one.
The compact disc soon
comes out again.
The compact disc has
been inserted upside
down.
Insert the compact disc with the label
side facing up.
Sound skipping noise and
other noise is heard.
The compact disc is dirty.
Wipe the compact disc with a soft
cloth.
The compact disc is
severely scratched or
warped.
Replace the compact disc with one
that is in good condition.
The sound is poor
immediately after
switching on the power.
When the car is parked in
a humid place, dew might
form on the internal lens.
Turn the unit on and wait for about 1
hour before operating.
9. TROUBLESHOOTING
17
English
FM Tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 11 dBf
50 dB Quieting Sensitivity: 17 dBf
Alternate Channel Selectivity: 75 dB
Stereo Separation (1 kHz): 35 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range: 530 kHz to 1,710 kHz
Usable Sensitivity: 25 µV
CD Player
System: Compact disc audio system
Usable Discs: Compact disc
Frequency Response: 10 Hz to 20 kHz (±1 dB)
Signal-to-Noise Ratio: 96 dB (1 kHz) IHF-A
Dynamic Range: 95 dB (1 kHz)
Audio
Maximum Power Output:
160 W (40 W × 4 ch) (RDX555D)
140 W (35 W × 4 ch) (RDX455D)
Continuous Average Power Output:
14 W × 4, into 4 Ω, 20 Hz to 20 kHz,1%THD
Bass Control Action (100 Hz): ±10 dB
Treble Control Action (10 kHz): ±10 dB
Line Output (with A/C 1 kHz, 10 kΩ):
1.8 V (RDX555D) only
General
Power Supply Voltage: 14.4 V DC (10.8 V to 15.6
V allowable), negative ground
Current Consumption: Less than 10 A
Speaker Impedance: 4 Ω (4 Ω to 8 Ω allowable)
Weight: 3.97 lb. (1.8 kg)
Dimensions:
7” (178 mm) Width × 2” (50 mm) Height ×
6” (152 mm) Depth
Notes:
•
Specifications comply with EIA Standards.
•
Specifications and design are subject to change without notice for further improvement.
2”
2-1/4”
7”
7-3/8”
6”
(50 mm)(178 mm)
(58 mm)(188 mm)
(152 mm)
10. SPECIFICATIONS
18
English
MEMO
Loading...
