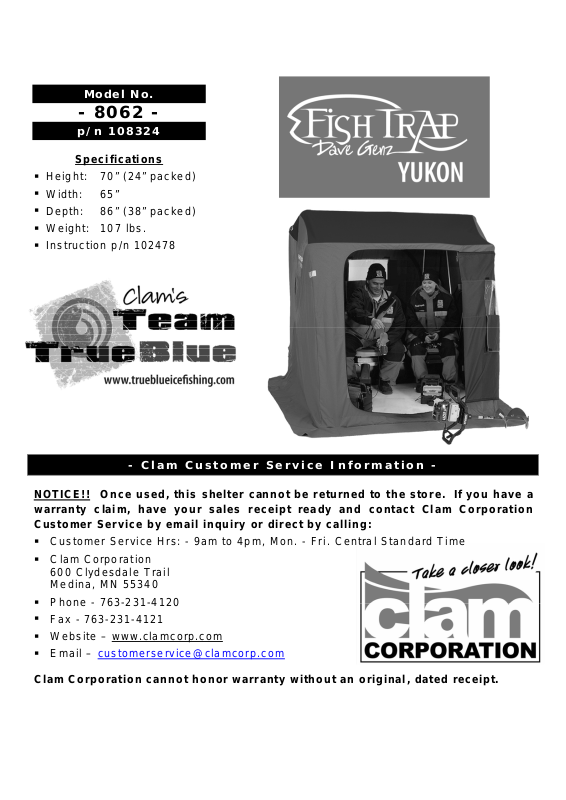

Clam Corp 8062 User Manual
Model No.
- 8062 -
p/n 108324
Specifications
Height: 70” (24” packed)
▪
Width: 65”
▪
Depth: 86” (38” packed)
▪
Weight: 107 lbs.
▪
Instruction p/n 102478
▪
- C lam Custo m e r Serv ice I n form a t ion -
NOTICE!! Once used, this shelter cannot be returned to the store. If you have a
warranty claim, have your sales receipt ready and contact Clam Corporation
Customer Service by email inquiry or direct by calling:
Customer Service Hrs: - 9am to 4pm, Mon. - Fri. Central Standard Time
▪
Clam Corporation
▪
600 Clydesdale Trail
Medina, MN 55340
Phone - 763-231-4120
▪
Fax - 763-231-4121
▪
Website – www.clamcorp.com
▪
Email – customerservice@clamcorp.com
▪
Clam Corporation cannot honor warranty without an original, dated receipt.
2
- P arts List -
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 101580 REAR ADJUSTABLE SPREADER POLE 1
2 101431 TUBE, YUKON CANOPY HOOP 3
3 101148 SCREW, #6 X 0.38 16
4 101481 ROOF SPREADER POLE 2
5 101095 ROPE, 3/8 DIA X 9 FT 1
6 101584 BRKT, LEFT CANOPY 1
7 101088 SCREW, 1/4-20 X 0.75 6
8 101167 FRONT ADJUSTABLE SPREADER POLE 2
9 101083 CAP, TUBE SPACER 8
10 101470 SCREW, 1/4-20 X 0.50 16
11 101146 CHANNEL, 8.78 ALUM EXT 4
12 101652 TUBE, 20.00 SEAT RAIL 4
13 101486 SCREW, 1/4-20 X 1.75 8
14 101147 SCREW, #10 x 1.00 8
15 101420 BRKT, FRONT RETAINER 2
16 101466 HAMMOCK, ACCESSORY 2
17 101048 BLOCK, SLIDE 8
18 101082 NUT, 1/4-20 THIN NYLOCK 32
19 102512 SPRING, CATCH 2
20 102430 BRKT, REAR RETAINER 2
21 101429 PLUG, 1.16 DIA TUBE 8
22 101399 SWIVEL 2
23 101080 SCREW, 1/4-20 X 1.25 8
24 102497 BASE, YUKON, 08/09 1
25 101432 TUBE, YUKON PORCH HOOP 1
26 101121 TUBE, PORCH 2
27 101081 WASHER, 1/4 FLAT 8
28 101585 BRKT, RIGHT CANOPY 1
29 101463 FOLDING SEAT ASSEMBLY 2
30 101430 CAP, TUBE 1 X 2 - 1/8 2
31 101487 SCREW, 1/4-20 X 2.75 2
32 101069 POLE CANOPY, 1/2" 6
33 101116 MOLDING, 3/4 X 118 U-CHNL 1
34 102503 TUBE, YUKON SEAT RAIL SUPPORT 1
35 102435 TENT, 08/09 YUKON 1
36 102478 MANUAL, 08/09 YUKON 1
3

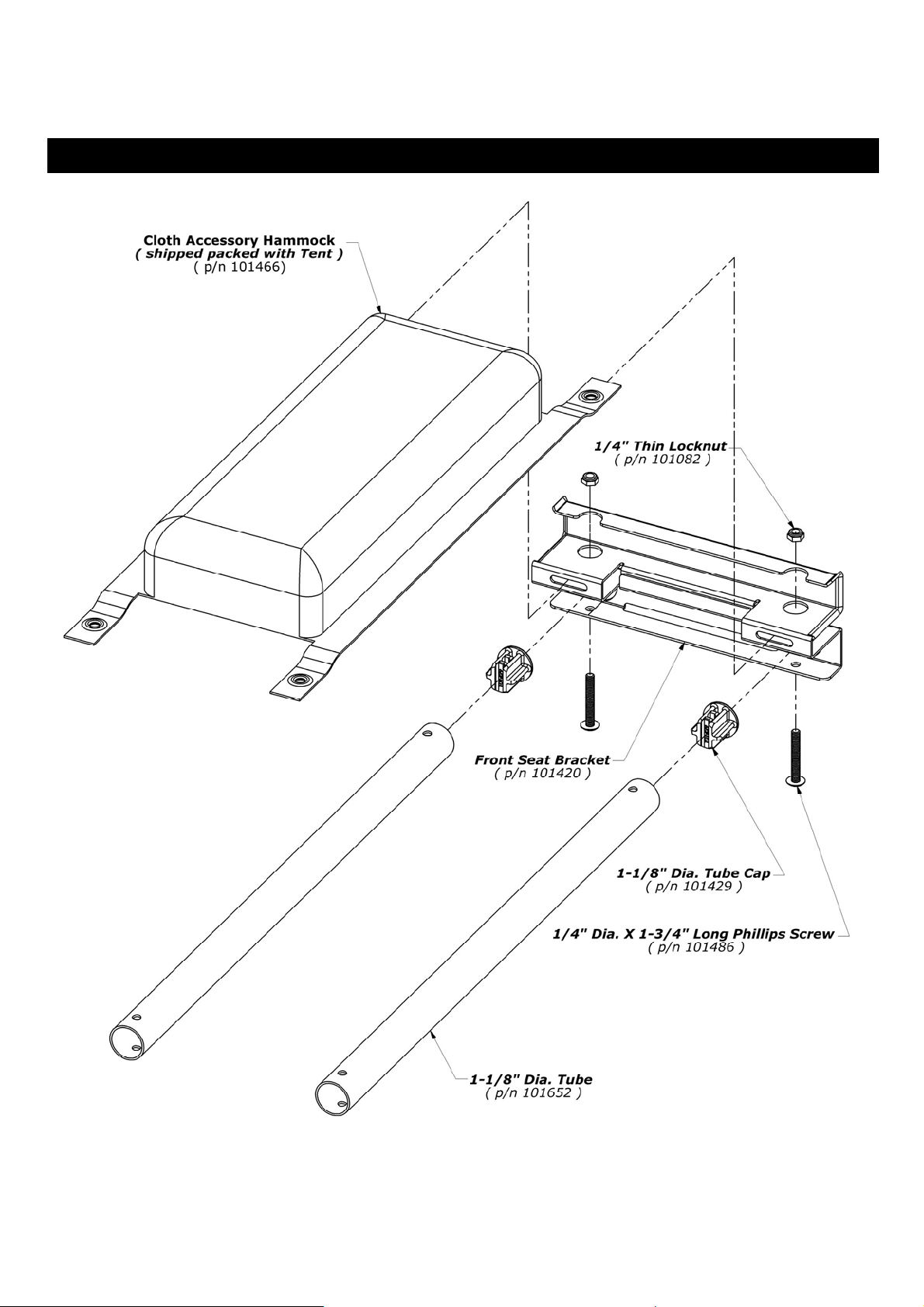

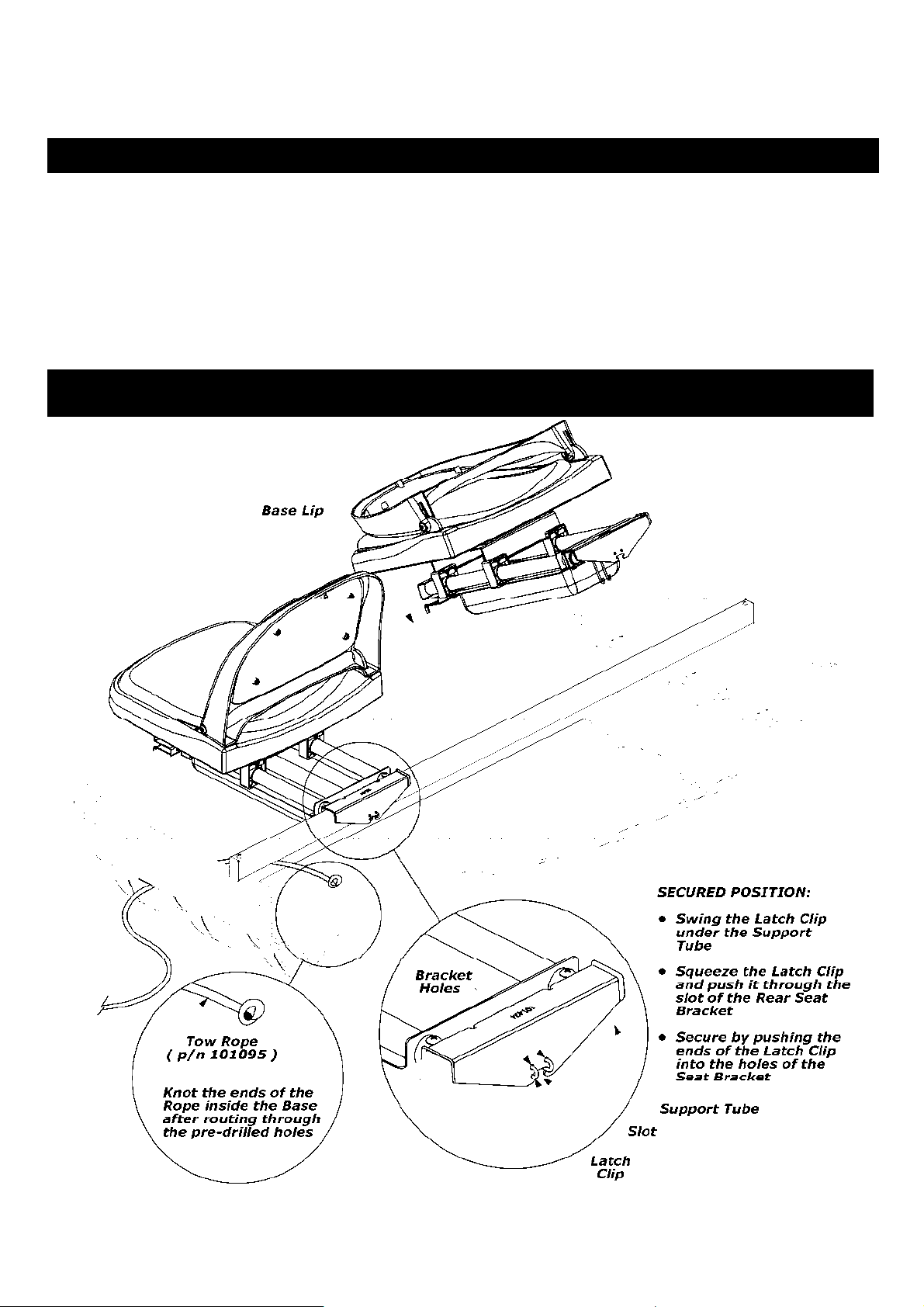

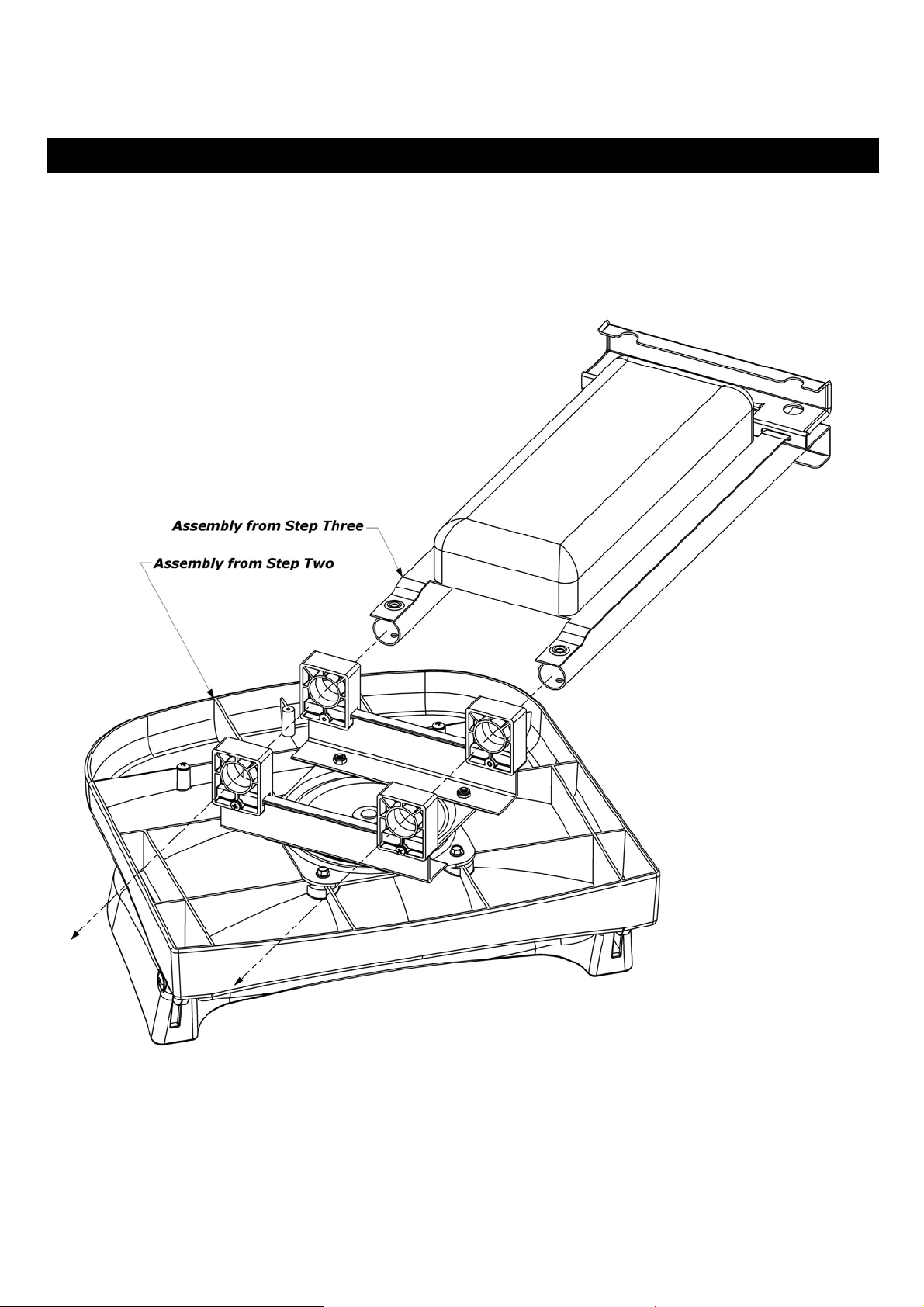

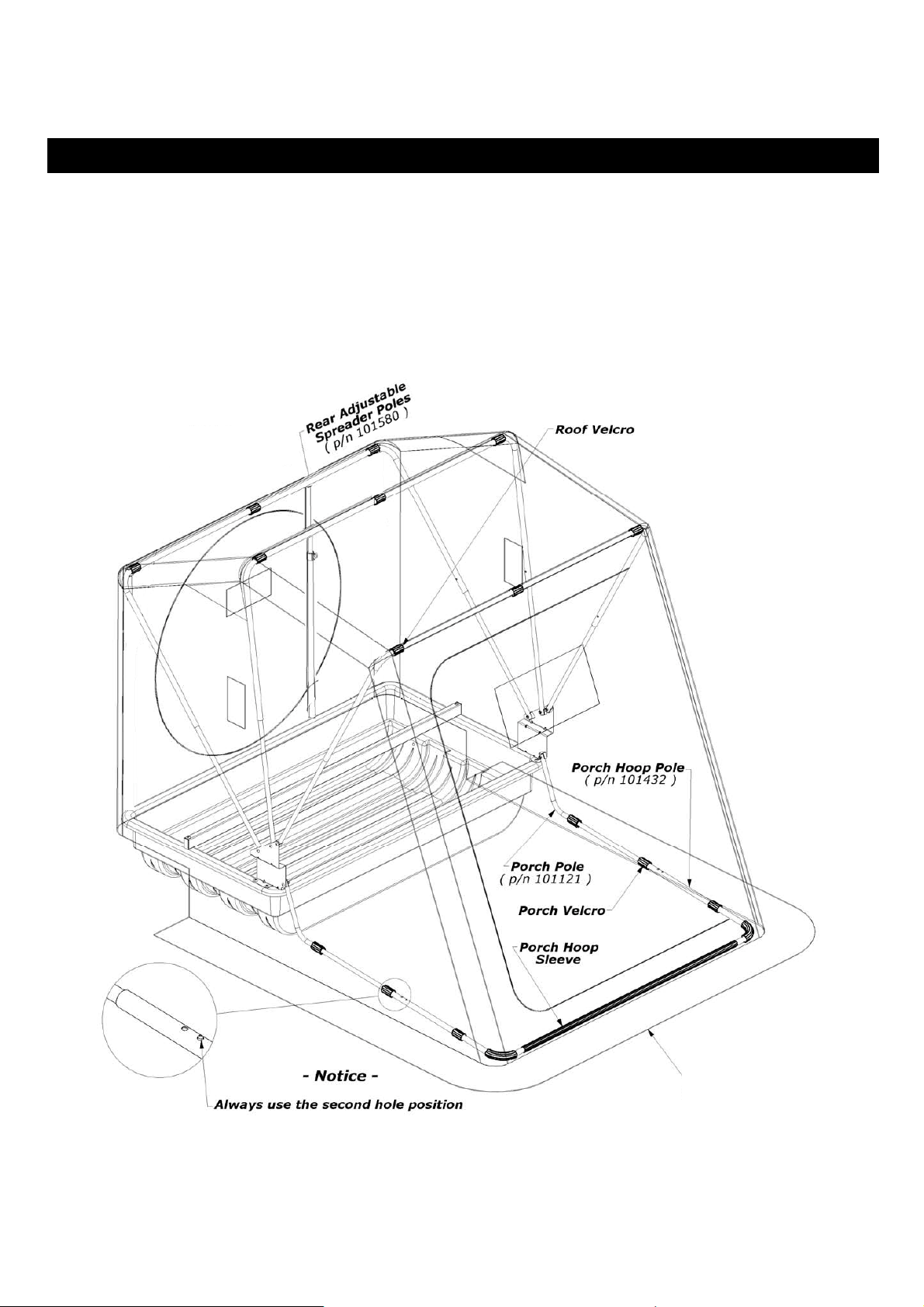

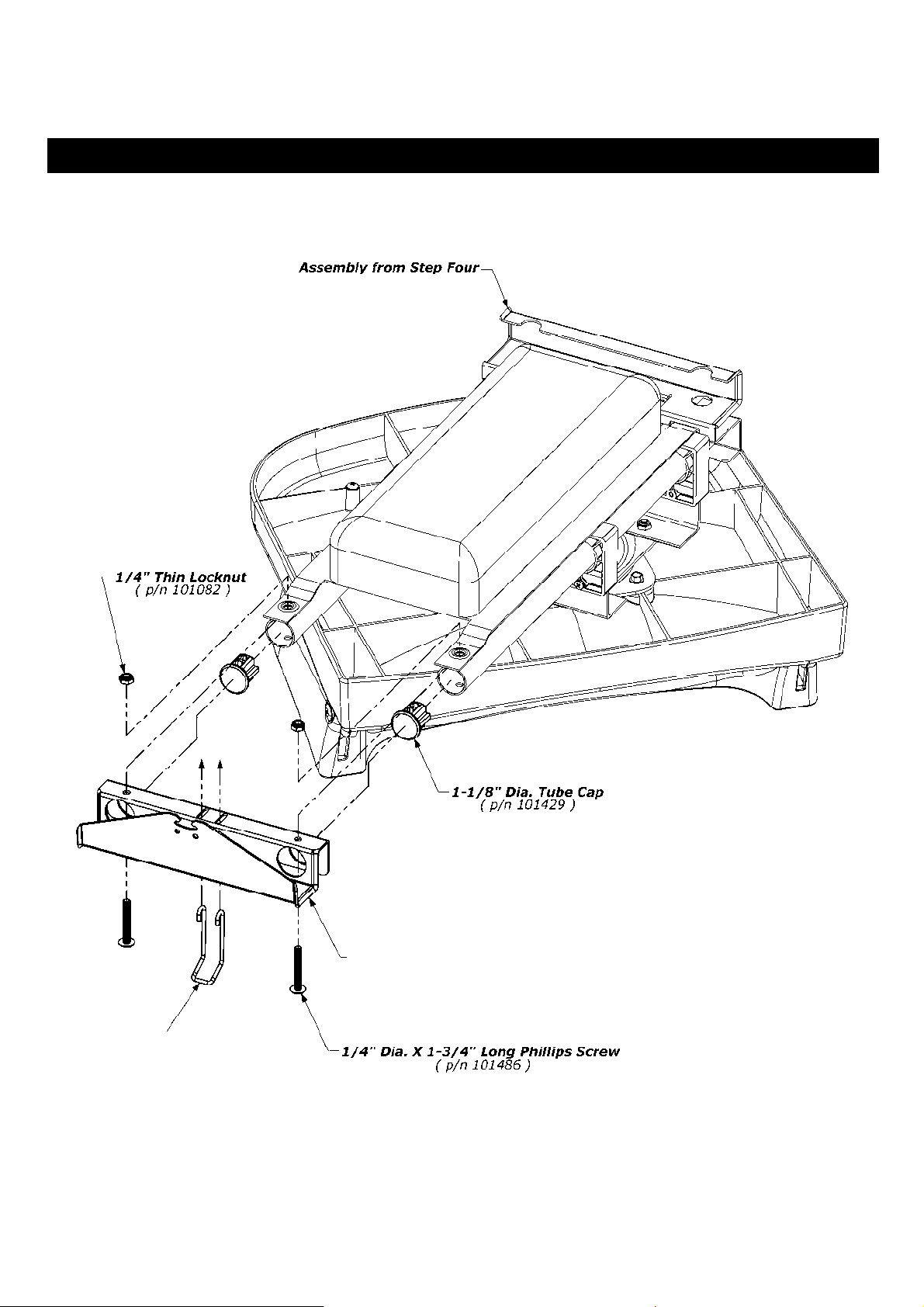

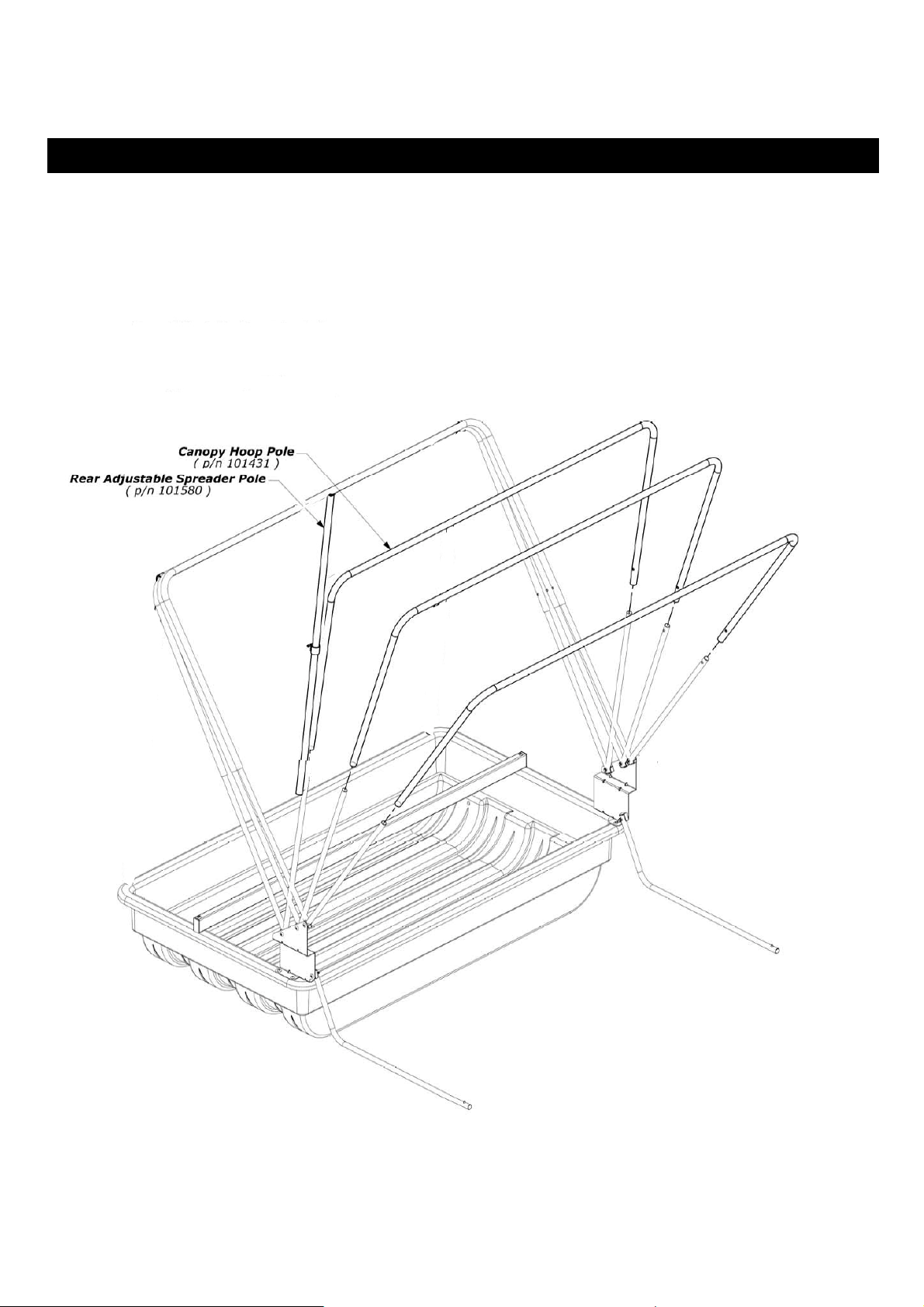

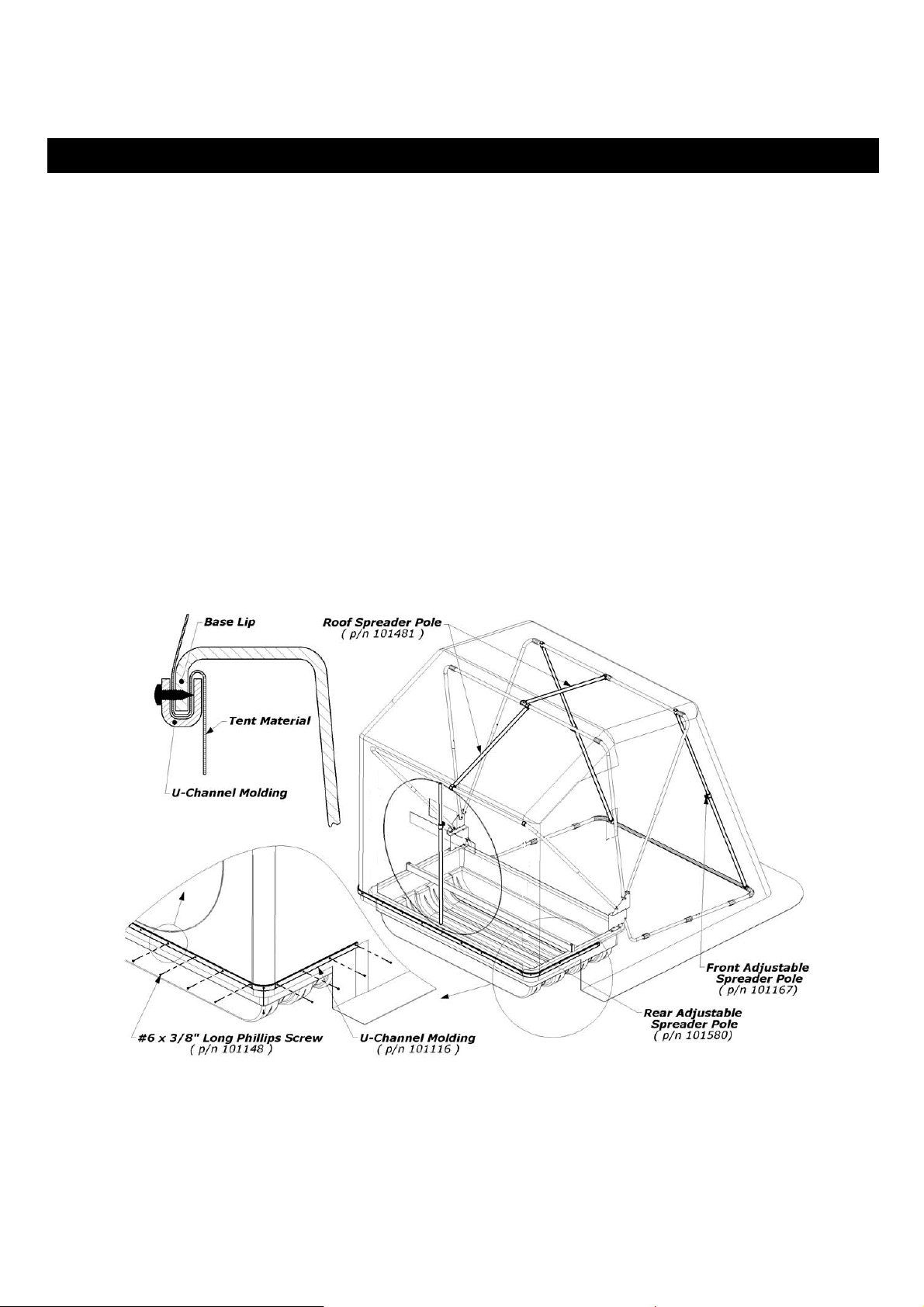

- P arts Diagram -
4

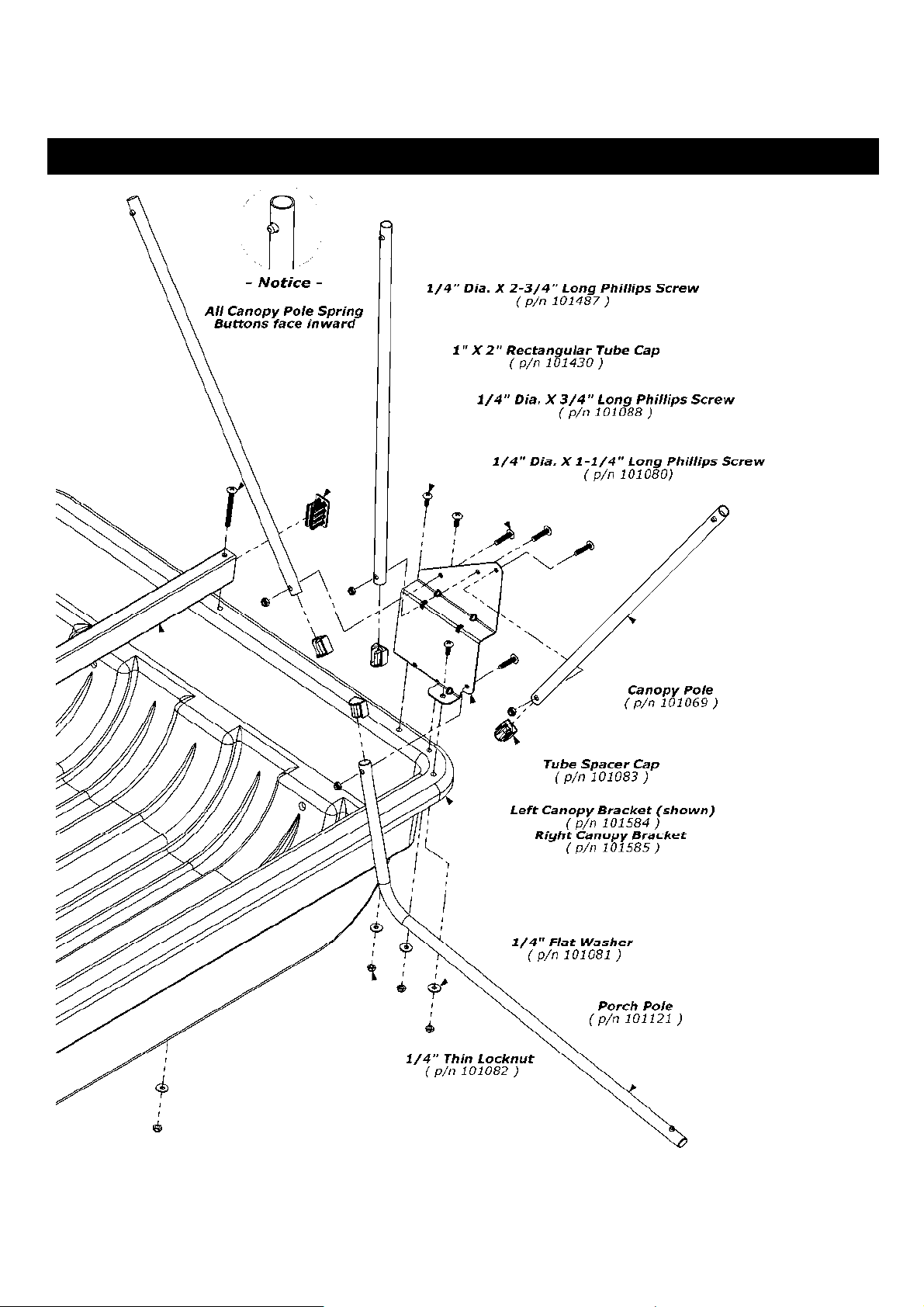

- Step On e -
5
- Step Two -
