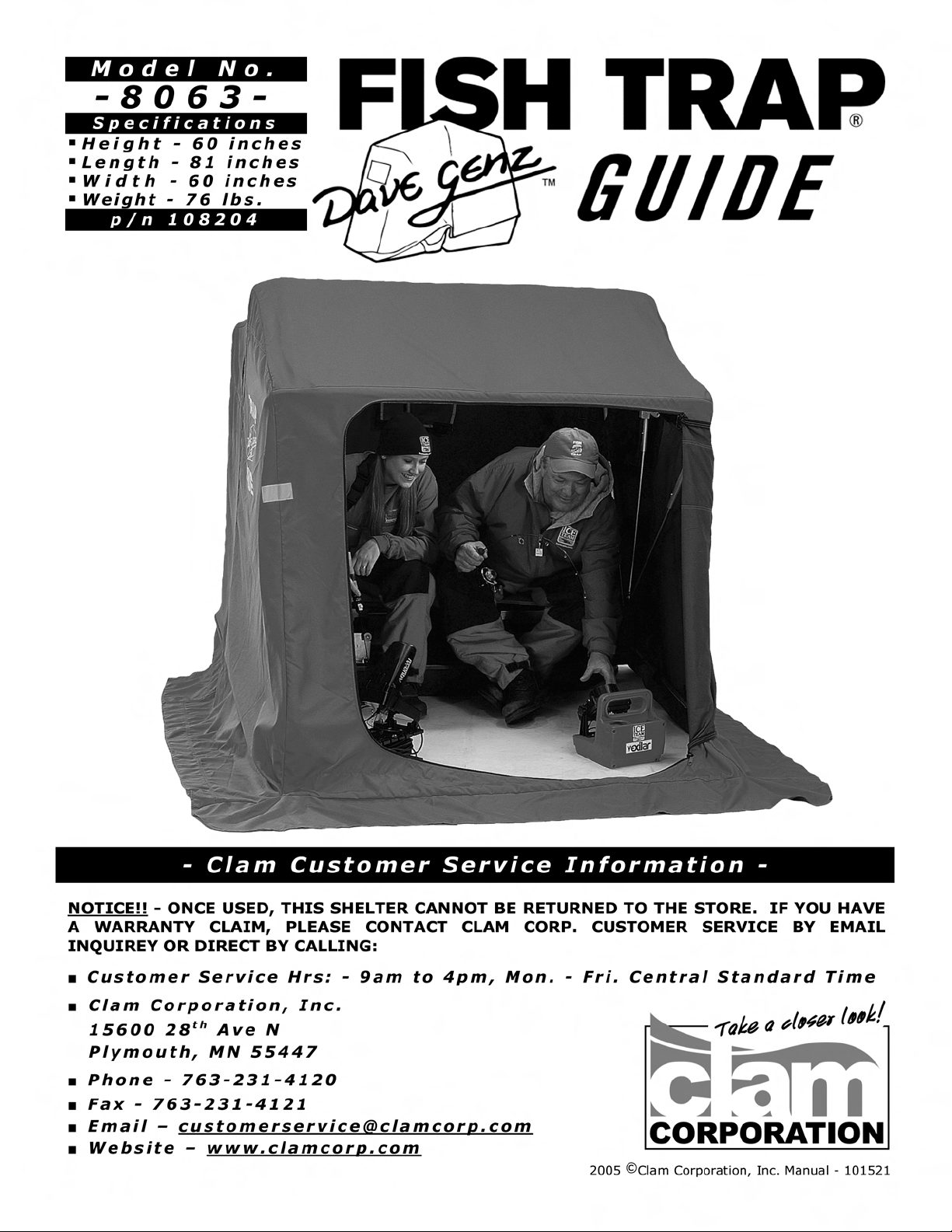

Clam Corp 8063 User Manual

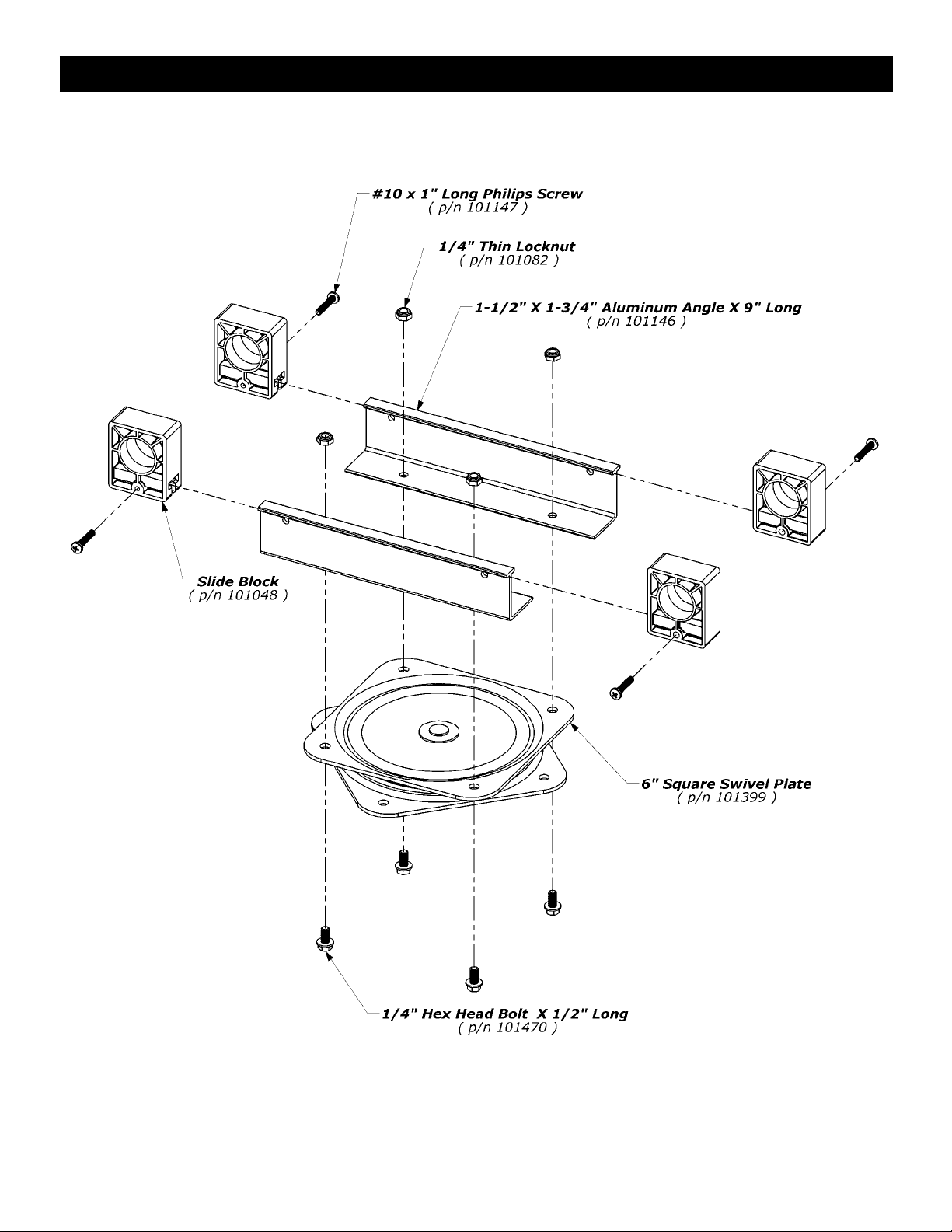

- Step One -

2

- Step Two -

3

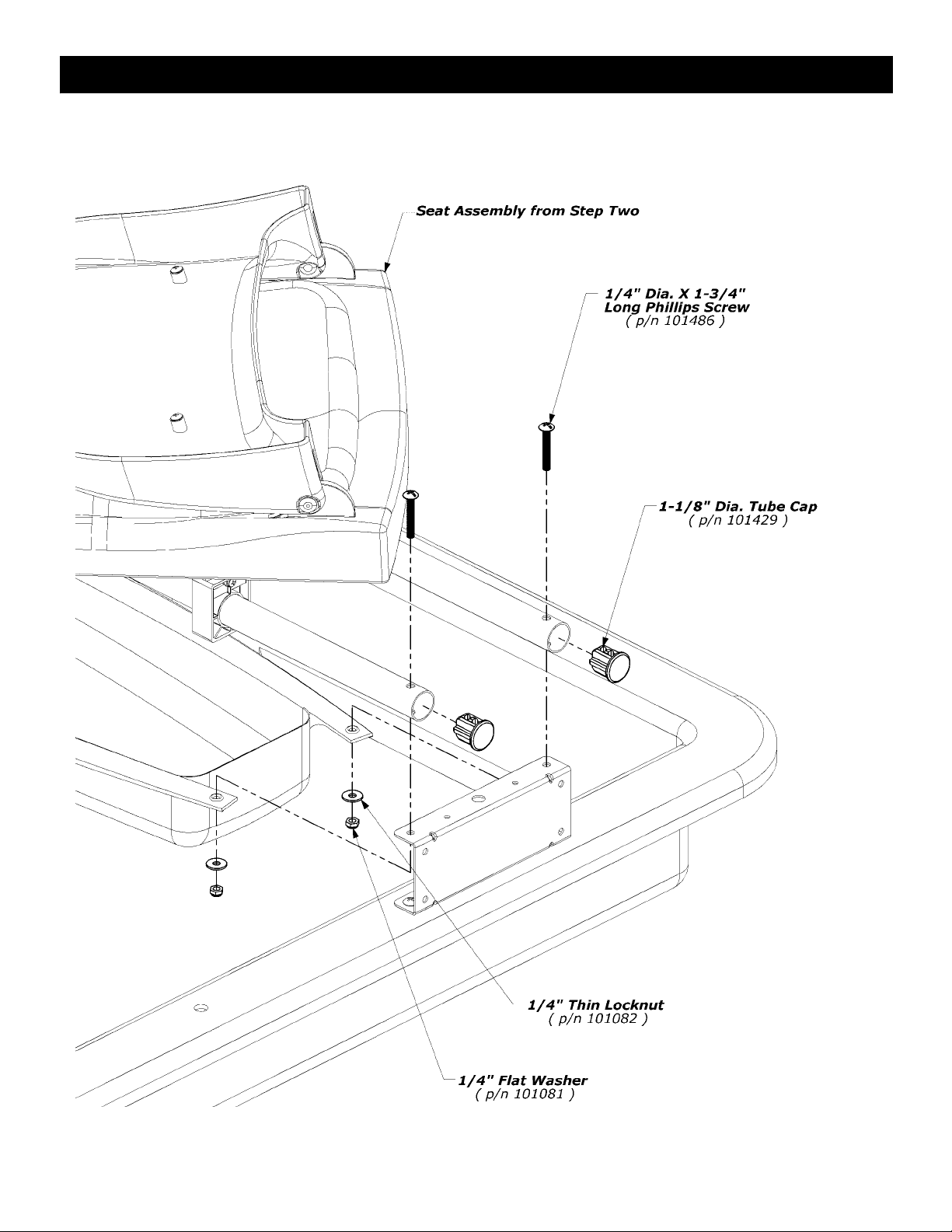

- Step Three -

4

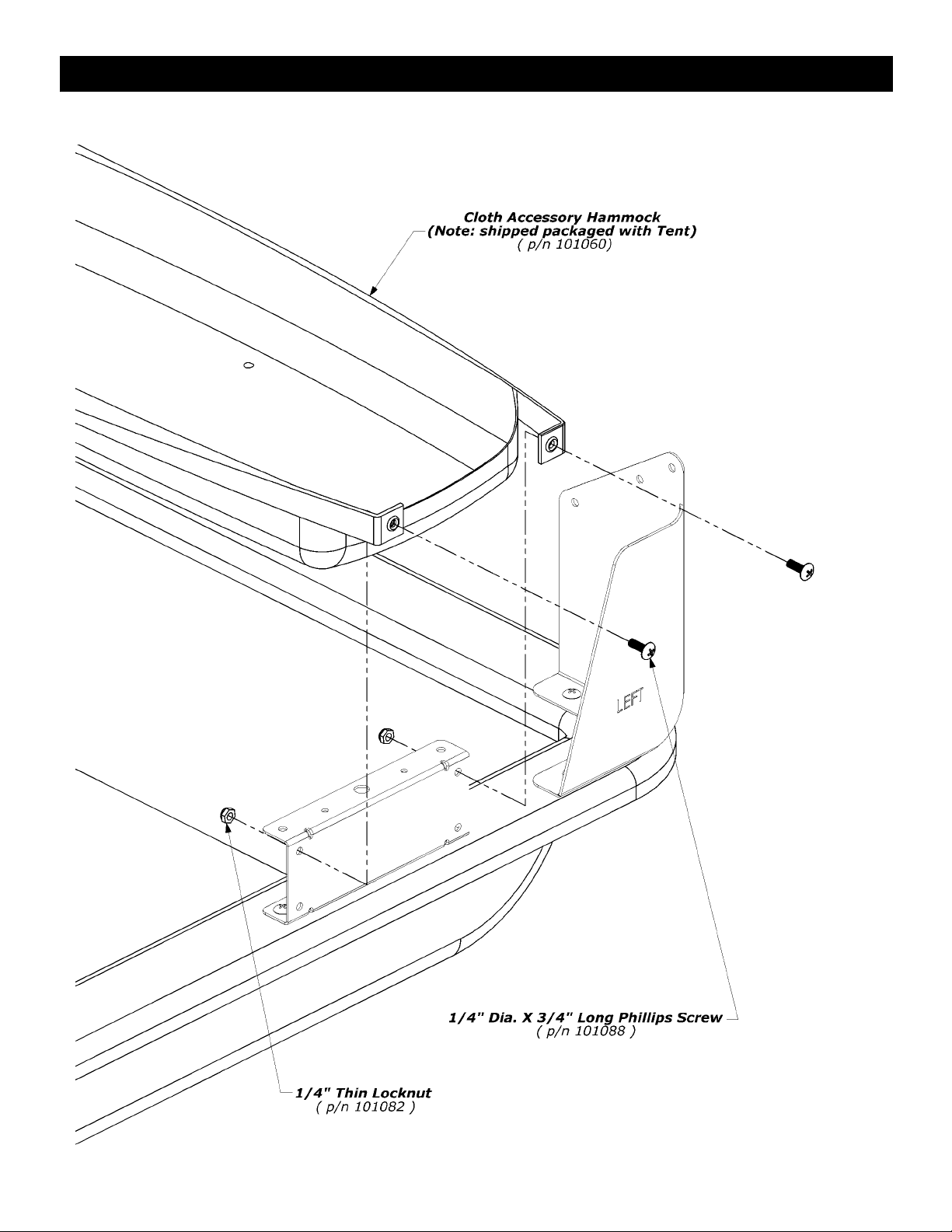

- Step Four -

( Front View )

5

- Step Five -

( Front View )

6

- Step Six -

( Back View )

7

- Step Seven -

8

- Step Eight -

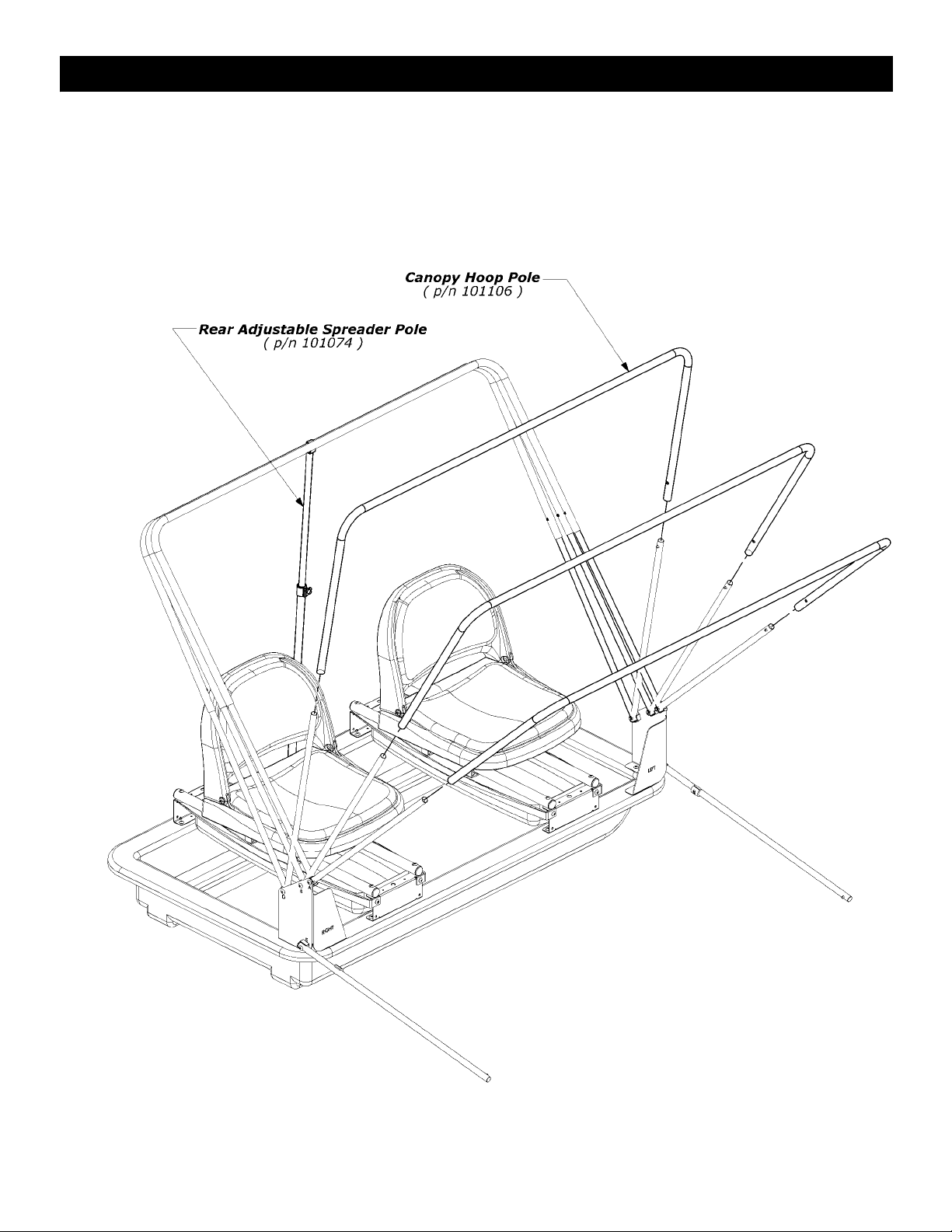

Slide the Canopy Hoop Poles onto the Canopy Poles until the spring buttons engage the holes near the
ends of each Canopy Hoop Pole.

Support the first Canopy Hoop Pole as pictured with the Rear Adjustable Spreader Pole and lean the
two remaining Canopy Hoop Poles against the first.

9

- Step Nine -

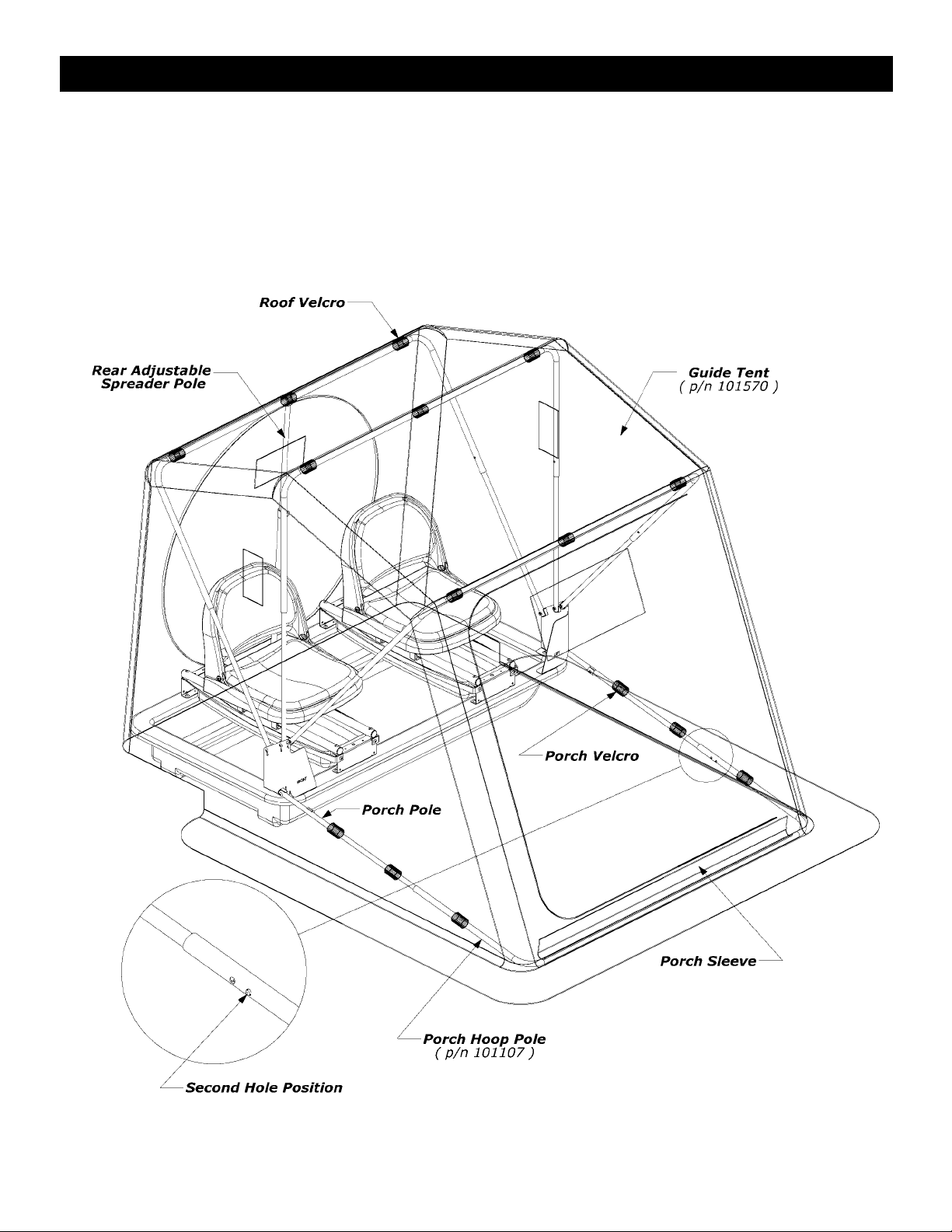

Drape the Tent over the supported hoops then go inside and spread out the Canopy Hoop Poles,
attaching the Roof Velcro as you go.

Feed the length of the Porch Hoop Pole through the Porch Hoop Sleeve sewn on the Tent. Slide the
Porch Hoop Pole onto the Porch Poles, engaging the second hole position.

Attach the Porch Velcro on each side of the Tent. Remove the Rear Adjustable Spreader Pole now

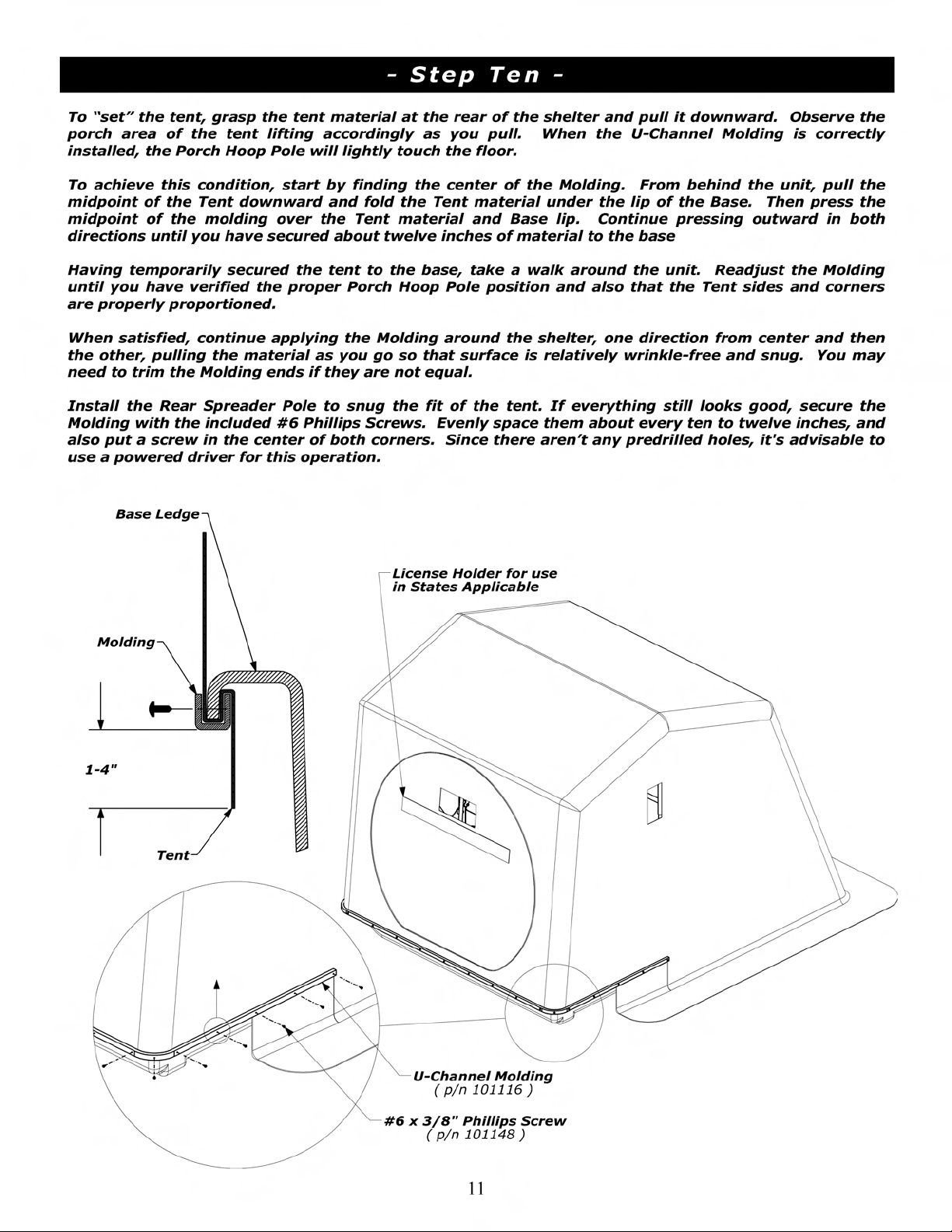

supporting the hoops to allow the tent to be “set” in the next step.

10

- Tips for Use -

Folding and transporting your Fish Trap is easy :

Unsnap the Rear Spreader Pole and lay it in the bottom of the base.

ŀ

Push the spring buttons and retract each hoop, s tarting with the r ear hoop and working towards the

ŀ

front. Rotate all retracted hoops to the resting position. Tuck the tent into the base and between the
hoops so that no material is left hanging on the ground for transport.

Cover with the Travel Cover* (an optional but recommended accessory to help prolong the life of the

ŀ

unit). Tow the unit out to your favorite fishing spot! (NOTE: continuous pulling behind a four
wheeler or snowmobile may result in premature wear of the base. We recommend the optional Wear
Strips * be m ou nt ed to the base of you r Fi sh Trap).

Make sure your Shelter is completely dried out before storing for long periods of time. Store your
Shelter in a cool, dry place. Keep away from rodents.

*See our accessory catalog or www.clamcorp.com for these items and more!

- Safety Instructions -

Please fully understand and follow all safety instructions as outlined. Failure to do so could result in
severe injury or death.

Do not use open flame heaters in your ice shelter. Injury or death may result from fire if tent fabric is

ŀ

exposed to open flame. The tent is not fireproof, but the fabric is treated with a fire retardant that
meets CPAI-84 specifications. Application of any foreign substance may render the flame retardant
properties ineffective. Ice Armor fabric will melt when contact is made with hot surfaces (i.e.,
heaters).

Death from asphyxiation may result from use of oxygen depleting heaters. Open all vents for fresh air

ŀ

ventilation.
Never leave shelter unattended when set up.

ŀ

Due to the increase in traffic (snowmobiles, autos, etc.) on area lakes, ice fishing can be hazardous at

ŀ

night. If you choose to fish at night or in poor visibility conditions, be sure to take precautions with
lights or reflectors to s how drivers your whereabouts. Night time: exterior reflectors must be visible
to reduce risk of collision s .

- Warranty -

Clam Corporation, Inc. warrants to the original retail purchaser that all Clams are free from
manufacturers defects for one (1) year from the date of the original purchase. Warranty does not cover
cracked windows, tent tears, broken or bent hoops due to high wind weather conditions or unattended
use. Clam Corporation will replace or repair any part found defective within the one (1) year time limit.
All parts must be returned to Clam Corporation, Inc. Before returning any parts, you must first call or
write and acquire a return authorization. Al l returns must b e re turned postage-prepaid and i nclude the
original cash register receipt (date and purchase price).

- Limitation of Liability -

It is expressly understood that Clam Corporation liability for its products, whether due to breach of
warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated
above. Clam Corporation is not liable for any injury, loss, damage, or expense, whether direct or
consequential, including but not limited to loss of use, income, profit, or damage to material arising in
connection with the sale, installation, use of, inability to use, or the repair or replacement of Clam
Corporation products. Clam Corporation reserves the right to make alterations or modifications in its
products at any time, which in its opinion, may improve the performance and efficiency of the product.
It shall not be obligated to make such alterations or modifications to products already in service.

12
