Claas Agri Service Manual

Contents

PARTICULARS

INTRODUCTION 1
CLAAS DOMINATOR 100 -105 2
CLAAS DOMINATOR 56 - 66 2
CLAAS DOMINATOR 58 3
CLAAS DOMINATOR 68 3
CLAAS DOMINATOR 76 4
CLAAS DOMINATOR 78 4
CLAAS DOMINATOR 80 - 85 5
CLAAS DOMINATOR 86 5
CLAAS DOMINATOR 96 6
CLAAS DOMINATOR 98 S/SL 6
CLAAS MATADOR 7
CLAAS MERCATOR S70-75 7
CLASS MERCUR 8
CLAAS PROTECTOR 8
CLAAS SENATOR 80 - 85 9
NEW REFERENCES 9
NEW REFERENCES 10
NEW HOLLAND 8040 - 8055 10
NEW HOLLAND 8030 11
NEW HOLLAND 8050 - 8060 11
NEW HOLLAND 8070 12
NEW HOLLAND 8080 12
NEW HOLLAND TX30 13
NEW HOLLAND TX30 RH 13
NEW HOLLAND TX32 14
NEW HOLLAND TX32 14
NEW HOLLAND TF42 15
NEW HOLLAND TF44 15
NEW HOLLAND TF46 16
NEW HOLLAND TX34 16
NEW HOLLAND TX36 17
NEW HOLLAND TX36 17
NEW REFERENCES 18
JOHN DEERE 330 - 430 18
JOHN DEERE 530 - 630 - 730 19
JOHN DEERE 925 19
JOHN DEERE 930 - 940 20
JOHN DEERE 950 - 960 - 970 20
MASSEY FERGUSON 24 21
MASSEY FERGUSON 760/765/780/860/865 21
LAVERDA M100M120 22
LAVERDA 3350 ex.m112al 22
LAVERDA M132 23
LAVERDA 3350 exm112 23
LAVERDA 3450 24
LAVERDA 3300/3300al 24
LAVERDA 3600/3700/3790 25
LAVERDA 3900 25
DEUTZ FAHR TOPLINER 460 26
NEW REFERENCES-”CASE” 26
PREVENTIVE MAINTENANCE TIPS 27
PREVENTIVE MAINTENANCE TIPS 28
TYPES OF FAILURES 29
DO’S AND DON’TS 29
NOTES 30

PAGE NO.

PIX AGRI BELTS

PIX Agribelts are available in different types
e.g. Regular section, Hexagonal section,
Variable speed belts and Banded. They are
specially made to provide maximum service
life in the practical application.

Hexagonal section provides the stability and
support to transmit power on Agricultural
serpentine drives.

Agriculture Variable Speed Belts are
specially designed to withstand the high
ambient temperature and oily conditions
generally encountered in adjustable speed
applications. For heavy duty application
these belts are provided with special type of
fabric at bottom for the extra flexibility
required on small diameter pulleys and also
with fibre filled compound on top side to
impart extra rigidity in transverse direction.
This enables the belt to withstand the forces
and loads subjected during movement inside
split type of pulleys.

The notable feature of Agricultural Variable
Speed belts is that they transmit much
higher loads over a narrower speed range.
Therefore, Agricultural Variable Speed belts
require higher tensile strength and are
thicker with more reinforcement in the
tensile support than Industrial belts.

PIX Banded belts are more suitable in
conditions where high vibrations and shock
loads are expected.

Salient features of PIX Agribelts

• PIX Agribelts are designed for efficient power transmission with minimised heat generation.

• A special rubber compound with textile fibre oriented across the transverse direction of
length of the Cut Edge Belts provides high stability and minimizes deflection in the cross
section.

• The minimum stretch stiff polyester cords have been designed for heavy power
transmission, while at the same time ensuring a very high degree of length stability.

• The sides of the belts have excellent abrasion resistant properties contributing significantly
to long and useful belt life.

• Moulded cogs reduces bending stresses and improves heat dissipation in Cut Edge
construction.

1

LH

RH

65

421

13

7

16

1514

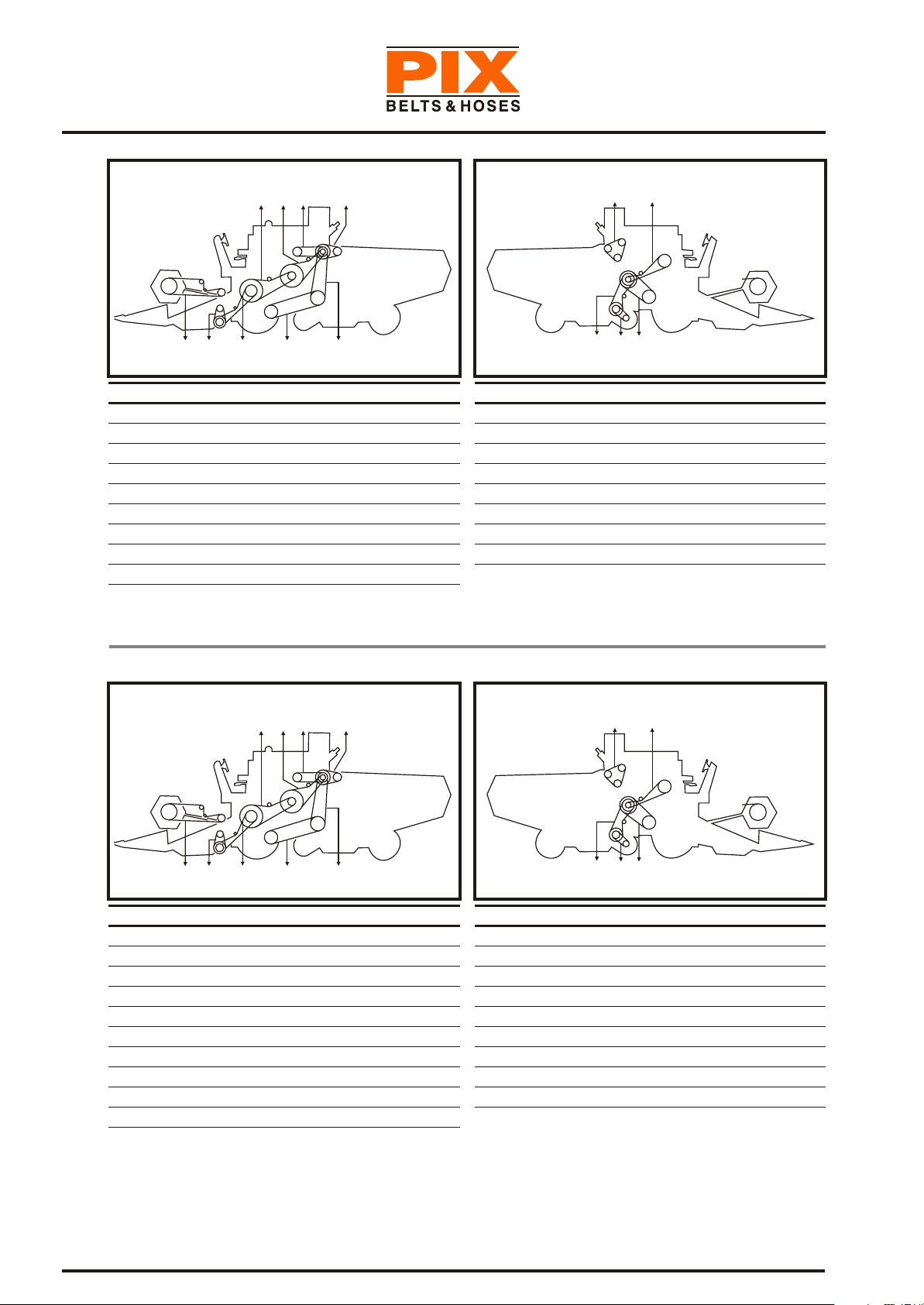

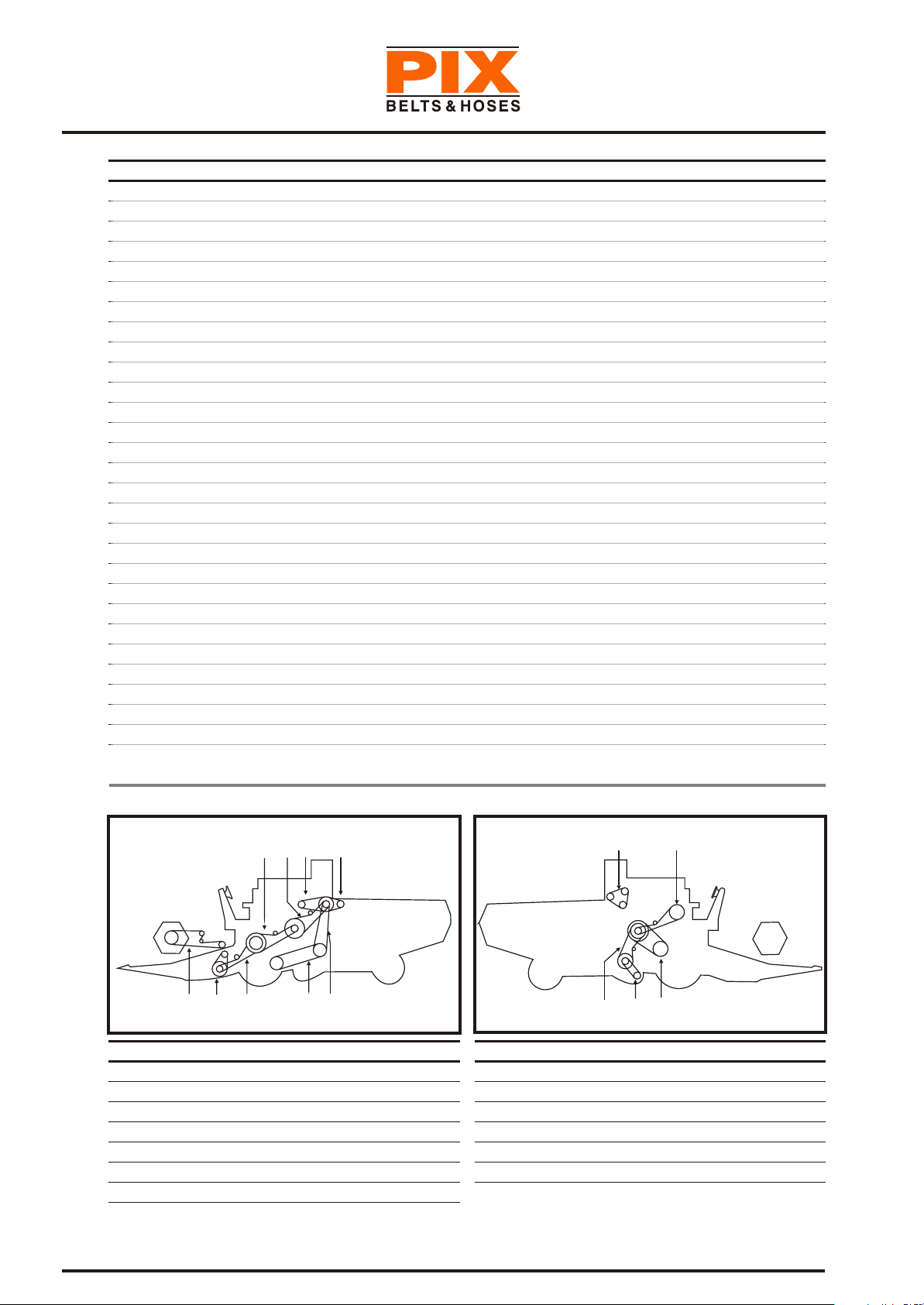

CLAAS DOMINATOR 100 - 105CLAAS DOMINATOR 56 - 66

ITEM

LH

9 3 10 13 11 8

OEM REF.

1

2

3

4

5

6

7

8

9

10

670224.0

672353.0

629000.1

629001.0

629002.1

673614.0

672358.0

629036.0

629214.0

671209.0

PIX REF.

HC670224

HC672353

HC629000

HC629001

HC629002

HC673614

HC672358

HC629036

HC629214

HC671209

DESCRIPTION

Variable speed reel

Cutting table

Threshing machine

Hyd pump traction

Hyd pump

Grain tank

Shaker shoe

Straw walker

Knife drive

Variable speed fan

17

ITEM

11

12

13

14

*

15

*

16

*

17

*

18

*

19

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

672359.1

629081.1

629732.1

501925.0

060306.2

802931.0

061253.1

629035.0

629510.1

18

PIX REF.

HC672359

HC629081

HC629732

HC501925

HC060306

HC802931

HC061253

HC629035

HC629510

19

DESCRIPTION

Shaker shoe return

Grain auger

Elevator

Feeder elevator

Countershaft

Air in-take

Straw chopper

Cylinder vari drive

Threshing machine

RH

3

11 121314

15 16

17

28

ITEM

1

2

3

6

11

12

13

14

15

16

17

735

6

3

34 7 21 22 23 24 25

OEM REF.

670224.0

656028.0

670224.0

603122.0

767057.0

621903.0

673614.0

671012.1

603337.0

603336.1

506671.1

PIX REF.

HC670224

HC656028

HC670224

HC603122

HC767057

HC621903

HC673614

HC671012

HC603337

HC603336

HC506671

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Variable speed

Hydraulic pump

Variable speed

Feed drive

Hydraulic pump

A/c compressor

Grain unload auger

Drum drive

Fanning mill

Shaker shoe drive

Walker drive

31

ITEM

21

22

23

24

25

35

35

28

*

31

*

32

*

33

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

629436.0

629756.0

671209.0

603017.3

635494.0

629214.0

056961.0

783430.1

061361.1

060306.2

603015.1

2

32 33

PIX REF.

HC629436

HC629756

HC671209

HC603017

HC635494

HC629214

HC056961

HC783430

HC061361

HC060306

HC603015

DESCRIPTION

Drive

Land drive

Fanning mill

Sieve drum drive

Straw spreader

Reel drive

Reel variator

Rotary screen

Chopper drive

Counter shaft drive

Variator drum

LH RH

1

++

++

3 4 5 6 8 10

++

++

++

++

++

++

++

++

++

1412112

++

++

++

++

++

++

9

13

+

++

16

++

17

ITEM

1

2

3

4

5

6

7

8

8

9

OEM REF.

778561.0

724301.0

724141.0

724100.0

673614.0

767057.0

783268.1

724180.0

724181.0

785176.0

PIX REF.

HC778561

HC724301

HC724141

HC724100

HC673614

HC767057

HC783268

HC724180

HC724181

HC785176

DESCRIPTION

Pick up reel

Cutter table

Fanning mill

Threshing mech

Grain tank unload

Hydraulic pump

Compressor (set 2)

Fan drive

Fan drive

Straw walker

*

*

*

*

* The text in italics indicates part numbers that belongs to RHS of the image.

LH RH

1 2

3

10

1411

ITEM

10

11

11

12

13

14

15

16

17

17

OEM REF.

802931.0

724168.0

724339.0

629756.0

724247.0

603380.0

061902.0

061872.0

603015.1

628630.0

27 28

PIX REF.

HC802931

HC724168

HC724339

HC629756

HC724247

HC603380

HC061902

HC061872

HC603015

HC628630

DESCRIPTION

Air intake

Feed drive

Feed drive

Land drive

Impellor

Cleaning fan

Chopper drive

Chopper drive final

Variator drum

Variator drum

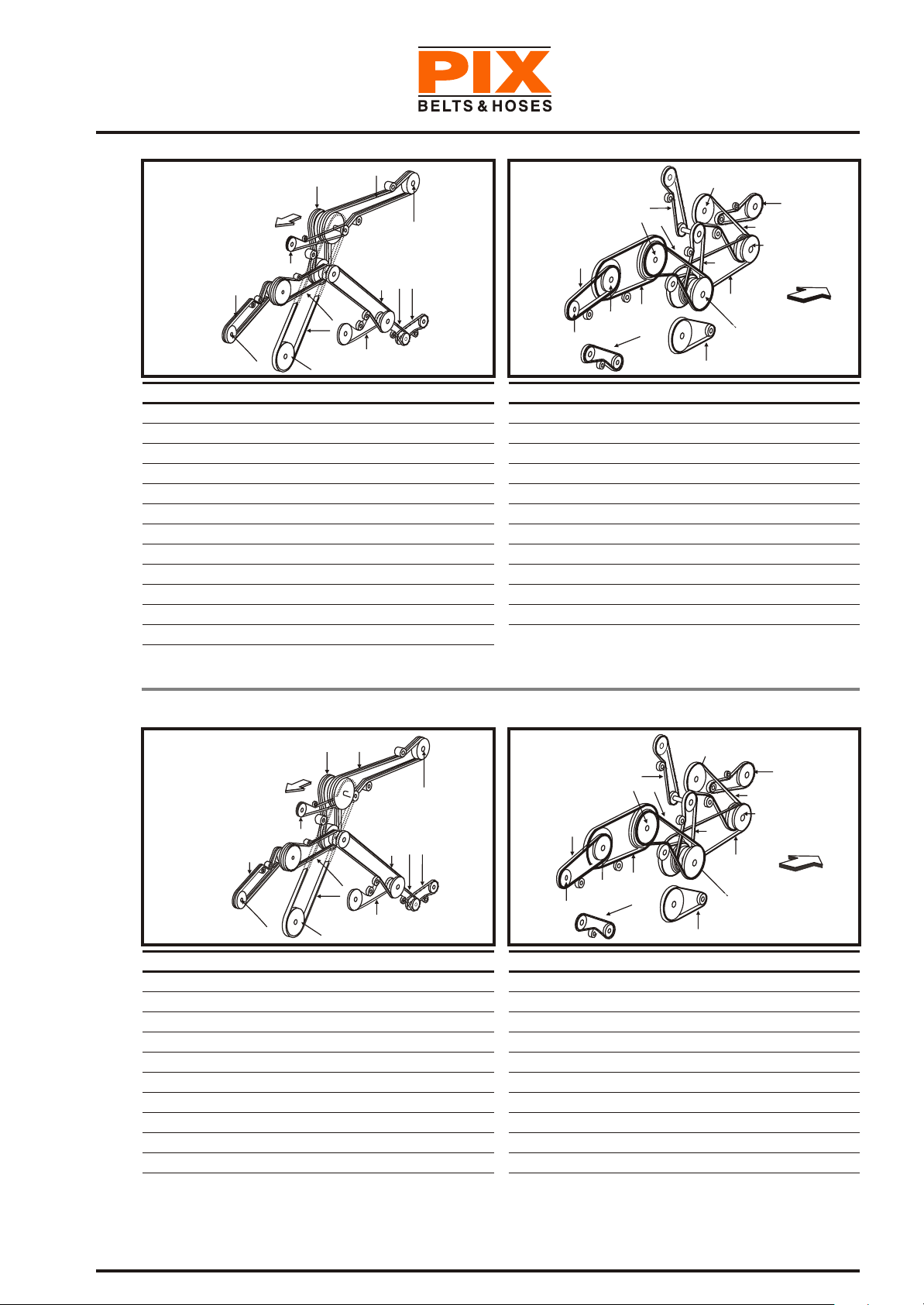

CLAAS DOMINATOR 68 CLAAS DOMINATOR 58

4

ITEM

1

2

3

4

4

10

11

14

16

16 17 18 19 20 21

OEM REF.

603284.0

056961.0

670224.0

603283.0

731506.2

673614.0

767057.0

802931.0

629214.0

PIX REF.

HC603284

HC056961

HC670224

HC603283

HC731506

HC673614

HC767057

HC802931

HC629214

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Reel drive

Reel variator

Variable speed

Knife drive up to 3 MT

Knife drive 3.6 - 5.10 MT

Grain tank unload

Hydraulic pump

Air intake

Knife drive

3

24

ITEM

17

18

19

20

21

24

*

27

*

28

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

629836.1

673638.0

629756.0

603380.0

724247.0

603015.1

061902.0

061872.0

PIX REF.

HC629836

HC673638

HC629756

HC603380

HC724247

HC603015

HC061902

HC061872

DESCRIPTION

Feeder drive (set 2)

Straw elevator

Land drive

Fan variator

Drum impellor

Drum variator

Straw chopper

Straw chopper

LH RH

11 1 2 3 4 5 6 7 8

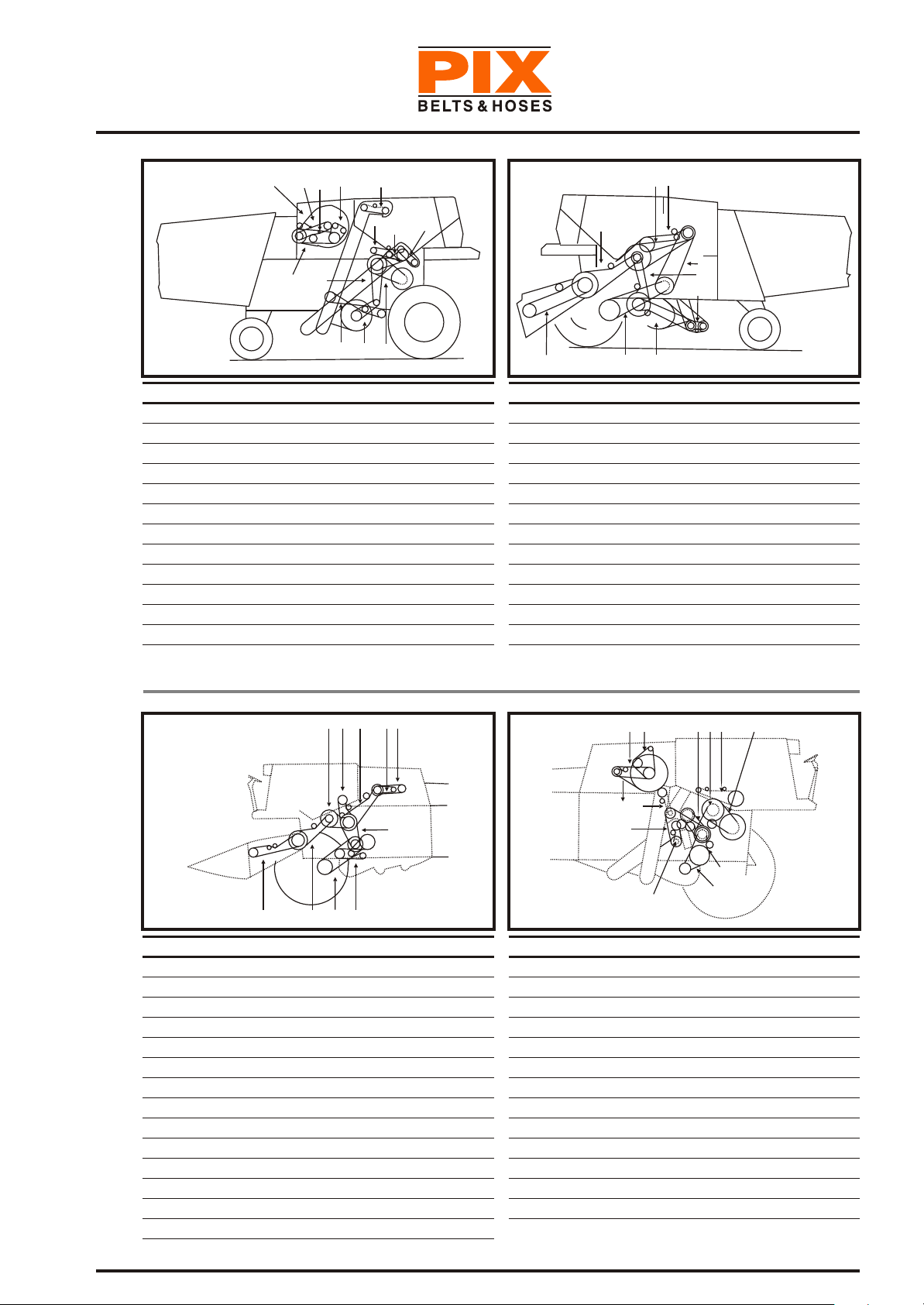

CLAAS DOMINATOR 76

ITEM

1

2

3

4

5

6

6

7

7

8

11

18

18 21 22 24 25

OEM REF.

603625.0

767057.0

621903.0

673614.0

671012.0

603337.0

672358.0

603336.1

672359.1

629732.1

670224.0

603122.0

10 1 2 4 5 6 7 8

PIX REF.

HC603625

HC767057

HC621903

HC673614

HC671012

HC603337

HC672358

HC603336

HC672359

HC629732

HC670224

HC603122

3

26 27

DESCRIPTION

Hydro pump traction drive

Hydraulic pump

A/c compressor drive

Grain tank unload

Main drive

Fanning mill

Fanning mill

Shaker drive

Shaker drive

Elevator drive

Reel vari speed

Feeder drive

33 343035

ITEM

20

21

22

24

25

26

27

30

*

33

*

34

*

35

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

629214.0

673638.0

629436.0

671209.0

603017.3

506671.1

623427.1

783430.0

061360.0

060306.0

603015.1

RHLH

PIX REF.

HC629214

HC673638

HC629436

HC671209

HC603017

HC506671

HC623427

HC783430

HC061360

HC060306

HC603015

21

DESCRIPTION

Knife drive

Straw elevator

Traction drive

Fanning mill vari speed

Returns auger

Straw walker

Straw spreader

Rotary screen

Straw chopper

Counter shaft

Drum variator

19

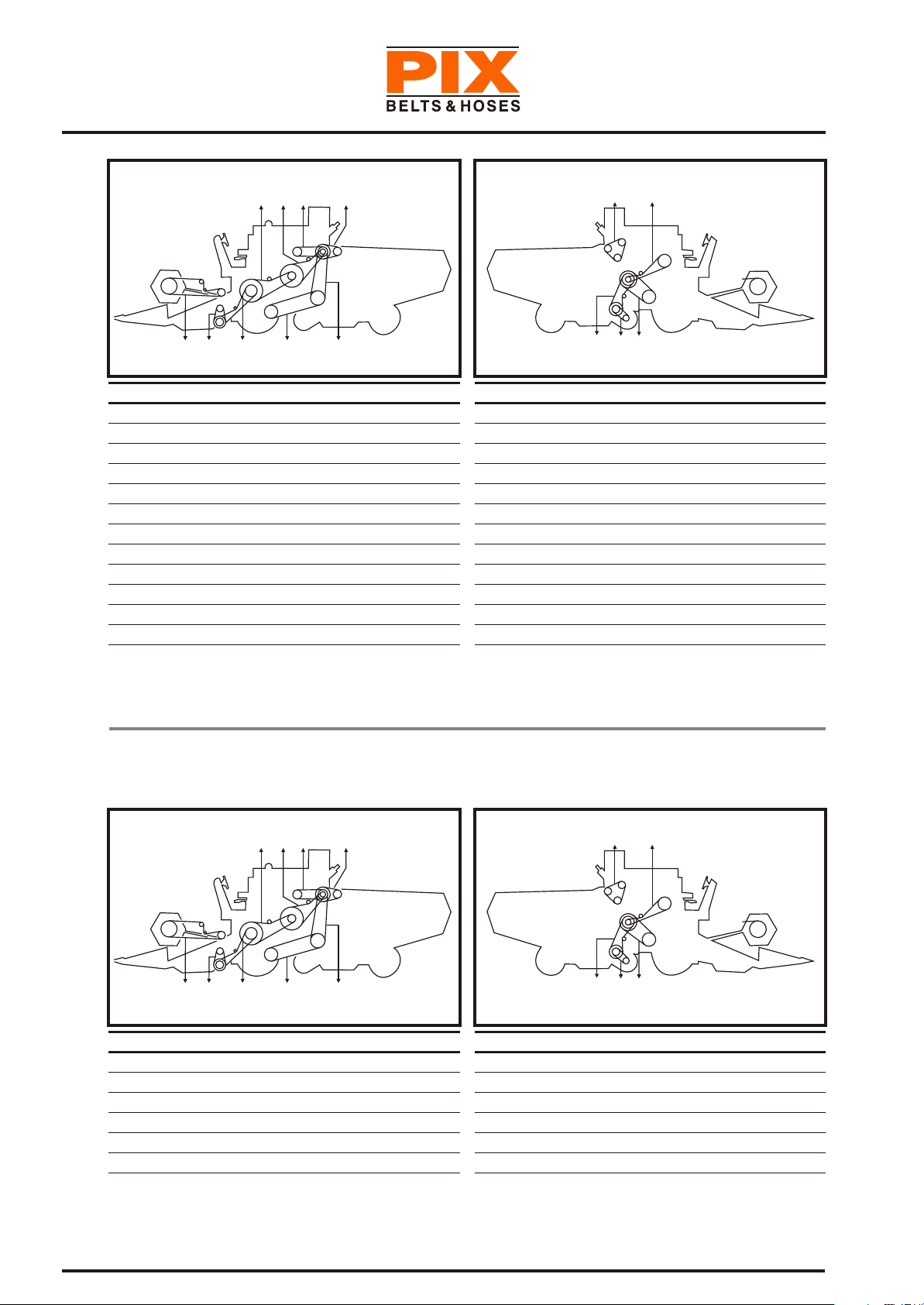

CLAAS DOMINATOR 78

ITEM

1

2

3

4

5

6

6

7

7

8

9

10

9 11 12 14 15 16 17 18

13

OEM REF.

603625.0

767057.0

629908.1

673614.0

671012.0

603337.0

672358.0

603336.1

672359.1

629732.1

670224.0

778717.0

PIX REF.

HC603625

HC767057

HC629908

HC673614

HC671012

HC603337

HC672358

HC603336

HC672359

HC629732

HC670224

HC778717

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Hydro pump traction drive

Hydraulic pump

A/C Compressor drive

Grain tank unload

Main drive

Fanning mill

Fanning mill

Shaker drive

Shaker drive

Elevator drive

Reel vari speed

Cutting table

20

ITEM

11

12

13

14

15

16

17

18

19

*

20

*

21

*

22

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

629836.0

673638.0

603427.0

603317.0

671209.0

603017.3

506671.0

623427.1

603341.0

061360.0

060306.0

628630.0

4

PIX REF.

HC629836

HC673638

HC603427

HC603317

HC671209

HC603017

HC506671

HC623427

HC603341

HC061360

HC060306

HC628630

22

DESCRIPTION

Feed drive

Cutting table clutch

Traction drive

Variator traction drive

Variable speed fanning mill

Returns auger

Straw walker

Straw spreader

Rotary screen

Straw chopper

Counter shaft

Drum Variator

LH RH

1 2 4 5 6 3 7 8

181716

1514131211109

ITEM

ITEM

1

1

2

2

3

3

4

4

5

5

6

6

7

6

8

7

9

7

10

8

11

11

12

18

LH RH

OEM REF.

670224.0

560562.0

671012.1

673625.0

532011.1

656028.0

672358.0

673601.0

769202.0

778717.0

720866.0

671083.0

10

HC670224

HC560562

HC671012

HC673625

HC532011

HC656028

HC672358

HC673601

HC769202

HC778717

HC720866

HC671083

1 234

PIX REF.

5 6

DESCRIPTION

Reel speed

Cylinder drive

Main drive

Hydraulic pump traction

Hydraulic pump

Hydraulic pump

Shaker drive

Straw walker

Knife drive

Table drive

Traction drive

Traction drive

7

*

*

*

*

*

*

*

*

* The text in italics indicates part numbers that belongs to RHS of the image.

19 20 21

ITEM

13

14

15

16

17

18

19

20

21

N/I

N/I

OEM REF.

671209.0

672359.0

673690.1

501925.0

060306.2

802931.0

060949.1

671015.0

671012.1

629035.1

629214.1

PIX REF.

HC671209

HC672359

HC673690

HC501925

HC060306

HC802931

HC060949

HC671015

HC671012

HC629035

HC629214

DESCRIPTION

Variable speed

Shaker shoe

Grain auger

Feeder auger

Counter shaft

Air intake

Straw chopper

Vari speed cylinder

Threshing

Cylinder drive

Knife drive

18

CLAAS DOMINATOR 86 CLAAS DOMINATOR 80-85

ITEM

1

2

3

4

5

6

7

10

13

14

15

13

15 16

14

OEM REF.

767057.0

621903.0

673614.0

671012.0

603337.0

603336.1

629732.1

670224.0

629214.0

603122.0

673638.0

18 19 20

17

PIX REF.

HC767057

HC621903

HC673614

HC671012

HC603337

HC603336

HC629732

HC670224

HC629214

HC603122

HC673638

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Hydraulic pump

Air con compressor

Grain tank

Drum drive

Fanning mill

Shaker drive

Elevator

Reel vari

Knife drive

Feed drive

Drive power band

21

* The text in italics indicates part numbers that belongs to RHS of the image.

29 20 21

ITEM

16

17

19

24

27

28

18

*

20

*

21

*

29

*

OEM REF.

603427.0

603317.0

603017.0

603341.0

060306.2

603015.1

671209.0

506671.1

635494.0

061361.1

HC603427

HC603317

HC603017

HC603341

HC060306

HC603015

HC671209

HC506671

HC635494

HC061361

5

PIX REF.

DESCRIPTION

Traction drive

Land wheel

Returns auger

Rotary screen

Counter drive shaft

Drum variator

Returns auger

Straw walker

Straw spreader

Straw chopper

12 1 2 4 5 6 7 8 9

LH RH

12 1 2 4

3

5 678 9

26

CLAAS DOMINATOR 96

ITEM

1

2

3

3

4

5

6

7

8

9

12

15

16

15 16 18 19 20

17

15 16 17 18 19 20 21 22 23

OEM REF.

176543.0

767057.0

629903.1

629908.1

673614.0

671012.1

603337.0

603336.1

629732.1

802931.0

670224.0

629214.0

603122.0

10

1 2 4

3

21 22

PIX REF.

HC176543

HC767057

HC629903

HC629908

HC673614

HC671012

HC603337

HC603336

HC629732

HC802931

HC670224

HC629214

HC603122

5 678 9

DESCRIPTION

Hydrostatic drive

Hydraulic pump

A/C Comp upto 09002764

A/C Comp from 09002765

Grain tank unload

Drum drive

Fanning mill

Shaker drive

Elevator

Air intake

Variable reel

Knife drive

Feed drive

29 30

PIX REF.

HC673638

HC609822

HC609823

HC671209

HC603017

HC506671

HC623427

HC603341

HC061360

HC06306

HC603015

HC673625

22 23

DESCRIPTION

Straw elevator

Land wheel

Variator drive

Variable speed

Returns auger

Straw walker

Straw walker

Rotary screen

Straw chopper

Counter shaft

Drive variator

Hyd. Pump traction drive

ITEM

17

18

19

20

21

22

23

26

28

29

30

N/I

28

OEM REF.

673638.0

609822.0

609823.0

671209.0

603017.0

506671.1

623427.1

603341.0

061360.0

060306.2

603015.1

673625.0

23

*

*

*

*

*

* The text in italics indicates part numbers that belongs to RHS of the image.

RHLH

CLAAS DOMINATOR 98 S/SL

ITEM

1

1

1

2

2

3

4

5

5

6

7

8

9

10

13

15 16

14

OEM REF.

629001.0

629133.0

673625.0

603378.0

767057.1

629908.1

629769.0

629000.0

671012.1

603337.0

603336.1

629732.1

802931.0

670224.0

18 19 20

17

PIX REF.

HC629001

HC629133

HC673625

HC603378

HC767057

HC629908

HC629769

HC629000

HC671012

HC603337

HC603336

HC629732

HC802931

HC670224

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Hydro pump with merc eng

Hyd pump merc eng

Hyd pump merc/perk eng

Hyd pump merc eng

Hyd pump

A/c compressor

Grain tank unload

Engine coupling merc

Eng coupling perkins

Drive to fanning mill

Shaker drive

Elevator

Air intake

Reel vari speed

21

* The text in italics indicates part numbers that belongs to RHS of the image.

25 26

ITEM

13

14

14

15

16

17

18

19

20

21

22

*

23

*

25

*

26

*

OEM REF.

671013.1

061872.0

629836.0

673628.0

609822.0

609823.0

671209.0

603017.3

506671.1

623427.1

060306.2

603341.0

061360.0

628630.0

PIX REF.

HC671013

HC061872

HC629836

HC673628

HC609822

HC609823

HC671209

HC603017

HC506671

HC623427

HC060306

HC603341

HC061360

HC628630

DESCRIPTION

Knife drive

Feed drive set 1

Feed drive set 2

Straw elevator

Land drive mechanical

Land drive variator

Variable speed fanning mill

Returns auger

Straw walker

Straw spreader

Counter shaft

Rotary sieve

Straw chopper

Dresser

6

LH RH

7

104

9 3 11

ITEM

1

2

3

4

4

5

5

6

7

8

13

6

12

OEM REF.

500863

500868

551068

630144

505051

653121

610196

610833

617039

623252

5 8

1

PIX REF.

HC500863

HC500868

HC551068

HC630144

HC505051

HC653121

HC610196

HC610833

HC617039

HC623252

2

DESCRIPTION

Cutting table

Straw bailer

Counter shaft

Traction drive

Traction drive

Elevator fan

Elevator fan

Table drive

Cylinder

Shaker shoe

ITEM

9

9

10

11

12

13

14

*

15

*

16

*

17

*

* The text in italics indicates part numbers that belongs to RHS of the image.

17 14

OEM REF.

630025

630043

767057

772658

778561

800309

636021

630156

750294

801222

15 16

PIX REF.

HC630025

HC630043

HC767057

HC772658

HC778561

HC800309

HC636021

HC630156

HC750294

HC801222

DESCRIPTION

Main drive

Drum drive

Hydraulic pump

Shaker shoe

Reel variator

Pick up

Tank auger

Variator

Turning drum

Straw walker set 4

RHLH

4

6

7 1 2

10

15

12

13

11 14

CLAAS MERCATOR S70-75 CLAAS MATADOR

ITEM

1

2

3

4

5

6

7

8

5 8 9

OEM REF.

653060

656028

630144

778561

630833

610830

617309

653380

PIX REF.

HC653060

HC656028

HC630144

HC778561

HC630833

HC610830

HC617309

HC653380

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

3

DESCRIPTION

Main drive

Hydraulic pump

Main drive

Variable speed reel

Knife drive (set 2)

Knife drive (set 2)

Cylinder vari drive

Fanning mill

ITEM

9

10

11

*

12

*

12

*

13

*

14

*

15

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

653120

634019

750294

755070

750294

654354

655408

687046

7

PIX REF.

HC653120

HC634019

HC750294

HC755070

HC750294

HC654354

HC655408

HC687046

DESCRIPTION

Shaker shoe drive

Grain tank

Turning drum

Straw walker (2)

Turning drum

Tank unloader

Traction drive

Shaker

LH RH

8

2

4

1516

13

14

CLAAS MERCUR

ITEM

1

2

2

3

3

4

5

6

7

8

5 6

9

3

OEM REF.

500863

758719

758662

778717

770214

775689

778561

779039

779214

780419

7

PIX REF.

HC500863

HC758719

HC758662

HC778717

HC770214

HC775689

HC778561

HC779039

HC779214

HC780419

1

DESCRIPTION

Cutting table

Cooling fan

Cooling fan

Knife drive

Knife drive

Grain spreader

Reel variator

Cylinder

Traction

Grain tank

10

ITEM

9

10

*

11

*

12

*

13

*

14

*

15

*

16

*

17

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

800309

551190

751112

755070

750316

758854

773313

779212

779213

PIX REF.

HC800309

HC551190

HC751112

HC755070

HC750316

HC758854

HC773313

HC779212

HC779213

121117

DESCRIPTION

Pick up

Straw chopper

Traction vari drive

Hydraulic pump

Driving wheel vari

Threshing clutch

Straw walker set 2

Straw walker screen

Shaker shoe

RHLH

3

9 8

4

14

CLAAS PROTECTOR

ITEM

1

1

2

3

3

4

5

6

10

1

OEM REF.

610830.0

610833.0

617309.0

653062.0

653059.0

653060.0

656063.0

653120.0

5

PIX REF.

HC610830

HC610833

HC617309

HC653062

HC653059

HC653060

HC656063

HC653120

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

6

72

DESCRIPTION

Feed auger pick up

Feed auger pick up

Drum variator

Main drive

Main drive

Main drive powerband

Feed elevator variator

Fan screen drive

ITEM

7

8

9

10

11

*

12

*

13

*

14

*

* The text in italics indicates part numbers that belongs to RHS of the image.

1112

OEM REF.

653121.0

653450.0

656028.0

778561.0

653779.0

653933.0

655408.0

750294.0

8

13

PIX REF.

HC653121

HC653450

HC656028

HC778561

HC653779

HC653933

HC655408

HC750294

DESCRIPTION

Fan variator shaft

Screen drive

Hydraulic pump

Variable speed

Tank discharge

Straw walker

Driving wheel

Rear beater

LH RH

5

3

4

12

NEW REFERENCES CLAAS SENATOR 80-85

ITEM

1

1

2

3

3

3

4

5

6

7

ITEM

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

2

PIX REF.

HC610830

HC610833

HC617309

HC630144

HC653059

HC653062

HC633030

HC653060

HC653063

HC653120

8

7

DESCRIPTION

Feed auger pick up

Feed auger pick up

Drum variator

Engine shaft

Main drive

Main drive

Hydraulic pump

Main drive multi V

Feed shaft variator

Screen drive

PIX REF.

GMC077276

HC661245

HC661345

HC821734

GMC052393

HC644781

GMC750193

HC667242

GMC077400K

HC667798

HC667477

HC644447

GMC742206

HC667684

HC742025

HC644209

HC061353

HC644419

HC603430

HC667454

HC667249

HC667251

HC644538

HC667681

ITEM

8

8

9

10

*

10

*

11

*

12

*

13

*

13

*

N/I

*

* The text in italics indicates part numbers that belongs to RHS of the image.

Description

Rotary Screen Drive Jaguar 820-840

Engine Shaft Drive Dominator 208 - 218 Mega

Cooler Fan Drive Dominator 203 - 218 Mega

Rotary Screen Drive Dominator 108 - 118

Air Conditioning Drive Jaguar 820 - 840

Fan Drive Lexion 415 - 460

Hydraulic Pump Drive Jaguar 675 - 680

Fan & Rotary Screen Drive Lexion Range

Axial Flow Fan Drive Jaguar 820 - 840

Straw Spreader Drive - 1st Stage Lexion 480

Straw Walker Drive Lexion Range

Air Intake Drive Dominator 203 - 218 Mega

Axial Flow Fan Drive Jaguar 860 - 880

Straw Chopper Drive -Fourth Stage Lexion 415 -430

Knife Drive Lexion 480

Sieve Pan Drive - Primary Lexion range

Straw Chopper Drive Dominator 203 - 218 Mega

Cutter Bar Clutch Drive Commander 116 - 228

Cutter Bar Clutch Drive Dominator 108 - 228 Mega

Intake Drive Lexion range

Impellor Drum Drive Lexion range

Speed Reducing Gearbox Drive Lexion Range

Drum V/S Drive Dominator 203 - 204 Mega

Grain Tank Unloader Drive Lexion 405 - 430

9

6

1

OEM REF.

610830.0

610833.0

617309.0

630144.0

653059.0

653062.0

633030.0

653060.0

653063.0

653120.0

OEM REF.

1

2

3

4

5

6

7

8

9

XX077276.0

XX661245.0

XX661345.0

XX821734.2

XX052393.1

XX644781.0

XX750193.2

XX667242.0

XX077400.0

XX667798.2

XX667477.0

XX644447.0

XX742206.0

LL667684.0

XX742025.0

XX644209.0

LL061353.1

XX644419.0

XX603430.0

XX667454.0

XX667249.0

LL667251.0

LL644538.0

XX667681.0

13

OEM REF.

653380.1

653121.0

778561.0

631904.0

655408.0

654013.0

750294.0

653933.0

801222.0

653450.0

11

PIX REF.

HC653380

HC653121

HC778561

HC631904

HC655408

HC654013

HC750294

HC653933

HC801222

HC653450

10

DESCRIPTION

Fan variator > 77001807

Fan variator < 77000100

Reel variator

Variator <77000100

Variator >77000101

Intermediate shaft

Rear beater

Straw walker

Straw walker

Grain tank

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

9

NEW REFERENCES

ITEM

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

OEM REF.

XX667252.0

XX644866.0

XX749712.0

LL661093.0

XX667250.0

XX667427.0

XX176442.1

XX667554.0

LL644685.1

XX073204.0

XX067789.0

LL077797.0

LL070952.2

XX074771.2

XX074803.2

XX667453.0

XX077796.0

XX067746.0

XX076401.0

XX067747.1

XX 667456.0

XX 667248.0

LL-176542.1

LL-176543.1

PIX REF.

HC667252

HC644866

HC749712

HC661093

HC667250

HC667427

HC176442

HC667554

HC644685

GMC073204

GMC067789K

GMC077797K

GMC1085K

GMC1083K

GMC1082K

HC667453

GMC077796K

GMC067746K

GMC076401K

GMC067747K

HC667456

HC667248

HC176542

HC176543

Description

Sieve Pan Drive - Second Stage Lexion Range

Sieve Pan Drive Third Stage Lexion 480

Straw Chopper Drive - 3rd Stage Lexion 480

Straw Copper Drive - Final Lexion 440 - 460

Unloader Drive Lexion 440 - 460 & 480

Hybrid Drive 2nd Stage Lexion 480

Drum Drive Lexion 415 -430 and some 440 - 460

Hybrid Drive - 1st Stage Lexion 480

Straw Copper Drive - Primary Lexion 480

Corn Cracker Drive Jaguar 682 - 685

Corn Cracker Drive Jaguar 830 - 900

Engine Output Drive 228kW Jaguar 820 - 840 (alt)

Cutting Cylinder Drive Jaguar 685L - 690

Cutting Cylinder Drive Jaguar 685SL (alt) 695SL

Cutting Cylinder Drive Jaguar 685SL (alt) 690SL

Drum Drive Lexion 440 - 460

Engine Output Drive Jaguar 860 - 880 820 - 840 (alt) 265kW

Aux Gearbox / Engine Output Jaguar 870 - 850

Engine Output Drive Jaguar 860

Aux Gearbox / Engine Output Jaguar 890 - 900

Rotary Screen Drive Lexio 440 - 460 & 480

Drum Drive Lexion 440 - 460 and some 415 - 430

Hydrostatic Pump Drive Dominator 106 - 108

Hydrostatic Pump Drive Dominator 76 - 96

& Traction Drive Jaguar 675 - 680

3

LH RH

OEM REF.

NEW HOLLAND 8040-8055

ITEM

1

2

3

4

5

6

7

8

9

18

19

20

18 19

80116140

80443634

80427455

80223589

80336784

80116140

80230057

80395955

80431784

80422441

80427456

80393519

20

7

PIX REF.

HN443634

HN427455

HN336784

HN230057

HN395955

HN431784

HN422441

HN427456

HN393519

2

1

4

9 8 5

DESCRIPTION

Chain

Fan, alternator, water pump

Radiator fan drive

Chain

Drum vari drive

Chain

Upper cleaning fan drive

Lower cleaning fan drive

Straw walker drive

Rotary dust screen drive

Fan & rotary dust screen

Hydraulic pump drive

6

2110

16

17

ITEM

10

*

11

*

12

*

13

*

14

*

15

*

16

*

16

*

17

*

17

*

21

*

21

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

80422281

80356024

80116140

80422731

80439129

80387469

80066232

80424563

80330715

80394426

80230164

80447041

13

14

PIX REF.

HN422281

HN356024

HN422731

HN439129

HN387469

HN066232

HN424563

HN330715

HN394426

HN230164

HN447041

11

15

12

DESCRIPTION

Main drive

Upper ground speed

Chain

Grain elevator bottom auger

Lower ground speed

Eccentric shaft drive

1HB straw elevator drive

2HB straw elevator drive

Header drive 8040

Header drive 8055

Grain tank auger 8040

Grain tank auger 8055

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

10

LH RH

22

2

321

1

10 19

ITEM

1

2

2

2

3

4

5

6

7

8

9

18

20

OEM REF.

80395313

80443634

80444045

80443636

80393519

80422725

80116140

80336784

80230057

80395955

80431784

80450600

80427456

720

PIX REF.

HN443634

HN444045

HN443636

HN393519

HN422725

HN336784

HN230057

HN395955

HN431784

HN450600

HN427456

18

4

9

8 6

DESCRIPTION

Chain grain tank

Alternator & water pump

Alternator & water pump

Alternator & water pump

Hydraulic pump

Grain tank unloading

Chain tailings top auger

Drum vari drive

Fan vari drive

Fan vari drive

Straw walker drive

Chain grain tank

Rotary dust screen

5

ITEM

21

22

10

*

10

*

11

*

12

*

13

*

14

*

15

*

16

*

17

*

19

*

* The text in italics indicates part numbers that belongs to RHS of the image.

16

1417

OEM REF.

80427455

80422441

80422281

80447031

80356024

80116140

80422731

80356024

80387469

80066232

80330715

80427456

13

PIX REF.

HN427455

HN422441

HN422281

HN447031

HN356024

HN422731

HN356024

HN387469

HN066232

HN330715

HN427456

11

15

12

DESCRIPTION

Radiator fan drive

Rotary dust screen

Powerband main drive *Ford

Powerband main drive *Merc

Ground speed vari-drive

Chain tailings elevator

Elevator drive

Ground speed vari-drive

Eccentric shaft drive

2HC straw elevator drive

Header drive

Rotary dust screen drive

NEW HOLLAND 8050-8060 NEW HOLLAND 8030

LH

ITEM

*

*

1 27

OEM REF.

1

2

3

4

5

5

6

7

8

9

9

10

1

1

80451481

80397297

80230151

80389245

80230076

80420606

80605529

80410896

80393326

80643353

80394426

80356024

80421173

81540767

PIX REF.

HN451481

HN397297

HN230151

HN389245

HN230076

HN420606

HN605529

HN410896

HN393326

HN643353

HN394426

HN356024

HN421173

HN540767

3

4

5

69 8 10

DESCRIPTION

Beater drive

Drum variator

Hydraulic pump

Interim dust screen drive

Ground speed-stnd

Ground speed-low speed

Straw walker drive

Intermediate shaft grain auger

Straw elevator drive

Knife drive 8050

Knife drive 8060

Ground speed vari-drive

Alt. & water pump Eng.-Merc

Alt.& Water pump Eng. Ford

RH

ITEM

1

*

2

*

3

*

4

*

5

*

6

*

7

*

8

*

9

*

10

*

10

*

11

*

12

*

* The text in italics indicates part numbers that belongs to RHS of the image.

3 4

OEM REF.

80432802

80399058

80457643

80350418

80387469

80395313

80378989

80388280

80336784

80396750

80437033

80395955

80410962

2 111012

1

5

6

PIX REF.

HN432802

HN399058

HN457643

HN387469

HN395313

HN378989

HN388280

HN336784

HN396750

HN437033

HN395955

HN410962

9

7

8

DESCRIPTION

Alt.& Water pump 8060 only

Dust screen drive

Rotary dust screen drive

Chain

Top tailings auger drive

Chain

Fan drive

Fan drive

Drum vari-drive

Set beater drive 8050

Set beater drive 8060

Intermediate shaft beater

Chain

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

11

LH RH

1 29

3

5

11

4

106 8 7

1

2 111012

4

3

5

6

9

7

8

ITEM

*

OEM REF.

1

2

3

4

4

5

6

7

8

9

10

11

1

80451481

80391650

80230151

80321559

80417643

80389245

80394426

80356025

80393326

80410896

80605529

80411543

80421173

PIX REF.

HN451481

HN391650

HN230151

HN321559

HN417643

HN389245

HN394426

HN356025

HN393326

HN410896

HN605529

HN411543

HN421173

DESCRIPTION

Power band-rethresher

Drum variator

Hydraulic pump

Ground speed-stnd

Ground speed-low speed

Intermediate drive shaft

Header drive

Ground speed vari-drive

Straw elevator drive

Intermediate shaft grain auger

Straw walker drive

Power band hydrostatic drive

Alt. & water pump Merc engine

789410

6

11

ITEM

1

*

2

*

3

*

4

*

5

*

6

*

7

*

8

*

9

*

10

*

10

*

11

*

12

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

81540767

80384397

80457643

80350418

80387469

80395313

80378989

80388280

80336784

80396750

80437033

80395955

80410962

RHLH

PIX REF.

HN540767

HN384397

HN457643

HN387469

HN378989

HN388280

HN336784

HN396750

HN437033

HN395955

2 1 11

3

4

5

DESCRIPTION

Alt.& Water pump Ford engine

Fan drive

Rotary dust screen drive

Chain

Top tailings auger drive

Chain

Fan drive

Fan drive

Drum vari-drive

Counter shaft drive

Counter shaft drive (modi)

Variator drive

Chain

10 9

12

NEW HOLLAND 8080 NEW HOLLAND 8070

ITEM

10

11

11

12

*

7

PIX REF.

HN432642

HN384397

HN457643

HN387469

HN378989

HN388280

HN387460

HN396750

HN437033

HN395955

HN410962

8

DESCRIPTION

Alternator drive Merc eng

Fan drive

Rotary dust screen

Chain grain elevator

Tailings elevator

Chain-tailings elevator

Fan vari-drive

Fan vari-drive

Drum vari-drive

Counter shaft drive

Counter shaft drive

Variator drive

Grain tank auger drive

3

1 2

OEM REF.

1

2

3

4

5

6

7

8

9

80387931

80391143

80393326

80410896

80605529

80411543

80389245

80230151

80391650

80451481

80321559

80417643

80356025

1

80393519

PIX REF.

HN387931

HN391143

HN393326

HN410896

HN605529

HN411543

HN389245

HN230151

HN391650

HN451481

HN321559

HN417643

HN356025

HN393519

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

5

12

DESCRIPTION

Header drive

Header drive

Straw elevator drive

Intermediate shaft

Straw walker drive

Power band hydrostatic drive

Intermediate drive shaft

Hydraulic pump

Power band drum variator

Power band re-thresher drive

Ground speed **stnd speed

Ground speed **low speed

Ground speed

Alternator drive Merc eng.

ITEM

1

*

2

*

3

*

4

*

5

*

6

*

7

*

8

*

9

*

10

*

10

*

11

*

12

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

80432642

80384397

80457643

80350418

80387469

80395313

80378989

80388280

80387460

80396750

80437033

80395955

80410962

6

12

LH

Straw Elevator

21

Engine

3

6

4

5
9

Mechanical drive

8 7

NEW HOLLAND TX30

Interm shaft

1 2

ITEM

1

2

2

3

4

4

5

6

7

8

9

OEM REF.

80455865

80922872

80922911

89512971

80433746

89514989

80350236

80448794

80451356

84000317

80440780

3

PIX REF.

HN455865

HN922872

HN922911

HN9512971

HN433746

HN9514989

HN350236

HN448794

HN440780

DESCRIPTION

Powerband-rethresher

Engine to beater shaft (hydr)

Engine to beater shaft (mech)

Unloading auger

Straw elevator drive

2HB straw elevator

3HB beater to straw elevator

Cleaning shoe drive

Chain

Chain

Ground speed variator

8

11

12

9

10

Drum shaft

NEW HOLLAND TX30RH

ITEM

1

2

3

4

4

5

6

7

4

7

Hydr. Pump

OEM REF.

80913151

80443634

80913153

89501182

80747177

89506748

80923019

89508558

5

14

Engine

PIX REF.

HN913151

HN443634

HN913153

HN9501182

HN747177

HN9506748

HN923019

HN9508558

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Belt cooling fan

Water pump drive

Rotary dust screen drive

Alternator drive

Alternator drive >8110999

Compressor drive

Dust screen

Hyd. Pump

Dust Screen

6

ITEM

8

*

9

*

10

*

11

*

12

*

13

*

14

*

15

*

16

*

* The text in italics indicates part numbers that belongs to RHS of the image.

15

Straw walker shaft

OEM REF.

80321797

80267157

89513984

89817439

84015852

89832601

80754389

80754388

89502654

HN89513984

HN9817439

HN84015852

HN9832601

HN754389

HN754388

HN9502654

13

16

PIX REF.

13

Interm. Shaft

DESCRIPTION

Chain

Chain

Beater drive

Rotary separator

Grain storage drive

Drum to intermediate shaft

Straw walker shaft drive

Straw walker drive

Cleaning fan vari drive

LH

4

Straw Elevator

3

21

5

9

Mechanical drive

RH

1

Engine

6

8 7

Interm shaft

4

7

Hydr. Pump

2 3

Engine

5

Dust Screen

6

NEW HOLLAND TX32

ITEM

1

2

3

4

4

5

5

6

6

7

7

8

8

OEM REF.

80455865

80922911

89512971

80433746

89514989

80434222

80350236

80448794

80446780

80451356

84000317

84000317

80451356

PIX REF.

HN455865

HN922911

HN89512971

HN433746

HN89514989

HN434222

HN350236

HN448794

HN446780

RH

DESCRIPTION

Power band beater drive

Power band engine

Unloading auger drive

Straw elevator drive (>1799)

2HB straw elevator drive

2HB beater to straw elevator

3HB beater to straw elevator

Cleaning shoe

Cleaning shoe > 7703001

Chain

Chain

Chain

Chain

8

11

9

Drum shaft

OEM REF.

80440780

80230164

80913151

80443634

80913153

89514311

89817454

89501182

80747177

89506748

80923019

89817814

89508558

HN89514311

HN89817454

HN89501182

HN89506748

HN89817814

HN89508558

ITEM

9

10

1

*

2

*

3

*

3

*

3

*

4

*

4

*

5

*

6

*

6

*

7

*

* The text in italics indicates part numbers that belongs to RHS of the image.

10

12

PIX REF.

HN440780

HN230164

HN913151

HN443634

HN913153

HN747177

HN923019

DESCRIPTION

Ground speed variator

Ecentric shaft drive

Cooling fan drive

Water pump drive

Rotary dust screen drive

Rotary dust screen drive

Rotary dust screen drive

Alternator drive

Alternator drive >7717001

Compressor drive

Dust screen

Dust screen >7720001

Hydraulic pump

NEW HOLLAND TX32

14

15

Straw walker shaft

ITEM

8

9

10

11

12

13

14

15

16

16

16

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

OEM REF.

80321797

80267157

89513984

89817439

84015852

89832601

80754389

80754388

80439832

89502654

80919739

PIX REF.

HN89513984

HN817439

HN84015852

HN9832601

HN754389

HN754388

HN439832

HN89502654

HN80919739

13

Interm. Shaft

16

DESCRIPTION

Chain

Chain

Beater drive

Rotary separator drive

Grain tank drive

Drum to intermediate shaft

Straw walker drive

Straw walker drive

Cleaning fan (self levelling)

Cleaning fan

Cleaning fan (fixed shoe)

14

LH RH

4

Straw Elevator

1

3

Mechanical drive

2

Engine

6

8 7

5

9

10

Rotary separator

8

Undershoot beater

Rotor

Rear beater

1

4

5

7

10

6

Interm. Shaft

9

2

3

Drum shaft

NEW HOLLAND TF42

ITEM

LH

OEM REF.

1

2

2

3

4

4

5

5

5

6

7

8

80455865

80750290

80922911

89512971

80433746

89514990

80434222

80350236

80743877

80448794

80116140

80216820

Straw Elevator

4

PIX REF.

HN455865

HN750290

HN922911

HN9512971

HN433746

HN9514990

HN434222

HN350236

HN743877

HN448794

3

Mechanical drive

DESCRIPTION

Beater to interm drive

4HB engine to beater shaft

4HB engine to beater shaft

Unloading auger engaging

2HB-straw elevator

2HB-straw elevator

2HB-beater to straw elevator

3HB-beater to straw elevator

4HB-beater to straw elevator

Cleaning shoe drive

Chain

Chain

21

Engine

6

8 7

5

9

10

ITEM

9

1

*

2

*

3

*

4

*

5

*

6

*

7

*

8

*

9

*

10

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

80440780

80434154

80267157

89513984

80919681

84015852

89832601

80434046

80427456

89502654

80451356

RH

Rotary separator

8

Rotor

Undershoot beater

1

7

10

PIX REF.

HN440780

HN9513984

HN919681

HN4015852

HN9832601

HN434046

HN427456

HN9502654

HN451356

Rear beater

4

DESCRIPTION

Ground speed variator

Chain

Chain

Beater drive

Rotary separator drive

Grain storage drive

Drum to interm shaft

Rotary separator to rotor

Rotor to undershot beater

Fan belt

Chain

2

3

Drum shaft

5

6

Interm. Shaft

9

NEW HOLLAND TF44

ITEM

1

2

2

3

4

5

5

6

7

8

OEM REF.

80455865

80750290

80922911

89512971

80433746

80434222

80350236

80448794

80116140

80451356

PIX REF.

HN455865

HN750290

HN922911

HN9512971

HN433746

HN434222

HN350236

HN448794

DESCRIPTION

Beater to interm drive

Engine to beater shaft

4HB engine to beater shaft

Unloading auger engaging

2HB-straw elevator

2HB beater to straw elevator

3HB beater to straw elevator

Cleaning shoe drive

Chain

Chain

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

ITEM

1

*

2

*

3

*

4

*

5

*

6

*

7

*

8

*

9

*

10

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

80434154

80267157

89513984

80919681

84015852

89832601

80434046

80427456

80439832

80116140

PIX REF.

HN9513984

HN919681

HN84015852

HN89832601

HN434046

HN427456

HN439832

HN80116140

15

DESCRIPTION

Chain

Chain

Beater drive

Rotary separator drive

Grain storage drive

Drum to intermediate shaft

Rotary separator to rotor

Rotor to undershot beater

Fan drive

Chain

LH RH

3

4

Straw Elevator

2

1

5

9

Mechanical drive

Engine

6

8 7

10

Dust Screen

Alternator

3

2

Anti Dust Fan

6

51

Compressor

Engine

NEW HOLLAND TF46

ITEM

1

2

2

3

4

5

5

6

OEM REF.

80750166

80750290

80922911

89512971

80433746

80434222

80350236

80448794

PIX REF.

HN750166

HN750290

HN922911

HN9512971

HN433746

HN434222

HN350236

HN448794

LH

DESCRIPTION

Beater to interm drive

Engine to beater shaft

4HB engine to beater shaft

Unloading auger engaging

2HB-straw elevator

2HB beater to straw elevator

3HB beater to straw elevator

Cleaning shoe drive

3

4

Straw Elevator

Mechanical drive

ITEM

7

8

1

*

2

*

3

*

5

*

6

*

* The text in italics indicates part numbers that belongs to RHS of the image.

21

5

9

10

OEM REF.

80451356

80451356

80439496

80748003

80439495

80381237

80436304

Engine

6

8 7

PIX REF.

HN439496

HN748003

HN439495

HN381237

HN436304

DESCRIPTION

Chain

Chain

Cooling fan drive

Water pump & alternator

Rotary dust screen

Compressor drive

Dust screen

NEW HOLLAND TX34

ITEM

1

2

2

3

4

4

4

5

5

6

6

7

8

9

10

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

OEM REF.

80455865

80922911

89831571

89512971

80433746

89504547

89513386

80434222

80350236

80448794

80446780

80451356

84000317

80440780

80230164

PIX REF.

HN455865

HN922911

HN9831571

HN9512971

HN433746

HN9504547

HN9513386

HN434222

HN350236

HN448794

HN446780

HN440780

HN230164

DESCRIPTION

Beater to intermediate shaft

Engine to beater shaft

4HB Engine to beater shaft

Unloading auger engaging

2HB straw elevator drive

2HB straw ele drv - lateral floatation

3HB straw elevator drive

2HB beater to straw elevator

3HB beater to straw elevator

Cleaning shoe (self level)

Cleaning shoe (fixed shoe)

Chain

Chain

Ground speed variator

Eccentric shaft drive

16

LH

21

Engine

3

6

4

5

7 7

NEW HOLLAND TX36 NEW HOLLAND TX36

RH

ITEM

Interm shaft

1

2

3

3

4

4

5

6

7

4

7

Hydr. Pump

OEM REF.

80913151

80443634

80913153

89817959

89501182

80747177

89506748

80923019

89508557

Straw Elevator

OEM REF.

ITEM

80455865

1

80922911

2

89831571

2

89512971

3

80433746

4

89504547

4

80434222

5

80350236

5

80448794

6

80451356

7

80230164

8

2

1

Engine

PIX REF.

HN913151

HN443634

HN913153

HN9817959

HN9501182

HN747177

HN9506748

HN923019

HN9508557

3

5

6

DESCRIPTION

Cooling fan drive

Water pump drive

Rotary dust screen drive

Rotary dust screen drive

Belt alternator drive

Belt alternator drive

Belt compressor drive

Belt dust screen

Belt set hyd pump to engine

PIX REF.

HN455865

HN922911

HN9831571

HN9512971

HN433746

HN9504547

HN434222

HN350236

HN448794

HN451356

HN230164

Dust Screen

8

DESCRIPTION

Beater to intermediate shaft

Engine to beater shaft

4HB engine to beater shaft

Unloading auger engaging

2HB straw elevator drive

2HB straw elevator drive

2HB beater to straw elevator

3HB beater to straw elevator

Cleaning shoe drive

Chain

Eccentric shaft drive

RH

14

15

Straw walker shaft

ITEM

8

*

9

*

10

*

11

*

12

*

13

*

14

*

15

*

16

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

80434154

80267157

89513984

89817439

84015852

89832601

80754389

80754388

89502654

8

11

16

PIX REF.

HN9513984

HN9817439

HN4015852

HN9832601

HN754389

HN754388

HN9502654

9

10

Drum shaft

12

13

Interm. Shaft

DESCRIPTION

Chain

Chain

Beater drive

Rotary separator drive

Grain storage drive

Drum to intermediate shaft

Straw walker interm drive

Straw walker drive

Cleaning fan vari-drive

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

17

NEW REFERENCES

ITEM

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

OEM REF.

80923019

9817814

9818830

84015852

80913151

80754389

89513984

9850770

84015531

89817439

9514989

80434222

80443634

80913153

9501182

89501182

80747177

754165

9831515

84078581

9833619

84041518

9514311

919739

840 23278

840 23277

950 2654

84036070

PIX REF.

HN80923019

HN89817814

HN89818830

HN84015852

HN80913151

HN80754389

HN89513984

HN89850770

HN84015531

HN89817439

HN89514989

HN80434222

HN80443634

HN80913153

HN89501182

HN89501182

HN80747177

HN80754165

HN89831515

HN84078581

HN89833619

HN84041518

HN89514311

HN80919739

HN84023278

HN84023277

HN89502654

HN84036070

Description

Dust Screen Drive (alt) TX 32 - 36

Dust Screen Drive (alt) TX 32 - 36

Dust Screen Drive TX 66 - 68

"Bubble Up" Box Drive TX 62 - 67

Cooling Fan Drive TX 32 - 36

Straw Walker Intermediate Drive TX range

Beater Drive TX range

Rotary Separator Drive TX 62 - 68

Rotary Separator Drive TX 62 - 67

Rotary Screen TX 32

Straw Elevator Drive TX 32 - 36

Beater to Front Elevator TF and TX range

Water Pump Drive TX Range with Ford Engine

Rotary Screen Drive TX 32 - 36

Alternator Drive (alt) TX 32

Alternator Drive (alt) TX 32

Alternator Drive (alt) TX 32

Compressor Drive Tx34

Cooling Fan Drive TC range

Drum Drive TF & TX ranges

Rotary Screen Drive TX 62

Rotary Screen Drive TX 67

Rotary Screen Drive TX 64 - 65 and some TX 32

Cleaning Fan Drive TX 32 - 36

Fan Variator Drive (alt) TX range

Fan Variator Drive (alt) TX range

Fan Variator Drive (alt) TX range

R H Drives TX 67

LH RH

6 5 4

2

JOHN DEERE 330-430

ITEM

1

2

3

4

5

6

7

3

OEM REF.

Z41178

Z20460

Z20562

Z21171

Z21400

Z31191

Z23693

71

PIX REF.

HJZ41178

HJZ20460

HJZ20562

HJZ21171

HJZ21400

HJZ31191

HJZ23693

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

88

DESCRIPTION

Reel drive

Straw elevator

Pick up reel drive

Hydraulic pump

Tank discharge auger

Thresher drum drive

Sickle knife drive

18

13 12

10 9 11

ITEM

8

9

*

10

*

11

*

12

*

13

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

Z36120

Z41178

Z20703

Z20823

Z20743

T23505

PIX REF.

HJZ36120

HJZ41178

HJZ20703

HJZ20823

HJZ20743

HJT23505

DESCRIPTION

Wheel land drive

Fan variator

Fan drive

Thresher drum

Tailings auger drive

Fan drive water pump

LH

RH

4 357

13 11

2 1 6 8 8

ITEM

1

2

3

3

4

4

5

6

OEM REF.

Z20459

Z20562

Z21254

Z21171

Z21400

Z21398

Z21403

Z21500

PIX REF.

HJZ20459

HJZ20562

HJZ21254

HJZ21171

HJZ21400

HJZ21398

HJZ21403

HJZ21500

DESCRIPTION

Reel drive

Reel drive

Hydraulic pump 630-730

Hydraulic pump 530

Tank discharge auger 630-730

Tank discharge 530

Rear beater drive

Knife drive

JOHN DEERE 530-630-730JOHN DEERE 925

LH RH

67

10 9 12

ITEM

6

7

8

9

*

10

*

11

*

12

*

13

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

Z25670

Z21501

P40058

Z20459

Z20703

Z20743

Z20823

T23505

PIX REF.

HJZ25670

HJZ21501

HJP40058

HJZ20459

HJZ20703

HJZ20743

HJZ20823

HJT23505

13 11

DESCRIPTION

Knife drive

Cutter unit drive

Wheel drive

Air fan

Rear beater straw walker

Tailings auger

Threshing drum

Fan drive water pump

ITEM

1

2

3

4

5

6

7

1 2 3 4 5 12 5

OEM REF.

Z20562

Z36813

Z23693

Z20460

Z36120

Z30593

Z21400

PIX REF.

HJZ20562

HJZ36813

HJZ23693

HJZ20460

HJZ36120

HJZ30593

HJZ21400

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Reel drive

Reel variator drive

Knife drive

Straw elevator

Traction vari drive

Hydraulic pump

Tank discharge

ITEM

8

*

9

*

11

*

13

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

Z20459

Z20703

Z20743

T20334

19

PIX REF.

HJZ20459

HJZ20703

HJZ20743

HJT20334

9 8 10

DESCRIPTION

Air fan

Fan drive

Rotary screen

Fan drive

LH RH

7 8

141615

1 2 3

OEM REF.

Z20562

Z20459

Z23693

Z31816

Z31367

Z31191

Z21400

Z30593

JOHN DEERE 930-940

ITEM

1

2

3

4

5

6

7

8

LH RH

5 6 5

4

PIX REF.

HJZ20562

HJZ20459

HJZ23693

HJZ31816

HJZ31367

HJZ31191

HJZ21400

HJZ30593

DESCRIPTION

Reel drive

Reel variator drive

Knife drive

Straw elevator

Traction vari drive

Threshing drum

Tank discharge

Hydraulic pump

7

9 10 11 12 13

ITEM

9

*

10

*

11

*

12

*

13

*

14

*

15

*

16

*

N/I

*

N/I

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

Z25473

Z31283

Z20703

Z20459

Z20823

Z28458

T20334

Z30920

Z21403

Z20743

PIX REF.

HJZ25473

HJZ31283

HJZ20703

HJZ20459

HJZ20823

HJZ28458

HJT20334

HJZ30920

HJZ21403

HJZ20743

15 16 14

DESCRIPTION

Straw walker

Purify drive

Fan drive

Fan vari drive

Cylinder vari drive

Rotary screen

Water pump

Straw walker

Main drive

Tailings auger

JOHN DEERE 950-960-970

1 2 3 4 5 6 5 8

ITEM

1

2

3

4

5

6

7

8

OEM REF.

Z20562

Z20459

Z30130

Z21501

P40058

Z29962

Z21400

Z30593

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

PIX REF.

HJZ20562

HJZ20459

HJZ30130

HJZ21501

HJP40058

HJZ29962

HJZ21400

HJZ30593

DESCRIPTION

Reel drive

Reel variator drive

Knife drive

Straw elevator

Traction vari drive

Threshing drum

Tank discharge

Hydraulic pump

9 10 11 12 13

ITEM

9

*

10

*

11

*

12

*

13

*

14

*

15

*

16

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

Z30920

Z31283

Z20703

Z20459

Z20823

Z28458

T20334

Z25473

20

PIX REF.

HJZ30920

HJZ31283

HJZ20703

HJZ20459

HJZ20823

HJZ28458

HJT20334

HJZ25473

DESCRIPTION

Straw walker

Purify drive

Fan drive

Fan vari drive

Cylinder vari drive

Rotary screen

Water pump

Straw walker

LH RH

1 2

6 7 8 10

3

4

9

5

11 12

13

14

16 18 17

15

19

ITEM

1

2

3

4

5

6

7

8

MASSEY FERGUSON 24

9

10

LH RH

OEM REF.

D41964300

D41972100

D41991600

D41991400

D41958500

D41929400

D41989100

D41988900

D41955900

D41972800

1 2 6 7 8

PIX REF.

HMD41964300

HMD41972100

HMD41991600

HMD41991400

HMD41958500

HMD41929400

HMD41989100

HMD41988900

HMD41955900

HMD41972800

DESCRIPTION

Returns auger (set 2)

Counter shaft

Selector drive

Hyd. Pump

Straw Chopper

Feed auger

Feed elevator

Upper feed shaft

Straw chopper

Eccentric shaft

ITEM

11

*

12

*

13

*

14

*

15

*

16

*

17

*

18

*

19

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

D41978500

D41912300

D41927800

D41935700

D41988700

D41926300

D41930300

D41935500

D41980800

PIX REF.

HMD41978500

HMD41912300

HMD41927800

HMD41935700

HMD41988700

HMD41926300

HMD41930300

HMD41935500

HMD41980800

18

17

15 &16

DESCRIPTION

Awner shaft

Rotary screen

Intermediate shaft

Grain elevator

Discharge auger

Fan variator

Main fan drive

Eccentric shaft

Threshing drum

14

MASSEY FERGUSON 760/765/780/860/865

ITEM

1

2

3

4

4

5

6

7

8

9

10

11

12

13

13

4 3 9 13 10 12 11

OEM REF.

8333768M1

274015M91

273757M91

834140M1

834139M1

834058M1

842809M1

833566M1

833858M2

833374M1

833867M1

833862M1

833860M1

833863M1

842419M1

5

PIX REF.

HM834140

HM833768

HM834139

HM834058

HM842809

HM833566

HM833858

HM833374

HM833867

HM833862

HM274015

HM833860

HM273757

HM833863

HM842419

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Reel drive

Reel variator drive

Reel drive

Wobble box

Wobble box

Hydro traction X2

Traction Drive X2

Main drive

Intake air

Discharge/collector

Fan drive

Straw walker X2

Shaker shoe

Fanning mill

Fanning mill

23

22 24 21

ITEM

14

*

14

*

15

*

16

*

17

*

17

*

18

*

19

*

20

*

21

*

22

*

23

*

24

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

222882M2

842413M1

274252M91

273837M91

274339M91

833870M1

843045M1

842845M1

833868M2

833871M1

832866M2

833872M1

833854M2

21

19 20

PIX REF.

HM222882

HM842413

HM274252

HM273837

HM274339

HM833870

HM843045

HM842845

HM833868

HM833871

HM832866

HM833872

HM833854

DESCRIPTION

Hydraulic pump

Hydraulic pump

Generator drive

Generator drive

Fan drive

Fan drive

Air conditioning

Hydrostat reel

Cylinder vari drive

Straw chopper

Chopper drive

Chopper final drive

Returns elevator

LH RH

7 5 4

3

13 11

2 1 6 8 8

ITEM

LAVERDA M100M120

OEM REF.

1

2

3

4

5

6

432232

432250

432433

432436

432437

433435

433430

433430

433531

PIX REF.

HL432232

HL432250

HL432433

HL432436

HL432437

HL433435

HL433430

HL433430

HL433531

DESCRIPTION

Hyd pump

Fan drive

Grain& tailings auger

De-awner paddle drive

De-awner beater drive

Reel drive M120

Reel drive M100

Straw walker M120

Upper elevator drive M120

LH RH

37 5 4

10 9 12

ITEM

*

OEM REF.

7

433430

8

433537

9

434140

10

11

434250

435127

432244

435117

007108

* The text in italics indicates part numbers that belongs to RHS of the image.

PIX REF.

HL433430

HL433537

HL434140

HL434250

HL435127

HL432244

HL435117

007108

13 11

DESCRIPTION

Central return drive M100

Central return drive M120

Reel variator speed M120

Threshing drive M120

Traction drive

Grain tank discharge drive

Beater drum drive

Alternator/water pump

433409

433430

433236

433456

433134

433162

435146

434140

433456

10 9 12

PIX REF.

HL433409

HL433430

HL433236

HL433456

HL433134

HL433162

HL435146

HL434140

HL433456

DESCRIPTION

Main feed primary

Grain shaker

De awning return

Rotary filter secondary

Rotary filter primary

Reel variator

Reel drive

2 1 6 8 8

ITEM

OEM REF.

1

2

3

4

5

6

433182

433531

431122

433417

432244

311212

433289

433455

LAVERDA 3350 ex. m 112al

433537

433410

PIX REF.

HL433182

HL433531

HL431122

HL433417

HL432244

HL311212

HL433289

HL433455

HL433537

HL433410

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Fan

Feed elevator

Threshing drive

Grain tank discharge

Hyd pump

Hyd pump

Corn elevator

Straw walker

Main drive

Main feed

ITEM

OEM REF.

7

8

9

10

11

*

* The text in italics indicates part numbers that belongs to RHS of the image.

22

LH RH

37 5 4

37 5 4

2 1 6 8 8

2 1 6 8 8

13 11

13 11

10 9 12

10 9 12

ITEM

LAVERDA M132

OEM REF.

1

2

3

4

5

6

433435

433316

434140

434138

433182

433531

431122

4311316

433417

432243

432244

435127

PIX REF.

HL433435

HL433316

HL434140

HL434138

HL433182

HL433531

HL431122

HL4311316

HL433417

HL432243

HL432244

HL435127

DESCRIPTION

Reel drive

Reel drive1978

Reel variator speed

Reel variator speed 1978

Fan

Upper shaft elevator drive

Threshing drive

Threshing drive 1978

Grain tank discharge

Hyd pump

Hyd pump

Traction drive

LH RH

37 5 4

ITEM

*

OEM REF.

7

8

9

10

11

433537

433289

433455

433430

433409

433418

433410

433236

433456

433134

433162

435125

* The text in italics indicates part numbers that belongs to RHS of the image.

PIX REF.

HL433537

HL433289

HL433455

HL433430

HL433409

HL433418

HL433410

HL433236

HL433456

HL433134

HL433162

HL435125

13 11

DESCRIPTION

Central return drive

Grain tank fan

Straw walker

Grain&tailings auger

Fan drive

Fan drive 1978

Fan drive

Selector auger

De awning returns

Rotary filter returns

Rotary filter returns

Cylinder variator

LAVERDA 3350 exm112

ITEM

1

2

3

4

5

6

2 1 6 8 8

OEM REF.

434138

434140

433182

431122

433418

311222

433417

435127

432243

433244

433537

433289

PIX REF.

HL434138

HL434140

HL433182

HL431122

HL433418

HL311222

HL433417

HL435127

HL432243

HL433244

HL433537

HL433289

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Reel variator

Reel variator

Fan variator

Drum variator

Conveyor

Threshing drive

Grain tank discharge

Traction drive

Oil pump

Hyd pump

Central return

Grain elevator

ITEM

*

OEM REF.

7

8

9

10

11

433455

433430

433409

433410

433531

433316

433435

433456

433236

433134

433162

351146

* The text in italics indicates part numbers that belongs to RHS of the image.

23

10 9 12

PIX REF.

HL433455

HL433430

HL433409

HL433410

HL433531

HL433316

HL433435

HL433456

HL433236

HL433134

HL433162

HL351146

DESCRIPTION

Straw walker

Grain tailings elevator

Fan regulator drive

Fan drive

Elevator drive

Reel drive

Reel drive

De-awning return

Selector auger

Rotary filter

Rotary filter primary

Drum variator

LH RH

37 5 4

37 5 4

2 1 6 8 8

2 1 6 8 8

13 11

13 11

10 9 12

10 9 12

ITEM

LAVERDA 3450

OEM REF.

1

2

3

4

5

6

433316

433435

434138

434140

433182

433531

431122

311316

433417

432243

432244

435127

PIX REF.

HL433316

HL433435

HL434138

HL434140

HL433182

HL433531

HL431122

HL311316

HL433417

HL432243

HL432244

HL435127

DESCRIPTION

Reel drive

Reel drive

Reel variator

Reel variator

Fan

Elevator

Threshing drive

Threshing drive 1978

Grain tank discharge

Hyd pump

Hyd pump

Variator drive

LH RH

37 5 4

ITEM

*

OEM REF.

7

433537

8

433289

9

433455

10

11

433430

433409

433410

433418

433236

433456

433134

433162

435125

* The text in italics indicates part numbers that belongs to RHS of the image.

PIX REF.

HL433537

HL433289

HL433455

HL433430

HL433409

HL433410

HL433418

HL433236

HL433456

HL433134

HL433162

HL435125

13 11

DESCRIPTION

Variator drive

Fan

Straw walker

Grain & tailings

Main feed

Main feed secondary

Conveyor

De awning return

Rotary filter return

Rotary filter return primary

Drum drive

433970

433283

433432

435138

433176

433188

10 9 12

PIX REF.

HL433970

HL433283

HL433432

HL435138

HL433176

HL433188

DESCRIPTION

Straw walker/sieve drive

Elevator

Drum drive

Fan

Fan drive

2 1 6 8 8

ITEM

LAVERDA 3300/3300al

OEM REF.

1

2

3

4

5

6

433458

311217

433252

433239

311212

433412

PIX REF.

HL433458

HL311217

DESCRIPTION

Reel drive

Thresher drive

HL433252

HL433239

HL311212

Hyd pump

Drive variator

HL433412

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

ITEM

*

OEM REF.

7

8

9

10

11

24

LH RH

37 5 4

37 5 4

2 1 6 8 8

2 1 6 8 8

13 11

13 11

10 9 12

10 9 12

ITEM

LAVERDA 3600/3700/3790

OEM REF.

1

2

3

4

5

6

311127

433983

435130

433424

311134

433458

311217

432243

433129

PIX REF.

HL311127

HL433983

HL435130

HL433424

HL311134

HL433458

HL311217

HL432243

HL433129

DESCRIPTION

Feed elevator not 3790

Feed elevator not 3790

Drum variator

Fan

Grain shaker

Straw walker

Hyd pump

Oil pump

Compressor drive

LH RH

37 5 4

ITEM

*

OEM REF.

7

8

9

10

11

433467

433540

311318

434138

433418

433144

433184

435124

* The text in italics indicates part numbers that belongs to RHS of the image.

PIX REF.

HL433467

HL433540

HL311318

HL434138

HL433418

HL433144

HL433184

HL435124

13 11

DESCRIPTION

Shaker shoe

Drive

Drum variator

Reel variator

Auger drive

Rotary filter secondary

Rotary filter primary

Drum variator

LAVERDA 3900

ITEM

1

2

3

4

5

6

2 1 6 8 8

OEM REF.

434138

311418

433038

311314

433540

433256

PIX REF.

HL434138

HL311418

HL433038

HL311314

HL433540

HL433256

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

DESCRIPTION

Reel variator

Drum drive

Compressor

Hyd. Pump

Traction drive

Oil pump

ITEM

7

8

9

10

11

*

* The text in italics indicates part numbers that belongs to RHS of the image.

OEM REF.

433457

433418

433424

311134

433143

25

10 9 12

PIX REF.

HL433457

HL433418

HL433424

HL311134

HL433143

DESCRIPTION

Straw elevator

Conveyor drive

Fan

Grain shaker

Rotary filter

LH

17 24

18 19 23 221620 21

DEUTZ FAHR TOPLINER 460

ITEM

16

17

18

19

20

21

22

23

24

N/I

OEM REF.

01145093

01145051

01143412

01141608

01143413

01145087

01145025

01141944

01145102

01145050

PIX REF.

HDF01145093

HDF01145051

HDF01143412

HDF01141608

HDF01143413

HDF01145087

HDF01145025

HDF01141944

HDF01145102

HDF01145050

DESCRIPTION

Grain tank unload

Straw walker set

Feeder

Feed drive

Walker drive

Shaker drive

Walker drive

Variator drive

Engine drive

Stripper drum

NEW REFERENCES - “CASE”

ITEM

1

2

3

4

5

OEM REF.

244420A1

244422A1

191241C3

1330499C1

1541702C1

All OEM part numbers are for reference only - There is no intention to imply that they are original equipments

PIX REF.

HI244420

HI244422

HI191241

HI1330499

HI1541702

Description

Rotor Drive 1660, 2166, 2365, 2366

Rotor Drive 1680, 2188

Separator Drive 1660, 2166, 2365, 2366

Separator Drive 1680 up to 114634

Separator Drive 1680 from 114635

26

PREVENTIVE MAINTENANCE TIPS

Problems

Belt turnover in pulleys

Excessive wear

Excessive noise

Belt swelling or softening

Causes

• Poor drive alignment

• Incorrect pulley groove or
excessive wear in grooves

• Excessive belt flap

• Low belt tension

• Worn out belts

• Ingress of foreign material

• Incorrect pulley section

• Excessive wear in pulley
groove

• Poor drive alignment

• Small pulley diameter than
recommended

• Belt catching on protruding
parts

• Poor drive alignment

• Incorrect belt tension

• Overloaded

• Unbalanced pulleys

• Contamination by oil or
other chemicals

Remedies

• Realign

• Renew or replace pulleys

• Use an idler on slack side

• Retension

• Replace with new belts

• Use more effective drive guard

• Renew or replace pulleys

• Renew or re-machine pulleys

• Realign

• Redesign using correct pulley
diameter.

• Remove protrusion or move drive
away

• Realign

• Retension

• Check drive details and redesign

• Redesign, if necessary balance the
pulleys

• Protect the drive from contamination,
clean pulley grooves.If contamination

cannot be prevented use PIX AOH
V- Belts.

Unusual belt stretch • Re-machine or renew pulleys

Belt breaking after fitment • Reduce drive centre distance to fit

Cannot be re-tensioned • Give sufficient allowance for take-up

• Worn out badly damaged
grooves

• Used belts & new belts are
mixed up on drive

• Belts from different
manufacturers

• Forcing belt over pulleys
when fitting, damaging the
cord and cover

• Ingress of foreign material

• Insufficient belt or wrong
section or drive

• Drive stalled

• Insufficient allowance for
stretch in drive design

• Excessive stretch caused
by insufficient belts or
wrong belt section for drive

• Incorrect belt length

• Belts from different
manufacturers used on the
same drive

• Replace with completely new set of
V-Belts

• For using a matched set, belts must
be from one manufacturer

belt

• Fit an effective guard

• Check drive design and fit correct
number or section of belts

• Ascertain cause and rectify

• Recalculate drive design and modify

• Use belt of proper length

• Use belts from one manufacturer

27

PREVENTIVE MAINTENANCE TIPS

Problems

Excessive slippage

Transversal cracking

Bottom & side of belt burnt

Belt pulled apart (snapped)

Causes

• Too low belt tension

• Too small area of contact

• Overload

• Worn belt or pulley

• Too small pulleys

• Outside idler pulleys

• Ambient temperature too
high

• Ambient temperature too
low

• Abnormal belt slip

• Belt slipping under starting
or stalling load

• Worn sheaves

• Extreme shock load

• Misaligned drive

• Foreign particle in the drive

Remidies

• Increase belt tension

• Increase shaft centre distance

• Redesign belt drive

• Change to new belt or pulley

• Use standard size pulley.

• Use inside idler pulley in slack side

• Ensure good ventilation and protect

from direct heat.

• Warm area surrounding the drive

• Check drive tension and drive design
to ensure correct number of belts

• Replace belt and tighten drive until
slipping stops

• Replace sheaves

• Remove cause of load

• Check drive alignment

• Use drive guard

TYPES OF FAILURES

Bottom crack

Belt snapped

Shining surface due to high slippage

Belt snapped due to

cord break while fitment

Envelope wear

(side, bottom & top wear-out)

Stuck up and burnt

Belt twisted due to

belt turnover in pulley

28

DO’S & DON’TS OF PIX V-BELTS

Right Wrong

Wrong

Align groove like this

Shafts parallel

Not like this

29
