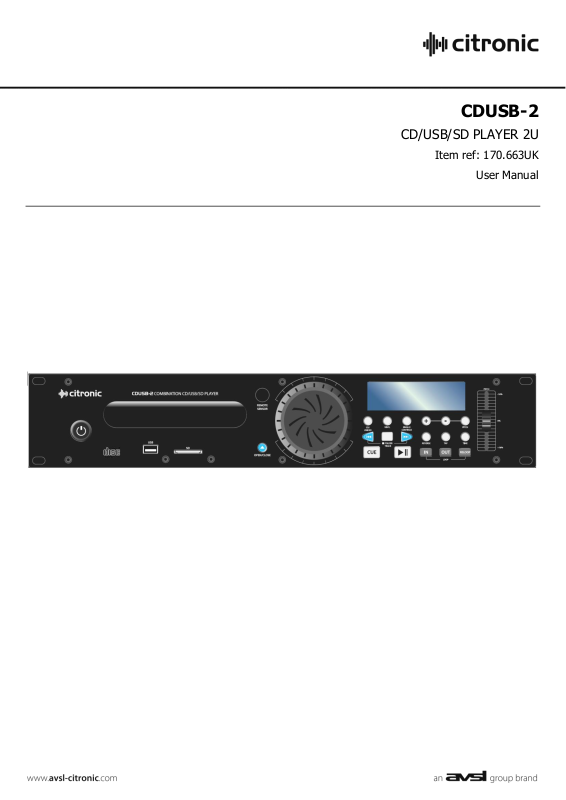

Citronic CDUSB-2 User Manual
CDUSB-2
CD/USB/SD PLAYER 2U
Item ref: 170.663UK
User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Introduction
Thank you for choosing the CDUSB-2 CD/USB/SD player as part of your playback system. This product has
been developed to provide a flexible, high quality audio source for PA, background music and DJ applications.
Please read and keep this manual to achieve the best results from the unit and avoid damage from misuse.
Package Contents
CDUSB-2 CD/USB/SD player 2U
IR remote control + batteries
Mains lead(s)
User manual
If you find any accessory is missing or the product has arrived with any problems, please contact your retailer
at once.
This product contains no user-serviceable parts so make no attempt to try to fix or modify this item yourself
as this will invalidate the warranty. We recommend you keep the original package and proof of purchase for
any possible replacement or returned demand.
Warning
To prevent the risk of fire or electric shock, do not expose any of the components to rain or moisture.
If liquids are spilled on the housing or disc drawer, stop using immediately, allow unit to dry out and have
checked by qualified personnel before further use.
Avoid impact or heavy vibration to any of the components.
No user serviceable parts inside - refer servicing to qualified service personnel.
Safety
Ensure that the correct mains lead is used and that the mains voltage is as stated on the unit
Avoid ingress of water or particles into any part of the housing
Do not place heavy objects on the disc drawer when ejected
Placement
Keep the console out of direct sunlight and away from heat sources
If rack-mounting, ensure that there is adequate support for the weight of the CDUSB-2 and that items
racked above it do not place too much pressure to the top of the housing
Allow adequate space for the rear connections and avoid leaving controls exposed to possible damage
Allow adequate space for the disc drawer to eject at the front of the unit and USB devices to be inserted
Cleaning
Use a soft dry or slightly damp cloth top clean surfaces of the control panels
A soft brush can be used to clear debris from between controls without damaging them
To avoid damage, do not use solvents to clean the components
A standard cleaning compact disc may be used if the player begins to have difficulty reading discs
170.663UK User Manual
Front Panel
1.
Power
Press in to power the unit up
2.
Disc drawer
Load a CD here (print side up) using the Open/Close button (13)
3.
IR receiver
Infra red detector for the signal from the remote control
4.
Source select
Press to switch through CD - USB - SD - CD - USB - SD etc.
5.
Multi-function display
Illuminated display with track, name, time and status info
6.
Vinyl
Press to make the jog wheel react like a vinyl disc
7.
Single/Continue
Press to toggle between single track play and continuous
8.
+ pitch bend
Press & hold to temporarily bend the pitch up to +16%
9.
- pitch bend
Press & hold to temporarily bend the pitch down to -16%
10.
Pitch
Press to activate the pitch slider (26)
11.
USB port
Insert USB device here containing compressed audio files
12.
SD card slot
Insert SD media here containing compressed audio files
13.
Open/Close
Press to eject drawer or load disc into the machine
14.
Jog wheel
Rotate to find cue points, beat sync or scratch passages
15.
Backward search
Search back through folders/tracks - hold for speed search
16.
Cue
Press to return to cue point set by the “In” button (20) – hold to play
17.
Folder/Track
Press to toggle between folder search or track search
18.
Play/Pause
Press to play or pause current track
19.
Forward search
Search forward through folders/tracks - hold for speed search
20.
In
Press to set a cue point, which is also the start when playing a loop
21.
Reverse
Engages reverse playback effect
22.
Out
Press to set the end point of a loop, press again to exit the loop
23.
Tap
Tap this button in time with and the BPM value will be displayed
24.
Reloop
Press to jump to the playback loop if the start and end points are set
25.
Time
Select time display - track elapsed / track remaining / total remaining
26.
Pitch slider
Adjust pitch up to ±16% when pitch is activated (10)
