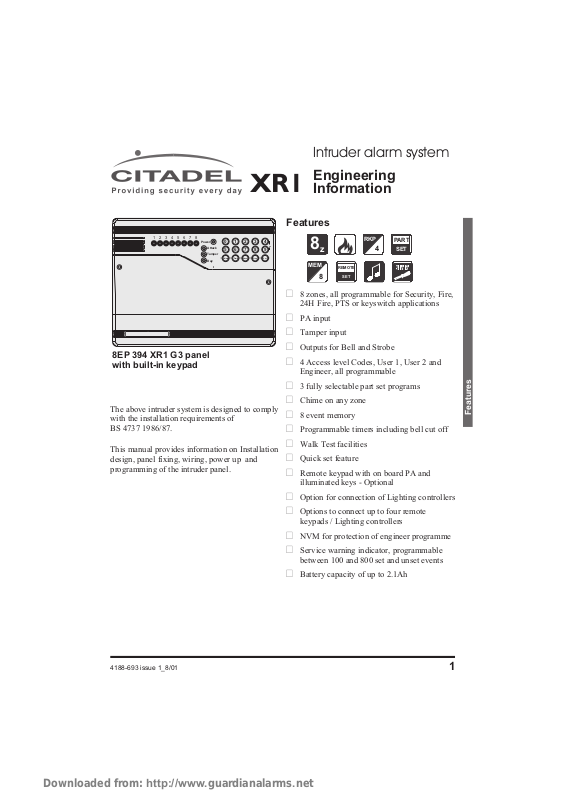

Citadel XR1 ENGINEERING INFORMATION

XR1

1 2 3 4 5 6 7 8

/!

Accenta

mini

8EP 394 XR1 G3 panel
with built-in keypad

The above intruder system is designed to comply
with the installation requirements of
BS 4737 1986/87.

This manual provides information on Installation
design, panel fixing, wiring, power up and
programming of the intruder panel.

Power

Attack

Tamper

Day

0123

5678

Chime Omit

Prog

Reset

4

PA

9

Set

Intruder alarm system

Engineering
Information

Features

8

z

MEM

8

8 zones, all programmable for Security, Fire,

ÿ

RKP

REMOTE

SET

24H Fire, PTS or keyswitch applications

PA input

ÿ

Tamper input

ÿ

Outputs for Bell and Strobe

ÿ

4 Access level Codes, User 1, User 2 and

ÿ

Engineer, all programmable

3 fully selectable part set programs

ÿ

ÿ

Chime on any zone

ÿ

8 event memory

ÿ

Programmable timers including bell cut off

ÿ

Walk Test facilities

ÿ

Quick set feature

ÿ

Remote keypad with on board PA and
illuminated keys - Optional

ÿ

Option for connection of Lighting controllers

ÿ

Options to connect up to four remote
keypads / Lighting controllers

ÿ

NVM for protection of engineer programme

ÿ

Service warning indicator, programmable
between 100 and 800 set and unset events

ÿ

Battery capacity of up to 2.1Ah

PART

SET

4

5

0

9

Features

4188-693 issue 1_8/01 1

Downloaded from: http://www.guardianalarms.net

Engineering information Citadel XR1G3 Intruder system

Contents

Features -------------------1
Installation Design --------------2
Fixing --------------------3
Wiring the system --------------4
Tamper network ---------------4
Connect Remote Keypads / Lighting controllers 4
Security zones ----------------5
Push to set zone ---------------5
Remote keyswitch zone -----------6
Fire zone ------------------6
PA circuit ------------------7
Extension speaker --------------7
Bell Output (External sounder) --------8
13V Supply output --------------8

Installation Design

The purchase of this alarm system represents a
major step forward in the protection of the
property and its occupants. It is important to plan
the installation before proceeding and then
follow the procedures and advice contained in
this manual.

Plan the position of each part of
the alarm system and the cable
runs. Detectors should be sited
with particular regard to the
degree of coverage required
and the function of each of the
zones.

Set ---------------------8
Factory set condition -------------9
First Power up ----------------10
Mains Connection --------------10
Testing the system --------------11
Engineer program mode -----------11

To exit ---------------------11

System indications --------------11
To enter Engineer program mode -------11
To Exit Engineer program mode -------11
To reset panel to Factory set conditions ----11
Access Codes ----------------12
Programs ------------------13

Installation Design

Zone Function per Program----------13
Exit Modes program -------------13

A

ccenta

1 2 3 4 5 6 7 8

/!

mini

ZONE1

ZONE2

ZONE3

ZONE4

ZONE5

ZONE6

ZONE7

ZONE8

Tamper

Attack

Day Power

0123

5678

Reset

Chime Omit

A

ccenta

All of the system wiring is

Power

0123

4

PA

Attack

5678

9

Tamper

Prog

Reset

Set

Chime Omit

Day

connected directly to the panel.
The panel may be installed
near an entry/exit point.

The Remote keypads (RKPs)

4

PA

should be mounted in positions

9

Prog

Set

which allows ease of operation
for the system users, typically
within the entry/exit route
close to the final door and the
master bedroom.

Programs 1,2 and 3--------------14
Alarm and Walk tests ------------15
‘Flag A’ Options ---------------16
‘Flag B’ options ---------------17
Viewing the event log ------------17
Zone Type ------------------18
Zone Attributes ---------------19
Bell and Service Timers -----------20
Re-arm and Anticode reset code -------21
Lighting controller --------------22
Faults --------------------23
Specification-----------------24

provide good sound distribution throughout the
building and so that the exit tone is audible
outside the main entry / exit door. This will
enable the system operator to check that the
system is setting correctly.

Additional internal sound
speakers are recommended,
these will provide high volume
alarm tones and low volume
entry/exit tones. Speakers
should be positioned to

Index --------------------26
Servicing organisation Details --------27
Parts --------------------27
Quick Reference ---------------28

I

TOTAL

Finally note that the total
current output of this

control system (in alarm
condition) is 1A when
supported by a fully charged

battery. Calculate the total
current consumption of every part of the system
including the panel, remote keypads,
bell/sounders, strobes and detectors to ensure
that this rating is not exceeded.

2 4188-693 issue 1_8/01

Citadel XR1G3 Intruder system Engineering information

Depending on which area
you live, you may be

LA

required, by law to notify
the Local Authority and
Police of the new security

alarm installation. The
local authority requirements may differ from
area to area, therefore, it is advisable to contact
local environmental officer to obtain full details
of your area requirements.

Fixing

Caution: When positioning the control
panel ensure that it is located in a dry
place away from damp areas.

a. Remove the front cover(s) from the

panel.

Note: When replacing the PCB align it
on the round support pillars to the bottom
and allow it to click down past the clips
at the top of the case. Refit the
transformer wires into the terminal.

b. Fit the panel to the wall with suitable

fixings. Ensure the wall surface is flat to
prevent base distortion. There are
cable entry holes provided in the rear
of the base and around the outside
edges through the thinned out plastic
sections which may be cut away as
required.

c. The hole provided adjacent to the

mains transformer is a dedicated mains
cable entry point.

Mounting holes



4

PA

9

0123

8

6 7

5

3 4

1 2

Attack

Tamper

Day

Prog

5678

Reset

Omit

Chime

Set





Disconnect the transformer wires from
the transformer marked AC terminals
on the board. Carefully remove the
PCB by gently pushing down the
holding clips on the bottom edge of the
PCB and withdraw it from the base.







Cable entry

holes

Mounting holes

Board

There are four fuses mounted on the circuit
board, all are 20mm quick blow.

F1 1.6A - to protect the +ve line of 12V battery
F2 1A - to protect the RKP 13V supply
F3 1A - to protect the Speaker 13V supply
F5 1A - to protect the Bell and Strobe supply

As supplied, wire links are fitted across the PA
and Tamper terminals to represent a closed
circuit.

Fixing

4188-693 issue 1_8/01 3

Engineering information Citadel XR1G3 Intruder system

p

RKP FUSE

1A

SOUND

COMMS

+13V

TAMP

J2

F2

J5

0V

2

1

D1 D2 D3 D4 D5 D6 D7 D8

TAMP

7

8

PA

-

+

Factory fitted links

6

4

5

3

Wiring the system

Caution: Always power-down the panel
when wiring external circuits, to prevent
damage to the panel electronics.

Systematically wire and test each circuit:

ÿ Zone, Tamper circuit and PA circuits

Wiring the system

ÿ

Finish by wiring any additional extension
speaker sounders, external bell/sounder,
strobe and the 13V supply.

Tamper network

The Tamper circuit is used to protect all cables
and detectors in the system from unauthorised
access including the panel and RKP covers.

+13V 0V

0 1 2 3

D18

D9

D10

VOLUME

VR1

TAMP

D22

J6

-

+

TA

STROBE

The zone and PA tampers should be series wired
and connected to the TAMP terminals.
TerminalsT&Aarefortheexternal bell /
sounder tamper. The TAMP terminals at the
bottom left of the PCB are for the RKP tampers.

Tamper alarms that occur in the Day mode
operate internal sounders only. Tamper alarms in
Set cause a full alarm condition. Tamper is
indicated on the control panel and RKPs by the
Tamper indicator.

5 6 7 8

CHIME OMIT RESET

DB

SET

BELL

SCB

-

+

BELL/STROBE

13V / SPEAKER

1A 1A 1.6A

F1F3F5

BATTERY

+­BATT

Connect Remote Keypads /
Lighting controllers

A combination of up to four remote keypads and
lighting controller can be connected to the panel.

4

9

SETPROG

J4

AC

Keypad

Board

0V

13V

SOUND

TAMP

COMMS

If only one Remote keypad

is being used then connect TAMP

back to the

anel

Panel

Board

1A

RKP FUSE

J5

F2

SOUND

COMMS

+13V

0V

TAMP

GND

Keypad

Board

0V

13V

OPTI-CAM Lighting
Controller

Board

COMMS

12V

SOUND

LD R

Maximum of up to 4 Remote Keypad /
OPTI-CAM Lighting Controller
combination allowed

(See also the instructions supplied
with the OPTI CAM lighting controller)

SOUND

COMMS

TAMP

4 4188-693 issue 1_8/01

Citadel XR1G3 Intruder system Engineering information

Security zones

Panel

Board

J2

TAMP

4

PIR

+-

PIR

6

5

Terminal block
is not supplied

Tamp

Door
Contact

Door
Contact

2

1

3

Alarm

Note: The panel is not supplied with
wire links for unused zones. All unused

zones must be programmed out by
setting them to disabled using the Zone
Type function see page 18.

PA

8

7

Unused zones must
be programmed as
Unused.

-

+

+13V 0V

Push to set zone

Any zone can be wired and configured as a Push
to Set input. This can be a standard door bell
push located outside the premises. After starting
the exit timer the building is vacated. As the
switch is then momentaraily closed, a chime
tone is produced and the system Sets. Sometimes
referred to as ‘Terminate Set’ this facility is
mandatory for communicating systems installed
to NACOSS guidelines

Panel

Board

J2

TAMP

PA

2

1

3

Note: The push to set switch
can be connected to any zone.
The zone must be programmed
for PTS application.

6

4

5

8

7

Press to Set Switch

+13V 0V

-

+

Security zones

It is recommended that no more than 10
magnetic contacts are connected to the same
zone.

4188-693 issue 1_8/01 5

Engineering information Citadel XR1G3 Intruder system

Remote keyswitch zone

Any zone can be wired and programmed as a
keyswitch input and used with a remote
keyswitch or lock switch. For security reasons it
is recommended that a tamper proof switch is
used and that the switch wiring is not accessible
from outside the premises.

Panel

Board

J2

TAMP

PA

6

2

4

1

Note: A keyswitch can be
connected to any zone.
The zone must be programmed
for keyswitch application.

5

3

7

8

Keyswitch

The keyswitch may be used to Set (open
contacts) or Unset (closed contacts)
independently of RKPs. However in this
situation the keyswitch may have to ‘catch up’
with the system. For example if the system is Set
via an RKP and Unset with the keyswitch, it
would have to be momentarily turned to its Set

Remote keyswitch zone

position then returned to its Unset position.

The keyswitch will always Set program 1. It will
also Unset the system or switch off an alarm
activation. To Reset after an alarm and return to
Day mode, the Reset key on the RKP will have
to be pressed.

+13V 0V

-

+

Fire zone

Any zone may be programmed as a fire zone.
This will automatically exclude the availability
of the zone from programs and normal security
applications.

Panel

Board

J2

TAMP

PA

6

2

1

4

3

Note: Fire detector with
relay base for output
to intruder system.

5

7

8

Fire detector

There are two types of fire zone, Standard and
24 hour type. The Standard fire zone detects

fires only when the system is Set, where as the
24 hour fire zone detects fires all the time and
will operate whether the system is Set or Unset.
A fire will cause a distinctive internal sounder
tone. The external sounders will pulse on and off
at 2 second intervals and all RKP indicators will
flash the affected zone.

+13V 0V

-

+

6 4188-693 issue 1_8/01

Citadel XR1G3 Intruder system Engineering information

PA circuit

Any quantity of normally closed type personal
attack button may be wired in series and then
connected to the PA circuit.

Operational in Day and Set, the PA circuit will
cause a full alarm condition when activated. PA
is indicated on the control panel or RKP as
Attack.

Panel

J2

6

2

4

1

5

3

Panic
Button

Panic
Button

8

7

PA buttons may be fitted near the front door, or
in a bedroom.

Board

TAMP

PA

+13V 0V

-

+

Extension speaker

Extension speaker may be connected to the
loudspeaker terminals to produce high volume
alarm tones and low volume entry / exit fault
tones.

Panel

VOLUME

VR1

-

+

STROBE

16 Extension Speaker

16 Extension Speaker

TA

SCB

DB

BELL

-

+

Up to two 16 ohm extension speakers may also
be wired across the speaker terminals. Mounted
in convenient positions within the installation
the extension speakers will reproduce all of the
alarm tones generated by the control panel.

A control marked VOLUME in the centre of the
PCB may be used to adjust the low volume
entry/exit tones to suit environmental conditions.

J6

SET

Board

F5

F3

13VSPEAKER

BELL/STROBE

1A

1A

PA circuit

4188-693 issue 1_8/01 7

Engineering information Citadel XR1G3 Intruder system

Bell Output (External sounder)

The bell is usually installed in a high position
from where the bell could be seen and heard.

Terminal TADBareforconnection to the
external bell or sounder. These terminals
provide a power/hold-off supply, sounder trigger
and tamper circuit to protect the external sounder
housing.

Panel

Bell Output (External sounder)

Board

J6

-

+

TA

STROBE

+- TEADB

STROBE

DB

BELL

SCB

+

F5

SET

BELL/STROBE

1A

-

Panel

Board

J6

-

+

STROBE

+- TEADB

STROBE

Sonade

TA

SCB

DB

BELL

+

F5

SET

BELL/STROBE

1A

-

#

# Terminal block
is not supplied

+- TEADB

STROBE

Sonade

Where self contained / powered sounders are
used, carefully follow the manufacturers
instructions, match each of the terminals to those
above.

Panel

Board

J6

-

+

TA

STROBE

SCB

DB

BELL

+

F5

SET

BELL/STROBE

1A

-

Sonade

The terminals are summarised as follows:
T - -Ve tamper return
A - -Ve supply (0V)
D - +Ve supply (12V)

B- -Ve Sounder trigger

For ease of installation, Sonade sounders and
modules use the same markings.

Where a discrete bell sounder is used, it should
be connected to terminalsD&B.Terminals T &
A are then used for tamper protection for the
sounder housing.

13V Supply output

The 13V output is to power detectors which
require a voltage supply (PIR detectors etc). The
supply is present at all times and may be used to
supply a total load of 350mA.

Set

-Ve
COM

Citadel Defender

Rtn Signal

Siren Trigger -

Strobe Trigger -

Supply Hold Off -

Supply Hold Off +

The output, marked SET is used with latching
detectors. The output becomes positive on
correct Set of the system and is removed at the
commencement of entry time or entry of the
valid user code.

8 4188-693 issue 1_8/01

Citadel XR1G3 Intruder system Engineering information

Factory set condition

User code 1 --------0123
User code 2 --------Notprogrammed
Engineer Code -------9999
Bell Duration -------20minutes
Bell Delay ---------Nodelay

Program 1

Zone 1 ---------Timed
Zone 2 ---------Time Inhibited
Zones 3…8 ------Immediate
Exit time--------30seconds
Entry ---------30seconds
Exit mode -------timed

Program 2

Zone1 ---------Timed
Zone 2 ---------Time inhibited
Zone 3…8 -------Immediate
Exit time--------30seconds
Entry time -------30seconds
Exit mode -------Disabled

Program 3

Zone 1 ---------Timed
Zone 2 ---------Time Inhibited
Zone3…8 -------Immediate
Exit time--------30seconds
Entry time -------30seconds
Exit mode -------Disabled

Flag A

Silent PA ---------No
RKP PA Enable ------Yes
Engineer Reset-------No
Anti Code Reset ------No
Door bell on push to set - - No
Single key setting -----No
Strobe on setting ------No
External bell on Fire ----No

Flag B

User Reset PA --------No
User Reset Fire --------No
Rearm counter --------3(re-arms)
Service counter --------Off
Site Code -----------00

Light Controller

Light Threshold ------50%
Light Hold Time ------30seconds
Light Channel 1 ------Nozones assigned
Light Channel 2 ------Nozones assigned
Light Channel 3 ------Nozones assigned
Light Channel 4 ------Nozones assigned
Light Channel 5 ------Nozones assigned
Light Channel 6 ------Nozones assigned
Light Channel 7 ------Nozones assigned
Light Channel 8 ------Nozones assigned

Factory set condition

Security Zones -------Zones 1…8
Standard Fire zones ----None programmed
24 hour Fire zones -----None programmed
Push to set zones ------None programmed
Keyswitch zones ------None programmed
Double Knock zones ----None programmed
Omit prevent zones-----None programmed
Zone debounce period - - - 300mS ALL zones

4188-693 issue 1_8/01 9
