Cissell 120-170 LB Specifications
The Tumbler Features:
• The self-cleaning lint screen and large lint compartment
mean employees spend less time cleaning.
• Our stainless steel door and extra-wide hinges make sure
it stands up to frequent opening and closing and the rough
demands of a busy on-premises laundry environment.
• Paint is applied to the outside and inside of the cabinet electrostatically for superior bonding and corrosion resistance.
• Cissell’s 120 and 170 lb tumblers are offered with an optional
response to suppress laundry combustion inside the tumbler
cylinder. The Combustion Auto Response Equipped
®
(C.A.R.E.) system senses for abnormally high temperatures
in the cylinder. Should a rise in temperature be detected,
the system activates a warning signal and sprays water on
the load from multiple ports.
EXCEPTIONAL CHOICES
For more than half a century, Cissell has been an industry leader in
the design and innovation of laundry equipment. Our unwavering
commitment to building durable, reliable and affordable equipment
has resulted in
Exceptional Choices for our customers. No other
brand can provide you with as broad a product range combined with
outstanding quality, reliability, technical support and dependable
distributors.
Cissell’s drying tumblers are recognized worldwide for producing
superior results and maximum productivity. When you put Cissell
in your on-premises laundry, you gain products that will stand up
to your toughest demands. Cissell’s 120 and 170 lb tumblers are
the perfect drying options for medium- and large-size laundry rooms.
These large-capacity drying tumblers offer an excellent blend of
speed and efficiency to keep your on-premises laundry running at
its highest level of productivity.
Exceptional Choices — it’s what
makes Cissell the best overall value for your laundry.

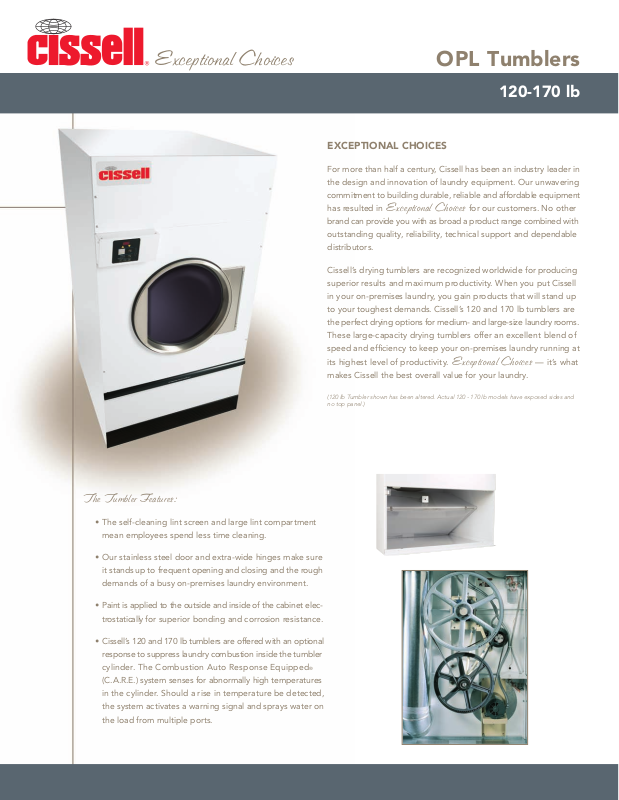

(120 lb Tumbler shown has been altered. Actual 120 - 170 lb models have exposed sides and
no top panel.)
Exceptional Choices
OPL Tumblers
120-170 lb
AL10-0612
EXCEPTIONAL CONTROLS
Cissell drying tumblers offer intuitive controls, which means
managers spend less time training new employees. Our 120
and 170 lb tumblers are offered with either a dual digital
control or micro-processor control.
The Control Features:
• The microprocessor control pictured features five
preset drying cycles, with additional programmability.
It also has an anti-wrinkle tumble and an easy-to-read
digital display.
• Cissell’s dual digital control enables operators to set
drying time (0-60 minutes), cool-down time (0-15 minutes)
and temperature. It also features one-touch cycle repeat,
extended tumble and easy-to-read digital displays.
EXCEPTIONAL VALUE
For more peace of mind, all Cissell drying tumblers come
with an exceptional three-year warranty. We will cover any
non-perishable part that fails due to defect in material or
workmanship for a full three years from the date of installation.
No one else gives you so many advantages with so much
affordability.
CT120 CT170
Width - in (mm) 46 3/8" (1178) 53 1/8" (1349)
Depth - in (mm) 68" (1725) 68 7/8" (1749)
Height - in (mm) 85 11/16" (2177) 94" (2388)
Cylinder Depth - 41" (1041) 42 1/ 2" (1080)
in (mm)
Cylinder Diameter - 44" (1118) 50 3/4" (1289)
in (mm)
Cylinder Volume - 36.1 (1021) 49.7 (1408)
cu. ft. (liters)
Door Opening - 26 7/8" (683) 26 7/8" (683)
in (mm)
Dry Capacity Filling 120 (54.4) 170 (77.1)
Ratios - lb (kg) 20:1 - 113 (51.1) 20:1 - 155 (70.4)
Airflow - 1600 (755) 2450 (1156)
cfm (liters/sec.)
Water Inlet Size - in (1) 3/4 - 111/2 (1) 3/4 - 111/2
(C.A.R.E.
® System) NH Hose Connection NH Hose Connection
Energy Data Gas Models: Gas Models:
300,000 Btu/hr (87.9 kW) 395,000 Btu/hr (115.7 kW)
Steam Models: Steam Models:
11.7 BHP @ 100 psi (6.9 bar) 18.8 BHP @ 100 psi (6.9 bar)
405,000 Btu/hr (118.5 kW) 648,000 Btu/hr (189.7 kW)
Electrical Gas Models: Amps Gas Models: Amps
Specifications 200-208/240/60/3 7.7 200-208/240/60/3 13.5
440/60/3 3.8 440/60/3 6.4
460-480/60/3 3.9 460-480/60/3 6.7
Steam Models: Steam Models:
380/400-415/50/3 3.8 380/400-415/50/3 6.9
Plumbing Gas Models: 3/4" - NPT Gas Models: 1" - NPT
Connections Steam Models: 3/4" - NPT Steam Models: 3/4" - NPT
Net Weight - lb (kg) Gas: 1275 (578) Gas: 1575 (714)
Steam: 1375 (624) Steam: 1675 (760)
Shipping Weight - Gas: 1338 (607) Gas: 1667 (756)
lb (kg) Steam: 1446 (656) Steam: 1776 (806)
Shipping W 48 1/2" (1232) 58" (1473)
Dimensions -
D 72" (1829) 74 1/2" (1892)
in (mm)
H 90" (2286) 99" (2515)
Agency Approvals
Gas Models: CSA Star, Gas Models: CSA Star,
CSA Flame, cCSAus, CE, CSA Flame, cCSAus, CE,
Australia Gas Australia Gas
Steam Models: cCSAus, CE Steam Models: cCSAus, CE
Specifications
Tumbler models are made to suit a variety of electrical service characteristics. See your Cissell distributor
for specifications. Gas models are certified by CSA International. For further details on installation, refer
to Installation, Operation and Maintenance instructions supplied with the tumbler.
For the most accurate information, the installation guide should be used for all design and construction
purposes. Due to continuous product improvements, design and specifications subject to change without
notice. The quality management system of Alliance Laundry Systems’ Ripon facility has been registered
to ISO 9001:2000.
Printed in the U.S.A.
©Copyright 2010 Alliance Laundry Systems LLC
