Cisco 828 Router and SOHO 78 Router Cabling
and Setup Quick Start Guide

This document describes the basic process of cabling and configuring the Cisco 828 router and the
SOHO 78 router. For advanced cabling information, refer to the Cisco 828 Router and SOHO 78 Router

Hardware Installation Guide. For advanced configuration information, refer to the Cisco 828 Router and
SOHO 78 Router Software ConfigurationGuide.These documents are availableon the Cisco Documentation

CD-ROM and on the World Wide Web.
You can access the most current Cisco documentation on the World Wide Web at the following sites:

• http://www.cisco.com

• http://www-china.cisco.com

• http://www-europe.cisco.com

The shipment of your Cisco 828 router or SOHO 78 router includes the following items:

• One Cisco 828 router or one SOHO 78 router

• One yellow Ethernet cable

• One light blue console cable

• One lavender xDSL cable

• One DB-9-to-RJ-45 adapter

• One black desktop power supply

• One black power supply cord

• Cisco Documentation CD-ROM

Figure 1 shows the items included with the router. If any of the items is missing or damaged, contact

your customer service representative.

Corporate Headquarters: Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Copyright © 2001. Cisco Systems, Inc. All rights reserved.

78-12839-01

Verify the PC Setup

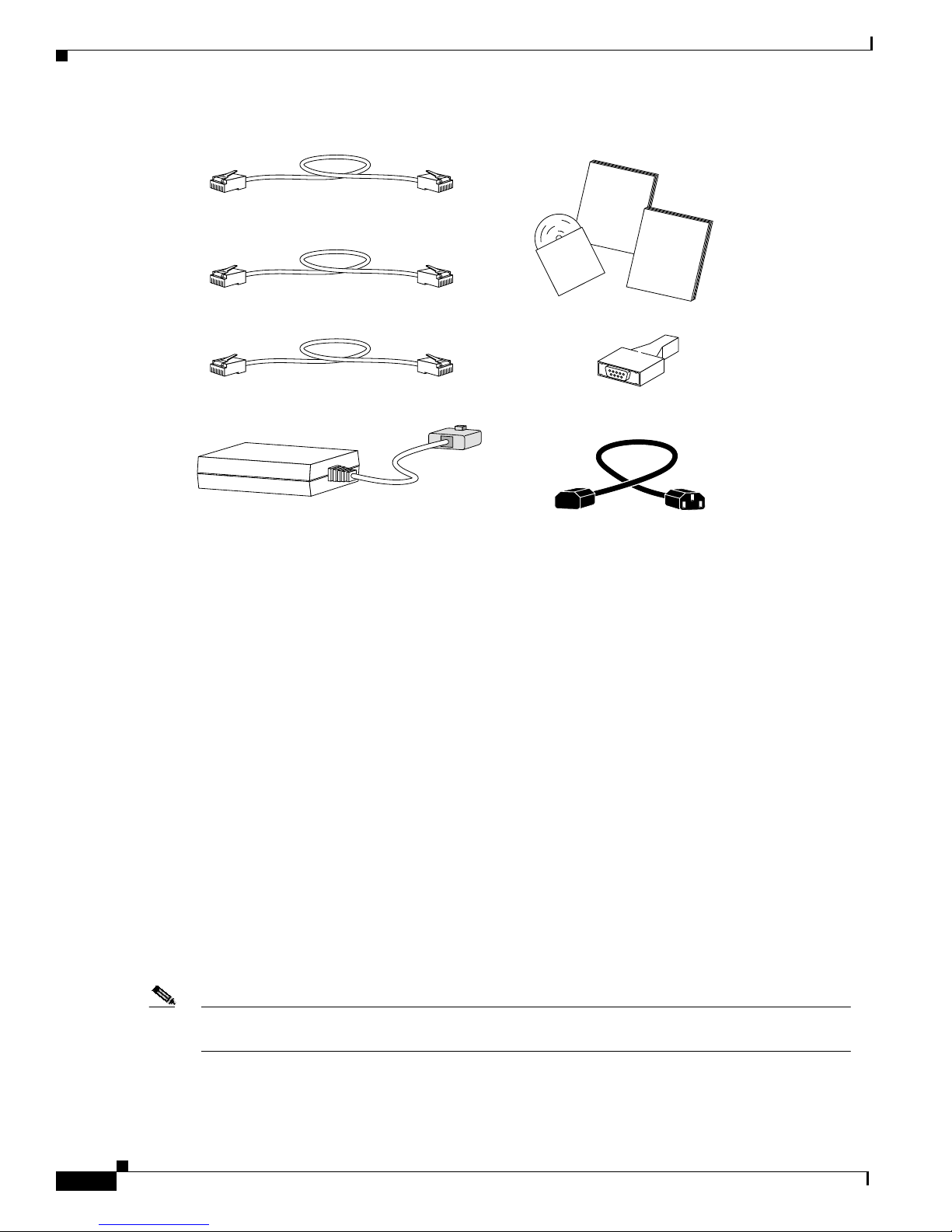

Figure 1 Items Included with the Router

Yellow Ethernet cable

Lavender xDSL cable

Light blue console cable

Quick Start

Guide

Other

Documentation

Documentation

CD-ROM

Product documentation

DB-9-to-RJ-45 adapter

(for use with light blue console cable)

Desktop power supply

Verify the PC Setup

Before you begin, verify that each computer that will be connected to the router has a network interface
card (NIC) installed and that Transmission Control Protocol/Internet Protocol (TCP/IP) has been loaded
and configured. For more information on how to configure TCP/IP, refer to the Cisco Router Web Setup
User Guide, which is available on the Cisco 800 and SOHO Series Product Documentation CD, and
refer to information available the Microsoft website.

Connecting Cables to the Router

This section describes the following tasks:

• Connecting a hub

• Connecting a server, PC, or workstation

• Connecting the xDSL cable

• Connecting a terminal or PC

• Connecting the power supply

Black power cord

56633

Note For more detailed instructions, refer to the Cisco 828 Router and SOHO 78 Router Hardware

Installation Guide.

Cisco 828 Router and SOHO 78 Router Cabling and Setup Quick Start Guide

2

78-12839-01

Connecting a Hub

This section describes how to connect a hub to the router Ethernet 4 port.
The TO HUB/TO PC button identifies the device that you connect to the yellow Ethernet 4 port, using

the yellowEthernet cable. For example, setting the button to the TO HUB position (in) indicates that you
are connecting a hub; setting the button to the TO PC position (out) indicates that you are connecting a
server, PC, or workstation. For information on how the settings of this button on a hub can affect the
setting of this router, refer to the Cisco 828 Router and SOHO 78 Router Hardware Installation Guide.

You can use the yellow Ethernet cable to connect a server, PC, or workstation to any of the four Ethernet
ports. However, if you want to connect a hub to a port other than the ETHERNET 4 port, you must use
a crossover cable, which is not included with the router.

To connect a hub to the router, follow the steps in Figure 2.

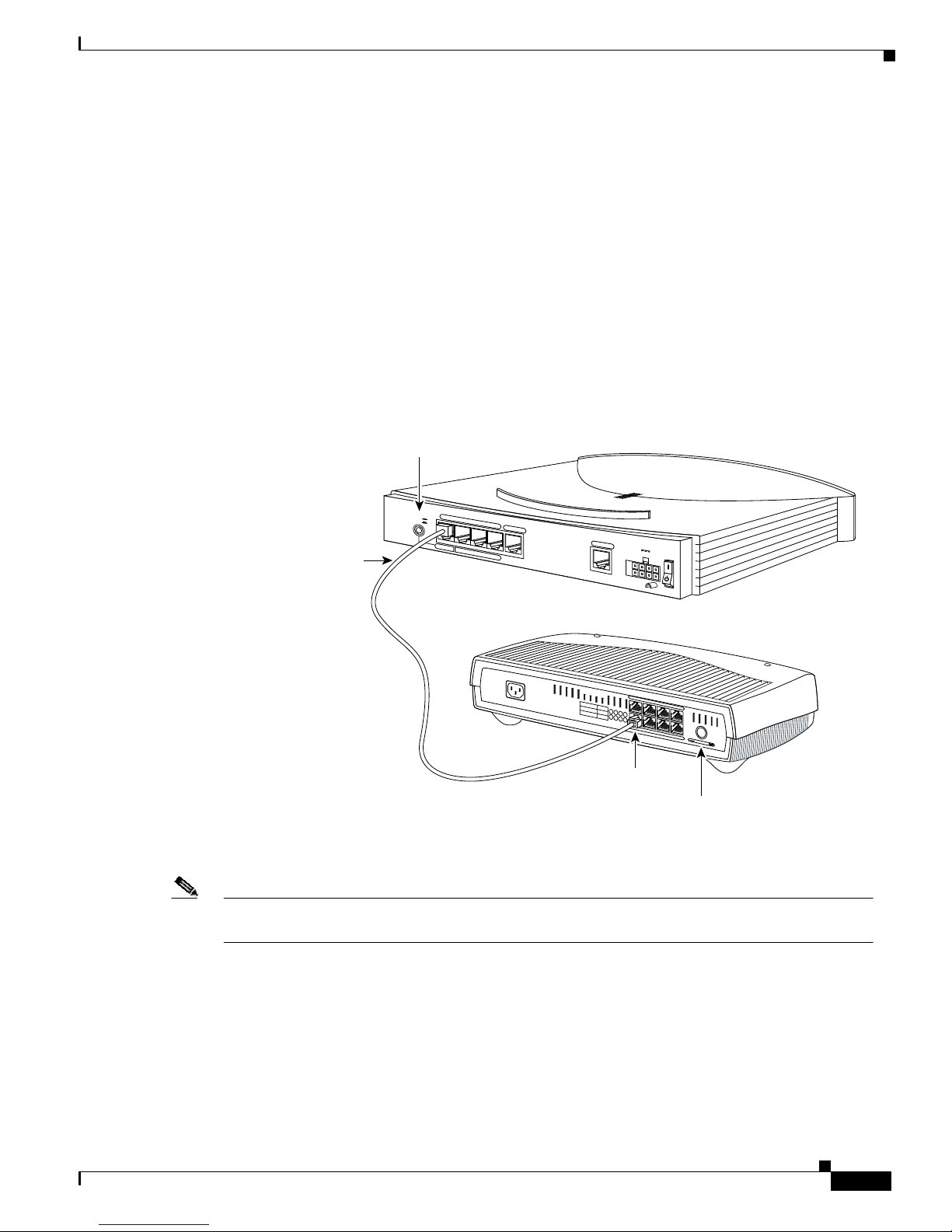

Figure 2 Connecting a Hub

Connecting Cables to the Router

2. Connect yellow cable
to ETHERNET 4 port
on Cisco 828 or
SOHO 78 router.

1. Set TO HUB/TO PC button.

TO HUB

ETHERNET 10 BASE T

TO PC

4

3

2

1

Model Cisco 828

CONSOLE

Cisco 828 router

G.SHDSL

+5 VDC

Cisco 1528 Micro Hub 10/100

1X 2X 3X 4X

SPEED

100BaseTX

10BaseT

LED
SOLID
BLINK

ETHERNET

1

2

3

4

5

6

7

8

6X 7X 8X

3. Connect other
end of cable
to hub.

4. If applicable, check

MDI MDI-X

56634

setting of hub
equivalent of router
TO HUB/TO PC button.

Note To connect a hub to an Ethernet port other than the ETHERNET 4 port, you must use a crossover

cable, which is not included with your router.

78-12839-01

Cisco 828 Router and SOHO 78 Router Cabling and Setup Quick Start Guide

3

Connecting a Server, PC, or Workstation

To connect a server, PC, or workstation to the router, follow the steps in Figure 3.

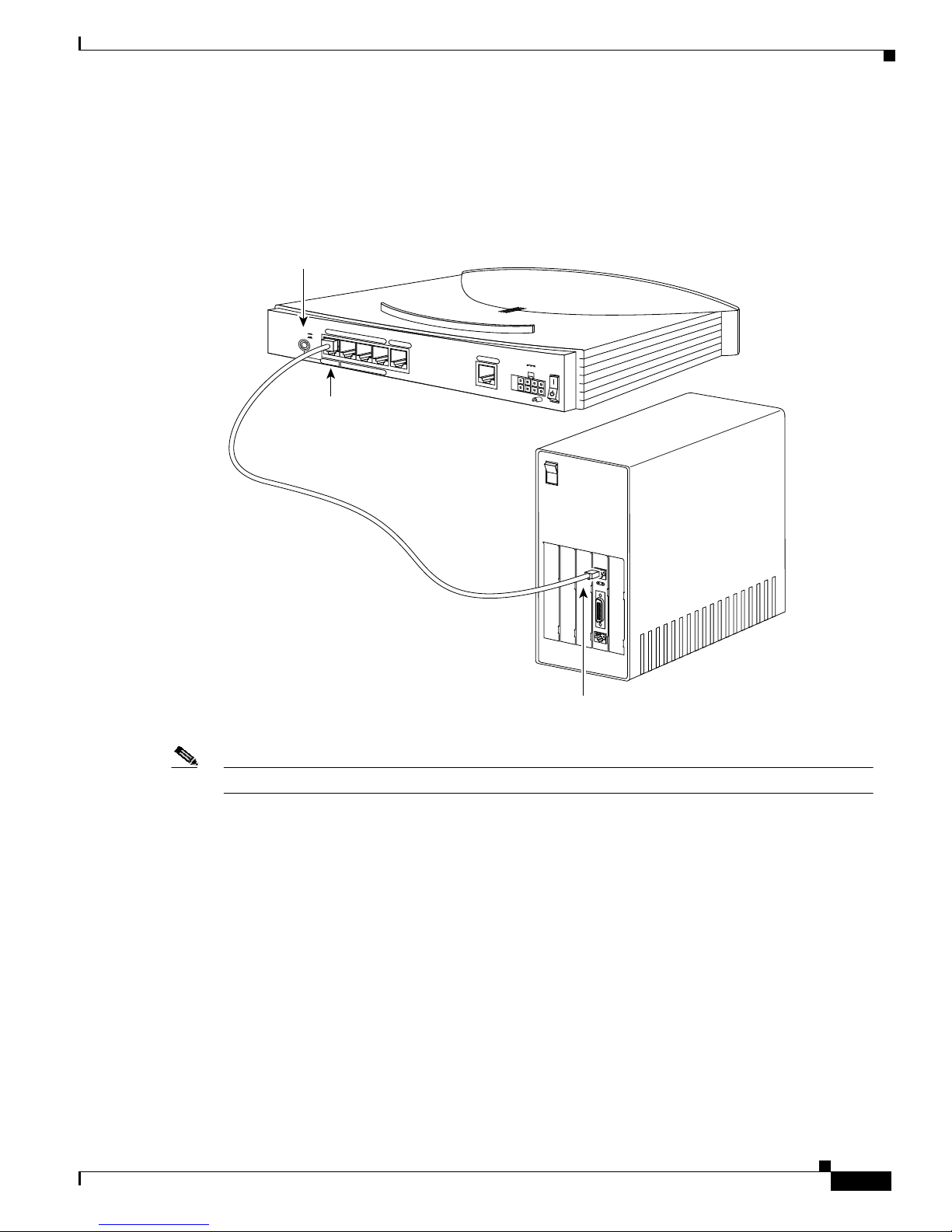

Figure 3 Connecting a Server, PC, or Workstation

Connecting Cables to the Router

1. Set TO HUB/TO PC button.

TO HUB

ETHERNET 10 BASE T

TO PC

4

3

2

1

2. Connect yellow cable
to ETHERNET 4 port
on Cisco 828 or
SOHO 78 router.

Model Cisco 828

CONSOLE

Cisco 828 router

G.SHDSL

+5 VDC

PC

ETH

OK

LAN

SER 0

AUX

56635

3. Connect other end of cable
to server, PC, or workstation.

Note If you are using Ethernet port 1, 2, or 3, you do not need to use the TO HUB/TO PC button.

78-12839-01

Cisco 828 Router and SOHO 78 Router Cabling and Setup Quick Start Guide

4

Connecting the xDSL Cable

Figure 4 shows how to connect the xDSL cable to a wall jack.

Connecting Cables to the Router

Warning

Warning

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Do not work on the system or connect or disconnect cables during periods of lightning
activity.

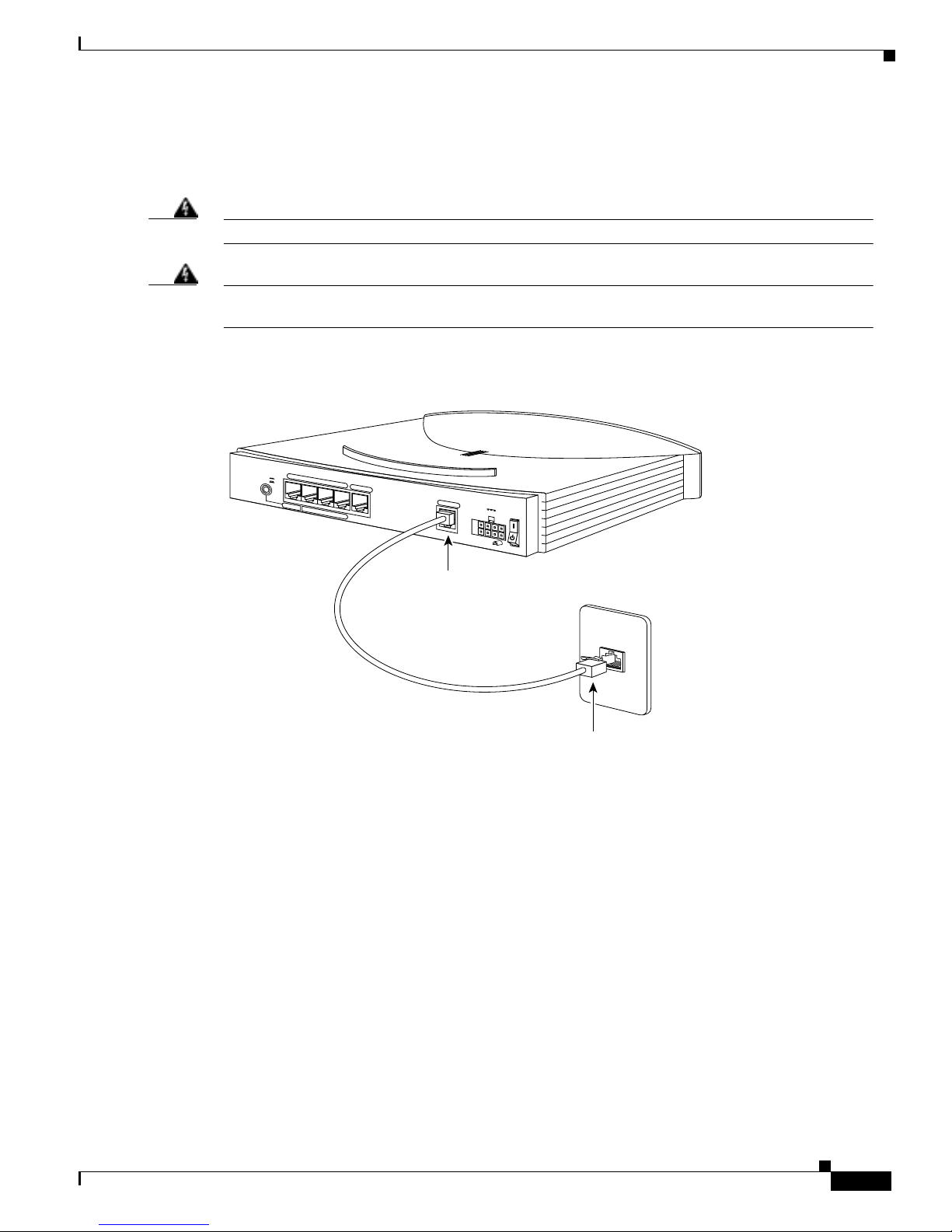

Figure 4 Connecting the xDSL Cable to a Wall Jack

Cisco 828 router

TO HUB

ETHERNET 10 BASE T

TO PC

4

3

2

1

Model Cisco 828

CONSOLE

1. Connect lavender cable
to G.SHDSL port.

G.SHDSL

+5 VDC

56637

78-12839-01

2. Connect other end of
cable to wall jack.

Cisco 828 Router and SOHO 78 Router Cabling and Setup Quick Start Guide

5

Connecting Cables to the Router

Connecting a Terminal or PC

You can connect either a terminal or a PC to the router. Use the terminal or PC to configure the software,
using the command-line interface (CLI), or to troubleshoot problems that arise. To connect a terminal or
PC, follow the steps in Figure 5.

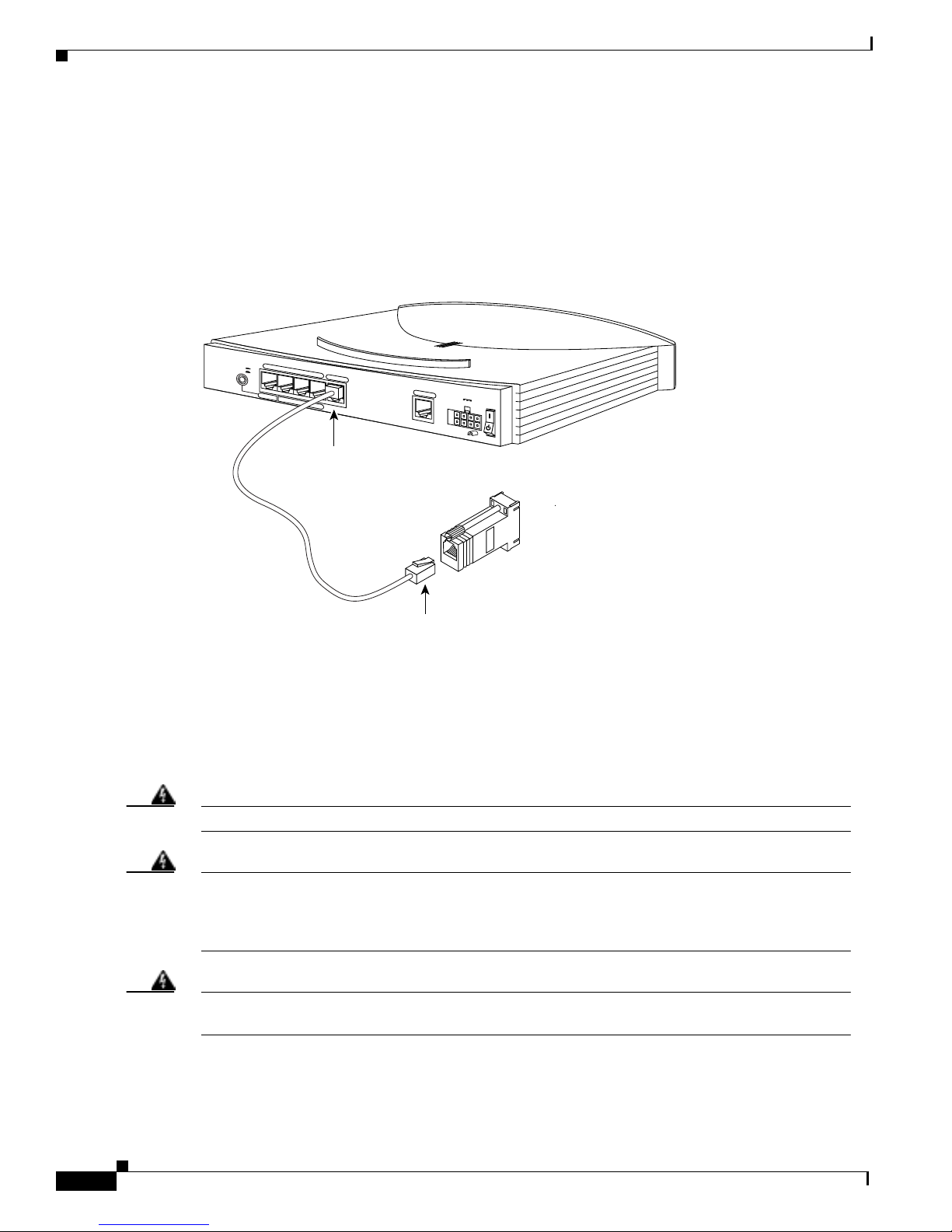

Figure 5 Connecting a Terminal or PC

TO HUB

ETHERNET 10 BASE T

TO PC

4

Model Cisco 828

CONSOLE

3

2

1

1. Connect light blue cable
to CONSOLE port.

Cisco 828 router

G.SHDSL

+5 VDC

56638

3. Connect DB-X
connector to
terminal or PC.

2. If necessary, connect other end of
cable to DB-9-to-RJ-45 adapter.

Connecting the Power Supply

To connect the power supply, follow the steps in Figure 6.

Warning

Warning

Warning

The device is designed to work with TN power systems.

This product relies on the building’s installation for short-circuit (overcurrent)
protection. Ensure that a fuse or circuit breaker no larger than 120 VAC, 15A U.S.
(240 VAC, 16A international) is used on the phase conductors (all current-carrying
conductors).

This equipment is intended to be grounded. Ensure that the host is connected to earth
ground during normal use.

DB-X-to-RJ-45
adapter

Cisco 828 Router and SOHO 78 Router Cabling and Setup Quick Start Guide

6

78-12839-01

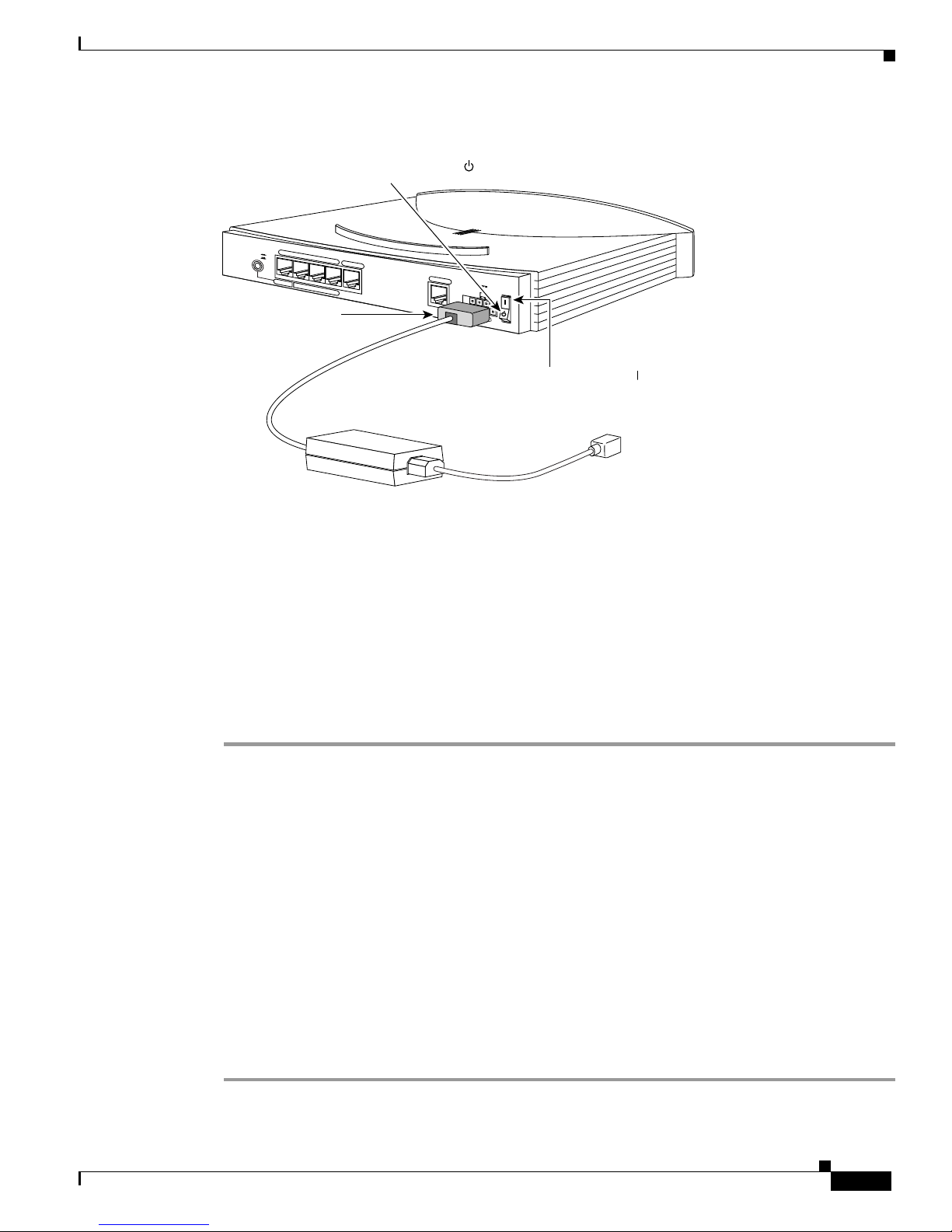

Figure 6 Connecting the Power Supply

1. Press power switch to standby ( ).

TO HUB

ETHERNET 10 BASE T

TO PC

4

2. Connect power
supply cable.

Model Cisco 828

CONSOLE

3

2

1

Desktop power supply

3. Connect power cord
to power supply.

G.SHDSL

+5 VDC

5. Press power switch to on ( ).

Set Up the Router to Access the Network

Cisco 828 router

56639

4. Connect other end
of power cord to
electrical outlet.

Set Up the Router to Access the Network

The Cisco Router Web Setup (CRWS) software is already loaded on the Cisco 828 router or SOHO 78
router. You can use CRWS to configure the Cisco 828 router and the SOHO 78 router. If you purchased
your router through an Internet service provider (ISP), it is possible that your router has been configured
for use at your site. If you know this is not the case, or if you have purchased Cisco IOS software for the
router since installing it, we recommend that you use CRWS to configure the router.

Step 1 Log on to one of the PCs connected to the router through Ethernet port 1, 2, 3, or 4.
Step 2 Open a web browser.
Step 3 Type in the following universal resource locator (URL):

http://10.10.10.1

Step 4 Click the Router Setup link in the Cisco Router Web Setup home page, and follow the instructions that

appear in the page that is displayed.

Step 5 If the web page does not appear when you enter the URL http://10.10.10.1, test the connection between

the PC and the router by doing the following:

a. Check that the OK LED on the router is on, and check the cable connection between the router and

the PC. If the PC you are using is connected to Ethernet port number 4, be sure that the TO HUB/TO
PC button is in the TO PC position.

b. If the web page still does not appear, verify that your PC is automatically configured to receive an

IP address, by following the instructions in Cisco Router Web Setup User Guide, which is available
on the Cisco 800 and SOHO Series Product Documentation CD.

78-12839-01

Cisco 828 Router and SOHO 78 Router Cabling and Setup Quick Start Guide

7

Verifying the LEDs

Verifying the LEDs

The following table describes the normal LED pattern and what to do if the router displays an abnormal
pattern. For more information on all LEDs, see the Cisco 828 Router and SOHO 78 Router Hardware
Installation Guide.

LED

Normal
Pattern Explanation If Abnormal Pattern

OK On Poweris suppliedto

the router.

G.SHDSL CD On G.SHDSL line is

connected.

G.SHDSL RXD Blinks G.SHDSL port

receives data.

G.SHDSL TXD Blinks G.SHDSL port

sends data.

ETHERNET 1, 2, 3, On Ethernet device is

connected.

ETHERNET 4 On Ethernet device is

connected.

ETHERNET RXD Blinks Ethernet port is

receiving a packet.

If off, see the Cisco 828 Router and

SOHO 78 Router Hardware
Installation Guide.

If off, see the Cisco 828 Router and
SOHO 78 Router Hardware
Installation Guide.

If off, see the Cisco 828 Router and
SOHO 78 Router Hardware
Installation Guide.

If off, see the Cisco 828 Router and
SOHO 78 Router Hardware
Installation Guide.

If off, see the Cisco 828 Router and
SOHO 78 Router Hardware
Installation Guide.

If off, toggleTO HUB/TO PCbutton (if
set to TO HUB [in], reset to TO PC
[out] or vice versa). If still off, see the

Cisco 828 Router and SOHO 78 Router
Hardware Installation Guide.

If off, see the Cisco 828 Router and
SOHO 78 Router Hardware
Installation Guide.

ETHERNET TXD Blinks Ethernet port is

About the Product CD

The Cisco 800 and SOHO Series Product Documentation CD contains the technical publications for the
Cisco 800 and SOHO series routers.

Cisco 828 Router and SOHO 78 Router Cabling and Setup Quick Start Guide

8

transmitting a
packet.

If off, see the Cisco 828 Router and

SOHO 78 Router Hardware
Installation Guide.

78-12839-01

System Requirements

The following table lists the system requirements for the Cisco 800 and SOHO Series Product
Documentation CD.

System Part Requirement

Processor Pentium 150 MHz or faster recommended
PC OS Microsoft Windows 95

Memory 64-MB DRAM
Drive 4x CD-ROM drive
Monitor Color monitor capable of 800 x 600 pixel

Software Netscape 3.0 or later

About the Product CD

Microsoft Windows 98
Microsoft Windows 2000
Microsoft Windows NT 4.0

resolution

Internet Explorer 3.0 or later
Adobe Acrobat Reader 3.0 or later

Documentation Exceptions

This CD does not contain certain publications that were incomplete or unavailable when this CD was
produced. These documents are in the Cisco 800 and SOHO platform hardware accessory kits and
should be consulted before installing and configuringyour system. You can also access these documents
on the Documentation page on Cisco Connection Online (CCO) at www.cisco.com.

• Cisco 806 Routers Release Notes

• Cisco 828 and SOHO 78 Routers Release Notes

• IOS Release Notes for the Cisco 806 Router

• IOS Release Notes for the Cisco 828 Router

• Cisco Router Web Setup User Guide

Using the CD Interface

When the CD is first launched, it automatically opens a browser session and displays the CD interface
in the browser window. You can use the list of books in the left pane of your display to navigate directly
to the book you want to view. Within the interface, you can use your mouse to

• Hover over book titles in the left column for an overview of the document before opening a

document

• Select a book title from the document list on the left or from the document drop-down menu on the

CD title bar

• Click the Cisco Systems corporate icon to display Cisco support and service information

• Click About This CD (notepad icon) to get additional information about this CD

78-12839-01

Cisco 828 Router and SOHO 78 Router Cabling and Setup Quick Start Guide

9

About the Product CD

• Click Send Us Your Feedback! (pencil & notepad icon) to provide us with your feedback

• Click Get Acrobat Reader to install a free copy of Adobe Acrobat Reader 4.0

Changing the Display Properties of Documents

When you first launch the CD, you will notice a list of books in the left pane of your display that you
can use to navigate directly to the book you want to view. When you select the document, Acrobat
Reader opens the book in .pdf format and provides a list of topics in the left frame of the Acrobat
window. To disable this option and view the book fully in the window,click the Show/Hide Navigation
Panebutton on the Acrobat toolbar. Notethat when hiding bookmarks, the thumbnails, annotations, and
articles are also hidden.

Printing Documents

Complete the following steps to print a document:

Step 1 Click the Printer icon on the Acrobat toolbar.

The Windows Print Dialog box appears.

Step 2 Select your default printer and click OK.

Ordering Printed Copies of Documents

You can order printed copies of the documents on this CD and additional copies of this CD on the
Cisco 800 and SOHO platform product ordering pages on Cisco Connection Online (CCO). Registered
CCO users can order documentation for other Cisco products and the Cisco Documentation CD-ROM
(containing all Cisco documentation) through our online Subscription Services at
http://www.cisco.com/go/subscription.

Nonregistered CCO users can order documentation through a local account representative by calling
Cisco’s corporate headquarters (California, USA) at 408 526-4000 or, in North America, by calling
800 553-NETS (6387).

You can access the most current Cisco documentation on the World Wide Web at http://www.cisco.com,
http://www-china.cisco.com, or http://www-europe.cisco.com.

AccessPath, AtmDirector, Browse with Me, CCDE, CCIP, CCSI, CD-PAC, CiscoLink, the Cisco NetWorks logo, the Cisco Powered Network logo,
Cisco Systems Networking Academy, the Cisco Systems Networking Academy logo, Fast Step, Follow Me Browsing, FormShare, FrameShare,
GigaStack, IGX, Internet Quotient, IP/VC, iQ Breakthrough, iQ Expertise, iQ FastTrack, the iQ Logo, iQ Net Readiness Scorecard, MGX, the
Networkers logo, Packet, RateMUX, ScriptBuilder, ScriptShare, SlideCast, SMARTnet, TransPath, Unity, Voice LAN, Wavelength Router, and
WebViewer are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, Discover All That’s Possible, and
Empowering the Internet Generation, are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCNA,
CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, the Cisco IOS logo, Cisco Systems, Cisco Systems Capital, the Cisco
Systems logo, Enterprise/Solver, EtherChannel, EtherSwitch, FastHub, FastSwitch, IOS, IP/TV, LightStream, MICA, Network Registrar, PIX,
Post-Routing, Pre-Routing, Registrar, StrataView Plus, Stratm, SwitchProbe, TeleRouter, and VCO are registered trademarks of Cisco Systems, Inc.
and/or its affiliates in the U.S. and certain other countries.

All other trademarks mentioned in this document or Web site are the property of their respective owners. The use of the word partner does not imply
a partnership relationship between Cisco and any other company. (0105R)

Copyright © 2001, Cisco Systems, Inc.
All rights reserved.

Cisco 828 Router and SOHO 78 Router Cabling and Setup Quick Start Guide

10

78-12839-01
