Cisco Systems SLM2008RF User Manual

ADMINISTRATION

GUIDE

Cisco Small Business

SLM2008 8-Port Gigabit Smart Switch with PD and
AC Power

CCDE, CCENT, Cisco Eos, Cisco HealthPresence, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco StadiumVision, Cisco TelePresence, Cisco WebEx, DCE, and
Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar,
Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert
logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, EtherFast,
EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the
IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar,
PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient,
TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a
partnership relationship between Cisco and any other company. (0812R)

© 2009 Cisco Systems, Inc. All rights reserved. OL-19923-01

Contents

Chapter 1: Introduction 1

Chapter 2: Getting to Know the Cisco SLM2008 Switch 2

Front Panel 2

Back Panel 3

Side Panels 3

Chapter 3: Connecting the Cisco SLM2008 Switch 5

Placement Options 5

Desktop Option 5

Wall-Mount Option 6

Connecting the Cisco SLM2008 Switch to the Network 7

Chapter 4: Setting Up the Cisco SLM2008 Switch 9

Launching the Web-Based Configuration Utility 9

Navigating the Utility 10

System 11

Port 11

VLAN 11

Security 11

QoS 12

STP 12

Statistics 12

Multicast 13

Admin 13

Chapter 5: Advanced Configuration 14

Setup 14

Using the Help System 14

System 16

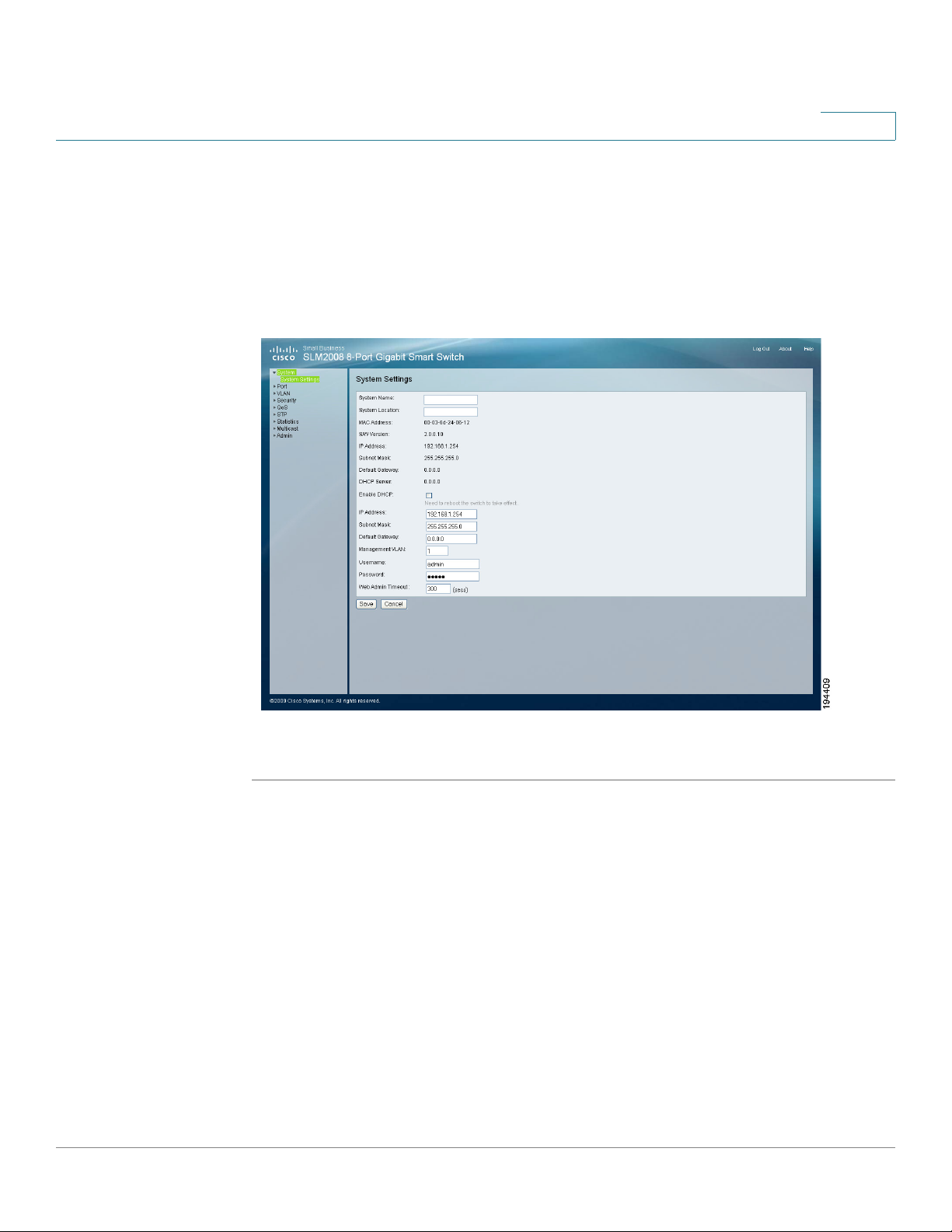

Configuring System Settings 16

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide iii

Contents

Port 18

Configuring Port Settings 18

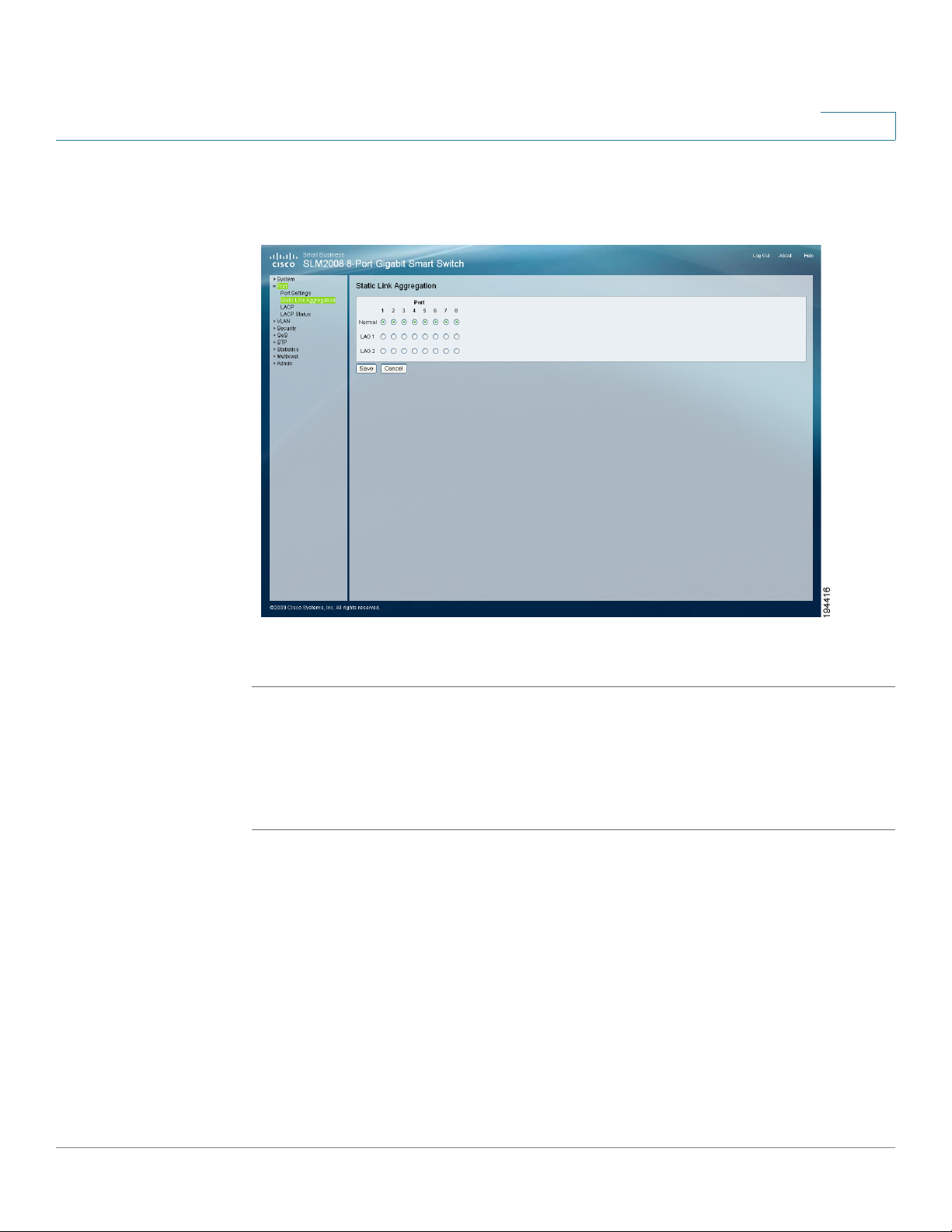

Configuring Static Link Aggregation 20

Configuring LACP Settings 21

Displaying LACP Status 23

VLAN 24

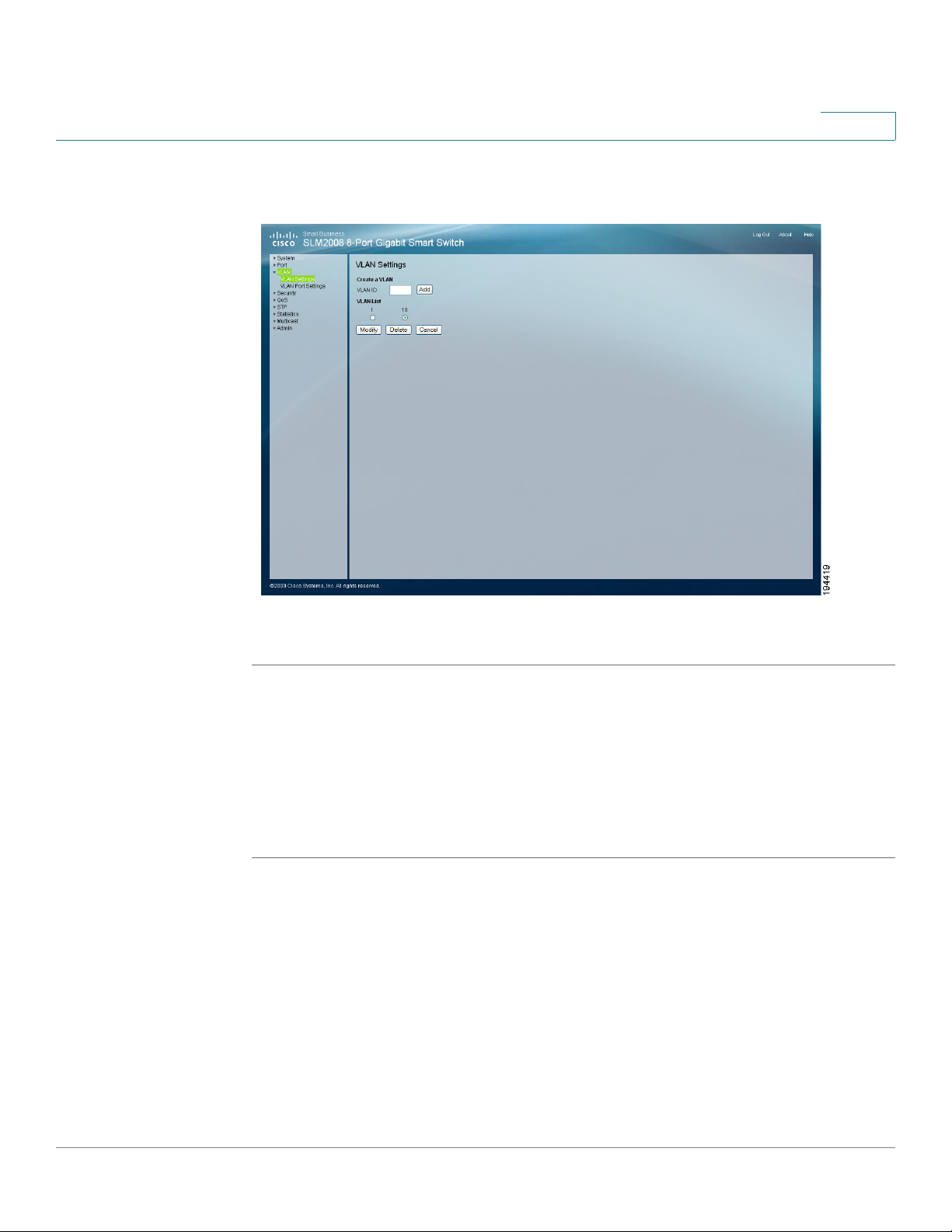

Configuring VLAN Settings 24

Configuring VLAN Port Settings 25

Security 27

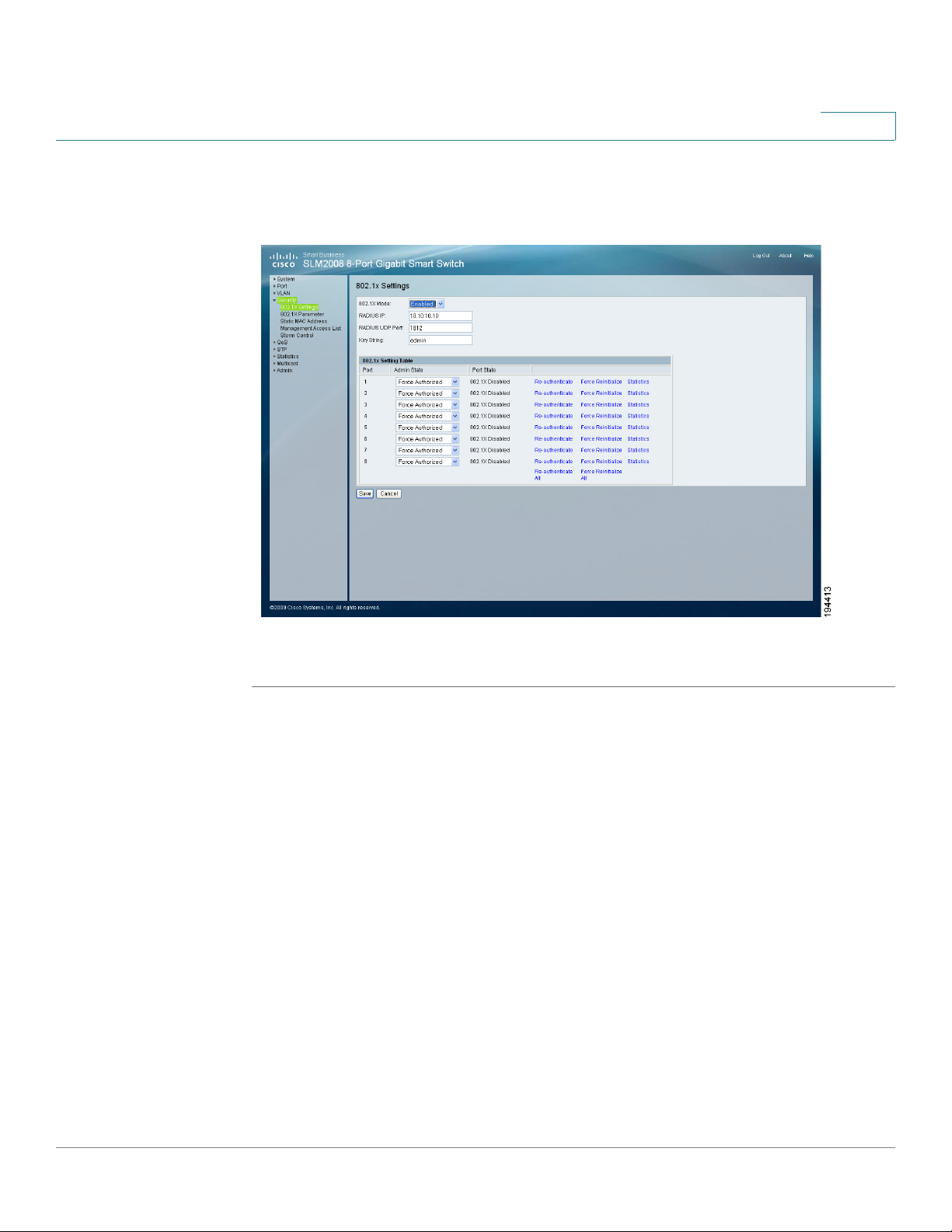

Configuring 802.1X Settings 27

Configuring 802.1X Parameter 30

Configuring Static MAC Address 32

Configuring Management Access List 33

Configuring Storm Control 34

QoS 35

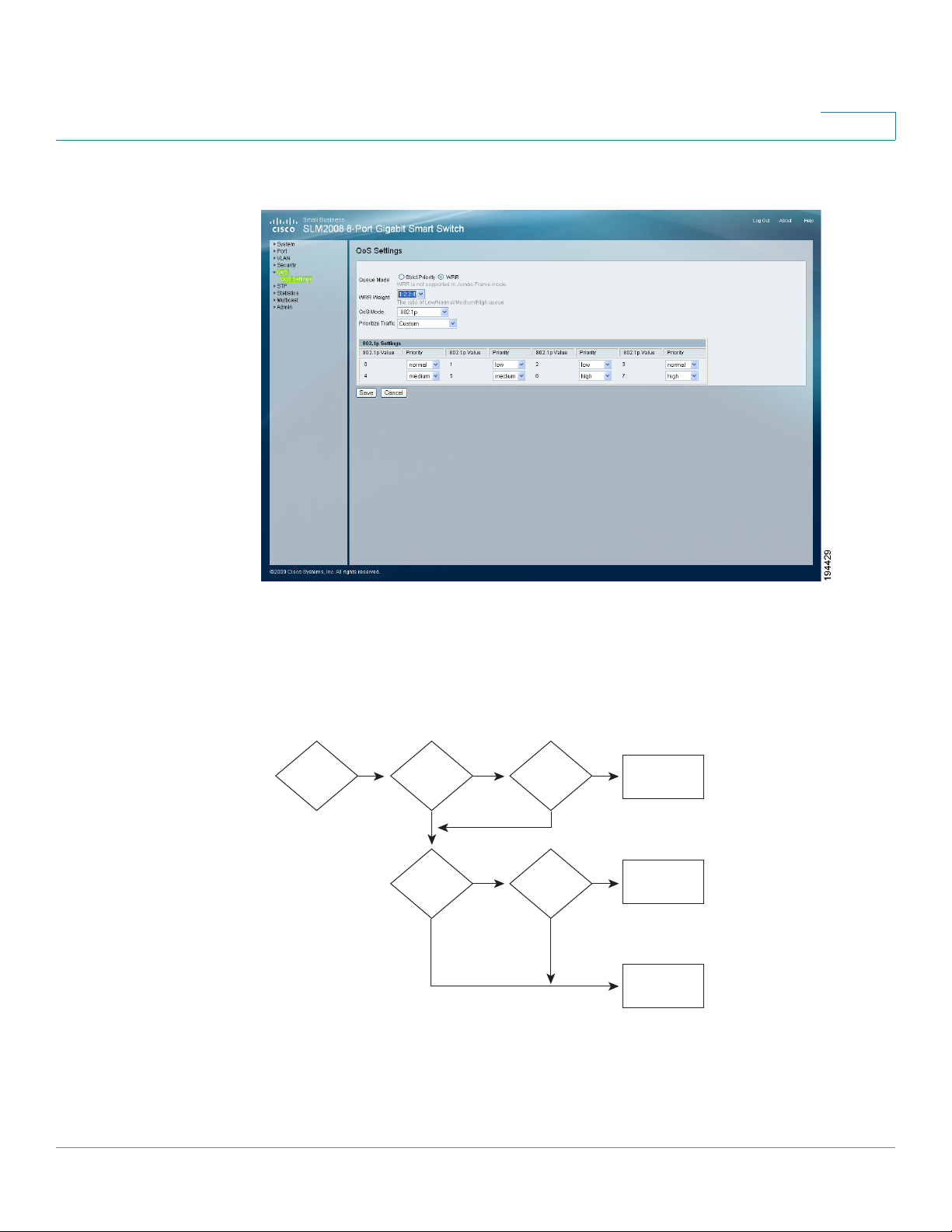

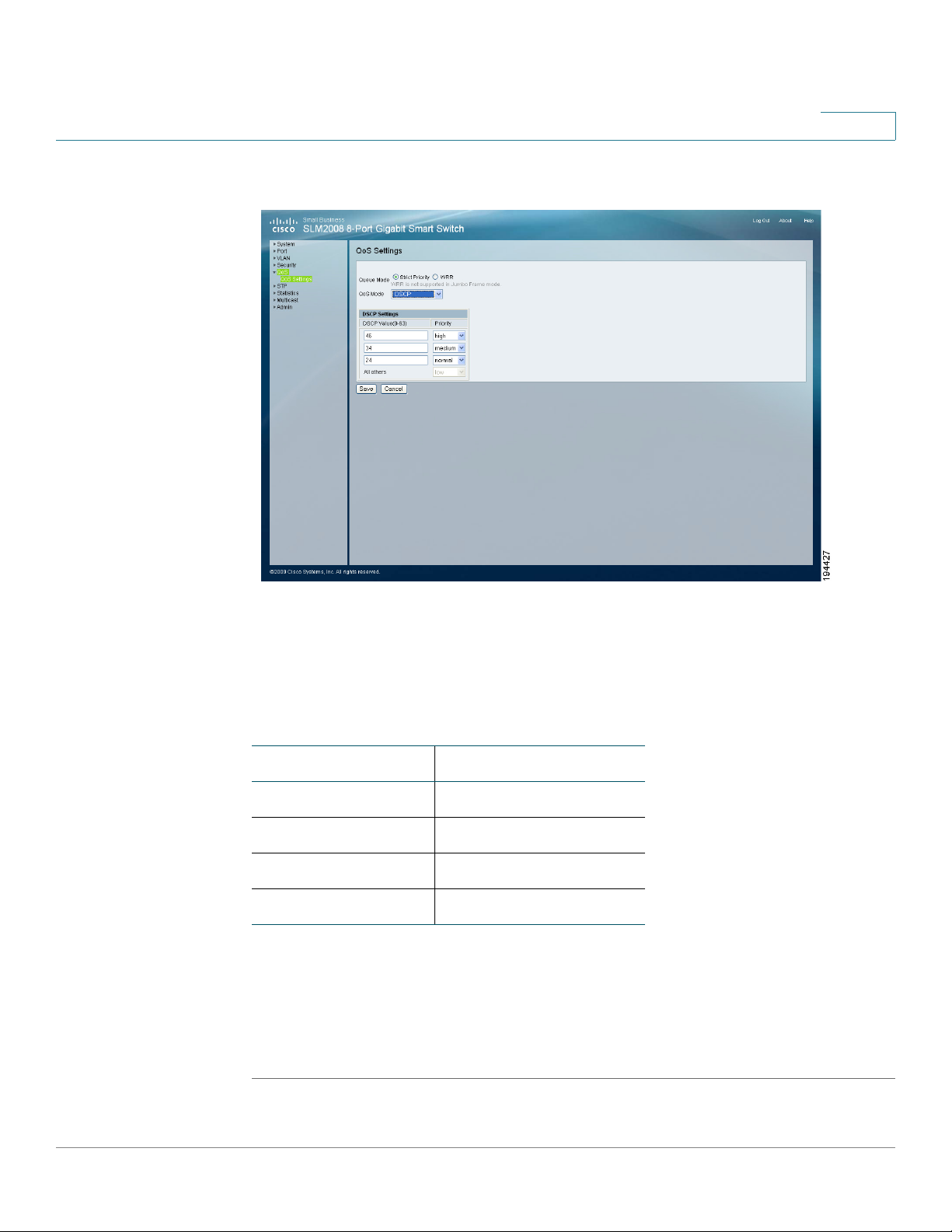

Configuring QoS Settings 35

STP 41

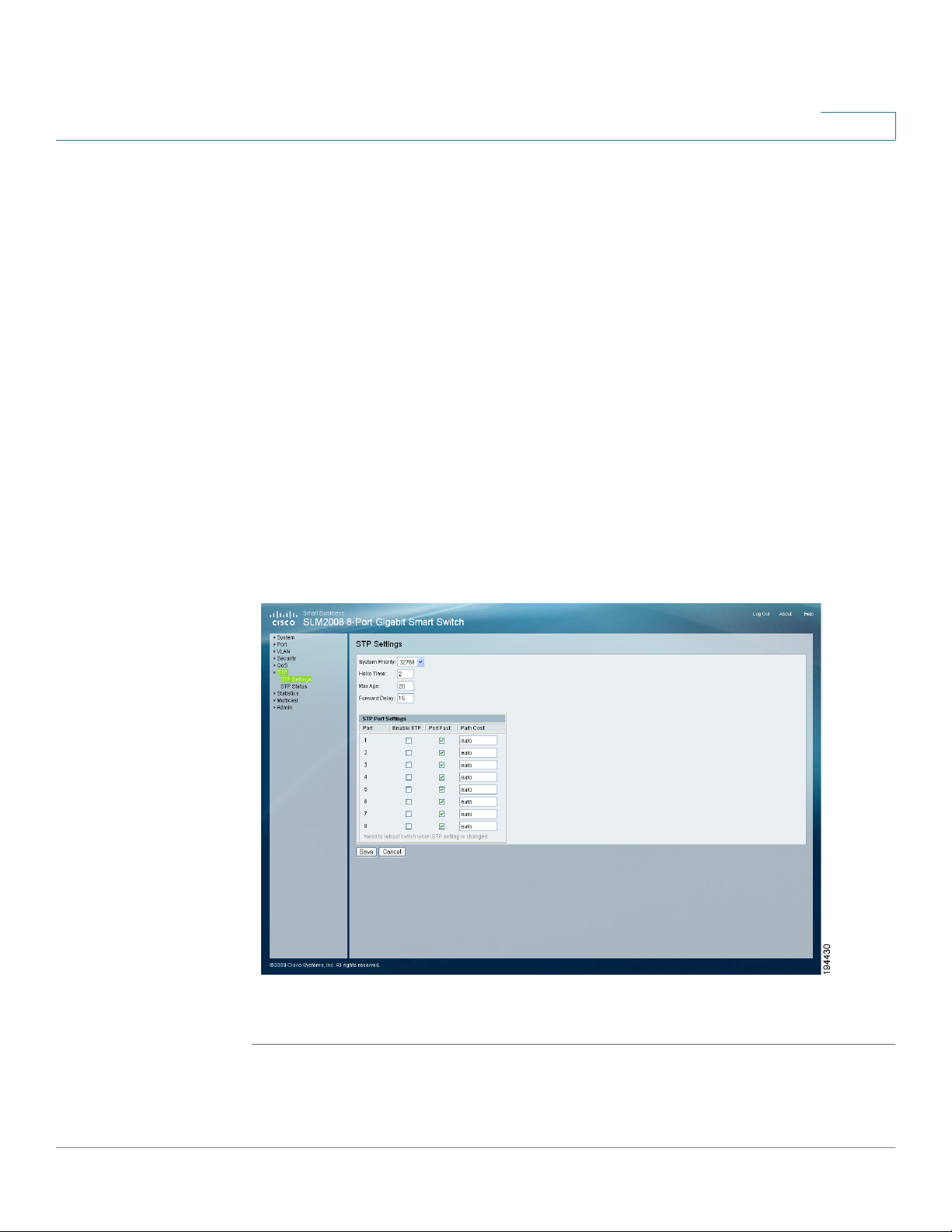

Configuring STP Settings 41

Displaying STP Status 43

Statistics 44

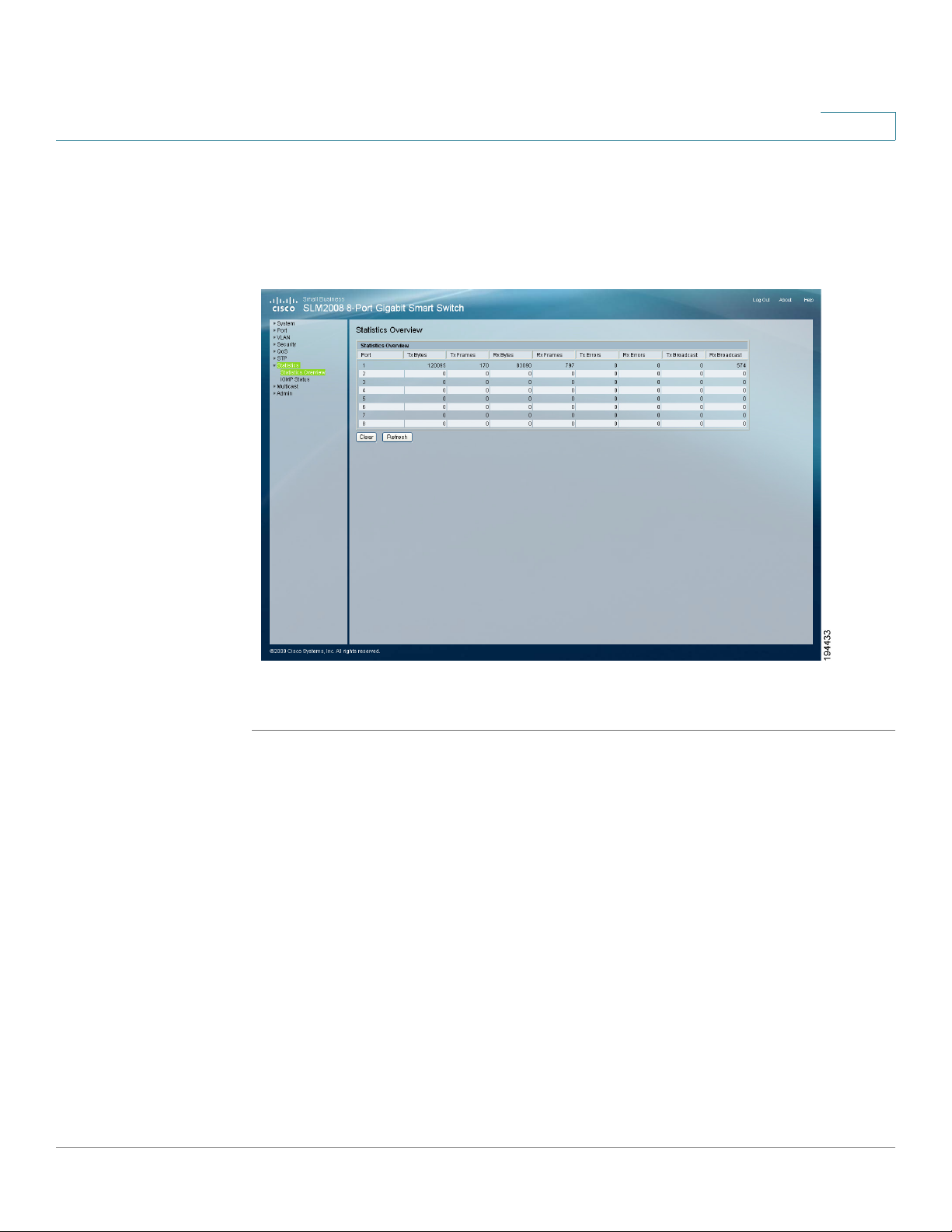

Displaying Statistics Overview 45

Displaying IGMP Status 46

Multicast 47

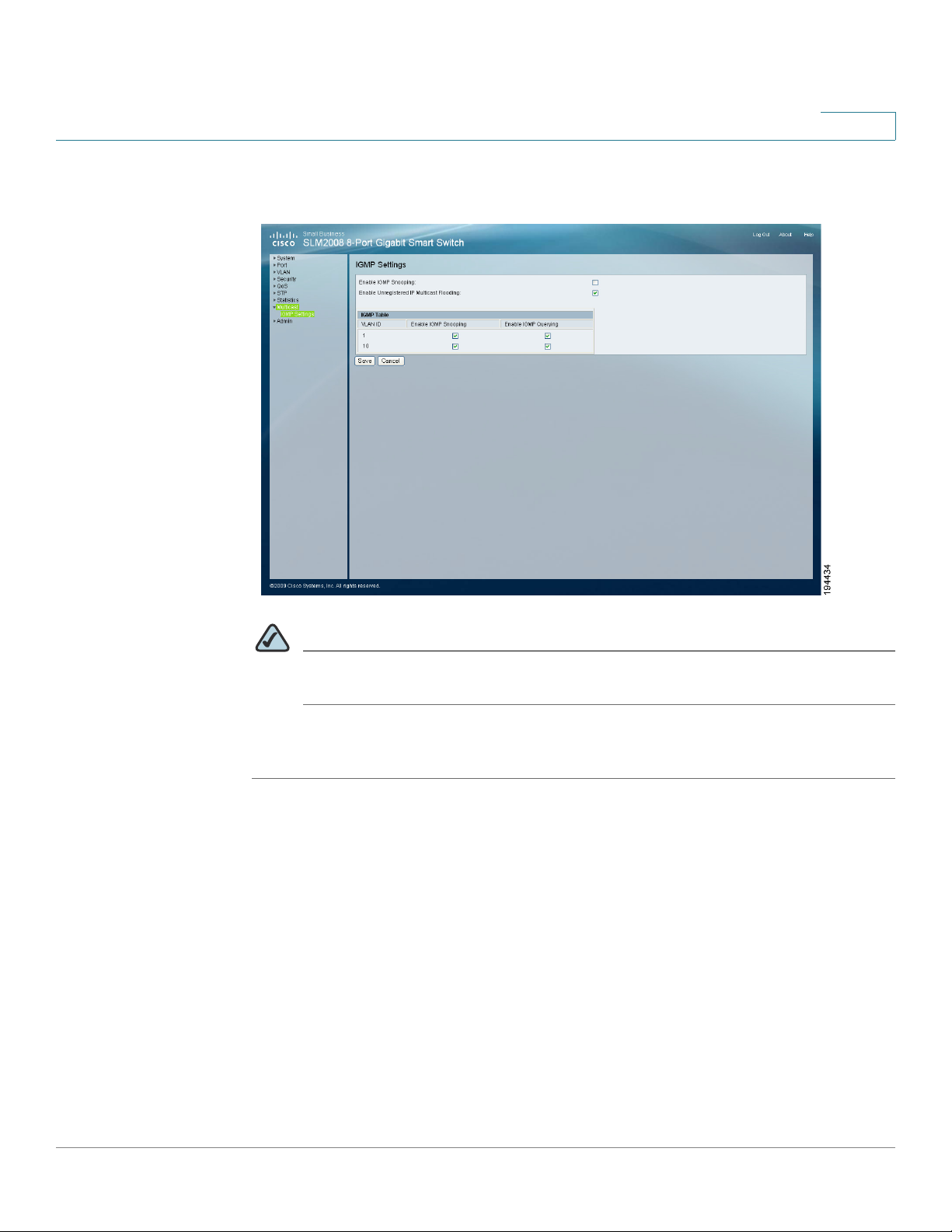

Configuring IGMP Settings 47

Admin 49

Configuring Ping 50

Configuring Port Mirror 51

Restoring Factory Default 52

Rebooting the Switch 53

Saving Configuration Settings 54

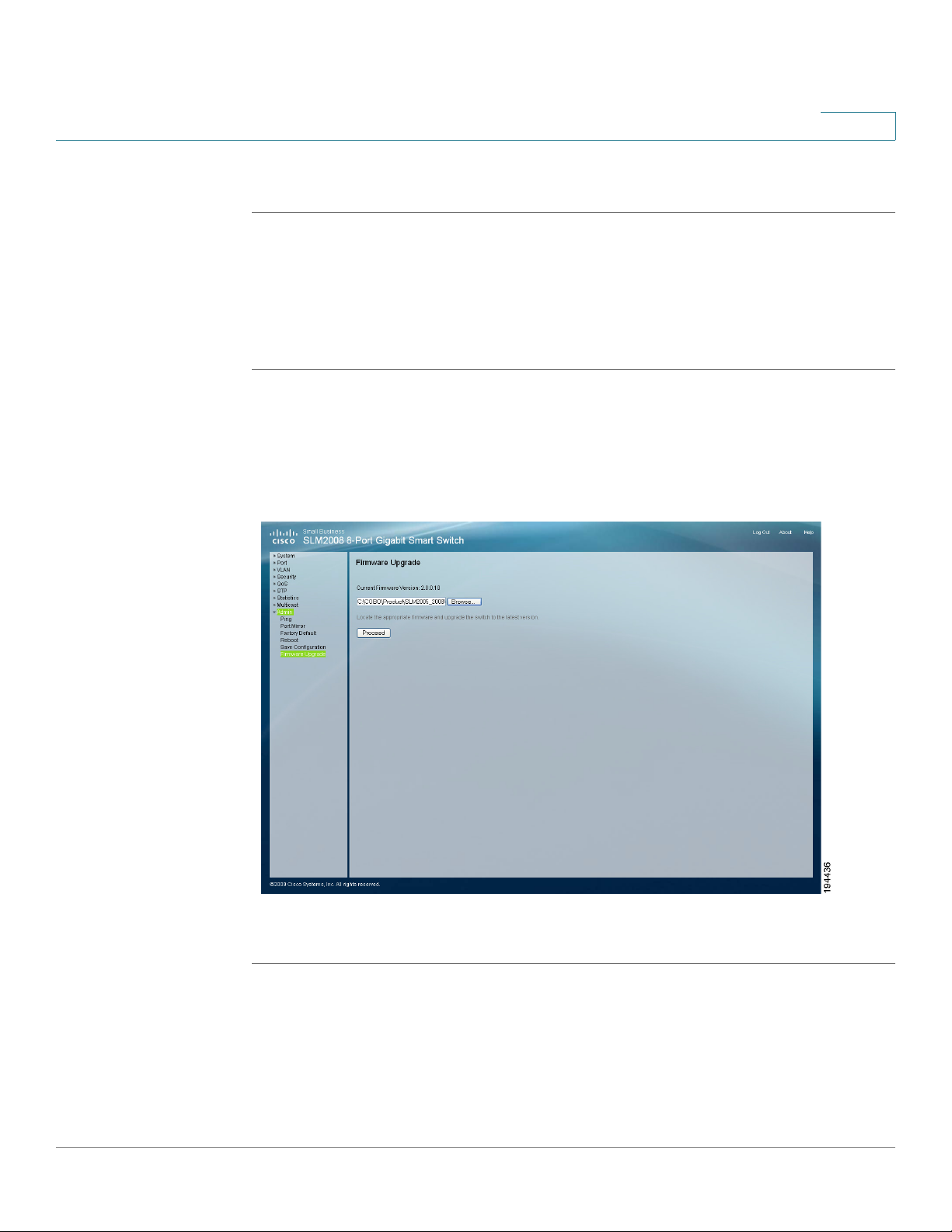

Upgrading the Firmware 55

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide iv

Contents

Appendix A: Specifications 57

Appendix B: Where to Go From Here 60

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide v

Introduction

The Cisco SLM2008 8-port Gigabit Smart Switch with PD and AC Power allows
you to upgrade your existing network by replacing your current workgroup hub or
switch. At the same time, you can configure advanced features for security, QoS,
and Spanning Tree using its web-based configuration utility.

The Cisco SLM2008 switch not only allows you to upgrade to gigabit speeds but
also allows you to expand your network securely. The Gigabit Smart Switch with
PD have virtual LAN (VLAN) capabilities to restrict the flow of multicast and
broadcast traffic. Stations within a given VLAN can freely communicate using
either unicast or multicast addressing. Communication between different VLANs is
not possible.

1

Extensive QoS features make the solution ideal for real-time applications like Voice
and Video. The 4 priority queues together with the Weighted Round Robin and
Strict Priority scheduling techniques facilitate efficient coexistence of real-time
traffic with data traffic allowing them each to meet their QoS needs. Individual
users or applications can be prioritized above others using various Class of
Service options - by port, layer 2 priority (802.1p), and layer 3 priority (TOS or
DSCP). Intelligent broadcast and multicast storm controls minimize and contain the
effects of these types of traffic on regular traffic. IGMP Snooping limits
bandwidth-intensive video traffic to only the requestors without flooding all users.
Incoming traffic can be policed and outgoing traffic can be shaped allowing you to
control network access and traffic flow.

There are features that allow you to expand and grow your network of switches.
Link aggregation allows multiple high-bandwidth trunks between switches to be
setup. This also provides a level of reliability in that the system continues to
operate if one of the links breaks. Spanning Tree (STP) allow you to build a mesh of
switches increasing the availability of the system.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 1

2

Getting to Know the Cisco SLM2008 Switch

This chapter describes the external features of the Cisco SLM2008 8-Port Gigabit
Smart Switch with PD and AC Power. The following sections are included:

• Front Panel, page 2

• Back Panel, page 3

• Side Panels, page 3

Front Panel

The LEDs are located on the front panel of the switch.

System—(Green) Lights up when the switch is powered on.

1-8—(Green) Each LED lights up when there is a connection made through its
corresponding port. The LEDs flash when there is activity on corresponding ports.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 2

Getting to Know the Cisco SLM2008 Switch

Back Panel

Back Panel

The Ethernet ports are located on the back panel of the switch.

Port 1—This port supports the IEEE 802.3af Power-over-Ethernet (PoE) PD
standard, which enables a system to receive data and supply electrical power to
the switch over a standard twisted-pair cable in an Ethernet network. Any 802.3af­compliant PSE device, such as a PoE switch, can directly supply power to the
switch. Simply connect a standard twisted-pair cable from a PoE switch to Port 1
on the switch. Using PoE to power the switch eliminates the need to use the power
adapter and AC power.

2

Side Panels

To connect a device to a port, use a Category 5 network cable.

Ports 1-8—These RJ-45 ports support network speeds of either 10 Mbps,
100 Mbps, or 1000 Mbps and can operate in half and full-duplex modes. Auto­sensing technology enables each port to automatically detect the speed of the
device connected to it and adjust its speed and duplex accordingly.

The reset button and power port are located on the right side panel of the switch.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 3

Getting to Know the Cisco SLM2008 Switch

Side Panels

Reset Button—The reset button can be used to reset or reboot the switch.

• Reboot—If the button is pressed for less than 10 seconds, the switch will

reboot.

• Restore Factory Defaults—If the button is pressed for longer than 10

seconds, the switch settings will be restored to the factory defaults and the
system reboots.

NOTE The switch can only be configured using the web-based utility. If you cannot

access the web-based utility because of configuration changes you’ve made, you
can reset the switch to the factory defaults.

Power Port—The power port is where you will connect the AC power. The
security slot is located on the left side panel of the switch.

2

Security Slot—The security slot can be used to attach a lock to the switch.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 4

Connecting the Cisco SLM2008 Switch

This chapter will guide you through the hardware installation for the Cisco
SLM2008 8-Port Gigabit Smart Switch with PD and AC Power. The following
sections are included:

• Placement Options, page 5

• Connecting the Cisco SLM2008 Switch to the Network, page 7

3

Placement Options

When you choose a location for the switch, observe the following guidelines:

• Make sure that the switch is accessible and that the cables can be easily

• Keep cabling away from sources of electrical noise, power lines, and

• Position the switch away from water and moisture sources.

• To ensure adequate air flow around the switch, be sure to provide a

• Do not stack free-standing switches more than four units high.

Desktop Option

For desktop acement, set the Cisco SLM2008 switch horizontally on a surface so
that it sits on its four rubber feet.

connected.

fluorescent lighting fixtures.

minimum clearance of two inches (50 mm).

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 5

Connecting the Cisco SLM2008 Switch

2 ½ inches

194477

Placement Options

Wall-Mount Option

NOTE You will need two suitable screws to mount the switch. Cisco is not responsible for

damages incurred by insecure wall-mounting hardware.

Suggested Mounting Hardware

Suggested Mounting Hardware

4-5 mm 1-2 mm

3

2.5-3 mm

194478

To mount the Cisco SLM2008 switch on a wall, follow these steps:

STEP 1 Determine where you want to mount the switch. Ensure that the wall you use is

smooth, flat, dry, and sturdy. Make sure the location is within reach of the power
outlet.

STEP 2 Drill two holes in the wall. Make sure the holes are 2 1/2 inches apart.

(Optional) Print this page at 100% size, cut along the dotted line and place on the
wall to drill precise spacing.

Wall Mounting Template

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 6

Connecting the Cisco SLM2008 Switch

194450

Wall

mount

slots

2-1/2

Connecting the Cisco SLM2008 Switch to the Network

STEP 3 Insert a screw into each hole and leave 3 mm of its head exposed.

STEP 4 The wall-mount slots are two crisscross slots on the bottom panel of the switch.

The wall-mount slots on the switch line up with the two screws.

STEP 5 Maneuver the switch to insert the screws into the two slots.

3

Connecting the Cisco SLM2008 Switch to the Network

The diagram shown here is an example of a typical network configuration.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 7

Connecting the Cisco SLM2008 Switch

Connecting the Cisco SLM2008 Switch to the Network

NOTE When you connect your network devices, make sure you do not exceed the

maximum cabling distance of 328 feet (100 meters).

To connect network devices to the switch, follow these steps:

STEP 1 Make sure all the devices you will connect to the switch are powered off.

STEP 2 Connect a Category 5 network cable to one of the numbered ports on the switch.

NOTE Reserve Port 1 if you are using a network device to provide power to the

switch.

3

STEP 3 Connect the other end to a computer or other network device.

STEP 4 Repeat Step 1, Step 2, and Step 3 to connect additional devices.

NOTE When connecting power, always use a surge protector.

STEP 5 Provide power to the switch in one of two ways:

• Connect a Category 5 network cable from port 1 of the switch to a network

device with the ability to provide Power over Ethernet.

Or

• Connect the supplied power cord to the switch power port, and plug the

other end into an electrical outlet.

STEP 6 Power on the devices connected to the switch. Each active port with a

corresponding LED will light up on the switch.

For information about configuring and managing the switch, see Chapter 5,

“Advanced Configuration.”

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 8

Setting Up the Cisco SLM2008 Switch

This chapter describes how to configure the Cisco SLM2008 8-Port Gigabit Smart
Switch with PD and AC Power using the web-based configuration utility. The
following sections are included:

• Launching the Web-Based Configuration Utility, page 9

• Navigating the Utility, page 10

4

Launching the Web-Based Configuration Utility

To configure the Cisco SLM2008 switch, follow these steps to access the web­based configuration utility from your computer:

STEP 1 Connect your computer to the same network the Cisco SLM2008 switch is

connected to.

STEP 2 Make sure your computer is on the same subnet as the switch (192.168.1.

By default, the Cisco SLM2008 switch has an IP address of 192.168.1.254 and a
default subnet mask of 255.255.255.0.

STEP 3 Launch a web browser, such as Internet Explorer or Mozilla Firefox.

STEP 4 In the Address field, enter 192.168.1.254 and press Enter.

NOTE The default IP address is 192.168.1.254. If the IP address has been changed,

enter the assigned IP address instead of the default.

x

).

STEP 5 Press Enter. The web-based utility login window appears.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 9

Setting Up the Cisco SLM2008 Switch

Navigating the Utility

Login Window

4

STEP 6 If this is your first time accessing the web-based utility, follow these steps at the

login window:

a. Enter admin in the Username field

b. Enter admin in the Password field.

c. Click Log In. For security purposes, it is recommended that you later reset your

password in the System > System Settings window. If your session times out,
you will need to log back into the utility.

Navigating the Utility

The web-based utility consists of the following main windows:

• System

• Port

• VLAN

• Security

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 10

Setting Up the Cisco SLM2008 Switch

Navigating the Utility

• QoS

• STP

• Statistics

• Multicast

• Admin

System

The System Settings window is the first window displayed when you log in.

• System Settings—Displays a summary of switch information.

4

Port

This window allows you to manage port settings for the switch.

• Port Settings—Manually configure the speed, duplex, and flow control

settings used on specific ports.

• Static Link Aggregation—Create multiple links between devices that work

as one virtual, aggregate link (LAG).

• LACP Settings—Configure Link Aggregation Control Protocol (LACP)

settings.

• LACP Status—Displays LACP status port information.

VLAN

This window allows you to create VLANs and also manage VLAN settings.

• VLAN Settings—Create or delete a VLAN.

• VLAN Port Settings—Configure VLAN behavior for specific interfaces,

including the mode, accepted frame type, VLAN identifier (PVID), and
ingress filtering.

Security

This window allows you to configure the switch’s security settings.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 11

Setting Up the Cisco SLM2008 Switch

Navigating the Utility

• 802.1X Settings—Configure security settings that include 802.1X mode,

RADIUS IP, Radius UDP port, key string or Admin State authentication mode.

• 802.1X Parameter—Enable re-authentication and configure the re-

authentication period or EAP timeout.

• Static MAC Address—Allows you to configure a switch port with the MAC

address of one or more devices that are authorized to access the network
through that port.

• Management Access List—Specifies which Source IP addresses can

manage the device.

• Storm Control—Configure the maximum rate (packets per second) at

which unknown packets are forwarded.

QoS

4

This window allows you to priortize network traffic and optimize network
performance using Quality of Service (QoS) settings.

• Queue Mode—Set the queue mode priority.

• QoS Mode—Configure the QoS mode settings including QoS disabled,

802.1p, port based, or Differentiated Services Code Point (DSCP).

STP

This window you to configure and view STP settings.

• STP Settings—Configure STP settings including system priority, hello time,

max age, and forward delay.

• STP Status—Displays the current STP status.

Statistics

This window displays statistics and IGMP status.

• Statistics Overview—Displays standard statistics on network traffic for

each port of the device.

• IGMP Status—Displays the IGMP status for each VLAN interface.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 12

Setting Up the Cisco SLM2008 Switch

Navigating the Utility

Multicast

This window displays the multicast settings for the switch.

• IGMP Settings—Configure functions that include Enable IGMP Snooping,

Enable Unregistered IP Multicast Flooding, and Enable IGMP Querying.

Admin

This window allows you to manage the switch.

• Ping—Use to see if another site on the network can be reached.

• Port Mirror—Mirror traffic from any source port to a target port for real-

time analysis.

• Factory Default—Resets the switch to its factory default settings.

4

• Reboot—Reboots the switch.

• Save Configuration—Saves the current switch configuration.

• Firmware Upgrade—Upgrades the switch’s firmware on this window.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 13

Advanced Configuration

This chapter describes how to configure the Cisco SLM2008 8-Port Gigabit Smart
Switch with PD and AC Power using the web-based configuration utility.

Setup

5

The first window displayed upon login is the System Settings window. There are
nine options displayed in the left panel: System, Port, VLAN, Security, QoS, STP,
Statistics, Multicast, and Admin. Each option contains windows that will help you
configure and manage the switch.

Using the Help System

The switch software includes detailed Help files for all configuration tasks. To view
a Help page, click the Help link in the top right corner of the window. A new
window appears with information about the task that you are currently viewing.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 14

Advanced Configuration

Using the Help System

5

Example with Help

Example with Help Expanded

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 15

Advanced Configuration

System

System

5

Configuring System Settings

The System > System Settings window displays a summary of switch information.

To configure the system settings, follow these steps:

STEP 1 Click System > System Settings.

STEP 2 Configure the system settings.

• System Name—Enter or modify the name of the switch.

• System Location—Enter or modify the location name of the switch.

• MAC Address—Displays the MAC address of the switch.

• S/W Version—Displays the software version of the switch.

• IP Address—Displays the IP address assigned to the switch. The default IP

address is 192.168.1.254.

• Subnet Mask—Displays the Subnet Mask assigned to the switch. The

default is 255.255.255.0.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 16

Advanced Configuration

System

5

• Default Gateway—Displays the IP address of the gateway between this

device and management stations that exist on other network segments. The
default value is 0.0.0.0.

• DHCP Server—The IP address of the DHCP server.

• Enable DHCP—When enabled, the switch will attempt to obtain an IP

address from a DHCP server on your network. If an IP address is not
obtained, the switch will use the IP address defined in the IP Address field
below.

• IP Address—Enter or modify the IP address assigned to the switch. The

default IP address is 192.168.1.254.

NOTE If the static IP address is changed, the switch will automatically log you out

of the web-based utility. To log back in, you must use the new static IP
address.

• Subnet Mask—Enter or modify the Subnet Mask assigned to the switch.

The default is 255.255.255.0.

• Default Gateway—Modify the IP address of the gateway. The default is

0.0.0.0.

• Management VLAN—Enter the ID of the configured VLAN (1-4094, no

leading zeroes). By default, all ports on the switch are members of VLAN 1.
However, the management station can be attached to a port belonging to
any VLAN, as long as that VLAN has been assigned an IP address.

• Username—Specify the username. The default username is admin. Only

one admin user is allowed.

• Password—Enter a new password. The password is not displayed as it is

entered. Each character is displayed as a bullet in the password field.

• Web Admin Timeout (secs)—As a security measure, the web-based utility

will timeout after being idle for the amount of time defined in this field. If the
switch is idle for the amount of time defined here, login is required to return
to the web-based utility. The time is entered in seconds. The default value is
300 seconds.

STEP 3 Click Save.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 17

Advanced Configuration

Port

STEP 4 Reboot the switch by going to the Admin > Reboot window. From there, click

Port

5

Reboot.

This section describes how to configure the port settings of the switch.

• Configuring Port Settings, page 18

• Configuring Static Link Aggregation, page 20

• Configuring LACP Settings, page 21

• Displaying LACP Status, page 23

Configuring Port Settings

You can manually configure the speed, duplex, and flow control settings used on
specific ports, or use autonegotiation to allow the switch to autodetect the
connection settings used by the attached device. Full-duplex mode should be
used on ports whenever possible to double the throughput of switch connections.
Flow control should also be enabled to control network traffic during periods of
congestion and prevent the loss of packets when port buffer thresholds are
exceeded. The switch supports flow control based on the IEEE 802.3x standard.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 18

Advanced Configuration

Port

5

The Port > Port Settings window displays the current port settings of the switch.

To configure port settings, follow these steps:

STEP 1 Click Port > Port Settings.

STEP 2 Configure the port settings.

• Port—Displays the port number.

• Link Status—Displays the link status of the port.

• Mode—The current speed and duplex mode settings are displayed here.

Auto Speed is enabled by default to allow the switch to autonegotiate the
speed and duplex settings. The following capabilities are supported and
available from the Mode drop-down menu:

- Auto Speed—This option enables autonegotiation. When

autonegotiation is enabled, you do not need to specify the capabilities to
be advertised.

- 10 Half—Supports 10 Mbps half-duplex operation.

- 10 Full—Supports 10 Mbps full-duplex operation.

- 100 Half—Supports 100 Mbps half-duplex operation.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 19

Advanced Configuration

Port

STEP 3 Click Save.

5

- 100 Full—Supports 100 Mbps full-duplex operation.

- 1000 Full—Supports 1000 Mbps full-duplex operation.

- Disabled—Disables the port.

• Flow Control—Check this check box to enable flow control.

• LAG—Indicates whether the port is a LAG member.

• Enable Jumbo Frames—Check this check box to enable Jumbo Frame

support (up to 9 KB).

Configuring Static Link Aggregation

You can create multiple links between devices that work as one virtual, aggregate
link (LAG). An aggregated link offers a dramatic increase in bandwidth for network
segments where bottlenecks exist, as well as providing a fault-tolerant link
between two devices. You can create up to two LAGs on the switch. Each LAG
can contain up to eight ports.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 20

Advanced Configuration

Port

5

The Port > Static Link Aggregation window displays the current static link
aggregation settings.

To configure static link aggregation, follow these steps:

STEP 1 Click Port > Static Link Aggregation.

STEP 2 LAG displays the LAG number. Select the Port numbers to add the port to the LAG

group.

STEP 3 Click Save.

Configuring LACP Settings

Ports can be statically grouped into an aggregate link (that is, LAG) to increase the
bandwidth of a network connection or to ensure fault recovery. Or you can use the
Link Aggregation Control Protocol (LACP) to automatically negotiate a LAG link
between the switch and another network device. For dynamic LAGs, the switches
have to comply with LACP. This switch supports up to two LAGs. For example, a
LAG consisting of two 1000 Mbps ports can support an aggregate bandwidth of 4
Gbps when operating at full duplex.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 21

Advanced Configuration

Port

5

To avoid creating a loop in the network, be sure you enable LACP before
connecting the ports, and also disconnect the ports before disabling LACP.

NOTE LAG port members will have to be configured with the same speed and

duplex mode. A user must ensure the LAG member’s ports have the same
speed and duplex settings before activating an LACP group.

The Port > LACP Settings window displays the current LACP settings.

To configure the LACP settings, follow these steps:

STEP 1 Click Port > LACP Settings.

STEP 2 Configure the LACP settings.

• Port—Displays the port number.

• Enable LACP—When the check box is checked, LACP is enabled.

• Admin Key—A channel will only be formed between ports having the same

admin key. This only applies to ports located on the same switch. The
default setting is auto.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 22

Advanced Configuration

Port

STEP 3 Click Save.

5

Displaying LACP Status

From the Port > LACP Status window, you can see the LACP status for each port,
its partner port number, and operational port key.

To display LACP status, follow these steps:

STEP 1 Click Port > LACP Status.

The following information is displayed:

• LACP Port Status—LACP Status on each interface since the device was

last refreshed.

• Protocol Active—Indicates if the LACP is disabled or enabled on the

interface.

• Partner Port Number—Indicates the port that is in the same LAG group.

• Operational Port Key—A channel will only be formed between ports

having the same operational port key. This only applies to ports located on
the same switch.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 23

Advanced Configuration

VLAN

STEP 2 Click Refresh to update the status information.

VLAN

5

This section describes how to configure the VLAN settings for the switch:

• Configuring VLAN Settings, page 24

• Configuring VLAN Port Settings, page 25

Configuring VLAN Settings

A VLAN is a group of ports that can be located anywhere in the network, but
communicate as though they belong to the same physical segment. VLANs help to
simplify network management by allowing you to move devices to a new VLAN
without having to change any physical connections. VLANs can be easily
organized to reflect departmental groups (such as Marketing or R&D), usage
groups (such as e-mail), or multicast groups (used for multimedia applications such
as videoconferencing). You can create up to 16 VLANs on the switch.

To create a single VLAN, enter the VLAN ID and click Add. Use the VLAN ID
window to configure port members or LAG members for a specific VLAN index.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 24

Advanced Configuration

VLAN

5

The VLAN > VLAN Settings window allows you to create or delete a VLAN.

To configure or change VLAN settings, follow these steps:

STEP 1 Click VLAN > VLAN Settings.

STEP 2 To create a single VLAN, enter the VLAN ID, and click Add.

• VLAN ID—ID of configured VLAN (1-4094, no leading zeroes).

STEP 3 To remove a VLAN, select the VLANs in the VLAN list, then click Delete.

STEP 4 Click Save.

Configuring VLAN Port Settings

From the VLAN > VLAN Port Settings window, you can configure VLAN behavior
for specific interfaces, including the mode, accepted frame type, VLAN identifier
(PVID), and ingress filtering.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 25

Advanced Configuration

VLAN

5

To configure VLAN Port Settings, follow these steps:

STEP 1 Click VLAN > VLAN Port Settings.

STEP 2 Configure the VLAN port settings by adding the required settings for each

interface.

• Enable Tx Force Untag—When this option is enabled, all egress frames

from this port become untagged. The default value is Disable. When this
function is disabled, only frames with the VLAN ID equal to the PVID will
become untagged, otherwise, frames are sent with a VLAN tag.

• Enable Ingress Filter—Determines how to process frames tagged for

VLANs for which the ingress port is not a member. The default value is
enabled. Ingress filtering only affects tagged frames. If ingress filtering is
disabled and a port receives frames with a VLAN tag that uses a different
PVID than the receiving port, the packet types will be forwarded to the port
belonging to the appropriate VLAN (determined by the VLAN tag). If ingress
filtering is enabled and a port receives frames tagged for VLANs for which it
is not a member, these frames will be discarded.

• Acceptable Frame Type—Sets the interface to accept all frame types,

including tagged or untagged frames, or only tagged frames. When set to
receive all frame types, any received frames that are untagged are

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 26

Advanced Configuration

Security

STEP 3 Click Save.

Security

5

forwarded to the VLAN based on the PVID of its ingress port. All frame
types are selected by default.

• PVID (Port VLAN identifier)—VLAN ID assigned to untagged frames

received on the interface. The default value is 1. For all other VLANs, an
interface must first be configured as an untagged member before you can
assign its PVID to that group.

This section describes how to configure the security settings for the switch.

• Configuring 802.1X Settings, page 27

• Configuring 802.1X Parameter, page 30

• Configuring Static MAC Address, page 32

• Configuring Management Access List, page 33

• Configuring Storm Control, page 34

Configuring 802.1X Settings

Network switches can provide open and easy access to network resources by
simply attaching a client PC. Although this automatic configuration and access is a
desirable feature, it also allows unauthorized personnel to easily intrude and
possibly gain access to sensitive network data.

The IEEE 802.1X (dot1X) standard defines a port-based access control procedure
that prevents unauthorized access to a network by requiring users to first submit
credentials for authentication. Access to all switch ports in a network can be
centrally controlled from a server, which means that authorized users can use the
same credentials for authentication from any point within the network.

The Cisco SLM2008 switch uses the Extensible Authentication Protocol over
LANs (EAPOL) to exchange authentication protocol messages with the client, and
a remote RADIUS authentication server to verify user identity and access rights.
When a client connects to a switch port, the switch responds with an EAPOL
identity request. The client provides its identity (such as a user name) in an EAPOL

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 27

Advanced Configuration

Security

5

response to the switch, which it forwards to the RADIUS server. The RADIUS
server verifies the client identity and sends an access challenge back to the client.
The EAP packet from the RADIUS server contains not only the challenge, but the
authentication method to be used. The client can reject the authentication method
and request another, depending on the configuration of the client software and the
RADIUS server. The authentication method must be MD5. The client responds to
the appropriate method with its credentials, such as a password or certificate. The
RADIUS server verifies the client credentials and responds with an accept or
reject packet. If authentication is successful, the switch allows the client to access
the network. Otherwise, network access is denied and the port remains blocked.

The operation of 802.1X on the Cisco SLM2008 switch requires the following:

• The switch must have an IP address assigned.

• RADIUS authentication must be enabled on the switch and the IP address of

the RADIUS server specified.

• 802.1X must be enabled globally for the switch.

• Each switch port that will be used must be set to dot1X “Auto” mode.

• Each client that needs to be authenticated must have dot1X client software

installed and properly configured.

• The RADIUS server and 802.1X client support EAP. (The switch only

supports EAPOL in order to pass the EAP packets from the server to the
client.)

• The RADIUS server and client also have to support the same EAP

authentication type – MD5. (Some clients have native support in Windows,
otherwise the dot1x client must support it.)

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 28

Advanced Configuration

Security

5

The Security > 802.1X Settings window displays the current 802.1X settings for
the switch.

To configure the 802.1X settings, follow these steps:

STEP 1 Click Security > 802.1X Settings.

STEP 2 In the 802.1X Settings section, enter the following information:

• 802.1X Mode—Enables or disables 802.1X mode. From the drop-down

menu select Enabled or Disabled.

• RADIUS IP—Enter the IP address of the server.

• RADIUS UDP Port—Enter the UDP Port of the server. The UDP port is used

to verify the RADIUS server authentication. The default value is 812.

• Key String—Enter the secret key string as defined on the RADIUS server.

The secret key string is used for authenticating and encrypting
communications between the device and the RADIUS server.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 29

Advanced Configuration

Security

STEP 3 In the 802.1X Setting Table section, select the following:

5

• Admin State—Select one of the following options from the drop-down

menu to set the authentication mode:

- Auto—Requires a dot1x-aware client to be authorized by the

authentication server. Clients that are not dot1x-aware will be denied
access.

- Force-Authorized—Forces the port to grant access to all clients, either

dot1x-aware or otherwise. (This is the default setting.)

- Force-Unauthorized—Forces the port to deny access to all clients,

either dot1x-aware or otherwise.

• Port State—Displays the state of the 802.1X for each port.

• Re-authenticate—It will trigger the switch to ask a connected client to

restart authentication process.

• Force Reinitialize—It will trigger the specific port of the switch to restart

802.1X process.

• Statistics—The switch can display statistics for 802.1X protocol exchanges

for any port.

STEP 4 Click Save.

Configuring 802.1X Parameter

When 802.1X is enabled, you need to configure the parameters for the
authentication process that runs between the client and the Cisco SLM2008
switch. The client identity lookup process that runs between the switch and
authentication server also needs to be configured. These parameters are
described in this section.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 30

Advanced Configuration

Security

5

The Security > 802.1X Parameter window displays the current 802.1X parameters.

To configure the 802.1X parameters, follow these steps:

STEP 1 Click Security > 802.1X Parameter.

STEP 2 Enter the following information:

• Enable Reauthentication—Check the check box to enable

re-authentication.

• Reauthentication Period (1-3600 seconds)—Enter the time period after

which a connected client must be re-authenticated. The default value is
3600 seconds.

• EAP Timeout (1-255 seconds)—Enter the time period during an

authentication session that the switch waits before retransmitting an EAP
packet. The default value is 30 seconds.

STEP 3 Click Save.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 31

Advanced Configuration

Security

5

Configuring Static MAC Address

Static MAC Address allows you to configure a switch port with the MAC address
of one or more devices that are authorized to access the network through that
port. The MAC address is bound to the ingress port specified on the list and does
not allow the MAC address to change ports. Only incoming traffic with source
addresses already stored in the static address table will be accepted as
authorized to access the network through that port. MAC addresses on the list do
not age out.

The Security > Static MAC Address window displays the current static MAC
address settings for the switch.

To configure the static MAC address, follow these steps:

STEP 1 Click Security > Static MAC Address.

STEP 2 In the Add Static MAC Address section, enter the following:

• MAC Address—Enter the specific MAC address for the system to store and

decide the destination port to forward.

• VLAN ID—Enter the VLAN ID associated with the specific MAC address.

• Port—Select the port associated with the specific MAC address.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 32

Advanced Configuration

Security

STEP 3 Click Save.

5

Configuring Management Access List

The Security > Management Access List window specifies which Source IP
addresses can manage the device.

To configure the management access list, follow these steps:

STEP 1 Click Security > Management Access List.

STEP 2 Enter the following information:

• Enable Management Access List—Check the check box to enable IP

Access List.

• Management IP address 1—Enter the IP address of a device that you wish

to allow manage the switch.

• Management IP address 2—Enter the IP address of a second device that

you wish to allow manage the switch.

• Management IP address 3—Enter the IP address of a third device that you

wish to allow manage the switch.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 33

Advanced Configuration

Security

STEP 3 Click Save.

5

• Management IP address 4—Enter the IP address of a fourth device that

you wish to allow manage the switch.

• Management IP address 5—Enter the IP address of a fifth device that you

wish to allow manage the switch.

Configuring Storm Control

Rate threshold is the maximum rate (packets per second) at which unknown
packets are forwarded.

The Security > Storm Control window displays the current rate threshold settings.

To configure the storm control, follow these steps:

STEP 1 Click Security > Storm Control.

STEP 2 In the Rate Threshold section, select the following:

• Broadcast Rate—Select the storm control broadcast rate threshold from

the list or select the default value, No Limit.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 34

Advanced Configuration

QoS

STEP 3 Click Save.

QoS

5

• Multicast Rate—Select the storm control multicast rate threshold from the

list or select the default value, No Limit.

Configuring QoS Settings

Network traffic is usually unpredictable and the only basic assurance that can be
offered is best effort traffic delivery. To overcome this challenge, QoS is applied
throughout the network. This ensures that network traffic is prioritized according
to specified criteria, and that specific traffic receives preferential treatment. QoS
in the network optimizes network performance and entails two basic facilities:

Classifying incoming traffic into handling classes, based on an attribute, including:

• The ingress interface

• Packet content

• A combination of these attributes

• Providing various mechanisms for determining the allocation of network

resources to different handling classes, including:

• The assignment of network traffic to a particular hardware queue

• The assignment of internal resources

You can set the switch to service the queues based on a strict rule that requires all
traffic in a higher priority queue to be processed before lower priority queues are
serviced, or use Weighted Round-Robin (WRR) queuing that specifies a relative
weight of each queue. WRR uses a pre-defined relative weight for each queue that
determines the percentage of service time the switch services each queue before
moving on to the next queue. This prevents the head-of-line blocking that can
occur with strict priority queuing.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 35

Advanced Configuration

QoS

5

The QoS > QoS Settings window displays the current QoS settings.

To configure the QoS settings, follow these steps.

STEP 1 Click QoS > QoS Settings.

STEP 2 Set the Queue Mode to Strict Priority or WRR.

• Strict Priority—Services the egress queues in sequential order,

transmitting all traffic in the higher priority queues before servicing lower
priority queues.

• WRR—Weighted Round-Robin shares bandwidth at the egress ports by

using scheduling weights 1, 2, 4, 8 for queues 1 through 4 respectively.

- WRR Weight—Displays the WRR weights to queues.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 36

Advanced Configuration

802.1p

Enabled?

802.1p QoS

Yes

Yes

No

No

Port QoS

No

No

DSCP QoS

Yes

Yes

Tagged?

DSCP

Found?

Packet

DSCP

Enabled?

194449

QoS

5

WRR Queue Mode

STEP 3 From the drop-down menu, select the QoS Mode of QoS Disabled, 802.1p, Port

Based, or DSCP.

QoS Mode Priority Diagram

• 802.1p—802.1p QoS Mode allows you to specify data packet priority

based on the 802.1p value in VLAN priority tag of the packet. Users can
map 802.1p to one of 4 priority queues.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 37

Advanced Configuration

QoS

5

802.1p QoS Mode

- Prioritize Traffic—Allows you to select a traffic prioritization setting.

The default value is Custom.

- 802.1p Settings—The default 802.1p settings are shown in the

following table:

Table 1 Default 802.1p Settings

802.1p Value Priority Level

0 normal

1 low

2 low

3 normal

4 medium

5 medium

6 high

7 high

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 38

Advanced Configuration

QoS

5

• Port-Based—Port-Based QoS mode allows you to set priority levels for

each port.

Port-Based QoS Mode

- Port-Based Settings—This allows customization of priority levels for

specific ports. By default, all ports are set to high priority.

• DSCP—The Cisco SLM2008 switch supports a common method of

prioritizing IP traffic to meet application requirements. Traffic priorities can
be mapped to one of 4 priority queues based on the Differentiated
Services Code Point (DSCP) value.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 39

Advanced Configuration

QoS

5

DSCP

- DSCP Settings—DSCP Settings enable mapping DSCP values to

Table 2 DSCP Settings

DSCP Value (0-63) Priority

46 high

34 medium

24 normal

All others low

• DSCP Value—Indicates the Differentiated Services Code Point value in the

incoming packet.

• Priority—Maps the DSCP value to the selected priority level.

STEP 4 Click Save.

specific priority levels. The default DSCP settings are shown in the
following table:

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 40

Advanced Configuration

STP

STP

5

This section describes configuring the STP settings.

• Configuring STP Settings, page 41

• Displaying STP Status, page 43

Configuring STP Settings

The Spanning Tree Algorithm (STA) can be used to detect and disable network
loops, and to provide backup links between switches, bridges or routers. This
allows the switch to interact with other bridging devices (that is, an STA-compliant
switch, bridge or router) in your network to ensure that only one route exists
between any two stations on the network, and provide backup links which
automatically take over when a primary link goes down.

The STP > STP Settings window displays the current STP settings.

To configure the STP settings, follow these steps:

STEP 1 Click STP > STP Settings.

STEP 2 Configure the STP settings.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 41

Advanced Configuration

STP

5

• System Priority—Bridge priority is used in selecting the root device, root

port, and designated port. The device with the highest priority becomes
the STA root device. However, if all devices have the same priority, the
device with the lowest MAC address will then become the root device.
From the drop-down menu, select the value. The default value is 32768. The
range is 0 to 61440 in steps of 4096.

• Hello Time—Enter the interval (in seconds) at which the root device

transmits a configuration message. The default is 2 seconds. The range is 0
to 10 seconds.

• Max Age—Enter the maximum time (in seconds) a device can wait without

receiving a configuration message before attempting to reconfigure. The
default max age is 20 seconds. The range is 6 to 40 seconds.

• Forward Delay—Enter the maximum time (in seconds) this device will wait

before changing states (i.e., discarding to learning to forwarding). The
default is 15 seconds. The range is 4 to 30 seconds.

STEP 3 Configure the STP port settings.

• Port—Displays the port number.

• Enable STP—Check the check box to enable STP on the port.

• Port Fast—Check the check box to enable Port Fast on the port. If Port Fast

mode is enabled for a port, the Port State is automatically placed in the
Forwarding state when the port link is up. Port Fast optimizes the STP
protocol convergence.

• Path Cost—The path cost is used to determine the best path between

devices. The default value is auto.

STEP 4 Click Save.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 42

Advanced Configuration

STP

5

Displaying STP Status

The STP > STP Status window displays the STP Status for Bridge ID and for each
port.

To display the STP status, follow these steps:

STEP 1 Click STP > STP Status.

STEP 2 The STP status information is displayed.

• STP Bridge Overview

- Bridge ID—A unique identifier for this bridge, consisting of the bridge

priority and MAC address (where the address is taken from the switch
system).

- Hello Time—Displays the Hello Time value as defined on the

STP > STP Settings window.

- Max Age—Displays the Max Age value as defined on the

STP > STP Settings window.

- Fwd Delay—Displays the Forward Delay value as defined on the

STP > STP Settings window.

- Top o lo gy —Displays the topology.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 43

Advanced Configuration

Statistics

STEP 3 To update the status information, click Refresh.

5

- Root ID—The Root ID is displayed here.

• STP Port Status

STP Status on each interface since the device was last refreshed.

- Port—The number of the port.

- Path Cost—The best path between devices.

- Port Fast—Indicates the device is the end for a switch connection.

- Port State—Indicates if the STP is disabled or enabled on the interface.

Statistics

This section describes the statistics overview and IGMP status displays.

• Displaying Statistics Overview, page 45

• Displaying IGMP Status, page 46

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 44

Advanced Configuration

Statistics

5

Displaying Statistics Overview

The Statistics > Statistics Overview window displays the standard statistics on
network traffic for each port of the device.

To display the statistics overview, follow these steps:

STEP 1 Click Statistics > Statistics Overview.

STEP 2 The statistics overview information is displayed.

• Port—Displays the port that the data applies to.

• Tx Byte—Displays the number of octets transmitted on the port since the

device was last refreshed.

• Tx Frames—Displays the number of frames transmitted on the port since

the device was last refreshed.

• Rx Bytes—Displays the number of octets received on the port since the

device was last refreshed.

• Rx Frames—Displays the number of frames received on the port since the

device was last refreshed.

• Tx Errors—Displays the number of transmitted packets with errors that

have occurred on the port since the device was last refreshed.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 45

Advanced Configuration

Statistics

STEP 3 To update the statistics information, click Refresh.

5

• Rx Errors—Displays the number of received packets with errors that have

occurred on the port since the device was last refreshed.

• Tx Broadcast—Displays the number of good broadcast packets

transmitted on the port since the device was last refreshed.

• Rx Broadcast—Displays the number of good broadcast packets received

on the port since the device was last refreshed.

Displaying IGMP Status

The Statistics > IGMP Status window displays the current IGMP status for each
VLAN interface.

To display the IGMP status, follow these steps:

STEP 1 Click Statistics > IGMP Status.

STEP 2 The IGMP status information is displayed.

• VLAN ID—Displays the VLAN ID .

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 46

Advanced Configuration

Multicast

STEP 3 To update the IGMP status information, click Refresh.

5

• Querier—Indicates the IGMP router is active or idle.

• Queries Transmitted—Displays the number of queries that have been

transmitted.

• Queries Received—Displays the number of queries that have been

received.

• v1 Reports—Displays the number of IGMP v1 report packets that have

been received by the switch.

• v2 Reports—Displays the number of IGMP v2 report packets that have

been received by the switch.

• v2 Leaves—Displays the number of IGMP v2 leave packets that have been

received by the switch.

Multicast

Configuring IGMP Settings

When IGMP Snooping is enabled globally, all IGMP packets are forwarded to the
CPU. The CPU analyzes the incoming packets and determines:

• The ports that want to join which Multicast groups and issue the IGMP join

packet

• The ports that have Multicast routers generating IGMP queries

Ports requesting to join a specific Multicast group issue an IGMP report,
specifying that Multicast group is accepting members. This results in the creation
of the Multicast filtering database.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 47

Advanced Configuration

Multicast

5

The Multicast > IGMP Settings window displays the current IGMP settings.

NOTE All functions listed on the Multicast > IGMP Settings window require “Enable

IGMP Snooping” to be enabled before settings will take effect.

To configure the IGMP settings, follow these steps:

STEP 1 Click Multicast > IGMP Settings.

STEP 2 Configure the IGMP settings.

• Enable IGMP Snooping—Check the check box to enable IGMP Snooping

on the switch.

• Enable Unregistered IP Multicast Flooding—Check the check box to

enable Unregistered IP Multicast Flooding on the switch.

• VLAN ID—Displays the VLAN ID number.

• Enable IGMP Snooping—Check the check box to enable IGMP Snooping

on each VLAN interface.

• Enable IGMP Querying—Check the check box to enable IGMP Querying

on each VLAN interface.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 48

Advanced Configuration

Admin

STEP 3 Click Save.

Admin

5

This section describes how to configure the administration settings of the switch.

• Configuring Ping, page 50

• Configuring Port Mirror, page 51

• Restoring Factory Default, page 52

• Rebooting the Switch, page 53

• Saving Configuration Settings, page 54

• Upgrading the Firmware, page 55

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 49

Advanced Configuration

Admin

5

Configuring Ping

You can use a ping to see if another site on the network can be reached. Ping
sends ICMP echo request packets to another node on the network.

The Admin > Ping window displays the current ping settings.

To configure the ping settings, follow these steps:

STEP 1 Click Admin > Ping.

STEP 2 Configure the Ping Parameters.

• Tar get IP Ad dre ss—Enter the IP address of the device you want to ping.

• Count—From the drop-down menu, select the maximum count to the target

IP address for each attempt.

• Time Out—From the drop-down menu, select the time out (in seconds)

interval if the device does not respond.

STEP 3 To test the ping, click Te s t . The test results are displayed in the Ping Results

section.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 50

Advanced Configuration

Admin

5

Configuring Port Mirror

You can mirror traffic from any source port to a target port for real-time analysis.
The target port speed should match or exceed source port speed, otherwise
traffic may be dropped from the monitor port. The switch supports only one mirror
session.

The Admin > Port Mirror window displays the current port mirror settings.

To configure port mirror, follow these steps:

STEP 1 Click Admin > Port Mirror.

STEP 2 Configure the port mirror settings.

• Source Port—Check the check box of the port whose traffic will be

monitored.

• Tar get Po rt —From the drop-down menu, select the port that will mirror the

traffic on the source port.

NOTE The Cisco SLM2008 switch supports bi-directional port mirroring (transmit

and receive).

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 51

Advanced Configuration

Admin

STEP 3 Click Save.

5

Restoring Factory Default

The Admin > Factory Default window allows you to restore the switch’s factory
default settings.

To restore the switch’s factory default settings, follow these steps:

STEP 1 Click Admin > Factory Default.

STEP 2 Click Restore Default.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 52

Advanced Configuration

Admin

5

Rebooting the Switch

The Admin > Reboot window allows you to reboot the switch. The current
configuration settings are retained.

To reboot the switch, follow these steps:

STEP 1 Click Admin > Reboot.

STEP 2 Click Reboot.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 53

Advanced Configuration

Admin

5

Saving Configuration Settings

The Admin > Save Configuration window allows you to save and retrieve the
switch’s configuration information.

When saving the configuration, there are two options:

• The Configuration Upload section allows you to load a previously saved

configuration file (.cfg).

• The Configuration Backup section allows you to save the switch settings to

a configuration file (.cfg).

To load a previously saved configuration file (.cfg), follow these steps:

STEP 1 Click Admin > Save Configuration.

STEP 2 In the Configuration Upload section, click Browse.

STEP 3 Locate the appropriate file and click Open.

STEP 4 Click Upgrade to load the file.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 54

Advanced Configuration

Admin

STEP 1 Click Admin > Save Configuration.

STEP 2 In the Configuration Backup section, click Proceed.

STEP 3 Click Save when prompted to open, save, or cancel.

STEP 4 Select the location where the file should be saved and click Save.

5

To save the switch settings to a configuration file (.cfg), follow these steps:

Upgrading the Firmware

The Admin > Firmware Upgrade window allows you to upgrade the firmware.

To upgrade the firmware, follow these steps:

STEP 1 Click Admin > Firmware Upgrade.

STEP 2 Click Browse.

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 55

Advanced Configuration

Admin

STEP 3 Locate the appropriate file and click Open.

STEP 4 Click Proceed to load the file.

5

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 56

Specifications

This appendix details the specifications for the Cisco SLM2008 8-Port Gigabit
Smart Switch with PD and AC Power.

Specifications

Ports 5 RJ-45 connectors for

A

10BASE-T/100BASE-TX/
1000BASE-T
Auto MDI/MDI-X
Autonegotiate/Manual Setting

Buttons Reset

Cabling Type UTP CAT 5 or better for

10BASE-T/100BASE-TX,
UTP CAT 5e or better for
1000BASE-T

LEDs Link/Act, System

PoE

802.3af PoE-PD compatible on
Port 1. Supply system power
without an external power
adapter

Performance

Switching Capacity 10 Gbps, Non-Blocking

Forwarding Rate 7.44 Mpps Wire-Speed Performance

Layer 2

MAC table size 8 K

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 57

Specifications

A

Number of VLANs 16 Active VLANs (4096 range)

VLAN Port-based and

802.1Q tag-based VLANs

HOL Blocking Head of Line Blocking Prevention

Management

Web User Interface Built-in web UI for easy

browser-based configuration

Firmware Upgrade Web browser upgrade (HTTP)

Port Mirroring Traffic on a port can be mirrored to

another port for analysis with a network
analyzer

Other Management

RADIUS
Port Mirroring
DHCP Client
PING

Security

IEEE 802.1X 802.1X - RADIUS

Authentication.
MD5 Encryption

Availability

Link Aggregation Link Aggregation using IEEE

802.3ad LACP
Up to 5 ports in up to 2 groups

Storm Control Broadcast and Multicast

Spanning Tree IEEE 802.1D Spanning Tree

IGMP Snooping IGMP (v1/v2) Snooping Limits

Bandwidth-Intensive Video
Traffic to only the Requestors.
Supports 16 Multicast groups

QoS

Priority levels 4 Hardware queues

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 58

Specifications

A

Scheduling Priority Queuing and

Weighted Round Robin (WRR)

Class of Service Port-based

802.1p VLAN Priority based
IPv4/v6 IP DSCP based

Standards

802.3 10BASE-T Ethernet,

802.3u 100BASE-TX Fast
Ethernet, 802.3ab 1000BASE-T
Gigabit Ethernet, 802.3z
Gigabit Ethernet, 802.3x Flow
Control, 802.3 ad LACP,802.3af
PoE, 802.1D STP, 802.1Q/p
VLAN, 802.1X Port Access
Authentication

Environmental

Dimensions
W x H x D

Unit Weight 0.84 lb (0.382 kg)

Power External AC power adapter and

Certification FCC Part15 Class B, CE Class A,

Operating Temperature 32 to 104ºF (0 to 40ºC)

Storage Temperature -4 to 158ºF (-20 to 70ºC)

Operating Humidity 10 to 90%

Storage Humidity 10 to 95%

5.12 in. x 1.12 in. x 5.12 in.
130 mm x 28.5 mm x 130 mm

IEEE 802.3af compatible
PoE-PD

UL, cUL, CE Mark, CB

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 59

Where to Go From Here

Cisco provides a wide range of resources to help you and your customer obtain
the full benefits of the Cisco SLM2008 8-Port Gigabit Smart Switch with PD and
AC Power.

Product Resources

B

Support

Cisco Small Business
Support Community

Online Technical Support
and Documentation
(Login Required)

Phone Support Contacts www.cisco.com/en/US/support/

Software Downloads
(Login Required)

Product Documentation

Cisco Small Business
SLM2008 8-Port Gigabit
Smart Switch with PD
and AC Power

Cisco Small Business

www.cisco.com/go/smallbizsupport

www.cisco.com/support

tsd_cisco_small_
business_support_center_contacts.html

Go to tools.cisco.com/support/downloads,
and enter the model number in the
Software Search box.

www.cisco.com/en/US/products/ps9994/
tsd_products_support_series_home.html

Cisco Partner Central for
Small Business (Partner
Login Required)

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 60

www.cisco.com/web/partners/sell/smb

Where to Go From Here

B

Cisco Small Business
Home

Marketplace www.cisco.com/go/marketplace

www.cisco.com/smb

Cisco SLM2008 8-Port Gigabit Smart Switch with PD and AC Power Administration Guide 61
