Cisco Systems PA-T3 User Manual

PA-T3 Serial Port Adapter Installation and Configuration

Product Number: PA-T3(=) and PA-2T3(=) Platforms Supported: Cisco 7500 Series, Cisco 7000 Series,

Cisco 7100 Series, Cisco 7200 Series, Cisco uBR7200 Series, Catalyst 5000 Series Switches

Access Registrar, AccessPath, Any to Any, AtmDirector, CCDA, CCDE, CCDP, CCIE, CCNA, CCNP, CCSI, CD-PAC, the Cisco logo, Cisco Certified Internetwork Expert logo, CiscoLink, the Cisco Management Connection logo, the Cisco NetWorks logo, the Cisco Powered Network logo, Cisco Systems Capital, the Cisco Systems Capital logo, Cisco Systems Networking Academy, the Cisco Technologies logo, ConnectWay, ControlStream, Fast Step, FireRunner, GigaStack, IGX, JumpStart, Kernel Proxy, MGX, Natural Network Viewer, NetSonar, Network Registrar, Packet, PIX, Point and Click Internetworking, Policy Builder, Precept, RouteStream, Secure Script, ServiceWay, SlideCast, SMARTnet, StreamView, The Cell, TrafficDirector, TransPath, ViewRunner, VirtualStream, VisionWay, VlanDirector, Workgroup Director, and Workgroup Stack are trademarks; Changing the Way We Work, Live, Play, and Learn, Empowering the Internet Generation, The Internet Economy, and The New Internet Economy are service marks; and Asist, BPX, Catalyst, Cisco, Cisco IOS, the Cisco IOS logo, Cisco Systems, the Cisco Systems logo, the Cisco Systems Cisco Press logo, Enterprise/Solver, EtherChannel, EtherSwitch, FastHub, FastLink, FastPAD, FastSwitch, IOS, IP/TV, IPX, LightStream, LightSwitch, MICA, NetRanger, Registrar, StrataView Plus, Stratm, TeleRouter, and VCO are registered trademarks of Cisco Systems, Inc. in the U.S. and certain other countries. All other trademarks mentioned in this document are the property of their respective owners. (9905R)

PA-T3 Serial Port Adapter Installation and Configuration

Corporate Headquarters

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel:

408 526-4000 800 553-NETS (6387)

Fax: 408 526-4100

Text Part Number: 78-4721-07

Objectives

Preface

This preface describes how to ﬁnd additional information on the PA-T3 and PA-2T3 serial port adapters and other Cisco products,services, and documentation. This preface contains the following sections:

• Objectives, page v

• Organization, page v

• Related Documentation, page vi

• Cisco Connection Online, page vii

• Cisco Documentation CD-ROM, page viii

This document describes how to install and conﬁgure the PA-T3 serial port adapter (PA-T3[=] and PA-2T3[=]) in the following platforms:

• Cisco 7200 series routers—which consist of the two-slot Cisco 7202, four-slot Cisco 7204 and

Cisco 7204VXR, and six-slot Cisco 7206 and Cisco 7206VXR

• Cisco uBR7200 series universal broadband routers

Organization

• Second-generation Versatile Interface Processor (VIP2) in Cisco 7500 series routers and

Cisco 7000 series routers with the Cisco 7000 Series Route Switch Processor (RSP7000) and Cisco 7000 Series Chassis Interface (RSP7000CI)

• Cisco 7100 series routers—which consist of the Cisco 7120 and Cisco 7140

• Catalyst Route Switch Module (RSM)/VIP2 in Catalyst 5000 series switches

This document is organized into the following chapters:

Section Title Description

Chapter 1 Overview Describes the PA-T3 port adapter and

describes its LED displays, cables, and receptacles.

Chapter 2 Preparing for Installation Describessafety considerations, tools

required, and procedures you should perform before the actual installation.

Preface v

Related Documentation

Your router and the Cisco IOS software running on it contain extensive features and functionality, which are documented in the following resources:

• For Cisco IOS software conﬁguration information and support, refer to the modular

conﬁguration and modular command reference publications in the Cisco IOS software conﬁguration documentation set that corresponds to the software release installed on your Cisco hardware.

Note You can access Cisco IOS software conﬁguration and hardware installation and

maintenance documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.

• For hardware installation and maintenance information on Cisco 7000 series and Cisco 7500

series routers, and the VIP2, refer to the following publications: — The installation and conﬁguration guide that shipped with your Cisco 7000 series or

Cisco 7500 series router

— Second-GenerationVersatile Interface Processor (VIP2) Installation and Conﬁguration (for

VIP2 users only)

• For hardware installation and maintenance information on the Catalyst 5000 series switches and

the Catalyst RSM/VIP2, refer to the following publications: — Theinstallation and conﬁguration guide that shipped with your Catalyst 5000 series switches

PA-T3 Serial Port Adapter Installation and Configuration

Cisco Connection Online

— Route Switch Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note

(Document Number 78-4780-01) which shipped with your Catalyst RSM/VIP2

• For hardware installation and maintenance information on Cisco 7100 series routers, refer to the

Cisco 7100 Series VPN Router Installation and Conﬁguration Guide publication that shipped with your Cisco 7100 series router.

• For information on setting up a Virtual Private Network, see the Cisco 7100 Series VPN

Conﬁguration Guide.

• For hardware installation and maintenance information on the Cisco 7200 VXR routers, refer to

the Cisco 7200 VXR Installation and Conﬁguration Guide publication that shipped with your Cisco 7200 VXR router.

• For hardware installation and maintenance information on the Cisco 7200 routers, refer to the

following publications that shipped with your router:

— Cisco 7202 Installation and Conﬁguration Guide — Cisco 7204 Installation and Conﬁguration Guide — Cisco 7206 Installation and Conﬁguration Guide

• For hardware installation and maintenance information on the Cisco uBR7200 series routers,

refer to the Cisco uBR72xx Universal Broadband Router Installation and Conﬁguration Guide that shipped with your Cisco uBR7200 series router.

• For international agency compliance, safety, and statutory information for WAN interfaces for

Cisco 7500 series, Cisco 7000 series, Cisco 7200 series, Cisco 7100 series, and Cisco uBR7200 series routers, refer to the following publications:

— Regulatory Compliance and Safety Information for the Cisco 7500 Series Routers — Regulatory Compliance and Safety Information for the Cisco 7000 Series Routers — Regulatory Compliance and Safety Information for the Cisco 7200 Series Routers

— Regulatory Compliance and Safety Information for the Cisco 7100 Series Routers — Regulatory Compliance and Safety Information for the Cisco ubr72xx Universal Broadband

Router

Note The regulatory compliance and safety information documentation listed above applies to the

Catalyst 5000 series switches and the Catalyst RSM/VIP2.

• For port adapter hardware and memory conﬁguration guidelines for Cisco 7200 series routers,

refer to the document Cisco 7200 Series Port Adapter Hardware Conﬁguration Guidelines.

• To viewCisco documentation or obtain general information about the documentation,refer to the

Documentation CD-ROM, see the “Cisco Connection Online” section, or call customer service at 800 553-6387 or 408 526-7208. Customer service hours are 5:00 a.m. to 6:00 p.m. Paciﬁc time, Monday through Friday (excluding Cisco-observed holidays). Youcan also send e-mail to cs-rep@cisco.com.

Cisco Connection Online

CiscoConnection Online (CCO) is Cisco Systems’ primary,real-time support channel.Maintenance customers and partners can self-register on CCO to obtain additional information and services.

Preface vii

Cisco Documentation CD-ROM

Available 24 hours a day, 7 days a week, CCO provides a wealth of standard and value-added services to Cisco’s customers and business partners. CCO services include product information, product documentation, software updates, release notes, technical tips, the Bug Navigator, conﬁguration notes, brochures, descriptions of service offerings, and download access to public and authorized ﬁles.

CCO serves a wide variety of users through two interfaces that are updated and enhanced simultaneously: a character-based version and a multimedia version that resides on the World Wide Web (WWW). The character-based CCO supports Zmodem, Kermit, Xmodem, FTP, and Internet e-mail,and it is excellent for quick access to information over lower bandwidths. The WWW version of CCO provides richly formatted documents with photographs, ﬁgures, graphics, and video, as well as hyperlinks to related information.

You can access CCO in the following ways: WWW: http://www.cisco.com WWW: http://www-europe.cisco.com WWW: http://www-china.cisco.com Telnet: cco.cisco.com Modem: From North America, 408 526-8070; from Europe, 33 1 64 46 40 82. Use the following

terminal settings: VT100 emulation; databits: 8; parity: none; stop bits: 1; and connection rates up to 28.8 kbps.

For a copy of CCO’s Frequently Asked Questions (FAQ), contact cco-help@cisco.com. For additional information, contact cco-team@cisco.com.

If you are a network administrator and need personal technical assistance with a Cisco product that isunder warrantyor coveredby amaintenancecontract, contact Cisco’sTechnicalAssistance Center (TAC) at 800 553-2447, 408 526-7209, or tac@cisco.com. To obtain general information about Cisco Systems, Cisco products, or upgrades, contact 800 553-6387, 408 526-7208, or cs-rep@cisco.com.

Cisco Documentation CD-ROM

Ciscodocumentation and additional literature are available in a CD-ROMpackage, which ships with your product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated monthly.Therefore, it might be more current than printed documentation. Toorder additional copies of the Documentation CD-ROM, contact your local sales representative or call customer service. The CD-ROM package is available as a single package or as an annual subscription. You can also access Cisco documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.

If you are reading Cisco product documentation on the World Wide Web, you can submit comments electronically. Click Feedback in the toolbar and select Documentation. After you complete the form, click Submit to send it to Cisco. We appreciate your comments.

PA-T3 Serial Port Adapter Installation and Configuration

viii

CHAPTER

Overview

This chapter describes the one-port PA-T3 and two-port PA-2T3 serial port adapters. This chapter contains the following sections:

• Port Adapter Overview, page 1-1

• PA-T3 Serial Port Adapter Features, page 1-2

• Management Information Base, page 1-3

Port Adapter Overview

The PA-T3 serial port adapter is a single-width, one-port or two-port module that integrates data service unit (DSU) functionality into the Cisco router. It provides one or two high-speed serial PA-T3 interfaces on Cisco 7100 series routers, Cisco 7200 series routers, Cisco uBR7200 series routers, on the second-generation Versatile Interface Processor (VIP2) in all Cisco 7000 series and Cisco 7500 series routers, and on the Catalyst RSM/VIP2 in the Catalyst 5000 series switches. (See Figure 1-1 and Figure 1-2.)

Note Port adapters have a handle attached, but this handle is occasionally not shown in ﬁgures in

this publication to allow a full view of detail on the port adapter’s faceplate.

Figure 1-1 One-Port PA-T3 Serial Port Adapter

XMTR

ENABLED

RCVR

AIS

RCLK

OOF

FERF

DS3 SERIAL

H10041

Overview 1-1

PA-T3 Serial Port Adapter Features

Figure 1-2 Two-Port PA-2T3 Serial Port Adapter

DS3 SERIAL

XMTR

H10062

ENABLED

RCVR

XMTR

AIS

RCLK

OOF

FERF

RCLK

AIS

OOF

RCVR

The PA-T3 serial port adapter can be installed in the following slots on the hardware platforms described in this document:

• VIP2—Port adapter slot 0 and port adapter slot 1

• Catalyst RSM/VIP2—Port adapter slot 0 and port adapter slot 1

• Cisco 7100 series routers—Port adapter slot 3 in the Cisco 7120 series and port adapter slot 4 in

the Cisco 7140 series

• Cisco 7200 series routers—Port adapter slot 1 and slot 2 of the Cisco 7202; port adapter slot 1

through slot 4 of the Cisco 7204 and Cisco 7204VXR; port adapter slot 1 through slot 6 of the Cisco 7206 and Cisco 7206VXR

• Cisco uBR7200series routers—Port adapter slot 1 and slot 2 of the Cisco uBR7246; port adapter

slot 1 of the Cisco uBR7223

The one-port PA-T3 serial port adapter provides two network interfaces per VIP2 for Cisco 7000 series and Cisco 7500 series routers, two network interfaces per Catalyst RSM/VIP2, and one high-speed interface on the Cisco 7200 series and Cisco uBR7200 series routers. The two-port PA-2T3 serial port adapter provides four network interfaces per VIP2 for Cisco 7000 series and Cisco 7500 series routers, four network interfaces for the Catalyst RSM/VIP2, and two high-speed interfaces on the Cisco 7200 series and Cisco uBR7200 series routers. Serial network interfaces reside on modular port adapters, which provide a direct connection between the high-speed bus in the router and the external networks. The PA-T3 serial port adapter provides a full-duplex synchronous serial PA-T3interface for transmitting and receiving data at rates of up to 34 megabits per second (Mbps).

The port adapter supports both 16- and 32-bit cyclic redundancy checks (CRCs). The default is 16-bitCRCs;toenable 32-bit CRCs, you use a conﬁguration command. For a description of the CRC function, see the “Conﬁguring Cyclic Redundancy Checks” section on page 8-13.

The VIP2 and Catalyst RSM/VIP2 support online insertion and removal (OIR), but individual port adapters with a VIP2 or Catalyst RSM/VIP2 do not support OIR. To replace port adapters in the Cisco7000 series and Cisco 7500 series routers, and the Catalyst 5000 series switches, you must ﬁrst removethe VIP2 or Catalyst RSM/VIP2 from the chassis and then replace port adapters as required. OIR is supported for port adapters in the Cisco 7200 series and Cisco uBR7200 series routers.

PA-T3 Serial Port Adapter Features

The PA-T3 serial port adapter provides the following features:

• Single-width port adapter for the VIP2 in all Cisco 7000 series, Cisco 7100 series, Cisco 7500

series, and Cisco 7200 series routers

1-2

PA-T3 Serial Port Adapter Installation and Configuration

Management Information Base

• Single-width port adapter for the Catalyst RSM/VIP2 in all Catalyst 5000 series switches

• Single- or double-port T3 rate (45 Mbps) connectivity

• Full-duplex synchronous serial DS3 interface

• High-speed High-Level Data Link Control (HDLC) data

• Integrated data service unit (DSU) functionality

• Support for 16- and 32-bit cyclic redundancy checks (CRCs)

• Support for C-bit, M13, and bypass framing

• Support for ATM-DataExchange Interface (DXI), Frame Relay, HDLC, Switched Multimegabit

Data Service (SMDS), and Point-to-Point Protocol (PPP) serial encapsulations

• Support for DS3 MIB (RFC 1407)

• Support for remote and local loopback

• B3ZS line coding

• Scrambling and bandwidth reduction

• Online insertion and removal (OIR)

Management Information Base

Management Information Base (MIB) attributes are readable and writable across the Integrated Local Management Interface (ILMI) through use of the Simple Network Management Protocol (SNMP).

The one-port PA-T3 serial port adapter supports MIB-II (RFC 1213) and the DS3 interface MIB (RFC 1407).

The two-port PA-2T3 serial port adapter supports MIB-II (RFC 1213) and the DS3 interface MIB (RFC 1407).

Overview 1-3

Management Information Base

1-4

PA-T3 Serial Port Adapter Installation and Configuration

CHAPTER

Preparing for Installation

This chapter describes the general equipment, safety,and site preparation requirements for installing the PA-T3 port adapters.

• Parts and Tools Required, page 2-1

• Software and Hardware Requirements, page 2-2

• PA-T3 Port Adapter LEDs, page 2-3

• PA-T3 Receptacles and Cables, page 2-5

• Interoperability Guidelines for PA-T3 Serial Port Adapter DSUs, page 2-5

• Safety Guidelines, page 2-6

• FCC Class A Compliance, page 2-8

Parts and Tools Required

You need the following tools and parts to install a port adapter. If you need additional equipment, contact a service representative for ordering information.

• PA-T3 serial port adapter and one of the following:

— VIP2-15(=), VIP2-20=, VIP2-40(=), or VIP2-50(=) motherboard — Catalyst RSM/VIP2-15(=) or Catalyst RSM/VIP2-40(=) motherboard — Cisco 7100 series router with at least one available port adapter slot — Cisco 7200 series router with at least one available port adapter slot — Cisco uBR7200 series router with at least one available port adapter slot

• 75-ohm coaxial serial interface cables

• Number 1 Phillips screwdriver and a 3/16-inch ﬂat-blade screwdriver

• Your own ESD-prevention equipment or the disposable grounding wrist strap included with all

upgrade kits, ﬁeld-replaceable units (FRUs), and spares

Preparing for Installation 2-1

Software and Hardware Requirements

Table 2-1 lists the minimum Cisco IOS software release required to use the PA-T3 and the PA-2T3 serial port adapters in supported router platforms.

Table 2-1 PA-T3 Port Adapter Software Requirements Platforms Recommended Minimum Cisco IOS Release

Cisco 7000 and Cisco 7500 series

• With VIP2-15(=) or VIP2-40(=)

• With VIP2-50(=)

Cisco 7200 series

• Cisco 7204VXR and Cisco 7206VXR Cisco IOS Release 12.0(2)XE2 or a later

• Cisco 7204 and Cisco 7206 Cisco IOS Release 11.1(16)CA or a later

• Cisco 7202 Cisco IOS Release 11.1(19)CC1 or a later

Cisco uBR7200 series

• Cisco uBR7246 and Cisco uBR7223 Cisco IOS Release 12.0(2)XA or a later

Cisco 7100 Series

• Cisco 7120 series and Cisco 7140 series Cisco IOS Release 12.0(4)XE or a later

Catalyst 5000 series switches

• With Catalyst RSM/VIP2-15(=) or Catalyst RSM/VIP2-40(=)

PA-T3 PA-2T3

Cisco IOS Release 11.1(13)CA or a later release of Cisco IOS Release 11.1 CA

Cisco IOS Release 11.1(14)CA or a later release of Cisco IOS Release 11.1 CA

release of Cisco IOS Release 12.0 XE Cisco IOS Release 12.0(3)T or a later release of Cisco IOS Release 12.0 T

release of Cisco IOS Release 11.1 CA

release of Cisco IOS Release 11.1 CC Cisco IOS Release 11.3(4)AA or a later release of Cisco IOS Release 11.3 AA

release of Cisco IOS Release 12.0 XA

release of Cisco IOS Release 12.0 XE Cisco IOS Release 12.0(5)T or a later release of Cisco IOS Release 12.0 T

Cisco IOS Release 12.0(4)T or a later release of Cisco IOS Release 12.0T

Cisco IOS Release 11.1(16)CA or a later release of Cisco IOS Release 11.1 CA

Cisco IOS Release 12.0(2)XE2 or a later release of Cisco IOS Release 12.0 XE Cisco IOS Release 12.0(3)T or a later release of Cisco IOS Release 12.0 T

Cisco IOS Release 11.1(16)CA or a later release of Cisco IOS Release 11.1 CA

Cisco IOS Release 11.1(19)CC1 or a later release of Cisco IOS Release 11.1 CC Cisco IOS Release 11.3(4)AA or a later release of Cisco IOS Release 11.3 AA

Cisco IOS Release 12.0(2)XA or a later release of Cisco IOS Release 12.0 XA

Cisco IOS Release 12.0(4)T or a later release of Cisco IOS Release 12.0T

2-2

Caution

The VIP2 requires that the host Cisco 7000 series router have the RSP7000 and RSP7000CI installed. The VIP2 does not operate properly with the Route Processor (RP), Switch Processor (SP), or Silicon Switch Processor (SSP) installed in the host Cisco series router.

The PA-T3 serial port adapter is considered a high-bandwidth port adapter; therefore, and at a minimum, Cisco recommends that the PA-T3 serial port adapter be installed on the VIP2-15 or Catalyst RSM/VIP2 motherboard (with 1 MB of SRAM and 8 MB of DRAM). Installation of the PA-T3 serial port adapter on the VIP2-10 (with 512 KB of SRAM and 8 MB of DRAM) is not recommended.

PA-T3 Serial Port Adapter Installation and Configuration

PA-T3 Port Adapter LEDs

Note The VIP2 and Catalyst RSM/VIP2 supports online insertion and removal (OIR), but

individual port adapters do not. To replace port adapters in the Cisco 7000 series and Cisco 7500 series routers, and the Catalyst 5000 series switches, you must ﬁrst remove the VIP2 or Catalyst RSM/VIP2 from the chassis and then replace port adapters as required. OIR is supported for port adapters in the Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers. Port adapters have a handle attached, but this handle is occasionally not shown in illustrations in this publication to allow a full view of detail on the port adapter’s faceplate.

In the Cisco 7000 series, Cisco 7100 series, Cisco 7500 series, and Cisco uBR7200 series routers, and the Catalyst 5000 series switches, there are no restrictions on slot locations or sequence; however, in the Cisco 7200 series routers, there are speciﬁc conﬁguration guidelines that must be observed for high-bandwidth port adapters.

For speciﬁc Cisco 7200 series routers hardware conﬁguration information and for memory conﬁguration guidelines, refer to the document Cisco 7200 Series Port Adapter Hardware Conﬁguration Guidelines, which shipped with your Cisco 7200 series chassis and is also available on the Cisco Connection Documentation, Enterprise Series CD-ROM.

To determine if your Cisco 7000 series, Cisco 7100 series, Cisco 7500 series, Cisco 7200 series, or Cisco uBR7200 series router, or Catalyst RSM/VIP2, is compatible with the PA-T3 serial port adapter,use the show version command to display the current hardware conﬁguration of the router, including the system software version that is currently loaded and running. You can check the version of the default ROM image by removing the board and checking the ROM labels, or by conﬁguring the interface or system software to boot from ROM, restarting the system, and using the show version command to check the running version.

Use the show version command to display the current system software version. In the following example, the running system software is Release 11.1(16)CA.

Router> show version Cisco Internetwork Operating System Software IOS (tm) GS Software, Version 11.1(16)CA Synced to mainline version: 11.1(10.5) Copyright (c) 1986-1997 by cisco Systems, Inc. Compiled Thu 22-May-97 14:32

If your system lacks the required system software and microcode, contact a customer service representative for upgrade information.

PA-T3 Port Adapter LEDs

The PA-T3 has one status LED and six uplink port status LEDs (RCLK, FERF, OOF, AIS, RL, and LL) for the serial T3 port. (See Figure 2-1.)

Preparing for Installation 2-3

PA-T3 Port Adapter LEDs

Figure 2-1 LEDs on the PA-T3 Serial Port Adapter—Partial Front View

DS3 SERIAL

H10040

ENABLED

RCVR

XMTR

AIS

RCLK

OOF

FERF

LEDs

The PA-2T3has one status LED and six uplink port status LEDs (RCLK, FERF,OOF,AIS, RL, and LL) for each serial PA-T3 port. (See Figure 2-2.)

Figure 2-2 LEDs on the PA-2T3 Serial Port Adapter—Partial Front View

DS3 SERIAL

H10063

ENABLED

RCVR

XMTR

LEDs

AIS

RCLK

FERFRLRCLK

OOF

AIS

OOF

FERF

Table 2-2 describes the PA-T3’s LEDs. After system initialization, the Enabled LED goes on, indicating that the port adapter has been

enabled for operation. The following conditions must be met before the PA-T3 serial port adapter is enabled:

• The port adapter contains a valid microcode version that has been downloaded successfully.

• The port adapter is correctly connected to the VIP2 or Catalyst RSM/VIP2 (Cisco 7000 series

and Cisco 7500 series,or Catalyst 5000series switches) and the midplane and is receiving power in the Cisco router.

• The bus recognizes the port adapter.

If any of these conditions is not met or if the initialization fails for other reasons, the enabled LED does not go on.

Table 2-2 LEDs for Uplink Port Status LED Color State Description

ENABLED Green On Indicates that port adapter is ready for operation.

Uplink Port Status

RCLK Green On Indicates that a receive clock has been detected. FERF Yellow On Indicates that Framer detected Far End Receive

Failure. OOF Yellow On Indicates that Framer detected Out of Frame. AIS Yellow On Indicates that Framer detected Alarm Indication

Signal. RL Yellow On Indicates that port is in remote loopback mode.

2-4

PA-T3 Serial Port Adapter Installation and Configuration

LED Color State Description

ENABLED Green On Indicates that port adapter is ready for operation.

Uplink Port Status

LL Yellow On Indicates that port is in local loopback mode.

PA-T3 Receptacles and Cables

The PA-T3port adapter serial interface cable, which is a 75-ohm coaxial cable, connects your router to a T3 serial network. Serial cables conform to EIA/TIA-612 and EIA/TIA-613 speciﬁcations. The serial ports on the PA-T3 serial port adapter are considered to be data terminal equipment (DTE) devices.

On a single PA-T3serial port adapter, there are one or two T3 serial ports, each with two connectors (receive and transmit), where you connect the Cisco 75-ohm coaxial cable. The 75-ohm coaxial cable (Cisco part number CAB-ATM-DS3/E3) for the PA-T3 serial port adapter is available only from Cisco Systems; it is not available from outside commercial cable vendors.

The Cisco PA-T3 75-ohm coaxial cable (see Figure 2-3) is available only in 10-foot (3.05-meter) lengths. The typical maximum distance between stations for PA-T3 transmissions is 1300 feet (396 meters).

PA-T3 Receptacles and Cables

Figure 2-3 PA-T3 Serial Port Adapter Cable

75-ohm coaxial cabling

BNC plugBNC plug

H3399

You can test the data terminal equipment-to-data circuit-terminating equipment (DTE-to-DCE) cable connection by using the loopback dte command. See the “Using the loopback Command to Verify the Physical Interface” section on page 8-24 for more information.

Interoperability Guidelines for PA-T3 Serial Port Adapter DSUs

The PA-T3 serial port adapter supports several types of integrated DSUs. Table 2-3 lists the feature compatibilities of the PA-T3 serial port adapter DSUs.

Table 2-3 Feature Compatibilities of PA-T3 Serial Port Adapter DSUs

Full Rate

DSU

DL3100 Yes Yes Yes No Kentrox Yes Yes Larscom Yes Yes Yes No

1 MDL=Maintenance Digital Link. 2 PA-T3 serial port adapters support either scrambling or Kentrox subrate, not both at the same time.

Support

Scrambling Support

Subrate Support MDL

Yes

Support

Preparing for Installation 2-5

Safety Guidelines

Following are safety guidelines that you should follow when working with any equipment that connects to electrical power or telephone wiring.

Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before

you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Tosee translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.

Waarschuwing Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die

lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information (Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.

Varoitus Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, jokavoijohtaa ruumiinvammaan.

Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).

Attention Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation

pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d’avertissements ﬁgurant dans cette publication, consultez le document Regulatory Compliance and Safety Information (Conformité aux règlements et consignes de sécurité) qui accompagne cet appareil.

Warnung Dieses Warnsymbol bedeutet Gefahr. Sie beﬁnden sich in einer Situation, die zu einer

Körperverletzungführen könnte. Bevor Sie mit der Arbeit an irgendeinemGerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise ﬁnden Sie im Dokument Regulatory Compliance and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.

Avvertenza Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare

infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativiai circuiti elettrici edessereal corrente delle pratiche standard per la prevenzionedi incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che accompagna questo dispositivo.

Advarsel Dette varselsymbolet betyr fare. Du beﬁnner deg i en situasjon som kan føre til

personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriskekretser innebærer,samt gjøre degkjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene som ﬁnnes i denne publikasjonen, kan du se i dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og sikkerhetsinformasjon) som ble levert med denne enheten.

2-6

PA-T3 Serial Port Adapter Installation and Configuration

Aviso Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos

físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documentoRegulatoryCompliance and Safety Information (Informação deSegurançae Disposições Reguladoras) que acompanha este dispositivo.

¡Advertencia! Este símbolo de aviso signiﬁca peligro. Existe riesgo para su integridad física. Antes

de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevenciónde accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and Safety Information (Información sobre seguridad y conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.

Varning! Denna varningssymbol signalerar fara. Du beﬁnner dig i en situation som kan leda till

personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information (Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.

Electrical Equipment Guidelines

Follow these basic guidelines when working with any electrical equipment:

Electrical Equipment Guidelines

• Before beginning any procedures requiring access to the chassis interior, locate the emergency

power-off switch for the room in which you are working.

• Disconnect all power and external cables before moving a chassis.

• Do not work alone when potentially hazardous conditions exist and never assume that power has

been disconnected from a circuit; always check.

• Do not perform any action that creates a potential hazard to people or makes the equipment

unsafe. Carefully examine your work area for possible hazards such as moist ﬂoors, ungrounded power extension cables, and missing safety grounds.

Telephone Wiring Guidelines

Use the following guidelines when working with any equipment that is connected to telephone wiring or to other network cabling:

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations unless the jack is speciﬁcally designed for wet

locations.

• Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

Preparing for Installation 2-7

FCC Class A Compliance

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are improperlyhandled,resultsincompleteorintermittentfailures.Portadaptersandprocessormodules consist of printed circuit boards that are ﬁxed in metal carriers. Electromagnetic interference (EMI) shielding and connectors are integral components of the carrier. Although the metal carrier helps to protect the board from ESD, use a preventive antistatic strap during handling.

Following are guidelines for preventing ESD damage:

• Always use an ESD wrist or ankle strap and ensure that it makes good skin contact.

• Connect the equipment end of the strap to an unﬁnished chassis surface.

• When installing a component, use any available ejector levers or captive installation screws to

properly seat the bus connectors in the backplane or midplane. These devices prevent accidental removal, provide proper grounding for the system, and help to ensure that bus connectors are properly seated.

• When removing a component, use any available ejector levers or captive installation screws to

release the bus connectors from the backplane or midplane.

• Handle carriers by available handles or edges only; avoid touching the printed circuit boards or

connectors.

• Place a removed board component-side-up on an antistatic surface or in a static shielding

container. If you plan to return the component to the factory, immediately place it in a static shielding container.

• Avoid contact between the printed circuit boards and clothing. The wrist strap only protects

components from ESD voltages on the body; ESD voltages on clothing can still cause damage.

• Never attempt to remove the printed circuit board from the metal carrier.

Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should

be between 1 and 10 megohms (Mohm).

FCC Class A Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:

2-8

• Turn the television or radio antenna until the interference stops.

• Move the equipment to one side or the other of the television or radio.

• Move the equipment farther away from the television or radio.

PA-T3 Serial Port Adapter Installation and Configuration

FCC Class A Compliance

• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That

is, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.)

Note The PA-T3 serial port adapter has been designed to meet these requirements. Modiﬁcations

to this product that are not authorized by Cisco Systems, Inc., could void the various approvals and negate your authority to operate the product.

Preparing for Installation 2-9

FCC Class A Compliance

2-10

PA-T3 Serial Port Adapter Installation and Configuration

CHAPTER

VIP2 and the PA-T3 Port Adapter

This chapter provides information on the PA-T3 port adapter and its use on the VIP2 in Cisco 7000 series and Cisco 7500 series routers. This chapter contains the following sections:

• Overview, page 3-1

• Removing a Port Adapter, page 3-4

• Installing a Port Adapter, page 3-5

Overview

The PA-T3 serial port adapter is used on the VIP2 in Cisco 7000 series and Cisco 7500 series routers and can be installed in either port adapter slot 0 or slot 1 on the VIP2 motherboard.

Note You can have up to three T3 serial interfaces on a VIP2 motherboard. Cisco recommends a

conﬁguration of one PA-T3 serial port adapter (with one T3 serial interface) and one PA-2T3 serial port adapter (with two serial interfaces) for a total of three T3 serial interfaces per VIP2.

Figure 3-1 shows two one-port PA-T3 serial port adapters installed in port adapter slot 0 and slot 1 on a VIP2-15 or VIP2-40.

VIP2 and the PA-T3 Port Adapter 3-1

Overview

Figure 3-1 VIP2-15 or VIP2-40 with One-Port PA-T3 Serial Port Adapters in Port Adapter

Slots 0 and 1

SRAM

DIMM U5

PA-T3 in port

adapter slot 0

Port adapter handles not shown

Bus connector

ENABLED

CPU

Boot ROM

DRAM

SIMMs

PA-T3 in port adapter slot 1

RCLK

DS3 SERIAL

24335

FERF

RCLK

FERF

RCVR

XMTR

AIS

OOF

DS3 SERIAL

ENABLED

RCVR

RCLK

FERF

XMTR

AIS

OOF

AIS

OOF

Note Port adapters have a handle attached, but this handle is not shown to allow a full viewof detail

on each port adapter’s faceplate.

3-2

PA-T3 Serial Port Adapter Installation and Configuration

Figure 3-2 shows two one-port PA-T3 port adapters installed in port adapter slots 0 and 1 on a VIP2-50.

Figure 3-2 VIP2-50 with One-Port PA-T3 Port Adapters in Port Adapter Slots 0 and 1

Overview

SRAM

daughter

card

port adapter

PA-T3 in

slot 0

Bus connector

Boot ROM

RCLK

FERF

ENABLED

RCVR

XMTR

AIS

OOF

Port adapter handles not shown

DS3 SERIAL

CPU

ENABLED

SDRAM DIMM

PA-T3 in port adapter slot 1

RCLK

DS3 SERIAL

24336

FERF

RCLK

FERF

RCVR

XMTR

AIS

OOF

AIS

OOF

Depending on the circumstances, you might need to install a new port adapter on a VIP2 motherboard or replace a failed port adapter in the ﬁeld. In either case, you need a number 1 Phillips screwdriver, an antistatic mat on which you can place the removed interface processor, and an antistatic container in which you can place a failed port adapter for shipment back to the factory.

Note The PA-T3 serial port adapter can be installed on a VIP2-15, VIP2-20, or VIP2-40

motherboard; however, installation on the VIP2-10 is not recommended.

Caution To prevent system problems, do not remove port adapters from the VIP2 motherboard or

attempt to install other port adapters on the VIP2 motherboard while the system is operating. To install or replace port adapters, ﬁrst remove the VIP2 from its interface processor slot.

Note Each port adapter circuit board is mounted to a metal carrier and is sensitive to ESD damage.

The following procedures should be performed by a Cisco-certiﬁed service provider only. The VIP2 supports online insertion and removal (OIR), but individual port adapters do not. To replace port adapters, you must ﬁrst remove the VIP2 from the chassis and then install or replace port adapters as required. If a blank port adapter is installed on the VIP2 in which you want to install a new port adapter, you must ﬁrst remove the VIP2 from the chassis and then remove the blank port adapter.

VIP2 and the PA-T3 Port Adapter 3-3

Removing a Port Adapter

When only one port adapter is installed on a VIP2, a blank port adapter must ﬁll the empty slot. This allows the VIP2 and router chassis to conform to electromagnetic interference (EMI) emissions requirements, and encourages air to ﬂow through the chassis properly. If you plan to install a new port adapter, you must ﬁrst remove the blank port adapter.

Removing a Port Adapter

Following is the standard procedure for removing any type of port adapter on the VIP2:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Note If you want to install a new port adapter on a VIP2 with a single port adapter, you

must ﬁrst remove the blank port adapter from the port adapter slot in which you want to install the new port adapter.

Step 2 For a new port adapter installation or a port adapter replacement, disconnect any interface

cables from the ports on the front of the port adapter, although this is not required. You can remove VIP2s with cables attached; however, we do not recommend it.

Step 3 To remove the VIP2 from the chassis, follow the steps in the section “Removing a VIP2”

in the conﬁguration note Second-Generation Versatile Interface Processor (VIP2) Installation and Conﬁguration, which shipped with your VIP2. Place the removed VIP2

on an antistatic mat.

Step 4 Locate the screw at the rear of the port adapter (or blank port adapter) to be replaced.

(See Figure 3-3.) This screw secures the port adapter (or blank port adapter) to its slot.

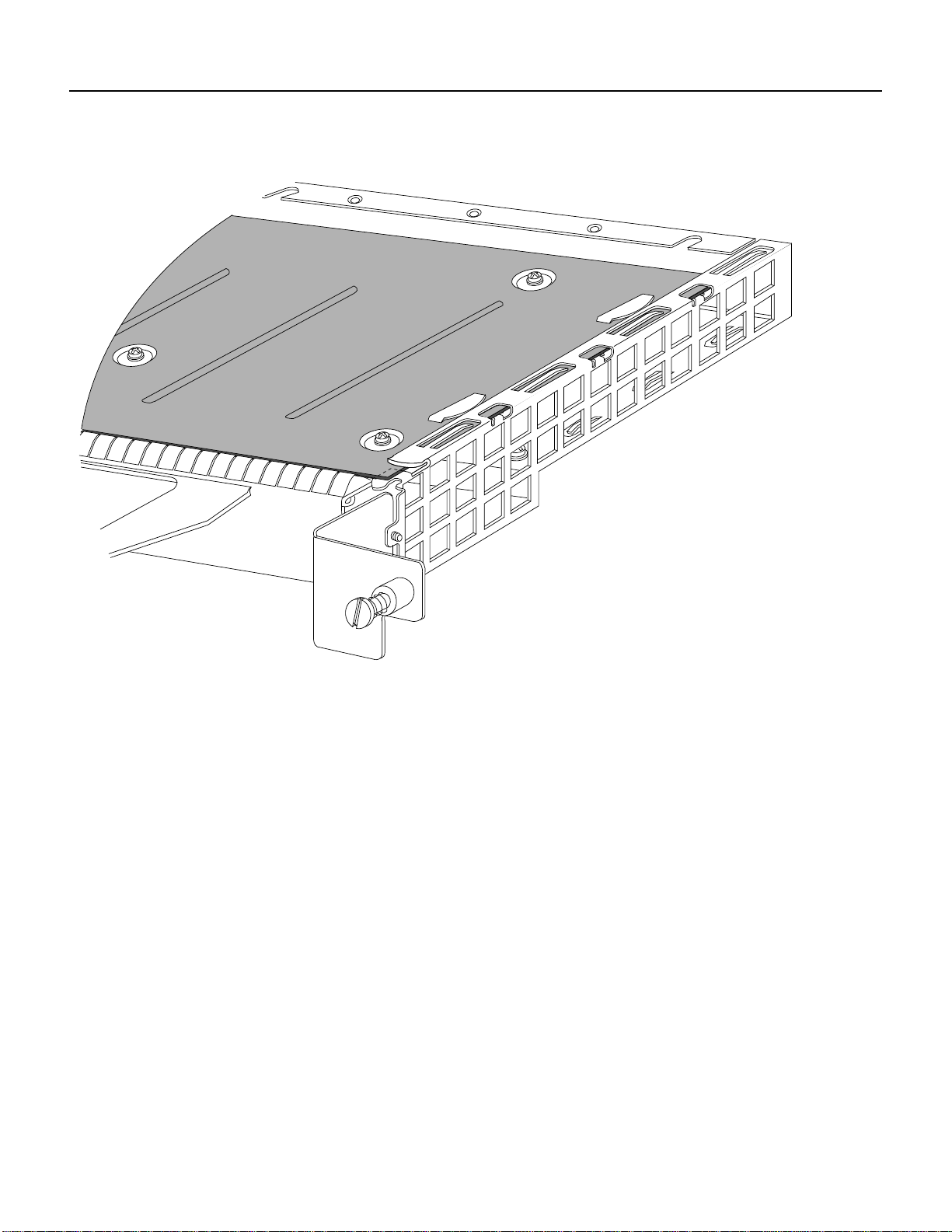

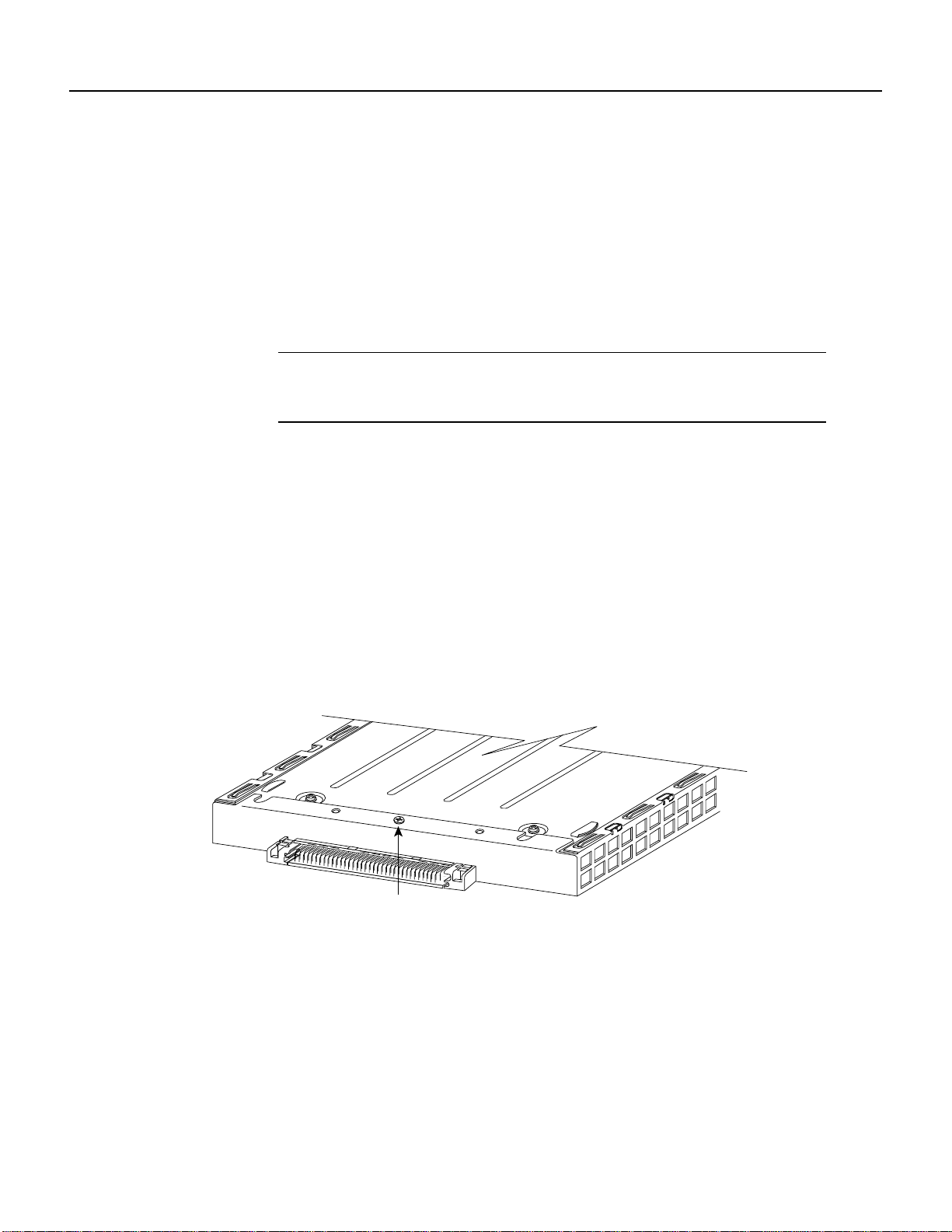

Figure 3-3 Location of Port Adapter Screw—Partial Port Adapter View

H3148

Screw

Step 5 Step 6 With the screw removed, grasp the handle on the front of the port adapter (or blank port

Remove the screw that secures the port adapter (or blank port adapter).

adapter) and carefully pull it out of its slot, away from the edge connector at the rear of the slot. (See Figure 3-4.)

3-4

PA-T3 Serial Port Adapter Installation and Configuration

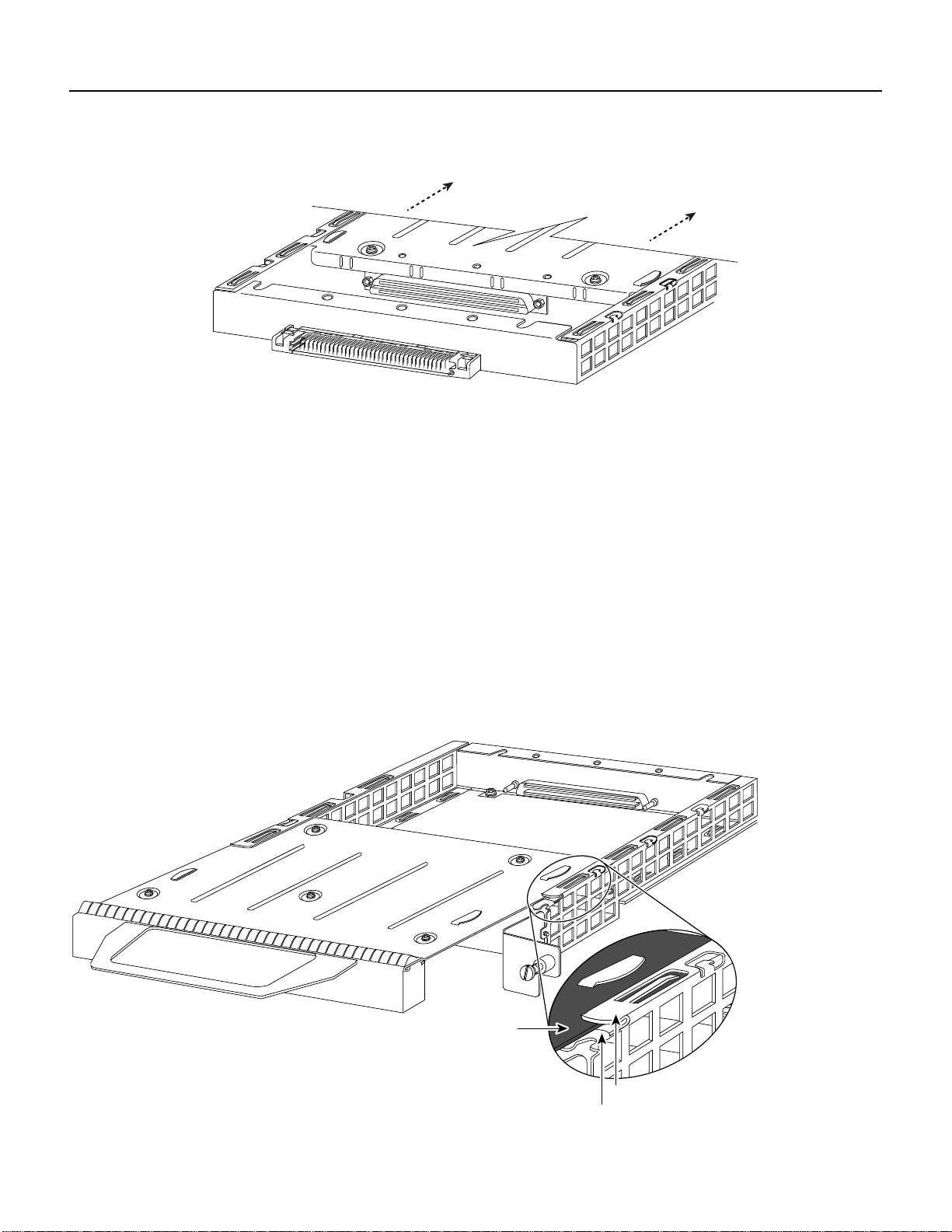

Figure 3-4 Pulling a Port Adapter Out of a Slot—Partial Port Adapter View

Installing a Port Adapter

H3149

Step 7

If you removed a port adapter, place it in an antistatic container for safe storage or shipment back to the factory.If you removed a blank port adapter, no special handling is required; however, store the blank port adapter for potential future use.

This completes the procedure for removing a new port adapter on a VIP2.

Installing a Port Adapter

Following is the standard procedure for installing a port adapter on the VIP2.

Step 1 Remove the new port adapter from its antistatic container and position it at the opening

of the slot.

Step 2 Carefully align the port adapter carrier between the upper and the lower edges of the port

adapter slot, as shown in Figure 3-5.

Figure 3-5 Aligning a Port Adapter in a Port Adapter Slot

H3150

Carrier

Upper edge

Lower edge

VIP2 and the PA-T3 Port Adapter 3-5

Installing a Port Adapter

Caution To prevent jamming the carrier between the upper and the lower edges of the port adapter

slot and to ensure that the edge connector at the rear of the port adapter mates with the connector at the rear of the port adapter slot, make certain that the leading edges of the carrier are between the upper and the lower slot edges, as shown in the cutaway in Figure 3-5.

Caution To ensure a positive ground attachment between the port adapter carrier and the VIP2

motherboard and port adapter slot, and to ensure that the connectors at the rear of the port adapter and slot mate properly, position the carrier between the upper and the lower slot edges, as shown in Figure 3-5.

Step 3 Carefully slide the new port adapter into the port adapter slot until the connector on the

port adapter is completely seated in the connector on the motherboard. (See Figure 3-6.)

Figure 3-6 Port Adapter Installed in a Port Adapter Slot—Partial Port Adapter View

H3152

Step 4 Replace the screw in the rear of the port adapter slot. (See Figure 3-3 for its location.) Do

not overtighten this screw.

Step 5 Reinstall the VIP2 in the system. (Follow the steps in the section “Installing a VIP2” in

the conﬁguration note Second-Generation Versatile Interface Processor [VIP2] Installation and Conﬁguration, which shipped with your VIP2.)

3-6

Step 6 If the interface cables have been disconnected, reconnect the interface cables to the port

adapters.

PA-T3 Serial Port Adapter Installation and Configuration

Installing a Port Adapter

This completes the procedure for installing a port adapter on a VIP2. Proceed to Chapter 8, “Conﬁguring the PA-T3 Interfaces,” for information on how to conﬁgure your port adapter interfaces.

VIP2 and the PA-T3 Port Adapter 3-7

Installing a Port Adapter

3-8

PA-T3 Serial Port Adapter Installation and Configuration

CHAPTER

Catalyst RSM/VIP2 and the PA-T3 Port Adapter

This chapter provides information on the PA-T3 serial port adapter and its use on the Catalyst RSM/VIP2 in the Catalyst 5000 series switches. This chapter contains the following sections:

• Overview, page 4-1

• Removing a Port Adapter, page 4-3

• Installing a Port Adapter, page 4-4

Overview

ThePA-T3 serial port adapter is used on the Catalyst RSM/VIP2 in the Catalyst 5000series switches and can be installed in either port adapter slot 0 or slot 1 on the Catalyst RSM/VIP2 motherboard.

Note You can have up to three T3 serial interfaces on a Catalyst RSM/VIP2 motherboard. Cisco

recommends a conﬁguration of one PA-T3 serial port adapter (with one T3 serial interface) and one PA-2T3 serial port adapter (with two serial interfaces) for a total of three T3 serial interfaces per Catalyst RSM/VIP2.

Figure 4-1 shows two one-port PA-T3 serial port adapters installed in port adapter slot 0 and slot 1 on a Catalyst RSM/VIP2-15 or Catalyst RSM/VIP2-40.

Catalyst RSM/VIP2 and the PA-T3 Port Adapter 4-1

Overview

Figure 4-1 Catalyst RSM/VIP2-15 or Catalyst RSM/VIP2-40 with One-Port PA-T3 Serial

Port Adapters in Port Adapter Slots 0 and 1

Standoff

Backplane

bus connector

mounting

hole

Ribbon cables

Standoff

mounting

holes

PA-T3 in port

adapter slot 0

RCLK

FERF

ENABLED

RCVR

XMTR

AIS

OOF

DS3 SERIAL

ENABLED

RCVR

RCLK

FERF

XMTR

AIS

OOF

Standoff mounting holes

PA-T3 in port adapter slot 1

DS3 SERIAL

25704

Port adapter handles not shown

Note Port adapters have a handle attached, but this handle is not shown to allow a full viewof detail

on each port adapter’s faceplate.

Depending on the circumstances, you might need to install a new port adapter on a Catalyst RSM/VIP2 motherboard or replace a failed port adapter in the ﬁeld. In either case, you need a number 1 Phillips screwdriver, an antistatic mat on which you can place the removed interface processor,and an antistatic container in which you can place a failed port adapter for shipment back to the factory.

4-2

Caution To prevent system problems, do not remove port adapters from the Catalyst RSM/VIP2

motherboard or attempt to install other port adapters on the Catalyst RSM/VIP2 motherboard while the system is operating. Toinstall or replace port adapters, ﬁrst remove the Catalyst RSM/VIP2 from the chassis.

Note Each port adapter circuit board is mounted to a metal carrier and is sensitive to ESD damage.

The following procedures should be performed by a Cisco-certiﬁed service provider only. The Catalyst RSM/VIP2 supports online insertion and removal (OIR), but individual port adapters do not. To replace port adapters, you must ﬁrst remove the Catalyst RSM/VIP2 from the chassis and then install or replace port adapters as required. If a blank port adapter is installed on the Catalyst RSM/VIP2 in which you want to install a new port adapter, you must ﬁrst remove the Catalyst RSM/VIP2 from the chassis and then remove the blank port adapter.

PA-T3 Serial Port Adapter Installation and Configuration

When only one port adapter is installed on a Catalyst RSM/VIP2, you must use a blank port adapter to ﬁll the empty slot. This allows the Catalyst RSM/VIP2 and the Catalyst RSM/VIP2 chassis to conform to electromagnetic interference (EMI) emissions requirements and encourages air to ﬂow through the chassis properly.If you plan toinstall a new port adapter,you mustﬁrst removethe blank port adapter.

Removing a Port Adapter

Following is the standard procedure for removing any type of port adapter on the Catalyst RSM/VIP2:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Note If you want to install a new port adapter on a Catalyst RSM/VIP2 with a single port

adapter, you must ﬁrst remove the blank port adapter from the port adapter slot in which you want to install the new port adapter.

Step 2 For a new port adapter installation or a port adapter replacement, disconnect any interface

cables from the ports on the front of the port adapter, although this is not required. You canremovethe Catalyst RSM/VIP2 with cables attached; however,we do not recommend it.

Removing a Port Adapter

Step 3 To remove the Catalyst RSM/VIP2 from the chassis, follow the steps in the Route Switch

Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note (Document Number 78-4780-01) which shipped with your Catalyst RSM/VIP2. Place the removed Catalyst RSM/VIP2 on an antistatic mat.

Step 4 Locate the screw at the rear of the port adapter (or blank port adapter) to be replaced.

(See Figure 4-2.) This screw secures the port adapter (or blank port adapter) to its slot.

Figure 4-2 Location of Port Adapter Screw—Partial Port Adapter View

H3148

Screw

Step 5 Step 6 With the screw removed, grasp the handle on the front of the port adapter (or blank port

Remove the screw that secures the port adapter (or blank port adapter).

adapter) and carefully pull it out of its slot, away from the edge connector at the rear of the slot. (See Figure 4-3.)

Catalyst RSM/VIP2 and the PA-T3 Port Adapter 4-3

Installing a Port Adapter

Figure 4-3 Pulling a Port Adapter Out of a Slot—Partial Port Adapter View

H3149

Step 7

This completes the procedure for removing a new port adapter on a Catalyst RSM/VIP2.

Installing a Port Adapter

Following is the standard procedure for installing a port adapter on the Catalyst RSM/VIP2.

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface.

Note If you want to install a new port adapter on a Catalyst RSM/VIP2 with a single port

adapter, you must ﬁrst remove the blank port adapter from the port adapter slot in which you want to install the new port adapter.

Step 2 For a new port adapter installation or a port adapter replacement, disconnect any interface

cables from the ports on the front of the port adapter, although this is not required. You canremovethe Catalyst RSM/VIP2 with cables attached; however,we do not recommend it.

Step 1 Remove the new port adapter from its antistatic container and position it at the opening

of the slot.

4-4

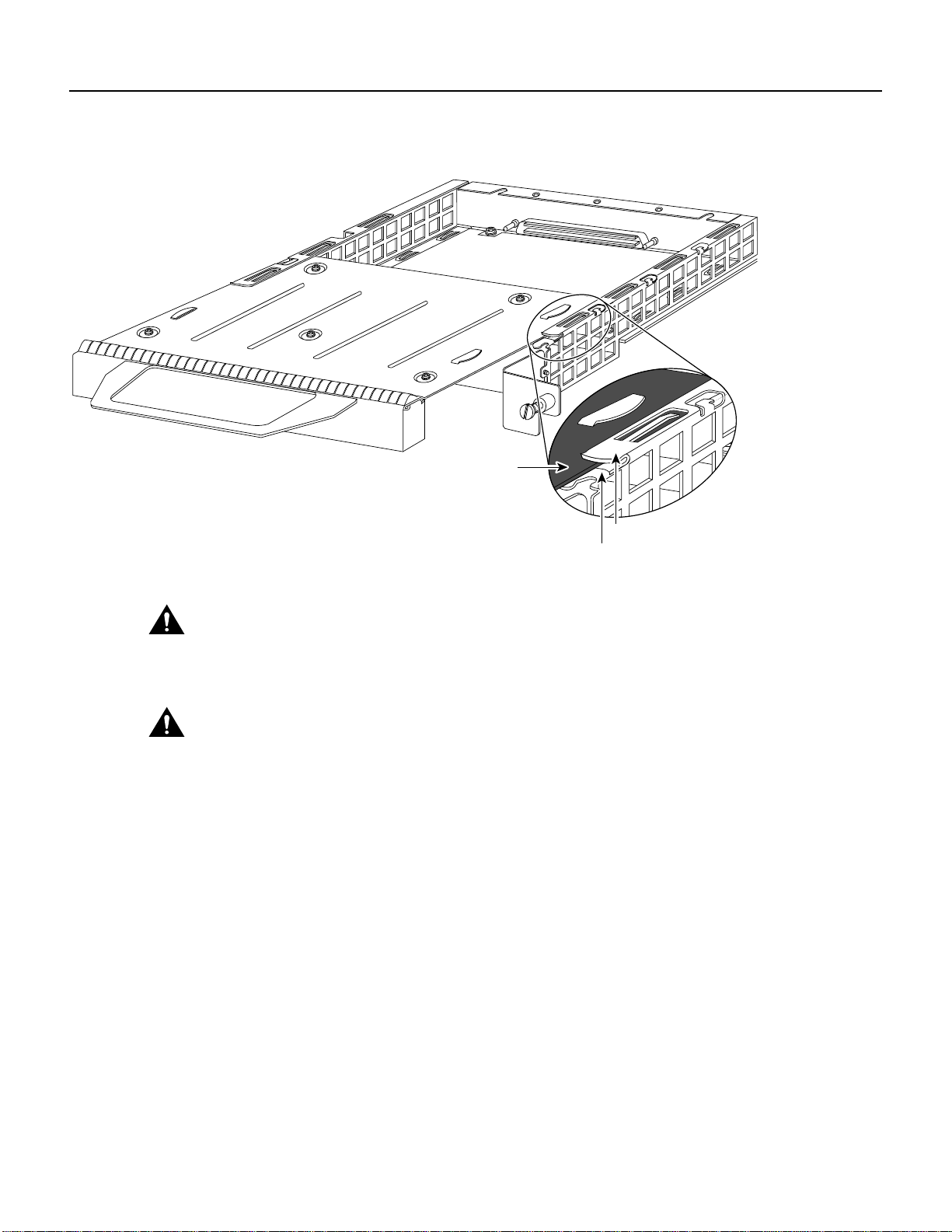

Step 2 Carefully align the port adapter carrier between the upper and the lower edges of the port

adapter slot, as shown in Figure 4-4.

PA-T3 Serial Port Adapter Installation and Configuration

Figure 4-4 Aligning a Port Adapter in a Port Adapter Slot

Installing a Port Adapter

H3150

Carrier

Upper edge

Lower edge

Caution

To prevent jamming the carrier between the upper and the lower edges of the port adapter slot and to ensure that the edge connector at the rear of the port adapter mates with the connector at the rear of the port adapter slot, make certain that the leading edges of the carrier are between the upper and the lower slot edges, as shown in the cutaway in Figure 4-4.

Caution To ensure a positive ground attachment between the port adapter carrier and the Catalyst

RSM/VIP2 motherboard and port adapter slot, and to ensure that the connectors at the rear of the port adapter and slot mate properly, position the carrier between the upper and the lower slot edges, as shown in Figure 4-4.

Step 3 Carefully slide the new port adapter into the port adapter slot until the connector on the

port adapter is completely seated in the connector on the motherboard. (See Figure 4-5.)

Catalyst RSM/VIP2 and the PA-T3 Port Adapter 4-5

Installing a Port Adapter

Figure 4-5 Installing a Port Adapter in a Port Adapter Slot—Partial Port Adapter View

H3152

Step 4 Replace the screw in the rear of the port adapter slot. (See Figure 4-2 for its location.) Do

not overtighten this screw.

Step 5 To reinstall the Catalyst RSM/VIP2 in the system, follow the steps in the Route Switch

Module Catalyst VIP2-15 and VIP2-40 Installation and Conﬁguration Note (Document

Number 78-4780-01) which shipped with your Catalyst RSM/VIP2 .

Step 6 If the interface cables have been disconnected, reconnect the interface cables to the port

adapters.

This completes the procedure for installing a port adapter on a Catalyst RSM/VIP2. Proceed to Chapter 8, “Conﬁguring the PA-T3 Interfaces,” for information on how to conﬁgure your port adapter interfaces.

4-6

PA-T3 Serial Port Adapter Installation and Configuration

CHAPTER

Cisco 7200 Series and the PA-T3 Port Adapter

This chapter provides information on the PA-T3port adapter and its use in Cisco 7200 series routers. This chapter contains the following sections:

• Overview, page 5-1

• Removing a Port Adapter, page 5-2

• Installing a Port Adapter, page 5-3

Overview

The PA-T3serial port adapter can be installed in any available port adapter slot in Cisco 7200 series routers (which consist of the two-slot Cisco 7202, four-slot Cisco 7204 and Cisco 7204VXR, and six-slot Cisco 7206 and Cisco 7206VXR). Figure 5-1 shows a one-port PA-T3 serial port adapter installed in port adapter slot 3 of a Cisco 7206.

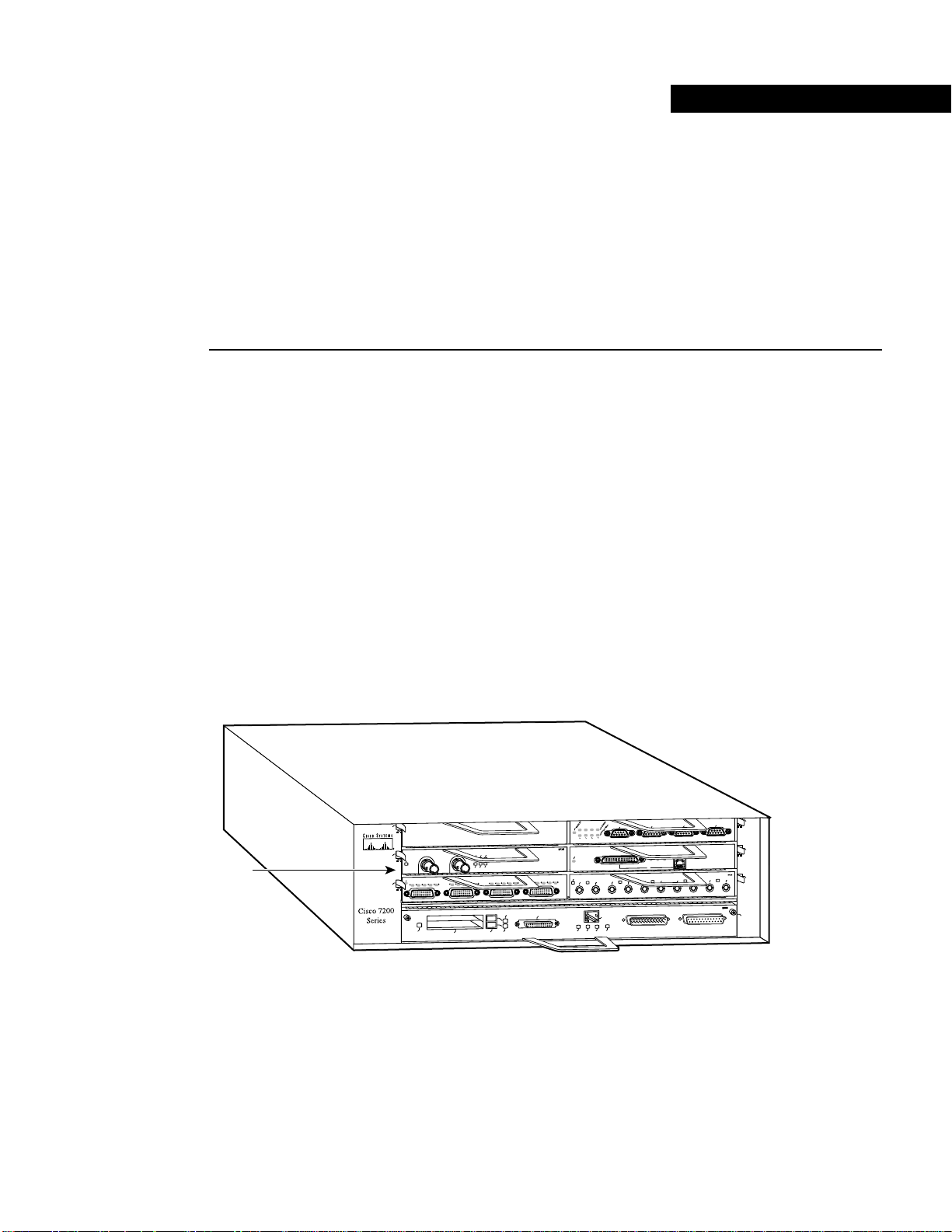

Figure 5-1 Cisco 7206 with a PA-T3 Serial Port Adapter in Port Adapter Slot 3

TOKEN RING

ENABLED

FAST ETHERNET

ETHERNET-10BFL

H10042

RJ45

LINK

MII

RJ-45

1O PWR

LINK

FAST ETHERNET INPUT/OUTPUT CONTROLLER

PA-T3 port adapter

FERF

ENABLED

RCLK

XMTR

RCVR

AIS

OOF

EJECT

PCMCIA

1DS3 SERIAL

FAST SERIAL

SLOT 1

FE MII

SLOT 0

MII

Depending on your circumstances, you might need to install a new port adapter in a Cisco 7200 series router or replace a failed port adapter in the ﬁeld. In either case, no tools are necessary; all port adapters available for the Cisco 7200 series connect directly to the router midplane and are locked into position by a port adapter lever. When removing and replacing a port adapter, you need an antistaticmat onto which you can place a removed port adapter and an antistatic container intowhich you can place a failed port adapter for shipment back to the factory.

Cisco 7200 Series and the PA-T3 Port Adapter 5-1

Removing a Port Adapter

Note The Cisco 7200 series routers support online insertion and removal; therefore, you do not

have to power down the Cisco 7200 series routers when removing and replacing a port adapter.

When a port adapter slot is not in use, a blank port adapter must ﬁll the empty slot to allowthe router to conform to EMI emissions requirements and to allow proper airﬂow across the port adapters. If you plan to install a new port adapter in a slot that is not in use, you must ﬁrst remove a blank port adapter.

Removing a Port Adapter

Following is the procedure for removing a port adapter from a Cisco 7200 series router:

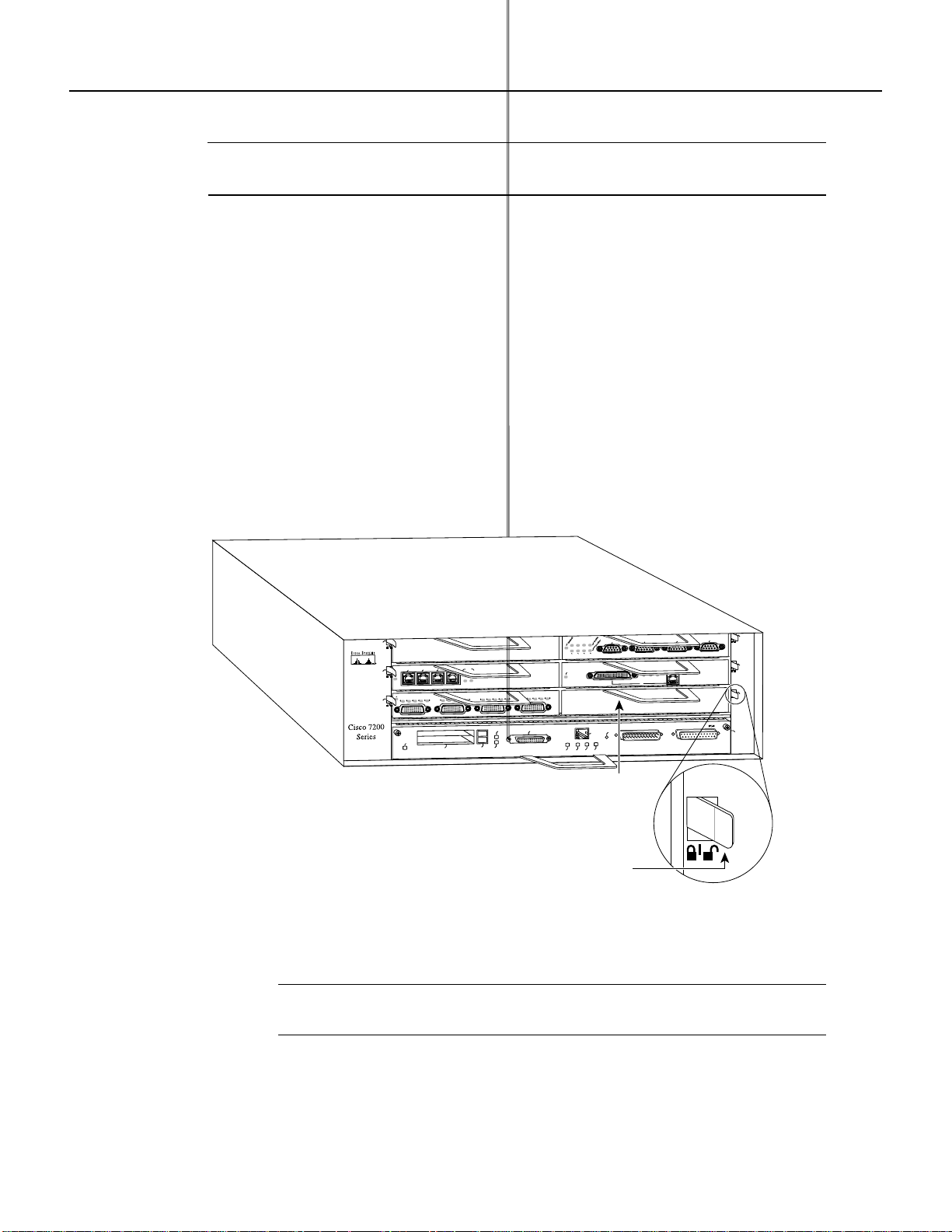

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 2 Place the port adapter lever for the desired port adapter slot in the unlocked position. The

port adapter lever remains in the unlocked position. (See Figure 5-2.)

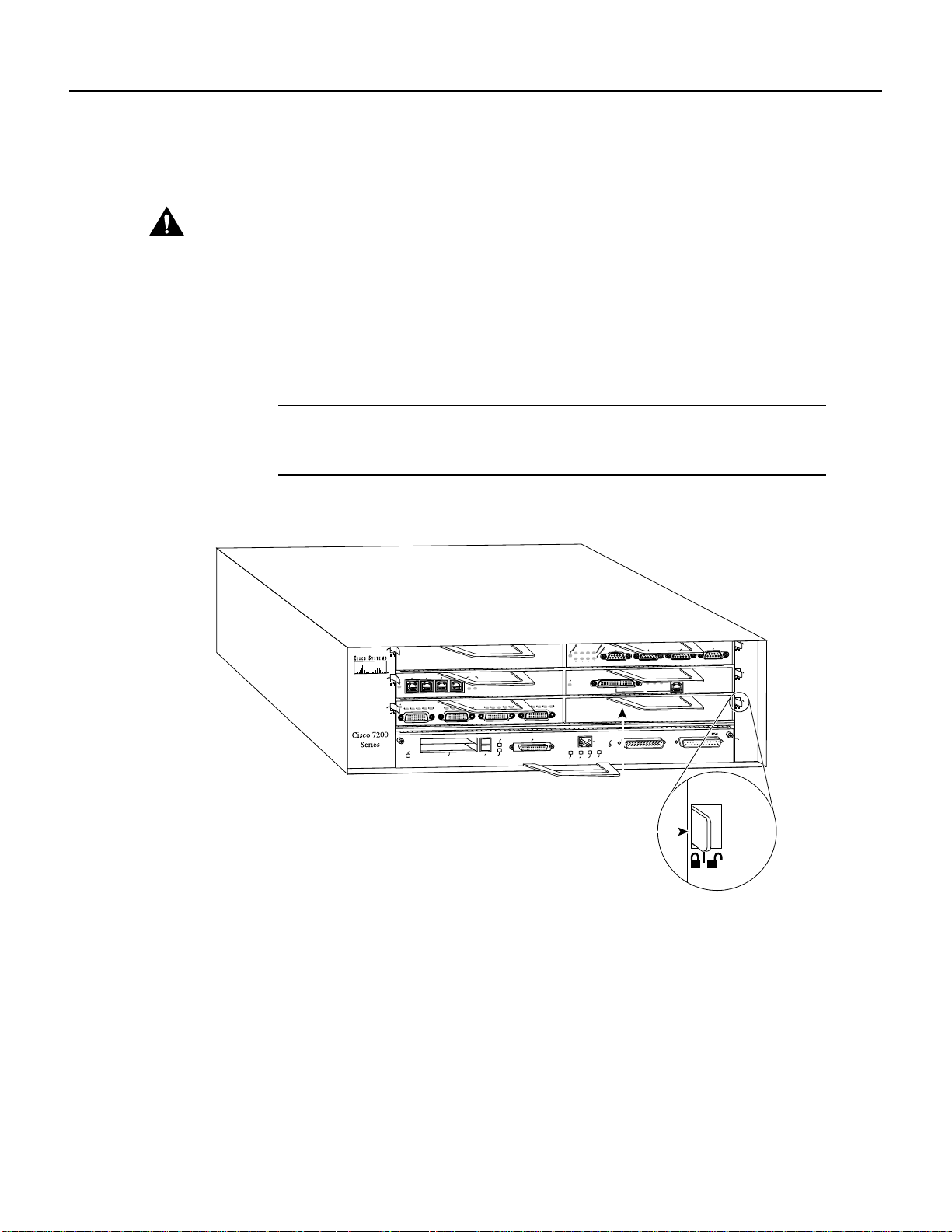

Figure 5-2 Placing the Port Adapter Lever in the Unlocked Position—Cisco 7206 Shown

TOKEN RING

ENABLED

FAST ETHERNET

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

CPU RESET

RJ-45

RJ45

1O PWR

LINK

H6596

ENABLED

LINK

EJECT

PCMCIA

ETHERNET 10BT

FAST SERIAL

FE MII

SLOT 1

MII

SLOT 0

Port adapter

handle

Port adapter Note: This adapter removal applies to any port or service

lever (unlocked

position)

adapter.

Step 3 Grasp the handle on the port adapter and pull the port adapter from the midplane, about

halfway out of its slot. If you are removing a blank port adapter, pull the blank port adapter completely out of the chassis slot.

Note As you disengage the port adapter from the router midplane, OIR administratively

shuts down all active interfaces on the port adapter.

Step 4 With the port adapter halfway out of the slot, disconnect all cables from the port adapter.

5-2

Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

PA-T3 Serial Port Adapter Installation and Configuration

Installing a Port Adapter

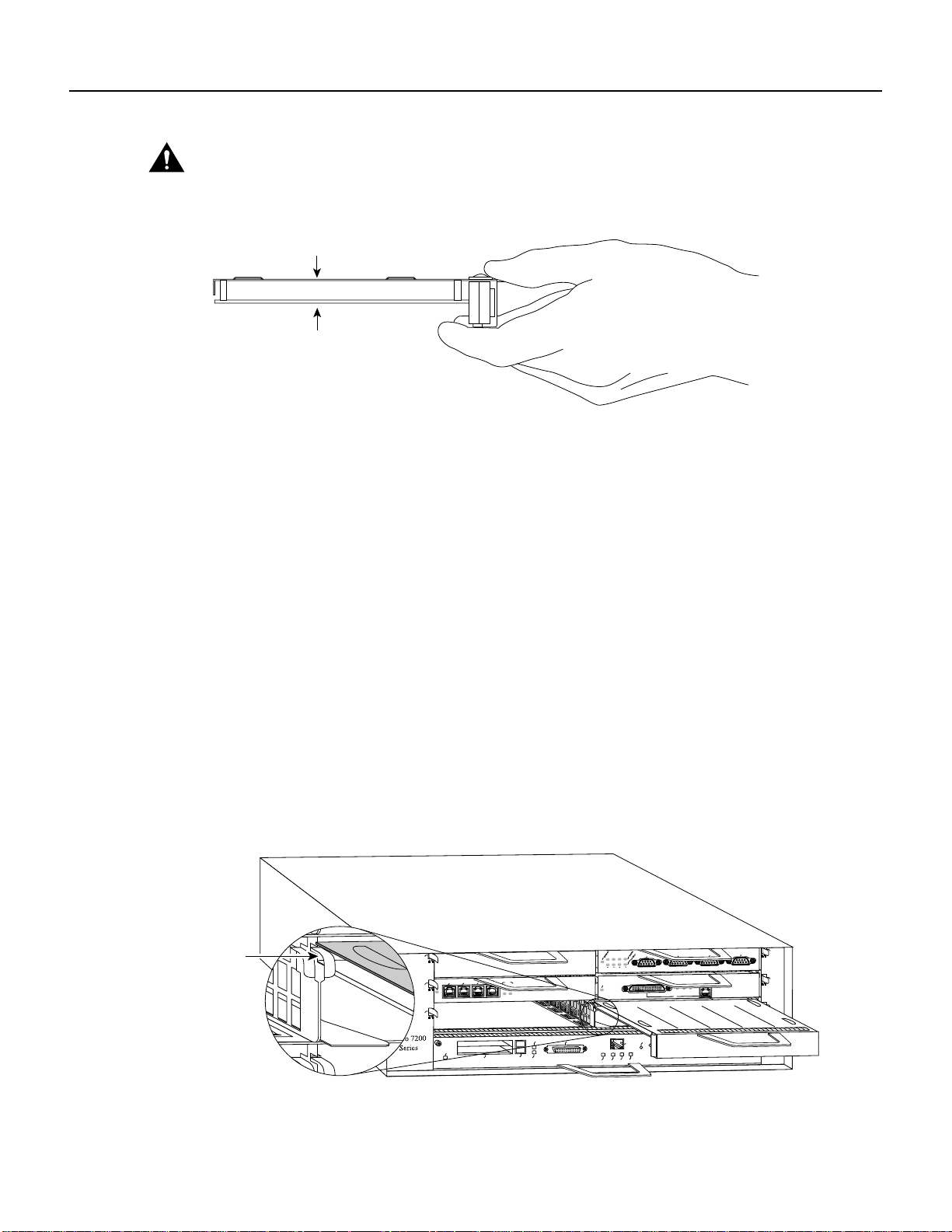

Caution Always handle the port adapter by the carrier edges and handle; never touch the port adapter’s

components or connector pins. (See Figure 5-3.)

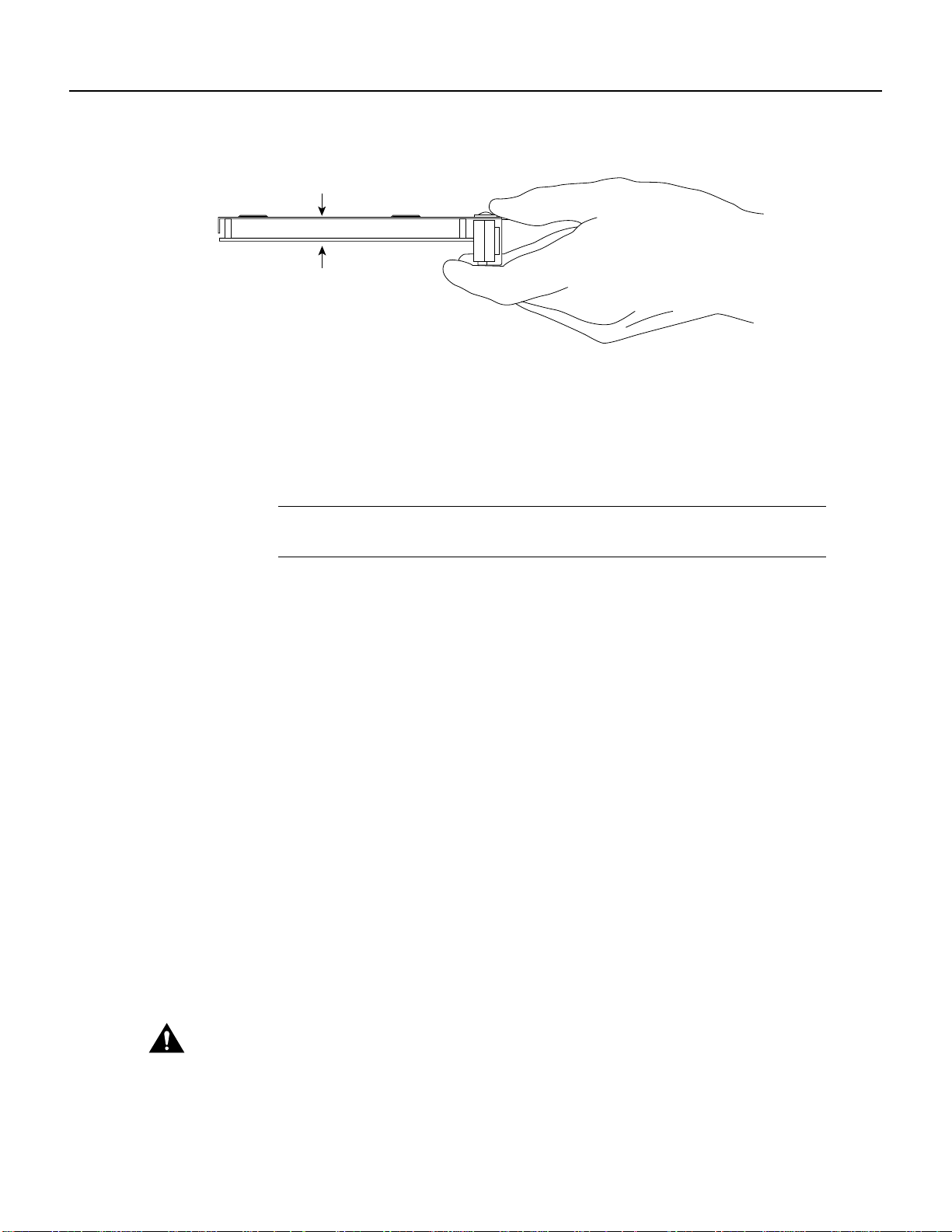

Figure 5-3 Handling a Port Adapter

Metal carrier

Printed circuit board

H6420

Step 6

Place the port adapter on an antistatic surface with its components facing upward, or in a static shielding bag. If the port adapter will be returned to the factory, immediately place it in a static shielding bag.

This completes the procedure for removing a port adapter from a Cisco 7200 series router.

Installing a Port Adapter

Following is the procedure for installing a new port adapter in a Cisco 7200 series router:

Step 1 Remove the new port adapter from its antistatic container and position it at the opening

of the slot. (See Figure 5-4.)

Step 2 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 3 Use both hands to grasp the port adapter by its metal carrier edges and position the port

adapter so that its components are downward. (See Figure 5-3.)

Step 4 Align the left and right edge of the port adapter metal carrier between the guides in the

port adapter slot. (See Figure 5-4.)

Figure 5-4 Aligning the Port Adapter Metal Carrier Between the Slot

Guides—Cisco 7206 Shown

Slot guide

TOKEN RING

ENABLED

FAST ETHERNET

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

CPU RESET

RJ-45

RJ45

1O PWR

LINK

H6597

ENABLED

LINK

EJECT

PCMCIA

ETHERNET 10BT

FE MII

SLOT 1

MII

SLOT 0

Note: This adapter alignment applies to any port or service adapter.

Cisco 7200 Series and the PA-T3 Port Adapter 5-3

Installing a Port Adapter

Step 5 With the metal carrier aligned in the slot guides, gently slide the port adapter halfway into

Caution Do not slide the port adapter all the way into the slot until you have connected all required cables.

Trying to do so disrupts normal operation of the router.

Step 6 With the port adapter halfway in the slot, connect all required cables to the port adapter. Step 7 After connecting all required cables, carefully slide the port adapter all the way into the

Step 8 After seating the port adapter in the router midplane, move the port adapter lever to the

Figure 5-5 Placing the Port Adapter Lever in the Locked Position—Cisco 7206 Shown

the slot.

slot until the port adapter is seated in the router midplane.

locked position. Figure 5-5 shows the port adapter lever in the locked position.

Note If the port adapter lever does not move to the locked position, the port adapter is

not completely seated in the midplane. Carefully pull the port adapter halfway out of the slot, reinsert it, and move the port adapter lever to the locked position.

TOKEN RING

ENABLED

FAST ETHERNET

RJ45

LINK

MII

FAST ETHERNET INPUT/OUTPUT CONTROLLER

CPU RESET

RJ-45

RJ45

1O PWR

LINK

H6747

ENABLED

LINK

EJECT

PCMCIA

SLOT 0

ETHERNET 10BT

FAST SERIAL

FE MII

SLOT 1

MII

Port adapter

handle

Port adapter

Note: This adapter installation applies to any port or service

lever (locked

position)

adapter.

This completes the procedure for installing a new port adapter in a Cisco 7200 series router.Proceed to Chapter 8, “Conﬁguring the PA-T3 Interfaces,” for information on how to conﬁgure your port adapter interfaces.

5-4

PA-T3 Serial Port Adapter Installation and Configuration

CHAPTER

Cisco uBR7200 Series and the PA-T3 Port Adapter

This chapter provides information on the PA-T3port adapter and its use in the Cisco uBR7200 series universal broadband routers. This chapter includes the following sections:

• Overview, page 6-1

• Removing a Port Adapter, page 6-2

• Installing a Port Adapter, page 6-4

Overview

The PA-T3 port adapter can be installed in any of the available port adapter slots in the Cisco uBR7200 series routers. Figure 6-1 showsa PA-T3port adapter installed in port adapter slot 2 of a Cisco uBR7200 series router.

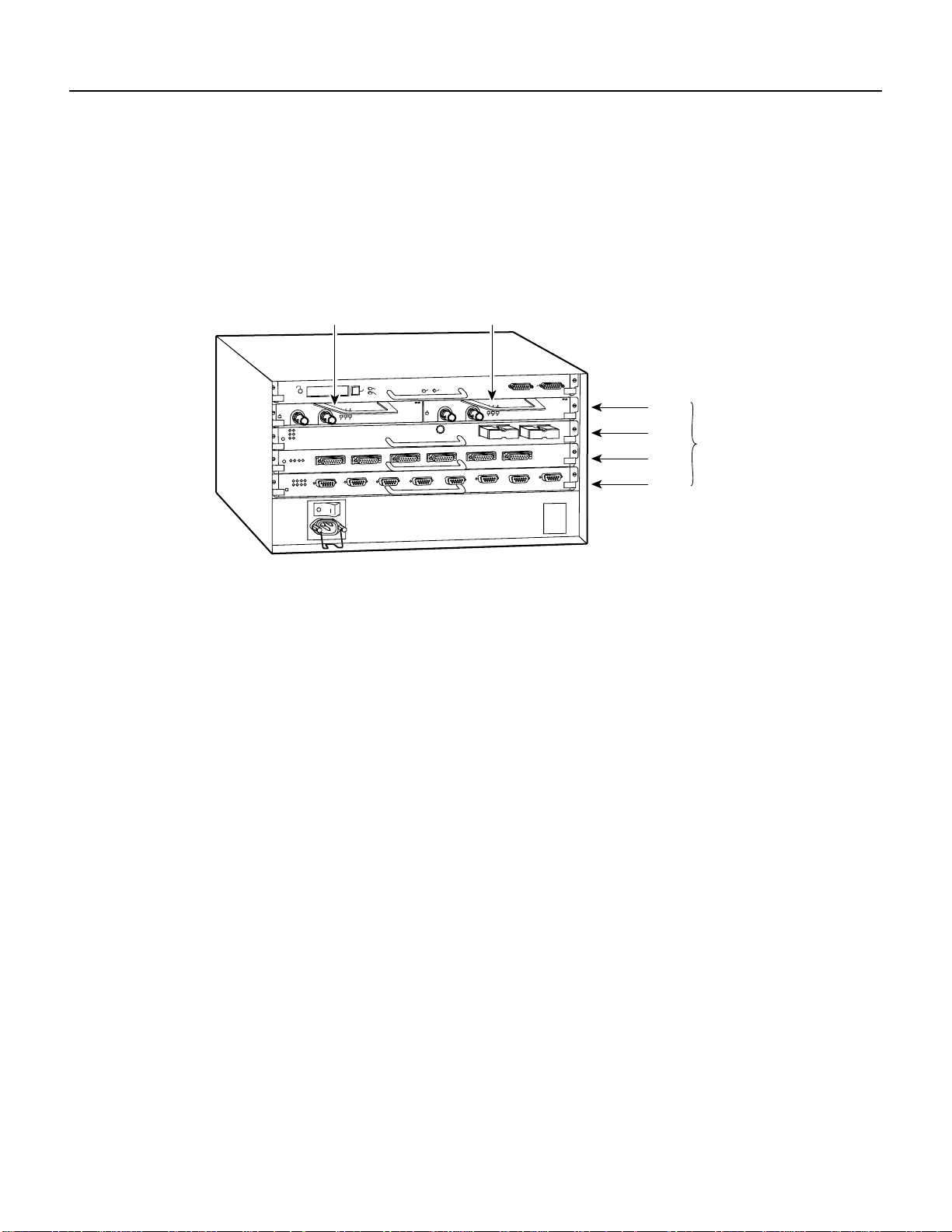

Figure 6-1 Cisco uBR7200 Series with a PA-T3 Port Adapter in Port Adapter Slot 2

PA-T3

port adapter

ENABLED

XMTR

RCVR

AIS

DS3 SERIAL

FERF

RCLK

OOF

15261

Depending on the circumstances, you might need to install a new port adapter or replace a failed port adapter in a Cisco uBR7200 series router. In either case no tools are necessary; all port adapters availablefor the Cisco uBR7200 series routers connect directly to the router midplane and are locked into position by a port adapter retention clip (Cisco uBR7246) or lever (Cisco uBR7223). When removing and replacing a port adapter, you need an antistatic mat onto which you can place a removed port adapter and an antistatic container into which you can place a failed port adapter for shipment back to the factory.

Cisco uBR7200 Series and the PA-T3 Port Adapter 6-1

Removing a Port Adapter

Note Cisco uBR7200 series routers support OIR; therefore, you do not have to power down the

router when removing and replacing a PA-T3 port adapter.

When a port adapter slot is not in use, blank port adapters must ﬁll empty slots to allow the router to conform to EMI emissions requirements and to allow proper airﬂow across the port adapters. If you plan to install a new port adapter in a slot that is not in use, you must ﬁrst remove the blank port adapter.

Removing a Port Adapter

Following is the procedure for removing a port adapter from a Cisco uBR7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 2 Place the port adapter retention clips or levers in the unlocked position:

• Fora Cisco uBR7246, place the port adapter retention clip for the desired port adapter

slot in the unlocked position. The retention clip remains in the unlocked position. (See Figure 6-2.)

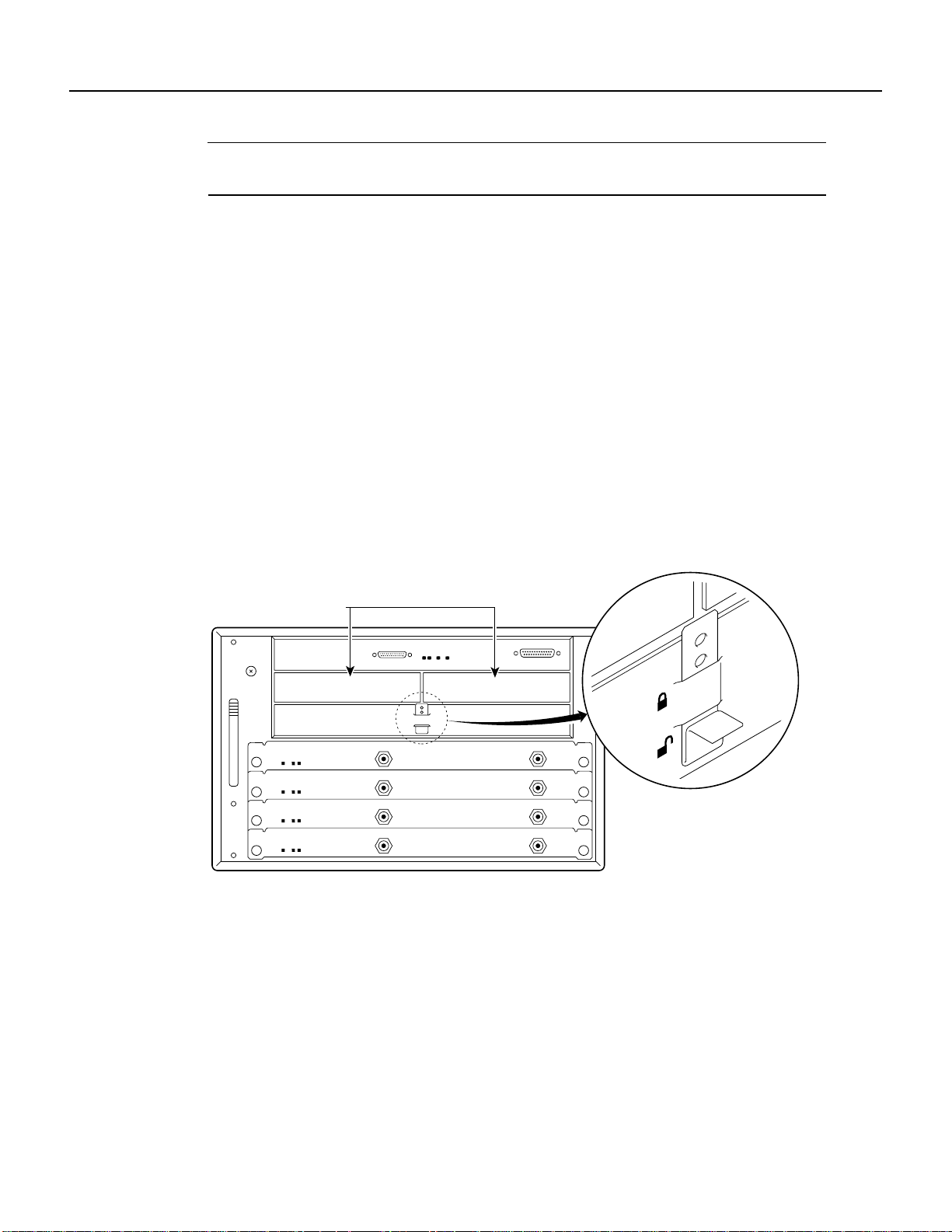

Figure 6-2 Placing the Port Adapter Retention Clip in the Unlocked

Position—Cisco uBR7246

Port adapters

Port adapter retention clip in unlocked position

H11518

• For a Cisco uBR7223, place the port adapter lever in the unlocked position.

(See Figure 6-3.)

6-2

PA-T3 Serial Port Adapter Installation and Configuration

Removing a Port Adapter

Figure 6-3 Placing the Port Adapter Lever in the Unlocked Position—Cisco uBR7223

Port adapters

Port adapter lever in unlocked position

16217

Step 3

Grasp the handle on the port adapter and pull the port adapter from the router midplane, about halfway out of its slot. If you are removing a blank port adapter, pull the blank port adapter completely out of the chassis slot.

Note As you disengage the port adapter from the midplane, OIR administratively shuts

down all active interfaces on the port adapter.

Step 4 With the port adapter halfway out of the slot, disconnect all cables from the port adapter. Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

Caution Always handle the port adapter by the carrier edges and handle; never touch the port

adapter’s components or connector pins. (See Figure 6-4.)

Figure 6-4 Handling a Port Adapter

Metal carrier

Printed circuit board

H6420

Step 6

This completes the procedure for removing a port adapter from a Cisco uBR7200 series router.

Cisco uBR7200 Series and the PA-T3 Port Adapter 6-3

Installing a Port Adapter

Following is the procedure for installing a new port adapter in a Cisco uBR7200 series router:

Step 1 Attach an ESD-preventive wrist strap between you and an unﬁnished chassis surface. Step 2 Use both hands to grasp the port adapter by its metal carrier edges and position the

port adapter so that its components are downward. (See Figure 6-4.)

Step 3 Align the left and the right edge of the port adapter metal carrier between the guides in

the port adapter slot. (See Figure 6-5.)

Figure 6-5 Aligning the Port Adapter Metal Carrier Between the Slot Guides

Inside

slot guide

Metal carrier

PC board

Step 4 With the metal carrier aligned in the slot guides, gently slide the port adapter halfway into

the slot.

Caution Do not slide the port adapter all the way into the slot until you have connected all required

cables. Trying to do so disrupts normal operation of the router.

Step 5 With the port adapter halfway in the slot, connect all required cables to the port adapter. Step 6 After connecting the cables, carefully slide the port adapter all the way into the slot until

the port adapter is seated in the router midplane.

Step 7 Place the port adapter retention clips or levers in the locked position:

• For a Cisco uBR7246, slide the port adapter retention clip up to the locked position.

(See Figure 6-6).

Note If the retention clip does not slide up to the locked position, the port adapter is not

completely seated in the midplane. Carefully pull the port adapter halfway out of the slot, reinsert it, and slide the retention clip up to the locked position.

H11519

6-4

PA-T3 Serial Port Adapter Installation and Configuration

Figure 6-6 Placing the Port Adapter Retention Clip in the Locked

Position—Cisco uBR7246 Shown

Port adapters

H11517

• For a Cisco uBR7223, place the port adapter lever in the locked position.

(See Figure 6-7.)

Installing a Port Adapter

Port adapter retention clip in locked position

Figure 6-7 Placing the Port Adapter Lever in the Locked

Position—Cisco uBR7223 Shown

Port adapters

Note If the port adapter lever does not move to the locked position, the port adapter is

not completely seated in the midplane. Carefully pull the port adapter halfway out of the slot, reinsert it, and move the port adapter lever to the locked position.

Port adapter lever in locked position

16177

This completes the procedure for installing a port adapter in a Cisco uBR7200 series router. Proceed to Chapter 8, “Conﬁguring the PA-T3 Interfaces,” for information on how to conﬁgure your port adapter interfaces.

Cisco uBR7200 Series and the PA-T3 Port Adapter 6-5

Installing a Port Adapter

6-6

PA-T3 Serial Port Adapter Installation and Configuration

CHAPTER

Configuring the PA-T3 Interfaces

To continue your PA-T3 port adapter installation, you must conﬁgure the PA-T3 interfaces. The instructions that follow apply to all supported platforms. Minor differences between the platforms are noted. This chapter contains the following sections:

• Using the EXEC Command Interpreter, page 8-2

• Identifying Port Adapter Slot and T3 Interface Port Numbers, page 8-2

• Shutting Down an Interface, page 8-7

• Performing a Basic Conﬁguration, page 8-10

• Conﬁguration Example, page 8-11

• Customizing the PA-T3 Serial Port Adapter, page 8-12

• Conﬁguring Cyclic Redundancy Checks, page 8-13

• Checking the Conﬁguration, page 8-14

If you installed a new PA-T3 port adapter or if you want to change the conﬁguration of an existing interface,you mustenterconﬁguration mode using the conﬁgurecommand. If you replaced a PA-T3 port adapter that was previously conﬁgured, the system recognizes the new PA-T3 port adapter interfaces and brings each of them up in their existing conﬁguration.

After you verify that the new PA-T3 port adapter is installed correctly (the enabled LED goes on), use the privileged-level conﬁgure command to conﬁgure the new interfaces. Be prepared with the information you need, such as the following:

• Protocols you plan to route on each new interface

• IP addresses if you will conﬁgure the interfaces for IP routing

• Use of bridging on the new interfaces

• Timing source for each new interface and clock speeds for external timing

For a summary of the conﬁguration options available and instructions for conﬁguring interfaces on the PA-T3 port adapter, refer to the appropriate conﬁguration publications listed in the “Related Documentation” section on page vi.

Conﬁguration commands are executed from the privileged level of the EXEC command interpreter, which usually requires password access. Contact your system administrator, if necessary, to obtain access. (See the “Using the EXEC Command Interpreter” section on page 8-2 for an explanation of the privileged level of the EXEC.)

Configuring the PA-T3 Interfaces 8-1

Using the EXEC Command Interpreter

You modify the conﬁguration of your router through the software command interpreter called the EXEC (also called enable mode). You must enter the privileged level of the EXEC command interpreter with the enablecommand before you can use the conﬁgurecommand to conﬁgure a new interface or change the existing conﬁguration of an interface. The system prompts you for a password if one is set.

The system prompt for the privileged level ends with a pound sign (#) instead of an angle bracket (>). At the console terminal, use the following procedure to enter the privileged level:

Step 1 At the user-levelEXEC prompt, enter the enable command. The EXEC prompts you for

a privileged-level password as follows:

Router> enable

Password:

Step 2 Enter the password (the password is case-sensitive). For security purposes, the password

is not displayed. When you enter the correct password, the system displays the privileged-level system

prompt (#): Router#

Proceed to the following sections to conﬁgure the new interfaces.

Identifying Port Adapter Slot and T3 Interface Port Numbers

This section describes how to identify port adapter slot and PA-T3 interface port numbers for the Cisco 7200 series routers, the Cisco uBR7200 series routers, the VIP2, and the Catalyst RSM/VIP2.

Cisco 7200 Series and Cisco uBR7200 Series Ports

Physical port addresses specify the actual physical location of each interface port on a Cisco 7200 series router (see Figure 8-1) or a Cisco uBR7200 series router (see Figure 8-2). This address is composed of a two-part number in the format port adapter slot number/interface port number, as follows:

• The ﬁrst number identiﬁes the chassis slot in which the PA-T3 serial port adapter is installed.

• The second number identiﬁes the interface port on each PA-T3 serial port adapter; the interface

port is always numbered as interface 0 for the one-port PA-T3 serial port adapter and 0 or 1 for a two-port PA-2T3 serial port adapter.

Interface ports maintain the same address regardless of whether other port adapters are installed or removed from the slot. However,when you move a port adapter to a different slot, the ﬁrst number in the address changes to reﬂect the new chassis slot number.

In Cisco 7200 series routers, port adapter slots are numbered from the lower left to the upper right, beginning with port adapter slot 1 and continuing through port adapter slot 2 for the Cisco 7202, slot 4 for the Cisco 7204 and Cisco 7204VXR, and slot 6 for the Cisco 7206 and Cisco 7206VXR. Port adapter slot 0 is reserved for the optional Fast Ethernet port on the I/O controller—if present. Figure 8-1 shows the port adapter slots and interface ports of a Cisco 7206. The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter.

8-2

PA-T3 Serial Port Adapter Installation and Configuration

Cisco 7200 Series and Cisco uBR7200 Series Ports

Note The I/O controller is available with or without a Fast Ethernet port. You can install both I/O

controller types in all Cisco 7200 series routers; however,when you install an I/O controller with a Fast Ethernet port in a Cisco 7202, the system software automatically disables the port.

For example, the serial port on a one-port PA-T3 serial port adapter in port adapter slot 3 has the address 3/0. (See Figure 8-1.) If the PA-T3 serial port adapter is in port adapter slot 1, this same interface port is numbered 1/0. The serial ports on a two-port PA-2T3 serial port adapter in port adapter slot 3 has the address 3/0 and 3/1.

Note The PA-T3 serial port adapter is considered a high-bandwidth port adapter; you must observe

speciﬁc conﬁguration guidelines. Refer to the publication Cisco 7200 Series Port Adapter Hardware Conﬁguration Guidelines, which shipped with your Cisco 7200 series chassis and is also available

on the Cisco Connection Documentation, Enterprise Series CD-ROM.

Figure 8-1 Serial Port Number Example—Cisco 7206

TOKEN RING

ENABLED

FAST ETHERNET

ETHERNET-10BFL

H10043

RJ45

LINK

MII

RJ-45

1O PWR

LINK

FAST ETHERNET INPUT/OUTPUT CONTROLLER

FERF

ENABLED

RCLK

XMTR

RCVR

AIS

OOF

EJECT

PCMCIA

1DS3 SERIAL

FAST SERIAL

SLOT 1

FE MII

MII

SLOT 0

PA-T3 port adapter

(port number 3/0)

Figure 8-2 shows the interface ports of a PA-T3 port adapter in slot 2 of a Cisco uBR7200 series router. The port adapter slots are numbered slot 1 and slot 2 for the Cisco uBR7246 and slot 1 for the Cisco uBR7223 (slot 0 is always reserved for the Fast Ethernet port on the I/O controller—if present). The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter. Port adapters can occupy any port adapter slot; there are no restrictions.

For example, the serial port on a one-port PA-T3 serial port adapter in port adapter slot 1 has the address 1/0. (See Figure 8-2.) If the PA-T3 serial port adapter is in port adapter slot 2, this same interface port is numbered 2/0. The serial ports on a two-port PA-2T3 serial port adapter in port adapter slot 2 have the address 2/0 and 2/1.

Configuring the PA-T3 Interfaces 8-3

Identifying Port Adapter Slot and T3 Interface Port Numbers

Figure 8-2 PA-T3 Interface Port Address Example—Cisco uBR7246

PA-T3

port adapter

(port number 1/0)

ENABLED

XMTR

RCVR

You can identify interface ports by physically checking the port adapter slot number/interface port location on the back of the router or by using software commands to display information about a speciﬁc interface or all interfaces in the router.

DS3 SERIAL

FERF

RCLK

AIS

OOF

15262

VIP2 Ports

This section describes how to identify chassis slot, port adapter, and T3 interface port numbers on the VIP2.

Note Although the processor slots in the 7-slot Cisco 7000 and Cisco 7507 and 13-slot Cisco 7513

are vertically oriented and those in the 5-slot Cisco 7010 and Cisco 7505 are horizontally oriented, all models use the same method for slot and port numbering.

In the router, physical port addresses specify the actual physical location of each interface port on the router interface processor end. (See Figure 8-3.) Each address is composed of a three-part number in the format chassis slot/port adapter/interface port, as follows:

• The ﬁrst number identiﬁes the chassis slot in which the VIP2 is installed (as shown in the sample

system in Figure 8-3).

• The second number identiﬁes the physical port adapter slot on the VIP2, and is either 0 or 1.

• The third number identiﬁes the interface port on each PA-T3serial port adapter,which is always

numbered as interface 0 for the one-port PA-T3 serial port adapter and 0 or 1 for the two-port PA-T3 serial port adapter.

Interface ports on the VIP2 maintain the same address regardless of whether other interface processors are installed or removed. However, when you move a VIP2 to a different slot, the ﬁrst number in the address changes to reﬂect the new chassis slot number.

8-4

Figure 8-3 shows the port adapter slots and interface ports of a sample Cisco 7505 system. On the VIP2, the ﬁrst port adapter slot number is always 0. The second port adapter slot number is always 1. The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter.

PA-T3 Serial Port Adapter Installation and Configuration

Catalyst RSM/VIP2 Ports

For example, the serial port on a one-port PA-T3 serial port adapter in the ﬁrst port adapter slot in chassis slot 3, is numbered 3/0/0. (See Figure 8-3.)If the PA-T3serial port adapter is in port adapter slot 1, this same port is numbered 3/1/0. The serial ports on a two-port PA-T3 serial port adapter in the ﬁrst port adapter slot in chassis slot 3 are numbered 3/0/0 and 3/0/1.

Port adapters can occupy either port adapter slot; there are no restrictions.

Figure 8-3 Serial Port Number Example—Cisco 7505 Shown

PA-T3 (port numbers 3/1/0)PA-T3 (port number 3/0/0)

NORMAL

XMTR

RCVR

ENABLED

You can identify interface ports by physically checking the slot/port-adapter/interface port location on the back of the router or by using show commands to display information about a speciﬁc interface or all interfaces in the router.

Catalyst RSM/VIP2 Ports

This section describes how to identify the port adapter and T3 interface port numbers on the Catalyst RSM/VIP2.

In the Catalyst RSM/VIP2, physical port addresses specify the actual physical location of each interface port. Each address is composed of a two-part number in the format port adapter/interface port, as follows:

• The ﬁrst number identiﬁes the physical port adapter slot on the Catalyst RSM/VIP2, and is either

0 or 1.

EJECT

SLOT 1

SLOT 0

FERF

RCLK

AIS

OOF

1DS3 SERIAL

CPU HALT

ENABLED

RESET

XMTR

RCVR

ROUTE SWITCH PROCESSOR

CONSOLE

FERF

RCLK

AIS

OOF

1DS3 SERIAL

Slot 3 Slot 2 Slot 1

Interface processor slots

Slot 0

H10044

• The second number identiﬁes the interface port on each PA-T3 serial port adapter, which is

always numbered as interface 0 for the one-port PA-T3 serial port adapter and 0 or 1 for the two-port PA-T3 serial port adapter.

Figure 8-4 shows the port adapter slots and interface ports of a sample Catalyst 5509 switch. On the Catalyst RSM/VIP2, the ﬁrst port adapter slot number is always 0. The second port adapter slot number is always 1. The individual interface port numbers always begin with 0. The number of additional ports depends on the number of ports on a port adapter.

For example, the serial port on a one-port PA-T3 serial port adapter in the ﬁrst port adapter slot is numbered 0/0. (See Figure 8-4.) If the PA-T3 serial port adapter is in port adapter slot 1, this same port is numbered 1/0. The serial ports on a two-port PA-T3serial port adapter in the ﬁrst port adapter slot are numbered 0/0 and 0/1.

Port adapters can occupy either port adapter slot; there are no restrictions.

Configuring the PA-T3 Interfaces 8-5

Identifying Port Adapter Slot and T3 Interface Port Numbers

Figure 8-4 PA-T3 Serial Port Adapter in the Catalyst 5509

You can identify interface ports by physically checking the port-adapter/interface port location by using show commands to display information about a speciﬁc interface or all interfaces in the router.

Cisco 7100 Series Ports

In the Cisco 7100 series routers, the slot number is the location in the chassis where the interface resides and the port number is the physical port. Interfaces in the Cisco IOS software are identiﬁed by a type, slot number, and port number. For example, serial 3/1 indicates port 1 on the serial port adapter in slot 3.

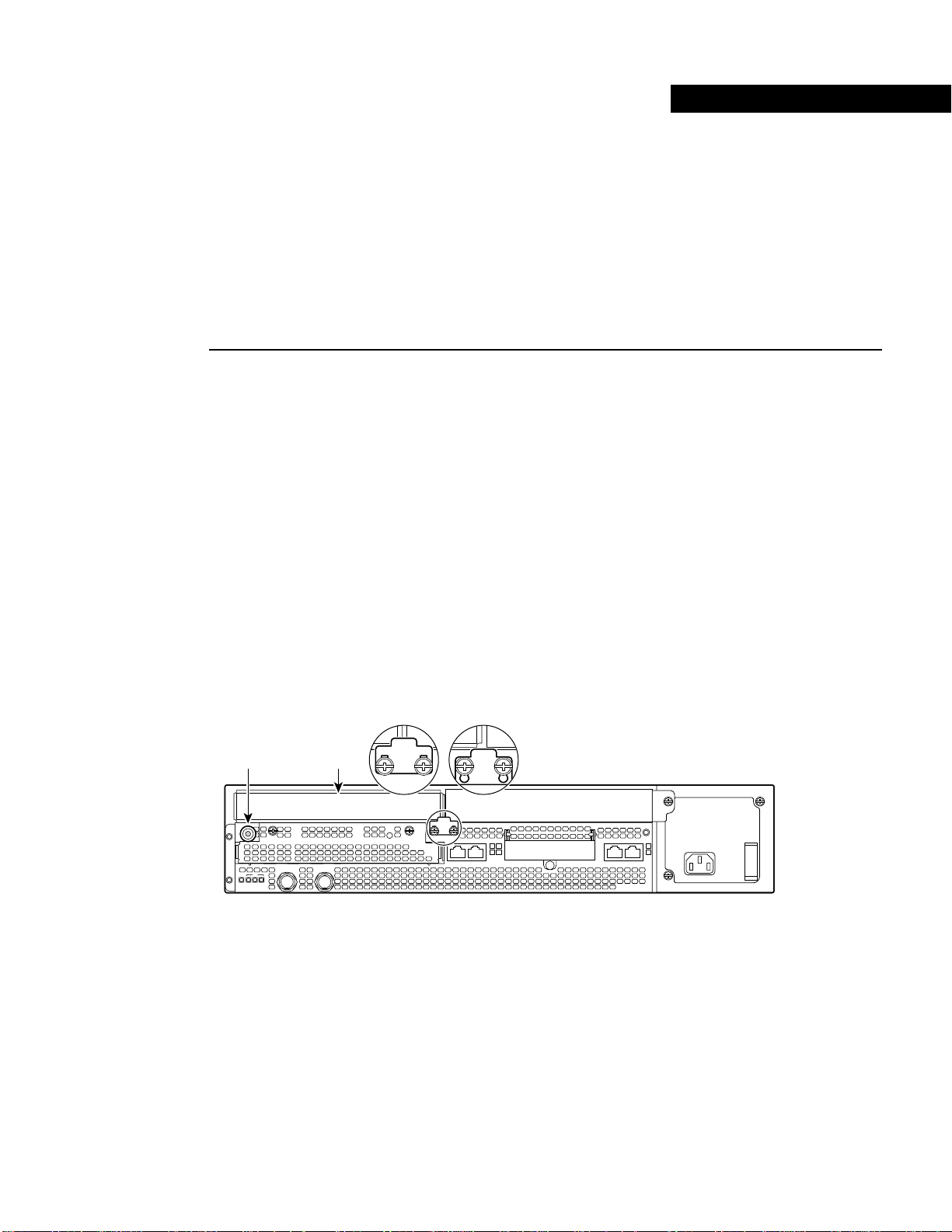

Slots in the Cisco 7120 series routers are numbered as shown in Figure 8-5. The ﬁxed LAN interface is slot 0, the ﬁxed WAN interface is slot 1, and the modular port adapter interface is slot 3. In the Cisco 7120 series routers, slots 2 and 4 are not used. Slot 5 is the service module.

Figure 8-5 Port Adapter Slot Numbering—Cisco 7120 Series

Slot 5

CEL CAR ALM

RXTX

Slot 3

FE 0 / 0 FE

ACT

LNK0LNK

0 / 1

SLOT 0 SLOT 1

CONS

PWR

SYS RDY

AUX

7120 - AE3

18498

8-6

Slot 1 Slot 0

PA-T3 Serial Port Adapter Installation and Configuration

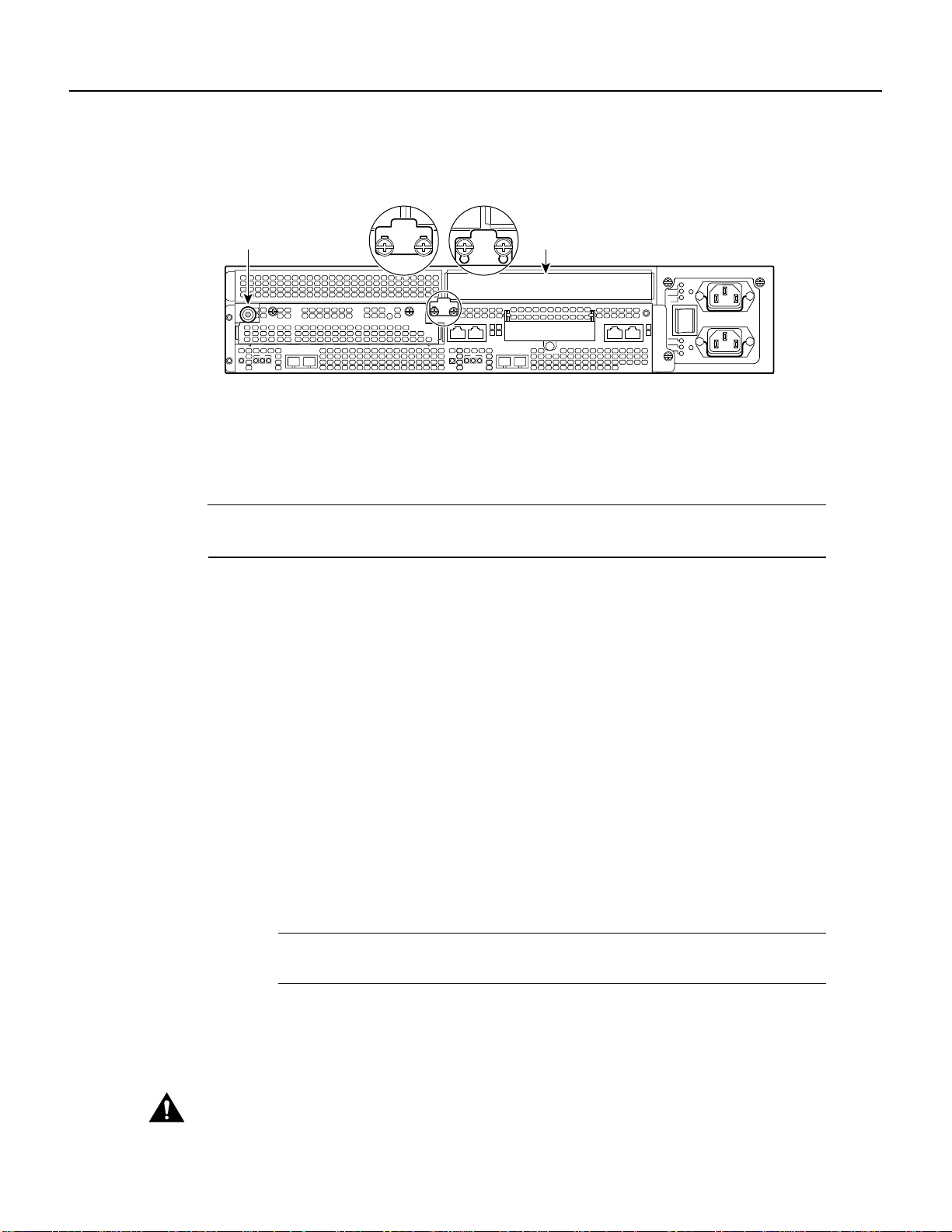

Slots in the Cisco 7140 series routers are numbered as shown in Figure 8-6. The ﬁxed LAN interface is slot 0, the ﬁxed WAN interfaces are slots 1 and 2, and the modular port adapter interface is slot 4. Slot 3 is not used. Slot 5 is the service adapter.

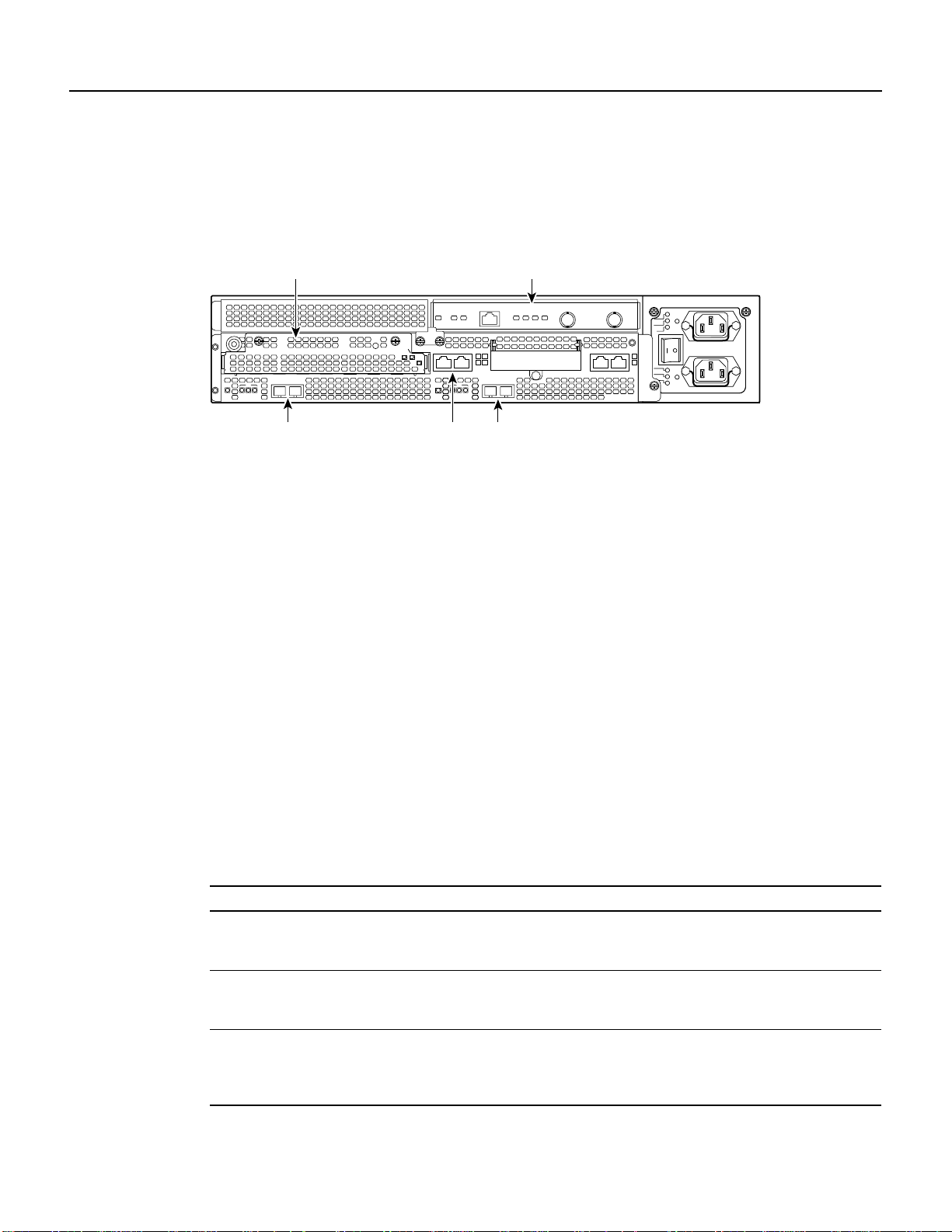

Figure 8-6 Port Adapter Slot Numbering—Cisco 7140 Series

155 - MM

CEL CAR ALM

RESETSM-EC-DS

Slot 1 Slot 0 Slot 2

Shutting Down an Interface

Before you remove an interface that you will not replace, replace a compact serial cable, or replace portadapters, use the shutdown command to shut down (disable) the interfaces to prevent anomalies when you reinstall the new or reconﬁgured interface processor.When you shut down an interface, it is designated administratively down in the show command displays.

ERROR

BOOT

Shutting Down an Interface

Slot 4Slot 5

AC OK DC OK

OTF

PWR

AC OK

SYS RDY

DC OK

AUX

OTF

18499

155 - MM

SLOT 0 SLOT 1

CONS

7140 - 2MM3

ACT

FE 0 / 0 FE

ACT

LNK0LNK

0 / 1

CEL CAR ALM

Follow these steps to shut down an interface:

Step 1 Enter the privileged level of the EXEC command interpreter (also called enable mode).

(See the “Using the EXEC Command Interpreter” section on page 8-2 for instructions.)

Step 2 At the privileged-level prompt, enter conﬁguration mode and specify that the console

terminal is the source of the conﬁguration subcommands, as follows:

Router# configure terminal Enter configuration commands, one per line. End with Crtl-Z. Router(config)#

Step 3 Specify the slot/port address of the ﬁrst interface that you want shut down by entering the

subcommand interface as described in .

Table 8-1 Interface Subcommand Syntax Platform Command Example

Cisco 7200 series or Cisco uBR7200 interface, followed by the type

(serial) and slot/port (port adapter slot number/0)

VIP2 interface, followed by the type

(serial) and slot/port (interface processor slot number/0)

Catalyst RSM/VIP2 interface, followed by the type

(serial) and port adapter slot number/interface port number (port adapter slot number/0)

Router(conﬁg)# interface serial 1/0

Router(conﬁg)# interface serial

1/1/0

Router(conﬁg)# interface serial 0/0

Configuring the PA-T3 Interfaces 8-7

Shutting Down an Interface

Table 8-1 Interface Subcommand Syntax (continued) Platform Command Example

Cisco 7120 interface, followed by the type

Cisco 7140 interface, followed by the type

Step 4 Enter the shutdown command as follows:

Step 5 To shut down additional interfaces, enter the slot/port address (or slot/port

Router(conﬁg)# interface serial 3/0

(serial) and port adapter

number/interface port number

Router(conﬁg)# interface serial 4/0

(serial) and port adapter

number/interface port number

Router(config-if)# shutdown

address/interface port for a VIP2) of each additional interface followed by the shutdown command. When you have entered all the interfaces to be shut down, press Ctrl-Z (hold down the Control key while you press Z) or enter end to exit conﬁguration mode and return to the EXEC command interpreter prompt.

The example that follows is for the Cisco 7100 series, Cisco 7200 series, or Cisco uBR7200 series routers:

Router(config-if)# interface serial 1/0 Router(config-if)# shutdown Router(config-if)# interface serial 1/1 Router(config-if)# shutdown

Ctrl-Z

Router#

The example that follows is for a VIP2:

Router(config-if)# interface serial 1/1/0 Router(config-if)# shutdown Router(config-if)# interface serial 1/1/1 Router(config-if)# shutdown

Ctrl-Z

Router#

The example that follows is for a Catalyst RSM/VIP2:

Router(config-if)# interface serial 1/0 Router(config-if)# shutdown Router(config-if)# interface serial 1/1 Router(config-if)# shutdown

Ctrl-Z

Router#

Step 6 Write the new conﬁguration to memory as follows:

Router# copy running-config startup-config [OK] Router#

The system displays an OK message when the conﬁguration has been stored.

Step 7 Verify that new interfaces are now in the correct state (shutdown). To do so on the

Cisco 7100 series, Cisco 7200 series, or Cisco uBR7200 series routers, use the show interfaces serial slot/port command to display the speciﬁc interface, or use the show interfaces command, without variables, to display the status of all interfaces in the

system.

8-8

PA-T3 Serial Port Adapter Installation and Configuration

Shutting Down an Interface

The example that follows is for Cisco 7100 series, Cisco 7200 series, or Cisco uBR7200 series routers:

Router# show interfaces serial 1/0

Serial 1/0 is administratively down, line protocol is down Hardware is M1T-T3 pa [display text omitted]

To verify that new interfaces are now in the correct state (shutdown) on a VIP2, use the show interfaces serial slot/port adapter/interface command to display the speciﬁc interface, or use the showinterfaces command, without variables,to display the status of all interfaces in the system.

The example that follows is for a VIP2:

Router# show interfaces serial 1/1/0

Serial 1/1/0 is administratively down, line protocol is down Hardware is cyBus PODS3 Serial [display text omitted]

To verify that new interfaces are now in the correct state (shutdown) on a Catalyst RSM/VIP2, use the show interfaces serial port adapter/interface command to display the speciﬁc interface, or use the show interfaces command, without variables, to display the status of all interfaces in the system.

The example that follows is for a Catalyst RSM/VIP2:

Router# show interfaces serial 1/0

Serial 1/0 is administratively down, line protocol is down Hardware is cyBus PODS3 Serial [display text omitted]

Step 8 Reenable the interfaces. To do so, repeat the previous steps, but use the no shutdown

command in Step 4, and then write the new conﬁguration to memory as follows. The example that follows is for the Cisco 7100 series, Cisco 7200 series, or

Cisco uBR7200 series routers:

Router(config)# interface serial 1/0 Router(config-if)# no shutdown

Ctrl-Z

Router#

Router# copy running-config startup-config [OK] Router# show interfaces serial 1/0 Serial 1/0 is up, line protocol is up Hardware is M1T-T3 pa [display text omitted]

Configuring the PA-T3 Interfaces 8-9

Performing a Basic Configuration

The example that follows is for a VIP2:

Router(config)# interface serial 1/1/0 Router(config-if)# no shutdown

Ctrl-Z

Router#

Router# copy running-config startup-config [OK] Router# show interfaces serial 1/1/0

Serial 1/1/0 is up, line protocol is up Hardware is M1T-T3 pa [display text omitted]

The example that follows is for a Catalyst RSM/VIP2:

Router(config)# interface serial 1/0 Router(config-if)# no shutdown

Ctrl-Z

Router#

Router# copy running-config startup-config [OK] Router# show interfaces serial 1/0

Serial 1/0 is up, line protocol is up Hardware is M1T-T3 pa [display text omitted]

Forcomplete descriptions of software conﬁguration commands, refer to the publications listed in the “Related Documentation” section on page vi.

Performing a Basic Conﬁguration

The following steps make up a basic interface conﬁguration for the PA-T3serial port adapter. Press the Return key after each step unless otherwise noted. At any time you can exit the privileged level and return to the user level by entering disable at the prompt:

router# disable

router>

Step 1 At the privileged-level prompt, enter conﬁguration mode and specify that the

console terminal is the source of the conﬁguration subcommands:

router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)#

Step 2 Specify the interface to conﬁgure:

• For a Cisco 7200 series, Cisco 7100 series, or Cisco uBR7200 series router, specify

the interface to conﬁgure by entering the subcommand interface serial followed by the slot/port (port adapter slot number and interface port number). The example that follows is for the interface of the port adapter in slot 3:

router(config)# interface serial 3/0

8-10

PA-T3 Serial Port Adapter Installation and Configuration

Configuration Example

• For a VIP2, specify the interface to conﬁgure by entering the subcommand interface

serial, followed by the slot/port-adapter/port (interface processor slot number, port

adapter slot number, and interface port number). The example that follows is for the interface of the ﬁrst port adapter on a VIP2 in interface processor slot 1:

router(config)# interface serial 1/0/0

• For a Catalyst RSM/VIP2, specify the interface to conﬁgure by entering the

subcommand interface serial, followed by the port-adapter/port (port adapter slot number and interface port number). The example that follows is for the interface of the ﬁrst port adapter on a Catalyst RSM/VIP2 in slot 0:

router(config)# interface serial 0/0

Step 3 If IP routing is enabled on the system, change to interface conﬁguration mode and use the

ip address conﬁguration subcommand to assign an IP address and subnet mask to the interface, as in the following example:

router(config-if)# ip address 10.0.0.0 10.255.255.255

Step 4 In interface conﬁguration mode, choose the internal clock source by entering the

clock source conﬁguration subcommand, as in the following example:

router(config-if)# clock source internal

Use the no form of this command to restore the default clock source, which is line.

Step 5 In interface conﬁguration mode, change the shutdownstate to up and enable the interface

as follows:

router(config-if)# no shutdown

Step 6 Conﬁgure additional interfaces as required. Step 7 When you have included all of the conﬁguration subcommands to complete the

conﬁguration, press Ctrl-Z to exit conﬁguration mode.

Step 8 Write the new conﬁguration to nonvolatile memory as follows:

router# copy running-config startup-config [OK] router#

To check the interface conﬁguration using show commands, proceed to the section “Using show Commands to Display Interface and System Information” section on page 8-15.

Conﬁguration Example

The following example shows a typical conﬁguration for the PA-T3 serial port adapter on a Cisco 7500 series router:

router> enable router# configure terminal router(config)# interface serial router(config)# interface serial 1/0/0 router(config)# ip address 10.0.0.0 10.255.255.255 router(config-if)# clock source internal router(config-if)# no shutdown router(config-if)# ^Z

Configuring the PA-T3 Interfaces 8-11

Customizing the PA-T3 Serial Port Adapter

You can customize the PA-T3serial port adapter.The features you can customize have default values that probably suit your environment and do not require change. However, you might need to enter conﬁguration commands, depending on the requirements for your system conﬁguration and the protocols you plan to route on the interface. Perform the tasks in the following sections if you need to customize the PA-T3 serial port adapter.

Setting the Bandwidth

In interface conﬁguration mode, reduce effectivebandwidth (range of 22 to 44210 kbps) by entering the dsu bandwidth conﬁguration subcommand, as in the following example:

router(config-if)# dsu bandwidth 16000

Use the no form of this command to return to the default, which is 44210.

Note The local port conﬁguration must match the remote port conﬁguration. For example, if you

reduce the effective bandwidth to 16000 on the local port, you must do the same on the remote port.

Deﬁning the DSU Mode

In interface conﬁguration mode, deﬁne the DSU interoperability mode by entering the dsu mode [0|1|2] conﬁguration subcommand, as in the following example:

router(config-if)# dsu mode 1

Use the no form of this command to return to the default, which is 0.

Note The local port conﬁguration must match the remote port conﬁguration. For example, if you

deﬁne the DSU interoperability mode as 1 on the local port, you must do the same on the remote port. Youneed to know what type of DSU is at the remote port to ﬁnd out if it interoperates with the PA-T3 port adapter. For T3 serial interfaces, specify mode 0 for connection from a T3 serial port adapter to another PA-T3 serial port adapter or a Digital Link DSU (DL3100). Specify mode 1 for connection from a PA-T3 serial port adapter to a Kentrox DSU. Specify mode 2 for connection from a PA-T3 serial port adapter to a Larscom DSU.

See the “Interoperability Guidelines for PA-T3 Serial Port Adapter DSUs” section on page 2-5 for information regarding DSU feature compatibilities.

Enabling T3 Scrambling

In interface conﬁguration mode, enable T3 scrambling by entering the scramble conﬁguration subcommand, as in the following example:

router(config-if)# scramble

8-12

Use the no form of this command to restore the default value, which is disabled.

PA-T3 Serial Port Adapter Installation and Configuration

Note The local port conﬁguration must match the remote port conﬁguration. For example, if you

enable scrambling on the local port, you must do the same on the remote port.

See the “Interoperability Guidelines for PA-T3 Serial Port Adapter DSUs” section on page 2-5 for information regarding DSU feature compatibilities.

Specifying T3 Framing

In interface conﬁguration mode, specify T3 framing by entering the framing {c-bit | m13 | bypass} conﬁguration subcommand, as in the following example:

router(config-if)# framing c-bit

Use the no form of this command to return to the default, which is C-bit framing.

Note If you use the bypass option, scrambling must be set to the default, disabled; the DSU mode

must be set to the default, 0; and the DSU bandwidth must be set to the default, 44210.

Specifying T3 Framing

Setting the Cable Length

In interface conﬁguration mode, set the cable length (range of 0 to 450 feet), as in the following example:

router(config-if)# cablelength 250

Use the no form of this command to return to the default, which is 10 feet.

Conﬁguring Cyclic Redundancy Checks

The PA-T3 serial port adapter uses a 16-bit CRC by default; it also supports a 32-bit CRC. CRC is an error-checking technique that uses a calculated numeric value to detect errors in

transmitteddata. The sender of a data frame divides the bits in the framemessage by a predetermined number to calculate a remainder or frame check sequence (FCS). Before sending the frame, the sender appends the FCS value to the message so that the frame contents are exactly divisible by the predetermined number. The receiver divides the frame contents by the same predetermined number that the sender used to calculate the FCS. If the result is not 0, the receiver assumes that a transmission error occurred and sends a request to the sender to resend the frame.

Note To enable 32-bit CRC on an interface, follow Steps 1 and 2 of the preceding procedure (enter

conﬁguration mode and specify the slot and port address [and the interface port number for a VIP2] of the PA-T3 serial port adapter), and then enter the command crc 32. Enter Ctrl-Z to exit from conﬁguration mode.

Configuring the PA-T3 Interfaces 8-13

Checking the Configuration

For a Cisco 7100 series, Cisco 7200 series, or Cisco uBR7200 series router, use the following example:

router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# router(config)# interface serial 3/0 router(config-int)# crc 32 Ctrl-z

For a VIP2, use the following example:

router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# router(config)# interface serial 1/0/0 router(config-if)# crc 32 Ctrl-z

For a Catalyst RSM/VIP2, use the following example:

router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# router(config)# interface serial 0/0 router(config-if)# crc 32 Ctrl-z

To disable CRC-32 and return to the default CRC-16 setting, specify the slot and port address (and the interface port number for a VIP2) and use the no crc 32 command. For complete command descriptions and instructions, refer to the related software documentation.

Note When enabling a 32-bit CRC on an interface, ensure that the remote device is also conﬁgured

for a 32-bit CRC. Both the sender and the receiver must use the same CRC setting.

To check the interface conﬁguration using show commands, proceed to the following section, “Checking the Conﬁguration.”

Checking the Conﬁguration

After conﬁguring the new interface, use the show commands to display the status of the new interface or all interfaces, the ping command to check connectivity, and the loopback command to troubleshoot the physical interface.

Using show Commands to Verify Status

Use the show commands to verify that the new interfaces are conﬁgured and operating correctly:

Step 1 Use the show version command to display the system hardware conﬁguration. Ensure

that the list includes the new interfaces.

8-14

Step 2 Display all the current port adapters and their interfaces with the show controllers

command. Verify that the new PA-T3 serial port adapter appears in the correct slot.

PA-T3 Serial Port Adapter Installation and Configuration

Using show Commands to Display Interface and System Information

Step 3 Specify one of the new interfaces:

• For Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers, specify

one of the new interfaces with the show interfaces type port adapter slot/interface command, and verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number. Also verify that the interface and line protocol are in the correct state: up or down.

• For a VIP2, specify one of the new interfaces with the show interfaces type slot/port

adapter/interface command, and verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number. Also verify that the interface and line protocol are in the correct state: up or down.

• For a Catalyst RSM/VIP2, specify one of the new interfaces with the show interfaces

port adapter/interface command, and verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number. Also verify that the interface and line protocol are in the correct state: up or down.

Step 4 Specify the new serial interface:

• For Cisco 7100 series, Cisco 7200 series, Cisco uBR7200 series routers, specify the

new serial interface with the show controllers serial port adapter slot number/interface port number command, and verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number.

• For a VIP2, specify information that is speciﬁc to the new serial interface with the

show controllers serial slot/port adapter/interface command, and verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number.

• For a Catalyst RSM/VIP2, specify information that is speciﬁc to the new serial

interface with the show controllers serial port adapter/interface command, and verify that the ﬁrst line of the display speciﬁes the interface with the correct slot number.

Step 5 Display the protocols conﬁgured for the entire system and for the speciﬁc interfaces with

the show protocols command. If necessary, return to conﬁguration mode to add or remove protocol routing on the system or on speciﬁc interfaces.

Step 6 Display the running conﬁguration ﬁle with the show running-conﬁg command. Display

the conﬁguration stored in NVRAM using the show startup-conﬁg command. Verify that the conﬁguration is accurate for the system and each interface.

If the interface is down and you conﬁgured it as up, or if the displays indicate that the hardware is not functioning properly, ensure that the network interface is properly connected and terminated. If you still have problems bringing the interface up, ask a service representative for assistance.

Using show Commands to Display Interface and System Information

For a Cisco 7100 series, Cisco 7200 series, or Cisco uBR7200 series router, to display information about a speciﬁc interface, use the show interfaces command with the interface type and port address in the format show interfaces [type slot/port].

Configuring the PA-T3 Interfaces 8-15

Checking the Configuration

The following example of the show interfaces type slot/port command shows all of the information speciﬁc to the serial PA-T3 port (interface port 0) in port adapter slot 2:

router# show interfaces serial 2/0

Serial2/0 is up, line protocol is up Hardware is M1T-T3 pa MTU 4470 bytes, BW 44210 Kbit, DLY 200 usec, rely 255/255, load 1/255 Encapsulation HDLC, loopback not set, keepalive not set Last input 00:00:01, output 00:00:03, output hang never Last clearing of "show interface" counters never Input queue: 0/75/0 (size/max/drops); Total output drops: 0 Queueing strategy: weighted fair Output queue: 0/64/0 (size/threshold/drops) Conversations 0/1 (active/max active) Reserved Conversations 0/0 (allocated/max allocated) 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 18958 packets input, 4172738 bytes, 0 no buffer Received 5073 broadcasts, 0 runts, 0 giants 0 parity 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort 18294 packets output, 4552579 bytes, 0 underruns 0 output errors, 0 applique, 0 interface resets 0 output buffer failures, 0 output buffers swapped out 1 carrier transitions rxLOS inactive, rxLOF inactive, rxAIS inactive txAIS inactive, rxRAI inactive, txRAI inactive

router#

For a VIP2, the show interfaces type slot/port-adapter/port command displays status information (including the physical slot and port address) for the interfaces you specify. In this example, a one-port PA-T3 serial port adapter-conﬁgured VIP2 is in chassis slot 10, in port adapter slot 0.

router# show interfaces serial 10/0/0 Serial10/0/0 is up, line protocol is up Hardware is cyBus PODS3 Serial MTU 4470 bytes, BW 44210 Kbit, DLY 200 usec, rely 255/255, load 1/255 Encapsulation HDLC, loopback not set, keepalive not set Last input 00:00:00, output 00:00:00, output hang never Last clearing of "show interface" counters never Queueing strategy: fifo Output queue 0/40, 0 drops; input queue 0/75, 0 drops 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 14771 packets input, 3032919 bytes, 0 no buffer Received 2664 broadcasts, 0 runts, 0 giants 0 parity 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort 15775 packets output, 2808513 bytes, 0 underruns 0 output errors, 0 applique, 0 interface resets 0 output buffer failures, 0 output buffers swapped out 1 carrier transitions rxLOS inactive, rxLOF inactive, rxAIS inactive txAIS inactive, rxRAI inactive, txRAI inactive router#

8-16

PA-T3 Serial Port Adapter Installation and Configuration

Using show Commands to Display Interface and System Information

For a Catalyst RSM/VIP2, the show interfaces port-adapter/port command displays status information for the interfaces you specify. In this example, a one-port PA-T3 serial port adapter-conﬁgured Catalyst RSM/VIP2 is in port adapter slot 0.

router# show interfaces serial 0/0 Serial0/0 is up, line protocol is up Hardware is cyBus PODS3 Serial MTU 4470 bytes, BW 44210 Kbit, DLY 200 usec, rely 255/255, load 1/255 Encapsulation HDLC, loopback not set, keepalive not set Last input 00:00:00, output 00:00:00, output hang never Last clearing of "show interface" counters never Queueing strategy: fifo Output queue 0/40, 0 drops; input queue 0/75, 0 drops 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 14771 packets input, 3032919 bytes, 0 no buffer Received 2664 broadcasts, 0 runts, 0 giants 0 parity 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort 15775 packets output, 2808513 bytes, 0 underruns 0 output errors, 0 applique, 0 interface resets 0 output buffer failures, 0 output buffers swapped out 1 carrier transitions rxLOS inactive, rxLOF inactive, rxAIS inactive txAIS inactive, rxRAI inactive, txRAI inactive router#

For Cisco 7100 series, Cisco 7200 series, and Cisco uBR7200 series routers, use the show controllers command to display all the current interface processors and their interfaces. Following is an example of the show controllers command that shows serial port 2/0 on a one-port PA-T3 serial port adapter installed in chassis slot 2 for a Cisco 7200 series router:

router# show controllers 2/0

M1T-Serial: show controller: PAS unit 0, subunit 0, f/w version 1-23, rev ID 0x1, version 2 idb = 0x608PA-T3340, ds = 0x608E50C0, ssb=0x608E5A84 Clock mux=0x35, ucmd_ctrl=0x8, port_status=0x25 maxdgram=4474, bufpool=64Kb, 128 particles TM=down CA=up LC=down line state: up Serial DTE cable

(Additional display text omitted from this example.)

For Cisco 7100 series, Cisco 7200 series, Cisco uBR7200 series routers, use the show controllers serialcommand, using argumentssuchasthe slot and port number (slot/port), to display information that is speciﬁc to the serial interface hardware. Following is an example of the show controllers serial slot/port command that shows the serial port adapter installed on a Cisco 7200 series router

in chassis slot 3:

router# show controllers serial 3/0

M1T-T3 pa: show controller: PAS unit 0, subunit 0, f/w version 2-55, rev ID 0x2800001, version 2 idb = 0x60C03278, ds = 0x60C07704, ssb=0x60C05298 Clock mux=0x30, ucmd_ctrl=0x0, port_status=0x0 Serial config=0x8, line config=0x1B0202 maxdgram=4480, bufpool=128Kb, 256 particles

rxLOS active, rxLOF inactive, rxAIS inactive txAIS active, rxRAI inactive, txRAI active

Configuring the PA-T3 Interfaces 8-17

Checking the Configuration

line state: down PA-T3 DTE cable, received clockrate 1582

base0 registers=0x3F000000, base1 registers=0x3F002000 mxt_ds=0x60CD2308, rx ring entries=128, tx ring entries=256 rxring=0x4B0AB940, rxr shadow=0x60CB06E4, rx_head=95 txring=0x4B0ABE20, txr shadow=0x60CB12C0, tx_head=0, tx_tail=0, tx_count=0 throttled=0, enabled=0, disabled=0, halted=0 rx_no_eop_err=3231, rx_no_stp_err=0, rx_no_eop_stp_err=0 rx_no_buf=0, rx_soft_overrun_err=0, dump_err= 3465869 tx_underrun_err=1, tx_soft_underrun_err=0, tx_limited=1 tx_fullring=0, tx_started=121324 Framing is c-bit, Clock Source is Line, Bandwidth limit is 44210., DSU mode 0 Cable length is 50 Data in current interval (407 seconds elapsed): 406 Line Code Violations, 0 P-bit Coding Violation 0 C-bit Coding Violation 0 P-bit Err Secs, 0 P-bit Severely Err Secs 0 Severely Err Framing Secs, 0 Unavailable Secs 408 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs Total Data (last 24 hours) 86400 Line Code Violations, 0 P-bit Coding Violation, 0 C-bit Coding Violation, 0 P-bit Err Secs, 0 P-bit Severely Err Secs, 0 Severely Err Framing Secs, 0 Unavailable Secs, 86400 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

Transmitter is sending remote alarm.

Receiver has loss of signal. Last FEAC code received: LOS FEBE since last read: 0 F-bit errors since last read: 24 M-bit errors since last read: 2

PIO A: 738, PIO B: 60B, Gapper register: 1094 Framer register information: reg 0: C0 reg 1: C5 reg 2: 0 reg 3: 27 reg 4: 5 reg 5: 8E reg 6: 8E reg 7: CB reg 8: 80 reg 9: 0 reg A: 0 reg B: 0 reg C: E reg D: 0 reg E: B8 reg F: E reg 10: CB reg 11: 0 reg 12: 0 reg 13: 0 reg 14: 0

router#

For a VIP2, use the show controllers serial command, using arguments such as those that specify the slot, port adapter,and port number (slot/port-adapter/port), to display information that is speciﬁc to the serial interface hardware. Following is an example of the show controllers serial type slot/port adapter/interface command that shows serial port 10/0/0 on a one-port PA-T3 serial port adapter installed on a VIP2 in chassis slot 0:

router# show controllers serial 10/0/0 Serial10/0/0 Mx PA-T3(1) HW Revision 0x2, FW Revision 2.55 Framing is c-bit, Clock Source is Line, Bandwidth limit is 44210., DSU mode 0 Cable length is 50 Data in current interval (325 seconds elapsed): 0 Line Code Violations, 0 P-bit Coding Violation 0 C-bit Coding Violation

8-18

PA-T3 Serial Port Adapter Installation and Configuration

Using show Commands to Display Interface and System Information

0 P-bit Err Secs, 0 P-bit Severely Err Secs 0 Severely Err Framing Secs, 0 Unavailable Secs 0 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs Total Data (last 24 hours) 0 Line Code Violations, 0 P-bit Coding Violation, 0 C-bit Coding Violation, 0 P-bit Err Secs, 0 P-bit Severely Err Secs, 0 Severely Err Framing Secs, 0 Unavailable Secs, 0 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

No alarms detected. router#

ForaCatalyst RSM/VIP2, use the show controllers serial command, using arguments such as those that specify the port adapter and port number (port-adapter/port), to display information that is speciﬁc to the serial interfacehardware. Followingis an example of the show controllersserialport adapter/interface command that shows serial port 0/0 on a one-port PA-T3 serial port adapter installed on a Catalyst RSM/VIP2:

router# show controllers serial 0/0 Serial0/0 Mx PA-T3(1) HW Revision 0x2, FW Revision 2.55 Framing is c-bit, Clock Source is Line, Bandwidth limit is 44210., DSU mode 0 Cable length is 50 Data in current interval (325 seconds elapsed): 0 Line Code Violations, 0 P-bit Coding Violation 0 C-bit Coding Violation 0 P-bit Err Secs, 0 P-bit Severely Err Secs 0 Severely Err Framing Secs, 0 Unavailable Secs 0 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs Total Data (last 24 hours) 0 Line Code Violations, 0 P-bit Coding Violation, 0 C-bit Coding Violation, 0 P-bit Err Secs, 0 P-bit Severely Err Secs, 0 Severely Err Framing Secs, 0 Unavailable Secs, 0 Line Errored Secs, 0 C-bit Errored Secs, 0 C-bit Severely Errored Secs

No alarms detected. router#

The show version (or show hardware) command displays the conﬁguration of the system hardware (the number of each port adapter type installed), the software version, the names and sources of conﬁguration ﬁles, and the boot images. Following is an example of the output from the show version command on a Cisco 7200 series router:

router# show version

Cisco Internetwork Operating System Software IOS (tm) GS Software (RSP-JV-M), Version 11.1(16)CA Synced to mainline version: 11.1(13.5) Copyright (c) 1986-1997 by cisco Systems, Inc. Compiled Sat 06-Sep-97 02:12 by paking Image text-base: 0x60010900, data-base: 0x60A42000

ROM: System Bootstrap, Version 11.1(5) [mkamson 5], RELEASE SOFTWARE (fc1) ROM: 7200 Software (C7200-BOOT-M), Version 11.1(6), RELEASE SOFTWARE (fc1)

Configuring the PA-T3 Interfaces 8-19

Checking the Configuration

byron uptime is 22 minutes System restarted by reload System image file is "c7200-p-mz", booted via tftp from 10.0.0.0

cisco 7206 (NPE150) processor with 12288K/4096K bytes of memory. R4700 processor, Implementation 33, Revision 1.0 (512KB Level 2 Cache) Last reset from power-on X.25 software, Version 2.0, NET2, BFE and GOSIP compliant. 4 Ethernet/IEEE 802.3 interfaces. 1 Serial network interface. 1 FDDI network interface. 125K bytes of non-volatile configuration memory. 1024K bytes of packet SRAM memory.

4096K bytes of Flash internal SIMM (Sector size 256K). Configuration register is 0x2

Following is an example of the show version command used with a Cisco 7500 series router:

router# show version

ROM: System Bootstrap, Version 5.3.2(3.2) [kmac 3.2], MAINTENANCE INTERIM SOFTWARE ROM: GS Software, Version 11.1(8)CA, EARLY DEPLOYMENT RELEASE SOFTWARE (fc1)

keats uptime is 22 minutes System restarted by reload System image file booted via tftp from 10.0.0.0

Last reset from power-on G.703/E1 software, Version 1.0. G.703/JT2 software, Version 1.0. SuperLAT software (copyright 1990 by Meridian Technology Corp). Bridging software. X.25 software, Version 2.0, NET2, BFE and GOSIP compliant. TN3270 Emulation software (copyright 1994 by TGV Inc). Chassis Interface. 3 VIP2 controllers (1 FastEthernet)(4 Ethernet)(1 Fddi)(2 PA-T3). 4 Ethernet/IEEE 802.3 interfaces. 1 FastEthernet/IEEE 802.3 interface. 2 Serial network interfaces. 1 FDDI network interface. 125K bytes of non-volatile configuration memory.

8192K bytes of Flash internal SIMM (Sector size 256K). Configuration register is 0x2

8-20

PA-T3 Serial Port Adapter Installation and Configuration

Using show Commands to Display Interface and System Information

To determine which type of port adapter is installed in your system, use the show diag slot command. Speciﬁc port adapter information is displayed, as shown in the following example of a one-port PA-T3 serial port adapter in chassis slot 3 on a Cisco 7200 series router:

router# show diag 3

Slot 3: PA-T3 PA port adapter, 1 port Port adapter is analyzed Port adapter insertion time 3d19h ago Hardware revision 0.1 Board revision UNKNOWN Serial number 4526750 Part number 73-2616-01 Test history 0x0 RMA number 00-00-00 EEPROM format version 0 EEPROM contents (hex): 0x20: 00 70 00 01 00 45 12 9E 49 0A 38 01 00 00 00 00 0x30: 00 00 00 00 97 05 01 00 FF FF FF FF FF FF FF FF

The following example shows a one-port PA-T3 serial port adapter in chassis slot 10 on a VIP2:

router# show diag 10

Slot 10: Physical slot 10, ~physical slot 0x5, logical slot 10, CBus 0 Microcode Status 0x4 Master Enable, LED, WCS Loaded Board is analyzed Pending I/O Status: None EEPROM format version 1 VIP2 controller, HW rev 2.4, board revision D0 Serial number: 04481599 Part number: 73-1684-03 Test history: 0x00 RMA number: 00-00-00 Flags: cisco 7000 board; 7500 compatible

EEPROM contents (hex): 0x20: 01 15 02 04 00 44 62 3F 49 06 94 03 00 00 00 00 0x30: 68 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Slot database information: Flags: 0x4 Insertion time: 0x14AC (3d19h ago)

Controller Memory Size: 32 MBytes DRAM, 2048 KBytes SRAM

PA Bay 0 Information: PA-T3 Serial PA, 1 ports EEPROM format version 0 HW rev 0.1, Board revision UNKNOWN Serial number: 04526751 Part number: 73-2616-01

PA Bay 1 Information: PA-T3 Serial PA, 1 ports EEPROM format version 0 HW rev 0.1, Board revision UNKNOWN Serial number: 04526749 Part number: 73-2616-01

Configuring the PA-T3 Interfaces 8-21

Checking the Configuration

The following example shows a one-port PA-T3 serial port adapter on a Catalyst RSM/VIP2:

router# show diag 0

Slot 0: Physical slot 0, ~physical slot 0x5, logical slot 0, CBus 0 Microcode Status 0x4 Master Enable, LED, WCS Loaded Board is analyzed Pending I/O Status: None EEPROM format version 1 VIP2 controller, HW rev 2.4, board revision D0 Serial number: 04481599 Part number: 73-1684-03 Test history: 0x00 RMA number: 00-00-00 Flags: cisco 7000 board; 7500 compatible

EEPROM contents (hex): 0x20: 01 15 02 04 00 44 62 3F 49 06 94 03 00 00 00 00 0x30: 68 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Slot database information: Flags: 0x4 Insertion time: 0x14AC (3d19h ago)

Note The slot values displayed by some commands (such as show diag and

show controllers cbus) are not relevant to any physical connection; you should disregard these slot

values for the Catalyst RSM/VIP2.

For a VIP2, use the show controllers cbus command to display all of the current interface processors and their interfaces. Followingis an exampleof the show controllerscbuscommandthat shows serial port 1/0/0 on a one-port PA-T3 serial port adapter installed on a VIP2 in chassis slot 1:

router# show controllers cbus 1/0/0

8-22

PA-T3 Serial Port Adapter Installation and Configuration

Using show Commands to Display Interface and System Information

Ethernet0/0/1, addr 00e0.f7d7.cb01 (bia 00e0.f7d7.cb01) gfreeq 48000148, lfreeq 48000180 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A08, txacc 48001A0A (value 0), txlimit 152 Ethernet0/0/2, addr 00e0.f7d7.cb02 (bia 00e0.f7d7.cb02) gfreeq 48000148, lfreeq 48000188 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A10, txacc 48001A12 (value 0), txlimit 152 Ethernet0/0/3, addr 00e0.f7d7.cb03 (bia 00e0.f7d7.cb03) gfreeq 48000148, lfreeq 48000190 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A18, txacc 48001A1A (value 0), txlimit 152

(Additional displayed text omitted from this example.)

For a Catalyst RSM/VIP2, use the show controllers cbus command to display all of the interfaces. Following is an example of the show controllers cbus command that shows serial port 0/0 on a one-port PA-T3 serial port adapter installed on a Catalyst RSM/VIP2:

router# show controllers cbus 0/0

MEMD at 40000000, 2097152 bytes (unused 4288, recarves 1, lost 0) RawQ 48000100, ReturnQ 48000108, EventQ 48000110 BufhdrQ 48000138 (2810 items), LovltrQ 48000150 (20 items, 2016 bytes) IpcbufQ 48000160 (32 items, 4096 bytes) IpcbufQ_classic 48000158 (8 items, 4096 bytes) 3570 buffer headers (48002000 - 4800FF10) pool0: 9 buffers, 256 bytes, queue 48000140 pool1: 458 buffers, 1536 bytes, queue 48000148 pool2: 229 buffers, 4512 bytes, queue 48000168 pool3: 4 buffers, 4544 bytes, queue 48000170 slot0: VIP2, hw 2.4, sw 21.40, ccb 5800FF20, cmdq 48000080, vps 8192 software loaded from system IOS (tm) VIP Software (SVIP-DW-M), Version 11.1(16)CA ROM Monitor version 17.0 Ethernet0/0, addr 00e0.f7d7.cb00 (bia 00e0.f7d7.cb00) gfreeq 48000148, lfreeq 48000178 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 2, maxrxcurr 4 txq 48001A00, txacc 48001A02 (value 152), txlimit 152 Ethernet0/1, addr 00e0.f7d7.cb01 (bia 00e0.f7d7.cb01) gfreeq 48000148, lfreeq 48000180 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A08, txacc 48001A0A (value 0), txlimit 152 Ethernet0/2, addr 00e0.f7d7.cb02 (bia 00e0.f7d7.cb02) gfreeq 48000148, lfreeq 48000188 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A10, txacc 48001A12 (value 0), txlimit 152 Ethernet0/3, addr 00e0.f7d7.cb03 (bia 00e0.f7d7.cb03) gfreeq 48000148, lfreeq 48000190 (1536 bytes), throttled 0 rxlo 4, rxhi 273, rxcurr 0, maxrxcurr 0 txq 48001A18, txacc 48001A1A (value 0), txlimit 152

(Additional displayed text omitted from this example.)

Note The slot values displayed by some commands (such as show diag and

show controllers cbus) are not relevant to any physical connection; you should disregard these slot

values for the Catalyst RSM/VIP2.

Configuring the PA-T3 Interfaces 8-23

Checking the Configuration

For complete command descriptions and examples for the Cisco 7100 series routers, Cisco 7200 series routers, Cisco uBR7200 series routers, VIP2 and Catalyst RSM/VIP2, refer to the publications listed in the “Related Documentation” section on page vi.

Using the ping Command to Verify Network Connection

The ping command allows you to verify that an interface port is functioning properly and to check the path between a speciﬁc port and connected devicesatvariouslocations on the network. After you verify that the system has booted successfully and is operational, you can use the ping command to verify the status of interface ports. Refer to the publications listed in the “Related Documentation” section on page vi for detailed command descriptions and examples.

The ping command sends an echo request out to a remote device at an IP address that you specify. After sending a series of signals, the command waits a speciﬁed time for the remote device to echo the signals. Each returned signal is displayed as an exclamation point (!) on the console terminal; each signal that is not returned before the speciﬁed timeout is displayed as a period (.). A series of

exclamationpoints (!!!!!) indicates a good connection;aseriesofperiods(.....)orthemessage [timed

out] or [failed] indicates that the connection failed. Followingis an example of a successful ping command to a remote server with the address 10.0.0.0:

router# ping 10.0.0.0 <Return> Type escape sequence to abort. Sending 5, 100-byte ICMP Echoes to 10.0.0.0, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/15/64 ms router#

If the connection fails, verify that you have the correct IP address for the server and that the server is active(poweredon), and repeat the ping command. Refer to the publications listed in the “Related Documentation” section on page vi for complete descriptions of interface subcommands and the available conﬁguration options.

Using the loopback Command to Verify the Physical Interface

Use the loopback {dte | local | network {line | payload} | remote} command to troubleshoot the PA-T3 serial port adapter at the physical interface level. The command loops all packets from the PA-T3 interface either back to the interface or from the network back out toward the network. Use the no form of the command to remove the loop.

Thefollowingexamples of the loopback {dte | local | network {line | payload}|remote} command conﬁgure loopback modes on serial port 0of a one-port PA-T3 serial port adapter installed in chassis slot 6 of a Cisco 7200 series router:

• Set the interface into loopback data terminal equipment (DTE) mode as follows:

Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# interface serial 6/0 router(config-if)# loopback dte

Loopback DTE loops the router output data back toward the router (after the line interface unit [LIU]).

8-24

PA-T3 Serial Port Adapter Installation and Configuration

Using the loopback Command to Verify the Physical Interface

• Set the interface into local loopback mode as follows:

Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# interface serial 6/0 router(config-if)# loopback local

Local loopback loops the router output data back toward the router at the framer.

• Set the interface into network line loopback mode as follows:

Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# interface serial 6/0 router(config-if)# loopback network line

Network line loopback loops the data back toward the network (before the framer).

• Set the interface into network payload loopback mode as follows:

Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# interface serial 6/0 router(config-if)# loopback network payload

Network payload loopback loops just the payload data back toward the network at the PA-T3 framer.

• Set the interface into remote loopback mode as follows:

Router# configure terminal Enter configuration commands, one per line. End with CNTL/Z. router(config)# interface serial 6/0 router(config-if)# loopback remote

Remote loopback loops the data back toward the network (before the framer at the remote T3 device).

Note Remote loopback mode works with C-bit framing only. The other loopback modes listed

above work with C-bit, M13, and bypass framing. See the “Specifying T3 Framing” section on page 8-13 for information on conﬁguring C-bit framing.

Configuring the PA-T3 Interfaces 8-25

Checking the Configuration

8-26

PA-T3 Serial Port Adapter Installation and Configuration

CHAPTER

Cisco7100 Series andthe PA-T3 Port Adapter

This chapter provides information on the PA-T3 port adapter and its use in the Cisco 7100 series routers. This chapter contains the following sections:

• Overview, page 7-1

• Removing a Port Adapter, page 7-2

• Installing a Port Adapter, page 7-3

Overview

The PA-T3serial port adapter can be installed in port adapter slot 3 in Cisco 7120 series routers and in port adapter slot 4 in Cisco 7140 series routers. Figure 7-1 shows port adapter slot 3 of a Cisco 7120 series router. Figure 7-2 shows port adapter slot 4 of a Cisco 7140 series router.

Figure 7-1 Cisco 7120 Series Router—Port Adapter Slot 3 Location

Locked

Slot 3ESD plug

CEL CAR ALM

RXTX

Unlocked

FE 0 / 0 FE

0 / 1

ACT

LNK0LNK

ACT

SLOT 0 SLOT 1

CONS

7120 - AE3

PWR

SYS RDY

AUX

22133

Cisco 7100 Series and the PA-T3 Port Adapter 7-1

Removing a Port Adapter

Figure 7-2 Cisco 7140 Series Router—Port Adapter Slot 4 Location

ESD plug

CEL CAR ALM

155 - MM

Locked

Unlocked

FE 0 / 0 FE

0 / 1

CEL CAR ALM

ACT

LNK0LNK

ACT

155 - MM

Slot 4

SLOT 0 SLOT 1

CONS

PWR

SYS RDY

AUX

7140 - 2MM3

AC OK DC OK

OTF

AC OK DC OK

OTF

22134

Depending on your circumstances, you might need to install a new port adapter in a Cisco 7100 seriesrouter or replace a failed port adapter in the ﬁeld. All port adapters available for the Cisco 7100 series connect directly to the router and are locked into position by a locking tab with two screws (see Figure 7-1 or Figure 7-2). You need a number 2 Phillips screwdriver to loosen the screws.

Note The Cisco 7100 series routers support online insertion and removal (OIR); therefore, you do

not have to power down the router when removing and replacing a port adapter.

Removing a Port Adapter

Following is the procedure for removing a port adapter from a Cisco 7100 series router:

Step 1 Attach an ESD-preventive wrist strap between you and the chassis. See Figure 7-1 or

Figure 7-2 for the location of the ESD plug.

Step 2 Use a number 2 Phillips screwdriver to loosen the screws on the locking tab; then slide

the tab down to the unlocked position. (See Figure 7-1 or Figure 7-2.)

Step 3 Grasp the handle on the port adapter and pull the port adapter from the router, about

halfway out of its slot. If you are removing a blank port adapter, pull the blank port adapter completely out of the chassis slot.

Note As you disengage the port adapter from the router, OIR administratively shuts

down all active interfaces on the port adapter.

Step 4 With the port adapter halfway out of the slot, disconnect all cables from the port adapter. Step 5 After disconnecting the cables, pull the port adapter from its chassis slot.

Caution Always handle the port adapter by the carrier edges and handle; never touch the port adapter’s

components or connector pins. (See Figure 7-3.)

7-2

PA-T3 Serial Port Adapter Installation and Configuration

Figure 7-3 Handling a Port Adapter

Metal carrier

Printed circuit board

Installing a Port Adapter

H6420

Step 6

Step 7 Install a blank port adapter or replacement port adapter to maintain proper ﬂow of cooling

air across the internal components. For procedures on how to install a port adapter, see the next section, “Installing a Port Adapter.”

Note The blank port adapter is available from Cisco Systems as a spare. The blank port

adapter product number is MAS-7100-PABLANK.

This completes the procedure for removing a port adapter from a Cisco 7100 series router.

Installing a Port Adapter

Following is the procedure for installing a new port adapter in a Cisco 7100 series router:

Step 1 Attach an ESD-preventivewrist strap between you and the chassis. See Figure 7-1for the

location of the ESD plug.

Step 2 Ensure that the locking tab is down in the unlocked position. If it is locked, use a

number 2 Phillips to loosen the screws; then slide the tab down to the unlocked position. (See Figure 7-1 or Figure 7-2.)

Step 3 Remove the new port adapter from its antistatic container and position it at the opening

of the slot.

Step 4 Use both hands to grasp the port adapter by its metal carrier edges, and position the port

adapter so that its components face downward. (See Figure 7-3.)

Step 5 Align the left and right edge of the port adapter metal carrier between the guides in the

port adapter slot. (See Figure 7-4.)

Step 6 With the metal carrier aligned in the slot guides, gently slide the port adapter halfway into

the slot.

Caution Do not slide the port adapter all the way into the slot until you have connected all required cables.

Trying to do so disrupts normal operation of the router.

Cisco 7100 Series and the PA-T3 Port Adapter 7-3

Installing a Port Adapter

Figure 7-4 Aligning the Single-Width Port Adapter Between the Slot Guides

Guides

XMTRRCVR

RCLK

AIS OOF LL

FERF

0 /

22132

Step 7

With the port adapter halfway in the slot, connect all required cables to the port adapter.

Step 8 After connecting all required cables, carefully slide the port adapter all the way into the

slot until the port adapter is seated in the router.

Step 9 After seating the port adapter in the router, slide the locking tab up to the locked position

and tighten the screws. (Figure 7-1 or Figure 7-2 shows the locking tab in the locked position.)

Note If the port adapter lever is not in the locked position, the port adapter is not

completely seated in the router. Carefully pull the port adapter halfway out of the slot, reinsert it, and move the port adapter lever to the locked position.

This completes the procedure for installing a new port adapter in a Cisco 7100 series router.Proceed to Chapter 8, “Conﬁguring the PA-T3Interfaces,” for information on conﬁguring your port adapter interfaces.

7-4

PA-T3 Serial Port Adapter Installation and Configuration

Cisco Systems PA-T3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
