Cisco Carrier Sensitive Routing User Guide

Version 1.1

Corporate Headquarters

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 526-4100

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED ORIMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Cisco Carrier Sensitive Routing User Guide

Preface vii

Overview vii Who Should Use This Guide vii Document Organization viii Document Conventions viii Related Documentation and References ix Obtaining Documentation ix

World Wide Web ix Documentation CD-ROM ix Ordering Documentation ix Documentation Feedback x

Obtaining Technical Assistance x

Cisco.com x Technical Assistance Center x

Contacting TAC by Using the Cisco TAC Website xi Contacting TAC by Telephone xi

C O N T E N T S

C H A P T E R

1 Overview of Cisco Carrier Sensitive Routing 1-1

Prerequisites 1-1 CSR Components 1-2 CSR Basics 1-2

PostgreSQL Database 1-3 CSR Application 1-3

Ingress Rejection Rules 1-4 Egress Rejection Rules 1-4 Selection Rules 1-4

CSR GUI 1-4

CSR Limitations 1-5

2 PostgreSQL Database Operations and Functionalities 2-1

Database Operations 2-1

Activating the Database 2-1 Exiting the Database 2-2 Reactivating the Database 2-2

Cisco Carrier Sensitive Routing User Guide

iii

Contents

Exporting a Database 2-2 Reintializing a Database 2-3

Database Functionalities 2-3

Database Tables 2-4

Configuration Tables 2-4 Dataset Tables 2-10

PostgreSQL Database Command Summary 2-17

C H A P T E R

3 Cisco Carrier Sensitive Routing Application Operations 3-1

Activating CSR 3-1

Single Instance 3-1

CSR as a Daemon 3-1 CSR as a User Process 3-2

Multiple Instances 3-2

Deactivating CSR 3-3

4 CSR GUI Functionalities 4-1

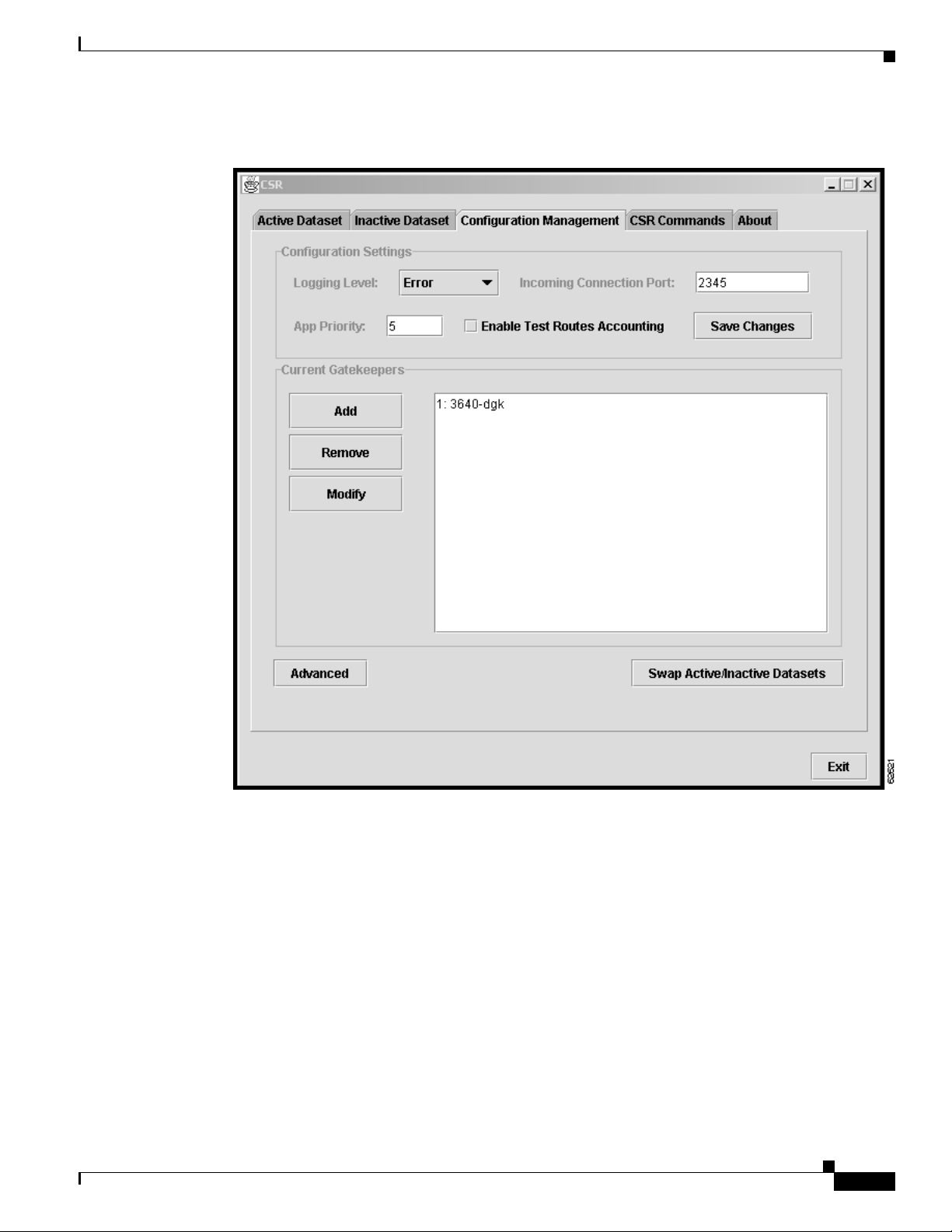

Activating the GUI 4-1 Configuring CSR with the GUI 4-2

Changing Configuration Settings 4-2

Changing Log Levels 4-3 Changing App Priority 4-4 Changing Connection Port 4-4 Enabling Test Routes Accounting 4-4 Saving Configuration Settings 4-4

Adding, Modifying, and Removing Gatekeepers 4-5

Adding Gatekeepers 4-5 Modifying Gatekeepers 4-9 Removing Gatekeepers 4-10 Setting Threads for Processing Calls and Call Queue Size 4-11 Swapping Datasets 4-12

Updating Active Datasets 4-12

Creating, Modifying, and Deleting Carriers 4-13

Creating Carriers 4-14 Modifying Carriers 4-15 Deleting Carriers 4-16

Creating, Modifying, and Deleting Contacts 4-17

Creating Contacts 4-17 Modifying Contacts 4-18

Cisco Carrier Sensitive Routing User Guide

Deleting Contacts 4-18

Creating, Modifying, and Deleting Contact Lists 4-19

Creating Contact Lists 4-19 Modifying Contact Lists 4-20 Deleting Contact Lists 4-21

Creating, Modifying, and Deleting Egress Route Attributes 4-21

Creating Egress Route Attributes 4-21 Modifying Egress Route Attributes 4-23 Deleting Egress Route Attributes 4-25

Creating, Modifying, and Deleting Ingress Route Attributes 4-26

Creating Ingress Route Attributes 4-26 Modifying Ingress Route Attributes 4-28 Deleting Ingress Route Attributes 4-29

Creating, Modifying, and Deleting Match Patterns 4-30

Creating Match Patterns 4-30 Modifying Match Patterns 4-31 Deleting Match Patterns 4-31

Creating, Modifying, and Deleting Routes 4-32

Creating Routes 4-32 Modifying Routes 4-33 Deleting Routes 4-34

Creating, Modifying, and Deleting Rules 4-35

Creating Rules 4-35 Modifying Rules 4-37 Deleting Rules 4-38

Verifying Datasets 4-39

Contents

Updating Inactive Datasets 4-39

Destroying Inactive Datasets 4-40 Activating Inactive Datasets 4-41

CSR Commands 4-41

Sending Test Route Request Commands to an Active CSR Application 4-42 Updating Logging Level 4-44 Loading the Active Dataset 4-44 Resetting Call Accounting 4-45 Updating Gatekeepers 4-45

Cleaning Test Results 4-45 Checking CSR Version 4-46 Multiple GUI Operation 4-46

Cisco Carrier Sensitive Routing User Guide

Contents

AP P E N D IX

GL O S SA RY

IN D E X

A Logging A-1

Configuring Syslog A-1

Examples A-2

Viewing Logs A-2

Sample logs A-3

B Data Schema B-1

Configuration Data Schema B-1 Dataset Schema B-5

C Error Conditions and Recoveries C-1

Database Connectivity Loss C-1 Gatekeeper Connectivity Loss C-2

Cisco Carrier Sensitive Routing User Guide

Preface

This preface describes the objective, audience, organization, and conventions of the Cisco Carrier Sensitive Routing User Guide.

It contains the following information:

• Overview, page-vii

• Who Should Use This Guide , page-vii

• Document Organization, page-viii

• Document Conventions, page-viii

• Related Documentation and References , page-ix

• Obtaining Documentation, page-ix

• Obtaining Technical Assistance , page-x

Overview

The Cisco Carrier Sensitive Routing User Guide provides information on operations and functionalities of Carrier Sensitive Routing (CSR) application, its graphical user interface (GUI) and the databases associated with it.

Who Should Use This Guide

Users of this guide should have knowledge of the following:

• UNIX operating system and commands

• SQL commands

• TCP/IP network that the CSR is connected to

• Sun/Solaris computer system

Cisco Carrier Sensitive Routing User Guide

vii

Document Organization

This guide is organized as follows:

Preface

Chapter1, “Overview of Cisco Carrier Sensitive Routing”

Chapter2, “PostgreSQL Database Operations and Functionalities ”

Chapter3, “Cisco Carrier Sensitive Routing Application Operations”

Chapter4, “CSR GUI Functionalities” Describes the CSR graphical user interface

AppendixA, “Logging” Describes the configuration of syslog and viewing

AppendixB, “Data Schema ” Describes the configuration data schema and

AppendixC, “Error Conditions and Recoveries ” Describes database and gatekeeper connectivity

Document Conventions

Following are conventions that might be used in this document.

Table1

Provides an overview of the postgreSQL database, CSR application, and CSR graphical user interface (GUI).

Describes the operations and functionalities of the postgreSQL database.

Describes the operations and functionalities of the CSR application.

functionalities.

logs.

dataset schema.

loss.

Convention Description

boldface Commands and keywords are in bold face .

italic Arguments for which you supply values are in italic. [] Keywords or arguments that appear within square brackets are optional. { x | y | z } Alternative, mutually exclusive, keywords are grouped in braces and

separated by vertical bars.

^ orCtrl Represent the key labeled Control. For example, when you read ^D or

Ctrl-D, you should hold down the Control key while you press the D key.

screen font

boldface screen font

<> Nonprinting characters, such as passwords, appear in angled brackets. [] Default responses to system prompts are in square brackets.

Terminal sessions and information the system displays are in screen

font.

Information you must enter is in boldface screen font.

viii

Cisco Carrier Sensitive Routing User Guide

Preface

Related Documentation and References

Translated documentation is available at this URL:

http://www.cisco.com/public/countries_languages.shtml

Documentation CD-ROM

Cisco documentation and additional literature are available in a Cisco Documentation CD-ROM package, which is shipped with your product. The Documentation CD-ROM is updated monthly and may be more current than printed documentation. The CD-ROM package is available as a single unit or through an annual subscription.

Ordering Documentation

You can order Cisco documentation in these ways:

• Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from

the Networking Products MarketPlace:

http://www.cisco.com/cgi-bin/order/order_root.pl

• Registered Cisco.com users can order the Documentation CD-ROM through the online Subscription

Store:

http://www.cisco.com/go/subscription

• Nonregistered Cisco.com users can order documentation through a local account representative by

calling Cisco Systems Corporate Headquarters (California, U.S.A.) at 408526-7208 or, elsewhere in North America, by calling 800553-NETS (6387).

Cisco Carrier Sensitive Routing User Guide

Obtaining Technical Assistance

Documentation Feedback

You can submit comments electronically on Cisco.com. In the Cisco Documentation home page, click the Fax or Email option in the “Leave Feedback” section at the bottom of the page.

You can e-mail your comments to bug-doc@cisco.com. You can submit your comments by mail by using the response card behind the front cover of your

document or by writing to the following address: Cisco Systems

Attn: Document Resource Connection 170 West Tasman Drive San Jose, CA 95134-9883

We appreciate your comments.

Obtaining Technical Assistance

Cisco provides Cisco.com as a starting point for all technical assistance. Customers and partners can obtain online documentation, troubleshooting tips, and sample configurations from online tools by using the Cisco Technical Assistance Center (TAC) Web Site. Cisco.com registered users have complete access to the technical support resources on the Cisco TAC Web Site.

Preface

Cisco.com

Cisco.com is the foundation of a suite of interactive, networked services that provides immediate, open access to Cisco information, networking solutions, services, programs, and resources at any time, from anywhere in the world.

Cisco.com is a highly integrated Internet application and a powerful, easy-to-use tool that provides a broad range of features and services to help you with these tasks:

• Streamline business processes and improve productivity

• Resolve technical issues with online support

• Download and test software packages

• Order Cisco learning materials and merchandise

• Register for online skill assessment, training, and certification programs

If you want to obtain customized information and service, you can self-register on Cisco.com. To access Cisco.com, go to this URL:

http://www.cisco.com

Technical Assistance Center

The Cisco Technical Assistance Center (TAC) is available to all customers who need technical assistance with a Cisco product, technology, or solution. Two levels of support are available: the Cisco TAC WebSite and the Cisco TAC Escalation Center.

Cisco Carrier Sensitive Routing User Guide

Preface

Cisco TAC inquiries are categorized according to the urgency of the issue:

• Priority level 4 (P4)—You need information or assistance concerning Cisco product capabilities,

• Priority level 3 (P3)—Your network performance is degraded. Network functionality is noticeably

• Priority level 2 (P2)—Your production network is severely degraded, affecting significant aspects

• Priority level 1 (P1)—Your production network is down, and a critical impact to business operations

The Cisco TAC resource that you choose is based on the priority of the problem and the conditions of service contracts, when applicable.

Cisco TAC Web Site

You can use the Cisco TAC Web Site to resolve P3 and P4 issues yourself, saving both cost and time. The site provides around-the-clock access to online tools, knowledge bases, and software. To access the Cisco TAC Web Site, go to this URL:

Obtaining Technical Assistance

product installation, or basic product configuration.

impaired, but most business operations continue.

of business operations. No workaround is available.

will occur if service is not restored quickly. No workaround is available.

http://www.cisco.com/tac

All customers, partners, and resellers who have a valid Cisco service contract have complete access to the technical support resources on the Cisco TAC Web Site. The Cisco TAC Web Site requires a Cisco.com login ID and password. If you have a valid service contract but do not have a login ID or password, go to this URL to register:

http://www.cisco.com/register/

If you are a Cisco.com registered user, and you cannot resolve your technical issues by using the Cisco TAC Web Site, you can open a case online by using the TAC Case Open tool at this URL:

http://www.cisco.com/tac/caseopen

If you have Internet access, we recommend that you open P3 and P4 cases through the Cisco TAC WebSite.

Cisco TAC Escalation Center

The Cisco TAC Escalation Center addresses priority level 1 or priority level2 issues. These classifications are assigned when severe network degradation significantly impacts business operations. When you contact the TAC Escalation Center with a P1 or P2 problem, a Cisco TAC engineer automatically opens a case.

To obtain a directory of toll-free Cisco TAC telephone numbers for your country, go to this URL:

http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml

Before calling, please check with your network operations center to determine the level of Cisco support services to which your company is entitled: for example, SMARTnet, SMARTnet Onsite, or Network Supported Accounts (NSA). When you call the center, please have available your service agreement number and your product serial number.

Cisco Carrier Sensitive Routing User Guide

Obtaining Technical Assistance

Preface

xii

Cisco Carrier Sensitive Routing User Guide

C H A P T E R

Overview of Cisco Carrier Sensitive Routing

The Cisco Carrier Sensitive Routing (CSR) application provides end users with the capability to manipulate the routing of calls from the gatekeeper based on the ingress carrier and the DNIS. The routing can be based on QoS along with many other attributes pertaining to a carrier. With CSR, you can provision data specific to carriers that pertain to your network to maximize cost, QoS, and carrier relations. CSR can run on a Sun/Solaris system that has a network connection to gatekeepers.

This chapter contains the following sections:

• Prerequisites, page 1-1

• CSR Components, page 1-2

• CSR Basics, page 1-2

• CSR Limitations, page 1-5

Prerequisites

• Root access to a UNIX machine for the following tasks:

• Configured Cisco gatekeeper and gateway

• Network that provides DNS capabilities

• Knowledge of the following:

–

Create users

–

Modify Syslog.conf

–

Setting database security

–

UNIX operating system and commands

–

SQL commands

–

TCP/IP network that the CSR is connected to

–

Sun computer system

Carrier Sensitive Routing User Guide

1-1

CSR Components

The three major components of CSR are as follows.

• postgreSQL Database

• CSR application

• CSR GUI

The CSR GUI and the CSR application are not directly connected. They are both connected to the database. Figure1-1 illustrates these components.

Figure1-1 CSR Components

Chapter1 Overview of Cisco Carrier Sensitive Routing

CSR Basics

This section describes the basic operation of CSR. After CSR is started, it registers with the gatekeeper connected to a network. Any one or a combination

of the following registration messages are used:

• ARQ

• LRQ

• DRQ

• BRQ

• URQ

• RAI

• LCF

• LRJ

• IRR

The gatekeeper responds with any of the following messages:

• ANI

• DNIS

• Source carrier

• Destination carrier

1-2

Carrier Sensitive Routing User Guide

Chapter1 Overview of Cisco Carrier Sensitive Routing

CSR evaluates the predetermined selection and rejection criteria as part of the source carrier and DNIS information to determine what routing information to return to the gatekeeper.

Note CSR can operate with multiple gatekeepers. CSR passes through the ANI, but its work is not based

on the ANI. If the CSR receives the destination carrier, it passes the call through with the same information that it receives.

PostgreSQL Database

The postgreSQL database stores all the provisioned data associated with the CSR. The data can be entered into the database by using the GUI or by importing. The database supports active dataset, inactive dataset, and configuration data.

Information contained in the active and inactive datasets includes:

• Carrier Table —Contains a list of carriers and associated attributes.

• Contact List Table—Contains a relationship of contacts to a key.

• Contacts Table—Contains a list of RAS addresses (zones) and associated attributes.

CSR Basics

• Egress Route Attributes Table—Contains a list of egress attributes and associated data.

• Egress Routes Table —Contains a list of egress attributes and associated routes.

• Ingress Route Attributes Table—Contains a list ingress attributes and associated data.

• Ingress Routes Table —Contains a list of ingress attributes and associated routes.

• Match Patterns Table—Contains a list of match patterns and associated routes.

• QoS Table —Contains a list of relative QoS values associated to route, ingress, and egress.

• Routes Table —Contains a list of routes and associated rules.

• Rules Table—Contains a list of rules and associated attributes (selection/rejection).

Configuration data contained in the database includes:

• Gatekeepers Table—Contains a list of gatekeepers and associated registration messages.

• Filters Table—Contains a list of gatekeepers and associated filters.

• Configuration Settings Table—Contains logging level, application priority, incoming connection

port and test routes accounting flag.

• TestRoutes —A record is added to this when a test route command is issued.

• TestOutputs —A set of records is added to this table after the test route command is complete.

• LogEntries —A set of records is added to this table after the test route command is complete.

• StringResources—Logging strings are located here.

CSR Application

The CSR application contains the logic (selection and rejection) to determine the proper routing for calls based on inputs from the gatekeeper. CSR operates by the rules described in the following section.

Carrier Sensitive Routing User Guide

1-3

CSR Basics

Ingress Rejection Rules

• Reject Max Origination Percentage

• Reject Max Ingress Units

• Reject Max Ingress Units per Route

Egress Rejection Rules

• Reject Egress Cost Greater than Ingress

• Reject Insufficient QoS

• Reject Max Egress Units Exceeded

• Reject Max Egress Units per Route Exceeded

• Prevent ITSP to ITSP

Selection Rules

Chapter1 Overview of Cisco Carrier Sensitive Routing

CSR GUI

• Select Min Cost per Egress Route

• Select Best QoS

• Select Same Carrier

• Select Percentage Egress

• Select Preferred Carrier

CSR operates on an internal copy of the active dataset, which is loaded from the active dataset of the postgreSQL database. CSR can also operate without the postgreSQL database running as long as it has an active dataset. For more information on the active dataset, see the “ Loading the Active Dataset”

section on page4-44.

The CSR GUI provides an interface that can be used to enter, change, and modify provisioned data in the postgreSQL database. You can import data into the database with the import capabilities provided by postgreSQL. The CSR GUI can run on Sun/Solaris and Microsoft NT platforms.

1-4

Carrier Sensitive Routing User Guide

Chapter1 Overview of Cisco Carrier Sensitive Routing

CSR Limitations

• When two rules are available (a rule associated with the carrier and a rule associated with a route),

the rule associated with the carrier is chosen first. If one of the rules (carrier’s rule) does not exist, the rule associated with a route is used.

• When two contact lists are available (the contact list associated with the carrier and the contact list

associated with the EgressRouteAttribute), the carrier’s contact list is used first. If one of the contact lists (carrier’s contact list) does not exist, then the contact list associated with the EgressRouteAttribute is used.

• If a contact is provisioned with a DNS name and a DNS server is not found—that is, cannot get an

IP address—the dataset verification fails and the CSR cannot be started correctly.

• Static triggers are not supported by the CSR.

• Performance may deteriorate if more than five gatekeepers are connected to the CSR. This is also

related to hardware capabilities and call volume.

CSR Limitations

Carrier Sensitive Routing User Guide

1-5

CSR Limitations

Chapter1 Overview of Cisco Carrier Sensitive Routing

1-6

Carrier Sensitive Routing User Guide

PostgreSQL Database Operations and Functionalities

This chapter describes the operations and functionalities of the postgreSQL database and contains the following sections:

• Database Operations, page 2-1

• Database Functionalities, page 2-3

The postgreSQL database is a relational database management system. A database in this management system stores entities such as carriers, rules, contacts, routes, and the relationships among the entities. The management system can manage many different databases simultaneously. The CSR creates a database in this system and performs call routing based on the data in the database.

Database Operations

C H A P T E R

This section describes the following tasks:

• Activating the Database

• Exiting the Database

• Reactivating the Database

• Exporting a Database

• Reintializing a Database

Activating the Database

To activate the postgreSQL database, perform the following steps:

Step 1 Log in to the Solaris system by entering postgres as the user.

A “postgres” password prompt may appear.

Step 2 Enter the following command:

/etc/init.d/postgres_init start

This command calls postgreSQL command postmaster -S -i -B 40 -N 20 -D /usr/local/pgsql/data . The parameters are described as follows:

Cisco Carrier Sensitive Routing User Guide

2-1

Database Operations

Note For servers with console login, disable Xwindow in the file .profile, so the database can be restarted

Chapter2 PostgreSQL Database Operations and Functionalities

• -S—Tells the postmaster to run in silent mode. This is not recorded to a log file.

• -i—Tells postmaster to allow network connections. If this is not set, the postmaster accepts

connections only from the local host.

Note This is needed for the GUI to connect to the database even when it is running on the same

machine.

• -B and -N—Set up shared memory segments.

• -D—Tells the postmaster the location of the database files.

from a reboot.

Exiting the Database

To exit the postgreSQL database, perform the following steps:

Step 1 Log in to the Solaris system by entering postgres as the user.

A “postgres” password prompt may appear.

Step 2 Enter the following command:

/etc/init.d/postgres_init stop

This command calls the postgreSQL command pg_ctl stop.

Reactivating the Database

To reactivate the postgreSQL database, perform the following steps.

Step 1 Log in into the Solaris system by entering postgres as the user.

A “postgres” password prompt may appear.

Step 2 Enter the following command:

/etc/init.d/postgres_init restart

2-2

This command calls the postgreSQL command pg_ctl restart. The parameters for this command are described in “ Activating the Database” section on page2-1.

Cisco Carrier Sensitive Routing User Guide

Chapter2 PostgreSQL Database Operations and Functionalities

Exporting a Database

To export a database to a text file or to back up the entire database system, perform the following steps:

Exporting to a Text File

Step 1 Export a database into a text file by entering the following command:

pg_dump –x databasename > outfile

Note "-x" is optional. When it is used, the “dumped” database loses the ownership information.

Step 2 Reload the dataset by entering the following command:

psql –e database < outfile

Note "-e" is optional. When it is used, every log message “echoes” on the screen.

Database Operations

Backing Up the Database System

You can back up the database system file directory /usr/local/pgsql/data/base into a tar file.

Reintializing a Database

To reinitialize a database, the existing database must be destroyed, and a new one must be created. To reinitialize a database, performing the following steps:

Step 1 Destroy the database by entering the following command with “csrdb” as the name of the database:

dropdb csrdb

Note The database to be destroyed must not be connected to the CSR application, CSR GUI, and

pgsql.

Step 2 Create a new database by entering the following command:

createcsrdb csrdb

After the database is re-created, the CSR and CSR GUI can be restarted and connected to the new database. If “csrdb” is not used as the name of the database, note the following:

• To have CSR started upon reboot of the Solaris system, modify the following files:

–

etc/init.d/csr_init

–

/etc/rc2.d/S99csr_init

• To start CSR from the command prompt, specify the database name in command csr newdbname &

Cisco Carrier Sensitive Routing User Guide

2-3

Database Functionalities

This section describes the following:

• Database Tables, page 2-4

• PostgreSQL Database Command Summary , page 2-17

Database Tables

This section describes database tables, constraints placed on each table, and relationships between tables.

Note Advanced knowledge of SQL is required to access the database through SQL commands. Use

the psql interface to access an SQL prompt. For more detail on psql interface, see the postgreSQL online manual.

Chapter2 PostgreSQL Database Operations and Functionalities

Configuration Tables

Note The configuration data must contain one record that is created when the user executes the

See AppendixB, “Data Schema ,” for the database script to create database tables, constraints and relationships.

createcsrdb command.

2-4

Cisco Carrier Sensitive Routing User Guide

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-1 Configuration Data Table

Name Type

ActiveDataset text NO ‘_1’ Valid values:

LoggingLevel text NO ‘Error’ Valid values:

CSR_ID varchar(64) NO ID used to register with

CSR_Version text Version of CSR. This is

GKTMP_Version integer Version of GKTMP.

Priority integer NO 1 >=1 Priority to register this

ListenPort integer >0 and < 32767 TCP port to listen for

Database Functionalities

Allow Null Default Constraints Comments

There are two datasets

• _1

• _2

• error

• info

• debug

in the CSR (active and inactive). There are two of each table for entities that are created (for example, Carriers_1, Carriers_2). The active dataset marks which of the above is active.

When the application, is active, logs are generated. This marks the level of logging that is being done. During realtime, this runs only at error level to avoid performance deterioration.

the gatekeeper which application is connecting. (Also known as the application ID).

entered when the GUI requests it from the CSR.

This is entered when the GUI requests it from the CSR.

application to the gatekeeper.

incoming connection. A gatekeeper or simulator may connect to the CSR, and this is the port to connect to.

Cisco Carrier Sensitive Routing User Guide

2-5

Database Functionalities

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-1 Configuration Data Table (continued)

Allow

Name Type

ThreadCount integer NO 10 Number of threads in

MaxSizeOfQueue integer NO 5000 Maximum size of the

TestRoutesAccou

boolean NO FALSE When issuing test

ntingEnabled

RejectSrcCarrierI

boolean NO FALSE If this rejection rule

nactive

RejectNullSrcCar

boolean NO FALSE If this rejection rule

rier

RejectSrcCarrier

boolean NO FALSE If this rejection rule

Unknown

RejectDestination

boolean NO FALSE If this rejection rule

Unknown

RejectSrcPercent

boolean NO FALSE If this rejection rule

age

Null Default Constraints Comments

the working pool that handle routes in the rules engine. This number must be adjusted for different systems.

queue to handle calls. Typically, the queue is either empty or has an entry. During busy hours, the queue may become larger and cause long turn-around times for the calls to be routed.

commands through the GUI, the call units are updated if this is set to True.

applies, the CSR returns a rejection instead of a null body.

2-6

Cisco Carrier Sensitive Routing User Guide

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-1 Configuration Data Table (continued)

Name Type

RejectSrcUnits boolean NO FALSE If this rejection rule

RejectNoDstCarrierboolean NO FALSE If this rejection rule

Table2-2 Gatekeeper Table

Name Type

GKKey integer NO Primary key. Key of the

GKID varchar(64) NO ID of the gatekeeper.

GK_IP inet NO IP address of the

GK_Port integer NO >0 and < 32767 Port that the gatekeeper

ListenARQ boolean NO FALSE Set to TRUE if

ListenLRQ boolean NO FALSE Set to TRUE if

ListenIRR boolean NO FALSE Set to TRUE if

ListenDRQ boolean NO FALSE Set to TRUE if

ListenRRQ boolean NO FALSE Set to TRUE if

ListenURQ boolean NO FALSE Set to TRUE if

ListenLCF boolean NO FALSE Set to TRUE if

Database Functionalities

Allow Null Default Constraints Comments

applies, the CSR returns a rejection instead of a null body.

Allow Null Default Constraints Comments

gatekeeper.

Must be unique.

gatekeeper.

is listening on.

registering for this type of message.

Cisco Carrier Sensitive Routing User Guide

2-7

Database Functionalities

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-2 Gatekeeper Table (continued)

Allow

Name Type

ListenLRJ boolean NO FALSE Set to TRUE if

ListenRAI boolean NO FALSE Set to TRUE if

ListenBRQ boolean NO FALSE Set to TRUE if

ConnectionState text NO Valid values:

Null Default Constraints Comments

registering for this type of message.

If set to connect, the

• connect

• disconnect

CSR attempts to connect to this gatekeeper.

Table2-3 TestRoutes Table

Allow

Name Type

Null Default Constraints Comments

TestKey integer NO Primary key. Key

of this test route. TestTime time Time of the test. TestDate date Date of the test. DatasetID text ‘_1’ Valid values:

• _1

• _2

This marks which

dataset to issue the

test on.

ANI varchar(64) ANI message. DNIS varchar(64) DNIS message. SrcCarrierID varchar(64) ID of source

carrier. DstCarrierID varchar(64) ID of destination

carrier. RunMe Boolean NO FALSE Set to TRUE when

this test is to be run

by the CSR. HomeCarrierID varchar(64) ID of home carrier. ResultCode text Result code for this

test.

2-8

Cisco Carrier Sensitive Routing User Guide

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-4 TestOutputs Table

Name Type

TestKey integer NO Foreign key. Key of this test (see

SelectOrder integer NO For a given TestKey, this shows

DstCarrierID varchar(64) NO ID of Destination Carrier. ListKey integer NO Specifies key for the contact list

IsSelected boolean NO FALSE Specifies whether this is a

Database Functionalities

Allow Null Default Constraints Comments

TestRoutes table).

the order in which the carriers will be returned. The database does not guarantee the original ordering.

associated with the particular carrier.

selected carrier.

Table2-5 LogEntries Table

Allow

Name Type

Null Default Constraints Comments

TestKey integer NO Foreign key. Test key that this log

file was generated for.

EntryOrder integer NO For a given Test key, this field is

used to show the order in which the log events were generated. The database does not guarantee the original ordering.

LogString varchar(1024) NO The log entries associated with

the test run.

Caution The following table should not be modified or deleted. It consists of error messages that are logged.

The CSR application does not work without this table.

Table2-6 StringResources Table

Allow

Name Type

Null Default Constraints Comments

ResourceKey integer NO Primary key. Key to the

resource.

ResourceString text NO String (error value).

Cisco Carrier Sensitive Routing User Guide

2-9

Database Functionalities

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-7 Filters Table

Allow

Name Type

FilterKey integer NO Primary key. Key of

GKID varchar(64) NO Foreign key. ID of the

MsgType text NO Valid values:

Null Default Constraints Comments

the filter.

gatekeeper associated with this filter.

The message type for

• ARQ

• LRQ

• RRQ

• URQ

• LCF

this filter.

• LRJ

• DRQ

• BRQ

• IRR

• RAI

FilterType text NO Valid values:

• endpoint

• supportedprefix

• destinationinformation

• remoteextesionaddress’

• redirectreason

• answercall

• notificationonly

Type of filter.

Value text NO Value of this message.

There are certain values for each filter type enforced by the GUI.

Dataset Tables

Cisco Carrier Sensitive Routing User Guide

2-10

The dataset tables use functionality that is specific to postgreSQL, that is, table inheritance. This allows a table to be created and other tables to be inherited from it. For example, you can create a Carriers Table and have tables Carriers_1 and Carriers_2 inherit from it. This allows two datasets to be created.

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-8 Carriers Table

Name Type

CarrierKey integer NO <>0 Primary key. Key

CarrierName varchar(64) NO Name of carrier. CarrierType text NO Valid values:

CarrierID varchar(64) NO ID of carrier.

MaxIngressUnits integer >=0 Maximum

MaxEgressUnits integer >=0 Maximum egress

RuleKey integer Foreign key. Rule

ListKey integer NO Foreign key. Key

isActive boolean NO TRUE Indicates whether

Database Functionalities

Allow Null Default Constraints Comments

of the carrier.

Type of carrier.

• home

• itsp

• tdm

Must be unique.

ingress units.

units.

associated with this specific carrier.

of the list.

carrier is active.

Note Tables Carriers_1 and Carriers_2 can inherit from the Carriers table.

Table2-9 MatchPatterns Table

Allow

Name Type

Null Default Constraints Comments

PatternKey integer NO <> 0 Primary key. Key of the

pattern.

Pattern varchar(64) NO Unique. Valid values

are 0 to 9, a to f, A to F, *, and “.”

RouteKey integer Foreign key. Route that

this pattern is associated with.

Cisco Carrier Sensitive Routing User Guide

2-11

Database Functionalities

Chapter2 PostgreSQL Database Operations and Functionalities

Note Tables MatchPatterns_1 and MatchPatterns_2 can inherit from this table.

Table2-10 Routes Table

Allow

Name Type

RouteKey integer NO <> 0 Primary key. Key of the route. RouteName text Name of the route. RuleKey integer Foreign key. Rule associated

Note Tables Routes_1 and Routes_2 can inherit from the Routes table.

Null Default Constraints Comments

with this route.

Table2-11 Rules Table

Allow

Name Type

Null Default Constraints Comments

RuleKey integer NO <> 0 Primary key.

Key of the rule.

RuleName text Optional name

to describe this rule.

IsDefaultRule boolean NO FALSE Indicates if

this is the default rule. One default rule must exist.

MinQoS integer >= 1 and <=9 Minimum

quality of service. This is used with RejectInsuffic ientQoS rule.

PreferredCarrierKey integer Foreign key.

Key to a carrier. Used only when

SelectPreferr edCarrier

rule is used.

2-12

Cisco Carrier Sensitive Routing User Guide

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-11 Rules Table (continued)

Name Type

RejectMaxOriginationPercentage boolean NO FALSE Indicates

RejectMaxIngressUnits boolean NO FALSE Indicates

RejectMaxIngressUnitsPerRoute boolean NO FALSE Indicates

RejectEgressCostMoreThanIngressboolean NO FALSE Indicates

RejectInsufficientQoS boolean NO FALSE Indicates

RejectMaxEgressUnits boolean NO FALSE Indicates

RejectMaxEgressUnitsPerRoute boolean NO FALSE Indicates

PreventITSPtoITSP boolean NO FALSE Indicates

SelectMinCostPerEgressRoute integer NO 0 >= 0 and <= 5 Specifies the

SelectBestQoS integer NO 0 >= 0 and <= 5 Qos level. SelectSameCarrier integer NO 0 >= 0 and <= 5 Specifies

Database Functionalities

Allow Null Default Constraints Comments

whether to reject this rule.

order of selection rule from which the CSR runs.

carrier.

Cisco Carrier Sensitive Routing User Guide

2-13

Database Functionalities

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-11 Rules Table (continued)

Allow

Name Type

SelectPreferredCarrier integer NO 0 >= 0 and <= 5 Specifies

SelectPercentageEgress integer NO 0 >= 0 and <= 5 Specifies

Note Tables Rules_1 and Rules_2 can inherit from the Rules table.

Table2-12 Contacts Table

Allow

Name Type

Null Default Constraints Comments

ContactKey integer NO <> 0 Primary key. Key of

RASAddress varchar(64) NO RAS address. AddressType text NO Valid values:

Cost integer >= 0 Specifies desired cost. Priority integer >= 0 Specifies desired

Null Default Constraints Comments

preferred carrier.

egress percentage.

the contact.

Type of address (IP

• ipv4

• gkid

• dnsname

address, gatekeeper ID, or DNS name). The CSR converts the DNS name to IP address. When you use the DNS name, a DNS server must be available. Otherwise, this value is not used.

priority.

2-14

Note Tables Contacts_1 and Contacts_2 can inherit from the Contacts table.

Cisco Carrier Sensitive Routing User Guide

Chapter2 PostgreSQL Database Operations and Functionalities

Lists Table

Table2-13 Lists Table

Name Type

ListKey integer NO <> 0 Primary key. Key

ListName text Name of the list.

Note Tables Lists_1 and Lists_2 can inherit from the Lists table.

Table2-14 ContactLists Table

Name Type

ListKey NO Foreign key. Key of the

ContactKey NO Foreign key. Key of the

Database Functionalities

Allow Null Default Constraints Comments

of the list.

Allow Null Default Constraints Comments

list.

contact.

Note Tables ContactLists_1 and ContactLists_2 can inherit from this table.

Table2-15 RouteAttributes Table

Allow

Name Type

Null Default Constraints Comments

AttributeKey integer NO <>0 Primary key. Key of the route

attribute.

AttributeName text Name of attribute associated

with the route.

CarrierKey integer NO Foreign key. Key of the carrier

associated with this route attribute.

Cisco Carrier Sensitive Routing User Guide

2-15

Database Functionalities

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-15 RouteAttributes Table (continued)

Allow

Name Type

DaypartType text NO Valid values:

WeekDay integer >= 0 and <= 6.

StartTime time Valid format:

EndTime time Valid format:

Cost integer >= 1 Cost associated with this

MaxUnits integer >= 0 Maximum units. MaxPercentage integer >= 1 and

Null Default Constraints Comments

The CSR searches for the correct

• absolute

• weekly

• daily

• always

value in the following order:

• absolute = specific date/time

range. Start date, end date, start time, and end time must be entered.

• weekly=a specific day of the

week during a specific time. Start time, end time, and weekday must be entered.

• daily=each day for a specific

time. Start time and end time must be entered.

• always=all the time.

This is for the weekly setting. As 0=Sunday, 6=Saturday.

This is for the absolute, weekly, hour(0-23):min

and daily settings. (0-60):sec (0-60)

This is for absolute, weekly, and hour(0-23):min

daily settings. (0-60):sec (0-60)

attribute.

Maximum percentage. <=100

2-16

Note Tables IngressRouteAttributes_1 and IngressRouteAttributes _2 can inherit from the

RouteAttributes table.

Cisco Carrier Sensitive Routing User Guide

Chapter2 PostgreSQL Database Operations and Functionalities

Table2-16 EgressRouteAttributes Table

Name Type

QoS integer >= 0 and <= 9 Quality of service. ListKey integer Foreign key. Key of

Note EgressRouteAttributes_1 and EgressRouteAttributes_2 can inherit from the

EgressRouteAttributes and RouteAttriubtes tables.

Table2-17 QoS Table

Database Functionalities

Allow Null Default Constraints Comments

list associated with this egress route attribute.

Allow

Name Type

Null Default Constraints Comments

IngressCarrierKey integer NO Foreign key. Key of

the ingress carrier.

EgressCarrierKey integer NO Foreign key. Key of

the egress carrier

RouteKey integer NO Foreign key. Key of

the route associated with the QoS.

RelativeQoS integer NO >= 1 and <= 9 Relative quality of

service.

Note Tables QoS_1 and QoS_2 can inherit from this QoS table.

Table2-18 QoS Table

Allow

Name Type

Null Default Constraints Comments

RouteKey integer NO Foreign key. Key of the

route associated with this QoS.

AttributeKey integer NO Foreign key. Key of the

attribute associated with this QoS.

Cisco Carrier Sensitive Routing User Guide

2-17

Database Functionalities

Note Tables IngressRoutes_1, IngressRoutes_2, EgressRoutes_1, and EgressRoutes_2 can inherit

from this QoS table.

PostgreSQL Database Command Summary

Following is a summary of frequently used postgreSQL commands. Refer to the online manual pages and help section for more information.

• createdb—Creates a new database in postgreSQL. A database name is required when using this

command.

• createuser —Creates a postgreSQL user. A user name is required when using this command.

• dropdb—Removes a database from postgreSQL. A database name is required when using this

command.

• dropuser —Removes a postgreSQL user. A user name is required when using this command.

• initdb—Creates a new postgreSQL database installation. This command is used only once when the

database is installed. It creates the base directory. This command cannot be used again.

Chapter2 PostgreSQL Database Operations and Functionalities

• psql—SQL interface to the postgreSQL databases. A database name is required when using this

command.

• vacuumdb—Cleans and analyzes a postgreSQL database.

2-18

Cisco Carrier Sensitive Routing User Guide

Cisco Carrier Sensitive Routing Application Operations

This chapter describes the following Cisco Carrier Sensitive Routing application operations:

• Activating CSR, page 3-1

• Deactivating CSR, page 3-3

Activating CSR

This section provides instructions on running single and multiple instances of the CSR application. The CSR application typically is installed to run at one instance on a dedicated machine, although it can be run at multiple instances on the same machine.

C H A P T E R

Single Instance

Before activating the CSR application, the postgreSQL database must be installed and set up for use. A database named “csrdb” must be loaded into the application. You can use either of the following methods to activate the CSR application.

CSR as a Daemon

The daemon file is located in directory /etc/init.d/csr_init, and it accepts only the start parameter.

Step 1 To activate CSR, enter the following command:

csr_init start

You may be prompted for the postgres (UNIX user) password.

Step 2 To verify that CSR is running, enter the following command:

ps –ef command

You also can check the syslog files for the first message that the CSR prints to the logs. The message should be a startup message.

Cisco Carrier Sensitive Routing User Guide

3-1

Activating CSR

CSR as a User Process

While the CSR is running as a daemon, other instances may run as user processes. If all instances are connected to the same database at startup, startup errors can occur because the following processes are attempted by all instances:

• Listening on the same TCP port for incoming connections

• Attempting to connect to the same gatekeepers as the same application and priority

• Listening to the database for notification events from the GUI such as shutdown, update dataset,

update logging level, and update gatekeeper connections

You can create other databases with the command createcsrdb; for example, createcsrdb csrdb2. You can connect to each of the databases separately by using the GUI and provisioning the database accordingly.

Step 1 To activate CSR, enter the following command:

csr csrdb1 &

This command activates CSR by connecting it to a different database and typing the process to a console.

Step 2 Optionally, to run CSR continuously after logout, enter the following command:

nohup

Chapter3 Cisco Carrier Sensitive Routing Application Operations

Multiple Instances

To run multiple CSR instances, all but one must run as a user process. If all instances are connected to the same database at startup, startup errors occur because the following processes are attempted by all instances:

• Listening on the same TCP port for incoming connections

• Attempting to connect to the same gatekeepers as the same application and priority

• Listening to the database for notification events from the GUI such as shutdown, update dataset,

update logging level, and update gatekeeper connections

You can create other databases with the command createcsrdb; for example, createcsrdb csrdb1, createcsrdb csrdb2, createcsrdb csrdb3. You can connect to each of the databases separately by using the CSR GUI and provisioning the databases accordingly.

Step 1 To start multiple instances of CSR that are connected to different databases such as csrdb1, csrdb2,

csrdb3, enter the following commands:

csr csrdb1 & csr csrdb2 & csr csrdb3 &

This method ties the process to a console.

Step 2 Optionally, to run CSR continuously after logout, enter the following command:

nohup

3-2

Cisco Carrier Sensitive Routing User Guide

Chapter3 Cisco Carrier Sensitive Routing Application Operations

Deactivating CSR

To stop CSR, log in to the CSR GUI by performing the following steps:

Step 1 At the system prompt, enter the following command:

/usr/local/csr/gui/csrgui &

The login dialog box in Figure3-1‘Login Dialog Box” appears.

Figure3-1 Login Dialog Box

Deactivating CSR

Step 2 Enter the information on the Login screen as follows:

a. Enter the user name. The range is 1 to 32 characters. b. Enter the password. The range is 1 to 32 characters. c. Enter the host name that is the location of the database. This can be a remote or local host. The range

is 1 to 32 characters.

d. Enter port number. This is the port on the system for the database connection. The range is 1 to

32767.

e. Enter DB Name. This is the name of the database to be connected to. The range is 1 to 32 characters.

f. Click Login.

If login is successful, the CSR window in Figure3-2 “CSR Window” appears. Otherwise, a login failure message appears and the Login dialog box reappears. The user is limited to three login attempts, then the GUI shuts down. See Chapter4, “CSR GUI Functionalities”.

Cisco Carrier Sensitive Routing User Guide

3-3

Deactivating CSR

Chapter3 Cisco Carrier Sensitive Routing Application Operations

Figure3-2 CSR Window

3-4

Step 3 Click the CSR Commands tab. Step 4 Click Shutdown CSR .

This shuts down all CSRs connected to this database. All current calls are dropped, and connections to gatekeepers are terminated.

Cisco Carrier Sensitive Routing User Guide

CSR GUI Functionalities

This chapter describes CSR functionalities and commands, and contains the following sections:

• Activating the GUI, page 4-1

• Configuring CSR with the GUI, page 4-2

• Updating Active Datasets, page 4-12

• Updating Inactive Datasets, page 4-39

• CSR Commands , page 4-41

• Multiple GUI Operation, page 4-46

Activating the GUI

C H A P T E R

Step 1 To start the GUI, enter the following command at the system prompt:

/usr/local/csr/gui/csrgui &

The Login dialog box appears in Figure4-1 “Login Dialog Box”, as shown below:

Figure4-1 Login Dialog Box

Cisco Carrier Sensitive Routing User Guide

4-1

Configuring CSR with the GUI

Step 2 Enter the information in the Login dialog box as follows:

a. Enter the user name. The range is 1 to 32 characters. b. Enter the password. The range is 1 to 32 characters. c. Enter the host name where the database is located. This can be a remote or local machine. The range

d. Enter the port number. This is the port on the system for the database connection. The range is 1 to

e. Enter the DB Name. This is the name of the database to be connected to. The range is 1 to 32

f. Click Login.

If the login is successful, the CSR window appears. Otherwise, a login failure message appears and the Login dialog box reappears. After three unsuccessful login attempts, the GUI shuts down.

Alternatively, click Cancel to exit from the GUI.

Note Information from the last successful login is saved to the CSRLoginProperties file in the

Chapter4 CSR GUI Functionalities

is 1 to 32 characters.

32767.

characters.

current working directory. When the Login dialog box appears next time, the login information, excluding the password, is displayed.

Configuring CSR with the GUI

This section describes how to use the Configuration Management tab in the CSR window for the following purposes:

• Changing Configuration Settings, page 4-2

• Adding, Modifying, and Removing Gatekeepers, page 4-5

• Swapping Datasets , page 4-12

Changing Configuration Settings

To change configuration settings, log in to CSR and click the Configuration Management tab in the CSR window. When the following screen (Figure4-2 “Configuration Management Tab in CSR

Window”) appears, use the Configuration Settings area on the screen to make changes.

4-2

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Figure4-2 Configuration Management Tab in CSR Window

Configuring CSR with the GUI

Changing Log Levels

To change the logging level for the messages to be logged to syslog, select from the Logging Level pull-down menu. The following menu appears (Figure4-3 “Logging Level Pull-down Menu”):

Cisco Carrier Sensitive Routing User Guide

4-3

Configuring CSR with the GUI

Figure4-3 Logging Level Pull-down Menu

The available levels are as follows:

• Error—Only messages containing severe errors are logged. Optimally, this level may not generate

• Information—Informational messages are generated and sent to syslog. A message at this level is

Chapter4 CSR GUI Functionalities

any error messages.

likely to be generated for each route request. This logging level can slow down performance.

• Debug—Numerous messages are logged for each route request. This logging level can severely slow

down performance.

See AppendixA, “Logging,” for more detail on syslog.

Changing App Priority

App Priority is the priority of the CSR with respect to the connection to the gatekeeper. If two CSRs are connected to the gatekeeper, the gatekeeper uses this priority number to distinguish which one should be used first.

To change App Priority, enter a number from 1 to 9 in the App Priority box.

Changing Connection Port

Incoming Connection Port is the port where CSR listens for gatekeeper connection and where the simulator that acts as a client is connected to the CSR. It is normally used for testing because gatekeepers do not act as clients.

To change ports, enter a number from 1 to 32767. Entering zero disables the server connectivity.

Enabling Test Routes Accounting

This option enables accounting associated with the test routes. When this option is enabled and a test route is issued, the call accounting units are updated. If you are testing new functionalities relating to call counts through the GUI, this must be enabled.

To enable this option, click the checkbox to the left of the option.

Saving Configuration Settings

The Save Changes option saves the current configuration settings to the system. To save the settings, click Save Changes.

Cisco Carrier Sensitive Routing User Guide

4-4

Chapter4 CSR GUI Functionalities

Adding, Modifying, and Removing Gatekeepers

To add, modify, and remove gatekeeper s, log in to CSR and select the Configuration Management tab in the CSR window. Use the Current Gatekeepers area on the screen to add, modify, or remove gatekeepers.

Adding Gatekeepers

This section describes the steps to add a gatekeeper and its associated messages and filters.

Step 1 To add a gatekeeper, click Add in the Current Gatekeepers area. The following dialog box appears

(Figure4-4 “Registered Messages and Filters Dialog Box for a New Gatekeeper”):

Figure4-4 Registered Messages and Filters Dialog Box for a New Gatekeeper

Configuring CSR with the GUI

Cisco Carrier Sensitive Routing User Guide

4-5

Configuring CSR with the GUI

Step 2 Εnter the ID of the gatekeeper to be added. The range is 1 to 64 characters. Step 3 Εnter remote address (IP address) of the gatekeeper to be connected to. The format is x.x.x.x where x is

a number from 0 to 255.

Step 4 Εnter port on the gatekeeper used for connection. The range is 1 to 32767. Step 5 Click Connected or Disconnected to connect the gatekeeper to or disconnect the gatekeeper from the

CSR. The default is Connected.

Step 6 To select a message to be associated with the gatekeeper, check the checkbox next to the message shown,

as follows ( Figure4-5 “Registered Messages and Filters Checkbox”):

Figure4-5 Registered Messages and Filters Checkbox

Chapter4 CSR GUI Functionalities

Step 7 To display the existing filters for the message, click the round button to the far left of the message. The

following screen appears (Figure4-6 “Filter display in the Registered Messages and Filters Dialog

Box”):

Figure4-6 Filter display in the Registered Messages and Filters Dialog Box

Step 8 To add a filter to a message, right click the icon to the left of the message. A pop-up menu containing

the available filters appears (Figure4-7 “Filters Pop-up Menu”):

4-6

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Figure4-7 Filters Pop-up Menu

Step 9 Click a filter on the pop-up menu. Step 10 Enter or select a value for the filter, as shown in the following sample displays (Figure4-8 “Sample

Filter Display” , Figure4-9 “Sample Filter Display”):

Configuring CSR with the GUI

Figure4-8 Sample Filter Display

Cisco Carrier Sensitive Routing User Guide

4-7

Configuring CSR with the GUI

Figure4-9 Sample Filter Display

Chapter4 CSR GUI Functionalities

Step 11 To delete a filter to the message, select from the pull-down menu for the filter. The following screen

appears (Figure4-10 “Delete Filter Display”):

Figure4-10 Delete Filter Display

Step 12 Click Delete. Step 13 Click OK to save the changes, or click Cancel to cancel the changes.

4-8

Note If the maximum number of filters of a particular type has already been added to a message,

an error message appears.

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Modifying Gatekeepers

This section describes how to modify an existing gatekeeper.

Step 1 Select a gatekeeper from the gatekeeper list in the Current Gatekeepers area, as follows ( Figure4-11

“Current Gatekeepers Area in CSR Window”).

Figure4-11 Current Gatekeepers Area in CSR Window

Configuring CSR with the GUI

Step 2 Click Modify. The following dialog box appears (Figure4-12 “Registered Messages and Filters Dialog

Box for an Existing Gatekeeper”).

Cisco Carrier Sensitive Routing User Guide

4-9

Configuring CSR with the GUI

Figure4-12 Registered Messages and Filters Dialog Box for an Existing Gatekeeper

Chapter4 CSR GUI Functionalities

Step 3 To modify a message and its filters associated with the gatekeeper, click the round button to the left of

the message.

Step 4 Use the steps in adding messages and filters in the “Adding Gatekeepers” section on page5. Step 5 Click OK to save the changes, or click Cancel to cancel the changes.

Removing Gatekeepers

This section describes how to remove an existing gatekeeper.

Cisco Carrier Sensitive Routing User Guide

4-10

Chapter4 CSR GUI Functionalities

Step 1 To remove an existing gatekeeper, select a gatekeeper from the gatekeeper list in the Current

Gatekeepers area.

Step 2 Click Remove. The following message appears (Figure4-13 “Delete Gatekeeper Message”).

Figure4-13 Delete Gatekeeper Message

Step 3 Click Yes to remove the gatekeeper, or click No to retain the gatekeeper.

Configuring CSR with the GUI

Setting Threads for Processing Calls and Call Queue Size

This section describes how to set the number of working threads for processing calls in the queue and the maximum number of calls allowed to be queued.

Step 1 In the Configuration Management screen in the CSR window, click Advanced . The Advanced

Configuration dialog box appears (Figure4-14 “Advanced Configuration Dialog Box”):

Figure4-14 Advanced Configuration Dialog Box

Step 2 To set the number of working threads for processing calls in the queue, enter the number of threads for

pool. This number should equal to the number of processors of the host machine, plus one. It can be modified

to enhance the performance of the CSR in different environments.

Cisco Carrier Sensitive Routing User Guide

4-11

Updating Active Datasets

Step 3 To enter the maximum number of calls allowed to be queued, enter a number for “Maximum Queue

Size.” The default is 5000. If this number is too low, the gatekeeper connection waits for the CSR to catch up.

If this number is too high, the turnaround time per message may be too long during busy hours and the gatekeeper routes the call on its own.

Step 4 Click OK to save the changes, or click Cancel to cancel the changes.

Swapping Datasets

This section describes how to swap an active and inactive dataset.

Step 1 In the Configuration Management screen in the CSR window, click Swap Active/Inactive Datasets.

The following message appears (Figure4-15 “Swap Dataset Message ”):

Figure4-15 Swap Dataset Message

Chapter4 CSR GUI Functionalities

Step 2 Check the checkbox to the left of “Load Dataset into CSR.”. Step 3 Click Swap to swap the datasets, or click Cancel to cancel swapping.

Updating Active Datasets

This section describes how to update active datasets by using the Active Dataset tab in the CSR window to create, modify, and delete the following items.

• Carriers

• Contacts

• Contact lists

Cisco Carrier Sensitive Routing User Guide

4-12

Chapter4 CSR GUI Functionalities

• Egress and ingress route attributes

• Match patterns

• Routes

• Rules

After you log in to CSR and select the Active Dataset tab in the CSR window, the following screen appears (Figure4-16 “Active Dataset Tab in CSR Window”):

Figure4-16 Active Dataset Tab in CSR Window

Updating Active Datasets

The following sections describe functionalities and operations of the Active Dataset tab.

Creating, Modifying, and Deleting Carriers

This section describes the steps to create, modify, and delete carriers.

Cisco Carrier Sensitive Routing User Guide

4-13

Updating Active Datasets

Creating Carriers

Step 1 In the Active Dataset screen in the CSR window, if Carriers is not selected in the Selection box, click

Chapter4 CSR GUI Functionalities

Note At least one contact list must be created before a carrier can be created. There must be a

single carrier of “Home” type created for the provisioned data. See the “Deleting Contact

Lists ” section on page4-21.

the down arrow in that box. A pull-down menu appears (Figure4-17 “Carrier Selection Box in Active

Dataset ”):

Figure4-17 Carrier Selection Box in Active Dataset

4-14

Step 2 Select Carriers from the pull-down menu, then click New. The New Carrier dialog box appears

(Figure4-18 “Dialog Box for New Carrier in Active Dataset ”):

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Figure4-18 Dialog Box for New Carrier in Active Dataset

Updating Active Datasets

Step 3 In the Carrier ID box, enter the ID of the carrier. The range is 1 to 64 characters. Step 4 In the Carrier name box, enter name of the carrier. The range is 1 to 64 characters. Step 5 In the Carrier Type box, click the down arrow, then select the type of carrier from the pull-down menu. Step 6 In the Max Ingress Units box, enter the maximum number of ingress units this carrier may originate

Step 7 In the Rule box, click the down arrow, then select the rule this carrier applies to from the pull-down

Step 8 In the Max Egress Units box, enter the maximum number of egress units that this carrier may terminate

Step 9 In the Contact List box, click the down arrow, then select the contact list that this carrier applies to from

Step 10 To make this carrier active, click the checkbox to the left of “Active.” Step 11 Click Add to add this carrier to the provisioned data, or click Cancel to exit.

Modifying Carriers

The carrier key is the primary key of this carrier in the Carriers table. When a new carrier is being created, “%%%%” is displayed.

across all routes serviced by this carrier. The range is 0 to 2147483647. This is optional.

menu.

across all routes serviced by this carrier. The range is 0 to 2147483647. This is optional.

the pull-down menu.

Step 1 In the Active Dataset tab in the CSR window, if “Carrier” is not selected in the Selection box, click the

down arrow in that box, then select Carrier from the pull-down menu.

Step 2 In the Carriers area, select a carrier by double-clicking that carrier on the list. Carrier information similar

to the following appears (Figure4-19 “Dialog Box for an Existing Carrier in Active Dataset”):

Cisco Carrier Sensitive Routing User Guide

4-15

Updating Active Datasets

Chapter4 CSR GUI Functionalities

Figure4-19 Dialog Box for an Existing Carrier in Active Dataset

Step 3 Change the information accordingly. Step 4 Click Modify to save the changes, or click Cancel to cancel the changes.

Deleting Carriers

Step 1 In the Active Dataset tab in the CSR window, if Carriers is not selected in the Selection box, click the

Step 2 In the Carriers area, click a carrier. You can select more than one carrier by holding down the Ctrl key

Step 3 Click Delete. The following message appears (Figure4-20 “Delete Carrier Message in Active Dataset”):

down arrow in that box, then select Carrier from the pull-down menu.

while clicking each carrier.

Figure4-20 Delete Carrier Message in Active Dataset

4-16

Step 4 Click Yes to delete the carrier, or click No to stop deletion.

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Note Alternatively, you can delete a carrier by clicking Delete when you are in the dialog box for

modifying the carrier.

Creating, Modifying, and Deleting Contacts

This section describes the steps to create, modify, and delete contacts.

Creating Contacts

Step 1 In the Active Dataset tab screen in the CSR window, click the down arrow in the Selection box, then

select Contacts from the pull-down menu.

Step 2 Click New. The following dialog box appears (Figure4-21 “Dialog Box for New Contact in Active

Dataset”):

Updating Active Datasets

Figure4-21 Dialog Box for New Contact in Active Dataset

The contact key is the primary key of this contact in the Contacts table. When a new contact is being created, “%%%%” is displayed.

Step 3 In the Address Type box, click the down arrow, then select an address type from the pull-down menu. Step 4 In the RAS Address box, enter address of the contact (IP Address or Gatekeeper ID).

Cisco Carrier Sensitive Routing User Guide

4-17

Updating Active Datasets

Step 5 In the Cost box, enter cost associated with this contact. The entry must be greater than 0. This is optional. Step 6 In the Priority box, enter priority of this contact. The entry must be greater than 0. This is optional. Step 7 Click New to add this contact, or click Cancel to exit.

Modifying Contacts

Step 1 In the Active Dataset tab screen in the CSR window, click the down arrow in the Selection box, then

select Contacts from the pull-down menu.

Step 2 In the Contacts area, select a contact by double-clicking on that contact on the list. Contact information

similar to the following appears ( Figure4-22 “Dialog Box for an Existing Contact in Active Dataset”):

Figure4-22 Dialog Box for an Existing Contact in Active Dataset

Chapter4 CSR GUI Functionalities

Step 3 Change the information accordingly. Step 4 Click Modify to save the changes, or click Change to cancel the changes.

Deleting Contacts

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Cisco Carrier Sensitive Routing User Guide

4-18

Contacts from the pull-down menu.

Chapter4 CSR GUI Functionalities

Step 2 In the Contacts area, click a contact. You can select more than one contact by holding down the Ctrl key

while clicking each contact.

Step 3 Click Delete. A Delete message appears: Step 4 Click Yes to delete the contact, or click No to stop the deletion.

Note Alternatively, you can delete a contact by clicking Delete when you are in the screen for

modifying the contact.

Creating, Modifying, and Deleting Contact Lists

This section describes the steps to create, modify, and delete Contacts Lists.

Creating Contact Lists

Updating Active Datasets

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Contact Lists from the pull-down menu.

Step 2 Click New. The following dialog box appears (Figure4-23 “Dialog Box for New Contact List in Active

Dataset”):

Figure4-23 Dialog Box for New Contact List in Active Dataset

Cisco Carrier Sensitive Routing User Guide

4-19

Updating Active Datasets

The key shown on the screen is the primary key of this contact list in the Contact List table. When a new contact list is being created, “%%%%” is displayed.

Step 3 In the Contact List Name box, enter the name of the contact list. The range is 1 to 64 characters. Step 4 In the Available Contacts box, you can select a contact and click Add to add that contact to the

Associated Contacts box.

Step 5 In the Associated Contacts box, you can select a contact and click Remove to remove that contact from

the box and return it to the Available Contacts box.

Step 6 Click Add to add this contact list, or click Cancel to exit.

Modifying Contact Lists

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Contact Lists from the pull-down menu.

Step 2 In the Contact Lists area, select a contact list by double-clicking on that contact list. Contact list

information similar to the following appears (Figure4-24 “Dialog Box for an Existing Contact List in

Active Dataset” ):

Chapter4 CSR GUI Functionalities

Figure4-24 Dialog Box for an Existing Contact List in Active Dataset

4-20

Step 3 Change the information accordingly.

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Step 4 Click Modify to save the changes, or click Cancel to cancel the changes.

Deleting Contact Lists

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Contact Lists from the pull-down menu.

Step 2 In the Contact Lists area, click a contact list. You can select more than one list by holding down the Ctrl

key while clicking each contact list.

Step 3 Click Delete. A Delete message appears. Step 4 Click Yes to delete the contact list, or click No to stop the deletion.

Note Alternatively, you can delete a contact list by clicking Delete when you are in the dialog box

Updating Active Datasets

for modifying the list.

Creating, Modifying, and Deleting Egress Route Attributes

This section describes the steps to create, modify, and delete Egress Route Attributes.

Creating Egress Route Attributes

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Egress Route Attributes from the pull-down menu.

Step 2 Click New. The following screen appears (Figure4-25 “Dialog Box for New Egress Route Attribute in

Active Dataset”):

Cisco Carrier Sensitive Routing User Guide

4-21

Updating Active Datasets

Chapter4 CSR GUI Functionalities

Figure4-25 Dialog Box for New Egress Route Attribute in Active Dataset

4-22

The key shown on the screen is the primary key of this egress route attribute in the Egress Route Attributes table. When a new egress route attribute is being created, “%%%%” is displayed.

Step 3 In the Name box, enter the name of this egress route attribute. The range is 1 to 64 characters. This entry

is optional.

Step 4 In the Cost box, enter the cost associated with this egress route attribute. The entry must be greater than

0. This entry is optional.

Step 5 In the Max % box, enter the maximum percentage of calls that the associated carrier may terminate on

a route associated with this route attribute. The range is 0 to 100. This entry is optional.

Step 6 In the Max Units box, enter the maximum number of egress units this carrier may terminate on a route

associated with this route attribute. This entry is optional.

Step 7 In the Carrier box, click the down arrow, then select a carrier from the pull-down menu. This is the

carrier this egress route applies to.

Step 8 In the Qos box, enter the quality of service associated with this route attribute. The range is 1 to 9. This

entry is optional.

Step 9 In the Contact List box, click the down arrow, then select a contact list from the pull-down menu. This

is the contact list this egress route applies to.

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Step 10 In the Date/Time area, click Daily , Weekly, Absolute or Constant. The egress route attribute is being

applied according to these time segments.

a. If you select Daily, enter Start Time and End Time. Use the format shown in the example at the

bottom of the Date/Time area:

hour(0-23):min (0-60):sec (0-60)

b. If you select Weekly, select day of the week from the pull-down menu and enter the Start Time and

the End Time.

c. If you select Absolute, enter the Start Date, Start Time, End Date, and End Time.

The Start Date is the date when the egress route attribute becomes active. The End Date is the date when it becomes inactive. Use the formats shown in the example at the bottom of the Date/Time area:

4 digit year-2 digit month-2 digit day for date, as in 2002-12-03 hour(0-23):min (0-60):sec (0-60) for time, as in 12:59:10

d. If you select Constant, the egress route attribute is applied at all times of all days.

Note If two RouteAttributes exist in the same timeframe with the same date and time constraint,

Updating Active Datasets

the RouteAttribute is “nondeterminstic.” That is, the order of selection among time intervals of the same type that overlap cannot be determined.

Step 11 In the Available Routes box, click Add or Remove to add or remove a route from the Associated Routes

box respectively.

Step 12 Click Add to add this egress route attribute, or click Cancel to exit.

Modifying Egress Route Attributes

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Egress Route Attributes from the pull-down menu.

Step 2 Click the down arrow in the Carriers box, then select the appropriate carrier from the pull-down menu.

A list of Egress Route Attribute names of the selected carrier appears (Figure4-26 “ List of Egress Route

Attribute Names in Active Dataset”):

Cisco Carrier Sensitive Routing User Guide

4-23

Updating Active Datasets

Chapter4 CSR GUI Functionalities

Figure4-26 List of Egress Route Attribute Names in Active Dataset

4-24

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Step 3 From the list, select an Egress Route Attribute by double-clicking on that attribute. Egress Route

Attributes information similar to the following appears (Figure4-27 “Dialog Box for an Existing Egress

Route Attribute in Active Dataset”):

Figure4-27 Dialog Box for an Existing Egress Route Attribute in Active Dataset

Updating Active Datasets

Step 4 Change the information accordingly. Step 5 Click Modify to save the changes, or click Cancel to cancel the changes.

Deleting Egress Route Attributes

Step 1 In the Active Dataset tab screen in the CSR window, click the down arrow in the Selection box, then

select Egress Route Attributes from the pull-down menu.

Step 2 Click the down arrow in the Carriers box, then select the appropriate carrier from the pull-down menu. Step 3 In the Egress Route Attribute list, select an attribute. You can select more than one attribute by holding

down the Ctrl key while clicking each attribute.

Cisco Carrier Sensitive Routing User Guide

4-25

Updating Active Datasets

Step 4 Click Delete .

A Delete message appears:

Step 5 Click Yes to delete the attribute, or click No to stop the deletion.

Note Alternatively, you can delete an attribute by clicking Delete when you are in the dialog box

for modifying the attribute.

Creating, Modifying, and Deleting Ingress Route Attributes

This section describes the steps to create, modify, and delete Ingress Route Attributes.

Creating Ingress Route Attributes

Chapter4 CSR GUI Functionalities

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Ingress Route Attributes from the pull-down menu.

Step 2 Click New. The New Ingress Route Attribute dialog box appears (Figure4-28 “Dialog Box for New

Ingress Route Attribute in Active Dataset ”):

4-26

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Figure4-28 Dialog Box for New Ingress Route Attribute in Active Dataset

Updating Active Datasets

The key shown on the screen is the primary key of this Ingress Route Attribute in the Ingress Route Attributes table. When a new ingress route attribute is being created, “%%%%” is displayed.

Step 3 In the Name box, enter the name of this ingress route attribute. The range is 1 to 64 characters. This entry

is optional.

Step 4 In the Cost box, enter the cost associated with this ingress route attribute. The entry must be greater than

0. This entry is optional.

Step 5 In the Max % box, enter the maximum percentage of calls that the associated carrier may originate on a

route associated with this route attribute. The range is 0 to 100. This entry is optional.

Step 6 In the Max Units box, enter the maximum number of ingress units that this carrier may originate on a

route associated with this route attribute. This entry is optional.

Step 7 In the Carrier box, click the down arrow , then select a carrier from the carrier pull-down menu. This is

the carrier that this ingress route applies to.

Step 8 In the Date/Time area, select Daily , Weekly, Absolute, or Constant.

The Ingress Route Attribute is being applied according to these time segments:

a. If you select Daily, enter Start Time and End Time.

Use the format shown in the example at the bottom of the Date/Time area:

Cisco Carrier Sensitive Routing User Guide

4-27

Updating Active Datasets

Step 9 In the Available Routes box, click Add or Remove to add or remove a route from the Associated Routes

Chapter4 CSR GUI Functionalities

hour(0-23):min (0-60):sec (0-60)

b. If you select Weekly, select day of the week from the pull-down menu and enter the Start Time and

the End Time.

c. If you select Absolute, enter the Start Date, Start Time, End Date, and End Time.

The Start Date is the date when the ingress route attribute becomes active. The End Date is the date when it becomes inactive.

Use the formats shown in the example at the bottom of the Date/Time area:

4 digit year-2 digit month-2 digit day for date, as in 2002-12-03 hour(0-23):min (0-60):sec (0-60) for time, as in 12:59:10

d. If you select Constant, this indicates that the ingress route attribute applies at all times of all days.

Note If two RouteAttributes exist in the same time frame with the same date and time constraint,

the RouteAttribute is “nondeterminstic.” That is, the order of selection among time intervals of the same type that overlap cannot be determined.

box respectively.

Step 10 Click Add to add this ingress route attribute, or click Cancel to exit.

Modifying Ingress Route Attributes

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Ingress Route Attributes from the pull-down menu.

Step 2 Click the down arrow in the Carriers box, then select the appropriate carrier from the pull-down menu.

A list of Ingress Route attribute names of the selected carrier appears.

Step 3 In the list, select an ingress route attribute by double-clicking that attribute. Ingress Route Attributes

information similar to the following appears (Figure4-29 “Dialog Box for an Existing Ingress Route

Attribute in Active Dataset”):

4-28

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Figure4-29 Dialog Box for an Existing Ingress Route Attribute in Active Dataset

Updating Active Datasets

Step 4 Change the information accordingly. Step 5 Click Modify to save the changes, or click Cancel to leave the changes.

Deleting Ingress Route Attributes

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Ingress Route Attributes from the pull-down menu.

Step 2 Click the down arrow in the Carriers box, then select the appropriate carrier from the pull-down menu. Step 3 In the Ingress Route Attribute list, select an attribute. You can select more than one attribute by holding

down the Ctrl key while doing the mouse-click.

Step 4 Click Delete.

A Delete message appears.

Step 5 Click Yes to delete the attribute, or click No to stop the deletion.

Cisco Carrier Sensitive Routing User Guide

4-29

Updating Active Datasets

Note Alternatively, you can delete an attribute by clicking Delete when you are in the dialog box

for modifying the attribute.

Creating, Modifying, and Deleting Match Patterns

This section describes the steps to create, modify, and delete Match Patterns.

Creating Match Patterns

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Match Patterns from the pull-down menu.

Step 2 Click New. The following New Pattern dialog box appears (Figure4-30 “Dialog Box for New Pattern

in Active Dataset”):

Chapter4 CSR GUI Functionalities

Figure4-30 Dialog Box for New Pattern in Active Dataset

The Pattern Key on this screen is the primary key of this pattern in the Match Patterns Table. When a new pattern is being created, “%%%%” is displayed.

Step 3 In the Pattern box, enter the match pattern that a DNIS is to mapped to.

This entry can include 0-9, A-F, *, and period (.).

4-30

Step 4 In the Route box, enter the route that applies to this pattern. Step 5 Click Add to add this pattern, or click Cancel to exit.

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Modifying Match Patterns

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Match Patterns from the pull-down menu.

Step 2 In the Match Pattern area, select a pattern by double-clicking on that pattern. Match Pattern information

similar to the following appears (Figure4-31 “Dialog Box for New Match Pattern in Active Dataset” ):

Figure4-31 Dialog Box for New Match Pattern in Active Dataset

Updating Active Datasets

Step 3 Change the information accordingly. Step 4 Click Modify to save the changes, or click Cancel to leave the changes.

Deleting Match Patterns

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Match Patterns from the pull-down menu.

Step 2 In the Match Pattern area, select a pattern. You can select more than one pattern by holding down the

Ctrl key while clicking each pattern.

Step 3 Click Delete. A Delete message appears. Step 4 Click Yes to delete the pattern, or click No to stop the deletion.

Note Alternatively, you can delete a pattern by clicking Delete when you are in the dialog box for

modifying the pattern.

Cisco Carrier Sensitive Routing User Guide

4-31

Updating Active Datasets

Creating, Modifying, and Deleting Routes

This section describes the steps to create, modify, and delete routes.

Creating Routes

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Match Patterns from the pull-down menu.

Step 2 Click New. The New Route dialog box appears ( Figure4-32 “Dialog Box for New Route in Active

Dataset ”):

Figure4-32 Dialog Box for New Route in Active Dataset

Chapter4 CSR GUI Functionalities

4-32

The key shown on the screen is the primary key of this route in the Route table. When a new route is being created, “%%%%” is displayed.

Step 3 In the Name box, enter the name of the route. The range is 1 to 64 characters. This entry is optional. Step 4 In the Rule box, click the down arrow, then select from the pull-down menu a rule that applies to the

patterns to be used.

Step 5 Click QoS Relationships. The QoS Relationships dialog box appears (Figure4-33 “QoS Relationships

Dialog Box in Active Dataset”).

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Figure4-33 QoS Relationships Dialog Box in Active Dataset

Updating Active Datasets

Step 6 In the Available Patterns box, select a pattern and click Add to add a pattern to the route. The patterns

Step 7 Click Add to add this route, or click Cancel to exit.

Modifying Routes

a. In the Ingress Carrier box, click the down arrow, then select the ingress carrier from the pull-down

menu.

b. In the Egress Carrier box, click the down arrow, then select the egress carrier from the pull-down

menu.

c. In the QoS Value box, enter a number larger than zero. d. Click Add or Remove to add or remove the QoS relationship. e. Click OK to complete adding the relationship or click Cancel to exit without adding the

relationship.

in this box are not bound to this route until they are added to the Patterns in Route box. Click Remove to remove a pattern bound to the route.

Note A pattern can be bounded to only one route at a time. If you add a pattern to the Patterns in

Route list, that pattern is removed from all other routes.

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Match Patterns from the pull-down menu.

Step 2 In the Routes area, select a route by double-clicking the route. Routes information similar to the

following appears (Figure4-34 “Dialog Box for an Existing Route in Active Dataset ”):

Cisco Carrier Sensitive Routing User Guide

4-33

Updating Active Datasets

Chapter4 CSR GUI Functionalities

Figure4-34 Dialog Box for an Existing Route in Active Dataset

Step 3 Change the information accordingly. Step 4 Click Modify to save the changes, or click Cancel to leave the changes.

Deleting Routes

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Step 2 In the Routes area, select a route. You can select more than one route by holding down the Ctrl key while

Step 3 Click Delete. A Delete message appears. Step 4 Click Yes to delete the route, or click No to stop the deletion.

Routes from the pull-down menu.

clicking each route.

Note Alternatively, you can delete a route by clicking Delete when you are in the dialog box for

modifying the route.

4-34

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Creating, Modifying, and Deleting Rules

This section describes the steps to create, modify and delete rules.

Creating Rules

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Rules from the pull-down menu.

Step 2 Click New.

The New Rule dialog box appears (Figure4-35 “Dialog Box for New Rule in Active Dataset”):

Figure4-35 Dialog Box for New Rule in Active Dataset

Updating Active Datasets

The key shown on the screen is the primary key of this rule in the Rules table. When a new rule is being created, “%%%%” is displayed.

Step 3 In the Name box, enter the name of the rule. The range is 1 to 64 characters. Step 4 In the Min QoS box, enter the lowest QoS level associated with this rule. The range is 1 to 9. Step 5 Click the checkbox to the left of Is Default Rule to select this rule as the default rule.

Note One rule must be made the default rule for the provisioned data to be valid.

Step 6 In the Rejection Rules (Ingress) area, check the checkbox next to the rule that you want to activate as a

rejection rule as follows:

Cisco Carrier Sensitive Routing User Guide

4-35

Updating Active Datasets

Chapter4 CSR GUI Functionalities

• Reject Max Origination Percentage—If the ingress carrier’s current percentage of calls is greater

than its provisioned maximum, the call is rejected.

Note This rule rejects a call if the percentage of calls originated by this ingress carrier to a specific

route or match pattern exceeds the maximum percentage defined in the ingress route attributes for this ingress carrier. For example, if the maximum percentage is set to 40 percent, the first call made by carrier A to route R succeeds and 100 percent of the calls to route R are now made from ingress carrier A. The second call from the same carrier to the same DNIS fails.

• Reject Max Ingress Units—If the ingress carrier’s ingress units are greater than its provisioned

maximum, the call is rejected.

• Reject Max Ingress Units Per Route—If the ingress carrier’s ingress units for this route are greater

than its provisioned maximum for this route, the call is rejected.

Note The core CSR has not been customized for Call Minute Accounting. "Units" means "call

attempts". Once a specific carrier has attempted more calls than configured against "Max Ingress Units" in the Carrier menu, its calls are rejected.

Step 7 In the Rejection Rules (Egress) area, check the checkbox to the left of the rule that you want to activate

as a rejection rule as follows:

• Reject Egress Cost Greater Than Ingress—If the ingress carrier and egress carrier both have a

provisioned cost and the egress carrier’s cost is greater, the egress carrier is eliminated.

• Reject Insufficient QoS—If the rule has the following elements, the egress carrier is eliminated:

–

A provisioned minimum QoS

–

The egress carrier has a QoS value available

–

The egress carrier’s QoS is worse (higher)

• Reject Max Egress Units Exceeded—If the egress carrier’s egress units are greater than its

provisioned maximum, the carrier is eliminated.

• Reject Max Egress Units Per Route Exceeded—If the egress carrier’s egress units for this route are

greater than its provisioned maximum for this route, the carrier is eliminated.

Note The core CSR has not been customized for Call Minute Accounting. "Units" means "call

attempts". Once a specific carrier has attempted more calls than configured against "Max Ingress Units" in the Carrier menu, its calls are rejected.

• Prevent ITSP to ITSP—If the ingress carrier is an ITSP type, all egress carriers that belong to the

ITSP type are eliminated.

Step 8 In the Selection Rules area, check the checkbox next to the rule you want to activate.

4-36

Each selection rule must have an associated priority if it is selected. Valid priority levels are from 1 to

5. The following rules can be applied for selecting an egress carrier:

• Select Min Cost Per Egress Route—Egress carriers without a cost value and sharing the lowest

provisioned cost are selected. All others are deselected.

• Select Best QoS—Egress carriers without a QoS value and sharing the best provisioned QoS are

selected. All others are deselected.

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

• Select Same Carrier—If the ingress carrier is also a egress carrier candidate, it is selected and all

others are deselected.

• Select Percentage Egress—Carriers with a zero percentage egress and sharing the greatest

difference between their percentage egress and their maximum percentage egress are selected. The purpose is to select the best egress carrier candidates that are furthest from meeting their provisioned maxPercentage on this route (based on their Egress Routing Attribute's maxPercentage value).The other carriers are moved to the deselect list.

Note Carriers with a null maxPercentage value are not moved to the deselect list.

• Select Preferred Carrier—If the preferred carrier is an egress carrier candidate, it is selected and all

others are deselected. When this is selected, click the down arrow in the Preferred Carrier box. A preferred carrier pull-down menu appears.

• Percentage Termination—Find the best candidate egress carriers farthest from meeting their

provisioned maximum percentage on this route. This is based on their Egress Routing Attribute's maxPercentage value. The other carriers, except those with a null maxPercentage value, are then moved to the “deselect” list.

Updating Active Datasets

Step 9 Click Add to add this rule, or click Cancel to exit.

Modifying Rules

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Step 2 In the Rule area, select a rule by double-clicking the rule. Rule information similar to the following

Rules from the pull-down menu.

appears (Figure4-36 “Dialog Box for Existing Rule in Active Dataset”):

Cisco Carrier Sensitive Routing User Guide

4-37

Updating Active Datasets

Chapter4 CSR GUI Functionalities

Figure4-36 Dialog Box for Existing Rule in Active Dataset

Step 3 Change the information accordingly. Step 4 Click Modify to save the changes, or click Cancel to leave the changes.

Deleting Rules

Step 1 In the Active Dataset tab in the CSR window, click the down arrow in the Selection box, then select

Step 2 In the Rule area, select a rule. You can select more than one rule by holding down the Ctrl key by

Step 3 Click Delete. A Delete message appears. Step 4 Click Yes to delete the rule, or click No to quit deleting.

Rules from the pull-down menu.

clicking each rule.

Note Alternatively, you can delete a rule by clicking Delete when you are in the dialog box for

modifying the rule.

4-38

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Verifying Datasets

To verify whether a dataset is valid, click Verify Dataset in the Dataset Commands area. This command ensures that all the provisioned data for the active dataset is valid. If the dataset is not

valid, it cannot be loaded into the active CSR memory. After verification, a message with the verification results appears.

Note You can use a name and an ID for a carrier, contact, contact list, route attribute, match pattern, route,

and rule. The ID must be unique.

Updating Inactive Datasets

This section describes how to update inactive datasets by using the Inactive Dataset tab in the CSR window to create, modify, and delete the following items.

• Carriers

Updating Inactive Datasets

• Contacts

• Contact lists

• Egress and ingress route attributes

• Match patterns

• Routes

• Rules

Cisco Carrier Sensitive Routing User Guide

4-39

Updating Inactive Datasets

After you log in to CSR and click the Inactive Dataset tab in the CSR window, the following screen appears (Figure4-37 “Inactive Dataset Tab in CSR Window”):

Figure4-37 Inactive Dataset Tab in CSR Window

Chapter4 CSR GUI Functionalities

Only one functionality in the Inactive Dataset tab is different from those in the Active Dataset tab. The additional functionality, Destroy Dataset, is described in the following section. See “ Updating Active

Datasets ” section on page4-12 for details on all other functionalities.

Destroying Inactive Datasets

Step 1 In the Inactive Dataset tab in the CSR window, click Destroy Dataset. A Destroy message appears

(Figure4-38 “Destroy Message in Inactive Dataset” ):

Cisco Carrier Sensitive Routing User Guide

4-40

Chapter4 CSR GUI Functionalities

Figure4-38 Destroy Message in Inactive Dataset

Step 2 Click Yes to destroy the inactive dataset, or No to quit destroying.

Activating Inactive Datasets

CSR Commands

An inactive dataset is not loaded into the CSR memory, with the exception of test commands. To place the dataset in the CSR memory for routing, use the following steps:

Step 1 In the Inactive Dataset tab in the CSR window, click Verify Dataset in the Dataset Commands area to

verify the inactive dataset.

Step 2 Click the Configuration Management tab, and click Swap Active/Inactive Datasets to swap the inactive

dataset to active dataset.

Step 3 In the Select Dataset box, click Load Dataset into CSR. Step 4 Click Swap to swap the datasets, or click Cancel to cancel swapping.

Also see “Swapping Datasets” section on page4-12.

CSR Commands

This section describes how to use the CSR Commands tab in the CSR window for the following functionalities:

• Sending Test Route Request Commands to an Active CSR Application, page 4-42

• Updating Logging Level , page 4-44

• Loading the Active Dataset, page 4-44

• Resetting Call Accounting, page 4-45

• Updating Gatekeepers , page 4-45

• Cleaning Test Results , page 4-45

Cisco Carrier Sensitive Routing User Guide

4-41

Chapter4 CSR GUI Functionalities

CSR Commands

Sending Test Route Request Commands to an Active CSR Application

Step 1 Click the CSR Commands tab in the CSR window. The following screen appears (CSR Commands Tab

in CSR Window, page 4-42):

Figure4-39 CSR Commands Tab in CSR Window

4-42

Step 2 In the ANI box, enter the origination pattern. Step 3 In the DNIS box, enter the pattern dialed. Step 4 In the Source Carrier Id box, enter the ingress carrier to be used for testing. Step 5 In the Destination Carrier Id box, enter the test egress carrier.

Cisco Carrier Sensitive Routing User Guide

Chapter4 CSR GUI Functionalities

Note If an egress carrier is specified, the call is ignored. It is assumed that the egress carrier has

Step 6 In the Time box, enter the simulated time to test time-sensitive calls. If this is not specified, the current

time is used. The format and an example for time entry are shown below:

hour(0-23):min (0-60):sec (0-60) for time, as in 12:59:10

This entry is optional.

Step 7 In the Date box, enter the simulated date to test date-sensitive and time-sensitive calls.

If this is not specified, the current date is used. Format and example for date entry are:

4 digit year-2 digit month-2 digit day for date, as in 2002-12-03

Step 8 Click the button to the left of Active or Inactive for the provisioned dataset for running the test. This

dataset is stored in the CSR database. The current dataset in CSR memory is not used.

Step 9 Click Send Test to CSR to send the request to the CSR for processing. Test results are automatically

displayed at end of test. They are stored in the database for later retrieval.

Step 10 To display test results as needed, click Show Test Results . The test results appears (Figure4-40 “Test

Results Generated by the CSR Commands Tab ”). The list usually contains selected carriers followed by

unselected carriers.

CSR Commands

been found.

Figure4-40 Test Results Generated by the CSR Commands Tab

Cisco Carrier Sensitive Routing User Guide

4-43

CSR Commands

Step 11 To display a log of actions used to process the test results, click Show Log. The following screen appears

Chapter4 CSR GUI Functionalities

(Figure4-41 “Log Entries Generated by the CSR Commands Tab”):

Figure4-41 Log Entries Generated by the CSR Commands Tab

The log messages, normally routed to syslog, are logged to the database. The logging level is set to Informational for all test requests. See AppendixA, “Logging” for more detail on syslog.

The following sections describes other CSR functionalities in the CSR Commands tab in the CSR window.

Updating Logging Level

To specify the logging level, click Update Logging Level.

Loading the Active Dataset

To load the active dataset into memory for use, click Load Active Dataset. Because calls are always in progress, both datasets can be in use simultaneously. Calls currently in progress use the old dataset and new calls use the new dataset.

Cisco Carrier Sensitive Routing User Guide

4-44

Chapter4 CSR GUI Functionalities

Resetting Call Accounting

To reset all call units to zero, click Reset Call Accounting . This sets all accounting per carrier and per route/carrier for the CSR. This is the same data used by the Test Route Request functionality.

Updating Gatekeepers

To update the CSR gatekeepers table, click Update GateKeepers. The CSR unregisters each message type from each gatekeeper and reconnects the gatekeepers on the current list.

Cleaning Test Results

To purge all the test requests (inputs and outputs) from the database, click Clean Test Results.

CSR Commands

Cisco Carrier Sensitive Routing User Guide

4-45

Checking CSR Version

To check the CSR version number, select the About tab in the CSR window.

Multiple GUI Operation

Multiple GUIs can run against a single database and multiple databases. If all users are working in a read-only mode, the following results occur:

• If two or more users are modifying the same data, the last saved data is the current data.

• A deleted item is visible to a user if another user removes it.

• Added data may not be seen immediately by all users.

Chapter4 CSR GUI Functionalities

4-46

Cisco Carrier Sensitive Routing User Guide

Logging

This appendix describes the following activities:

• Configuring Syslog

• Viewing Logs

Configuring Syslog

This section provides an overview of the UNIX syslog. For more detail, refer to the online manual page for syslog.conf.

Syslog is a general location or mechanism for logging informational messages or error messages. The messages are categorized by level, and each level can be directed to a different location specified by files, consoles, and e-mail addresses. Each line in the syslog.conf file describes the type of message, the location and how that message should be handled.

Available message levels in syslog are as follows:

A P P E N D I X

• emerg—Emergency panic

• alert—Alert

• crit—Critical errors

• err—Other errors

• warning—Warning

• notice—Notice

• info—Informational messages

• debug—Debugging messages

• none—Do not send message to file

Note The Carrier-Sensitive Routing application sends messages at the err, info, and debug levels only. The

debug level includes various GateKeeper Transaction Message Protocol interface attempts and additional logging of the dataset load process. This can be useful in determining where a valid dataset in the database may be fully or partially rejected during the loading process into the CSR.

Cisco Carrier Sensitive Routing User Guide

A-1

Viewing Logs

Examples

AppendixA Logging

Messages can originate from the following locations or facilities:

• user—User processes from the CSR application.

• kern—Kernel

• mail—Mail system

• daemon—System daemons

• auth—Authorization system, such as login or su.

• lpr—Print spooler

• news—Network new systems

ExampleA-1 Syslog sends all error messages from all locations to the console for everyone

*.err /dev/console

ExampleA-2 Syslog sends all error messages generated from the kernel to the

/var/adm/kern_messages file

kern.err /var/adm/kern_messages

ExampleA-3 Syslog sends all error messages, notice messages and error message from the

authorization system to /var/adm/some_messages file

*.err,*.notice,auth.err /var/adm/some_messages

ExampleA-4 Syslog sends error messages to console and /var/adm/messages file separately

*.err /dev/console *.err /var/adm /messages

Note Log messages can be captured in more than one location.

ExampleA-5 Syslog sends message to the adminuser email address on the system

*.emerg adminuser

Note Instead of adminuser, an asterisk (*) may be used. This sends the message to all e-mail

accounts.

Viewing Logs

To view logs generated by the CSR application, check your syslog configuration file. Error logs are located in /var/adm/messages. Each log contain the following information:

• Date the log entry was generated

• Time the log entry was generated

Cisco Carrier Sensitive Routing User Guide

A-2

AppendixA Logging

Sample logs

Viewing Logs

• Name of the machine that generated the log

• Application/PID

• Log level

• Message content

• Jan 2 13:01:14 ciscoe250 CSR01[8333]: ERROR: CSR Started.

Note This is logged at err level to note when the CSR was started, even if debug and informational

logging is off.

• Jan 2 13:01:15 ciscoe250 CSR01[8333]: DEBUG: Current size of call

queue: 0 (2 known GateKeeper(s)).

• Jan 2 13:01:17 ciscoe250 CSR01[8333]: INFO: Report Version

notification received -- CSR Version reported to the database.

• Jan 2 13:01:18 ciscoe250 CSR01[8333]: DEBUG: Current size of call

queue: 0 (2 known GateKeeper(s)).

Cisco Carrier Sensitive Routing User Guide

A-3

Viewing Logs

AppendixA Logging

A-4

Cisco Carrier Sensitive Routing User Guide

Data Schema

This appendix describes the following:

• Configuration Data Schema

• Dataset Schema

Configuration Data Schema

BEGIN WORK; SET CONSTRAINTS ALL DEFERRED;

CREATE TABLE ConfigurationData (

ActiveDataset text NOT NULL DEFAULT '_1' CONSTRAINT

ActiveDatasetSuffixInvalid

A P P E N D I X

CHECK (

lower(ActiveDataset) = '_1' OR lower(ActiveDataset) = '_2'

LoggingLevel text NOT NULL DEFAULT 'Error' CONSTRAINT

LoggingLevelInvalid

CHECK (

lower(LoggingLevel) = 'error' OR lower(LoggingLevel) = 'info' OR lower(LoggingLevel) = 'debug'

), CSR_ID varchar(64) NOT NULL, CSR_Version text, GKTMP_Version integer, Priority integer NOT NULL DEFAULT 1CONSTRAINT

CSRPriorityInvalid CHECK (Priority >= 1),

Cisco Carrier Sensitive Routing User Guide

B-1

Configuration Data Schema

AppendixB Data Schema

ListenPort integer CONSTRAINT CSRListenPortInvalid

CHECK (ListenPort > 0 AND ListenPort <=

32767), ThreadCount integer NOT NULL DEFAULT 10, MaxSizeOfQueue integer NOT NULL DEFAULT 5000,

TestRoutesAccountingEnabled boolean NOT NULL DEFAULT FALSE, RejectSrcCarrierInactive boolean NOT NULL DEFAULT FALSE, RejectNullSrcCarrier boolean NOT NULL DEFAULT FALSE, RejectSrcCarrierUnknown boolean NOT NULL DEFAULT FALSE, RejectDestinationUnknown boolean NOT NULL DEFAULT FALSE, RejectSrcPercentage boolean NOT NULL DEFAULT FALSE, RejectSrcUnits boolean NOT NULL DEFAULT FALSE, RejectNoDstCarrier boolean NOT NULL DEFAULT FALSE

);

CREATE TABLE GateKeepers (

GKKey integer NOT NULL PRIMARY KEY, GKID varchar(64) NOT NULL UNIQUE, GK_IP inet NOT NULL, GK_Port integer NOT NULL CONSTRAINT GK_PortInvalid

CHECK (GK_Port > 0 AND GK_Port <= 32767), ListenARQ boolean NOT NULL DEFAULT FALSE, ListenLRQ boolean NOT NULL DEFAULT FALSE, ListenIRR boolean NOT NULL DEFAULT FALSE, ListenDRQ boolean NOT NULL DEFAULT FALSE, ListenRRQ boolean NOT NULL DEFAULT FALSE, ListenURQ boolean NOT NULL DEFAULT FALSE, ListenLCF boolean NOT NULL DEFAULT FALSE, ListenLRJ boolean NOT NULL DEFAULT FALSE, ListenRAI boolean NOT NULL DEFAULT FALSE, ListenBRQ boolean NOT NULL DEFAULT FALSE,

B-2

ConnectionState text NOT NULL CONSTRAINT ConnectionStateInvalid

CHECK (

lower(ConnectionState) = 'connect' OR

lower(ConnectionState) = 'disconnect'

Cisco Carrier Sensitive Routing User Guide

AppendixB Data Schema

Configuration Data Schema

)

);

CREATE TABLE TestRoutes (

TestKey integer NOT NULL PRIMARY KEY, TestTime time, TestDate date, DatasetID text DEFAULT '_1' CONSTRAINT DatasetIDInvalid

CHECK ( lower(DatasetID) = '_1' OR

lower(DatasetID) = '_2'

), ANI varchar(64), DNIS varchar(64), SrcCarrierID varchar(64), DstCarrierID varchar(64), RunMe boolean NOT NULL DEFAULT FALSE, HomeCarrierID varchar(64), ResultCode text

);

CREATE TABLE TestOutputs (

TestKey integer NOT NULL, SelectOrder integer NOT NULL, DstCarrierID varchar(64) NOT NULL, ListKey integer NOT NULL, IsSelected boolean NOT NULL DEFAULT FALSE

); CREATE TABLE LogEntries (

TestKey integer NOT NULL, EntryOrder integer NOT NULL, LogString varchar(1024) NOT NULL

);

CREATE TABLE StringResources (

ResourceKey integer NOT NULL PRIMARY KEY, ResourceStringtext NOT NULL

);

Cisco Carrier Sensitive Routing User Guide

B-3

Configuration Data Schema

CREATE TABLE Filters (

AppendixB Data Schema

FilterKey integer NOT NULL PRIMARY KEY, GKID varchar(64) NOT NULL, MsgType text NOT NULL CONSTRAINT MsgTypeInvalid

CHECK ( lower(MsgType) = 'arq' OR lower(MsgType) = 'lrq' OR lower(MsgType) = 'rrq' OR lower(MsgType) = 'urq' OR lower(MsgType) = 'lcf' OR lower(MsgType) = 'lrj' OR lower(MsgType) = 'drq' OR lower(MsgType) = 'brq' OR lower(MsgType) = 'irr' OR lower(MsgType) = 'rai' ),

FilterType text NOT NULL CONSTRAINT FilterTypeInvalid

CHECK ( lower(FilterType) = 'endpoint' OR lower(FilterType) = 'supportedprefix' OR lower(FilterType) =

'destinationinformation' OR

lower(FilterType) =

'remoteextensionaddress' OR

lower(FilterType) = 'redirectreason' OR lower(FilterType) = 'answercall' OR lower(FilterType) = 'notificationonly' ),

Value text NOT NULL

);

ALTER TABLE TestOutputs ADD FOREIGN KEY (TestKey) REFERENCES TestRoutes (TestKey) DEFERRABLE;

B-4

ALTER TABLE LogEntries ADD FOREIGN KEY (TestKey) REFERENCES TestRoutes (TestKey) DEFERRABLE;

ALTER TABLE Filters ADD FOREIGN KEY (GKID) REFERENCES GateKeepers (GKID) DEFERRABLE;

COMMIT;

Cisco Carrier Sensitive Routing User Guide

AppendixB Data Schema

Dataset Schema

BEGIN WORK;

SET CONSTRAINTS ALL DEFERRED;

CREATE TABLE Carriers (

CarrierKey integer NOT NULL PRIMARY KEY CONSTRAINT

CarrierName varchar(64) NOT NULL, CarrierType text NOT NULL

Dataset Schema

CarrierKeyNotZero

CHECK (CarrierKey <> 0),

CONSTRAINT CarrierTypeInvalid CHECK ( lower(CarrierType) = 'home' OR lower(CarrierType) = 'itsp' OR lower(CarrierType) = 'tdm'

), CarrierID varchar(64) NOT NULL UNIQUE, MaxIngressUnits integer CONSTRAINT MaxIngressUnitsInvalid CHECK (MaxIngressUnits >= 0), MaxEgressUnitsinteger CONSTRAINT MaxEgressUnitsInvalid CHECK (MaxEgressUnits >= 0), RuleKey integer, ListKey integer NOT NULL, isActive boolean NOT NULL DEFAULT TRUE

); CREATE TABLE Carriers_1 () INHERITS (Carriers); CREATE TABLE Carriers_2 () INHERITS (Carriers);

CREATE TABLE MatchPatterns (

PatternKey integer NOT NULL PRIMARY KEY CONSTRAINT

PatternKeyNotZero

CHECK (PatternKey <> 0), Pattern varchar(64) NOT NULL UNIQUE, RouteKey integer

); CREATE TABLE MatchPatterns_1 () INHERITS (MatchPatterns); CREATE TABLE MatchPatterns_2 () INHERITS (MatchPatterns);

Cisco Carrier Sensitive Routing User Guide

B-5

Dataset Schema

AppendixB Data Schema

CREATE TABLE Routes (

RouteKey integer NOT NULL PRIMARY KEY CONSTRAINT

RouteKeyNotZero

CHECK (RouteKey <> 0), RouteName text, RuleKey integer

); CREATE TABLE Routes_1 () INHERITS (Routes); CREATE TABLE Routes_2 () INHERITS (Routes);

CREATE TABLE Rules (

RuleKey integer NOT NULL PRIMARY KEY CONSTRAINT

RuleKeyNotZero

CHECK (RuleKey <> 0), RuleName text, IsDefaultRule boolean NOT NULL DEFAULT FALSE, MinQoS integer CONSTRAINT MinQoSInvalid

CHECK (MinQoS >= 1 AND MinQoS <= 9), PreferredCarrierKey integer,

RejectMaxOriginationPercentage boolean NOT NULL DEFAULT FALSE, RejectMaxIngressUnits boolean NOT NULL DEFAULT FALSE, RejectMaxIngressUnitsPerRoute boolean NOT NULL DEFAULT FALSE, RejectEgressCostMoreThanIngress booleanNOT NULL DEFAULT FALSE, RejectInsufficientQoS boolean NOT NULL DEFAULT FALSE, RejectMaxEgressUnits boolean NOT NULL DEFAULT FALSE, RejectMaxEgressUnitsPerRouteboolean NOT NULL DEFAULT FALSE, PreventITSPtoITSP boolean NOT NULL DEFAULT FALSE,

SelectMinCostPerEgressRoute integer NOT NULL DEFAULT 0 CONSTRAINT

SelMinCostInvalid

CHECK (

B-6

SelectMinCostPerEgressRoute >= 0 AND

SelectMinCostPerEgressRoute <= 5

), SelectBestQoS integer NOT NULL DEFAULT 0 CONSTRAINT

SelBestQoSInvalid

Cisco Carrier Sensitive Routing User Guide

AppendixB Data Schema

Dataset Schema

CHECK ( SelectBestQoS >= 0 AND SelectBestQoS <= 5 ),

SelectSameCarrier integer NOT NULL DEFAULT 0 CONSTRAINT

SelSameCarrierInvalid CHECK ( SelectSameCarrier >= 0 AND SelectSameCarrier <= 5 ),

SelectPreferredCarrier integer NOT NULL DEFAULT 0 CONSTRAINT

SelPreferredCarrierInvalid CHECK ( SelectPreferredCarrier >= 0 AND SelectPreferredCarrier <= 5 ),

SelectPercentageEgress integer NOT NULL DEFAULT 0 CONSTRAINT

SelPercentageEgressInvalid CHECK ( SelectPercentageEgress >= 0 AND SelectPercentageEgress <= 5 )

); CREATE TABLE Rules_1 () INHERITS (Rules); CREATE TABLE Rules_2 () INHERITS (Rules);

CREATE TABLE Contacts (

ContactKey integer NOT NULL PRIMARY KEY CONSTRAINT

ContactKeyNotZero CHECK (ContactKey <> 0),

RASAddress varchar(64) NOT NULL, AddressType text NOT NULL CONSTRAINT

ContactAddressTypeInvalid

CHECK ( lower(AddressType) = 'ipv4' OR lower(AddressType) = 'gkid' OR lower(AddressType) = 'dnsname' ),

Cisco Carrier Sensitive Routing User Guide

B-7

Dataset Schema

AppendixB Data Schema

Cost integer CONSTRAINT CostInvalid

CHECK (Cost >= 0),

Priority integer CONSTRAINT PriorityInvalid

CHECK (Priority >= 0) ); CREATE TABLE Contacts_1 () INHERITS (Contacts); CREATE TABLE Contacts_2 () INHERITS (Contacts);

CREATE TABLE Lists (

ListKey integer NOT NULL PRIMARY KEY CONSTRAINT

ListKeyNotZero CHECK (ListKey <> 0),

ListName text ); CREATE TABLE Lists_1 () INHERITS (Lists); CREATE TABLE Lists_2 () INHERITS (Lists);

CREATE TABLE ContactLists (

ListKey integer NOT NULL,

ContactKey integer NOT NULL ); CREATE TABLE ContactLists_1 () INHERITS (ContactLists); CREATE TABLE ContactLists_2 () INHERITS (ContactLists);

CREATE TABLE RouteAttributes (

AttributeKey integer NOT NULL PRIMARY KEY CONSTRAINT

AttributeKeyNotZero

CHECK (AttributeKey <> 0), AttributeName text, CarrierKey integer NOT NULL, DaypartType text NOT NULL CONSTRAINT DaypartInvalid

CHECK ( lower(DaypartType) = 'absolute'OR

B-8

lower(DaypartType) = 'weekly' OR lower(DaypartType) = 'daily' OR lower(DaypartType) = 'always' ),

WeekDay integer CONSTRAINT WeekdayInvalid

Cisco Carrier Sensitive Routing User Guide

AppendixB Data Schema

Dataset Schema

CHECK (Weekday >=0 AND Weekday <= 6), StartTime time, EndTime time CONSTRAINT TimeRangeInvalid

CHECK (

(StartTime ISNULL AND EndTime ISNULL AND

lower(DaypartType) = 'always') OR

(StartTime NOTNULL AND EndTime NOTNULL AND

(StartTime < EndTime) OR

(

lower(DaypartType) = 'absolute' AND (StartDate <

EndDate) AND

(lower(DaypartType) != 'weekly' OR WeekDay NOTNULL)

)

)), StartDate date, EndDate date, Cost integer CONSTRAINT CostInvalid

CHECK (Cost >= 1), MaxUnits integer CONSTRAINT MaxUnitsInvalid

CHECK (MaxUnits >= 0), MaxPercentage integer CONSTRAINT MaxPercentageInvalid

CHECK (MaxPercentage >= 1 AND MaxPercentage <=

100) ); CREATE TABLE IngressRouteAttributes_1 () INHERITS (RouteAttributes); CREATE TABLE IngressRouteAttributes_2 () INHERITS (RouteAttributes);

CREATE TABLE EgressRouteAttributes (

QoS integer CONSTRAINT QoSInvalid

CHECK (QoS >= 1 and QoS <= 9),

ListKey integer ) INHERITS (RouteAttributes); CREATE TABLE EgressRouteAttributes_1 () INHERITS

(EgressRouteAttributes); CREATE TABLE EgressRouteAttributes_2 () INHERITS

(EgressRouteAttributes);

Cisco Carrier Sensitive Routing User Guide

B-9

Dataset Schema

AppendixB Data Schema

CREATE TABLE QoS (

IngressCarrierKeyinteger NOT NULL, EgressCarrierKey integer NOT NULL, RouteKey integer NOT NULL, RelativeQoS integer NOT NULL CONSTRAINT RelativeQoSInvalid

CHECK (RelativeQoS >= 1 AND RelativeQoS <=

9) ); CREATE TABLE QoS_1 () INHERITS (QoS); CREATE TABLE QoS_2 () INHERITS (QoS);

CREATE TABLE RouteParent (

RouteKey integer NOT NULL,

AttributeKey integer NOT NULL ); CREATE TABLE IngressRoutes_1 () INHERITS (RouteParent); CREATE TABLE IngressRoutes_2 () INHERITS (RouteParent); CREATE TABLE EgressRoutes_1 () INHERITS (RouteParent); CREATE TABLE EgressRoutes_2 () INHERITS (RouteParent); COMMIT;

BEGIN WORK; CREATE UNIQUE INDEX Carriers_1_PKey ON Carriers_1 (CarrierKey); CREATE UNIQUE INDEX Carriers_2_PKey ON Carriers_2 (CarrierKey);

CREATE UNIQUE INDEX Carriers_1_ID ON Carriers_1 (CarrierID); CREATE UNIQUE INDEX Carriers_2_ID ON Carriers_2 (CarrierID);

CREATE UNIQUE INDEX Patterns_1_PKey ON MatchPatterns_1 (PatternKey); CREATE UNIQUE INDEX Patterns_2_PKey ON MatchPatterns_2 (PatternKey);

CREATE UNIQUE INDEX Routes_1_PKey ON Routes_1 (RouteKey);

B-10

CREATE UNIQUE INDEX Routes_2_PKey ON Routes_2 (RouteKey);

CREATE UNIQUE INDEX Rules_1_PKey ON Rules_1 (RuleKey); CREATE UNIQUE INDEX Rules_2_PKey ON Rules_2 (RuleKey);

Cisco Carrier Sensitive Routing User Guide

Cisco Carrier Sensitive Routing User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
