Cisco UCS C24 Server Installation and Service Guide

Covers Server Generation M3

May 09, 2013

Americas Headquarters

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Text Part Number: OL-26647-01

THE SPECIFICATIONS AND INFORMATION REGA RDING THE P RODUCTS IN THIS MA NUAL ARE SUBJECT TO CHANGE W ITH OUT NOT ICE. A LL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILIT Y FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRA NTY FO R THE A CCOMPA NYING PRODUCT A RE SET FORTH IN T HE INFORM ATION P ACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment causes interference to radio or television reception, which can be determined by turning the equipment off and on, users are encouraged to try to correct the interference by using one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DO CUMENT FILES AND SOFTWARE OF THESE SUPPL IERS ARE PROVI DED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAI M ALL WARRANTIE S, EXPRESSED OR LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICUL AR PURPOSE AN D NONINFRINGE MENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOS T PROFITS OR LOSS OR DAMAGE TO DATA ARISIN G OUT OF THE USE OR INABILI TY TO USE THIS MA NUAL, EVEN I F CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SU CH DAMA GES.

IMPLIED, INCLUDING, WITHOUT

CCDE, CCENT, CCSI, Cisco Eos, Cisco Explorer, Cisco HealthPresence, Cisco IronPort, the Cisco logo, Cisco Nurse Connect, Cisco Pulse, Cisco SensorBase, Cisco

StackPower, Cisco StadiumVision, Cisco TelePresence, Cisco TrustSec, Cisco Unified Computing System, Cisco WebEx, DCE, Flip Channels, Flip for Good, Flip Mino, Flipshare (Design), Flip Ultra, Flip Video, Flip Video (D esign), Instant Broadband, and Welcome to the Human Network are trademarks; Changi ng the Way We Work, Live, Play, and Learn, Cisco Access Registrar, Aironet, AllTouch, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco

Certified Internetwork Expert logo, Cisco IO S, Cisco Lumin, Cisco Ne xus, Ci sco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, Continuum, EtherFast, EtherSwitch, Event Center, Explorer, Follow Me Browsing, GainMaker, iLYNX, IOS, iPhone, IronPort, the IronPort logo, Laser Link, LightStream, Linksys, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, PCNow, PIX, PowerKEY, PowerPanels, PowerTV, Po werT V (D esig n), Powe rVu, Pr isma, P roC onnect, ROSA, SenderBase, SMARTnet, Spectrum Expert, StackWise, WebEx, and the WebEx logo are registered trademarks of Cisco and/or its affiliates in the United States and certain other countries.

Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at

www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership

relationship between Cisco and any other company. (1005R)

Any Internet Protocol (IP) addresses and phone numbers us ed in this document are not intended to be actual addresses and phone numbers. Any examples, command disp lay output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

Cisco UCS C24 Server Installation and Service Guide

Capital, Cisco Capital (Design), Cisco:Financed (Stylized), Cisco Store, Flip Gift Card, and One Million Acts of Green are service marks; and



CONTENTS

Preface v

Preface

This preface describes the audience, organization, and conventions of the Cisco UCS C24 Server Installation and Service Guide. It also pr ovides info rmation abo ut how t o obtain r elat ed docum entatio n.

Organization

This guide is organized as follows:

Chapter Title Description

Chapter 1 Overview Provides an overview of the server. Chapter 2 Installing the Server Describes how to install the server in a rack, how to cable and

Chapter 3 Maintaining the

Appendix A Server Specifications Lists physical, environmental, and power specifications for the

Appendix B Power Cord

Appendix C RAID Controller

Appendix D Installation for Cisco

Server

Specifications

Considerations

UCS Integration

power on the server, and how to initially set up the server in standalone mode.

Describes the server LEDs and buttons, identifies the replaceable components of the server, and describes how to replace them.

server. Lists specifications for the supported international power cords.

Provides server RAID controller information.

Provides installation and upgrade procedures for installing the server into Unified Computing System (UCS) integration.

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

Audience

This guide is for experienced network administrators who configure and maintain Cisco servers.

Documentation Feedback

To provide technical feedback on this document, or to report an error or omission, please send your comments to ucs-docfeedback@external.cisco.com. We appreciate your feedback.

Conventions

This document uses the following conventions for notes, cautions, and safety warnings. Notes and cautions contain important information that you should know.

Note Means r eader ta ke note. Notes contain h elpful suggestions or references to mater ial that are not covered

in the publication.

Preface

Caution Means read er be caref ul . Cautions contain information about something you might do that could result

Warning

Waarschuwing

in equipment damage or loss of data.

Safety warnings appear throughout this guide in procedures that, if performed incorrectly, can cause physical injuries. A warning symbol precedes each warning statement.

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device.

SAVE THESE INSTRUCTIONS

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen.

Statement 1071

BEWAAR DEZE INSTRUCTIES

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Preface

Varoitus

Attention

Warnung

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

Avvertenza

Advarsel

BEWAHREN SIE DIESE HINWEISE GUT AUF.

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

vii

Preface

Aviso

¡Advertencia!

Varning!

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning.

SPARA DESSA ANVISNINGAR

viii

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Preface

Aviso

Advarsel

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

Preface

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Preface

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional

OL-26647-01

information, see the monthly What’s revised Cisco

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS

technical documentation, at:

New in Cisco Product Documentation, which also lists all new and

Version 2.0.

Cisco UCS C24 Server Installation and Service Guide

Preface

xii

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

CHAP T E R

Overview

This chapter provides an overview of the Cisco UCS C24 server features. The figures in this chapter show an overview of external server features. Internal server features are

illustrated in The server is orderable in three different versions, each with one of three dif ferent front panel/back plane

configurations:

• Cisco UCS C24 (small form-factor (SFF) drives, with 24-drive backplane and expander). 

Holds up to twenty-four 2.5-inch hard drives or solid state drives.

• Cisco UCS C24 (small form-factor (SFF) drives, with 16-drive backplane, no expander). 

Holds up to sixteen 2.5-inch hard drives or sol id state drives.

• Cisco UCS C24 (large form-factor (LFF) drives, with 12-drive backplane and expander). 

Holds up to twelve 3.5-inch hard drives.

Figure 1-1 shows the front panel features of the Small Form-Factor drives version of the server. This

version of the server can be ordered with either a 16-drive direct-connect backplane or a 24-drive backplane with an expander. When the 16-drive backplane is installed, only the first 16 drive bays are used.

Figure 3-4 on page 3-9.

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

1-1

Chapter 1 Overview

285250

HDD 01

HDD 02

HDD 03

HDD 04

HDD 05

HDD 06

HDD 07

HDD 08

HDD 09

HDD 10

HDD 11

HDD 12

HDD 13

HDD 14

HDD 15

HDD 16

HDD 17

HDD 18

HDD 19

HDD 20

HDD 21

HDD 22

HDD 23

HDD 24

Figure 1-1 Cisco UCS C24 Server (Small Form Factor Drives) Front Panel Features

1 USB 2.0 ports (two) 4 Status LEDs (top to bottom):

Network activity LED Power supply status LED Temperature status LED Fan Status LED System status LED

2 Pull-out asset tag 5 Identification button/LED 3 Drives, hot-swappable

• 24-drive backplane version: 

6 Power button/Power status LED

Up to twenty-four 2.5-inch driv es

• 16-drive backplane version: 

Up to sixteen 2.5-inch drives

Cisco UCS C24 Server Installation and Service Guide

1-2

OL-26647-01

Chapter 1 Overview

Figure 1-2 shows the front panel features of the Large Form Factor drives version of the server. This

version of the server has a 12-drive backplane with an expander. For definitions of all LED states, see

Status LEDs and Buttons, page 3-2.

Figure 1-2 Cisco UCS C24 Server (Large Form Factor Drives) Front Panel Features

HDD01

HDD05

HDD09

HDD02

HDD06

HDD10

HDD03

HDD07

HDD11

HDD04

HDD08

HDD12

285249

1 USB 2.0 ports (two) 4 Status LEDs (top to bottom):

Network activity LED Power supply status LED Temperature status LED Fan Status LED System status LED

2 Asset tag (serial number) 5 Identification button/LED 3 Drives, hot-swappable 

6 Power button/Power status LED

(up to twelve 3.5-inch drives)

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

1-3

Chapter 1 Overview

PSU 2

PCIe 4

PCIe 3

PCIe 1

PCIe 2

PCIe 5

PSU 1

Figure 1-3 shows the rear panel features of the server (identical for all versions of the server). For

definitions of all LED states, see Status LEDs and Buttons, page 3-2.

Figure 1-3 Cisco UCS C24 Server Rear Panel Features

PSU 2

PSU 1

PCIe 3 PCIe 1

PCIe 4

PCIe 5

1 32 4 5 6 7 8 9

PCIe 3

PCIe 1

PCIe 2

343735

1 Power supplies (two) 6 VGA video port (DB-15 connecto r) 2 Dual 1 Gb Ethernet ports (LAN1, LAN2) 7 10/100/1000 Ethernet dedicated management

port

3 PCIe slots 3, 4, and 5 on riser 2

8 Rear Identification button/LED

See PCIe Slots, page 3-34 for slot specifications.

4 USB 2.0 ports (four) 9 PCIe slots 1 and 2 on riser 1

See PCIe Slots, page 3-34 for slot specifications.

5 Serial port (DB-9 connector) –

Table 1-1 lists a summary of server features.

Ta b l e 1-1 Cisco UCS C24 Server Features

1-4

Chassis Two rack-unit (2RU) chassis. Processors Two Intel Xeon E5-2400 Series processors. Memory The server provides 12 DIMM1 sockets on the motherboard. Baseboard

management

Pilot III BMC, running Cisco Integrat ed Management Contr oller (CIMC) firmware. Depending on your CIMC settings, the CIMC can be accessed through the 

10/100/1000 Ethernet dedicated management port, the 1- Gb Ethernet LOM ports, or a Cisco P81E virtual interface card.

Network and management I/O

The server provides these connectors:

• One 1-Gb Ethernet dedicated management port

• Two 1-Gb Base-T Ethernet LAN ports

• One RS-232 serial port (DB-9 connector)

• One 15-pin VGA

• Six USB

Power Two power supplies: Both either 450 W each or 650 W each. Do not mix power

supply types. Redundant as 1+1. See Power Specifications, page A-2.

Cooling Four hot-swappable fan modules for front-to-rear cooling.

Cisco UCS C24 Server Installation and Service Guide

connector

2.0 connectors

OL-26647-01

Chapter 1 Overview

Table 1-1 Cisco UCS C24 Server Features (continued)

PCIe I/O Five horizontal PCIe4 expansion slots on two risers.

See PCIe Slots, page 3-34 for specifications of the slots.

Stora ge Drives are installed into front-panel drive bays that provide hot-pluggable access.

There are two versions of the server front panel and backplane:

• Cisco UCS C24 (small form-factor (SFF) drives, with 24-drive backplane and

expander). Holds up to twenty-four 2.5-inch hard drives or solid state drives.

• Cisco UCS C24 (small form-factor (SFF) drives, with 16-drive backplane, no

expander). Holds up to sixteen 2.5-inch hard drives or solid state drives.

• Cisco UCS C24 (large form-factor (LFF) drives, with 12-drive backplane and

expander). Holds up to twelve 3.5-inch hard drives.

Internal USB support

Cisco USB Flash Drive



with pre-loaded utilities

The server has one internal USB 2.0 socket on the motherboard that you can use with a USB thumb drive for additional storage.

The server can be ordered with an optional blank 8-GB Cisco USB Flash Drive pre-installed in the internal USB port.

The server can be ordered with an optional 16-GB Cisco USB flash drive. This drive is pre-loaded with Cisco C-series Server utilities. This drive contai ns four

virtual drives. The four virtual drives contain, respectively:

• Cisco Server Configuration Utility

• Cisco Host Upgrade Utility

• Cisco C-Series server drivers set

• A blank virtual drive on which yo u can instal l an OS or a hypervi sor

See Overview of the Pre-Loaded 16-GB Cisco USB Flash Drive, page 3-41 for more information about enabling and booting the virtual drives.

Disk Management

For a list of RAID5 controller options and cables, see RAID Controller



Considerations, page C-1.

(RAID) RAID Backup There are two mounting points inside the chassis that can be used for the SuperCap

power module that is used with LSI MegaRAID-CV card.

Video Matrox G200e video controller. Resolution up to 1920 x1200, 16bpp at 60 Hz. Up

to 256 MB of video memory.

1. DIMM = dual inline memory module

2. VGA = video graphics array

3. USB = universal serial bus

4. PCIe = peripheral component interconnect express

5. RAID = redundant array of independent disks

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

1-5

Chapter 1 Overview

1-6

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

CHAP T E R

Installing the Server

This chapter describes how to instal l the server, and it includes the fo llowing se ctions:

• Unpacking and Inspecting the Server, page 2-2

• Preparing for Server Installation, page 2-3

• Installing the Server In a Rack, page 2-5

• Initial Server Setup, page 2-8

• System BIOS and CIMC Firmware, page 2-11

• Updating the BIOS and CIMC Firmware, page 2-11

• Service Headers and Jumpers, page 2-1 3

Note Before you install, operate, or service a server, review the Regulatory Compliance and Safety

Information for Cisco UCS C-Series Servers for important safety information.

OL-26647-01

Warning

IMPORTANT SAFETY INSTRUCTIONS



Statement 1071

SAVE THESE INSTRUCTIONS



Cisco UCS C24 Server Installation and Service Guide

2-1



Unpacking and Inspecting the Server

285242

Cisco

UCS C-Series

PSU 2

PCIe 4

PCIe 3 PCIe 1

PCIe 2

PCIe 5

PSU 1

PSU 1PSU 1

Unpacking and Inspecting the Server

Caution When handling internal server components, wear an ESD strap and handle modules by the carrier edges

only.

Tip Keep the shipping container in case the server requires shipping in the future.

Note The chassis is thoroughly inspected before shipment. If any damage occurred during transportation or

any items are missing, contact your customer service representative immediately.

To inspect the shipment, follow these steps:

Step 1 Remove the server from its cardboard container and save all packaging material. Step 2 Compare the shipment to the equipment list provided by your customer service representative and

Figure 2-1. Verify that you have all items.

Chapter 2 Installing the Server

Step 3 Check for damage and report any discrepancies or damage to your customer service representative. Have

the following information ready:

• Invoice number of shipper (see the packing slip)

• Model and serial number of the damaged u nit

• Description of damage

• Effect of damage on the installation

Figure 2-1 Shipping Box Contents

1 Server 3 Documentation 2 Power cord (optional, up to two) –

2-2

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 2 Installing the Server

Preparing for Server Installation

This section provides information about preparing for server installation, and it includes the following topics:

• Installation Guidelines, page 2-3

• Rack Requirements, page 2-4

• Equipment Requirements, page 2-4

• Slide Rail Adjustment Range, page 2-4

Installation Guidelines

Preparing for Server Installation

Warning

To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of: 35° C (95° F).

Statement 1047

The plug-socket combination must be accessible at all times, because it serves as the main disconnecting device.

Statement 1019

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 15 A.

Statement 1005

Installation of the equipment must comply with local and national electrical codes.

Statement 1074



When you are installing a server, use the following guidelines:

• Plan your site configuration an d prepare t he site before in stalling the server. See the Cisco UCS Site

Preparation Guide for the recommended site planning tasks.

• Ensure that there is adequate space around the server to allow for servicing the server and for

adequate airflow. The airflow in this server is from front to back.

• Ensure that the air-conditioning meets the thermal requirements listed in the Server Specifications.

OL-26647-01

• Ensure that the cabinet or rack meets the requirements li sted in the “Rack Requirements” section on

page 2-4.

• Ensure that the site power meets the power requirements listed in the Server Specifications. If

available, you can use an uninterruptible power supply (UPS) to protect against power failures.

Caution Avoid UPS types that use ferroresonant technol ogy. These UPS types can become unstable with systems

such as the Cisco UCS, which can have substantial current draw fluctuations from fluctuating data traffic patterns.

Cisco UCS C24 Server Installation and Service Guide

2-3

Preparing for Server Installation

Rack Requirements

This section provides the requirements for the standard open racks. The rack must be of the following type:

• A standard 19-in. (48.3-cm) wide, four - post EIA rack, with mou nting p osts that conform t o English

universal hole spacing, per section 1 of ANSI/EIA-310-D-1992.

• The rack post holes can be square 0.38-inch (9.6 mm), round 0.28-inch (7.1 mm), #12-24 UNC, or

#10-32 UNC when you use the supplied slide rails.

• The minimum vertical rack space per server must be one RU, equal to 1.75 in. (44.45 mm).

Equipment Requirements

The slide rails supplied by Cisco Systems for this server do not require tools for installation. The inner rails (mounting brackets) are pre-attached to the sides of the server.

Chapter 2 Installing the Server

Slide Rail Adjustment Range

The slide rails for this server have an adjustment range of 24 to 36 inches (610 to 914 mm).

2-4

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 2 Installing the Server

332061

Installing the Server In a Rack

To install the slide rails and the server into a rack, follow these steps:

Step 1 Open the front securing latch (see Figure 2-2). The end of the slide-rail assembly marked “FRONT” has

a spring-loaded securing latch that must be open before you can insert the mounting pegs into the rack-post holes.

a. On the rear side of the securing-latch assembly, hold open the clip marked “PULL.” b. Slide the spring-loaded securing latch away from the mounting pegs. c. Release the clip marked “PULL” to lock the securing latch in the open position.

Figure 2-2 Front Securing Latch

Installing the Server In a Rack

1 Clip marked “PULL” on rear of assembly 3 Spring-loaded securing latch on front of

assembly

2 Front mounting pegs

Step 2 Install the slide rails onto the rack:

a. Position a slide-rail assembly inside the two left-side rack posts (see Figure 2-3).

Use the “FRONT” and “REAR” markings on the slide-rail assembly to orient the assembly correctly with the front and rear rack posts.

b. Position the front mounting pegs so that they enter the desired front rack-post holes from the front.

Note The mounting pegs that protrude through the rack-post holes are designed to fit round or square holes,

or smaller #10-32 round holes when the mounting peg is compressed. If your rack has #10-32 rack-post holes, align the mounting pegs with the holes and then compress the spring-loaded pegs to expose the #10-32 inner peg.

c. Expand the length-adjustment bracket until the rear mounting pegs protrude through the desired

holes in the rear rack post.

Use your finger to hold the rear securing latch open when you insert the rear mounting pegs to their holes. When you release the latch, it wraps around the rack post and secures the slide-rail assembly.

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

2-5

Installing the Server In a Rack

331689

Figure 2-3 Attaching a Slide-Rail Assembly

1 Front-left rack post 4 Length-adjustment bracket 2 Front mounting pegs 5 Rear mounting pegs 3 Slide-rail assembly 6 Rear securing latch

Chapter 2 Installing the Server

d. Attach the second slide-rail assembly to the opposite side of the rack. Ensure that the two slide-rail

assemblies are level and at the same height with each other.

e. Pull the inner slide rails on each assembly out toward the rack front until they hit the internal stops

and lock in place.

Step 3 Insert the server into the slide rails:

Note The inner rails are pre-attached to the sides of the server at the factory. You can order

replacement inner rails if these are damaged or lost (Cisco PID UCSC-RAIL1-I).

a. Align the inner rails that are attached to the server sides with the front ends of the empty slide rails. b. Push the server into the slide rails until it stops at the internal stops. c. Push in the plastic release clip on each inner rail (labelled PUSH), and then continue pushing the

server into the rack until its front latches engage the rack posts.

Step 4 Attach the (optional) cable management arm (CMA) to the rear of the slide rails:

Note The CMA is designed for mounting on either the right or left slide rails. These instructions

describe an installation to the rear of the right slide rails, as viewed from the rear of server.

a. Slide the plastic clip on the inner CMA arm over the flange on the mounting bracket that attached

to the side of the server. See

Figure 2-4.

Note Whether you are mounting the CMA to the left or right slide rails, be sure to orient the engraved

b. Slide the plastic clip on the outer CMA arm over the flange on the slide rail. See Figure 2-4.

Cisco UCS C24 Server Installation and Service Guide

2-6

marking, “UP” so that it is always on the upper side of the CMA. See Figure 2-4.

OL-26647-01

Chapter 2 Installing the Server

c. Attach the CMA retaining bracket to the left slide rail. Slide the plastic clip on the bracket over the

Figure 2-4 Attaching the Cable Management Arm (Rear of Server Shown)

flange on the end of the left slide rail. See

Installing the Server In a Rack

Figure 2-4.

1 Flange on rear of outer left slide rail 5 Inner CMA arm attachment clip 2 CMA retaining bracket 6 “UP” orientation marking 3 Flange on rear of right mounting bracket 7 Outer CMA arm attachment clip 4 Flange on rear of outer right slide rail

Step 5 Continue with the “Initial Server Setup” section on page 2-8.

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

2-7

Initial Server Setup

This section includes the following topics:

• Connecting and Powering On the Server (Standalone Mode), page 2-8

• NIC Modes and NIC Redundancy Setting s, page 2-10

Connecting and Powering On the Server (Standalone Mode)

Note The server is shipped with a default NIC mode called Shared LOM EXT, default NIC redundancy is

active-active, and DHCP is enabled. Shared LOM EXT mode enables the 1-Gb Ethernet ports and the ports on any installed Cisco virtual interface card (VIC) to access the Cisco Integrated Management Interface (CIMC). If you want to use the 10/100 dedicated management ports to access the CIMC, you can connect to the server and change the NIC mode as described in In that step, you can also change the NIC redundancy and set static IP settings.

Step 3 of the following procedure.

Chapter 2 Installing the Server

Use the following procedure to perform initial setup of the server:

Step 1 Attach a supplied power cord to each power supply in your server, and then attach the power cord to a

grounded AC power outlet. See the

Wait for approximately two minutes to let the server boot in standby power during the first bootup.

You can verify power status by looking at the Power Status LED (see Figure 1-1 on page 1-2):

• Off—There is no AC power present in the server.

• Amber—The server is in standby power mode. Power is supplied only to the CIMC and some

motherboard functions.

• Green—The server is in main power mode. Power is supplied to all server components.

Note During bootup, the server beeps once for each USB device that is attached to the server. Even if

there are no external USB devices attached, there is a short beep for each virtual USB device such as a virtual floppy drive, CD/DVD drive, keyboard, or mouse. A beep is also emitted if a USB device is hot-plugged or hot-unplugged during BIOS power-on self test (POST), or while you are accessing the BIOS Setup utility or the EFI shell.

Step 2 Connect a USB keyboard and VGA monitor to the server.

Power Specifications, page A-2 for power specifications.

2-8

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 2 Installing the Server

Step 3 Set NIC mode, NIC redundancy, and choose whether to enable DHCP or set static network settings:

a. Press the Power button to boot the server. Watch for the prompt to press F8. b. During bootup, press F8 when prompted to open the BIOS CIMC Configuration Utility. c. Set the NIC mode to your choice for which ports to use to access the CIMC for server management

• Shared LOM EXT (default)—This is shared LOM extended mode. This is the factory-default

• Dedicated—The dedicated management port is used to access the CIMC. You must select a NIC

• Shared LOM—The 1-Gb Ethernet ports are used to access the CIMC. You must select a NIC

Initial Server Setup

(see

Figure 1-3 for identification of the ports):

setting, along with Active-active NIC redundancy and DHCP-enabled. With this mode, the shared LOM and Cisco Card interfaces are both enabled.

In this mode, DHCP replies are returned to both the shared LOM ports and the Cisco card ports. If the system determines that the Cisco card connection is not getting i ts IP address from a Cisco UCS Manager system because the server is in standalone mode, further DHCP requests from the Cisco card are disabled. Use the Cisco Card NIC mode if you want to connect to the CIMC through a Cisco card in standalone mode.

redundancy and IP setting.

• Cisco Card—The ports on an installed Cisco UCS virtual interface card (VIC) are used to access the

CIMC. You must select a NIC redundancy and IP setting.

Note The Cisco Card NIC mode is currently supported only with a Cisco UCS VIC that is installed in

PCIe slot 2. See also Special Considerations for Cisco UCS Virtual Interface Cards, page 3-36.

d. Use this utility to change the NIC redundancy to your preference. This server has three possible NIC

redundancy settings:

–

None—The Ethernet ports operate independently and do not fail over if there is a problem.

–

Active-standby—If an active Ethernet port fails, traffic fails over to a standby port.

–

Active-active—All Ethernet ports are utilized simultaneously.

e. Choose whether to enable DHCP for dynamic network settings, or to enter static network settings.

Note Before you enable DHCP, your DHCP server must be preconfigured with the range of MAC

addresses for this server. The MAC address is printed on a label on the rear of the server. This server has a range of six MAC addresses assigned to the CIMC. The MAC address printed on the label is the beginning of the range of six contiguous MAC addresses.

f. Optional: Use this utility to make VLAN settings, and to set a default CIMC user password.

OL-26647-01

Note Changes to the settings take effect after approximately 45 seconds. Refresh with F5 and wait

until the new settings appear before you reboot the server in the next step.

g. Press F10 to save your settings and reboot the server.

Note If you chose to enable DHCP, the dynamically assigned IP a nd MAC addresses are di splayed on

the console screen during bootup.

Cisco UCS C24 Server Installation and Service Guide

2-9

Initial Server Setup

Step 4 Connect to the CIMC for server management. Connect Ethernet cables from your LAN to the server by

using the ports that you selected by your NIC Mode setting in Active-passive NIC redundancy settings require you to connect to two ports.

Step 5 Use a browser and the IP address of the CIMC to connect to the CIMC Setup Utility. The IP address is

based upon the settings that you made in

Step 3 (either a static address or the address assigned by your

DHCP server).

Note The default user name for the server is admin. The default password is password.

T o manage the server , see the Cisco UCS C-Series Rack-Mount Server Configuration Guide or the Cisco UCS C-Series Rack-Mount Server CLI C onfigur ation Guide for instructions on using those interfaces.

The links to these documents are in the C-Series documentation roadmap:

http://www.cisco.com/go/unifiedcomputing/c-series-doc

NIC Modes and NIC Redundancy Settings

Chapter 2 Installing the Server

Step 3. The Active-active and

This server has the following NIC mode settings that you can choose from:

• Shared LOM EXT (default)—This is shared LOM extended mode. This is the factory default setting,

along with Active-active NIC redundancy and DHCP-enabled. W ith this mode, the shared LOM and Cisco Card interfaces are both enabled.

In this mode, DHCP replies are returned to both the shared LOM ports and the Cisco card ports. If the system determines that the Cisco card connection is not getting its IP address from a Cisco UCS Manager system because the server is in standalone mode, further DHCP requests from the Cisco card are disabled. If the system determines that the Cisco card connection is getting its IP address from a Cisco UCS Manager system, the reply has parameters that automatically move the server to UCSM mode.

• Dedicated—The dedicated management port is used to access the CIMC. You must select a NIC

redundancy and IP setting.

• Shared LOM—The 1-Gb Ethernet ports are used to access the CIMC. You must select a NIC

redundancy and IP setting.

• Cisco Card—The ports on an installed Cisco UCS virtual interface card (VIC) are used to access the

CIMC. You must select a NIC redundancy and IP setting.

Note The Cisco Card NIC mode is currently supported only with a Cisco UCS VIC that is installed in

PCIe slot 2. See also Special Considerations for Cisco UCS Virtual Interface Cards, page 3-36.

This server has the following NIC redundancy settings that you can choose from:

2-10

• None—The Ethernet ports operate independently and do not fail over if there is a problem.

• Active-standby—If an active Ethernet port fails, traffic fails over to a standby port.

• Active-active—All Ethernet ports are utilized simultaneously.

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 2 Installing the Server

System BIOS and CIMC Firmware

This section includes information about the system BIOS and it includes the following sections:

• Updating the BIOS and CIMC Firmware, page 2-11

• Accessing the System BIOS, page 2-12

Updating the BIOS and CIMC Firmware

Caution When you upgrade the BIOS firmware, you must also upgrade the CIMC firmware to the same version

or the server will not boot. Do not power off the server until the BIOS and CIMC firmware are matching or the server will not boot.



Cisco provides the Cisco Host Upgrade Utility to assist with simultaneously upgrading the BIOS, CIMC, and other firmware to compatible levels.



System BIOS and CIMC Firmware

The server uses firmware obtained from and certified by Cisco. Cisco provides release notes with each firmware image. There are several methods for updating the firmware:

• Recommended method for systems running firmware level 1.2 or later: Use the Cisco Host

Upgrade Utility to simultaneously upgrade the CIMC, BIOS, LOM, LSI storage controller, and Cisco UCS P81E VIC firmware to compatible levels.

See the Cisco Host Upgrade Utility Quick Reference Guide for your firmware level at the documentation roadmap link below.

Note Your system firmware must be at minimum level 1.2 to use the Cisco Host Upgrade Utility. If

your firmware is prior to level 1.2, you must use the methods below to update the BIOS and CIMC firmware individually.

• You can upgrade the BIOS using the EFI interface, or upgrade from a Windows or Linux platform.

See the Cisco UCS C-Series Rack-Mount Server BIOS Upgrade Guide.

• You can upgrade the CIMC and BIOS firmware by using the CIMC GUI interface.

See the Cisco UCS C-Series Rack-Mount Server Configuration Guide.

• You can upgrade the CIMC and BIOS firmware by using the CIMC CLI interface.

See the Cisco UCS C-Series Rack-Mount Server CLI Configuration Guide.

For links to the documents listed above, see the documentation roadmap at the following URL:

http://www.cisco.com/go/unifiedcomputing/c-series-doc

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

2-11

System BIOS and CIMC Firmware

Accessing the System BIOS

T o change the BIOS settings for your server, follow these steps. Detailed instructio ns are also printed on the BIOS screens.

Step 1 Enter the BIOS setup utility by pressing the F2 key when prompted during bootup.

Note The version and build of the current BIOS are displayed on the Main page of the utility.

Step 2 Use the arrow keys to select the BIOS menu page. Step 3 Highlight the field to be modified by using the arrow keys. Step 4 Press Enter to select the field that you want to change, and then modify the value in the field. Step 5 Press the right arrow key until the Exit menu screen is displayed. Step 6 Follow the instructions on the Exit menu screen to save your changes and exit the setup utilit y (or Press

F10). You can exit without saving changes by pressing Esc.

Chapter 2 Installing the Server

2-12

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 2 Installing the Server

333943

Port 1

Port 0

SYS FAN1

SYS FAN2

SYS FAN3

SYS FAN4

CPU 1

CPU 2

PCIe riser 1

PSU 1 (bottom)

PSU 2 (top)

321

Service Headers and Jumpers

This section includes the following topics:

• Header Location on the Motherboard, page 2-13

• Using the BIOS Recovery Header CN34, page 2-14

• Using the Clear CMOS Header CN14, page 2-16

Header Location on the Motherboard

See Figure 2-5. The headers are shown in red on the motherboard, with PCIe riser 2 removed. The header pins are shown in the magnified view.

Service Headers and Jumpers

Figure 2-5 Service Header Locations

OL-26647-01

1 CN34 BIOS Recovery 2 CN14 Clear CMOS

Cisco UCS C24 Server Installation and Service Guide

2-13

Service Headers and Jumpers

Chapter 2 Installing the Server

Using the BIOS Recovery Header CN34

Depending on which stage the BIOS becomes corrupted, you might see different behavior.

• If the BIOS BootBlock is corrupted, you might see the system get stuck on the following message:

Initializing and configuring memory/hardware

• If it is a non-BootBlock corruption, the following message is displayed:

****BIOS FLASH IMAGE CORRUPTED**** Flash a valid BIOS capsule file using CIMC WebGUI or CLI interface. IF CIMC INTERFACE IS NOT AVAILABLE, FOLLOW THE STEPS MENTIONED BELOW.

1. Connect the USB stick with recovery.cap file in root folder.

2. Reset the host. IF THESE STEPS DO NOT RECOVER THE BIOS

1. Power off the system.

2. Mount recovery jumper.

3. Connect the USB stick with recovery.cap file in root folder.

4. Power on the system. Wait for a few seconds if already plugged in the USB stick. REFER TO SYSTEM MANUAL FOR ANY ISSUES.

Note As indicated by the message show n above , there are two procedures for recove ring the BIOS. Try

procedure 1 first, then if that does not recove r the BIOS , use procedure 2.

Note The server must have CIMC version 1.4(6) or later to use these procedures.

Procedure 1: Reboot With recovery.cap File

Step 1 Download the BIOS update package and extract it to a temporary location. Step 2 Copy the contents of the extracted recovery folder to the root directory a USB thumb drive. The

recovery folder contains the recovery.cap file that is required in this procedure.

Note The recovery.cap file must be in the root directory of the USB thumb drive. Do not rename this

file. The USB thumb drive must be formatted with either FAT16 or FAT32 file systems.

Step 3 Insert the USB thumb drive into a USB port on the server. Step 4 Reboot the serve r. Step 5 Return the server to main power mode by pressing the Power button on the front panel.

The server boots with the updated BIOS boot block. When the BIOS detects a valid recovery.cap file on the USB thumb drive, it displays this message:

Found a valid recovery file...Transferring to CIMC System would flash the BIOS image now... System would restart with recovered image after a few seconds...

Step 6 Wait for server to complete the BIOS update, then remove the USB thumb drive from the server.

Note During the BIOS update, the CIMC will shut down the server and the screen will be blank for

about 10 minutes. Do not unplug the power cords during this update. The CIMC will power on the server after the update is complete.

2-14

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 2 Installing the Server

Procedure 2: Use Recovery Jumper and recovery.cap File

See Figure 2-5 for the location of the CN34 header.

Step 1 Download the BIOS update package and extract it to a temporary location. Step 2 Copy the contents of the extracted recovery folder to the root directory a USB thumb drive. The

recovery folder contains the recovery.cap file that is required in this procedure.

Note The recovery.cap file must be in the root directory of the USB thumb drive. Do not rename this

file. The USB thumb drive must be formatted with either FAT16 or FAT32 file systems.

Step 3 Power off the server as described in Shutting Down and Powering Off the Server, page 3-6. Step 4 Disconnect all power cords from the power supplies. Step 5 Slide the server out the front of the rack far enough so that you can remove the top cover. You might have

to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

Service Headers and Jumpers

Step 6 Remove the top cover as described in Removing and Replacing the Server Top Cover, page 3-7. Step 7 Move the shorting jumper to pins 2 and 3 of the CN34 header (see Figure 2-5). Step 8 Reconnect AC power cords to the server. The server powers up to standby power mode. Step 9 Insert the USB thumb drive that you prepared in Step 2 into a USB port on the server. Step 10 Return the server to main power mode by pressing the Power button on the front panel.

The server boots with the updated BIOS boot block. When the BIOS detects a valid recovery.cap file on the USB thumb drive, it displays this message:

Found a valid recovery file...Transferring to CIMC System would flash the BIOS image now... System would restart with recovered image after a few seconds...

Step 11 Wait for server to complete the BIOS update, then remove the USB thumb drive from the server.

Note During the BIOS update, the CIMC will shut down the server and the screen will be blank for

about 10 minutes. Do not unplug the power cords during this update. The CIMC will power on the server after the update is complete.

Step 12 After the server has fully booted, power off the server again and disconnect all power cords. Step 13 Move the jumper back to the default pins 1 and 2 of the header.

Note If you do not move the jumper, after recovery completion you see the prompt, Please remove

the recovery jumper.

OL-26647-01

Step 14 Replace the top cover, replace the server in the rack, replace power cords and any other cables, then

power on the server by pressing the Power button.

Cisco UCS C24 Server Installation and Service Guide

2-15

Service Headers and Jumpers

Using the Clear CMOS Header CN14

See Figure 2-5 for the location of this header. You can jumper this header to clear the server’s CMOS

settings in the case of a system hang. For example, if the server hangs because of incorrect settings and does not boot, use this jumper to invalidate the settings and reboot with defaults.

Caution Clearing the CMOS removes any customized settings and might result in data loss. Make a note of any

necessary customized settings in the BIOS before you use this clear CMOS procedure.

Step 1 Power off the server as described in Shutting Down and Powering Off the Server, page 3-6. Step 2 Disconnect all power cords from the power supplies. Step 3 Slide the server out the front of the rack far enough so that you can remove the top cover. You might have

to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

Chapter 2 Installing the Server

Step 4 Remove the top cover as described in Removing and Replacing the Server Top Cover, page 3-7. Step 5 Move the shorting jumper to pins 2 and 3 of the CN14 header (see Figure 2-5). Step 6 Reinstall the top cover and reconnect AC power cords to the server. The server powers up to standby

power mode, indicated when the Power LED on the front panel is amber.

Step 7 Return the server to main power mode by pressing the Power button on the front panel. The server is in

main power mode when the Power LED is green.

Note You must allow the entire server, not just the service processor, to reboot to main power mode

to complete the reset. This is because the state of the jumper cannot be determined without the host CPU running.

Step 8 Press the Power button to shut down the server to standby power mode, and then remove AC power cords

from the server to remove all power.

Step 9 Remove the top cover from the server. Step 10 Move the shorting jumper from header pins 2 and 3, back to its default position on pins 1 and 2.

Note If you do not move the jumper, the CMOS settings are reset to the default every time that you

power-cycle the server.

Step 11 Replace the top cover, replace the server in the rack, replace power cords and any other cables, then

power on the server by pressing the Power button.

2-16

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

CHAP T E R

Maintaining the Server

This chapter describes how to diagnose server system problems using LEDs. It also provides information about how to install or replace hardware components, and it includes the following sections:

• Server Monitoring and Management Tools, page 3-1

• Status LEDs and Buttons, page 3-2

• Preparing for Server Component Installation, page 3-6

• Installing or Replacing Server Components, page 3-11

Server Monitoring and Management Tools

Cisco Integrated Management Interface (CIMC)

You can monitor the server inventory, health, and system event logs by using the built-in Cisco Integrated Management Controller (CIMC) GUI or CLI interfaces. See the user documentation for your firmware release at the following URL:

http://www.cisco.com/en/US/products/ps10739/products_installation_and_configuration_guides_list.html

Server Configuration Utility

Cisco has also developed the Cisco Server Configuration Utility for C-Series servers, which can aid and simplify the following tasks:

• Monitoring server inventory and health

• Diagnosing common server problems with diagnostic tools and logs

• Setting the BIOS booting order

• Configuring some RAID configurations

• Installing operating systems

This utility is available to order on an optional 16-GB USB thumb drive (see Overview of the Pre-Loaded

16-GB Cisco USB Flash Drive, page 3-41). You can also download the ISO from Cisco.com. See the

user documentation for your version of the utility at the following URL:

http://www.cisco.com/en/US/products/ps10493/products_user_guide_list.html

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

3-1

Status LEDs and Buttons

This section describes the location and meaning of LEDs and buttons and includes the following topics

• Front Panel LEDs, page 3-2

• Rear Panel LEDs and Buttons, page 3-4

Front Panel LEDs

Figure 3-1 shows the front panel LEDs. Table 3-1 defines the front panel LED states.

Chapter 3 Maintaining the Server

1 2

Figure 3-1 Front Panel LEDs

HDD 01

HDD 02

HDD 03

HDD 04

HDD 05

HDD 06

HDD 07

HDD 08

HDD 09

HDD 10

1 Hard drive fault LED 6 Fan status LED 2 Hard drive activity LED 7 System status LED 3 Network link activity LED 8 Identification button/LED 4 Power supply status LED 9 Po wer button/p ower status LED 5 Temperature status LED –

Ta b l e 3-1 Front Panel LEDs, Definitions of States

HDD 11

HDD 12

HDD 13

HDD 14

HDD 15

HDD 16

HDD 17

HDD 18

HDD 19

HDD 20

HDD 21

HDD 22

HDD 23

HDD 24

285243

LED Name State

Hard drive fault • Off—The hard drive is operating properly.

• Amber—This hard drive has failed.

• Amber, blinking—The device is rebuilding.

Hard drive activity • Off—There is no hard drive in the hard drive sled (no access, no fault).

• Green—The hard drive is ready.

• Green, blinking—The hard drive is reading or writing data.

Network link activity • Off—The Ethernet link is idle.

• Green—One or more Ethernet LOM ports are link-active, but there is no activity.

• Green, blinking—One or more Ethernet LOM ports are link-active, with activity.

Cisco UCS C24 Server Installation and Service Guide

3-2

OL-26647-01

Chapter 3 Maintaining the Server

Table 3-1 Front Panel LEDs, Definitions of States (continued)

LED Name State

Power supply status • Green—All power supplies are operating normally.

• Amber, steady—One or more power supplies are in a degraded operational state.

• Amber, blinking—One or more power supplies are in a critical fault state.

Temperature status • Green—The server is operating at normal temperature.

• Amber, steady—One or more temperature sensors have exceeded a warning

threshold.

• Amber, blinking—One or more temperature sensors have exceeded a critical

threshold.

Fan status • Green—All fan modules are operating properly.

• Amber, steady—One fan module has failed.

• Amber, blinking—Critical fault, two or more fan modules have failed.

System status • Green—The server is running in normal operating condition.

Status LEDs and Buttons

• Green, blinking—The server is performing system initialization and memory check.

• Amber, steady—The server is in a degraded operational state. For example:

–

Power supply redundancy is lost.

–

CPUs are mismatched.

–

At least one CPU is faulty.

–

At least one DIMM is faulty.

–

At least one drive in a RAID configuration failed.

• Amber, blinking—The server is in a critical fault state. For example:

–

Boot failed.

–

Fatal CPU and/or bus error is detected.

–

Server is in over-temperature condition.

Identification • Off—The Identification LED is not in use.

• Blue—The Identification LED is activated.

Power button/Power status LED • Off—There is no AC power to the server.

• Amber—The server is in standby power mode. Power is supplied only to the CIMC

and some motherboard functions.

• Green—The server is in main power mode. Power is supplied to all server

components.

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-3

Status LEDs and Buttons

285244

PSU 2

PCIe 4

PCIe 3 PCIe 1

PCIe 2

PCIe 5

PSU 1

PSU 1PSU 1

567

Rear Panel LEDs and Buttons

Figure 3-2 shows the rear panel LEDs and buttons. Table 3-2 defines the LED states.

Figure 3-2 Rear Panel LEDs and Buttons

1 Power supply fault LED 5 10/100/1000 Ethernet dedicated management

2 Power supply AC OK LED 6 10/100/1000 Ethernet dedicated management

3 1-Gb Ethernet link speed LED 7 Identification button/LED 4 1-Gb Ethernet link status LED –

Chapter 3 Maintaining the Server

link status LED

link speed LED

Ta b l e 3-2 Rear Panel LEDs, Definitions of States

LED Name State

Power supply fault • Off—The power supply is operating normally.

• Amber, blinking—An event warning threshold has been reached, but the power

supply continues to operate.

• Amber, solid—A critical fault threshold has been reached, causing t he power

supply to shut down (for example, a fan failure or an over-temperature condition).

Power supply AC OK • Off—There is no AC power to the power supply.

• Green, blinking—AC power OK, DC output not enabled.

• Green, solid—AC power OK, DC outputs OK.

1-Gb Ethernet link speed • Off—link speed is 10 Mbps.

• Amber—link speed is 100 M bps.

• Green—link speed is 1 Gbps.

1-Gb Ethernet link status • Off—No link is present.

• Green—Link is active.

• Green, blinking—Traffic is present on the active link.

10/100/1000 Ethernet dedicated management link speed

• Off—link speed is 10 Mbps.

• Amber—link speed is 100 M bps.

• Green—link speed is 1 Gbps.

Cisco UCS C24 Server Installation and Service Guide

3-4

OL-26647-01

Chapter 3 Maintaining the Server

Table 3-2 Rear Panel LEDs, Definitions of States (continued)

LED Name State

10/100/1000 Ethernet dedicated management link status

Identification • Off—The Identification LED is not in use.

• Off—No link is present.

• Green—Link is active.

• Green, blinking—Traffic is present on the active link.

• Blue—The Identification LED is activated.

Status LEDs and Buttons

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-5

Preparing for Server Component Installation

This section describes how to prepare for component installation, and it includes the following topics:

• Required Equipment, page 3-6

• Shutting Down and Powering Off the Server, page 3-6

• Removing and Replacing the Server Top Cover, page 3-7

• Removing and Replacing the Front Chassis Panel, page 3-8

• Replaceable Component Locations, page 3-9

• Serial Number Location, page 3-9

Required Equipment

The following equipment is used to perform the procedures in this chapter:

• Number 2 Phillips-head screwdriver

• Electrostatic discharge (ESD) strap or other grounding equipment such as a grounded mat

Chapter 3 Maintaining the Server

Shutting Down and Powering Off the Server

The server can run in two power modes:

• Main power mode—Power is supplied to all server components and any operating system on your

drives can run.

• Standby power mode—Power is supplied only to the service processor and the cooling fans and it

is safe to power off the server from this mode.

You can invoke a graceful shutdown or an hard shutdown by using either of the following methods:

• Use the CIMC management interface.

• Use the Power button on the server front panel. To use the Power button, follow these steps:

Step 1 Check the color of the Power Status LED (see the “Front Panel LEDs” section on page 3-2).

• Green—the server is in main power mode and must be shut down before it can be safely powered

off. Go to

• Amber—the server is already in standby mode and can be safely powered off. Go to Step 3.

Step 2 Invoke either a graceful shutdown or a hard shutdown:

Caution To avoid data loss or damage to your operating system, you should always invoke a graceful shutdown

of the operating system.

Step 2.

3-6

• Graceful shutdown—Press and release the Power button. The operating system performs a graceful

shutdown and the server goes to st andby m ode, wh ich is indic ated by an am ber Power Status LED .

• Emergency shutdown—Press and hold the Power button for 4 seconds to force the main power off

and immediately enter standby mode.

Step 3 Disconnect the power cords from the power supplies in your server to completely power off the server.

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

333249

Removing and Replacing the Server Top Cover

To remove or replace the top cover of the server, follow these steps:

Tip You do not have to remove the cover to replace hard drives or power supplies.

Step 1 Remove the top cover (see Figure 3-3).

a. Loosen the two captive thumbscrews that secure the rear edge of the top cover to the chassis. b. Push the top cover toward the server rear about one-half inch (1.27 cm), until it stops. c. Lift the top cover straight up from the server and set it aside.

Step 2 Replace the top cover:

a. Place the cover on top of the server about one-half inch ( 1.27 cm) behin d the lip of th e front chassis

panel. The cover should sit flat.

Note The rear of the cover has a wrap-around flanged edge that must be correctly aligned with the

chassis rear edge when sliding the cover forward.

Preparing for Server Component Installation

b. Slide the top cover toward the front chassis panel until it stops. c. Tighten the two captive thumbscrews that secure the rear edge of the cover to the chassis.

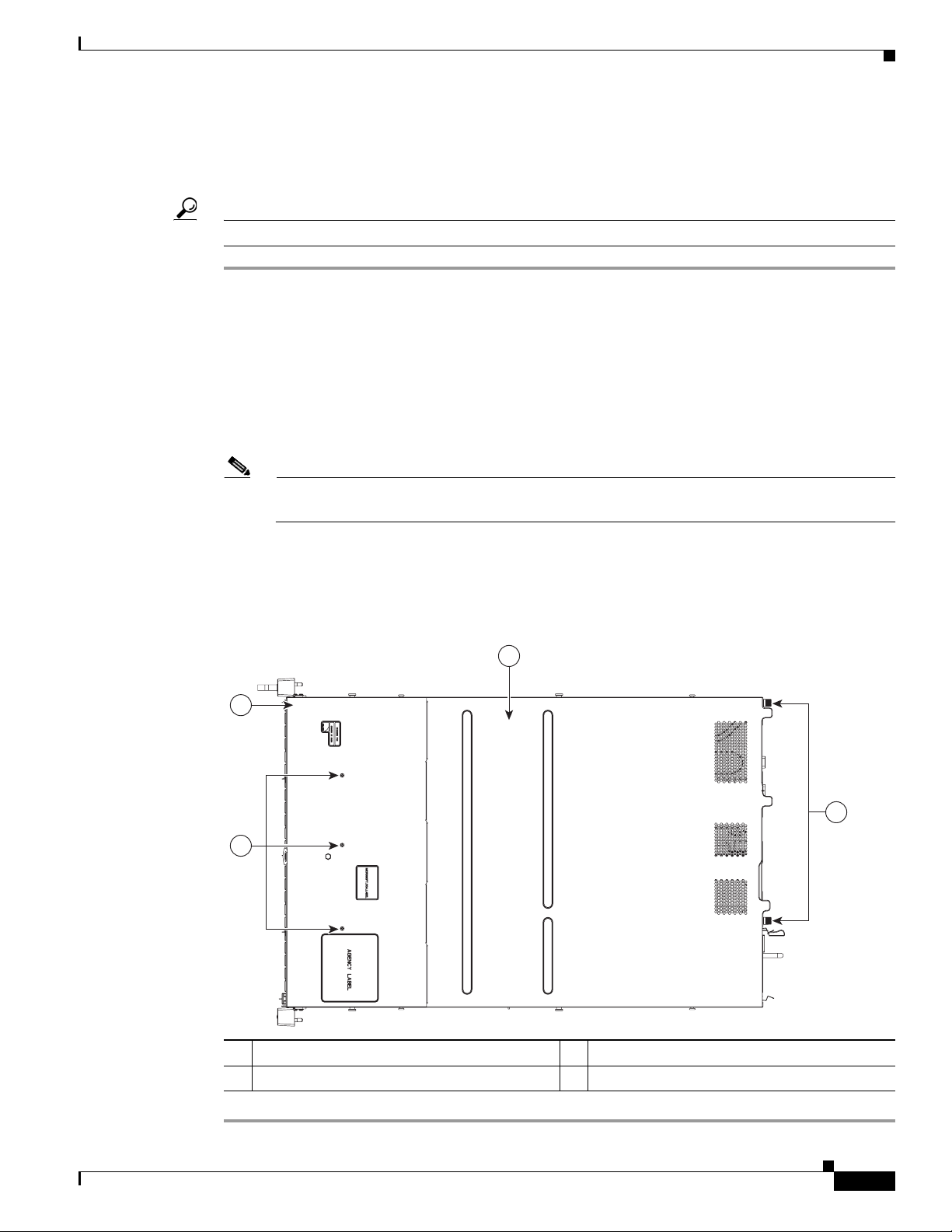

Figure 3-3 Removing the Top Cover or Front Chassis Panel

1 Front chassis panel 3 Top cover 2 Front chassis panel securing screws (three) 4 Top cover thumbscrews (two)

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01z

3-7

Preparing for Server Component Installation

Removing and Replacing the Front Chassis Panel

To remove or replace the front chassis panel of the server, follow these steps:

Tip Remove this panel only if you are instructed to do so in a procedure in this book.

Step 1 Remove the front chassis panel (see Figure 3-3):

a. Remove the top cover from the server as described in Removing and Replacing the Server Top

Cover, page 3-7.

b. Use a #2 Phillips-head screwdriver to remove the three screws that secure the front chassis panel to

the chassis (see

c. Push the panel forward about 1/4-inch, until it stops. The wr ap -around fr ont edge of the pan el must

become free from the front edge of the chassis.

d. Lift the panel straight up from the server and set it aside.

Step 2 Replace the front chassis panel:

Figure 3-3).

Chapter 3 Maintaining the Server

a. Set the front chassis panel back in place, with its wrap-around front edge about 1/4 inch (1.27 cm)

forward of the chassis front edge.

b. Slide the front chassis panel toward the server rear to lock it in place. The wrap-around front edge

of the panel must wrap around the chassis front edge.

c. Replace the three screws that secure the panel to the chassis (see Figure 3-3). d. Replace the top cover to the server as described in Removing and Replacing the Server Top Cover,

page 3-7.

3-8

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Replaceable Component Locations

This section shows the locations of the components that are discussed in this chapter. The view in

Figure 3-4 is from the top down with the top cover, front chassis panel, and air baffle removed.

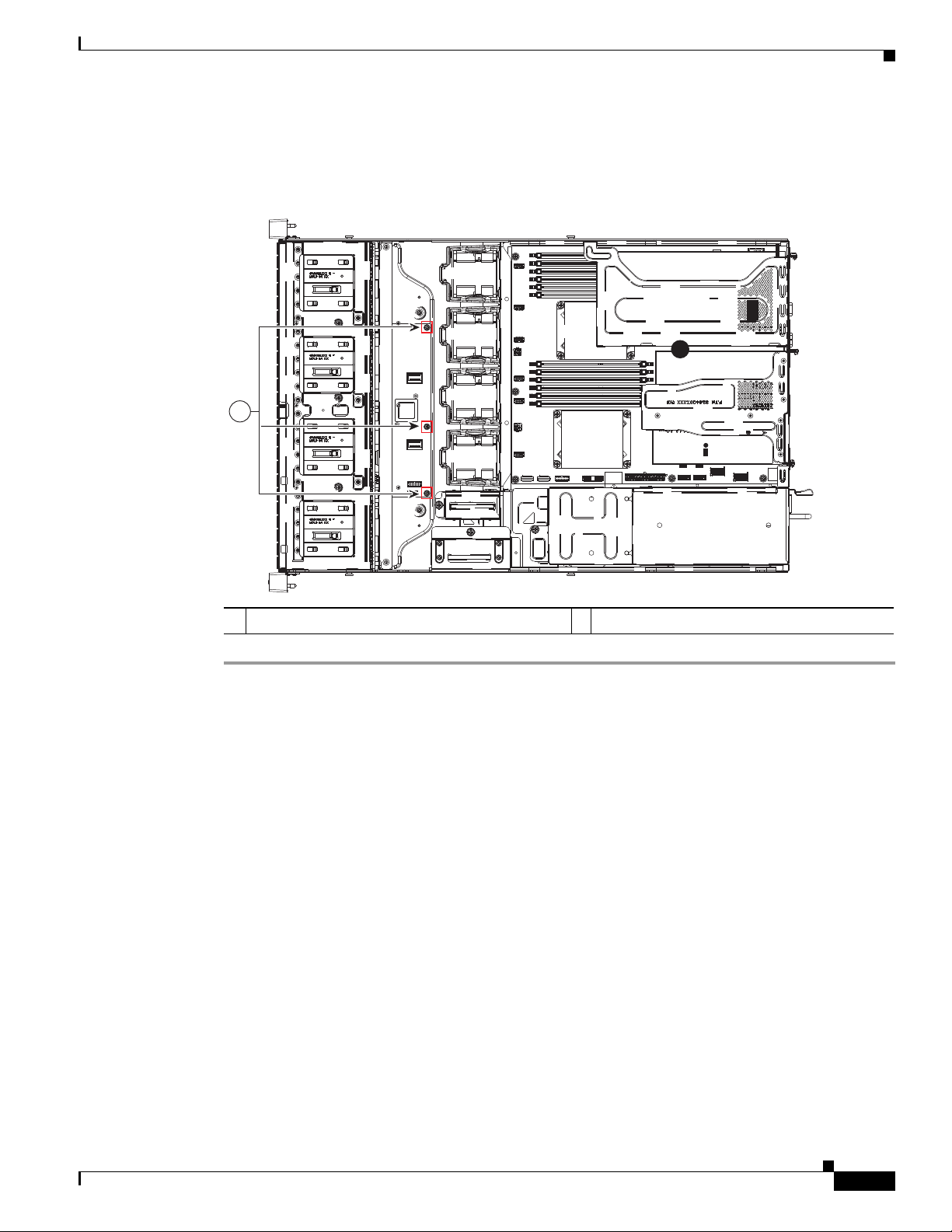

Figure 3-4 Replaceable Component Locations

2 3 5 74 6

Port 1

Port 0

SYS FAN1

SYS FAN2

SYS FAN3

SYS FAN4

Preparing for Server Component Installation

PCIe riser 1

CPU 1

PCIe riser 2

CPU 2

1 Drives 

(hot-swappable, accessed through front panel)

2 Drive backplane 

(optionally either 24-drive or 16-drive)

3 SAS expander (with 24-drive backplane only) 10 PCIe riser 2 (three half-height slots) 4 Fan modules (four) 11 Trusted platform module socket on

5 DIMM slots on motherboard (twelve) 12 Power supplies (two, hot-swappable access

6 CPUs and heatsinks (up to two) 13 RAID backup unit mounting cage (holds up to

7 PCIe riser 1 (two full-h eight s lots)

Serial Number Location

PSU 1 (bottom)

PSU 2 (top)

8 Internal USB 2.0 port on motherboard

9 RTC battery on motherboard

motherboard

through rear panel)

two units)

285245

OL-26647-01z

The serial number for the server is printed on a la bel on t he top of the server, near the front.

Cisco UCS C24 Server Installation and Service Guide

3-9

Preparing for Server Component Installation

Color-Coded Touch Points

This server has color-coded touch points that indicate thumbscrews and latches on replaceable and hot-swappable components.

• Hot-swappable components have green plastic touch points. This includes the internal coo ling fans

and the power supplies. (An exception is the drive trays on the front panel, which are hot-swappable but not green).

• Some replaceable but non-hot-swappable components have light-blue plastic touch-points.

Chapter 3 Maintaining the Server

3-10

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Installing or Replacing Server Components

Warning

Caution When handling server components, wear an ESD strap to avoid damage.

Tip You can press the Identification button on the front panel or rear panel to turn on a flashing Identifi cation

Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.

Statement 1029

Class 1 laser product.

Statement 1008



LED on the front and rear panels of the server. This allo ws you to locate the specific server that you are servicing when you go to the opposite side of the rack. You can also activate these LEDs remotely by using the CIMC interface.See the

“Status LEDs and Buttons” section on page 3-2 for locations of these

LEDs.

This section describes how to install and replace server components, and it includes the following topics:

• Replacing Hard Drives or Solid State Drives, page 3-12

• Replacing a Drive Backplane, page 3-14

• Replacing Fan Modules, page 3-18

• Replacing DIMMs, page 3-20

• Replacing CPUs and Heatsinks, page 3-24

• Replacing the Motherboard RTC Battery, page 3-30

• Replacing a PCIe Riser, page 3-32

• Replacing a PCIe Card, page 3-34

• Replacing a SuperCap Power Module (RAID Backup Unit), page 3-39

• Replacing a Cisco USB Flash Drive, page 3-41

• Installing a Trusted Platform Module, page 3-45

• Replacing a SCU Upgrade ROM Module, page 3-48

• Replacing a Software RAID Key Module , page 3-49

• Replacing Power Supplies, page 3-50

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-11

Installing or Replacing Server Components

285247

HDD01

HDD05

HDD09

HDD02

HDD06

HDD10

HDD03

HDD07

HDD11

HDD04

HDD08

HDD12

Replacing Hard Drives or Solid State Drives

This section includes the following information:

• Drive Population Guidelines, page 3-12

• Drive Replacement Procedure, page 3-13

Drive Population Guidelines

The server is orderable in two different versions, each with one of two different front panel/backplane configurations:

• Cisco UCS C24 (small form-factor (SFF) drives, with 24-drive backplane and expander). 

Holds up to twenty-four 2.5-inch hard drives or solid state drives.

• Cisco UCS C24 (small form-factor (SFF) drives, with 16-drive backplane, no expander). 

Holds up to sixteen 2.5-inch hard drives or sol id state drives.

Note When the server has the 16-drive backplane, only the first 16 drive bays are used.

Chapter 3 Maintaining the Server

• Cisco UCS C24 (large form-factor (LFF) drives, with 12-drive backplane and expander). 

Holds up to twelve 3.5-inch hard drives.

The drive-bay numbering is shown in Figure 3-5 and Figure 3-6.

Figure 3-5 Drive Numbering, Small Form Factor

HDD 01

HDD 02

HDD 03

HDD 04

HDD 05

HDD 06

HDD 07

HDD 08

HDD 09

HDD 10

HDD 11

HDD 12

Figure 3-6 Drive Numbering, Large Form Factor

HDD 13

HDD 14

HDD 15

HDD 16

HDD 17

HDD 18

HDD 19

HDD 20

HDD 21

HDD 22

HDD 23

HDD 24

285246

3-12

Observe these drive population guidelines for optimal performance:

• When populating drives, add drives in the lowest numbered bays first (populate HDD01 first).

Note Sixteen-drive backplane option: If your SFF-drives server has the 16-drive backplane

installed, only the first 16 drive bays are used, with population order HDD1 to HDD16. Keep blanking trays in all empty bays to ensure optimal air flow and cooling.

• Keep an empty drive blanking tray in an y unused b ays to ensure op timal air flo w and cooli ng.

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

• You can mix hard drives and solid state drives in the same server. However, You cannot configure

a logical volume (virtual drive) that contains a mix of hard drives and SSDs. That is, when you create a logical volume, it must contain all hard drives or all SSDs.

Note The LFF-drives version of the server does not support 3.5-inch solid state drives.

Drive Replacement Procedure

To replace or install a hot-pluggable drive, follow these steps:

Tip You do not have to shut down or power off the server to replace hard drives or solid state drives (SSDs)

because they are hot-pluggable.

Step 1 Remove the drive that you are replacing or remove a blank drive tray from an empty bay:

a. Press the release button on the face of the drive tray. See Figure 3-7. b. Grasp and open the ejector lever and then pull the drive tray out of the slot. c. If you are replacing an existing drive, remove t he fo ur dri ve-tr ay scr ews that secure the drive to the

tray and then lift the drive out of the tray.

Step 2 Install a new drive:

Installing or Replacing Server Components

a. Place a new drive in the empty drive tray and replace the four drive-tray screws. b. With the ejector lever on the drive tray open , insert th e drive t ray into t he empty drive ba y. c. Push the tray into the slot until it touches the backplane, th en close the ej ector lever to lock the drive

in place.

Figure 3-7 Replacing Hard Drives

1 2

HDD 01

HDD 02

HDD 03

HDD 04

HDD 05

HDD 06

HDD 07

HDD 08

HDD 09

HDD 10

HDD 11

HDD 12

HDD 13

HDD 14

HDD 15

HDD 16

HDD 17

HDD 18

HDD 19

HDD 20

HDD 21

HDD 22

HDD 23

HDD 24

285248

OL-26647-01z

1 Release button 3 Drive tray securing screws (4) 2 Ejector lever –

Cisco UCS C24 Server Installation and Service Guide

3-13

Installing or Replacing Server Components

Replacing a Drive Backplane

Note The Small Form-Factor (24-drive or 16-drive) and Large Form-Factor (12-drive) backplanes are

factory-configurable options. When replacing a backplane, you must replace it with the same version of the backplane.

To install or replace a drive backplane, follow these steps:

Step 1 Prepare the server for component replacement:

a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on

page 3-6.

b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

Chapter 3 Maintaining the Server

c. Remove the top cover as described in “Removing and Replacing the Server Top Cover” section on

page 3-7.

d. Remove the front chassis panel as described in Removing and Replacing the Front Chassis Panel,

page 3-8.

Step 2 Remove all drives and any empty drive trays from the server. Step 3 Disconnect all cables from the backplane.

Tip Label the cables as you remove them to aid replacement.

Step 4 Disconnect all cables from the SAS expander card. Step 5 Remove the two screws that secure the backplane assembly to the chassis floor (see Figure 3-8). Step 6 Lift the backplane assembly, including steel tray and expander card straight up from the chassis. Step 7 Remove the SAS expander card from the backplane assembly:

a. Remove the three screws that secure the SAS expander to the backplane assembly steel tray (see

Figure 3-9).

b. Pull the SAS expander from the sockets on the drive backplane and then set the SAS expander aside

on an antistatic surface.

Step 8 Install the SAS expander card to the new backplane assembly:

a. Push the two connectors on the SAS expander into the two sockets on the backplane assembly.

3-14

b. Install the three screws that secure the SAS expander to the backplane assembly steel tray (see

Figure 3-9).

Step 9 Align the new backplane assembly within the chassis walls, and then lower it evenly to the chassis floor

until the screw-holes in the assembly align with the corresponding screw-holes in the chassis floor.

Step 10 Install the two screws that secure the backplane assembly to the chassis floor. Step 11 Reconnect all cables to the SAS expander. Step 12 Reconnect all cables to the backplane.

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

285265

Port 1

Port 0

SYS FAN1

SYS FAN2

SYS FAN3

SYS FAN4

CPU 1

CPU 2

PCIe riser 1

PCIe riser 2

PSU 1 (bottom)

PSU 2 (top)

Step 13 Replace all drives and drives trays to the drive bays. Step 14 Replace the front chassis panel. Step 15 Replace the top cover. Step 16 Replace the server in the rack, replace cables, and then power on the server by pressing the Power

button.

Figure 3-8 Replacing the Drive Backplane

Installing or Replacing Server Components

1 Backplane assembly securing screws (two) 2 SAS expander securing screws (three)

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-15

Installing or Replacing Server Components

Replacing a SAS Expander

The SAS expander is a card that plugs directly into the drive backplane. The SAS expander allows control of up to 24 drives with one RAID controller card. See

Considerations” for more information about supported RAID controllers.

Note The SAS expander is required for the SFF 24-drive option and the LFF 12-drive option. 

The SFF 16-drive option does not use the SAS expander.

To install or replace a SAS expander, follow these steps:

Step 1 Prepare the server for component replacement:

a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on

page 3-6.

b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Chapter 3 Maintaining the Server

Appendix C, “RAID Controller

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in “Removing and Replacing the Server Top Cover” section on

page 3-7.

d. Remove the front chassis panel as described in Removing and Replacing the Front Chassis Panel,

page 3-8.

Step 2 Disconnect all cables from the SAS expander.

Tip Label the cables as you remove them to aid replacement.

Step 3 Remove the SAS expander:

a. Remove the three screws that secure the SAS expander to the backplane assembly steel tray (see

Figure 3-9).

b. Grasp both ends of the SAS expander and pull evenly to disengage it from the sockets on the drive

backplane. Do not tilt the SAS expander until it is free from the sockets on the backplane.

Step 4 Install the new SAS expander:

a. Lower the SAS expander to its position on the backplane assembly. Return the SAS expander to a

horizontal position before you begin pushing it into the backplane sockets.

a. Evenly push the two connectors on the edge of the new SAS expander into the two sockets on the

backplane. Stop when the screw-holes in the SAS expander align with the screw-holes in the backplane assembly steel tray.

b. Install the three screws that secure the SAS expander to the backplane assembly steel tray (see

Figure 3-9).

Step 5 Reconnect SAS cables to the new SAS expander.

3-16

Step 6 Replace the front chassis panel. Step 7 Replace the top cover.

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Step 8 Replace the server in the rack, replace cables, a nd then power on the server by pressing the Power

button.

Figure 3-9 Replacing the SAS Expander

Installing or Replacing Server Components

SYS FAN1

PCIe riser 1

SYS FAN2

Port 1

SYS FAN3

CPU 1

CPU 2

Port 0

SYS FAN4

1 SAS expander securing screws (three) –

PCIe riser 2

PSU 1 (bottom)

PSU 2 (top)

285252

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-17

Installing or Replacing Server Components

Replacing Fan Modules

The four hot-pluggable fan modules in the server are numbered as follows when you are facing the front of the server.

Figure 3-10 Fan Module Numbering

FAN1 FAN2 FAN3 FAN4

To replace or install a hot-pluggable fan module, follow these steps:

Caution You do not have to shut down or power off the server to replace fan modules because they are hot-

pluggable. However, to mai ntain proper cooling, do not operate the server for more than one min ute with any fan module removed.

Step 1 Remove a fan module that you are replacing (see Figure 3-11):

a. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Chapter 3 Maintaining the Server

Caution If you cannot safely view and access the component, remove the server from the rack.

b. Remove the top cover as described in “Removing and Replacing the Server Top Cover” section on

page 3-7.

c. Grasp and squeeze together the two green plastic finger-latches on the top of the fan module and

then lift straight up to disengage the fan from the fan tray connector.

Step 2 Install a new fan module:

a. Set the new fan module in place, aligning the connector on the fan module wi th the connector on the

fan tray (see

Note The arrow on the top of the fan module should point toward the rear of server.

b. Press down gently on the fan module until the finger-latches click and lock in place. c. Replace the top cover. d. Replace the server in the rack.

Figure 3-11).

3-18

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

285253

Port 1

Port 0

SYS FAN1

SYS FAN2

SYS FAN3

SYS FAN4

CPU 1

CPU 2

PCIe riser 1

PCIe riser 2

PSU 1 (bottom)

PSU 2 (top)

1 2

Figure 3-11 Replacing Fan Modules

Installing or Replacing Server Components

1 Fan tray connector (one on each fan module) 3 Connector on underside of fan module 2 Finger latches (two on each fan module)

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-19

Installing or Replacing Server Components

Replacing DIMMs

This section includes the following topics:

• Memory Performance Guidelines and Population Rules, page 3-20

• DIMM Replacement Procedure, page 3-23

Caution DIMMs and their sockets are fragile and must be handled with care to avoid damage during installation.

Caution Cisco does not support 3rd-party DIMMs. Using non-Cisco DIMMs in the server might result in system

problems or damage to the motherboard.

Note To ensure the best server performance, it is important that you are familiar with memory performance

guidelines and population rules before you install or replace memory.

Chapter 3 Maintaining the Server

Memory Performance Guidelines and Population Rules

This section describes the type of memory that the server requires and its effect on performance. The section includes the following topics:

• DIMM Slot Numbering, page 3-20

• DIMM Population Rules, page 3-21

• Memory Mirroring, page 3-23

DIMM Slot Numbering

Figure 3-12 shows the numbering of the DIMM slots.

3-20

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Installing or Replacing Server Components

Figure 3-12 DIMM Slots and CPUs

A1 B0

B1 C0

CPU1

Front of Server

CPU2

DIMM Population Rules

285209

Observe the following guidelines when installing or replacing DIMMs:

• Each CPU supports three memory channels.

–

CPU1 supports channels A, B, and C.

–

CPU2 supports channels D, E, and F

Note In a single-CPU system, the maximum number of DIMMs is six (only the six slot s supported

by CPU1).

• Each channel has two DIMM slots (for example, channel A = slots A0 and A1).

–

A channel can operate with one or two DIMMs installed.

–

If a channel has only one DIMM, populate slot 0 first (the blue slot).

• When both CPUs are installed, populate the DIMM slots of each CPU identically.

–

Fill blue slots in the channels first: A0, D0, B0, E0, C0, F0

–

Fill black slots in the channels second: A1, D1, B1, E1, C1, F1

• Any DIMM installed in a DIMM socket for which the CPU is absent is not recognized. In a

single-CPU configuration, populate the channels for CPU1 only.

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-21

Installing or Replacing Server Components

• Although 1600 MHz DIMMs can be run in Power Savings Mode (1.35 V operation), 1600 MHz

operation is supported only when the DDR mode is set to Performance Mode (see “

Low-Voltage DIMM Operation.”) A 1600 MHz DIMM set to Power Savings Mode operates at

1066 MHz.

• Observe the DIMM mixing rules shown in Table 3-3.

Ta b l e 3-3 DIMM Mixing Rules

DIMM Parameter Mixed Mix Across Single Channel? Mix Across Multiple Channels?

DIMM size (4, 8, 16 GB) No—Must be same size in

DIMM speed (1333 or 1600 MHz)

DIMM type (RDIMM or UDIMM)

• Memory mirroring reduces the amount of memory available by 50% because only one of the two

populated channels provides data. When memory mirroring is enabled, DIMMs must be installed in sets of four as described in

• Note the following restrictions when using UDIMMs. Even though a UDIMM might be rated at

1600 MHz, actual operational speeds are slower because of the Intel implementation.

–

In Performance Mode (1.5 V operation), UDIMMs run at 1333 MHz in 1 DPC configurations or at 1066 MHz in 2 DPC configurations.

channel. No—Must be same speed in 

channel. No—Must be same type in

channel.

Memory Mirroring, page 3-23.

Chapter 3 Maintaining the Server

Enabling

Yes—Can be different sizes in server.

No—Must be the same speed in server.

No—Must be the same type in server.

–

In Power Saving Mode (1.35 V operation), UDIMMs run at 1333 MHz in 1 DPC conf igurations or at 1066 MHz in 2 DPC configurations.

Enabling Low-Voltage DIMM Operation

You can enable low voltage (1.35 V) DIMM operation for all DIMMs in the server. There is a setting in the BIOS Setup utility that you can use to change the DDR memory mode to Power Saving mode, as described in the following procedure:

Step 1 Enter the BIOS setup utility by pressing the F2 key when prompted during bootup. Step 2 Select the Advanced tab. Step 3 Select Low Voltage DDR Mode. Step 4 In the pop-up window, select either Power Saving or Performance Mode:

• Power Saving Mode–Prioritizes low-voltage memory operation.

• Performance Mode–Prioritizes performance memory operation. If you mix low-voltage DIMMs

with standard DIMMs, the system defaults to this setting.

Step 5 Press F10 to save your changes and exit the setup utility.

3-22

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Installing or Replacing Server Components

Memory Mirroring

When memory mirroring is enabled, the memory subsy stem simultan eously wr ites identi cal data t o two channels. If a memory read from one of the channels returns incorrect data due to an uncorrectable memory error, the system automatically retrieves the data from the other channel. A transient or soft error in one channel does not affect the mirrored data, and operation continues unless there is a simultaneous error in exact ly the same location on a DIMM and its mirrored DIMM. Memory mirroring reduces the amount of memory available to the operating system by 50% because only one of the two populated channels provides data.

If you choose to enable memory mirroring, populate the DIMM slots in the order shown in Table 3-4 or

Table 3-5.

Ta b l e 3-4 Two-CPU Memory Mirroring DIMM Population

Number of DIMMs  per CPU CPU 1 Population CPU2 Population

2 A0; B0 D0; E0 4 A0, B0; A1, B1 D0, E0; D1, E1

Ta b l e 3-5 One-CPU Memory Mirroring DIMM Population

Number of DIMMs  per CPU CPU 1 Population CPU2 Population

2 A0; B0 CPU2 slots not available 4 A0, B0; A1, B1 CPU2 slots not available

DIMM Replacement Procedure

To install a DIMM assembly, follow these steps:

Step 1 Remove the DIMMs that you are replacing:

a. Power off the server as described in Shutting Down and Powering Off the Server, page 3-6. b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in Removing and Replacing the Server Top Cover, page 3-7. d. Remove PCIe riser 1 to provide clearance and set it aside on an antistatic surface (see Replacing a

PCIe Riser, page 3-32).

e. Remove the plastic air baffle that covers the DIMM slots and CPUs.

f. Open the ejector levers at both ends of the DIMM slot, then lift the DIMM out of the slot.

Step 2 Install a new DIMM:

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-23

Installing or Replacing Server Components

Note Before installing DIMMs, refer to the population guidelines. See Memory Performance

Guidelines and Population Rules, page 3-20.

a. Align the new DIMM with the empty slot on the motherboard. Use the alignment key in the DIMM

slot to correctly orient the notch on the bottom edge of the DIMM.

b. Push down evenly on the top corners of the DIMM until it is fully seated and the ejector levers on

both ends lock into place.

c. Replace the plastic air baffle over the DIMM slots. d. Replace PCIe riser 1 to it slot. See Replacing a PCIe Riser, page 3-32. e. Replace the top cover.

f. Replace the server in the rack, replace cables, and then power on the server by pressing the Power

button.

Chapter 3 Maintaining the Server

Replacing CPUs and Heatsinks

This server can have up to two CPUs. Each CPU supports three DIMM channels (six DIMM slots). See

Figure 3-12. This section includes the following topics:

• Single-CPU Restrictions, page 3-24

• CPU Replacement Procedure, page 3-24

Single-CPU Restrictions

The minimum configuration is that the server must have at least CPU1 installed. Install CPU1 first, then CPU2.

The following restrictions apply when using a single-CPU configuration:

• The maximum number of DIMMs is six (only the six slots controlled by CPU1 are active).

• PCIe riser 2 is unavailable (PCIe slots 3, 4, and 5).

CPU Replacement Procedure

Caution CPUs and their motherboard sockets are fragile and must be handled with care to avoid damaging pins

during installation. The CPUs must be installed with heatsinks and their thermal pads to ensure proper cooling. Failure to install a CPU correctly might result in damage to the server.

3-24

Caution The Pick-and-Place tools used in this procedure are required to prevent da mage to the contact pins

between the motherboard and the CPU. Do not attempt this procedure without the required tools, which are included with each CPU option kit. If you do not have the tool, you can order a spare (Cisco PID UCS-CPU-EN-PNP).

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

334645

To install or replace a CPU heatsink and CPU, follow these steps:

Step 1 Remove the CPU and heatsink that you are replacing:

a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on

page 3-6.

b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in “Removing and Replacing the Server Top Cover” section on

page 3-7.

d. Remove the internal air baffle from the server to provide access to the CPUs. e. Use a #2 Phillips-head screwdriver to loosen the four captive screws that secure the heatsink and

then lift it off of the CPU.

Installing or Replacing Server Components

Note Alternate loosening each screw evenly to avoid damaging the heatsink or CPU.

f. Unclip the CPU retaining latch, then open the hinged CPU cover plate. See Figure 3-13.

Figure 3-13 CPU Socket Latches

1 Heatsink screws (four) 4 Hinged CPU cover plate 2 Heatsink 5 CPU 3 CPU retaining latch

OL-26647-01z

Step 2 Remove a protective cap or an old CPU from the socket (if present):

• If you are removing an old CPU, skip to Step 3.

Cisco UCS C24 Server Installation and Service Guide

3-25

Installing or Replacing Server Components

• If you are installing a new CPU to a socket that was shipped empty, the socket has a protective cap

that is intended to prevent bent contact pins. Use the tool as shown in protective cap and then pivot to remove the cap.

Chapter 3 Maintaining the Server

Figure 3-14 to grasp the

Step 3 Remove an old CPU:

Figure 3-14 Protective Cap Removal Tool

a. Set the Pick-and-Place tool on the CPU in the socket, aligning the arrow on the tool with the

registration mark on the socket (the small triangular mark). See

b. Press the top button on the tool to grasp th e installe d CPU. c. Lift the tool and CPU straight up. d. Press the top button on the tool to release the old CPU on an anti-static surface.

Figure 3-15.

3-26

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

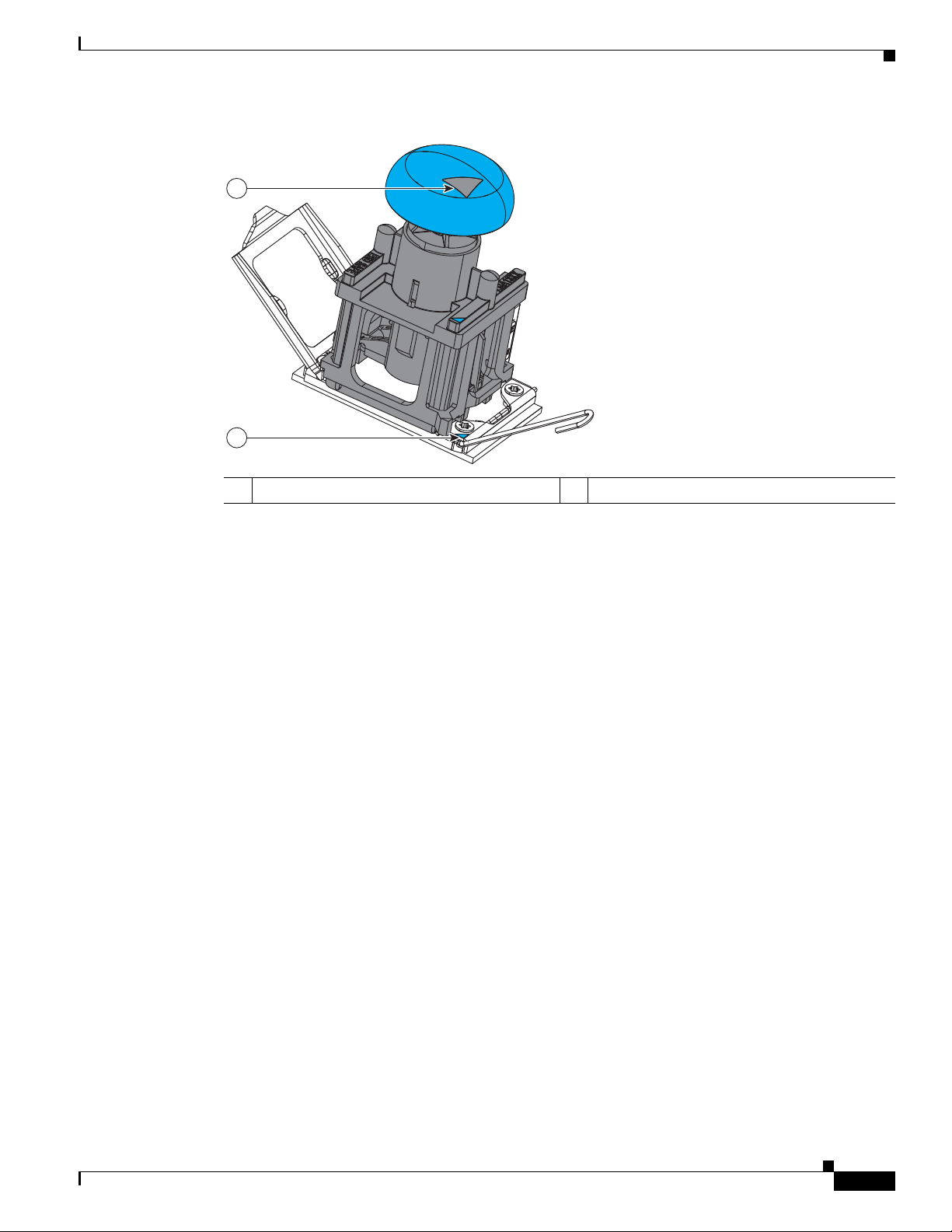

Figure 3-15 Removing or Inserting a CPU

Installing or Replacing Server Components

1 Arrow on tool 2 Registration mark on CPU socket

Step 4 Insert the new CPU into the Pick-and-Place tool:

a. Remove the new CPU from the packaging and place it on the pedestal that is included in the kit.

Align the registration mark on the corner of the CPU with the arrow on the corner of the pedestal (see

Figure 3-16).

b. Set the Pick-and-Place tool on the CPU pedestal, aligning the arrow on the tool with the arrow on

the corner of the pedestal. Make sure that the tabs on the tool are fully seated in the slots on the pedestal.

c. Press the top button on the tool to grasp and lock in the CPU. d. Lift the tool and CPU straight up off the pedestal.

332668

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-27

Installing or Replacing Server Components

Chapter 3 Maintaining the Server

Figure 3-16 CPU and Pick-and-Place Tool on Pedestal

334342

1 Arrow marks for alignment –

Step 5 Install a new CPU:

a. Set the Pick-and-Place tool with CPU over the empty CPU socket on the motherboard.

Note Align the arrow on the top of the tool with the registration mark (small triangle) that is stamped on the

metal of the CPU socket, as shown in Figure 3-15.

b. Press the top button on the tool to set the CPU into the socket. Remove the empty tool. c. Close the hinged CPU cover plate. d. Clip down the CPU retaining latch. See Figure 3-13.

Step 6 Install a heatsink:

Caution The heatsink must have a new, undamaged thermal pad on the heatsink -to-CPU surface to ensure proper

cooling. If you are replacing a heatsink that was previousl y used, you must remo ve the o ld thermal p ad. If you are installing a new heatsink, skip to step d. below.

a. Apply an alcohol-based cleaning solution to the old thermal pad and let it soak for a least 15

seconds.

b. Wipe all of the old thermal pad off the old heatsink using a soft cloth that wil l not scratc h the

heatsink surface.

3-28

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

c. Apply thermal grease from an included syringe to the top of the CPU.

Apply about 2 cubic centimeters of grease (about half the syringe contents) to the to p of the CPU in the pattern that is shown in

Note If you do not have a syringe of thermal grease, you can order a spare 

Installing or Replacing Server Components

Figure 3-17.

(Cisco PID UCS-CPU-GREASE).

334295

d. For a new heatsink, peel the protective film from the thermal pad that is on the bottom of the new

heatsink.

Figure 3-17 Thermal Grease Application Pattern

Note Do not apply a syringe of thermal grease if you are installing a new heatsink that already has a

pre-applied thermal pad.

e. Align the heatsink captive screws with the motherboard standoffs, then use a Number 2

Phillips-head screwdriver to tighten the captive screws evenly.

OL-26647-01z

Note Alternate tightening each screw evenly to avoid damaging the heatsink or CPU.

f. Replace the top cover.

g. Replace the server in the rack, replace cables, and then power on the server by pressing the Power

button.

Cisco UCS C24 Server Installation and Service Guide

3-29

Installing or Replacing Server Components

Replacing the Motherboard RTC Battery

Chapter 3 Maintaining the Server

Warning

There is danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

[Statement 1015]

The real-time clock (RTC) battery retains system settings when the server is disconnected from power. The RTC battery is on the motherboard under the fan tray.

The battery type is Panasonic CR2032 or equivalent. To replace or install the motherboard CMOS battery, follow these steps:

Step 1 Remove the RTC battery (see Figure 3-18):

a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on

page 3-6.

b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in “Removing and Replacing the Server Top Cover” section on

page 3-7.

d. Locate the RTC battery on the motherboard between the PCIe risers (see Figure 3-18). e. Use a small screwdriver or pointed object to push aside the metal clip that holds the battery in the

holder.

3-30

Note If you have difficulty reaching the battery because of cards in the PCIe risers, remove PCIe

riser 1 to provide access. See Replacing a PCIe Riser, page 3-32.

f. Lift the battery from the holder.

Step 2 Install an RTC battery:

a. Insert the battery into its holder positive-side-up and press down until it clicks in place.

Note The positive side of the battery marked “3V+” should face upward.

b. If you removed PCIe riser 1, replace it to its slot. See Replacing a PCIe Riser, page 3-32. c. Replace the top cover. d. Replace the server in the rack, replace cables, and power on the server by pressing the Power button.

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

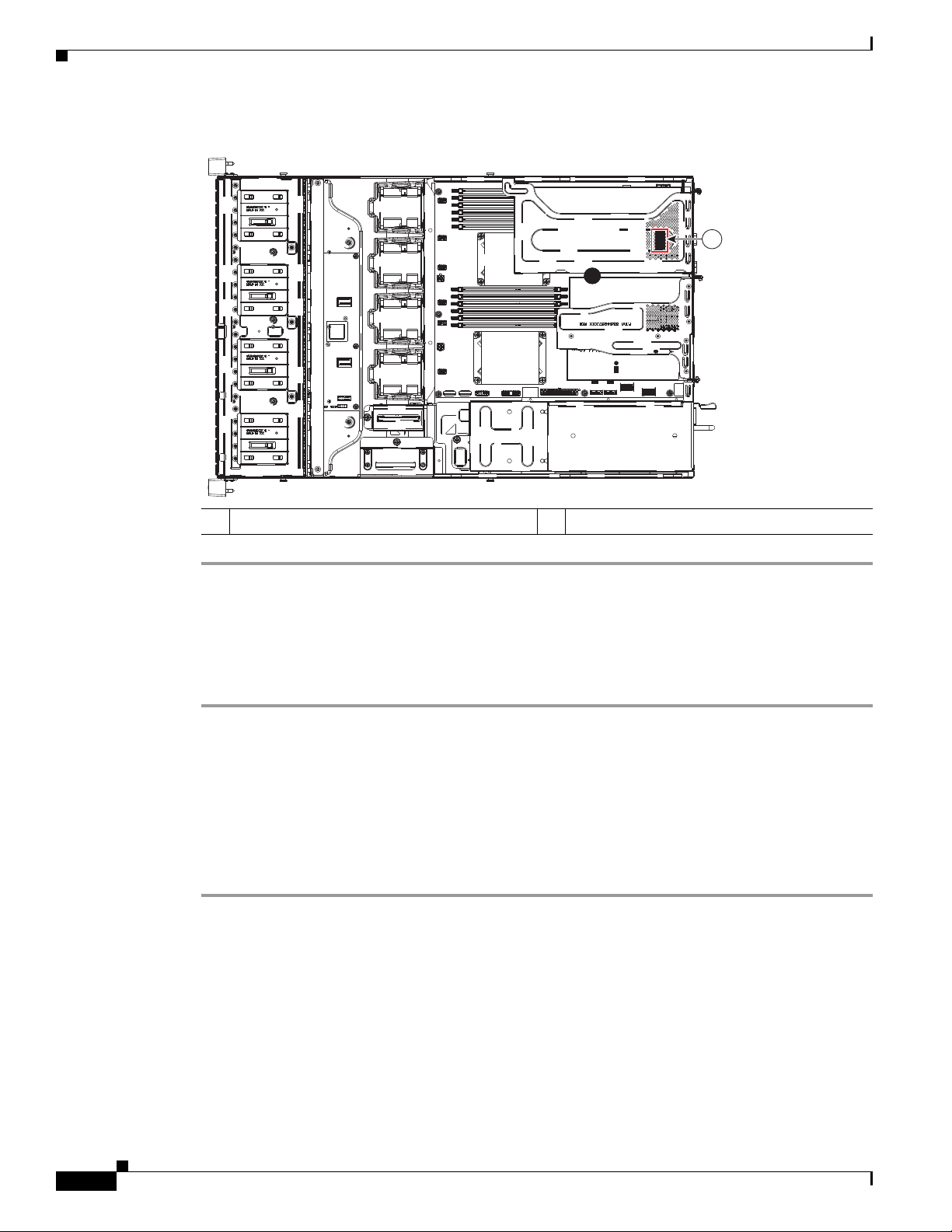

Figure 3-18 Replacing the Motherboard RTC Battery

Installing or Replacing Server Components

SYS FAN1

PCIe riser 1

CPU 1

PCIe riser 2

CPU 2

Port 1

Port 0

SYS FAN2

SYS FAN3

SYS FAN4

1 RTC battery holder on motherboard –

PSU 1 (bottom)

PSU 2 (top)

285254

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-31

Installing or Replacing Server Components

Replacing a PCIe Riser

The server contains two toolless PCIe risers for horizontal in stallation of PCIe cards. See PCIe Slots, page 3-34 for specifications of the PCIe slots on the risers.

Note PCIe riser 2 (slots 3, 4, and 5) is not available in single-CPU configurations.

Chapter 3 Maintaining the Server

Figure 3-19 Rear Panel, Showing PCIe Slots

PSU 2

PCIe 4

PCIe 5

PCIe 3 PCIe 1

PCIe 2

PSU 1

285255

1 PCIe riser 2 slots (three half-height slots) 2 PCIe riser 1 slots (two full-height slots)

To install or replace a PCIe riser, follow these steps:

Step 1 Remove the PCIe riser that you are replacing:

a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on

page 3-6.

b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

3-32

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in “Removing and Replacing the Server Top Cover” section on

page 3-7.

d. Disconnect all cables from any PCIe cards that are installed in the PCIe riser. e. Grasp both ends of the riser and evenly pull straight up to disengage its circuit board from the socket

on the motherboard. Set the riser on an antistatic surface.

f. If the riser has a card installed, remove the card from the riser (see Replacing a PCIe Card,

page 3-34).

Step 2 Install a new PCIe riser:

a. If you removed a card from the old PCIe riser , install the card to th e new riser (see Replacing a PCIe

Card, page 3-34).

b. Position the PCIe riser over its socket on the motherboard and over its alignment points in the

chassis (see

Cisco UCS C24 Server Installation and Service Guide

Figure 3-20).

OL-26647-01

Chapter 3 Maintaining the Server

Caution Make sure that the circuit board connector of the riser is aligned correctly with the motherboard socket

before you push down to seat the riser in the next step.

c. Carefully push down on both ends of the PCIe riser to fully en gage its circuit board connector with

the socket on the motherboard.

d. Reconnect cables to any PCIe cards installed in the riser. e. Replace the top cover.

f. Replace the server in the rack, replace cables, and then power on the server by pressing the Power

button.

Figure 3-20 Replacing the PCIe Riser

Installing or Replacing Server Components

SYS FAN1

Port 1

Port 0

SYS FAN2

SYS FAN3

SYS FAN4

PCIe riser 1

CPU 1

PCIe riser 2

CPU 2

PSU 1 (bottom)

PSU 2 (top)

285256

1 PCIe riser 1 alignment point locations (three) 2 PCIe riser 2 alignment point locations (two)

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-33

Installing or Replacing Server Components

285255

PSU 2

PCIe 4

PCIe 3 PCIe 1

PCIe 2

PCIe 5

PSU 1

Chapter 3 Maintaining the Server

Replacing a PCIe Card

Caution Cisco supports all PCIe cards qualified and sold by Cisco. PCIe cards not qualified or sold by Cisco are

the responsibility of the customer. Although Cisco will always st and behind and suppor t the C-Seri es rack-mount servers, customers using standard, off-the-shelf, thir d-party cards must go to the third -party card vendor for support if any issue with that particular third-party card occurs.

This section includes the following topics:

• PCIe Slots, page 3-34

• Replacing a PCIe Card, page 3-35

• Special Considerations for Cisco UCS Virtual Interface Cards, page 3-36

• RAID Controller Card Cable Routing, page 3-36

• Installing Multiple PCIe Cards and Resolving Limited Resources, page 3-37

PCIe Slots

The server contains two PCIe risers for horizontal installation of PCIe cards. See Figure 3-21 and

Table 3-6.

Note In a single-CPU system, PCIe riser 2 (slots 3, 4, 5) is not available.

Figure 3-21 Rear Panel, Showing PCIe Slots

1 PCIe riser 2 slots (slots 3, 4, 5 ) 2 PCIe riser 1 slots (slots 1, 2)

Ta b l e 3-6 PCIe Expansion Slots

Electrical 

Slot Number

Lane Width Connector Length Card Length1

Card Height 2

Gen-3 x16 x16 extended Full length Full-height

NCSI3 Support

Yes

2 Gen-3 x4 x8 connector 1/2 length Full-height No 3 Gen-3 x8 x16 connector 1/2 length Half-height No 4 Gen-3 x8 x8 connector 1/2 length Half-height No

1. This is the supported length because of internal clearance.

2. This is the size of the rear panel opening.

Gen-3 x4 x8 connector 1/2 length Half-height No

3-34

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

3. Network Communications Services Interface protocol.

4. Slot 1 can operate when the server is in standby power mode.

Replacing a PCIe Card

Note If you are installing a Cisco UCS Virtual Interface Card, there are prerequisite considerations. See

Special Considerations for Cisco UCS Virtual Interface Cards, page 3-36.

Note If you are installing a RAID controller card, see RAID Controller Considerations, page C-1for more

information about supported cards and cabling.

To install or replace a PCIe card, follow these steps:

Step 1 Remove a PCIe card (or a blank filler panel) from the PCIe riser assembly:

a. Shut down and power off the server as described in the “Shutting Down and Powering Off the

Server” section on page 3-6.

Installing or Replacing Server Components

b. Slide the server out the front of the rack far enough so that you can remove the top cover. You might

have to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in the “Removing and Replacing the Server Top Cover” section

on page 3-7.

d. Disconnect cables from the PCIe cards that you are replacing.

Tip Label the cables when you disconnect them to aid correct connection to the new card.

e. Grasp both ends of the riser and evenly pull straight up to disengage its circuit board from the socket

on the motherboard. Set the riser on an antistatic surface.

f. Remove the single screw that secures the tab of the card to the riser.

g. Pull evenly on both ends of the card to disengage it from the socket on the riser (or remove a

blanking panel) and then set the card aside.

Step 2 Install a PCIe card:

a. Align the new card with the empty socket on the riser. b. Push down evenly on both ends of the card until it is fully seated in the socket.

Ensure that the card rear panel tab sits flat against the riser rear panel opening.

c. Replace the screw that secures the tab of the card to the riser. d. Position the riser over its socket on the motherboard and over its alignment features in the chassis

(see

Figure 3-20).

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-35

Installing or Replacing Server Components

Caution Make sure that the circuit board connector of the riser is aligned correctly with the motherboard socket

before you push down to seat the riser in the next step.

e. Carefully push down on both ends of the PCIe riser to fully en gage its circuit board connector with

the socket on the motherboard.

f. Connect cables to the PCIe card. See RAID Controller Considerations, page C-1 for more

information about supported cards and cabling.

g. Replace the top cover. h. Replace the server in the rack, replace cables, and then power on the server by pressing the Power

button.

i. If you replaced a RAID controller card, continue with Restoring RAID Configuration After

Replacing a RAID Controller, page C-21.

Special Considerations for Cisco UCS Virtual Interface Cards

Chapter 3 Maintaining the Server

Table 3-7 describes the requirements for the supported Cisco UCS virtual interface cards (VICs).

Ta b l e 3-7 Cisco UCS C24 Requirements for Virtual Interface Cards

Number of

VICs Virtual Interface Card (VIC)

Cisco UCS VIC P81E

Supported

in Server

2 PCIE 1

N2XX-ACPCI01

Cisco UCS VIC 1225

2 PCIE 1

UCSC-PCIE-CSC-02

Cisco UCS VIC1225T

2 PCIE 1

UCSC-PCIE-C10T-02

1. See PCIe Slots, page 3-34.

2. See note below.

3. The Cisco UCS VIC1225T is not supported for UCS integration at this time.

Note Cisco UCS VIC P81E is not supported in the following server versions: C24 LFF (12-drive) or 

Slots That Support

VICs

PCIE 2

Primary Slot For UCS Integration or Cisco Card NIC Mode

PCIE 1 1.4(5) 2.0(2) 5.0

PCIE 1 1.4(6) 2.1(0) 5.0

PCIE 1

C24 16HDD (16-drive direct-connect backplane).

Minimum Nexus OS on an Upstream Nexus Fabric Interconnect

Minimum CIMC Firmware

Minimum VIC Firmware For Use With UCS Integration

1.5(1) 2.1(1) 6.0

RAID Controller Card Cable Routing

If the PCIe card that you are installing or replacing is a RAID controller card, see RAID Controller

Considerations, page C-1 for cable routing and other guidelines.

See also Replacing a SuperCap Power Module (RAID Back up Unit), page 3-39 for instructions on installing a RAID backup unit for a RAID controller card.

Cisco UCS C24 Server Installation and Service Guide

3-36

OL-26647-01

Chapter 3 Maintaining the Server

Installing Multiple PCIe Cards and Resolving Limited Resources

When a large number of PCIe add-on cards are installed in the server, the system may run out of the following resources required for PCIe devices:

• Option ROM memory space

• 16-bit I/O space

The topics in this section provide guidelines for resolving the issues related to these limited resources.

• Resolving Insufficient Memory Space to Execute Option ROMs, page 3-37

• Resolving Insufficient 16-Bit I/O Space, page 3-38

Resolving Insufficient Memory Space to Execute Option ROMs

The system has very limited memory to execute PCIe legacy option ROMs, so when a large number of PCIe add-on cards are installed in the server, the system BIOS might not able to execute all of the option ROMs. The system BIOS loads and executes the option ROMs in the order that the PCIe cards are enumerated (Slot 1, Slot 2, Slot 3, etc.).

If the system BIOS does not have sufficient memory sp ace to load any PCIe option ROM, it skips loading that option ROM, reports a system event log (SEL) event to the CIMC controller and reports the following error in the Error Manager page of the BIOS Setup utility:

ERROR CODE SEVERITY INSTANCE DESCRIPTION 146 Major N/A PCI out of resources error.

Major severity requires user intervention but does not prevent system boot.

Installing or Replacing Server Components

T o resolve this issue, disable the Option ROMs that are not needed for system booting. The BIOS Setup Utility provides the setup options to enable or disable the Option ROMs at the PCIe slot level for the PCIe expansion slots and at the port level for th e onboard NICs. These options can be found in the BIOS Setup Utility Advanced PCI Configuration page.

• Guidelines for RAID controller booting:

If the server is configured to boot primarily from RAID storage, make sure that the option ROMs for the slots where your RAID controllers installed are enabled in the BIOS, depending on your RAID controller configuration.

If the RAID controller does not appear in the system boot or der even with the option ROMs for those slots are enabled, the RAID controller option ROM might not have sufficient memory space to execute. In that case, disable other option ROMs that are not needed for the system configuration to free up some memory space for the RAID controller option ROM.

• Guidelines for onboard NIC PXE booting:

If the system is configured to primarily perform PXE boot from onboard NICs, make sure that the option ROMs for the onboard NICs to be booted from are enabled in the BIOS Setup Utility. Disable other option ROMs that are not needed to create sufficient memory space for the onboard NICs.

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-37

Installing or Replacing Server Components

Resolving Insufficient 16-Bit I/O Space

The system has only 64 KB of legacy 16-bit I/O resources available. This 64 KB of I/O space is divided between the CPUs in the system because the PCIe controller is integrated into the CPUs. This server BIOS has the capability to dynamically detect the 16-bit I/O resource requirement for each CPU and then balance the 16-bit I/O resource allocation between the CPUs accordingly during the PCI bus enumeration phase of the BIOS POST.

When a large number of PCIe cards are installed in the system, the system BIOS might not have sufficient I/O space for some PCIe devices. If the system BIOS is not able to allocate the required I/O resources for any PCIe devices, the following symptoms have been observed:

• The system might get stuck in an infinite reset loop.

• The BIOS might appear to hang while initializing PCIe devices.

• The PCIe option ROMs might take excessive time to complete, which appears to lock up the system.

• PCIe boot devices might not be accessible from the BIOS.

• PCIe option ROMs might report initialization errors. These errors are seen before the BIOS passes

control to the operating system.

• The keyboard might not work.

To work around this problem, rebalance the 16-bit I/O load using the following methods:

1. Physically remove any unused PCIe cards.

Chapter 3 Maintaining the Server

2. If the system has one or more Cisco virtual interface cards (VICs) installed, disable the PXE boot

on the VICs that are not required for th e system boot configuration by using the Network Adapters page in the CIMC WebUI to free up some 16-bit I/O resources. Each VIC uses a minimum 16 KB of 16-bit I/O resource, so disabling PXE boot on Cisco VICs would free up some 16-bit I/O resources that can be used for other PCIe cards that are installed in the system.

3-38

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Installing or Replacing Server Components

Replacing a SuperCap Power Module (RAID Backup Unit)

This server supports installation of up to two SuperCap power modules (SCPMs). The SCPMs mount inside a cage that is next to the c ooling fa ns (see

The SCPM is supported only when using the LSI MegaRAID-CV controller card. This supercap module provides approximately 3 years of backup for the disk write-back cache DRAM in the case of sudden power loss by offloading the cache to the NAND flash.

To replace the RAID backup unit, follow these steps:

Step 1 Remove an SCPM (see Figure 3-22).

a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on

page 3-6.

b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

Figure 3-22).

c. Remove the top cover as described in the “Removing and Replacing the Server Top Cover” section

on page 3-7.

d. Disconnect the RAID controller cable that is attached to the existin g SCPM. e. Remove the cage that holds the SCPMs (see Figure 3-22).

–

Use a screwdriver to loosen the captive thumbscrew that secures the cage to the chassis floor.

Note If you cannot access the thumbscrew, you can remove the front chassis panel to provide

clearance. See Removing and Replacing the Front Chassis Panel, page 3-8.

–

Push the cage toward the server front about 1/4 inch to free the pegs on the sides of the cage from the keyed slots on the chassis bracket.

f. Remove the SCPM holder, with backup unit, from the cage (see Figure 3-22).

g. Remove the SCPM from the holder.

Step 2 Install a new SCPM:

a. Insert the new SCPM into the empty holder that you removed in the previous step (see Figure 3-22). b. Insert the holder, with new SCPM, into the cage. c. Replace the cage to the chassis.

–

Set the cage in place in the chassis bracket, aligning the pegs on the sides of the cage with the keyed slots in the chassis bracket.

–

Push the cage toward the server rear about 1/4 inch to lock it into the keyed slots on the chassis bracket.

–

Use a screwdriver to tighten the captive thumbscrew that secures the cage to the chassis floor.

OL-26647-01z

d. Reconnect the cable from the RAID controller to the new SCPM. e. Replace the top cover.

f. Replace the server in the rack, replace cables, and then power on the server by pressing the Power

button.

Cisco UCS C24 Server Installation and Service Guide

3-39

Installing or Replacing Server Components

Figure 3-22 Replacing an SCPM

Chapter 3 Maintaining the Server

SYS FAN1

PCIe riser 1

CPU 1

PCIe riser 2

CPU 2

PSU 1 (bottom)

PSU 2 (top)

285257

Port 1

Port 0

SYS FAN2

SYS FAN3

SYS FAN4

2 3 4

1 Captive thumbscrew on SCPM cage 4 SCPM holders with SCPMs installed (up to

two)

2 SuperCap power module (SCPM) 5 SCPM cage removed from server 3 SCPM holder 6 SCPM cage with holders and SCPMs installed

(up to two)

3-40

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Replacing a Cisco USB Flash Drive

This server can be ordered with an optional 16-GB Cisco USB flash drive that is pre-loaded with Cisco UCS C-Series Utilities.

This section includes the following topics:

• Overview of the Pre-Loaded 16-GB Cisco USB Flash Drive, page 3-41

• Enabling a Pre-Loaded Cisco USB Flash Drive Virtual Drive, page 3-41

• Booting a Pre-Loaded Cisco USB Flash Drive Virtual Drive, page 3-42

• Monitoring and Managing a Cisco USB Flash Drive, page 3-43

• Internal Cisco USB Flash Drive Replacement Procedure, page 3-43

• Enabling or Disabling the Internal USB Port, page 3-44

Overview of the Pre-Loaded 16-GB Cisco USB Flash Drive

This Cisco USB flash drive is pre-loaded with three software bundles, each on one of four preconfigured virtual drives (VDs). The fourth VD allows you to install an OS o r embedded hypervisor.

The VDs are configured as follows:

Installing or Replacing Server Components

1. Cisco UCS Server Configuration Utility (SCU).

2. Hypervisor (HV). This is a VD that you can use for your own purposes.

3. Cisco Drivers (Drivers).

4. Cisco Host Upgrade Utility (HUU).

Enabling a Pre-Loaded Cisco USB Flash Drive Virtual Drive

Each of the VDs on the pre-loaded Cisco USB flash drive can be separately enabled or hidden from the host. The default as shipped from the factory is for all VDs to be hidden.

To enable VDs and expose them to the host, follow these steps:

Step 1 Log in to CIMC interface for the server, using the IP address of the server. Step 2 Navigate thro ugh GUI tab s to Server > Inventory > Storage. Step 3 Click FlexFlash-0 in the Storage Adapters list. Step 4 Click on Configure Operational Profile in the Actions area.

The Operational Profile dialog opens.

Step 5 Check the box for each VD that you want to enable and expose to the host, then click Save Changes.

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-41

Installing or Replacing Server Components

Booting a Pre-Loaded Cisco USB Flash Drive Virtual Drive

When you want to access the Cisco SCU or Cisco HUU software, you boot its VD with a one-time boot option. When you want to boot the hypervisor (HV) VD, you boot it with a permanent boot order selection. See the following topics in this section:

• Booting the Cisco SCU and Cisco HUU Software VDs, page 3-42

• Booting the Hypervisor VD, page 3-42

Booting the Cisco SCU and Cisco HUU Software VDs

Y o u can access the preinstalled Cisco SCU and Cisco HUU software bundles by booting their respecti ve VDs with a one-time boot option:

Step 1 Enable the SCU or HUU VD.

See Enabling a Pre-Loaded Cisco USB Flash Drive Virtual Drive, page 3-41.

Step 2 In the CIMC GUI interface, navigate through the tabs to Server > BIOS. Step 3 Click Configure Boot Override Priority.

The Boot Override Priority dialog opens.

Step 4 Pull down the menu and select SCU or HUU, then click OK.

Chapter 3 Maintaining the Server

Step 5 Reboot the serve r.

The server boots the selected VD.

Note This is a one-time boot option. After r unning Cisco SCU or Cisco HUU, the server returns to its

Booting the Hypervisor VD

You can boot the hypervisor (HV ) VD with a more p er manen t bo ot selection. (To change the boot order one time, use the procedure in

To permanently set the boot order for an HV VD, use the following steps:

Step 1 Boot the server and watch for the prompt to press F2 to open the BIOS Setup utility. Step 2 When prompted, press F2 to open the BIOS Setup utility. Step 3 Navigate to the Boot Options tab. Step 4 Use the Boot Options screen to set the HV VD to your desired boot order for the server.

previously configured boot path.

Booting the Cisco SCU and Cisco HUU Software VDs, page 3-42.)

3-42

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Monitoring and Managing a Cisco USB Flash Drive

You can monitor and manage your installed Cisco USB Flash Drive by using the CIMC GUI interface or the CLI interface. See the Cisco UCS C-Series Rack-Mount Server Configuration Guide or the Cisco UCS C-Series Rack-Mount Server CLI C onfigur ation Guide in the documentation roadmap linked below. The links to these documents are in the C-Series documentation roadmap:

http://www.cisco.com/go/unifiedcomputing/c-series-doc

Internal Cisco USB Flash Drive Replacement Procedure

To install or replace an internal Cisco USB Flash Drive, follow these steps:

Step 1 Remove the USB flash drive that you are replacing. See Figure 3-23:

a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on

page 3-6.

b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Installing or Replacing Server Components

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in “Removing and Replacing the Server Top Cover” section on

page 3-7.

d. Remove PCIe riser 1 to provide access to the USB flash drive socket that is on the motherboard (see

Figure 3-23). See Replacing a PCIe Riser, page 3-32 for more information.

e. Pull the USB flash drive from the socket.

Step 2 Install a USB flash drive:

a. Insert the USB flash drive into the socket. b. Replace PCIe riser 1 to the server. See Replacing a PCIe Riser, page 3-32 for more information. c. Replace the top cover. d. Replace the server in the rack, replace cables, and then power on the server by pressing the Power

button.

OL-26647-01z

Cisco UCS C24 Server Installation and Service Guide

3-43

Installing or Replacing Server Components

Figure 3-23 Cisco USB Flash Drive Socket

Port 1

Port 0

SYS FAN1

SYS FAN2

SYS FAN3

SYS FAN4

CPU 1

CPU 2

PCIe riser 1

PCIe riser 2

PSU 1 (bottom)

PSU 2 (top)

Chapter 3 Maintaining the Server

285258

1 Cisco USB flash drive socket on motherboard –

Enabling or Disabling the Internal USB Port

The factory default is for all USB ports on the server to be enabled. However, t he i nternal US B por t can be enabled or disabled in the server BIOS. To enable or disable the internal USB port, follow these steps:

Step 1 Enter the BIOS Setup utility by pressing the F2 key when prompted during bootup. Step 2 Navigate to the Advanced tab. Step 3 On the Advanced tab, select USB Configuration. Step 4 On the USB Configuration page, select USB Ports Configuration. Step 5 Scroll to USB Port: Internal, press Enter, and then select either Enabled or Disabled from the pop-up

menu.

Step 6 Press F10 to save and exit the utility.

3-44

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Installing a Trusted Platform Module

The trusted platform module (TPM) is a smal l circuit board that attaches to a motherboard socket. The socket location is on the motherboard, underneath PCIe riser 1 (see

Note For security purposes, the TPM is installed with a one-way screw. It cannot be removed with a standard

screwdriver.

To install a trusted platform module (TPM), follow these steps:

Step 1 Prepare the server for component installation.

a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on

page 3-6.

b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Installing or Replacing Server Components

Figure 3-24).

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in the “Removing and Replacing the Server Top Cover” section

on page 3-7.

d. Remove PCIe riser 2 to provide access (see Figure 3-24). See Replacing a PCIe R iser, page 3-32.

Step 2 Install a TPM (see Figure 3-24):

a. Locate the TPM socket on the motherboard, as shown in Figure 3-24. b. Align the connector that is on the bottom of the TPM circuit board with the motherboard TPM

socket. Align the screw hole and standoff on the TPM board with the screw hole adjacent to the TPM socket.

c. Push down evenly on the TPM to seat it in the motherboard socket. d. Install the single one-way screw that secures the TPM to the motherboard. e. Replace PCIe riser 2 to its motherboard socket. See Replacing a PCIe Riser, page 3-32.

f. Replace the top cover.

g. Replace the server in the rack, replace cables, and then power on the server by pressing the Power

button.

Step 3 Enable the TPM:

a. Watch during bootup for the F2 prompt, and then press F2 to enter BIOS setup. b. Log into the BIOS Setup utility with your BIOS Administrator password. c. On the BIOS Setup utility screen, select the Advanced tab. d. Select Trusted Computing to open the TPM Security Device Configuration screen.

OL-26647-01z

e. Change TPM SUPPORT to Enabled.

f. Press F10 to save your settings and reboot the server.

Cisco UCS C24 Server Installation and Service Guide

3-45

Installing or Replacing Server Components

285260

Port 1

Port 0

SYS FAN1

SYS FAN2

SYS FAN3

SYS FAN4

CPU 1

CPU 2

PCIe riser 1

PCIe riser 2

PSU 1 (bottom)

PSU 2 (top)

Step 4 Verify that the TPM is now enabled.

a. Watch during bootup for the F2 prompt, and then press F2 to enter BIOS setup. b. Log into the BIOS Setup utility with your BIOS Administrator password. c. Select the Advanced tab. d. Select Trusted Computing to open the TPM Security Device Configuration screen. e. Verify that TPM SUPPORT is Enabled.

Note If you want to use the Intel Trusted Execution Technology (TXT) feature, it must be enabled in

the server BIOS as described in

For the TPM, page 3-46.

Figure 3-24 TPM Socket Location on Motherboard

Chapter 3 Maintaining the Server

Enabling the Intel Tr usted Execution T echnolo gy (TXT) Feature

1 TPM socket and screw hole on motherboard 2 PCIe riser 1

Enabling the Intel Trusted Execution Technology (TXT) Feature For the TPM

3-46

Intel TXT provides greater protection for information that is used and stored on the business server. A key aspect of that protection is the p rovisio n of an isolated execution environment and associated sections of memory where operations can be conducted on sensitive data, invisibly to the rest of the system. Likewise, Intel TXT provides for a sealed portion of storage where sensitive data such as encryption keys can be kept, helping to shield them from being compromised during an attack by malicious code.

To enable the TXT feature, follow these steps:

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Chapter 3 Maintaining the Server

Step 1 Verify that a TPM is now installed and enabled in the server:

a. Either attach a VGA monitor and USB keyboard to the server, or log in remotely to the CIMC

interface of the server and open a virtual KVM console window.

b. Reboot the server. c. Watch during bootup for the F2 prompt, and then press F2 to enter BIOS setup. d. Log in to the BIOS Setup utility with your BIOS Administrator password.

Note Y ou must be lo gged in as the BIOS administrator to perform this procedure. If you have not do ne

e. Select the Advanced tab.

f. On the Advanced tab, select Trusted Computing to open the TPM Security Device Configuration

screen.

g. Verify that TPM SUPPORT is Enabled. If it is not, set TPM SUPPORT to Enabled. h. Press Escape to return to the BIOS Setup utility Advanced tab.

Installing or Replacing Server Components

so already, set a BIOS administrator password on the Security tab of the BIOS Setup utility.

Step 2 Enable the Intel Trusted Execution Technology (TXT) feature:

a. On the Advanced tab, select Intel TXT(LT-SX) Configuration to open the Intel TXT(LT-SX)

Hardware Support screen.

Note The Intel Trusted Execution Technology f eature can be enabled only when the server has a TPM

installed on the TPM header.

b. Set TXT Support to Enabled.

Step 3 On the same screen, verify that the Intel Virtualization Technology (VT) and the Intel VT for Directed

I/O (VT-d) features are enabled (the factory default).

a. On the Intel TXT(LT-SX) Hardware Support screen, verify that VT -d Support and VT Support are

both listed as Enabled.

–

If they are already enabled, skip to Step 4.

–

If VT-d Support and VT Support are not enabled, continue with the next steps to enable them.

b. Press Escape to return to the BIOS Setup utility Advanced tab. c. On the Advanced tab, select Processor Configuration to open the Processor Configuration screen. d. Set Intel (R) VT and Intel (R) VT-d to Enabled.

Step 4 Press F10 to save your changes and exit the BIOS Setup utility. Step 5 Verify that the Intel TXT, VT, and VT-d features are enabled:

a. Reboot the server.

OL-26647-01z

b. Watch during bootup for the F2 prompt, and then press F2 to enter BIOS setup. c. Select the Advanced tab. d. Select Intel TXT(LT-SX) Configuration and verify that TXT Support, VT-d Support, and VT

Support are Enabled.

Cisco UCS C24 Server Installation and Service Guide

3-47

Installing or Replacing Server Components

303690

Replacing a SCU Upgrade ROM Module

To remove and replace a module, use the following procedure.

Step 1 Prepare the server for component installation:

a. Power off the server as described in Shutting Down and Powering Off the Server, page 3-6. b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in Removing and Replacing the Server Top Cover, page 3-7.

Step 2 Remove the SCU upgrade ROM module:

a. Locate the module on the motherboard (see Figure C-1). b. Grasp the printed circuit board of the module and lift it from the header.

Chapter 3 Maintaining the Server

Note The module has a small retention feature that must have clearance from the header before

the module can be pulled up. Tilt the module back, then pull up as shown in Figure 3-25.

Step 3 Install a new SCU upgrade ROM module:

a. Align the module with the pins in the motherboard header. b. Gently press down on the module until it is seated and the retention feature locks into the header.

Figure 3-25 SCU Upgrade ROM Module Retention Feature

1 Printed circuit board on module 3 M otherboard header 2 Retention feature on module 4 Retention feature in installed position

Cisco UCS C24 Server Installation and Service Guide

3-48

For more information about using the module and embedded RAID, see Embedded MegaRAID

Controller, page C-5.

OL-26647-01

Chapter 3 Maintaining the Server

303691

Replacing a Software RAID Key Module

To remove and replace a software RAID key module, use the following procedure.

Step 1 Prepare the server for component installation:

a. Power off the server as described in Shutting Down and Powering Off the Server, page 3-6. b. Slide the server out the front of the rack far enough so that you can remove t he top cover. You might

have to detach cables from the rear panel to provide clearance.

Caution If you cannot safely view and access the component, remove the server from the rack.

c. Remove the top cover as described in Removing and Replacing the Server Top Cover, page 3-7.

Step 2 Remove the software RAID key module:

a. Locate the module on the motherboard (see Figure C-1). b. Grasp the printed circuit board of the module and lift it from the header.

Installing or Replacing Server Components

Note The module must have clearance from the retention clip on the header before the module can

be pulled up. Open the retention clip, then pull up as shown in Figure 3-26.

Step 3 Install a new software RAID key module:

a. Align the module with the pins in the motherboard header. b. Gently press down on the module until it is seated and the retention clip locks over the module.

Figure 3-26 Software RAID Key Module Retention Feature

1 Printed circuit board on module 3 M otherboard header 2 Retention feature on motherboard header 4 Retention feature in installed position

OL-26647-01z

For more information about using the module and embedded RAID, see Embedded MegaRAID

Controller, page C-5.

Cisco UCS C24 Server Installation and Service Guide

3-49

Installing or Replacing Server Components

Replacing Power Supplies

The server can have one or two power supplies. When two power supplies are installed they are redundant as 1+1.

Note The power supplies must both be either 450W or 650W; do not mix power supply types.

See Power Specifications, page A-2 for more information about the power supplies. See Rear Panel

LEDs and Buttons, page 3-4 for information about the power supply LEDs.

To replace or install a power supply, follow these steps:

Note If you have ordered a server with power supply redundancy (two power supplies), you do not have to

power off the server to replace power supplies because they are redundant as 1+1.

Step 1 Remove the power supply that you are replacing or a blank panel from an empty bay (see Figure 3-27):

a. Perform one of the following actions:

–

If your server has only one power supply, shut down and power off the server as described in the

“Shutting Down and Powering Off the Server” section on page 3-6.

–

If your server has two power supplies, you do not have to shut down the server.

Chapter 3 Maintaining the Server

b. Remove the power cord from the power supply that you are replacing. c. Grasp the power supply handle while pinching the release lever towards the handle. d. Pull the power supply out of the bay.

Step 2 Install a new power supply:

a. Grasp the power supply handle and insert the new power supply into the empty bay. b. Push the power supply into the bay until the release lever locks. c. Connect the power cord to the new power supply. d. If you shut down the server, press the Power button to return the server to main power mode.

Figure 3-27 Removing and Replacing Power Supplies

PSU 2

PSU 1

1 2

PCIe 4

PCIe 5

PCIe 3 PCIe 1

PCIe 2

285259

3-50

1 Power supply handle 2 Power supply release lever

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Server Specifications

This appendix lists the technical specifications for the server and includes the following sections:

• Physical Specifications, page A-1

• Power Specifications, page A-2

• Environmental Specifications, page A-3

Physical Specifications

Table A-1 lists the physical specifications for the server.

Ta b l e A-1 Physical Specifications

Description Specification

Height 3.4 in. (8.76 cm)

Width (including slam-latches) 16.9 in. (43.00 cm)

Depth 26.0 in. (66.05 cm)

Weight (fully loaded) Small Form Factor: 47.2 lbs. (21.4 Kg)

APPENDIX

Large Form Factor: 53.2 lbs. (24.1 Kg)

OL-22326-01

Cisco UCS C24 Server Installation and Service Guide

A-1

Power Specifications

The power specifications for the two power supply options are listed in the following sections:

• 450W Power Supply, page A-2

• 650W Power Supply, page A-3

You can get more specific power information for your exact server configuration by using the Cisco UCS Power Calculator:

http://www.cisco.com/assets/cdc_content_elements/flash/dataCenter/cisco_ucs_power_calculator/

450W Power Supply

Table A-2 lists the specifications for each 450W power supply (Cisco part number UCSC-PSU-450W).

Ta b l e A-2 Power Supply Specifications

Description Specification

AC input voltage range 90 to 264 VAC self-ranging

AC input frequency Range: 47 to 63 Hz (single phase, 50 to 60Hz nominal) AC line input current (steady state) 6.0 A peak at 100 VAC

Maximum AC inrush current 9 A Maximum output power for each power

supply Power supply output voltage Main power: 12 VDC

Appendix A Server Specifications

Low range: 100 VAC to 120 VAC nominal High range: 200 VAC to 240 VAC nominal

3.0 A peak at 208 VAC

450 W

A-2

Standby power: 12 VDC

Cisco UCS C24 Server Installation and Service Guide

OL-22326-01

Appendix A Server Specifications

650W Power Supply

Table A-3 lists the specifications for each 650W power supply (Cisco part number UCSC-PSU-650W).

Ta b l e A-3 Power Supply Specifications

Description Specification

AC input voltage range 90 to 264 VAC self-ranging

AC input frequency Range: 47 to 63 Hz (single phase, 50 to 60Hz nominal) AC line input current (steady state) 7.6 A peak at 100 VAC

Maximum AC inrush current 11 A Maximum output power for each power

supply Power supply output voltage Main power: 12 VDC

Environmental Specifications

Low range: 100 VAC to 120 VAC nominal High range: 200 VAC to 240 VAC nominal

3.65 A peak at 208 VAC

650 W

Standby power: 12 VDC

Environmental Specifications

Table A-4 lists the environmental specifications for the server.

Ta b l e A-4 Environmental Specifications

Description Specification

Temperature, operating: 35 to 104°F (1.7 to 40°C)

Temperature, non-operating –40 to 149°F (–40 to 65°C)

Humidity (RH), noncondensing 10 to 90%

Altitude, operating 0 to 10,000 feet (0 to 3000 m)

Altitude, non-operating 0 to 40,000 feet (0 to 12,192 m)

Sound power level Measure A-weighted per ISO7779 LwAd (Bels) Operation at 73°F (23°C)

Sound pressure level Measure A-weighted per ISO7779 LpAm (dBA) Operation at 73°F (23°C)

Derate the maximum temperature by 1°C per every 305 meters of altitude above sea level.

Small Form Factor: 5.9

Large Form Factor: 6.3

Small Form Factor: 46.0

Large Form Factor: 48.5

OL-22326-01

Cisco UCS C24 Server Installation and Service Guide

A-3

Environmental Specifications

Appendix A Server Specifications

A-4

Cisco UCS C24 Server Installation and Service Guide

OL-22326-01

Power Cord Specifications

This appendix provides supported power cable specifications.

Supported Power Cords and Plugs

Each power supply has a separate power cord. Standard power cords or jumper power cords are available for connection to the server. The jumper power cords, for use in racks, are available as an optional alternative to the standard power cords.

Note Only the approved power cords or jumper power cords provided with the server are supported.

Table B-1 lists the power cords for the server power supplies.

Ta b l e B-1 Supported Power Cords for the Server

APPENDIX

Description

SFS-250V-10A-AR Power Cord, 250 VAC 10 A IRAM 2073 Plug 

Argentina

CAB-9K10A-AU 250 VAC 10 A 3112 Plug,  Australia

SFS-250V-10A-CN Power Cord, 250 VAC 10 A GB 2009 Plug China

CAB-9K10A-EU Power Cord, 250 VAC 10 A M 2511 Plug Europe

SFS-250V-10A-ID Power Cord, 250 VAC 16A EL-208 Plug South Africa, United Arab Emirates, India

SFS-250V-10A-IS Power Cord, 250 VAC 10 A SI32 Plug  Israel

Length

Feet Meters

8.2 2.5 Figure B-1

8.2 2.5 Figure B-2

8.2 2.5 Figure B-3

8.2 2.5 Figure B-4

8.2 2.5 Figure B-5

8.2 2.5 Figure B-6

Power Cord Reference Illustration

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

B-1

Supported Power Cords and Plugs

Table B-1 Supported Power Cords for the Server (continued)

Appendix B Power Cord Specifications

Description

CAB-9K10A-IT Power Cord, 250 VAC 10 A CEI 23-16 Plug  Italy

CAB-9K10A-SW Power Cord, 250 VAC 10 A MP232 Plug  Switzerland

CAB-9K10A-UK Power Cord, 250 VAC 10 A BS1363 Plug (13 A fuse)



United Kingdom

CAB-AC-250V/13A Power Cord, 250 VAC 13 A IEC60320 Plug  North America

CAB-N5K6A-NA Power Cord, 250 VAC 13 A NEMA 6-15 Plug, North America

CAB-9K12A-NA Power cord, 125 VAC, 13 A, NEMA 5-15 Plug North America

CAB-C13-CBN Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors

CAB-C13-C14-2M Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors

CAB-C13-C14-AC Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors

Length

Power Cord Reference IllustrationFeet Meters

8.2 2.5 Figure B-7

8.2 2.5 Figure B-8

8.2 2.5 Figure B-9

6.6 2.0 Figure B-10

8.2 2.5 Figure B-11

8.2 2.5 Figure B-12

2.2 0.68 Figure B-13

6.6 2.0 Figure B-14

9.8 3.0 Figure B-15

B-2

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Appendix B Power Cord Specifications

2500 mm

Cordset rating: 10 A, 250/500 V MAX

Length: 8.2 ft

Plug:

EL 219

(IRAM 2073)

Connector:

EL 701

(IEC60320/C13)

Cordset rating 10A, 250V

(2500 mm)

Plug:

EL 218

(CCEE GB2009)

186573

Connector:

EL 701

(IEC60320/C13)

AC Power Cord Illustrations

This section includes the AC power cord illustrations. See Figure B-1 through Figure B-15.

Figure B-1 SFS-250V-10A-AR

Supported Power Cords and Plugs

Figure B-2 CAB-9K10A-AU

Cordset rating: 10 A, 250 V/500V

Plug:

EL 206

S. 3112-2000)

Figure B-3 SFS-250V-10A-CN

Length: 2500mm

Connector:

EL 701C

(IEC 60320/C15)

186581

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

B-3

Supported Power Cords and Plugs

Connector:

VSCC15

Cordset rating: 10A/16 A, 250 V

Length: 8 ft 2 in. (2.5 m)

Plug:

M2511

186576

OVE

Cordset rating 16A, 250V

(2500mm)

Plug:

EL 208

187490

Connector:

EL 701

Cordset rating 10A, 250V/500V MAX

(2500 mm)

Plug:

EL 212 (SI-32)

186574

Connector:

EL 701B

(IEC60320/C13)

-212

16A 250V

Figure B-4 CAB-9K10A-EU

Figure B-5 SFS-250V-10A-ID

Appendix B Power Cord Specifications

B-4

Figure B-6 SFS-250V-10A-IS

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Appendix B Power Cord Specifications

Plug:

I/3G

(CEI 23-16)

Connector

C15M

(EN60320/C15 )

Cordset rating: 10 A, 250 V

Length: 8 ft 2 in. (2.5 m)

186575

Plug:

MP232-R

Cordset rating: 10 A, 250 V

Length: 8 ft. 2 in (2.5 m)

Connector:

IEC 60320 C15

Plug:

Cordset rating: 10 A, 250 V/500 V MAX

Length: 2500mm

Connector:

EL 701C

(EN 60320/C15)

EL 210

(BS 1363A) 13 AMP fuse

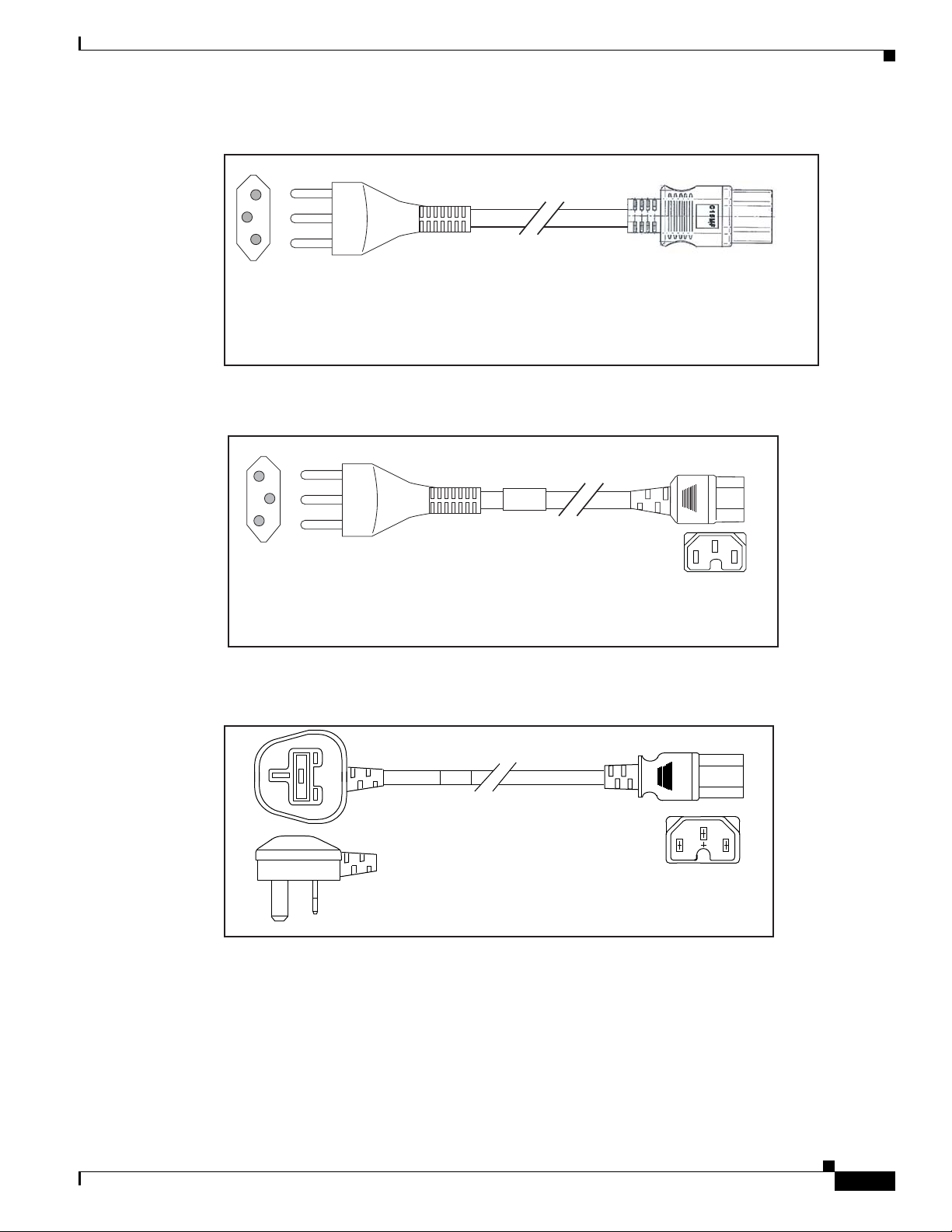

Figure B-7 CAB-9K10A-IT

Figure B-8 CAB-9K10A-SW

Supported Power Cords and Plugs

OL-26647-01

Figure B-9 CAB-9K10A-UK

Cisco UCS C24 Server Installation and Service Guide

B-5

Supported Power Cords and Plugs

Cordset rating 13A, 250V

(6.6 feet) (79±2m)

Plug:

EL312MoldedTwistlock

(NEMA L6-20)

186568

Connector:

EL 701

(IEC60320/C13)

Figure B-10 CAB-AC-250V/13A

Figure B-11 CAB-N5K6A-NA

Appendix B Power Cord Specifications

Plug: NEMA 6-15P

Figure B-12 CAB-9K12A-NA

Plug:

NEMA 5-15P

Cordset rating: 10 A, 250 V

Length: 8.2 ft

Connector:

IEC60320/C13

186570

Cordset rating 13A, 125V

(8.2 feet) (2.5m)

Connector:

IEC60320/C15

192260

B-6

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Appendix B Power Cord Specifications

Cordset rating 10A, 250V

(686mm)

Plug:

SS10A

186569

Connector:

HS10S

Cordset rating 10A, 250V

(2.0 m)

Plug:

SS10A

336014

Connector:

HS10S

Figure B-13 CAB-C13-CBN, Jumper Power Cord (0.68 m)

Figure B-14 CAB-C13-C14-2M, Jumper Power Cord (2 m)

Supported Power Cords and Plugs

OL-26647-01

Figure B-15 CAB-C13-C14-AC, Jumper Power Cord (3 m)

Cordset rating 10A, 250V

(3.0 m)

Plug:

SS10A

Cisco UCS C24 Server Installation and Service Guide

Connector:

HS10S

336013

B-7

Supported Power Cords and Plugs

Appendix B Power Cord Specifications

B-8

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

APPENDIX

RAID Controller Considerations

This appendix contains the following sections:

• Supported RAID Controllers and Required Cables, page C-2

• Mixing Drive Types in RAID Groups, page C-3

• SuperCap Power Modules (RAID Backup Units), page C-3

• Embedded MegaRAID Controller, page C-5

• RAID Controller Cabling, page C-17

• Restoring RAID Configuration After Replacing a RAID Controller, page C-21

• For More Information, page C-21

OL-26647-01

Cisco UCS C24 Server Installation and Service Guide

C-1

Appendix C RAID Controller Considerations

Supported RAID Controllers and Required Cables

This server supports the RAID controller options, cables, and RAID backup units shown in Tabl e C-1.

Caution Do not use the embedded MegaRAID controller and a hardware RAID controller card at the same time.

This is not supported and could result in data loss.

Note This server supports up to two internal PCIe-style RAID controllers, plus one external PCIe-style RAID

controller. Do not mix internal controller types in the server. You can mix internal controllers with an external controller.

Note The embedded RAID option is available only with the SFF 16-drive backplane. It does not operate

through an expander.

Note The cables in this section apply to both single- and dual-CPU configurations.

Table C-1 lists the RAID options for the small form factor (SFF) versions of the server.

Ta b l e C-1 Cisco UCS C24 Small Form Factor RAID Options

Controller Style Maximum Drives

Embedded RAID1 on motherboard

Onboard SFF 16HDD:

4 SATA (default) or

SuperCap Power Module?

No 0, 1, 54, 10

RAID Levels Supported

Required Cables (Each PID is a cable-pair kit.)

SFF 16HDD: UCSC-CABLE-A7

8 SAS3 internal

LSI MegaRAID SAS 9220-8i

PCIe SFF 24HDD: 

16 internal

SFF 16HDD: 

No 0, 1, 10

SFF 24HDD: UCSC-CABLE-A6 SFF 16HDD, 1st-controller: UCSC-CABLE-A7 SFF 16HDD, 2nd-controller: UCSC-CABLE-A8

8 internal6

LSI MegaRAID SAS 9240-8i

PCIe SFF 24HDD: 

16 internal

SFF 16HDD: 

No 0, 1, 5, 10,

SFF 24HDD: UCSC-CABLE-A6 SFF 16HDD, 1st-controller: UCSC-CABLE-A7 SFF 16HDD, 2nd-controller: UCSC-CABLE-A8

8 internal

LSI MegaRAID SAS 9265CV-8i

PCIe SFF 24HDD:

24 internal

SFF 16HDD: 

Yes 0, 1, 5, 6, 10,

50, 60

SFF 24HDD: UCSC-CABLE-A6 SFF 16HDD, 1st-controller: UCSC-CABLE-A7 SFF 16HDD, 2nd-controller: UCSC-CABLE-A8

8 internal

LSI MegaRAID SAS 9285CV-e

PCIe 240 external Ye s 0, 1, 5, 6, 10,

50, 60

Cisco does not sell the cables for external drives.

1. The embedded RAID controller must be enabled in the BIOS.

2. Embedded RAID SAS drive control requires an optional SCU ROM upgrade chip to be installed on the motherboard.

3. Support for eight SAS drives requires an optional SCU upgrade ROM module on the motherboard.

4. Integrated RAID 5 support requires an optional software key.

5. The 9220-8i controller can create a RAID array with maximum 16 drives, even if it detects more than 16 drives.

6. In the 16HDD version, two controller cards can be installed to control a total of 16 drives.

C-2

Cisco UCS C24 Server Installation and Service Guide

OL-26647-01

Cisco Systems C24 M3, UCSVEZC24324 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Related Documentation

Organization

Audience

Documentation Feedback

Conventions

Obtaining Documentation and Submitting a Service Request

Overview

Installing the Server

Unpacking and Inspecting the Server

Preparing for Server Installation

Installation Guidelines

Rack Requirements

Equipment Requirements

Slide Rail Adjustment Range

Installing the Server In a Rack

Initial Server Setup

Connecting and Powering On the Server (Standalone Mode)

NIC Modes and NIC Redundancy Settings

System BIOS and CIMC Firmware

Updating the BIOS and CIMC Firmware

Accessing the System BIOS

Service Headers and Jumpers

Header Location on the Motherboard

Using the BIOS Recovery Header CN34

Procedure 1: Reboot With recovery.cap File

Procedure 2: Use Recovery Jumper and recovery.cap File

Using the Clear CMOS Header CN14

Maintaining the Server

Server Monitoring and Management Tools

Cisco Integrated Management Interface (CIMC)

Server Configuration Utility

Status LEDs and Buttons

Front Panel LEDs

Rear Panel LEDs and Buttons

Preparing for Server Component Installation

Required Equipment

Shutting Down and Powering Off the Server

Removing and Replacing the Server Top Cover

Removing and Replacing the Front Chassis Panel

Replaceable Component Locations

Serial Number Location

Color-Coded Touch Points

Installing or Replacing Server Components

Replacing Hard Drives or Solid State Drives

Drive Population Guidelines

Drive Replacement Procedure

Replacing a Drive Backplane

Replacing a SAS Expander

Replacing Fan Modules

Replacing DIMMs

Memory Performance Guidelines and Population Rules

DIMM Replacement Procedure

Replacing CPUs and Heatsinks

Single-CPU Restrictions

CPU Replacement Procedure

Replacing the Motherboard RTC Battery

Replacing a PCIe Riser

Replacing a PCIe Card

PCIe Slots

Replacing a PCIe Card

Special Considerations for Cisco UCS Virtual Interface Cards

RAID Controller Card Cable Routing

Installing Multiple PCIe Cards and Resolving Limited Resources

Replacing a SuperCap Power Module (RAID Backup Unit)

Replacing a Cisco USB Flash Drive

Overview of the Pre-Loaded 16-GB Cisco USB Flash Drive

Enabling a Pre-Loaded Cisco USB Flash Drive Virtual Drive

Booting a Pre-Loaded Cisco USB Flash Drive Virtual Drive

Monitoring and Managing a Cisco USB Flash Drive

Internal Cisco USB Flash Drive Replacement Procedure

Enabling or Disabling the Internal USB Port

Installing a Trusted Platform Module

Enabling the Intel Trusted Execution Technology (TXT) Feature For the TPM

Replacing a SCU Upgrade ROM Module

Replacing a Software RAID Key Module
