Cisco AA55WW User Manual

DRAFT

sco Spark Board 55

Ci

Compliance model number: AA55WW

Installation guide: Floor stand

2

DRAFT

4

Cisco Spark Board 55

Installation guide: Floor stand

Instructions de montage: Socle sur pied

DRAFT

M4x8

× 4

M4x12

× 10

M6x20

× 4

Hex, 5 mm

× 4× 2 × 4

× 1

Hex, 5 mm

3

We recommend two people working together to mount this system.

DRAFT

Follow local regulations.

PH2

4

POWER NETWORK

DRAFT

Minimum

1.0 m

3.3 ft

5

1

DRAFT

M4x12

× 1× 5

PH2

6

2

DRAFT

PH2

M4x12

× 5

× 1

7

3

DRAFT

8

4

DRAFT

× 4

88 lb

40 kg

× 3

5 m

16.4 ft

9

88 lb

DRAFT

5

40 kg

10

6

DRAFT

× 4

Hex, 5 mm

× 4

11

7

DRAFT

88 lb

40 kg

PH2

M4x8

× 4

Hold the screen firmly until it is securely fastened with four screws.

× 4

Hold in place Fasten four screws firmly

12

8

DRAFT

13

9

DRAFT

× 4

× 4

1

2

3

4

14

10

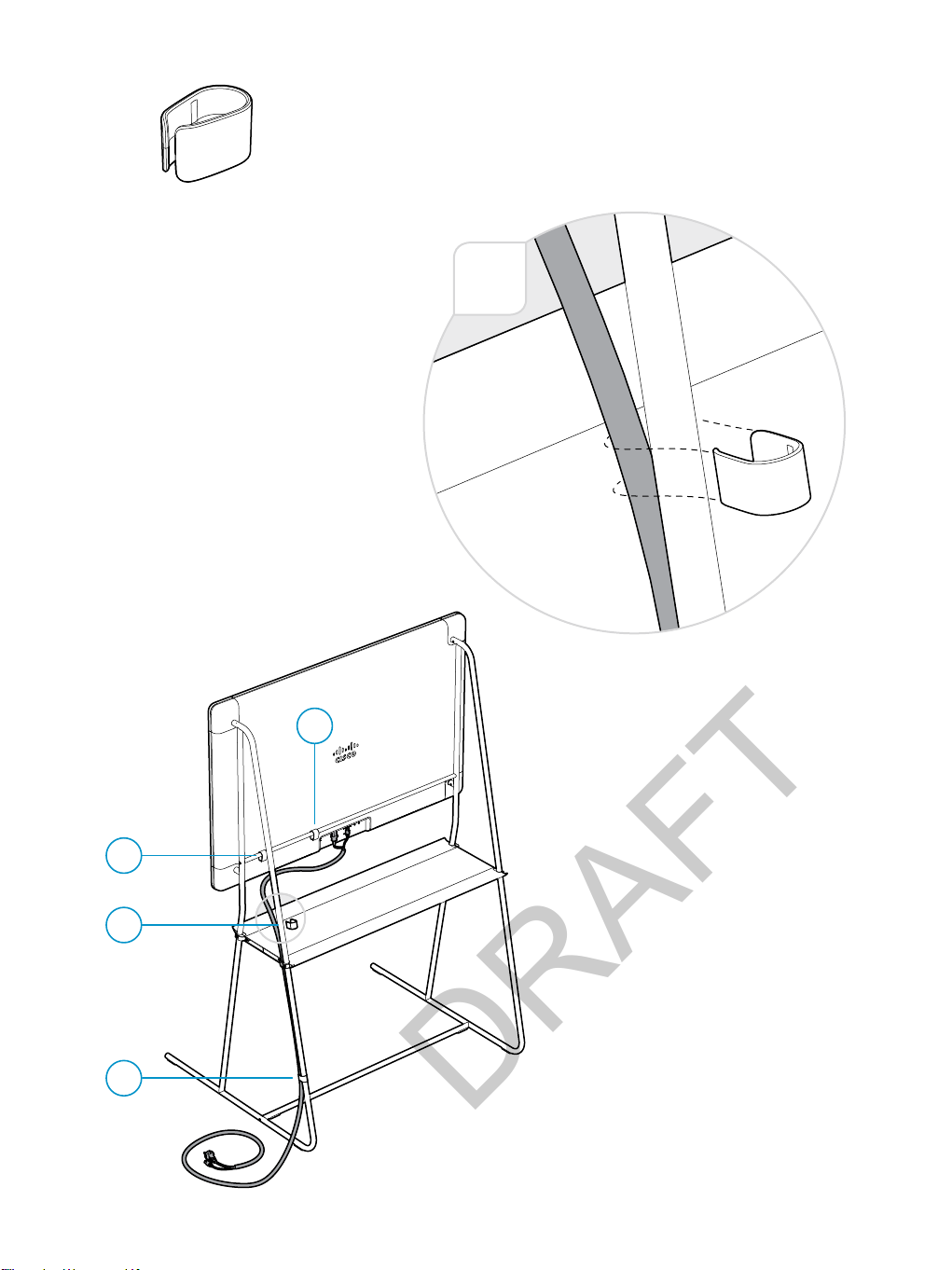

DRAFT

15

11

DRAFT

× 4

M6x20

PH2

× 2

16

12

DRAFT

Always use the provided
power cable.

Keep the power plug and outlet easily accessible in case
you need to disconnect the device from power.

http://help.ciscospark.com

Look for Getting Started articles for the product.

17

Product overview

DRAFT

Microphone
array

Screen

Home button

Camera

Loudspeakers

Magnetic stylus holder

Connector panel (at rear)

Status LED

Network

Power (100-240 VAC, 3.5 A max, 50/60 Hz)

18

Factory reset

2 × USB 3.0

Audio line output

Video input

Kensington lock

http://help.ciscospark.com

DRAFT

Additional support can be found in our on-line documentation.

http://www.cisco.com/go/projectworkplace

Explore the Cisco Project Workplace to find inspiration and guidelines when preparing your
office or meeting room for video conferencing.

http://www.cisco.com/go/telepresence/docs

Regulatory compliance and safety information are available on-line.

19

Cisco Systems Inc.

DRAFT

Corporate Headquarters
170 West Tasman Dr.
San Jose, CA 95134
USA

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and
other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party
trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a
partnership relationship between Cisco and any other company. (1110R)

Cisco has more than 200 offices worldwide. Find an overview of the offices on the
Cisco web site.

http://www.cisco.com/go/offices

78-100570-01B0

NOVEMBER 2016

© 2016 Cisco Systems, Inc.

All rights reserved.

DRAFT .

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 1 of 5

Data Sheet

Cisco Spark Board 55

Cisco Spark Board provides an extension of the Cisco Spark experience into meeting rooms. It is an ultra high­resolution presentation screen, digital whiteboard and conferencing device, in an all-in-one product. Seamlessly
bring all your Spark cloud content onto the Spark Board, continue where you were in the previous meeting and
automatically save everything you do back to the cloud, in a tightly integrated workflow.

Product Specifications

Components

Fully integrated unit including:

●

Touch display

●

Camera

●

Microphone array

●

Loudspeakers

Display

●

Edge LED LCD – 55” 4K, 350 nits, 16:9

●

Viewing angle: +- 89 (all directions)

●

Number of colors: 1.07 billion (10 bit)

●

Contrast: 1:4000

●

Response time: 5.5 ms

Touch

●

Capacitive touch

●

Protective glass with optical bonding

●

Multi touch

DRAFT

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 5

Inputs and output

●

HDMI input

●

Home button

●

Whiteboarding pen

●

3.5 mm mini jack audio out (li ne-out)

●

2 USB3.0

Camera overview

●

Fixed lens, infinite focus

●

F-value: 2.8

●

4K p60

●

HFOV: 86°

●

VFOV: 55°

●

Camera mounted tilted: -25°

Audio system

●

12-element microphone array (with intelligent beam forming for voice tracking)

●

Integrated voice optimized speakers

Network

●

Ethernet (RJ-45) 100/1000 Mbit

●

WiFi 802.11 abgn + ac (2.4/5GHz)

●

Bluetooth Ready

●

IPv4 DHCP/Static

●

NTP

Product compatibility

Cisco Spark Board requires activation and connection to the Cisco Spark Cloud. The Cisco Spark Cloud provides
Meeting, Calling and Messaging capabilities.

Communication with the Cisco Spark Cloud

Cisco Spark Board is connected to the Cisco Spark Cloud service using RESTful APIs. Communication with other
Cisco Spark Boards, Cisco Spark Apps or third party solutions is provided through the Cisco Spark Cloud.

Software

Cisco Spark Board runs Spark Board OS provisioned by the Cisco Spark Cloud. Cisco Spark Board is
automatically upgraded and will always run the latest available software.

Communication with the Cisco Spark Cloud is utilizing the H.264 codec for video and OPUS codec for audio.

DRAFT

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 5

Security

For real-time media (voice, video, and screen sharing), we encrypt what is shared using the Secure Real-Time
Transport Protocol (SRTP). End-to-end encryption uses AES128, AES256, SHA1, SHA256, and RSA.

User Interface

●

Control Cisco Spark Board directly from the touch screen or using your own device running the Cisco Spark
App.

Language support

●

English

Physical dimensions (H x W x D)

●

Cisco Spark Board 55: 50 x 32 x 1.9 in. (814 x 1283 x 49mm)

Weight

●

Cisco Spark Board 55: 87.7 lb. (39,8Kg)

Physical dimensions and weight of packaging (H x W x D)

Cisco Spark Board 55 – main unit

●

Consolidated package size: 36.2 x 55.7 x 7.5 in. (919 x 1416 x 191 mm)

●

Shipping weight: 101 lb. (45.8Kg)

Cisco Spark Board 55 - Floor Stand Kit

●

Consolidated package size: 41.9 x 77,7 x 5.2 in. (1064 x 1974 x 132 mm)

●

Shipping weight: 55 lb. (25 Kg)

Cisco Spark Board 55 – Wall Stand Kit

●

Consolidated package size: 30.2 x 48.5 x 4.2 in. (768 x 1231 x 106 mm)

●

Shipping weight: 28.6 lb. (13 Kg)

Cisco Spark Board 55 – Wall Mount Kit

●

Consolidated package size: 10 x 54.5 x 2 in. (253 x 1386 x 51 mm)

●

Shipping weight: 13.2 lb. (6 Kg)

Power

●

Autosensing power supply

●

Power Rating: 100-240 VAC, Max 3.5 A, 50/60 Hz

●

Power Consumption: TBC

Temperature range

●

Operating temperature: 0 to 35°C

DRAFT

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 5

Approvals and compliance

●

TBC

Video input:

1 x HDMI for local or presentations

Supports formats up to maximum 1920 x 1080 including:

●

640 x 480

●

720 x 480

●

720 x 576

●

800 x 600

●

848 x 480

●

1024 x 768

●

1152 x 864

●

1280 x 720

●

1280 x 1024

●

1280 x 768

●

1280 x 800

●

1280 x 960

●

1360 x 768

●

1366 x 768

●

1400 x 1050

●

1440 x 900

●

1680 x 1050

●

1920 x 1080

Extended Display Identification Data (EDID)

Live video resolutions (encode/decode) – main video and presentation sharing:

●

176 x 144@30 (QCIF) (Decode only)

●

352 x 288@30 (CIF)

●

512 x 288@30 (w288p)

●

576 x 448@30 (448p)

●

768 x 448@30 (w448p)

●

704 x 576@30 (4CIF)

●

1024 x 576@30 (w576p)

●

640 x 480@30 (VGA)

●

800 x 600@30 (SVGA)

●

1024 x 768@30 (XGA)

DRAFT

© 2016 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 5

●

1280 x 768@30 (WXGA)

●

1280 x 720@30 (HD720p)

●

1920 x 1080@30 (HD1080p)

Audio features:

●

High-quality 20 kHz stereo audio

●

Acoustic echo cancellation

●

Automatic Gain Control (AGC)

●

Automatic noise reduction

●

Active lip synchronization

●

Microphone array with intelligent beam forming for voice tracking.

Ordering Information

Table 1. Ordering Information

Product Name Compliance Model Number Part Number

Cisco Spark Board 55 AA55WW SPARK-BOARD55-K9
Cisco Spark Board 55 – Floor Stand Kit SPARK-BOARD55-FSK
Cisco Spark Board 55 – Wall Stand Kit SPARK-BOARD55-WSK
Cisco Spark Board 55 – Wall Mount Kit SPARK-BOARD55-WMK

Table 2. Spares

Product Name Part Number

Cisco Spark Board 55 – Spare SPARK-BOARD55=
Cisco Spark Board 55 – Floor Stand Kit - Spare SPARK-BOARD55-FSK=
Cisco Spark Board 55 – Wall Stand Kit – Spare SPARK-BOARD55-WSK=
Cisco Spark Board 55 – Wall Mount Kit – Spare SPARK-BOARD55-WMK=
Cisco Spark Boa r d Pe n for wh iteboarding – 3 pack – spare SPARK-BOARD-PEN3x=

Table 3. Subscription

Product Name Part Number

Cisco Spark Board - Subscription A-SPK-ND-BRD

About Your Device

http://www.cisco.com/go/eula

http://www.cisco.com/go/rcsi-cdce

http://www.cisco.com/go/hwwarranty

http://www.cisco.com/en/US/products/ps12956/tsd_products_support_series_home.html
