Spec Sheet

Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CISCO SYSTEMS PUBLICATION HISTORY

170 W

EST TASMAN DR

AN JOSE, CA, 95134 REV C.18 DECEMBER 17, 2013

WWW.CISCO.COM

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

DETAILED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chassis Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Chassis Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

BASE SERVER STANDARD CAPABILITIES and FEATURES . . . . . . . . . . . . . . . . . 8

CONFIGURING the SERVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

STEP 1 VERIFY SERVER SKU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

STEP 2 SELECT CPU(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

STEP 3 SELECT MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

STEP 4 SELECT RAID CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

STEP 5 SELECT HARD DISK DRIVES (HDDs) or SOLID STATE DRIVES (SSDs) . . . . . . . . . . . . . 29

STEP 6 SELECT PCIe OPTION CARD(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

STEP 7 ORDER OPTIONAL NETWORK CARD ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . 34

STEP 8 ORDER POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

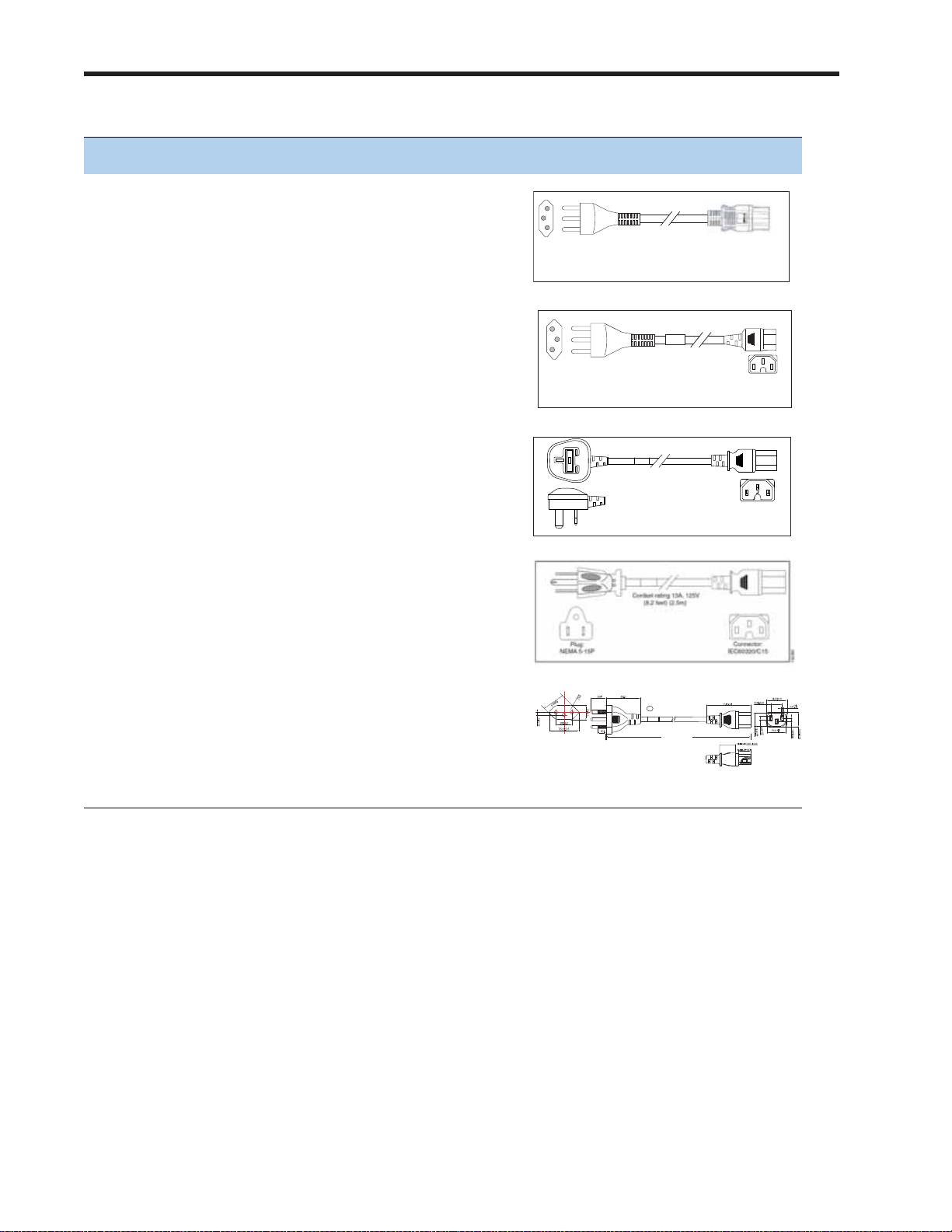

STEP 9 SELECT AC POWER CORD(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

STEP 10 ORDER OPTIONAL REVERSIBLE CABLE MANAGEMENT ARM . . . . . . . . . . . . . . . . . 42

STEP 11 ORDER A TRUSTED PLATFORM MODULE (OPTIONAL) . . . . . . . . . . . . . . . . . . . . . 43

STEP 12 ORDER CISCO FLEXIBLE FLASH SD CARD MODULE (OPTIONAL) . . . . . . . . . . . . . . . 44

STEP 13 ORDER OPTIONAL USB 2.0 DRIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

STEP 14 SELECT OPERATING SYSTEM AND VALUE-ADDED SOFTWARE . . . . . . . . . . . . . . . . 46

STEP 15 SELECT OPERATING SYSTEM MEDIA KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

STEP 16 SELECT SERVICE and SUPPORT LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

OPTIONAL STEP - ORDER RACK(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

OPTIONAL STEP - ORDER PDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

SUPPLEMENTAL MATERIAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

CHASSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

CPUs and DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Physical Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Memory Population Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

DIMM Population Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Recommended Memory Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Supported DIMM Populations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Low-Voltage DIMM Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

RAID Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

RAID Option ROM (OPROM) Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Serial Port Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Upgrade and Servicing-Related Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Drive Blanking Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Upgrading your Server from Intel Xeon E5-2600 to Intel Xeon E5-2600 v2 CPUs

(or downgrading from Intel Xeon E5-2600 v2 to Intel Xeon E5-2600 CPUs) . . . . . . . . . 69

Adding an Additional CPU (with CPU heat sink) . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Motherboard Lithium Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

CPU Removal and Installation (“pick n place”) Tool Set . . . . . . . . . . . . . . . . . . . . . 69

Thermal Grease (with syringe applicator) for CPU to Heatsink Seal . . . . . . . . . . . . . . 70

Air Baffle Replacement Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

CPU Heat Sink Cleaning Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

RACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

PDUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

KVM CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Motherboard USB and SD Ports, and RAID Card Backup Location . . . . . . . . . . . . . . . . . . . . 75

TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONTENTS

Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Compliance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

OVERVIEW

Front View

Rear View

OVER VIEW

The Cisco® UCS C220 M3 rack server is designed for performance and density over a wide range of business workloads from web serving to distributed database.

The enterprise-class UCS C220 M3 server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel Xeon E5-2600 v2 and E5-2600 series processor family CPUs that deliver significant performance and efficiency gains. In addition, the UCS C220 M3 server provides 16 DIMM slots, up to 8 drives and 2 x 1 GbE LAN-on-motherboard (LOM) ports delivering outstanding levels of density and performance in a compact 1U package.

Figure 1 Cisco UCS C220 M3 High-Density SFF Rack Server

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

DETAILED VIEWS

HDD4 HDD5

HDD1 HDD6

HDD2 HDD7

HDD3 HDD8

9 10

1 3

5 7

331682

DETAILED VIEWS

Chassis Front View

Figure 2 shows the Cisco UCS C220 M3 High-Density SFF Rack Server.

Figure 2 Chassis Front View

1 Power button/power status LED 6 Power supply status LED 2 Identification button/LED 7 Network link activity LED 3 System status LED 8 Asset tag (serial number) 4 Fan status LED 9 KVM connector (used with KVM cable that

provides two USB, one VGA, and one serial connector)

5 Temperature status LED 10 Drives (up to eight hot-swappable 2-5-inch

drives)

For more information about the KVM cable connection, see KVM CABLE, page 74.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

DETAILED VIEWS

Notes . . .

PSU1PSU1 PSU2PSU2PSU1 PSU2

PCIe2

PCIe1

4 5 6 98

2 31

331683

Chassis Rear View

Figure 3 shows the external features of the rear panel.

Figure 3 Chassis Rear View

1 Power supplies (up to two) 6 One 10/100/1000 Ethernet dedicated

management port

2 Slot 2: Low-profile PCIe slot on riser:

(half-height, half-length, x16 connector, x8

7 Dual 1-GbE ports

(LAN1 and LAN2)

lane width)

3 Slot 1: Standard-profile PCIe slot on riser:

8 USB ports

(full-height, half-length, x24 connector, x16 lane width) (supports Cisco Virtual Interface Card (VIC)

4 VGA video connector 9 Rear Identification button/LED 5

Serial port (RJ-45 connector)

1. For details of the serial port pinout, see Serial Port Details, page 67.

— —

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

BASE SERVER STANDARD CAPABILITIES and FEATURES

Table 1 lists the capabilities and features of the base server. Details about how to configure the server for

a particular feature or capability (for example, number of processors, disk drives, or amount of memory) are provided in

Table 1 Capabilities and Features

Capability/Feature Description

Chassis One rack unit (1RU) chassis

CPU One or two Intel® Xeon E5-2600 v2 or E5-2600 series processor family CPUs

Chipset Intel® C600 series chipset

Memory 16 slots for registered or unbuffered ECC DIMMs (RDIMMs or UDIMMs) or

CONFIGURING the SERVER, page 11.

load-reduced DIMMs (LRDIMMs)

Multi-bit Error

This server supports multi-bit error protection.

Protection

NIC Embedded dual-port Intel i350 PCIe-based Gigabit Ethernet controller,

supporting the following:

■ Pre-Execution Boot (PXE boot)

■ iSCSI boot

■ TOE offload

■ NIC teaming

Expansion slots Two PCIe slots (on a riser card)

■ One full-height profile, half-length slot with x24 connector and x16 lane

■ One half-height profile, half-length slot with x16 connector and x8 lane

Internal storage devices Drives are installed into front-panel drive bays that provide hot-pluggable

access.

■ Small Form Factor (SFF) drives. Up to eight 2.5-inch SAS or SATA

hot-swappable hard disk drives (HDDs) or solid state drives (SSDs)

■ The server also contains one internal USB 2.0 port on the motherboard

that you can use with a USB thumb drive for additional storage

■ UCS Storage Accelerator are also available. These PCIe flash storage

devices provide independent high-speed storage.

Cisco Flexible Flash drives

The server supports up to two internal Cisco Flexible Flash drives (SD cards).

■ The first SD card is pre-loaded with four virtual drives. The four virtual

drives contain, respectively, the Cisco Server Configuration Utility, the Cisco Host Upgrade Utility, the Cisco C-Series server drivers set, and a blank virtual drive on which you can install an OS or a hypervisor.

■ 4 GB is available for general use

■ The second SD card is blank and can be used to mirror the first SD card.

It can be used to protect the Hypervisor Partition with RAID1.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

BASE SERVER STANDARD CAPABILITIES and FEATURES

Capability/Feature Description

Video The Emulex Pilot 3 Integrated Baseboard Management Controller provides

video:

■ Matrox G200e video controller

■ Integrated 2D graphics core with hardware acceleration

■ Supports all display resolutions up to 1920 x 1200 x 16 bpp resolution at

60 Hz

■ 24-bit color depth for all resolutions less than 1600x1200

■ 256 MB video memory

Storage controller ■ Embedded RAID (3 Gbs)

• Embedded SATA-only RAID controller, supporting up to 4 SATA-only drives (RAID 0, 1, 10), or

• ROM5 embedded RAID upgrade, supporting up to 8 SAS+SATA drives (RAID 0, 1, 10), or

• ROM55 embedded RAID upgrade, supporting up to 8 SAS+SATA drives (RAID 0, 1, 5, 10).

■ 2008M-8i Mezzanine Cards (6 Gbs) - two versions

• Cisco UCSC RAID SAS 2008M-8i Mezzanine Card, supporting up to 8 SAS+SATA drives supporting RAID 0, 1, 5, 10, and 50. SAS and SATA drives can be mixed. This card has a product ID (PID) of UCSC-RAID-11-C220.

• Cisco UCSC RAID SAS 2008M-8i Mezzanine Card, supporting up to eight SAS/SATA drives supporting RAID 0, 1, and 10. This card has a product ID (PID) of UCSC-RAID-MZ-220.

■ PCIe RAID controllers (6 Gbs)

• LSI MegaRAID SAS 9271-8i or 9271CV-8i RAID 8-port PCIe RAID controllers with on-board 1 GB data cache and chassis-mounted (remote) supercap for data cache power backup (supercap not present on 9271-8i), supporting RAID levels 0, 1, 5, 6, 10, 50, 60 and up to eight internal SAS+SATA drives.

• LSI MegaRAID 9285CV-8e or 9286CV-8e PCIe RAID controllers with on-board 1 GB cache and chassis-mounted (remote) supercap for data cache power backup, supporting RAID levels 0, 1, 5, 6, 10, 50,

60. Supports 8 external SAS ports (up to 240 external drives).

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

BASE SERVER STANDARD CAPABILITIES and FEATURES

Capability/Feature Description

Interfaces ■ Rear panel

• One RJ45 serial port connector

• Two USB 2.0 port connectors

• One DB15 VGA connector

• Two RJ-45 10/100/1000 Ethernet port connectors

• One RJ-45 10/100/1000 Ethernet management port, using Cisco Integrated Management Controller (CIMC) firmware

■ Various PCIe card ports (dependent on which cards are installed)

• Converged Network Adapter (CNA) ports

• Network Interface Card (NIC) ports

• Host Bus Adapter (HBA) ports

■ Front panel

• One KVM console connector (supplies two USB, one VGA, and one serial connector)

WoL The 1-Gb Base-T Ethernet LAN ports support the wake-on-LAN (WoL)

standard.

InfiniBand The bus slots in this server support the InfiniBand architecture.

Front Panel A front panel controller provides status indications and control buttons

Power subsystem Up to two 450 W (AC) , 650 W, (AC), or 930 W (DC) power supplies. One is

mandatory; one more can be added for 1 + 1 redundancy.

ACPI This server supports the advanced configuration and power interface (ACPI)

4.0 standard.

Fans Chassis:

■ Five hot-swappable fans for front-to-rear cooling

Power supply:

■ Each power supply is equipped with a fan.

Integrated management processor

BMC running Cisco Integrated Management Controller (CIMC) firmware.

Depending on your CIMC settings, the CIMC can be accessed through the 1-GbE dedicated management port, the 1-GbE LOM ports, or a Cisco virtual interface card (VIC).

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SER VER

Follow these steps to configure the Cisco UCS C220 M3 High-Density SFF Rack Server:

■ STEP 1 VERIFY SERVER SKU, page 12

■ STEP 2 SELECT CPU(s), page 13

■ STEP 3 SELECT MEMORY, page 16

■ STEP 4 SELECT RAID CONFIGURATION, page 22

■ STEP 5 SELECT HARD DISK DRIVES (HDDs) or SOLID STATE DRIVES (SSDs), page 29

■ STEP 6 SELECT PCIe OPTION CARD(s), page 31

■ STEP 7 ORDER OPTIONAL NETWORK CARD ACCESSORIES, page 34

■ STEP 8 ORDER POWER SUPPLY, page 38

■ STEP 9 SELECT AC POWER CORD(s), page 39

■ STEP 10 ORDER OPTIONAL REVERSIBLE CABLE MANAGEMENT ARM, page 42

■ STEP 11 ORDER A TRUSTED PLATFORM MODULE (OPTIONAL), page 43

■ STEP 12 ORDER CISCO FLEXIBLE FLASH SD CARD MODULE (OPTIONAL), page 44

CONFIGURING the SERVER

■ STEP 13 ORDER OPTIONAL USB 2.0 DRIVE, page 45

■ STEP 14 SELECT OPERATING SYSTEM AND VALUE-ADDED SOFTWARE, page 46

■ STEP 15 SELECT OPERATING SYSTEM MEDIA KIT, page 49

■ STEP 16 SELECT SERVICE and SUPPORT LEVEL, page 50

■ OPTIONAL STEP - ORDER RACK(s), page 55

■ OPTIONAL STEP - ORDER PDU, page 56

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 1 VERIFY SERVER SKU

Verify the product ID (PID) of the server as shown in Table 2.

Table 2 PID of the C220 M3 High-Density SFF Rack Base Server

Product ID (PID) Description

UCSC-C220-M3S UCS C220 M3 SFF, no CPU, memory, HDD, SDD, power supply, SD cards, or PCIe

cards, with 1 rail kit

The Cisco C220 M3 server:

■ Includes one tool-less rail kit (UCSC-RAIL1)

■ Does not include power supply, CPU, memory, hard disk drives (HDDs), solid-state drives

(SSDs), SD cards, or plug-in PCIe cards.

NOTE: Use the steps on the following pages to configure the server with

the components that you want to include.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 2 SELECT CPU(s)

The standard CPU features are:

■ Intel Xeon E5-2600 v2 and E5-2600 series processor family CPUs (see the following link for

instructions on how to upgrade your server from Intel Xeon E5-2600 to Intel Xeon E5-2600 v2 CPUs:

http://preview.cisco.com/en/US /docs/unified_computing/ucs/c/CPU/IVB/install/IVB-C.html

■ Intel C600 series chipset

■ Cache size of up to 30 MB

Select CPUs

The available CPUs are listed in Table 3.

Table 3 Available Intel CPUs: E5-2600 and E5-2600 v2 Series Processor Family CPUs

Product ID (PID)

Intel

Number

Clock

Freq

(GHz)

Power

(W)

Cache

Size

(MB)

Cores QPI

Highest

DDR3 DIMM

Clock

Support

(MHz)

Intel Xeon E5-2600 v2

UCS-CPU-E52697B E5-2697 v2 2.70 130 30 12 8 GT/s 1866

UCS-CPU-E52695B E5-2695 v2 2.40 115 30 12 8 GT/s 1866

UCS-CPU-E52690B E5-2690 v2 3.00 130 25 10 8 GT/s 1866

UCS-CPU-E52680B E5-2680 v2 2.80 115 25 10 8 GT/s 1866

UCS-CPU-E52670B E5-2670 v2 2.50 115 25 10 8 GT/s 1866

UCS-CPU-E52667B E5-2667 v2 3.30 130 25 8 8 GT/s 1866

UCS-CPU-E52660B E5-2660 v2 2.20 95 25 10 8 GT/s 1866

UCS-CPU-E52650B E5-2650 v2 2.60 95 20 8 8 GT/s 1866

UCS-CPU-E52640B E5-2640 v2 2.00 95 20 8 8 GT/s 1600

UCS-CPU-E52637B E5-2637 v2 3.50 130 15 4 8 GT/s 1866

UCS-CPU-E52630B E5-2630 v2 2.60 80 15 6 8 GT/s 1600

UCS-CPU-E52620B E5-2620 v2 2.10 80 15 6 8 GT/s 1600

UCS-CPU-E52643B E5-2643 v2 3.50 130 25 6 8 GT/s 1866

UCS-CPU-E52650LB E5-2650L v2 1.70 70 25 10 8 GT/s 1600

UCS-CPU-E52630LB E5-2630L v2 2.40 60 15 6 8 GT/s 1600

UCS-CPU-E52609B E5-2609 v2 2.50 80 10 4 6.4 GT/s 1333

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Notes . . .

Table 3 Available Intel CPUs: E5-2600 and E5-2600 v2 Series Processor Family CPUs (continued)

Highest

DDR3 DIMM

Clock

Support

Product ID (PID)

Intel

Number

Clock

Freq

(GHz)

Power

(W)

Cache

Size

(MB)

Cores QPI

(MHz)

Intel Xeon E5-2600

UCS-CPU-E5-2690 E5-2690 2.90 135 20 8 8 GT/s 1600

UCS-CPU-E5-2680 E5-2680 2.70 130 20 8 8 GT/s 1600

UCS-CPU-E5-2670 E5-2670 2.60 115 20 8 8 GT/s 1600

UCS-CPU-E5-2667 E5-2667 2.90 130 15 6 8 GT/s 1600

UCS-CPU-E5-2665 E5-2665 2.40 115 20 8 8 GT/s 1600

UCS-CPU-E5-2660 E5-2660 2.20 95 20 8 8 GT/s 1600

UCS-CPU-E5-2650 E5-2650 2.00 95 20 8 8 GT/s 1600

UCS-CPU-E5-2650L E5-2650L 1.80 70 20 8 8 GT/s 1600

UCS-CPU-E5-2643 E5-2643 3.30 130 10 4 8 GT/s 1600

UCS-CPU-E5-2640 E5-2640 2.50 95 15 6 7.2 GT/s 1333

UCS-CPU-E5-2630 E5-2630 2.30 95 15 6 7.2 GT/s 1333

UCS-CPU-E5-2630L E5-2630L 2.00 60 15 6 7.2 GT/s 1333

UCS-CPU-E5-2620 E5-2620 2.00 95 15 6 7.2 GT/s 1333

UCS-CPU-E5-2609 E5-2609 2.40 80 10 4 6.4 GT/s 1066

1. If higher or lower speed DIMMs are selected than what is shown in the table for a given CPU, the DIMMs will be clocked at the lowest common denominator of CPU clock and DIMM clock.

2. 1866-MHz DIMMs cannot be used with E5-2600 CPUs

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Approved Configurations

(1) 1-CPU configurations:

■ Select any one CPU listed in Table 3.

(2) 2-CPU Configurations:

■ Select two identical CPUs from any one of the rows of Table 3 on page 13.

Caveats

■ You can select either one processor or two identical processors.

■ For optimal performance, select DIMMs with the highest clock speed for a given processor

(see

Table 3 on page 13). If you select DIMMs whose speeds are lower or higher than that

shown in the tables, suboptimal performance will result.

■ For configurations that use 130 W or 135 W CPUs, the minimum power supply required is

650 W (UCSC-PSU-650W). See STEP 8 ORDER POWER SUPPLY, page 38.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 3 SELECT MEMORY

The standard memory features are:

■ DIMMs

— Clock speed: 1866, 1600, or 1333 MHz

— Ranks per DIMM: 1, 2, or 4

— Operational voltage: 1.5 V or 1.35 V

— Registered or unbuffered ECC DDR3 DIMMs (RDIMMs or UDIMMs) or load-reduced

DIMMs (LRDIMMs)

■ Memory is organized with four memory channels per CPU, with up to two DIMMs per channel,

as shown in

Figure 4 C220 M3 SFF Memory Organization

Figure 4.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

Select DIMMs and Memory Mirroring

Notes . . .

Select the memory configuration and whether or not you want the memory mirroring option. The available memory DIMMs and mirroring option are listed in

NOTE: When memory mirroring is enabled, the memory subsystem simultaneously

writes identical data to two channels. If a memory read from one of the channels returns incorrect data due to an uncorrectable memory error, the system automatically retrieves the data from the other channel. A transient or soft error in one channel does not affect the mirrored data, and operation continues unless there is a simultaneous error in exactly the same location on a DIMM and its mirrored DIMM. Memory mirroring reduces the amount of memory available to the operating system by 50% because only one of the two populated channels provides data.

Table 4 Available DDR3 DIMMs

CONFIGURING the SERVER

Table 4.

Product ID (PID) PID Description Voltage

DIMM Options

UCS-ML-1X324RY-A 32 GB DDR3-1600-MHz LR DIMM/PC3-12800/4R/x4/1.35v

UCS-MR-1X162RY-A 16 GB DDR3-1600-MHz RDIMM/PC3-12800/2R/x4/1.35v

1.5/1.35 V

UCS-MR-1X162RZ-A 16 GB DDR3-1866-MHz RDIMM PC3-14900/2R/x4/ 1.5 V 2

UCS-MR-1X082RY-A 8 GB DDR3-1600-MHz RDIMM/PC3-12800/2R/x4/1.35v

UCS-MR-1X082RX-A

8 GB DDR3-1333-MHz RDIMM/PC3-10600/2R/x4/1.35v

1.5/1.35 V

UCS-MR-1X082RZ-A 8 GB DDR3-1866-MHz RDIMM/PC3-14900/2R/x4/ 1.5 V 2

UCS-MR-1X041RY-A 4 GB DDR3-1600-MHz RDIMM/PC3-12800/1R/x4/1.35v

UCS-MR-1X041RX-A

UCS-MU-1X042RE-A

4 GB DDR3-1333-MHz RDIMM/PC3-10600/1R/x4/1.35v 1.35 V 1

4 GB DDR3-1600-MHz ECC UDIMM/PC3-12800/2R/x8/1.35v 1.35 V 2

1.5/1.35 V

Memory Mirroring Option

N01-MMIRROR Memory mirroring option

1. 1866-MHz DIMMs cannot be used with Intel Xeon E5-2600 CPUs

2. Dual voltage DIMM (operates at 1.5 V with BIOS is set for memory performance mode (default), or 1.35 V when BIOS is set for power-savings mode).

3. No longer shipping as of November, 2013

Ranks /DIMM

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Notes . . .

Approved Configurations

(1) 1-CPU configuration without memory mirroring:

■ Select from 1 to 8 DIMMs. Refer to Memory Population Rules, page 60, for more detailed

information.

(2) 1-CPU configuration with memory mirroring:

■ Select 2, 4, 6, or 8 identical DIMMs. The DIMMs will be placed by the factory as shown in the

following table.

Total

Number

CPU 1 DIMM Placement in Channels

(for

identical DIMMs)

DIMMs

Blue Slots Black Slots

2 (A1, B1) —

4 (A1,B1); (C1,D1) —

(A1,B1, C1) (A2, B2, C2)

8 (A1,B1); (C1,D1) (A2,B2); (C2,D2)

1. Not recommended (for performance reasons)

■ Select the memory mirroring option (N01-MMIRROR) as shown in Table 4 on page 17.

(3) 2-CPU configuration without memory mirroring:

■ Select from 1 to 8 DIMMs per CPU. Refer to Memory Population Rules, page 60, for more

detailed information.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Notes . . .

(4) 2-CPU configuration with memory mirroring:

■ Select 2, 4, 6, or 8 identical DIMMs per CPU. The DIMMs will be placed by the factory as

shown in the following table.

Number

CPU 1 DIMM Placement in Channels

(for

identical dual-rank DIMMs)

CPU 2 DIMM Placement in Channels

(for

identical dual-rank DIMMs)

DIMMs

per CPU

Blue Slots Black Slots Blue Slots Black Slots

2 (A1, B1) — (E1, F1) —

4 (A1,B1); (C1,D1) — (E1,F1); (G1,H1) —

(A1,B1, C1); (A2, B2, C2) (E1,F1, G1); (E2, F2, G2)

8 (A1,B1); (C1,D1) (A2,B2); (C2,D2) (E1,F1); (G1,H1) (E2,F2); (G2,H2)

1. Not recommended (for performance reasons)

■ Select the memory mirroring option (N01-MMIRROR) as shown in Table 4 on page 17.

NOTE: System performance is optimized when the DIMM type and quantity are equal

for both CPUs, and when all channels are filled equally across the CPUs in the server.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Notes . . .

Caveats

■ System speed is dependent on how many DIMMs are populated per channel. See Table 5 for

details.

Table 5 DIMM Memory Speeds

1333-MHz Capable CPU 1600-MHz Capable CPU 1866-MHz Capable CPU

DIMM

Speed

DPC

LRDIMM

RDIMM

(DR, SR)

LRDIMM

RDIMM

(DR, SR)

LRDIMM

RDIMM

(DR, SR)

Voltage Voltage Voltage Voltage Voltage Voltage

1.3 V 1.5 V 1.3 V 1.5 V 1.3 V 1.5 V 1.3 V 1.5 V 1.3 V 1.5 V 1.3 V 1.5 V

1333

1DPC 1333 1333 1333 1333 1333 1333 1333 1333 1333 1333 1333 1333

DIMM

2DPC 1333 1333 1333 1333 1333 1333 1333 1333 1333 1333 1333 1333

1600

1333 1333 1333 1333

1600

1333 1600

160021600

1333 1600 1333

DIMM

1866 DIMM

1333 1333 1333 1333

1DPC

2DPC

1333

160021600

1333

1333 1600

1600

160021600

1600

1333 1600 1333

1866

1. These DIMMs operate at 1333 MHz instead of 1600 MHz when used with any E5-2600 CPUs. They operate at 1600 MHz when used with E5-2600 v2 CPUs that support 1600- and 1866-MHz speeds.

2. 1866-MHz DIMMs are only offered and supported with E5-2600 v2 CPU-configured servers

■ For optimum performance, do not mix DIMMs with different frequencies. If you mix DIMM

frequencies, the system defaults to the lower frequency.

1866

■ Do not mix RDIMMs, LRDIMMs, or UDIMMs

■ DIMMs for CPU 1 and CPU 2 (when populated) must always be configured identically.

■ The server supports 1 or 2 DIMMs per channel for single- or dual-rank RDIMMs.

■ The server supports 1 or 2 DIMMs per channel for quad-rank LRDIMMs.

■ When using mirroring, DIMMs must be installed in identical pairs across paired DDR3 buses.

That is, mirrored pairs in channels A and B must be identical and pairs in channels C and D must be identical. However, the DIMMs used in channels A and B and in C and D can be different.

■ Non-ECC DIMMs are not supported.

■ Memory mirroring reduces the amount of available memory by 50% (quantity of DIMMs must

be even for mirroring).

■ When single- and dual-rank DIMMs are populated for 2DPC, always populate the dual rank

DIMM in the blue DIMM slot, and the single-rank DIMM in the black DIMM slot (only the 4GB DIMMs are single-rank).

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

■ By default, starting with UCSM 2.0.4, DIMMs run in memory performance mode (1.5v) by

BIOS default, which yields faster memory speeds than when the BIOS is set for the memory to run in power-savings mode. Memory speed is dependent on factors such as:

— CPU choice

— DIMM choice

— DIMM population (how many DIMMs per channel are populated)

— BIOS setting.

For the DIMMs to run in power-savings mode (1.35 V, if the DIMM supports this), change

the BIOS setting to power-savings mode.

For more information regarding memory, see CPUs and DIMMs, page 58.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 4 SELECT RAID CONFIGURATION

NOTE: If you do not select a mezzanine card, a PCIe RAID controller, or one of the

embedded RAID upgrade options, you will have an embedded SATA-only RAID controller that supports up to four SATA-only drives (RAID 0, 1, 10)

NOTE: When creating a RAID volume, follow these guidelines:

■ Use the same capacity for each drive in the volume

■ Use either all SAS drives or all SATA drives

■ Use either all HDDs or all SSDs

NOTE: The number of RAID groups (virtual drives) supported per controller is as

follows:

■ Embedded RAID = 8

■ LSI MegaRAID 9271-8i, or 9271CV-8i RAID controller card = 64

■ LSI MegaRAID 9285CV-8e, or 9286CV-8e RAID controller card = 64

■ Cisco UCSC RAID SAS 2008M-8i Mezzanine Card = 16

The RAID controller choices are:

(1) Embedded RAID (on motherboard)

NOTE: The RAID configuration options listed in T a ble 8 on page 24 are not available

if you choose embedded RAID (in this case, you must configure RAID yourself using separate software).

(2) Mezzanine RAID controller cards (not supported in 1-CPU configurations) (3) PCIe RAID controllers

Cisco can provide factory-configured RAID systems depending on the RAID controller chosen and the number of drives ordered. Factory-configured RAID options are listed with each RAID card description.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

Select RAID Options

NOTE: VMware ESX/ESXi or any other virtualized environments are not supported

for use with the embedded MegaRAID controller. Hypervisors such as Hyper-V, Xen, or KVM are also not supported for use with the embedded MegaRAID controller

Select one of the following (these choices are dependent on the number of CPUs installed):

■ One embedded RAID upgrade option for internal drives, or

■ One mezzanine RAID controller for internal drives, or

■ One RAID controller for external drives, or

■ One RAID controller for internal drives, or

■ One mezzanine RAID controller for internal drives and one RAID controller for external

drives

NOTE: For all valid combinations of embedded RAID, mezzanine RAID, and

internal/external RAID controller combinations, see

Table 6 Available Embedded RAID Options

Product ID (PID) PID Description

CONFIGURING the SERVER

RAID Details, page 65.

RAID Controllers

UCSC-RAID-ROM5 Onboard RAID, consisting of a plug-in storage controller unit (SCU), supporting

up to 8 internal SAS +SATA drives. SAS and SATA drives can be mixed. This option supports RAID 0, 1, and 10, and operates at 3 Gb/s. Operating systems supported are Windows and Linux only (no VMware support).

UCSC-RAID-ROM55 Onboard RAID, consisting of two plug-in modules (an SCU plus a software key

module) supporting up to 8 internal SAS+SATA drives. SAS and SATA drives can be mixed. This option supports RAID 0, 1, 5, and 10 and operates at 3 Gb/s. Operating systems supported are Windows and Linux only (no VMware support).

Table 7 Available Mezzanine Card RAID Options

Product ID (PID) PID Description

Mezzanine RAID Controllers (not supported in 1-CPU systems)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Table 7 Available Mezzanine Card RAID Options (continued)

Product ID (PID) PID Description

UCSC-RAID-11-C220 Cisco UCSC RAID SAS 2008M-8i Mezzanine Card (RAID 0, 1, 5, 10, and 50

supported), operating at 6 Gbs.

■ Supports up to eight internal SAS+SATA drives. SAS and SATA drives can be

mixed.

■ Factory-configured RAID options available: RAID 0, 1, 5, and 10 (see the

RAID PIDs section in this table)

UCSC-RAID-MZ-220 Cisco UCSC RAID SAS 2008M-8i Mezzanine Card (RAID 0, 1, 10 supported),

operating at 6 Gbs.

■ Supports up to eight internal SAS+SATA drives. SAS and SATA drives can be

mixed.

■ Factory-configured RAID options available: RAID 0, 1, and 10 (see the RAID

PIDs section in this table)

■ No data cache backup

Table 8 Available PCIe RAID Controller Options

Product ID (PID) PID Description

RAID Controllers

Note that PCIe RAID controllers are installed by default in slot 1 for 1-CPU systems and slot 2 for 2-CPU systems)

UCS-RAID9271-8I or

UCS-RAID9271CV-8I

LSI MegaRAID SAS 9271-8i or 9271CV-8i RAID controller card with data cache backup (RAID 0, 1, 10, 5, 6, 50, 60), operating at 6 Gbs.

■ Supports up to eight internal SAS+SATA drives. SAS and SATA drives can be

mixed.

■ Includes a 1 GB Transportable Flash Module (TFM) and a chassis-mounted

(remote) supercapacitor for data cache power backup (supercapacitor not available on the 9271-8i)

■ Factory-configured RAID options available: RAID 0, 1, 5, 6, and 10, (see

the RAID PIDs section in this table)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

Table 8 Available PCIe RAID Controller Options (continued)

NOTE: For SAS 9285CV-8e or 9286CV-8e external drive enclosure

support, see the compatibility list (enclosure section) at the following link:

http://tinyurl.com/b4etshk

Cisco is able to support customers with questions related to the SAS 9285CV-8e or 9286CV-8e RAID card; however, customers should contact their storage vendor for technical support related to enclosure/JBOD.

Product ID (PID) PID Description

CONFIGURING the SERVER

UCS-RAID-9285CV-E or

UCS-RAID9286CV-8E

LSI MegaRAID SAS 9285CV-8e or 9286CV-8e (RAID 0, 1, 5, 6, 10)

■ Supports from one to eight external SAS ports (up to 240 external drives).

■ Includes an chassis-mount (remote) supercapacitor to power on-board

1 GB flash-backed write cache.

■ Factory-configured RAID options: RAID 0, 1, 5, 6, 10 (see the RAID

Configuration section in this table). Note that factory RAID configuration is not available for these controllers, because the factory does not control the storage array attached to them.

Super Capacitor Option

UCS-RAID-CV-SC= LSI CacheVault Power Module. This is a spare supercapacitor. It is the exact

same supercapacitor that ships with the 9271CV-8i, 9285CV-8e, and 9286CV-8e cards listed earlier in this table and can be used as a replacement or upgrade part.

RAID Configuration Options (not available for embedded RAID)

R2XX-SRAID0 Enable Single Disk Raid 0 Setting (for the following PIDs only):

■ UCS-RAID9271-8i or UCS-RAID9271CV-8I

■ UCSC-RAID-11-C220

■ UCSC-RAID-MZ-220

R2XX-RAID0 Factory preconfigured RAID striping option

Enable RAID 0 Setting. Requires a minimum of one hard drive.

R2XX-RAID1 Factory preconfigured RAID mirroring option

Enable RAID 1 Setting. Requires exactly two drives with the same size, speed, capacity.

R2XX-RAID5 Factory preconfigured RAID option

Enable RAID 5 Setting. Requires a minimum of three drives of the same size, speed, capacity.

R2XX-RAID6 Factory preconfigured RAID option

Enable RAID 6 Setting. Requires a minimum of four drives of the same size, speed, capacity.

R2XX-RAID10 Factory preconfigured RAID option

Enable RAID 10 Setting. Requires a even number of drives (minimum of four drives) of the same size, speed, capacity.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Notes . . .

1. The SAS 9285CV-8e is compatible with PCI Express 2.0 x8 and the 9271-8i, 9271CV-8i, and 9286CV-8e

are compatible with PCI Express 3.0 x8.

NOTE: The 9266CV-8i and 9285CV-8e RAID controllers will reach end-of-life (EOL) in

November, 2013. After then, they will no longer be available.

NOTE: Although RAID levels 50 and 60 are not orderable from the factory, they are

supported for selected controllers as shown in

Table 6

Approved Configurations

The C220 M3 SFF server has an 8-drive backplane.

■ ROM5 and ROM55 embedded RAID upgrade options support up to 8 internal drives.

■ Mezzanine card (UCSC-RAID-11-C220) supports up to 8 internal drives.

■ Mezzanine card (UCSC-RAID-MZ-220) supports up to 8 internal drives.

■ SAS 9271-8i and 9271CV-8i PCIe cards support up to 8 drives.

■ LSI MegaRAID SAS 9285CV-8e and 9286CV-8e PCIe cards support up to 8 external SAS ports

(240 external drives)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

See Table 9 for a summary of the supported RAID configuration options.

Notes . . .

Table 9 Supported RAID Configurations

CONFIGURING the SERVER

Server

CPUs

C220 M3 SFF 1

C220 M3 SFF 2

Embedded

RAID

Enabled

Not

allowed

Not

allowed

Enabled

Not

allowed

Not

allowed

Not

allowed

Not

allowed

Mezz

RAID

Not

allowed

Not

allowed

Not

allowed

Not

allowed

Installed

Not

allowed

Card

absent

Installed

Internal

PCIe RAID

allowed

Installed

(default)

allowed

Installed

(default)

allowed

Not

slot 1

Not

slot 2

Not

Internal

PCIe

RAID #2

Not

allowed

Not

allowed

Not

allowed

Not

allowed

Not

allowed

Not

allowed

Not

allowed

Not

allowed

External

allowed

Installed

allowed

Installed slot 1 or

PCIe

RAID

Not

slot 1

Not

Card

absent

Not

slot 2

# Drives

Supported

8 internal A U

8 internal

240

external

8 internal A A

8 internal A

240

external

8 internal

240

external

PCIe Slots

1 2

1. Never disable OPROM for the mezzanine slot if the mezzanine card is present, or the system will not boot. If you remove the mezzanine card and disable its OPROM, you can boot from another bootable device (RAID card, embedded RAID, or from SAN via an HBA or CNA card). When you boot from a device, make sure its OPROM is enabled, it is in the proper boot sequence, and its BIOS is configured for a bootable device.

2. If you want to boot from a device other than the 9271-8i, or 9271CV-8i MegaRAID PCIe card, you can leave the card installed. Just disable the OPROM for its slot, and the system will boot even with the card installed.

3. Dual RAID controllers are not supported in this server

4. External RAID card is the 9285CV-8e or 9286CV-8e. Any of these can be installed simultaneously with one mezzanine RAID controller card. They cannot be used simultaneously with an internal RAID controller card (9271-8i, or 9271CV-8i) because of mounting space limitations for the supercap (there is space to mount only one supercap).

5. A = available slot, O = occupied slot, U = unsupported slot (slot 2 is not supported in 1-CPU systems)

6. The mezzanine slot is not supported in 1-CPU systems

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Caveats

■ Note that only a single Cisco VIC card (the half-height Cisco VIC 1225 PCIe card) is supported

and it must be installed in the full-height PCIe slot (slot 1) on riser 1. So take this into account when populating RAID controller cards.

■ You can choose an optional RAID configuration (RAID 0, 1, 5, 6, or 10), which is

preconfigured at the factory. The RAID level you choose must be an available RAID choice for the controller selected. RAID levels 50 and 60 are supported, although they are not available as configuration options.

NOTE: RAID for the external RAID controllers (LSI MegaRAID SAS 9286CV-e and LSI

MegaRAID SAS 9285CV-e) is not factory configured.

NOTE: For more important information regarding RAID combinations and support,

see

RAID Details, page 65 and RAID Option ROM (OPROM) Settings, page 66.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 5 SELECT HARD DISK DRIVES (HDDs) or SOLID STATE DRIVES

(SSDs)

The standard disk drive features are:

■ 2.5-inch small form factor

■ Hot-pluggable

■ Sled-mounted

Select Drives

The available drives are listed in Table 10.

Table 10 Available Hot-Pluggable Sled-Mounted HDDs and SSDs

Product ID (PID) PID Description

HDDs

A03-D1TBSATA 1TB SATA 7.2K RPM SFF HDD SATA 1 TB

UCS-HD1T7KS2-E 1TB SAS 7.2K RPM 2.5 inch HDD SAS 1 TB

UCS-HDD900GI2F106 900 GB 6Gb SAS 10K RPM SFF HDD SAS 900 GB

A03-D600GA2 600 GB 6Gb SAS 10K RPM SFF HDD SAS 600 GB

A03-D500GC3 500 GB SATA 7.2K RPM SFF HDD SATA 500 GB

UCS-HDD300GI2F105 300 GB 6Gb SAS 15K RPM SFF HDD SAS 300 GB

A03-D300GA2 300 GB 6Gb SAS 10K RPM SFF HDD SAS 300 GB

A03-D146GC2 146 GB 6Gb SAS 15K RPM SFF HDD SAS 146 GB

SSDs

UCS-SD400G0KA2-G 400 GB SATA 2.5" Enterprise Value SSD SATA 400 GB

UCS-SD300G0KA2-E 300 GB SATA 2.5" Enterprise Performance SATA SSD SATA 300 GB

UCS-SD200G0KA2-E 200 GB SATA 2.5" Enterprise Performance SATA SSD SATA 200 GB

Drive Type

Capacity

UCS-SD100G0KA2-G 100 GB SATA 2.5" Enterprise Value SSD SATA 100 GB

UCS-SD100G0KA2-E 100 GB SATA 2.5" Enterprise Performance SATA SSD SATA 100 GB

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Approved Configurations

(1) Onboard RAID, Mezzanine Cards, and all PCIe RAID Controllers

■ If you have not selected an onboard RAID upgrade option (ROM5 or ROM55), a mezzanine

card, or a PCIe RAID controller for internal drives (LSI MegaRAID 9271-8i or 9271CV-8i), you may select up to 4 SATA-only drives, which will be controlled with the embedded SATA-only RAID controller.

■ Otherwise, select up to eight SAS+SATA drives listed in Table 10. You can mix SAS and SATA

drives.

Caveats

NOTE: When creating a RAID volume, follow these guidelines:

■ Use the same capacity for each drive in the volume

■ Use either all SAS drives or all SATA drives

■ Use either all HDDs or all SSDs

■ You can mix SATA and SAS drives.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 6 SELECT PCIe OPTION CARD(s)

The standard PCie card offerings are:

■ Converged Network Adapters (CNAs)

■ Network Interface Cards (NICs)

■ Host Bus Adapters (HBAs)

■ UCS Storage Accelerators

Select PCIe Option Cards

The available PCIe option cards are listed in Table 11.

Table 11 Available PCIe Option Cards

Product ID (PID) PID Description Card Height

Converged Network Adapters (CNAs)

UCSC-PCIE-BSFP Broadcom 57712 Dual Port 10Gb SFP+ w/TOE iSCSI Half

UCSC-PCIE-CSC-02 Cisco VIC 1225 Dual Port 10Gb SFP+ CNA Half

UCSC-PCIE-C10T-02 Cisco VIC 1225T Dual Port 10GBaseT CNA Half

UCSC-PCIE-ESFP Emulex OCe11102-FX dual-port 10 GbE FCoE CNA (Gen 3 CNA) Half

UCSC-PCIE-QSFP Qlogic QLE8242-CU dual-port 10 GbE FCoE CNA Half

UCSC-PCIE-B3SFP Broadcom 57810 10Gb A-FEX SFP+ Half

UCSC-PCIE-Q8362 Qlogic QLE8362 dual-port 10 GbE FCoE CNA Half

Network Interface Cards (NICs)

N2XX-ABPCI01-M3 Broadcom 5709 Dual Port 1Gb w/TOE iSCSI for M3 Servers Half

N2XX-ABPCI03-M3 Broadcom 5709 Quad Port 1Gb w/TOE iSCSI for M3 Servers Half

N2XX-AIPCI01 Intel X520 Dual Port 10Gb SFP+ Adapter Half

UCSC-PCIE-ITG Intel X540 Dual Port 10GBase-T Adapter Half

UCSC-PCIE-IRJ45 Intel i350 Quad Port 1Gb Adapter Half

UCSC-PCIE-BTG Broadcom 57712 Dual Port 10GBASE-T w/TOE iSCSI Half

Host Bus Adapters (HBAs)

N2XX-AEPCI03 Emulex LPe 11002 Dual Port 4Gb Fibre Channel HBA Half

N2XX-AEPCI05 Emulex LPe 12002 Dual Port 8Gb Fibre Channel HBA Half

N2XX-AQPCI03 Qlogic QLE2462 Dual Port 4Gb Fibre Channel HBA Half

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Table 11 Available PCIe Option Cards (continued)

Product ID (PID) PID Description Card Height

N2XX-AQPCI05 Qlogic QLE2562 Dual Port 8Gb Fibre Channel HBA Half

UCSC-PCIE-Q2672 Qlogic QLE2672-CSC, 16Gb Fibre Channel HBA with SR Optics Half

UCSC-PCIE-E16002 Emulex LPe16002-M6, 16Gb Fibre Channel HBA with SR Optics Half

UCS Storage Accelerators

UCSC-F-FIO-3000M Cisco UCS 3.0 TB MLC Fusion ioDrive2 for C-Series Servers Full

UCSC-F-FIO-1205M Cisco UCS 1205 GB MLC Fusion ioDrive2 for C-Series Servers Half

UCSC-F-FIO-785M Cisco UCS 785 GB MLC Fusion ioDrive2 for C-Series Servers Half

UCSC-F-FIO-365M Cisco UCS 365GB MLC Fusion ioDrive2 for C-Series Servers Half

Approved Configurations

(1) No PCIe RAID controller

■ If you did not choose a PCIe RAID controller (for example, you are using embedded RAID or a

mezzanine RAID controller), you can select up to one PCie option card (for 1-CPU systems) or two PCie option cards (for 2-CPU systems) listed in

Table 11 on page 31.

(2) One PCIe RAID controller

■ If you selected a PCIe RAID controller, you can select none of the optional PCIe cards (for

1-CPU systems) or one of the optional PCIe cards (for 2-CPU systems) listed in

page 31.

NOTE: If a PCIe RAID controller card is installed, any optional PCIe card you select

will be installed in the full-height slot. RAID controllers are always installed in the half-height slot.

Caveats

■ For 1-CPU systems:

— Only the full-height PCIe slot (slot 1) is supported

— Neither PCIe slot 2 nor the mezzanine card slot are supported

— Only a single VIC card (the Cisco VIC 1225 PCIe card) is supported and must be

installed in slot 1 (the full-height slot).

— If any of the Fusion ioDrive2 cards are installed, they must be plugged into slot 1.

Note that only the Cisco UCS 3.0 TB MLC Fusion ioDrive2 card is full-height; all other Fusion ioDrive2 cards are half-height and therefore may need an adapter to hold them securely in the full-height slot.

■ For 2-CPU systems:

Table 11 on

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

— Both PCIe slots (slots 1 and 2) and the mezzanine card slot are supported

— Only a single VIC card (the half-height Cisco VIC 1225 PCIe card) is supported and it

must be installed in slot 1 (the full height slot).

— Only a single Cisco UCS 3.0 TB MLC Fusion ioDrive2 card is supported and it must be

installed in slot 1 (the full height slot).

— Up to two of the other Fusion ioDrive2 cards (1205-, 785- and 365-GB versions) are

supported and can be installed in either slot 1 or 2, although an adapter may be needed when installing one of these half-height cards in slot 1 (the full-height slot).

■ Other considerations for the Cisco VIC 1225:

— Supports 10G SFP+ optical and copper twinax connections

— The server supports installation of one Cisco VIC 1225 card and it is supported only

in PCIe slot 1.

— Requires that the server has CIMC firmware version 1.4(6) or later installed. There is

a heartbeat LED on the top of the card that indicates when firmware is active.

— To use this card for UCS integration (Cisco UCS Manager mode) with Cisco UCS

Manager 2.1(0) or later, the minimum card-firmware and uboot image level is

2.1(0.306).

■ To help ensure that your operating system is compatible with the card you have selected,

check the Hardware Compatibility List at this URL:

http://www.cisco.com/en/US/products/ps10477/prod_technical_reference_list.html

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 7 ORDER OPTIONAL NETWORK CARD ACCESSORIES

Copper twinax cables and SFP optical modules may be ordered to support the two-port network cards that are available with the server.

Choose Optional Twinax Cables

Table 12 lists the copper twinax cables available for the PCIe cards. You can choose cable

lengths of 1, 3, 5, 7, or 10 meters. The two longer cables (7 and 10 meters) are active, which means that they contain active components within the SFP+ housing to improve signal quality.

Table 12 Available Twinax Cables

Product ID (PID) PID Description

SFP-H10GB-CU1M 10GBASE-CU SFP+ Cable (1 M)

SFP-H10GB-CU3M 10GBASE-CU SFP+ Cable (3 M)

SFP-H10GB-CU5M 10GBASE-CU SFP+ Cable (5 M)

SFP-H10GB-ACU7M 10GBASE-CU SFP+ Cable (7 M)

SFP-H10GB-ACU10M 10GBASE-CU SFP+ Cable (10 M)

Approved Configurations

(1) Choose Up to Two Twinax Cables for Each Network Card Ordered

■ You may choose one or two twinax cables for each compatible PCIe network card ordered.

The cables can be different lengths; however, you would normally order two cables of equal lengths to connect to the primary and redundant network switching equipment.

Choose Optional SFP Modules

Optical Cisco SFP+ modules are listed in Table 13.

Table 13 Available SFP Modules

Product ID (PID) PID Description

SFP-10G-SR 10GBASE-SR SFP+ Module

850 nm, multimode, SR, 3.3V, LC connector, with Digital Optical Monitoring

DS-SFP-FC8G-SW 8 Gbit SFP+ Module

850 nm, multimode, SR, 3.3V, LC connector, with Digital Optical Monitoring

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Approved Configurations

(1) Choose Up to Two SFP+ Modules for Each Network Card Ordered

■ You may choose one or two SFP+ optical modules cables for each compatible PCIe network

card ordered. You would normally order two modules for connecting to the primary and redundant network switching equipment. With the SFP+ optical modules, you can use common fiber optic cables, widely available.

See Figure 5 on page 37 for typical SFP+ and twinax connections to the network cards.

Caveats

Check the table on the following page for compatibility between the PCIe network cards and SFPs or twinax cables.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Table 14 PCIe Card Compatibility

PCIe Cards

Converged Network Adapters (CNAs)

UCSC-PCIE-BSFP (Broadcom 57712 Dual Port 10Gb SFP+ w/TOE iSCSI)

UCSC-PCIE-CSC-02 (Cisco VIC 1225 Dual Port 10Gb SFP+ CNA)

UCSC-PCIE-C10T-02 (Cisco VIC 1225T Dual Port 10GBaseT CNA)

UCSC-PCIE-ESFP (Emulex OCe11102-FX dual-port 10 GbE FCoE CNA (Gen 3 CNA))

UCSC-PCIE-QSFP (QLogic QLE8242-CU dual-port 10 GbE FCoE CNA)

UCSC-PCIE-B3SFP (Broadcom 57810 10Gb A-FEX SFP+

UCSC-PCIE-Q8362 (Qlogic QLE8362 dual-port 10 GbE FCoE CNA)

Network Interface Cards (NICs)

N2XX-ABPCI01-M3 (Broadcom 5709 Dual-Port Ethernet PCIe Adapter for M3 Servers)

N2XX-ABPCI03-M3 (Broadcom 5709 Quad Port 10/100/1Gb NIC w/TOE iSCSI for M3 Servers

N2XX-AIPCI01 (Intel X520 Dual Port 10Gb SFP+ Adapter)

UCSC-PCIE-ITG (Intel X540 Dual Port 10GBase-T Adapter)

UCSC-PCIE-IRJ45 (Intel i350 Quad Port 1Gb Adapter

UCSC-PCIE-BTG (Broadcom 57712 Dual Port 10GBASE-T w/TOE iSCSI)

Host Bus Adapters (HBAs)

N2XX-AEPCI03 (Emulex LPe 11002 Dual Port 4Gb Fibre Channel HBA

N2XX-AEPCI05 (Emulex LPe 12002 Dual Port 8Gb Fibre Channel HBA)

N2XX-AQPCI03 (QLogic QLE2462 Dual Port 4Gb Fibre Channel HBA)

N2XX-AQPCI05 (QLogic QLE2562 Dual Port 8Gb Fibre Channel HBA)

UCSC-PCIE-Q2672 (Qlogic QLE2672-CSC, 16Gb Fibre Channel HBA with SR Optics)

UCSC-PCIE-E16002 (Emulex LPe16002-M6, 16Gb Fibre Channel HBA with SR Optics)

Twinax

Cables

Cisco SFP Modules

SFP-10G-SR DS-SFP-FC8G-SW

Yes Yes No

Yes No No

Yes Yes No

Yes Use Qlogic SFP

Yes Yes No

Yes Use Qlogic SFP

Yes No No

Use RJ45 Ethernet cable

Yes Use Intel SFP

Yes No No

Use RJ45 Ethernet cable

Yes No No

No Preinstalled - do not change SFP

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

Figure 5 Network Card Connections

CONFIGURING the SERVER

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 8 ORDER POWER SUPPLY

The C220 M3 SFF server accommodates two power supplies. A lightly loaded server can operate from one 650 W power supply. A fully loaded server might need to be powered with two 450 W or two 650 W power supplies (see

NOTE: For configurations that use 130 W or 135 W CPUs, the minimum power supply

required is 650 W (UCSC-PSU-650W). See

Use the power calculator at the following link to determine the needed power based on the options chosen (CPUs, drives, memory, and so on):

https://express.salire.com/Go/Cisco/Cisco-UCS-Power-Calculator.aspx

Table 15 Power Supply PIDs

Product ID (PID) PID Description

UCSC-PSU-450W 450 W power supply

Table 15).

STEP 2 SELECT CPU(s), page 13.

UCSC-PSU-650W 650 W power supply

UCSC-PSU-930WDC 930 W -48V DC power supply

NOTE: In a two power supply server, both power supplies must be identical.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

STEP 9 SELECT AC POWER CORD(s)

Using Table 16, select the appropriate AC power cords. You can select a minimum of no power

cords and a maximum of two. If you select the option R2XX-DMYMPWRCORD, no power cord is shipped with the server.

Table 16 Available Power Cords

Product ID (PID) PID Description Images

CONFIGURING the SERVER

R2XX-DMYMPWRCORD No power cord (dummy PID to

allow for a no power cord option)

CAB-N5K6A-NA Power Cord, 200/240V 6A, North

America

CAB-AC-L620-C13 AC Power Cord, NEMA L6-20 - C13,

2M/6.5ft

CAB-C13-CBN CABASY,WIRE,JUMPER CORD, 27" L,

C13/C14, 10A/250V

CAB-C13-C14-2M CABASY,WIRE,JUMPER CORD, PWR,

2 Meter, C13/C14,10A/250V

Not applicable

Plug: NEMA 6-15P

Cordset rating: 10 A, 250 V

Length: 8.2 ft

Connector:

IEC60320/C13

86570

CAB-C13-C14-AC CORD,PWR,JMP,IEC60320/C14,IEC6

0320/C13, 3.0M

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

2500 mm

Cordset rating: 10 A, 250/500 V MAX

Length: 8.2 ft

Plug:

EL 219

(IRAM 2073)

Connector:

EL 701

(IEC60320/C13)

Plug:

Cordset rating: 10 A, 250 V/500 V MAX

Length: 2500mm

Connector:

EL 701C

(EN 60320/C15)

EL 210

(BS 1363A) 13 AMP fuse

Cordset rating 10A, 250V

(2500 mm)

Plug:

EL 218

(CCEE GB2009)

186573

Connector:

EL 701

(IEC60320/C13)

Connector:

VSCC15

Cordset rating: 10A/16 A, 250 V

Length: 8 ft 2 in. (2.5 m)

Plug:

M2511

186576

Cordset rating 10A, 250V/500V MAX

(2500 mm)

Plug:

EL 212 (SI-32)

186574

Connector:

EL 701B

(IEC60320/C13)

-212

16A 250V

Table 16 Available Power Cords

Product ID (PID) PID Description Images

SFS-250V-10A-AR Power Cord, SFS, 250V, 10A,

Argentina

CAB-9K10A-AU Power Cord, 250VAC 10A 3112 Plug,

Australia

SFS-250V-10A-CN Power Cord, SFS, 250V, 10A, China

CAB-250V-10A-CN AC Power Cord - 250V, 10A - PRC

CAB-9K10A-EU Power Cord, 250VAC 10A CEE 7/7

Plug, EU

SFS-250V-10A-ID Power Cord, SFS, 250V, 10A, India

SFS-250V-10A-IS Power Cord, SFS, 250V, 10A, Israel

Plug:

EL 208

Cordset rating 16A, 250V

(2500mm)

OVE

Connector:

EL 701

87490

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

Table 16 Available Power Cords

Plug:

I/3G

(CEI 23-16)

Connector

C15M

(EN60320/C15 )

Cordset rating: 10 A, 250 V

Length: 8 ft 2 in. (2.5 m)

186575

Plug:

MP232-R

Cordset rating: 10 A, 250 V

Length: 8 ft. 2 in (2.5 m)

Connector:

IEC 60320 C15

Plug:

Cordset rating: 10 A, 250 V/500 V MAX

Length: 2500mm

186580

Connector:

EL 701C

(EN 60320/C15)

EL 210

(BS 1363A) 13 AMP fuse

Product ID (PID) PID Description Images

CAB-9K10A-IT Power Cord, 250VAC 10A CEI

23-16/VII Plug, Italy

CAB-9K10A-SW Power Cord, 250VAC 10A MP232

Plug, Switzerland

CAB-9K10A-UK Power Cord, 250VAC 10A BS1363

Plug (13 A fuse), UK

CONFIGURING the SERVER

CAB-9K12A-NA Power Cord, 125VAC 13A NEMA

5-15 Plug, North America

CAB-250V-10A-BR Power Cord - 250V, 10A - Brazil

76.2 From Plug End

2,133.6 ± 25

CAB-JPN-3PIN Power Cord 3PIN, Japan Image not available

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 10 ORDER OPTIONAL REVERSIBLE CABLE MANAGEMENT ARM

The reversible cable management arm mounts on either the right or left slide rails at the rear of the server and is used for cable management. Use

Table 17 Cable Management Arm

Product ID (PID) PID Description

UCSC-CMA1 Cable Management Arm for C220 rack servers

For more information about the cable management arm, see the Cisco UCS C220 M3 Installation and Service Guide at this URL:

http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C220/install/C220.pdf

NOTE: All UCS C220 M3 servers ship with a tool-less rail kit.

Table 17 to order a cable management arm.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 11 ORDER A TRUSTED PLATFORM MODULE (OPTIONAL)

Trusted Platform Module (TPM) is a computer chip (microcontroller) that can securely store artifacts used to authenticate the platform (server). These artifacts can include passwords, certificates, or encryption keys. A TPM can also be used to store platform measurements that help ensure that the platform remains trustworthy. Authentication (ensuring that the platform can prove that it is what it claims to be) and attestation (a process helping to prove that a platform is trustworthy and has not been breached) are necessary steps to ensure safer computing in all environments.

The TPM ordering information is listed in Table 18.

Table 18 Trusted Platform Module

Product ID (PID) PID Description

UCSX-TPM1-001 Tru s t e d P l a t fo r m M o d u l e

NOTE: The module used in this server conforms to TPM v1.3, as defined by the

Trusted Computing Group (TCG).

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 12 ORDER CISCO FLEXIBLE FLASH SD CARD MODULE (OPTIONAL)

You can order up to two optional preloaded 16 GB Cisco Flexible Flash secure digital (SD) cards. The first SD card contains preloaded software for simplified server operation. The ordering information is listed in

Table 19 Secure Digital (SD) Card (preloaded with software)

Product ID (PID) PID Description

UCSC-SD-16G-C220 16GB SD Card for C220 servers

See Figure 6 on page 57 for the location of the SD cards. There are two locations, SD1 and SD2.

NOTE: You can order an optional second blank SD card. The PID for the second SD

(blank) card is shown in SD card.

Table 19.

Table 20. The second SD card can be used to mirror the first

Table 20 Second Secure Digital (SD) Card (blank)

Product ID (PID) PID Description

UCS-SD-16G 16GB SD Card (optional)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

STEP 13 ORDER OPTIONAL USB 2.0 DRIVE

You can order one optional USB 2.0 drive. The USB drive ordering information is listed in

Table 21.

Table 21 USB 2.0 Drive

Product ID (PID) PID Description

UCS-USBFLSH-S-4GB 4GB Flash USB Drive (shorter length) for all servers except C260

See Figure 6 on page 57 for the location of the USB connector.

CONFIGURING the SERVER

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 14 SELECT OPERATING SYSTEM AND VALUE-ADDED SOFTWARE

Several operating systems and value-added software programs are available. Select as desired

from Table

Table 22 OSs and Value-Added Software (for 2-CPU servers)

PID Description Product ID (PID)

Microsoft Windows Server

MSWS-08R2-STHV Windows Svr 2008 ST media R2 ST (1-4CPU, 5CAL)

MSWS-08R2-ENHV Windows Svr 2008 EN media R2 EN (1-8CPU, 25CAL)

MSWS-08R2-DCHV2S Windows Svr 2008 R2-2 CPU-Data Center

MSWS-12-ST2S Windows Server 2012 Standard (2 CPU/2 VMs)

MSWS-12-DC2S Windows Server 2012 Datacenter (2 CPU/Unlimited VMs)

MSWS-12-ST2S-NS Windows Server 2012 Standard (2 CPU/2 VMs) No Cisco SVC

MSWS-12-DC2S-NS Windows Server 2012 Datacenter (2 CPU/Unlim VM) No Cisco SVC

SUSE

SLES-SVR-2S-1G-1A SUSE Linux Enterprise Srvr (1-2 CPU,1 Phys);1yr Support Reqd

SLES-SVR-2S-1G-3A SUSE Linux Enterprise Srvr (1-2 CPU,1 Phys);3yr Support Reqd

SLES-SVR-2S-1G-5A SUSE Linux Enterprise Srvr (1-2 CPU,1 Phys);5yr Support Reqd

SLES-SVR-2S-UG-1A SUSE Linux Enterprise Svr (1-2 CPU,Unl Vrt);1yr Support Reqd

SLES-SVR-2S-UG-3A SUSE Linux Enterprise Svr (1-2 CPU,Unl Vrt);3yr Support Reqd

SLES-SVR-2S-UG-5A SUSE Linux Enterprise Svr (1-2 CPU,Unl Vrt);5yr Support Reqd

SLES-SHA-2S-1A SUSE Linux High Availability Ext (1-2 CPU); 1yr Support Reqd

SLES-SHA-2S-3A SUSE Linux High Availability Ext (1-2 CPU); 3yr Support Reqd

SLES-SHA-2S-5A SUSE Linux High Availability Ext (1-2 CPU); 5yr Support Reqd

SLES-HGC-2S-1A SUSE Linux GEO Clustering for HA (1-2 CPU); 1yr Support Reqd

SLES-HGC-2S-3A SUSE Linux GEO Clustering for HA (1-2 CPU); 3yr Support Reqd

SLES-HGC-2S-5A SUSE Linux GEO Clustering for HA (1-2 CPU); 5yr Support Reqd

SLES-SAP-2S-1G-1A SLES for SAP Applications (1-2 CPU,1 Phys); 1yr Support Reqd

SLES-SAP-2S-1G-3A SLES for SAP Applications (1-2 CPU,1 Phys); 3yr Support Reqd

SLES-SAP-2S-1G-5A SLES for SAP Applications (1-2 CPU,1 Phys); 5yr Support Reqd

SLES-SAP-2S-UG-1A SLES for SAP Applications (1-2 CPU,Unl Vrt);1yr Support Reqd

SLES-SAP-2S-UG-3A SLES for SAP Applications (1-2 CPU,Unl Vrt);3yr Support Reqd

SLES-SAP-2S-UG-5A SLES for SAP Applications (1-2 CPU,Unl Vrt);5yr Support Reqd

22.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Table 22 OSs and Value-Added Software (for 2-CPU servers) (continued)

PID Description Product ID (PID)

Red Hat Enterprise Linux

RHEL-2S-1G-1A RHEL/2 Socket/1 Guest/1Yr Svcs Required

RHEL-2S-1G-3A RHEL/2 Socket/1 Guest/3Yr Svcs Required

RHEL-2S-4G-1A RHEL/2 Socket/4 Guest/1Yr Svcs Required

RHEL-2S-4G-3A RHEL/2 Socket/4 Guest/3Yr Svcs Required

RHEL-2S-UG-1A RHEL/2 Socket/U Guest/1Yr Svcs Required

RHEL-2S-UG-3A RHEL/2 Socket/U Guest/3Yr Svcs Required

RHEL-HA-2S-1A RHEL Option/High-Availability/2 Socket/1Yr Svcs Required

RHEL-HA-2S-3A RHEL Option/High-Availability/2 Socket/3Yr Svcs Required

RHEL-RS-2S-1A RHEL Option/Resilient w/Ha /2 Socket/1 Yr Svcs Required

RHEL-RS-2S-3A RHEL Option/Resilient Storage w/ HA /2 Socket/3 Yr Svcs Reqd

RHEL-SFS-2S-1A RHEL Option/Scalable File System/2 Socket/1 Yr Svcs Required

RHEL-SFS-2S-3A RHEL Option/Scalable File System/2 Socket/1 Yr Svcs Required

BMC

BMC-012 BMC BPPM Per Server

BMC-SE-4C BMC BladeLogic Standard Edition, 4 Cores, Support Required

BMC-SE-6C BMC BladeLogic Standard Edition, 6 Cores, Support Required

BMC-SE-8C BMC BladeLogic Standard Edition, 8 Cores, Support Required

BMC-SE-10C BMC BladeLogic Standard Edition, 10 Cores, Support Required

BMC-AE-4C BMC BladeLogic Advanced Edition, 4 Cores, Support Required

BMC-AE-6C BMC BladeLogic Advanced Edition, 6 Cores, Support Required

BMC-AE-8C BMC BladeLogic Advanced Edition, 8 Cores, Support Required

BMC-AE-10C BMC BladeLogic Standard Edition, 10 Cores, Support Required

UCS-BMC-TERMS Acceptance of Terms, Standalone BMC License for UCS Servers

Nexus 1000V for Hyper-V and vSphere

N1K-CSK9-UCS-404 Nexus 1000V VSM Virtual Appliance Software On UCS

N1K-VSG-UCS-BUN Over half off N1K and VSG w/ purchase of UCS B/C Series

N1K-M-VSG-UCS-BUN Nexus 1000V Adv Edition for Hyper-V Paper License Qty 1

UCS Director

CUIC-PHY-SERV-BM-U Cisco Cloupia Resource Lic - One Phy Server node bare metal

CUIC-PHY-SERV-U Cisco Cloupia Resource Lic - One physical Server node

CUIC-TERM Acceptance of Cisco Cloupia License Terms

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Table 22 OSs and Value-Added Software (for 2-CPU servers) (continued)

PID Description Product ID (PID)

VMware 5

VMW-VS5-STD-1A VMware vSphere 5 Standard for 1 Processor, 1 Year, Support Rqd

VMW-VS5-STD-2A VMware vSphere 5 Standard for 1 Processor, 2 Year, Support Rqd

VMW-VS5-STD-3A VMware vSphere 5 Standard for 1 Processor, 3 Year, Support Rqd

VMW-VS5-STD-4A VMware vSphere 5 Standard for 1 Processor, 4 Year, Support Rqd

VMW-VS5-STD-5A VMware vSphere 5 Standard for 1 Processor, 5 Year, Support Rqd

VMW-VS5-ENT-1A VMware vSphere 5 Enterprise for 1 Processor, 1 Year Support Rqd

VMW-VS5-ENT-2A VMware vSphere 5 Enterprise for 1 CPU, 2 Yr Support Rqd

VMW-VS5-ENT-3A VMware vSphere 5 Enterprise for 1 CPU, 3 Yr Support Rqd

VMW-VS5-ENT-4A VMware vSphere 5 Enterprise for 1 Processor, 4 Year Support Rqd

VMW-VS5-ENT-5A VMware vSphere 5 Enterprise for 1 CPU, 5 Yr Support Rqd

VMW-VS5-ENTP-1A VMware vSphere 5 Enterprise Plus for 1 Processor, 1 Year Support Rqd

VMW-VS5-ENTP-2A VMware vSphere 5 Enterprise Plus for 1 CPU, 2 Yr Support Rqd

VMW-VS5-ENTP-3A VMware vSphere 5 Enterprise Plus for 1 Processor, 3 Year Support Rqd

VMW-VS5-ENTP-4A VMware vSphere 5 Enterprise Plus for 1 Processor, 4 Year Support Rqd

VMW-VS5-ENTP-5A VMware vSphere 5 Enterprise Plus for 1 Processor, 5 Year Support Rqd

VMW-VC5-STD-1A VMware vCenter 5 Server Standard, 1 yr support required

VMW-VC5-STD-2A VMware vCenter 5 Server Standard, 2 yr support required

VMW-VC5-STD-3A VMware vCenter 5 Server Standard, 3 yr support required

VMW-VC5-STD-4A VMware vCenter 5 Server Standard, 4 yr support required

VMW-VC5-STD-5A VMware vCenter 5 Server Standard, 5 yr support required

UCS-VMW-TERMS Acceptance of Terms, Standalone VMW License for UCS Servers

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

STEP 15 SELECT OPERATING SYSTEM MEDIA KIT

Select the optional operating system media listed in Table 23.

Table 23 OS Media

Product ID (PID) PID Description

RHEL-6 RHEL 6 Recovery Media Only (Multilingual)

SLES-11 SLES 11 media only (multilingual)

MSWS-08R2-STHV-RM Windows Svr 2008 R2 ST (1-4CPU, 5CAL), Media

MSWS-08R2-ENHV-RM Windows Svr 2008 R2 EN (1-8CPU, 25CAL), Media

MSWS-08R2-DCHV-RM Windows Svr 2008 R2 DC (1-8CPU, 25CAL), Media

MSWS-12-ST2S-RM Windows Server 2012 Standard (2 CPU/2 VMs) Recovery Media

MSWS-12-DC2S-RM Windows Server 2012 Datacenter(2 CPU/Unlimited VM) Rec Media

CONFIGURING the SERVER

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

STEP 16 SELECT SERVICE and SUPPORT LEVEL

A variety of service options are available, as described in this section.

Unified Computing Warranty, No Contract

If you have noncritical implementations and choose to have no service contract, the following coverage is supplied:

■ Three-year parts coverage.

■ Next business day (NBD) onsite parts replacement eight hours a day, five days a week.

■ 90-day software warranty on media.

■ Ongoing downloads of BIOS, drivers, and firmware updates.

■ UCSM updates for systems with Unified Computing System Manager. These updates include

minor enhancements and bug fixes that are designed to maintain the compliance of UCSM with published specifications, release notes, and industry standards.

SMARTnet for UCS

For support of the entire Unified Computing System, Cisco offers the Cisco SMARTnet for UCS Service. This service provides expert software and hardware support to help sustain performance and high availability of the unified computing environment. Access to Cisco Technical Assistance Center (TAC) is provided around the clock, from anywhere in the world.

For UCS blade servers, there is Smart Call Home, which provides proactive, embedded diagnostics and real-time alerts. For systems that include Unified Computing System Manager, the support service includes downloads of UCSM upgrades. The Cisco SMARTnet for UCS Service includes flexible hardware replacement options, including replacement in as little as two hours. There is also access to Cisco's extensive online technical resources to help maintain optimal efficiency and uptime of the unified computing environment. You can choose a desired service listed in

Table 24.

Table 24 Cisco SMARTnet for UCS Service

Product ID (PID) On Site? Description

CON-PREM-C220M3SF Yes ONSITE 24X7X2 UCS C220 M3 SFF

CON-OSP-C220M3SF Ye s ONSITE 24X7X4 UCS C220 M3 SFF

CON-OSE-C220M3SF Yes ONSITE 8X5X4 UCS C220 M3 SFF

CON-OS-C220M3SF Yes ONSITE 8X5XNBD UCS C220 M3 SFF

CON-S2P-C220M3SF No SMARTNET 24X7X2 UCS C220 M3 SFF

CON-SNTP-C220M3SF No SMARTNET 24X7X4 UCS C220 M3 SFF

CON-SNTE-C220M3SF No SMARTNET 8X5X4 UCS C220 M3 SFF

CON-SNT-C220M3SF No SMARTNET 8X5XNBD UCS C220 M3 SFF

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

SMARTnet for UCS Hardware Only Service

For faster parts replacement than is provided with the standard Cisco Unified Computing System warranty, Cisco offers the Cisco SMARTnet for UCS Hardware Only Service. You can choose from two levels of advanced onsite parts replacement coverage in as little as four hours. SMARTnet for UCS Hardware Only Service provides remote access any time to Cisco support professionals who can determine if a return materials authorization (RMA) is required. You can choose a service listed in

Table 25.

Table 25 SMARTnet for UCS Hardware Only Service

Product ID (PID)

Service Level GSP

On Site?

Description

CON-UCW7-C220M3SF UCW7 Ye s UCS HW 24X7X4OS UCS C220 M3 SFF

CON-UCW5-C220M3SF UCW5 Ye s UC PLUS 8X5XNBDOS UCS C220 M3 SFF

Unified Computing Partner Support Service

Cisco Partner Support Service (PSS) is a Cisco Collaborative Services service offering that is designed for partners to deliver their own branded support and managed services to enterprise customers. Cisco PSS provides partners with access to Cisco's support infrastructure and assets to help them:

■ Expand their service portfolios to support the most complex network environments

■ Lower delivery costs

■ Deliver services that increase customer loyalty

Partner Unified Computing Support Options enable eligible Cisco partners to develop and consistently deliver high-value technical support that capitalizes on Cisco intellectual assets. This helps partners to realize higher margins and expand their practice.

PSS is available to all Cisco PSS partners, but requires additional specializations and requirements. For additional information, see the following URL:

www.cisco.com/go/partnerucssupport

The two Partner Unified Computing Support Options include:

■ Partner Support Service for UCS

■ Partner Support Service for UCS Hardware Only

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Partner Support Service for UCS provides hardware and software support, including triage support for third party software, backed by Cisco technical resources and level three support. See

Table 26.

Table 26 Partner Support Service for UCS

Product ID (PID)

Service Level GSP

On Site?

Description

CON-PSJ1-C220M3SF PSJ1 No UCS SUPP PSS 8X5XNBD UCS C220 M3 SFF

CON-PSJ2-C220M3SF PSJ2 No UCS SUPP PSS 8X5X4 UCS C220 M3 SFF

CON-PSJ3-C220M3SF PSJ3 No UCS SUPP PSS 24X7X4 UCS C220 M3 SFF

CON-PSJ4-C220M3SF PSJ4 No UCS SUPP PSS 24X7X2 UCS C220 M3 SFF

Partner Support Service for UCS Hardware Only provides customers with replacement parts in as little as two hours. See

Table 27.

Table 27 Partner Support Service for UCS (Hardware Only)

Product ID (PID)

Service Level GSP

On Site?

Description

CON-PSW2-C220M3SF PSW2 No UCS W PL PSS 8X5X4 UCS C220 M3 SFF

CON-PSW3-C220M3SF PSW3 No UCS W PL PSS 24X7X4 UCS C220 M3 SFF

CON-PSW4-C220M3SF PSW4 No UCS W PL PSS 24X7X2 UCS C220 M3 SFF

Unified Computing Combined Support Service

Combined Services makes it easier to purchase and manage required services under one contract. SMARTnet services for UCS help increase the availability of your vital data center infrastructure and realize the most value from your unified computing investment. The more benefits you realize from the Cisco Unified Computing System (Cisco UCS), the more important the technology becomes to your business. These services allow you to:

■ Optimize the uptime, performance, and efficiency of your UCS

■ Protect your vital business applications by rapidly identifying and addressing issues

■ Strengthen in-house expertise through knowledge transfer and mentoring

■ Improve operational efficiency by allowing UCS experts to augment your internal staff

resources

■ Enhance business agility by diagnosing potential issues before they affect your operations

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

You can choose a service listed in Table 28.

Table 28 UCS Computing Combined Support Service

CONFIGURING the SERVER

Product ID (PID)

Service Level GSP

CON-NCF2-C220M3SF NCF2 CON-NCF2P-C220M3SF NCF2P CON-NCF4P-C220M3SF NCF4P CON-NCF4S-C220M3SF NCF4S CON-NCFCS-C220M3SF NCFCS CON-NCFE-C220M3SF NCFE CON-NCFP-C220M3SF NCFP CON-NCFT-C220M3SF NCFT

Unified Computing Drive Retention Service

With the Cisco Unified Computing Drive Retention (UCDR) Service, you can obtain a new disk drive in exchange for a faulty drive without returning the faulty drive. In exchange for a Cisco replacement drive, you provide a signed Certificate of Destruction (CoD) confirming that the drive has been removed from the system listed, is no longer in service, and has been destroyed.

On Site?

Yes

Description

CMB SPT SVC 24X7X2 UCS C220 M3 SFF

CMB SPT SVC 24X7X2OS UCS C220 M3 SFF

CMB SPT SVC 24X7X4OS UCS C220 M3 SFF

CMB SPT SVC 8X5X4OS UCS C220 M3 SFF

CMB SPT SVC 8X5XNBDOS UCS C220 M3 SFF

CMB SPT SVC 8X5X4 UCS C220 M3 SFF

CMB SPT SVC 24X7X4 UCS C220 M3 SFF

CMB SPT SVC 8X5XNBD UCS C220 M3 SFF

Sophisticated data recovery techniques have made classified, proprietary, and confidential information vulnerable, even on malfunctioning disk drives. The UCDR service enables you to retain your drives and ensures that the sensitive data on those drives is not compromised, which reduces the risk of any potential liabilities. This service also enables you to comply with regulatory, local, and federal requirements.

If your company has a need to control confidential, classified, sensitive, or proprietary data, you might want to consider one of the Drive Retention Services listed in

NOTE: Cisco does not offer a certified drive destruction service as part of this

service.

Table 29 Drive Retention Service Options

Service Description

SMARTnet for UCS Service with Drive Retention

Service

Program Name

UCS DR

Table 29.

Service

Level GSP

UCSD7 24x7x4 Onsite CON-UCSD7-C220M3SF

UCSD7 8x5xNBD Onsite CON-UCSD5-C220M3SF

Service Level Product ID (PID)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

CONFIGURING the SERVER

Table 29 Drive Retention Service Options (continued)

Service Description

SMARTnet for UCS HW ONLY+Drive Retention

For more service and support information, see the following URL:

http://www.cisco.com/en/US/services/ps2961/ps10312/Unified_Computing_Services_Overview.pdf

For a complete listing of available services for Cisco Unified Computing System, see this URL:

http://www.cisco.com/en/US/products/ps10312/serv_group_home.html

Service

Program Name

UCS HW+DR

Service

Level GSP

Service Level Product ID (PID)

UCWD7 24x7x4 Onsite CON-UCWD7-C220M3SF

UCWD5 8x5xNBD Onsite CON-UCWD5-C220M3SF

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

OPTIONAL STEP - ORDER RACK(s)

Notes . . .

The optional R42610 rack is available from Cisco for the C-Series servers, including the C220 M3 SFF server. This rack is a standard 19-inch rack and can be ordered with a variety of options, as listed in

Table 30 Racks and Rack Options

Product ID (PID) PID Description

Table 30. Racks are shipped separately from the C220 M3 SFF server.

OPTIONAL STEP - ORDER RACK(s)

RACK-UCS

RACK-UCS2

Cisco R42610 expansion rack, no side panels

Cisco R42610 standard rack, w/side panels

RACK-BLANK-001 Filler panels (qty 12), 1U, plastic, toolless

RACK-CBLMGT-001 Cable mgt D rings (qty 10), metal

RACK-CBLMGT-011 Cable mgt straps (qty 10), Velcro

RACK-FASTEN-001 Mounting screws (qty 100), M6

RACK-FASTEN-002 Cage nuts (qty 50), M6

RACK-JOIN-001 Rack joining kit

1. Use these same base PIDs to order spare racks (available only as next-day replacements).

For more information about the R42610 rack, see RACKS, page 71.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

OPTIONAL STEP - ORDER PDU

An optional power distribution unit (PDU) is available from Cisco for the C-Series rack servers, including theC220 M3 server. This PDU is available in a zero rack unit (RU) style (see

Table 31 PDU Options

Product ID (PID) PID Description

RP208-30-2P-U-2 Zero RU PDU

For more information about the PDU, see PDUs, page 73.

Table 30).

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

FAN1FAN1FAN1

FAN2

FAN2FAN2

FAN3

FAN3FAN3

FAN4FAN4

FAN5

FAN5FAN5

PSU2

PCIe1

PCIe2

PSU1

CPU1

CPU2

SAS1

SAS2

SAS1

SAS2

1718

52 3

CHASSIS

An internal view of the C220 M3 chassis with the top cover removed is shown in Figure 6.

Figure 6 C220 M3 SFF With Top Cover Off

SUPPLEMENTAL MATERIAL

1 Drives

(hot-swappable, accessed through front panel)

2 Drive backplane 11 Standard-profile PCIe riser (PCIe slot 1) 3 SuperCap backup unit mounting location 12 Low-profile PCIe riser (PCIe slot 2) 4 Cooling fans (five) 13 Cisco Flexible Flash SD socket SD2 on PCIe

5 SCU upgrade ROM header (RAID key). 14 Cisco Flexible Flash SD socket SD1 on PCIe

10 Trusted platform module socket on

motherboard

riser 2

6 DIMM slots on motherboard (16) 15 Internal USB port

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

7 CPUs and heatsinks (two) 16 Power supplies (two, hot-swappable

access through rear panel)

8 Integrated RAID on motherboard, and mini-SAS

connectors

9 Mezzanine RAID card, mini-SAS connectors

SAS1 and SAS2

17 RTC battery on motherboard

18 Software RAID 5 header (RAID key).

CPUs and DIMMs

Physical Layout

Each CPU has four DIMM channels:

■ CPU1 has channels A, B, C, and D

■ CPU2 has channels E, F, G, and H

Each DIMM channel has two banks: bank 1 and bank 2. The blue-colored DIMM slots are for bank 1 and the black-colored slots are for bank 2.

As an example, DIMM slots A1, B1, C1, and D1 belong to bank 1, while A2, B2, C2, and D2 belong to bank 2.

Figure 7 shows how banks and channels are physically laid out on the motherboard. The DIMM slots on the

right (channels A, B, C, and D) are associated with CPU1, while the DIMM slots on the left (channels E, F, G, and H) are associated with CPU2. The bank 1 (blue) DIMM slots are always located farther away from a CPU than the corresponding bank 2 (black) slots. Bank 1 slots (blue) are populated before bank 2 slots (black).

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

Figure 7 Physical Layout of CPU DIMM Channels and Banks

CPU1

Front of Server

A1 G1

SUPPLEMENTAL MATERIAL

CPU2

331707

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Notes . . .

Memory Population Rules

When considering the memory configuration of your server, you should consider the following items:

■ Each channel has two DIMM slots (for example, channel A = slots A1 and A2).

— A channel can operate with one or two DIMMs installed.

— If a channel has only one DIMM, populate slot 1 first (the blue slot).

■ When both CPUs are installed, populate the DIMM slots of each CPU identically.

— Fill blue slots in the channels first: A1, E1, B1, F1, C1, G1, D1, H1

— Fill black slots in the channels second: A2, E2, B2, F2, C2, G2, D2, H2

■ Any DIMM installed in a DIMM socket for which the CPU is absent is not recognized.

■ Observe the DIMM mixing rules shown in Table 32

Table 32 DIMM Rules for C220 M3 Servers

DIMM Parameter DIMMs in the Same Channel

DIMM Capacity

RDIMM = 4, 8, or 16 GB

LRDIMM = 32 GB

UDIMM = 4 GB

DIMMs in the same channel (for example, A1 and A2) can have different capacities.

You cannot mix 32 GB LRDIMMs with any RDIMM or UDIMM

You cannot mix 4 GB UDIMMs with any RDIMM or LRIMM

DIMM Speed

1866-, 1600-, or 1333-MHz

DIMMs will run at the lowest speed of the DIMMs/CPUs installed

DIMM Type

RDIMMs, LRDIMMs, or UDIMMs You cannot mix DIMM types in a

channel

1 DPC or 2 DPC 3 DPC

See Table 5 on page 20 for

DIMMs per Channel (DPC)

valid LRDIMM and RDIMM 1 DPC and 2 DPC memory configurations

UDIMMs run at 1066 MHz at 1.35 V and 1333 MHz at 1.5 V

DIMM in the Same Bank

For best performance, DIMMs in the same bank (for example, A1, B1, C1, D1) should have the same capacity.

You cannot mix 32 GB LRDIMMs with any RDIMM or UDIMM

You cannot mix 4 GB UDIMMs with any RDIMM or LRIMM

DIMMs will run at the lowest speed of the DIMMs/CPUs installed

You cannot mix DIMM types in a bank

Not supported

1. Although you can have different DIMM capacities in the same bank, this will result in less than optimal performance. For optimal performance, all DIMMs in the same bank should be identical.

2. Only 1866-, 1600-, and 1333-MHz DIMMs are currently available for the C220 M3 server.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

DIMM Population Order

Notes . . .

Populate the DIMMs for a CPU according to Table 33.

Table 33 DIMM Population Order per CPU

SUPPLEMENTAL MATERIAL

DIMMs per CPU

Populate CPU 1 Slots

Populate CPU 2 Slots

1 A1 E1

2 A1, B1 E1, F1

3 A1, B1, C1 E1, F1, G1

4 A1, B1, C1, D1 E1, F1, G1, H1

8 A1, B1, C1, D1,

1. Not recommended (for performance reasons)

A1, B1, C1,

A2, B2, C2

A2, B2, C2, D2

E1, F1, G1,

E2, F2, G2

E1, F1, G1, H1,

E2, F2, G2, H2

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Notes . . .

Recommended Memory Configuration

This section explains the recommended DIMM population order rules for the C220 M3 server.

■ All DIMMs must be DDR3 DIMMs.

■ Do not mix:

— DIMMs with different sizes or clock rates in a channel

— RDIMMs and LRDIMMs

— ECC and non-ECC DIMMs

■ There are blue and black DIMM slots. Populate blue slots first.

■ When single- and dual-rank DIMMs are populated for 2DPC, always populate the dual-rank

DIMM in the blue DIMM slot and the single-rank DIMM in the black DIMM slot.

Many memory configurations are possible. For best results, follow Table 34 when populating DIMMs.

Table 34 Recommended Memory Configurations1

Total

System

Memory

Size

32 GB

64 GB

96 GB

128 GB

192 GB

CPU 1 DIMMs CPU 2 DIMMs

Blue Slots

Bank 1

(A1, B1,

C1, D1)

Black Slots

Bank 2

(A2, B2,

C2, D2)

Blue Slots

Bank 1 (E1, F1, G1, H1)

Black Slots

Bank 2

(E2, F2,

G2, H2)

DIMM Max Operating

Speed

(MHz)

DIMMs in

System

4x4 GB — 4x4 GB — 1600 8

2x8 GB — 2x8 GB — 1600 4

4x4 GB 4x4 GB 4x4 GB 4x4 GB 1600 16

4x8 GB — 4x8 GB — 1600 8

4x8 GB 2x8 GB 4x8 GB 2x8 GB 1600 12

3x16 GB — 3x16 GB — 1600 6

4x8 GB 4x4 GB 4x8 GB 4x4 GB 1600 16

4x8 GB 4x8 GB 4x8 GB 4x8 GB 1600 16

4x16 GB — 4x16 GB — 1600 8

4x16 GB 2x16 GB 4x16 GB 2x16 GB 1600 12

4x16 GB 4x8 GB 4x16 GB 4x8 GB 1600 16

Total

the

256 GB

512 GB

1. Rows marked in yellow indicate best performance.

2. 32 GB LRDIMMs run in some cases at a maximum speed of 1333 MHz in 2DPC configurations, even though the specified DIMM speed is higher.

4x16 GB 4x16 GB 4x16 GB 4x16 GB 1600 16

4x32 GB 4x32 GB 4x32 GB 4x32 GB

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

1333

Supported DIMM Populations

The supported DIMM populations are listed in Table 35.

Table 35 Supported DIMM Configurations

SUPPLEMENTAL MATERIAL

Total

Capacity for

2 CPUs

CPU 1 DIMMs

T otal DIMMs

for CPU 1

CPU 1

Capacity

CPU 2 DIMMs

Total DIMMs

for CPU 2

CPU 2

Capacity

1 x 8 GB 1 8 GB 1 x 8 GB 1 8 GB 16 GB

1 x 16 GB 1 16 GB 1 x 16 GB 1 16 GB 32 GB

2 x 4 GB 2 8 GB 2 x 4 GB 2 8 GB 16 GB

4 x 4 GB 4 16 GB 4 x 4 GB 4 16 GB 32 GB

2 x 8 GB 2 16 GB 2 x 8 GB 2 16 GB 32 GB

6 x 4 GB 6 24 GB 6 x 4 GB 6 24 GB 48 GB

8 x 4 GB 8 32 GB 8 x 4 GB 8 32 GB 64 GB

4 x 8 GB 4 32 GB 4 x 8 GB 4 32 GB 64 GB

8 x 4 GB 8 32 GB 8 x 4 GB 8 32 GB 64 GB

1 x 32 GB 1 32 GB 1 x 32 GB 1 32 GB 64 GB

5 x 8 GB 5 40 GB 5 x 8 GB 5 40 GB 80 GB

3 x 16 GB 3 48 GB 3 x 16 GB 3 48 GB 96 GB

6 x 8 GB 6 48 GB 6 x 8 GB 6 48 GB 96 GB

4x8 GB + 4x4 GB 8 48 GB 4x8 GB + 4x4 GB 8 48 GB 96 GB

7 x 8 GB 7 56 GB 7 x 8 GB 7 56 GB 112 GB

4 x 16 GB 4 64 GB 4 x 16 GB 4 64 GB 128 GB

8 x 8 GB 8 64 GB 8 x 8 GB 8 64 GB 128 GB

2 x 32 GB 2 64 GB 2 x 32 GB 2 64 GB 128 GB

5 x 16 5 80 GB 5 x 16 5 80 GB 160 GB

4x16 GB + 4x4 GB 8 80 GB 4x16 GB + 4x4 GB 8 80 GB 160 GB

6 x 16 GB 6 96 GB 6 x 16 GB 6 96 GB 192 GB

4x8 GB + 4x16 GB 8 96 GB 4x8 GB + 4x16 GB 8 96 GB 192 GB

3 x 32 GB 3 96 GB 3 x 32 GB 3 96 GB 192 GB

7 x 16 GB 7 112 GB 7 x 16 GB 7 112 GB 224 GB

8 x 16 GB 8 128 GB 8 x 16 GB 8 128 GB 256 GB

4 x 32 GB 4 128 GB 4 x 32 GB 4 128 GB 256 GB

8 x 32 GB 8 256 GB 8 x 32 GB 8 256 GB 512 GB

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Low-Voltage DIMM Considerations

The C220 M3 server can be ordered with dual-voltage (1.5/1.35 V) DIMMs only. Note the following considerations:

■ Low-voltage DIMMs within the server must have the identical manufacturer, type, speed,

and size.

■ Low-voltage DIMMs and standard-voltage DIMMs can be mixed in the same server. Note that

this causes the system BIOS to default to standard-voltage operation (Performance Mode). That is, the server cannot operate in Power Saving Mode unless all DIMMs are low-voltage DIMMs.

■ CPUs that have a maximum memory frequency less than 1333 MHz support low-voltage

DIMMs operating in Power Saving Mode only, and do not support Performance Mode.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

RAID Details

The available RAID configurations are shown in this section.

(1) 1-CPU Configurations

Mezzanine cards are not supported for 1-CPU configurations, Therefore, only the following RAID controllers are supported for single-CPU configurations. Select one of these:

■ An embedded RAID controller (on motherboard) from Table 6 on page 23

■ One internal drive RAID controller (slot 1 only) from Table 8 on page 24

■ One external drive RAID controller (slot 1 only) from Table 8 on page 24

NOTE: PCIe slot 2 is not supported for 1-CPU configurations

NOTE: In 1-CPU configurations, PCIe slot 1 is the default slot supported for an

internal drive RAID controller. PCIe slots 1 or 2 can be used for one external drive RAID controller or for PCIe expansion cards. You can change the default card slot for a RAID controller to a different slot by going into the BIOS and reconfiguring the option ROM (OPROM) settings.

SUPPLEMENTAL MATERIAL

You may also select an appropriate optional RAID configuration listed in Table 8 on page 24

(2) 2-CPU Configurations

Select one of the following:

■ An embedded RAID controller (on motherboard) from Table 6 on page 23

■ One mezzanine RAID controller from Table 7 on page 23

■ One internal drive RAID controller (slot 2) from Table 8 on page 24

■ One external drive RAID controller (slot 1 or 2) from Table 8 on page 24

■ One mezzanine RAID controller from Table 7 on page 23 and one external drive RAID

controller (slot 1 or 2) from Table 8 on page 24

NOTE: In 2-CPU configurations, PCIe slot 2 is the default slot supported for an

internal drive RAID controller. Slot 1 or slot 2 can be used for one external drive RAID controller or PCIe expansion cards. You can change the default card slot for a RAID controller to a different slot by going into the BIOS and reconfiguring the option ROM (OPROM) settings.

You may also select an appropriate optional RAID configuration listed in Table 8 on page 24

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

RAID Option ROM (OPROM) Settings

The server contains an Option ROM (OPROM) for the PCIe slots. The server has a finite amount of option ROM with which it can boot up devices. Go into the BIOS and disable the OPROM on the PCIe slots not used for booting so that resources are available for the slots that are used for booting. An example OPROM BIOS screen is shown in

Figure 8 Example BIOS Screen for OPROM

Figure 8.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

Serial Port Details

1 2 3 4 5 6 7 8

Serial Port (RJ-45 Female Connector)

Signal

RTS (Request to Send) DTR (Data Terminal Ready) TxD (Transmit Data)

RxD (Receive Data) DSR (Data Set Ready) CTS (Clear to Send)

GND (Signal Ground) GND (Signal Ground)

The pinout details of the rear RJ-45 serial port connector are shown in Figure 9.

Figure 9 Serial Port (Female RJ-45 Connector) Pinout

SUPPLEMENTAL MATERIAL

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Notes . . .

Upgrade and Servicing-Related Parts

This section lists the upgrade and servicing-related parts you may need during the life of your server. Some of these parts are configured with every server, and some may be ordered when needed or may be ordered and kept on hand as spares for future use. See

Table 36 Upgrade and Servicing-related Parts for UCS C220 M3 SFF Server

Spare Product ID (PID) Description

Table 36.

N20-BBLKD=

2.5-inch HDD Blanking Panel

UCSC-CABLE1= Set of two (2) SAS/SATA Cables for C220 M3 SFF (2.5-in)

UCSC-PCIF-01H= PCIe Low Profile blanking panel for UCS C-Series Server

UCSC-PCIF-01F= PCIe Full Height blanking panel for UCS C-Series Server

UCSC-HS-C220M3=

UCSC-AIRBAF-C220=

N20-MBLIBATT=

UCS-RAID-BBU=

Heat Sink for UCS C220 M3 Rack Server

Air Baffle Replacement Kit for C220 M3 Server

Replacement Lithium Battery for Server Motherboard (CR2032)1

Battery Back-Up for 9266

UCS-RAID-CV-SC= LSI CacheVault Power Module for 9266CV-8i, 9271CV-8i, 9285CV-8e and

9286CV-8e

UCSC-PSU-BLKP= Power supply blanking panel/filler for C-Series Servers

UCSC-CMA1= Reversible Cable Management Arm for C220 rack servers

UCSC-RAIL1= Rail Kit for C220 rack servers

UCSC-RAIL1-I=

UCSC-SD-16G-C220=

Inner rail spare for C220

16GB SD Card for C220 Servers

UCS-SD-16G=

Blank SD Card for UCS servers

UCS-USBFLSH-S-4GB= 4GB SLC Flash USB Drive (shorter) for all servers except C260

N20-BKVM=

UCS-CPU-EP-PNP=

UCS-CPU-EP2-PNP=

UCS-CPU-GREASE2=

UCSX-HSCK=

1. This part is included/configured with your UCS server (in some cases, as determined by the configuration of your server).

KVM local IO cable for UCS servers console port

Pick n place CPU tools for M3/EP 10/8/6/4/2 core CPUs (Green)

Pick n place CPU tools for M3/EP v2 12 core CPUs (Purple)

Thermal grease-for 2 CPUs-only for C220/C240-Red tip syringe

UCS Processor Heat Sink Cleaning Kit (when replacing a CPU)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

2. If your server contains an LSI MegaRAID SAS 9266-8i RAID controller card with battery backup (UCS-RAID-9266), the card contains a battery backup unit (UCS-RAID-BBU), which can be replaced. If your server contains an LSI MegaRAID SAS 9266-8i RAID controller card without a battery backup unit (UCS-RAID-9266NB), the card does not contain a battery backup unit (UCS-RAID-BBU); however, you can

retrofit the card with a battery backup if desired. Note that you cannot retrofit a UCS-RAID-9266NB or

UCS-RAID-9266 RAID card with an LSI Cachevault Power Module (also known as a Supercap).

3. You can order a replacement only for the RAID cards listed. You cannot retrofit a UCS-RAID-9266NB or UCS-RAID-9266 RAID card with an LSI Cachevault Power Module (also known as a Supercap)

4. The server is shipped with the inner rail attached to the chassis.

5. This SD card is preloaded with an image specific to the C220 server.

6. This SD card is blank. The required image for the C220 server can be downloaded to the card.

7. This part is included/configured with the server chassis.

8. This part is included with the purchase of each optional or spare Intel Xeon E5-2600 CPU processor kit.

9. This part is included with the purchase of each optional or spare Intel Xeon E5-2600 v2 CPU processor kit.

Drive Blanking Panels

A drive blanking panel (N20-BBLKD=) must be installed if you remove a disk drive from a UCS server. These panels are required to maintain system temperatures at safe operating levels, and to keep dust away from system components.

Upgrading your Server from Intel Xeon E5-2600 to Intel Xeon E5-2600 v2 CPUs (or downgrading from Intel Xeon E5-2600 v2 to Intel Xeon E5-2600 CPUs)

See the following link:

http://www.cisco.com/en/US/docs/unified_computing/ucs/hw/CPU/IVB/install/IVB-B.html

Adding an Additional CPU (with CPU heat sink)

All Cisco UCS two CPU socket-capable servers can be upgraded from having one to having two CPUs configured. You will need to order and install a heat sink when adding any additional CPU to a server. Instructions for installing the new CPU and heat sink can be found at the following link:

http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C220/install/replace.html#wp1233864

Motherboard Lithium Battery

You can order a replacement motherboard battery. Installation instructions are found at this link:

http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C220/install/replace.html#wp1235772

CPU Removal and Installation (“pick n place”) Tool Set

The Pick n Place tool set includes two tools:

■ Pick and pull cap tool - used to pull off the plastic protective cap covering an empty CPU socket and

to remove or lift a CPU processor without touching it

■ Pick and place tool - used to install a CPU in its socket without damage. Must be used each time a

CPU is installed in a UCS “M3” server.

Instructions for using this tool set are found at the following link:

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C220/install/replace.html#wp1233864

NOTE: When you purchase a spare CPU, the Pick n Place Toolkit is included.

Thermal Grease (with syringe applicator) for CPU to Heatsink Seal

Thermal grease must be applied to the top of the CPU where it comes in contact with the heat sink. Instructions for applying thermal grease are found at:

http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C220/install/replace.html#wp1233864

CAUTION: Use only the thermal grease specified for this server (UCS-CPU-GREASE2=). This thermal grease comes in a red-tipped syringe and is to be used only in the C220 M3 and C240 M3 servers. Other servers use thermal grease in a blue-tipped syringe (UCS-CPU-GREASE=).

Thermal grease for other systems may have different thermal conductivity properties and may cause overheating if used in the C220 M3 or C240 M3 servers.

DO NOT use thermal grease available for purchase at any commercial electronics store. If these instructions are not followed, the CPU may overheat and be destroyed.

NOTE: When you purchase a spare CPU, the thermal grease with syringe applicator

is included.

Air Baffle Replacement Kit

Air baffles are designed to direct airflow through the server to maintain server temperature at a safe operating level. These baffles must always remain installed during server operation. The Air Baffle

Replacement Kit includes the air baffles needed for one UCS C220 M3 server.

CPU Heat Sink Cleaning Kit

The cleaning kit is used to remove the existing thermal compound from the bottom of the heat sink during a CPU replacement process. Instructions for cleaning are found at the following link:

http://www.cisco.com/en/US/docs/unified_computing/ucs/c/hw/C220/install/replace.html#wp1233864

NOTE: When you purchase a spare CPU, the CPU cleaning kit is included.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

RACKS

The Cisco R42610 rack (see Figure 10) is certified for Cisco UCS installation at customer sites and is

suitable for the following equipment:

■ Cisco UCS B-Series servers and fabric interconnects

■ Cisco UCS C-Series and select Nexus switches

The rack is compatible with hardware designed for EIA-standard 19-inch racks. Rack specifications are listed in

Table 37 Cisco R42610 Rack Specifications

Parameter Standard Rack Expansion Rack

Table 37.

Dimensions (H x W x D) 78.74 x 24 x 43.38 in.

(2000 x 610 x 1102 mm)

Dimensions (H x W x D) with packaging

Distance from front

89 x 33 x 47 in. (2261 x 838 x 1194 mm)

29.2 in (741 mm) 29.2 in (741 mm)

78.74 x 23.58 x 43.38 in. (2000 x 599 x 1102 mm)

89 x 33 x 47 in. (2261 x 838 x 1194 mm)

mounting rail to rear mounting rail

Weight 299.83 lb (136 kg) 231. 49 lb (105 kg)

Weight with packaging 354 lb

(161 kg)

284 lb (129 kg)

Side panels included Ye s No

Equipment mounting

42RU 42RU

capacity

Static load capacity 2100 lb

(954 kg)

2100 lb (954 kg)

Dynamic load capacity Not applicable Not applicable

NOTE: The AC input connector is an IEC 320 C-14 15 A/250 VAC power inlet.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

Front view - door closed Front view - door open Front view - door removed

Figure 10 Cisco R42610 Rack

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

PDUs

Cisco RP Series Power Distribution Units (PDUs) offer power distribution with branch circuit protection.

Cisco RP Series PDU models distribute power to up to 24 outlets. The architecture organizes power distribution, simplifies cable management, and enables you to move, add, and change rack equipment without an electrician.

With a Cisco RP Series PDU in the rack, you can replace up to two dozen input power cords with just one. The fixed input cord connects to the power source from overhead or under-floor distribution. Your IT equipment is then powered by PDU outlets in the rack using short, easy-to-manage power cords.

The C-series severs accept the zero-rack-unit (0RU) PDU. See Figure 11).

Figure 11 Zero Rack Unit PDU (PID = RP208-30-2P-U-2)

1 Breakers 3 C19 plugs 2 Ground connection 4 C13 plugs

Cisco RP Series PDU models provide two 20-ampere (A) circuit breakers for groups of receptacles. The effects of a tripped circuit are limited to a receptacle group. Simply press a button to reset that circuit.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

KVM CABLE

The KVM cable provides a connection into the server, providing a DB9 serial connector, a VGA connector for a monitor, and dual USB ports for a keyboard and mouse. With this cable, you can create a direct connection to the operating system and the BIOS running on the server.

The KVM cable ordering information is listed in Table 38.

Table 38 KVM Cable

Product ID (PID) PID Description

N20-BKVM KVM cable for B-Series Blade Server console port

Figure 12 KVM Cable

1 Connector (to server front panel) 3 VGA connector (for a monitor) 2 DB-9 serial connector 4 Two-port USB connector (for a mouse and

keyboard)

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

SUPPLEMENTAL MATERIAL

FAN1FAN1FAN1

FAN2

FAN2FAN2

FAN3

FAN3FAN3

FAN4FAN4

FAN5

FAN5FAN5

PSU2

PCIe1

PCIe2

PSU1

CPU1

CPU2

SAS1

SAS2

SAS1

SAS2

331714

Motherboard USB and SD Ports, and RAID Card Backup Location

The C220 M3 SFF motherboard has a general-purpose USB socket, and two SD sockets as shown in Figure 13.

The mounting location for the RAID SuperCap data cache power backup module is also shown.

Figure 13 Motherboard USB and SD Ports and RAID Card Super Capacitor Location

1 SD1 socket 3 USB connector 2 SD2 socket 4 SuperCap module mounting location

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

TECHNICAL SPECIFICATIONS

Dimensions and Weight

Table 39 UCS C220 M3 Dimensions and Weight

Parameter Value

Height 1.7 in. (4.32 cm)

Width 16.92 in.(43.0 cm)

Depth 28.5 in. (72.4cm)

Front Clearance 3 in. (76 mm)

Side Clearance 1 in. (25 mm)

Rear Clearance 6 in. (152 mm)

Weight

Maximum (8 HDDs, 2 CPUs, 16 DIMMs, 2 power supplies) 35.6 lbs (16.2 kg)

Minimum (1 HDD, 1 CPU, 1 DIMM, 1 power supply) 26.8 lbs (12.1 kg)

Bare (0 HDD, 0 CPU, 0 DIMM, 1 power supply) 22 lbs (10 kg)

Power Specifications

The general power specifications for the C220 M3 SFF server 450 W (AC) power supply are listed in

Table 40.

Table 40 UCS C220 M3 SFF 450 W Power Supply Specifications

Description Specification

AC input voltage 90 to 264 VAC self-ranging,

100 to 120 VAC nominal

200 to 240 VAC nominal

AC input frequency Range: 47 to 63 Hz (single phase, 50 to 60 Hz nominal)

Maximum AC input current 6.0 A peak at 100 VAC

3.0 A peak at 208 VAC

Maximum AC inrush current 11 A

Maximum output power for each power supply

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

450 W

TECHNICAL SPECIFICATIONS

Table 40 UCS C220 M3 SFF 450 W Power Supply Specifications (continued)

Description Specification

Power supply output voltage Main power: 12 VDC

Standby power: 12 VDC

Power supply efficiency CSCI Platinum

NOTE: AC input connector is an IEC 320 C-14 15A/250VAC power inlet.

The general power specifications for the C220 M3 SFF server 650 W (AC) power supply are listed in

Table 41.

Table 41 UCS C220 M3 SFF 650 W AC Power Supply Specifications

Description Specification

AC input voltage 90 to 264 VAC self-ranging,

100 to 120 VAC nominal

200 to 240 VAC nominal

AC input frequency Range: 47 to 63 Hz (single phase, 50 to 60 Hz nominal)

Maximum AC input current 7.6 A peak at 100 VAC

3.65 A peak at 208 VAC

Maximum AC inrush current 11 A

Maximum output power for the

650 W

power supply

Power supply output voltage Main power: 12 VDC

Standby power: 12 VDC

Power supply efficiency CSCI Platinum

NOTE: AC input connector is an IEC 320 C-14 15A/250VAC power inlet.

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

TECHNICAL SPECIFICATIONS

The general power specifications for the C220 M3 SFF server 930 W (DC) power supply are listed in Table 42

Table 42 UCS C240 M3 SFF Power Specifications 930 W DC power supply)

Description Specification

Class ■ RSP1

Input

DC input voltage range ■ 40 to 72 VDC (self-ranging, 48 to 60 VDC nominal)

DC line input current (steady state) ■ 23 A peak at 48 VDC

Output

12 V main power output ■ 930 W

12 V standby power output ■ 30 W

Power supply output voltage ■ Main power: 12 VDC

■ Standby power: 12 VDC

Rated output load ■ 2.5 A minimum (within 40 - 72 VDC range)

For configuration-specific power specifications, use the Cisco UCS Power Calculator at this URL:

https://express.salire.com/Go/Cisco/Cisco-UCS-Power-Calculator.aspx

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

Environmental Specifications

The power specifications for the C220 M3 server are listed in Table 43.

Table 43 UCS C220 M3 Environmental Specifications

Parameter Minimum

Temperature operating 41 to 104° F (5 to 40° C)

derate the maximum temperature by 1°C per every 305m of altitude above sea level

Temperature nonoperating –40 to 149°F (–40 to 65°C)

TECHNICAL SPECIFICATIONS

Humidity (RH) nonoperating, non-condensing

Altitude operating 0 to 3,000 m (0 to 10,000 ft.)

Altitude nonoperating 0 to 12,192 m (0 to 40,000 ft.)

Sound Power level, Measure A-weighted per ISO7779 LWAd (Bels) Operation at 73°F (23°C)

Sound Pressure level, Measure A-weighted per ISO7779 LpAm (dBA) Operation at 73°F (23°C)

10 to 90%

5.4

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

TECHNICAL SPECIFICATIONS

Compliance Requirements

The regulatory compliance requirements for C-Series servers are listed in Table 44.

Table 44 UCS C-Series Regulatory Compliance Requirements

Parameter Description

Regulatory Compliance Products should comply with CE Markings per directives

2004/108/EC and 2006/95/EC

Safety UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 GB4943 2001

EMC - Emissions 47CFR Part 15 (CFR 47) Class A

AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A

EMC - Immunity EN55024

CISPR24 EN300386 KN24

Cisco UCS Cisco UCS C220 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)

Cisco Systems A03D600GA2 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual

OVERVIEW

DETAILED VIEWS

Chassis Front View

Chassis Rear View

BASE SERVER STANDARD CAPABILITIES and FEATURES

CONFIGURING the SER VER

OPTIONAL STEP - ORDER RACK(s)

OPTIONAL STEP - ORDER PDU

SUPPLEMENTAL MATERIAL

CHASSIS

CPUs and DIMMs

Physical Layout

Memory Population Rules

DIMM Population Order

Recommended Memory Configuration

Supported DIMM Populations

Low-Voltage DIMM Considerations

RAID Details

RAID Option ROM (OPROM) Settings

Serial Port Details

Upgrade and Servicing-Related Parts

Drive Blanking Panels

Upgrading your Server from Intel Xeon E5-2600 to Intel Xeon E5-2600 v2 CPUs (or downgrading from Intel Xeon E5-2600 v2 to Intel Xeon E5-2600 CPUs)

Adding an Additional CPU (with CPU heat sink)

Motherboard Lithium Battery

CPU Removal and Installation (“pick n place”) Tool Set

Thermal Grease (with syringe applicator) for CPU to Heatsink Seal

Air Baffle Replacement Kit

CPU Heat Sink Cleaning Kit

RACKS

PDUs

KVM CABLE

Motherboard USB and SD Ports, and RAID Card Backup Location

TECHNICAL SPECIFICATIONS

Dimensions and Weight

Power Specifications

Environmental Specifications

Compliance Requirements
