Cisco Video Surveillance 7030 IP Camera
Installation Guide
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
Text Part Number: OL-28692-01
NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1005R)
Cisco Video Surveillance 7030 IP Camera Installation Guide
Obtaining Documentation, Obtaining Support, and Security Guidelinesv
CHAPTER
CHAPTER
CHAPTER
CHAPTER
1Overview1-1
Introduction1-1
Package Contents1-2
IP Camera Physical Details1-3
General Purpose I/O Terminal Block1-5
2Camera Installation2-1
Installation Guidelines2-1

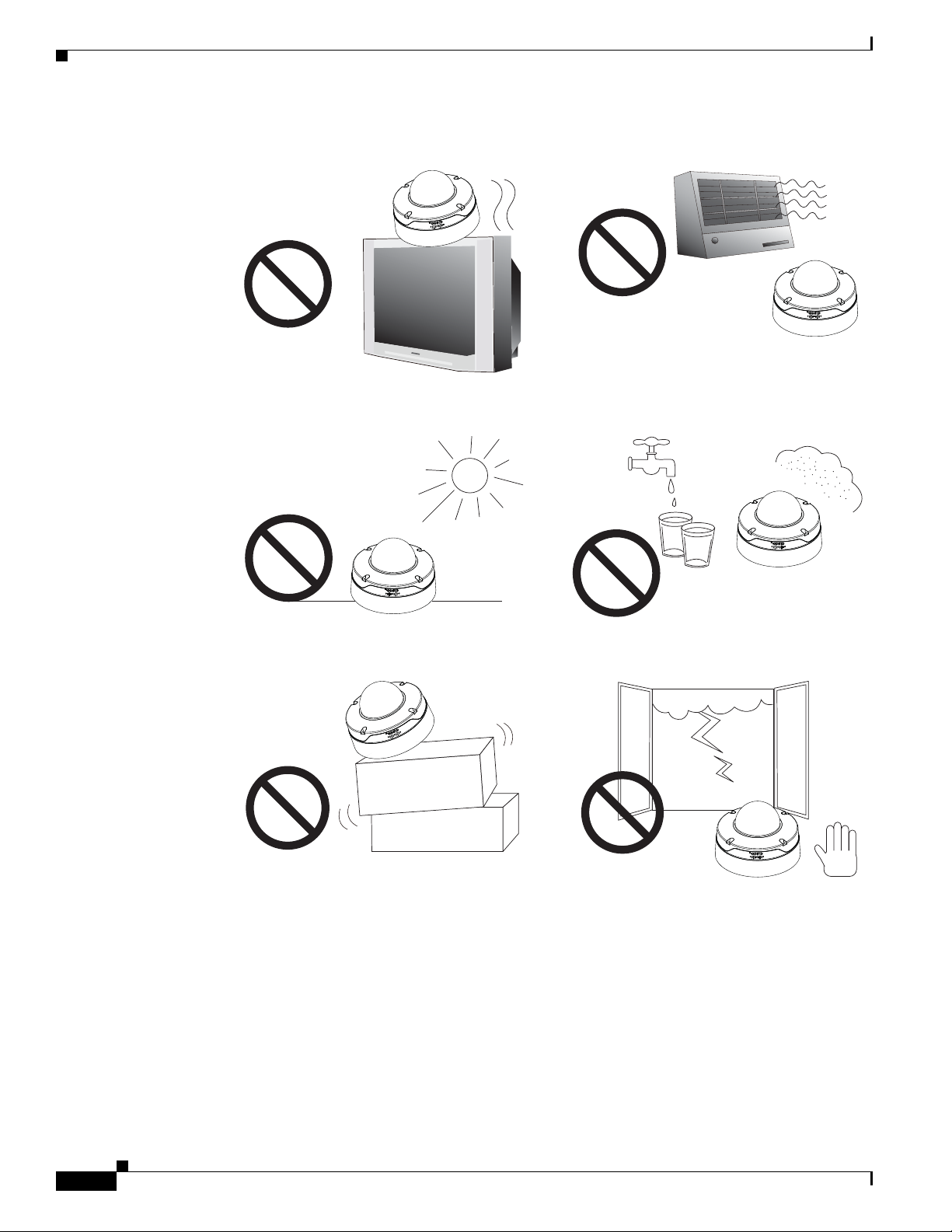

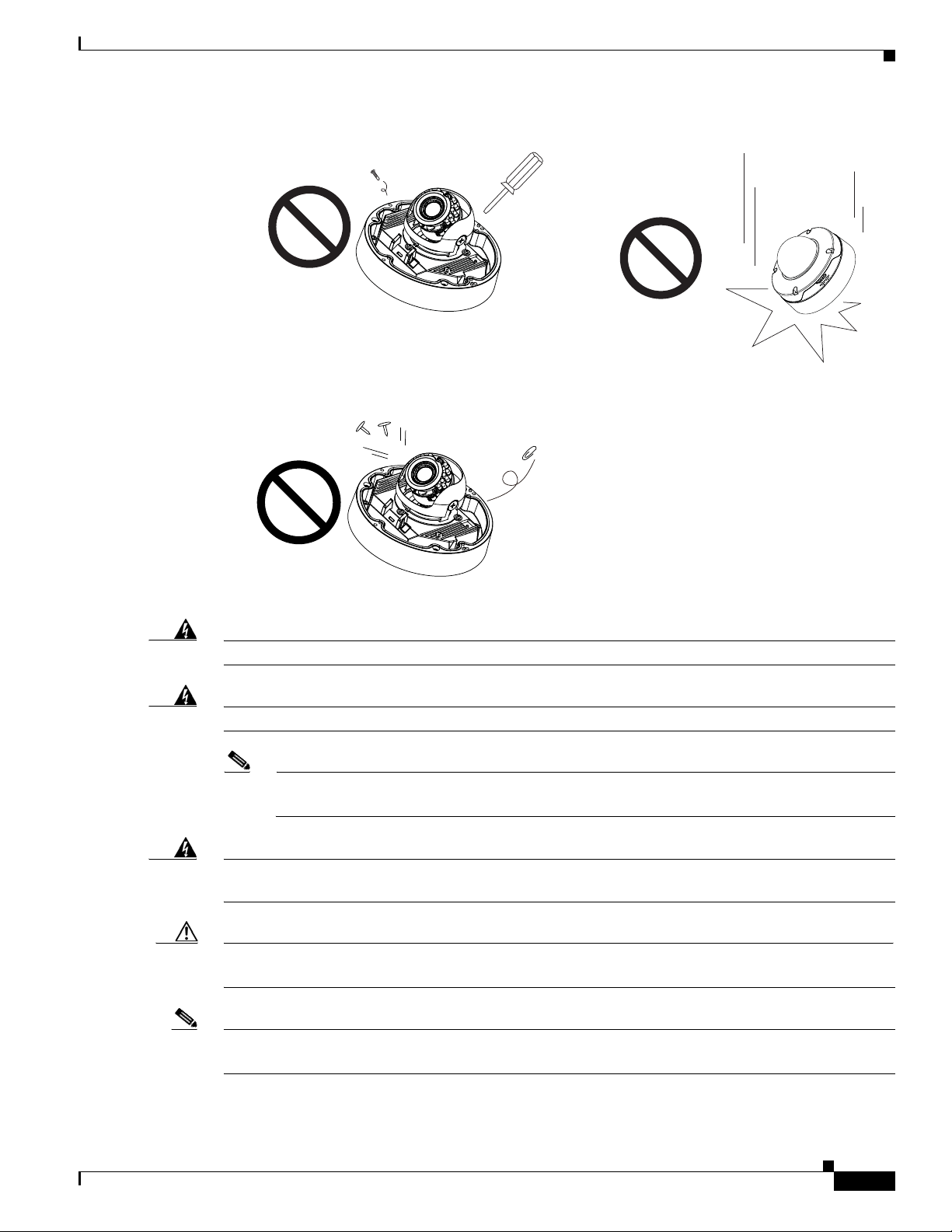

Warnings Before Installation 2-1

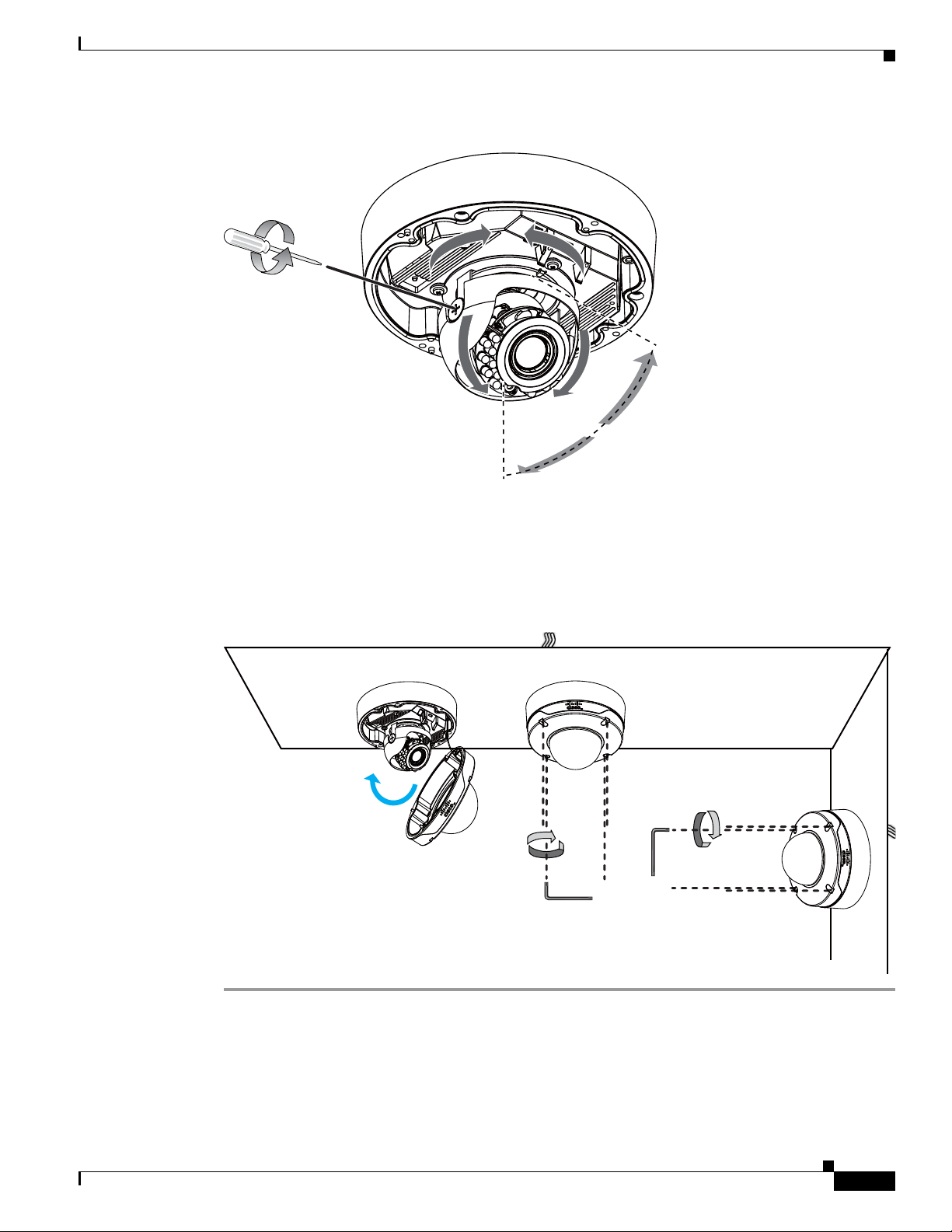

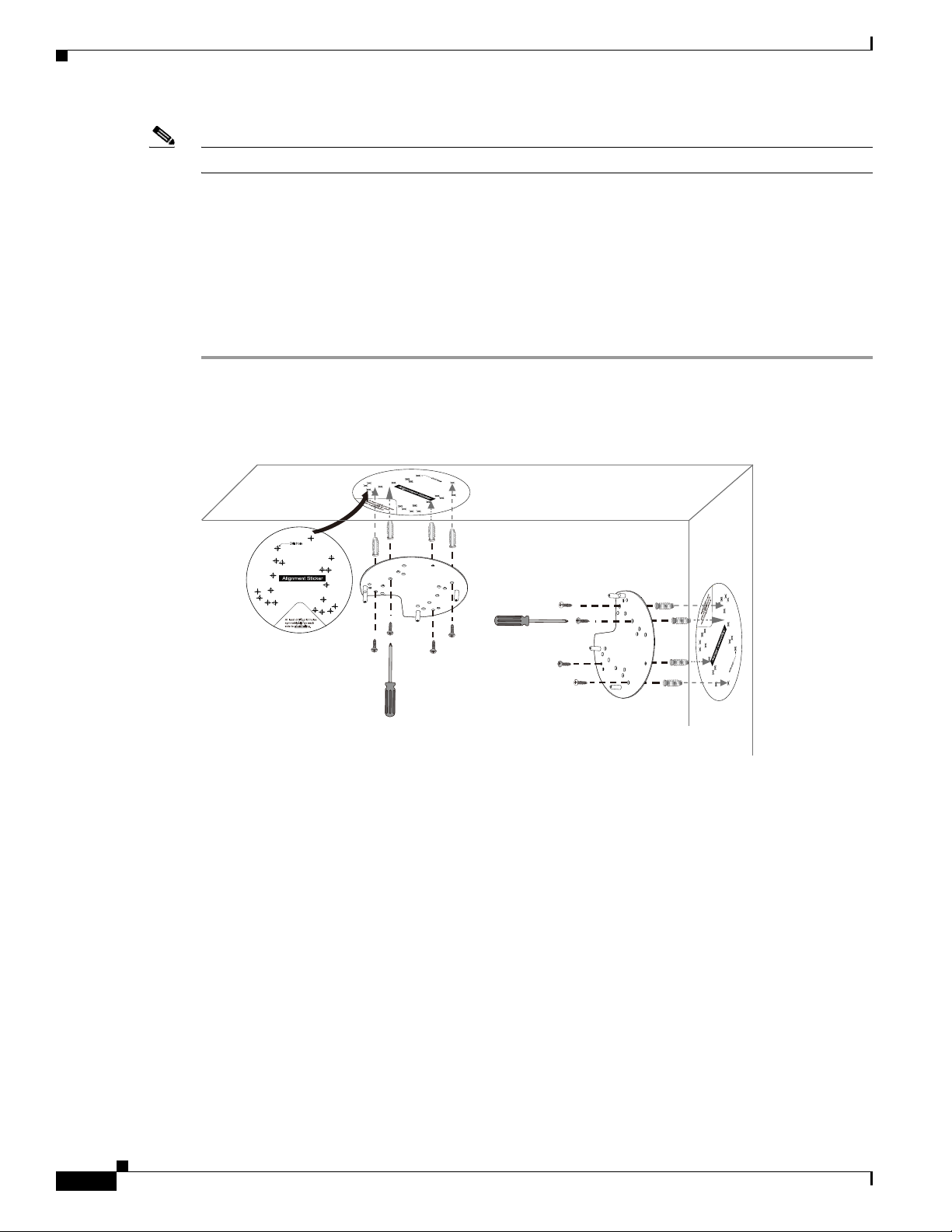

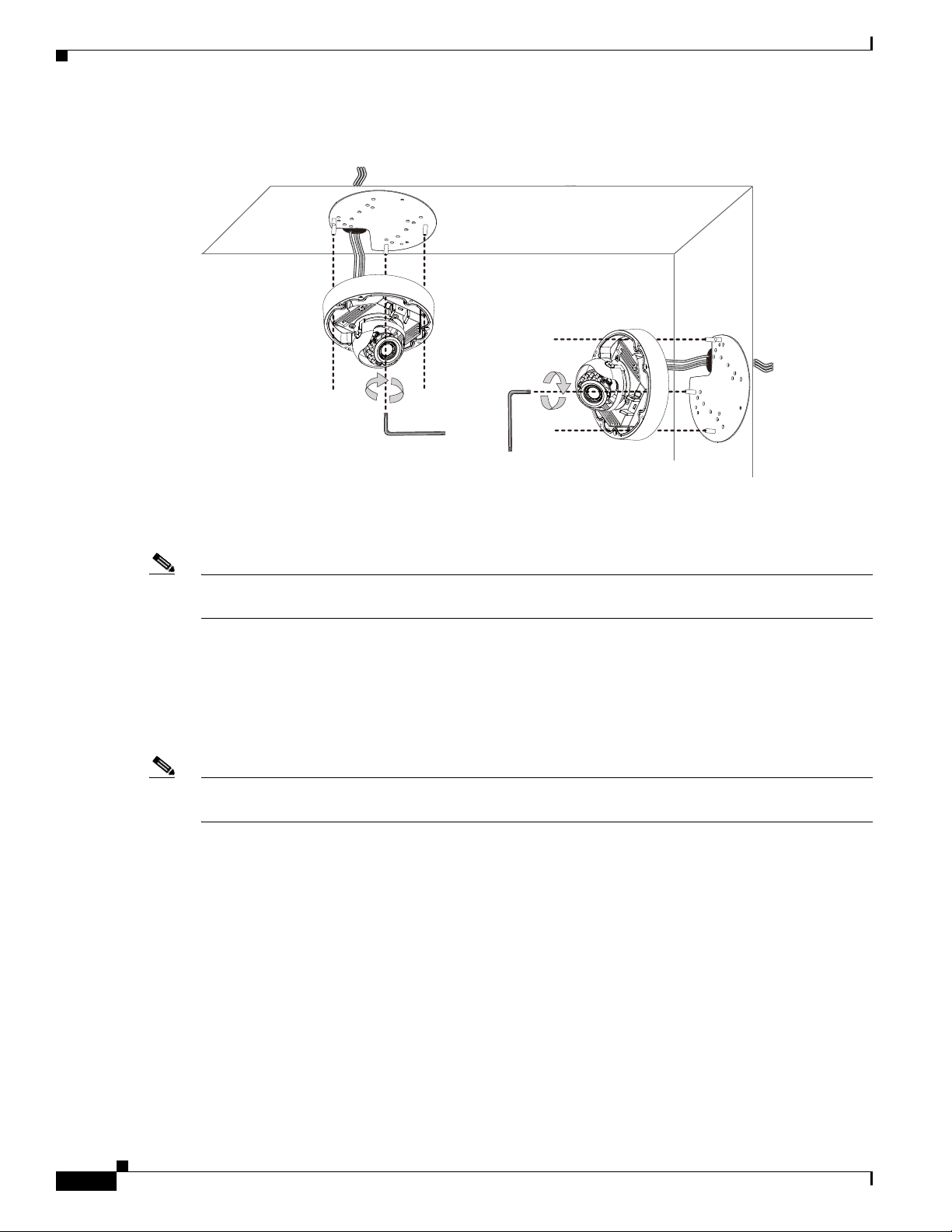

Installing the IP Camera with a Vandal Resistant Enclosure2-4
3Performing the Initial Setup of the IP Camera3-1
4Camera Management4-1
Understanding the IP Camera User Interface4-1
IP Camera Window Links4-1

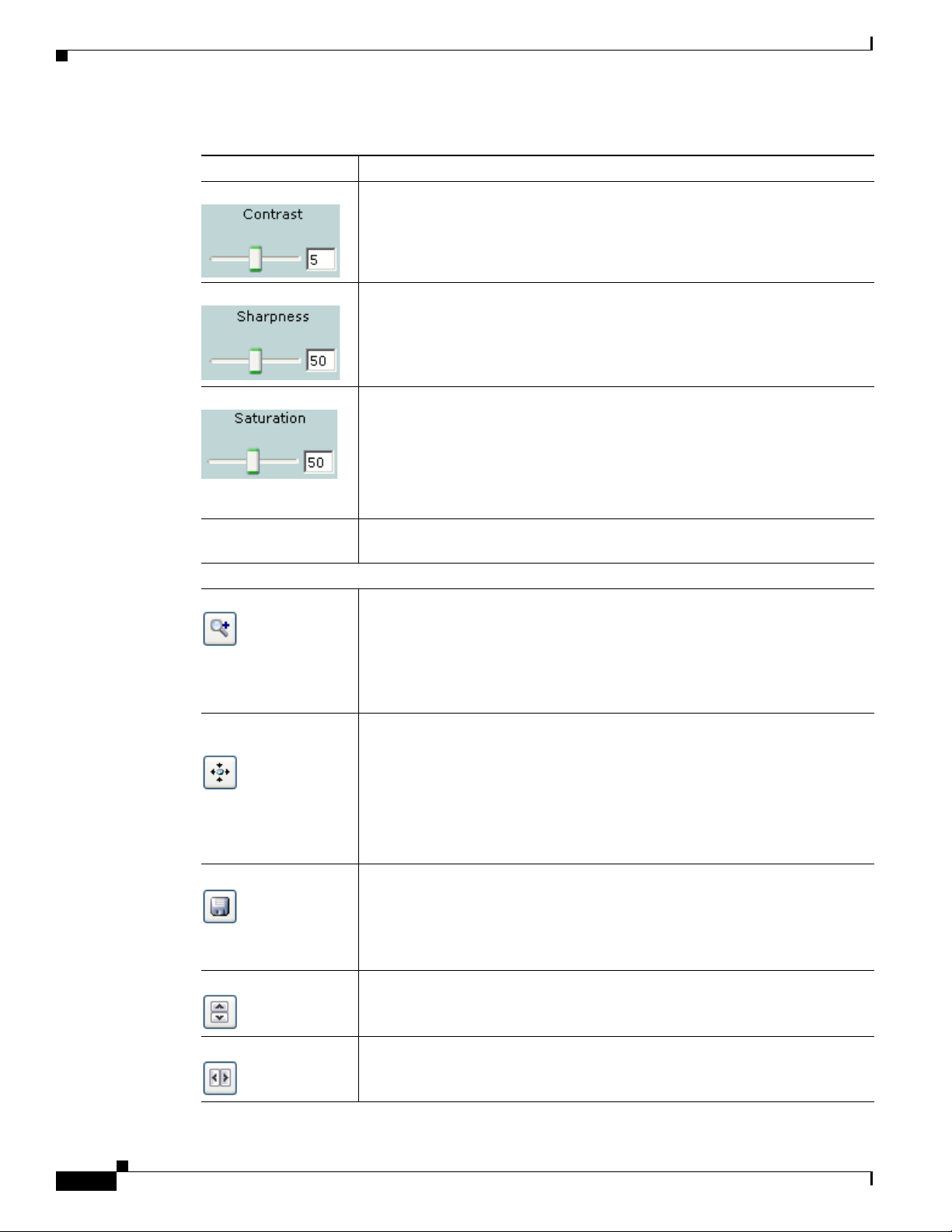

IP Camera Windows4-2
I
NDEX
OL-28692-01
Adjusting the IP Camera Focus and Zoom4-3
Powering the IP Camera On or Off4-4
Resetting the IP Camera4-4

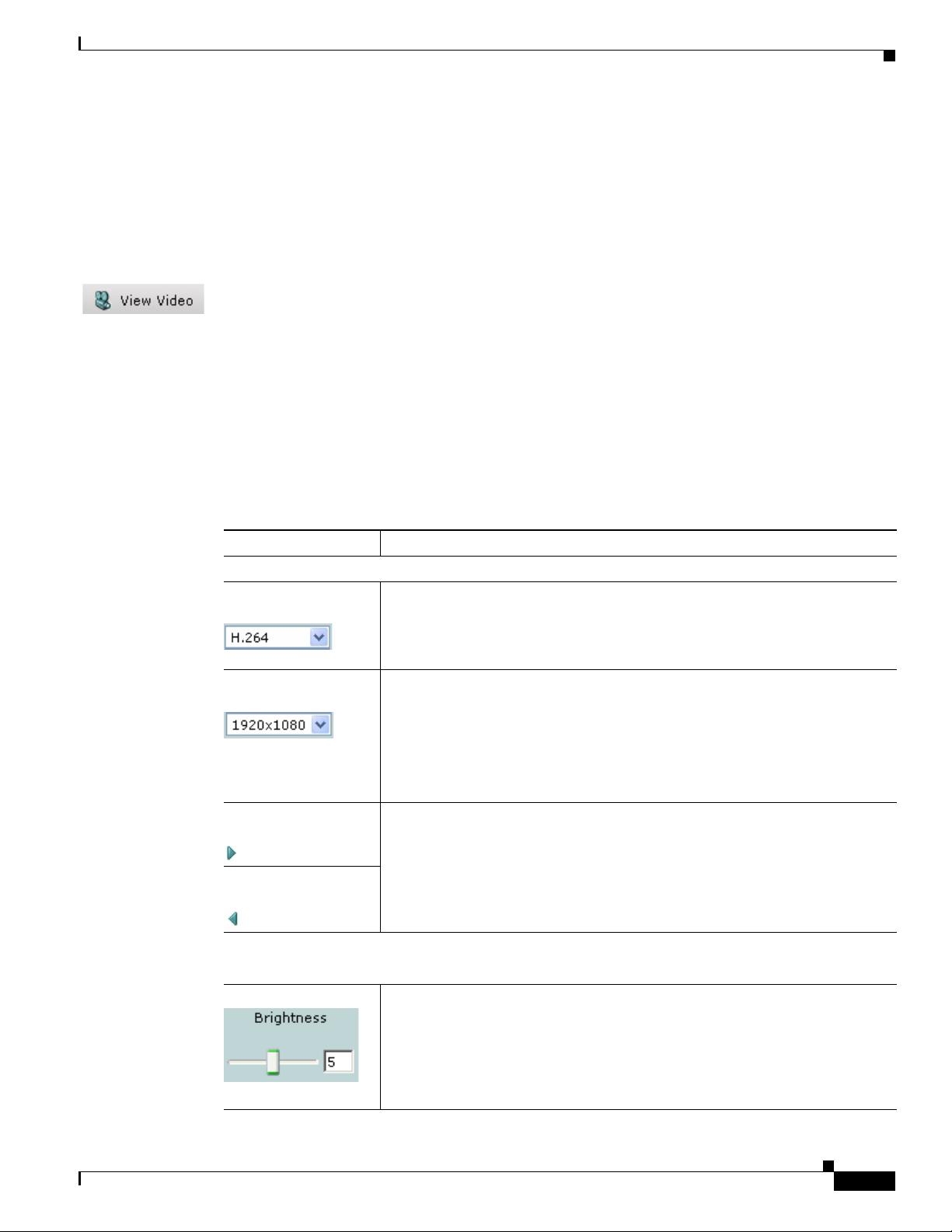

Viewing Live Video4-5
Cisco Video Surveillance 7030 IP Camera Installation Guide
iii
Contents
iv
Cisco Video Surveillance 7030 IP Camera Installation Guide
OL-28692-01
Preface
Overview
This document, Cisco Video Surveillance 7030 IP Camera Installation Guide, provides information
about installing and deploying the Cisco Video Surveillance 7030 IP Camera.
Organization
This manual is organized as follows:
Chapter 1, “Overview”Provides an overview of the IP camera and its features.
Chapter 2, “Camera Installation”Provides instructions for physically installing the IP camera.
Chapter 3, “Performing the Initial
Setup of the IP Camera”
Chapter 4, “Camera Management”Provides instructions for accessing and understanding the
Provides instructions for performing the initial network setup of
the IP camera.
IP
camera user interface, adjusting its focus and, powering the IP
camera on and off, and resetting the IP camera.
Obtaining Documentation, Obtaining Support, and Security
Guidelines
For information about obtaining documentation, submitting a service request, and gathering additional
information, see the monthly What’s
revised Cisco
Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed
and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free
service and Cisco currently supports RSS version 2.0.
technical documentation, at:
New in Cisco Product Documentation, which also lists all new and
OL-28692-01
Cisco Video Surveillance 7030 IP Camera Installation Guide
v
Preface
vi
Cisco Video Surveillance 7030 IP Camera Installation Guide
OL-28692-01
Introduction
CHAP T E R
1
Overview
This chapter describes the Cisco Video Surveillance 7030 IP Camera, and includes the following topics:
•Introduction, page 1-1
•Package Contents, page 1-2
•IP Camera Physical Details, page 1-3
The Cisco Video Surveillance 7030 IP camera is an outdoor, high definition, professional fixed dome
IP
camera with industry-leading image quality and processing power. The 5 megapixel (MP) IP camera
offers 1080p full HD resolution (up to 2560 x 1920) with superb image quality up to 30 frames per
second (FPS) while optimizing network usage with either H.264 or MJPEG compression. It can capture
a much more comprehensive area than a standard VGA model, significantly reducing the number of units
required. It is especially suitable for monitoring wide open outdoor areas such as building entrances,
airports, or applications requiring accurate identification.
For installers, properly adjusting the focus of an HD IP camera can be difficult due to the image detail.
To make installation and adjustment easier, the 7030 IP camera incorporates built-in stepping motors that
the installer can use to remotely control the focal length and precisely adjust the camera focus, offering
hassle-free installation and maintenance.
OL-28692-01
For complete installation and tampering prevention, the 7030 IP camera also fits different conduits and
corrugated tubes sizes for cable installation. Its IP66-rated housing is designed to help the camera body
withstand rain and dust and ensures operation under a multitude of harsh weather conditions. The wide
temperature range further enhances the 7030 IP camera performance and reliability in extremely cold
and warm weather. Additionally, the metal vandal-proof housing effectively provides robust protection
from vandalism.
With other advanced features such 802.3af compliant PoE, micro SD/SDHC card for local storage,
integrated IR illuminator for enhanced visibility in night mode, and e-PTZ functionality, the 7030 IP
camera provides the most robust solution suitable for any demanding outdoor environment.
Cisco Video Surveillance 7030 IP Camera Installation Guide
1-1
Package Contents
Package Contents
The Cisco Video Surveillance IP Camera package includes the following items:
•Cisco Video Surveillance 7030 IP Camera (1)
•Installation template and alignment sticker (1)
•Mounting plate (1)
•Black cover (1)
•Bushing (1)
•Waterproof connector (1)
•L type hex key (allen wrench) (1)
•Screws (t4x32) (4)
•Wall anchors (4)
•Hex nut (1)
•Double sided tape (1)
Chapter 1 Overview
•Silica gel (1)
•Extra set of labels (3)
•Cisco documentation pointer card (1)
•Cisco RoHS document (1)
1-2
Cisco Video Surveillance 7030 IP Camera Installation Guide
OL-28692-01
Chapter 1 Overview
IP Camera Physical Details
Figure 1-1 and the table that follows describe the physical features of the 7030 IP camera.
Figure 1-1IP Camera Physical Features
IP Camera Physical Details
1
2
3
4
5
6
7
8
1011
9
1Var if oc al le nsIP camera lens that changes focus as the focal length changes.
2IR LEDsInfrared illuminator LEDs that enhance the video image
3Black coverA dark cover with a cutout for the camera lens that makes it
12
(effective up to 60 ft. [20 m]) when the IP camera is running in
night mode.
difficult to see where the IP camera is pointed.
NoteYou must temporarily remove the black cover when
adjusting the camera field of view.
OL-28692-01
Cisco Video Surveillance 7030 IP Camera Installation Guide
1-3
IP Camera Physical Details
4Tilt adjustment screwUsed when tilting the camera to set the field of view.
5Light sensorSenses the level of ambient light to determine when to switch
6Recessed reset buttonRecessed button that reboots the IP camera or resets it to a
7External microphone and
video output switches
Chapter 1 Overview
day/night mode.
default state. You can use a pin or paper clip to depress it. It can
be used any time that the IP camera is on and can have various
effects, as described in the “Resetting the IP Camera” section
on page 2-11.
External microphone
•Off (up)—disables an external microphone connected to
the IP camera.
•On (down)—enables an external microphone connected to
the IP camera.
NoteThere is no internal microphone. You must connect an
external microphone if you require audio inputs.
Video output
•NTSC 60Hz (up)—switches camera operation to the
National Television System Committee (NTSC) standard.
•PAL 50Hz (down)—switches camera operation to the
Phase Alternating Line (PAL) standard.
8Micro SD/SDHC card slotSupport for the SD/SDHC card slot will be available in future
releases.
9Audio/Video out (green)Allows the connection of an optional Y cable or mini cable with
BNC connector. You can connect a video monitor to the mini
cable with BNC connector. Both cables are included in the
optional audio/video cables accessory kit can be purchased
from Cisco (Cisco part number CIVS-AVCABLE).
NoteSupport for audio will be in future releases.
10 Microphone In (pink)Connection for an external microphone.
11 Ethernet 10/100 RJ45 socketAccepts a standard LAN cable to connect the IP camera to a
10/100BaseT router or switch.
12 GPIO BlockGeneral purpose input/output (GPIO) terminal block that is
used to connect external input and output devices. For more
information, see
Figure 1-2.
1-4
Cisco Video Surveillance 7030 IP Camera Installation Guide
OL-28692-01
Chapter 1 Overview
87654321
General Purpose I/O Terminal Block

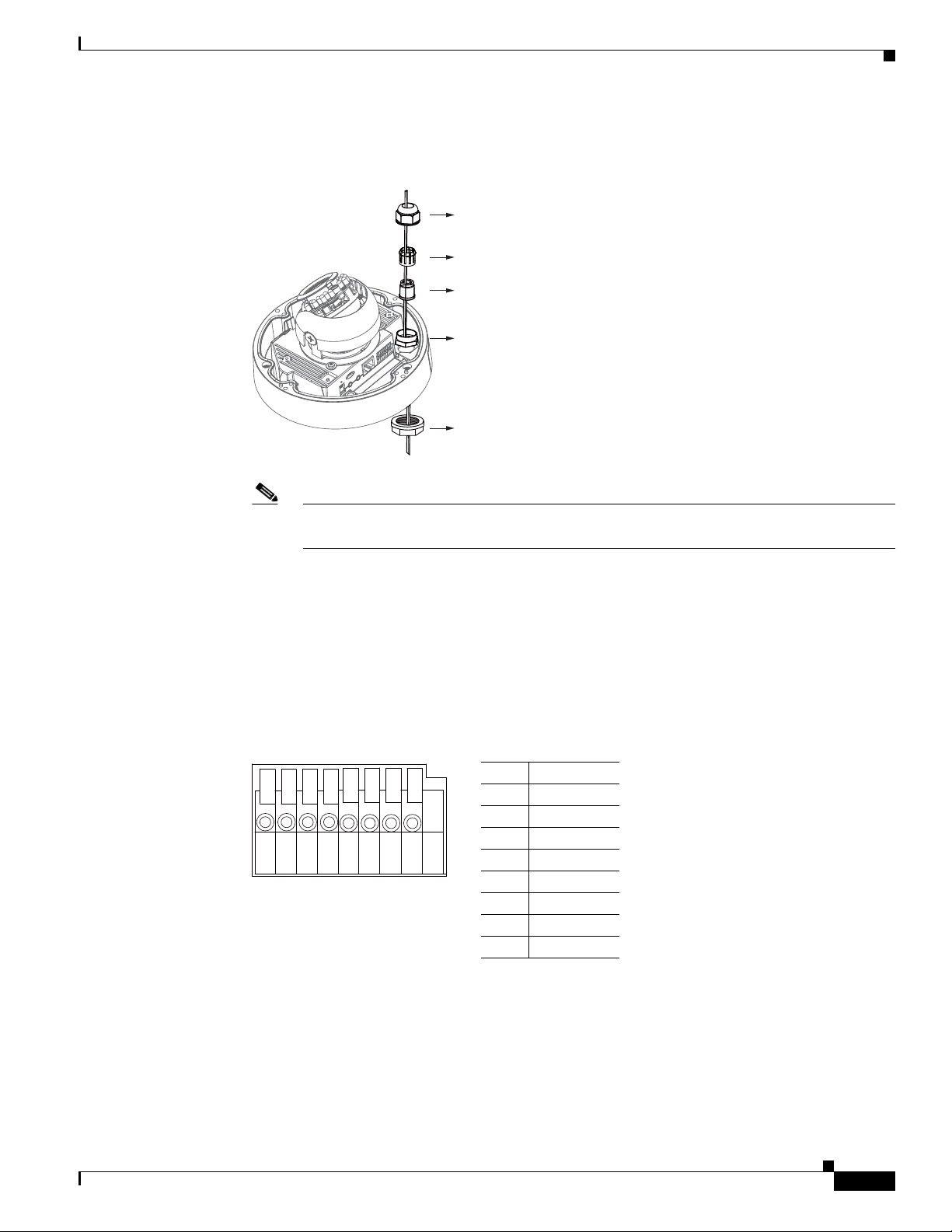

Figure 1-2 shows the GPIO terminal block pin locations and descriptions.
Figure 1-2GPIO Terminal Block Pin Locations and Descriptions
PinDescription
124 VAC
224 VAC
3DI-
4DI3+
5DI2+
6DI1+
7DO-
8DO+
General Purpose I/O Terminal Block
NoteThe maximum output load from pins 7 and 8 is 50mA.
OL-28692-01
Cisco Video Surveillance 7030 IP Camera Installation Guide
1-5
