Catalyst 6500 Series Ethernet Modules Installation Guide

IMPLIED, INCLUDING, WITHOUT

Preface v

Audience v

Organization v

Conventions vi

Statement 1071—Warning Definition viii

Related Documentation

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What’s revised Cisco

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS

technical documentation, at:

New in Cisco Product Documentation, which also lists all new and

Ve rs i on 2.0.

Preface

Catalyst 6500 Series Ethernet Modules Installation Guide

xiv

OL-6265-03

CHA PTER

1

Catalyst 6500 Series Switch Chassis Overview

This chapter describes the Catalyst 6500 series switches and contains these sections:

• Catalyst 6503 Switch, page 1-2

• Catalyst 6503-E Switch, page 1-7

• Catalyst 6504-E Switch, page 1-11

• Catalyst 6506 Switch, page 1-15

• Catalyst 6506-E Switch, page 1-20

• Catalyst 6509 Switch, page 1-25

• Catalyst 6509-E Switch, page 1-30

• Catalyst 6509-NEB Switch, page 1-35

• Catalyst 6509-NEB-A Switch, page 1-40

• Catalyst 6509-V-E Switch, page 1-45

• Catalyst 6513 Switch, page 1-49

• Catalyst 6513-E Switch, page 1-54

Note Throughout this publication, except where noted, the term supervisor engine is used to refer to

Supervisor Engine 2, Supervisor Engine 32, and Supervisor Engine 720.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-1

Catalyst 6503 Switch

The Catalyst 6503 switch is a 3-slot horizontal chassis. Figure 1-1 shows the front view of the chassis and Figure 1-2 shows the rear view of the chassis. Tab le 1-1 provides a description of the major switch features. Ta ble 1-2 lists specifications of the Catalyst 6503 switch chassis.

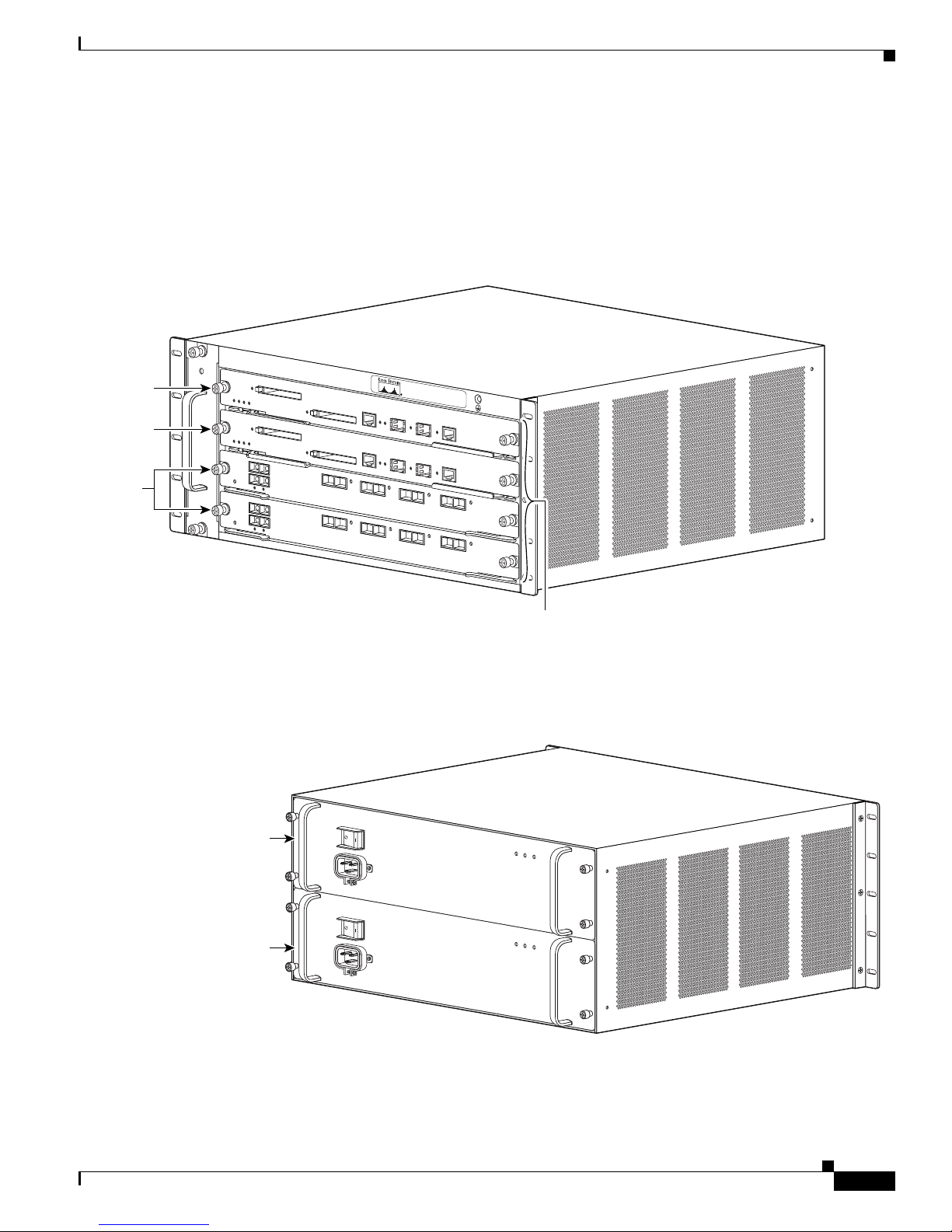

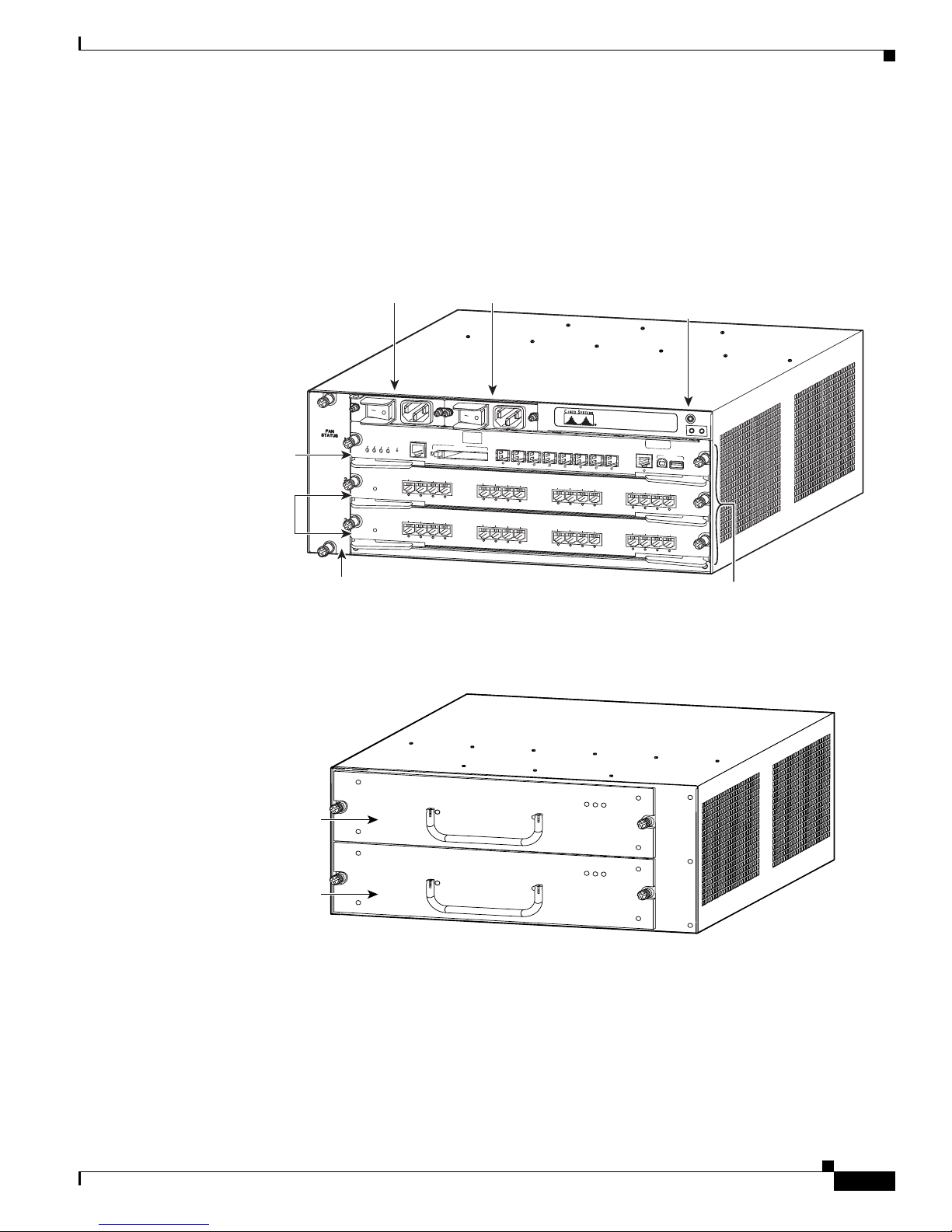

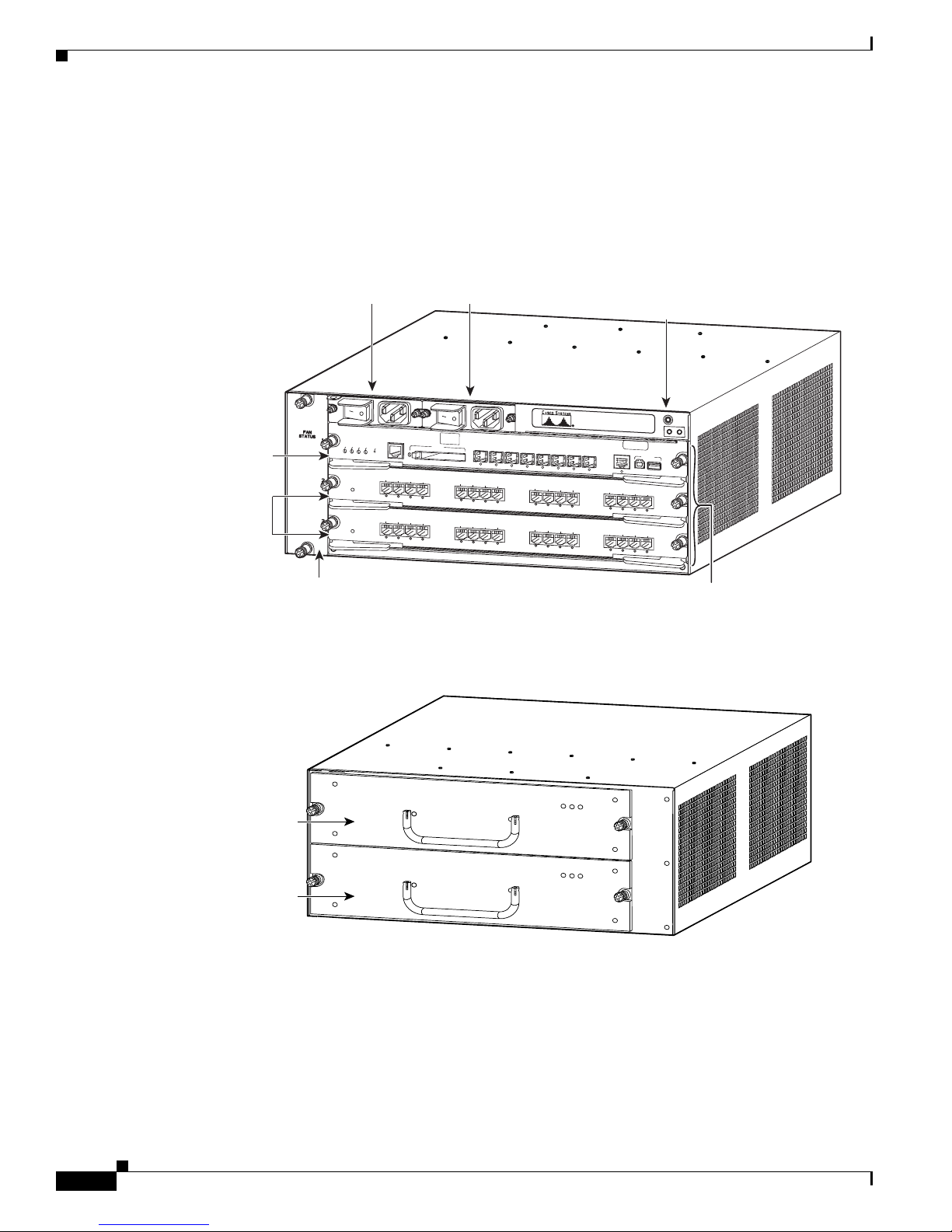

Figure 1-1 Catalyst 6503 Switch Chassis—Front View

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

PEM 1 PEM 2

W S

S U

P

3

2-

G

E

3

B

T

C

O

N

S

M

O

L

Supervisor

Engine

Modules

S

TU

TA

Y

S

C ATA

L Y

S

T

6

5

0 0

S

U

P E

R

W

S

-X 65

16-G

E

-T X

16 P

O

R

T 100

0 B

A

W

S

-X 65

16-G

E

-T X

16

P

O

R

T

1

000 B

A

E

M

G

E

TE

M

V

T

I

S

R

E

T

S

C

W

E

A

P

R

V IS

O

R

E

N

G

I N

E

32

1

S

E-T G

E

N I L

1

SE

-T G

E

N I L

D

I S

K

0

P

O

R

T

1

P

56

K N I L

56

K N I L

O

K IN L

7

K

K N I

N

L

I L

7

K

K N I

N

L

I L

E

J

E

C

T

2

3

4

K

K N I

K

N

L

I

N

L

I L

2

3

4

K

K N I

K

N

L

I

N

L

I L

Fan assembly

Figure 1-2 Catalyst 6503 Switch—Rear View

ESD ground

strap connection

R

T

2

P

O

R

T

3

P

O

R

T

4

P

O

R

T

5

P

O

R

T

6

K

IN

INK

L

8

K N I L

8

K N I L

P

K

IN

K

IN

L

IN

L

9

10

11

K

K N I

K

N

L

I

N

L

I

L

9

10

11

K

K N I

K

N

L

I

N

L

I

L

P

O

R

T

O

R

T

7

K IN L

12

K

N I L

12

K

N I L

9

P

O

R

T

8

INK L

13 14

N I L

13 14

N I L

U

S B

2

.0

K IN L

15

16

K

K N I

K

N

L

I

N

L

I L

15

16

K

K N I

K

N

L

I

N

L

I L

91239

Slots 1-3 (top to bottom)

Power supply 2

(redundant)

Power supply 1

Catalyst 6500 Series Ethernet Modules Installation Guide

1-2

INPUT

FAN

OUTPUT

OK

FAIL

INPUT

FAN

OUTPUT

OK

FAIL

63031

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6503 Switch

Ta b l e 1-1 Catalyst 6503 Switch Features

Feature Description

Chassis Three horizontal slots. Slots are numbered from 1 (top) to 3 (bottom). Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

950 W AC-input power supply (PWR-950-AC)

–

950 W DC-input power supply (PWR-950-DC)

–

1400 W AC-input power supply (PWR-1400-AC)

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

• Installed power supplies can be of different wattage ratings. Installed

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

power supplies can be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

Note For Catalyst 6503 and Catalyst 6503-E chassis that are equipped

with DC-input power supplies, the system (NEBS) ground serves as the primary safety ground and must be installed. The DC-input power supplies for these chassis do not have a separate ground.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

• Single power supplies are installed in the lower power supply bay. The

second power supply is installed in the upper power supply bay.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-3

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6503 Switch

Table 1-1 Catalyst 6503 Switch Features (continued)

Feature Description

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, and Supervisor Engine 720.

–

Supervisor engines are installed in slot 1 and slot 2.

–

Supervisor Engine 720 with 10-GB uplink ports (VS-S720-10G-3C and VS-S720-10G-3CXL) is not supported on the Catalyst chassis.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, or Supervisor Engine

720 requires that the optional high-speed fan tray

(FAN-MOD-3HS) be installed in the chassis.

–

Supervisor Engine 720 has built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine

720 and cannot be installed in the

same chassis.

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules ((WS-C6500-SFM and WS-X6500-SFM2).

6503

• The uplink ports are fully functional on the redundant supervisor engine

while it is in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-4

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-1 Catalyst 6503 Switch Features (continued)

Feature Description

Modules • Supports up to two Catalyst 6500 series modules.

• Does not support the WS-C6500-SFM and WS-X6500-SFM2 Switch

Fabric Modules.

• Does not support the WS-X67xx modules.

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

Check your software release notes for specific information on module support.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—2 ports

• Gigabit Ethernet (SFP transceivers)—8 ports

• Gigabit Ethernet (GBIC transceivers)—34 ports

Catalyst 6503 Switch

• 10/100/1000 Ethernet—97 ports

• 10/100 Fast Ethernet—192 ports

• 100BASE-FX—96 ports

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-5

Catalyst 6503 Switch

Ta b l e 1-2 Catalyst 6503 Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 85%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 7 x 17.37 x 21.75 in. (17.78 x 44.12 x 55.25 cm).

• Chassis requires 4 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight • Chassis only: 27 lb (12.25 kg).

• Chassis fully configured with 1 supervisor engine, 2 modules,

2 AC-input PEMs, and 2 AC-input power supplies: 85.4 lb (38.7 kg).

Airflow

• FAN-MOD-3 (standard fan tray)—170 CFM

• FAN-MOD-3HS (optional high-speed fan tray)—270 CFM

Note To maintain proper air circulation through the Catalyst switch

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

Catalyst 6500 Series Ethernet Modules Installation Guide

1-6

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6503-E Switch

The Catalyst 6503-E switch is a 3-slot horizontal chassis. Figure 1-3 shows the front view of the chassis and Figure 1-4 shows the rear view of the chassis. Table 1-3 provides a description of the major switch features. Ta ble 1-4 lists the specifications of the Catalyst 6503-E switch chassis.

Figure 1-3 Catalyst 6503-E Switch—Front View

Catalyst 6503-E Switch

PEM 1 PEM 2

W

S

U

P

3 2

G

E

3

B

T

C

O

N

S

M

O

L

Supervisor

Engine

Modules

S

TU

TA

S

C

ATA

L

Y

S

T

6

5 0

0

S

U

P

E R

W

S

-X 6516

-G E

-T X

16 P

O

R

T 100

0 B

W

S-X

6

516

-G E

-T X

16

P

O

R

T 1

000 B

E

M

G

E

TE

M

V

T

I

S

R

E

T

Y

S

C

W

E

A

P

R

V

IS

O

R

E

N G

I N

E

32

1

A

S

E

-T G E

1

A

S

E

-T

G

E

D

I S

K

0

P

O

R

T

1

P

O

R

T

56

K N I L

56

K N I L

2

K

IN

L

7

8

K

K N I

K

N

L

I

N

L

I L

7

8

K

K N I

K

N

L

I

N

L

I L

E

J

E

C

T

2

3

4

K

K N I

K

N

L

I

K

N

L

I

N

L

I L

2

3

4

K

K N I

K

N

L

I

K

N

L

I

N

L

I L

Fan assembly

Figure 1-4 Catalyst 6503-E Switch—Rear View

ESD ground

strap connection

P

O

R

T

3

P

O

R

T

4

P

O

R

T

5

P

O

R

T

6

P

K

INK

K

L

IN

K

IN

L

IN

L

9

10

11

K

K N I

K

N L

I

N

L

I L

9

10

11

K

K N I

K

N L

I

N

L

I L

P

O

R

T

O

R

T

7

K IN L

12

K

N I L

12

K

N I L

9 P O

R

T

8

INK L

13 14

N I L

13 14

N I L

U

S B

2

.0

K

IN L

15

16

K

N

I

K

N

L

I

N

L

I L

15

16

K

N

I

K

N

L

I

N

L

I L

91239

Slots 1-3 (top to bottom)

Power supply 2

(redundant)

Power supply 1

OL-6265-03

INPUT

FAN

OUTPUT

OK

FAIL

INPUT

FAN

OUTPUT

OK

FAIL

Catalyst 6500 Series Ethernet Modules Installation Guide

63031

1-7

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6503-E Switch

Ta b l e 1-3 Catalyst 6503-E Switch Features

Feature Description

Chassis Three horizontal slots. Slots are numbered from 1 (top) to 3 (bottom). Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

PWR-950-AC (950 W AC-input power supply)

–

PWR-950-DC (950 W DC-input power supply)

–

PWR-1400-AC (1400 W AC-input power supply)

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

• Installed power supplies can be of different wattage ratings. Installed

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

power supplies can be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

• Single power supplies are installed in the lower power supply bay. The

second power supply is installed in the upper power supply bay.

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor engines are installed in slot 1 and slot 2.

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and Supervisor Engine

720-10GE and cannot be installed in the

same chassis.

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules ((WS-C6500-SFM and WS-X6500-SFM2).

• The uplink ports are fully functional on the redundant supervisor engine

when it is in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

720

Catalyst 6500 Series Ethernet Modules Installation Guide

1-8

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-3 Catalyst 6503-E Switch Features (continued)

Feature Description

Modules • Chassis supports up to two Catalyst 6500 series modules.

• Chassis does not support the WS-C6500-SFM and WS-X6500-SFM2

Switch Fabric Modules.

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—8 ports

• Gigabit Ethernet (SFP transceivers)—98 ports

• Gigabit Ethernet (GBIC transceivers)—34 ports

Catalyst 6503-E Switch

• 10/100/1000 Ethernet—97 ports

• 10/100 Fast Ethernet—192 ports

• 100BASE-FX—96 ports

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-9

Catalyst 6503-E Switch

Ta b l e 1-4 Catalyst 6503-E Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 85%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 7 x 17.37 x 21.75 in. (17.78 x 44.12 x 55.25 cm).

• Chassis requires 4 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight • Chassis only: 33 lb (15 kg).

• Chassis fully configured with 1 supervisor engine, 2 modules,

2 AC-input PEMs, and 2 AC-input power supplies: 85.4 lb (38.7 kg).

Airflow

WS-C6503-E-FAN—282 CFM

Note To maintain proper air circulation through the Catalyst switch

chassis, we recommend that you maintain a minimum 15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm (6-inch)

Catalyst 6500 Series Ethernet Modules Installation Guide

1-10

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6504-E Switch

The Catalyst 6504-E switch is a 4-slot horizontal chassis. Figure 1-5 shows the front view of the chassis and Figure 1-6 shows the rear view of the chassis. Table 1-5 provides a description of major switch features. Ta ble 1-6 lists the specifications of the Catalyst 6504-E switch chassis.

Figure 1-5 Catalyst 6504-E Switch—Front View

F

A

N

S

T

A

T

Supervisor

Engine

Redundant

Supervisor

Engine

OSMs

U

S

U

T

A

T

S

U

T

A

T

S

Catalyst 6504-E Switch

126559

Figure 1-6 Catalyst 6504-E Switch—Rear View

Power Supply 2

(redundant)

Power Supply 1

Slots 1-4

(top to bottom)

PWR-2700-

A

C

1

0

-

2

4

0

V

-

1

6

A

5

0

/

6

0

H

z

A

L

F

A

S

T E

N

E

R

P

S

R

M

IO

U

R

S

TO

T

B

O

E

P

F

E

U

R

L

A

LY

T

IN

G

T

H E

P

O

W

E

PW

R-2700-

A

C

1

0

-

2

4

0

V-

1

6

A

5

0

/

6

0

H

z

A

L

F

A

S

T E

N

E

R

P

S

R

M

IO

U

R

S

TO

T

B

O

E

P

F

E

U

R

L

A

LY

T

I N

G

T

H E

P

O

W

E

INPUT

F

AN

OUTPUT

OK

F

AIL

E

N

G

A

G

E

D

R

S

U

P

L

Y

INPUT

FAN

OUTPUT

OK

F

AIL

E

N

G

A

G

E

D

R

S

U

P

LY

126560

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-11

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6504-E Switch

Ta b l e 1-5 Catalyst 6504-E Switch Features

Feature Description

Chassis Four horizontal slots. Slots are numbered from 1 (top) to 4 (bottom). Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

PWR-2700-AC/4 (2700 W AC-input power supply)

–

PWR-2700-DC/4 (2700 W DC-input power supply)

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

• Installed power supplies can be both AC-input, both DC-input, or one

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

• Single power supplies are installed in the lower power supply bay. The

second power supply is installed in the upper power supply bay.

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor engines are installed in slot 1 and slot 2.

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and Supervisor Engine

720-10GE and cannot be installed in the

720

same chassis.

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules ((WS-C6500-SFM and WS-X6500-SFM2).

• The uplink ports are fully functional on the redundant supervisor engine

when it is in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-12

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-5 Catalyst 6504-E Switch Features (continued)

Feature Description

Modules • Chassis supports up to three Catalyst 6500 series modules.

• Chassis does not support the WS-C6500-SFM and WS-X6500-SFM2

Switch Fabric Modules.

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—12 ports

• Gigabit Ethernet (SFP transceivers)—144 ports

• Gigabit Ethernet (GBIC transceivers)—50 ports

Catalyst 6504-E Switch

• 10/100/1000 Ethernet—145 ports

• 10/100 Fast Ethernet—288 ports

• 100BASE-FX—144 ports

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-13

Catalyst 6504-E Switch

Ta b l e 1-6 Catalyst 6504-E Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 85%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 8.7 x 17.5 x 21.6 in. (22.09 x 44.45 x 54.86 cm).

• Chassis requires 5 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight • Chassis only: 27 lb (12.25 kg).

• Chassis fully configured with 2 supervisor engines, 2 modules, and

2

AC-input power supplies: 97 lb (43.99 kg).

Airflow

FAN-MOD-4HS—300 CFM

Note To maintain proper air circulation through the Catalyst switch

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

Catalyst 6500 Series Ethernet Modules Installation Guide

1-14

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6506 Switch

The Catalyst 6506 switch is a 6-slot horizontal chassis. Figure 1-7 shows a front view of the chassis.

Table 1-7 provides a description of the major switch features. Ta b l e 1-8 lists the specifications of the

Catalyst 6506 switch chassis.

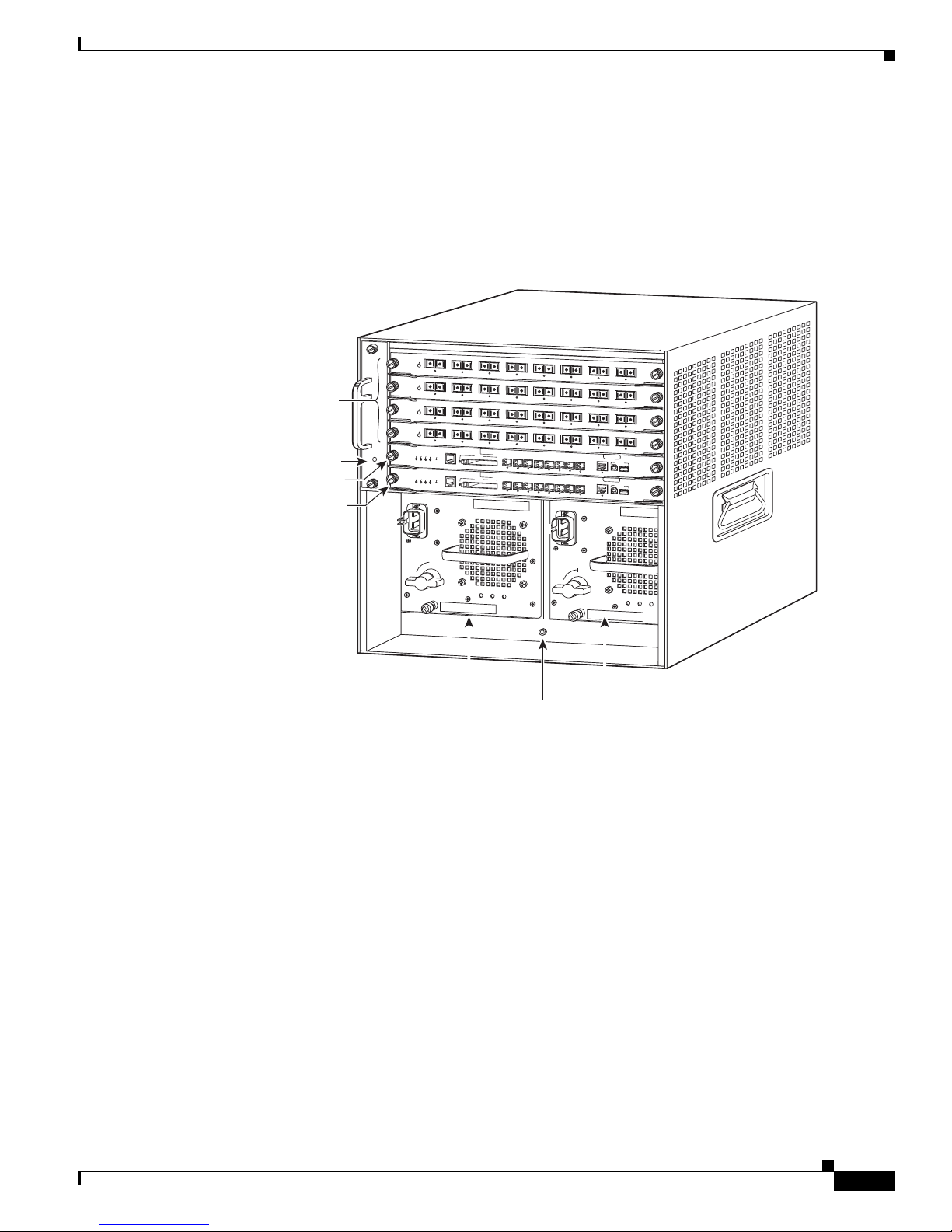

Figure 1-7 Catalyst 6506 Switch

Switching

modules

Fan assembly

Supervisor engine

Redundant supervisor

engine

Catalyst 6506 Switch

W

S

X

6

4 0

8

1

S U

2

T

A T S

1

8

P O

R

T

G

I G

A

B

I T

E T

H

E

R N

E

T

K

LIN

W

S

-X 6

4 0

8

1

S

U T A

T S

2

8

P O

R

T

G

I G

A

B

I T

E T

H

E

R N

E

T

K

LIN

W

S

-X 6

4 0

8

1

S

U T A

T S

3

8

P O

R

T

G

I G

A

B

I T

E T

H

E

R N

E

T

LINK

W

S

X

6

4

0 8

1

S

U T A

T S

4

8

P O

R

T

G

I G

A

B

I T

E

T H

E

R N

E

T

LINK

W S

-S U

P

3 2

-G E-3

B

F

A

N

S

T

A

T

U

5

S

6

T

S

EM

MGM

ATU

R

ET

S

ST

W

SYST

E

ACTIVE

P

R

C

AT

A

LY

S

T

65

00

S

UP

E

R

V

I S

O

R E

N

G

IN

E

3

2

W

S

S U

P

3

2

-G E

-3 B

T M

S

U

EM

MG

AT

ET

S

ST

SYST

E

ACTIVE

PWR

R

C

AT

A L

Y

S T

65

0

S

UP

E

R V

I

S O

R E

N

G

IN

E

3

2

3

4

5

6

7

NK

K

LI

2

NK LI

2

LINK

2

LINK

C

O

N

S O

L E

E

J E

C

T

C

O

N

S O

L E

E

J E

C

T

K

LIN

3

K

LIN

3

LINK

3

LINK

D

IS K

0

D

IS K

0

K

LIN

N

K

I

L

N I

4

K

LIN

4

LINK

4

LINK

P

O

R T

1

P

O

R T

2

P

O

K

K N I

LIN

L

P

O

R T

1

P

O

R T

2

P

O

K

K N I

LIN

L

5

6

K

N

K

I

L

N I L

5

6

LINK

5

6

LINK

R T

3

P O

R T

4

P O

R

T

5

P O

R T

6

P

O

R

T 7

P

K N I

L

R T

3

K N I

L

O

K

N

K

N

LI

K

N

LI

N

LI

P O

R T

4

P O

R

T

5

P O

R T

6

P

O

R

T 7

P

O

K

NK

K

LI

K

N

LIN

LI

LIN

8

K

IN

L

NK LI

7

8

K

IN

L

NK LI

7

8

LINK

7

8

LINK

P

O

R

T

9

R

T 8

U S

B

2 . 0

K

LIN

N

LI

P

O

R

T

9

R

T 8

U S

B

2 . 0

K

LIN

N

LI

o

I N

P U

O

K

Power supply 1

ESD ground strap

T

F

A N

O

U

T

P

U

O

K

F

A

I

L

connector

o

T

Power supply 2

I N

P

U

T

F

A

N

O

U

T

P

U

T

O

K

O

K

F

A

I

L

18224

(redundant)

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-15

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6506 Switch

Ta b l e 1-7 Catalyst 6506 Switch Features

Feature Descriptions

Chassis Six horizontal slots. Slots are numbered from 1 (top) to 6 (bottom). Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

WS-CAC-1000W (1000 W AC-input power supply)

–

WS-CAC-1300W (1300 W AC-input power supply)

–

WS-CDC-1300W (1300 W DC-input power supply)

–

WS-CAC-2500W (2500 W AC-input power supply)

–

WS-CDC-2500W (2500 W DC-input power supply)

–

WS-CAC-3000W (3000 W AC-input power supply)

–

WS-CAC-4000W-US (4000 W AC-input power supply)

–

WS-CAC-4000W-INT (4000 W AC-input power supply)

–

PWR-4000-DC (4000 W DC-input power supply)

–

WS-CAC-6000W (6000 W AC-input power supply)

–

WS-CAC-8700W (8700 W AC-input power supply)

Note The 6000 W and the 8700 W AC-input power supplies are limited to

4500

W maximum output when installed in the Catalyst 6506

chassis.

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

• Installed power supplies can be of different wattage ratings. Installed

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

power supplies can also be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

• Single power supplies are installed in the left power supply bay. The

second power supply is installed in the right power supply bay.

• You must install a 2500 W or higher capacity power supply when using

the Supervisor Engine

32 or the Supervisor Engine 720 and the

high-speed fan tray.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-16

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-7 Catalyst 6506 Switch Features (continued)

Feature Descriptions

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor Engine 2 is installed in slot 1 or slot 2.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

720, and Supervisor Engine 720-10GE are installed in slot 5

or slot

6.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

720, and Supervisor Engine 720-10GE all require the high-speed fan tray (WS-C6K-6SLOT-FAN2) be installed in the chassis. You must also install a 2500

W or higher capacity power

supply in the chassis to power the high-speed fan tray.

Note The 2500 W power supply, when supporting the high-speed fan tray,

can be powered from either 120

VAC or 220 VA C .

Catalyst 6506 Switch

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and Supervisor Engine

720-10GE and cannot be installed in the

720

same chassis.

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2).

• The uplink ports are fully functional on the redundant supervisor engine

in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-17

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6506 Switch

Table 1-7 Catalyst 6506 Switch Features (continued)

Feature Descriptions

Modules • Chassis supports up to five Catalyst 6500 series modules.

• WS-C6500-SFM and WS-X6500-SFM2 Switch Fabric Modules must be

installed in slot

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

5 or slot 6.

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—20 ports

• Gigabit Ethernet (SFP transceivers)—242 ports

• Gigabit Ethernet (GBIC transceivers)—82 ports

• 10/100/1000 Ethernet—241 ports

• 10/100 Fast Ethernet—480 ports

• 100BASE-FX—240 ports

Catalyst 6500 Series Ethernet Modules Installation Guide

1-18

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Ta b l e 1-8 Catalyst 6506 Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 90%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Catalyst 6506 Switch

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 20.1 x 17.2 x 18.1 in. (51.1 x 43.7 x 46.0 cm).

• Chassis depth including cable guide is 21.64 in. (55.0 cm).

• Chassis requires 12 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight • Chassis only: 45 lb (20.4 kg).

• Chassis fully configured with 1 supervisor engine, 5 switching modules,

and 2

power supplies: 156.6 lb (71.0 kg).

Airflow

• WS-C6K-6SLOT-FAN (Standard fan tray)—227 CFM.

• WS-C6K-6SLOT-FAN2 (Optional high-speed fan tray)—420 CFM.

Note To maintain proper air circulation through the Catalyst switch

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-19

Catalyst 6506-E Switch

The Catalyst 6506-E switch is a 6-slot horizontal chassis. Figure 1-8 shows a front view of the chassis.

Table 1-9 provides a description of the major switch features. Ta b l e 1-10 lists the specifications of the

Catalyst 6506-E switch chassis.

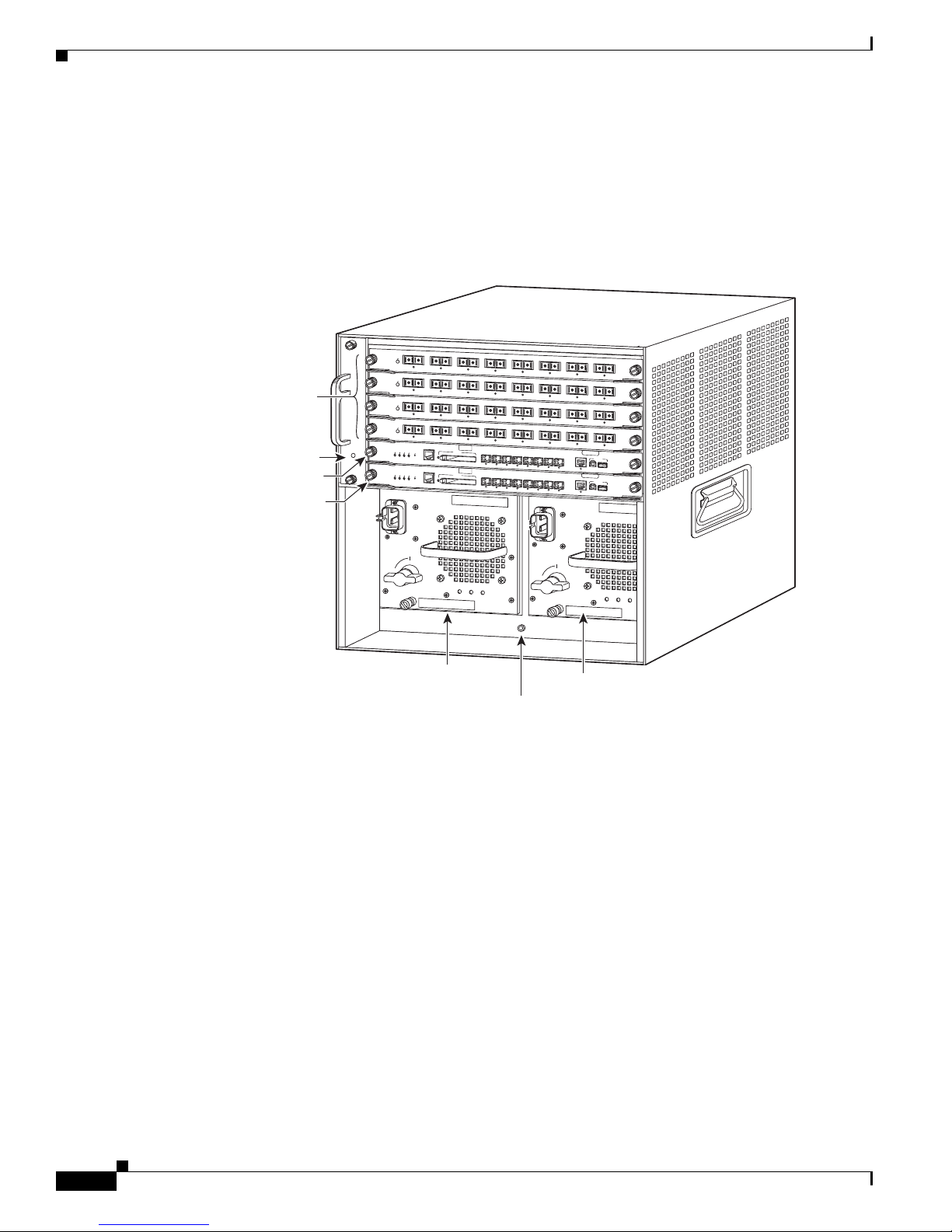

Figure 1-8 Catalyst 6506-E Switch

Switching

modules

Fan assembly

Supervisor engine

Redundant supervisor

engine

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

W

S

X 6

4 0

8

1

S

U

2

T A T S

1

8

P

O

R

T

G I

G

A

B I

T

E

T H

E R

N E

T

K

LIN

W

S

X 6

4 0

8

1

S U T

A T S

2

8

P

O

R

T

G I

G

A

B I

T

E

T H

E R

N E

T

K

LIN

W

S

-X 6

4 0

8

1

S U T

A T S

3

8

P

O

R

T

G I

G A

B I

T

E

T H

E R

N E

T

LINK

W

S

-X 6

4 0

8

1

S U T A

T S

4

8

P

O

R

T

G

I G

A

B I

T

E

T H

E R

N

E T

LINK

W

S-S

U

P 3

2

-G E-3

B

F

A

N

S

T

A

T

U

5

S

6

T

S

M

E

MGM

ATU

R

ET S

ST

SYST

E

ACTIVE

PW

R

C

AT

A

L

Y

S

T

65

00

S

UP

E

R V

I S

O R

E

N

G

IN

E

3

2

W

S

U

P

3 2

-G E

-3

B

T

M

S

M

E

MG

ATU

R

ET S

ST

W

SYST

E

ACTIVE

P

R

C

AT

A

L Y

S

T

65

0

S

UP

E R

V I

S O

R

E

N

G

IN

E

3

2

3

4

5

6

7

NK

K

LI

2

NK

LI

2

LINK

2

LINK

C O

N

S O

L

E

E J

E

C

T

C O

N

S O

L

E

E J

E

C

T

K

LIN

3

K

LIN

3

LINK

3

LINK

D

IS

K 0

D

IS

K 0

P

O R

T

1

P

K

LIN

P

O R

T

1

P

K

LIN

4

K

LIN

4

LINK

4

LINK

O R

T

2

P

O R

T

3

P

O R

T

K

K N I

N

I

L

LI

O R

T

2

P

O R

T

3

P

O R

T

K

K N I

N

I

L

LI

K

K IN L

N I

L

56

K

K IN L

N I

L

5

6

LINK

5

6

LINK

4

P

O R

T

5

P

O R

T

6

P

O

R

T

7

P

K

N

K

N

K

N

LI

N

LI

4

P

O R

T

5

P

O R

T

6

P

O

R

T

7

P

K

NK

K

N

LIN

N

LI

8

K

N I L

NK LI

7

8

K IN L

NK LI

7

8

LINK

7

8

LINK

P

O

R

T

9

O

R T

8

U S

B

2

. 0

K N

K

LI

LIN

P

O

R

T

9

O

R T

8

U S

B

2

. 0

K

LIN

o

I

N

P

U

T

O

K

Power supply 1

ESD ground strap

F

A

N

O

U

T

P

U

T

O

K

F A

I L

connector

o

Power supply 2

(redundant)

I N

P

U

T

F

A N

O

U

T

P

U

T

O

K

O

K

F

A

I

L

18224

Catalyst 6500 Series Ethernet Modules Installation Guide

1-20

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6506-E Switch

Ta b l e 1-9 Catalyst 6506-E Switch Features

Feature Descriptions

Chassis Six horizontal slots. Slots are numbered from 1 (top) to 6 (bottom). Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

WS-CAC-2500W (2500 W AC-input power supply)

–

WS-CDC-2500W (2500 W DC-input power supply)

–

WS-CAC-3000W (3000 W AC-input power supply)

–

WS-CAC-4000W-US (4000 W AC-input power supply)

–

WS-CAC-4000W-INT (4000 W AC-input power supply)

–

PWR-4000-DC (4000 W DC-input power supply)

–

WS-CAC-6000W (6000 W AC-input power supply)

–

WS-CAC-8700W-E (8700 W AC-input power supply)

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

• Installed power supplies can be of different wattage ratings. Installed

power supplies can also be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

• Single power supplies are installed in the left power supply bay. The

second power supply is installed in the right power supply bay.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-21

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6506-E Switch

Table 1-9 Catalyst 6506-E Switch Features (continued)

Feature Descriptions

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor Engine 2 is installed in slot 1 and slot 2.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

720, and Supervisor Engine 720-10GE are installed in slot

5 and slot

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have

6.

built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and Supervisor Engine

720-10GE and cannot be installed in the

same chassis.

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules ((WS-C6500-SFM and WS-X6500-SFM2).

720

• The uplink ports are fully functional on the redundant supervisor engine

in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-22

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-9 Catalyst 6506-E Switch Features (continued)

Feature Descriptions

Modules • Chassis supports up to five Catalyst 6500 series modules.

• WS-C6500-SFM and WS-X6500-SFM2 Switch Fabric Modules must be

installed in slot

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

5 or slot 6.

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—20 ports

• Gigabit Ethernet (SFP transceivers)—242 ports

• Gigabit Ethernet (GBIC transceivers)—82 ports

Catalyst 6506-E Switch

• 10/100/1000 Ethernet—241 ports

• 10/100 Fast Ethernet—480 ports

• 100BASE-FX—240 ports

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-23

Catalyst 6506-E Switch

Ta b l e 1-10 Catalyst 6506-E Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 90%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 19.2 x 17.5 x 18.2 in. (48.8 x 44.5 x 46.0 cm).

• Chassis depth including cable guide is 21.64 in. (55.0 cm).

• Chassis requires 12 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight Chassis only: 45 lb (20.41 kg).

Chassis fully configured with 1 supervisor engine, 5 switching modules, and

2

power supplies: 159 lb (72.3 kg).

Airflow

WS-C6506-E-FAN—564 CFM.

Note To maintain proper air circulation through the Catalyst switch

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

Catalyst 6500 Series Ethernet Modules Installation Guide

1-24

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509 Switch

The Catalyst 6509 switch is a 9-slot horizontal chassis. Figure 1-9 shows a front view of the chassis.

Table 1-11 provides a description of the major switch features. Table 1-12 lists the specifications of the

Catalyst 6509 switch chassis.

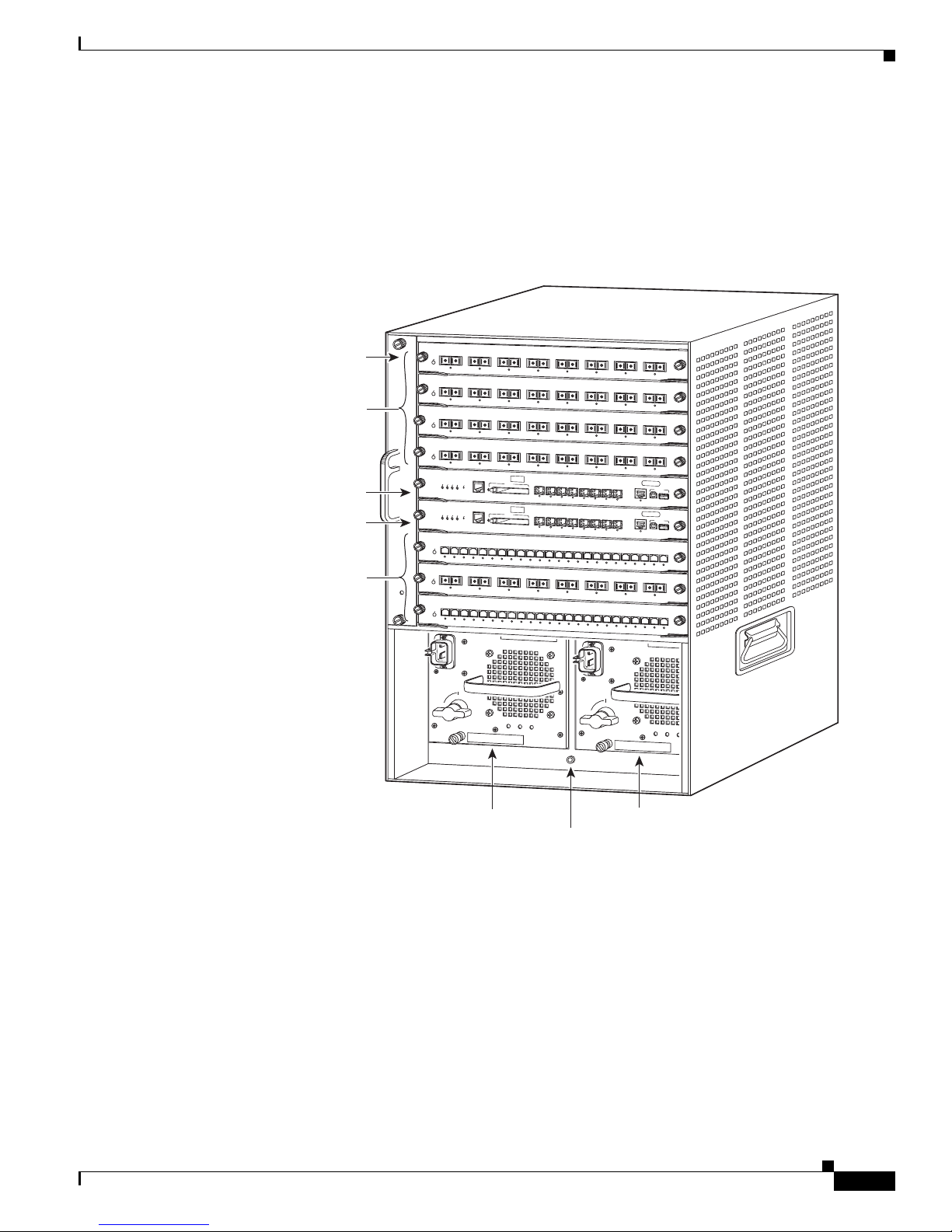

Figure 1-9 Catalyst 6509 Switch

Fan assembly

Switching

modules

Supervisor engine

Redundant supervisor

engine

Switching

modules

Catalyst 6509 Switch

W

S

-X 6408

1

2

TUS

STA

1

8

P O

R

T

G

I

G A

B

I T

E

T

H

E

K

R N

E

T

N I L

W

S

-X 6408

1

TUS

STA

2

8

P O

R

T

G

I

G A

B

I T

E

T

H

K

E

R N

E

T

N I L

WS

-X 6408

1

TUS

STA

3

8

P O

R

T

G

I

G A

B

I T

E

T

H

K

E

R N

E

T

N I L

W

S

-X6408

1

TUS

4

STA

8

P O

R

T

G

I

G A

B

I T

E

T

H

K

E

R N

E

T

N I L

WS-SUP32-G

E

-3B

TUS

IVE

STA

SYSTEM

ACT

5

6

7

8

9

PWR MGMT

CATALYST

6500 SUPERVIS

OR

ENGINE 32

WS-SUP32-G

E

-3B

TUS

IVE

STA

SYSTEM

ACT

PWR MGMT

CATALYST

6500 SUPERVIS

OR

ENGINE 32

W

S

-X

6

2

2 4

S

1

2

U

T A T

S

K

2

4

P O

K

R

T

1 0

0 F

X

N

I

L

W

S

X 6

4

0

8

1

TUS

STA

8

P

O

R

T

GIG

A

B

IT E

THE

R N

E

T

LINK

WS-X6224

1

2

S U T

A T

S

2

4

P O

R

T

1 0

0 F

X

LINK

3

4

5

6

7

K

K N I L

2

K N I L

2

K N I L

2

K N I L

C

O

N S

O

L E

RESET

E

C

O

N S

O

L E

RESET

E

3

4

5

6

K

N

I

N

I

L

2

LINK

3

4

5

6

LINK

K N I L

3

K N I L

3

K N I L

3

K N I L

D

I S

K

0

J E

C T

D

I S

K

0

J E

C T

7

8

9

K

N

K

N

I

N

I

N

I

L

3

LINK

7

8

9

LINK

K N I L

4

K

N I L

4

K

N I L

4

K

N I L

P O

R

T

1

P O

R T

2

LINK

P O

R

T

1

P O

R T

2

LINK

1 0

1

2

K

N

I

N

I

L

4

LINK

10

11

12

LINK

K N I

N

L

I

L

5

6

K

K N I

N

L

I

L

5

6

K

K N I

N

L

I

L

5

6

K

K N I

N

L

I

L

P O

R

T

3

P

O

R T

4

P

O

R

T

5

P

O

R T

6

P

O

R

T

LINK

P O

1

3

K

13

LINK

R

T

3

P

O

R T

4

P

O

R

T

5

P

O

R T

6

P

O

R

T

LINK

1

4

1

5

1 6

1

7

1 8

K

N

K

N

I

K

N

I

N

I

L

N

I

L

I

L

5

6

LINK

14

15

16

17

18

LINK

8

K

K N I

N

L

I

L

7

8

K

K N I

N

L

I

L

7

8

K

K N I

N

L

I

L

7

8

K

K N I

N

L

I

L

P

O

R

T

9

7

P

O

R

T

8

U

S

B

2 .

0

LINK

P

O

R

T

9

7

P

O

R

T

8

U

S

B

2 .

0

LINK

1

9

2

0

2 1

2

3

2

K

N I L

19

LINK

4

K

N

K

N

I

K

N

I

K

N

I

L

N

I

L

N

I

L

I

L

7

8

LINK

20

21

22

23

24

LINK

o

I N

Power supply 1

o

P

U

T

F A

N

O

U

T

P

U

T

O

K

O

K

F

A

I

L

ESD ground strap

connector

I N

P

U

T

F

A

N

O

U

T

P

U

T

O

K

O

K

F

A

I

L

Power supply 2

(redundant)

16076

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-25

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509 Switch

Ta b l e 1-11 Catalyst 6509 Switch Features

Feature Description

Chassis Nine horizontal slots. Slots are numbered from 1 (top) to 9 (bottom). Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

WS-CAC-1000W (1000 W AC-input power supply)

–

WS-CAC-1300W (1300 W AC-input power supply)

–

WS-CDC-1300W (1300 W DC-input power supply)

–

WS-CAC-2500W (2500 W AC-input power supply)

–

WS-CDC-2500W (2500 W DC-input power supply)

–

WS-CAC-3000W (3000 W AC-input power supply)

–

WS-CAC-4000W-US (4000 W AC-input power supply)

–

WS-CAC-4000W-INT (4000 W AC-input power supply)

–

PWR-4000-DC (4000 W DC-input power supply)

–

WS-CAC-6000W (6000 W AC-input power supply)

–

WS-CAC-8700W-E (8700 W AC-input power supply)

Note The 6000 W and the 8700 W AC-input power supplies are limited to

4500

W maximum output when installed in the Catalyst 6509

chassis.

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

• Installed power supplies can be of different wattage ratings. Installed

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

power supplies can also be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

• Single power supplies are installed in the left power supply bay. The

second (redundant) power supply is installed in the right power supply bay.

• You must install a 2500 W or higher capacity power supply when using

the Supervisor Engine

32 or the Supervisor Engine 720 and the

high-speed fan tray.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-26

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-11 Catalyst 6509 Switch Features (continued)

Feature Description

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor Engine 2 is installed in slot 1 and slot 2.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

720, and Supervisor Engine 720-10GE are installed in slot 5

and slot

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

6.

720, and Supervisor Engine 720-10GE require that the high-speed fan tray be installed in the chassis. You must also install a 2500

W or higher capacity power supply in the chassis to power

the high-speed fan tray.

Note The 2500 W power supply, when supporting the high-speed fan tray,

can be powered from either 120

VAC or 220 VA C .

Catalyst 6509 Switch

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and Supervisor Engine

720-10GE and cannot be installed in the

720

same chassis.

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2).

• The uplink ports are fully functional on all redundant supervisor engine

models when they are in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-27

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509 Switch

Table 1-11 Catalyst 6509 Switch Features (continued)

Feature Description

Modules • Chassis supports up to eight Catalyst 6500 series modules.

• WS-C6500-SFM and WS-X6500-SFM2 Switch Fabric Modules must be

installed in slot

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

5 or slot 6.

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—32 ports

• Gigabit Ethernet (SFP transceivers)—386 ports

• Gigabit Ethernet (GBIC transceivers)—130 ports

• 10/100/1000 Ethernet—385 ports

• 10/100 Fast Ethernet—768 ports

• 100BASE-FX—384 ports

Catalyst 6500 Series Ethernet Modules Installation Guide

1-28

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Ta b l e 1-12 Catalyst 6509 Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, ambient

–20° to 65°C (–4° to 149°F)

nonoperating and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 90%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Catalyst 6509 Switch

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 25.2 x 17.2 x 18.4 in. (64.0 x 43.7 x 46.7 cm).

• Chassis depth including cable guide is 21.64 in. (55.0 cm).

• Chassis requires 15 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight Chassis only: 55 lb (24.9 kg).

Chassis fully configured with 1 supervisor engine, 8 switching modules, and

2

power supplies: 194.5 lb (88.2 kg).

Airflow

• WS-C6K-9SLOT-FAN (Standard fan tray)—340 CFM

• WS-C6K-9SLOT-FAN2 (Optional high-speed fan tray)—630 CFM

Note To maintain proper air circulation through the Catalyst switch

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-29

Catalyst 6509-E Switch

The Catalyst 6509-E switch is a 9-slot horizontal chassis. Figure 1-10 shows a front view of the chassis.

Table 1-13 provides a description of the major switch features. Table 1-14 lists the specifications of the

Catalyst 6509-E switch chassis.

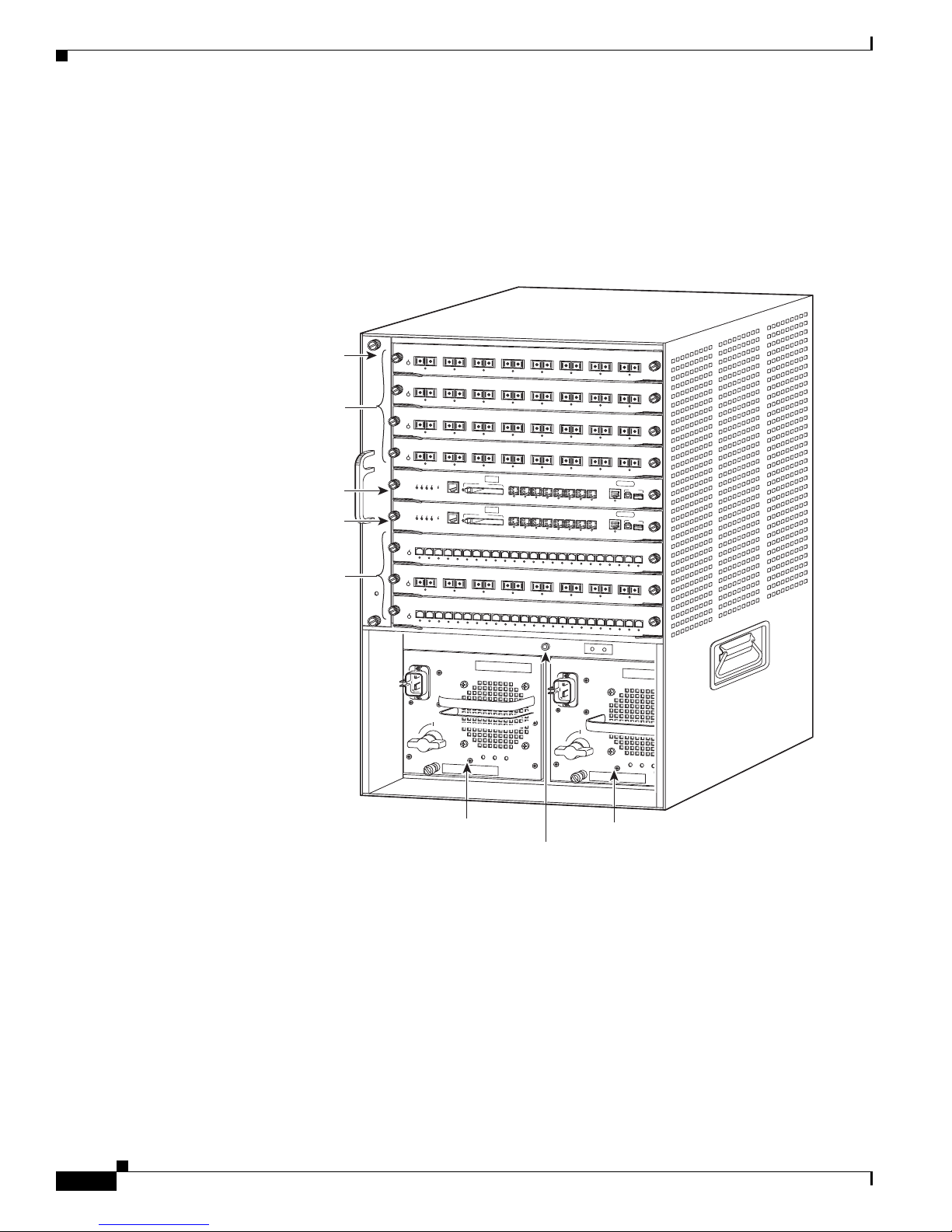

Figure 1-10 Catalyst 6509-E Switch

Fan assembly

Switching

modules

Supervisor engine

Redundant supervisor

engine

Switching

modules

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

W

S

-X 6408

1

2

3

4

9

K

N I L

9

K N I

L

K N I

L

4

K N I

L

4

K N I

L

4

K N I

L

P

O R

T

1

LINK

P

O R

T

1

LINK

1

0

1 1

K

N

I

L

K N I

L

1

0

1

K N

I

IN

L

5

K

N I L

5

K

N I L

5

K

N I L

5

K

N I L

P

O

R

T

2

P O

R

T

3

P

O

R

T

4

LINK

P

O

R

T

2

P O

R

T

3

P

O

R

T

4

LINK

1

2

1 3

1

4

K

N

I

N

I

L

56

K

N I L

1

2

1 3

1

4

K

IN

L

IN

L

6

7

K N I L

6

K N I L

6

K N I L

6

K N I L

P O

R

T

5

P

O

R T

6

P

O

R

T

LINK

P O

R

T

5

P

O

R T

6

P

O

R

T

LINK

1 5

1

6

1 7

1

8

K

N

I

N

I

L

K N I L

1

5

1

6

1

7

1

8

K

IN

N

I

N

L

I

L

8

K

N

I

N

L

I

L

7

8

K

N

I

N

L

I

L

7

8

K

N

I

N

L

I

L

7

8

K

N

I

N

L

I

L

P

O

R T

9

7

P

O R

T

8

U

S

B

2

. 0

LINK

P

O

R T

9

7

P

O R

T

8

U

S

B

2

. 0

LINK

1 9

2

0

2

1

2

2 3

2

K N I L

1 9

K

N I L

4

K

N

K

N

I

K

N

I

K

N

I

L

N

I

L

N

I

L

I

L

7

8

K N

K

I

N

L

I

L

2

0

2 1

2 2

2

3

2

4

K

N

K

I

N

K

I

N

L

K

I

N

L

I

N

L

I

N

L

I

L

STATUS

1

8

P

O R

T

G

I G

A

B

I T

E

T

H

K

E

R N

E

T

K N I

L

W

S-X6408

1

TUS

STA

2

8

P

O R

T

G

I G

A

B

I T

E

T

H

K

E

R N

E

T

N I

L

W

S-X64

08

1

STATUS

3

8

P

O R

T

G

I G

A

B

I T

E

T

H

K

E

R N

E

T

N I

L

W

S

-X 6408

1

TUS

4

STA

8

P

O R

T

G

I G

A

B

I T

E

T

H

K

E

R N

E

T

N I

L

WS-SUP32-GE-3B

TUS

STA

SYSTEM

ACTIVE

PWR MGMT

5

6

7

8

FAN

STA

TU

S

9

RESET

CATALYST

6500 SUPERVIS

OR

ENGINE 32

WS-SUP32-GE-3B

TUS

STA

SYSTEM

ACTIVE

PWR MGMT

RESET

CATALYST

6500 SUPERVIS

OR

ENGINE 32

W

S

-X 6

2 2

4

S

1

2

U

3

T A T

S

K

2

4

P

O

K

R

T

1

0

0 F

X

N

I

L

W

S

-X 6 4

0 8

1

S U T

A T

S

8

P

O R

T

G

I G

A

B

I T

E

T

H

E

R N

K

E

T

N I

L

W

S

X 6

2 2

4

1

2

S

3

U

T A T

S

K

24 PO

RT 1

N

0

0FX

I

N I

L

C

O N

S

C

O N

S

4

K

N

I

L

4

K

K N I

N I L

2

K N I L

2

K N I L

2

K N I L

O

L E

E

J E

C

T

O

L E

E

J E

C

T

5

6

7

K

N

I

L

2

K N I L

5

6

7

K

K N I

IN

L

K N I

L

3

K N I

L

3

K N I

L

3

K N I

L

D

I S

K

0

D

I S

K

0

8

K

N

I

L

34

K N I

L

8

K

K N I

N

I

L

1-30

o

Power supply 1

Catalyst 6500 Series Ethernet Modules Installation Guide

o

I

N

P

U

T

F

A

N

O

U

T

P

U

T

O

K

O

K

F

A

I

L

ESD ground strap

connector

I N

P

U

T

F

A

N

O

U

T

P

U

T

O

K

O

K

F

A

I

L

Power supply 2

(redundant)

113676

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Ta b l e 1-13 Catalyst 6509-E Switch Features

Feature Description

Chassis Nine horizontal slots. Slots are numbered from (1) top to (9) bottom. Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

WS-CAC-2500W (2500 W AC-input power supply)

–

WS-CDC-2500W (2500 W DC-input power supply)

–

WS-CAC-3000W (3000 W AC-input power supply)

–

WS-CAC-4000W-US (4000 W AC-input power supply)

–

WS-CAC-4000W-INT (4000 W AC-input power supply)

–

PWR-4000-DC (4000 W DC-input power supply)

–

WS-CAC-6000W (6000 W AC-input power supply)

–

WS-CAC-8700W-E (8700 W AC-input power supply)

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

Catalyst 6509-E Switch

• Installed power supplies can be of different wattage ratings. Installed

power supplies can also be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-31

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509-E Switch

Table 1-13 Catalyst 6509-E Switch Features (continued)

Feature Description

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor Engine 2 is installed in slot 1 and slot 2.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

720, and Supervisor Engine 720-10GE are installed in slot 5

and slot

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have

6.

built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and Supervisor Engine

720-10GE and cannot be installed in the

same chassis.

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2).

720

• The uplink ports are fully functional on all redundant supervisor engine

models when they are in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-32

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-13 Catalyst 6509-E Switch Features (continued)

Feature Description

Modules • Chassis supports up to eight Catalyst 6500 series modules.

• WS-C6500-SFM and WS-X6500-SFM2 Switch Fabric Modules must be

installed in slot

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

5 or slot 6.

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—32 ports

• Gigabit Ethernet (SFP transceivers)—386 ports

• Gigabit Ethernet (GBIC transceivers)—130 ports

Catalyst 6509-E Switch

• 10/100/1000 Ethernet—385 ports

• 10/100 Fast Ethernet—768 ports

• 100BASE-FX—384 ports

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-33

Catalyst 6509-E Switch

Ta b l e 1-14 Catalyst 6509-E Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 90%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 24.5 x 17.5 x 18.2 in. (62.2 x 44.5 x 46.0 cm).

• Chassis depth including cable guide is 21.64 in. (55.0 cm).

• Chassis requires 15 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight Chassis only: 55 lb (24.9 kg).

Chassis fully configured with 1 supervisor engine, 8 switching modules, and

2

power supplies: 135 lb (61.2 kg).

Airflow

WS-C6509-E-FAN—846 CFM

Note To maintain proper air circulation through the Catalyst switch

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

Catalyst 6500 Series Ethernet Modules Installation Guide

1-34

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509-NEB Switch

The Catalyst 6509-NEB switch is a 9-slot vertical chassis. Figure 1-11 shows a front view of the chassis.

Table 1-15 provides a description of the major switch features. Table 1-16 lists the specifications of the

Catalyst 6509-NEB switch chassis.

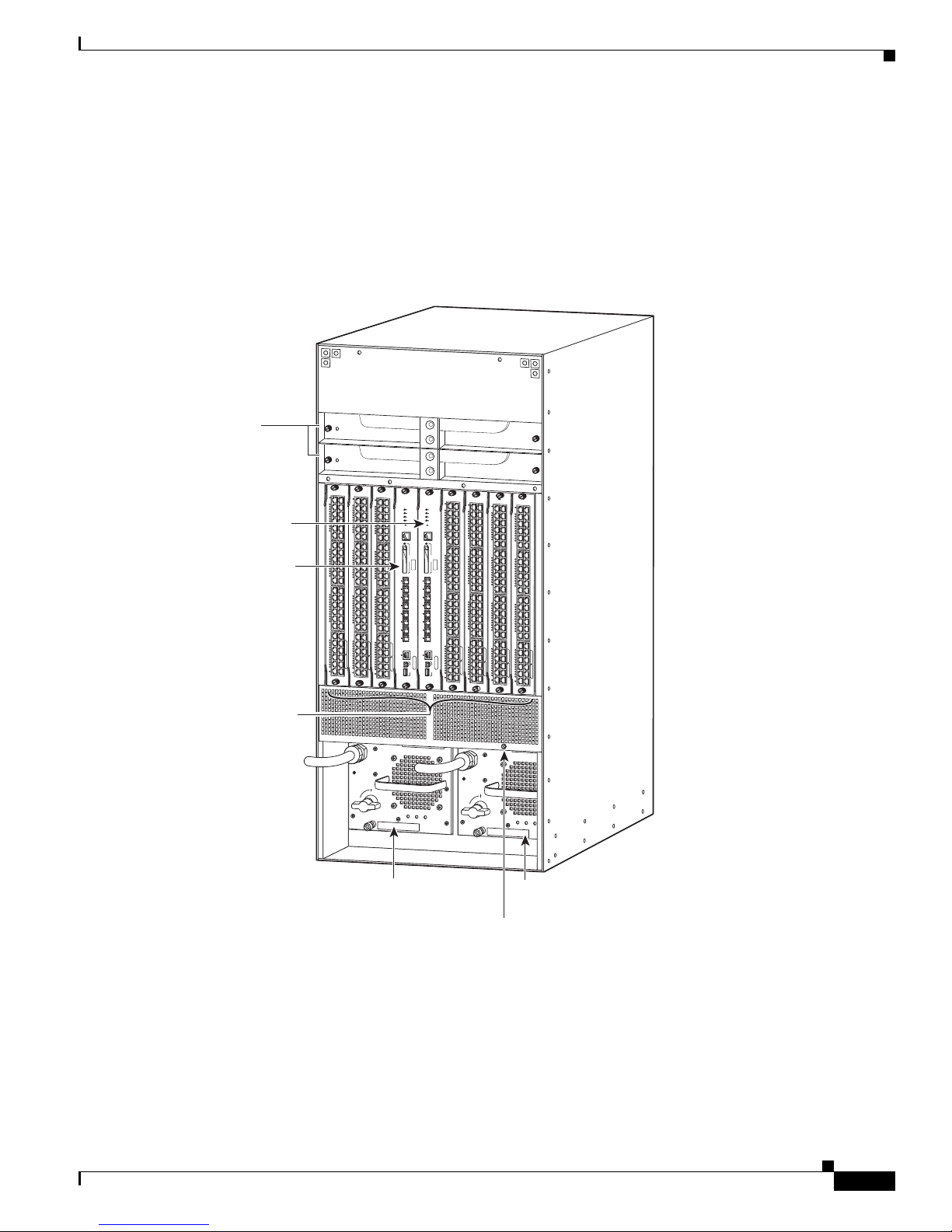

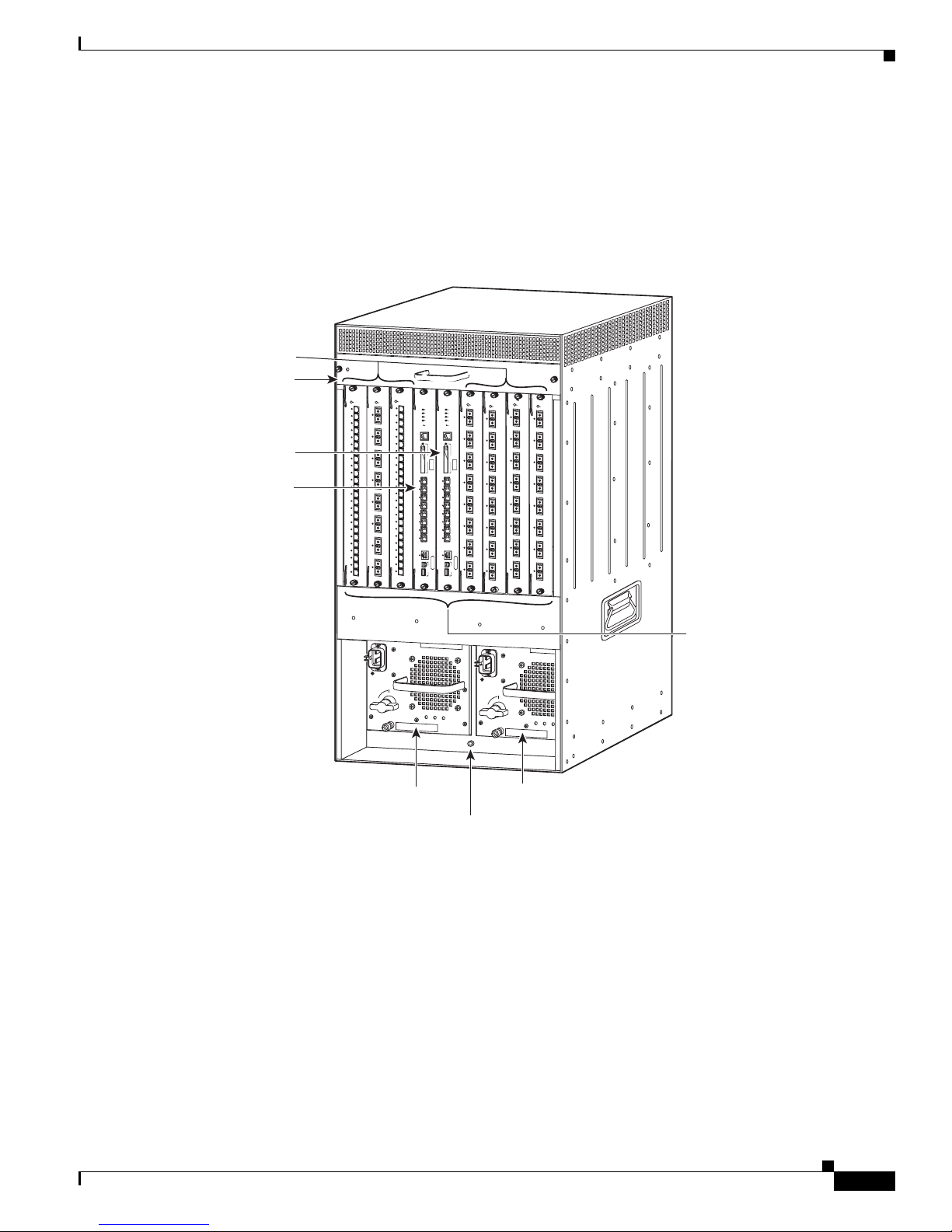

Figure 1-11 Catalyst 6509-NEB Switch

Switching

modules

Fan

assembly

Supervisor

engine

Redundant

supervisor

engine

FAN

STATUS

2 4

2

8 POR

W

P

4

S

P

O

WS-X6408

-X

O

R

T

6

T GIGABIT ETHER

2

T

1

2

0

1

4

0

F 0 F

X X

LINK

S

T

ST

ATU

S

ATUS

T

A T U

S

NET

LINK

1

L

LINK

IN

2

K

LINK

3

LINK

4

2

LINK

L

5

I N

K

LINK

6

LINK

7

3

LIN

8

L IN

K

LINK

9

LINK

1 0

LINK

1

4

1

L IN

K

LINK

1 2

LINK

1 3

LINK

1 4

5

L I N

K

LINK

1 5

LINK

1 6

LINK

1 7

6

LIN

K

LINK

1 8

LINK

1 9

LINK

2 0

7

L IN

K

LINK

2 1

LINK

2 2

LINK

2 3

8

L IN

K

2

LINK

4

Catalyst 6509-NEB Switch

W S

X 6 2 2 4

S

1

2

3

4

5

6

7

8

9

1 0

1 1

1 2

1 3

1 4

1 5

1 6

1 7

1 8

1 9

2 0

2 1

2 2

2 3

2 4

8 POR

C

W

A

S

T

-S

A

T GIGABIT ETHER

L

LY

U

Y

P3

S

T

2

6

-G

50

E

-3

0

S

B

U

P

E

S

NET

R

T

A

V

T

U

IS

S

O

S

Y

R

S

T

E

M

N

A

L

G

C

IN

T

IN

I

V

K

E

P

32

W

R

M

G

M

T

R

E

S

E

T

C

O

N

S

O

L

L E

E

L

I N K

E

J

E

C

T

D

IS

K

0

L

IN K

P

O

R

L

T

I

N

1

K

L

IN K

P

O

R

T

L

I

N

2

K

P

O

R

T

L

I

I N

N

3

K

P

O

R

L

IN

T

L

I

I N

N

4

K

P

O

R

T

L

I

5

N

K

P

O

R

T

L

I

6

N

K

L

P

IN

O

K

R

T

L

I

N

7

K

P

O

R

T

L

I

I N

N

8

K

L

I N K

P

O

R

T

L

I

N

9

K

U

S

B

2

.0

L

IN K

8 POR

WS-X6408

8 POR

T GIGABIT ETHER

S T ATU

S

NET

1

L

IN K

2

L

IN K

3

LI

N K

4

L

IN K

5

L

IN K

6

L

IN K

7

L

IN K

8

L

IN K

8 POR

WS-X6408

ST AT

U S

1

2

3

4

5

6

7

8

WS-X6408

T GIGABIT ETHER

S TA T

S

U

T

A

S

T U

S

NET

1

L

IN

1

L

K

IN

K

2

L

IN

2

L

K

IN

K

3

L

IN

3

L

K

IN

K

4

L

IN

4

L

K

IN

K

5

L

IN

5

L

K

IN

K

6

L

IN

6

L

K

IN

K

7

L

IN

7

L

K

I N

K

8

L

IN

8

L

K

IN

K

o

Power supply 1

INPUT

FAN

OUTPUT

OK

FAI

L

Power supply 2

(redundant)

ESD ground strap

connection

o

Slots 1-9 (right to left)

INPUT

FAN

OUTPUT

OK

FAI

L

30695

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-35

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509-NEB Switch

Ta b l e 1-15 Catalyst 6509-NEB Switch Features

Feature Features

Chassis Nine vertical slots. Slots are numbered from 1 (right) to 9 (left). Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

WS-CAC-2500W (2500 W AC-input power supply)

–

WS-CDC-2500W (2500 W DC-input power supply)

–

WS-CAC-3000W (3000 W AC-input power supply)

–

WS-CAC-4000W-US (4000 W AC-input power supply)

–

WS-CAC-4000W-INT (4000 W AC-input power supply)

–

PWR-4000-DC (4000 W DC-input power supply)

–

WS-CAC-6000W (6000 W AC-input power supply)

–

WS-CAC-8700W-E (8700 W AC-input power supply)

Note The 6000 W and the 8700 W AC-input power supplies are limited to

4500

W maximum output when installed in the Catalyst 6509-NEB

chassis.

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

• Installed power supplies can be of different wattage ratings. Installed

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

power supplies can also be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

• Single power supplies are installed in the left power supply bay. The

second power supply is installed in the right power supply bay.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-36

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-15 Catalyst 6509-NEB Switch Features (continued)

Feature Features

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor Engine 2 is installed in slot 1 or slot 2.

–

Supervisor Engine 32 is installed in slot 5 or slot 6.

• Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor

Engine

720, and Supervisor Engine 720-10GE are supported if the

WS-6509-NEB-UPGRD kit is installed.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

720, and Supervisor Engine 720-10GE. are installed in

slot

5 or slot 6.

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and cannot be installed in the same chassis.

Catalyst 6509-NEB Switch

720

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules ((WS-C6500-SFM and WS-X6500-SFM2).

• The uplink ports are fully functional on all redundant supervisor engine

models when they are in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-37

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509-NEB Switch

Table 1-15 Catalyst 6509-NEB Switch Features (continued)

Feature Features

Modules • Chassis supports up to eight Catalyst 6500 series modules.

• WS-C6500-SFM and WS-X6500-SFM2 Switch Fabric Modules must be

installed in slot

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

5 or slot 6.

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—32 ports

• Gigabit Ethernet (SFP transceivers)—384 ports

• Gigabit Ethernet (GBIC transceivers)—130 ports

• 10/100/1000 Ethernet—385 ports

• 10/100 Fast Ethernet—768 ports

• 100BASE-FX—384 ports

Catalyst 6500 Series Ethernet Modules Installation Guide

1-38

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Ta b l e 1-16 Catalyst 6509-NEB Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 90%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Catalyst 6509-NEB Switch

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 33.3 x 17.2 x 18.1 in. (84.6 x 43.7 x 46.0 cm).

• Chassis requires 20 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight Chassis only: 55 lb (24.9 kg).

Chassis fully configured with 1 supervisor engine, 8 switching modules, and

2

power supplies: 135 lb (61.2 kg).

Airflow

• WS-C6509-NEB-FAN (standard fan tray)—294 CFM

• Optional high-speed fan tray

Note To maintain proper air circulation through the Catalyst switch

1

—630 CFM

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

1. Part of the WS-6509-NEB-UPGRD kit.

cm)

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-39

Catalyst 6509-NEB-A Switch

The Catalyst 6509-NEB-A switch is a 9-slot vertical chassis. Figure 1-12 shows a front view of the chassis. Tabl e 1-17 provides a description of the major switch features. Table 1-18 lists the specifications of the Catalyst 6509-NEB-A switch chassis.

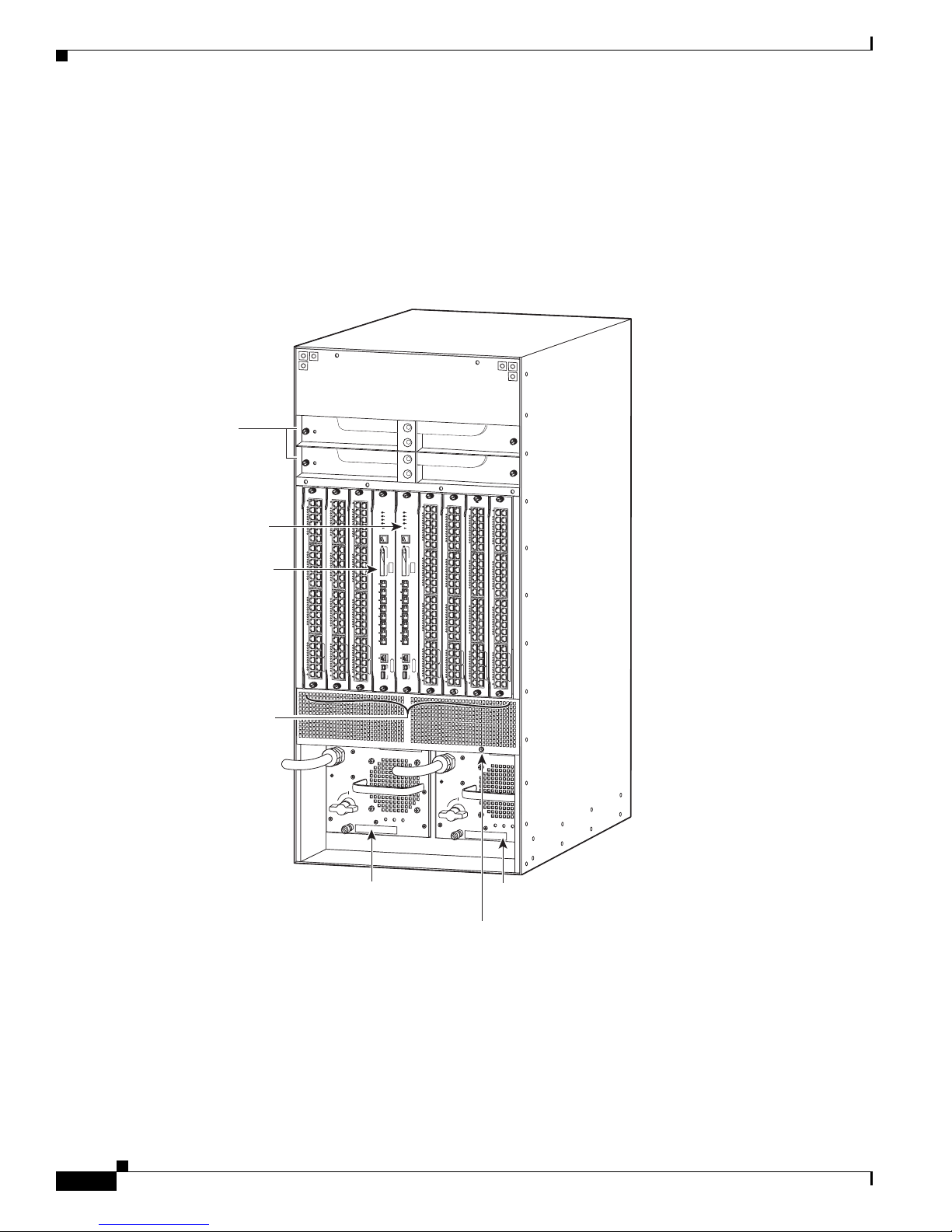

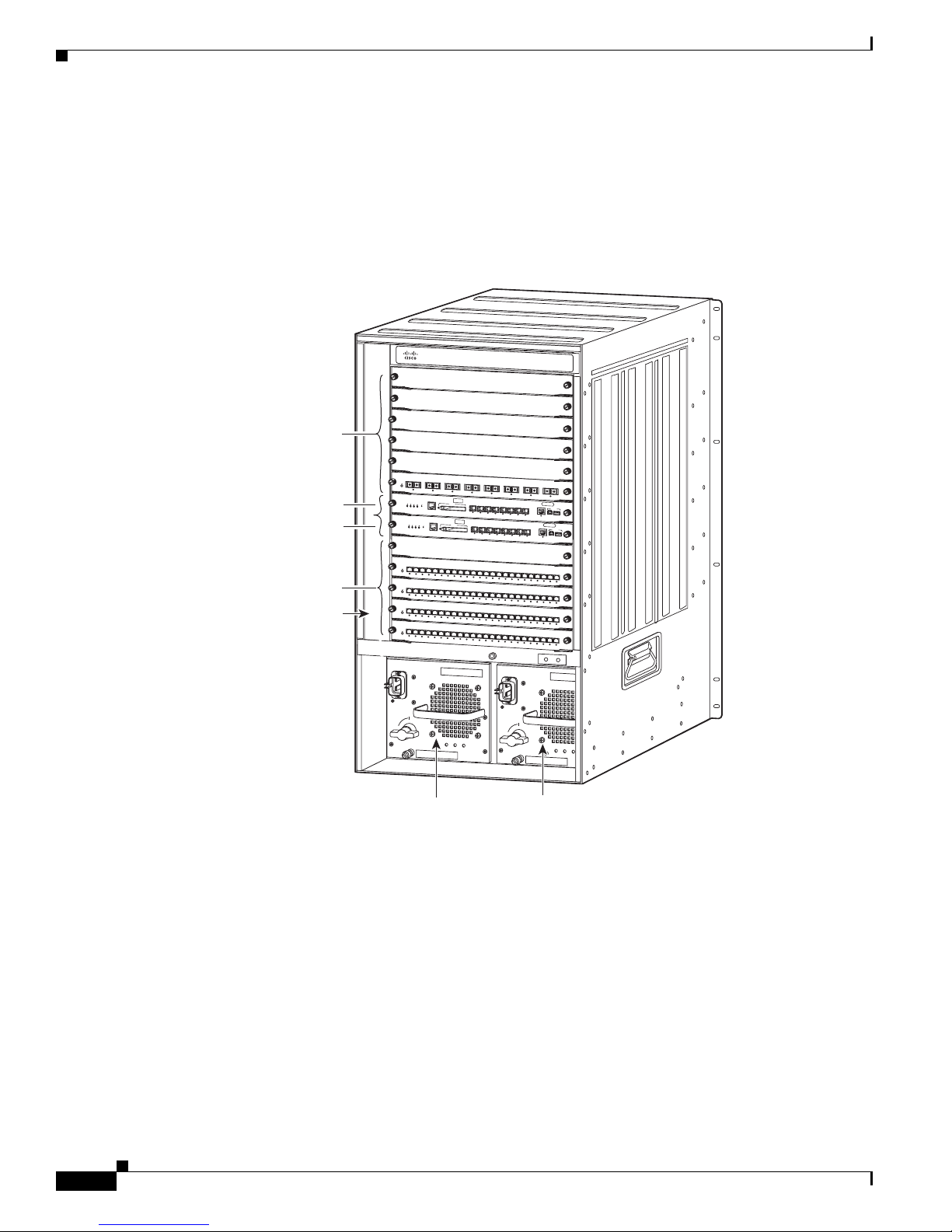

Figure 1-12 Catalyst 6509-NEB-A Switch Chassis

Fan assemblies

WS-X6548-GE-TX

Supervisor

engine

Redundant

supervisor

engine

STATUS

1

2

3

4

5

6

7

8

9

1 0

1 1

1 2

48 PORT 10/100/1000

1 3

1 4

1 5

1 6

1 7

1 8

1 9

2 0

2 1

2 2

2 3

2 4

BASE-T GE

2 5

2 6

2 7

2 8

2 9

3 0

3 1

3 2

3 3

3 4

3 5

3 6

SWITCHING MODULE

3 7

3 8

3 9

4 0

4 1

4 2

4 3

4 4

4 5

4 6

4 7

4 8

PHONE

WS-X6548-GE-TX

STATUS

C

W

A

S

T

-S

A

L

U

Y

P3

S

2

1

2

1

2

3

4

5

6

7

8

9

1

0

1

0

1

12

1

2

11

1

12

2

11

48 PORT 10/100/1000

14

13

14

13

1

3

1

3

1

4

1

4

1

5

1

5

1

6

1

6

1

7

1

7

1

8

1

8

1

9

1

9

2

0

2

0

2

1

2

1

2

3

2

3

24

2

4

23

2

24

4

23

BASE-T GE

26

25

26

25

2

5

2

5

2

6

2

6

2

7

2

7

2

8

2

8

2

9

2

9

3

0

3

0

3

1

3

1

3

2

3

2

3

4

3

4

3

5

3

5

36

3

6

35

36

3

6

35

SWITCHING MODULE

38

37

38

37

3

7

3

7

3

8

3

8

3

9

3

9

4

0

4

0

4

1

4

1

4

2

4

2

4

3

4

3

4

5

4

5

4

6

4

6

4

7

4

7

4

48

8

4

47

48

8

47

PHONE

S

T

2

6

-G

2

1

50

E

-3

0

S

B

U

P

E

S

R

T

A

V

T

U

IS

S

O

S

Y

R

S

E

T

E

M

N

A

G

C

T

IN

I

V

E

P

32

W

R

M

G M

T

R

E

S

E

T

C O

12

N

11

S O L E

48 PORT 10/100/1000

E

J

E

14

C

13

T

D IS K 0

P

24

O

23

R

L

T

I

N

1

K

P O R T

L

I

I N

N

2

K

26

P

25

O R T

L

I

N

3

K

P O R T

L

I

N

4

K

P O R T

L

I

5

N

K

P O R T

L

I

N

6

K

36

35

P

SWITCHING MODULE

O R T

L

I

N

7

K

P O R T

L

I

N

8

38

K

37

P O R T

L

I

N

9

K

U S B 2 .0

48

47

PHONE

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

WS-X6548-GE-TX

STATUS

W S

-S U P3 2

-G E

-3 B

2

1

U

2

S

3

E M

4

5

E

6

M G

7

M

T

8

T

9

1 0

C O

1 1

N S

1

O

2

L

12

E

48 PORT 10/100/1000

14

1 3

D IS

1 4

K 0

1 5

1 6

1 7

1 8

1 9

2 0

2 1

2 2

P

2

O

3

R T

2

1

4

24

P

BASE-T GE

O R T 2

P O R T

26

3

2 5

P

2 6

O R

2

T

7

4

2 8

2 9

P O

3

R

0

T 5

3 1

3 2

P

3

O

3

R T

3 4

6

3 5

3

P

6

36

O R T 7

SWITCHING MODULE

P O R T 8

38

3 7

3 8

3 9

P

4

O

0

R T

4 1

9

4 2

4 3

4 4

4 5

U S

4

B

6

2 .0

4 7

4 8

48

PHONE

WS-X6548-GE-TX

STATUS

1

2

1

2

3

4

5

6

7

8

9

1

0

1

2

11

12

11

48 PORT 10/100/1000

13

14

13

1

3

1

4

1

5

1

6

1

7

1

8

1

9

2

0

2

1

2

3

2

4

23

24

23

BASE-T GE

25

26

25

2

5

2

6

2

7

2

8

2

9

3

0

3

1

3

2

3

4

3

5

3

6

35

36

35

SWITCHING MODULE

37

38

37

3

7

3

8

3

9

4

0

4

1

4

2

4

3

4

5

4

6

4

7

4

8

47

48

47

PHONE

WS-X6548-GE-TX

STATUS

2

1

2 1

1

2

3

4

5

6

7

8

9

1

0

1 0

1

1 1

1

2

1

12

2

11

12 11

48 PORT 10/100/1000

14

13

14 13

1

3

1 3

1

4

1 4

1

5

1 5

1

6

1 6

1

7

1 7

1

8

1 8

1

9

1 9

2

0

2 0

2

1

2 1

2

2 2

2

3

2 3

2

4

2

24

4

23

24 23

BASE-T GE

26

25

26 25

2

5

2 5

2

6

2 6

2

7

2 7

2

8

2 8

2

9

2 9

3

0

3 0

3

1

3 1

3

2

3 2

3

3 3

3

4

3 4

3

5

3 5

3

6

36

3 6

35

36 35

SWITCHING MODULE

38

37

38 37

3

7

3 7

3

8

3 8

3

9

3 9

4

0

4 0

4

1

4 1

4

2

4 2

4

3

4 3

4

4 4

4

5

4 5

4

6

4 6

4

7

4 7

4

8

4

48

8

47

48 47

PHONE

1-40

Slots 1-9 (right to left)

POWER SUPPLY 1

o

INPUT

FAN

OUTPUT

OK

FAI

L

Power supply 1

ESD ground strap

Catalyst 6500 Series Ethernet Modules Installation Guide

POWER SUPPLY 2

o

connection

INPUT

FAN

OUTPUT

OK

FAI

L

Power supply 2 (redundant)

79894

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509-NEB-A Switch

Ta b l e 1-17 Catalyst 6509-NEB-A Switch Features

Feature Description

Chassis Nine vertical slots. Slots are numbered from 1 (right) to 9 (left). Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

WS-CAC-2500W (2500 W AC-input power supply)

–

WS-CDC-2500W (2500 W DC-input power supply)

–

WS-CAC-3000W (3000 W AC-input power supply)

–

WS-CAC-4000W-US (4000 W AC-input power supply)

–

WS-CAC-4000W-INT (4000 W AC-input power supply)

–

PWR-4000-DC (4000 W DC-input power supply)

–

WS-CAC-6000W (6000 W AC-input power supply)

–

WS-CAC-8700W-E (8700 W AC-input power supply)

Note The 6000 W and the 8700 W AC-input power supplies are limited to

4500

W maximum output when installed in the

Catalyst

6509-NEB-A chassis.

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

• Installed power supplies can be of different ratings. Installed power

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

supplies can also be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-41

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509-NEB-A Switch

Table 1-17 Catalyst 6509-NEB-A Switch Features (continued)

Feature Description

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor Engine 2 is installed in slot 1 and slot 2.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

720, and Supervisor Engine 720-10GE are installed in slot

5 and slot

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have

6.

built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and Supervisor Engine

720-10GE and cannot be installed in the

same chassis.

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules ((WS-C6500-SFM and WS-X6500-SFM2).

720

• The uplink ports are fully functional on all redundant supervisor engine

models when they are in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-42

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-17 Catalyst 6509-NEB-A Switch Features (continued)

Feature Description

Modules • Chassis supports up to eight Catalyst 6500 series modules.

• WS-C6500-SFM and WS-X6500-SFM2 Switch Fabric Modules must be

installed in slot

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

5 or slot 6.

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—32 ports

• Gigabit Ethernet (SFP transceivers)—386 ports

• Gigabit Ethernet (GBIC transceivers)—130 ports

Catalyst 6509-NEB-A Switch

• 10/100/1000 Ethernet—385 ports

• 10/100 Fast Ethernet—768 ports

• 100BASE-FX—384 ports

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-43

Catalyst 6509-NEB-A Switch

Ta b l e 1-18 Catalyst 6509-NEB-A Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 90%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 36.7 x 17.2 x 20.3 in. (93.1 x 43.7 x 51.6 cm).

• Chassis requires 21 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight Chassis only: 121 lb (54.9 kg).

Chassis fully configured with 1 supervisor engine, 8 modules, 2 AC-input

Airflow

power supplies: 270

FAN-MOD-09 (high-speed fan tray)—760 CFM

Note To maintain proper air circulation through the Catalyst switch

lb (122.47 kg).

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

Catalyst 6500 Series Ethernet Modules Installation Guide

1-44

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509-V-E Switch

The Catalyst 6509-V-E switch is a 9-slot vertical chassis. Figure 1-13 shows a front view of the chassis.

Table 1-19 provides a description of the major switch features. Table 1-20 lists the specifications of the

Catalyst 6509-V-E switch chassis.

Figure 1-13 Catalyst 6509-V-E Switch Chassis

Fan assemblies

WS-X6548-GE-TX

STATUS

2

1

2

1

2

3

4

5

6

7

8

9

Supervisor

engine

Redundant

supervisor

engine

1 0

1

0

1

0

1

2

12

1

2

11

1

12

2

11

48 PORT 10/100/1000

14

13

14

13

1 3

1

3

1

3

4

1

4

1

4

5

1

5

1

5

6

1

6

1

6

7

1

7

1

7

8

1

8

1

8

9

1

9

1

2

9

0

2

0

2

0

1

2

1

2

1

2

3

2

3

2

3

4

24

2

4

23

2

24

4

23

BASE-T GE

26

25

26

25

2 5

2

5

2

5

6

2

6

2

6

7

2

7

2

7

8

2

8

2

8

9

2

9

2

3

9

0

3

0

3

0

1

3

1

3

1

2

3

2

3

2

3

4

3

4

3

4

5

3

5

3

5

6

36

3

6

35

36

3 6

35

SWITCHING MODULE

38

37

38

37

3 7

3

7

3

7

8

3

8

3

8

9

3

9

3

4

9

0

4

0

4

0

1

4

1

4

1

2

4

2

4

2

3

4

3

4

3

4

5

4

5

4

5

6

4

6

4

6

7

4

7

4

7

8

4

48

8

4

47

48

8

47

PHONE

Catalyst 6509-V-E Switch

WS-X6548-GE-TX

C

W

A

S

T

-S A LY

U

P3 S T

2 6

-G

2

1

50

E

-3 0 S

B U P E

S

R

T A

V

T

IS

U S

O

S

Y

R

S

E

T E M

N

A

G

C T

IN

I V E

E

P

32

W

R M G

M

T

R

E S

E T

C O

12

N

11

S O L E

E J E

14

C

13

T

D IS K 0

P

24

O

23

R

L

T

I N

1

K

P O R T

L I N

2

K

26

P

25

O R T

L I N

3

K

P O R T

L I N

4

K

P O R T

L I

5

N

K

P O R T

L I N

6

K

36

35

P O R T

L I N

7

K

P O R T

L I N

8

38

K

37

P O R T

L I N

9

K

U S B 2 .0

48

47

WS-X6548-GE-TX

C

W

A

S

T

-S A LY

U

P3 S T

2 6

-G

50

E

-3 0 S

B U P E

S

R

T A

V

T

U

IS

S

O

S

Y

R

S

E

T E M

N

A

G

C T

IN

I V E

E

P

32

W R

M G

M T

R

E S

E T

C O N S O L E

E J E C T

D IS K 0

P O R

L

T

I N

1

K

P O R T

L

I N

2

K

P O R T

L

I N

3

K

P O R T

L

I N

4

K

P O R T

L

I

5

N K

P O R T

L

I N

6

K

P O R T

L

I N

7

K

P O R T

L

I N

8

K

P O R T

L

I N

9

K

U S B 2 .0

WS-X6548-GE-TX

STATUS

2

1

2

3

4

5

6

7

8

9

1 0

1 1

1 2

12

11

48 PORT 10/100/1000

14

13

1 3

1 4

1 5

1 6

1 7

1 8

1 9

2 0

2 1

2 2

2 3

2 4

24

23

BASE-T GE

26

25

2 5

2 6

2 7

2 8

2 9

3 0

3 1

3 2

3 3

3 4

3 5

3 6

36

35

SWITCHING MODULE

38

37

3 7

3 8

3 9

4 0

4 1

4 2

4 3

4 4

4 5

4 6

4 7

4 8

48

47

PHONE

WS-X6548-GE-TX

STATUS

2

1

2

3

4

5

6

7

8

9

1

0

1

2

12

48 PORT 10/100/1000

14

1

3

1

4

1

5

1

6

1

7

1

8

1

9

2

0

2

1

2

3

2

4

24

BASE-T GE

26

2

5

2

6

2

7

2

8

2

9

3

0

3

1

3

2

3

4

3

5

3

6

36

SWITCHING MODULE

38

3

7

3

8

3

9

4

0

4

1

4

2

4

3

4

5

4

6

4

7

4

8

48

PHONE

WS-X6548-GE-TX

STATUS

1

2

1

2 1

1

2

3

4

5

6

7

8

9

9 1 0

1

0 1 1

1

1 1 2

11

1

12

2

11

12 11

48 PORT 10/100/1000

13

14

13

14 13

1 3

1

3 1 4

1

4 1 5

1

5 1 6

1

6 1 7

1

7 1 8

1

8 1 9

1

9 2 0

2

0 2 1

2

1 2 2

2

2 2 3

2

3 2 4

23

2

24

4

23

24 23

BASE-T GE

25

26

25

26 25

2 5

2

5 2 6

2

6 2 7

2

7 2 8

2

8 2 9

2

9 3 0

3

0 3 1

3

1 3 2

3

2 3 3

3

3 3 4

3

4 3 5

3

5 3

35

6

36

3

6

35

36 35

SWITCHING MODULE

37

38

37

38 37

3 7

3

7 3 8

3

8 3 9

3

9 4 0

4

0 4 1

4

1 4 2

4

2 4 3

4

3 4 4

4

4 4 5

4

5 4 6

4

6 4 7

4

7 4 8

47

4

48

8

47

48 47

PHONE

OL-6265-03

Slots 1-9 (right to left)

POWER SUPPLY 1

o

Power supply 1

POWER SUPPLY 2

o

INPUT

FAN

OUTPUT

OK

FAI

L

ESD ground strap

connection

INPUT

FAN

OUTPUT

OK

FAI

L

79894

Power supply 2 (redundant)

Catalyst 6500 Series Ethernet Modules Installation Guide

1-45

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509-V-E Switch

Ta b l e 1-19 Catalyst 6509-V-E Switch Features

Feature Description

Chassis Nine vertical slots. Slots are numbered from 1 (right) to 9 (left). ‘ • Supports one or two power supplies. The following power supplies are

supported:

–

WS-CAC-2500W (2500 W AC-input power supply)

–

WS-CDC-2500W (2500 W DC-input power supply)

–

WS-CAC-3000W (3000 W AC-input power supply)

–

WS-CAC-4000W-US (4000 W AC-input power supply)

–

WS-CAC-4000W-INT (4000 W AC-input power supply)

–

PWR-4000-DC (4000 W DC-input power supply)

–

WS-CAC-6000W (6000 W AC-input power supply)

–

WS-CAC-8700W-E (8700 W AC-input power supply)

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

• Installed power supplies can be of different ratings. Installed power

supplies can also be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-46

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6509-V-E Switch

Table 1-19 Catalyst 6509-V-E Switch Features (continued)

Feature Description

Supervisor engines • Supports Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor

Engine

720, and Supervisor Engine 720-10GE.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

720, and Supervisor Engine 720-10GE are installed in slot

5 and slot

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have

6.

built-in switching fabric. Switch Fabric Modules are not supported by Supervisor Engine

720 Supervisor Engine 720-10GE and cannot

be installed in the same chassis.

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules ((WS-C6500-SFM and WS-X6500-SFM2).

• The uplink ports are fully functional on all redundant supervisor engine

models when they are in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

Modules • Chassis supports up to eight Catalyst 6500 series modules.

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—32 ports

• Gigabit Ethernet (SFP transceivers)—386 ports

• Gigabit Ethernet (GBIC transceivers)—130 ports

• 10/100/1000 Ethernet—385 ports

• 10/100 Fast Ethernet—768 ports

• 100BASE-FX—384 ports

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-47

Catalyst 6509-V-E Switch

Ta b l e 1-20 Catalyst 6509-V-E Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 90%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 36.7 x 17.2 x 20.3 in. (93.1 x 43.7 x 51.6 cm).

• Chassis requires 21 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight Chassis only: 121 lb (54.9 kg).

Chassis fully configured with 1 supervisor engine, 8 modules, 2 AC-input

Airflow

power supplies: 270

WS-C6509-V-E-FAN (High-speed fan tray—760 CFM).

Note To maintain proper air circulation through the Catalyst switch

lb (122.47 kg).

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

Catalyst 6500 Series Ethernet Modules Installation Guide

1-48

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6513 Switch

The Catalyst 6513 switch is a 13-slot horizontal chassis. Figure 1-14 shows a front view of the chassis.

Table 1-21 provides a description of the major switch features. Table 1-22 lists the specifications of the

Catalyst 6513 switch chassis.

Figure 1-14 Catalyst 6513 Switch

Switching modules

Supervisor engine

Redundant supervisor

engine

Switching modules

Fan

assembly

Catalyst 6513 Switch

1

2

3

4

5

WS-X6408

1

2

TUS

6

STA

8 P

O R

T

G

I G

A B I

T E

T H

E

W S

S

U

P 3

2

-G E

3

B

7

C A

T A

L Y

S

T 6

5 0

0 S

U

W

S

S U

P 3

2

G

E

3 B

8

C A

T

A L

Y S T

6

5 0

0

9

W

S

X

6

2 2

4

S

10

U T

A T S

2 4

P

O R

T

1 0

0 F

X

W

S

X

6

2 2

4

S

U

11

T

A T S

2 4

P

O R

T

1 0

0 F

X

W

S

X

6

2 2

4

F

A

N

S

U

12

T

A

S

T

A

T

U

S

2 4

P

O R

T

1 0

0 F

X

W

S

X

6

2 2

4

S U T

13

A

T S

2 4

P

O R

T

1 0

0 F

X

3

4

5

6

7

R N

E

T

K N I

K

L

N I

K

L

N I

K

L

N

I

K

L

N I

T

C

ON

SOL

M

E

S

M

G

U

E

M

T

V

T

I

A

S

R

E

T

Y

S

CT

S

W

S

E

A

P

R

P E

R V

I S O

R

E N

G

I

N

E

3 2

EJE

C

T

C

ON

SOL

M

E

S

M

G

U

E

M

T

V

T

I

A

S

R

E

T

Y

S

CT

S

W

S

E

A

P

R

S U

P E

R V

I S

O R

E

N

G

I N

E 3

2

EJE

C

1

2

3

4

5

6

LINK

1

2

3

4

5

6

LINK

1

2

3

4

5

6

K

N

K

I

N

K

I

L

N

K

I

L

N

K

I

L

N I

L

N I

L

1

2

3

4

5

6

K

IN

K

IN

L

N

K

I

L

K

IN

L

IN

L

IN

L

D IS

K 0

POR

T 1

PO

RT

2

POR

T 3

POR

T

4

PO

RT 5

K N I

K

INK

L

K N I

L

K

N L

I

N I

L

D I

S K 0

T

7

8

LINK

7

8

LINK

7

8

K N

I

N I

L

7

8

K

K N I

IN L

L

POR

T 1

PO

RT

2

POR

T 3

POR

T 4

PO

RT

K N I

K

INK

L

K N I

L

N

L

I L

9

1

0

1 1

1 2

1

3

1

4

1

5

LINK

9

1

0

1 1

1 2

1

3

1 4

1

5

1

LINK

9

1

0

1 1

1 2

1

3

1 4

1

5

1

K

N

K

I

N

K

I

L

N

K

I

L

N

K

I

L

N

K

I

L

N I

L

N I

L

9

1 0

1 1

1

2

1

3

1 4

1

5

1

K

IN

K

IN

L

K

IN

L

K

IN

L

K

IN

L

IN

L

IN

L

8

K N I

K

L

N I

K

L

N I

L

POR

T 9

PO

RT 6

POR

T 7

POR

T

8

U

SB

2. 0

K

K N I

K

L

N I

LIN

K

L

N I L

5

POR

T 9 PO RT

6

POR

T

7

POR

T 8

U

SB 2.

K N I L

1 6

LINK

6

LINK

6

K N I

L

6

K

N I L

0

K

K N I

K

L

N I

LIN

K

L

N I L

1

7

1 8

1 9

2

0

2 1

2 2

2

3

2

4

LINK

1 7

LINK

1 8

1 9

2

0

2 1

2 2

2

3

2

4

LINK

1 8

1 9

2

0

2 1

2 2

2

3

2

4

K

IN

N

K

I

L

N

K

I

L

N

K

I

L

N

K

I

L

N

K

I

L

N

I

L

N I

L

1

8

1

9

2

0

2 1

2

3

2

4

K

IN

K

IN

L

K

IN

L

K

IN

L

K

IN

L

N

K

I

L

IN

L

IN

L

o

Power supply 1

48121

INPUT

FAN

OK

o

OUTPUT

FAI

L

INPUT

FAN

OUTPUT

OK

FAI

L

Power supply 2 (redundant)

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-49

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6513 Switch

Ta b l e 1-21 Catalyst 6513 Switch Features

Feature Description

Chassis Thirteen horizontal slots. Slots are numbered from (1) top to (13) bottom. Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

WS-CAC-2500W (2500 W AC-input power supply)

–

WS-CDC-2500W (2500 W DC-input power supply)

–

WS-CAC-3000W (3000 W AC-input power supply)

–

WS-CAC-4000W-US (4000 W AC-input power supply)

–

WS-CAC-4000W-INT (4000 W AC-input power supply)

–

PWR-4000-DC (4000 W DC-input power supply)

–

WS-CAC-6000W (6000 W AC-input power supply)

–

WS-CAC-8700W-E (8700 W AC-input power supply)

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

• The 8700 W AC-input power supply is limited to 6000 W when it is

installed in a Catalyst

• Installed power supplies can be of different ratings. Installed power

6513 switch chassis.

supplies can also be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

• You must install a 2500 W or higher capacity power supply when using

the Supervisor Engine

32 or the Supervisor Engine 720 and the

high-speed fan tray.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-50

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-21 Catalyst 6513 Switch Features (continued)

Feature Description

Supervisor engines • Supports Supervisor Engine 2, Supervisor Engine 32, Supervisor

Engine

32 PISA, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor Engine 2 is installed in slot 1 and slot 2.

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

720, and Supervisor Engine 720-10GE are installed in slot 7

and slot

–

Supervisor Engine 32, Supervisor Engine 32 PISA, Supervisor Engine

8.

720, and Supervisor Engine 720-10GE require that you install the high-speed fan tray (WS-C6K-13SLT-FAN2) be installed in the chassis. You must also install a 2500

W or higher capacity

power supply in the chassis to power the high-speed fan tray.

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and Supervisor Engine

720-10GE and cannot be installed in the

same chassis.

Catalyst 6513 Switch

720

–

Supervisor Engine 32 and Supervisor Engine 32 PISA do not support the Switch Fabric Modules ((WS-C6500-SFM and WS-X6500-SFM2).

• The uplink ports are fully functional on all redundant supervisor engine

models when they are in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-51

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6513 Switch

Table 1-21 Catalyst 6513 Switch Features (continued)

Feature Description

Modules • Chassis supports up to 12 Catalyst 6500 series modules.

• WS-C6500-SFM and WS-X6500-SFM2 Switch Fabric Modules must be

installed in slot

• WS-X6748-SFP, WS-X6748-GE-TX, and WS-X6704-10GE modules

7 or slot 8.

are not supported in slots 2–8; they are supported in slots 9–13.

–

Slots 1–8 support a single fabric channel; slots 9–13 support dual fabric channels.

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a Supervisor Engine 720

–

Have chassis slot restrictions

–

Require a specific software release level

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—20 ports

• Gigabit Ethernet (SFP transceivers)—410 ports

• Gigabit Ethernet (GBIC transceivers)—194 ports

• 10/100/1000 Ethernet—577 ports

• 10/100 Fast Ethernet—1152 ports

• 100BASE-FX—576 ports

Catalyst 6500 Series Ethernet Modules Installation Guide

1-52

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Ta b l e 1-22 Catalyst 6513 Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 90%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Catalyst 6513 Switch

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 33.3 x 17.2 x 18.1 in. (84.6 x 43.7 x 46.0 cm).

• Chassis requires 20 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight Chassis fully configured with 2 supervisor engines, 11 switching modules,

and 2

power supplies: 280 lb (127 kg).

Airflow

• WS-C6K-13SLOT-FAN (standard fan tray)—641 CFM

• WS-C6K-13SLT-FAN2 (optional high-speed fan tray)—1090 CFM

Note To maintain proper air circulation through the Catalyst switch

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-53

Catalyst 6513-E Switch

The Catalyst 6513-E switch is a 13-slot horizontal chassis. Figure 1-15 shows a front view of the chassis.

Table 1-23 provides a description of the major switch features. Table 1-24 lists the specifications of the

Catalyst 6513-E switch chassis.

Figure 1-15 Catalyst 6513-E Switch

Switching modules

Supervisor engine

Redundant supervisor

engine

Switching modules

Fan assembly

(accessible from

rear of chassis)

1

2

3

4

5

6

7

8

9

10

11

12

13

WS-X6408

STATUS

8 PORT GIGABIT ETHERNET

WS-SUP32-GE-3B

CATALYST 6500 SUPERVISOR ENGINE 32

WS-SUP32-GE-3B

CATALYST 6500 SUPERVISOR ENGINE 32

WS-X6224

STATUS

24 PORT 100FX

WS-X6224

STATUS

24 PORT 100FX

WS-X6224

STATUS

24 PORT 100FX

WS-X6224

STATUS

24 PORT 100FX

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

W S-C 6513-E

1

2

3

4

5

6

7

LINK

CONSOLE

STATUS

SYSTEM

ACTIVE

PWR MGMT

RESET

EJECT

CONSOLE

STATUS

SYSTEM

ACTIVE

PWR MGMT

RESET

EJECT

1

2

3

4

5

6

LINK

1

2

3

4

5

6

LINK

1

2

3

4

5

6

LINK

1

2

3

4

5

6

LINK

DISK 0

PORT 1

PORT 2

PORT 3

PORT 4

PORT 5

LINK

DISK 0

7

8

LINK

7

8

LINK

7

8

LINK

7

8

LINK

PORT 1

PORT 2

PORT 3

PORT 4

PORT 5

LINK

9

10

11

12

13

14

15

LINK

9

10

11

12

13

14

15

16

LINK

9

10

11

12

13

14

15

16

LINK

9

10

11

12

13

14

15

16

LINK

8

LINK

PORT 9

PORT 6

PORT 7

PORT 8

USB 2.0

LINK

PORT 9

PORT 6

PORT 7

PORT 8

LINK

16

LINK

USB 2.0

LINK

17

18

19

20

21

22

23

24

LINK

17

LINK

18

19

20

21

22

23

24

LINK

18

19

20

21

22

23

24

LINK

18

19

20

21

22

23

24

LINK

1-54

o

Power supply 1

Catalyst 6500 Series Ethernet Modules Installation Guide

208620

INPUT

FAN

OK

o

OUTPUT

FAIL

INPUT

FAN

OUTPUT

OK

FAIL

Power supply 2 (redundant)

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6513-E Switch

Ta b l e 1-23 Catalyst 6513-E Switch Features

Feature Description

Chassis Thirteen horizontal slots. Slots are numbered from (1) top to (13) bottom. Power supplies • Supports one or two power supplies. The following power supplies are

supported:

–

WS-CDC-2500W (2500 W DC-input power supply)

–

WS-CAC-3000W (3000 W AC-input power supply)

–

WS-CAC-4000W-US (4000 W AC-input power supply)

–

WS-CAC-4000W-INT (4000 W AC-input power supply)

–

PWR-4000-DC (4000 W DC-input power supply)

–

WS-CAC-6000W (6000 W AC-input power supply)

–

PWR-6000-DC (6000 W DC-input power supply)

–

WS-CAC-8700W-E (8700 W AC-input power supply)

Note For information and specifications for each of the supported power

supplies, refer to Appendix

Catalyst

6500 Series Switches Installation Guide.

A, “Power Supply Specifications,” in the

• Installed power supplies can be of different ratings. Installed power

supplies can also be both AC-input, both DC-input, or one AC-input and one DC-input. Power supplies can be configured in either redundant or nonredundant mode.

• All Catalyst 6500 series AC-input power supplies require single-phase

source AC. Source AC can be out of phase between multiple power supplies or multiple AC-power plugs on the same power supply because all AC power supply inputs are isolated.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-55

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Catalyst 6513-E Switch

Table 1-23 Catalyst 6513-E Switch Features (continued)

Feature Description

Supervisor engines • Supports Supervisor Engine 32, Supervisor Engine 720, and Supervisor

Engine

720-10GE.

–

Supervisor Engine 32, Supervisor Engine 720, and Supervisor Engine

720-10GE are installed in slot 7 and slot 8.

–

Supervisor Engine 720 and Supervisor Engine 720-10GE have built-in switching fabric. Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported by Supervisor Engine and Supervisor Engine

720-10GE and cannot be installed in the

720

same chassis.

–

Supervisor Engine 32 does not support the Switch Fabric Modules ((WS-C6500-SFM and WS-X6500-SFM2).

• The uplink ports are fully functional on all redundant supervisor engine

models when they are in standby mode.

Note In systems with redundant supervisor engines, both supervisor

engines must be the same model and have the same daughter card configurations. Each supervisor engine must have the resources to run the switch on its own, which means all supervisor engine resources are duplicated. Identical supervisor engine memory configurations are recommended, but are not required as long as the supervisor engine with the smaller memory configuration is sufficient to run the configured features of the switch. Additionally, each supervisor engine must have its own flash device and console port connections.

Catalyst 6500 Series Ethernet Modules Installation Guide

1-56

OL-6265-03

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Table 1-23 Catalyst 6513-E Switch Features (continued)

Feature Description

Modules • Chassis supports up to 12 Catalyst 6500 series modules.

• WS-X6748-SFP, WS-X6748-GE-TX, and WS-X6704-10GE modules

are not supported in slots 2–8; they are supported in slots 9–13.

–

Slots 1–8 support a single fabric channel; slots 9–13 support dual fabric channels.

• Some Catalyst 6500 series modules:

–

Are not supported

–

Require that you install a specific supervisor engine

–

Have chassis slot restrictions

–

Require a specific software release level

Check your software release notes for specific information on supported modules.

Port density (including supervisor engine ports)

• 10-Gigabit Ethernet—20 ports

• Gigabit Ethernet (SFP transceivers)—410 ports

• Gigabit Ethernet (GBIC transceivers)—194 ports

Catalyst 6513-E Switch

• 10/100/1000 Ethernet—577 ports

• 10/100 Fast Ethernet—1152 ports

• 100BASE-FX—576 ports

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

1-57

Catalyst 6513-E Switch

Ta b l e 1-24 Catalyst 6513-E Switch Specifications

Item Specification

Environmental

Temperature, operating Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Note The Catalyst 6500 series switches are equipped with internal air

temperature sensors that are triggered at 104°F (40°C) generating a minor alarm and at 131°F (55°C) generating a major alarm.

Temperature, nonoperating

–4° to 149°F (–20° to 65°C)

and storage

Thermal transition 0.5°C per minute (hot to cold)

0.33°C per minute (cold to hot)

Humidity (RH), ambient

10% to 90%

(noncondensing) operating

Humidity (RH), ambient

5% to 95% (noncondensing) nonoperating and storage

Altitude, operating Certified for operation: 0 to 6500 feet (0 to 2000 m)

Chapter 1 Catalyst 6500 Series Switch Chassis Overview

Designed and tested for operation: –200 to 10,000 feet (–60 to 3000 m)

Physical Characteristics

Dimensions (H x W x D) • 33.3 x 17.2 x 18.1 in. (84.6 x 43.7 x 46.0 cm).

• Chassis requires 20 RU.

• Chassis can be mounted in equipment racks that meet ANSI/EIA 310-D

and ETS

300-119 standards.

Weight Chassis fully configured with 2 supervisor engines, 11 switching modules,

and 2

power supplies: 280 lb (127 kg).

Airflow

• WS-C6513-E-FAN—1755 CFM

Note To maintain proper air circulation through the Catalyst switch

chassis, we recommend that you maintain a minimum 6-inch (15 separation between a wall and the chassis air intake or a wall and the chassis air exhaust. You should also allow a minimum separation of 12 inches (30.5

cm) between the hot air exhaust on one chassis and the air intake on another chassis. Failure to maintain adequate air space can cause the chassis to overheat and the system to fail. On Catalyst chassis in which the airflow is from front to back, the chassis may be placed side-by-side.

cm)

Catalyst 6500 Series Ethernet Modules Installation Guide

1-58

OL-6265-03

CHA PTER

Ethernet Switching Modules

This chapter describes the 10BASE, 10/100BASE, 10/100/1000BASE, 1-Gigabit, and the 10-Gigabit Ethernet modules and contains these sections:

• 10 and 10/100 Fiber-Based Ethernet Modules, page 2-1

• 10/100 and 10/100/1000 Ethernet Modules, page 2-13

• 1-Gigabit Ethernet Modules, page 2-63

• 10-Gigabit Ethernet Modules, page 2-87

Note Service modules are not covered in this document. They have their own standalone documentation sets.

10 and 10/100 Fiber-Based Ethernet Modules

2

This section describes the following 10 and 10/100 fiber-based Ethernet modules:

• WS-X6024-10FL-MT Ethernet Module, page 2-2

• WS-X6148-FE-SFP Ethernet Module, page 2-4

• WS-X6324-100FX-MM and WS-X6324-100FX-SM Ethernet Modules, page 2-7

• WS-X6524-100FX-MM Ethernet Module, page 2-10

Note All 10 and 10/100 Fiber-based Ethernet modules are hot-swappable.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-1

10 and 10/100 Fiber-Based Ethernet Modules

WS-X6024-10FL-MT Ethernet Module

The WS-X6024-10FL-MT Ethernet module (Figure 2-1) provides 24 10-Mbps full- or half-duplex ports.

Table 2-1 lists the module features, and Tab le 2-2 lists the module physical and environmental

specifications.

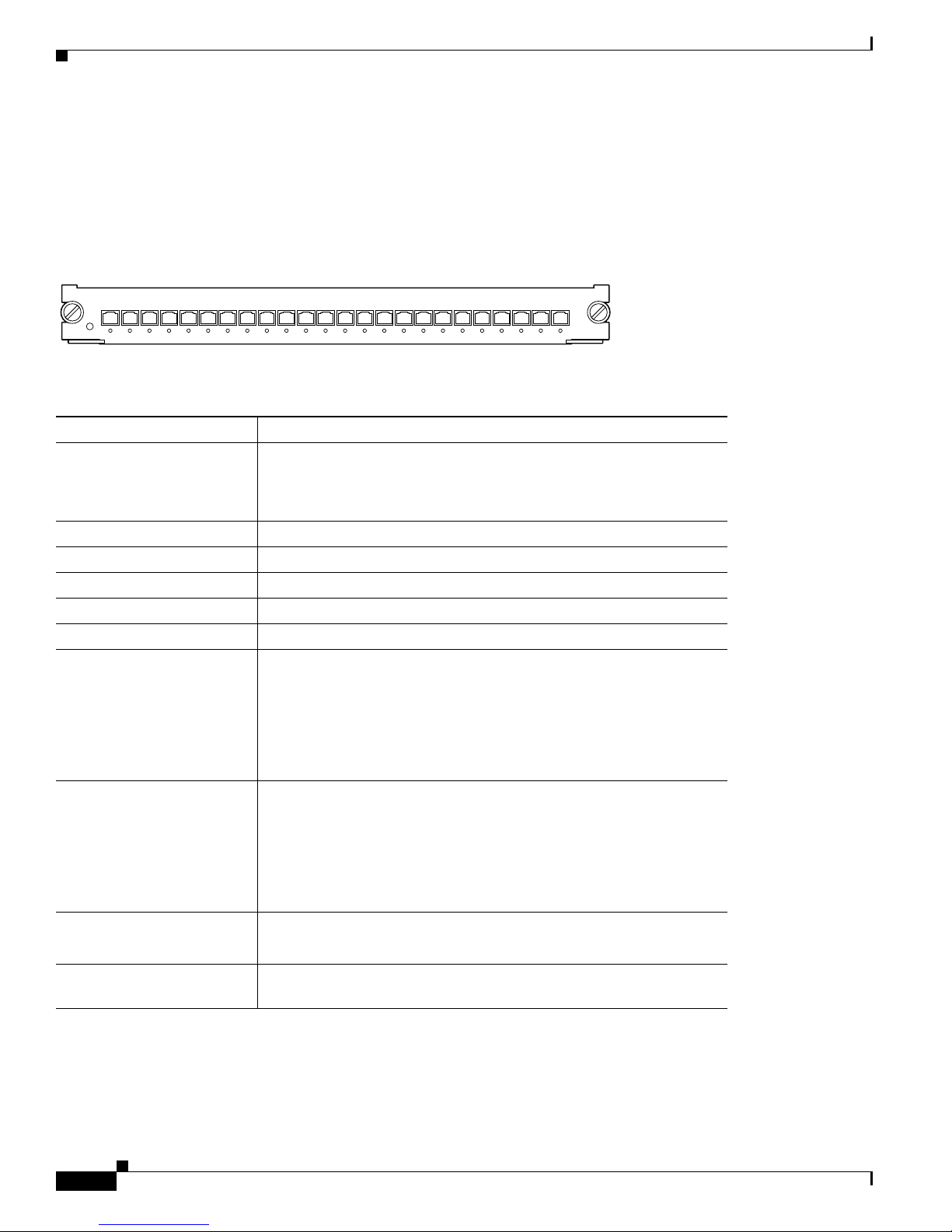

Figure 2-1 WS-X6024-10FL-MT Ethernet Module Front Panel

WS-X6024-10FL-MT

S U T

A

T

S

K

IN

24 PORT 10FL

L

IN

L

Ta b l e 2-1 WS-X6024-10FL-MT Ethernet Module Features

Feature Description

Ports per module • 24 ports. Ports are numbered from 1 (left) to 24 (right).

• 2 port groups

K

IN

L

26947

Chapter 2 Ethernet Switching Modules

• Port ranges per port group: 1–12, 13–24

Port connector type MT-RJ

Cabling distance 1.24 mi (2 km) full- or half-duplex over 62.5- and 125-micron MMF

Buffer size 64 KB per port

Maximum frame size Up to 9216 bytes per frame

Module oversubscription rate N/A

Supervisor engine support Supported by the following supervisor engines:

• Supervisor Engine 2

• Supervisor Engine 32

• Supervisor Engine 32 PISA

• Supervisor Engine 720

Software support • With Supervisor Engine 2—12.2(17d)SXB

• With Supervisor Engine 32—12.2(18)SXF

• With Supervisor Engine 32 PISA—12.2(18)ZY

• With Supervisor Engine 720—12.2(14)SX

• Catalyst OS support—6.4(11)

Queues per port • Tx—2q2t

• Rx—1q4t

Chassis/slot restrictions No chassis or slot restrictions; the module can occupy any slot in any

Catalyst

6500 or Catalyst 6500-E chassis.

Catalyst 6500 Series Ethernet Modules Installation Guide

2-2

OL-6265-03

Chapter 2 Ethernet Switching Modules

Table 2-1 WS-X6024-10FL-MT Ethernet Module Features (continued)

Feature Description

Bus connection Single connection into the 32-Gbps shared bus

Module upgrades available

PoE support Not available.

Distributed forwarding

Not available.

support

Pluggable transceivers

Not supported.

support

Digital Optical Monitoring

Not supported

(DOM) support

Module front panel LEDs STATUS

• Green—All diagnostics pass; the module is operational.

• Orange—The module is booting or running diagnostics; an

overtemperature condition has occurred.

10 and 10/100 Fiber-Based Ethernet Modules

LINK

• Green—The port is active (the link is connected and operational).

• Flashing orange—The port failed diagnostics and is disabled.

• Orange—The port is disabled.

• Red—The module is resetting; an overtemperature condition has

occurred.

Note If the module fails to download code and configuration

information successfully during the initial reset, the LED stays red; the module does not come online.

• Off—The port is not active or the link is not connected.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-3

Chapter 2 Ethernet Switching Modules

10 and 10/100 Fiber-Based Ethernet Modules

Ta b l e 2-2 WS-X6024-10FL-MT Ethernet Module Physical and Environmental Specifications

Item Specification

Dimensions (H x W x D) 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis.

Weight 7.0 lb (3.18 kg) Power and heat numbers • Module current—1.52 A

• Module power—63.84 W

• AC-input power—79.8 W

• AC heat dissipation—272.52 BTU/hour

• DC-input power—85.81 W

• DC heat dissipation—293.0 BTU/hour

Environment

Operating temperature • Certified for operation: 32° to 104°F (0° to 40°C)

• Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient

10 to 90%

(noncondensing) Operating altitude • Certified for operation: 0 to 6500 ft (0 to 2000 m)

• Designed and tested for operation: –200 to 10,000 ft (–60 to 3000 m)

WS-X6148-FE-SFP Ethernet Module

The WS-X6148-FE-SFP Ethernet module (Figure 2-2) provides 48 100-Mbps full- or half-duplex ports.

Table 2-3 lists the module features, and Tab le 2-4 lists the module physical and environmental

specifications.

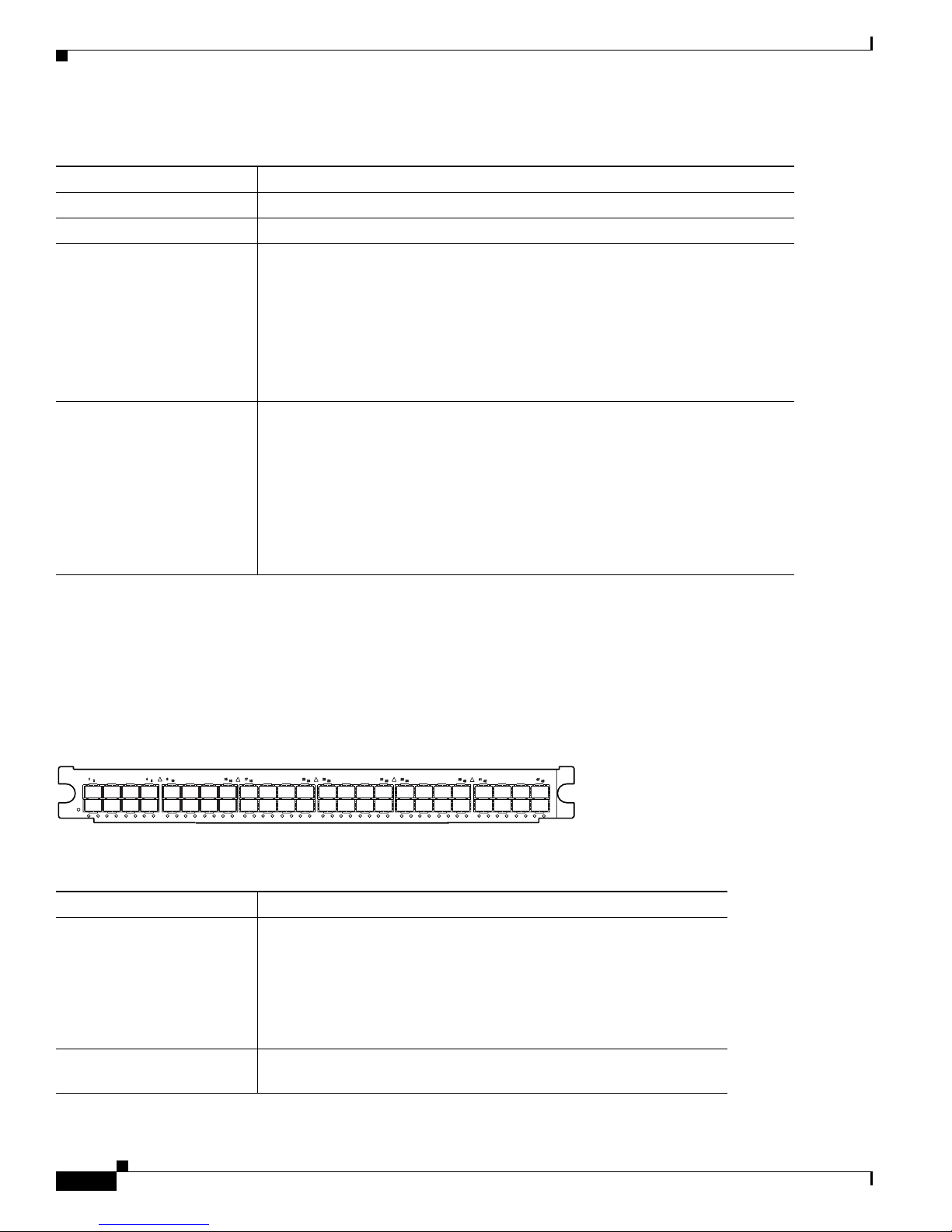

Figure 2-2 WS-X6148-FE-SP Ethernet Module Front Panel

WS-X6148-FE-SFP

48 PORT 100BASE-X MODULE

STATUS

1 2 3 4 5 6 7 8 910111213141516 17181920 21222324 25262728 29303132 3334353637383940 41424344 45464748

Ta b l e 2-3 WS-X6148-FE-SFP Features

Feature Description

Ports per module • 48 ports.Ports are numbered (left to right):

–

Top row, odd numbered ports 1–47.

–

Bottom row, even numbered ports 2–48.

• 3 port groups

184591

• Port ranges per port group: 1–16, 17–32, 33–48

Port connector type LC or RJ-45 (depending on the type of 100-Mbps Fast Ethernet SFP

transceiver installed in the module port)

Catalyst 6500 Series Ethernet Modules Installation Guide

2-4

OL-6265-03

Chapter 2 Ethernet Switching Modules

10 and 10/100 Fiber-Based Ethernet Modules

Table 2-3 WS-X6148-FE-SFP Features (continued)

Feature Description

Cabling distance Depends on the 100BASE-X Fast Ethernet SFP transceiver installed in

the module port. Refer to Appendix

B for descriptions of the Fast

Ethernet SFP transceiver types and supported cabling distances.

Buffer size 256 MB shared between 48 ports (5.4 MB per port) QoS • Number of egress queues: 4

• Number of ingress queues: 2

• Number of thresholds per egress queue: 8

• Number of thresholds per ingress queue: 4

Maximum frame size Up to 9216 bytes per frame

Module oversubscription rate N/A

Supervisor engine support Supported on the following supervisor engines:

• Supervisor Engine 2

• Supervisor Engine 32

• Supervisor Engine 720

• Supervisor Engine 720-10GE

Software support • With Supervisor Engine 2—12.2(18)SXF2

• With Supervisor Engine 32—12.2(18)SXF

• With Supervisor Engine 32 PISA—12.2(18)ZY

• With Supervisor Engine 720—12.2(18)SXF

• With Supervisor Engine 720-10GE—12.2(33)SXH

• Catalyst OS—8.4(1)

Queues per port • Tx—1p3q8t (per port)

• Rx—1p1q2t (per group of 8 ports)

Chassis/slot restrictions No chassis or slot restrictions; the module can occupy any slot in any

Catalyst

6500 or Catalyst 6500-E chassis.

Bus connection Single connection into the 32-Gbps shared bus

Module upgrades available

PoE support Not available.

Distributed forwarding

Not available.

support

Pluggable transceivers support

The module supports 100BASE-X Fast Ethernet SFP transceivers. Refer to your software release notes to determine which Fast Ethernet SFP transceivers are supported. See the

“100-MB Transceivers” section on page B-1 in Appendix B for additional information on the Fast

Ethernet SFP transceivers.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-5

10 and 10/100 Fiber-Based Ethernet Modules

Table 2-3 WS-X6148-FE-SFP Features (continued)

Feature Description

Digital Optical Monitoring

Not supported

(DOM) support

Module front panel LEDs STATUS

• Green—All diagnostics pass; the module is operational.

• Orange—The module is booting or running diagnostics; an

overtemperature condition has occurred.

LINK

• Green—The port is active (the link is connected and operational).

• Flashing orange—The port failed diagnostics and is disabled.

• Orange—The port is disabled.

• Red—The module is resetting; an overtemperature condition has

occurred.

Note If the module fails to download code and configuration

information successfully during the initial reset, the LED stays red; the module does not come online.

Chapter 2 Ethernet Switching Modules

• Off—The port is not active or the link is not connected.

Ta b l e 2-4 WS-X6148-FE-SFP Physical and Environmental Specifications

Item Specification

Dimensions (H x W x D) 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in

the chassis.

Weight 6.6 lb (3 kg) Power and heat numbers • Module current—2.3 A

• Module power—96.60 W

• AC-input power—120.75 W

• AC heat dissipation—412.36 BTU/hour

• DC-input power—129.84 W

• DC heat dissipation—443.40 BTU/hour

Environment

Operating temperature • Certified for operation: 32° to 104°F (0° to 40°C)

• Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient

10 to 90%

(noncondensing) Operating altitude • Certified for operation: 0 to 6500 ft (0 to 2000 m)

• Designed and tested for operation: –200 to 10,000 ft (–60 to

3000

m)

Catalyst 6500 Series Ethernet Modules Installation Guide

2-6

OL-6265-03

Chapter 2 Ethernet Switching Modules

10 and 10/100 Fiber-Based Ethernet Modules

WS-X6324-100FX-MM and WS-X6324-100FX-SM Ethernet Modules

The WS-X6324-100FX-MM and the WS-X6324-100FX-SM Ethernet modules (Figure 2-3) provide 24 100-Mbps full- or half-duplex ports. The WS-X6324-100FX-MM Ethernet module operates over multimode fiber-optic (MMF) cable and the WS-X6324-100FX-SM Ethernet module operates over G.652 single-mode fiber-optic (SMF) cable. both modules physical and environmental specifications.

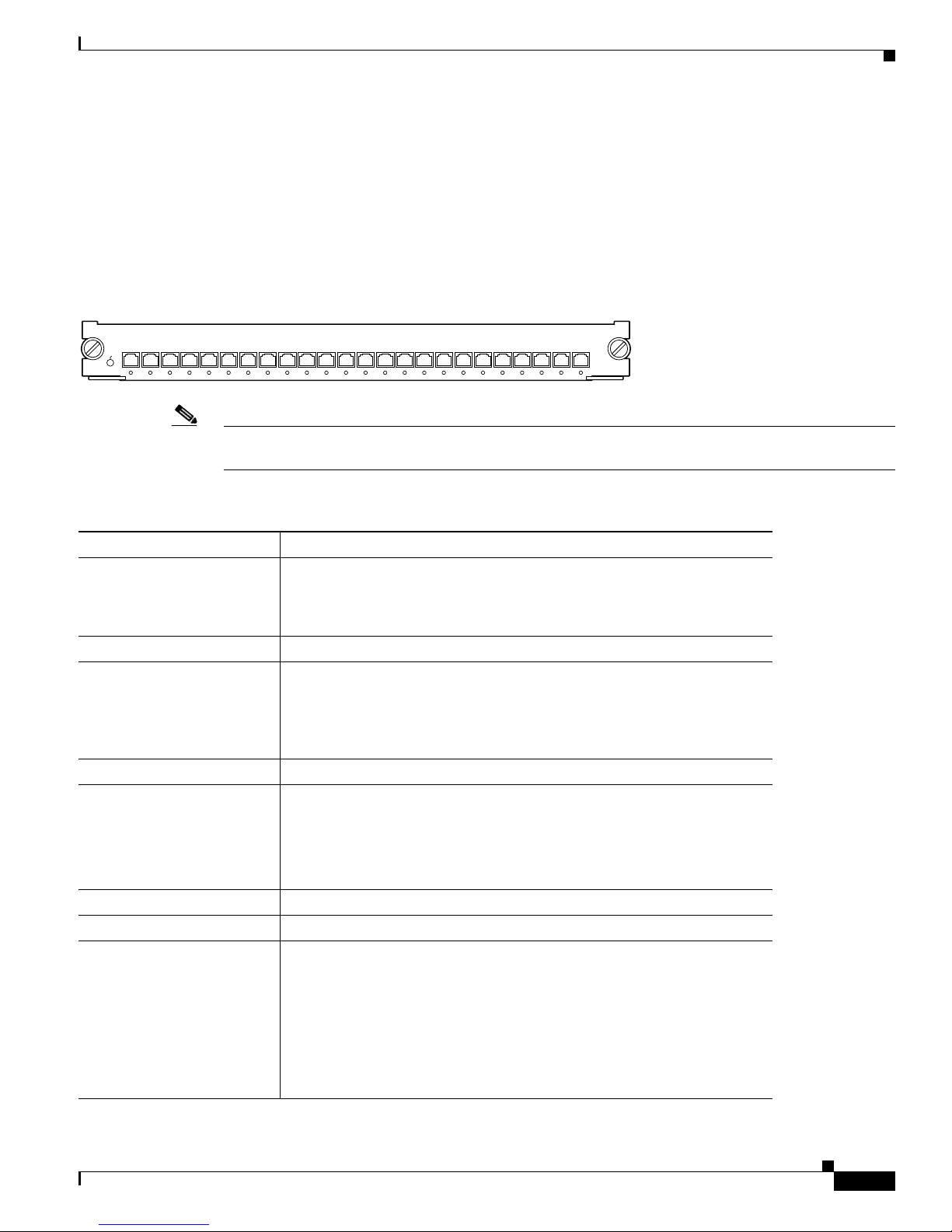

Figure 2-3 WS-X6324-100FX-MM and WS-X6324-100FX-SM Ethernet Modules Front Panel

WS-X6324-100FX-MM

S

U

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

S

24 PORT 100FX-MMF

T

A

T

K

LIN

K

LIN

K

LIN

K

LIN

K

LIN

K

LIN

18

K

LIN

Note The WS-X6324-100FX-SM Ethernet module front panel is identical to the WS-X6324-100FX-MM

Ethernet module front panel with the exception of the product part number.

Table 2-5 lists both modules features, and Table 2-6 lists

19

20

21

22

23

24

K

LIN

K

LIN

44744

Ta b l e 2-5 WS-X6324-100FX-MM and WS-X6324-100FX-SM Ethernet Module Features

Feature Description

Ports per module • 24 ports. Ports are numbered 1 (left) to 24 (right).

• 2 port groups

• Port ranges per port group: 1–12, 13–24

Port connector type MT-RJ (both modules) Cabling distance • WS-X6324-100FX-MM—1.24 mi (2 km) full-duplex over MMF

• WS-X6324-100FX-MM—1312 ft (400 m) half-duplex over MMF

• WS-X6324-100FX-SM—6.2 mi (10 km) full- or half-duplex over

G.652 SMF

Buffer size 128 KB per port QoS • Number of egress queues: 2

• Number of ingress queues: 1

• Number of thresholds per egress queue: 2

• Number of thresholds per ingress queue: 4

Maximum frame size Up to 9216 bytes per frame

Module oversubscription rate N/A

Supervisor engine support Supported by the following supervisor engines:

• Supervisor Engine 2

• Supervisor Engine 32

• Supervisor Engine 32 PISA

• Supervisor Engine 720

• Supervisor Engine 720-10GE

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-7

Chapter 2 Ethernet Switching Modules

10 and 10/100 Fiber-Based Ethernet Modules

Table 2-5 WS-X6324-100FX-MM and WS-X6324-100FX-SM Ethernet Module Features (continued)

Feature Description

Software support • With Supervisor Engine 2—12.1(2)E

• With Supervisor Engine 32—12.2(18)SXF

• With Supervisor Engine 32 PISA—12.2(18)ZY

• With Supervisor Engine 720—12.2(14)SX

• With Supervisor Engine 720-10GE—12.2(33)SXH

• Catalyst OS—6.4(11)

Queues per port Both modules:

• Tx—2q2t

• Rx—1q4t

Chassis/slot restrictions No chassis or slot restrictions; the modules can occupy any slot in any

Catalyst

6500 or Catalyst 6500-E chassis.

Bus connection Single connection into the 32-Gbps shared bus

Module upgrades available

PoE support Not available.

Distributed forwarding

Not available.

support

Pluggable transceivers

Not supported.

support

Digital Optical Monitoring

Not supported.

(DOM) support

Module front panel LEDs STATUS

• Green—All diagnostics pass; the module is operational.

• Orange—The module is booting or running diagnostics; an

overtemperature condition has occurred.

LINK

• Green—The port is active (the link is connected and operational).

• Flashing orange—The port failed diagnostics and is disabled.

• Orange—The port is disabled.

• Red—The module is resetting; an overtemperature condition has

occurred.

Note If the module fails to download code and configuration information

successfully during the initial reset, the LED stays red; the module does not come online.

• Off—The port is not active or the link is not connected.

Catalyst 6500 Series Ethernet Modules Installation Guide

2-8

OL-6265-03

Chapter 2 Ethernet Switching Modules

10 and 10/100 Fiber-Based Ethernet Modules

Ta b l e 2-6 WS-X6324-100FX-MM and WS-X6324-100FX-SM Ethernet Modules Physical and Environmental

Specifications

Item Specification

Dimensions (H x W x D) 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis.

Weight 7.0 lb (3.18 kg) Power and heat numbers • Module current—1.52 A

• Module power—63.84 W

• AC-input power—79.8 W

• AC heat dissipation—272.52 BTU/hour

• DC-input power—85.81 W

• DC heat dissipation—293.03 BTU/hour

Environment

Operating temperature • Certified for operation: 32° to 104°F (0° to 40°C)

• Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient

10 to 90%

(noncondensing) Operating altitude • Certified for operation: 0 to 6500 ft (0 to 2000 m)

• Designed and tested for operation: –200 to 10,000 ft (–60 to 3000 m)

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-9

10 and 10/100 Fiber-Based Ethernet Modules

WS-X6524-100FX-MM Ethernet Module

The WS-X6524-100FX-MM Ethernet module (Figure 2-4) provides 24 100-Mbps full- or half-duplex ports. Tab l e 2-7 lists the module features, and Table 2-8 lists the module physical and environmental specifications.

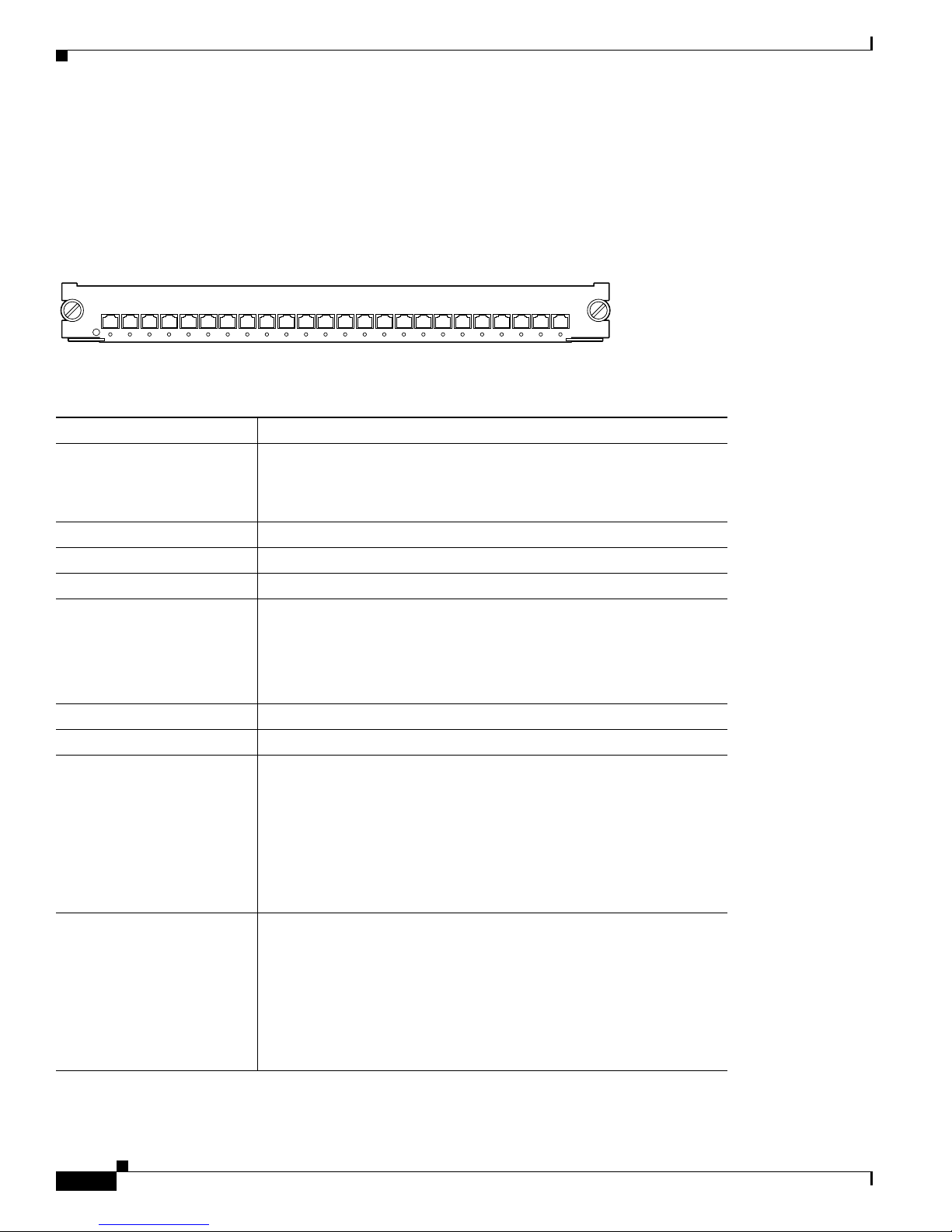

Figure 2-4 WS-X6524-100FX-MM Switching Modules Front Panel

WS-X6524-100FX-MM 24 PORT 100FX-MMF

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

K

STATUS

LIN

K

LIN

Ta b l e 2-7 WS-X6524-100FX-MM Features

Feature Description

Ports per module • 24 ports. Ports are numbered 1 (left) to 24 (right).

K

LIN

K

LIN

K

LIN

K

LIN

• 1 port group

Chapter 2 Ethernet Switching Modules

63671

• Port ranges per port group: 1–24

Port connector type MT-RJ

Cabling distance 1.24 mi (2 km) full-duplex; 1312 ft (400 m) half-duplex over MMF

Buffer size 1.2 MB per port QoS • Number of egress queues: 4

• Number of ingress queues: 2

• Number of thresholds per egress queue: 1

• Number of thresholds per ingress queue: 0

Maximum frame size Up to 9216 bytes per frame

Module oversubscription rate N/A

Supervisor engine support Supported by the following supervisor engines:

• Supervisor Engine 2

• Supervisor Engine 32

• Supervisor Engine 32 PISA

• Supervisor Engine 720

• Supervisor Engine 720-10GE

Software support • With Supervisor Engine 2—12.1(8a)EX

• With Supervisor Engine 32—12.2(18)SXF

• With Supervisor Engine 32 PISA—12.2(18)ZY

• With Supervisor Engine 720—12.2(14)SX

• With Supervisor Engine 720-10GE—12.2(33)SXH

• Catalyst OS—7.6(9)

Catalyst 6500 Series Ethernet Modules Installation Guide

2-10

OL-6265-03

Chapter 2 Ethernet Switching Modules

10 and 10/100 Fiber-Based Ethernet Modules

Table 2-7 WS-X6524-100FX-MM Features (continued)

Feature Description

Queues per port • Tx—1p3q1t

• Rx—1p1q0t

Chassis/slot restrictions No chassis or slot restrictions; the module can occupy any slot in any

Catalyst

6500 or Catalyst 6500-E chassis.

Bus connection Single connection into the 32-Gbps shared bus

Module upgrades available

PoE support Not available

Distributed forwarding support

Field upgradeable to support distributed forwarding with the following daughter cards:

• WS-F6K-DFC

• WS-F6K-DFC3A

• WS-F6K-DFC3B

• WS-F6K-DFC3BXL

See Appendix A for further information on the DFC daughter cards.

See the Catalyst 6500 Series DFC, DFC3A, DFC3B, and DFC3BXL Installation Note for field installation procedures.

Pluggable transceivers

Not supported

support

Digital Optical Monitoring

Not supported

(DOM) support

Module front panel LEDs STATUS

• Green—All diagnostics pass; the module is operational.

• Orange—The module is booting or running diagnostics; an

overtemperature condition has occurred.

LINK

• Green—The port is active (the link is connected and operational).

• Flashing orange—The port failed diagnostics and is disabled.

• Orange—The port is disabled.

• Red—The module is resetting; an overtemperature condition has

occurred.

Note If the module fails to download code and configuration

information successfully during the initial reset, the LED stays red; the module does not come online.

• Off—The port is not active or the link is not connected.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-11

Chapter 2 Ethernet Switching Modules

10 and 10/100 Fiber-Based Ethernet Modules

Ta b l e 2-8 WS-X6524-100FX-MM Physical and Environmental Specifications

Item Specification

Dimensions 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis.

Weight Base module—7.0 lb (3.18 kg) Power and heat numbers • Base module:

–

Module current—1.90 A

–

Module power—79.8 W

–

AC-input power—99.75 W

–

AC heat dissipation—340.65 BTU/hour

–

DC-input power—107.30 W

–

DC heat dissipation—366.30 BTU/hour

• Base module + DFC3 daughter card:

–

Module current—4.00 A

–

Module power—168.00 W

–

AC-input power—210.00 W

–

AC heat dissipation—717.15 BTU/hour

–

DC-input power—225.81 W

–

DC heat dissipation—771.13 BTU/hour

• Base module + DFC3A daughter card:

–

Module current—4.47 A

–

Module power—187.74 W

–

AC-input power—234.68 W

–

AC heat dissipation—801.42 BTU/hour

–

DC-input power—252.34 W

–

DC heat dissipation—861.74 BTU/hour

Catalyst 6500 Series Ethernet Modules Installation Guide

2-12

OL-6265-03

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Table 2-8 WS-X6524-100FX-MM Physical and Environmental Specifications (continued)

Item Specification

Power and heat numbers (continued)

• Base module + DFC3B daughter card:

–

Module current—3.57 A

–

Module power—149.94 W

–

AC-input power—187.43 W

–

AC heat dissipation—640.06 BTU/hour

–

DC-input power—201.53 W

–

DC heat dissipation—688.23 BTU/hour

• Base module + DFC3BXL daughter card:

–

Module current—3.37 A

–

Module power—141.54 W

–

AC-input power—176.93 W

–

AC heat dissipation—604.20 BTU/hour

–

DC-input power—190.24 W

–

DC heat dissipation—649.68 BTU/hour

Environment

Operating temperature • Certified for operation: 32° to 104°F (0° to 40°C)

• Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient

10 to 90%

(noncondensing) Operating altitude • Certified for operation: 0 to 6500 ft (0 to 2000 m)

• Designed and tested for operation: –200 to 10,000 ft (–60 to 3000 m)

10/100 and 10/100/1000 Ethernet Modules

This section describes the following 10/100 and 10/100/1000BASE Ethernet modules:

• WS-X6148-GE-TX and WS-X6148A-GE-TX Ethernet Modules, page 2-14

• WS-X6148-RJ21 Ethernet Modules, page 2-19

• WS-X6148-RJ-45 and WS-X6148A-RJ-45 Ethernet Modules, page 2-23

• WS-X6148X2-RJ-45 and WS-X6148X2-45AF Ethernet Modules, page 2-29

• WS-X6196-RJ-21 and WS-X6196-21AF Ethernet Modules, page 2-34

• WS-X6348-RJ21V Ethernet Module, page 2-38

• WS-X6348-RJ45 and WS-X6348-RJ45V Ethernet Modules, page 2-40

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-13

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

• WS-X6516-GE-TX Ethernet Module, page 2-44

• WS-X6548-GE-TX, WS-X6548-GE-45AF, and WS-X6548V-GE-TX Ethernet Modules, page 2-47

• WS-X6548-RJ-21 Ethernet Module, page 2-51

• WS-X6548-RJ-45 Ethernet Module, page 2-54

• WS-X6748-GE-TX Ethernet Module, page 2-58

Note All 10/100 and 10/100/1000 Ethernet modules are hot-swappable.

WS-X6148-GE-TX and WS-X6148A-GE-TX Ethernet Modules

The base WS-X6148-GE-TX and the base WS-X6148A-GE-TX Ethernet modules and their variants, listed in module front panel.

Ta b l e 2-9 WS-X6148-GE-TX and WS-X6148A-GE-TX Ethernet Module Variants

Table 2-9, provide 48 10/100/1000-Mbps full- or half-duplex ports. Figure 2-5 shows the

Module Description

WS-X6148-GE-TX Base module without daughter cards installed.

WS-X6148-GE-45AF Base module equipped with a factory-installed

IEEE

802.3af PoE daughter card (WS-F6K-GE48-AF).

WS-X6148V-GE-TX Base module equipped with a factory-installed Cisco

prestandard PoE daughter card (WS-F6K-VPWR-GE).

WS-X6148A-GE-TX Base module (with enhanced port buffer size) without

daughter cards installed.

WS-X6148A-GE-45AF Base module (with enhanced port buffer size) equipped

with a factory-installed IEEE card (WS-F6K-GE48-AF).

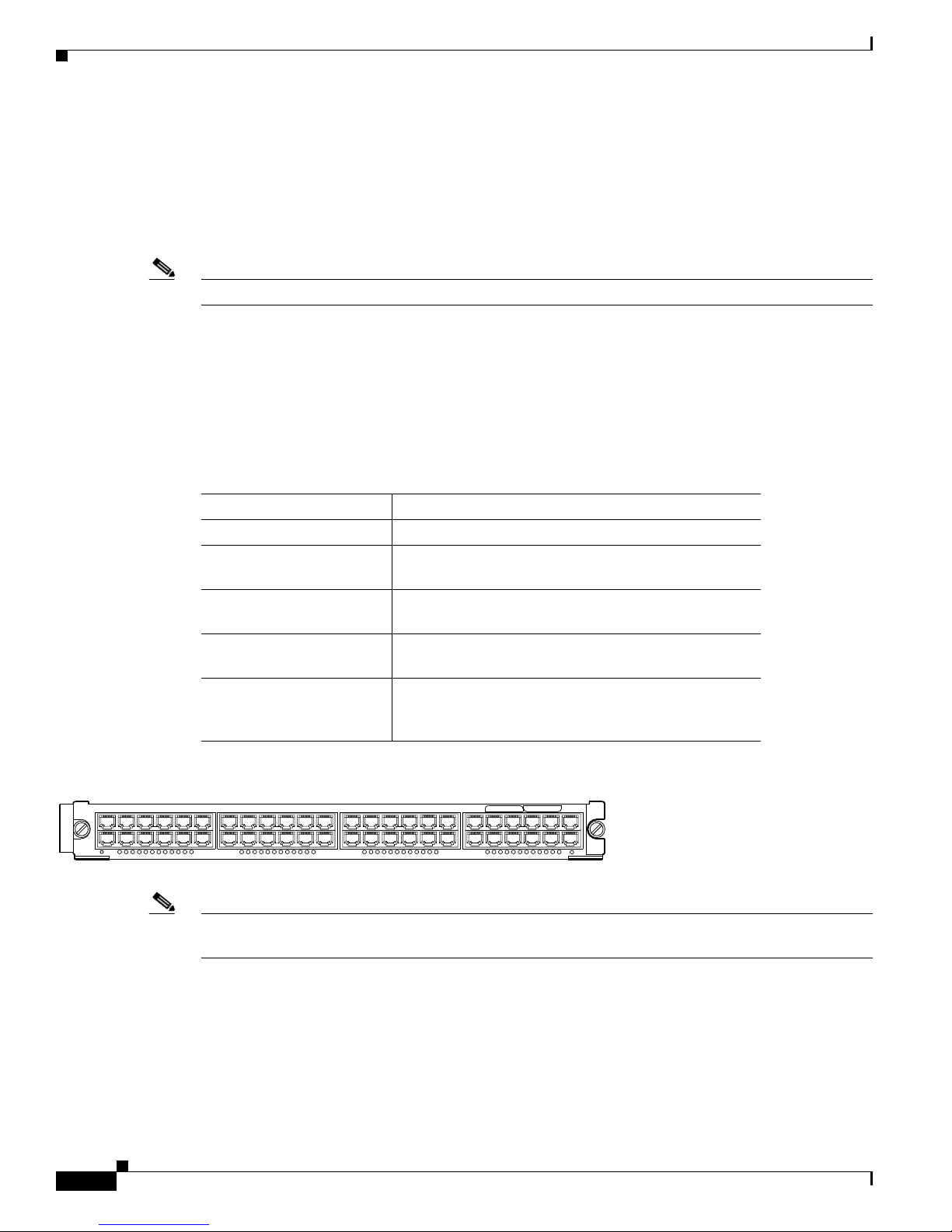

Figure 2-5 WS-X6148-GE-TX Ethernet Module Front Panel

WS-X6148-GE-TX

STATUS

1

2

123456789

11

13

12

14

48 PORT 10/100/1000

101112

1314151617181920212223

23

25

24

26

BASE-T GE

24

2526272829303132333435

35

36

SWITCHING MODULE

Note The WS-X6148-GE-TX and the WS-X6148A-GE-TX Ethernet modules share the same front panel. The

product numbers located in the upper-left corner will differ.

37

38

3738394041424344454647

802.3af PoE daughter

47

48

PHONE

48

90852

Table 2-10 lists the features and descriptions for the base modules and their variants, and Tab l e 2-11 lists

the physical and environmental specifications for the base modules and their variants.

Catalyst 6500 Series Ethernet Modules Installation Guide

2-14

OL-6265-03

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Ta b l e 2-10 WS-X6148-GE-TX and WS-X6148A-GE-TX Features

Feature Description

Ports per module • 48 ports (all variants). Ports are numbered (left to right):

–

Top row, odd numbered ports 1–47.

–

Bottom row, even numbered ports 2–48.

• Port groups:

–

WS-X6148-GE-TX—2

–

WS-X6148A-GE-TX—6

• Port ranges per port group:

–

WS-X6148-GE-TX: 1–24, 25–48

–

WS-X6148A-GE-TX: 1–8, 9–16, 17–24, 25–32, 33–40, 41–48

Port connector type RJ-45 (all variants)

Cabling distance 328 ft (100 m) over Category 5, 5e, and 6 UTP/STP cable (all variants) Buffer size • WS-X6148-GE-TX, WS-X6148V-GE-TX, and

WS-X6148-GE-45AF—1.4

MB per 8 ports

• WS-X6148A-GE-TX and WS-X6148A-GE-45AF—5.5 MB per port

QoS • Number of egress queues: 3

• Number of ingress queues: 1

• Number of thresholds per egress queue: 2

• Number of thresholds per ingress queue: 2

Maximum frame size • WS-X6148-GE-TX, WS-X6148V-GE-TX, and

WS-X6148-GE-45AF—Up to 1518

• WS-X6148A-GE-TX and WS-X6148A-GE-45AF—Up to 9216 bytes

bytes per frame

per frame

Module oversubscription rate 8:1

Supervisor engine support Supported by the following supervisor engines:

• Supervisor Engine 2

• Supervisor Engine 32

• Supervisor Engine 32 PISA

• Supervisor Engine 720

• Supervisor Engine 720-10GE

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-15

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Table 2-10 WS-X6148-GE-TX and WS-X6148A-GE-TX Features (continued)

Feature Description

Software support • With Supervisor Engine 2—12.1(19)E1

• With Supervisor Engine 32—12.2(18)SXF

• With Supervisor Engine 32 PISA—12.2(18)ZY

• With Supervisor Engine 720—12.2(18)SXF

• With Supervisor Engine 720 and WS-F6K-GE48-AF or

WS-F6K48-AF PoE daughter cards—12.2(17d)SXB (WS-X6148-GE-TX only)

• With Supervisor Engine 720-10GE—12.2(33)SXH

• Catalyst OS:

–

WS-X6148-GE-TX—7.6(9)

–

WS-X6148A-GE-TX—8.4(1)

Queues per port WS-X6148-GE-TX, WS-X6148V-GE-TX, and WS-X6148-GE-45AF:

• Tx—1p2q2t (per 8 ports)

• Rx—1p2t (per port)

WS-X6148A-GE-TX and WS-X6148A-GE-45AF:

• Tx—1p3q8t

• Rx—1q2t

Chassis/slot restrictions No chassis or slot restrictions: the module can occupy any slot in any

Catalyst

6500 or Catalyst 6500-E chassis (all variants)

Bus connection Single connection into the 32-Gbps shared bus (all variants).

Module upgrades available

PoE support WS-X6148-GE-TX and WS-X6148A-GE-TX:

• The WS-X6148-GE-TX is field upgradeable with the

WS-F6K-VPWR-GE= daughter card that supports only the Cisco prestandard.

• Both the WS-X6148-GE-TX and the WS-X6148A-GE-TX are field

upgradeable with the WS-F6K-GE48-AF= daughter card that supports both the Cisco prestandard and the IEEE 802.3af standard.

Refer to the Catalyst 6500 Series Power over Ethernet Daughter Cards Field-Upgrade Installation Note for field upgrade procedures.

Refer to Appendix A for additional information on the PoE daughter cards.

Distributed forwarding

Not supported.

support

Pluggable transceivers

Not supported.

support

TDR support All variants are supported.

Catalyst 6500 Series Ethernet Modules Installation Guide

2-16

OL-6265-03

Chapter 2 Ethernet Switching Modules

Table 2-10 WS-X6148-GE-TX and WS-X6148A-GE-TX Features (continued)

Feature Description

Module front panel LEDs STATUS

• Green—All diagnostics pass; the module is operational.

• Orange—The module is booting or running diagnostics; an

overtemperature condition has occurred.

LINK

• Green—The port is active (the link is connected and operational).

• Flashing orange—The port failed diagnostics and is disabled.

• Orange—The port is disabled.

• Red—The module is resetting; an overtemperature condition has

occurred.

Note If the module fails to download code and configuration information

successfully during the initial reset, the LED stays red; the module does not come online.

10/100 and 10/100/1000 Ethernet Modules

• Off—The port is not active or the link is not connected.

PHONE

• Green—The PoE daughter card is installed and detected.

• Off—The PoE daughter card is not detected or is not installed.

Ta b l e 2-11 WS-X6148-GE-TX and Variants Physical and Environmental Specifications

Item Specification

Dimensions (H x W x D) 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis. Weight • WS-X6148-GE-TX (base module only)—7.6 lb (3.4 kg)

• WS-X6148A-GE-TX (base module only)—6.6 lb (3 kg)

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-17

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Table 2-11 WS-X6148-GE-TX and Variants Physical and Environmental Specifications (continued)

Item Specification

Power and heat numbers • Base module (WS-X6148-GE-TX):

–

Module current—2.47 A

–

Module power—104.00 W

–

AC-input power— 130.00W

–

AC heat dissipation—443.00 BTU/hour

–

DC-input power—139.00 W

–

DC heat dissipation—476.00 BTU/hour

• WS-X6148-GE-45AF (base module + PoE daughter card):

–

Module current—2.65 A

–

Module power—111.30 W

–

AC-input power—139.13 W

–

AC heat dissipation—475.11 BTU/hour

–

DC-input power—149.60 W

–

DC heat dissipation—510.87 BTU/hour

• WS-X6148V-GE-TX (base module + PoE daughter card):

–

Module current—2.89 A

–

Module power—121.38 W

–

AC-input power—151.72 W

–

AC heat dissipation—518.14 BTU/hour

–

DC-input power—163.15 W

–

DC heat dissipation—557.14 BTU/hour

• WS-X6148A-GE-TX (enhanced base module)

–

Module current— 2.50A

–

Module power—105.00 W

–

AC-input power—131.25 W

–

AC heat dissipation—448.22 BTU/hour

–

DC-input power—141.13 W

–

DC heat dissipation—481.96 BTU/hour

• WS-X6148A-GE-45AF (enhanced base module + PoE daughter card)

–

Module current—2.68 A

–

Module power—112.56 W

–

AC-input power—140.70 W

–

AC heat dissipation—480.49 BTU/hour

–

DC-input power—151.29 W

–

DC heat dissipation—516.66 BTU/hour

Catalyst 6500 Series Ethernet Modules Installation Guide

2-18

OL-6265-03

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Table 2-11 WS-X6148-GE-TX and Variants Physical and Environmental Specifications (continued)

Item Specification

Environment

Operating temperature • Certified for operation: 32° to 104°F (0° to 40°C)

• Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient

10 to 90%

(noncondensing) Operating altitude • Certified for operation: 0 to 6500 ft (0 to 2000 m)

• Designed and tested for operation: –200 to 10,000 ft (–60 to 3000 m)

WS-X6148-RJ21 Ethernet Modules

The WS-X6148-RJ21 Ethernet module and its two variants, listed in Tab le 2-12, provide 48 10/100-Mbps full- or half-duplex ports. Figure 2-6 shows the module front panel.

Ta b l e 2-12 WS-X6148-RJ21 Ethernet Module Variants

Module Description

WS-X6148-RJ21 Base module without daughter cards installed.

WS-X6148-21AF Base module equipped with a factory-installed

IEEE

802.3af PoE daughter card (WS-F6K-GE48-AF).

WS-X6148-RJ21V Base module equipped with a factory-installed Cisco

prestandard PoE daughter card (WS-F6K-VPWR-GE).

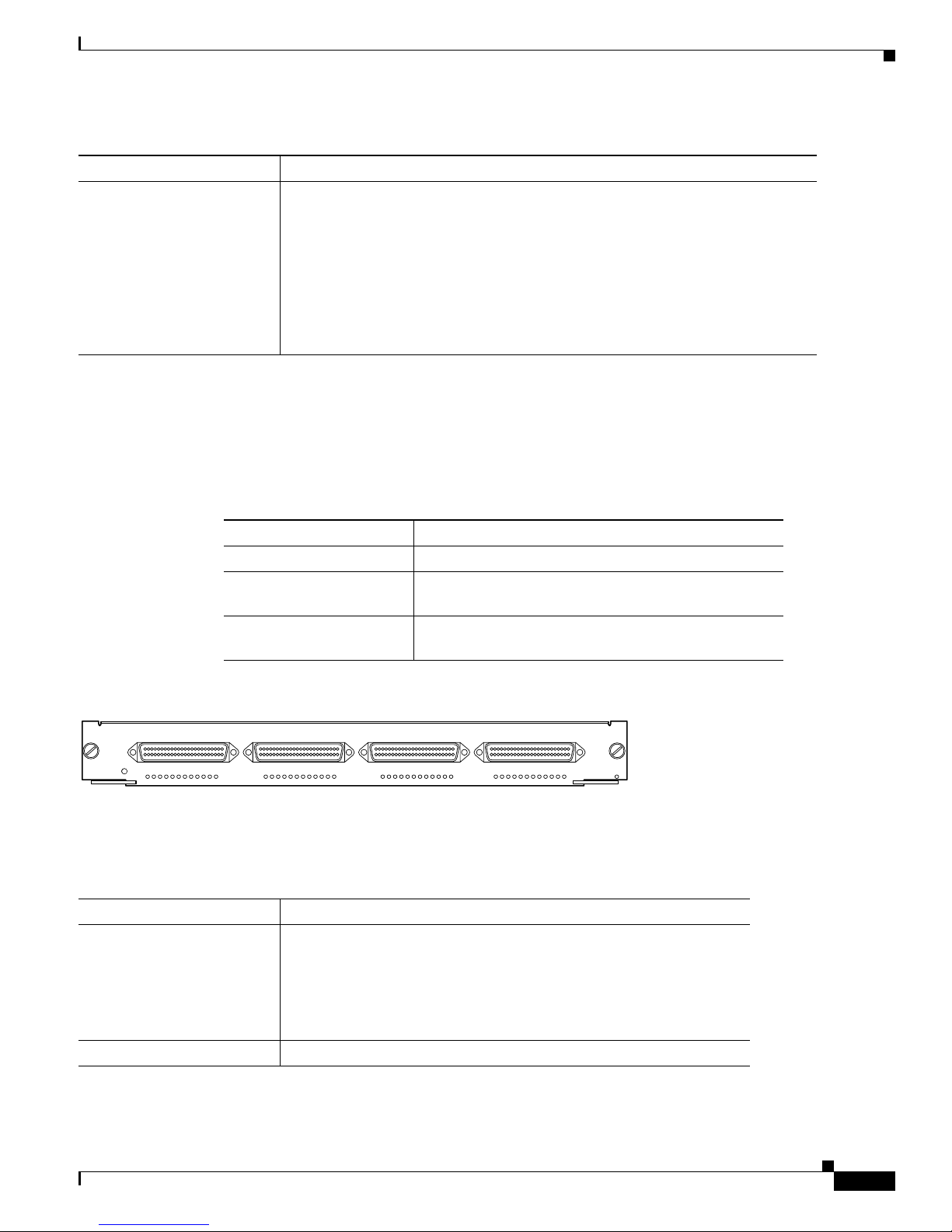

Figure 2-6 WS-X6148-RJ-21 Ethernet Module Front Panel

WS-X6148-RJ-21

13-24

48 PORT 10/100 BASE-T

101112

1314151617181920212223

25-36

ETHERNET

24

2526272829303132333435

37-48

SWITCHING MODULE PHONE

36

3738394041424344454647

48

184592

STATUS

1-12

123456789

Table 2-13 lists the features and descriptions for the modules, and Ta bl e 2-14 lists the physical and

environmental specifications for the modules.

Ta b l e 2-13 WS-X6148-RJ-21 Ethernet Modules Features

Feature Description

Ports per module • 48 ports (all variants). Ports are numbered from left to right. First

connector, ports 1–12; second connector, ports 13–24; third connector, ports 25–32; fourth connector, ports 33–48.

• 4 port groups

• Port ranges per port group: 1–12, 13–24, 25–36, 37–48

Port connector type RJ-21 (all variants)

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-19

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Table 2-13 WS-X6148-RJ-21 Ethernet Modules Features (continued)

Feature Description

Cabling distance 328 ft (100 m) over Category 5, 5e, and 6 UTP/STP cable (all variants)

Buffer size 128 KB per port (all variants) QoS • Number of egress queues: 2

• Number of ingress queues: 1

• Number of thresholds per egress queue: 2

• Number of thresholds per ingress queue: 4

Maximum frame size Up to 8092 bytes per frame (all variants)

Module oversubscription rate 1.2:1

Supervisor engine support Supported by the following supervisor engines:

• Supervisor Engine 2

• Supervisor Engine 32

• Supervisor Engine 32 PISA

• Supervisor Engine 720

• Supervisor Engine 720-10GE

Software support • With Supervisor Engine 2—12.1(12c)E1

• With Supervisor Engine 2 and WS-F6K-VPWR PoE daughter

card—12.1(13)E

• With Supervisor Engine 32—12.2(18)SXF

• With Supervisor Engine 32 PISA—12.2(18)ZY

• With Supervisor Engine 720 except with WS-F6K-48-AF PoE

daughter card—12.2(14)SX

• With Supervisor Engine 720 and WS-F6K-48-AF PoE daughter

card—12.2(17d)SXB

• With Supervisor Engine 720-10GE—12.2(33)SXH

• Catalyst OS—6.4(11) (for software release 6.x); 7.6(9) (for

software release 7.x)

Queues per port All variants:

• Tx—2q2t

• Rx—1q4t

Catalyst 6500 Series Ethernet Modules Installation Guide

2-20

OL-6265-03

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Table 2-13 WS-X6148-RJ-21 Ethernet Modules Features (continued)

Feature Description

Chassis/slot restrictions No chassis or slot restrictions; the module can occupy any slot in any

Catalyst

6500 or Catalyst 6500-E chassis (all variants).

Bus connection Single connection into the 32-Gbps shared bus (all variants)

Daughter card support

PoE support WS-X6148-RJ-21—Field upgradeable to Cisco Prestandard only by

installing the WS-F6K-VPWR= daughter card.

Refer to the Cisco Catalyst 6500 Series Power over Ethernet Daughter Cards Field-Upgrade Installation Note for field upgrade procedures.

Note An IEEE 802.3af standard PoE daughter card is available

through factory advance replacement only; the IEEE 802.3af standard PoE daughter card is not field upgradeable.

Distributed forwarding

Not available.

support

Pluggable transceivers

Not supported.

support

TDR support All variants supported.

Module front panel LEDs STATUS

• Green—All diagnostics pass; the module is operational.

• Orange—The module is booting or running diagnostics; an

overtemperature condition has occurred.

LINK

• Green—The port is active (the link is connected and operational).

• Flashing orange—The port failed diagnostics and is disabled.

• Orange—The port is disabled.

• Red—The module is resetting; an overtemperature condition has

occurred.

Note If the module fails to download code and configuration

information successfully during the initial reset, the LED stays red; the module does not come online.

• Off—The port is not active or the link is not connected.

PHONE

• Green—The PoE daughter card is installed and detected.

• Off—The PoE daughter card is not detected or is not installed.

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-21

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Ta b l e 2-14 WS-X6148-RJ-21 Physical and Environmental Specifications

Item Specification

Dimensions (H x W x D) 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis. Weight • Base module only—8.0 lb (3.6 kg) Power and heat numbers • WS-X6148-RJ-21 (base module):

–

Module current—2.39 A

–

Module power—100.38 W

–

AC-input power—125.48 W

–

AC heat dissipation—428.50 BTU/hour

–

DC-input power—134.92 W

–

DC heat dissipation—460.75 BTU/hour

• WS-X6148-21AF (base module + PoE daughter card):

–

Module current—2.57 A

–

Module power—107.94 W

–

AC-input power—134.93 W

–

AC heat dissipation—460.77 BTU/hour

–

DC-input power—145.08 W

–

DC heat dissipation—495.45 BTU/hour

• WS-X6148-RJ21V (base module + PoE daughter card)—

–

Module current—2.39 A

–

Module power—100.38 W

–

AC-input power—125.48 W

–

AC heat dissipation—428.50 BTU/hour

–

DC-input power—134.92 W

–

DC heat dissipation—460.75 BTU/hour

Environment

Operating temperature • Certified for operation: 32° to 104°F (0° to 40°C)

• Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient

10 to 90%

(noncondensing) Operating altitude • Certified for operation: 0 to 6500 ft (0 to 2000 m)

• Designed and tested for operation: –200 to 10,000 ft (–60 to 3000 m)

Catalyst 6500 Series Ethernet Modules Installation Guide

2-22

OL-6265-03

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

WS-X6148-RJ-45 and WS-X6148A-RJ-45 Ethernet Modules

The WS-X6148-RJ-45 and the WS-X6148A-RJ-45 Ethernet modules provide 48 10/100-Mbps full- or half-duplex ports. front panel.

Ta b l e 2-15 WS-X6148-RJ-45 and WS-X61248A-RJ-45 Ethernet Modules and Variants

Module Description

WS-X6148-RJ-45 Base module without daughter cards installed.

WS-X6148-45AF Base module equipped with a factory-installed

WS-X6148-RJ45V Base module equipped with a factory-installed Cisco

WS-X6148A-RJ-45 Base module (with enhanced port buffer size) without

WS-X6148A-45AF Base module (with enhanced port buffer size) equipped

Table 2-15 lists the two base modules and their variants. Figure 2-7 shows the module

IEEE

802.3af PoE daughter card (WS-F6K-GE48-AF).

prestandard PoE daughter card (WS-F6K-VPWR-GE).

daughter cards installed.

with a factory-installed IEEE

802.3af PoE daughter

card (WS-F6K-GE48-AF).

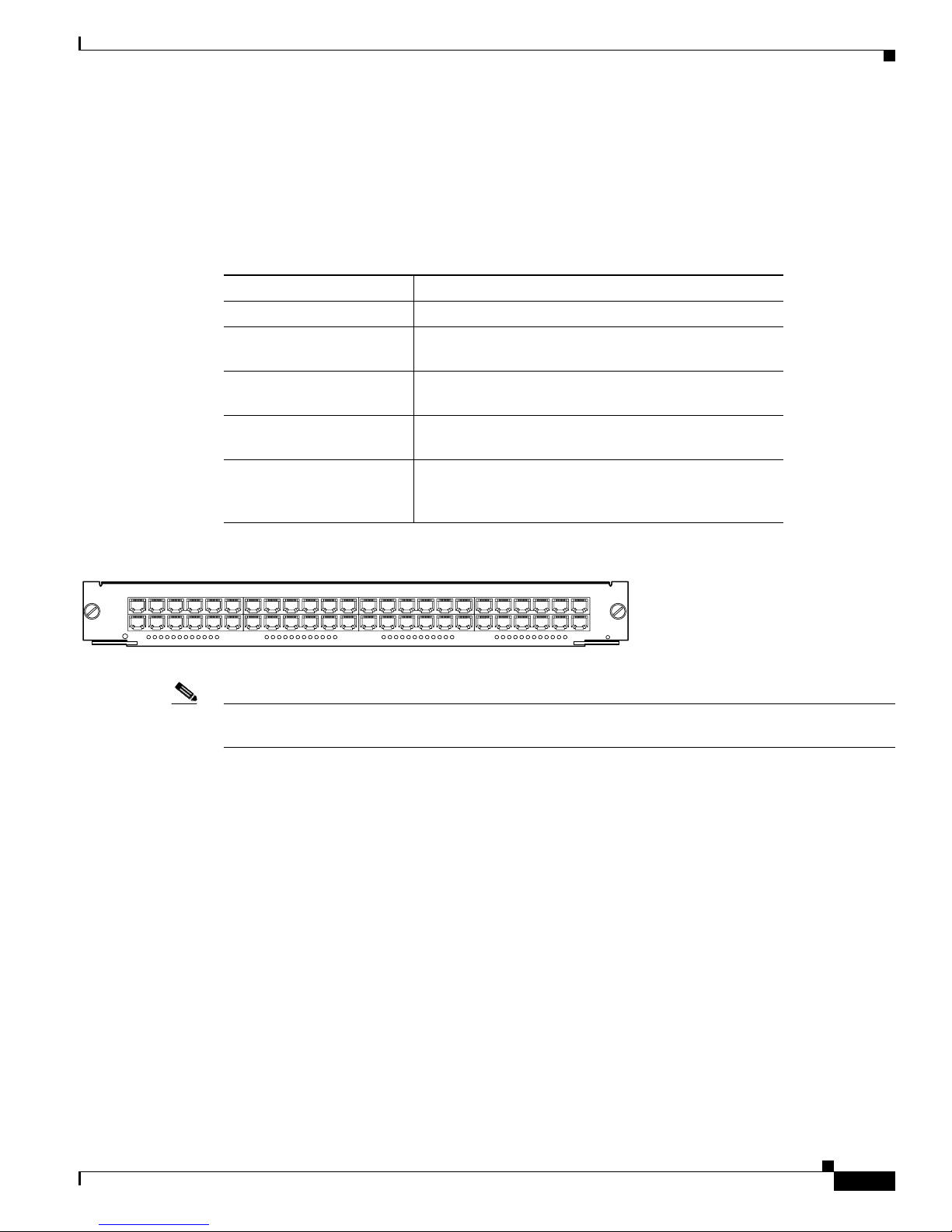

Figure 2-7 WS-X6148-RJ-45 Ethernet Module Front Panel

WS-X6348-RJ-45V

1

2

STATUS

123456789

101112

11

12

48 PORT

10/100 BASE-T

13

14

1314151617181920212223

23

24

ETHERNET SWITCHING

MODULE

24

25

26

2526272829303132333435

35

37

36

Note The WS-X6148-RJ-45 and the WS-X6148A-RJ-45 Ethernet modules share the same front panel. The

product numbers in the upper-left corner will differ.

Table 2-16 lists the features and descriptions for the modules, and Ta bl e 2-17 lists the physical and

environmental specifications for the modules.

38

3738394041424344454647

47

48

PHONE

48

39334

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-23

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Ta b l e 2-16 WS-X6148-RJ-45 and WS-X6148A-RJ-45 Ethernet Modules Features

Feature Description

Ports per module • 48 ports (all variants). Ports are numbered (left to right):

–

Top row, odd numbered ports 1–47.

–

Bottom row, even numbered ports 2–48.

• Port groups:

–

WS-X6148-RJ-45—2

–

WS-X6148A-RJ-45—6

• Port ranges per port group:

–

WS-X6148-RJ-45: 1–24, 25–48

–

WS-X6148A-RJ-45: 1–8, 8–16, 17–24, 25–32, 33–40, 41–48

Port connector type RJ-45 (all variants)

Cabling distance 328 ft (100 m) over Category 5, 5e, and 6 UTP/STP cable (all variants) Buffer size • WS-X6148-RJ-45, WS-X6148-45AF, and

WS-X6148-RJ45V—1

MB per 8 ports

• WS-X6148A-RJ-45 and WS-X6148A-45AF—5.3 MB per 8 ports

QoS • Number of egress queues: 2 (6148), 4 (6148A)

• Number of ingress queues: 1 (6148), 2 (6148A)

• Number of thresholds per egress queue: 2 (6148), 8 (6148A)

• Number of thresholds per ingress queue: 4 (6148), 4 (6148A)

Maximum frame size • WS-X6148-RJ-45, WS-X6148-45AF, and

WS-X6148-RJ45V—Up to 8092

• WS-X6148A-RJ-45 and WS-X6148A-45AF—Up to 9216 bytes

bytes per frame

per frame

Module oversubscription rate 1.2:1

Supervisor engine support Supported on the following supervisor engines:

• Supervisor Engine 2

• Supervisor Engine 32

• Supervisor Engine 32 PISA

• Supervisor Engine 720

• Supervisor Engine 720-10GE

Catalyst 6500 Series Ethernet Modules Installation Guide

2-24

OL-6265-03

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Table 2-16 WS-X6148-RJ-45 and WS-X6148A-RJ-45 Ethernet Modules Features (continued)

Feature Description

Software support • With Supervisor Engine 2—12.1(12c)E1

• With Supervisor Engine 32—12.2(18)SXF

• With Supervisor Engine 32 PISA—12.2(18)ZY

• With Supervisor Engine 720—12.2(18)SXF (6148A)

• With Supervisor Engine 720 except with WS-F6K-48-AF PoE

daughter card—12.2(14)SX (6148)

• With Supervisor Engine 720 and WS-F6K-48-AF PoE daughter

card—12.2(17d)SXB (6148)

• With Supervisor Engine 720-10GE—12.2(33)SXH

• Catalyst OS (6148A)—8.4(1)

• Catalyst OS (6148)—6.4(11) (for software release 6.x); 7.6(9) (for

software release 7.x)

Queues per port • WS-X6148-RJ-45, WS-X6148-45AF, and WS-X6148-RJ45V:

–

Tx—1p2q2t per 8 ports

–

Rx—1p2t per port

• WS-X6148A-RJ-45 and WS-X6148A-45AF:

–

Tx—1p3q8t

–

Rx—1q2t

Chassis/slot restrictions No chassis or slot restrictions; the module can occupy any slot in any

Catalyst

6500 or Catalyst 6500-E chassis (all variants).

Bus connection Single connection into the 32-Gbps shared bus (all variants)

Module upgrades available

PoE support • WS-X6148-RJ-45—Field upgradeable to the Cisco prestandard

only with the WS-F6K-VPWR-GE= daughter card or both the Cisco prestandard and the IEEE 802.3af standard by installing the WS-F6K-GE48-AF= daughter card.

• WS-X6148A-RJ-45—Field upgradeable to the Cisco prestandard

and the IEEE 802.3af standard by installing the WS-F6K-GE48-AF= daughter card.

See the Cisco Catalyst 6500 Series Power over Ethernet Daughter Cards Field-Upgrade Installation Note for field upgrade procedures.

See Appendix A for further information on the PoE daughter cards.

Distributed forwarding

Not supported.

support

OL-6265-03

Catalyst 6500 Series Ethernet Modules Installation Guide

2-25

Chapter 2 Ethernet Switching Modules

10/100 and 10/100/1000 Ethernet Modules

Table 2-16 WS-X6148-RJ-45 and WS-X6148A-RJ-45 Ethernet Modules Features (continued)

Feature Description

Pluggable transceivers

Not supported.

support

TDR support Yes

Module front panel LEDs STATUS

• Green—All diagnostics pass; the module is operational.

• Orange—The module is booting or running diagnostics.

An overtemperature condition has occurred. (A minor temperature threshold has been exceeded during environmental monitoring.)

• Red—The module is resetting. The switch has just been powered

on or the module has been hot inserted during the normal initialization sequence.

An overtemperature condition has occurred. (A major temperature threshold has been exceeded during environmental monitoring.)

If the module fails to download code and configuration information successfully during the initial reset, the LED stays red; the module does not come online.

LINK

• Green—The port is active (the link is connected and operational).

• Orange—The module or port is disabled through the CLI command

or the module is initializing.

• Flashing orange—The port is faulty and has been disabled.

• Off—The port is not active or the link is not connected.

PHONE

• Green—The PoE daughter card is installed and detected.

• Off—The PoE daughter card is not detected or is not installed.

Catalyst 6500 Series Ethernet Modules Installation Guide

2-26

OL-6265-03

Cisco 6513 - Catalyst Switch Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
