Cisco Systems 60083010 User Manual

Meraki MR55-HW-HW

Hardware Installation Guide

Trademarks

Meraki, Meraki MR55-HW, Meraki Cloud Controller, and Meraki Mesh are trademarks of Cisco
Systems, Inc. Other brand and product names are registered trademarks or trademarks of
their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, Cisco Systems reserves the
right to make changes to the products described in this document without notice. Cisco Systems does not
assume any liability that may occur due to the use or application of the product(s) or circuit layout(s)
described herein.

Warranty

Meraki, Inc. provides a lifetime warranty on this product. Warranty details may be found at www.meraki.com/legal.

3

Table of Contents

1 Scope of Document and Related Publications 4

2 MR55-HW Overview 5

2.1 Package Contents 5

2.2 Understanding the MR55-HW 5

2.3 Security Features 7

2.4 Ethernet Ports 7

2.5 Power Source Options 7

2.6 Factory Reset Button 7

2.7 LED Indicators and Run Dark Mode 7

3 Pre-Install Preparation 8

3.1 Configure Your Network in Dashboard 8

3.2 Check and Upgrade Firmware 8

3.3 Check and Configure Firewall Settings 8

3.4 Assigning IP Addresses to MR55-HW 9

3.4.1 Dynamic Assignment 9

3.4.2

Static

Assignment 9

3.4.3

Static IP

Assignment via DHCP Reservations 9

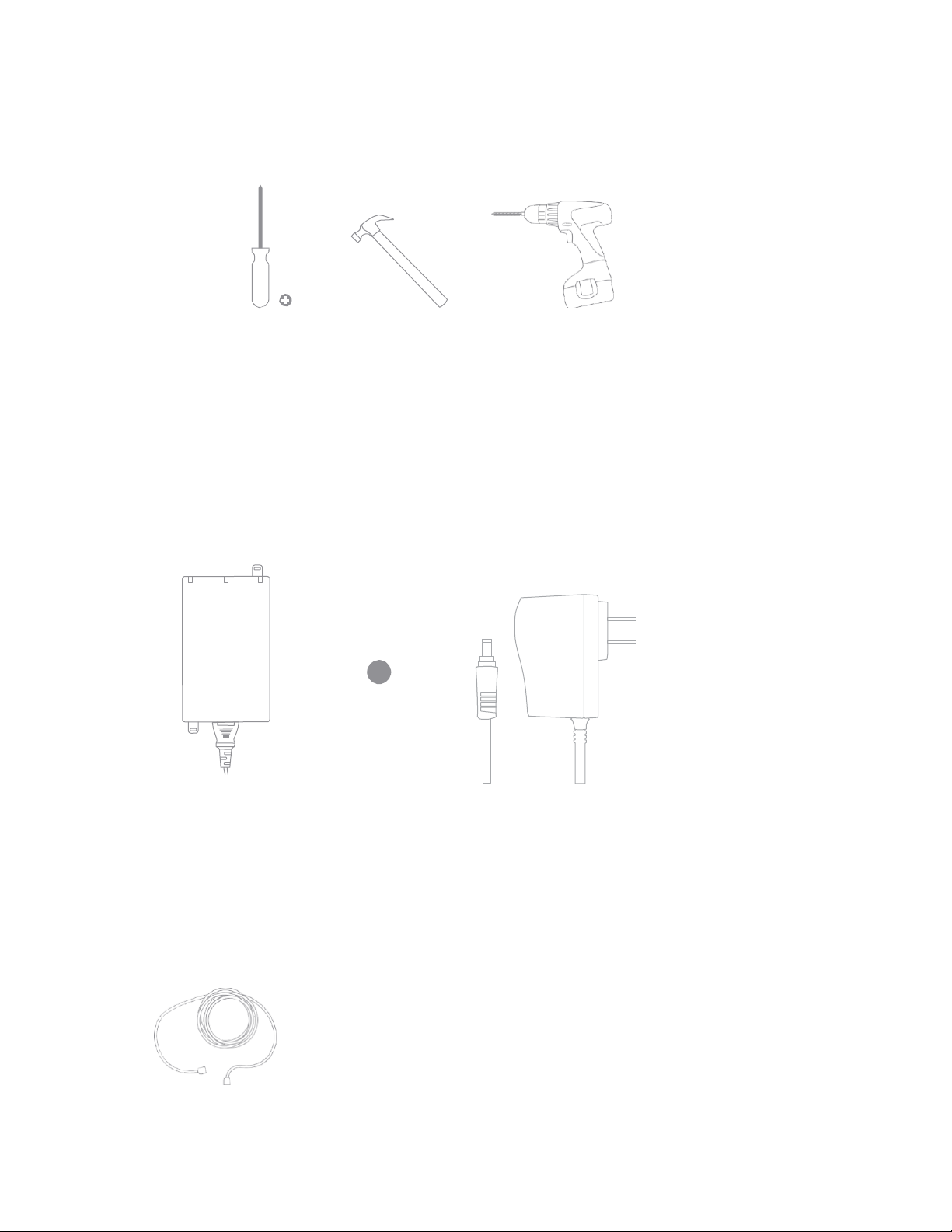

3.5 Collect Tools 10

3.6 Collect Additional Hardware for Installation 10

4 Installation Instructions 11

4.1 Choose Your Mounting Location 11

4.2 Install the MR55-HW 11

4.2.1 Attach the Mount Plate 11

4.2.1.1

Wall or Solid

Ceiling Mount Using Mount Plate 13

4.2.1.2

Drop Ceiling

Mount Using Mount Plate 14

4.2.1.3

Electrical Junction Box Mount Using Mount Plate 18

4.2.2 Power the MR55-HW 20

4.2.2.1 Powering the MR55-HW with Meraki AC Adapter 21

4.2.2.2 Powering the MR55-HW with Meraki 802.3at Power over Ethernet Injector 21

4.2.2.3 Powering the MR55-HW with an 802.3af Power over Ethernet Switch 22

4.2.3 Mount the MR55-HW 22

4.2.3.1 Assemble Security Hasp to the MR55-HW 22

4.2.3.2 Assemble MR55-HW to the Mount Plate 23

4.2.3.3 Desk or Shelf Mount 25

4.3 Secure the MR55-HW 26

4.3.1 Security Screw 26

4.3.2 Kensington Lock 26

4.4 Verify Device Functionality and Test Network Coverage 27

5 Troubleshooting 27

4

1

Scope of Document and Related Publications

The MR55-HW Hardware Installation Guide describes the installation procedure for the MR55-HW

indoor access point. Additional reference documents are available online at

www.meraki.com/library/product.

5

2

MR55-HW Overview

The Meraki MR55-HW is an enterprise-class, dual-concurrent 8x8 MIMO 802.11ax indoor access
point designed for high-density deployments in offices, schools, hospitals and hotels. When
connected to the Meraki Cloud Controller, the MR55-HW enables the creation of ultra-high speed,
reliable indoor wireless networks quickly, easily and cost- effectively.

2.1

Package Contents

The MR55-HW package contains the following:

MR55-HW access

point

Mounting plate

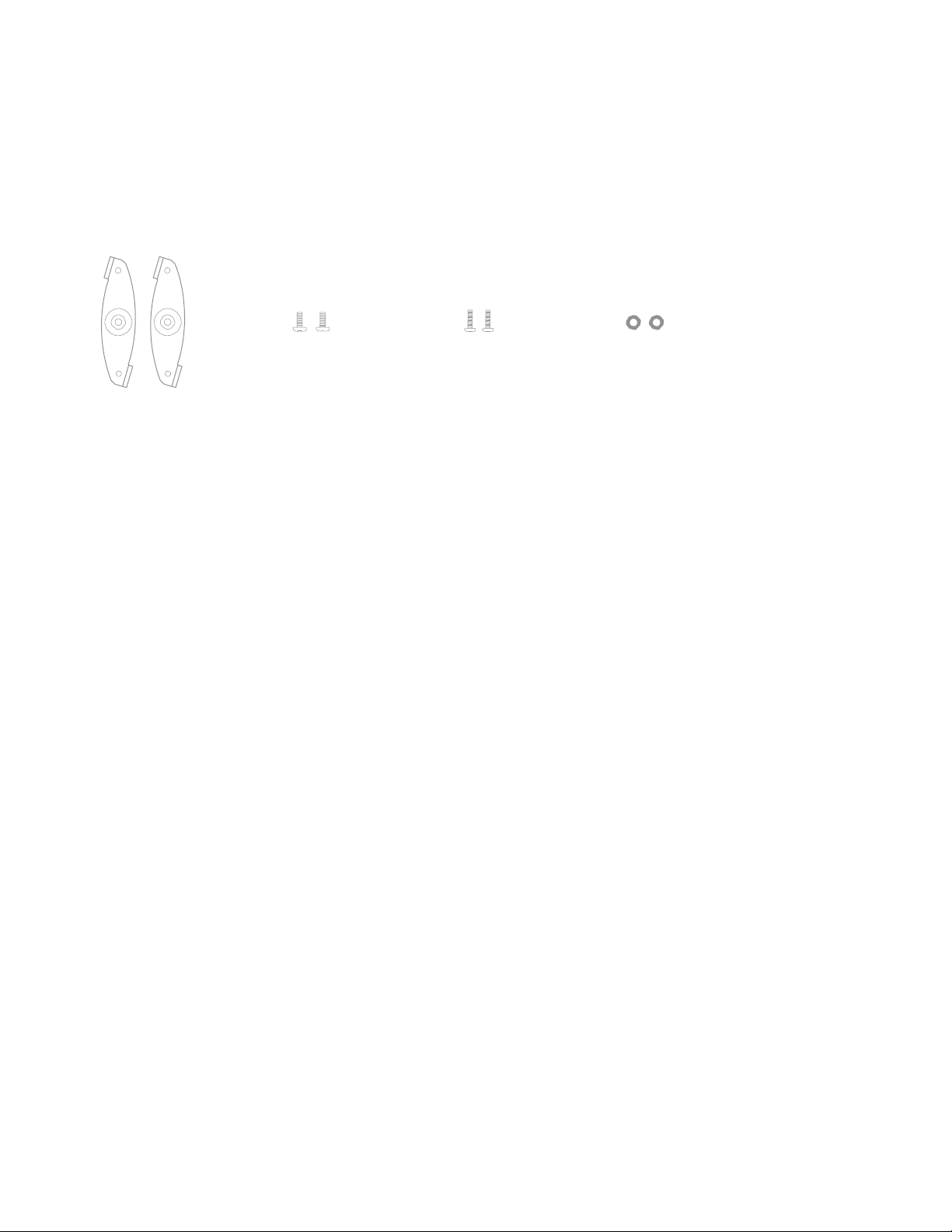

Drop ceiling mounting

kit Wall screws

Security screws

Mounting Template

2.2

Understanding the MR55-HW

MR55-HW Operation Temperature:
32 ° F to 104 ° F (0 ° C to 40 ° C)

Your Meraki MR55-HW has the following features:

Kensington lock hard point

Mount plate attachment slots (2x)

Cable access bay

Desk mount feet (4x)

MR55-HW cable access bay

Factory Reset Button

Ethernet port Power supplied by PoE: 50-57Vdc 0.6A
AC Adapter plug (sold separately) Power supplied by adapter: 12Vdc, 2.5A

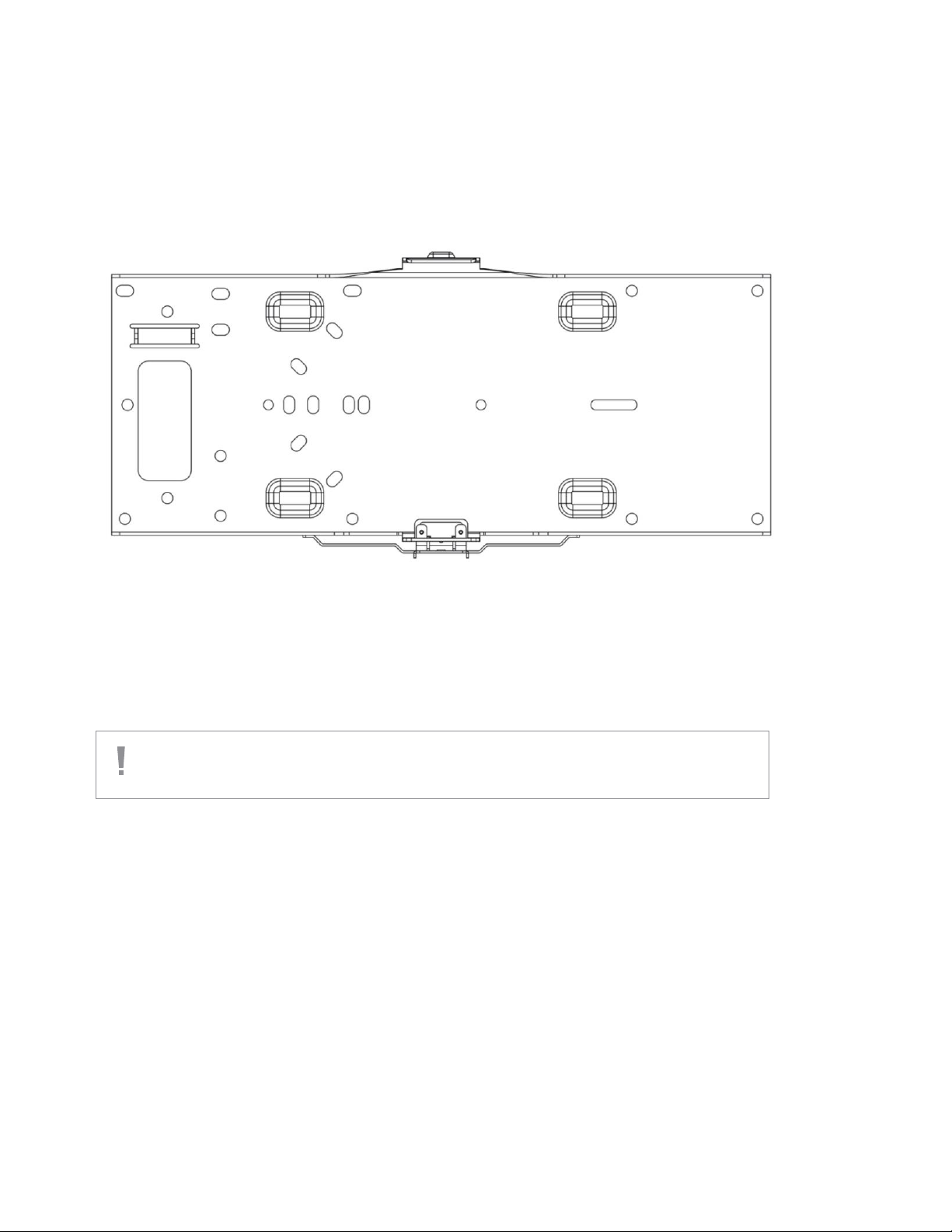

Your MR55-HW mount plate has the following features:

Access point mounting posts (2x)

6

Various mounting holes

7

2.3

Security Features

The MR55-HW features multiple options for physically securing the access point after installation:

1. Security screw – The accessory kit includes screws that can be used to secure the

access point to the mount plate. Engaging the security screw prevents accidental
dislodging and theft.

2. Kensington lock – The access point contains a hard point that allows it to be secured to

any nearby permanent structure using a standard Kensington lock.

2.4

Ethernet Ports

The MR55-HW features an Ethernet RJ45 port that accepts 802.3at power (labeled “PoE”). This port

should be used for uplink to your WAN connection.

2.5

Power Source Options

The MR55-HW access point can be powered using either the Meraki AC Adapter or 802.3at PoE

Injector (both sold separately) or a third-party 802.3at PoE switch.

2.6

Factory Reset Button

If the button is pressed and held for at least five seconds and then released, the MR55-HW will

reboot and be restored to its original factory settings by deleting all configuration information stored on

the unit.

8

3

Pre-Install Preparation

You should complete the following steps before going on-site to perform an installation.

3.1

Configure Your Network in Dashboard

The following is a brief overview only of the steps required to add an MR55-HW to your network. For

detailed instructions about creating, configuring and managing Meraki wireless networks, refer to the

Meraki Cloud Controller Manual (meraki.com/library/product).

1. Login to http://dashboard.meraki.com. If this is your first time, create a new account.

2. Find the network to which you plan to add your APs or create a new network.

3. Add your APs to your network. You will need your Meraki order number (found on your

invoice if you ordered directly from Meraki) or the serial number of each AP, which looks like
Qxxx-xxxx-xxxx, and is
found on the bottom of the unit. You will also need your Enterprise Cloud Controller license key,
which you should have received via email from [e-mail].

4. Go to the map / floor plan view and place each AP on the map by clicking and dragging it to

the location where you plan to mount it.

3.2

Check and Upgrade Firmware

To ensure your MR55-HW performs optimally immediately following installation, Meraki recommends

that you facilitate a firmware upgrade prior to mounting your MR55-HW.

1. Attach your MR55-HW to power and a wired Internet connection. See p. 19 of this

Hardware Installation Guide for details.

2. The MR55-HW will turn on and the Power LED will glow solid orange. If the unit does not

require a firmware upgrade, the Power LED will turn white within thirty seconds.

* If the unit requires an upgrade, the Power LED will begin blinking orange until the upgrade is

complete, at which point the Power LED will turn solid white. You should allow about an hour for
the firmware upgrade to complete, depending on the speed of your internet connection.

3.3

Check and Configure Firewall Settings

If a firewall is in place, it must allow outgoing connections on particular ports to particular IP

addresses. The most current list of outbound ports and IP addresses can be found here:

http://tinyurl.com/y79une3

9

3.4

Assigning IP Addresses to MR55-HW

All gateway MR55-HW (MR55-HW with Ethernet connections to the LAN) must be assigned routable

IP addresses. These IP addresses can be dynamically assigned via DHCP or statically assigned.

3.4.1

Dynamic Assignment
When using DHCP, the DHCP server should be configured to assign a static IP address for each MAC
address belonging to a Meraki AP. Other features of the wireless network such as 802.1x authentication,
may rely on the property that the APs have static IP addresses.

3.4.2

Static Assignment
Static IPs are assigned using the local web server on each AP. The following procedure describes
how to set the static IP:

1. Using a client machine (e.g. a laptop), connect to the AP either wirelessly (by associating to

any SSID broadcast by the AP) or over a wired connection.

If using a wired connection, connect the client machine to the MR55-HW either through a PoE switch
or a Meraki PoE Injector. If using a PoE switch, plug an Ethernet cable into the MR55-HW’s Ethernet
jack, and the other end into a PoE switch. Then connect the client machine over Ethernet cable to
the PoE switch. If using a Meraki PoE Injector, connect the MR55-HW to the “PoE” port of the Injector,
and the client machine to the “LAN” port.

2. Using a web browser on the client machine, access the AP’s built-in web server by

browsing to http://my.meraki.com. Alternatively, browse to http://10.128.128.128.

3. Click on the “Static IP Configuration” tab. Log in. The default user name is “admin”. The default

password is the AP’s serial number, with hyphens included

4. Configure the static IP address, net mask, gateway IP address and DNS servers that this AP will

use on its wired connection.

5. If necessary, reconnect the AP to the LAN.

3.4.3

Static IP via DHCP Reservations

Instead of associating to each Meraki AP individually to configure static IP addresses, an administrator can
assign static IP addresses on the upstream DHCP server. Through “DHCP reservations”, IP addresses are
“reserved” for the MAC addresses of the Meraki APs. Please consult the documentation for the DHCP
server to configure DHCP reservations.
