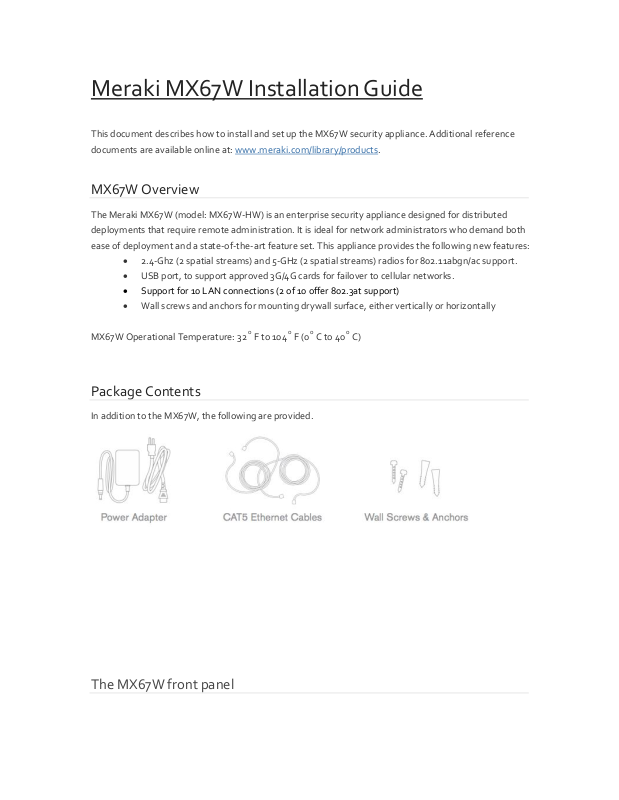

Meraki MX67W Installation Guide

This document describes how to install and set up the MX67W security appliance. Additional reference
documents are available online at: www.meraki.com/library/products.

MX67W Overview

The Meraki MX67W (model: MX67W-HW) is an enterprise security appliance designed for distributed
deployments that require remote administration. It is ideal for network administrators who demand both
ease of deployment and a state-of-the-art feature set. This appliance provides the following new features:

 2.4-Ghz (2 spatial streams) and 5-GHz (2 spatial streams) radios for 802.11abgn/ac support.
 USB port, to support approved 3G/4G cards for failover to cellular networks.

 Support for 10 LAN connections (2 of 10 offer 802.3at support)

 Wall screws and anchors for mounting drywall surface, either vertically or horizontally

MX67W Operational Temperature: 32 o F to 104 o F (0 o C to 40 o C)

Package Contents

In addition to the MX67W, the following are provided.

The MX67W front panel

Ports and Status Indicators

Function

LED Status

Meaning

Power Up/Boot

Solid Orange

Power is applied

Connecting

Rainbow

Device in process of connecting to the Meraki Dashboard

Connected

Solid White

Fully operational

Upgrading

Flashing
White

During boot or no WAN link

LAN ports

Ten (Ports 3 through 12) provide connectivity to computers, printers, access points, or
Ethernet switches. Two of these ten (Ports 11 and 12) also provide PoE+ (802.3at) support.

Two LEDs -- one for activity, another for connectivity. A steady green LED indicates
bidirectional connectivity while a flashing green LED indicates traffic.

Internet ports

Two ports provide connectivity to the WAN.

Power input

Designed for use only with the unit’s power supply.

Antenna ports

Two RP-SMA ports for dipole antennas (two antennas included)

The MX67W uses a single LED to inform the user of the device's status.

The MX67W back panel

Additional functions on the back panel are described below, from left to right.

The MX67W side panel

Restore button

Insert a paper clip if a reset is required.
Kensington

Security Slot

The slot is a portion of the Kensington lock system and is compatible with any Kensington
cable.

USB port

USB 2.0 for 3G/4G wireless cards.

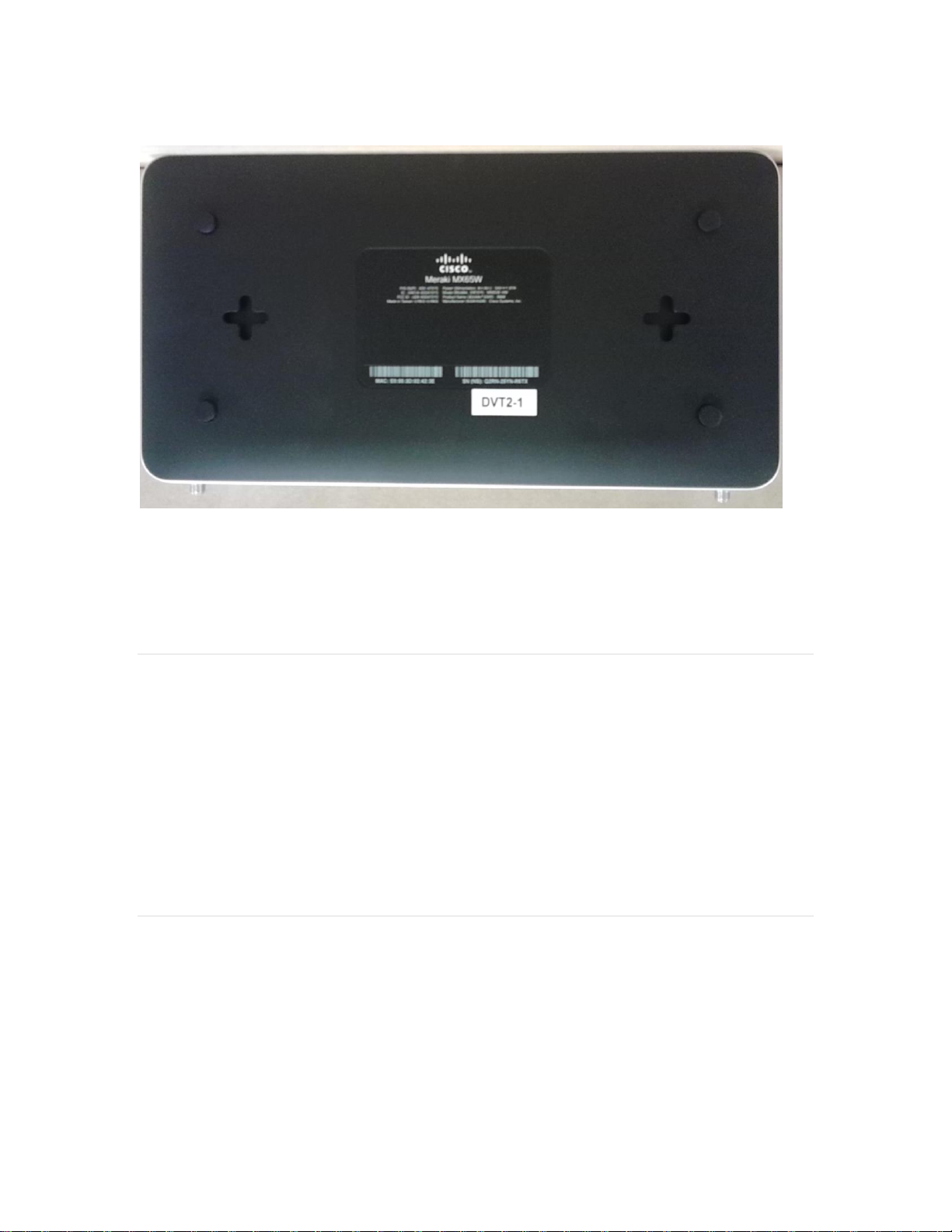

The MX67W bottom panel
