Cisco Systems 60067010 Users Guide

The Cisco Meraki MR70 is a dual-band enterprise class 802.11ac cloud-managed access point

Package Contents

The MR70 package contains the following:

•MR70 Cloud-Managed Access Point

•Mount cradle including built-in level tool

•Mount Kit

o Wall screws and wall screw anchors

Understanding the MR70

Your Meraki MR70 has the following features:

The mount cradle has the following features:

Ethernet Ports

The MR70 features a Gigabit Ethernet RJ45 port that accepts 802.3at and 802.3af power (labeled “Eth0, PoE”). This port should be used for uplink to your WAN connection.

Power Source Options

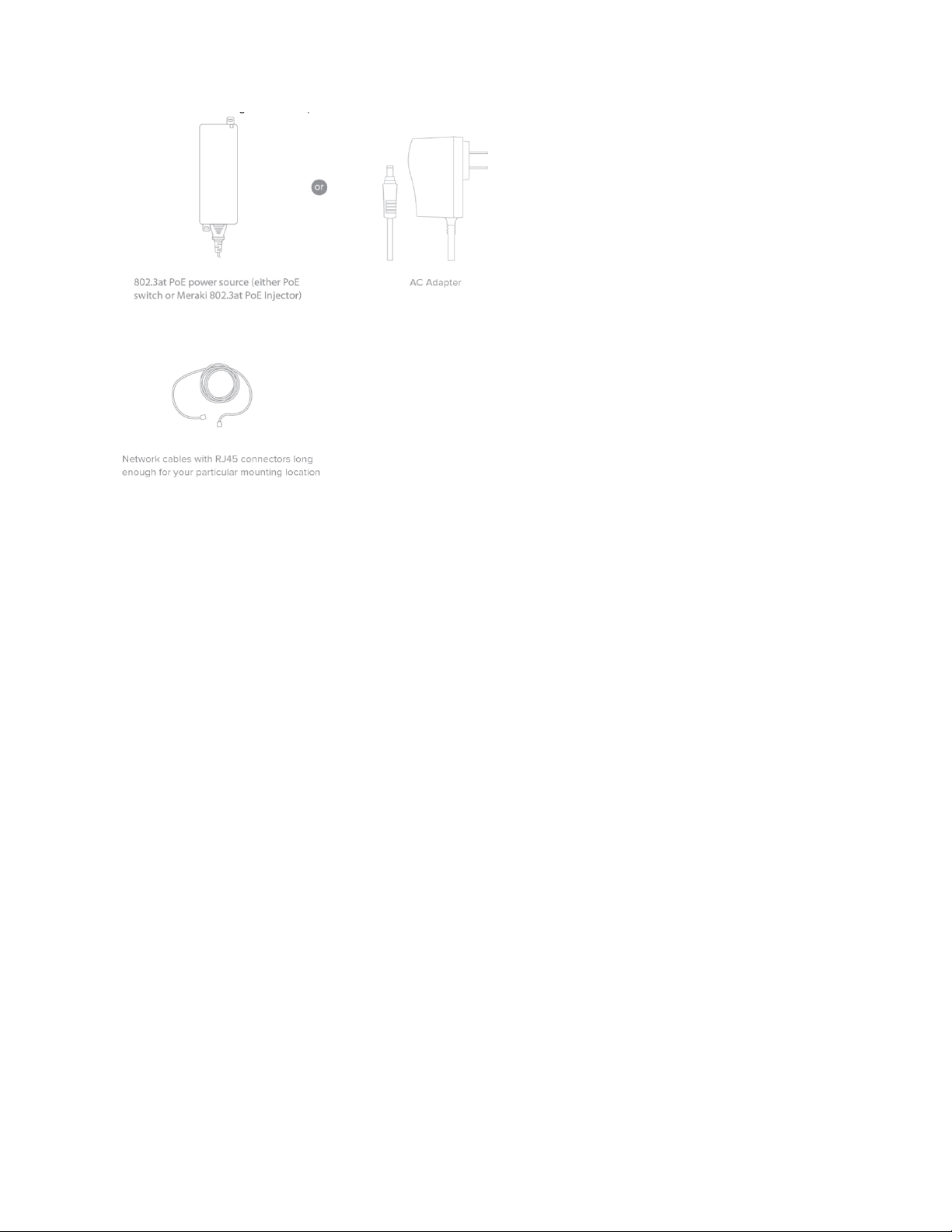

The MR70 access point can be powered using either the Meraki AC Adapter, PoE Injector (both sold separately), or a third-party PoE switch.

Factory Reset Button

If the button is pressed and held for at least five seconds and then released, the MR70 will reboot and be restored to its original factory settings by deleting all configuration information stored on the unit.

LED Indicators and Run Dark Mode

Your MR70 is equipped with a multi-color LED light on the front of the unit to convey information about system functionality and performance:

•Orange - AP is booting (permanent Orange suggests hardware issue)

•Rainbow - AP is initializing/scanning

•Blinking Blue - AP is upgrading

•Green - AP in Gateway mode with no clients

•Blue - AP in Gateway mode with clients

•Blinking Orange - AP can't find uplink

The MR70 may be operated in “Run Dark” mode for additional security and to reduce the visibility of the access point. In this mode, the LED will not be illuminated. This mode may be enabled through Meraki dashboard.

Pre-Install Preparation

You should complete the following steps before going on-site to perform an installation.

Configure Your Network in Dashboard

The following is a brief overview only of the steps required to add an MR70 to your network. For detailed instructions about creating, configuring and managing Meraki wireless networks, refer to the online documentation (documentation.meraki.com).

1.Login to http://dashboard.meraki.com. If this is your first time, create a new account.

2.Find the network to which you plan to add your APs or create a new network.

3.Add your APs to your network. You will need your Meraki order number (found on your invoice) or the serial number of each AP, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit. You will also need your Enterprise license key, which you should have received via email.

4.Go to the map / floor plan view and place each AP on the map by clicking and dragging it to the location where you plan to mount it.
