Cisco Nexus 6000 Series Hardware
Installation Guide

For the Cisco Nexus 6004 Switch

March 2013

Americas Headquarters

Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: [phone]

800 553-NETS (6387)

Fax: [phone]

Text Part Number: OL-15902-01

Send documentation comments to [e-mail].

THE SPECIFICATIONS AND INFORMATION REGA RDING THE P RODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE W ITH OUT NOT ICE. A LL
STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILIT Y FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRA NTY FO R THE A CCOMPA NYING PRODUCT A RE SET FORTH IN T HE INFORM ATION P ACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A di gital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required
to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not
installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to
comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable
protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital
devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television
communications at your own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was pr obabl y caused by the Cisco equipment or one of its
peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.

• Move the equipment to one side or the other of the television or radio.

• Move the equipment farther away from the television or radio.

• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits
controlled by different circuit breakers or fuses.)

Modifications to this product not authorized by Ci sco Systems, Inc. could void the FCC approval and negate your auth ority to op erate the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public

domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DO CUMENT FILES AND SOFTW ARE OF THESE SUPPL IERS ARE PROVIDED “AS IS” WITH

ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAI M ALL WARRANTIE S, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICUL AR PURPOS E AND NONINFRINGE MENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOS T PROFITS OR LOSS OR DAMAGE TO DATA ARISIN G OUT OF THE US E OR INABILI TY TO USE THIS MA NUAL, EVEN I F CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SU CH DAMA GES.

Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at

www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership

relationship between Cisco and any other company. (1005R)
Any Internet Protocol (IP) addresses us ed in this docu ment ar e not i ntend ed to be ac tual address es. A ny ex amples, comma nd d ispl ay outp ut, and figu res included in the

document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.
© 2008-2011 Cisco Systems, Inc. All rights reserved.

Send documentation comments to [e-mail].

Preface

This preface describes the audience, organization, and conventions of the Cisco Nexus 6000 Series
Ha rdware Insta l lat i on G u ide . It also provides information on how to obtain related documentation.

Audience

To use this installation guide, you must be familiar with electronic circuitry and wiring practices and
preferably be an electronic or electromechanical technician.

Organization

This guide is organized as follows:

Chapter and Title Description

Chapter 1, “Overview” Provides an overview of the Cisco Nexus 6000 Series switches.
Chapter 2, “Installing the Cisco

Nexus 6000 Series Switches”

Chapter 4, “Connecting the

Switch”

Appendix A, “Cabinet and Rack

Installation”

Appendix B, “Technical

Specifications”

Appendix C, “Cable and Port

Specifications”

Appendix D, “Site Planning and

Maintenance Records”

Appendix E, “Troubleshooting

Hardware Components”

Describes how to install the Cisco Nexus 6000 switches, and ho w
to install modules, power supplies, and fan assemblies.

Describes how to connect the Cisco Nexus 6000 Series switches
to the Internet

Provides guidelines for selecting an enclosed cabinet, and rack
installation.

Lists specifications for the Cisco Nexus 6000 Series switches and
components including modules, power suppli es, and transceiv ers.

Lists cable and port specifications for the Cisco Nexus 6000
Series switches.

Provides site planning and maintenance records.

Provides installation troubleshooting information for the Cisco
Nexus 6000 Series switches.

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

iii

Send documentation comments to [e-mail].

Conventions

This document uses the following conventions for notes, cautions, and safety warnings.
Notes and Cautions contain important info rmation th at you should be aware of.

Note Means r eader take note. Notes contain helpful suggestions or references to material that are not covered

in the publication.

Caution Means reader be careful. You are capable of doing something that might resu lt in equi pment damag e or

loss of data.

Safety warnings appear throughout this publication in procedures that, if performed incorrectly, can
cause physical injuries. A warning symbol precedes each warning statement.

Preface

Warning

Waarschuwing

Varoitus

IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situ ation that could cau se bodily inju ry. Before you

work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this
device.

SAVE THESE INSTRUCTIONS

BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan

veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij
elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard
praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de
waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt
raadplegen.

BEWAAR DEZE INSTRUCTIES

TÄRKEITÄ TURVALLISUUSOHJEITA
Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin

käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu
onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen
mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien
lausuntonumeroiden avulla.

Statement 1071

iv

SÄILYTÄ NÄMÄ OHJEET

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Preface

Send documentation comments to [e-mail].

Attention

Warnung

Avvertenza

IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant

entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez
conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures
couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des
avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil,
référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

WICHTIGE SICHERHEITSHINWEISE
Dieses Warnsymbol bedeutet Gefahr . Sie be finden sich in einer Situation, die zu V erletzungen führen

kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und
den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder
Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten
Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

IMPORTANTI ISTRUZIONI SULLA SICUREZZA
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle

persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli
relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti.
Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le
traduzioni delle avvertenze riportate in questo documento.

Advarsel

Aviso

CONSERVARE QUESTE ISTRUZIONI

VIKTIGE SIKKERHETSINSTRUKSJONER
Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du

begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med
elektriske kretser , og kjenn e til standardprosedyrer for å forhindre u lykker. Bruk nummeret i slutten
av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne
enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de

lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos
perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de
prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para
localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

v

Preface

Send documentation comments to [e-mail].

¡Advertencia!

Varning!

INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular

cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los
procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el
número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña
a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

VIKTIGA SÄKERHETSANVISNINGAR
Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada.

Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och
känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av
varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna
anordning.

SPARA DESSA ANVISNINGAR

vi

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Preface

Send documentation comments to [e-mail].

Aviso

Advarsel

INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões

corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os
circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o
número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de
segurança traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

VIGTIGE SIKKERHEDSANVISNINGER
Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for

legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de
involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til
undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de
oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

vii

Preface

Send documentation comments to [e-mail].

viii

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Preface

Send documentation comments to [e-mail].

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

ix

Send documentation comments to [e-mail].

Related Documentation

Documentation for Cisco MDS 9200 Series Switches and Cisco Nexus 2000 Series Fabric Extenders is
available at the following URL:

http://www.cisco.com/en/US/products/ps9670/tsd_products_support_series_home.html

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional
information, see the monthly What’ s New in Cisco Product Documentation, which also lists all ne w and
revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/wha tsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple S yndication (RSS) feed
and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free
service and Cisco currently supports RSS Version 2.0.

Preface

Cisco Nexus 6000 Series Hardware Installation Guide

x

OL-15902-02

Send documentation comments to [e-mail].

Overview

This chapter provides an overview of the Cisco Nexus 6000 Series switch. The overview includes
information on the expansion modules, power supplies, and fan modules that you can include with the
switch. This chapter describes the Cisco Nexus 6000 Series switch and contains these sections:

• Cisco Nexus 6004 Switch, page 1-1

Cisco Nexus 6004 Switch

This section describes the Cisco Nexus 6004 Switch (N6K-C6004-96Q) and its components. This
section includes the following topics:

• Features, page 1-1

• Chassis, page 1-2

• Ports, page 1-4

CHAPTER

1

Features

• Power Supply, page 1-5

• Fan Module, page 1-5

• Transceivers, page 1-7

The Cisco Nexus 6004 switch is a 4R U, 96-port,10/40 -Gigabit Ethernet and Fibre Channel o ver Ethernet
(FCoE) switch. The Cisco Nexus 6004 is the first 40-Gigabit FCoE switch.

The Cisco Nexus 6004 switch has the following features:

• 48 fixed ports on the back of the switch

• Four slots on the back of the switch for expansion modules.

• Six slots on the front of the switch for hot swap-capabl e power supplies, which pro vide front-to-back

and back-to-front airflow for cooling

• Four slots on the front of the switch for hot swap-capable fan modules.

• One console management port on the front of the switch.

• One USB port on the front of the switch.

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

1-1

Chapter 1 Overview

Cisco Nexus 6004 Switch

Send documentation comments to [e-mail].

Chassis

The Cisco Nexus 6004 switch chassis is 4 RU, 6.97 inches (17.7 cm) tall, 17.3 inches (43.9 cm) wide,
and 30 inches (76.2 cm) deep.

It is designed to be mounted in a standard 19 -inch wide rack. Th e front of the swit ch, shown in

Figure 1-1, has a console management port and U SBport, six power supplies, and four fan modules.

Figure 1-1 Front View of the Cisco Nexus 6004 switch

1 Six power supplies with 3+3 grid redundancy
2 Four fan module with 3+1 redundancy
3 Console Mgmt0 port and USBport

Note The fans and power supplies need to be configured.

The rear of the Cisco Nexus 6004 switch chassis, shown in Figure 1-2, has 48fixed 10/40-Gigabit
Ethernet ports, and four slots for expansion modul es.

1-2

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 1 Overview

Cisco Nexus 6004 Switch

Send documentation comments to [e-mail].

Figure 1-2 Rear View of the Cisco Nexus 6004 Switch

1 Fixed ports 3 4RU chassis
2 Four expansion modules

Expansion Modules

Expansion modules allow the Cisco Nexus 6004 switch to be configured as cost-effecti ve 10/40-Gigabit
Ethernet switches

and as I/O consolidation platforms with native Fibre Channel connectivity.
The Cisco Nexus 6004 switch has four slots that can be used for the following expansion module:

You can hot swap the expansion modules during operations.

Figure 1-4 shows the N6K-C6004-M12Q expansion module.

• N6K-C6004-M12Q:

is a hot swappable linecard expansion module (LEM) that provides 12x 40-Gigabit Ethernet/FCoE
QSFP ports.

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

1-3

Chapter 1 Overview

Cisco Nexus 6004 Switch

Send documentation comments to [e-mail].

Figure 1-3 Cisco Nexus 6004 Expansion Module

Ports

All the individual ports on the Cisco Ne xus 6004 switch are numbered and groups of ports are nu mbered
based on their function. Depending on how it is configured, there are 96 ports on the the Cisco Nexus
6004 switch. The ports are numbered from top-to-bottom and from left-to-right. The fixed ports are
grouped together and the modular ports are grouped together.

Figure 1-4 shows how ports are numbered and grouped by function.

Figure 1-4 Port Numbering of the Cisco Nexus 6004 switch

1-4

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 1 Overview

Cisco Nexus 6004 Switch

Send documentation comments to [e-mail].

Power Supply

The Cisco Nexus 6004 switch uses a front-end power supply. The chassis has slots for six power
supplies. Table 1-1 lists the power supplies that you can order with the Cisco Nexus 6004 switch.

Table 1-1 Power Supplies for the Cisco Nexus 6004 switch

Part Number Power Supply

N6K-PAC-1100W= Cisco Nexus 6004 power supply module, 100-240VAC 1100W, spare

Figure 1-5 shows a Cisco Nexus 6004 Power Supply.

Figure 1-5 Cisco Nexus 6004 Power Supply

Fan Module

Caution You must order all fan modules and power supplies in the same chassis so that they have the same

OL-15902-01

Note Never leav e a po wer supply slot empty. If you remov e a po wer supply, replace it with another one. If you

do not have a replacement power supply, leave the non functioning one in place until you can replace it.

The Cisco Nexus 6004 switch has four fan modules. Al though the switch can function when a fan stops
functioning within a fan module, if a whole fan module stops functioning, you must replace the fan
module. The Cisco Nexus 6004 switch supports the front to back airflo w (N6K-C6004-FAN-F) and back
to front airflow (N6K-C6004-FAN-B).

Figure 1-6 shows a fan module.

direction of airflow with coolant air entering the chassis from the cold aisle and exhausting to the hot
aisle.

Cisco Nexus 6000 Series Hardware Installation Guide

1-5

Chapter 1 Overview

Cisco Nexus 6004 Switch

Send documentation comments to [e-mail].

Figure 1-6 Cisco Nexus 6004 Fan Module

Airflow

The bicolor status LED indicates fan tray health. Green indicates nor mal operation, while ambe r
indicates a fan failure. For more information about LEDs, see Table D-1.

Power supplies and fan modules should be selected depending on the desi red air flow direction.

1-6

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 1 Overview

Cisco Nexus 6004 Switch

Send documentation comments to [e-mail].

Transceivers

The Cisco Nexus 6004 series switch supports a wide variety of 10 and 40 Gigabit Ethernet connectivity
options using Cisco 40GBASE QSFP and breakout cable options.

This section includes the following topics:

• Transceiver Support Matrix, page 1-7

Transceiver Support Matrix

The Cisco Nexus 6004 switch also supports the following QSFP transceivers:

Cisco SFP Description

QSFP-40G-SR4 40GBASE-SR4 QSFP module, (multimode fiber [MMF] at 100m)

QSFP-40G-CSR4 40GBASE Extended CSR4 QSFP module, (MMF at 300m)
QSFP-4x10G-AC7M Cisco 40GBASE-CR4 QSFP+ to 4 10GBASE-CU SFP+ direct-attach

breakout cable, 7m, active

QSFP-4x10G-AC10M Cisco 40GBASE-CR4 QSFP+ to 4 10GBASE-CU SFP+ direct-attach

breakout cable, 10m, active
QSFP-H40G-CU1M Cisco 40GBASE-CR4 QSFP+ direct-attach copper cable, 1m, passive
QSFP-H40G-CU3M Cisco 40GBASE-CR4 QSFP+ direct-attach copper cable, 3m, passive
QSFP-H40G-CU5M Cisco 40GBASE-CR4 QSFP+ direct-attach copper cable, 5m, passive
QSFP-H40G-ACU7M Cisco 40GBASE-CR4 QSFP+ direct-attach copper cable, 7m, active
QSFP-H40G-ACU10M Cisco 40GBASE-CR4 QSFP+ direct-attach copper cable, 10m, active

Note For in-rack or adjacent-rack cabling, the Cisco Nexus 6004 platform supports QSFP+ direct-attach 40

Gigabit Ethernet copper cables, an innovative solution that integrates transceivers with Twinax cables
into an energy-efficient, low-cost, and low-latency solution. QSFP+ direct-attach 40 Gigabit Ethernet
Twinax copper cables use only 1.5 watts (W) of power per transceiver and introduce less than 0.1
microsecond of latency per link. For longer cable runs, the Cisco Nexus 6004 platform supports
multimode, short-reach optical QSFP transceivers. These optical transceivers use approximately 1.5W
per transceiver and have a latency of less than 0.1 microsecond.

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

1-7

Chapter 1 Overview

Cisco Nexus 6004 Switch

Send documentation comments to [e-mail].

1-8

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Send documentation comments to [e-mail].

CHAPTER

2

Installing the Cisco Nexus 6000 Series Switches

This chapter describes how to install the Cisco Nexus 6004 switch. This chapter includes the following
sections:

• Preparing for Installation, page 2-2

• Installing the Switch, page 2-5

• Grounding the Switch, page 2-7

• Starting the Switch, page 2-12

Note Before you install, operate, or service the system, see the Regulatory, Compliance, and Safety

Information for the Cisco Nexus 6000 Series, Cisco Nexus 5000 Series, Cisco Nexus 3000 Series, and
Cisco Nexus 2000 Series for important safety information.

Warning

Warning

Warning

Note Each new switch requires a license. F or informatio n on licensing, see the Cisco NX-OS Licensi ng Guide.

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this device.

Statement 1071

SAVE THESE INSTRUCTIONS

This unit is intended for installation in restricted access areas. A restricted access area can be
accessed only through the use of a special tool, lock and key, or other means of security.

Statement 1017

Only trained and

Statement 1030

qualified personnel must be allowed

to install, replace, or service this equipment.

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

2-1

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Preparing for Installation

Send documentation comments to [e-mail].

Preparing for Installation

This section describes how to prep are the Cisco Nexus 60 04 switch for installation. This section includes
the following topics:

• Installation Options with Racks and Cabinets, page 2-2

• Airflow Direction, page 2-2

• Chassis Weight, page 2-2

• Installation Guidelines, page 2-2

• Required Equipment, page 2-4

• Unpacking and Inspecting the Switch, page 2-4

Installation Options with Racks and Cabinets

The Cisco Nexus 6004 switch can be installed in the following types of racks using a rack-mount kit
shipped with the switch:

• Open EIA rack

• Perforated EIA cabinet

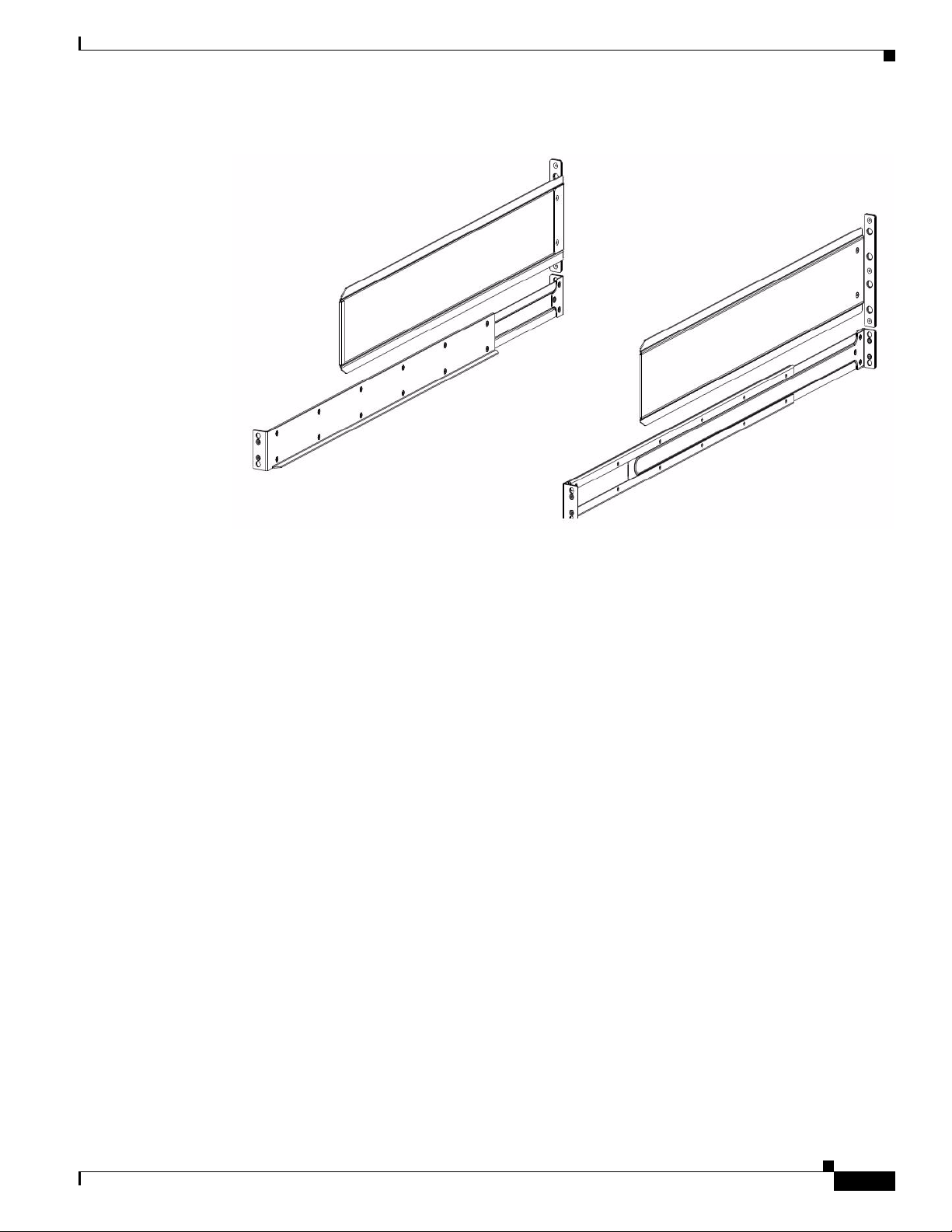

T o enable you to easily mount your switch in an y qualifying rack, you can attach the rack-mount brackets
to accommodate racks of different depths. For instructions on how to use a rack-mount kit, see the

“Installing the Switch” section on page 2-5.

Airflow Direction

The airflow through the fan trays and po wer supplies on the Cisco Ne xus 6004 switch is either from front
to back or from back to front, depending on how the modules were o rdered. To ensure proper airflow,
you must make sure that when you install the switch i ts air intake is positioned in a cold aisle and th e air
exhaust is positioned in a hot aisle for your data center.

Chassis Weight

When lifting the switch chassis, follow these guidelines:

• Disconnect all power and external cables before lifting the switch.

• Have two people lift the switch. The Cisco Nexus 6004 with three 1100W power supplies, four

• Ensure that your footing is solid and the weight of the switch i s ev enly distrib uted between your feet.

• Lift the switch slowly, keeping your back straight. Lift with your legs, not with your back. Bend at

expansion modules, and four fan modules weighs 122 lb. The Cisco Nexus 6004 with three 1100W
power supplies and four fan modules weighs 100 lb.

the knees, not at the waist.

Installation Guidelines

When installing the Cisco Nexus 6004 switch, follow these guidelines:

Cisco Nexus 6000 Series Hardware Installation Guide

2-2

OL-15902-01

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Preparing for Installation

Send documentation comments to [e-mail].

• Record the information listed in Appendix G, “Site Planning and Maintenance Records,” as you

install and configure the switch.

• Ensure that there is adequate space around the switch to allow for servicing the switch and for

adequate airflow (Appendix B, “Technical Specifications,” lists the service and airflow
requirements).

• Ensure that the air-conditioning meets the heat dissipation requirements listed in Appendix B,

“Technical Specifications.”

• Ensure that the cabinet or rack meets the requirements listed in Appendix A, “Cabinet and Rack

Installation.”

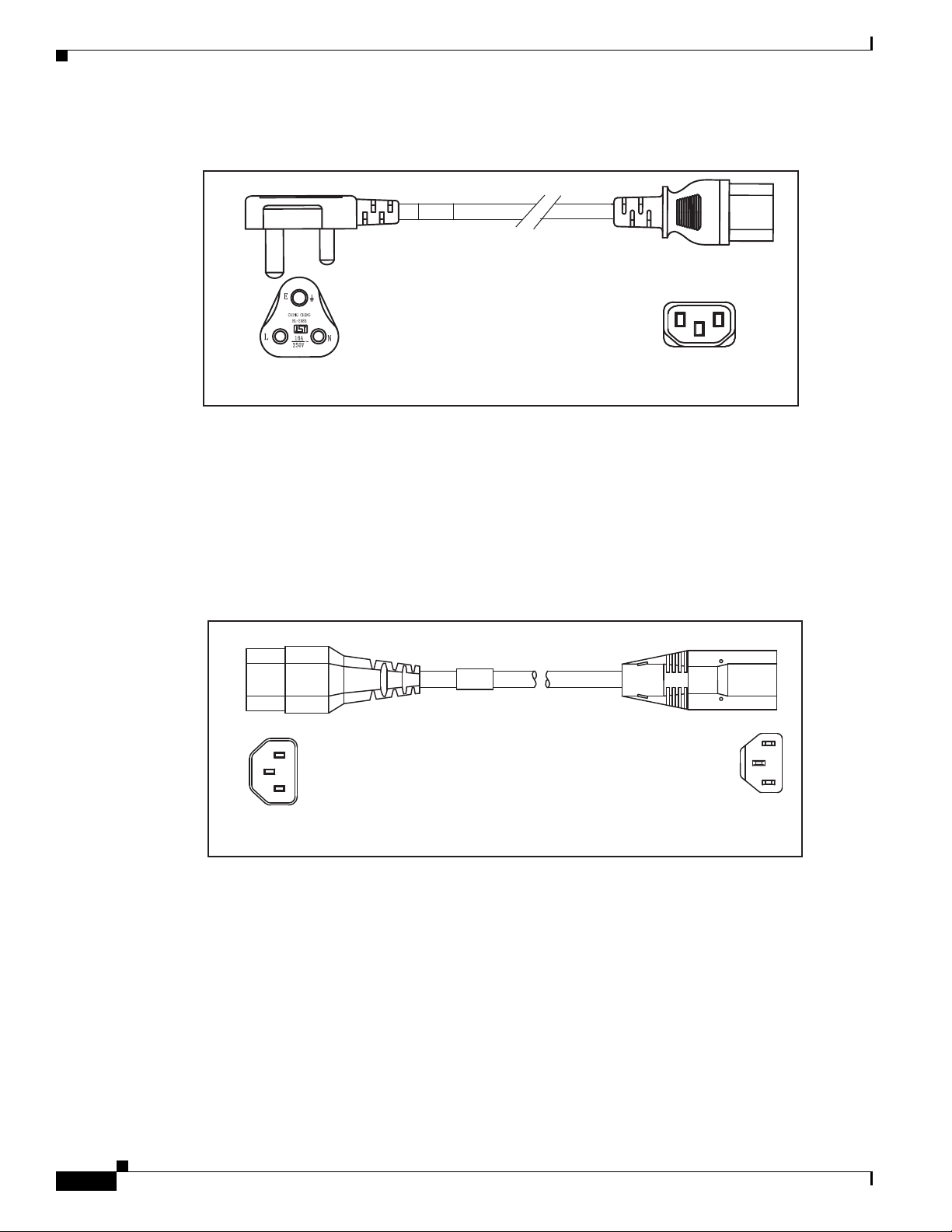

Note Jumper power cords are available for use in a cabinet. See the “Jumper Power Cord” section on

page C-8.

• Ensure that the chassis can be adequately grounded. If the switch is not mounted in a grounded rack,

we recommend connecting both the system ground on the chassis and the power supply ground
directly to an earth ground.

• Ensure that the site power meets the power requirements listed in Appendix B, “Technical

Specifications.” If available, you can use an uninterruptible power supply (UPS) to protect against

power failures.

Caution Avoid UPS types that use ferroresonant technology. These UPS types can become unstable

with systems such as the Cisco Nexus 6004 switch, which can have substantial current draw
fluctuations because of fluctuating data traffic patterns.

• Ensure that circuits are sized according to local and national codes. For North America, the power

supply requires a 15-A or 20-A circuit.

Caution To prevent loss of input power, ensure the total maximum loads on the circuits supplying

power to the switch are within the current ratings for the wiring and breakers.

• Ensure that all fan trays and power supplies have the same airflow drection.

• Use the following screw torques when installing the switch:

–

Captive screws: 4 in-lb (0.45 N·m)

–

M3 screws: 4 in-lb (0.45 N·m)

–

M4 screws: 12 in-lb (1.36 N·m)

–

10-32 screws: 20 in-lb (2.26 N·m)

–

12-24 screws: 30 in-lb (3.39 N·m)

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

2-3

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Preparing for Installation

Send documentation comments to [e-mail].

Required Equipment

Before beginning the installation, ensure that you have the following items available:

• Four 12-24 or 10-32 screws for attaching slider rails to the rack

• Number 1 and number 2 Phillips screwdrivers with torque capability

• 3/16-inch flat-blade screwdriver

• Tape measure and level

• ESD wrist strap or other grounding device

• Antistatic mat or antistatic foam

The following additional items (not found in the accessory kit) are required to ground the chassis:

• Grounding cable (6 AWG recommended), sized according to local and national installation

requirements; the required length depends on the proximity of the switch to proper grounding
facilities

• Crimping tool large enough to accommodate the girth of the lug

• Wire-stripping tool

Unpacking and Inspecting the Switch

Caution When handling switch components, wear an ESD strap and handle modules by their handles and carrier

edges only. An ESD socket is provided on the chassis. For the ESD socket to be effective, the chassis
must be grounded through the power cable, the chassis ground, or the metal-to-metal contact with a
grounded rack.

Tip Keep the shipping container in case the chassis requires shipping in the future.

Note The switch is thoroughly inspected before shipment. If any damage occurred during transportation or

any items are missing, contact your customer service representative immediately.

To inspect the shipment, follow these steps:

Step 1 Compare the shipment to the equipment list provided by your customer service representativ e and verify

that you have received all items, including the following:

• Grounding lug kit

• Rack-mount kit

• ESD wrist strap

• Cables with connectors

2-4

• Any optional items ordered

Step 2 Check for damage and report any discrepancies or damage to your customer service representativ e. Have

the following information ready:

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Installing the Switch

Send documentation comments to [e-mail].

• Invoice number of shipper (see packing slip)

• Model and serial number of the damaged uni t

• Description of damage

• Effect of damage on the installation

Installing the Switch

This section includes the following topics:

• Installing a Cisco Nexus 6004 switch, page 2-5

Installing a Cisco Nexus 6004 switch

This section describes how to use the rack-mount kit provided with the switch to instal l the Cisco Nexus
6004 switch into a cabinet or rack that meets the requirements described in Appendix A, “Cabinet and

Rack Installation.”

Caution If the rack is on wheels, ensure that the brakes are e ngaged or that the rack is otherwise stabilized.

Table 2-3 lists the items contained in the rack-mount kit provided with the switch.

Table 2-1 Cisco Nexus 60 04 switch Rack-Mount Kit

Quantity Part Description

4 R ack-mount brackets
24 M4 x 0.7 x 8-mm Phillips flat-head screws
4 R ack-mount guides
4 Slider rails

(22 inch minimum to a 36 inch maximum)

Note You must supply the 24 screws required to mount the rack brackets and slider rails to the rack. The

rack-mount kit does not provide these screws.

T o install the switch in a rack or cabinet using the rack-mount kit provided with the switch, follow these
steps:

Step 1 Install the front rack-mount brackets on the chassis as follows:

a. Position a front rack-mount bracket on the side of the chassis with its four holes aligned to four of

the six screw holes on the front side of the chassis, and then use four M4 scre ws to attach the bracket
to the chassis. .

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

2-5

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Installing the Switch

Send documentation comments to [e-mail].

Note You can align any four of the holes in the front rack-mount bracket to four of the six screw holes

in the chassis. The holes that you use depend on the requirements of your rack.

b. Repeat Step 1a with the other front rack-mount bracket on the other side of the switch.

Step 2 Install the rear rack-mount guides on the chassis as follows:

a. Position a rear rack-mount bracket on the side of the chassis with its four holes aligned to four

of the six screw holes on the side of the chassis, and then use four M4 screws to attach the
bracket to the chassis. See Callout 4 in Figure 2-1.

b. Repeat Step 2a with the other rear rack-mount bracket on the other side of the switch.

Step 3 Install the slider rails to the rack as follows:

a. Position the slider rails at the desired le vel on the back side of the rack and use two 12-24 screws

or two 10-32 screws, depending on the rack thread type, to attach the rails to the rack.

Note For racks with square holes, you might need to position a 12-24 cage nut behind each mountin g

hole in a slider rail before using a 12-24 screw.

b. Repeat with the other slider rail on the other side of the rack.
c. Use the tape measure and level to verify that the rails are at the same height and horizontal.

Step 4 Insert the switch into the rack and attach it as follows:

a. Holding the switch with both hands, position the back of the switch between the front posts of

the rack.

b. Align the two rear rack-mount guides on either side of the switch with the slider rails installed

in the rack. Slide the rack-mount guides onto the slider rails, and then gently slide the switch
all the way into the rack. The Cisco Nexus 6004 chassis slider rails are shown in Figure 2-1.

Note If the switch does not slide easily, try realigning the rack-mount guides on the slider rails.

2-6

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Grounding the Switch

Send documentation comments to [e-mail].

Figure 2-1 Slider Rails

c.

Holding the chassis level, insert two screws (12-24 or 10-32, depending on the rack type)
through the cage nuts and the holes in one of the front rack-mount brackets and into t he threaded
holes in the rack-mounting rail.

d. Repeat for the other front rack-mount bracket on the other side of the switch.

Grounding the Switch

This section describes the need for system grounding for all of the Ci sco Nexus 6004 switch and e xplains
how to prevent damage from electrostatic discharge.

This section includes the following topics:

• Proper Grounding Practices, page 2-8

• Preventing Electrostatic Discharge Damage, page 2-9

• Establishing the System Ground, page 2-11

• Required Tools and Equipment, page 2-11

• Grounding the Cisco Nexus 6000 Series Chassis, page 2-11

• Grounding the Cisco Nexus 6000 Series Chassis, page 2-24

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

2-7

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Grounding the Switch

Send documentation comments to [e-mail].

Proper Grounding Practices

Grounding is one of the most important parts of equipment installation. Proper grounding practices
ensure that the buildings and the installed equi pmen t within th em have low-impedance co nnecti on s and
low-voltage differentials between chassis. When you properly ground systems during installation, you
reduce or prevent shock hazards, equipment damage due to transients, and data corruption. Table 2-2
lists some general grounding practice guidelines.

Table 2-2 Proper Grounding Guidelines

Electromagnetic Noise

Environment

Commercial building is
subjected to direct lightning
strikes.

For example, some places in the
United States, such as Florida,
are subject to more lightning
strikes than other areas.

Commercial building is located
in an area where lightning
storms frequently occur but is
not subject to direct lightning
strikes.

Commercial building contains a
mix of information technology
equipment and industrial
equipment, such as welding.

Existing commercial building is
not subject to natural
environmental noise or
man-made industrial noise. This
building contains a standard
office environment. This
installation has a history of
malfunction due to
electromagnetic noise.

Severity Level Grounding Recommendations

High All lightning protection devices must be

installed in strict accordance with
manufacturer recommendations.
Conductors carrying lightning current
should be spaced away from power and
data lines in accordance with applicable
recommendations and codes. Best
grounding recommendations must be
closely followed.

High Best grounding recommendations must be

closely followed.

Medium to high Best grounding recommendations must be

closely followed.

Medium Determine source and cause of noise if

possible, and mitigate as closely as possible
at the noise source or reduce coupling from
the noise source to the affected equipment.
Best grounding recommendations must be
closely followed.

2-8

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Grounding the Switch

Send documentation comments to [e-mail].

Table 2-2 Proper Grounding Guidelines (continued)

Electromagnetic Noise

Environment

New commercial building is not
subject to natural environmental
noise or man-made industrial
noise. This building contains a
standard office environment.

Existing commercial building is
not subject to natural
environmental noise or
man-made industrial noise. This
building contains a standard
office environment.

Severity Level Grounding Recommendations

Low Electromagnetic noise problems are not

anticipated, but installing a grounding
system in a new building is often the least
expensive route and the best way to plan for
the future. Best grounding
recommendations should be followed as
closely as possible.

Low Electromagnetic noise problems are not

anticipated, but installing a grounding
system is always recommended. Best
grounding recommendations should be
followed as much as possible.

Note In all situations, grounding practices must comply with local National Electric Code (NEC)

requirements or local laws and regulations.

Note Always ensure that all of the modules are completely installed and that the captive installation screws

are fully tightened. In addition, ensure that all I/O cables and power cords are properly seated. These
practices are normal installation practices and must be followed in all installati ons.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage, which can occur w hen modules o r other FRUs are improperly
handled, results in intermittent or complete failures. Modules consist of printed circuit boards that are
fixed in metal carriers. Electromagnetic interference (EMI) shielding and connectors are integral
components of the carrier. Although the metal carrier helps to protect the board from ESD, always use
an ESD grounding strap when handling modules.

For preventing ESD damage, follow these guidelines:

• Always use an ESD wrist strap and ensure that it makes maximum contact with bare skin.

• ESD grounding straps are available with banana plugs, metal spring clips, or alligator clips. All

chassis from the Cisco Nexus 6000 series are equipped with a banana plug connector (identified b y
the ground symbol next to the connector) somewhere on the front panel. We recommend that you
use a personal ESD grounding strap equipped with a banana plug.

• If you choose to use the disposable ESD wrist strap supplied with most FR Us or an ESD wrist strap

equipped with an alligator clip, you must attach the system ground lug to the chassis in order to
provide a proper grounding point for the ESD wrist strap.

OL-15902-01

Note This system ground is also referred to as the network equipment building system (NEBS) ground.

Cisco Nexus 6000 Series Hardware Installation Guide

2-9

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Grounding the Switch

Send documentation comments to [e-mail].

• If your chassis does not have the system ground attached, you must install the system ground lug.

See the “Establishing the System Ground” section on page 2-11 for installation instructions and
location of the chassis system ground pads.

Note You do not need to attach a supplemental system ground wire to the system ground lug; the lug provides

a direct path to the bare metal of the chassis.

After you install the system ground lug, follow these steps to correctly attach the ESD wrist strap:

Step 1 Attach the ESD wrist strap to bare skin as follows:

a. If you are using the ESD wrist strap supplied with the FRUs, open the wrist strap package and

unwrap the ESD wrist strap. Place the black conductive loop over your wrist and tighten the strap
so that it makes good contact with your ba re skin.

b. If you are using an ESD wrist strap equipped with an alligator clip, open the package and remove

the ESD wrist strap. Locate the end of the wrist strap that attaches to your body and secure it to yo ur
bare skin.

Step 2 Grasp the spring or alligator clip on the ESD wrist strap and momentarily touch the clip to a bare metal

spot (unpainted surface) on the rack. We recommend that you touch t he clip to an unpain ted rack rai l so
that any built-up static charge is then safely dissipated to the entire rack.

Step 3 Attach either the spring clip or the alligator clip to the ground lug screw as follows:

a. If you are using the ESD wrist strap that is supplied with the FRUs, squeeze the spring clip jaws

open, position the spring clip to one side of the system ground lug screw head, and slide the spring
clip over the lug screw head so that the spring clip jaws close behind the lug screw head.

Note The spring clip jaws do not open wide enough to fit directly over the head of the lug screw or

the lug barrel.

b. If you are using an ESD wrist strap that is equipped with an alligator clip, attach the alligator clip

directly over the head of the system ground lug screw or to the system ground lug barrel.

To attach the ESD wrist strap to the system g round lug screw for any of the Cisco Nexus 6004 switches,
clip the grounding wire to the screw that attaches the grounding lug to the switch chassis .

In addition, follow these guidelines when handling modules:

• Handle carriers by available handles or edges only; avoid touching the printed circuit boards or

connectors.

• Place a removed component board-side-up on an antistatic surface or in a static-shielding container.

If you plan to return the component to the factory, immediately place it in a static-shielding
container.

• Never attempt to remove the printed circuit board from the metal carrier.

Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should be

between 1 and 10 megohm (Mohm).

2-10

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Grounding the Switch

Send documentation comments to [e-mail].

Establishing the System Ground

This section describes how to connect a system ground to the Cisco Nexus 6000 Series switch.
You must use the system ground on AC-powered systems if you are installing this equipment in a U.S.

or European Central Office.
The system ground provides additional gro unding for EMI shielding requirements and ground ing for the

low-voltage supplies (DC-DC converters) on the modules and is intended to satisfy the Telcordia
T echnologies requirements for su pplemental b onding and groundi ng connections. You must observe the
following system grounding guidelines for your chassis:

• You must install the system ground connection with any other rack or system power ground

connections that you make. The system ground conn ection is required if this equipment is installed
in a U.S. or European Central Office.

• You must connect both the system ground connection and the power supply ground connection to

an earth ground. The system ground connection is required if this equipment is installed in a U.S.
or European Central Office.

• You do not need to power down the chassis because the Cisco Nexus 6000 Series switches are

equipped with AC-input power supplies.

Required Tools and Equipment

To connect the system ground, you need the following tools and materials:

• Grounding lug—A two-hole standard barrel lug. This lug supports up to 6 AWG wire. Supplied as

part of accessory kit.

• Grounding screws—Two M4 x 8mm (metric) pan-head screws. These screws are su pplied as part of

the accessory kit.

• Grounding wire—Not supplied as part of accessory kit. The grounding wire should be sized

according to local and national installation requirements. Depending on the power supply and
system, a 12 AWG to 6 AWG copper conductor is required for U.S. installations. Commercially
available 6 AWG wire is recommended. The length of the grounding wire depends on the proximity
of the switch to proper grounding facilities.

• No. 1 Phillips screwdriver.

• Crimping tool to crimp the grounding wire to the grounding lug.

• Wire-stripping tool to remove the insulation from the grounding wire.

Grounding the Cisco Nexus 6000 Series Chassis

The chassis has a grounding pad with two threaded M4 holes for attaching a grounding lug. The location
of the system ground on the Cisco Nexus 6004 switch i s similar to that on the Cisco Nexus 5500 Platform
switches.

OL-15902-01

Note For the procedure on ho w to ground the Cisco Nexus 6 000 Series switch chassis, see the “Grounding th e

Cisco Nexus 6000 Series Chassis” section on page 2-11.

Cisco Nexus 6000 Series Hardware Installation Guide

2-11

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Starting the Switch

Send documentation comments to [e-mail].

Warning

Caution We recommend grounding the chassis, even if the rack is already grounded.

Caution All power supplies must be grounded. The receptacles of the AC power cables used to provide power to

When installing or replacing the unit, the ground connection must always be made first and
disconnected last.

Statement 1046

the chassis must be the grounding type, and the groundi ng conductors should con nect to protecti ve earth
ground at the service equipment.

Warning

When installing or replacing the unit, the ground connection must always be made first and
disconnected last.

Statement 1046

Caution Grounding the chassis is required if you are using DC power supplies, even if the rack is already

grounded. A grounding pad with two threaded M4 holes is provided on the chassis for attaching a
grounding lug. The ground lug must be NRTL listed. In addition, the copper conductor (wires) must be
used and the copper conductor must comply with NEC code for ampacity.

To attach the grounding lug and cable to the chassis, follow these steps:

Step 1 Use a wire-stripping tool to remove approximately 0.75 in ches ( 19 m m) of the covering from the end of

the grounding cable.

Step 2 Insert the stripped end of the grounding cable into the open end of the grounding lug.
Step 3 Use the crimping tool to secure the grounding cable in the grounding lug.
Step 4 Remove the adhesive label from the grounding pad on the chassis.
Step 5 Place the grounding lug against the grounding pad so that there is solid metal-t o-metal contact, and insert

the two M4 screws with washers through the holes in the grounding lug and into the grounding pad.

Step 6 Ensure that the lug and cable do not interfere with other equipment.
Step 7 Prepare the other end of the grounding cable and connect it to an appropriate grounding point in your

site to ensure adequate earth ground.

Starting the Switch

This section provides instructions for powering up the Cisco Nexus 6004 switch and verifying the
component installation.

2-12

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Starting the Switch

Send documentation comments to [e-mail].

Note Do not connect the Ethernet port to the LAN until the initial switch configuration has been performed.

For instructions on configuring the switch, see the Cisco Nexus 6000 Series CLI Configuration Guide.
For instructions on connecting to the console port, see the “Connecting to the Console Port” section on

page 3-2.

Warning

When installing or replacing the unit, the ground connection must always be made first and
disconnected last.

Statement 1046

To power up the switch and verify hardware operation, follow these steps:

Step 1 Verify that empty power supply slots have filler panels installed, the faceplates of all modules are flush

with the front of the chassis, and the captive screws of the po wer supplies, f an module, and all e xpansion
modules are tight.

Step 2 Verify that the power supply and the fan modules are installed.

Note Depending on the outlet receptacle on your power distribution unit, you may need the optional

jumper power cord to connect the switch to your outlet receptacle. See the “Jumper Power Cord”

section on page C-8.

Step 3 Ensure that the switch is adequately grounded as described in the “Grounding the Switch” section on

page 2-7, and that the power cables are connected to outlets that have the required AC power voltages

(see the “Power Specifications” section on page B-2).

Step 4 For the switch, insert each end of the power clip (from the accessory kit) into holes on tabs located on

either side of the power connectors (see Figure 2-16).

Step 5 Connect each power cable to the power connectors on the chassis and an AC power source. Press the

power cable into the power clip to endure that the power cable stays connected to the chassis when
bumped. The switch should power on as soon as you connect the power cable.

Step 6 Listen for the fans; they should begin operating when the power cable is plugged in.
Step 7 After the switch boots, verify that the LED operation is as follows:

OL-15902-01

• Fan module—Status LED is green.

• Power supply—Status LED is green.

• After initialization, the system status LED is green, indicating that all chassis environmental

monitors are reporting that the system is operational. If this LED is or ange or red, then on e or more
environmental monitor is reporting a problem.

• The Link LEDs for the Ethernet connector should not be on unless the cable is connect ed.

Note The link LEDs for the Fibre Channel ports remain yellow until the ports are enabled, and the

LED for the Ethernet connector port remains off until the port is connected.

Step 8 Try removing and reinstalling a component that is not operating correctly. If it still does not operate

correctly, contact your customer service representative for a replacement.

Cisco Nexus 6000 Series Hardware Installation Guide

2-13

Chapter 2 Installing the Cisco Nexus 6000 Series Switches

Starting the Switch

Send documentation comments to [e-mail].

Note If you purchased this product through a Cisco rese ller, contact the reseller directly for technical

support. If you purchased this product directly from Cisco, contact Cisco Technical Support at
this URL: http://www.cisco.com/en/US/support/tsd_cisco_worldwide_contacts.html.

Step 9 Verify that the system software has booted and the switch has initialized without error messages.

If you cannot resolve an issue, contact your customer service representative.

Step 10 Complete the worksheets provided in Appendix G, “Site Planning and Maintenance Records” for future

reference.

Note A setup utility automatically launches the first time you access the switch and guides you through the

basic configuration. For instructi ons on ho w to configure the switch and check module connectivity, see
the appropriate Cisco Nexus 6000 Series CLI configuration guide.

2-14

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Send documentation comments to [e-mail].

CHAPTER

3

Connecting the Switch

This chapter describes how to connect the Cisco Nexus 6004 switche to the following types of ports:

• Console port —A port that you can use to create a local management connection.

• Ethernet ports, both encrypted and unencryp ted—Thes e ports can be use d to connect to a LAN.

Caution When running power and data cables in overhead or subfloor cable trays, we strongly recommend that

you locate power cables and other potential noise sour ces as f ar a w ay as practical from network cabling
that terminates on Cisco equipment. In situations where long parallel cable runs cannot be separated by
at least 3.3 ft (1 m), we recommend that you shield any potential noise sources by housing them in a
grounded metallic conduit.

This chapter includes the following sections:

• Preparing for Network Connections, page 3-2

• Connecting to the Console Port, page 3-2

• Connecting to the Ethernet Connector Port, page 3-3

• Connecting to an Ethernet Port, page 3-3

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

3-1

Chapter 3 Connecting the Switch

Preparing for Network Connections

Send documentation comments to [e-mail].

Preparing for Network Connections

When preparing your site for network connections to the Cisco Nexus 6004 switch, consider the
following for each type of interface, and gather all the required equipment before connecting the ports:

• Cabling required for each interface type

• Distance limitations for each signal type

• Additional interface equipment required

Connecting to the Console Port

The console port is an RS-232 port with an RJ-45 int erface. The console p ort is an asynchronous (async)
serial port; any device connected to this port must be capable of asynchronous transmission.

We recommend using this port to crea te a l oca l mana gement connection to set the IP address and other
initial configuration settings before connecting the switch to the network for the first time.

Caution The console port can be used to connect to a modem. If you do not connect it to a modem, connect it

either before powering the switch on or after the switch has completed the boot process.

You can use the console port to perform the following:

• Configure the Cisco Nexus 6004 switch from the CLI.

• Monitor network statistics and errors.

• Configure SNMP agent parameters.

• Download software updates.

Note To connect the console port to a computer terminal, the computer must support VT100 terminal

emulation. The terminal emulation software (such as HyperTerminal or Procomm Plus) makes
communication between the Cisco Nexus 6004 switch and a computer possible during setup and
configuration.

To connect the console port to a computer terminal, follow these steps:

Step 1 Configure the terminal emulator program to match the followin g default port characteristics: 9600 baud,

8 data bits, 1 stop bit, no parity.

Step 2 Connect the RJ-45 connector of the console cable to the console port and the DB-9 connector to the

computer serial port.

3-2

Note For configuration instructions, see the appropriate Cisco Nexus 6000 Series CLI configuration

guide.

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 3 Connecting the Switch

Connecting to the Ethernet Connector Port

Send documentation comments to [e-mail].

Connecting to the Ethernet Connector Port

Caution To prevent an IP address conflict, do not connect the management port to the network until the initial

configuration is complete. For configuration instructions, see the Cisco Nexus 6000 Series CLI
Configuration Guide.

This section describes how to connect the Ethernet connector port to an external hub, switch, or router.
The Ethernet connector port has an RJ-45 interface. To conn ect the Ethernet connector p ort to an external
hub, switch, or router, follow these steps:

Step 1 Connect the appropriate modular cable to the Ethernet connector port:

• Use modular, RJ-45, straight-through UTP cables to connect the Ethernet connector port to an

Ethernet switch port or hub.

• Use a cross-over cable to connect to a router interface.

Step 2 Connect the other end of the cable to the device.

Connecting to an Ethernet Port

To connect to an Ethernet port, you must install transceivers and connect them with optical cables.
This section includes the following topics:

• Installing and Replacing Transceivers, page 3-3

• Installing Cables into Transceivers, page 3-5

Installing and Replacing Transceivers

Caution Excessively removing and installing a transceiver can shorten its life. Unless it is absolutely necessary,

do not remove and insert transceivers. To prevent damage to the cable and transceiver, we recommend
that you disconnect cables before installing or removing transceivers.

This section includes the following topics:

• Installing a Transceiver, page 3-3

• Replacing a Transceiver, page 3-4

Installing a Transceiver

OL-15902-01

To install a transceiver, follow these steps:

Step 1 Attach an ESD-preventive wrist strap and follow its instructions for use.

Cisco Nexus 6000 Series Hardware Installation Guide

3-3

Chapter 3 Connecting the Switch

Connecting to an Ethernet Port

Send documentation comments to [e-mail].

Step 2 Remove the dust cover from the port cage.
Step 3 Remove the dust cover from the port end of the transceiver.
Step 4 Insert the transceiver into the port as follows:

• If the transceiver has a Mylar tab latch, position th e transcei v er with the tab on the bottom, and then

gently insert the transceiver into the port until it clicks into place.

• If the transceiver has a bale clasp latch, position the transceiver with the clasp on the bottom, close

the clasp by pushing it up over the transceiver, and then gently insert the transceiver into the port
until it clicks into place.

Caution If the transceiver does not install easily, ensure that it is correctly positioned and the tab or

clasp are in the correct position before continuing.

Note If you cannot install the cable into the transceiver, insert or leave the dust plug in the cable end

of the transceiver.

Replacing a Transceiver

To replace a transceiver, follow these steps:

Step 1 Attach an ESD-preventive wrist strap and follow its instructions for use.
Step 2 If a cable is installed in the transceiver, do the following:

a. Record the cable and port connections for later reference.
b. Press the release latch on the cable, grasp the connector near the connection point, and gently pull

the connector from the transceiver.

c. Insert a dust plug into the cable end of the transceiver.

Caution If the transceiver does not remove easily in the next step, push the transceiver completely in

Step 3 Remove the transceiver from the port as follows:

• If the transceiver has a Mylar tab latch, gently pull the tab straight out (do not twist), and then pull

the transceiver out of the port.

• If the transceiver has a bale clasp latch, open the clasp by pressing it downward, and then pull the

transceiver out of the port.

and then ensure that the latch is in the correct position before continuing.

3-4

Note If you have dif ficulty removi ng a bale clasp transceiv er, you should reseat it by returnin g the bale

clasp latch to the up position. Press the transceiver inw ard and upward into th e cage. Next, lo wer
the bale clasp latch and pull the transceiver straight out with a slight upward lifting force. Be
careful not to damage the port cage d uring th is process.

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 3 Connecting the Switch

Connecting to an Ethernet Port

Send documentation comments to [e-mail].

Step 4 Insert a dust cover into the port end of the transceiver and place the transceiver on an antistatic mat or

into a static shielding bag if you plan to return it to the factory.

Step 5 Install a replacement transceiver (see the “Installing a Transceiver” section on page 3-3). If another

transceiver is not being installed, protect the optical cage by inserting a clean cover.

Installing Cables into Transceivers

Caution To prevent damage to the copper cables, do not place more tension on them than the rated limit and do

not bend to a radius of less than 1 inch (2.54 cm) if there i s no tension in t he cable, or 2 inches (5 .08 cm)
if there is tension in the cable.

This section includes the following topics:

• Installing a Cable into an Transceiver, page 3-5

• Replacing a Cable for a Transceiver, page 3-5

Installing a Cable into an Transceiver

Caution To prev ent possible damage to the cable or transceiver, install the transceiver in the port before installing

the cable in the transceiver.

To install a cable into a transceiver, follow these steps:

Step 1 Attach an ESD-preventive wrist strap and follow its instructions for use.
Step 2 Remove the dust cover from the connector on the cable.
Step 3 Remove the dust cover from the cable end of the transceiver.
Step 4 Align the cable connector with the transceiver and insert the connector into the transceiver until it clicks

into place.

Caution If the cable does not install easily, ensure that it is correctly positioned before continuing.

For instructions on verifying connectivity, see the appropriate Cisco Nexus 6000 Series CLI
Configuration Guide.

Replacing a Cable for a Transceiver

Caution When pulling a cable from a transceiver, grip the body of the connector . Do not pull on the jacket sleeve,

because this action can compromise the fiber-optic termination in the connector.

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

3-5

Chapter 3 Connecting the Switch

Connecting to an Ethernet Port

Send documentation comments to [e-mail].

Caution If the cable does not remove easily, ensure that any latch present on the cable has been released before

continuing.

To remove the cable, follow these steps:

Step 1 Attach an ESD-preventive wrist strap and follow its instructions for use.
Step 2 Press the release latch on the cable , grasp the connect or near the connection point, and gently pull the

connector from the transceiver.

Step 3 Either install a replacement cable in the transceiver (see the “Installing a Cable into an Transceiver”

section on page 3-5) or insert dust plugs into the cable end of the transceiver and the end of the removed

cable.

3-6

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Send documentation comments to [e-mail].

Replacing Components

This chapter describes how to remove and install components for the Cisco Ne xus 6000 Platform switch.
This section includes the following sections:

• Replacing Expansion Modules, page 4-1

• Replacing LEMs, page 4-2

• Replacing Modules, page 4-3

• Replacing or Installing Power Supplies, page 4-4

• Replacing a Fan Module, page 4-7

• Removing the Cisco Nexus 6000 Platform Chassis, page 4-8

Replacing Expansion Modules

CHAPTER

4

Caution To prevent ESD damage, wear grounding w rist strap s during th ese procedu res and handl e expansion

modules by the carrier edges only.

Install the switch in the rack before installing expansion modules. For information about installing the
chassis, see the “Installing the Sw itch” sect ion on pa ge 2-5.

This section includes the following topics:

• Removing an Expansion Module from a Cisco Nexus 6000 Platform Chassis, page 4-1

• Installing an Expansion Module in a Cisco Nexus 6000 Platform Chassis, page 4-2

Removing an Expansion Module from a Cisco Nexus 6000 Platform Chassis

T o remo v e an e xpansion module from th e Cisco Nexus 6 000 Platform switch chassis, follow these steps:

Step 1 Disconnect any network interface cables attached to the module.
Step 2 Open the packing materials for the module and prepare an antistatic surface for uninstal led modu les.
Step 3 Loosen the captive screw on the ejector lever so that the lever can move.
Step 4 Rotate the ejector lever fully from the front of the module unt il it stops at about 80 degrees from t he front.

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

4-1

Chapter 4 Replacing Components

Replacing LEMs

Send documentation comments to [e-mail].

Step 5 With one hand on the ejector handle and front of the module, pull the module part way out of its slot in

the chassis.

Step 6 Place your other hand under the module to support its weight and fully remove the module.
Step 7 Place the module on an antistatic surface or pack it in its packing materials.

Installing an Expansion Module in a Cisco Nexus 6000 Platform Chassis

To install an expansion module in a Cisco Nexus 6000 Platform switch chassis, follow these steps:

Step 1 Remove the module from its packing materials and place it on an antistatic surface.
Step 2 If the captive screw on the expansion module is not loose, turn it counterclockwise to fully loosen.
Step 3 Rotate the ejector lever away from the front of the module until it stops at about 80 degrees from the

front.

Step 4 Holding the module with one hand on the front of the module and the other hand on its carrier edges or

bottom, align the module to the open slot.

Step 5 Push the module fully into the slot until the ejector engages and the lever moves.
Step 6 Rotate the ejector lever to the front of the module so that the module is fully inserted in the slot and the

captive screw on the ejector assembly is in position to screw into the expansion module.

Step 7 Tighten the captive screw to the expansion module.
Step 8 Verify the installation by making sure that the module status LED turns on and is green.

Replacing LEMs

This section includes the following topics:

• Removing a LEM, page 4-2

• Installing a LEM, page 4-3

Removing a LEM

To remove a LEM from a Cisco Nexus 6004 chassis, follow these steps:

4-2

Step 1 Power off the LEM using poweroff module <x>
Step 2 Physically remove the LEM.

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 4 Replacing Components

Replacing Modules

Send documentation comments to [e-mail].

Installing a LEM

To install a LEM in a Cisco Nexus 6004 chassis, follow these steps:

Step 1 Insert the LEM into the slot and make sure it is firmly installed.
Step 2 The LEM will auto power on if the poweroff command was not executed earlier on this slot. Otherwise

no poweroff module <x> will power it on.

If the following error message is observed, remove and reinsert the LEM as per guidelines:

2013 Feb 21 23:05:17 switch %$ VDC-1 %$ %USER-2-SYSTEM_MSG: Module 5 might not have been
seated properly. Please remove and re-insert the module.

If the error persists beyond 3 attempts, contact customer support.

Replacing Modules

This section includes the following topics:

• Removing a Module, page 4-3

• Installing a Module, page 4-3

Removing a Module

To remove a module from a Cisco Nexus 6004 chassis, follow these steps:

Step 1 Shut all the ports on th e modul e
Step 2 Poweroff the module using the poweroff module <x> command.
Step 3 Physically remove the module.

Installing a Module

To install a module in a Cisco Nexus 6004 chassis, follow these steps:

Step 1 Insert the module into the slot and make sure it is firmly installed.
Step 2 Power on the moddule using the command no poweroff module <x>
Step 3 Bring up the ports on the module by issuing ‘no shut’ on the interfaces of the module

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

4-3

Chapter 4 Replacing Components

Replacing or Installing Power Supplies

Send documentation comments to [e-mail].

Replacing or Installing Power Supplies

The Cisco Nexus 6000 series support six power supplies, but may be used with three power supplies.
You must fill the unused power supply slots with a blank modules to maintain the designed airflow.

If you need to replace an existing power supply, follow the procedures that explain how to remove and
install power supplies. If you are installing a new power supply where one did not exist before, follow
the installation procedure.

Note The airflow direction must be the same for all po wer suply and f an modules in th e chassis. You can order

all modules with front to back airflow but you can alternatively order back to front airflow

This section includes the following topics:

• Removing a Power Supply, page 4-4

• Installing a Power Supply, page 4-4

• Wiring a DC Power Connector, page 4-5

Note You can replace a faulty power supply while the system is operating if the other power supply is

functioning.

Removing a Power Supply

Caution If you are using a Cisco Nexus 6000 Platform r emoving the po wer supply causes the sw itch to shut do wn.

If you are using two power supplies and you remove one of them, the switch can continue to operate.

To remove an AC or DC power supply, follow these steps:

Step 1 Ensure that the system (earth) ground connection has been made. For ground connection instructions,

see the “Grounding the Switch” section on page 2-7.

Step 2 Remove the AC power cord or DC wiring connector.
Step 3 Grasp the power supply handle with your left hand.
Step 4 Push against the release latch with your left thumb,and slide the power sup ply part way out of the chassis.
Step 5 Place your other hand under the power supply to support its weight, and then completely remove the

module from the slot.

Step 6 If the power supply bay is to remain empty, install a blank power supply filler panel.If you are replacing

the power supply, see Installing a Power Supply, page 4-4

Installing a Power Supply

To install a power supply in a Cisco Nexus 6000 Platform chassis, follow these steps:

Cisco Nexus 6000 Series Hardware Installation Guide

4-4

OL-15902-01

Chapter 4 Replacing Components

Replacing or Installing Power Supplies

Send documentation comments to [e-mail].

Step 1 Ensure that the system (earth) ground connection has been made. For ground connection instructions,

see the “Grounding the Switch” section on page 2-7.

Step 2 If the power supply bay has a filler panel, press the latches on the sides of the f ill er panel, and th en slide

it out of the power supply bay.

Step 3 Hold the power supply by the handle and position it so that t he release latch is on the right, and th en slide

it into the power supply bay, ensuring that the power supply is fully seated in the bay.

Step 4 Plug the AC power cable or DC wiring connector into the inlet receptacle at the rear of the chassis. For

a DC installation, you should secure the plug to the power supply by tightening both captive screws on
the plug.

Note Depending on the outlet receptacle on your power distribution unit, you may need the optional

jumper power cord to connect the Cisco Nexus 6004 switch to your outlet receptacle. See the

“Jumper Power Cord” section on page C-8.

Step 5 Connect the other end of the power cable to an AC power source. DC sources should connect negative

(black wire) and then positive (red wire) connections.

Caution In a system with dual power supplies, connect each power supply to a separate power source.

In case of a power source failure, the second source will most likely still be available.

Step 6 Verify the power supply operation by checking that the power supply LED is green.

Wiring a DC Power Connector

Warning

Warning

Warning

Warning

A readily accessible two-poled disconnect device mu st be incorporated in the fixed wiring.

1022

This product requires short-circuit (overcurrent) protection, to be provided as part of the building
installation. Install only in accordance with national and local wiring regulations.

When installing or replacing the unit, the ground connection must always be made first and
disconnected last.

Installation of the equipment must comply with local and national electrical codes.

Statement 1046

Statement

Statement 1045

Statement 1074

OL-15902-01

Warning

Hazardous voltage or energy may be present on DC power terminals. Always replace cover when
terminals are not in service. Be sure uninsulated conductors are not accessible when cover is in
place.

Statement 1075

Cisco Nexus 6000 Series Hardware Installation Guide

4-5

Chapter 4 Replacing Components

330338

2

Replacing or Installing Power Supplies

Send documentation comments to [e-mail].

Before installing a DC power supply to the switch, you wi ll need to attach DC connection wir es that you
provide (10 GA recommended) to the DC po wer connector incl uded in the DC po wer supply’s accessory
kit. To wire the connector:

Step 1 Using a 1/8” flat head screwdriver or No. 1 Phillips head screwdriver, loosen the set screws on the

connector to freely accept the power wires. The connector will accept 8-24 AWG wires, use what your
local electrical code calls for.

Step 2 Strip 1/2” of insu lation off the DC wires you w ill use.
Step 3 Insert the black (DC negative) wire into the right aperture on the connector and tighten down the

connection set screw. Finger tight or about 3 ft./lbs should be sufficient.

Step 4 Insert the red (DC positive) wire into the left aperture on the connector and tighten do wn the connection

set screw. Do not tighten over 0.7 Nm.

Figure 4-1 Wiring the DC Power Connector

4-6

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Chapter 4 Replacing Components

Replacing a Fan Module

Send documentation comments to [e-mail].

Replacing a Fan Module

The fan module is designed to be removed and replaced while the system is operating without presenting
an electrical hazard or damage to the system, if the replacement is performed promptly.

Note The airflow direction must be the same for all po wer suply and f an modules in th e chassis. You can order

all modules with front to back airflow but you can alternatively order back to front airflow.

This section includes the following topics:

• Removing a Fan Module, page 4-7

• Installing a Fan Module, page 4-7

Removing a Fan Module

Warning

Step 1 Loosen the captive screws on the fan module by turning them counterclockwise, using a flat-blade or

Step 2 Grasp the handle of fan module and pull it outward.
Step 3 Pull the fan module clear of the chassis.

When removing the fan tray, keep your hands and fingers away from the spinning fan blades. Let the
fan blades completely stop before you remove the fan tray.

To remove a fan module, follow these steps:

number 2 Phillips screwdriver if required.

Installing a Fan Module

To install a fan module, follow these steps:

Step 1 Hold the fan module with the LED at the bottom.
Step 2 Place the fan module into the front chassis fan slot so it rests on the chassis, and then push the fan module

into the chassis as far as it can go until the captiv e screw makes contact with the chassis, and tighten the
captive screw.

Step 3 If the switch is powered on, listen for the fans. You should immediately hear them operating. If you do

not hear them, ensure that the fan module is inserted completely in the chassis and the faceplate of the
module is flush with the outside surface of the chassis.

Step 4 Verify that the fan module LED is green. If the LED is not green, one or more fans are faulty. If this

situation occurs, contact your customer service representative for replacement parts.

Statement 258

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

4-7

Chapter 4 Replacing Components

Removing the Cisco Nexus 6000 Platform Chassis

Send documentation comments to [e-mail].

Note If you purchased this product through a Cisco reseller , contact the reseller di rectly for technical support .

If you purchased this product directly from Cisco, contact Cisco Technical Support at this URL:

http://www.cisco.com/en/US/support/tsd_cisco_worldwide_contacts.html.

Removing the Cisco Nexus 6000 Platform Chassis

Caution The slider rail and front rack-mount brackets do not have a stop mechanism when sliding in and out. If

the front of the chassis is unfastened from the rack and the chassis slides forward on the slider rails, it
might slip off the end of the rails and fall out of the rack.

To remove the Cisco Nexus 6000 Platform chassisfrom a rack, follow these steps:

Step 1 Ensure that the weight of the switch is fully supported and that the switch is being held by another

person.

Step 2 Disconnect the power cord and the console cables.
Step 3 Disconnect all cables that ar e connected to transceivers.
Step 4 Remove the screws fastening the front rack-mount brackets to the mounting rails.
Step 5 Gently slide the switch towards you, off of the slider rails and out of the rack.

Repacking Cisco Nexus 6000 Platform Switch Components or Cisco Nexus Platform Switch Components for Return Shipment

If you need to return the switch, remove the switch from the rack by following the steps in the

“Removing the Cisco Nexus 6000 Platform Chassi s” section on page 4-8, and repack it for shipment. If

possible, use the original packing materials and container to repack the switch. Contact your Cisco
customer service representative to arrange for return shipment to Cisco.

4-8

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Send documentation comments to [e-mail].

Cabinet and Rack Installation

This appendix provides the requirements for cabinet and rack installation for the Cisco Nexus 6004
switch and includes the following sections:

• Cabinet and Rack Requirements, page A-1

• Cable Management Guidelines, pag e A -2

Cabinet and Rack Requirements

This section provides the requirements for the following types of cabinets and racks, assuming an
external ambient air temperature range of 0 to 104

• Standard perforated cabinets

• Standard open racks

APPENDIX

o

F (0 to 40oC):

A

Note If you are selecting an enclosed cabinet, we recommend one of th e thermally validated t ypes: standa rd

perforated or solid-walled with a fan tray.

Note Do not use racks that have obstructions (such as power strips), because the obstructions could impair

access to field-replaceable units (FRUs).

This section includes the following topics:

• General Requirements for Cabinets and Racks, page A-1

• Requirements Specific to Perforated Cabinets, page A-2

General Requirements for Cabinets and Racks

The cabinet or rack must be one of the following types:

• Standard 19-in. (48.3 cm) (four-post EIA cabinet or rack, with mounting rails that conform to

English universal hole spacing per section 1 of ANSI/EIA-310-D-1992. See the “Requirements

Specific to Perforated Cabinets” section on page A-2.

The cabinet or rack must also meet the following requirements:

• The minimum vertical rack space for the Cisco Nexus 6004 chassis must be four RU (rack units).

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

A-1

Appendix A Cabinet and Rack Installation

Cable Management Guidelines

Send documentation comments to [e-mail].

• The width between the rack-mounting rails must be at least 19 inches if the rear of the switch is not

attached to the rack. For four-post EIA racks, this is the distance between the two front rails.

• For four-post EIA cabinets (perforated or solid-walled), the requirements are as follows:

–

The minimum spacing for the bend radius for fiber -optic cables should ha ve the front-m ounting
rails of the cabinet offset from the front door by a minimum of 3 inches (7.6 cm), and a
minimum of 5 inches (12.7 cm) if cable management brackets are installed on the front of the
chassis.

–

The distance between the outside face of the front mounting rail and the outside face of the back
mounting rail should be 23.5 to 34.0 inches (59.7 to 86.4 cm) to allow for rear-bracket
installation.

–

A minimum of 2.5 inches (6.4 cm) of clear space should exist between the side edge of the
chassis and the side wall of the cabinet. No sizeable flow obstructions should be immediately
in the way of chassis air intake or exhaust vents.

Note Optional jumper power cords are available for use in a cabinet. See the “Jumper Power Cord”

section on page C-8.

Requirements Specific to Perforated Cabinets

A perforated cabinet is as a cabinet with perforated front and rear doors and solid side walls. In addition
to the requirements listed in the “General Requirements for Cabinets and Racks” section on page A-1,
perforated cabinets must meet the following requirements:

• The front and rear doors must have at least a 60 percent open area perforation pattern, with at least

15 square inches (96.8 square cm) of open area per ra ck unit of door h eight.

• The roof should be perforated with at least a 20 percent open area.

• The cabinet floor should be open or perforated to enhance cooling.

Cisco provides an R-Series rack that conforms to these requirements.

Cable Management Guidelines

To help with cable management, you might want to allow additional space in the rack above and below
the chassis to make it easier to route as many as 56 fiber or copper cables through the rack.

A-2

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Send documentation comments to [e-mail].

Technical Specifications

This appendix describes the technical specifications for the Cisco Nexus 6004 switch.
This appendix includes the following sections:

• Switch Specifications, page B-1

• Environmental Specifications, page B-1

• Expansion Module Specifications, page B-2

• Power Specifications, page B-2

Note Specifications for cables and connectors are provided in Appendix C, “Cable and Port Specifications.”

Switch Specifications

APPENDIX

B

Table B-1 lists the physical specifications for the Cisco Nexus 6004 switch.

Table B-1 Ph ysical Specifications for the Cisco Nexus 6004Switch

Description Specification

Dimensions (H x W x D) (17.7 cm) tall, 17.3 inches (43.9 cm) wide, and 30

Cisco Nexus 6004 with three 1100W power
supplies, four expansion modules, and four fan
modules

Cisco Nexus 6004 with three 1100W power
supplies and four fan modules

Environmental Specifications

Table B-2 lists the environmental specifications for the Cisco Nexus 6000 Platform switches.

inches (76.2 cm) deep
122 lb

100 lb

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

B-1

Appendix B Technical Specifications

Expansion Module Specifications

Send documentation comments to [e-mail].

Table B-2 Environmental Specifications for the Cisco Nexus 6004 switch

Property Cisco Nexus 6004Switch

Operating temperature 32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature –40 to 158°F (–40 to 70°C)
Humidity 5 to 95% (noncondensing)
Altitude 0 to 10,000 ft (0 to 3000 m)

Expansion Module Specifications

Table B-3 lists the physical specifications for the Cisco Nexus 6004 switch expansion module.

Table B-3 Physical Specifications for the Cisco Nexus 6004 Switch Expansion Module

Description Specification

Weight 1 lb (0.5 kg)

Power Specifications

This section describes the power specifications for the Cisco Nexus 6000 Series switches. This section
includes the following topics:

• Specifications for the Cisco Nexus 6004 Power Supply, page B-2

Specifications for the Cisco Nexus 6004 Power Supply

Table B-4 lists the power supply properties of the Cisco Nexus 6004 platform.

Table B-4 Specifications for the Cisco Nexus 6004 Power Supply

AC Power Supply Properties Specification

Typical operating power 2800 W
Maximum power 3300 W
Input voltage 94 to 240 VAC
Frequency 47 to 63Hz
Efficiency 98% (50 to 100% load)
RoHS compliance Yes
Hot swappable Yes
Heat dissipation 11260 BTU/hr (3300W)
Front-to-back air flow power supply Yes
Back-to-front air flow power supply Yes (in future)

B-2

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Appendix B Technical Specifications

Send documentation comments to [e-mail].

OL-15902-01

Cisco Nexus 6000 Series Hardware Installation Guide

B-3

Appendix B Technical Specifications

Send documentation comments to [e-mail].

B-4

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-01

Send documentation comments to [e-mail].

Cable and Port Specifications

This appendix provides cable and port specifications for the Cisco Nexus 6004 switch.
This appendix includes the following sections:

• Console Port, page C-2

• Supported Power Cords and Plugs, page C-2

• Jumper Power Cord, page C-8

Cable RJ-45 Connector Pinouts

Table C-1 lists the pinouts for the RJ-45 connector on the console cable.

Table C-1 Cable Connector Pinouts

APPENDIX

C

Signal Name P1, P1-45 Pins P2, DB-9 Pins Signal Name

RTS 1 8 CTS
DTR 2 6 DSR
TXD 3 2 ZXD
GND 4 5 GND
GND 5 5 GND
ZXD 6 3 TXD
DSR 7 4 DTR
CTS 8 7 RTS

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

C-1

Appendix C Cable and Port Specifications

Console Port

Send documentation comments to [e-mail].

Console Port

The console port is an asynchronous RS-232 serial port with an RJ-45 connector.

Supported Power Cords and Plugs

Each power supply has a separat e power cor d. Standard po wer cords or jumper power cords are av ailable
for connection to a power distribution unit that has IEC 60320 C19 outlet receptacles. The standard
power cords hav e an IEC C13 connector on the end that plugs into t he switch. The optional jumper po wer
cords, for use in cabinets, have an IEC C13 connector on the end that plugs into the switch and an IEC
C14 connector on the end that plugs into an IEC C13 outlet receptacle.

Note Only the regular power cords or jumper power cords provided with the switch are supported.

Table C-2 lists the power cords for the Cisco Nexus 6004 switch and provides their lengths in feet and

meters.

Table C-2 Power Cords for the Cisco Nexus 6004 Switch

Length

Description

CAB-250V-10A-AR
Power cord 250 VAC 10 A, IRAM 2073 plug
Argentina

CAB-9K10A-AU
Power cord 250 VAC 10 A, 3112 plug,
Australia

CAB-250V-10A-CN
Power cord 250 VAC 10 A, GB 2009 plug
China

CAB-9K10A-EU
Power cord, 250 VAC 10 A, M 2511 plug
Europe

CAB250V-10A-ID
Power cord 250 VAC 16A, EL-208 plug
South Africa, United Arab Emerits, India

CAB-250V-10A-IS
Power cord 250 VAC 10 A, SI-32 plug
Israel

CAB-9K10A-IT
Power cord 250 VAC 10 A, CEI 23-16 plug
Italy

CAB-9K10A-SW
Power cord 250 VAC 10 A, MP232 plug

8.2 2.5 Figure C-1

8.2 2.5 Figure C-2

8.2 2.5 Figure C-3

8.2 2.5 Figure C-4

8.2 2.5 Figure C-5

8.2 2.5 Figure C-6

8.2 2.5 Figure C-7

8.2 2.5 Figure C-8

Power Cord Reference
IllustrationFeet Meters

C-2

Switzerland

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Appendix C Cable and Port Specifications

186571

2500 mm

Cordset rating: 10 A, 250/500 V MAX

Length: 8.2 ft

Plug:

EL 219

(IRAM 2073)

Connector:

EL 701

(IEC60320/C13)

Supported Power Cords and Plugs

Send documentation comments to [e-mail].

Table C-2 Power Cords for the Cisco Nexus 6004 Switch (continued)

Description

CAB-9K10A-UK
Power cord 250 VAC 10 A, BS1363 plug (13 A
fuse)
United Kingdom

CAB-AC-250V/13A
Power cord 250 VAC 13 A, NEMA L6-20 plug
North America

CAB-N5K6A-NA
Power cord 250 VAC 10 A, NEMA 6-15 plug
North America

CAB-9K12A-NA
Power cord 125 VAC 13 A, NEMA 5-15 plug
North America

CAB-C13-CBN
Power cord 250 VAC 10 A, SS 10A plug

CAB-IND-10A
Power cord 250 VAC 10 A, EL 208B plug

CAB-C13-C14-JMPR
Cabinet Jumper Power Cord 250 VAC 13 A,
C13-C14 Connectors

Length

Power Cord Reference
IllustrationFeet Meters

8.2 2.5 Figure C-9

6.6 2.0 Figure C-10

8.2 2.5 Figure C-11

8.2 2.5 Figure C-12

8.2 2.5 Figure C-13

8.2 2.5 Figure C-14

2.2 0.7 Figure C-15

OL-15902-02

Figure C-1 SFS-250V-10A-AR

Cisco Nexus 6000 Series Hardware Installation Guide

C-3

Appendix C Cable and Port Specifications

Plug:

EL 206

A.S. 3112-2000)

Cordset rating: 10 A, 250 V/500V

Length: 2500mm

186581

Connector:

EL 701C

(IEC 60320/C15)

Cordset rating 10A, 250V

(2500 mm)

Plug:

EL 218

(CCEE GB2009)

186573

Connector:

EL 701

(IEC60320/C13)

Connector:

VSCC15

Cordset rating: 10A/16 A, 250 V

Length: 8 ft 2 in. (2.5 m)

Plug:

M2511

186576

Supported Power Cords and Plugs

Send documentation comments to [e-mail].

Figure C-2 CAB-9K10A-AU

Figure C-3 SFS-250V-10A-CN

C-4

Figure C-4 CAB-9K10A-EU

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Appendix C Cable and Port Specifications

Cordset rating 10A, 250V/500V MAX

(2500 mm)

Plug:

EL 212

(SI-32)

186574

Connector:

EL 701B

(IEC60320/C13)

EL

-212

16A
250V

Plug:

I/3G

(CEI 23-16)

Connector

C15M

(EN60320/C15 )

Cordset rating: 10 A, 250 V

Length: 8 ft 2 in. (2.5 m)

186575

Supported Power Cords and Plugs

Send documentation comments to [e-mail].

Figure C-5 SFS-250V-10A-ID

OVE

Plug:

EL 208

Figure C-6 SFS-250V-10A-IS

Cordset rating 16A, 250V

(2500mm)

Connector:

EL 701

187490

OL-15902-02

Figure C-7 CAB-9K10A-IT

Cisco Nexus 6000 Series Hardware Installation Guide

C-5

Appendix C Cable and Port Specifications

Plug:

Cordset rating: 10 A, 250 V/500 V MAX

Length: 2500mm

Connector:

EL 701C

(EN 60320/C15)

EL 210

(BS 1363A) 13 AMP fuse

Plug:

Cordset rating: 10 A, 250 V/500 V MAX

Length: 2500mm

186580

Connector:

EL 701C

(EN 60320/C15)

EL 210

(BS 1363A) 13 AMP fuse

Cordset rating 13A, 250V

(6.6 feet) (79±2m)

Plug:

EL312MoldedTwistlock

(NEMA L6-20)

186568

Connector:

EL 701

(IEC60320/C13)

Supported Power Cords and Plugs

Send documentation comments to [e-mail].

Figure C-8 CAB-9K10A-SW

Figure C-9 CAB-9K10A-UK

Figure C-10 CAB-AC-250V/13A

C-6

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Appendix C Cable and Port Specifications

Cordset rating 10A, 250V

(686mm)

Plug:

SS10A

186569

Connector:

HS10S

Supported Power Cords and Plugs

Send documentation comments to [e-mail].

Figure C-11 CAB-N5K6A-NA

Cordset rating: 10 A, 250 V

Plug: NEMA 6-15P

Figure C-12 CAB-9K12A-NA

Length: 8.2 ft

Connector:

IEC60320/C13

186570

Plug:

NEMA 5-15P

Figure C-13 CAB-C13-CBN

Cordset rating 13A, 125V

(8.2 feet) (2.5m)

Connector:

IEC60320/C15

192260

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

C-7

Appendix C Cable and Port Specifications

Cordset rating 10A, 250V

(686mm)

Plug:

SS10A

186569

Connector:

HS10S

Jumper Power Cord

Send documentation comments to [e-mail].

Figure C-14 CAB-IND-10A

Cordset rating 10A, 250V

(8.2 feet) (2.5m)

Plug:

EL 208B (IS 6538-1971)

Jumper Power Cord

Figure C-15 shows the plug connector on the optional jumper power cord for the Cisco Nexus 6000

Series switches. This cable plugs into the power supply, and the receptacle of a power distribution unit
for a cabinet. This cable comes in 6- and 9-foot (2- and 3-meter) lengths.

Figure C-15 CAB-C13-C14-JMPR, Jumper Power Cord

Connector

EL701B (IEC60320/C13)

192259

C-8

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Send documentation comments to [e-mail].

APPENDIX

D

LEDs

This appendix describes the conditions indicated by the chassis and module LEDs on the Cisco Nexus
6000 Series switches.

This appendix includes the following sections:

• Chassis and Module LEDs for the Cisco Nexus 6000 Series Switches, page D-1

• Port LEDs, page D-2

Chassis and Module LEDs for the Cisco Nexus 6000 Series Switches

This section includes the following topics:

• Chassis and Module LED Descriptions, page D-1

• Conditions Indicated by the Power Supply LEDs, page D-2

Chassis and Module LED Descriptions

Table D-1 describes the chassis LEDs for the Cisco Nexus 6000 Series switches.

Indicator Location Function Color Status State

Power LED Front of Chassis Chassis

Fan Tray Status FanTrays

(front)

OL-xxxxx-xx

Power/Health

Fan tray heath
indicator
(multi-color)

Cisco Nexus 6000 Series Hardware Installation Guide

Green Solid On System is On and

operating normally

Off Switch is powered

off
Amber On Fault condition
Green Solid On Fan tray operating

normally
Amber Solid On Fan failure within the

fan tray

D-1

Appendix D LEDs

Port LEDs

Send documentation comments to [e-mail].

Indicator Location Function Color Status State

PSU Status
Indicators

Chassis Locator Front of Chassis Identify

Power Supply
(front)

PSU Health
(multi-color)

selected chassis

Green Off No AC power to power

supply

Solid On Power supply on and

OK

Amber Solid On Power supply failures,

over voltage, over
current, over

temperature
1 Hz
blinking
Off Operating normally

Blue Solid O Chassis has been

Off Chassis is not selected

AC present, 3.3VSB

on, PSU is off

selected for locating

for locating.

Table D-1 table describes the status of the two power supply LEDs

Conditions Indicated by the Power Supply LEDs

You can determine the power supply conditions by combining the LED states of the OK and FAIL LEDs
(see Table D-1).

Table D-1 Power Supply LED Descriptions

Power Supply Condition

No AC or DC power to all power supplies. Off Off
Power supply failure, including over voltage, over current, over temperature,

and fan failure.
Power supply warning events where the power supply continues to operate.

These events include high temperature, high power, and slow fan.
AC present, 3.3 voltage standby (VSB) on, and the power supply unit is off.
For a DC power supply, it indicates that DC power is present.
Power supply on and OK. On Off

OK LED
(Green)

Off On

Off Blinking

Blinking Off

FAIL LED
(Amber)

Port LEDs

Cisco Nexus 6000 Series Hardware Installation Guide

D-2

This section includes the following topics:

• Ethernet Port LEDs, page D-3

• Ethernet and Fibre Channel LEDs, page D-3

OL-xxxxx-xx

Appendix D LEDs

Send documentation comments to [e-mail].

Ethernet Port LEDs

Table D-2 lists the LED descriptions for the RJ-45 Ethernet port LEDs.

Table D-2 Ethernet Port LED Descriptions

LED Status Description

Left Off No link

Solid green Physical link

Right Off No activity

Blinking green Activity

Ethernet and Fibre Channel LEDs

There are activity LED’s per-port on the Cisco Nexus 6004 faceplate. The LEMs and GEMs have the
same port level indicators as the fixed ports. Since 40G ports are comprised of 4x 10G ports, they wi
have 4x LEDs, one-LED-per-10G-port. Each LED represents the status of the 10G link within the 40G
bundle, and follows the behavior in the table below. Table D-3 describes the behavior of the port LEDs.

Port LEDs

Table D-3 Port-Level LEDs

Link State LED State Notes

Link Down OFF —
POST failed on port AMBER_ON —
Administrative down OFF/AMBER_ON Depending on the product you look at, the

LED could be off, or solid amber
Link Up,
port in STP blocked

state
Link Up,
port in STP forwarding

state
Link Up,
CRC errors

AMBER_ON Blinks based on network activity

GREEN_ON Blinks based on network activity

ALT_GREEN_AMBER LED alternates between Amber

and Green for 2 seconds (at 0.5

second intervals) when it observes

errors on the link. This is the error

behavior on the Cat3K line of

products.

OL-xxxxx-xx

Cisco Nexus 6000 Series Hardware Installation Guide

D-3

Appendix D LEDs

Port LEDs

Send documentation comments to [e-mail].

D-4

Cisco Nexus 6000 Series Hardware Installation Guide

OL-xxxxx-xx

Send documentation comments to [e-mail].

Overview

APPENDIX

E

Troubleshooting Hardware Components

This appendix describes how to identify and resolve problems that might occur with the hardware
components of a Cisco Nexus 6000 Series switch.

This appendix includes the following sections:

• Overview, page E-1

• Switch Hardware Best Practices, page E-1

• Power Supply Conditions, page E-2

The key to success when troubleshooting the system hardware is to isolate the problem to a specific
system component. The first step is to compare what the system is doing to what it should be doing.
Because a startup problem can usually be attributed to a single component, it is more effi cient t o isolate
the problem to a subsystem rather than troubleshoot each separate component in the system.

Problems with the initial power up are often caused by a module that is not firmly connected to the
backplane or a power supply that has been disconnected from the power cord connector.

Overheating can also cause problems with the system, though typically only after the system has been
operating for an extended period of time. The most common cause of overheating is the failure of a fan
module.

Switch Hardware Best Practices

Use the recommendations in this section to ensure the proper installation, initialization, and operation
of the switch.

This section includes the following topics:

• Installation Best Practices, page E-2

• Initialization Best Practices, page E-2

• Switch Operation Best Practices, page E-2

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

E-1

Appendix E Troubleshooting Hardware Components

Power Supply Conditions

Send documentation comments to [e-mail].

Installation Best Practices

When installing the switch, follow these best practices:

• Plan your site configuration and prepare the site before installing the chassis.

• Verify that you have the appropriate power supplies for your chassis configuration.

• Install the chassis following the rack and airflow guidelines presented in this guide.

• Verify that the chassis is adequately grounded.

Initialization Best Practices

When the initial system boot is complete, verify the following:

• Power supplies are supplying power to the system.

• Fan modules are operating normally.

• The system software boots successfully.

Switch Operation Best Practices

To ensure proper operation of your switch, take the following actions:

• Make a copy of the running configuration to CompactFlash for a safe backup.

• Always enter the copy running-config startup-config CLI command after you modify the running

configuration and ensure that the system is operating properly.

• Never use the init system CLI command unless you understand that you will lose the running and

startup configuration as well as the files stored on bootflash:.

• Keep backup copies of the running kickstart and the system images on CompactFlash.

Power Supply Conditions

The two LEDs on each power supply indicate the power status for each power supply. To determine the
current status for a power supply unit, note which LED is on, blinking, or off and refer to Table E-1.

Table E-1 Power Supply Conditions

Power Supply Condition Power LED Status Fail LED Status

No power to all power supplies. Off Off
Power supply failure, including o vervoltage, overcurrent,

overtemperature, and fan failure.
Power supply warning events where the power supply

continues to operate. These events include high
temperature, high power, and slow fan.

AC present, 3.3 voltage standby (VSB) on, and the power
supply unit is off.

Power supply on and OK. On Off

Off On

Off Blinking

Blinking Off

E-2

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Appendix E Troubleshooting Hardware Components

Power Supply Conditions

Send documentation comments to [e-mail].

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

E-3

Appendix E Troubleshooting Hardware Components

Power Supply Conditions

Send documentation comments to [e-mail].

E-4

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Send documentation comments to [e-mail].

APPENDIX

Accessory Kits

This appendix describes the contents of the accessory kits for the Cisco Nexus 6000 Series switches.
This appendix includes the following sections:

• Cisco Nexus 6004 Switch Accessory Kit, page F-1

Cisco Nexus 6004 Switch Accessory Kit

This section describes the accessory kit contents for the Cisco Nexus 6004 switch accessory kit
(N6K-C6004-ACC-KIT)

The Cisco Nexus 6004 switch accessory kit includes the following items:

• 1 lower left rack-mount guide

• 1 lower right rack-mount guide

• 2 upper rack-mount guides

• 2 lower rack-mount sliders

F

OL-15902-02-xx

• 2 upper rack-mount sliders

• 24 M4 x 0.7 x 8-mm Phillips flat-head screws

• 1 console cable with an RJ-45-RS-232 adapter and a DB9 adapter

• 1 ground lug kit

• 1 ESD wrist strap

Note Additional parts can be ordere d from your cu stomer servi ce represe ntative.

Cisco Nexus 6000 Series Hardware Installation Guide

F-1

Appendix F Accessory Kits

Cisco Nexus 6004 Switch Accessory Kit

Send documentation comments to [e-mail].

F-2

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02-xx

Send documentation comments to [e-mail].

Site Planning and Maintenance Records

This appendix provides log sheets that yo u can use to record in formation when inst allin g a Cisco Ne x us
6000 Series switch.

This appendix includes the following sections:

• Site Preparation Checklist, page G-1

• Contact and Site Information, page G-3

• Chassis and Module Information, page G-4

Note For information about how to query the switch for configuration information, see the appropriate Cisco

Nexus 6000 Series CLI configuration guide.

Site Preparation Checklist

APPENDIX

G

Planning the location and layout of your equipment rack or wiring closet is essential for successful
switch operation, ventilation, and accessibility. Table G-1 lists the site planning tasks that we
recommend completing before installing a Cisco Nexus 6000 Series switch.

Consider heat dissipation when sizing the air-conditioning requirements for an installation. See

Table B-3 on page B-2 for the environmental requirements, and the “Power Specifications” section on
page B-2 for power and heat ratings.

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

G-1

Appendix G Site Planning and Maintenance Records

Site Preparation Checklist

Send documentation comments to [e-mail].

Table G-1 Site Planning Checklist

Task No. Planning Activity Verified By Time Date

1 Space evaluation:

• Space and layout

• Floor cove r i n g

• Impact and vibration

• Lighting

• Maintenance access

2 Environmental evaluation:

• Ambient temperature

• Humidity

• Altitude

• Atmospheric contamination

• Air flow

3 Pow e r eva l u a t i o n :

• Input power type

• Power receptacles

• Receptacle proximity to the

1

equipment

• Dedicated circuit for power supply

• Dedicated (separate) circuits for

redundant power supplies

• UPS

2

for power failures

4 Grounding evaluation:

• Circuit breaker size

• CO ground (AC- p o wered systems)

5 Cable and interface equipment

evaluation:

• Cable type

• Connector type

• Cable distance limitations

• Interface equipment (transceivers)

6EMI

1. Verify that the power supply inst alle d in the chassis has a dedicated AC source circuit.

2. UPS = uninterruptible power s uppl y.

3

evaluation:

• Distance limitations for signaling

• Site wiring

4

• RFI

levels

G-2

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02

Appendix G Site Planning and Maintenance Records

Contact and Site Information

Send documentation comments to [e-mail].

3. EMI = electromagnetic interference.

4. RFI = radio frequency interference.

Contact and Site Information

Use the following worksheet (Table G-2) to record contact and site information.

Table G-2 Contact and Site Information

Contact person

Contact phone

Contact e-mail

Building/site name

Data center location

Floor location

Address (line 1)

Address (line 2)

City

State

Zip code

Country

OL-15902-02

Cisco Nexus 6000 Series Hardware Installation Guide

G-3

Appendix G Site Planning and Maintenance Records

Chassis and Module Information

Send documentation comments to [e-mail].

Chassis and Module Information

Use the following worksheets (Table G-3 and Table G-4) to record information about the chassis and
modules.

Contract Number_______________________________________________

Chassis Serial Number___________________________________________

Product Number________________________________________________

Table G-3 Network-Related Information

Switch IP address

Switch IP netmask

Host name

Domain name

IP broadcast address

Gateway/router address

DNS address

Modem telephone number

Table G-4 Module Information

Slot Module Type Module Serial Number Notes
1

Supervisor

2

G-4

Cisco Nexus 6000 Series Hardware Installation Guide

OL-15902-02
