Application Note
Cisco 2650XM Gateway - PBX Interoperability: Lucent Definity
G3r PBX using Analog FXO Interfaces to an H.323 Gateway
Introduction
This document contains the results for PBX interoperability testing between PBXs and the Cisco Network Module with E&M to the FXS
Voice Interface Cards installed in Cisco voice gateways.

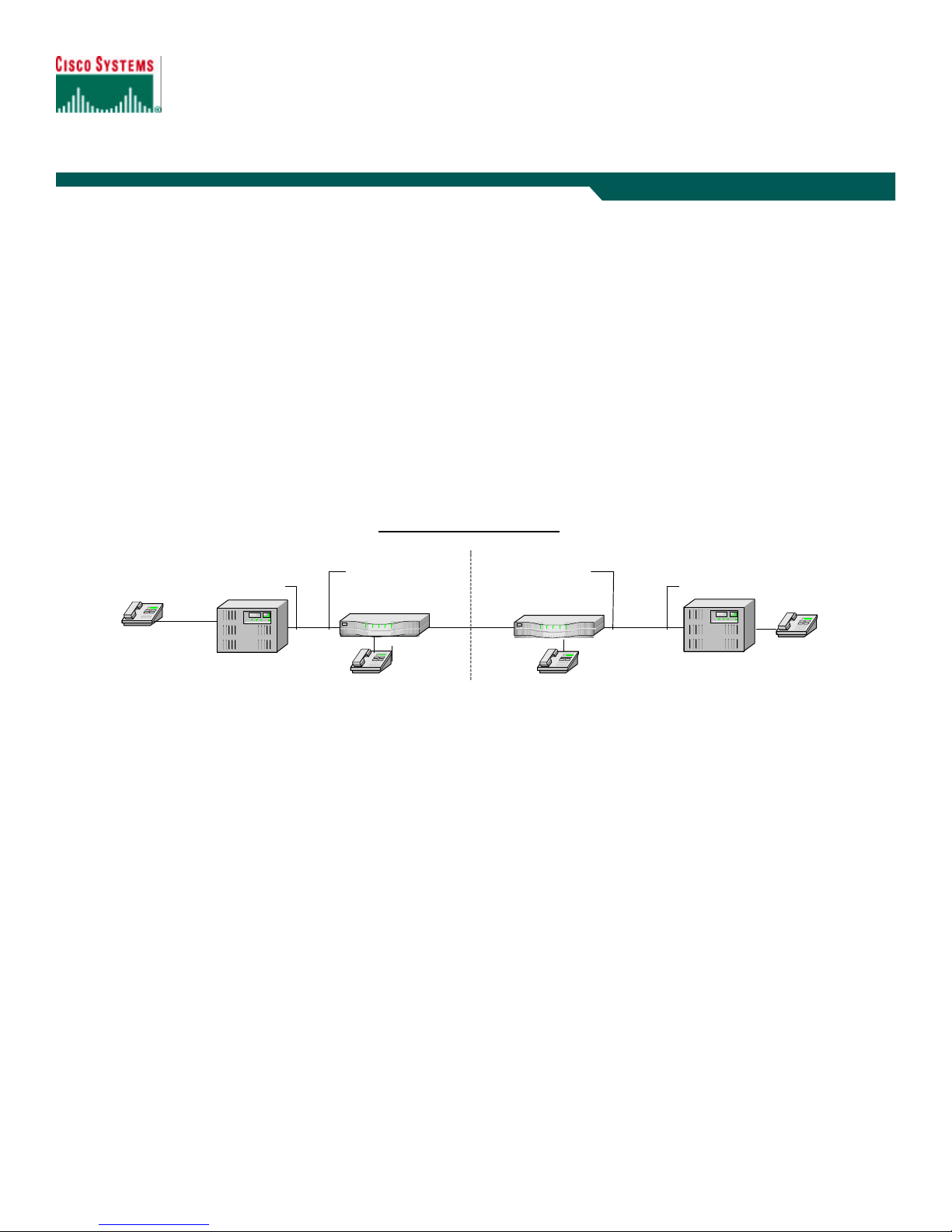

Network Topology
The following diagram shows a pair of Cisco voice gateways that are configured for back-to-back VoIP operation. In this example,
connectivity and interoperability is achieved through a Lucent Definity G3r V7 PBX that is connected to a Cisco 3745 back-to-back via an
Ethernet connection to a Cisco 2651XM connected to a Lucent Definity G3r V6 PBX.
Basic Test Configuration
E&M type I I/S
Pho ne A
ext-4004
PBX A
Lucent Definity G3r v7
Limitations
None
System Components
Hardware Requirements
• Cisco 2651XM gateway
• Lucent Definity G3r PBX, Version 6
E&M type I I/S
Router-A
C3745
Phone E
VoIP
FXS
Router-B
C2650XM
Phone F
CO Trunk
*1xxxx
Lucent Definity G3r v6
PBX B
Phone C
Software Requirements
• Cisco IOS Software Release 12.2(15)ZJ (c2600- jsx-mz-v122_15_zj_throttle.0.5.0)
• Lucent Definity PBX Software Release G3r V6
• VIC-VG-2FXS network module
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
© 2003 Cisco Systems, Inc. All right reserved.
Page 1 of 9
EDCS#
Configuration
Configuring the Lucent Definity G3r V6
Trunk Group
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
© 2002 Cisco Systems, Inc. All right reserved.
Page 2 of 9
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
© 2002 Cisco Systems, Inc. All right reserved.
Page 3 of 9
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
© 2002 Cisco Systems, Inc. All right reserved.
Page 4 of 9
Configuring the Cisco 2651XM
Router# show running config
Building configuration...
Current configuration : 1591 bytes
!
version 12.2
service timestamps debug datetime msec
service timestamps log uptime
no service password-encryption
!
hostname C2651XM
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
© 2002 Cisco Systems, Inc. All right reserved.
Page 5 of 9
!
boot system flash:c2600-jsx-mz-v122_15_zj_throttle.0.5.0
logging queue-limit 100
logging buffered 1000000 debugging
!
ip subnet-zero
ip tcp synwait-time 13
!
no ip domain lookup
!
mpls ldp logging neighbor-changes
!
voice-card 1
!
voice call carrier capacity active
!
no voice hpi capture buffer
no voice hpi capture destination
!
!
mta receive maximum-recipients 0
!
interface FastEthernet0/0
ip address 100.1.1.2 255.255.255.0
no ip mroute-cache
duplex auto
speed 100
!
interface FastEthernet0/1
ip address 172.20.8.30 255.255.255.0
no ip mroute-cache
duplex auto
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
© 2002 Cisco Systems, Inc. All right reserved.
Page 6 of 9
speed auto
!
ip http server
ip classless
ip route 0.0.0.0 0.0.0.0 FastEthernet0/1
!
dialer-list 1 protocol ip permit
!
call rsvp-sync
!
voice-port 1/1/0
!
voice-port 1/1/1
!
mgcp profile default
!
dial-peer cor custom
!
dial-peer voice 2 voip
destination-pattern 20..
session target ipv4:100.1.1.1
!
dial-peer voice 1 voip
destination-pattern 3000
session target ipv4:100.1.1.1
!
dial-peer voice 3 pots
destination-pattern 26..
prefix 26
!
dial-peer voice 4 pots
destination-pattern 4000
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com
© 2002 Cisco Systems, Inc. All right reserved.
Page 7 of 9
port 1/1/0
!
dial-peer voice 999 pots
incoming called-number .
destination-pattern 26..
direct-inward-dial
!
dial-peer voice 5 pots
destination-pattern 4004
port 1/1/1
!
gatekeeper
shutdown
!
line con 0
exec-timeout 0 0
line aux 0
exec-timeout 0 0
line vty 0 4
exec-timeout 0 0
password c
no login
line vty 5 15
no login
!
end
