Cisco 2621 Gateway-PBX Interoperability:
Lucent/Avaya Definity G3si with E1 PRI NET5
Signaling
This document describes the interoperability and configuration of a Cisco 2621 voice gateway with a
Lucent/Avaya Definity G3si PBX using E1 PRI NET5 signaling. It includes the following sections:
• System Components
• Configuration Tasks
• Caveats
System Components
PBX Model
PBX Release
Telephony Signaling
Voice Gateway
Gateway Release
Call Manager Release
VoX Protocol
Configuration Tasks
See the following sections for configuration tasks for this feature:
• Set Up command.
• Lucent/Avaya PBX Configuration
• Call Manager Configuration
Lucent/Avaya Definity G3si
7.0
E1 PRI
Cisco 2621 with 2MFT E1 Port
Cisco IOS Release 12.2(3.5)T
3.1
H.323
Page 1
Set Up
PBX1: Lucent/Avaya
Definity G3si (Rel. 7)
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
This section includes the following information:
• Connectivity Diagrams
• Set Up Notes
Connectivity Diagrams

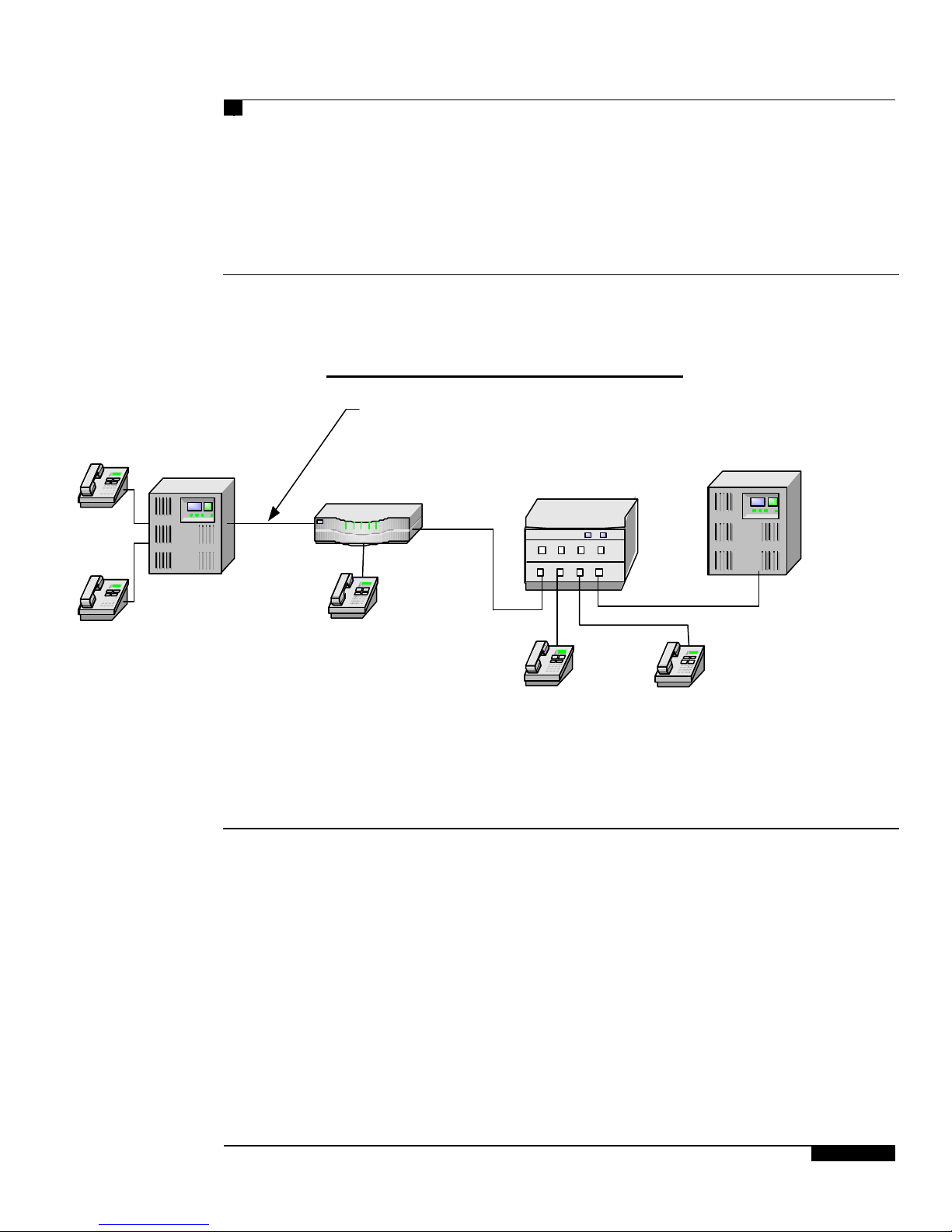

Figure 1: Test Configuration
Basic Call Setup End-to-End Configuration
ISDN Type:
Cisco Call Manager
Release 3.1
2621_B
E1-PRI
Cat 6K
Ethernet
Switch
Phone A
x2001
Phone B
x2002
PBX #1
VoIP
Phone E
x N/A
Cisco 7960 IP phones
Phone C
x4001
Figure 1 represents the configuration used for testing: an Lucent/Avaya Definity G3si PBX connected to a
Cisco 2621 voice gateway via an E1 PRI connection.
Set Up Notes
The Cisco 2621 Gateway with ISDN protocol type setting of primary-net5 supports both protocol sides by
using the isdn protocol-emulate network/user command.
The Lucent/Avaya Definity G3si PBX supports both “USER” and “NETWORK” protocol sides by using
change ds1 a12 command.
Phone D
x4002
Page 2
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Lucent/Avaya PBX Configuration
Lucent/Avaya PBX Version Information
• Software: Version 7.0
• Hardware: TN464F, DS1 INTFC 24/32
Page 3
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Lucent/Avaya PBX Sample Configuration

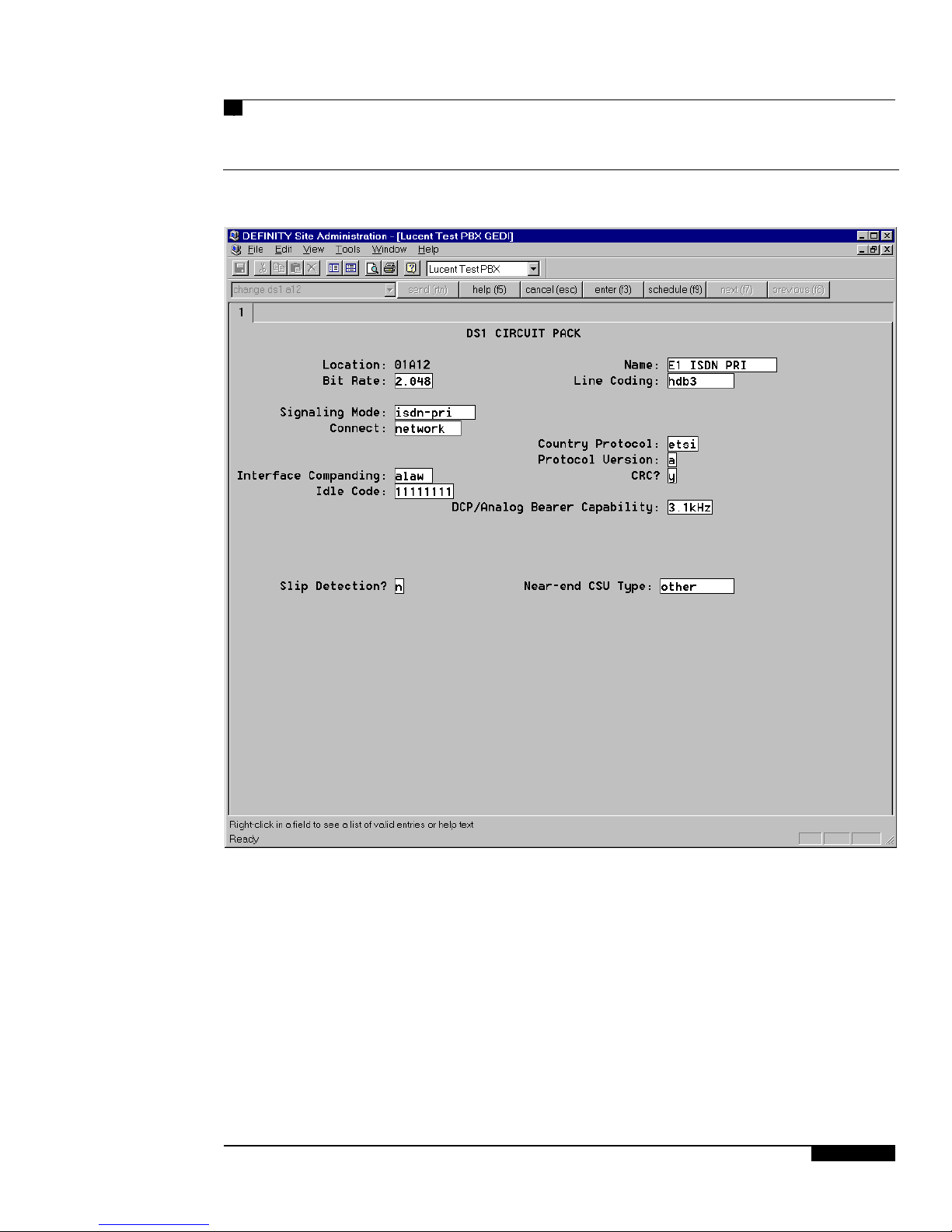

DS1 CIRCUIT PACK
Page 4

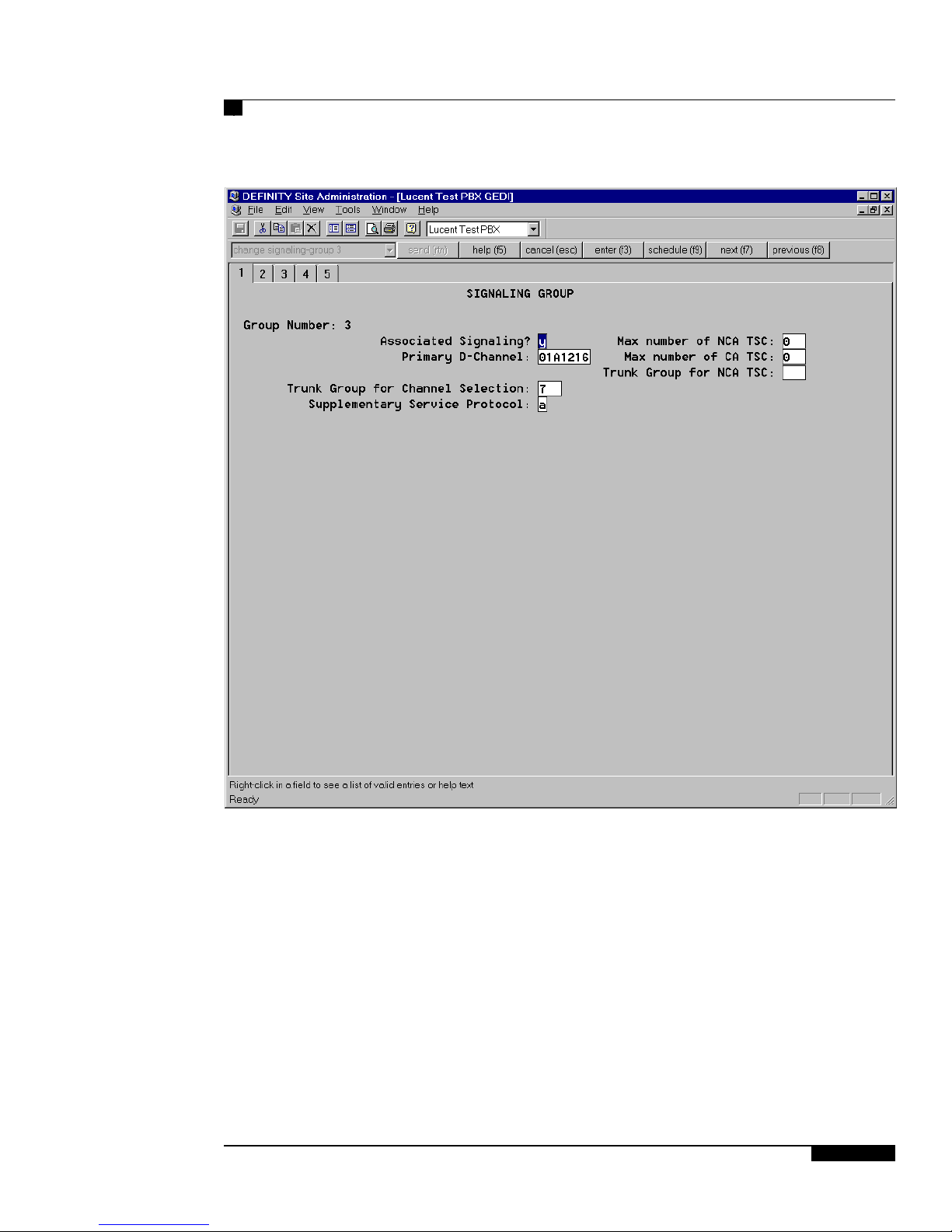

Signaling Group
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Page 5
Trunk Group
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Page 6
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Page 7
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Page 8
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Page 9
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Uniform Dialing Plan
Page 10
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Page 11
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Call Manager Configuration
Call Manager Version Information
Page 12
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
H.323 (Cisco 2621) Gateway Configuration
Page 13
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Page 14
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Page 15
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Route Pattern Configuration
Page 16
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Cisco 2621 Gateway Configuration
The following is the configuration of the Cisco 2621 voice gateway connected to the Lucent/Avaya
Definity G3si PBX E1 PRI interface.
Cisco 2621 Voice Gateway Version Information
2621_B#sh version
Cisco Internetwork Operating System Software
IOS (tm) C2600 Software (C2600-JS-M), Version 12.2(3.5)T, MAINTENANCE INTERIM S
OFTWARE
TAC Support: http://www.cisco.com/tac
Copyright (c) 1986-2001 by cisco Systems, Inc.
Compiled Fri 03-Aug-01 22:45 by ccai
Image text-base: 0x80008088, data-base: 0x81631DD8
ROM: System Bootstrap, Version 12.1(3r)T2, RELEASE SOFTWARE (fc1)
2621_B uptime is 4 minutes
System returned to ROM by power-on
System image file is "flash:c2600-js-mz.122-3.5.T"
cisco 2621 (MPC860) processor (revision 0x200) with 56320K/9216K bytes of memory
.
Processor board ID JAD051516TX (503811939)
M860 processor: part number 0, mask 49
Page 17
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
Channelized E1, Version 1.0.
Bridging software.
X.25 software, Version 3.0.0.
SuperLAT software (copyright 1990 by Meridian Technology Corp).
TN3270 Emulation software.
Primary Rate ISDN software, Version 1.1.
2 FastEthernet/IEEE 802.3 interface(s)
31 Serial network interface(s)
2 Channelized E1/PRI port(s)
32K bytes of non-volatile configuration memory.
16384K bytes of processor board System flash (Read/Write)
Configuration register is 0x2102
Cisco 2621 Voice Gateway Sample Configuration
2621_B#sh configuration
Using 1785 out of 29688 bytes
!
version 12.2
no parser cache
service timestamps debug datetime msec localtime show-timezone
service timestamps log uptime
no service password-encryption
!
hostname 2621_B
!
no logging buffered
enable password cisco
!
!
!
memory-size iomem 15
voice-card 1
dspfarm
!
ip subnet-zero
!
!
no ip domain-lookup
!
isdn switch-type primary-net5
!
!
voice class codec 1
codec preference 1 g729r8
codec preference 2 g711ulaw
codec preference 3 g711alaw
!
!
!
!
!
!
!
controller E1 1/0
pri-group timeslots 1-31
!
controller E1 1/1
shutdown
!
!
!
!
interface FastEthernet0/0
ip address 192.168.100.2 255.255.255.0
no ip mroute-cache
Page 18
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
load-interval 30
no keepalive
speed auto
half-duplex
!
interface FastEthernet0/1
ip address 10.1.1.129 255.255.255.0
no ip mroute-cache
duplex auto
speed auto
!
interface Serial1/0:15
no ip address
no logging event link-status
isdn switch-type primary-net5
isdn protocol-emulate network
isdn incoming-voice voice
isdn T321 40000
isdn T203 30000
isdn bchan-number-order ascending
no cdp enable
!
router rip
network 1.0.0.0
network 192.168.100.0
!
ip classless
no ip http server
ip pim bidir-enable
!
dialer-list 1 protocol ip permit
dialer-list 1 protocol ipx permit
!
!
snmp-server packetsize 4096
snmp-server manager
tftp-server nvram
call rsvp-sync
!
voice-port 1/0:15
!
!
mgcp profile default
!
dial-peer cor custom
!
!
!
dial-peer voice 1 pots
destination-pattern 2...
direct-inward-dial
port 1/0:15
prefix 2
!
dial-peer voice 3 voip
destination-pattern 4...
progress_ind setup enable 1
voice-class codec 1
session target ipv4:10.1.1.2
dtmf-relay h245-alphanumeric
!
!
line con 0
exec-timeout 0 0
line aux 0
exec-timeout 0 0
line vty 0 4
Page 19
Caveats
Cisco 2621 Gateway-PBX Interoperability: Lucent/Avaya Definity G3si with E1 PRI NET5 Signaling
exec-timeout 0 0
password cisco
login
line vty 5 15
exec-timeout 0 0
login
!
scheduler allocate 3996 1000
!
end
• When calling from Lucent/Avaya digital phone to Cisco 7960 IP phone, IP phone displays Connected
Name and Number after the call is answered. Lucent/Avaya phone however does NOT get updated
when the call is answered. It displays the numbers being dialed instead (e.g. Access Code + extension
number). It was verified using ISDN protocol analyzer that the CallManager was not sending
"Connected Name” or “Connected Number" information in the connect message back to PBX.
• When calling from Cisco 7960 IP phone to Lucent/Avaya digital phone, Lucent/Avaya phone displays
Calling Name and Number after the call is answered as expected. Cisco 7960 phone however only
displays “Called Number” but no “Connected Name” even though Lucent/Avaya PBX was sending
both “Connected Name” and “Connected Number” IE information in the “CONNECT” message back
to 2621 Gateway.
