Cisco Systems 2612 User Manual

Cisco 2600XM Series and Cisco 2612 Routers

INCLUDING LICENSE AND WARRANTY

1 Cisco 90-Day Limited Hardware Warranty Terms

2 Documents, Equipment, and Tools

3 Install Chassis

4 Connect Cables

5 Power Up the Router

6 Perform Initial Configuration

7 Interface Numbering

8 Where to Go Next

9 Obtaining Documentation

10 Documentation Feedback

11 Obtaining Technical Assistance

12 Obtaining Additional Publications and Information

Quick Start Guide

1 Cisco 90-Day Limited Hardware Warranty Terms

There are special terms applicable to your hardware warranty and various services that you can use during the warranty period.
Your formal Warranty Statement, including the warranties and license agreements applicable to Cisco software, is available on
Cisco.com. Follow these steps to access and download the Cisco Information Packet and your warranty and license agreements
from Cisco.com.

1. Launch your browser, and go to this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/cetrans.htm

The Warranties and License Agreements page appears.

2. To read the Cisco Information Packet, follow these steps:
a. Click the Information Packet Number field, and make sure that the part number 78-5235-03A0 is highlighted.
b. Select the language in which you would like to read the document.
c. Click Go. The Cisco Limited Warranty and Software License page from the Information Packet appears.
d. Read the document online, or click the PDF icon to download and print the document in Adobe Portable Document

Format (PDF).

Note You must have Adobe Acrobat Reader to view and print PDF files. You can download the reader from Adobe’s

website: http://www.adobe.com

To read translated and localized warranty information about your product, follow these steps:

3.
a. Enter this part number in the Warranty Document Number field: 78-5236-01C0
b. Select the language in which you would like to read the document.
c. Click Go. The Cisco warranty page appears.
d. Review the document online, or click the PDF icon to download and print the document in Adobe Portable Document

Format (PDF).

You can also contact the Cisco service and support website for assistance:

http://www.cisco.com/en/US/support/

Duration of Hardware Warranty

Ninety (90) days.

Replacement, Repair, or Refund Policy for Hardware

Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working days after
receipt of a Return Materials Authorization (RMA) request. Actual delivery times can vary, depending on the customer location.

Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.

To Receive a Return Materials Authorization (RMA) Number

Contact the company from whom you purchased the product. If you purchased the product directly from Cisco, contact your Cisco
Sales and Service Representative.

Complete the information below, and keep it for reference:

Company product purchased from

Company telephone number

Product model number

Product serial number

Maintenance contract number

2

2 Documents, Equipment, and Tools

User Documentation

All the documents referenced in this quick start guide are available online on Cisco.com. To be sure of obtaining the latest
information, you should access the online documentation.

To view or print a document in its original page format, access the online document, and click the PDF icon.

For information about accessing user documentation, see the “Where to Go Next” section on page 24.

Items Included with Cisco 2600XM Series Routers

• Rack-mount brackets with screws for 19-inch rack; rubber chassis feet

• Ground lug; power cord

• RJ-45-to-DB-9 adapter cable for console connection

• RJ-45-to-DB-25 adapter cable for modem connection

• Ethernet cable for LAN interface

• Cisco Information Packet

• Cisco 90-Day Limited Hardware Warranty Terms

• Cisco 2600 Series, Cisco 3600 Series, and Cisco 3700 Series Regulatory Compliance and Safety Information document

• Cisco Router and Security Device Manager (SDM) Quick Start Guide document (if shipped with VPN bundle)

• Cisco 2600XM Series and Cisco 2612 Routers Quick Start Guide (this document)

Items Not Included

Individual items in this list may be required for your particular application:

• Four screws for installing the chassis in a rack

• PC running terminal emulation software for administrative access, or modem for remote administrative access

• Cables for WAN interfaces, voice interfaces, or additional LAN interfaces

• Cable ties

• Number 2 Phillips screwdriver

3 Install Chassis

Safety Information

For safety information you need to know before working on your Cisco router, refer to the Cisco 2600 Series, Cisco 3600 Series,
and Cisco 3700 Series Regulatory Compliance and Safety Information document that accompanied this device.

Note To see translations of the warnings that appear in this publication, refer to the Cisco 2600 Series, Cisco 3600 Series,

and Cisco 3700 Series Regulatory Compliance and Safety Information document.

3

Warning Definition

IMPORTANT SAFETY INSTRUCTIONS

Warning

Waarschuwing

Varoitus

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with
standard practices for preventing accidents. To see translations of the warnings that appear in this
publication, refer to the translated safety warnings that accompanied this device.

SAVE THESE INSTRUCTIONS

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan
veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij
elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken
om ongelukken te voorkomen. Voor een vertaling van de waarschuwingen die in deze publicatie
verschijnen, dient u de vertaalde veiligheidswaarschuwingen te raadplegen die bij dit apparaat
worden geleverd.

Opmerking BEWAAR DEZE INSTRUCTIES.

TÄRKEITÄ TURVALLISUUTEEN LIITTYVIÄ OHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin
työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja
tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä asiakirjassa esitettyjen varoitusten
käännökset löydät laitteen mukana toimitetuista ohjeista.

Huomautus SÄILYTÄ NÄMÄ OHJEET

Statement 1071

Attention

Warnung

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer
des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des
dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment
utilisées pour éviter les accidents. Pour prendre connaissance des traductions d'avertissements
figurant dans cette publication, consultez les consignes de sécurité traduites qui accompagnent cet
appareil.

Remarque CONSERVEZ CES INFORMATIONS

WICHTIGE SICHERHEITSANWEISUNGEN

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung
führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit
elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von
Unfällen bewusst. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise sind im
Lieferumfang des Geräts enthalten.

Hinweis BEWAHREN SIE DIESE SICHERHEITSANWEISUNGEN AUF

4

Avvertenza

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone.
Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai
circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Per le traduzioni
delle avvertenze riportate in questo documento, vedere le avvertenze di sicurezza che accompagnano
questo dispositivo.

Nota CONSERVARE QUESTE ISTRUZIONI

Advarsel

Aviso

¡Advertencia!

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette varselssymbolet betyr fare. Du befinner deg i en situasjon som kan forårsake personskade. Før
du utfører arbeid med utstyret, bør du være oppmerksom på farene som er forbundet med elektriske
kretssystemer, og du bør være kjent med vanlig praksis for å unngå ulykker. For å se oversettelser av
advarslene i denne publikasjonen, se de oversatte sikkerhetsvarslene som følger med denne enheten.

Merk TA VARE PÅ DISSE INSTRUKSJONENE

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. O utilizador encontra-se numa situação que poderá ser
causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha em
atenção os perigos envolvidos no manuseamento de circuitos eléctricos e familiarize-se com as
práticas habituais de prevenção de acidentes. Para ver traduções dos avisos incluídos nesta
publicação, consulte os avisos de segurança traduzidos que acompanham este dispositivo.

Nota GUARDE ESTAS INSTRUÇÕES

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular
cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los
procedimientos estándar de prevención de accidentes. Vea las traducciones de las advertencias que
acompañan a este dispositivo.

Nota GUARDE ESTAS INSTRUCCIONES

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada.
Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna
till vanliga förfaranden för att förebygga olyckor. Se översättningarna av de varningsmeddelanden som
finns i denna publikation, och se de översatta säkerhetsvarningarna som medföljer denna anordning.

OBS! SPARA DESSA ANVISNINGAR

5

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões
corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os
circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número
da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança
traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

6

Advarsel

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse.
Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved
elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug
erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte
med denne enhed.

GEM DISSE ANVISNINGER

7

Warning

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only
through the use of a special tool, lock and key, or other means of security.

Statement 1017

Warning

Warning

8

Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and
watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld
the metal object to the terminals.

This equipment has been designed for connection to TN and IT power systems.

Statement 43

Statement 1007

Warning

To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage
(TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports
both use RJ-45 connectors. Use caution when connecting cables.

Statement 1021

Warning

Warning

Warning

Warning

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if
you are uncertain that suitable grounding is available.

Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages
and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other
equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards,
faceplates, front covers, and rear covers are in place.

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

To prevent personal injury or damage to the chassis, never attempt to lift or tilt the chassis using the handles on
modules (such as power supplies, fans, or cards); these types of handles are not designed to support the weight
of the unit.

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1032

Statement 1024

Statement 1029

Statement 1040

Installing the Chassis

You can set the chassis on a desktop or install it in a rack. A chassis of 1 RU height can also be mounted on a wall or other flat
surface. See the applicable instructions in the following sections:

• Rack-Mounting the Chassis, page 9

• Wall-Mounting the Chassis—1-Rack-Unit (RU) Chassis Height Only, page 12

• Installing on a Desktop, page 13

Caution To prevent damage to the chassis, never attempt to lift or tilt the chassis by the plastic panel on the front. Always

hold the chassis by the metal body.

Rack-Mounting the Chassis

Cisco 2600XM series and Cisco 2612 routers can be installed in 19-, 23-, and 24-inch racks. Use the standard brackets for
mounting the chassis in a 19-inch rack; use the optional larger brackets for mounting the chassis in a 23- or 24-inch rack.

You can mount the chassis in the following ways:

• Center mounting—Brackets attached in the center of the chassis with either the front panel or the rear panel facing forward

• Front mounting—Brackets attached at the front of the chassis with the front panel facing forward

• Rear mounting—Brackets attached at the rear of the chassis with the rear panel facing forward

9

The brackets for 19-, 23-, and 24-inch racks are shown in Figure 1.

Figure 1 Brackets for Rack-Mounting of Routers with 1-RU Chassis Height

Bracket for use
with a 19-inch rack

Bracket for use with a
23-inch or 24-inch rack

27711

Attaching Brackets

Attach the mounting brackets to the chassis as shown in Figure 2 through Figure 8, using the screws provided. Attach the second
bracket to the opposite side of the chassis. Use a number 2 Phillips screwdriver to install the bracket screws.

Figure 2 Bracket Installation for Front Mounting in 19-Inch Rack

62676

Note: The second bracket attaches to the other side of the chassis.

Figure 3 Bracket Installation for Front Mounting: 19-Inch Rack with 17.75-Inch Opening, and 23- or 24-Inch Rack

Note: The second bracket attaches

to the other side of the chassis.

Brackets for
19-inch rack

Brackets for

23-inch or 24-inch rack

62881

10

Figure 4 Bracket Installation for Rear Mounting in 19-Inch Rack

110V 60 Hz

1.6A MAX

Note: The second bracket attaches

to the other side of the chassis.

Brackets for
19-inch rack

72013

Figure 5 Bracket Installation for Rear Mounting: 19-Inch Rack with 17.75-Inch Opening, and 23- or 24-Inch Rack

110V 60 Hz

1.6A MAX

Note: The second bracket attaches

to the other side of the chassis.

Brackets for
19-inch rack

Brackets for

23-inch or 24-inch rack

72014

Figure 6 Bracket Installation for Center Mounting with Rear Panel Forward: 19-Inch Rack with 17.75-Inch Opening, and 23- or

24-Inch Rack

110V 60 Hz

1.6A MAX

Note: The second bracket attaches

to the other side of the chassis.

Brackets for
19-inch rack

Brackets for

23-inch or 24-inch rack

72015

11

Figure 7 Bracket Installation for Center Mounting with Rear Panel Forward: 19-, 23-, or 24-Inch Rack

110V 60 Hz

1.6A MAX

Note: The second bracket attaches

to the other side of the chassis.

Brackets for
19-inch rack

Brackets for

23-inch or 24-inch rack

62983

Figure 8 Bracket Installation for Center Mounting with Front Panel Forward: 19-, 23-, or 24-Inch Rack

Note: The second bracket attaches

to the other side of the chassis.

Brackets for
19-inch rack

Brackets for

23-inch or 24-inch rack

72016

Installing Chassis in Rack

Install the chassis in the rack. Rack-mounting screws are not provided with the router. Use two screws for each side (supplied
with the rack).

Wall-Mounting the Chassis—1-Rack-Unit (RU) Chassis Height Only

Cisco 2600XM series and Cisco 2612 routers can be attached to walls.

Attaching Rubber Feet

If you are mounting a Cisco 2600XM series or Cisco 2612 router on a wall, you must install the rubber feet that are supplied
in the accessory kit. They provide a space for air circulation. Peel the rubber feet from the adhesive strip, and attach them onto
the five round recesses on the bottom of the chassis.

Attaching Brackets

Attach the standard brackets to the chassis as shown in Figure 9, using the slotted hex-head screws and plastic spacers (supplied
in the accessory kit). Orient each spacer so that the shoulder fits into the slot in the bracket.

12

Figure 9 Attaching the Brackets for Wall-Mounting

SERIAL
A/S

CN/LP

RXC

RXD

3

TXC

TXD

CN/LP

RXC RXD

2

TXC

TXD

CN/LP

RXC RX

D

1

TXC

TXD

CN/LP

RXC RXD

0

TXC

TXD

E

N

C

O

NN

S

E

RIA

LINK

TOKEN RING 0/0

L

W0

ACT

LINK

W0

ETHERNET 0/0

C

O
N

N

S

E

R

IA

L

W

0

ACT

CONSOLE

AUX

Input: 100-240VAC
Freq: 50/60 Hz
Current: 1.2-0.6A
Watts: 40W

88837

W

1

Attaching to Wall

Attach the chassis to the wall:

• Position the end nearest the power cable at the top.

• Align screws (not included) with a wall stud, or use wall anchors.

Installing on a Desktop

If you are installing a Cisco 2610XM, Cisco 2620XM, or Cisco 2650XM series router on a desktop, you must install the rubber
feet that are supplied in the accessory kit. They provide a space for air circulation. Peel the rubber feet from the adhesive strip,
and attach them onto the five round recesses on the bottom of the chassis.

Caution If you place the Cisco router on a desktop, do not place anything that weighs more than 10 pounds (4.5 kilograms)

on top of the chassis.

Grounding the Chassis

You must connect the chassis to a reliable earth ground; the ground wire must be installed in accordance with local electrical
safety standards.

• For NEBS-compliant grounding, use size AWG 6 (13 mm

• For NEC-compliant grounding, use size AWG 14 (2 mm

• For EN/IEC 60950-compliant grounding, use size AWG 18 (1 mm

terminal.

To connect the chassis to a reliable earth ground, perform the following steps:

Step 1 Strip one end of the ground wire to the length required for the ground lug or terminal.

• For the NEBS ground lug—approximately 0.75 in. (20 mm)

• For user-provided ring terminal—as required

Step 2 Crimp the ground wire to the ground lug or ring terminal, using a crimp tool of the appropriate size.

2

) wire and the ground lug provided in the accessory kit.

2

) or larger wire and an appropriate user-supplied ring terminal.

2

) or larger wire and an appropriate user-supplied ring

13

Step 3 Attach the ground lug or ring terminal to the chassis as shown in Figure 10 or Figure 11. For the ground lug, use the

two screws with captive locking washers provided. For a ring terminal, use one of the screws provided. Use a number 2
Phillips screwdriver, and tighten the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m).

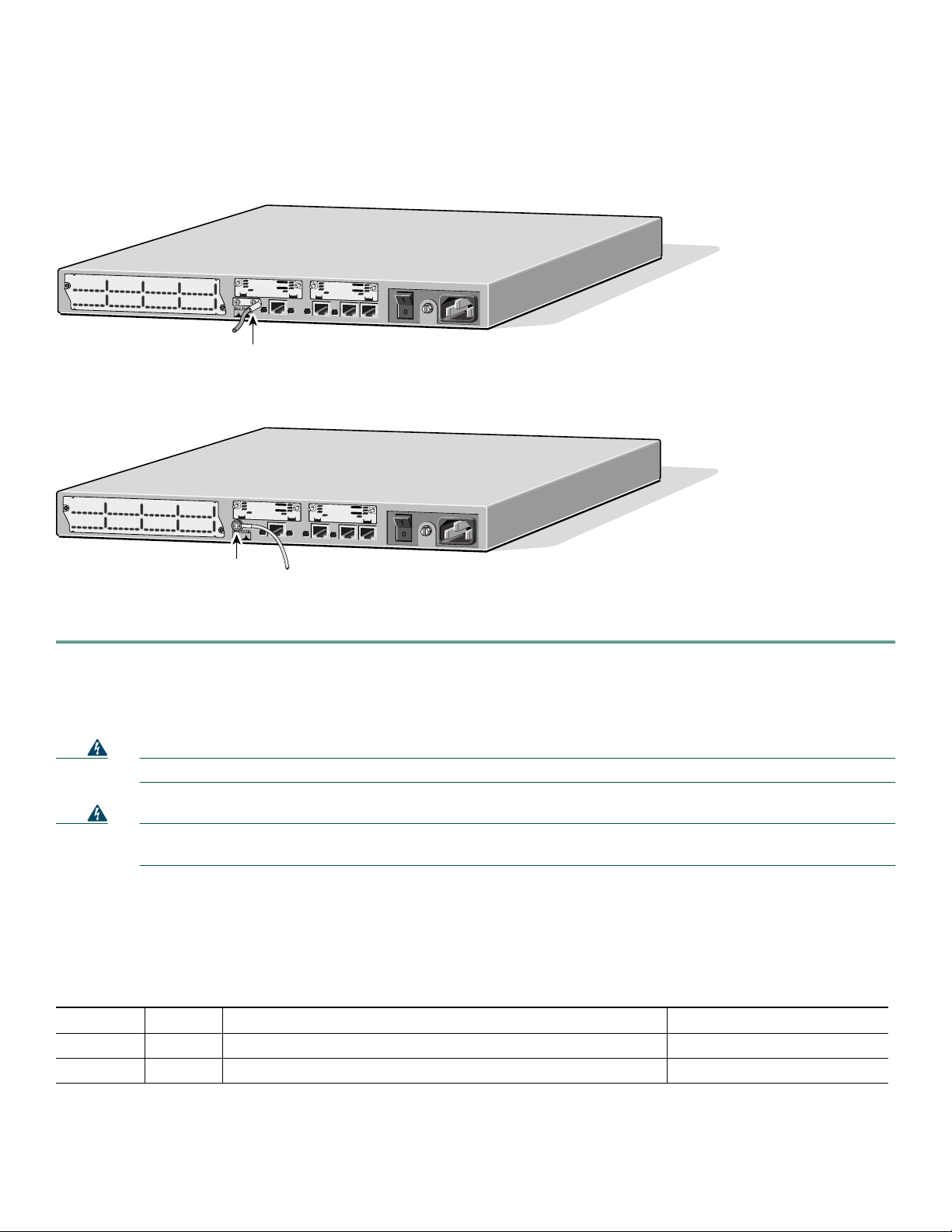

Figure 10 NEBS-Compliant Chassis Ground Connection Using Ground Lug

S

E
R

I
A

L

1

S

E
R

IA

L

0

W

I

C

O

N
N

S

E

E

M

W1

C

C

O

N

N

2
A

/S

A

N

U

A

L

B

E

F
O

R

E

IN

S

T

A

L

L
A

T

IO

N

LINK

ETHERNET 1

ACT

LINK

C

ETHERNET 0

S

E

R

I

A

L

1

Cisco 2611

S

E

R

IA

L
0

W
O
N

N

S

E

E

IC

C
O

N

N

2
T

M

A

N

U

A
L

B
E

F
O

R

E

I
N

S

T

A

L

L

A

T

I
O

N

CONSOLE

W0

AUX

ACT

100-240V– 1A
50/60 Hz 47 W

Ground lug

Figure 11 Chassis Ground Connection Using Ring Terminal

S

E

R
IA

L

1

S

E

R
IA

L

0

W

C

O

N

N

S

E

W1

IC

C

O

N

N

2
A

/S

E

M

A

N

U

A

L
B

E

F

O
R

E

IN

S

T

A

L

L
A

T

IO

N

LINK

ETHERNET 1

ACT

LINK

C

ETHERNET 0

S

E

R

IA

L
1

Cisco 2611

S

E

R

IA

L
0

W

O

N
N

S

E

IC

C

O

N
N

2

E

T

M

A

N

U

A

L
B

E
F

O

R

E

IN

S

T

A

L

L
A

T

IO

N

CONSOLE

W0

AUX

ACT

100-240V– 1A
50/60 Hz 47 W

Ring terminal

Step 4 Connect the other end of the ground wire to a grounding point at your site.

4 Connect Cables

Warning

Do not work on the system, or connect or disconnect cables during periods of lightning activity.

36454

103057

Statement 1001

Warning

Before opening the chassis, disconnect the telephone-network cables to avoid contact with telephone-network
voltages.

Statement 1004

System Management Connections

The connections described in Table 1 provide system management access.

Table 1 System Management Connections

Port Color Connected To: Cable

Console Light blue PC or ASCII terminal communication port (usually labeled COM) RJ-45-to-DB-9 adapter cable

Auxiliary Black Modem for remote access RJ-45-to-DB-25 adapter cable

14

Power Connections

Warning

Note The installation must comply with all required electrical codes applicable at the installation site.

Read the installation instructions before connecting the system to the power source.

Statement 1004

Connecting Routers to AC Power

If your router uses AC power, connect it to a 15 A, 120 VAC (10 A, 240 VAC) circuit with overcurrent protection.

Note The input voltage tolerance limits for AC power are 85 and 264 VAC.

Warning

Warning

AC connected units must have a permanent ground connection in addition to the power cable ground wire.
NEBS-compliant grounding satisfies this requirement.

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than:
15A, 120VAC (10A, 240VAC).

Statement 1005

Statement 284

Connecting the Router to DC Power

If your router has a DC-input power supply, follow the directions in this section for proper wiring.

Warning

Warning

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than:
15A, 60VDC.

Use copper conductors only.

Statement 1005

Statement 1025

DC Wiring Requirements

A Cisco router with a DC-input power supply requires copper wire for the power connections. Table 2 summarizes the wiring
requirements for Cisco 2600XM series and Cisco 2612 routers with a DC-input power supply.

Note For installations compliant with the National Electric Code, AWG 14 (2.0 mm2) wire is required for DC input and

safety ground wire.

Table 2 DC Wiring Requirements for Cisco 2610, Cisco 2620, and Cisco 2650 Series Routers

DC Power Source DC Input DC Input Wire Size

Nominal 48 VDC –48 to –60 VDC2, 4 A

1. See the note above this table for National Electric Code wire size requirements.

2. The input voltage tolerance limits for nominal 48-V power supplies are 38 and 72 VDC.

AWG 18 (1.0 mm2) AWG 14 (2.0 mm2) 15 A, maximum

1

Safety Ground Wire Size Overcurrent Protection

15

Wiring Procedure for Nominal 48 VDC Input

To connect the router to a DC power source, perform this procedure:

Step 1 Remove power from th e DC circuit. To ensure that power is removed from the DC circuit, locate the circuit breaker for

the DC circuit, switch the circuit breaker to the OFF position, and tape the circuit-breaker switch in the OFF position.

Warning

Before performing any of the following procedures, ensure that power is removed from the DC circuit.

Statement 1003

Tip Secure all power cabling when installing this unit to avoid disturbing field-wiring connections.

Step 2 Strip the wires to the appropriate length for the terminal block on the power supply.
Step 3 Connect the DC power input wires to the terminal block, as shown in Figure 12.

Warning

When stranded wiring is required, use approved wiring terminations, such as closed-loop or spade-type with
upturned lugs. These terminations should be the appropriate size for the wires and should clamp both the

Warning

insulation and conductor.

The illustration shows the DC power supply terminal block. Wire the DC power supply as illustrated. The proper

Statement 1002

wiring sequence is ground to ground, positive to positive, and negative to negative. The ground wire should always

Warning

be connected first and disconnected last.

An exposed wire lead from a DC-input power source can conduct harmful levels of electricity. Be sure that no

Statement 239

exposed portion of the DC-input power source wire extends from the terminal block plug.

Statement 122

Caution The terminal arrangement on your router may not be identical to the arrangement shown in the figures. You must

connect the positive, negative, and ground wires according to the labels on the terminals.

Caution Do not overtorque the terminal block captive thumbscrew or terminal block contact screws. The recommended

torque is 8.0 ± 0.5 inch-lb (0.9 ± 0.05 N-m).

Figure 12 DC Power Connections for Cisco 2600XM Series and Cisco 2612 Routers (Typical)

On/off
switch

Negative

Ground

Positive

-

72363

Terminal

+

block

Step 4 Secure the wires using cable ties.
Step 5 Turn on power to the DC circuit.

16

Connecting Routers to the Cisco Redundant Power System

If your router uses the Cisco Redundant Power System (RPS), refer to the Cisco RPS Hardware Installation Guide for
instructions about the power connections. To locate these documents, see the “Where to Go Next” section on page 24.

WAN, LAN, and Voice Connections

The connections and cables listed here are described in detail in the following documents:

• Cisco 2600 Series Hardware Installation Guide

• Cisco Network Modules Hardware Installation Guide

• Cisco Interface Cards Installation Guide

• Cisco Modular Access Router Cable Specifications

To locate these documents, see the “Where to Go Next” section on page 24.

Table 3 summarizes some typical WAN, LAN, and voice connections for Cisco 2600XM series and Cisco 2612 routers.

Table 3 WAN, LAN, and Voice Connections

Port or Connection Port Type, Color Connected To: Cable

Ethernet RJ-45, yellow Ethernet hub or Ethernet switch Straight-through Ethernet

T1/E1 WAN RJ-48C/CA81A, blue T1 or E1 network RJ-48 T1

Cisco serial 60-pin D-sub CSU/DSU and serial network or

equipment

Cisco Smart serial Cisco Smart compact

connector, blue

DSL RJ-11C/CA11A,

lavender

T1 digital voice RJ-48C/CA81A, tan Digital PBX RJ-48 T1 cable

Analog voice FXS RJ-11, gray Telephone, fax RJ-11

Analog voice FXO RJ-11, pink Central office, analog PBX RJ-11

Analog voice E&M RJ-11, brown Analog PBX RJ-11

BRI S/T WAN
(external NT1)

BRI U WAN
(built-in NT1)

CT1/PRI T1 External T1 CSU DB-15 T1 serial cable

CT1/PRI-CSU T1 RJ-48C/CA81A interface RJ-48 straight-through

CE1/PRI E1 E1 network DB-15 to BNC, DB-15 to DB-15,

Token Ring UTP, purple

56/64-kbps DSU/CSU 8-pin modular, blue RJ-48S interface RJ-48 straight-through

1. See the Cisco Modular Access Router Cable Specifications document for information about selecting these cables.

RJ-48C/CA81A, orange NT1 device or private integrated

RJ-49C/CA-A11, red ISDN network RJ-49

STP, purple

CSU/DSU and serial network or
equipment (For WIC-2T and
WIC-2A/S only)

Network demarcation device for
service provider’s DSL interface

network exchange (PINX)

Token Ring device RJ-45 Token Ring cable

Cisco serial transition cable that matches
the signaling protocol (EIA/TIA-232,
EIA/TIA-449, V.35, X.21, or EIA-530)
and the serial port operating mode (DTE
or DCE).

RJ-11

RJ-48

DB-15 to twinax, or DB-15 to RJ-45

1

17

5 Power Up the Router

Checklist for Power-Up

You are ready to power up the Cisco router after you have completed the following steps:

• Chassis is securely mounted and grounded.

• Power and interface cables are connected.

• Your PC terminal emulation program is configured for 9600 baud, 8 data bits, 1 stop bit, and no parity.

• You have selected passwords for access control.

• You have determined the IP addresses for the Ethernet and serial interfaces.

Front Panel Indicators

The following indicator LEDs provide power, activity, and status information:

• POWER (green)—Lit when power is on

• RPS (green)

–

Off—No redundant power supply (RPS) is present

–

Blinking—System is booted, RPS is present, RPS failure

–

Continuous on—System is booted, RPS is present, no RPS failure

• ACTIVITY (green)

–

Slow, steady blinking—System is booting

–

Blinks during system activity, such as interrupts and packet transfers

Power-Up Procedure

To power up your Cisco router and verify that it goes through its initialization and self-test, perform this procedure. When the
procedure is finished, the Cisco router is ready to configure.

Note To view the boot sequence through a terminal session, you must have a console connection to the Cisco router before

it powers on.

Step 1 Make sure that your PC is powered up and connected as described in the “Checklist for Power-Up” section.
Step 2 Move the power switch to the ON position.

The green POWER or PWR LED on the front of the chassis comes on and the fan operates. If this does not happen, see
the power-up procedure in the Cisco 2600 Series Routers Hardware Installation Guide.

Messages begin to appear in your terminal emulation program window.

Caution Do not press any keys on the keyboard until the messages stop. Any keys pressed during this time are interpreted

as the first command typed when the messages stop, which might cause the router to power off and start over. It
takes a few minutes for the messages to stop.

18

You may see different startup messages:

• If you see the following messages, the router has booted with a configuration file and is ready for initial configuration using

the Cisco Router and Security Device Manager (SDM):

yourname con0 is now available

Press RETURN to get started.

See the “Initial Configuration Using Cisco Router and Security Device Manager” section on page 20 to learn how to
configure your router using SDM or to learn how to obtain SDM and install it on your router.

• If you see the following messages, the router has booted and is ready for initial configuration using the setup command

facility or the command-line interface (CLI):

--- System Configuration Dialog ---

At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.

Would you like to enter the initial configuration dialog? [yes/no]:

To learn how to use the setup command facility to configure the router, see the “Initial Configuration Using the Setup
Command Facility” section on page 20. To learn how to use the CLI to configure the router, see the “Initial Configuration
Using the CLI (Manual Configuration)” section on page 22.

Note If the rommon 1> prompt appears, your system has booted in ROM monitor mode. For information on the ROM

monitor, see the router rebooting and ROM monitor information in the Cisco IOS Configuration Fundamentals
Configuration Guide for your Cisco IOS software release.

For information about accessing this document, see the “Where to Go Next” section on page 24.

6 Perform Initial Configuration

You can configure your router by using one of the following methods:

• Cisco Router and Security Device Manager (SDM)—If your router was purchased with a VPN bundle, SDM is installed on

the router. For instructions on configuring your router by using SDM, refer to the Cisco Router and Security Device
Manager (SDM) Quick Start Guide that shipped with your router. See the “Initial Configuration Using Cisco Router and
Security Device Manager” section on page 20 for additional information.

• Setup command facility—You can use the setup command facility to configure basic router information. After the

configuration file has been created, you can use the CLI or SDM to perform additional configuration. See the “Initial
Configuration Using the Setup Command Facility” section on page 20 for additional information.

• Command-line interface (CLI)—If you prefer to use the Cisco IOS CLI, see the “Initial Configuration Using the CLI

(Manual Configuration)” section on page 22 for instructions on how to use the CLI.

Note You need to understand how interfaces are numbered so that you know which interface you are configuring. If you need

help with interface and port numbering, see the “Interface Numbering” section on page 23.

19

Initial Configuration Using Cisco Router and Security Device Manager

If the following messages appear at the end of the startup sequence, Cisco Router and Security Device Manager (SDM) is
installed on your router:

yourname con0 is now available

Press RETURN to get started.

For instructions on configuring your router by using SDM, refer to the Cisco Router and Security Device Manager (SDM) Quick
Start Guide.

Tip If the messages above do not appear, SDM and the Cisco Router and Security Device Manager (SDM) Quick Start Guide

were not shipped with your router. If you want to use SDM, you can download the latest version of SDM and
instructions for installing it on your router from the following location:

http://www.cisco.com/pcgi-bin/tablebuild.pl/sdm

To obtain the SDM quick start guide, SDM release notes, and other SDM documentation, go to www.cisco.com/go/sdm
and click the Technical Documentation link.

Initial Configuration Using the Setup Command Facility

This section shows how to use the setup command facility to configure a host name for the router, set passwords, and configure
an interface for communication with the management network. If you see the following messages at the end of the startup
sequence, the setup command facility has been invoked automatically:

--- System Configuration Dialog ---

At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.

Would you like to enter the initial configuration dialog? [yes/no]:

The setup command facility prompts you for basic information about your router and network, and it creates an initial
configuration file.The prompts vary, depending on your router model, the installed interface modules, and the software image.
The following example and the user entries (in

bold) are shown as examples only.

For a description of interface numbering, see the “Interface Numbering” section on page 23.

Note If you make a mistake while using the setup command facility, you can exit and run the setup command facility again.

Press Ctrl-C, and enter setup at the privileged EXEC mode prompt (2600#).

Step 1 To proceed using the setup command facility, enter yes.

Would you like to enter the initial configuration dialog? [yes/no]: yes

Step 2 When the following messages appear, press Return to enter basic management setup:

At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.

Basic management setup configures only enough connectivity
for management of the system, extended setup will ask you
to configure each interface on the system

20

Would you like to enter basic management setup? [yes/no]: yes

Step 3 Enter a host name for the router (this example uses 2610):

Configuring global parameters:

Enter host name [Router]: 2610

Step 4 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when viewing the

configuration:

The enable secret is a password used to protect access to
privileged EXEC and configuration modes. This password, after
entered, becomes encrypted in the configuration.
Enter enable secret: xxxxxx

Step 5 Enter an enable password that is different from the enable secret password. This password is not encrypted (less secure)

and can be seen when viewing the configuration:

The enable password is used when you do not specify an
enable secret password, with some older software versions, and
some boot images.
Enter enable password: xxxxxx

Step 6 Enter the virtual terminal password, which prevents unauthenticated access to the router through ports other than the

console port:

The virtual terminal password is used to protect
access to the router over a network interface.
Enter virtual terminal password: xxxxxx

Step 7 Respond to the following prompts as appropriate for your network:

Configure SNMP Network Management? [yes]:
Community string [public]:

Step 8 A summary of the available interfaces appears:

Note The interface numbering that appears is dependent on the type of Cisco modular router platform and on the

installed interface modules and cards.

Current interface summary

Controller Timeslots D-Channel Configurable modes Status
T1 0/0 24 23 pri/channelized Administratively up

Any interface listed with OK? value "NO" does not have a valid configuration

Interface IP-Address OK? Method Status Prol
FastEthernet0/0 unassigned NO unset up up
FastEthernet0/1 unassigned NO unset up dow

Step 9 Select one of the available interfaces for connecting the router to the management network:

Enter interface name used to connect to the
management network from the above interface summary: fastethernet0/0

Step 10 Respond to the following prompts as appropriate for your network:

Configuring interface FastEthernet0/0:
Use the 100 Base-TX (RJ-45) connector? [yes]: yes
Operate in full-duplex mode? [no]: no
Configure IP on this interface? [yes]: yes
IP address for this interface: 172.1.2.3
Subnet mask for this interface [255.255.0.0] : 255.255.0.0
Class B network is 172.1.0.0, 16 subnet bits; mask is /16

21

Step 11 The configuration appears:

The following configuration command script was created:

hostname 2610
enable secret 5 $1$D5P6$PYx41/lQIASK.HcSbfO5q1
enable password xxxxxx
line vty 0 4
password xxxxxx
snmp-server community public
!
no ip routing

!
interface FastEthernet0/0
no shutdown
media-type 100BaseX
half-duplex
ip address 172.1.2.3 255.255.0.0
!
interface FastEthernet0/1
shutdown
no ip address
!
end

Step 12 Respond to the following prompts. Select [2] to save the initial configuration.:

[0] Go to the IOS command prompt without saving this config.
[1] Return back to the setup without saving this config.
[2] Save this configuration to nvram and exit.

Enter your selection [2]: 2
Building configuration...
Use the enabled mode 'configure' command to modify this configuration.

Press RETURN to get started! RETURN

Step 13 The user prompt appears.

2610>

After you complete the initial configuration tasks, your Cisco router is ready to configure for specific functions. See the “Where
to Go Next” section on page 24 for information about locating documentation for advanced configuration procedures.

Initial Configuration Using the CLI (Manual Configuration)

This section shows how to bring up a command-line interface (CLI) prompt for configuration using the CLI, and it directs you
to documentation for the CLI configuration.You can use the CLI if you see the following messages at the end of the startup
sequence:

--- System Configuration Dialog ---

At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.

Would you like to enter the initial configuration dialog? [yes/no]:

If these messages do not appear, SDM and a default configuration file have been installed on the router at the factory. To use
SDM to configure the router, see the “Initial Configuration Using Cisco Router and Security Device Manager” section on
page 20.

22

For interface numbering information, see the “Interface Numbering” section on page 23.

Step 1 To proceed with manual configuration using the CLI, enter no.

Would you like to enter the initial configuration dialog? [yes/no]: no

Step 2 Press Return to terminate autoinstall and continue with manual configuration.

Would you like to terminate autoinstall? [yes] Return

Several messages are displayed, ending with a line similar to the following:

...

Copyright (c) 1986-2000 by cisco Systems, Inc.
Compiled <date> <time> by <person>

Step 3 Press Return to bring up the Router> prompt.

...

flashfs[4]: Initialization complete.
Router>

Step 4 Enter privileged EXEC mode.

Router> enable
Router#

Note To avoid losing work you have completed, be sure to save your configuration occasionally as you proceed. Use the

copy running-config startup-config command to save the configuration to NVRAM.

For configuration using the CLI, refer to the applicable configuration procedures in the Software Configuration Guide:
Cisco 2600 Series, Cisco 3600 Series, and Cisco 3700 Series Routers. See the “Where to Go Next” section on page 24 for
information about accessing this document.

7 Interface Numbering

Each individual interface (port) on Cisco 2600XM series and Cisco 2612 routers is identified by number as described in the
following sections.

WAN and LAN Interface Numbering

Cisco 2600XM series and Cisco 2612 router chassis contain the following WAN and LAN interface types:

• Built-in LAN interfaces: Ethernet, FastEthernet, Token Ring

• Two or three slots in which you can install WAN interface cards (WICs)

• One slot in which you can install a network module

The numbering format is Interface-type Slot-number/Interface-number. Two examples are:

• Ethernet 0/0

• Serial 1/2

The slot number is 0 for all built-in interfaces and 0 for all WIC interfaces; the slot number is 1 for network module interfaces.

Interface (port) numbers begin at 0 for each interface type, and continue from right to left and (if necessary) from bottom to top.

Figure 13 shows a router of 1-RU height with:

• A WIC in each WIC slot (containing interface Serial 0/0 in physical slot W0, and interface Serial 0/1 in physical slot W1)

• A 4-serial-port network module in slot 1 (containing the following ports: Serial 1/0, Serial 1/1, Serial 1/2, and Serial 1/3)

23

• First built-in Ethernet interface—Ethernet 0/0

• Second built-in Ethernet interface—Ethernet 0/1, or optionally in Cisco 2612 and Cisco 2613 only: Token Ring interface 0/0

Figure 13 Interface Numbering in Chassis with 1-RU Height

1

SERIAL
A/S

CN/LP

RXC RXD

3

TXC TXD

CN/LP RXC

RXD

2

TXC

10

TXD CN/LP

RXC RXD TXC

10

9

TX

D

CN/LP RXC RXD TXC

TXD

E

N

8

7

C

ON

W

1

LINK

TOKEN RING 0/0

6

2

N

S

ER

IA

L

W0

ACT

C
O

N

N

Cisco 2612

S
E

R

I
A

W0

LINK

ETHERNET 0/0

5

L

W

0

ACT

CONSOLE

AUX

3

10

0-2

4

0V

– 1

50

A

/6

0

H

z 4

7

W

4

Voice Interface Numbering

Voice interfaces are numbered as follows:

chassis-slot/voice-module-slot/voice-interface

If a 4-channel voice network module is installed in chassis slot 1, the voice interfaces are:

• 1/0/0—Chassis slot 1/Voice module slot 0/Voice interface 0

• 1/0/1—Chassis slot 1/Voice module slot 0/Voice interface 1

• 1/1/0—Chassis slot 1/Voice module slot 1/Voice interface 0

• 1/1/1—Chassis slot 1/Voice module slot 1/Voice interface 1

28308

8 Where to Go Next

For additional detailed configuration procedures, refer to the appropriate Cisco 2600 series documentation or Cisco IOS
software documentation, available online on Cisco.com:

Tip See the “Obtaining Additional Publications and Information” section on page 27 for help in locating these documents.

To access documentation on Cisco.com:

For Cisco 2600XM series platform documentation, start on Cisco.com at http://www.cisco.com, and select
Products & Services > Routers > Cisco 2600 Series Multiservice Platforms > Technical Documentation > Document type >

Document.

For Cisco IOS software documentation, start on Cisco.com at http://www.cisco.com, and select Products & Services > IOS
Software > Cisco IOS Software Releases > Your Cisco IOS software release.

To get updated information about platform support for features, select Feature Navigator II, if you have an account on
Cisco.com. You can also access Feature Navigator II at http://www.cisco.com/go/fn.

24

To access documentation using Cisco Connection Online (CCO):

For Cisco 2600XM series platform documentation, start on Cisco.com at http://www.cisco.com, and click the “Technical
Documentation” tab under Useful Links. Under the Product Documentation heading, navigate to Modular Access Routers and
to the documentation for your router.

For Cisco IOS software documentation, start on Cisco.com at http://www.cisco.com, and click the “Technical Documentation”
tab under Useful Links. Under the Product Documentation heading, navigate to the Cisco IOS software documentation for the
Cisco IOS software release that is installed on your router.

9 Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical
assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.

Cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/univercd/home/home.htm

You can access the Cisco website at this URL:

http://www.cisco.com

You can access international Cisco websites at this URL:

http://www.cisco.com/public/countries_languages.shtml

Ordering Documentation

You can find instructions for ordering documentation at this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

You can order Cisco documentation in these ways:

• Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from the Ordering tool:

http://www.cisco.com/en/US/partner/ordering/index.shtml

• Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco Systems

Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in North America, by calling 800 553-NETS
(6387).

10 Documentation Feedback

You can send comments about technical documentation to [e-mail].

You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the
following address:

Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883

We appreciate your comments.

25

11 Obtaining Technical Assistance

For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, Cisco Technical Support provides
24-hour-a-day, award-winning technical assistance. The Cisco Technical Support Website on Cisco.com features extensive
online support resources. In addition, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do
not hold a valid Cisco service contract, contact your reseller.

Cisco Technical Support Website

The Cisco Technical Support Website provides online documents and tools for troubleshooting and resolving technical issues
with Cisco products and technologies. The website is available 24 hours a day, 365 days a year at this URL:

http://www.cisco.com/techsupport

Access to all tools on the Cisco Technical Support Website requires a Cisco.com user ID and password. If you have a valid service
contract but do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do

Submitting a Service Request

Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are
those in which your network is minimally impaired or for which you require product information.) After you describe your
situation, the TAC Service Request Tool automatically provides recommended solutions. If your issue is not resolved using the
recommended resources, your service request will be assigned to a Cisco TAC engineer. The TAC Service Request Tool is located
at this URL:

http://www.cisco.com/techsupport/servicerequest

For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests
are those in which your production network is down or severely degraded.) Cisco TAC engineers are assigned immediately to
S1 and S2 service requests to help keep your business operations running smoothly.

To open a service request by telephone, use one of the following numbers:

Asia-Pacific: [phone] (Australia: 1 800 805 227)
EMEA: [phone]
USA: 1 800 553 2447

For a complete list of Cisco TAC contacts, go to this URL:

http://www.cisco.com/techsupport/contacts

Definitions of Service Request Severity

To ensure that all service requests are reported in a standard format, Cisco has established severity definitions.

Severity 1 (S1)—Your network is “down,” or there is a critical impact to your business operations. You and Cisco will commit
all necessary resources around the clock to resolve the situation.

Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are
negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal
business hours to resolve the situation.

Severity 3 (S3)—Operational performance of your network is impaired, but most business operations remain functional. You
and Cisco will commit resources during normal business hours to restore service to satisfactory levels.

Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is
little or no effect on your business operations.

26

12 Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online and printed sources.

• Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Visit Cisco Marketplace, the

company store, at this URL:

http://www.cisco.com/go/marketplace/

• The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as ordering and customer

support services. Access the Cisco Product Catalog at this URL:

http://cisco.com/univercd/cc/td/doc/pcat/

• Cisco Press publishes a wide range of general networking, training and certification titles. Both new and experienced users

will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press at this URL:

http://www.ciscopress.com

• Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and networking investments. Each

quarter, Packet delivers coverage of the latest industry trends, technology breakthroughs, and Cisco products and solutions,
as well as network deployment and troubleshooting tips, configuration examples, customer case studies, certification and
training information, and links to scores of in-depth online resources. You can access Packet magazine at this URL:

http://www.cisco.com/packet

• iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies learn how they can use

technology to increase revenue, streamline their business, and expand services. The publication identifies the challenges
facing these companies and the technologies to help solve them, using real-world case studies and business strategies to help
readers make sound technology investment decisions. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

• Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in

designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal
at this URL:

http://www.cisco.com/ipj

• World-class networking training is available from Cisco. You can view current offerings at this URL:

http://www.cisco.com/en/US/learning/index.html

27

Corporate Headquarters

r,

,
t

e

Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
www.cisco.com
Tel: [phone]

800 553-NETS (6387)

Fax: [phone]

European Headquarters

Cisco Systems International BV
Haarlerbergpark
Haarlerbergweg 13-19
1101 CH Amsterdam
The Netherlands
www-europe.cisco.com
Tel: [phone]
Fax: [phone]

Americas Headquarters

Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
www.cisco.com
Tel: [phone]
Fax: [phone]

Asia Pacific Headquarters

Cisco Systems, Inc.
168 Robinson Road
#28-01 Capital Tower
Singapore 068912
www.cisco.com
Tel: [phone]
Fax: [phone]

Cisco Systems has more than 200 offices in the following countries. Addresses, phone numbers, and fax numbers are listed on the

Cisco Web site at www.cisco.com/go/offices

Argentina • Australia • Austria • Belgium • Brazil • Bulgaria • Canada • Chile • China PRC • Colombia • Costa Rica • Croatia • Cyprus • Czech Republic • Denmark
Dubai, UAE • Finland • France • Germany • Greece • Hong Kong SAR • Hungary • India • Indonesia • Ireland • Israel • Italy • Japan • Korea • Luxembourg • Malaysia
Mexico • The Netherlands • New Zealand • Norway • Peru • Philippines • Poland • Portugal • Puerto Rico • Romania • Russia • Saudi Arabia • Scotland • Singapore
Slovakia • Slovenia • South Africa • Spain • Sweden • Switzerland • Taiwan • Thailand • Turkey • Ukraine • United Kingdom • United States • Venezuela • Vietnam
Zimbabwe

CCVP, the Cisco logo, and the Cisco Square Bridge logo are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn is a service mark of Cisco Systems, Inc.; and Access Registra
Aironet, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo
Cisco Unity, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, IP/TV, iQ Expertise, the iQ logo, iQ Ne
Readiness Scorecard, iQuick Study, LightStream, Linksys, MeetingPlace, MGX, Networking Academy, Network Registrar, Packet, PIX, ProConnect, ScriptShare, SMARTnet, StackWise, The Fastest Way to Increas
Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company.
(0705R)

Printed in the USA on recycled paper containing 10% postconsumer waste.

78-13148-12
DOC-7813148=
