±2.5 V / 5 V, 200 kSps, 16-bit, High-throughput
Features & Description
Single-ended Analog Input
On-chip Buffers for High Input Impedance
Conversion Time = 5 µS
Settles in One Conversion
Linearity Error = 0.0008%
Signal-to-Noise = 80 dB
S/(N + D) = 80 dB
DNL = ±0.1 LSB Max.
Simple three/four-wire serial interface
Power Supply Configurations:
- Analog: +5V/GND; IO: +1.8V to +3.3V
- Analog: ±2.5V; IO: +1.8V to +3.3V
Power Consumption:
- ADC Input Buffers On: 85 mW
- ADC Input Buffers Off: 60 mW
General Description
The CS5581 is a single-channel, 16-bit analog-to-digital
converter capable of 200 kSps conversion rate. The input
accepts a single-ended analog input signal. On -chip buffers provide high input impedance for both the AIN input
and the VREF+ input. This significantly reduces the drive
requirements of signal sources and reduces errors due to
source impedances. The CS5581 is a delta-sigma converter capable of switching multiple input channels at a high
rate with no loss in throughput. The ADC uses a low-latency digital filter architecture. The filter is designed for fast
settling and settles to full accuracy in one conversion. The
converter's 16-bit data output is in serial format, with the
serial port acting as either a master or a slave. The converter is designed to support bipolar, ground-referenced
signals when operated from ±2.5V analog supplies.
The converter can operate from an analog supply of 0-5V
or from ±2.5V. The digital interface supports standard logic
operating from 1.8, 2.5, or 3.3 V.
ORDERING INFORMATION:
See Ordering Information on page 32.
CS5581
∆Σ
ADC
V1+
VREF+
VREF-
AIN
ACOM
BUFEN
V1-
V2+
ADC
V2-
Preliminary Product Information
http://www.cirrus.com
VL
CS5581
SMODE
CS
DIGITAL
FILTER
LOGIC
OSC/CLOCK
GENERATOR
TST
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
Copyright © Cirrus Logic, Inc. 2008
(All Rights Reserved)
DIGITAL CONTROL
DCR
VLR
SERIAL
INTERFACE
VLR2
VLR3
SCLK
SDO
RDY
RST
CONV
BP/UP
MCLK
MAR ‘08
DS796PP1
3/25/08
14:34
TABLE OF CONTENTS
1. CHARACTERISTICS AND SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ANALOG CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SWITCHING CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DIGITAL CHARACTERISTICS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
GUARANTEED LOGIC LEVELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
RECOMMENDED OPERATING CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
ABSOLUTE MAXIMUM RATINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2. OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3. THEORY OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.1 Converter Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.2 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.3 Voltage Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.4 Analog Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.5 Output Coding Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3.6 Typical Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.7 AIN & VREF Sampling Structures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.8 Converter Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
3.9 Digital Filter Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
3.10 Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.10.1 SSC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
3.10.2 SEC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
3.11 Power Supplies & Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.12 Using the CS5581 in Multiplexing Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
3.13 Synchronizing Multiple Converters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
4. PIN DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

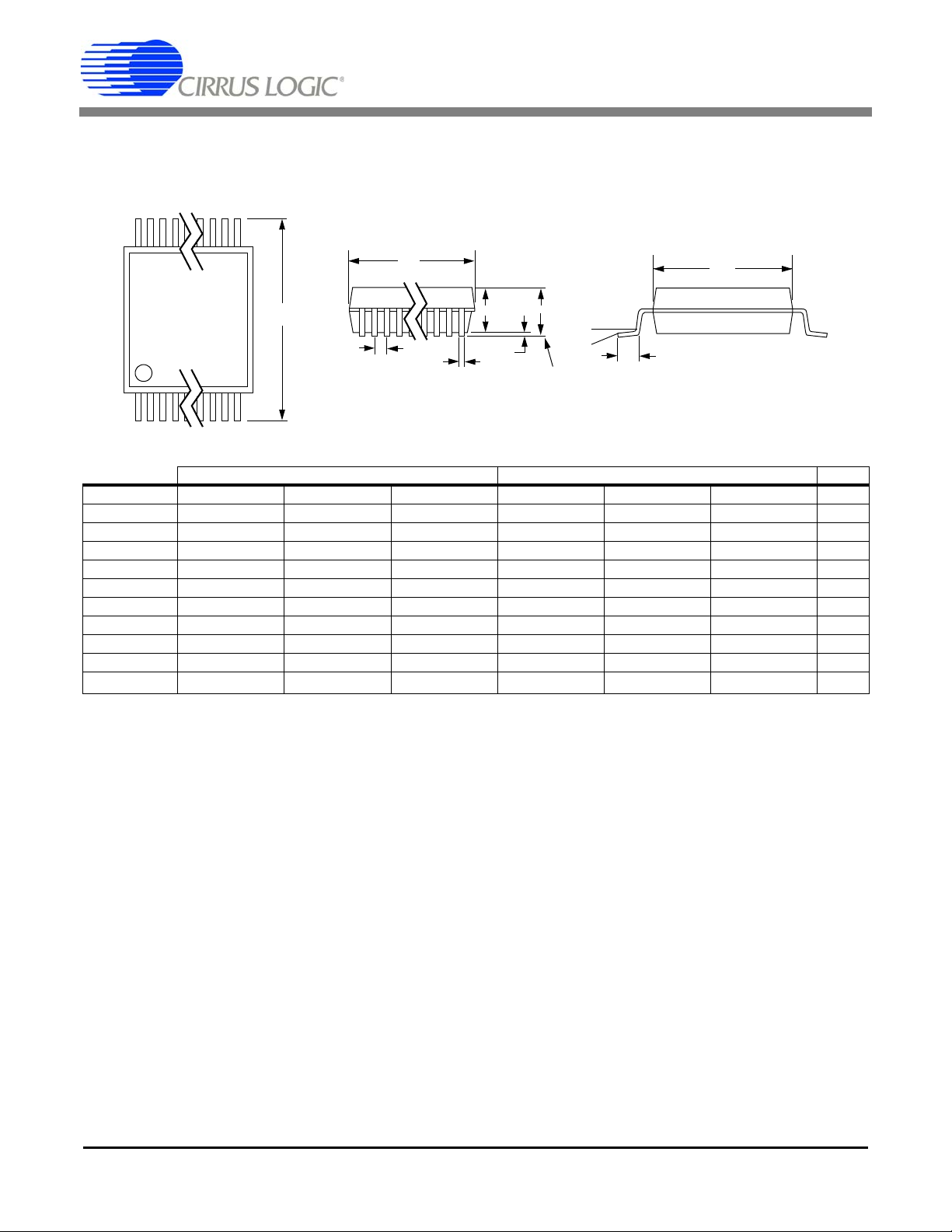

5. PACKAGE DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6. ORDERING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7. ENVIRONMENTAL, MANUFACTURING, & HANDLING INFORMATION . . . . . . . . . . . . . .32
8. REVISION HISTORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
CS5581
2 DS796PP1
3/25/08
14:34
LIST OF FIGURES
Figure 1. SSC Mode - Read Timing, CS remaining low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 2. SSC Mode - Read Timing, CS falling after RDY falls . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 3. SEC Mode - Continuous SCLK Read Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 4. SEC Mode - Discontinuous SCLK Read Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 5. Voltage Reference Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Figure 6. CS5581 Configured Using ±2.5V Analog Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 7. CS5581 Configured for Unipolar Measurement Using a Single 5V Analog Supply. . . . 18
Figure 8. CS5581 Configured for Bipolar Measurement Using a Single 5V Analog Supply. . . . . 19
Figure 9. CS5581 DNL Plot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 10. CS5581 DNL Error Plot with DNL Histogram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 11. Spectral Performance, 0 dB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 12. Spectral Performance, -6 dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 13. Spectral Performance, -12 dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 14. Spectral Performance, -80 dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 15. Spectral Performance, -100 dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 16. Spectral Plot of Noise with Shorted Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 17. Noise Histogram (4096 Conversions) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 18. CS5581 Spectral Response (DC to fs/2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 19. CS5581 Spectral Response (DC to 20 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 20. CS5581 Spectral Response (DC to 8fs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 21. Simple Multiplexing Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

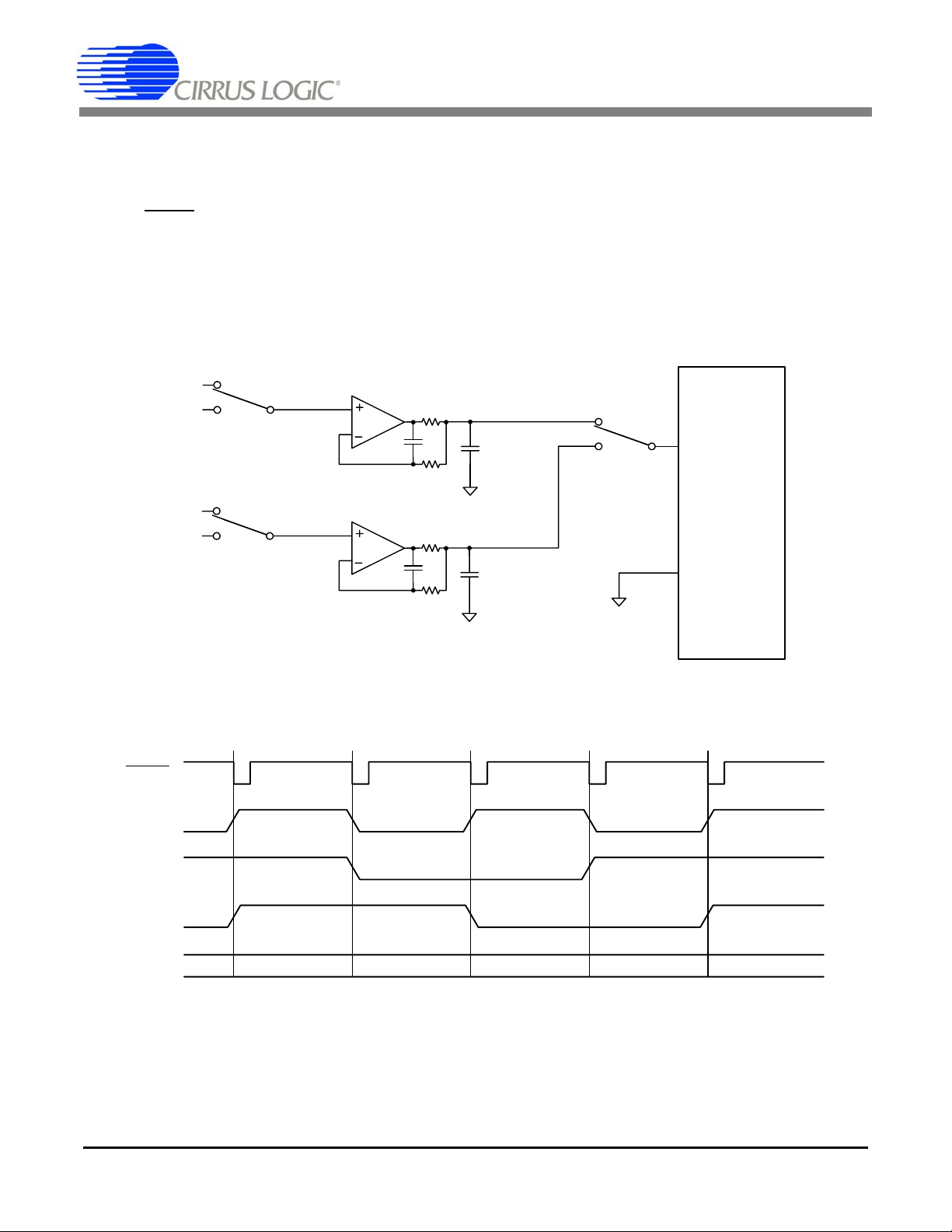

Figure 22. More Complex Multiplexing Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
CS5581
LIST OF TABLES
Table 1. Output Coding, Two’s Complement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 2. Output Coding, Offset Binary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DS796PP1 3
3/25/08
14:34
1. CHARACTERISTICS AND SPECIFICATIONS
• Min / Max characteristics and specifications are guaranteed over the specified operating conditions.
• Typical characteristics and specifications are measured at nominal supply voltages and T
• VLR = 0 V. All voltages measured with respect to 0 V.
A
CS5581
= 25°C.
ANALOG CHARACTERISTICS T
±5%; VL -VLR = 3.3 V, ±5%; VREF = (VREF+) - (VREF-) = 4.096V; MCLK = 16 MHz; SMODE = VL, unless otherwise stated; BUFEN = V1+ unless otherwise stated. Connected per Figure 6. Bipolar mode unless otherwise
stated.
Parameter Min Typ Max Unit
Accuracy
Linearity Error - 0.0008 - ±%FS
Differential Linearity Error (Note 1) - - ±0.1 LSB
Positive Full-scale Error - 1.0 - %FS
Negative Full-scale Error - 1.0 - %FS
Full-scale Drift (Note 2, 3) - ±1 - LSB
Bipolar Offset (Note 3) - ±15 - LSB
Bipolar Offset Drift (Note 2, 3) - ±1 - LSB
Noise - 140 - µVrms
Dynamic Performance
Peak Harmonic or Spurious Noise 1 kHz, -0.5 dB Input
Total Harmonic Distortion 1 kHz, -0.5 dB Input - -95 -82 dB
Signal-to-Noise 77 80 - dB
= -40 to +85 °C; V1+ = V2+ = +2.5 V, ±5%; V1- = V2- = -2.5 V,
A
12 kHz, -0.5 dB Input--
-96
-96
-
-
dB
dB
16
16
16
16
S/(N + D) Ratio -0.5 dB Input, 1 kHz
-60 dB Input, 1 kHz--
-3 dB Input Bandwidth (Note 4) - 168 - kHz
1. No missing codes is guaranteed at 16 bits resolution over the specified temperature range.
2. Total drift over specified temperature range after reset at power-up, at 25º C.
3. One LSB is equivalent to VREF ÷ 2
4. Scales with MCLK.
4 DS796PP1
16
or 4.096 ÷ 65536 = 62.5 µV.
80
21
-
-
dB
dB
3/25/08
14:34
CS5581
ANALOG CHARACTERISTICS (CONTINUED) T
V2- = -2.5 V, ±5%; VL -VLR = 3.3 V, ±5%; VREF = (VREF+) - (VREF-) = 4.096V; MCLK = 16 MHz; SMODE = VL,
unless otherwise stated; BUFEN = V1+ unless otherwise stated. Connected per Figure 6.
Parameter Min Typ Max Unit
Analog Input
Analog Input Range Unipolar
Input Capacitance - 10 - pF
CVF Current (Note 5) AIN Buffer On (BUFEN = V+)
AIN Buffer Off (BUFEN = V-)
Voltage Reference Input
Voltage Reference Input Range
(VREF+) – (VREF-) (Note 6) 2.4 4.096
Input Capacitance - 10 - pF
CVF Current VREF+ Buffer On (BUFEN = V+)
VREF+ Buffer Off (BUFEN = V-)
Power Supplies
DC Power Supply Currents I
Power Consumption Normal Operation Buffers On
Power Supply Rejection (Note 7) V1+ , V2+ Supplies
V1-, V2- Supplies
= -40 to +85 °C; V1+ = V2+ = +2.5 V, ±5%; V1- =
A
0 to +VREF / 2
Bipolar
ACOM
VREF-
V1
I
V2
I
VL
Buffers Off
-
-
-
-
-
-
-
-
-
-
-
-
-
±VREF / 2
600
130
130
3
1
1
-
-
-
85
60
80
80
101
-
-
-
4.2
-
-
-
18
1.8
0.6
80
-
-
V
V
nA
µA
µA
V
µA
mA
mA
mA
mA
mA
mW
mW
dB
dB
5. Measured using an input signal of 1 V DC.
6. For optimum performance, VREF+ should always be less than (V+) - 0.2 volts to prevent saturation of the VREF+ input buffer.
7. Tested with 100 mVP-P on any supply up to 1 kHz. V1+ and V2+ supplies at the same voltage potential, V1- and V2- supplies at
the same voltage potential.
DS796PP1 5
3/25/08
14:34
SWITCHING CHARACTERISTICS
TA= -40 to +85 °C; V1+ = V2+ = +2.5 V, ±5%; V1- = V2- = -2.5 V, ±5%;
VL - VLR = 3.3 V, ±5%, 2.5 V, ±5%, or 1.8 V, ±5%
Input levels: Logic 0 = 0V = Low; Logic 1 = VD+ = High; CL = 15 pF.
Parameter Symbol Min Typ Max Unit
CS5581
Master Clock Frequency Internal Oscillator
External Clock
Master Clock Duty Cycle 40 - 60 %
Reset
RST
Low Time (Note 8) t
rising to RDY falling Internal Oscillator
RST
External Clock
Conversion
CONV
Pulse Width t
setup to CONV falling (Note 9) t
BP/UP
low to start of conversion t
CONV
Perform Single Conversion (CONV
Conversion Time (Note 10)
Start of Conversion to RDY
8. Reset must not be released until the power supplies and the voltage reference are within specification.
9. BP/UP
10. If CONV is held low continuously, conversions occur every 80 MCLK cycles.
can be changed coincident CONV falling. BP/UP must remain stable until RDY falls.
is tied to CONV, conversions will occur every 82 MCLKs.
If RDY
If CONV is operated asynchronously to MCLK, a conversion may take up to 84 MCLKs.
RDY falls at the end of conversion.
high before RDY falling) t
falling t
XIN
f
clk
res
t
wup
cpw
scn
scn
bus
buh
12
0.5
1--µs
-
-
4--MCLKs
0--ns
--2MCLKs
20 - - MCLKs
- - 84 MCLKs
14
16
120
1536
16
16.2
-
-
MHz
MHz
µs
MCLKs
6 DS796PP1
3/25/08
14:34
SWITCHING CHARACTERISTICS (CONTINUED)
TA= -40 to +85 °C; V1+ = V2+ = +2.5 V, ±5%; V1- = V2- = -2.5 V, ±5%;
VL - VLR = 3.3 V, ±5%, 2.5 V, ±5%, or 1.8 V, ±5%
Input levels: Logic 0 = 0V = Low; Logic 1 = VD+ = High; CL = 15 pF.
Parameter Symbol Min Typ Max Unit
Serial Port Timing in SSC Mode (SMODE = VL)
RDY
falling to MSB stable t
Data hold time after SCLK rising t
Serial Clock (Out) Pulse Width (low)
(Note 11, 12) Pulse Width (high)
rising after last SCLK rising t
RDY
11 . SDO and SCLK will be high impedance when CS is high. In some systems SCLK and SDO may require pull-down
resistors.
12. SCLK = MCLK/2.
1
2
t
3
t
4
5
CS5581
--2-MCLKs
-10-ns
50
50
-8-MCLKs
-
-
-
-
ns
ns
MCLK
RDY
SCLK(o)
SDO
CS
t
1
t
2
MSB MSB–1
t
3
t
4
LSB
LSB+1
Figure 1. SSC Mode - Read Timing, CS remaining low (Not to Scale)
t
5
DS796PP1 7
3/25/08
14:34
SWITCHING CHARACTERISTICS (CONTINUED)
TA= -40 to +85 °C; V1+ = V2+ = +2.5 V, ±5%; V1- = V2- = -2.5 V, ±5%;
VL - VLR = 3.3 V, ±5%, 2.5 V, ±5%, or 1.8 V, ±5%
Input levels: Logic 0 = 0V = Low; Logic 1 = VD+ = High; CL = 15 pF.
Parameter Symbol Min Typ Max Unit
Serial Port Timing in SSC Mode (SMODE = VL)
Data hold time after SCLK rising t
Serial Clock (Out) Pulse Width (low)
(Note 13, 14) Pulse Width (high)
RDY
rising after last SCLK rising t
falling to MSB stable t
CS
First SCLK rising after CS
hold time (low) after SCLK rising t
CS
SCLK, SDO tristate after CS
13. SDO and SCLK will be high impedance when CS is high. In some systems SCLK and SDO may require pull-down
resistors.
14. SCLK = MCLK/2.
falling t
rising t
t
t
10
11
12
13
14
7
8
9
CS5581
-10-ns
50
50
-8-MCLKs
-10-ns
-8-MCLKs
10 - - ns
-5-ns
-
-
-
-
ns
ns
MCLK
RDY
SCLK(o)
SDO
CS
t
13
t
12
t
11
MSB MSB–1
t
7
t
8
t
9
LSB+1
LSB
t
14
Figure 2. SSC Mode - Read Timing, CS falling after RDY falls (Not to Scale)
t
10
8 DS796PP1
3/25/08
14:34
SWITCHING CHARACTERISTICS (CONTINUED)
TA= -40 to +85 °C; V1+ = V2+ = +2.5 V, ±5%; V1- = V2- = -2.5 V, ±5%;
VL - VLR = 3.3 V, ±5%, 2.5 V, ±5%, or 1.8 V, ±5%
Input levels: Logic 0 = 0V = Low; Logic 1 = VD+ = High; CL = 15 pF.
Parameter Symbol Min Typ Max Unit
Serial Port Timing in SEC Mode (SMODE = VLR)
SCLK(in) Pulse Width (High)
SCLK(in) Pulse Width (Low)
CS
hold time (high) after RDY falling t
hold time (high) after SCLK rising t
CS
CS
low to SDO out of Hi-Z (Note 15) t
Data hold time after SCLK rising t
Data setup time before SCLK rising t
CS
hold time (low) after SCLK rising
-
-
15
16
17
18
19
t
20
CS5581
30 - - ns
30 - - ns
10 - - ns
10 - - ns
-10-ns
-10-ns
10 - - ns
1
10 - ns
SCLK
10
RDY
rising after SCLK falling t
15. SDO will be high impedance when CS is high. In some systems SDO may require a pull-down resistor.
MCLK
RDY
t
15
CS
t
16
SCLK(i)
t
17
t
t
19
18
SDO
21
-10-ns
t
21
t
20
LSBMSB
Figure 3. SEC Mode - Continuous SCLK Read Timing (Not to Scale)
DS796PP1 9
MCLK
SCLK(i)
RDY
CS
SDO
3/25/08
14:34
t
21
t
15
t
17
t
t
19
18
t
20
LSBMSB
CS5581
Figure 4. SEC Mode - Discontinuous SCLK Read Timing (Not to Scale)
DIGITAL CHARACTERISTICS
= TMIN to TMAX; VL = 3.3V, ±5% or VL = 2.5V, ±5% or 1.8V, ±5%; VLR = 0V
T
A
Parameter Symbol Min Typ Max Unit
Input Leakage Current I
Digital Input Pin Capacitance C
Digital Output Pin Capacitance C
in
in
out
--2µA
-3-pF
-3-pF
10 DS796PP1
3/25/08
14:34
GUARANTEED LOGIC LEVELS
TA=-40to+85°C;V1+=V2+=+2.5V, ±5%; V1- = V2- = -2.5 V, ±5%;
VL - VLR = 3.3 V, ±5%, 2.5 V, ±5%, or 1.8 V, ±5%
Input levels: Logic 0 = 0V = Low; Logic 1 = VD+ = High; CL = 15 pF.
Guaranteed Limits
Parameter Sym VL Min Typ Max Unit Conditions
Logic Inputs
3.3 1.9
Minimum High-level Input Voltage:
Maximum Low-level Input Voltage:
Logic Outputs
Minimum High-level Output Voltage:
Maximum Low-level Output Voltage:
V
IH
1.8 1.2
3.3 1.1
V
IL
1.8 0.6
3.3 2.9
V
OH
V
OL
2.5 2.1
1.8 1.65
3.3 0.36
2.5 0.36
1.8 0.44
CS5581
V2.5 1.6
V2.5 0.95
V
V
IOH=-2mA
IOH=-2mA
DS796PP1 11
3/25/08
14:34
RECOMMENDED OPERATING CONDITIONS
(VLR = 0V, see Note 16)
Parameter Symbol Min Typ Max Unit
Single Analog Supply
DC Power Supplies: (Note 16)
V1+
V2+
V1V2-
Dual Analog Supplies
DC Power Supplies: (Note 16)
V1+
V2+
V1V2-
V1+
V2-
V1+
V2-
V1+
V2-
V1+
V2-
4.75
4.75
-
-
+2.375
+2.375
-2.375
-2.375
5.0
5.0
0
0
+2.5
+2.5
-2.5
-2.5
CS5581
5.25
5.25
-
-
+2.625
+2.625
-2.625
-2.625
V
V
V
V
V
V
V
V
Analog Reference Voltage (Note 17)
[VREF+] – [VREF-]
16. The logic supply can be any value VL – VLR = +1.71 to +3.465 volts as long as VLR ≥ V2- and VL ≤ 3.465 V.
17. The differential voltage reference magnitude is constrained by the V1+ or V1- supply magnitude.
ABSOLUTE MAXIMUM RATINGS
(VLR = 0V)
Parameter Symbol Min Typ Max Unit
DC Power Supplies:
[V1+] – [V1-] (Note 18)
VL + [ |V1-| ] (Note 19)
Input Current, Any Pin Except Supplies (Note 20) I
Analog Input Voltage (AIN and VREF pins) V
Digital Input Voltage V
Storage Temperature T
Notes:
18. V1+ = V2+; V1- = V2-
19. V1- = V2-
20. Transient currents of up to 100 mA wi ll not cause SCR latch-up.
VREF 2.4 4.096 4.2 V
-
-
IN
INA
IND
stg
0
0
--±10mA
(V1-) – 0.3 - (V1+) + 0.3 V
VLR – 0.3 - VL + 0.3 V
-65 - 150 °C
-
-
5.5
6.1
V
V
WARNING:
Recommended Operating Conditions indicate limits to which the device is functionally ope rational. Absolute Maximum Ratings indicate limits beyond which permanent damage to the device may occur. The
Absolute Maximum Ratings are stress ratings only and the device should not be operated at these limits.
Operation at conditions beyond the Recommended Operating Conditions may affect device reliability, and
functional operation beyond Recommended Operating Conditions is not implied. Performance specifications are intended for the conditions specified for each table in the Characteristics and Specifications section.
12 DS796PP1
3/25/08
14:34
2. OVERVIEW
The CS5581 is a 16-bit analog-to-digital converter capable of 200 kSps conversion rate. The analog inp ut
accepts a single-ended input with a magnitude of ±VREF / 2
architecture. The filter is designed for fast settling and settles to full accuracy in one conversion.
The converter is a serial output device. The serial port can be configu red to function as either a master or
a slave.
The converter can operate from an analog supply of 5V or from ±2.5V. The digital interface supports standard logic operating from 1.8, 2.5, or 3.3 V.
The CS5581 may convert at rates up to 200 kSps when operating from a 16 MHz input clock.
3. THEORY OF OPERATION
The CS5581 converter provides high-performance measurement of DC or AC signals. The converter can
be used to perform single conversions or continuous conversions upon command. Each conversion is independent of previous conversions and settles to full specified accuracy, even with a full-scale input voltage step. This is due to the converter architecture which uses a combination of a high-spe ed delta-sigma
modulator and a low-latency filter architecture.
volts. The ADC uses a low-latency digital filter
CS5581
Once power is established to the converter, a reset must be performed. A reset initializes the internal converter logic.
If CONV
equivalent to 200 kSps if MCLK = 16.0 MHz. If CONV
MCLKs. If CONV
RDY
Multiple converters can operate synchronously if they are driven by the same MCLK source and CONV
to each converter falls on the same MCLK falling edge. Alternately, CONV can be h eld low and all devices
can be synchronized if they are reset with RST
The output coding of the conversion word is a function of the BP/UP
is held low, the converter will convert continuously with RDY falling every 80 MCLKs. This is
is tied to RDY, a conversion will occur every 82
is operated asynchronously to MCLK, it may take up to 84 MCLKs from CONV falling to
falling.
rising on the same falling edge of MCLK.
pin.
3.1 Converter Operation
The converter should be reset after the power supplies and voltage reference are stable.
The CS5581 converts at 200 kSps when synchronously operated (CONV
clock. Conversion is initiated by taking CONV
is asynchronous to MCLK there may be an uncertainty of 0-4 MCLK cycles after CONV falls to when a
conversion actually begins. This may extend the throughput to 84 MCLKs per conversion.
When the conversion is completed, the output word is placed into the serial port and RDY
convert continuously, CONV
conversion is performed in 80 MCLK cycles. Alternately RDY
occur every 82 MCLK cycles.
should be held low. In continuous conversion mode with CONV held low, a
low. A conversion lasts 80 master clock cycles, but if CONV
can be tied to CONV and a conversion will
= VLR) from a 16.0 MHz master
goes low. To
To perform only one conversion, CONV
falls.
DS796PP1 13
should return high at least 20 master clock cycles before RDY
3/25/08
14:34
Once a conversion is completed and RDY falls, RDY will return high when all the bits of the data word are
emptied from the serial port or if the conversion data is not read and CS
MCLK cycles before the end of conversion. RDY
is put into the port register.
See Serial Port on page 24 for information about reading conversion data.
Conversion performance can be affected by several factors. These include the choice of clock so urce for
the chip, the timing of CONV
The converter can be operated from an internal oscillator. This clock source has greater jitter than an
external crystal-based clo ck. Jitter may not be an issue when measuring DC signals, or very-low-frequency AC signals, but can become an issue for higher frequency AC signals. For maximum performance
when digitizing AC signals, a low-jitter MCLK should be used.
, and the choice of the serial port mode.
will fall at the end of the next conversion when new data
is held low, RDY will go high two
CS5581
To maximize performance, the CONV
form multiple conversions, or CONV
If the converter is operated at maximum throughput, the SSC serial port mode is less likely to cause interference to measurements as the SCLK output is synchronized to the MCLK. Alternately, any interference due to serial port clocking can also be minimized if data is read in the SEC serial port mode when a
conversion is not in progress.
pin should be held low in the continuous conversion state to per-
should occur synchronous to MCLK, falling when MCLK falls.
3.2 Clock
The CS5581 can be operated from its internal oscillator or from an external master clock. The state of
MCLK determines which clock source will be used. If MCLK is tied low, the internal oscillator will start and
be used as the clock source for the converter. If an external CMOS-compatible clock is input into MCLK,
the converter will power down the internal oscillator and use the external clock. If the MCLK pin is held
high, the internal oscillator will be held in the stopped state. The MCLK input can be held high to delete
clock cycles to aid in synchronizing multiple converters in different phase relationships.
The internal oscillator can be used if the signals to be measured are essentially DC. The internal oscillator
exhibits jitter at about 500 picoseconds rms. If the CS5581 is used to digitize AC signals, an external
low-jitter clock source should be used.
If the internal oscillator is used as the clock for the CS5581, the maximum conversion rate will be dictated
by the oscillator frequency.
If driven from an external MCLK source, the fast rise and fall times of the MCLK signal can result in clock
coupling from the internal bond wire of the IC to the analog input. Adding a 50 ohm resistor on the external
MCLK source significantly reduces this effect.
14 DS796PP1
3/25/08
14:34
3.3 Voltage Reference
The voltage reference for the CS5581 can range from 2.4 volt to 4.2 volts. A 4.096 volt reference is required to achieve the specified signal-to-noise performance. Figure 6 and Figure 7 illustrate the connec-
tion of the voltage reference with either a single +5 V analog supply or with ±2.5 V.
For optimum performance, the voltage reference device should be one that provides a capacitor connection to provide a means of noise filtering, or the output should include some type of bandwidth-limiting filter.
Some 4.096 volt reference devices need only 5 volts total supply for operation and can be connected as
shown in Figure 6 or Figure 7. The reference should have a local bypass capacitor and an appropriate
output capacitor.
Some older 4.096 voltage reference designs require more headroom and must operate from an input voltage of 5.5 to 6.5 volts. If this type of voltage reference is used ensure that when power is applied to the
system, the voltage reference rise time is slower than the rise time of the V1 + and V1- power sup ply voltage to the converter. An example circuit to slow the output startup time of the reference is illustrated in
Figure 5.
CS5581
5.5 t o 15 V
2k
10µF
VIN
VOUT
GND
Figure 5. Voltage Reference Circuit
4. 096 V
Refer to V1-and VREF1 pins.
3.4 Analog Input
The analog input of the converter is single-ended with a full-scale input of ±2.048 volts, relative to the
ACOM pin. This is illustrated in Figure 6 and Figure 7. These diagrams also illustrate a differential buffer
amplifier configuration for driving the CS5581.
The capacitors at the outputs of the amplifiers provide a charge reservoir for the dynamic current from t he
A/D inputs while the resistors isolate the dynamic current from the amplifier. The amplifiers can be powered from higher supplies than those used by the A/D but precautions should be taken to ensure that t he
op amp output voltage remains within the power supply limits of the A/D, especially und er start-up cond itions.
DS796PP1 15
3/25/08
14:34
3.5 Output Coding Format
The reference voltage directly defines the input voltage range in both the unipolar and bipolar configurations. In the unipolar configuration (BP/UP
the final code transition occurs 1.5 LSBs below VREF. In the bipolar configuration (BP/UP
code transition occurs 0.5 LSB above -VREF and the last transition occurs 1.5 LSBs below +VREF. See
Table 1 for the output coding of the converter.
Table 1. Output Coding, Two’s Complement
low), the first code transition occurs 0.5 LSB above zero, and
CS5581
high), the first
Bipolar Input Voltage
NOTE: VREF = [(VREF+) - (VREF-)] / 2
Table 2. Output Coding, Offset Binary
Unipolar Input Voltage
Two’s
Complement
>(VREF-1.5 LSB) 7F FF
7F FF
VREF-1.5 LSB
7F FE
00 00
-0.5 LSB
FF FF
80 01
-VREF+0.5 LSB
80 00
<(-VREF+0.5 LSB) 80 00
Offset
Binary
>(VREF-1.5 LSB) FF FF
FF FF
VREF-1.5 LSB
FF FE
80 00
(VREF/2)-0.5 LSB
7F FF
00 01
+0.5 LSB
00 00
<(+0.5 LSB) 00 00
NOTE: VREF = [(VREF+) - (VREF-)] / 2
16 DS796PP1
3/25/08
14:34
3.6 Typical Connection Diagrams
The following figure depicts the CS5581 powered from bipolar analog supplies, +2.5 V and - 2.5 V.
+2.048 V
0 V
-2.048 V
CS5571
CS5581
CS5581
CS3003
+2.5 V
+4.096
Voltage
Reference
(NOTE 1)
-2.5 V
49.9
150pF
2k
(V+) Buffers On
10 µF0.1 µF
4700pF
(V-) Buffers Off
C0G
ACOM
BUFEN
+2.5 V
AIN
VREF+
VREF-
SMODE
CS
5
SCLK
5
SDO
RDY
CONV
BP/UP
RST
MCLK
TST
+3.3 V to +1.8 V
50
V1+
10
0.1 µF
0.1 µF
10
0.1 µF
X7R
-2.5 V
NOTES
1. See Section 3.3 Voltage Reference for informat ion on required
voltage reference performance criteria.
2.Locate capacitors so as to minimize loop length.
3. The ±2.5 V supplies should also be bypass ed to ground at the converter.
4. VLR and the power supply ground for the ±2.5 V should be
connected to the same ground plane under the chip.
5. SCLK and SDO may require pull-down resistors in some applications.
V2+
V2-
DCR
V1-
VL
0.1 µF
VLR3
VLR2
VLR
Figure 6. CS5581 Configured Using ±2.5V Analog Supplies
DS796PP1 17
3/25/08
14:34
The following figure depicts the CS5581 part powered from a single 5V analog supply and configu red for
unipolar measurement.
0 V to +2.048 V
CS5581
CS5571
CS5581
CS3003 / CS3004
+5 V
+4.096
Voltage
Reference
(NOTE 1)
49.9
150pF
2k
(V+) Buffers On
(V-) Buffers Off
4700pF
C0G
0.1 µF10 µF
AIN
ACOM
BUFEN
VREF+
VREF-
+5 V
SMODE
CS
4
SCLK
4
SDO
RDY
CONV
BP/UP
RST
MCLK
TST
+3.3 V to 1.8 V
50
V1+
0.1 µF
10
V2+
0.1 µF
0.1 µF
X7R
NOTES
1. See Section 3.3 Voltage Reference for information on
required voltage reference performance criteria.
2. Locate capacitors so as to minimize loop length.
3. V1-, V2-, and VLR should be connected to the same
ground plane under the chip.
4. SCLK and SDO may require pull-down resistors in
some applications.
V2-
DCR
V1-
VL
0.1 µF
VLR3
VLR2
VLR
Figure 7. CS5581 Configured for Unipolar Measurement Using a Single 5V Analog Supply
18 DS796PP1
3/25/08
14:34
The following figure depicts the CS5581 part powered from a single 5V analog supply and configu red for
bipolar measurement, referenced to a common mode voltage of 2.5 V.
0.458 to 4.548 V
CS5581
CS5571
CS5581
SMODE
CS
4
SCLK
4
SDO
RDY
CS3003 / CS3004
Common Mode Voltage
(2.5 V Typ.)
CS3003 / CS3004
49.9
150pF
2k
49.9
150pF
2k
4700pF
C0G
4700pF
C0G
AIN
ACOM
CS5581
+5 V
+4.096
Voltage
Reference
(NOTE 1)
(V+) Buffers On
(V-) Buffer s O f f
0.1 µF10 µF
0.1 µF
BUFEN
VREF+
VREF-
+5 V
10
0.1 µF
0.1 µF
X7R
V1+
V2+
V2-
DCR
V1-
CONV
BP/UP
RST
MCLK
TST
+3.3 V to 1.8 V
VL
VLR3
VLR2
VLR
50
0.1 µF
NOTES
1. See Section 3.3 Voltage Reference for information on
required voltage reference performance criteria.
2. Locate capacitors so as to minimize loop length.
3. V1-, V2-, and VLR should be connected to the same
ground plane under the chip.
4. SCLK and SDO may require pull-down resistors in
some applications.
Figure 8. CS5581 Configured for Bipolar Measurement Using a Single 5V Analog Supply
DS796PP1 19
3/25/08
14:34
3.7 AIN & VREF Sampling Structures
The CS5581 uses on-chip buffers on the AIN and the VREF+ inputs. Buffers provide much higher input
impedance and therefore reduce the amount of drive current required from an external source. This helps
minimize errors.
The Buffer Enable (BUFEN) pin determines if the on-chip buffers are used or not. If the BUFEN pin is
connected to the V1+ supply, the buffers will be enabled. If the BUFEN pin is connected to the V1- pin,
the buffers are off. The converter will consume about 30 mW less power when the buffers are off, but the
input impedances of AIN, ACOM and VREF+ will be significantly less than with the buffers enabled.
3.8 Converter Performance
The CS5581 achieves excellent differential nonlinearity (DNL) as shown in Figures 9 and 10. Figure 9
illustrates the code widths on the typical scale of ±1 LSB. Figure 10 illustrates a zoomed scale of ±0.1
LSB. The DNL error histogram in Figure 10 indicates that more than half the codes are accurate to better
than ±0.01 LSB.
1.00
0.75
0.50
0.25
0.00
-0.25
-0.50
DNL Error in LSBs
-0.75
-1.00
1 65535
Figure 9. CS5581 DNL Plot
Codes
CS5581
+0.10
+0.08
+0.06
+0.04
+0.02
0
-0.02
DNL Error in LSBs
-0.04
-0.06
-0.08
-0.10
1 65535
Codes
18k
16k
14k
10k
8k
12k
Counts per 0.01 LSB Error
4k
6k
+0.1
+0.09
+0.08
+0.07
+0.06
+0.05
+0.04
+0.03
+0.02
+0.01
0
-0.01
-0.02
DNL Error in LSBs
-0.03
-0.04
-0.05
-0.06
-0.07
-0.08
-0.09
-0.1
0
2k
Figure 10. CS5581 DNL Error Plot with DNL Histogram
20 DS796PP1
3/25/08
14:34
Figures 11 through 16 illustrate the performance of the CS5581 when driven by a 5.55 kHz sine wave at
various amplitudes. In each case, the captured data was windowed with a seven-term window function
that exhibits 4.3 dB of attenuation before being processed by the FFT.
Figure 14 illustrates the converter performance with an input that is 1/10,000 of full scale. This is a signal
magnitude of about 6.5 codes, peak to peak.
Figure 15 illustrates the converter performance with an input that is 1/100,000 of full scale, or about 0.65
of a code, peak to peak. These plots illustrate that this converter has excellent small-signal performance
due to the near-perfect DNL of the converter.
CS5581
0
-20
-40
-60
-80
-100
-120
-140
-160
0 20k 40k 60k 80k 100k
Frequency (Hz)
5.55 kHz, 0 dB
32k Samples @ 200 kSps
0
-20
-40
-60
-80
-100
-120
-140
-160
0 20k 40k 60k 80k 100k
Frequency (Hz)
5.55 kHz, -6 dB
32k Samples @ 200 kSps
Figure 11. Spectral Performance, 0 dB Figure 12. Spectral Performance, -6 dB
0
-20
-40
-60
-80
-100
-120
-140
-160
0 20k 40k 60k 80k 100k
Frequency (Hz)
5.55 kHz, -12 dB
32k Samples @ 200 kSps
0
-20
-40
-60
-80
-100
-120
-140
-160
0 20k 40k 60k 80k 100k
Frequency (Hz)
5.55 kHz, -80 dB
32k Samples @ 200 kSps
Figure 13. Spectral Performance, -12 dB Figure 14. Spectral Performance, -80 dB
0
-20
-40
-60
-80
-100
-120
-140
-160
0 20k 40k 60k 80k 100k
Frequency (Hz)
5.55 kHz, -100 dB
32k Samples @ 200 kSps
Figure 15. Spectral Performance, -100 dB
DS796PP1 21
3/25/08
14:34
Figure 16 illustrates the noise floor of the converter from 0.1 Hz to 100 kHz. While the plot does exhibit
some 1/f noise at lower frequencies, the noise floor is entirely free of spurious frequency content due to
digital activity inside the chip.
Figure 17 illustrates a noise histogram of 4096 samples.
0
-20
-40
-60
-80
-100
-120
-140
Shorted Input
2M Samples @ 200 kSps
16 Averages
CS5581
-160
0.1 1 10 100 1k 10k
Frequency (Hz)
100k
Figure 16. Spectral Plot of Noise with Shorted Input
900
800
700
600
500
400
300
200
100
0
-8-7-6-5-4-3-2-1012345678
Mean = -0.61
Std. Dev = 2.33
Output (Codes)
Figure 17. Noise Histogram (4096 Conversions)
22 DS796PP1
3/25/08
k
14:34
3.9 Digital Filter Characteristics
The digital filter is designed for fast settling, therefore it exhibits very little in-band attenuation. The filter
attenuation is 0.26347 dB at 100 kHz when sampling at 200 kSps.
0.00
-0.05
-0.01049 dB
-0.04206 dB
fs = 200 kSps
CS5581
-0.10
-0.15
-0.20
-0.25
-0.30
0 20k 40k 60k 80k 100k
-0.09443 dB
-0.16813 dB
-0.26347 dB
Frequency(Hz)
Figure 18. CS5581 Spectral Response (DC to fs/2)
0.00
-0.006283 dB
-0.002622 dB
-0.005
-0.01
-0.015
0 5k 10k 15k 20
Frequency(Hz)
fs = 200 kSps
-0.005901 dB
-0.01049 dB
Figure 19. CS5581 Spectral Response (DC to 20 kHz)
0
-20
-40
-60
-80
-100
-120
0 400k 800k 1.2M 1.6M
Frequency(Hz)
fs = 200 kSps
Figure 20. CS5581 Spectral Response (DC to 8fs)
DS796PP1 23
3/25/08
14:34
3.10 Serial Port
The serial port on the CS5581 can operate in two different modes: synchronous self clock (SSC) mode &
synchronous external clock (SEC) mode.
3.10.1 SSC Mode
If the SMODE pin is high (SMODE = VL), the serial port operates in the SSC (Synchronous Self Clock)
mode. In the SSC mode the port shifts out conversion data words with SCLK as an output. SCLK is generated inside the converter from MCLK. Data is output from the SDO (Serial Data Output) pin. If CS
high, the SDO and SCLK pins will stay in a high-impedance state. If CS
version data word will be output from SDO MSB first. Data is output on the rising edge of SCLK and should
be latched into the external logic on the subsequent rising edge of SCLK. When all bits of the conversion
word are output from the port the RDY
3.10.2 SEC Mode
If the SMODE pin is low (SMODE = VLR), the serial port operates in the SEC (Synchronous External
Clock mode). In this mode, the user usually monitors RDY
the conversion data word is placed into the output data register in the serial port. CS
to enable data output. Note that CS
output operate in the high impedance state. When CS
word is then shifted out of the SDO pin by driving the SCLK pin from system logic external to the convert er.
Data bits are advanced on rising edges of SCLK and latched by the subsequent rising edge of SCLK.
signal will return to high.
. When RDY falls at the end of a conversion,
can be held low continuously if it is not necessary to have the SDO
is taken low (after RDY falls) the conversion data
is low when RDY falls, the con-
is then activated low
CS5581
is
is held low continuously, the RDY signal will fall at the end of a conversion and th e conversio n data
If CS
will be placed into the serial port. If the user starts a read, th e user will maintain control over th e serial port
until the port is empty. However, if SCLK is not toggled, the converter will overwrite the conversion data
at the completion of the next conversion. If CS
prior to the end of the next conversion and then fall to signal that new data has been written into the serial
port.
is held low and no read is performed, RDY will rise just
3.11 Power Supplies & Grounding
The CS5581 can be configured to operate with its analog supply operating from 5V, or with its analog supplies operating from ±2.5V. The digital interface supports digital logic operating from either 1.8V, 2.5V, or
3.3V.
Figure 6 on page 17 illustrates the device configured to operate from ±2.5V analog. Figure 7 on page 18
illustrates the device configured to operate from 5V analog.
To maximize converter performance, the analog ground and the logic ground for the converter should b e
connected at the converter. In the dual analog supply configuration, the analog ground for the ±2.5V supplies should be connected to the VLR pin at the converter with the converter placed entirely over the analog ground plane.
In the single analog supply configuration (+5V), the ground for the +5V supply should be directly tied to
the VLR pin of the converter with the converter placed entirely over the analog ground plane. Refer to
Figure 7 on page 18.
24 DS796PP1
3/25/08
14:34
3.12 Using the CS5581 in Multiplexing Applications
The CS5581 is a delta-sigma A/D converter. Delta-sigma converters use oversampling as means to
achieve high signal to noise. This means that once a conversion is started, the convert er takes many samples to compute the resulting output word. The analog input for the signal to be converted must remain
active during the entire conversion until RDY
The CS5581 can be used in multiplexing applications, but the system timing for changing the multip lexer
channel and for starting a new conversion will depend upon the multiplexer system architecture.
The simplest system is illustrated in Figure 21. Any time the multiplexer is changed, the analog signal
presented to the converter must fully settle. After the signal has settled, the CONV
converter to start a conversion. Being a delta-sigma converter, the signal must remain present at the input
of the converter until the conversion is completed. Once the conversion is completed, RDY
time the multiplexer can be changed to the next channel and the data can be read from the serial port.
The CONV
signal should be delayed until after the data is read and until the new analog signal has settled.
In this configuration, the throughput of the converter will be dictated by the settling time of the analog input
circuit and the conversion time of the converter. The conversion data can be read from the serial port after
the multiplexer is changed to the new channel while the analog input signal is settling.
falls.
signal is issued to the
CS5581
falls. At this
CONV
RDY
Advance
Mux
CH1
CH2
CH3
CH4
CS5581
90
150pF
2k
4700pF
C0G
AIN
ACOM
Amplifier
Settling Time
CH1 CH2
Conversion Time
Throughput
Settling Time
Amplifier
Figure 21. Simple Multiplexing Scheme
A more complex multiplexing scheme can be used to increase the throughput of the converter is illustrated
in Figure 22. In this circuit, two banks of multiplexers are used.
DS796PP1 25
3/25/08
14:34
At the same time the converter is performing a conversion on a channel from one bank of multiplexers,
the second multiplexer bank is used to select the channel for the next conversion. This configuration allows the buffer amplifier for the second multiplexer bank to fully settle while a conversion is being performed on the channel from the first multiplexer bank. The multiplexer on the output of the buffer amplifier
and the CONV
ture allows for maximum multiplexing throughput from the A/D converter. The following figure depicts t he
recommended analog input amplifier circuit.
signal can be changed at the same time in this configuration. This multiplexing architec-
CS5581
CONV
SW1
CH1
CH3
CH2
CH4
SW2
90
150pF
2k
4700pF
C0G
A1
A2
SW3
90
150pF
2k
Select A1 Select A2 Select A1 Select A2
4700pF
C0G
CS5581
SW1
AIN
ACOM
Select A1
SW2
SW3
Select CH1 Select CH3 Select CH1
Select CH2 Select CH4 Select CH2
Convert on CH1 Convert on CH1Convert on CH4Convert on CH3Convert on CH2
Figure 22. More Complex Multiplexing Scheme
26 DS796PP1
3/25/08
14:34
3.13 Synchronizing Multiple Converters
Many measurement systems have multiple converters that need to operate synchronously. The converters should all be driven from the same master clock. In this configuration, the converters will convert synchronously if the same CONV
of MCLK. If CONV
if RST
is released on a falling edge of MCLK.
is held low continuously, reset (RST) can be used to synchronize multiple converters
signal is used to drive all the converters, and CONV falls on a falling edge
CS5581
DS796PP1 27
4. PIN DESCRIPTIONS
3/26/08
10:50
CS5581
CSChip Select
TSTFactory Test
SMODESerial Mode Select
AINAnalog Input
ACOMAnalog Return
V1-Negative Power 1
V1+Positive Power 1
BUFENBuffer Enab le
VREF+Voltage Reference Input
VREF-Voltage Reference Input
BP/UPBipola r/Un ipolar S elect
VLR2Logic Interface Return 2
CS – Chip Select, Pin 1
The Chip Select pin allows an external device to access the serial port. When held high, the
SDO output will be held in a high-impedance output state.
TST – Factory Test, Pin 2
For factory use only. Connect to VLR.
SMODE – Serial Mode Select, Pin 3
The serial interface mode pin (SMODE) dictates whether the serial port behaves as a master or
slave interface. If SMODE is tied high (to VL), the port will operate in the Synchronous
Self-Clocking (SSC) mode. In SSC mode, the port acts as a master in which the converter outputs both the SDO and SCLK signals. If SMODE is tied low (to VLR), the port will operate in the
Synchronous External Clocking (SEC) mode. In SEC mode, the port acts as a slave in which
the external logic or microcontroller generates the SCLK used to output the conversion data
word from the SDO pin.
1
2
3
4
5
6
7
8
9
10
11
12
24
RDY Ready
23
SCLK Serial Clock In put/Output
22
SDO Se ri a l D ata Output
21
VL Logic Interface Power
20
VLR Logic Inte rface Re turn
19
MCLK Master Clock
18
V2- Negative Voltage 2
17
V2+ Positive Voltage 2
16
DCR Digital Core Regulator
15
CONV Convert
14
VLR3 Logic Interface Return 3
13
RST Reset
AIN – Analog Input, Pin 4
AIN is the single-ended input.
ACOM – Analog Return, Pin 5
ACOM is the analog return for the input signal.
V1- – Negative Power 1, Pin 6
The V1- and V2- pins provide a negative supply voltage to the core circuitry of the chip. These
two pins should be decoupled as shown in the application block diagrams. V1- and V2- should
be supplied from the same source voltage. For single-supply operation, these two voltages are
nominally 0 V (Ground). For dual-supply, operation they are nominally -2.5 V.
V1+ – Positive Power 1, Pin 7
The V1+ and V2+ pins provide a positive supply voltage to the core circuitry of the chip. These
two pins should be decoupled as shown in the application block diagrams. V1+ and V2+ sho uld
be supplied from the same source voltage. For single-supply operation, these two voltages are
nominally +5 V. For dual-supply operation, they are nominally +2.5 V.
BUFEN – Buffer Enable, Pin 8
Buffers on input pins AIN and ACOM ar e en abled if BUFEN is connected to V1+ a nd disabled if
connected to V1-.
VREF+, VREF- – Voltage Reference Input, Pins 9, 10
A differential voltage reference input on these pins functions as the voltage reference for the
converter. The voltage between these pins can range between 2.4 volts and 4.2 volts, with
4.096 volts being the nominal reference voltag e value.
28 DS796PP1
BP/UP – Bipolar/Unipolar Select, Pin 11
The BP/UP
select BP (bipolar), the input span of the converter is -2.048 volt s to +2.048 vo lt s (assuming the
voltage reference is 4.096 volts) and output data is coded in two's complement format. When
set low to select UP
binary format.
– Reset, Pin 13
RST
Reset is necessary after power is initially applied to the converter. When the RST
low, the logic in the converter will be reset. When RST
the analog circuitry are started. RDY
CONV
– Convert, Pin 15
The CONV
progress. When the conversion cycle is completed, the conversion word is output to the serial
port register and the RDY
falls, another conversion cycle will be started.
DCR – Digital Core Regulator, Pin 16
DCR is the output of the on-chip regulator for the digital logic core. DCR should be bypassed
with a capacitor to V2- as shown in
not designed to power any external load.
pin determines the span and the output coding of the converter. When set high to
(unipolar), the input span is 0 to +2.048 and the output data is coded in
pin initiates a conversion cycle if taken low, unless a previous conversion is in
signal goes low . If CONV is held low and remains low when RDY
3/25/08
14:34
is released to go high, certain portions of
falls when reset is complete.
Typical Connection Diagrams on page 17. The DCR pin is
CS5581
input is taken
V2+ – Positive Power 2, Pin 17
V2- – Negative Power 2, Pin 18
MCLK – Master Clock, Pin 19
VLR2, VLR3,
VLR, VL
SDO – Serial Data Output, Pin 22
The V1+ and V2+ pins provide a positive supply voltage to the circuitry of the chip. These two
pins should be decoupled as shown in the application block diagrams. V1+ and V2+ should be
supplied from the same source voltage. For single-supply operation, these two voltages are
nominally +5 V. For dual-supply operation, they are nominally +2.5 V.
The V1- and V2- pins provide a negative supply voltage to the circuitry of the chip. These two
pins should be decoupled as shown in the application block diagrams. V1- and V2- should be
supplied from the same source voltage. For single-supply operation, these two voltages are
nominally 0 V (Ground). For dual-supply operation, they are nominally -2.5 V.
The master clock pin (MCLK) is a multi-function pin. If tied low (MCLK = VLR), the on-chip oscillator will be enabled. If tied high (MCLK = VL), all clocks to the internal circuitry of the converter
will stop. When MCLK is held high the internal oscillator will also be stopped. MCLK can also
function as the input for an external CMOS-compatible clock that conforms to supply voltages
on the VL and VLR pins.
– Logic Interface Power/Return, Pins 12, 14, 20, 21
VL and VLR are the supply voltages for the digital logic interface. VL and VLR can be configured with a wide range of common mode vol tage. The following interface pins function from the
VL/VLR supply: SMODE, CS
SDO is the output pin for the serial output port. Data from this pin will be output at a rate determined by SCLK and in a format determined by the BP/UP
advances to the next data bit on the rising edges of SCLK. SDO will be in a high impedance
state when CS
is high.
, SCLK, TST, SDO, RDY, CONV, RST, BP/UP, and MCLK.
pin. Data is output MSB first and
DS796PP1 29
3/25/08
14:34
SCLK – Serial Clock Input/Output, Pin 23
The SMODE pin determines whether the SCLK signal is an input or an output signal. SCLK
determines the rate at which data is clocked out of the SDO pin. If the converter is in SSC
mode, the SCLK frequency will be determined by the master clock frequency of the converter
(either MCLK or the internal oscillator). In SEC mode, the user determines the SCLK frequency .
If SCLK is an output (SMODE = VL), it will be in a high-impedance state when CS
– Ready, Pin 24
RDY
At the end of any conversion RDY
the serial port. RDY
ter clock cycles before new data becomes available if the CS
ter clock cycles before new data becomes available if the user holds CS
reading the data from the converter when in SEC mode.
will return high after all data bits are shifted out of the serial port or two mas-
CS5581
is high.
falls to indicate that a conversion word has been placed into
pin is inactive (high); or two mas-
low but has not started
30 DS796PP1
5. PACKAGE DIMENSIONS
24L SSOP PACKAGE DRAWING
N
3/25/08
14:34
CS5581
D
E
A2
A
E1
1
∝
2
b
SIDE VIEW
1
23
e
TOP VIEW
INCHES MILLIMETERS NOTE
DIM MIN NOM MAX MIN NOM MAX
A -- -- 0.084 -- -- 2.13
A1 0.002 0.006 0.010 0.05 0.13 0.25
A2 0.064 0.068 0.074 1.62 1.73 1.88
b 0.009 -- 0.015 0.22 -- 0.38 2,3
D 0.311 0.323 0.335 7.90 8.20 8.50 1
E 0.291 0.307 0.323 7.40 7.80 8.20
E1 0.197 0.209 0.220 5.00 5.30 5.60 1
e 0.022 0.026 0.030 0.55 0.65 0.75
L 0.025 0.03 0.041 0.63 0.75 1.03
∝
0° 4° 8° 0° 4° 8°
A1
SEATING
PLANE
L
END VIEW
JEDEC #: MO-150
Controlling Dimension is Millimeters.
Notes: 1.“D” and “E1” are reference datums and do not included mold flash or protrusions, but do include mold mismatch and are measured
at the parting line, mold flash or protrusions shall not exceed 0.20 mm per side.
2.Dimension “b” does not include dambar protrusion/intrusion. Allowable dambar protrusion shall be 0.13 mm total in excess of “b”
dimension at maximum material condition. Dambar intrusion shall not reduce dimension “b” by more than 0.07 mm at least
material condition.
3.These dimensions apply to the flat section of the lead between 0.10 and 0.25 mm from lead tips.
DS796PP1 31
3/25/08
14:34
6. ORDERING INFORMATION
Model Linearity Temperature Conversion Time Throughput Package
CS5581-ISZ .0 00 8% -40 to +85 °C 5 µs 200 kSps 24-pin SSOP
7. ENVIRONMENTAL, MANUFACTURING, & HANDLING INFORMATION
Model Number Peak Reflow Temp MSL Rating* Max Floor Life
CS5581
CS5581-ISZ
260 °C 3 7 Days
* MSL (Moisture Sensitivity Level) as specified by IPC/JEDEC J-STD-020.
8. REVISION HISTORY
Revision Date Changes
PP1 MAR 2008 Preliminary release.
Contacting Cirrus Logic Support
For all product questions and inquiries contact a Cirrus Logic Sales Representative.
To find the one nearest to you go to www.cirrus.com
IMPORTANT NOTICE
"Preliminary" product information descr ibes products that are in production, but for which full characterizatio n da ta is no t yet available.
Cirrus Logic, Inc. and its subsidiaries ("Cirrus") believe that the information contained in this document is accurate and reliable. However, the information is subject
to change without noti ce and is p rovided "AS I S" withou t warrant y of any k ind (expres s or implie d). Customer s are advi sed to ob tain the latest version of relevant
