CS5530
VA+ C1 C2 VREF+ VREF- VD+
DIFFERENTIAL
4
TH
ORDER
ΔΣ
MODULATOR
PROGRAMMABLE
SINC FIR FILTER
AIN1+
AIN1-
SERIAL
INTERFACE
LATCH
CLOCK
GENERATOR
CALIBRATION
SRAM/CONTROL
LOGIC
DGND
CS
SDI
SDO
SCLK
OSC2OSC1A1A0VA-
64X
24-bit ADC with Ultra-low-noise Amplifier
Features & Description
Chopper-stabilized Instrumentation
Amplifier, 64X
• 12 nV/√Hz @ 0.1 Hz (No 1/f noise)
• 1200 pA Input Current
Digital Gain Scaling up to 40x
Delta-sigma Analog-to-digital Converter
• Linearity Error: 0.0015% FS
• Noise Free Resolution: Up to 19 bits
Scalable V
Simple Three-wire Serial Interface
• SPI™ and Microwire™ Compatible
• Schmitt-trigger on Serial Clock (SCLK)
Onboard Offset and Gain Calibration
Registers
Selectable Word Rates: 6.25 to 3,840 Sps
Selectable 50 or 60 Hz Rejection
Power Supply Configurations
• VA+ = +5 V; VA- = 0 V; VD+ = +3 V to +5 V
• VA+ = +2.5 V; VA- = -2.5 V; VD+ = +3 V to +5 V
• VA+ = +3 V; VA- = -3 V; VD+ = +3 V
Input: Up to Analog Supply
REF
General Description
The CS5530 is a highly integrat ed ΔΣ Analog-to-Digital
Converter (ADC) which uses charge-balance techniques
to achieve 24-bit performance. The ADC is optimized for
measuring low-level unipolar or bipolar signals in weigh
scale, process control, scientific, and medical
applications.
To accommodate these applications, the ADC
a very-low-noise, chopper-stabilized instrumentation
amplifier (12 nV/√Hz
@ 0.1 Hz) with a gain of 64X. This
device also includes a fourth-order ΔΣ modulator followed by a digital filter
which provides twenty selectable
output word rates of 6.25, 7.5, 12.5, 15, 25, 30, 50, 60, 100,
120, 200, 240, 400, 480, 800, 960, 1600, 1920, 3200, and
3840 Sps (MCLK = 4.9152 MHz).
To ease communication between the ADC and a microcontroller, the converter includes a simple three-wire serial interface which is SPI and Microwire compatible with
a Schmitt-trigger input on the serial clock (SCLK).
High dynamic range, programmable output rates, and
flexible power supply options make this device an ideal
solution for weigh scale and process control
applications.
ORDERING INFORMATION
See page 35.
includes
http://www.cirrus.com
Copyright Cirrus Logic, Inc. 2009
(All Rights Reserved)
NOV ‘09
DS742F3
CS5530
TABLE OF CONTENTS
1. CHARACTERISTICS AND SPECIFICATIONS ................................................................. 4
ANALOG CHARACTERISTICS................................................................................ 4
TYPICAL NOISE-FREE RESOLUTION (BITS)........................................................6
5 V DIGITAL CHARACTERISTICS .......................................................................... 7
3 V DIGITAL CHARACTERISTICS .......................................................................... 7
DYNAMIC CHARACTERISTICS..............................................................................8
ABSOLUTE MAXIMUM RATINGS...........................................................................8
SWITCHING CHARACTERISTICS..........................................................................9
2. GENERAL DESCRIPTION .............................................................................................. 11
2.1. Analog Input ........................................................................................................... 11
2.1.1. Analog Input Span .......................................................................................... 12
2.1.2. Voltage Noise Density Performance ...........................................................12
2.1.3. No Offset DAC ............................................................................................ 12
2.2. Overview of ADC Register Structure and Operating Modes .................................. 12
2.2.1. System Initialization .................................................................................... 12
2.2.2. Command Register Descriptions ................................................................14
2.2.3. Serial Port Interface .................................................................................... 16
2.2.4. Reading/Writing On-Chip Registers ............................................................ 17
2.3. Configuration Register ...........................................................................................17
2.3.1. Power Consumption ................................................................................... 17
2.3.2. System Reset Sequence ............................................................................17
2.3.3. Input Short ..................................................................................................17
2.3.4. Voltage Reference Select .......................................................................... 17
2.3.5. Output Latch Pins .......................................................................................18
2.3.6. Filter Rate Select ........................................................................................18
2.3.7. Word Rate Select ........................................................................................ 18
2.3.8. Unipolar/Bipolar Select ...............................................................................18
2.3.9. Open Circuit Detect .................................................................................... 18
2.3.10. Configuration Register Description ...........................................................19
2.4. Calibration .............................................................................................................. 21
2.4.1. Calibration Registers .................................................................................. 21
2.4.2. Gain Register .............................................................................................21
2.4.3. Offset Register ...........................................................................................21
2.4.4. Performing Calibrations ..............................................................................22
2.4.5. System Calibration ...................................................................................... 22
2.4.6. Calibration Tips ...........................................................................................22
2.4.7. Limitations in Calibration Range ................................................................. 23
2.5. Performing Conversions ........................................................................................ 23
2.5.1. Single Conversion Mode ............................................................................. 23
2.5.2. Continuous Conversion Mode .................................................................... 24
2.6. Using Multiple ADCs Synchronously ..................................................................... 25
2.7. Conversion Output Coding ....................................................................................25
2.7.1. Conversion Data Output Descriptions ........................................................ 26
2.8. Digital Filter ............................................................................................................ 27
2.9. Clock Generator .....................................................................................................28
2.10. Power Supply Arrangements ................................................................................. 28
2.11. Getting Started ....................................................................................................... 31
2.12. PCB Layout ............................................................................................................ 31

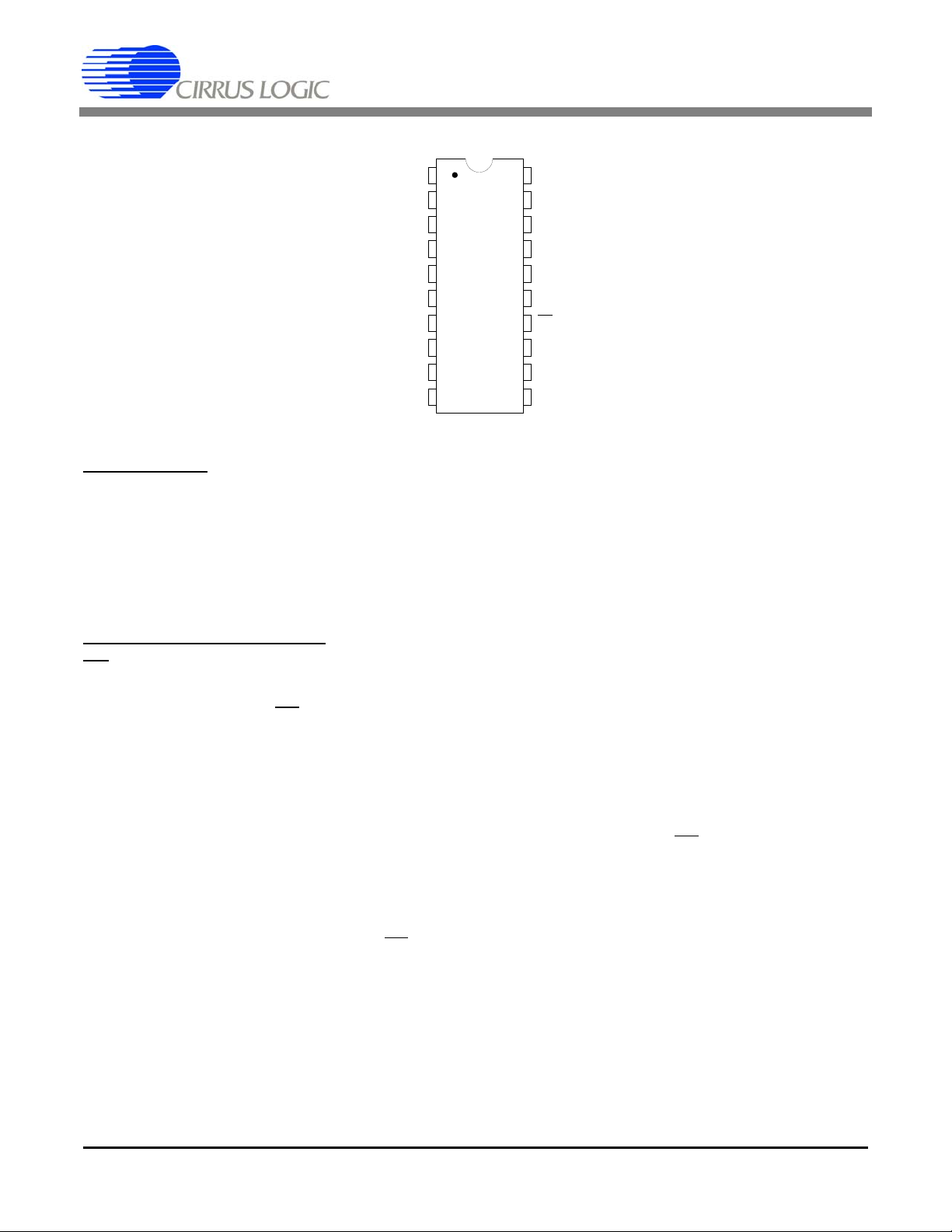

3. PIN DESCRIPTIONS ......................................................................................................32
Clock Generator ......................................................................................................32
Control Pins and Serial Data I/O .............................................................................32
Measurement and Reference Inputs ......................................................................33
Power Supply Connections .....................................................................................33
4. SPECIFICATION DEFINITIONS ..................................................................................... 33
5. PACKAGE DRAWINGS ..................................................................................................34
6. ORDERING INFORMATION .......................................................................................... 35
7. ENVIRONMENTAL, MANUFACTURING, & HANDLING INFORMATION .................... 35
2 DS742F3
LIST OF FIGURES
Figure 1. SDI Write Timing (Not to Scale)...............................................................................10
Figure 2. SDO Read Timing (Not to Scale).............................................................................10
Figure 3. Front End Configuration...........................................................................................11
Figure 4. Input Model for AIN+ and AIN- Pins.........................................................................11
Figure 5. Measured Voltage Noise Density................ .............................................................12
Figure 5. Measured Voltage Noise Density................ .............................................................12
Figure 6. CS5530 Register Diagram.......................................................................................13
Figure 7. Command and Data Word Timing ...........................................................................16
Figure 8. Input Reference Model when VRS = 1 ....................................................................18
Figure 9. Input Reference Model when VRS = 0 ....................................................................18
Figure 10. System Calibration of Offset..................................................................................22
Figure 11. System Calibration of Gain ....................................................................................22
Figure 12. Synchronizing Multiple ADCs.................................................................................25
Figure 13. Digital Filter Response (Word Rate = 60 Sps).......................................................27
Figure 14. 120 Sps Filter Magnitude Plot to 120 Hz ...............................................................27
Figure 15. 120 Sps Filter Phase Plot to 120 Hz......................................................................27
Figure 16. Z-Transforms of Digital Filters................................................................................27
Figure 17. On-chip Oscillator Model........................................................................................28
Figure 18. CS5530 Configured with a Single +5 V Supply ............................................... ... ...29
Figure 19. CS5530 Configured with ±2.5 V Analog Supplies..................................................29
Figure 20. CS5530 Configured with ±3 V Analog Supplies.....................................................30
CS5530
LIST OF TABLES
Table 1. Conversion Timing for Single Mode..........................................................................24
Table 2. Conversion Timing for Continuous Mode..................................................................24
Table 3. Output Coding...........................................................................................................25
DS742F3 3
CS5530
1. CHARACTERISTICS AND SPECIFICATIONS
ANALOG CHARCTERISTICS
(VA+, VD+ = 5 V ±5%; VREF+ = 5 V; VA-, VREF-, DGND = 0 V; MCLK = 4.9152 MHz;
OWR (Output Word Rate) = 60 Sps; Bipolar Mode)
(See Notes 1 and 2.)
CS5530-CS
Parameter
Accuracy
Linearity Error - ±0.0015 ±0.003 %FS
No Missing Codes 24 - - Bits
Bipolar Offset - ±16 ±32 LSB
Unipolar Offset - ±32 ±64 LSB
Offset Drift (Notes 3 and 4) - 10 - nV/°C
Bipolar full-scale Error - ±8 ±31 ppm
Unipolar full-scale Error - ±16 ±62 ppm
full-scale Drift (Note 4) - 2 - ppm/°C
UnitMin Typ Max
24
24
Notes: 1. Applies after system calibration at any temperature within -40 °C to +85 °C.
2. Specifications guaranteed by design, characterization, and/or test. LSB is 24 bits.
3. This specification applies to the device only and does not include any effects by external parasitic
thermocouples.
4. Drift over specified temperature range after calibration at power-up at 25 °C.
4 DS742F3
CS5530
ANALOG CHARACTERISTICS (Continued)
(See Notes 1 and 2.)
Parameter Min Typ Max Unit
Analog Input
Common Mode + Signal on AIN+ or AIN- Bipolar/Unipolar Mode (VA-) + 1.6 - (VA+) - 1.6 V
CVF Current on AIN+ or AIN- - 1200 - pA
Input Current Noise - 1 - pA/√Hz
Open Circuit Detect Current 100 300 - nA
Common Mode Rejection DC
50, 60 Hz
Input Capacitance - 10 - pF
Voltage Reference Input
Range (VREF+) - (VREF-) 1 2.5 (VA+)-(VA-) V
CVF Current (Note 5, 6) - 50 - nA
Common Mode Rejection DC
50, 60 Hz
Input Capacitance 11 - 22 pF
System Calibration Specifications
Full-scale Calibration Range Bipolar/Unipolar Mode 3 - 110 %FS
Offset Calibration Range Bipolar Mode -100 - 100 %FS
Offset Calibration Range Unipolar Mode -90 - 90 %FS
-
-
-
-
130
120
120
120
-
-
-
-
dB
dB
dB
dB
Notes: 5. See the section of the data sheet which discusses input models.
6. Input current on VREF+ or VREF- may increase to 250 nA if operated within 50 mV of VA+ or VA-. This
is due to the rough charge buffer being saturated under these conditions.
DS742F3 5
ANALOG CHARACTERISTICS (Continued)
(See Notes 1 and 2.)
Parameter
Power Supplies
DC Power Supply Currents (Normal Mode) I
Power Consumption Normal Mode (Note 7)
Power Supply Rejection (Note 8)
7. All outputs unloaded. All input CMOS levels.
8. Tested with 100 mV change on VA+ or VA-.
A+, IA-
I
D+
Standby
Sleep
DC Positive Supplies
DC Negative Supply
CS5530-CS
Min Typ
-
-
-
-
-
-
-
6
0.6
35
5
500
115
115
CS5530
Max
1.0
45
Unit
8
mA
mA
mW
-
mW
-
µW
-
-
dB
dB
TYPICAL NOISE-FREE RESOLUTION (BITS) (See Notes 9 and 10)
Output Word Rate (Sps) -3 dB Filter Frequency (Hz) Noise-free Bits
7.5 1.94 19 17
15 3.88 19 24
30 7.75 18 34
60 15.5 18 48
120 31 17 68
240 62 16 115
480 122 16 163
960 230 15 229
1,920 390 15 344
3,840 780 13 1390
9. Noise Free Resolution listed is for Bipolar operation, and is calculated as LOG((Input Span)/(6.6xRMS
Noise))/LOG(2) rounded to the nearest bit. For Unipolar operatio n, the input span is 1/2 as large, so one
bit is lost. The input span is calculated in the analog input span section of the data sheet. The Noise
Free Resolution table is computed with a value of 1.0 in the gain register. Values other than 1.0 will
scale the noise, and change the Noise Free Resolution accordingly.
10. “Noise Free Resolution” is not the same as “Effective Resolution”. Effective Resolution is based on the
RMS noise value, while Noise Free Resolution is based on a peak-to-peak noise value specified a s 6.6
times the RMS noise value. Effective Resolution is calculated as LOG((Input Span)/(RMS
Noise))/LOG(2).
Noise (nV
rms
)
Specifications are subject to change without notice.
6 DS742F3
5 V DIGITAL CHARACTERISTICS
(VA+, VD+ = 5 V ±5%; VA-, DGND = 0 V; See Notes 2 and 11.)
Parameter Symbol Min Typ Max Unit
High-Level Input Voltage All Pins Except SCLK
SCLK
Low-Level Input Voltage All Pins Except SCLK
SCLK
High-Level Output Voltage A0 and A1, I
SDO, I
Low-Level Output Voltage A0 and A1, I
SDO, I
= -1.0 mA
out
= -5.0 mA
out
= 1.0 mA
out
= 5.0 mA
out
Input Leakage Current I
SDO 3-State Leakage Current I
Digital Output Pin Capacitance C
V
IH
0.6 VD+
(VD+) - 0.45--
V
IL
0.0
0.0
V
OH
(VA+) - 1.0
(VD+) - 1.0
V
OL
in
OZ
out
- - (VA-) + 0.4
-±1±10µA
--±10µA
-9-pF
3 V DIGITAL CHARACTERISTICS
(TA = 25 °C; VA+ = 5V ±5%; VD+ = 3.0V±10%; VA-, DGND = 0V; See Notes 2 and 11.)
CS5530
VD+
VD+
-0.8
0.6
--V
0.4
V
V
V
Parameter Symbol Min Typ Max Unit
High-Level Input Voltage All Pins Except SCLK
SCLK
Low-Level Input Voltage All Pins Except SCLK
SCLK
High-Level Output Voltage A0 and A1, I
SDO, I
Low-Level Output Voltage A0 and A1, I
SDO, I
= -1.0 mA
out
= -5.0 mA
out
= 1.0 mA
out
= 5.0 mA
out
Input Leakage Current I
SDO 3-State Leakage Current I
Digital Output Pin Capacitance C
11. All measurements performed under static conditions.
V
IH
V
IL
V
OH
0.6 VD+
(VD+) - 0.45
0.0
0.0
(VA+) - 1.0
-VD+
V
VD+
-0.8
V
0.6
--V
(VD+) - 1.0
V
OL
- - (VA-) + 0.4
V
0.4
in
OZ
out
-±1±10µA
--±10µA
-9-pF
DS742F3 7
DYNAMIC CHARACTERISTICS
Parameter Symbol Ratio Unit
Modulator Sampling Rate f
Filter Settling Time to 1/2 LSB (full-scale Step Input)
Single Conversion mode (Notes 12, 13, and 14)
Continuous Conversion mode, OWR < 3200 Sps
Continuous Conversion mode, OWR ≥ 3200 Sps
CS5530
s
t
s
t
s
t
s
MCLK/16 Sps
1/OWR
5/OWR
sinc5
SC
+ 3/OWR
5/OWR
s
s
s
12. The ADCs use a Sinc5 filter for the 3200 Sps and 3840 Sps output word rate (OWR) and a Sinc5 filter
followed by a Sinc
(FRS = 0) word rate associated with the Sinc
3
filter for the other OWRs. OWR
5
filter.
refers to the 3200 Sps (FRS = 1) or 3840 Sps
sinc5
13. The single conversion mode only outputs fully settled conversions. See Table 1 for more details about
single conversion mode timing. OWR
is used here to designate the different conversion time
SC
associated with single conversions.
14. The continuous conversion mode outputs every conversion. This means that the filter’s settling time
with a full-scale step input in the continuous conversion mode is dictated by the OWR.
ABSOLUTE MAXIMUM RATINGS
(DGND = 0 V; See Note 15.)
Parameter Symbol Min Typ Max Unit
DC Power Supplies (Notes 16 and 17)
Positive Digital
Positive Analog
Negative Analog
Input Current, Any Pin Except Supplies (Notes 18 and 19) I
Output Current I
Power Dissipation (Note 20) PDN - - 500 mW
Analog Input Voltage VREF pins
AIN Pins
Digital Input Voltage V
Ambient Operating Temperature T
Storage Temperature T
VD+
VA+
VA-
IN
OUT
V
INR
V
INA
IND
A
stg
-0.3
-0.3
+0.3
-
-
-
+6.0
+6.0
-3.75
V
V
V
--±10mA
--±25mA
(VA-) -0.3
(VA-) -0.3--
(VA+) + 0.3
(VA+) + 0.3VV
-0.3 - (VD+) + 0.3 V
-40 - 85 °C
-65 - 150 °C
Notes: 15. All voltages with respect to ground.
16. VA+ and VA- must satisfy {(VA+) - (VA-)} ≤ +6.6 V.
17. VD+ and VA- must satisfy {(VD+) - (VA-)} ≤ +7.5 V.
18. Applies to all pins including continuous overvoltage conditions at the analog input (AIN) pins.
19. Transient current of up to 100 mA will not cause SCR latch-up. Maximum input current for a power
supply pin is ±50 mA.
20. Total power dissipation, including all input currents and output currents.
WARNING: Operation at or beyond these limits may result in permanent damage to the device.
Normal operation is not guaranteed at these extremes.
8 DS742F3
CS5530
SWITCHING CHARACTERISTICS
(VA+ = 2.5 V or 5 V ±5%; VA- = -2.5V±5% or 0 V; VD+ = 3.0 V ±10% or 5 V ±5%;DGND = 0 V; Levels: Logic 0 = 0
V, Logic 1 = VD+; C
Master Clock Frequency (Note 21)
Master Clock Duty Cycle 40 - 60 %
Rise Times (Note 22)
Fall Times (Note 22)
Start-up
Oscillator Start-up Time XTAL = 4.9152 MHz (Note 23) t
Serial Port Timing
Serial Clock Frequency SCLK 0 - 2 MHz
Serial Clock Pulse Width High
SDI Write Timing
CS
Enable to Valid Latch Clock t
Data Set-up Time prior to SCLK rising t
Data Hold Time After SCLK Rising t
SCLK Falling Prior to CS
SDO Read Timing
to Data Valid t
CS
SCLK Falling to New Data Bit t
Rising to SDO Hi-Z t
CS
= 50 pF; See Figures 1 and 2.)
L
Parameter Symbol Min Typ Max Unit
MCLK
External Clock or Crystal Oscillator
Any Digital Input Except SCLK
SCLK
Any Digital Output
Any Digital Input Except SCLK
SCLK
Any Digital Output
Pulse Width Low
Disable t
t
t
rise
fall
ost
t
1
t
2
3
4
5
6
7
8
9
1 4.9152 5 MHz
-
-
-
-
-
-
50
50
-
-
1.0
100
-
-
-
1.0
100
-
-20-ms
250
250
-
-
-
-
50 - - ns
50 - - ns
100 - - ns
100 - - ns
--150ns
--150ns
--150ns
µs
µs
ns
µs
µs
ns
ns
ns
Notes: 21. Device parameters are specified with a 4.9152 MHz clock.
22. Specified using 10% and 90% points on waveform of interest. Output loaded with 50 pF.
23. Oscillator start-up time varies with crystal parameters. This specification does not apply when using an
external clock source.
DS742F3 9
CS5530
CS
SCLK
MSB
MSB-1
LSB
SDI
t3
t6t4 t5 t1
t2
Figure 1. SDI Write Timing (Not to Scale)
CS
SCLK
MSB MSB-1
LSB
SDO
t7
t9
t8
t1
t2
Figure 2. SDO Read Timing (Not to Scale)
10 DS742F3
2. GENERAL DESCRIPTION
VREF+
Sinc
Digital
Filter
64x
AIN+
AIN-
X1
VREF-
X1
Differe n tia l
4 Order
ΔΣ
Modulator
th
5
Programmable
Sinc
Digital Filter
3 Serial
Port
1000
Ω
1000 Ω
22 nF
C1 PIN
C2 PIN
Figure 3. Front End Configuration
AIN
C
= 3.9 pF
f =
V ≤ 8 mV
i = fV C
os
os
n
MCLK
128
Figure 4. Input Model for AIN+ and AIN- Pins
CS5530
The CS5530 is a ΔΣ Analog-to-Digital Converter
(ADC) which uses charge-balance techniques to
achieve 24-bit performance. The ADC is optimized
for measuring low-level unipolar or bipolar signals
in weigh scale, process control, scientific, and medical applications.
To accommodate these applications, the ADC includes a very-low-noise, chopper-stabilized instrumentation amplifier (12 nV/√Hz @ 0.1 Hz) with a
gain of 64X. This ADC also includes a fourth-order
ΔΣ modulator followed by a digital filter
which pro-
vides twenty selectable output word rates of 6.25,
7.5, 12.5, 15, 25, 30, 50, 60, 100, 120, 200, 240, 400,
480, 800, 960, 1600, 1920, 3200, and 3840 samples
per second (MCLK = 4.9152 MHz).
To ease communication between the ADCs and a
micro-controller, the converters include a simple
three-wire serial interface which is SPI and Microwire compatible with a Schmitt-trigger input on
the serial clock (SCLK).
2.1 Analog Input
Figure 3 illustrates a block diagram of the CS5530.
The front end includes a chopper-stabilized instrumentation amplifier with a gain of 64X.
The amplifier is chopper-stabilized and operates with
a chop clock frequency of MCLK/128. The CVF
(sampling) current into the instrumentation amplifier
is typically 1200 pA over -40°C to +85°C
(MCLK=4.9152 MHz). The common-mode plus signal range of the instrumentation amplifier is (VA-) +
1.6 V to (VA+) - 1.6 V.
Figure 4 illustrates the input model for the 64X am-
plifier.
Note: The C = 3.9 pF capacitor is for input current
modeling only. For physical input capacitance
see ‘Input Capacitance’ specification under
Analog Characteristics.
DS742F3 11
CS5530
1
10
100
1000
0.025 0.10 1.00 10.00
Frequency (Hz)
Figure 5. Measured Voltage Noise Density, 64x
2.1.1 Analog Input Span
The full-scale input signal that the converter can digitize is a function of the reference voltage connected
between the VREF+ and VREF- pins. The full-scale
input span of the converter is
((VREF+) – (VREF-))/(64Y), where 64 is the gain
of the amplifier and Y is 2 for VRS = 0, or Y is 1 for
VRS = 1. VRS is the Voltage Reference Select bit,
and must be set according to the differential voltage
applied to the VREF+ and VREF- pins on the part.
See section 2.3.4 for more details.
With a 2.5 V reference, the full-scale biploar input
range is equal to ±2.5/64, or about ±39 mV. Note
that these input ranges assume the calibration registers are set to their default values (i.e. Gain = 1.0 and
Offset = 0.0). The gain setting in the Gain Register
can be altered to map the digital codes of the converter to set full scales from 1 mV to 40 mV.
2.1.2 Voltage Noise Density Performance
Figure 5 illustrates the measured voltage noise density versus frequency from 0.025 Hz to 10 Hz. The
device was powered with ±2.5 V supplies, using
30 Sps OWR, bipolar mode, and with the input
short bit enabled.
2.2 Overview of ADC Register Structure and Operating Modes
The CS5530 ADC has an on-chip controller, which
includes a number of user-accessible registers. The
registers are used to hold offset and gain calibration
results, configure the chip's operating modes, hold
conversion instructions, and to store conversion
data words. Figure 6 depicts a block diagram of the
on-chip controller’s internal registers.
The converter has 32-bit registers to function as the
offset and the gain calibration registers. These registers hold calibration results. The contents of these
registers can be read or written by the user. This allows calibration data to be off-loaded into an external EEPROM. The user can also manipulate the
contents of these registers to modify the offset or
the gain slope of the converter.
The converter includes a 32-bit configuration register which is used for setting options such as the
power down modes, resetting the converter, shorting the analog input, enabling logic outputs, and
other user options.
The following pages document how to initialize the
converter and perform offset and gain calibrations.
Each of the bits of the configuration register is described. Also the Command Register Quick Refer-
ence can be used to decode all valid commands (the
first 8-bits into the serial port).
2.1.3 No Offset DAC
An offset DAC was not included in the CS5530 because the high dynamic range of the converter
eliminates the need for one. The offset register can
be manipulated by the user to mimic the function of
a DAC if desired.
12 DS742F3
2.2.1 System Initialization
The CS5530 provide no power-on-reset function.
To initialize the ADC, the user must perform a software reset via the configuration register. Before
accessing the configuration register, the user must
insure serial port synchronization by using the Serial Port Initialization sequence. This sequence resets the serial port to the command mode and is
accomplished by transmitting at least 15 SYNC1
command bytes (0xFF hexadecimal), followed by
one SYNC0 command (0xFE hexadecimal). Note
that this sequence can be initiated at anytime to
reinitialize the serial port. To complete the system
CS5530
Offset (1 x 32)
Offset Register (1 x 32)
Conversion Data
Register (1 x 32)
Configuration Register (1 x 32)
Power Save Select
Reset System
Input Short
Voltage Reference Select
Output Latch
CS
SDI
SDO
SCLK
Read Only
Command
Register (1 × 8)
Write Only
Serial
Interface
Data (1 x 32)
Filter Rate Select
Word Rate
Unipolar/Bipolar
Open Circuit Detect
Gain (1 x 32)
Gain Register (1 x 32)
Figure 6. CS5530 Register Diagram
Configuration Register: 00000000(H)
Offset Register: 00000000(H)
Gain Register 01000000(H)
initialization sequence, the user must also perform
a system reset sequence which is as follows: Write
a logic 1 into the RS bit of the configuration register. This will reset the calibration registers and
other logic (but not the serial port). A valid reset
will set the RV bit in the configuration register to a
logic 1. After writing the RS bit to a logic 1, wait
8 master clock cycles, then write the RS bit back to
logic 0. Note that the other bits in the configuration register cannot be written on this write cycle
as they are being held in reset until RS is set back
to logic 0. While this involves writing an entire
word into the configuration register to casue the
RS bit to go to logic 0, the RV bit is a read only bit,
therefore a write to the configuration register will
not overwrite the RV bit. After clearing the RS bit
back to logic 0, read the configuration register to
check the state of the RV bit as this indicates that a
valid reset occurred. Reading the configuration
register clears the RV bit back to logic 0.
Completing the reset cycle initializes the on-chip
registers to the following states:
After the configuration register has been read to
clear the RV bit, the register can then be written to
set the other function bits or other registers can be
written or read.
Once the system initialization or reset is completed, the on-chip controller is initialized into command mode where it waits for a valid command
(the first 8-bits written into the serial port are shifted into the command register). Once a valid command is received and decoded, the byte instructs
the converter to either acquire data from or transfer
data to an internal register, or perform a conversion
or a calibration. The Command Register Descrip-
tions section lists all valid commands.
DS742F3 13
CS5530
2.2.2 Command Register Descriptions
READ/WRITE OFFSET REGISTER
D7(MSB) D6 D5 D4 D3 D2 D1 D0
0000R/W001
(Read/Write)
R/W
0 Write offset register.
1 Read offset register.
READ/WRITE GAIN REGISTER
D7(MSB) D6 D5 D4 D3 D2 D1 D0
0000R/W010
(Read/Write)
R/W
0 Write gain register.
1 Read gain register.
READ/WRITE CONFIGURATION REGISTER
D7(MSB) D6 D5 D4 D3 D2 D1 D0
0000R/W
011
Function: These commands are used to read from or write to the configura tion register.
R/W
(Read/Write)
0 Write configuration register.
1 Read co nfiguration register.
PERFORM CONVERSION
D7(MSB) D6 D5 D4 D3 D2 D1 D0
1MC000000
MC (Multiple Conversions)
0 Perform a single conversi on.
1 Perform continuous conversions.
PERFORM SYSTEM OFFSET CALIBRATION
D7(MSB) D6 D5 D4 D3 D2 D1 D0
10000101
PERFORM SYSTEM GAIN CALIBRATION
D7(MSB) D6 D5 D4 D3 D2 D1 D0
10000110
SYNC1
D7(MSB) D6 D5 D4 D3 D2 D1 D0
11111111
Function: Part of the serial port re-initialization sequence.
14 DS742F3
CS5530
SYNC0
D7(MSB) D6 D5 D4 D3 D2 D1 D0
11111110
Function: End of the serial port re-initialization sequence.
NULL
D7(MSB) D6 D5 D4 D3 D2 D1 D0
00000000
Function:
This command is used to clear a port flag and keep the converter in the continuous conversion mode.
DS742F3 15
2.2.3 Serial Port Interface
Command Time
8SCLKs
Data Time 32 SCLKs
Write Cycle
CS
SCLK
SDI
MSB
Command Time
8SCLKs
CS
SCLK
SDI
Read Cycle
SDO
MSB
LSB
Command Time
8SCLKs
8 SCLKs Clear SDO Flag
SDO
SCLK
SDI
MSB
LSB
Clock Cycles
t*
d
CS
Data Time 32 SCLKs
Data Time 32 SCLKs
LSB
Data Conversion Cycle
/OWR
MCLK
* td is the time it takes the ADC to perform a conversion. S ee the Single
Conversion and Continuous Conversion sections of the data sheet for more
details about conversion timing.
Figure 7. Command and Data Word Timing
CS5530
The CS5530’s serial interface consists of four control lines: CS, SDI, SDO, SCLK. Figure 7 details
the command and data word timing.
CS, Chip Select, is the control line which enables
access to the serial port. If the CS pin is tied low,
the port can function as a three wire interface.
SDI, Serial Data In, is the data signal used to transfer data to the converters.
SDO, Serial Data Out, is the data signal used to
transfer output data from the converters. The SDO
output will be held at high impedance any time CS
is at logic 1.
SCLK, Serial Clock, is the serial bit-clock which
controls the shifting of data to or from the ADC’s
serial port. The CS pin must be held low (logic 0)
before SCLK transitions can be recognized by the
port logic. To accommodate optoisolators SCLK is
designed with a Schmitt-trigger input to allow an
optoisolator with slower rise and fall times to directly drive the pin. Additionally, SDO is capable
of sinking or sourcing up to 5 mA to directly drive
an optoisolator LED. SDO will have less than a 400
mV loss in the drive voltage when sinking or sourcing 5 mA.
16 DS742F3
CS5530
Configuration Register: 00000000(H)
Offset Register: 00000000(H)
Gain Register 01000000(H)
2.2.4 Reading/Writing On-Chip Registers
The CS5530’s offset, gain, and configuration registers are readable and writable while the conversion
data register is read only.
As shown in Figure 7, to write to a particular register the user must transmit the appropriate write
command and then follow that command by 32 bits
of data. For example, to write 0x80000000 (hexadecimal) to the gain register, the user would first
transmit the command byte 0x02 (hexadecimal)
followed by the data 0x80000000 (hexadecimal).
Similarly, to read a particular register the user must
transmit the appropriate read command and then
acquire the 32 bits of data. Once a register is written
to or read from, the serial port returns to the command mode.
2.3 Configuration Register
To ease the architectural design and simplify the
serial interface, the configuration register is thirtytwo bits long, however, only fifteen of the thirty
two bits are used. The following sections detail the
bits in the configuration register.
2.3.1 Power Consumption
The CS5530 accommodates three power consumption modes: normal, standby, and sleep. The default
mode, “normal mode”, is entered after power is applied. In this mode, the CS5530 typically consumes
35 mW. The other two modes are referred to as the
power save modes. They power down most of the
analog portion of the chip and stop filter convolutions. The power save modes are entered whenever
the power down (PDW) bit of the configuration
register is set to logic 1. The particular power save
mode entered depends on state of the PSS (Power
Save Select) bit. If PSS is logic 0, the converter enters the standby mode reducing the power consumption to 4 mW. The standby mode leaves the
oscillator and the on-chip bias generator for the analog portion of the chip active. This allows the converter to quickly return to the normal mode once
PDW is set back to a logic 0. If PSS and PDW are
DS742F3 17
both set to logic 1, the sleep mode is entered reducing the consumed power to around 500 μW. Since
this sleep mode disables the oscillator, approximately a 20 ms oscillator start-up delay period is
required before returning to the normal mode. If an
external clock is used, there will be no delay.
2.3.2 System Reset Sequence
The reset system (RS) bit permits the user to perform a system reset. A system reset can be initiated
at any time by writing a logic 1 to the RS bit in the
configuration register. After the RS bit has been
set, the internal logic of the chip will be initialized
to a reset state. The reset valid (RV) bit is set indicating that the internal logic was properly reset.
The RV bit is cleared after the configuration register is read. The on-chip registers are initialized to
the following default states:
After reset, the RS bit should be written back to
logic 0 to complete the reset cycle. The ADC will
return to the command mode where it waits for a
valid command. Also, the RS bit is the only bit in
the configuration register that can be set when initiating a reset (i.e. a second write command is needed to set other bits in the Configuration Register
after the RS bit has been cleared).
2.3.3 Input Short
The input short bit allows the user to internally
ground the inputs of the ADC. This is a useful function because it allows the user to easily test the
grounded input performance of the ADC and eliminate the noise effects due to the external system
components.
2.3.4 Voltage Reference Select
The voltage reference select (VRS) bit selects the
size of the sampling capacitor used to sample the
voltage reference. The bit should be set based upon
CS5530
VREF
C=14pF
f=
2
φ
Fine
1
V≤8mV
i=fV C
os
os
n
φ
Coarse
MCLK
16
VRS = 1; 1 V≤V ≤2.5 V
REF
Figure 8. Input Reference Model when VRS = 1
VREF
C= 7pF
f=
2
φ
Fine
1
V≤16 mV
i=fV C
os
osn
φ
Coarse
MCLK
16
VRS = 0; 2.5 V < V
≤
VA+
REF
Figure 9. Input Reference Model when VRS = 0
the magnitude of the reference voltage to achieve
optimal performance. Figures 8 and 9 model the effects on the reference’s input impedance and input
current for each VRS setting. As the models show,
the reference includes a coarse/fine charge buffer
which reduces the dynamic current demand of the
external reference.
The reference’s input buffer is designed to accommodate rail-to-rail (common-mode plus signal) input voltages. The differential voltage between the
VREF+ and VREF- can be any voltage from 1.0 V
up to the analog supply (depending on how VRS is
configured), however, the VREF+ cannot go above
VA+ and the VREF- pin can not go below VA-.
Note that the power supplies to the chip should be
established before the reference voltage.
2.3.5 Output Latch Pins
The A1-A0 pins of the ADC mimic the D24-D23
bits of the configuration register. A1-A0 can be
used to control external multiplexers and other logic functions outside the converter. The A1-A0 outputs can sink or source at least 1 mA, but it is
recommended to limit drive currents to less than
20 μA to reduce self-heating of the chip. These outputs are powered from VA+ and VA-. Their output
voltage will be limited to the VA+ voltage for a
logic 1 and VA- for a logic 0. Note that if the latch
bits are used to modify the analog input signal the
user should delay performing a conversion until he
knows the effects of the A0/A1 bits are fully settled.
18 DS742F3
2.3.6 Filter Rate Select
The Filter Rate Select bit (FRS) modifies the output
word rates of the converter to allow either 50 Hz or
60 Hz rejection when operating from a 4.9152
MHz crystal. If FRS is cleared to logic 0, the word
rates and corresponding filter characteristics can be
selected using the Configuration Register. Rates
can be 7.5, 15, 30, 60, 120, 240, 480, 960, 1920, or
3840 Sps when using a 4.9152 MHz clock. If FRS
is set to logic 1, the word rates and corresponding
filter characteristics scale by a factor of 5/6, making the selectable word rates 6.25, 12.5, 25, 50,
100, 200, 400, 800, 1600, and 3200 Sps when using
a 4.9152 MHz clock. When using other clock frequencies, these selectable word rates will scale linearly with the clock frequency that is used.
2.3.7 Word Rate Select
The Word Rate Select bits (WR3-WR0) allow slection of the output word rate of the converter as depicted in the Configuration Register Descriptions.
The word rate chosen by the WR3-WR0 bits is
modified by the setting of the FRS bit as presented
in the previous paragraph.
2.3.8 Unipolar/Bipolar Select
The UP/BP Select bit sets the converter to measure
either a unipolar or bipolar input span.
2.3.9 Open Circuit Detect
When the OCD bit is set it activates a current
source as a means to test for open thermocouples.
CS5530
2.3.10 Configuration Register Description
D31(MSB) D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
PSS PDW RS RV IS NU VRS A1 A0 NU NU NU FRS NU NU NU
D15 D14D13D12D11D10D9D8D7D6D5D4D3D2D1D0
NU WR3 WR2 WR1 WR0 UP/BP
PSS (Power Save Select)[31]
0 Standby Mode (Oscillator active, allows quick power-up).
1 Sleep Mode (Oscillator inactive).
PDW (Power Down Mode)[30]
0 Normal Mode
1 Activate the power save select mode.
RS (Reset System)[29]
0 Normal Operation.
1 Activate a Reset cycle. See System Reset Sequence in the datasheet text.
RV (Reset Valid)[28]
0 Normal Operation
1 System was reset. This bit is read only. Bit is cleared to logic zero after the configuration register is read.
IS (Input Short)[27]
0 Normal Input
1 All signal inp ut pairs for each channel are disconnected from the pins and shorted internally.
NU (Not Used)[26]
0 Must always be log ic 0. Rese rved for future upgrades.
VRS (Voltage Reference Select)[25]
0 2.5 V < V
11 V ≤ V
≤ [(VA+) - (VA-)]
REF
≤ 2.5V
REF
A1-A0 (Output Latch bits)[24:23]
The latch bits (A1 and A0) will be set to the logic state of these bits when the Configuration register is written.
Note that these logic outputs are powered from VA+ and VA-.
00 A1 = 0, A0 = 0
01 A1 = 0, A0 = 1
10 A1 = 1, A0 = 0
11 A1 = 1, A0 = 1
NU (Not Used)[22:20]
0 Must always be log ic 0. Rese rved for future upgrades.
Filter Rate Select, FRS[19]
0 Use the default output word rates.
1 Scale all output word rates and thei r corresponding filter characteristics by a factor of 5/6.
NU (Not Used)[18:15]
0 Must always be log ic 0. Rese rved for future upgrades.
OCDNUNUNUNUNUNUNUNUNU
DS742F3 19
WR3-WR0 (Word Rate) [14:11]
The listed Word Rates are for continuous conversion mode using a 4.9152 MHz clock. All word rates will
scale linearly with the clock frequency used. The very first conversion using continuous conversion mode
will last longer, as will conversions done with the single conversion mode. See the section on Performing
Conversions and Tables 1 and 2 for more details.
Bit WR (FRS = 0) WR (FRS = 1)
0000 120 Sps 100 Sps
0001 60 Sps 50 Sps
0010 30 Sps 25 Sps
0011 15 Sps 12.5 Sps
0100 7.5 Sps 6.25 Sps
1000 3840 Sps 3200 Sps
1001 1920 Sps 1600 Sps
1010 960 Sps 800 Sps
1011 480 Sps 400 Sps
1100 240 Sps 200 Sps
All other combinations are not used.
U/B (Unipolar / Bipolar) [10]
0 Select Bipolar mode.
1 Select Unipolar mode.
OCD (Open Circuit Detect Bit) [9]
When set, this bit activates a 300 nA current source on the input channel (AIN+) selected by the channel
select bits. Note that the 300nA current source is rated at 25°C. This feature is particularly useful in ther-
mocouple applications when the user wants to drive a suspected open thermocouple lead to a supply rail.
0 Normal mode.
1 Activate current source.
NU (Not Used) [8:0]
0 Must always be log ic 0. Rese rved for future upgrades.
CS5530
20 DS742F3
CS5530
Db
D29
25b
D28
24b
D27
23… bD02
24–
)++++ bDi2
24– i+()
i 0=
29
==
2.4 Calibration
Calibration is used to set the zero and gain slope of
the ADC’s transfer function. The CS5530 provides
system calibration.
Note: After the ADC is reset, it is functional and can
perform measurements without being
calibrated (remember that the VRS bit in the
configuration register must be properly
configured). If the converter is operated
without calibraton, the converter will utilize
the initialized values of the on-chip registers
(Offset = 0.0; Gain = 1.0) to calculate output
words. Any initial offset and gain errors in the
internal circuitry of the chip will remain.
2.4.1 Calibration Registers
The CS5530 converter has an offset register that is
used to set the zero point of the converter’s transfer
function. As shown in Offset Register section, one
LSB in the offset register is 1.835007966 X 2
-24
proportion of the input span (bipolar span is 2 times
the unipolar span, gain register = 1.000...000 decimal). The MSB in the offset register determines if
the offset to be trimmed is positive or negative (0
positive, 1 negative). Note that the magnitude of
the offset that is trimmed from the input is mapped
through the gain register. The converter can typically trim ±100 percent of the input span. As shown
in the Gain Register section, the gain register spans
from 0 to (64 - 2
-24
). The decimal equivalent mean-
ing of the gain register is
where the binary numbers have a value of either
zero or one (b
While gain register settings of up to 64 - 2
is the binary value of bit D29).
D29
-24
are
available, the gain register should never be set to
values above 40.
2.4.2 Gain Register
Decimal Point
MSB D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NU NU
5
2
4
2
3
2
2
2
1
2
0
2
-1
2
-2
2
-3
2
-4
2
-5
2
-6
2
-7
2
2
0000000100000000
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 LSB
-9
2
-10
2
-11
2
-12
2
-13
2
-14
2
-15
2
-16
2
-17
2
-18
2
-19
2
-20
2
-21
2
22
2
-23
2
2
0000000000000000
The gain register span is from 0 to (64-2
-24
). After Reset D24 is 1, all other bits are ‘0’.
2.4.3 Offset Register
MSB D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Sign
-2
2
0000000000000000
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 LSB
-17
2
-18
2
0000000000000000
One LSB represents 1.835007966 X 2
Offset and data word bits align by MSB. After reset, all bits are ‘0’.
The offset register is stored as a 32-bit, two’s complement number, where the last 8 bits are all 0.
-3
2
-19
2
-4
2
-20
2
-5
2
-21
2
-6
2
-22
2
-24
-7
2
-23
2
-8
2
-24
2
-9
2
-10
2
-11
2
-12
2
-13
2
-14
2
NU NU NU NU NU NU NU NU
proportion of the input span (bipolar span is 2 times unipolar span).
-15
2
2
-8
-24
-16
DS742F3 21
CS5530
Figure 10. System Calibration of Offset
Figure 11. System Calibration of Gain
2.4.4 Performing Calibrations
To perform a calibration, the user must send a command byte with its MSB=1, and the appropriate
calibration bits (CC2-CC0) set to choose the type
of calibration to be performed. The calibration will
be performed using the filter rate, and siganl span
(unipolar or bipolar) as set in the configuration register. The length of time it takes to do a calibration
is slightly less than the amount of time it takes to do
a single conversion (see Table 1 for single conversion timing). Offset calibration takes 608 clock cycles less than a single conversion when FRS = 0,
and 729 clock cycles less when FRS = 1. Gain calibration takes 128 clock cycles less than a single
conversion when FRS = 0, and 153 clock cycles
less when FRS = 1.
Once a calibration cycle is complete, SDO falls and
the results are automatically stored in either the
gain or offset register. SDO will remain low until
the next command word is begun. If additional calibrations are performed while referencing the same
calibration registers, the last calibration results will
replace the effects from the previous calibration.
Only one calibration is performed with each command byte.
2.4.5 System Calibration
For the system calibration functions, the user must
supply the converter input calibration signals which
represent ground and full-scale. When a system offset calibration is performed, a ground referenced signal must be applied to the converter. Figure 10
illustrates system offset calibration.
As shown in Figure 11, the user must input a signal
representing the positive full-scale point to perform
a system gain calibration. In either case, the calibration signals must be within the specified calibration limits for each specific calibration step (refer
to the System Calibration Specifications).
2.4.6 Calibration Tips
Calibration steps are performed at the output word
rate selected by the WR3-WR0 bits of the configuration register. To minimize the effects of peak-topeak noise on the accuracy of calibration the converter should be calibrated using the slowest word
rate that is acceptable. It is recommended that
word rates of 240 Sps and higher not be used for
calibration.) To minimize digital noise near the device, the user should wait for each calibration step
to be completed before reading or writing to the serial port. Reading the calibration registers and averaging multiple calibrations together can produce a
more accurate calibration result. Note that accessing the ADC’s serial port before a calibration has
finished may result in the loss of synchronization
between the microcontroller and the ADC, and may
prematurely halt the calibration cycle.
22 DS742F3
CS5530
For maximum accuracy, calibrations should be performed for both offset and gain.
When the device is used without calibration, the
uncalibrated gain accuracy is about ±1 percent.
Note that the gain from the offset register to the
output is 1.83007966 decimal, not 1. If a user wants
to adjust the calibration coefficients externally,
they will need to divide the information to be written to the offset register by the scale factor of
1.83007966. (This discussion assumes that the gain
register is 1.000...000 decimal. The offset register
is also multiplied by the gain register before being
applied to the output conversion words).
2.4.7 Limitations in Calibration Range
System calibration can be limited by signal headroom in the analog signal path inside the chip as
discussed under the Analog Input section of this
data sheet. For gain calibration, the full-scale input
signal can be reduced to 3% of the nominal fullscale value. At this point, the gain register is approximately equal to 33.33 (decimal). While the
gain register can hold numbers all the way up to
-24
64 - 2
, gain register settings above a decimal
value of 40 should not be used. With the converter’s intrinsic gain error, this minimum full-scale input signal may be higher or lower. In defining the
minimum full-scale Calibration Range (FSCR) under Analog Characteristics, margin is retained to
accommodate the intrinsic gain error. Inversely, the
input full-scale signal can be increased to a point in
which the modulator reaches its 1’s density limit of
86 percent, which under nominal conditions occurs
when the full-scale input signal is 1.1 times the
nominal full-scale value. With the chip’s intrinsic
gain error, this maximum full-scale input signal
maybe higher or lower. In defining the maximum
FSCR, margin is again incorporated to accommodate the intrinsic gain error.
2.5 Performing Conversions
The CS5530 offers two distinctly different conversion modes. The paragraphs that follow detail the
differences in the conversion modes.
2.5.1 Single Conversion Mode
When the user transmits the perform single conversion command, a single, fully settled conversion is
performed using the word rate and polarity selections set in the configuration register. Once the
command byte is transmitted, the serial port enters
data mode where it waits until the conversion is
complete. When the conversion data is available,
SDO falls to logic 0 to act as a flag to indicate that
the data is available. Forty SCLKs are then needed
to read the conversion data word. The first 8
SCLKs are used to clear the SDO flag. During the
first 8 SCLKs, SDI must be logic 0. The last 32
SCLKs are needed to read the conversion result.
Note that the user is forced to read the conversion
in single conversion mode as the serial port will remain in data mode until SCLK transitions 40 times.
After reading the data, the serial port returns to the
command mode, where it waits for a new command
to be issued. The single conversion mode will take
longer than conversions performed in the continuous conversion mode. The number of clock cycles
a single conversion takes for each Output Word
Rate (OWR) setting is listed in Table 1. The ± 8
(FRS = 0) or ± 10 (FRS = 1) clock ambiguity is due
to internal synchronization between the SCLK input and the oscillator.
Note: In the single conversion mode, more than one
conversion is actually performed, but only the
final, fully settled result is output to the
conversion data register.
DS742F3 23
CS5530
Table 1. Conversion Timing for Single Mode
(WR3-WR0)
FRS = 0 FRS = 1
0000 171448 ± 8 205738 ± 10
0001 335288 ± 8 402346 ± 10
0010 662968 ± 8 795562 ± 10
0011 1318328 ± 8 1581994 ± 10
0100 2629048 ± 8 3154858 ± 10
1000 7592 ± 8 9110 ± 10
1001 17848 ± 8 21418 ± 10
1010 28088 ± 8 33706 ± 10
1011 48568 ± 8 58282 ± 10
1100 89528 ± 8 107434 ± 10
Clock Cycles
2.5.2 Continuous Conversion Mode
When the user transmits the perform continuous
conversion command, the converter begins continuous conversions using the word rate and polarity
selections set in the configuration register. Once
the command byte is transmitted, the serial port enters data mode where it waits until a conversion is
complete. After the conversion is done, SDO falls
to logic 0 to act as a flag to indicate that the data is
available. Forty SCLKs are then needed to read the
conversion. The first 8 SCLKs are used to clear the
SDO flag. The last 32 SCLKs are needed to read
the conversion result. If ‘00000000’ is provided to
SDI during the first 8 SCLKs when the SDO flag is
cleared, the converter remains in this conversion
mode and continues to convert using the same word
rate and polarity information. In continuous conversion mode, not every conversion word needs to
be read. The user needs only to read the conversion
words required for the application as SDO rises and
falls to indicate the availability of new conversion
data. Note that if a conversion is not read before the
next conversion data becomes available, it will be
lost and replaced by the new conversion data. To
exit this conversion mode, the user must provide
‘11111111’ to the SDI pin during the first 8 SCLKs
after SDO falls. If the user decides to exit, 32
SCLKs are required to clock out the last conversion
before the converter returns to command mode.
The number of clock cycles a continuous conversion takes for each Output Word Setting is listed in
Table 2. The first conversion from the part in continuous conversion mode will be longer than the
following conversions due to start-up overhead.
The ± 8 (FRS = 0) or ± 10 (FRS = 1) clock ambiguity is due to internal synchronization between the
SCLK input and the oscillator.
Note: When changing channels, or after performing
calibrations and/or single conversions, the
user must ignore the first three (for OWRs
less than 3200 Sps, MCLK = 4.9152 MHz) or
first five (for OWR ≥ 3200 Sps) conversions in
continuous conversion mode, as residual
filter coefficients must be flushed from the
filter before accurate conversions are
performed.
Table 2. Conversion Timing for Continuous Mod e
FRS (WR3-WR0) Clock Cycles
(First Conversion)
0 0000 89528 ± 8 40960
0 0001 171448 ± 8 81920
0 0010 335288 ± 8 163840
0 0011 662968 ± 8 327680
0 0100 1318328 ± 8 655360
0 1000 2472 ± 8 1280
0 1001 12728 ± 8 2560
0 1010 17848 ± 8 5120
0 1011 28088 ± 8 10240
0 1100 48568 ± 8 20480
1 0000 107434 ± 10 49152
1 0001 205738 ± 10 98304
1 0010 402346 ± 10 196608
1 0011 795562 ± 10 393216
1 0100 1581994 ± 10 786432
1 1000 2966 ± 10 1536
1 1001 15274 ± 10 3072
1 1010 21418 ± 10 6144
1 1011 33706 ± 10 12288
1 1100 58282 ± 10 24576
Clock Cycles
(All Other
Conversions)
24 DS742F3
2.6 Using Multiple ADCs Synchronously
CLOCK
SOURCE
CS5530
CS5530
SDO
SDI
SCLK
CS
OSC2
SDO
SDI
SCLK
CS
OSC2
μC
Figure 12. Synchronizing Multiple ADCs
Table 3. Output Coding
Unipolar Input
Voltage
Offset
Binary
Bipolar Input
Voltage
Two's
Complement
>(VFS-1.5 LSB) FFFFFF >(VFS-1.5 LSB) 7FFFFF
VFS-1.5 LSB FFFFFF
------
FFFFFE
VFS-1.5 LSB
7FFFFF
------
7FFFFE
VFS/2-0.5 LSB 800000
------
7FFFFF
-0.5 LSB
000000
------
FFFFFF
+0.5 LSB 000001
------
000000
-VFS+0.5 LSB
800001
------
800000
<(+0.5 LSB) 000000 <(-VFS+0.5 LSB) 800000
Some applications require synchronous data outputs from multiple ADCs converting different analog channels. Multiple CS5530 devices can be
synchronized in a single system by using the following guidelines:
1) All of the ADCs in the system must be operated
from the same oscillator source.
2) All of the ADCs in the system must share common SCLK and SDI lines.
3) A software reset must be performed at the same
time for all of the ADCs after system power-up (by
selecting all of the ADCs using their respective CS
pins, and writing the reset sequence to all parts, using SDI and SCLK).
4) A start conversion command must be sent to all
of the ADCs in the system at the same time. The ±
8 clock cycles of ambiguity for the first conversion
(or for a single conversion) will be the same for all
ADCs, provided that they were all reset at the same
time.
5) Conversions can be obtained by monitoring
SDO on only one ADC, (bring CS high for all but
one part) and reading the data out of each part individually, before the next conversion data words are
ready.
CS5530
The CS5530 output data conversions in binary format when operating in unipolar mode and in two's
complement when operating in bipolar mode. Table 3 shows the code mapping for both unipolar and
bipolar modes. VFS in the tables refers to the positive full-scale voltage range of the converter in the
specified gain range, and -VFS refers to the negative full-scale voltage range of the converter. The
total differential input range (between AIN+ and
AIN-) is from 0 to VFS in unipolar mode, and from
-VFS to VFS in bipolar mode.
An example of a synchronous system using two
CS5530 devices is shown in Figure 12.
2.7 Conversion Output Coding
The CS5530 outputs 24-bit data conversion words.
To read a conversion word the user must read the
conversion data register. The conversion data register is 32 bits long and outputs the conversions
MSB first. The last byte of the conversion data register contains an overflow flag bit. The overrange
flag (OF) monitors to determine if a valid conversion was performed.
DS742F3 25
CS5530
2.7.1 Conversion Data Output Descriptions
CS5530 (24-BIT CONVERSIONS)
D31(MSB) D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
MSB 2221201918 1716151413121110 9 8
D15 D14D13D12D11D10D9D8D7D6D5D4D3D2D1D0
7 65432 1LSB00000OF00
Conversion Data Bits [31:8]
These bits depict the latest output conversion.
OF (Over-range Flag Bit) [2]
0 Bit is clear when over-range condition has not occurred.
1 Bit is set when input signal is more positive than the positive full-scale, more negative than zero (unipolar
mode) or when the input is more negative than the negative full-scale (bipolar mode).
Other Bits [7:3], [1:0]
These bits are masked logic zero.
26 DS742F3
2.8 Digital Filter
Figure 13. Digital Filter Response (Wor d Rate = 60 Sps)
-120
-80
-40
0
Gain (dB)
0 60 120 180 240 300
Frequency (Hz)
FRS = 0
-120
-80
-40
0
04080120
Frequency (Hz)
Ga in (d B)
Flatness
Frequency dB
2-0.01
4-0.05
6-0.11
8-0.19
10 -0.30
12 -0.43
14 -0.59
16 -0.77
19 -1.09
32 -3.13
Figure 14. 120 Sps Filter Magnitude Plot to 120 Hz
-180
-90
0
90
180
0
30
60 90 120
Frequency (Hz)
Phase (Degrees)
Figure 15. 120 Sps Filter Phase Plot to 120 Hz
Note: See the text regarding the Sinc3 filter’s
decimation ratio “D”.
Sinc
5
1 z
80–
–()
5
1 z
16–
–()
5
------------------------- -
1 z
16–
–()
3
1 z4––()
3
------------------------- -
1 z4––()
2
1 z2––()
2
-----------------------
1 z2––()
3
1 z1––()
3
-----------------------
×××=
Sinc
3
1 zD––()
3
1 z1––()
3
------------------------ -=
Figure 16. Z-Transforms of Digital Filters
The CS5530 has a linear phase digital filter which
is programmed to achieve a range of output word
rates (OWRs) as stated in the Configuration Regis-
ter Description section. The ADC uses a Sinc5 dig-
ital filter to output word rates at 3200 Sps and 3840
Sps (MCLK = 4.9152 MHz). Other output word
rates are achieved by using the Sinc5 filter followed
by a Sinc3 filter with a programmable decimation
rate.Figure 13 shows the magnitude response of the
60 Sps filter, while Figures 14 and 15 show the
magnitude and phase response of the filter at 120
Sps. The Sinc3 is active for all output word rates
CS5530
except for the 3200 Sps and 3840 Sps (MCLK =
4.9152 MHz) rate. The Z-transforms of the two filters are shown in Figure 16. For the Sinc3 filter,
“D” is the programmable decimation ratio, which is
equal to 3840/OWR when FRS = 0 and 3200/OWR
when FRS = 1.
The converter’s digital filters scale with MCLK.
For example, with an output word rate of 120 Sps,
the filter’s corner frequency is at 31 Hz. If MCLK
is increased to 5.0 MHz, the OWR increases by
1.0175 percent and the filter’s corner frequency
moves to 31.54 Hz. Note that the converter is not
specified to run at MCLK clock frequencies greater
than 5 MHz.
DS742F3 27
CS5530
OSC1
MCLK
NOTE: 20 pF capacitors are on chip and
should not be added externally.
1 MΩ
OSC2
20 pF 20 pF
+
-V
TH
~
~
60 μA
Figure 17. On-chip Oscillator Model
2.9 Clock Generator
The CS5530 includes an on-chip inverting amplifier which can be connected with an external crystal
to provide the master clock for the chip. Figure 17
illustrates the on-chip oscillator. It includes loading
capacitors and a feedback resistor to form a Pierce
oscillator configuration. The chips are designed to
operate using a 4.9152 MHz crystal; however, other crystals with frequencies between 1 MHz to 5
MHz can be used. One lead of the crystal should be
connected to OSC1 and the other to OSC2. Lead
lengths should be minimized to reduce stray capacitance. Note that while using the on-chip oscillator,
neither OSC1 or OSC2 is capable of directly driving any off chip logic. When the on-chip oscillator
is used, the voltage on OSC2 is typically 1/2 V
peak-to-peak. This signal is not compatible with
external logic unless additional external circuitry is
added. The OSC2 output should be used if the onchip oscillator output is used to drive other circuitry.
The designer can use an external CMOS compatible oscillator to drive OSC2 with a 1 MHz to 5
MHz clock for the ADC. The external clock into
OSC2 must overdrive the 60 microampere output
of the on-chip amplifier. This will not harm the onchip circuitry. In this scheme, OSC1 should be left
unconnected.
2.10 Power Supply Arrangements
The CS5530 is designed to operate from single or
dual analog supplies and a single digital supply.
The following power supply connections are possible:
VA+ = +5 V; VA- = 0 V; VD+ = +3 V to +5 V
VA+ = +2.5 V; VA- = -2.5 V; VD+ = +3 V to +5 V
VA+ = +3 V; VA- = -3 V; VD+ = +3 V
A VA+ supply of +2.5 V, +3.0 V, or +5.0 V should
be maintained at ±5% tolerance. A VA- supply of
-2.5 V or -3.0 V should be maintained at ±5% tolerance. VD+ can extend from +2.7 V to +5.5 V
with the additional restriction that [(VD+) - (VA-)
< 7.5 V].
Figure 18 illustrates the CS5530 connected with a
single +5.0 V supply to measure differential inputs
relative to a common mode of 2.5 V. Figure 19 illustrates the CS5530 connected with ±2.5 V bipolar
analog supplies and a +3 V to +5 V digital supply
to measure ground referenced bipolar signals. Figures 20 illustrates the CS5532 connected with ±3 V
analog supplies and a +3 V digital supply to measure ground referenced bipolar signals.
28 DS742F3
CS5530
OSC2
VD+
VA+
VREF+
VREF-
DGNDVA -
AIN1+
SDI
SCLK
SDO
CS5530
OSC1
CS
10
Ω
+5 V
Analog
Supply
0.1 µF
0.1 µF
+
-
17
3
1
2
AIN1-
515
9
10
13
11
12
14
166
Optional
Clock
Source
Serial
Data
Interface
4.9152 MHz
20
19
7
A0
8
A1
C1
C2
4
22 nF
18
NC
NC
Figure 18. CS5530 Configured with a Single +5 V Supply
OSC2
VD+
VA+
VREF+
VREF-
DGNDVA -
AIN1+
SDI
SCLK
SDO
CS5530
OSC1
CS
+2.5 V
Analog
Supply
0.1 µF
0.1 µF
+
-
17
3
1
2
AIN1-
515
9
1
0
13
11
12
14
166
Optional
Clock
Source
Serial
Data
Interface
4.9152 MHz
20
19
7
A0
8
A1
C1
C2
4
22 nF
-2.5 V
Analog
Supply
18
+3 V ~ +5 V
Digital
Supply
NC
NC
Figure 19. CS5530 Configured with ±2.5 V Analog Supplies
DS742F3 29
CS5530
OSC2
VD+
VA+
VREF+
VREF-
DGNDVA -
AIN1+
SDI
SCLK
SDO
CS5530
OSC1
CS
10
Ω
+3 V
Analog
Supply
0.1 µF
0.1 µF
+
-
17
3
1
2
AIN1-
515
9
10
13
11
12
14
166
Optional
Clock
Source
Serial
Data
Interface
4.9152 MHz
20
19
7
A0
8
A1
C1
C2
4
22 nF
-3 V
Analog
Supply
18
NC
NC
Figure 20. CS5530 Configured with ±3 V Analog Supplies
30 DS742F3
2.11 Getting Started
This A/D converter has several features. From a
software programmer’s prospective, what should
be done first? To begin, a 4.9152 MHz or 4.096
MHz crystal takes approximately 20 ms to start. To
accommodate for this, it is recommended that a
software delay of approximately 20 ms be inserted
before the start of the processor’s ADC initialization code. Next, since the CS5530 does not provide
a power-on-reset function, the user must first initialize the ADC to a known state. This is accomplished by resetting the ADC’s serial port with the
Serial Port Initialization sequence. This sequence
resets the serial port to the command mode and is
accomplished by transmitting 15 SYNC1 command bytes (0xFF hexadecimal), followed by one
SYNC0 command (0xFE hexadecimal). Once the
serial port of the ADC is in the command mode, the
user must reset all the internal logic by performing
a system reset sequence (see 2.3.2 System Reset
CS5530
Sequence). After the converter is properly reset,
the configuration register bits should be configured
as appropriate, for example, the voltage reference
selection, word rate, signal polarity(unipolar or bipolar) should be configured.
Calibrations or conversions can then be performed
as appropriate.
2.12 PCB Layout
For optimal performance, the CS5530 should be
placed entirely over an analog ground plane. All
grounded pins on the ADC, including the DGND
pin, should be connected to the analog ground
plane that runs beneath the chip. In a split-plane
system, place the analog-digital plane split immediately adjacent to the digital portion of the chip.
DS742F3 31
3. PIN DESCRIPTIONS
1
2
3
4
5
6
7
813
14
15
16
17
18
19
20
VREF+
VREF-
SCLK
CS
DGND
A1
A0
VA-
VA+
C2
C1
AIN1-
AIN1+
9
10 1 1
12
SDO
OSC1
OSC2
SERIAL DATA INPUT
LOGIC OUTPUT (ANALOG)
POSITIVE ANALOG POWER
AMPLIFIER CAPACITOR CONNECT
AMPLIFIER CAPACITOR CONNECT
DIFFERENTIAL ANALOG INPUT
CHIP SELECT
VOLTAGE REFERENCE INPUT
VOLTAGE REFERENCE INPUT
SERIAL CLOCK INPUT
POSITIVE DIGITAL POWER
DIGITAL GROUND
SERIAL DATA OUT
MASTER CLOCK
CS5530
DIFFERENTIAL ANALOG INPUT
NC
NC
SDI
VD+
NEGATI VE A NAL O G POWER
MASTER CLOCK
LOGIC OUTPUT (ANALOG)
Clock Generator
OSC1; OSC2 – Master Clock
An inverting amplifier inside the chip is connected between these pins and can be used with a
crystal to provide the master clock for the device. Alternatively, an external (CMOS compatible)
clock (powered relative to VD+) can be supplied into the OSC2 pin to provide the master clock
for the device.
CS5530
Control Pins and Serial Data I/O
CS – Chip Select
When active low, the port will recognize SCLK. When high the SDO pin will output a high
impedance state. CS
SDI – Serial Data Input
SDI is the input pin of the serial input port. Data will be input at a rate determined by SCLK.
SDO – Serial Data Output
SDO is the serial data output. It will output a high impedance state if CS = 1.
SCLK – Serial Clock Input
A clock signal on this pin determines the input/output rate of the data for the SDI/SDO pins
respectively. This input is a Schmitt trigger to allow for slow rise time signals. The SCLK pin
will recognize clocks only when CS
A0 – Logic Output (Analog), A1 – Logic Output (Analog)
The logic states of A1-A0 mimic the A1-A0 bits in the Configuration Register. Logic
Output 0 = VA-, and Logic Output 1 = VA+.
32 DS742F3
should be changed when SCLK = 0.
is low.
Measurement and Reference Inputs
AIN1+, AIN1- – Differential Analog Input
Differential input pins into the device.
VREF+, VREF- – Voltage Reference Input
Fully differential inputs which establish the voltage reference for the on-chip modulator.
C1, C2 – Amplifier Capacitor Inputs
Connections for the instrumentation amplifier’s capacitor.
Power Supply Connections
VA+ – Positive Analog Power
Positive analog supply voltage.
VD+ – Positive Digital Power
Positive digital supply voltage (nominally +3.0 V or +5 V).
CS5530
VA- – Negative Analog Power
Negative analog supply voltage.
DGND – Digital Ground
Digital Ground.
4. SPECIFICATION DEFINITIONS
Linearity Error
The deviation of a code from a straight line which connects the two endpoints of the ADC
transfer function. One endpoint is located 1/2 LSB below the first code transition and the other
endpoint is located 1/2 LSB beyond the code transition to all ones. Units in percent of fullscale.
Differential Nonlinearity
The deviation of a code's width from the ideal width. Units in LSBs.
Full-scale Error
The deviation of the last code transition from the ideal [{(VREF+) - (VREF-)} - 3/2 LSB]. Units
are in LSBs.
Unipolar Offset
The deviation of the first code transition from the ideal (1/2 LSB above the voltage on the AINpin.). When in unipolar mode (U/B
bit = 1). Units are in LSBs.
Bipolar Offset
The deviation of the mid-scale transition (111...111 to 000...000) from the ideal (1/2 LSB below
the voltage on the AIN- pin). When in bipolar mode (U/B
DS742F3 33
bit = 0). Units are in LSBs.
5. PACKAGE DRAWINGS
20 PIN SSOP PACKAGE DRAWING
E
N
1
23
e
b
2
A1
A2
A
D
SEATING
PLANE
E1
1
L
SIDE VIEW
END VIEW
TOP VIEW
∝
CS5530
INCHES MILLIMETERS
NOTE
DIM MIN MAX MIN MAX
A -- 0.084 -- 2.13
A1 0.002 0.010 0.05 0.25
A2 0.064 0.074 1.62 1.88
b 0.009 0.015 0.22 0.38 2,3
D 0.272 0.295 6.90 7.50 1
E 0.291 0.323 7.40 8.20
E1 0.197 0.220 5.00 5.60 1
e 0.024 0.027 0.61 0.69
L 0.025 0.040 0.63 1.03
∝
0° 8° 0° 8°
Notes: 1. “D” and “E1” are reference datums and do not included mold flash or protrusions, but do include mold
mismatch and are measured at the parting l ine, mold flash or protrusion s shall not exceed 0.20 mm per
side.
2. Dimension “b” does not include dambar protrusion/intrusion. Allowable dambar protrusion shall be
0.13 mm total in excess of “b” dimension at maximum material condition. Dambar intrusion shall not
reduce dimension “b” by more than 0.07 mm at least material condition.
3. These dimensions apply to the flat section of the lead between 0.10 and 0.25 mm from lead tips.
34 DS742F3
CS5530
6. ORDERING INFORMATION
Model Number Bits Channels Linearity Error (Max) Temperature Range Package
CS5530-IS 24 1 ±0.003% -40°C to +85°C 20-pin 0.2" Plastic SSOP
CS5530-ISZ 24 1 ±0.003% -40°C to +85°C 20-pin 0.2" Plastic SSOP, Lead Free
7. ENVIRONMENTAL, MANUFACTURING, & HANDLING INFORMATION
Model Number Peak Reflow Temp MSL Rating Max Floor Life
CS5530-IS 240 °C 2 365 Days
CS5530-ISZ 260 °C 3 7 Days
DS742F3 35
Revision History
Contacting Cirrus Logic Support
For all product questions and inquiries contact a Cirrus Logic Sales Representative.
To find the one nearest to you go to www.cirrus.com
IMPORTANT NOTICE
Cirrus Logic, Inc. and its subsidiaries (“Cirrus”) believe that the information contained in this document is accurate and reliable. However, the inform atio n is s ub ject
to change without notice and is provided “AS IS” without warranty of any kind (express or implied). Customers are advised to obtain the latest version of relevant
information to verify, before placing o rders, that in formation be ing relied on is current an d comple te. All produ cts are sold s ubject to the te rms and cond itions of sale
supplied at the time of order acknowledgment, including those pertaining to war ranty, indemnification, an d limitation of liability. No responsibility is assumed by Cirrus
for the use of this information, including use of this information as the basis for manufacture or sale of any items, or for infringement of patents or other rights of third
parties. This document is the property of Cirrus and by furnishing this information, Cirrus grants no license, express or implied under any patents, mask work rights,
copyrights, trademar ks, trad e secrets o r other i ntellec tual prope rty rights. Cirrus owns the copyrights associated with the information co ntained her ein and gi ves
consent for copies to b e made of the inf ormation only f or use withi n your organiza tion with re spect to Cirrus integrated circuits or other produc ts of Cirru s. This
consent does not extend to other copying such as cop yin g for ge ne ral distribu tion , adve rtisi ng or p rom otional purposes, or for creating any work for resale.
CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL APPLICATIONS”). CIRRUS PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARRANTED FOR USE
IN PRODUCTS SURGICALLY IMPLANTED INTO THE BODY, AUTOMOTIVE SAFETY OR SECURITY DEVICES, LIFE SUPPORT PRODUCTS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF CIRRUS PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD TO BE FULLY AT THE CUSTOMER'S RISK
AND CIRRUS DISCLAIMS AND MAKES NO WARRANTY, EXPRESS, STATUTORY OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, WITH REGARD TO ANY CIRRUS PRODUCT THAT IS USED IN SUCH A MANNER. IF THE CUSTOMER
OR CUSTOMER'S CUSTOMER USES OR PERMITS THE USE OF CIRRUS PRODUCTS IN CRITICAL APPLICATIONS, CUSTOMER AGREES, BY SUCH USE,
TO FULLY INDEMNIFY CIRRUS, ITS OFFICE RS, DIRECTORS, EMPLO YEES, DISTRI BUTORS AND OTHER AGENTS FRO M ANY AND ALL LIABIL ITY, INCLUDING ATTORNEYS' FEES AND COSTS, THAT MAY RESULT FR OM OR ARISE IN CONNECTION WITH THESE USES.
Cirrus Logic, Cirrus, and the Cirrus Logic logo designs are trademarks of Cirrus Logic, Inc. All other brand and product names in this document may be trademarks
or service marks of their respective owners.
SPI is a trademark of Motorola, Inc.
Microwire is a trademark of National Semicond ucto r Cor po ra tion.
REVISION DATE CHANGES
A1 OCT 2006 Advance Release
A2 NOV 2006 Updated power consumption values.
A3 NOV 2006 Updated noise density plot.
A4 NOV 2006 Updated temperature range specification.
F1 JAN 2007 Corrected input current on p1 to 1200 pA. Changed temp range to -40 to +85.
F2 MAY 2009 Increased input current noise spec. to 1.0 pA /
F3 NOV 2009 Minor correction to Figure 4. I
nput Model for AIN+ and AIN- Pins (page 11).
√Hz.
CS5530
36 DS742F3
Loading...
