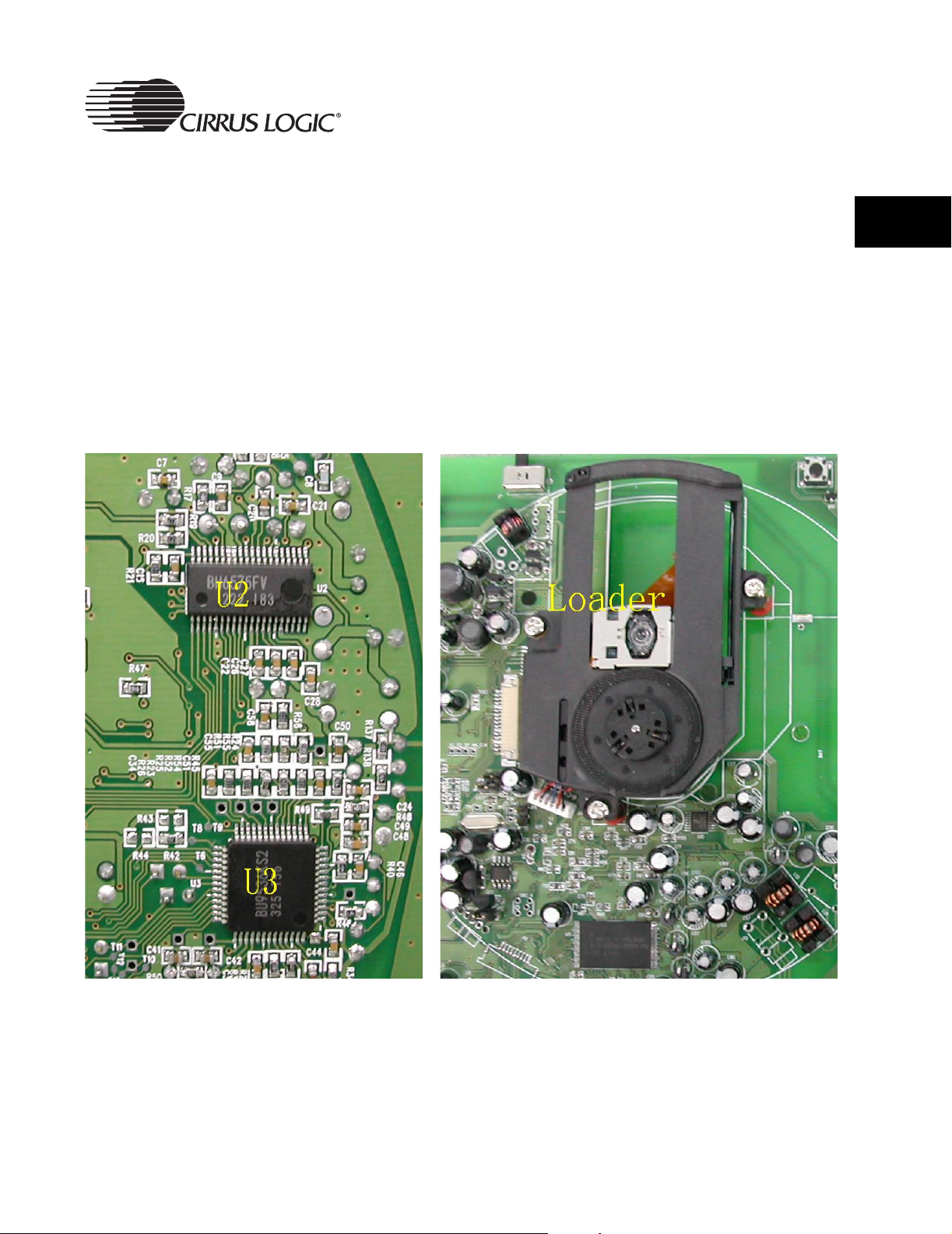

Figure 1-8. Detail Views of the CD Loader Subsystem ...................................................... 15

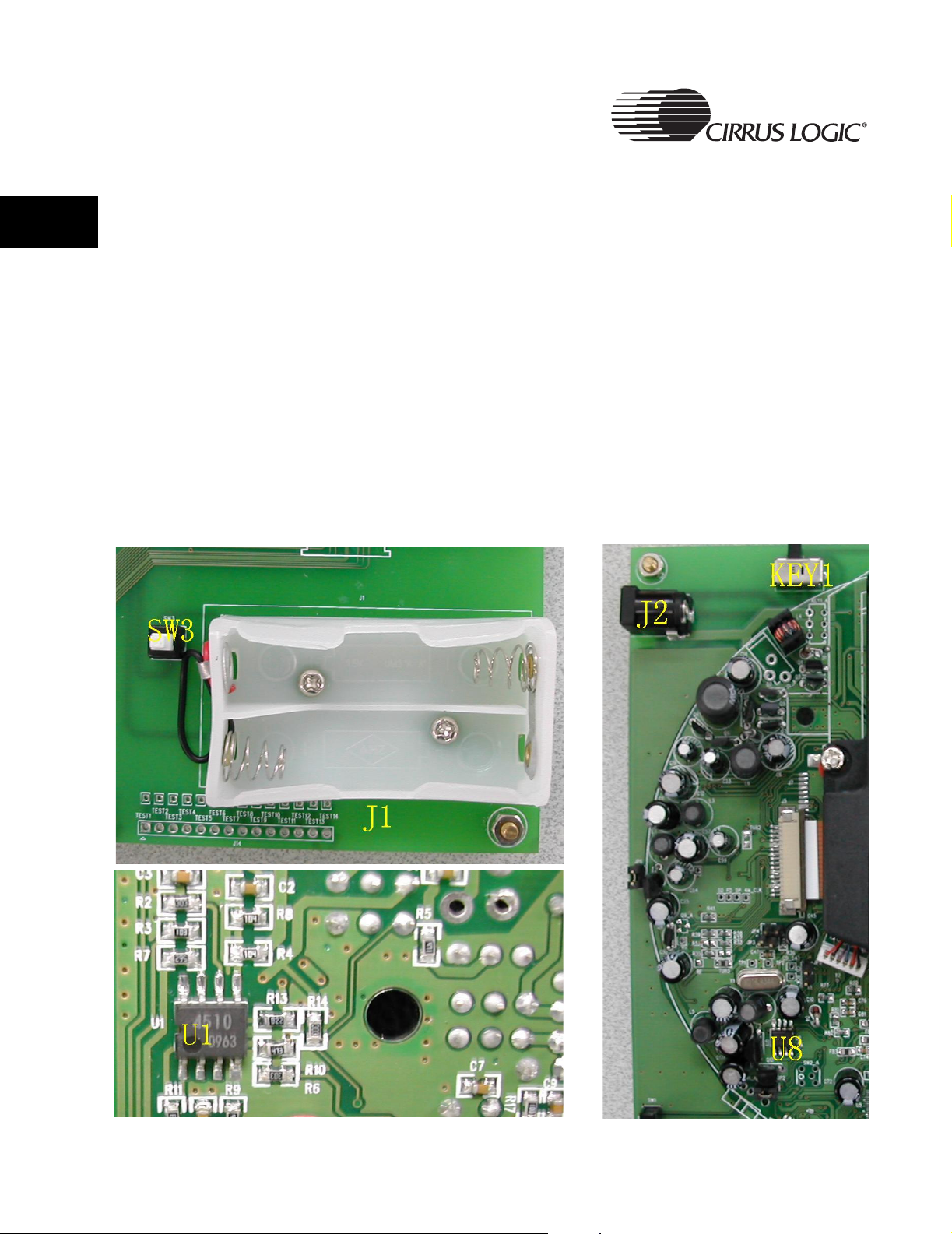

Figure 1-9. Detail Views of the Power Subsystem .............................................................. 16

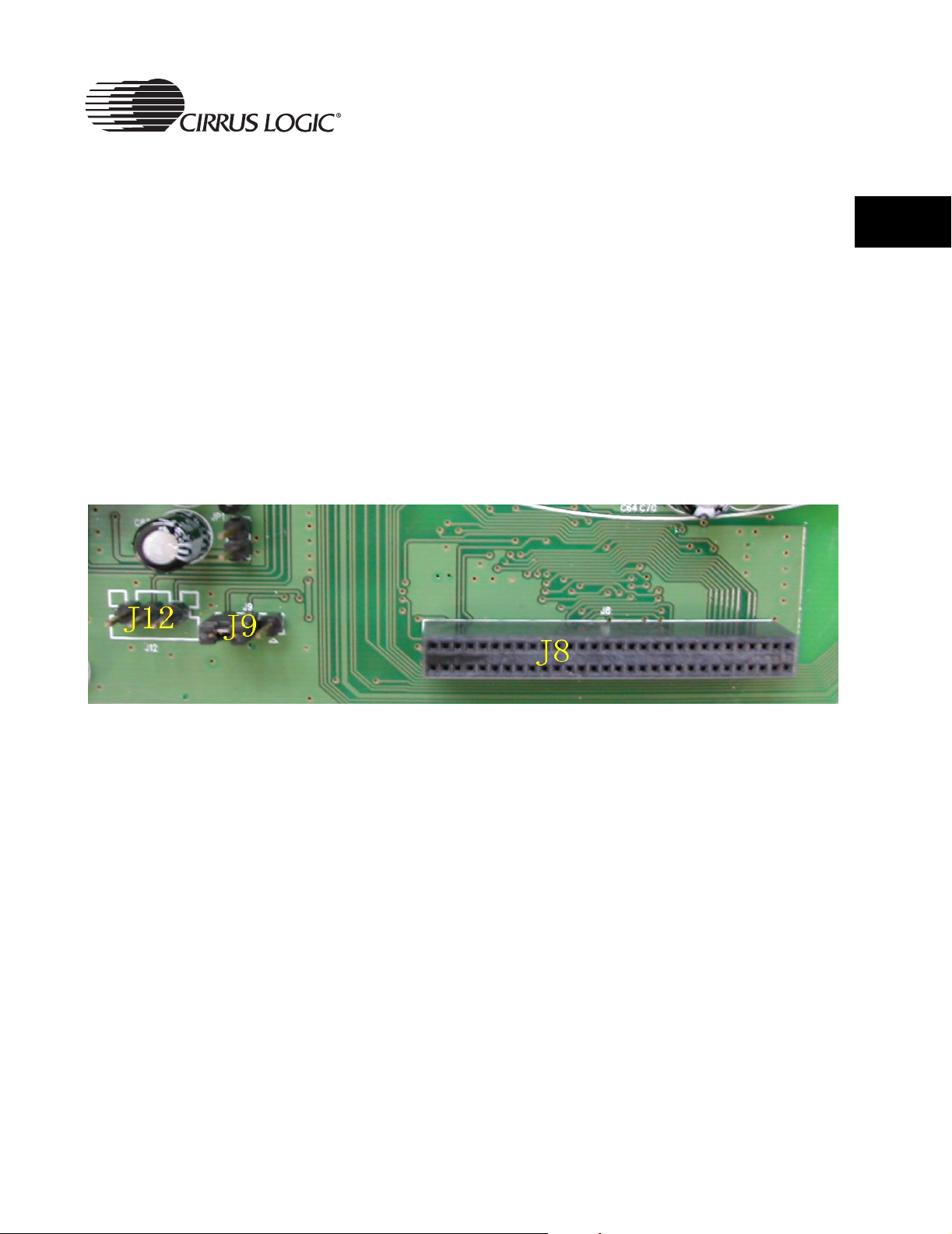

Figure 1-10. Detail View of the Debug Interface ................................................................. 17

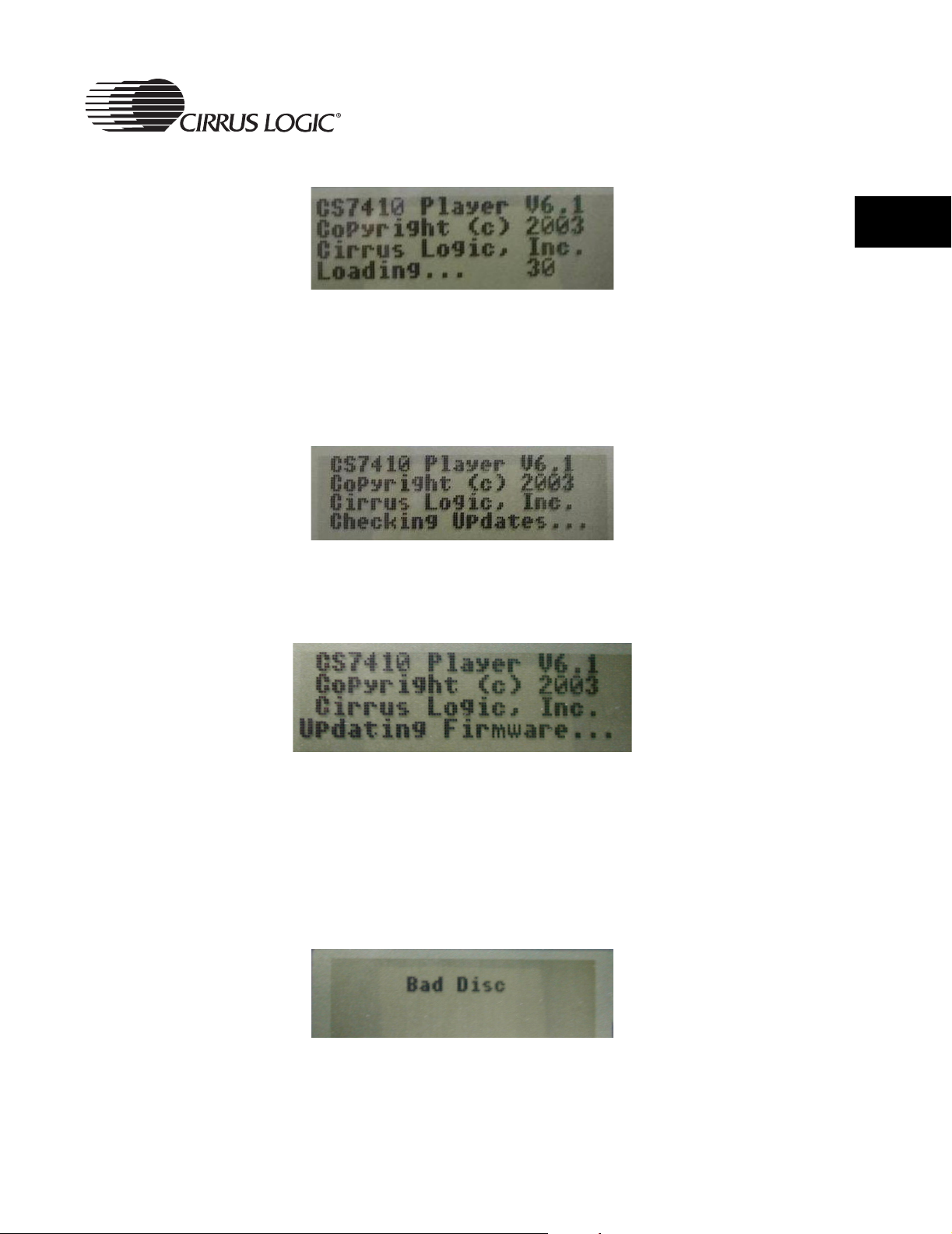

Figure 2-1. Power-on Screen .............................................................................................. 21

Figure 2-2. Checking for Update Files Screen .................................................................... 21

Figure 2-3. Loading Updated Firmware Screen .................................................................. 21

Figure 2-4. Bad Disc Screen ............................................................................................. 21

Figure 2-5. Normal Operation Screen ................................................................................. 22

Figure 2-6. Display Screen Format - Default Mode ............................................................ 22

Figure 2-7. Display Screen Format - Default Mode ............................................................ 24

Figure 2-8. Pause Screen - CDDA ...................................................................................... 24

Figure 2-9. Pause Screen - MP3 ........................................................................................ 24

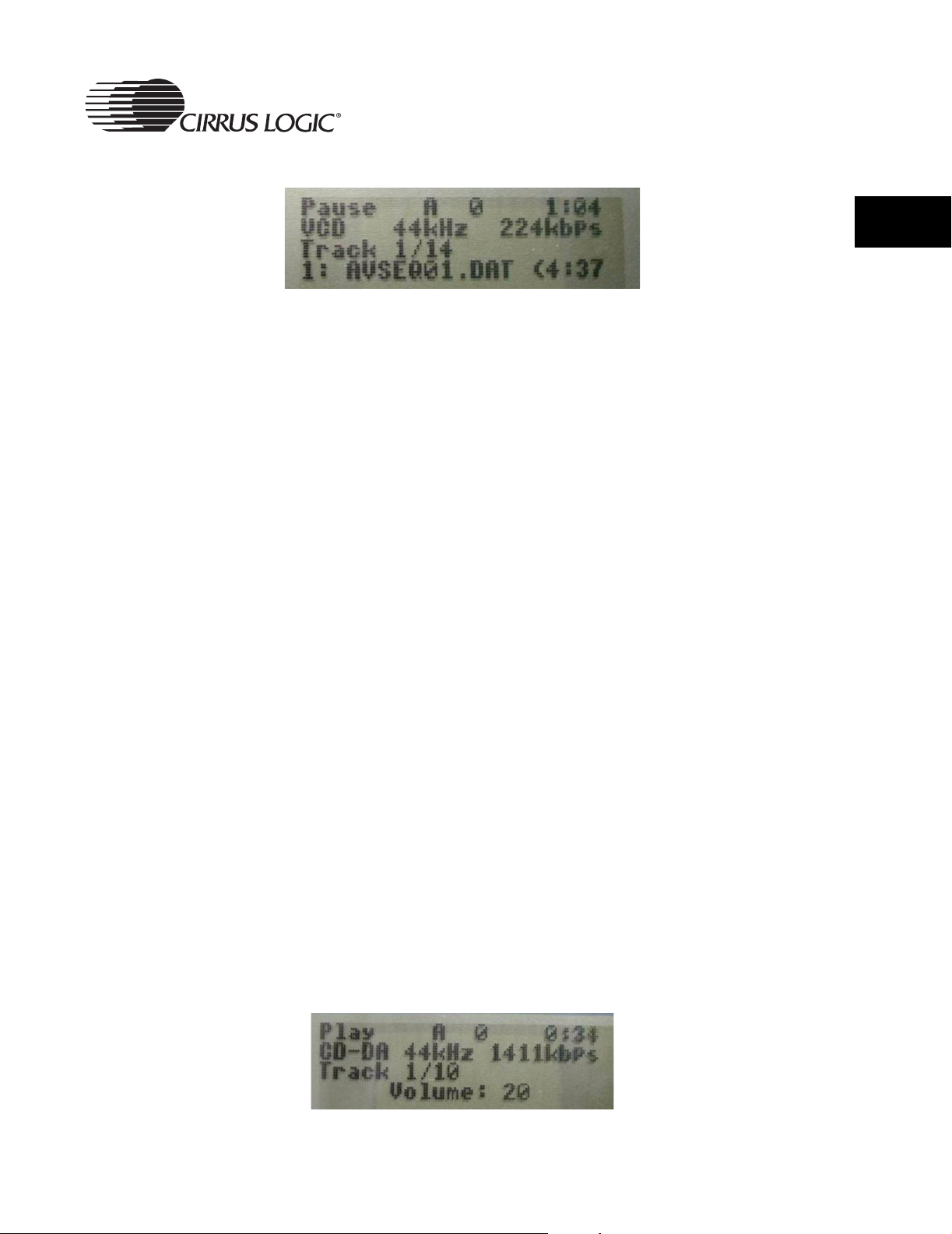

Figure 2-10. Screen - VCD ................................................................................................. 25

Figure 2-11. Volume Changing Screen ............................................................................... 25

Figure 2-12. Equalizer Setting Screen ................................................................................ 26

Figure 2-13. Navigator Mode Screen .................................................................................. 26

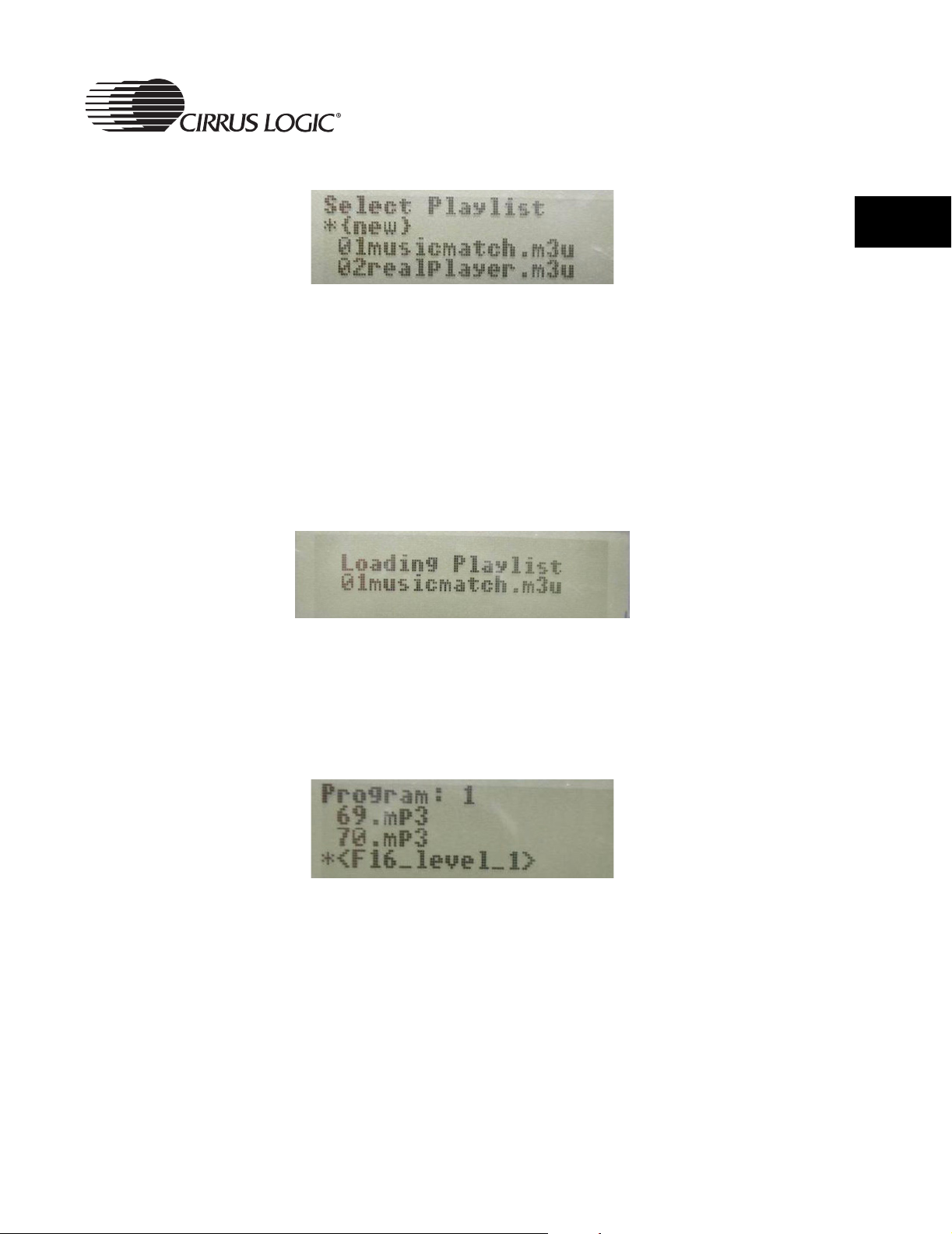

Figure 2-14. Playlist Selection Mode Screen .................................................................... 27

Figure 2-15. Playlist Loading Screen .................................................................................. 27

Figure 2-16. Playlist Creation Mode Screen ..................................................................... 27

Figure 2-17. Main Menu Screen ......................................................................................... 28

Figure 2-18. Electronic Shock Protection (ESP) Submenu Screen .................................. 28

Figure 2-19. Lyrics Submenu Screen ............................................................................... 29

Figure 2-20. Resume Submenu Screen ........................................................................... 29

Figure 2-21. Scrolling Submenu Screen ........................................................................... 29

Figure 2-22. Shut Off Time Submenu Screen ..................................................................... 30

Figure 2-23. Sleep Timer Submenu Screen ....................................................................... 30

Figure 2-24. 3D Effect Submenu Screen .......................................................................... 30

Figure 2-25. Order Tracks Submenu Screen .................................................................... 31

Figure 2-26. Firmware Version Screen ............................................................................ 31

CRD7410-BA User’s Guide - DS622UMC2 4
Copyright 2004 Cirrus Logic

List of Tables

Table 1-1: Button Matrix.......................................................................................................13

Table 1-2: Line Controller .................................................................................................. 14

CRD7410-BA User’s Guide - DS622UMC2 5
Copyright 2004 Cirrus Logic

This page intentionally blank.

6 CRD7410-BA User’s Guide - DS622UMC2

Copyright 2004 Cirrus Logic

Chapter 1

1.1 Overview

1CRD7410-BA Board Architecture

This document describes a reference design platform for the Cirrus Logic
CS7410, known as the CRD7410-BA. It is an evaluation platform for a mid­range portable CD player. The CRD7410-BA platform provides a low-cost yet
complete solution for today’s popular digital music formats (CDDA, MP3,
WMA, VCD, AVCD, and SVCD). The platform also supports today’s popular
music plylist formats such as MP3, M4U, PLS, B4S, and RMP. The system’s
small size, light weight, and low power consumption allow designers to
integrate powerful features into an inexpensive portable device. The design is
also easily adapted to small bookshelf systems.

All components necessary for a portable CDDA/MP3/WMA/VCD/AVCD/SVCD
application, including a 3-line LCD display, are incorporated into a single PCB.
Debug capability is provided adjacent to the main circuitry. In a final design,
the I2C debug and Romulator ports would be eliminated, leaving only the
circuitry required for the application.

In addition, the LCD display and control buttons are laid out in a manner which
allows that circuitry to be moved easily to a separate front panel PCB. The
CRD7410-BA also supports a wired remote controller. Refer to Figure 1-1.

1

Cirrus Logic provides the system as a complete solution. Schematics and
Gerber data files for the PCB are available.

1.1.1 Main Subsystems

The CRD7410-BA has seven main subsystems. They are:

• Decoder

• Audio

• User Interface Subsystem

• CD Loader

• Power

• Debug Interface

• Jumpers and Switches

CRD7410-BA User’s Guide - DS622UMC2 7
Copyright 2004 Cirrus Logic

1

CRD7410-BA Board Architecture

Figure 1-1. Main Board, Top View

8 CRD7410-BA User’s Guide - DS622UMC2

Copyright 2004 Cirrus Logic

Figure 1-2. Main Board, Bottom View

CRD7410-BA Board Architecture

1

CRD7410-BA User’s Guide - DS622UMC2 9
Copyright 2004 Cirrus Logic

CRD7410-BA Board Architecture

1.2 Main Subsystems

1

1.2.1 Decoder Subsystem

This system uses the Cirrus Logic CS7410 for main control and audio decode.
(See U6 in Figure 1-3, below.)

A Flash/ROM is used for application code. (See U5 in Figure 1-3, below.)

An SDRAM is provided for Electronic Shock Protection (ESP). (See U4 in
Figure 1-3, below.)

Figure 1-3. Detail Views of the Decoder Subsytem

10 CRD7410-BA User’s Guide - DS622UMC2

Copyright 2004 Cirrus Logic

1.2.2 Audio Subsystem

CRD7410-BA Board Architecture

1.2.2.1 Internal DAC

An integrated Sigma-Delta based DAC (Digital-to-Analog-Converter) allows
the designer to build a low cost DAC with a simple RC integration circuit.

1.2.2.2 External DAC

This system also provides audio data in serial format, to support the use of an
external DAC. Shown in Figure 1-4, below, U12 is a CS43L43.

1.2.2.3 Subsystem Design Details

Figure 1-4 shows the details of the implementation of this subsystem design.
This list below defines the semiconductor devices and connectors used in this
subsystem, and the function of each.

• U9 - Dual D-Type positive-edge triggered Flip-Flop - 74AC74

• U10 - Headphone Amplifier - PT2308

• U12 - Audio DAC - CS43L43

• J11 - Headphone Out and Line Controller Output Jack

• J13_A - Line Out Jack

Figure 1-4. Detail View of the Audio Subsystem

1

CRD7410-BA User’s Guide - DS622UMC2 11
Copyright 2004 Cirrus Logic

1

CRD7410-BA Board Architecture

1.2.3 User Interface Subsystem

The User Interface Subsystem has three sections: the LCD (Liquid Crystal
Display), the Button Matrix and the Line Controller. (See Figure 1-5, Figure 1-6
and Figure 1-7, below, for details.)

1.2.3.1 LCD Display

Figure 1-5 shows a close-up view of the LCD, which is part of the User
Interface Subsystem.

The LCD display (reference designator - DSP1) is a 24 x 60 pixel display. For
a dot matrix character size of 8 x 5, this gives 12 characters per line, by 3 lines
per display.

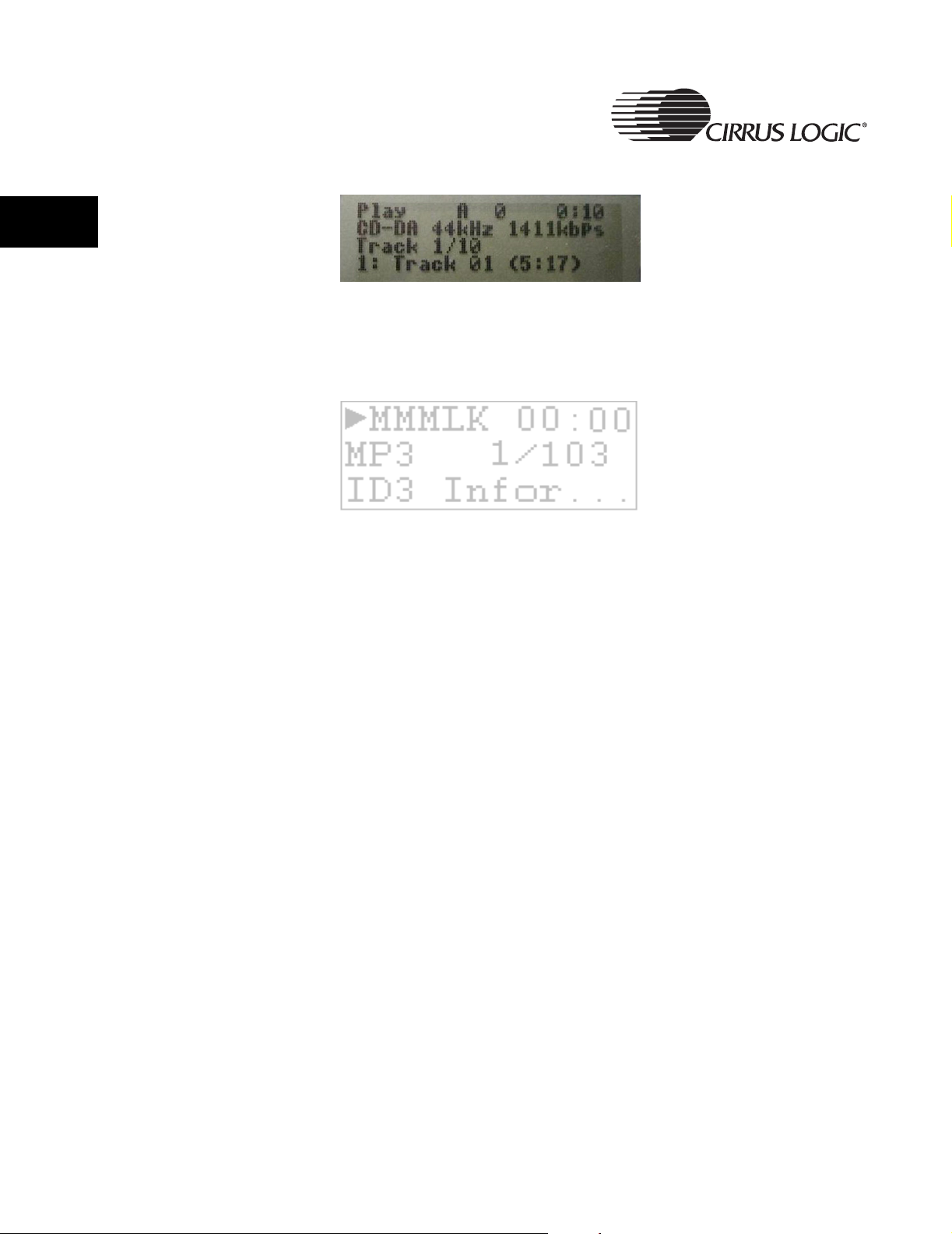

Figure 1-5. Detail View of the LCD

12 CRD7410-BA User’s Guide - DS622UMC2

Copyright 2004 Cirrus Logic
