CipherLab 8630, 8660, 8600 Users Manual

8600 Series Mobile Computer

8600/8630/8660

Version 1.00

The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided under a license agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.

Due to continued product development this information may change without notice. The information and intellectual property contained herein is confidential between CIPHERLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing. CIPHERLAB does not warrant that this document is error-free.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.

For product consultancy and technical support, please contact your local sales representative. Also, you may visit our web site for more information.

The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD.

All brand, product and service, and trademark names are the property of their registered owners.

The editorial use of these names is for identification as well as to the benefit of the owners, with no intention of infringement.

CIPHERLAB CO., LTD.

Website: http://www.cipherlab.com

IMPORTANT NOTICES

FOR USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FOR CANADA

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada.

Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils numeriques de Classe B prescrites dans la norme sur le material brouilleur: "Appareils Numeriques," NMB-003 edictee par l'Industrie.

FOR HAND-HELD PRODUCT WITH RF FUNCTIONS

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

FOR EUROPE– EU DECLARATION OF CONFORMITY

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

 EN 60950-1: 2006+A11:2009+A1:2010+A12:2011

Safety of Information Technology Equipment

 EN 301 489-1 V1.8.1: 2008

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

 EN 301 489-3 V1.4.1 2002

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 40 GHz

 EN 301 489-17 V2.1.1 2009

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

 EN 300 328 V1.7.1: 2006

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

 EN 300 330-1 V1.5.1: 2006

Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Radio equipment in the frequency range 9 kHz to 25 MHz and inductive loop systems in the frequency range 9 kHz to 30 MHz; Part 1: Technical characteristics and test methods

 EN 300 330-2 V1.3.1: 2006

3.2 of the R&TTE Directive

 EN 300 440-1 V1.4.1: 2008

Electromagnetic compatibility and Radio spectrum Matters (ERM); Short range devices; Radio equipment to be used in the 1 GHz to 40 GHz frequency range; Part1: Technical characteristics and test methods

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.

FOR PRODUCT WITH LASER

CAUTION

This laser component emits FDA / IEC Class 2 laser light at the exit port. Do not stare into beam.

SAFETY PRECAUTIONS

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

 The use of any batteries or charging devices, which are not originally sold or

manufactured by CipherLab, will void your warranty and may cause damage to human body or the product itself.

 DO NOT disassemble, incinerate or short circuit the battery.  DO NOT expose the scanner or the battery to any flammable sources.  For green-environment issue, it's important that batteries should be recycled in a

proper way.

 Under no circumstances, internal components are self-serviceable.  The charging and communication cradle uses an AC power adaptor. A socket outlet

shall be installed near the equipment and shall be easily accessible. Make sure there is stable power supply for the mobile computer or its peripherals to operate properly.

CARE & MAINTENANCE

 This mobile computer is intended for enterprise logistics use. The mobile computer is

rated IP 52, however, it may do damage to the mobile computer when being exposed to extreme temperatures or soaked wet.

 When the body of the mobile computer gets dirty, use a clean and wet cloth to wipe

off the dust. DO NOT use/mix any bleach or cleaner. Always keep the LCD dry.

 For a liquid crystal display (LCD), use a clean, non-abrasive, lint-free cloth to wipe

dust off the screen. DO NOT use any pointed or sharp object to move against the surface.

 If you want to put away the mobile computer for a period of time, download the

collected data to a host computer, and then take out the battery pack. Store the mobile computer and battery pack separately.

 When the mobile computer resumes its work, the main and backup batteries will take

a certain time to become fully charged.

 If you shall find the mobile computer malfunctioning, write down the specific scenario

and consult your local sales representative.

RELEASE NOTES

Version Date Notes

1.00 Oct. 17, 2013 Initial release

CONTENTS

IMPORTANT NOTICES ........................................................................................................................... - 2 -

For USA ................................................................................................................................................. - 3 -

For Canada ........................................................................................................................................... - 3 -

For Hand-held Product with RF Functions ....................................................................................... - 3 -

For Europe– EU Declaration of Conformity ..................................................................................... - 4 -

For Product with Laser ....................................................................................................................... - 6 -

Safety Precautions .............................................................................................................................. - 6 -

Care & Maintenance ........................................................................................................................... - 6 -

RELEASE NOTES ................................................................................................................................... - 6 -

INTRODUCTION.......................................................................................................................................... 1

Terminal Models ...................................................................................................................................... 2

Inside the Package ................................................................................................................................. 2

Software & Utilities ................................................................................................................................. 2

Accessories .............................................................................................................................................. 3

Features .................................................................................................................................................... 3

Getting Started ........................................................................................................................................ 4

Component Names ........................................................................................................................... 4

Inserting Battery & Memory Card ................................................................................................... 5

Installing Pistol Grip .......................................................................................................................... 8

Initial Charging ................................................................................................................................... 9

Setting Local Time ............................................................................................................................. 9

Power Management .......................................................................................................................... 9

USING THE MOBILE COMPUTER ............................................................................................................ 11

1.1 Battery ............................................................................................................................................ 12

1.1.1 Main Battery .......................................................................................................................... 12

1.1.2 Backup Battery ..................................................................................................................... 13

1.1.3 Caution of Low Battery Charge .......................................................................................... 13

1.2 Memory ........................................................................................................................................... 14

1.2.1 Read-only Memory (ROM) ................................................................................................... 14

1.2.2 Random-access Memory (RAM) ......................................................................................... 14

1.2.3 SD Card .................................................................................................................................. 14

1.3 Keypad ............................................................................................................................................ 15

1.3.1 29-key Layout ....................................................................................................................... 15

1.4 LCD .................................................................................................................................................. 18

1.4.1 Adjusting the LCD Backlight ............................................................................................... 18

1.5 Notifications ................................................................................................................................... 19

1.5.1 Status LED ............................................................................................................................. 19

1.5.2 Audio ...................................................................................................................................... 20

1.5.3 Vibrator .................................................................................................................................. 20

1.6 Data Capture .................................................................................................................................. 21

8600 Series Mobile Computer Reference Manual

1.6.1 Barcode Scanner .................................................................................................................. 21

1.6.2 RFID Reader .......................................................................................................................... 22

1.7 Charging & Communications ...................................................................................................... 24

1.7.1 Interface Cable Options ....................................................................................................... 26

1.7.2 Cradle Options ...................................................................................................................... 27

1.8 SD Card ........................................................................................................................................... 30

1.8.1 File System ............................................................................................................................ 30

1.8.2 Directory ................................................................................................................................ 30

1.8.3 File Name .............................................................................................................................. 32

LEARNING SOFTWARE ARCHITECTURE ............................................................................................... 33

2.1 Application Module ....................................................................................................................... 35

2.1.1 FORGE Application Generator (AG) ................................................................................... 35

2.1.2 MIRROR Emulator (CipherNet) ........................................................................................... 36

2.1.3 User Program ........................................................................................................................ 36

2.2 System Configuration & Core ...................................................................................................... 37

2.2.1 System Menu ........................................................................................................................ 37

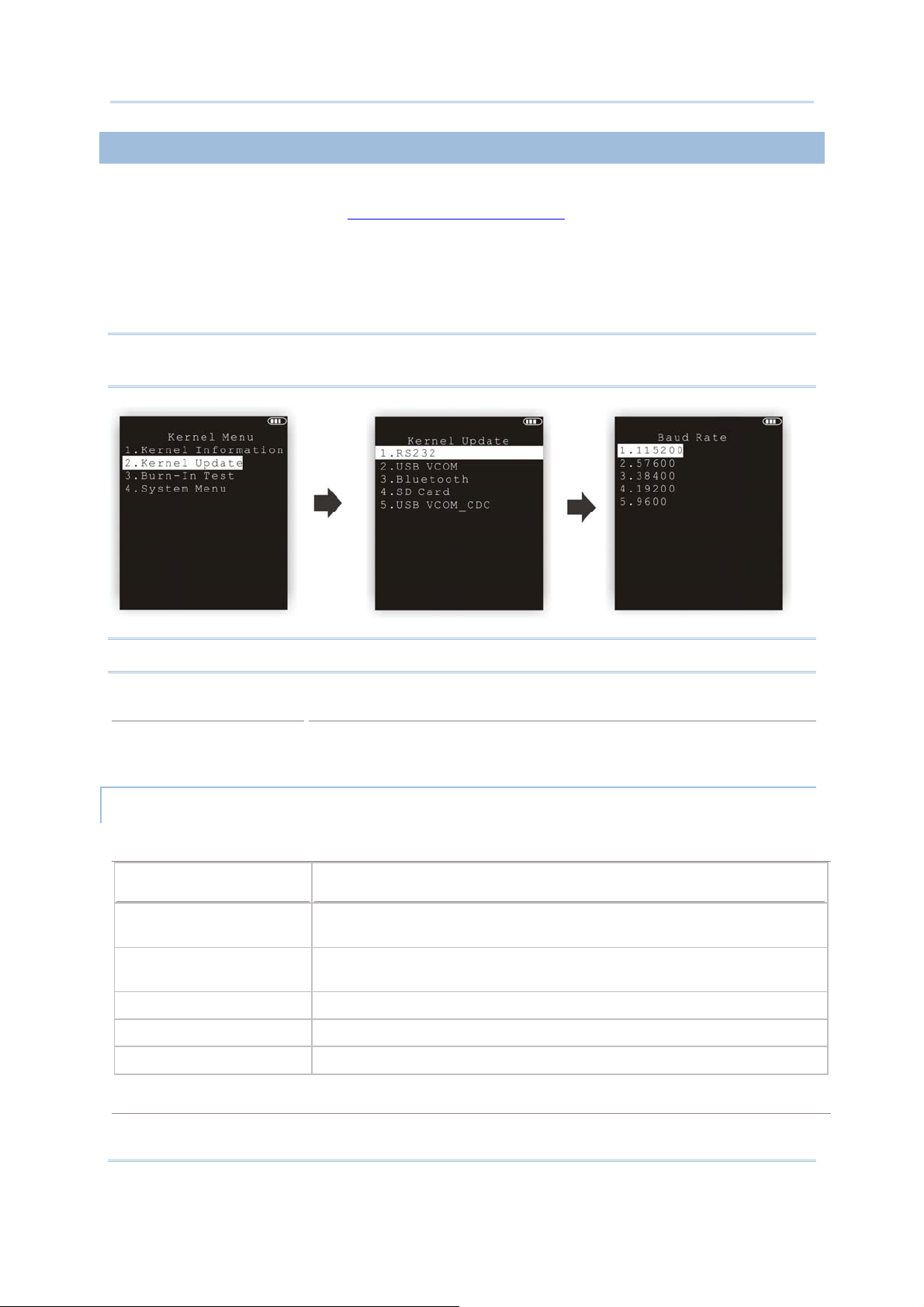

2.2.2 Kernel ..................................................................................................................................... 37

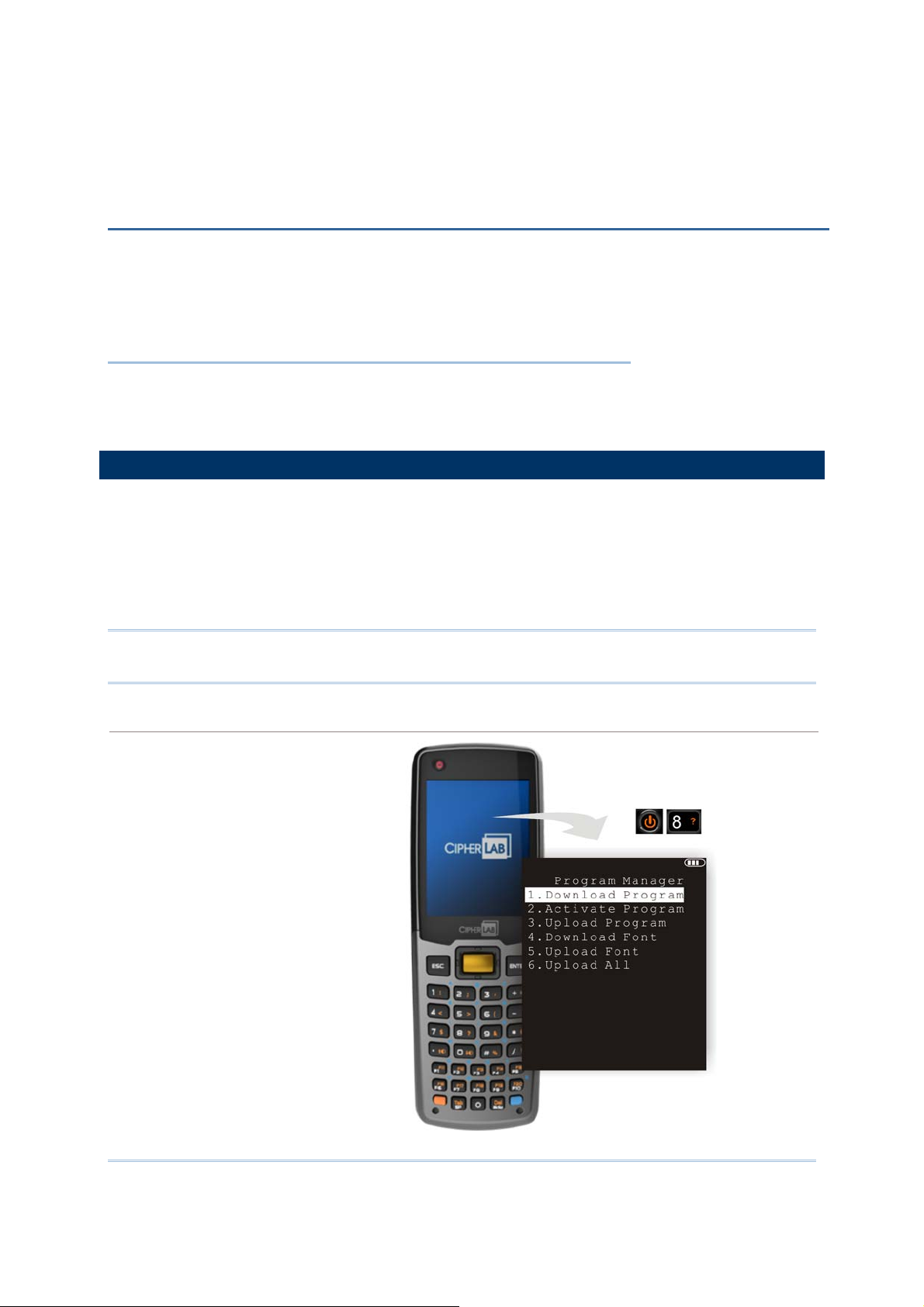

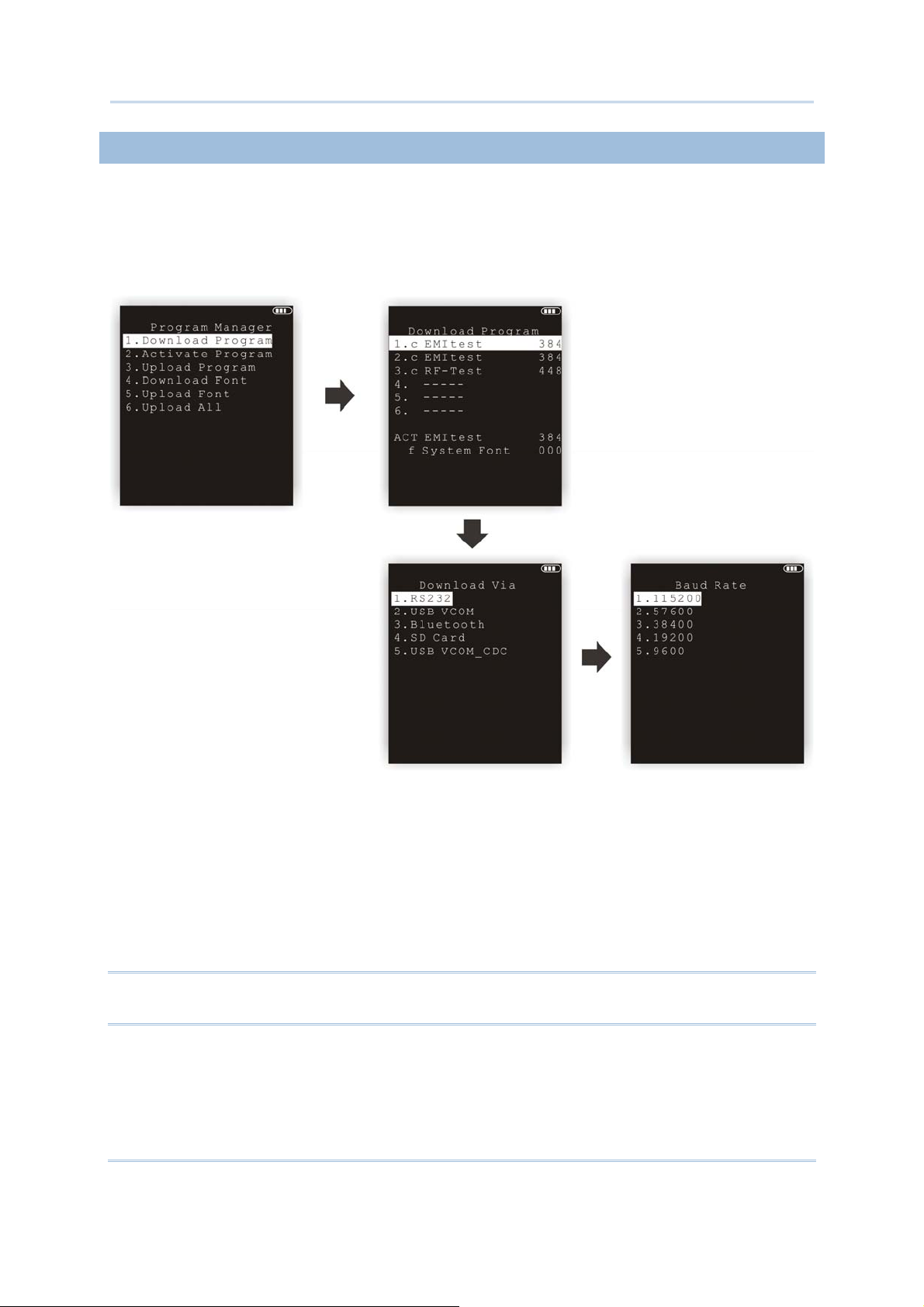

2.2.3 Program Manager ................................................................................................................ 37

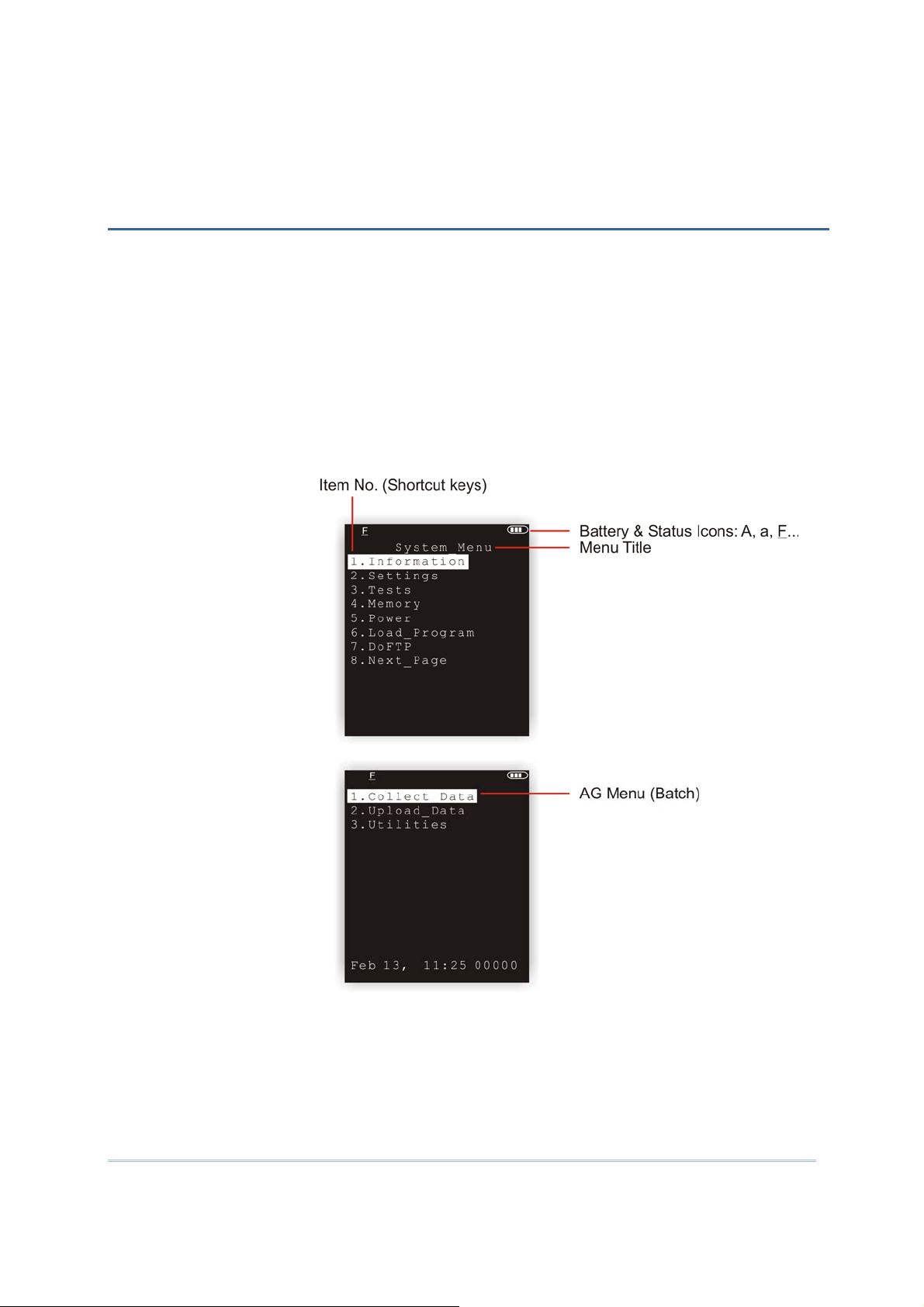

SYSTEM MENU ........................................................................................................................................ 39

3.1 Information .................................................................................................................................... 40

3.1.1 Understanding Device Code................................................................................................ 41

3.2 Settings ........................................................................................................................................... 42

3.2.1 Clock ....................................................................................................................................... 42

3.2.2 Backlight ................................................................................................................................ 42

3.2.3 Contrast ................................................................................................................................. 43

3.2.4 Auto Off .................................................................................................................................. 43

3.2.5 Power On (& Wakeup Event) Options ............................................................................... 43

3.2.6 Key Click ................................................................................................................................ 44

3.2.7 Speaker Volume ................................................................................................................... 44

3.2.8 USB VCOM No ....................................................................................................................... 44

3.2.9 USB Charge Current ............................................................................................................. 44

3.2.10 Font ...................................................................................................................................... 44

3.2.11 System Password............................................................................................................... 45

3.2.12 Default Set .......................................................................................................................... 45

3.2.13 Reset Reader ...................................................................................................................... 45

3.3 Tests ................................................................................................................................................ 46

3.3.1 Reader .................................................................................................................................... 46

3.3.2 Speaker .................................................................................................................................. 46

3.3.3 LCD & LED ............................................................................................................................. 46

3.3.4 Keyboard ................................................................................................................................ 46

3.3.5 Memory .................................................................................................................................. 46

3.3.6 Echo Test ............................................................................................................................... 47

3.3.7 Vibrator .................................................................................................................................. 47

3.3.8 RFID ........................................................................................................................................ 47

3.3.9 GPS ......................................................................................................................................... 47

3.4 Memory ........................................................................................................................................... 49

3.4.1 Size information ................................................................................................................... 49

3.4.2 Initialize .................................................................................................................................. 49

3.5 Power .............................................................................................................................................. 50

8600 Series Mobile Computer Reference Manual

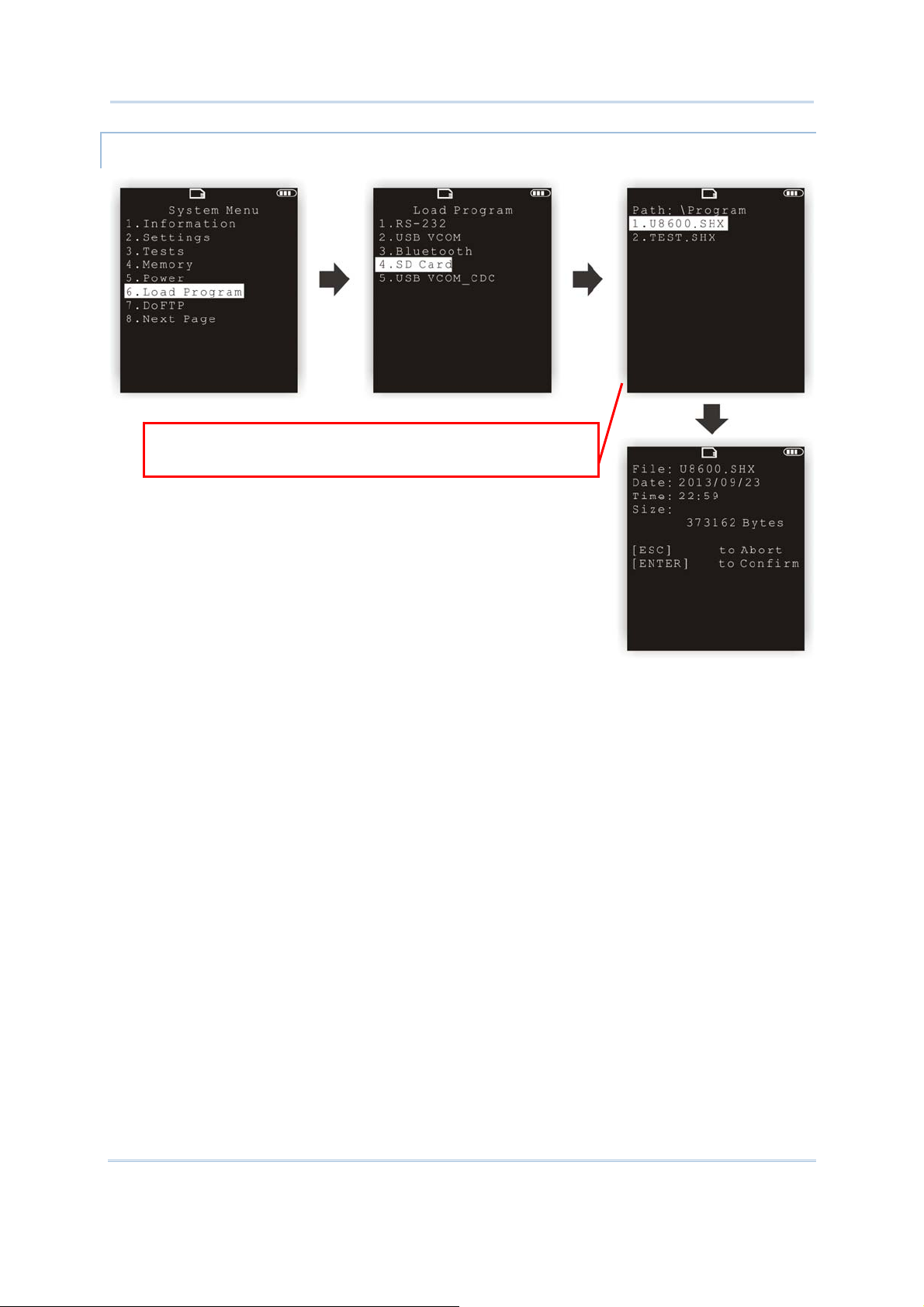

3.6 Load Program ................................................................................................................................ 51

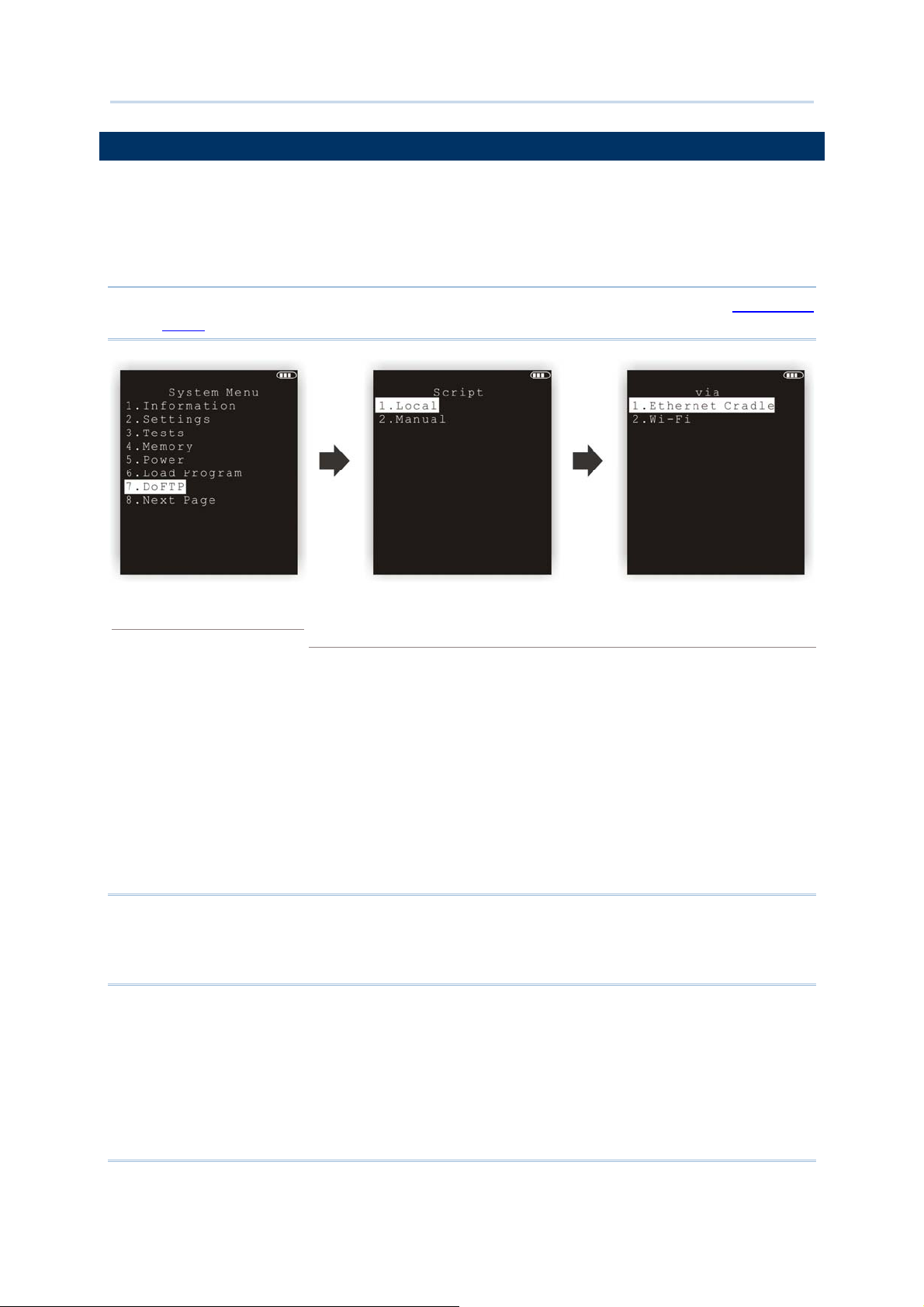

3.7 DoFTP Menu ................................................................................................................................... 54

3.7.1 Local ....................................................................................................................................... 55

3.7.2 Manual ................................................................................................................................... 55

3.8 Storage Menu ................................................................................................................................ 56

3.8.1 Run as USB Disk ................................................................................................................... 56

3.8.2 Access SD Card ..................................................................................................................... 56

3.9 Bluetooth Menu ............................................................................................................................. 58

3.9.1 Information ............................................................................................................................ 59

3.9.2 Connect Setting .................................................................................................................... 60

3.9.3 Security .................................................................................................................................. 61

3.9.4 Echo Tests.............................................................................................................................. 62

3.9.5 Pairing Test ........................................................................................................................... 65

3.9.6 Frequent Devices .................................................................................................................. 66

3.10 Wi-Fi Menu ................................................................................................................................... 67

3.10.1 Information ......................................................................................................................... 68

3.10.2 Network Setting ................................................................................................................. 69

3.10.3 WLAN Setting ..................................................................................................................... 70

3.10.4 Security ................................................................................................................................ 72

3.10.5 Scan Devices ...................................................................................................................... 73

3.10.6 Profile .................................................................................................................................. 74

3.10.7 Echo Tests ........................................................................................................................... 76

PROGRAM MANAGER & KERNEL ......................................................................................................... 79

4.1 Program Manager ......................................................................................................................... 79

4.1.1 Download Program .............................................................................................................. 80

4.1.2 Activate Program .................................................................................................................. 82

4.1.3 Upload Program .................................................................................................................... 83

4.1.4 Download Font ...................................................................................................................... 84

4.1.5 Upload Font ........................................................................................................................... 84

4.1.6 Upload All .............................................................................................................................. 85

4.2 Kernel .............................................................................................................................................. 86

4.2.1 Kernel Information ............................................................................................................... 87

4.2.2 Kernel Update ....................................................................................................................... 88

4.2.3 Burn-In Test ........................................................................................................................... 90

4.2.4 System Menu ........................................................................................................................ 90

SPECIFICATIONS ..................................................................................................................................... 91

DOWNLOAD UTILITY ............................................................................................................................... 93

File Types ............................................................................................................................................... 93

Font File ............................................................................................................................................ 93

C Programs ...................................................................................................................................... 93

BASIC Programs.............................................................................................................................. 94

ProgLoad.exe ........................................................................................................................................ 95

TROUBLESHOOTING ............................................................................................................................... 97

Cannot turn on when pressing Power key ........................................................................................ 97

Charging error ....................................................................................................................................... 97

Speaker seems not working ............................................................................................................... 97

8600 Series Mobile Computer Reference Manual

LED indicators seem not working ...................................................................................................... 97

LCD seems not working ...................................................................................................................... 97

Keypad seems not working ................................................................................................................ 98

Vibrator seems not working ............................................................................................................... 98

Mobile computer seems not working ............................................................................................... 98

Cannot scan barcodes ......................................................................................................................... 98

Low battery condition ..................................................................................................................... 98

Barcode reader problem ................................................................................................................ 98

Cannot decode data after scanning .................................................................................................. 98

Unreadable barcode ....................................................................................................................... 98

Un-programmed to read ................................................................................................................ 98

Dirty scan window ........................................................................................................................... 98

Out of scanning range .................................................................................................................... 99

Cannot transmit/receive data............................................................................................................ 99

Using RS-232 cable ........................................................................................................................ 99

Using USB cable .............................................................................................................................. 99

Via Bluetooth ................................................................................................................................... 99

Via Wi-Fi ........................................................................................................................................... 99

KEY REFERENCE TABLE ....................................................................................................................... 100

29-key Keypad .................................................................................................................................... 100

System Defaults ............................................................................................................................ 100

Extended Function Keys .............................................................................................................. 101

39-key Keypad .................................................................................................................................... 102

System Defaults ............................................................................................................................ 102

INTRODUCTION

Answering industrial demands for rugged, light-weight and versatile computers, the 8600 Series Mobile Computer is specifically designed for enterprise logistics use.

Equipped with CCD (linear imager), Laser, 2D imager, or RFID scanning modules, users can choose the appropriate option that best suits to their field applications.

With Bluetooth v4.0 built inside, the mobile computer supports Bluetooth Smart Ready playing the center role in exchanging data and information with new Bluetooth Smart devices and the vast amount of traditional Bluetooth devices in market. Besides the short-range of Bluetooth technology, the model-specific Wi-Fi module based on

802.11b/g/n connectivity is also equipped enabling the mobile computer have access to the Internet.

The 8600 Series Mobile Computer is bundled with powerful and rich features to ensure success in timely processing of information, and thus, makes an ideal choice for inventory control, shop floor management, warehousing and distribution operations. Being programmable, this handy device can run custom applications or terminal emulation applications.

This manual serves to guide you through how to install, configure, and operate the mobile computer. We recommend that you keep one copy of the manual at hand for quick reference or maintenance purposes. To avoid any improper disposal or operation, please read the manual thoroughly before use.

Thank you for choosing CipherLab products!

8600 Series Mobile Computer Reference Manual

TERMINAL MODELS

The wireless capabilities of 8600 Mobile Computer Series may vary depending on the specifications implemented. Please refer to the table below.

Model

8600 - 8630 8660

WLAN (802.11 b/g/n) WPAN (Bluetooth 4.0)

√ √

√

INSIDE THE PACKAGE

The following items are included in the package. Save the box and packaging material for future use in case you need to store or ship the mobile computer.

 8600 Series mobile computer  Rechargeable Li-ion battery pack  Wristband  Snap-on cable  Power adaptor  Product CD ROM  Quick Start Guide

SOFTWARE & UTILITIES

 Text Browser  MIRROR 5250 Emulator  MIRROR VT Emulator  FORGE Batch Application Generator  FORGE WLAN Application Generator  C & BASIC compilers

The items on the list above are included on the accompanying product CD ROM.

Introduction

ACCESSORIES

Rich choices of optional accessories are available for you to enhance the total performance of the mobile computer.

 Swappable Keypad  Hard-shell  Pistol Grip (detachable)  Spare Rechargeable Li-ion battery  Snap-on RS-232 Cable  Snap-on USB Cable  Snap-on VCOM Cable  Charging & Communication Module (CRD-SCC-8S)  Cradle Cup (CRD-SCP-86)  Battery Charger (CRD-SBC-8S)  Single Cradle Base (CRD-SBS-8S)  Dual Cradle Base (CRD-DBS-8S)

FEATURES

 Ergonomic design — ruggedized yet streamlined, with wristband for secure hold  Built tough to survive drop test and sealed against moisture/dust to IP 65  Rich interface options — USB or RS-232 (cable)  High capacity memory card (microSDHC) supported  Flexible wireless solutions — Bluetooth or 802.11b/g/n  FTP client support — 802.11b/g/n  Graphic colorful LCD supports double-byte characters and bitmap graphics  Programmable feedback includes speaker, LED indicators and vibrator  Built-in GPS with internal patch antenna (optional)  13.56MHz HF band RFID reader (optional)  Bluetooth v4.0 Smart Ready

8600 Series Mobile Computer Reference Manual

GETTING STARTED

COMPONENT NAMES

Figure 1: Overview

Introduction

INSERTING BATTERY & MEMORY CARD

For shipping and storage purposes, save the mobile computer and the main battery in separate packages. This will keep both batteries in good condition for future use.

Note: Any improper handling may reduce the battery life.

1) Hold the mobile computer still and slide the release latch to the right to unlock the

battery cover.

2) Slightly hold the sides of the battery cover and take it upward off the device.

3) Use your finger to slide the locking plate towards its hinge to unlock the SD card

holder.

4) Flip up the SD card holder.

5) Face the metal contacts of your memory card (microSD or microSDHC) down and

slide it into the SD card slot so that the card contacts align with the slot contacts.

6) Push the SD card holder down.

7) Slide the locking plate away from its hinge to secure the card.

8) Slide the battery pack into the battery compartment at a proper angle (30°~45°) so

that the metal contacts of the battery are met with the charging contacts inside the compartment. Make sure that the battery is snugly fit into the compartment.

9) Replace the battery cover.

10) Slide the release latch to the left to lock it firmly.

8600 Series Mobile Computer Reference Manual

Note: For a new battery, make sure it is fully charged before use. Always prepare a

spare battery pack, especially when you are on the road.

Introduction

Figure 2: Installing the Memory Card & Main Battery

8600 Series Mobile Computer Reference Manual

INSTALLING PISTOL GRIP

This contoured pistol grip enables intuitive trigger-and-scan operation, which is very helpful in scan intensive applications.

When a pistol grip is necessary, install it to the mobile computer by following these steps:

1) Place the terminal computer into the holder of the pistol grip.

2) Slide the release latch of the pistol against the terminal computer to lock it firmly,

and then turn on the mobile computer to test the trigger.

Figure 3: Installing the Pistol Grip

Introduction

INITIAL CHARGING

The main and backup batteries may not be charged to full for shipment. When you first receive the package, you will need to charge the batteries to full before use. Please refer to 1.7 Charging & Communications.

For the first time charge, it takes approximately 2.5 hours to charge the main battery to full. As for the backup battery charging, it takes approximately at least 72 hours whether the mobile computer is in use or not.

SETTING LOCAL TIME

If you need to set your local time, go to System Menu | 2. Settings | 1. Clock. Please refer to 3.2.1 Clock.

POWER MANAGEMENT

For any portable device, power management is a critical issue especially when you are on the road. Below are some tips to help you extend battery life.

Warning: Using backlight, wireless connectivity, and peripherals will substantially

reduce battery power.

 To speed up charging the mobile computer, turn off the mobile computer and seat it

in the cradle or use the charging/communication cable.

 Be prepared with a second battery pack on hand.  Stop wireless connectivity like Bluetooth or 802.11b/g/n that is not in use.  Go to System Menu | 2. Settings | 3. Backlit, and configure backlight period,

luminosity, as well as the shade effect. Refer to 3.2.2 Backlight.

 Go to System Menu | 2. Settings | 4. Auto Off, and configure the idle time elapsed

before the system will shut down automatically. Refer to 3.2.4 Auto Off.

Chapter 1

USING THE MOBILE COMPUTER

This chapter explains the features and usage of the 8600 Series Mobile Computer.

IN THIS CHAPTER

1.1 Battery ..................................................................... 12

1.2 Memory .................................................................... 14

1.3 Keypad ..................................................................... 15

1.4 LCD ......................................................................... 18

1.5 Notifications .............................................................. 19

1.6 Data Capture ............................................................ 21

1.7 Charging & Communications ........................................ 24

1.8 SD Card ................................................................... 30

8600 Series Mobile Computer Reference Manual

1.1 BATTERY

1.1.1 MAIN BATTERY

The mobile computer is powered by a rechargeable 3.7V 1100/2200 mAh Li-ion battery pack that may not be charged to full for shipment. When you first receive the package, you will need to charge the battery to full before use. The table below lists the approximate time to fully charge the included 1100/2200mAh batteries with different charging tools.

Capacity

1100mAh 2200mAh

Charging Tool Adapter 3 hrs 4 hrs Cradle 3 hrs 4 hrs

Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It

is recommended to charge the battery at room temperature (18°C to 25°C) for optimal performance.

For power-saving purposes, always turn off the backlight while working in a well-lit area and stop wireless connectivity like Bluetooth or 802.11b/g/n that is not in use.

The smart battery icon on the LCD screen shows the status of power consumption. There are two ways to monitor a low battery charge or discharged battery from the screen.

 Examine the level of the 4-bar battery icon  Monitor voltage level (see 3.5 Power)

Chapter 1 Using The Mobile Computer

1.1.2 BACKUP BATTERY

The backup battery, a 3.0V/18mAh rechargeable Lithium button cell on the main board, takes charge of the retention of data in SRAM, real-time clock, and calendar when the main battery is removed or drained. When fully charged, the backup battery can work for at least 25 days without the main battery. In the meantime, you have to replace the main battery as soon as possible. It takes at least 72 hours to fully charge the backup battery; however, it is not necessary to fully charge the backup battery for the mobile computer to work.

 Monitor voltage level (see 3.5 Power)

1.1.3 CAUTION OF LOW BATTERY CHARGE

The battery pack is the only power source for the mobile computer to work. It also charges the backup battery on the main board so that the data stored in SRAM can be retained properly. Therefore, when the main battery charge goes low, you need to replace the battery pack with a charged one or charge it as soon as possible. Most of all, you should upload important data on a regular basis.

Warning: Data loss may occur in SRAM during low battery condition. Always save

data before running out of power or keep a fresh battery for replacement.

8600 Series Mobile Computer Reference Manual

1.2 MEMORY

The collected data can be sent back to a host computer immediately over wireless networks, or stored in memory (SRAM) and uploaded later. The mobile computer is equipped with a calendar chip for accurate time/date logging. When the main battery is removed or drained, the backup battery on the main board is to retain the contents of SRAM and maintain the running of real-time clock and calendar for at least 25 days, on condition that the backup battery has already been fully charged.

If you want to put away the mobile computer for a couple of days, you should be aware that data loss occurs when both the main and backup batteries discharge completely. Therefore, it is necessary to upload data and files before putting away the mobile computer!

1.2.1 READ-ONLY MEMORY (ROM)

The built 8 megabytes flash memory is designated for storing the core, OS, application programs, font, etc.

1.2.2 RANDOM-ACCESS MEMORY (RAM)

Options include 8 or 16 megabytes SRAM for storing data. Its contents will be retained by the backup battery.

1.2.3 SD CARD

Secure Digital (SD) card is a flash memory data storage device. High capacity memory card (microSDHC) is also supported. Refer to Inserting Battery & Memory Card for how to insert the microSD or microSDHC card. For more details, refer to 1.8 SD Card.

Note: (1) When SD card is present, the card icon will appear on the screen and flash

while being accessed. (2) If an SD card is installed on the mobile computer for the first time, a message like “Found New SD Card” will be displayed allowing users to scan the card for memory check. If the action is canceled, memory check can still be performed via System Menu — 3.8 Storage Menu.

Chapter 1 Using The Mobile Computer

1.3 KEYPAD

The mobile computer is equipped with a keypad of 29/39 keys for system setup, user entry and so on. The keypad comes with programmable LED backlight for illumination that makes the key characters easier to read when ambient light gets weaker. Refer to

1.4 LCD for screen & backlight settings.

The key click can be configured through programming or via System Menu. Refer to

3.2.6 Key Click.

1.3.1 29-KEY LAYOUT

The layout of the 29-key keypad is similar to that of a telephone, which includes alphanumeric, navigation and function keys, as well as assorted characters. Refer to

Appendix III — Key Reference Table for color-coded keys.

Figure 4: 29-key Layout

8600 Series Mobile Computer Reference Manual

This alphanumeric keypad is set to numeral mode by default. Press the blue key at the bottom-right to toggle between upper-case alphabet, lower-case alphabet, and numeral modes. Press the orange key at the bottom-left to toggle between function and numeral modes.

The associated icon will appear on the top-left of the screen in a sequence as shown below.

Status Icon

(none) N/A Numbers

A Press the blue key one time Upper-case alphabet a Press the blue key two times Lower-case alphabet F Press the orange key one time Function Mode

When in alphabet mode, it takes turns to show upper-case/lower-case alphabets and number when you keep pressing the same key; the lasting time of a press or interval between two presses must not exceed one second or you will always get the first letter. For example, keep pressing the number key [2], it will take turns to show “A”, “B”, “C” or “2” for upper-case, and “a”, “b”, “c” or “2” for lower-case.

Function/Alpha Key Input Mode

 When you first press the number key [2], it will produce the letter “A” or “a”.  When you press the number key [2] twice (the time interval must not exceed one

second), it will produce the letter “B” or “b”.

 When you press the number key [2] three times (the time interval between each

press must not exceed one second), it will produce the letter “C” or “c”.

 When you press the number key [2] four times (the time interval between each press

must not exceed one second), it will produce the number “2”.

In order to get the desired character, you will need to press the same key, one to four times (the time interval between each press must not exceed one second). Only when you stop pressing the same key for longer than one second or you press another key, will the system send the real key code to the application program.

When in function mode, the orange key works with another key. Press the orange key and its associated icon F will be displayed on the top line of the screen. Press the second key, say [Del], to complete the key combination and delete the character where the cursor stays. Press the orange key again and the icon F will go off.

Chapter 1 Using The Mobile Computer

Below briefly describes the functions of common keys on the mobile computer.

SCAN

The yellow key located at the top center is used to trigger the scan engine so that it can read the barcode.

Navigation Pad

The 4-way navigation pad around the SCAN key is used to move the cursor left, up, down, or right.

ENTER

This key on the right side of the SCAN key is used for command execution or input confirmation.

ESC (Escape)

This key on the left side of the SCAN key is used to stop and exit the current operation.

Alphabet Key (the blue key)

The blue key is an auxiliary key that requires pressing a second key to get the letter (A~Z) or symbol printed in blue on the second key (or on the keypad near the key).

Icon Description

A This icon appears when you press the blue key one time, indicating it is toggled to the

alphabet mode for typing upper-case alphabetic letters.

a This icon appears when you press the blue key two times, indicating it is toggled to the

alphabet mode for typing lower-case alphabetic letters.

Function Key (the orange key)

The orange key is an auxiliary key that requires pressing a second key to get the symbol or function printed in orange on the second key.

Icon Description

F This icon appears when you press the orange key, indicating it is toggled to the function

mode.

Backlight Key

This key is used to turn ON/OFF the backlight of the LCD and keypad.

Note: (1) Functionality of keys is application-dependent. The system will send the

associated key code to the application program, and it is up to the application program to interpret the key code. (2) When a status icon appears on the screen, it indicates a certain mode is activated and it is not necessary to hold down the auxiliary key.

8600 Series Mobile Computer Reference Manual

1.4 LCD

The mobile computer comes with a TFT graphic LCD, 240 by 320 pixels resolution, which can be programmed to display text or graphics, such as specific font and company logo, to meet varying application needs.

Options

English font Font size 10×20 (pixels)

Chinese font Font size 20×20 (pixels)

Other language fonts, company logo… Programmable

Font Size (pixels) Characters by lines

24 characters by 16 lines

Font size 12×24 (pixels)

Font size 24×24 (pixels)

20 characters by 13 lines

12 characters by 16 lines

10 characters by 13 lines

Note: The top line (icon zone) is reserved to display status icons, such as icons

indicating battery status, alphabet upper/lower case, SD card installed. Therefore, the actual amount of lines will be less than the total count by 1.

1.4.1 ADJUSTING THE LCD BACKLIGHT

The backlight of screen helps ease reading in dim environments. It can be turned on/off by pressing the [ can be adjusted through programming or via System Menu. Refer to 3.2.2 Backlight and 3.2.3 Contrast.

Using backlight while on battery power will substantially reduce battery power. We suggest that you switch off the backlight while there’s no need to read the screen or have it set to be automatically turned off when it has been idle for a certain period of time.

] key located at the bottom center of the keypad. Also backlight level

Chapter 1 Using The Mobile Computer

1.5 NOTIFICATIONS

1.5.1 STATUS LED

There are two dual-color LED indicators located at the upper-right of the screen. Both can be programmed to provide information that helps diagnosing. For example, if you are using AG runtime, you will be informed of the scanning result immediately. By default, LED1 is defined to light solid green for a single "Good Read" action upon reading a barcode successfully.

 LED1 is used to provide information on the charging status and barcode decoding.  LED2 is used to provide information on wireless communications.

LED1

LED2

Figure 5: LED Indicators

8600 Series Mobile Computer Reference Manual

LED1: Red/Green

User Power ON User definable User definable

Red Green

 Solid green for Good Read by

default

Power Off, Battery Charging

Charging Error System default

System default

 Flashing red: Charging

System default

 Flashing green: Charging done

 Flashing red and green: Charging error occurs

LED2: Blue/Green Blue Green

Bluetooth System default

---

 Flashing blue, quickly: Waiting for

connection or connecting

 Flashing blue, slowly: Connected

Wi-Fi --- System default

 Flashing green, quickly: Waiting

for connection or connecting

 Flashing green, slowly:

Connected

1.5.2 AUDIO

The mobile computer has a mono or stereo speaker at the bottom, which can be programmed for status feedback. It is used to play sounds for events in the programs, or play audio files such as .WAV files. Its volume can be configured through programming or via System Menu. Refer to 3.2.7 Speaker Volume. In particular, its frequency and duration are software programmable for Good Read in the provided terminal emulation programs.

1.5.3 VIBRATOR

The mobile computer is equipped with a vibrator, which can be programmed for status feedback. It can be helpful when working in noisy environments. In particular, the vibrator is software programmable for Good Read in the provided terminal emulation programs.

Chapter 1 Using The Mobile Computer

1.6 DATA CAPTURE

1.6.1 BARCODE SCANNER

A wide variety of scan engines is available for delivering flexibility to meet different requirements. Depending on the scan engine integrated, the mobile computer is capable of scanning barcodes of a number of symbologies that are enabled by default while running the preloaded AG runtime. Refer to 3.3.1 Reader for functional test.

If you need to scan barcodes that are encoded in a specific symbology disabled by default in AG runtime, FORGE Application Generator (ForgeAG.exe, the application on the included CD-ROM) allows configuring symbology settings, as well as reader settings. After launching the application, enable the desired symbologies, and then download the application settings to the mobile computer.

Note: For details on configuring reader and symbology settings, please refer to the

documentation of the software you use.

Varying by the scan engine installed, the supported symbologies are listed below.

 1D CCD scan engine  1D Laser scan engine  2D scan engine

Note: In AG or CipherNet runtime, not all of the symbologies are enabled by default.

Instead of running any of them, you can develop your own applications to control the scan engine for data collection.

Symbologies Supported (Default Setting: Enable/Disable) CCD/Laser 2D

Codabar Enabled Enabled Code 11 Disabled Code 93 Enabled Enabled Composite

Code

MSI Disabled Disabled Plessey Disabled

Postal Codes Enabled

CC-A/B Disabled

CC-C Disabled

TCIF Linked Code 39 Enabled

Telepen Disabled Code 128 Code 128 Enabled Enabled

GS1-128 (EAN-128) Enabled Enabled

ISBT 128 Enabled Enabled

Code 2 of 5 Industrial 25 (Discrete 25) Enabled Enabled

8600 Series Mobile Computer Reference Manual

Interleaved 25 Enabled Enabled

Matrix 25 Disabled Disabled

Chinese 25 Disabled

Coop 25 Disabled

Code 3 of 9 Code 39 Enabled Enabled

Trioptic Code 39 Disabled

Italian Pharmacode (Code 32) Disabled Disabled

French Pharmacode Disabled

EAN/UPC EAN-8 Enabled Enabled

EAN-8 Addon 2 Disabled Disabled

EAN-8 Addon 5 Disabled Disabled

EAN-13 Enabled Enabled

EAN-13 & UPC-A Addon 2 Disabled Disabled

EAN-13 & UPC-A Addon 5 Disabled Disabled

Bookland EAN (ISBN) Disabled Disabled

GS1 DataBar (RSS)

2D Symbologies

UPC-E0 Enabled Enabled

UPC-E1 Disabled Disabled

UPC-E Addon 2 Disabled Disabled

UPC-E Addon 5 Disabled Disabled

UPC-A Enabled Enabled

GS1 DataBar Omnidirectional (RSS-14) Disabled Enabled

GS1 DataBar Truncated Disabled Enabled

GS1 DataBar Stacked Disabled Enabled

GS1 DataBar Stacked Omnidirectional Disabled Enabled

GS1 DataBar Limited (RSS Limited) Disabled Enabled

GS1 DataBar Expanded (RSS Expanded) Disabled Enabled

GS1 DataBar Expanded Stacked Disabled Enabled

PDF417 Enabled

MicroPDF417 Enabled

Data Matrix Enabled

Maxicode Enabled

QR Code Enabled

1.6.2 RFID READER

The RFID Reader supports read/write operations depending on the tags. The supported labels include ISO 15693, ISO 14443A, and ISO 14443B.

Chapter 1 Using The Mobile Computer

HF Tag Protocol UID Only Read Page Write Page

ISO 14443A Mifare Standard 1K (Mifare S50)

Mifare Standard 4K (Mifare S70)

Jcop 41 (only Mifare 1K & 4K compatible)

Mifare Ultralight

Mifare Ultralight C

Mifare ProX

Mifare DESFire

Mifare Plus

Mifare Mini (Mifare S20)

SLE66CLX320P

SLE55R04/08

Smart MX

Jewel

Topaz

ISO 14443B SLE6666CL160S SR176 SR512 SRIX4K

SLIX4K Dual ISO 14443A compliant

ISO 14443B compliant ISO 15693 ICODE SLI

LRI12

LRI64

LRI128

LRI2K

SRF55VxxP

SRF55VxxS

TI Tag-it HF-I Std

TempSense

ICODE1 with EAS&AFI

ICODE

  



  



  



  



  

--- ---

8600 Series Mobile Computer Reference Manual

1.7 CHARGING & COMMUNICATIONS

Normally, the mobile computer ships with a USB or RS-232 cable for charging and communications. A variety of cradles are available to meet different requirements.

 If you are using USB Virtual COM for the first time, you must install its driver from

the CD-ROM. Driver version 5.3 or later is required. Please remove older versions! The virtual COM port will not be assigned until the USB port is in use.

 If you are using USB Virtual COM_CDC for the first time, you must install its driver

from the CD-ROM. USB CDC driver installer is available in the “Windows” folder, where a vendor-supplied INF file will be copied to Windows.

 For Standard USB cable, it will release COM port in the following conditions:

(i) The cable is detached from the mobile computer directly.

(ii) The cable is detached from the cradle directly.

(iii) Take away the mobile computer while the cable is attached between the cradle and the host computer.

(iv) The mobile computer is turned off.

(v) No application is running on the mobile computer, or COM port is shut down.

For applications that require COM port to be occupied all the time, it is suggested to use 308 USB Virtual COM Interface cable instead.

USB Interface Cable

Task USB Cable

Charging USB direct charging

 500 mA: USB icon  100 mA: Highlighted USB icon  0 mA: Disable charging for 8600

5 V charging from the adaptor (Plug icon)

Communications USB Virtual COM — If using FORGE Application Generator software, you

may use a download utility to receive data on your computer; otherwise, run HyperTerminal.exe to receive data directly.

USB HID — Run a text editor on your computer to receive data directly.

USB Virtual COM_CDC — If using FORGE Application Generator software, you may use a download utility to receive data on your computer; otherwise, run HyperTerminal.exe to receive data directly.

Chapter 1 Using The Mobile Computer

RS-232 Interface Cable

Task RS-232 Cable

Charging 5 V charging from the adaptor (Plug icon)

Communications If using FORGE Application Generator software, you may use a download

utility to receive data on your computer; otherwise, run

Cradle

Task Cradle Interface

Charging 5 V charging from the adaptor (Plug icon)

HyperTerminal.exe to receive data directly.

Communications Depends on the cradle type and its associated settings —

 USB  RS-232

Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It

is recommended to charge the battery at room temperature (18°C to 25°C) for optimal performance.

8600 Series Mobile Computer Reference Manual

1.7.1 INTERFACE CABLE OPTIONS

For charging via the USB cable, the standard charging current is 500 mA. However, we recommend that you connect the power adaptor to speed up charging the battery.

 If you connect the mobile computer to a USB hub, the charging current may be

insufficient. In that case, change the charging current to 100 mA after connecting the USB cable. It will take a longer time to charge to full. Refer to 3.2.9 USB Charge

Current.

Push & release

Universal Power Adaptor

Figure 6: Using USB/RS-232 cable

Warning: The mobile computer is not allowed to function when it is solely on USB

power and without a battery loaded. It will display a warning message “Battery Missing” along with an audible alert. In that case, you should install the battery before restarting.

Chapter 1 Using The Mobile Computer

1.7.2 CRADLE OPTIONS

A variety of cradles are developed for the mobile computer and ship on your option. These cradles employ different data connections, but they all support charging the mobile computer while transmitting data at the same time. Choose a cradle type that best suits your needs.

Task

Charging 5 V charging from the adaptor

Communications By the cradle type and the wiring you choose, the following transmission

Cradle Interface

interfaces are available at your command:

 RS-232  USB

Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It

is recommended to charge the battery at room temperature (18°C to 25°C) for the optimal performance.

To make use of any of the cradles, follow the steps below:

1) Seat the mobile computer in the cradle.

2) Connect the power cord to the cradle.

See the illustration below. The (A) depicts the power jack on the cradle. Plug the power cord to this jack.

3) Connect the other end of the power cord to an external power source.

4) Connect the cradle to a host computer such as your PC with a communication cable

for data transmission.

See the illustration below, the (B) depicts the cradle’s direct communication port. Connect a USB or RS-232 cable to this port.

A guide to the Ethernet Cradle is ready for your reference in which more details about the Ethernet Cradle can be looked up.

Note: Attach the communication cable firmly to the cradle by completely fastening the

two screws on the connector.

8600 Series Mobile Computer Reference Manual

Figure 7: Setting up cradle

Charging & Communication Cradle

Chapter 1 Using The Mobile Computer

No. Description No. Description

1 Status LED (POWER) 2 Cable Connector (USB or RS-232)

3 Power Jack

Battery Charger

No. Description No. Description

1 Status LEDs (POWER, CHARGE) 2 Power Jack

8600 Series Mobile Computer Reference Manual

1.8 SD CARD

SD card can be accessed directly by using the provided functions in user applications. Yet, when the mobile computer is equipped with an SD card and connected to the host computer via the USB cable, it can be treated as a removable disk (USB mass storage device) as long as it is configured properly through programming or via System Menu |

8. Next Page | 1. Storage Menu | 1. Run As USB Disk. Refer to 3.8 Storage Menu.

Note: While running BASIC applications, the size of DAT files on SD card can be

calibrated. Go to System Menu | 8. Next Page | 1. Storage Menu | 2. Access SD Card | 4. Check File Size to refresh the size of “A:\BASICRUN\TXACTn.DAT” (n=1~6).

1.8.1 FILE SYSTEM

For 8600 Series, it supports FAT12/FAT16/FAT32 and allows formatting the card through C programming or via System Menu | 8. Next Page | 1. Storage Menu | 2. Access SD Card. Based on the capacity of the card, it will automatically decide the FAT format:

Card Capacity

≦ 32 MB

≦ 1 GB

≦ 2 GB

≦ 8 GB

FAT Format Sectors per Cluster

FAT12 32

FAT16 32

FAT16 64

FAT32 8

1.8.2 DIRECTORY

Unlike the file system on SRAM, the file system on SD card supports directories of hierarchical tree structure and allows creating sub-directories. Several directory names are reserved for particular use.

Reserved Directory

\Program

Related Application or Function Remark

 System Menu | Load Program  Program Manager | Download  Program Manager | Activate  Kernel Menu | Kernel Update

Store programs to this folder so that you can download them to the mobile computer:

 C program — *.SHX  BASIC program — *.INI and *.SYN

 UPDATE_BASIC()

\BasicRun BASIC Runtime Store DAT and DBF files that are created and

accessed in BASIC runtime to this folder.

Their permanent filenames are as follows:

Chapter 1 Using The Mobile Computer

DAT Filename

DAT file #1 TXACT1.DAT

DAT file #2 TXACT2.DAT

DAT file #3 TXACT3.DAT

DAT file #4 TXACT4.DAT

DAT file #5 TXACT5.DAT

DAT file #6 TXACT6.DAT

DBF Filename

DBF file #1 Record file F1.DB0

System Default

F1.DB1

Index

Index file #1 F1.DB2

Index file #2 F1.DB3

Index file #3 F1.DB4

DBF file #2 Record file F2.DB0

System Default

F2.DB1

Index

Index file #1 F2.DB2

Index file #2 F2.DB3

Index file #3 F2.DB4

DBF file #3 Record file F3.DB0

System Default

F3.DB1

Index

Index file #1 F3.DB2

Index file #2 F3.DB3

Index file #3 F3.DB4

DBF file #4 Record file F4.DB0

System Default

F4.DB1

Index

Index file #1 F4.DB2

Index file #2 F4.DB3

Index file #3 F4.DB4

DBF file #5 Record file F5.DB0

System Default

F5.DB1

Index

Index file #1 F5.DB2

Index file #2 F5.DB3

Index file #3 F5.DB4

8600 Series Mobile Computer Reference Manual

\AG\DBF

\AG\DAT

\AG\EXPORT

\AG\IMPORT

Application Generator (a.k.a. AG) Store DAT, DBF, and Lookup files that are

created and/or accessed in Application Generator to this folder.

1.8.3 FILE NAME

A file name must follow 8.3 format (= short filenames) — at most 8 characters for filename, and at most three characters for filename extension. The following characters are unacceptable: “ * + , : ; < = > ? | [ ]

 The mobile computer can display a filename of 1 ~ 8 characters (the null character

not included), and filename extension will be displayed if provided. If a file name specified is longer than eight characters, it will be truncated to eight characters.

 Long filenames, at most 255 characters, are allowed when using the mobile computer

equipped with SD card as a mass storage device. For example, you may have a filename “123456789.txt” created from your computer. However, when the same file is directly accessed on the mobile computer, the filename will be truncated to “123456~1.txt”.

 If a file name is not specified in ASCII characters, in order for the mobile computer to

display it correctly, you may need to download a matching font file to the mobile computer first.

 The file name is not case-sensitive.

Chapter 2

LEARNING SOFTWARE ARCHITECTURE

This chapter mainly describes the software inside the mobile computer. It consists of three modules — Kernel, System, and Application; each has a function menu.

When a menu is displayed, you may select an item by either of the following ways:

 Press the arrow keys [Up] and [Down] to move the highlight bar.  Press the number key that corresponds to the item number.  Follow the on-screen instructions to change a specific setting, or press [ESC] to

return to a previous page or menu.

On each screen, the top line displays status icons, such as:

 The 4-bar battery icon indicates the current power status.  The status icon of input mode or function mode is controlled by the blue/orange key.

8600 Series Mobile Computer Reference Manual

Figure 8: Software Architecture

IN THIS CHAPTER

2.1 Application Module ..................................................... 35

2.2 System Configuration & Core ....................................... 37

Chapter 2 Learning Software Architecture

2.1 APPLICATION MODULE

The mobile computer ships with software package on the CD-ROM including FORGE Application Generator (Batch and WLAN versions), MIRROR Emulator (VT and 5250

versions), and download utilities.

2.1.1 FORGE APPLICATION GENERATOR (AG)

FORGE Application Generator (AG) software package includes:

 Forge.exe/AG8600WLAN.exe on the host computer  AG Runtime on the mobile computer

AG Package

Batch AG U8600.SHX ForgeAG.exe WLAN AG WU8600.SHX AG8600WLAN.exe

With the AG runtime preloaded, the Main Menu of AG application shows up when you turn on the mobile computer.

Batch AG runtime on the mobile computer

Before using the mobile computer to collect data, you may want to create your own application templates on the host computer with the companion tool. For further details of the AG application, please refer to the respective user manuals.

AG Runtime on mobile computer Companion Tool on host computer

WLAN AG runtime on the mobile computer

Note: Batch AG supports automatically uploading data to a host computer when the

upload interface is properly configured. Once the mobile computer is connected via the RS-232 or USB Virtual COM cable, a rotating hourglass icon displays on the screen, indicating the mobile computer is ready for auto-upload.

8600 Series Mobile Computer Reference Manual

2.1.2 MIRROR EMULATOR (CIPHERNET)

The mobile computer supports VT100/220 and IBM 5250 terminal emulation for accessing a backend database. Instead of using FORGE Application Generator, you may download the terminal emulation program, i.e. CipherNet Runtime, to the mobile computer. Refer to 3.6 Load Program. Then, run individual companion tool on your computer.

For details on the MIRROR Emulator application, please refer to separate user manuals.

Terminal Emulation

VT100/220 82xx-VT.SHX CipherNet-VT.exe IBM 5250 82xx-5250.SHX CipherNet-5250.exe

CipherNet Runtime Companion Tool on PC End

2.1.3 USER PROGRAM

You may need to develop your own application program. For developing custom applications, CipherLab provides BASIC and C compilers through licensing. For detailed information, please contact your sales representative.

Chapter 2 Learning Software Architecture

2.2 SYSTEM CONFIGURATION & CORE

For managing system configurations and multiple programs, each mobile computer comes with System Menu, Program Manager, and Kernel Menu. Refer to the following chapters on how to configure the 8600 Series Mobile Computer, regarding system configurations and program download.

2.2.1 SYSTEM MENU

System Menu is bundled with BASIC Runtime or user programs that are written in C

language. It is provided for system configuration, functionality testing, downloading font file and program.

2.2.2 KERNEL

Kernel is the innermost core of the OS. It provides services for updating the kernel and

bootloader, and repairing the system.

2.2.3 PROGRAM MANAGER

Program Manager is part of the kernel. You may download up to seven application

programs to the mobile computer.

8600 Series Mobile Computer Reference Manual

Chapter 3

SYSTEM MENU

System Menu offers an interface for engineers (programmers or system integrator) to view system information, change the configuration parameters, download programs and run diagnostics.

This menu is designed for engineering tests and maintenance ONLY. For this reason, it provides password protection to prevent unauthorized users from accidentally changing system settings.

Warning! System Menu is NOT for the use of any end users. The system password

helps ensure system safety and integrity.

How to access System Menu?

1) Turn off the mobile computer.

2) Press [7] + [9] + [Power].

8600 Series Mobile Computer Reference Manual

IN THIS CHAPTER

3.1 Information ............................................................... 40

3.2 Settings ................................................................... 42

3.3 Tests ....................................................................... 46

3.4 Memory .................................................................... 49

3.5 Power ...................................................................... 50

3.6 Load Program ............................................................ 51

3.7 DoFTP Menu .............................................................. 54

3.8 Storage Menu ............................................................ 56

3.9 Bluetooth Menu ......................................................... 58

3.10 Wi-Fi Menu .............................................................. 67

3.1 INFORMATION

Here provides important system information to help diagnose the system.

System Menu | 1. Information

H/W Hardware version S/N A serial number assigned to the mobile computer M/D Manufacturing date KNL Kernel version LIB BSC USR Application program version DEV 4-digit code for optional hardware configurations

C library version

BASIC Run-time version, if a BASIC application is downloaded

 For example, 2800 indicates the mobile computer is equipped with Laser scan

engine and combo module for wireless connectivity (Bluetooth + 802.11b/g/n).

Chapter 3 System Menu

3.1.1 UNDERSTANDING DEVICE CODE

Device Code Modular Component Types

1st digit Reader module 0= none

1= CCD scan engine

2= Laser scan engine

3= 2D scan engine

2nd digit Wireless module 0= none

5= Bluetooth only

8= Bluetooth + 802.11b/g/n

3rd digit Reserved 0

4th digit Reserved 0

8600 Series Mobile Computer Reference Manual

3.2 SETTINGS

You can change the default settings here.

System Settings

Clock Current time Backlight 20 seconds at level 2, backlight shade enabled Contrast Level 4 Auto Off 10 minutes Power On Options Program Resume Key Click Tone 2 Speaker Volume High volume level USB VCOM No. Fixed USB Charge Current 500 mA System Password Open access Font System font Default Set (=Reset to Default) Load factory settings Reset Reader Restore default reader settings

Default Values

3.2.1 CLOCK

Set date and time for Real Time Clock. Enter two digits for the year, e.g. 04 for 2004.

3.2.2 BACKLIGHT

Set the backlight duration for the keypad and LCD.

 Enter a value between 0 and 9999 (second).  Press the arrow keys [Up] and [Down] to adjust the backlight level (4 levels).  Press the [Left] key to adjust the shade effect.

Chapter 3 System Menu

3.2.3 CONTRAST

Set the contrast level for the LCD.

 Press the arrow keys [Up] and [Down] to adjust the contrast level.

3.2.4 AUTO OFF

The mobile computer will be turned off automatically when no operation is taking place during a specified period of time. Enter a value between 0 and 999 (minute).

Note: To disable this function, enter 0.

3.2.5 POWER ON (& WAKEUP EVENT) OPTIONS

Set the startup screen once the mobile computer is turned on, and specify which events will wake up the mobile computer:

Power On Options

Press the arrow keys [Up] and [Down] to select “Program Resume” or “Program Restart”, and then press [ENTER].

 Program Resume: When selected, the mobile computer will start from the last session of

program before it is turned off.

 Program Restart: When selected, the mobile computer will start from the first session of the

program.

WakeUp Events

The specified events can wake up the mobile computer when the conditions are met. Press the arrow keys [Up] and [Down] to select a specific event, and press [ENTER] to determine when it is treated as a wake-up event or not.

 PwrKey: If yes, it will wake up the mobile computer upon pressing the Power key.  RS-232: If yes, it will wake up the mobile computer upon connecting the RS-232 cable.  USB: If yes, it will wake up the mobile computer upon connecting the USB cable.  Charging: If yes, it will wake up the mobile computer upon getting charged via the cradle or

direct charging.

 Charged: If yes, it will wake up the mobile computer upon completion of charging.  Alarm: If yes, it will wake up the mobile computer upon the alarm time is up. Alarm can be set

up through programming only.

8600 Series Mobile Computer Reference Manual

3.2.6 KEY CLICK

The system will produce an audible signal when any key on the keypad is pressed. The current value is highlighted. Select a desired tone for the speaker or mute it.

3.2.7 SPEAKER VOLUME

Set the speaker volume.

 Press the arrow keys [Up] and [Down] to adjust the volume level (3 levels) or mute

it.

3.2.8 USB VCOM NO

By default, it is set to use one virtual COM port for all (=FIXED), regardless of how many 8600 mobile computers are connected to PC when USB Virtual COM is in use. This setting requires you to connect one 8600 at a time, and will facilitate configuring a great amount of 8600 mobile computers via the same virtual COM port (for administrators’ or factory use). If necessary, you can have it set to use variable virtual COM port (=Change by Serial Number), which will vary by the serial number of each different 8600.

 Press the arrow keys [Up] and [Down] to select between “Fixed” and “Change by

Serial Number”.

3.2.9 USB CHARGE CURRENT

By default, the USB charging current is set to 500 mA. For direct charging via the USB cable without supplying a power adaptor, the standard charging current is 500 mA. If you connect the mobile computer to a USB hub, the charging current may be insufficient. In that case, change the charging current to 100 mA after connecting the USB cable. It will take a longer time to charge to full.

 Press the arrow keys [Up] and [Down] to select between “500 mA” and “100 mA”.  To disable charging for 8600, select “0 mA”.

Note: (1) USB direct charging, 500 mA: USB icon (2) USB direct charging, 100 mA: Highlighted USB icon (3) 5V charging from the adaptor: Plug icon

3.2.10 FONT

Font version information can be viewed here. It displays System Font if there is no custom font file. If a multi-language font file is downloaded, you will be able to select a font from the list.

Chapter 3 System Menu

3.2.11 SYSTEM PASSWORD

Set a password to control user access to System Menu, Program Manager and Kernel Menu. The password can be up to eight alphanumeric characters.

Note: The password is case-sensitive. To disable a previous password, enter blank on

the "Input new password" and "Verify password" screens.

3.2.12 DEFAULT SET

Reset system settings to the default values, except for the reader settings.

3.2.13 RESET READER

Reset reader settings to the default values.

8600 Series Mobile Computer Reference Manual

3.3 TESTS

Here provides functional tests for key parts.

3.3.1 READER

Test the reading performance of the scanner. The supported symbologies depend on the scan engine you use. Refer to 1.6 Data Capture for symbologies that are enabled by default. For symbologies that are disabled by default, they must be enabled through programming.

 Press [SCAN] to start. To stop and exit the test, press any key.

3.3.2 SPEAKER

Test the speaker with different volume levels.

 To stop and exit the test, press any key.

3.3.3 LCD & LED

Test the LCD display and LED indicators.

 To stop and exit the test, press any key.

3.3.4 KEYBOARD

Test the rubber keys. Press any key and its corresponding character will be shown on the screen.

 To stop and exit the test, press [ESC].

3.3.5 MEMORY

Test the data memory (SRAM), and the results will be shown on the screen.

 To stop and exit the test, press [ESC].

Chapter 3 System Menu

Warning! The contents of the data memory (SRAM) will be wiped out after test.

3.3.6 ECHO TEST

After a physical connection is established properly, run a test utility on your computer and start the test on your mobile computer. Select a desired baud rate if necessary.

 To stop and exit the test, press [ESC].

Interface

RS-232 This echo test is to verify connectivity via the RS-232 cable

308 USB This echo test is to verify the connectivity via the 308 USB

USB This echo test is to verify connectivity via the USB cable

Description Test Utility

between the mobile computer and a host computer.

cable between the mobile computer and a host computer.

between the mobile computer and a host computer.

 USB VCOM Echo —

generic USB device.

he mobile computer works as a

 USB HID — The mobile computer works as an input

device; select keyboard type and Caps Lock status for running a test.

 USB VCOM_CDC Echo —

a generic USB device.

he mobile computer works as

3.3.7 VIBRATOR

Select this item to test the vibrator.

 To stop and exit the test, press [ESC].

3.3.8 RFID

EchoTest.exe

EchoTest.exe for Virtual COM

Any text editor for HID

EchoTest.exe for Virtual COM

Select this item to test the RFID Reader.

 Press [ESC] to exit.

3.3.9 GPS

Select this item to test the GPS receiver of the device.

Interface

Latitude Displays the latitude where the device is located.

Longit. Displays the longitude where the device is located.

Speed Displays the moving speed in kilometers per hour.

Altitude Displays the altitude in meters.

Description

8600 Series Mobile Computer Reference Manual

Satellite Number Displays how many GPS satellites are in view.

SNR Signal/Noise Ratio measured in dB.

Chapter 3 System Menu

3.4 MEMORY

Here provides information and initialization function of the memory.

3.4.1 SIZE INFORMATION

 RAM — onboard SRAM for data memory  Flash — program memory

3.4.2 INITIALIZE

Initialize the data memory.

Warning! The contents of the data memory (SRAM) will be wiped out after memory

initialization.

8600 Series Mobile Computer Reference Manual

3.5 POWER

Here shows current voltage consumption.

Main (battery)

It shows dynamic status of the battery pack, which is used as the main power source.

Backup (battery)

It shows dynamic status of the button cell, which is used to retain data in SRAM.

Warning! Always examine the battery icon on the device screen so that you will be

alerted for a low battery condition.

Chapter 3 System Menu

3.6 LOAD PROGRAM

Here you can access the Load Program service provided by the kernel. Because the kernel will take over the job, you will not be able to return to System Menu by pressing [ESC]. After downloading, restart the mobile computer to activate the new program. Refer to Appendix I Download Utility.

Note: The mobile computer will stay in download mode for approximately 30 seconds.

.SHX Program Download one of the following C program files and/or font file:

Program File

Font File Refer to the Font Files folder on CD-ROM.

 AG Runtime:

 CipherNet Runtime:

 BASIC Runtime

Note

 User program

U8600.shx (Batch AG)

WU8600.shx (WLAN AG)

86xx-5250.shx (CipherNet-5250)

86xx-VT.shx (CipherNet-VT)

B8600.shx

If you have downloaded a BASIC Runtime program, the next time you enter the Load Program submenu you will be able to select whether to download a C program (.SHX) or BASIC program (.SYN).

Note: (1) “Load Basic” menu is only available after you have downloaded a BASIC

Runtime program. (2) In addition to the system font, there can be only one font file downloaded to the mobile computer.

8600 Series Mobile Computer Reference Manual

SETTINGS

Interface

Options Description

RS-232 Proceed to configure baud rate settings on your computer and the

mobile computer.

USB VCOM Connect the USB cable between your computer and the mobile

computer.

Bluetooth Approach the target Bluetooth enabled device.

SD Card This option is available only when the memory card is present.

USB VCOM_CDC Connect the USB cable between your computer and the mobile

computer.

Baud Rate

Available baud rate options: 115200/57600/38400/19200/9600 bps

LOAD PROGRAM VIA BLUETOOTH

1) Go to System Menu | 8. Next Page | 5. Bluetooth Menu | 3. Security, and

configure the following Bluetooth settings first.

 Authentication  PIN code

2) Go to System Menu | 6. Load Program and select Bluetooth.

3) Start the pairing procedure from your computer, for example, click [Pair Device]

and/or [Connect Bluetooth Serial Port].

4) Run the download utility: ProgLoad.exe

- Select interface RS-232 for using Bluetooth SPP.

- Select COM port properties that match with the serial port settings used on your computer.

Chapter 3 System Menu

LOAD PROGRAM VIA SD CARD

Press the arrow keys to select a file. Then, press [ENTER] to view information of the program file.

1) If you have copied the desired program file(s) to your SD card, go to System Menu |

6. Load Program and select SD Card. You will see a list of all the files under the

directory “\Program”, as shown above.

2) Press the arrow keys [Up] and [Down] to select a file.

3) Press [ENTER] to view information of the program file.

4) Press [ENTER] to confirm downloading the program file to the mobile computer.

Press [ESC] to abort the download task.

8600 Series Mobile Computer Reference Manual

3.7 DOFTP MENU

This submenu is for the FTP client connection. It will log the mobile computer into an FTP server via Wi-Fi or Ethernet Cradle for the following tasks.

 Execute and/or update the script file “FTP.dat”  Download the program update(s)

Note: Go to System Menu and configure the network settings first. Refer to 3.10 Wi-Fi

Menu.

.SHX Program

Program File

Font File Refer to the Font Files folder on CD-ROM. Firmware File

Note: (1) When more than one program files of the same type are specified in the script

file, only the last program file is used for update. (2) The system will restart itself right after successful update and the downloaded file(s) will then be removed.

Download one of the following C program files and/or font file, firmware file:

 AG Runtime:

 CipherNet Runtime:

 BASIC Runtime:  User program

 Kernel update:  Bootloader update:

U8600.shx (Batch AG)

WU8600.shx (WLAN AG)

86xx-5250.shx (CipherNet-5250)

86xx-VT.shx (CipherNet-VT)

B8600.shx

K8600.shx

BL8600.shx

Chapter 3 System Menu

3.7.1 LOCAL

Depending on the script file “FTP.dat” saved on the mobile computer, you may update the script file or download any program update from FTP server, if necessary.

SETTING

Interface

Options Supported Description

Ethernet Cradle Seat the mobile computer in the Ethernet Cradle.

Wi-Fi Connect the mobile computer to an access point.

Note: This setting is available only when the Wi-Fi module is present.

3.7.2 MANUAL

You may log into an FTP server manually, and follow the script file on the server to update programs. However, this script file will not be kept after execution, nor replace the existing one on the mobile computer, if there is any.

SETTINGS

Server IP

Specify the IP address or name of the FTP server.

Server Port

Specify the remote port number.

 By default, TCP port 21 is used on the server for the control connection.

Specify the user name for logging onto FTP server.

Specify the password for logging onto FTP server.

Interface

Options Supported Description

Ethernet Cradle Seat the mobile computer in the Ethernet Cradle.

Wi-Fi Connect the mobile computer to an access point.

Note: This setting is available only when the Wi-Fi module is present.

8600 Series Mobile Computer Reference Manual

3.8 STORAGE MENU

This submenu is for using the mobile computer equipped with SD card as a removable disk, as well as for directly accessing files on SD card.

Note: When SD card is present, the card icon will appear flashing while being accessed.

If the mobile computer is preloaded with Batch AG runtime, it will automatically create two working directories “\AG\IMPORT” and “\AG\EXPORT” on SD card.

3.8.1 RUN AS USB DISK

When the mobile computer is equipped with SD card and connected to your computer via the USB cable, it can be treated as a removable disk (USB mass storage device) as long as it is configured properly through programming or via selecting [Run as USB Disk].

Note: The SD card must be properly configured through programming or user menu

before use.

3.8.2 ACCESS SD CARD

Edit the file system or format the SD card.

Edit Files

View and edit the file system on SD card.

Format

If the file system is not desired any more, you may format the SD card.

 If the capacity is 32 MB or under, the file system will be FAT12.  If the capacity is 32 MB~2 GB, the file system will be FAT16.  If the capacity is larger than 2 GB, the file system will be FAT32.

Warning! The contents on SD card will be wiped out after formatting.

Chapter 3 System Menu

Check Memory

For an SD card that has never been used on 8600, a message like “Found New SD Card” will be displayed allowing users to scan the card for memory check. If the action is canceled then, memory check can still be performed here.

Check File Size

You may calibrate the size of DAT files on SD card while running BASIC application, and it will refresh the size of “A:\BASICRUN\TXACTn.DAT” (n=1~6).

Note: “Check File Size” is only available after you have downloaded the BASIC Runtime.

8600 Series Mobile Computer Reference Manual

3.9 BLUETOOTH MENU

This submenu is for the mobile computer, with built-in Bluetooth module, to work with other Bluetooth enabled devices. You must configure these parameters correctly.

Bluetooth Settings

Connect Setting Items Need to Be Checked

Local Name

Remote Name

Broadcast Me

Power Saving

BT-GPRS AP Name

DHCP

Local IP Address Security

Authentication

PIN Code

Default Value HID, SPP, FTP Client DUN

Model no. + Serial no.

---

Enable

---

Enable

0.0.0.0

Disable

---

(v)

Note

Note: BT-GPRS AP Name, DHCP and local IP Address are required for DUN-GPRS mode

only.

Chapter 3 System Menu

3.9.1 INFORMATION

Information of network configuration can be viewed here.

Bluetooth Menu | 1. Information

LIB Kernel version

 All user libraries reside in Kernel; no external libraries are required.

MAC MAC address of the Bluetooth module IAM A name given to the mobile computer for identification

 By default, it is made up of model number and the serial number. (Identical to

2. Connect Set | 1. Local Name)

CTY "Normal" means all 79 channels are available for frequency-hopping

 There are bandwidth limitations for 2.4 GHz ISM band in some countries. For

example, only 23 RF channels are defined instead of 79 RF channels in Japan, Spain and France.

DHCP DHCP server in use or not

 It will automatically become enabled while connecting to a BT-GPRS AP.

IP IP address of the mobile computer

8600 Series Mobile Computer Reference Manual

3.9.2 CONNECT SETTING

Set the connection parameters if necessary.

Local Name

Enter a name for identifying the mobile computer.

 By default, it is made up of model number and the serial number.

Remote Name

Leave it empty unless you want to make a specific connection.

Broadcast Me

Options — Enable or Disable

 For initial connection, broadcasting must be enabled so that other Bluetooth devices can

discover the mobile computer.

 For security concerns, you may disable it in future use to hide the mobile computer from other

Bluetooth devices.

Power Saving

This refers to the low power consumption mode. Options — Enable or Disable (Only the Sniff mode is supported.)

BT-GPRS AP Name

For DUN-GPRS mode, enter the AP name for connecting to the content server.

DHCP

Options - Enable or Disable

Local IP Address

Enter a new address for the mobile computer, if necessary.

Note: BT-GPRS AP Name, DHCP and local IP Address are required for DUN-GPRS mode

only.

Chapter 3 System Menu

3.9.3 SECURITY

Set or modify security parameters.

Authentication

Options — Enable or Disable

PIN Code

Define the encryption key values.

 Up to 16 characters, using ASCII code.

Note: When authentication is enabled without providing a pre-set PIN code, the mobile

computer supports dynamic input of PIN code during pairing.

8600 Series Mobile Computer Reference Manual

3.9.4 ECHO TESTS

These echo tests are used for verifying connectivity to make sure the mobile computer is within coverage. Press [ESC] to stop and exit the test.

 SPP: Serial Port Profile

It is used for ad hoc networking.

 DUN: Dial-Up Networking Profile

DUN Modem - It makes use of a Bluetooth modem or mobile phone as a wireless modem.

DUN GPRS – It makes use of a mobile phone with GPRS functionality and connects to GPRS AP.

 HID: Human Interface Device Profile

It is used for the mobile computer to work as an input device, i.e. keyboard, for a host computer.

 FTP client: File Transfer Protocol Profile (FTP)

It is used for the mobile computer to connect to a file server for file transfer.

Chapter 3 System Menu

SPP Master

Set the mobile computer as a master device.

1. Pairing with your computer (slave) must be completed first.

2. Run the utility “EchoTest.exe” on your computer. Associated settings include

- Select “RS-232” for interface.

- Use the Bluetooth COM port that has been paired.

- Set Action Mode to “Passive”.

3. Start the echo test on both ends. The mobile computer will try to connect to PC (slave).

SPP Slave

Set the mobile computer as a slave device.

1. Enable Authentication and set your PIN code on the mobile computer.

2. Run the utility “EchoTest.exe” on your computer. Associated settings include

- Select “RS-232” for interface.

- Use the Bluetooth COM port that has been configured as “outgoing”.

- Set Action Mode to “Passive”.

3. Start the echo test on both ends.

4. The mobile computer will wait for PC (master) to start the connection.

5. Enter the preset PIN code for authentication on your computer.

DUN Modem

The mobile computer will try to connect to a Bluetooth modem or mobile phone.

1. Pairing with your mobile phone must be completed first.

Select “DialUp Network” for Target Machine options.

2. Run the utility “EchoTest.exe” on your computer. Associated settings include

- Select “Modem” for interface.

- Set Action Mode to “Passive”.

3. Start the echo test on both ends.

4. The mobile computer will connect to your mobile phone that dials up to your computer.

HID Test

Set the mobile computer as an input device.

1. The mobile computer will wait for PC to start the connection.

It is suggested to disable Authentication on the mobile computer.

2. Run a text editor on your computer.

3. Start to input data via the keypad on the mobile computer.

8600 Series Mobile Computer Reference Manual

DUN GPRS

The mobile computer will try to connect to a mobile phone with GPRS functionality.

1. Pairing with your mobile phone must be completed first.

Select “DialUp Network” for Target Machine options.

2. Run the utility “EchoTest.exe” on your computer. Associated settings include

- Select “TCP/IP – Server” for interface.

- Set Action Mode to “Passive”.

3. Start the echo test on both ends.

4. Enter the server IP on the mobile computer.

5. The mobile computer will connect to your mobile phone that dials up a GPRS AP, and finally connect to your computer (server) through the GPRS AP.

FTP Client

The mobile computer (as a client) will try to connect to an FTP server.

1. Pairing with your FTP server must be completed first.

Select “FTP Server” for Target Machine options.

2. The mobile computer will try to connect to PC (server).

3. Enter the FTP Test submenu for FTP function test.

 Change Directory:  Get Folder Listing:

 Download File:  Upload File:

 Disconnect:

Change the current working directory.

View a list of all the folder(s) and file(s) of the current working directory.

Download a file from PC. The filename will be converted to “BTFTP01” for testing.

Upload a file (i.e. BTFTP01) to PC.

Disconnect with the FTP server.

Chapter 3 System Menu

3.9.5 PAIRING TEST

The pairing procedure is for the creation and exchange of a link key between two Bluetooth-enabled devices. The devices use the link key for future authentication when exchanging information.

1) The mobile computer will start with making an inquiry so that the system can

generate a list of device(s) that has been discovered nearby.

2) Select a desired target device.

For the device name, it can only display a maximum length of 11 characters. When the device name is too long, it will be truncated automatically.

3) Select a Bluetooth service from the “Target Machine” menu. To stop and exit the test,

press [ESC].

After pairing successfully, the target device will be added to the Frequent Devices list for quick connection in the future.

Note: For the initial use of Bluetooth networking, the pairing procedure must be done

before the Echo tests.

8600 Series Mobile Computer Reference Manual

3.9.6 FREQUENT DEVICES

Here is a list of devices that the mobile computer has been connected to lately. After each successful pairing, the system will update it.

This list can show information of one device that provides any of the following services:

 Serial Port (SPP)  Dial-Up Networking (DUN)  Human Interface Device (HID)  FTP Server (FTP)

For the device name, it can only display a maximum length of 11 characters. When the device name is too long, it will be truncated automatically.

Note: To unpair any device, simply delete the device from this list.

Chapter 3 System Menu

3.10 WI-FI MENU

This submenu accesses the settings of 802.11b/g wireless networking. You must configure these parameters correctly to be able to make the connection.

Note: The menu is available only when the Wi-Fi module is present.

Wi-Fi Settings Default Value Ad-hoc Infrastructure

Network Setting Items Need to Be Checked

DHCP

SubNet Mask

Local IP Address

Default Gateway

DNS Server

Domain Name

WLAN Setting

Local Name

SS ID

System Scale

Power Saving

Ad-Hoc

Fixed BSSID

Scan Time Security

Authentication

WEP Menu

EAP Menu

WPA Menu

Enable

255.255.128.0

0.0.0.0

---

Model no. + Serial no.

---

Medium

Enable

Disable

000000000000

Open System

Disable

---

8600 Series Mobile Computer Reference Manual

3.10.1 INFORMATION

Information of network configuration can be viewed here.

Wi-Fi Menu | 1. Information

Lib Kernel version

 All user libraries reside in Kernel; no external libraries are required.

Ver Firmware version of the Wi-Fi module MAC MAC address of the Wi-Fi module IAM A name given to the mobile computer for identification.

 By default, it is made up of model number and the serial number.

(Identical to 3. WLAN Setting | 1. Local Name)

DHCP DHCP server in use or not IP IP address of the mobile computer Mask Subnet Mask Gate Default Gateway

Chapter 3 System Menu

3.10.2 NETWORK SETTING

Set parameters for IP networking.

DHCP

Options — Enable or Disable

Subnet Mask

Enter a new Mask IP, if necessary.

Local IP Address

Enter a new address for the mobile computer, if necessary.

Default Gateway

Enter a new address for the default Gateway, if necessary.

DNS Server

Enter a new address for the DNS server, if necessary.

Domain Name

The domain name of the host is displayed when DHCP server is enabled.

Note: Normally, DHCP is enabled and all of the settings can be obtained from the DHCP

server.

8600 Series Mobile Computer Reference Manual

“

3.10.3 WLAN SETTING

Wireless networking can operate in two modes – (1) Ad-hoc mode: peer-to-peer, and (2) Infrastructure mode: point to multi-point through access points.

Set the following parameters.

Local Name

Enter a name for identifying the mobile computer.

 By default, it is made up of model number and the serial number.

SS ID

This refers to Service Set Identifier or AP name, which is used for remote device association.

 The mobile computer can ONLY communicate with access points that have the same SS ID.

System Scale

This refers to Access Point Density.

Options — [1] Low [2] Medium [3] High [4] Customized

 The value you set must match that set for the access point. 

Low / Medium / High” means the mobile computer will search for other APs only when data

transmission rate drops below “1 / 2 / 5” Mbps individually.



Customized” lets you set data rate for the mobile computer to search for other APs when data

transmission rate drops below the specified value —

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 1, 2, 5.5, 11 Mbps & 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Power Saving

This refers to the low power consumption mode.

Options — Enable or Disable

 The value you set must match that set for the access point.

Ad-Hoc

This refers to peer-to-peer mode, without going through access points. Options — Enable or Disable

Chapter 3 System Menu

Fixed BSSID

This refers to the use of a specific AP’s MAC address as the fixed Basic Service Set Identifier.

 The mobile computer can ONLY communicate with this one and only access point.

Scan Time

Specify the time period the mobile computer searches for wireless devices on the network.

 Normal: By default the scanning time is set to normal.  Double: specify double the scanning period.

8600 Series Mobile Computer Reference Manual

3.10.4 SECURITY

Set or modify security parameters.

 WEP: Wired Equivalent Privacy  EAP: Extensible Authentication Protocol  WPA: Wi-Fi Protected Access

Authentication

[1] Open System

[0] Share Key

WEP Menu

WEP Setting

 Default authentication type  This requires implementing WEP key.

 Enable (For Share Key, it must be enabled!)  Disable (default)

WEP Key Length

 64 bits  128 bits (default)

Default Key WEP KEY1

WEP Key Enter WEP Keys 1 ~ 4 in one of the following input data type:

 ASCII (up to 13 characters)  Hexadecimal (up to 26 characters)

EAP Menu (for associating to Cisco access points)

EAP Setting

 Enable  Disable (default)

EAP ID Enter a user name (up to 32 characters)

EAP Password Enter a password (up to 32 characters)

WPA Menu (WPA-PSK)

WPA Setting

 Enable  Disable (default)

WPA2 Setting

 Enable  Disable (default)

Chapter 3 System Menu

WPA Passphrase Enter a phrase as your password (8 ~ 63 characters)

3.10.5 SCAN DEVICES

Select this command to launch the scanning for the Wi-Fi hotspots within range. The mobile computer will first produce a scanning screen and then a result screen that displays all the WiFi hotspots discovered whether open or secured.

Select an entry on the result screen to see more details about it including the BSSID, BSS Type, and the security framework it applies.

The screenshot below details the result screen:

channel

security rssi, the “received signal strength indication”

Select an entry to view more details about it.

a secured network

he result screen

Label

CH channel Delivers the channel (frequency range) in use by the network.

R rssi Delivers the “Received Signal Strength Indication”. See 3.10.7 Echo Tests to

S security Delivers the security of the network. A secured network goes with an asterisk

Description Function

know how signal strength is rated by numbers.

sign (*) while an open network doesn’t.

8600 Series Mobile Computer Reference Manual

3.10.6 PROFILE

This function allows users to create up to four Wi-Fi profiles.

SSID

Enter the SSID (up to 32 characters).

Ad-Hoc

This refers to peer-to-peer mode, without going through access points.

Options — Enable or Disable

Authentication

[1] Open System

[0] Share Key

WEP Menu

WEP Setting

 Default authentication type  This requires implementing WEP key.

 Enable (For Share Key, it must be enabled!)  Disable (default)

WEP Key Length

 64 bits  128 bits (default)

Default Key WEP KEY1

WEP Key Enter WEP Keys 1 ~ 4 in one of the following input data type:

 ASCII (up to 13 characters)  Hexadecimal (up to 26 characters)

EAP Menu (for associating to Cisco access points)

EAP Setting

 Enable  Disable (default)

EAP ID Enter a user name (up to 32 characters)

EAP Password Enter a password (up to 32 characters)

WPA Menu (WPA-PSK)

Chapter 3 System Menu

WPA Setting

 Enable  Disable (default)

WPA2 Setting

 Enable  Disable (default)

WPA Passphrase Enter a phrase as your password (8 ~ 63 characters)

8600 Series Mobile Computer Reference Manual

3.10.7 ECHO TESTS

This function is used to measure the coverage of the range, estimate the number of APs and mobile computers needed, and determine the topology of deploying APs.

Client Mode

Set the mobile computer as a client. Enter the IP address of a server to which the mobile computer connects. Then, it will try to connect to an AP.

1. Run the utility “EchoTest.exe” on your computer. Associated settings include

- Select “TCP/IP – Server” for interface.

- Set Action Mode to “Passive”.

2. Start the echo test on both ends.

3. Enter the server IP and port number on the mobile computer.

Server Mode

Set the mobile computer as a server. The mobile computer will try to connect to an AP.

1. Run the utility “EchoTest.exe” on your computer. Associated settings include

- Select “TCP/IP – Client” for interface.

- Set Action Mode to “Passive”.

2. Start the echo test on both ends.

While running echo tests, if WPA setting is enabled for security, the SSID and Passphrase will be processed to generate a pre-share key.

Note: If you change the SSID or Passphrase, it will have to re-generate a pre-share key.

1) For initial association with an access point, you will see an antenna icon developing

on the screen to indicate that the mobile computer is processing a pre-share key.

2) After having generated the pre-share key, the mobile computer proceeds to establish

a connection with an access point, and you will see the whole antenna is flashing.

3) When the mobile computer has been connected to the access point successfully, you

will see the whole antenna and the indication of wireless signal strength.

Chapter 3 System Menu

The antenna icon will become ready and flashes to indicate 8600 is connecting to an access point under the same SSID.

The changing icon indicates 8600 is processing a pre-share key.

Wait for a few seconds.

Once connected, the antenna icon will stop flashing. Next to the icon, the more bars, the stronger the signal.

Note: If you are programming in C or BASIC, be aware that the antenna icon will appear

on the device screen after NetInit() or START TCPIP() is called. (WPA must be enabled first!)

8600 Series Mobile Computer Reference Manual

Once the connection of echo test is established, the details will be displayed as illustrated below.

SNR (dB)

(Signal to Noise ratio) (Transmit Speed) (Received Signal

0 ~ 10

10 ~ 20

20 ~ 30

30 ~ 40

over 40

Very Poor

Poor

Fair

Good

Very Good

T RSS (-dBm) NF (-dBm)

Strength Level)

5.5

Mbps

0 ~ 60

60 ~ 75

over 75

Strong

Moderate

Weak

(Noise Floor Level)

0 ~ 92

92 ~ 98

over 98

Strong

Moderate

Weak

Chapter 4

PROGRAM MANAGER & KERNEL

This chapter explains Program Manager and Kernel that manage multiple programs and firmware upgrade.

IN THIS CHAPTER

4.1 Program Manager ...................................................... 79

4.2 Kernel ...................................................................... 86

4.1 PROGRAM MANAGER

The mobile computer supports multiple applications and languages. In the menu of Program Manager, it allows storing up to six programs and has one activated for the current use.

If there is no application program exists, Program Manager will be displayed after you turn on the mobile computer.

Warning! Program Manager is provided for managing programs in an administrative

level.

How to access Program Manager?

1) Turn off the mobile computer.

2) Press [8] + [Power].

8600 Series Mobile Computer Reference Manual

4.1.1 DOWNLOAD PROGRAM

Here provides a list of programs currently stored on the mobile computer with size information. Multiple application programs can be downloaded through a variety of interfaces. Upon completion of downloading, you are allowed to input a name for the program. If there is no need to rename the program, simply press [ENTER] to leave as it is.

The length of program name can be up to 12 characters. Program size is in kilobytes.

A suffix letter after the memory sector (1 ~ 6) indicates the file type of program.

 “b” for BASIC program (.SYN)  “c” for C program (.SHX)

The last line starting with a prefix letter “f” is reserved to display the font file (.SHX) in use on the mobile computer.

Note: For a custom font file (.SHX) or a BASIC program (.SYN), it can only be

downloaded via System Menu.

Chapter 4 Program Manager & Kernel

SPARE MEMORY SECTORS (1 ~ 6)

Additional program files can be directly downloaded to these sectors.

Download a program file to an empty sector:

1. Press the arrow keys [Up] and [Down] to select an empty sector, and then press [ENTER].

2. Select a desired interface for downloading.

3. Connect the interface cable if required, and wait for a few seconds to establish a connection…

4. To abort the action, press [ESC]. Then press [ESC] again to return to the menu.

Download a program file to an occupied sector:

If no available sectors, you'll have to replace one program with the new one.

1. Press the arrow keys [Up] and [Down] to select a program that you want to delete, and then press [ENTER].

2. The program information is displayed on the screen.

Press the blue key to enter the Alpha mode:

 Press the capital letter [C] and follow the steps below to download a program file.  Press the capital letter [D] if you simply want to delete the program.

3. Select a desired interface for downloading.

4. Connect the interface cable if required, and wait for a few seconds to establish a connection.

5. To abort the action, press [ESC]. Then press [ESC] again to return to the menu.

From the menu, you'll see the program has been deleted but no new program is present (because you have canceled the download action).

ACTIVE MEMORY SECTOR (“ACT”)

Only the application program, which needs to be activated immediately, can be downloaded to the active memory sector.

Download to Memory Sector “ACT”:

1. Press the arrow key [Down] to select the memory sector “ACT” (may be unoccupied), and then press [ENTER].

2. Select a desired interface for downloading.

3. Connect the interface cable if required, and wait for a few seconds to establish a connection.

If the active memory sector has already been occupied by an application program, the newly

downloaded program will replace the currently active program and come into effect immediately.

8600 Series Mobile Computer Reference Manual

4.1.2 ACTIVATE PROGRAM

The list shows the entire spare programs stored on the mobile computer. From the list, you can select from the memory sector (1 ~ 6) or SD card. The selected program will be copied to the active memory sector and replace the current one.

Note: A font file cannot be activated.

TO CLEAR FILE SYSTEM

When <New Program Start> screen appears, “Press [ESC] to clear file” means the file system in the SRAM will be cleared out by pressing [ESC]. Then there will be no data (transactions, settings, etc.) stored on the mobile computer when the new program comes into effect.

TO KEEP FILE SYSTEM

To keep the data, simply press any other key.

Chapter 4 Program Manager & Kernel

4.1.3 UPLOAD PROGRAM

You may duplicate one of the programs from the mobile computer to a host computer or another mobile computer. This can be used to clone software on mobile computers.

The procedures are similar to that for downloading programs.

 If the target is “Terminal”, only the “RS232” and “Bluetooth” interface options are

available.

 If the target is “PC”, the available interface options include “RS232”, “USB VCOM”,

“Bluetooth” and “USB VCOM_CDC”.

8600 Series Mobile Computer Reference Manual

4.1.4 DOWNLOAD FONT

The terminal computer can be loaded with up to 6 font files. Users can input characters in fonts loaded on the device.

4.1.5 UPLOAD FONT

You may duplicate one of the fonts from the mobile computer to a host computer or another mobile computer.

Chapter 4 Program Manager & Kernel

4.1.6 UPLOAD ALL

You may duplicate all of the programs/fonts from the mobile computer to another one or a host computer.

Note: To clone all of the programs, the target mobile computer cannot have any other

program downloaded except the active one; that is, Memory Sectors 1 ~ 6 must be empty!

 You can determine to upload programs only, or clone programs and fonts altogether.  If the target is “Terminal”, only the “RS232” and “Bluetooth” interface options are

available.

 If the target is “PC”, the available interface options include “RS232”, “USB VCOM”,

“Bluetooth” and “USB VCOM_CDC”.

8600 Series Mobile Computer Reference Manual

4.2 KERNEL

The kernel resides in the innermost core of the system. It has the highest security and is always protected by the system. When the application program is corrupted and System Menu fails at the same time, Kernel Menu provides an access to fix the system.

Warning! Kernel Menu is NOT for the use of any end users.

How to access Kernel Menu?

1) When the last session is in System Menu or Program Manager, simply turn off the

mobile computer. Otherwise, you must reload the battery pack.

2) Press [1] + [7] + [Power].

Chapter 4 Program Manager & Kernel

4.2.1 KERNEL INFORMATION

Here provides important system information to help diagnose the system.

Kernel Menu | 1. Information

H/W Hardware version S/N Serial number of the mobile computer M/D Manufacturing date BL Bootloader version KNL Kernel version DEV 4-digit code for optional hardware configurations

Refer to Understanding Device Code.

8600 Series Mobile Computer Reference Manual

4.2.2 KERNEL UPDATE

The kernel and bootloader might need to be updated to improve performance or due to other considerations. Refer to Appendix I Download Utility.

 The procedure of downloading a kernel (K8600.shx) or bootloader (BL8600.shx)

update is like downloading a program.

 Any attempt to download an older version of bootloader will be rejected.  The system will restart itself right after downloading.

Warning: Do not turn off the mobile computer while downloading a kernel update or

re-starting the mobile computer. Otherwise, it will crash the kernel forever.

Note: The mobile computer will stay in download mode for approximately 30 seconds.

.SHX Program Download one of the following firmware files:

Firmware File

 Kernel update:  Bootloader update:

K8600.shx

BL8600.shx

SETTINGS

Interface

Options Description

RS-232 Proceed to configure baud rate settings on your computer and the

mobile computer.

USB VCOM Connect the USB cable between your computer and the mobile

computer.

Bluetooth Approach the target Bluetooth enabled device.

SD Card This option is available only when the memory card is present.

USB VCOM_CDC This option is available only when USB Virtual COM_CDC is in use.

Baud Rate

Available baud rate options: 115200/57600/38400/19200/9600 bps
