The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided
under a license agreement containing restrictions on use and disclosure and is also
protected by copyright law. Reverse engineering of the software is prohibited.
Due to continued product development this information may change without notice. The
information and intellectual property cont ained herein is confident ial between CIPHER LAB
and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find
any problems in the documentation, please report them to us in writing. CIPHERLAB
does not warrant that this document is error-free.
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying,
recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.
For product consultancy and technical support, please contact your local sales
representative. Also, you may visit our web site for more information.
The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD.
All brand, product and service, and trademark names are the property of their registered
owners.
The editorial use of these names is for identification as well as to the benefit of the
owners, with no intention of infringement.
CIPHERLAB CO., LTD.
Website:
http://www.cipherlab.com
IMPORTANT NOTICES
FOR USA
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate t he receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to th e following
two conditions: (1) This device may not cause harmful int erference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FOR CANADA
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus as set out in the interference-causing equipment standard entitled
"Digital Apparatus," ICES-003 of Industry Canada.
This device complies with Part 15 of the FCC Rules. Operation is subject to th e following
two conditions: (1) This device may not cause harmful int erference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux
appareils numeriques de Classe B prescrites dans la norme sur le material brouilleur:
"Appareils Numeriques," NMB-003 edictee par l'Industrie.
SAFETY PRECAUTIONS
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The use of any batteries or charging devices, which are not originally sold or
manufactured by CipherLab, will void your warranty and may cause damage to
human body or the product itself.
DO NOT disassemble, incinerate or short circuit the battery.
DO NOT expose the scanner or the battery to any flammable sources.
For green-environment issue, it's important that batteries should be recycled in a
proper way.
Under no circumstances, internal components are self-serviceable.
The charging and communication cradle uses an AC power adaptor. A socket outlet
shall be installed near the equipment and shall be easily accessible. Make sure there
is stable power supply for the mobile computer or its peripherals to operate properly.
CARE & MAINTENANCE
This cradle is intended for indoor use only. It may do damage to the cradle when
being exposed to extreme temperatures or soaked wet.
When the body of the cradle gets dirty, use a clean and wet cloth to wipe off the dust.
DO NOT use/mix any bleach or cleaner. Always keep the cradle dry.
If you shall find the cradle malfunctioning, write down the specific scenario and
consult your local sales representative.
RELEASE NOTES
Version Date Notes
1.14 Nov. 20, 2014
1.13 Jul. 09, 2010
1.12 Nov. 19, 2009
1.11 May 27, 2009 Support local name and password protection
1.10 Mar. 13, 2009
1.09 Feb. 27, 2009
1.08 July 15, 2008
1.07 July 10, 2008
1.06 Mar. 18, 2008 Apply new template and structure
IMPORTANT NOTICES ...................................................................................................................... - 3 -
For USA .......................................................................................................................................... - 3 -
For Canada .................................................................................................................................... - 3 -
Seeing the need to connect CipherLab Mobile Computers to your existing Ethernet
networks, CipherLab is now providing an easy solution by introducing Ethernet Cradles
for 8000/8300/8500 Series Mobile Computers.
This manual serves to guide you through how to install, configure, and operate Ethernet
Cradle. We recommend you to keep one copy of the manual at hand for quick reference
or maintenance purposes. To avoid any improper disposal or operation, please read the
manual thoroughly before use.
Thank you for choosing CipherLab products!
1
Ethernet Cradles Reference Manual
GETTING FAMILIARIZED WITH ETHERNET CRADLES
8000 SERIES ETHERNET CRADLE
8300 SERIES ETHERNET CRADLE
8500 SERIES ETHERNET CRADLE
2
錯誤! 尚未定義樣式。

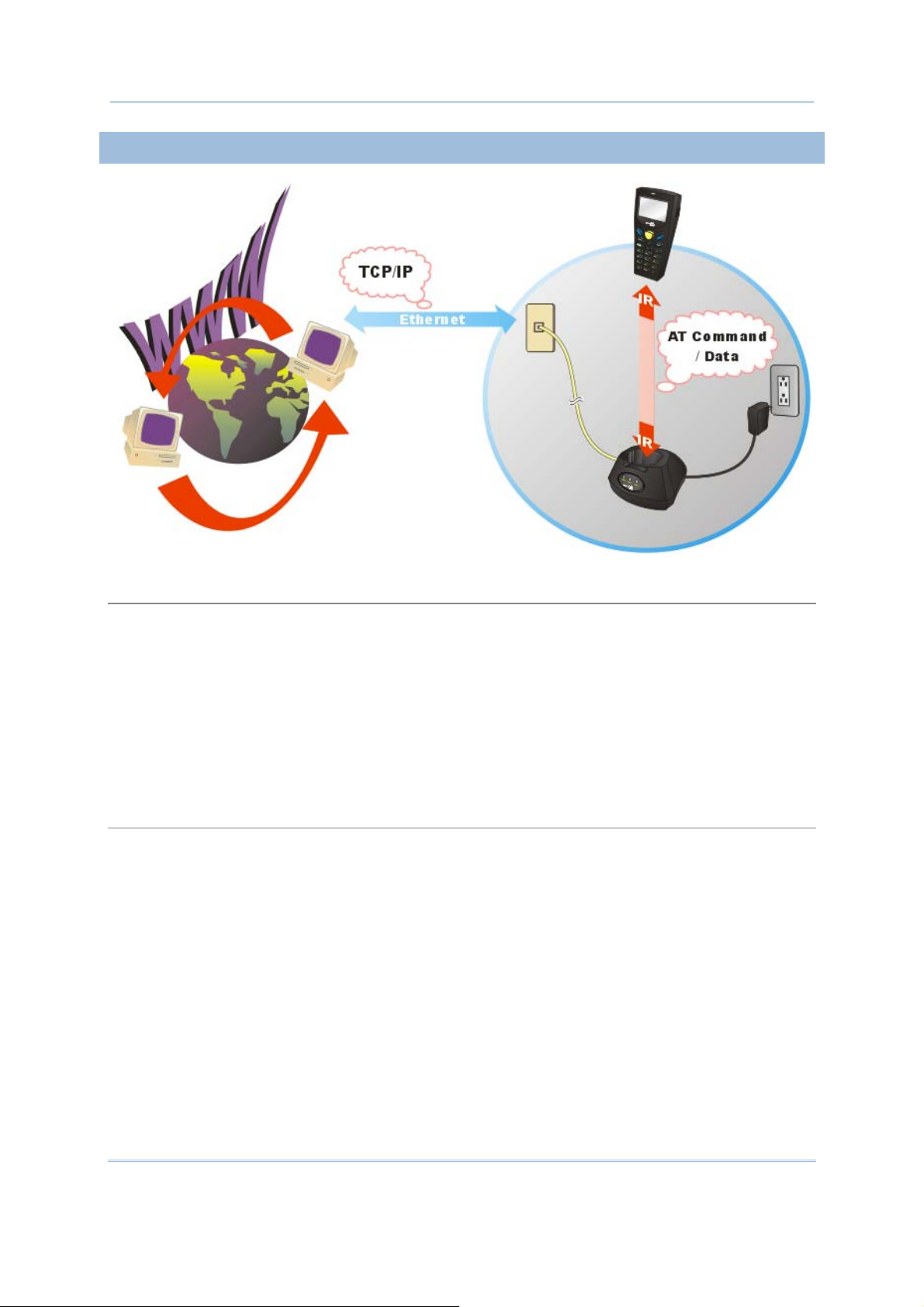

HOW IT WORKS
3
Ethernet Cradles Reference Manual
FEATURES
16-bit CMOS CPU, low power consumption
Firmware upgradeable
10/100 Mbps auto-switching mechanism

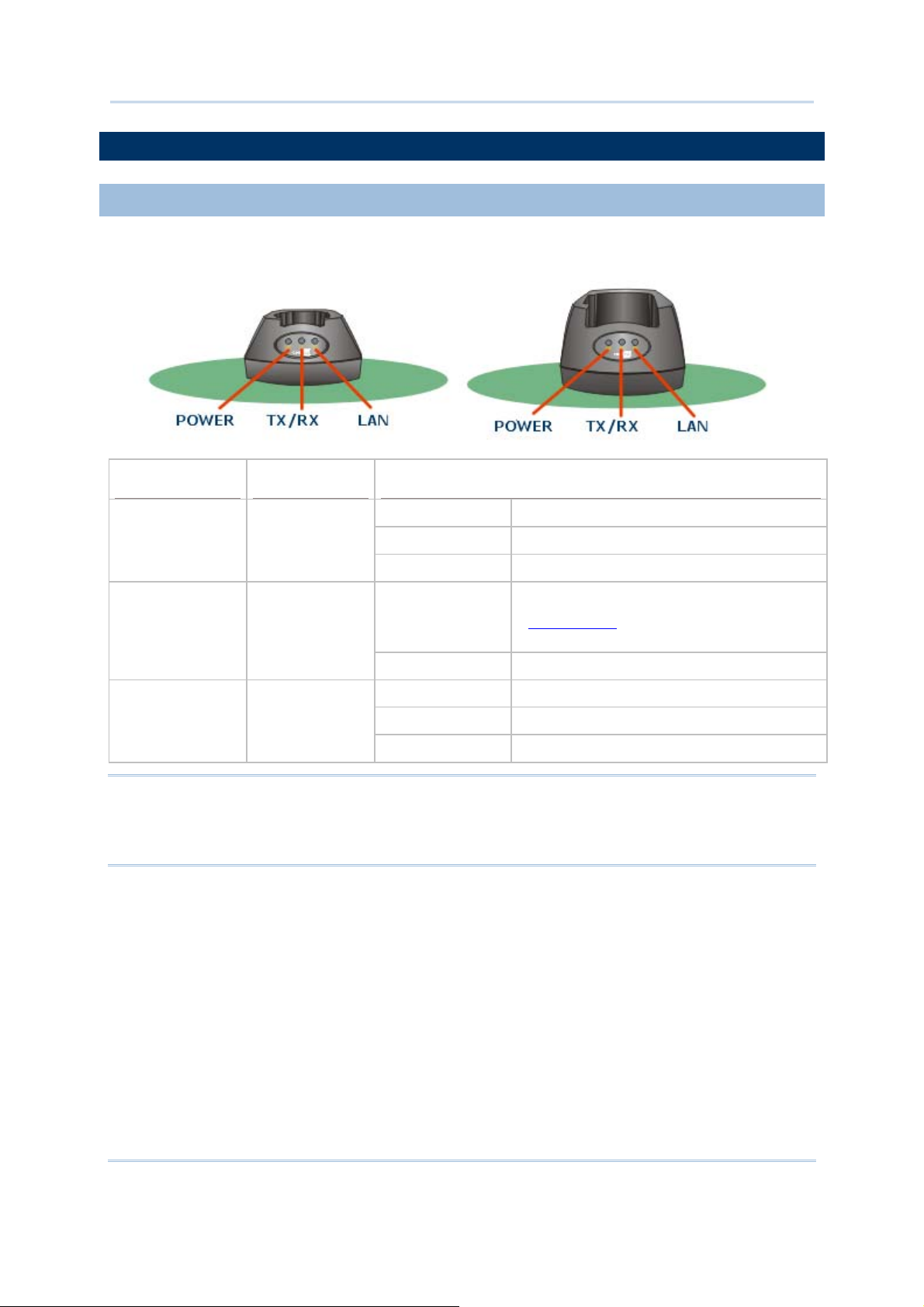

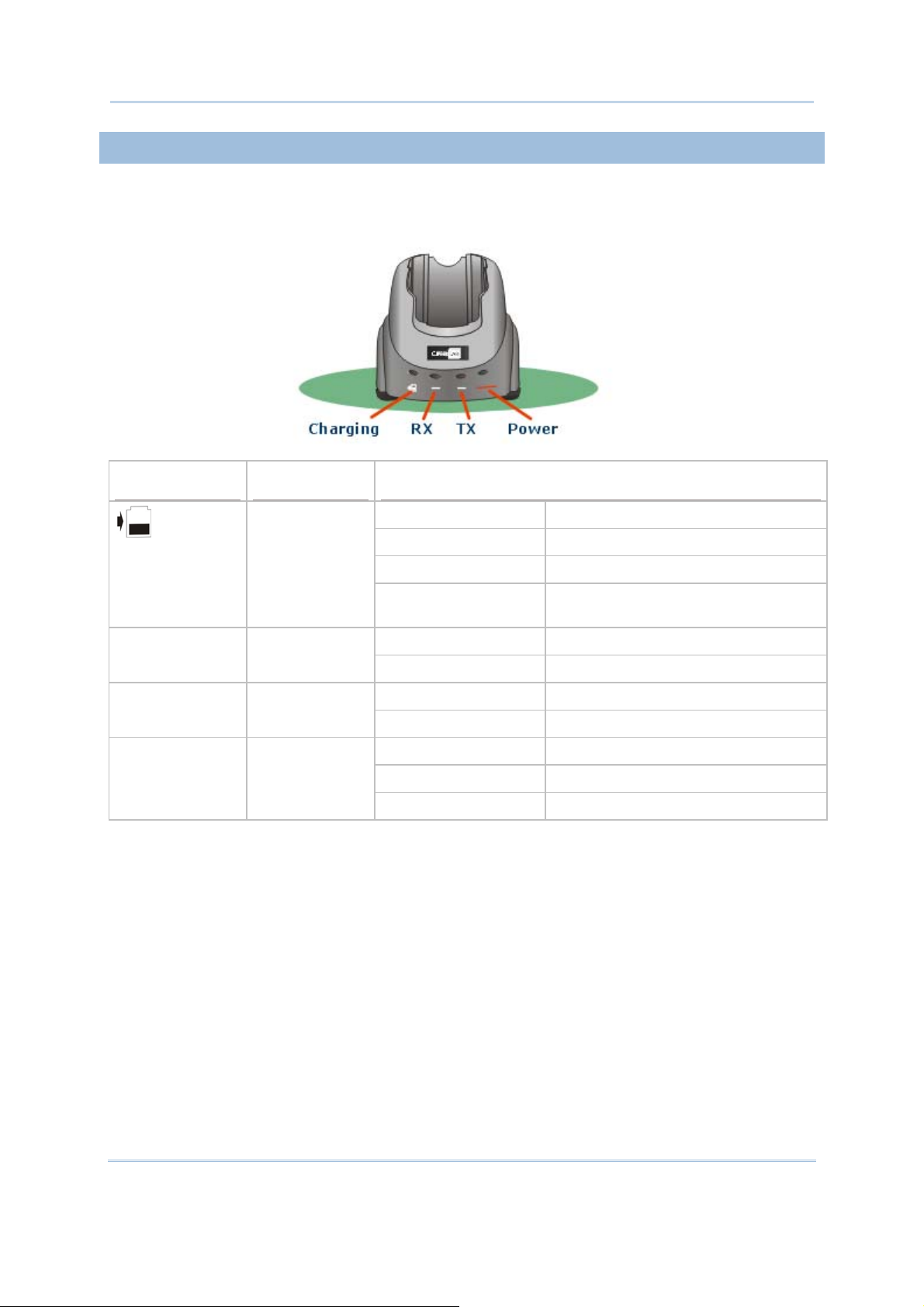

Front panel LED indicators for monitoring status of operation
Supports 3 operation modes: Data mode, Modem mode, and Transparent mode
Supports DHCP IP Allocation
Supports TCP/UDP, Server/Client
Reserves Cradle-IR functionalities for switching to Ethernet by cradle commands
Supports Name Resolution via DNS (Modem mode only)
INSIDE THE PACKAGE
The following items are included in the package. Save t he box and pack aging mat erial f or
future use in case you need to store or ship the cradle.
Ethernet Cradle, complete set including power adaptor and supply cord
Cat. 5 cable, 1 meter long
Rechargeable Li-ion battery pack (for 8500 Ethernet Cradle only)
Quick Installation Guide
Note: This manual is included on Product CD shipped with CipherLab 8000/8300/8500
Series Mobile Computers.
4
Chapter 1
USING ETHERNET CRADLES
Ethernet Cradle is a charging & communication cradle that is specifically designed for
networking CipherLab Mobile Computers via Ethernet. This chapter explains the usage of
Ethernet Cradles.
Note: It is recommended that the charging devices be operated at room temperature
(18°C to 25°C) for optimal performance. The charging devices will n ot charge the
battery when the temperature drops below 0°C or exceeds 40°C.
1.1 WORKING MODES
Ethernet Cradles support three different working modes while networking via Ethernet.
Baud Rate: Ethernet Cradles are set to work at the baud rate of 115,200 bps by
default.
Note: In order to communicate with the cradle, the mobile computer must be
programmed to “Cradle-IR, 115,200 bps” via C functions SetCommType() and
open_com() separately.
Settings by Working Mode: Refer to Configuring Ethernet Cradles for the configuration
menus.
Modem Mode (Default)

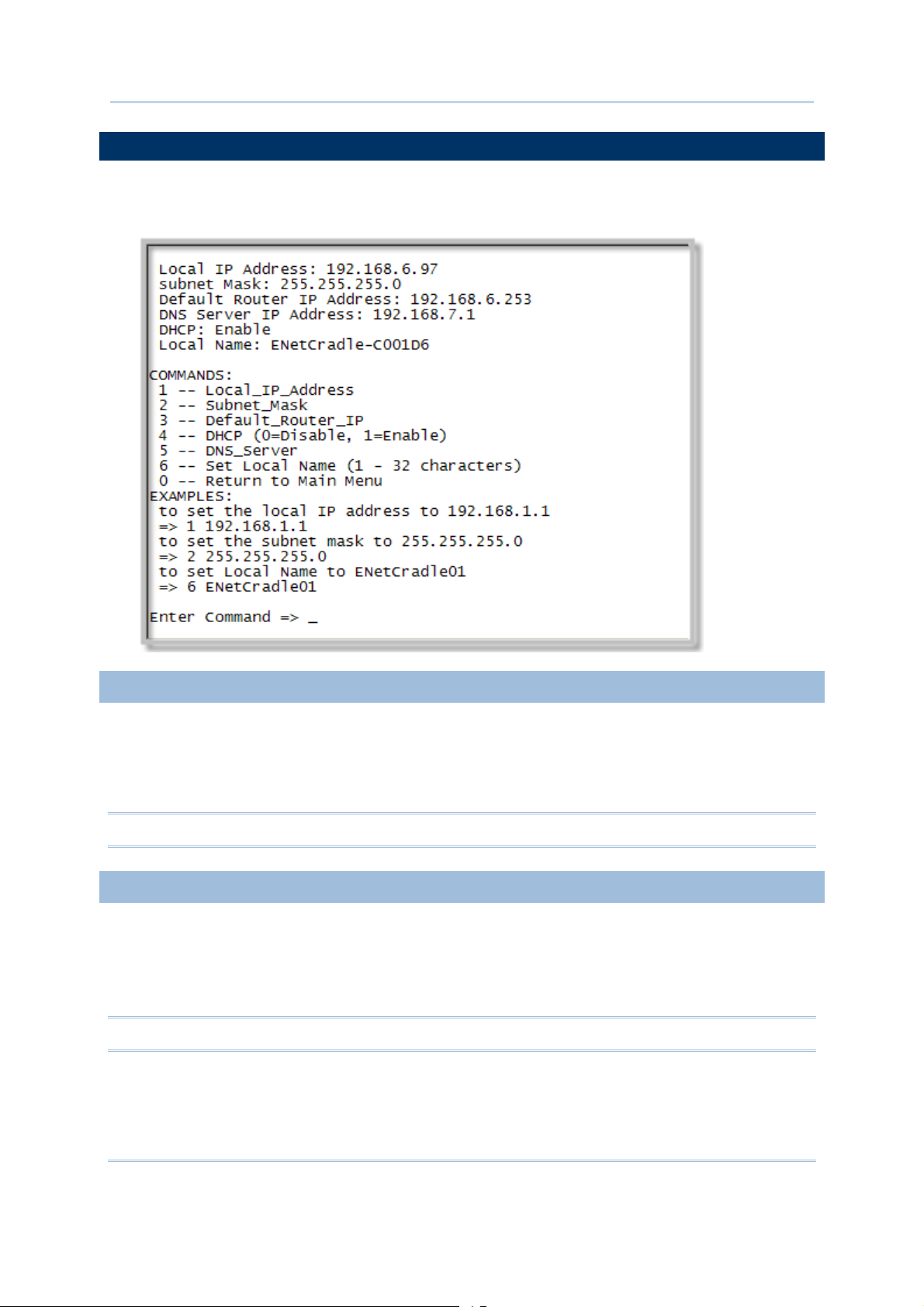

1. Set Local IP, Subnet Mask, Default Router IP & Local Name View IP settings

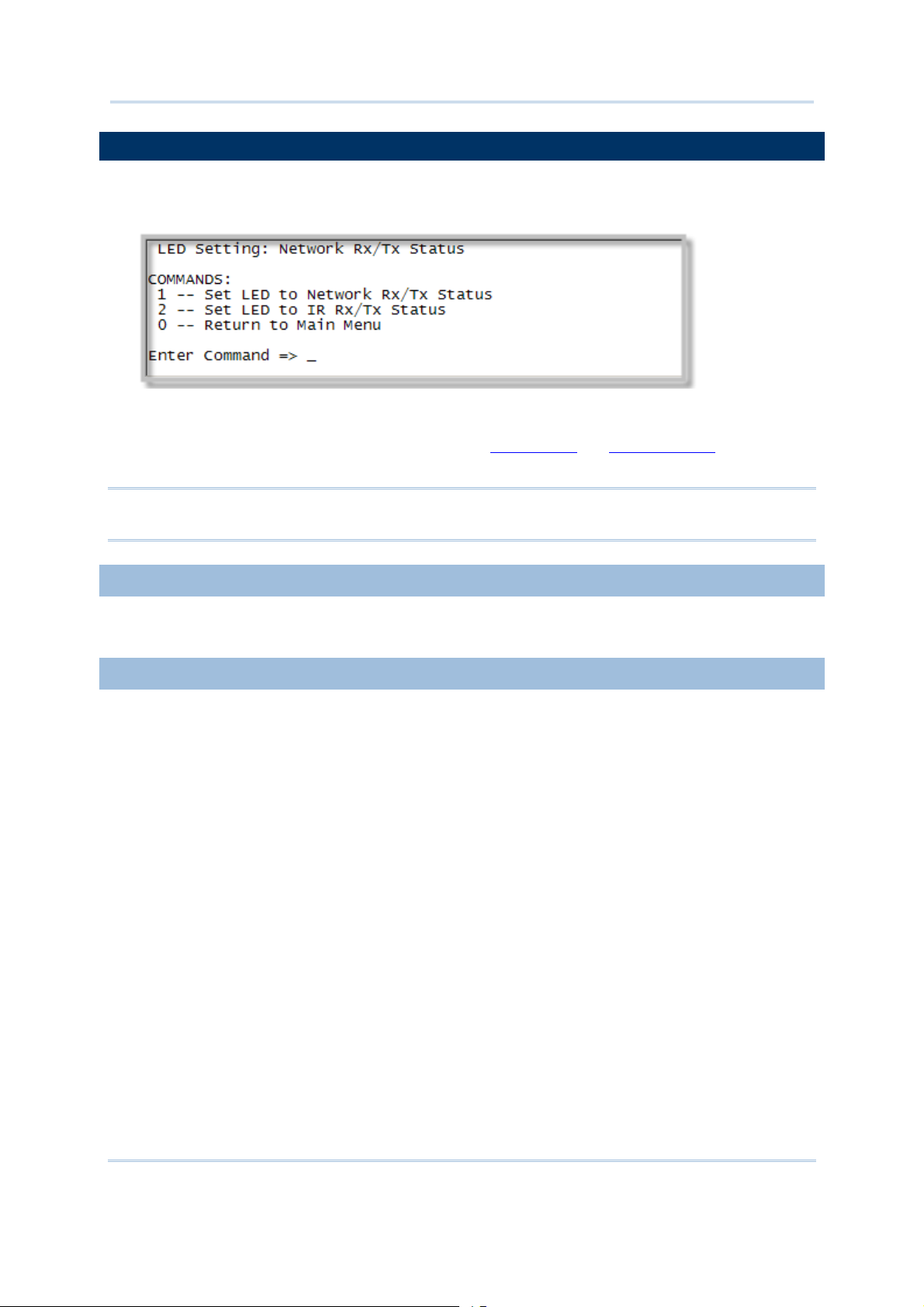

2. Set LED Indicator Setting (8000/8300 Ethernet Cradle only) Select status for Network or IR

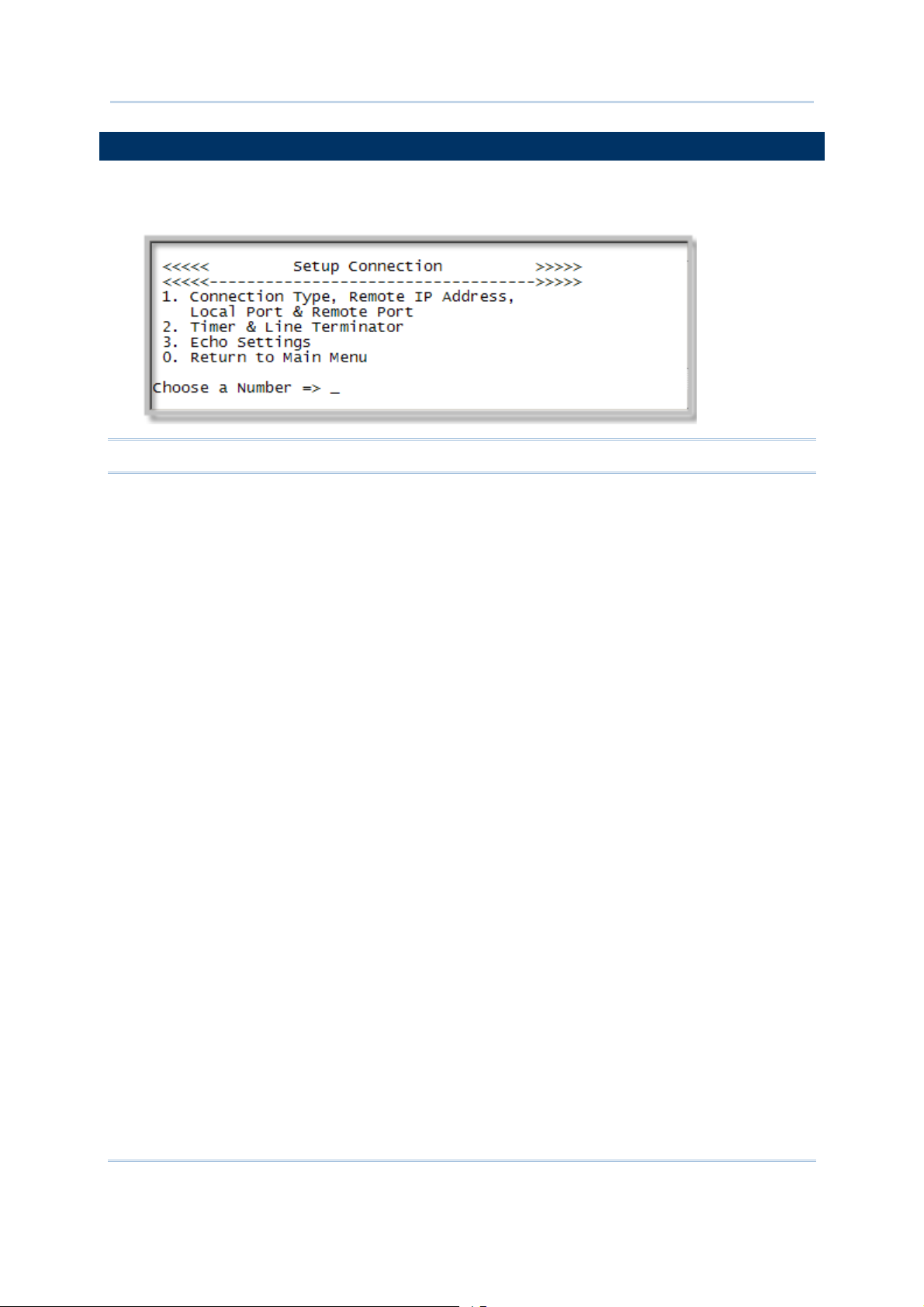

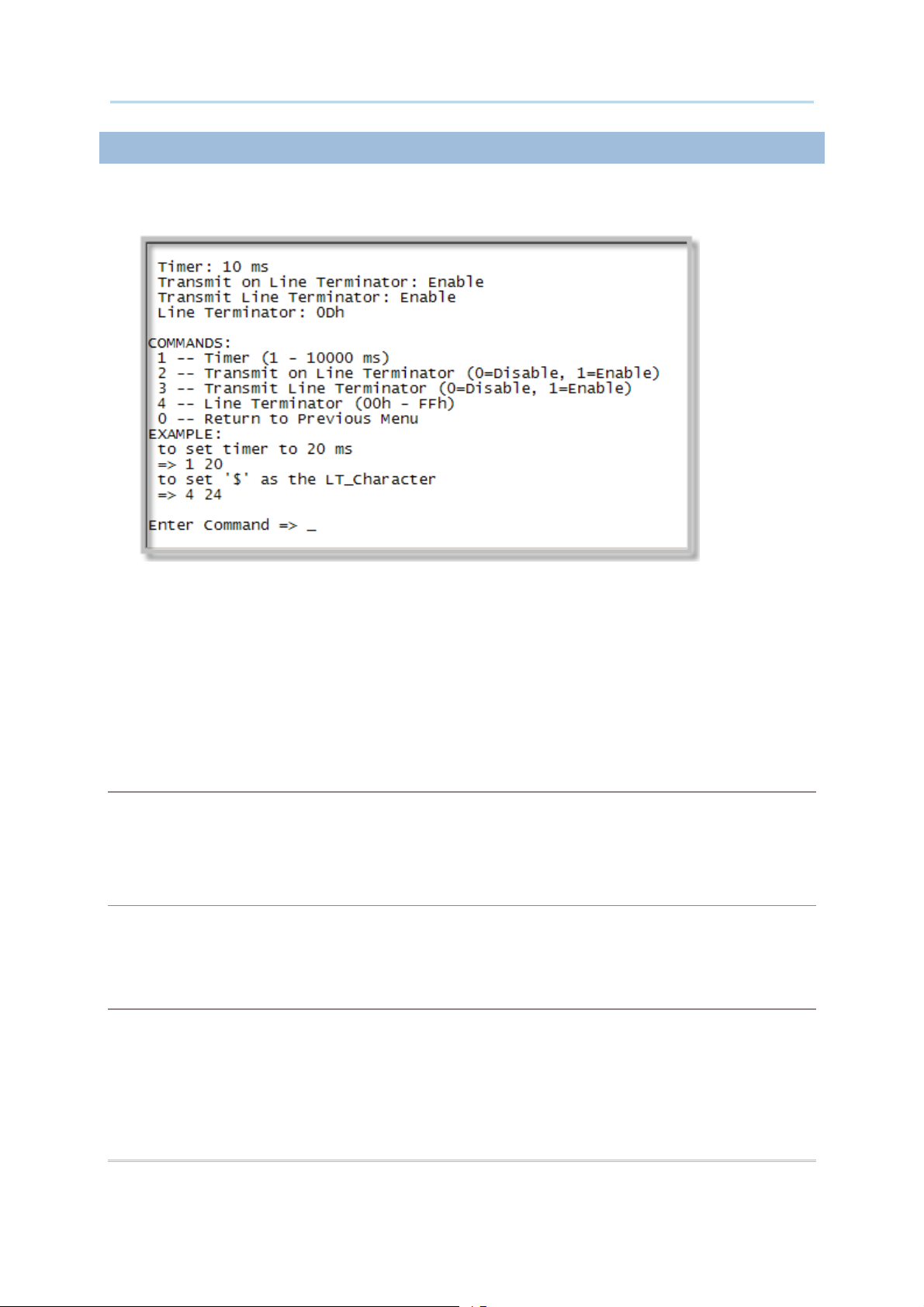

3. Set Connection Settings | 2. Timer & Line Terminator Configure Timer setting only!

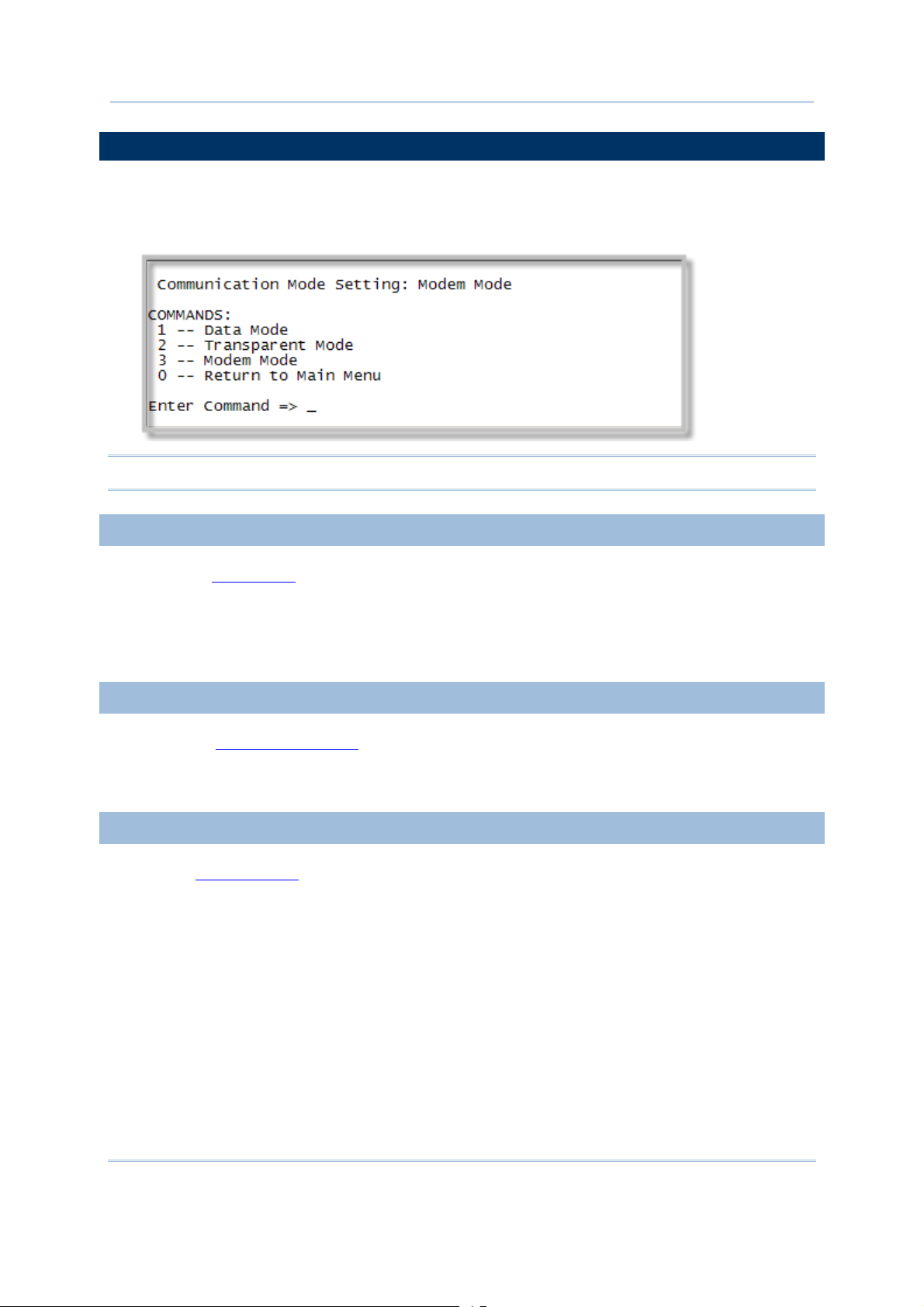

4. Set Working Mode Select working mode

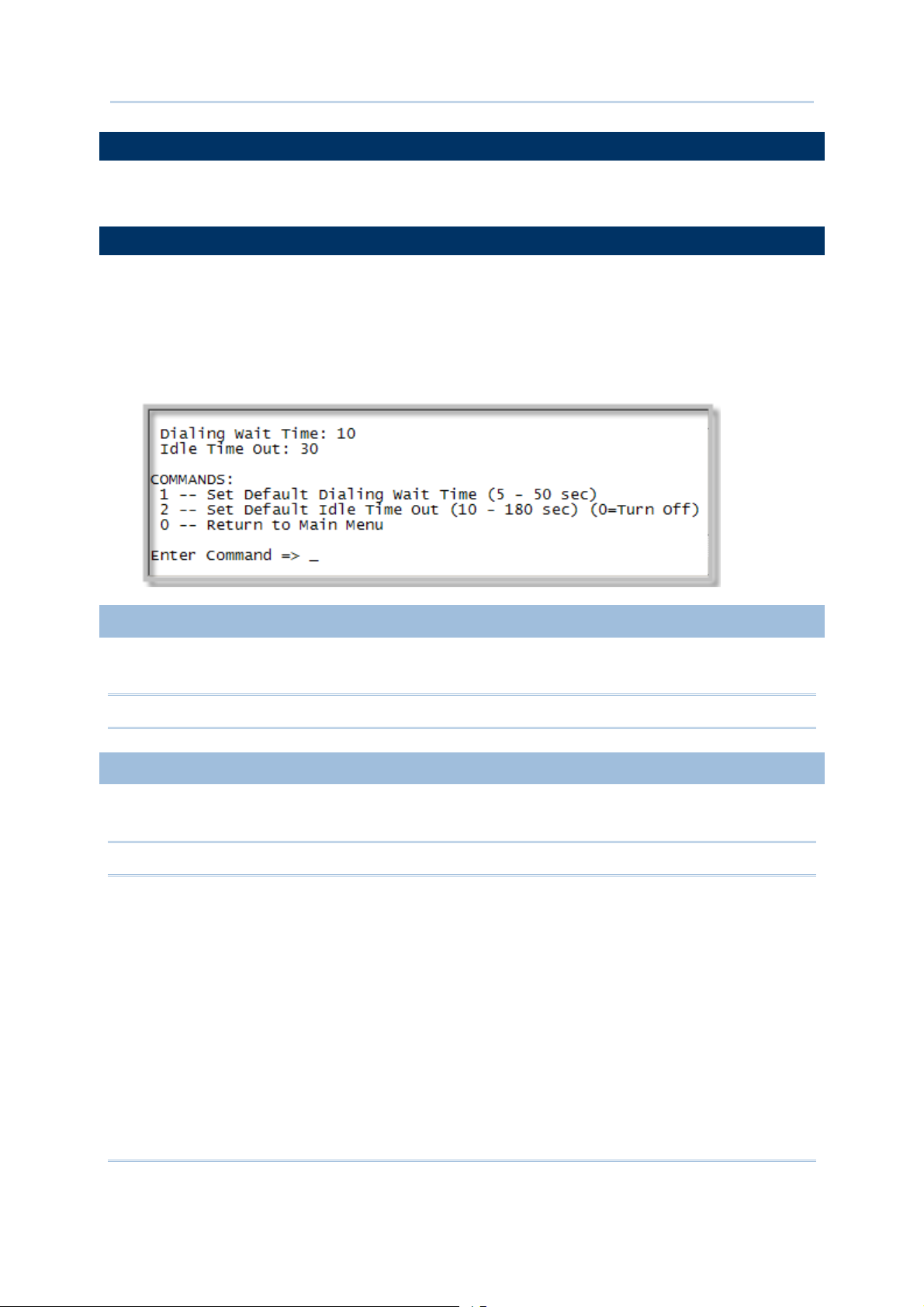

7. Set Modem Configuration Configure dialing/idle time-out
Data Mode Description
1. Set Local IP, Subnet Mask, Default Router IP & Local Name View IP settings
2. Set LED Indicator Setting (8000/8300 Ethernet Cradle only) Select status for Network or IR

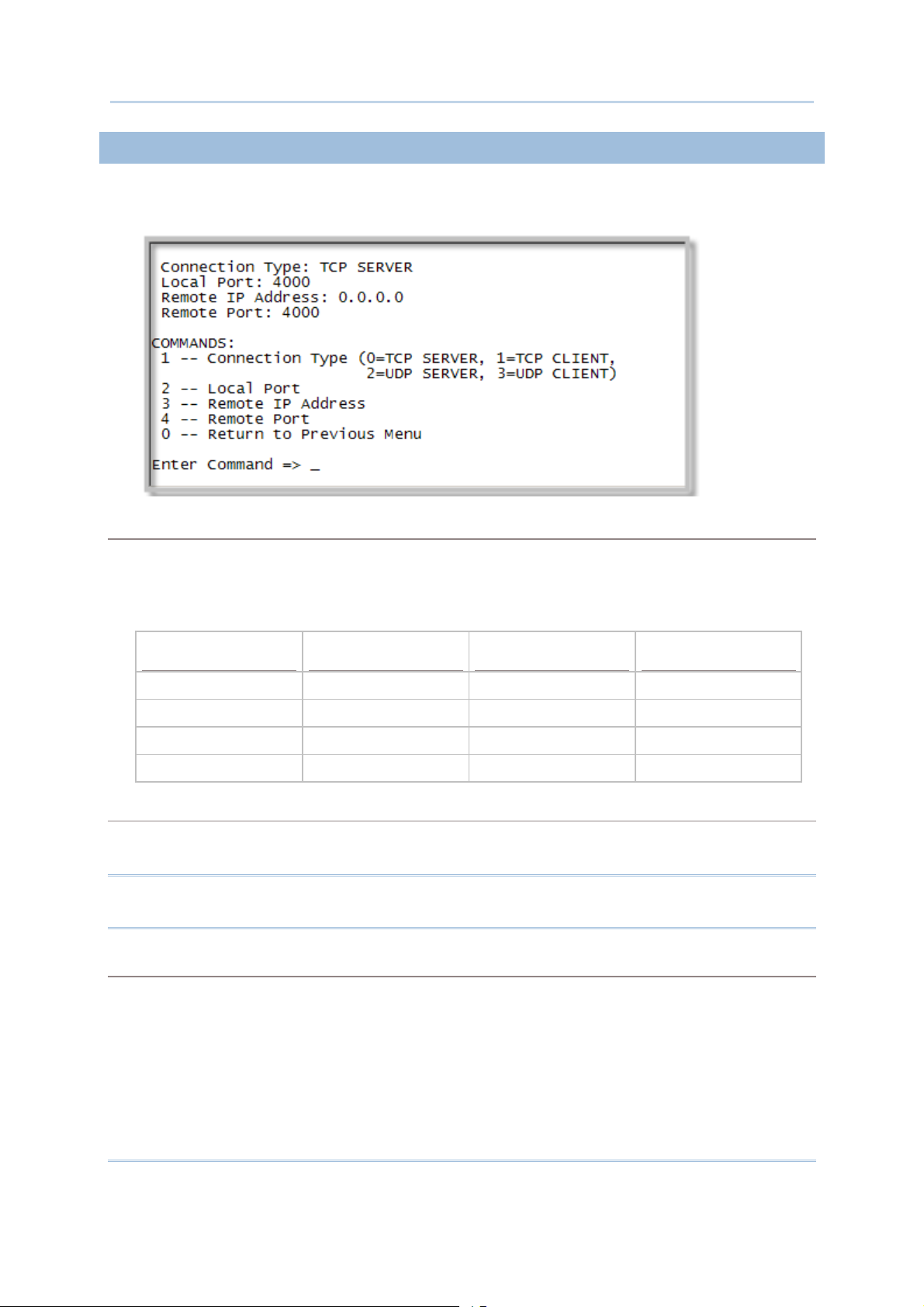

3. Set Connection Settings Configure connection settings
4. Set Working Mode Select working mode
Description

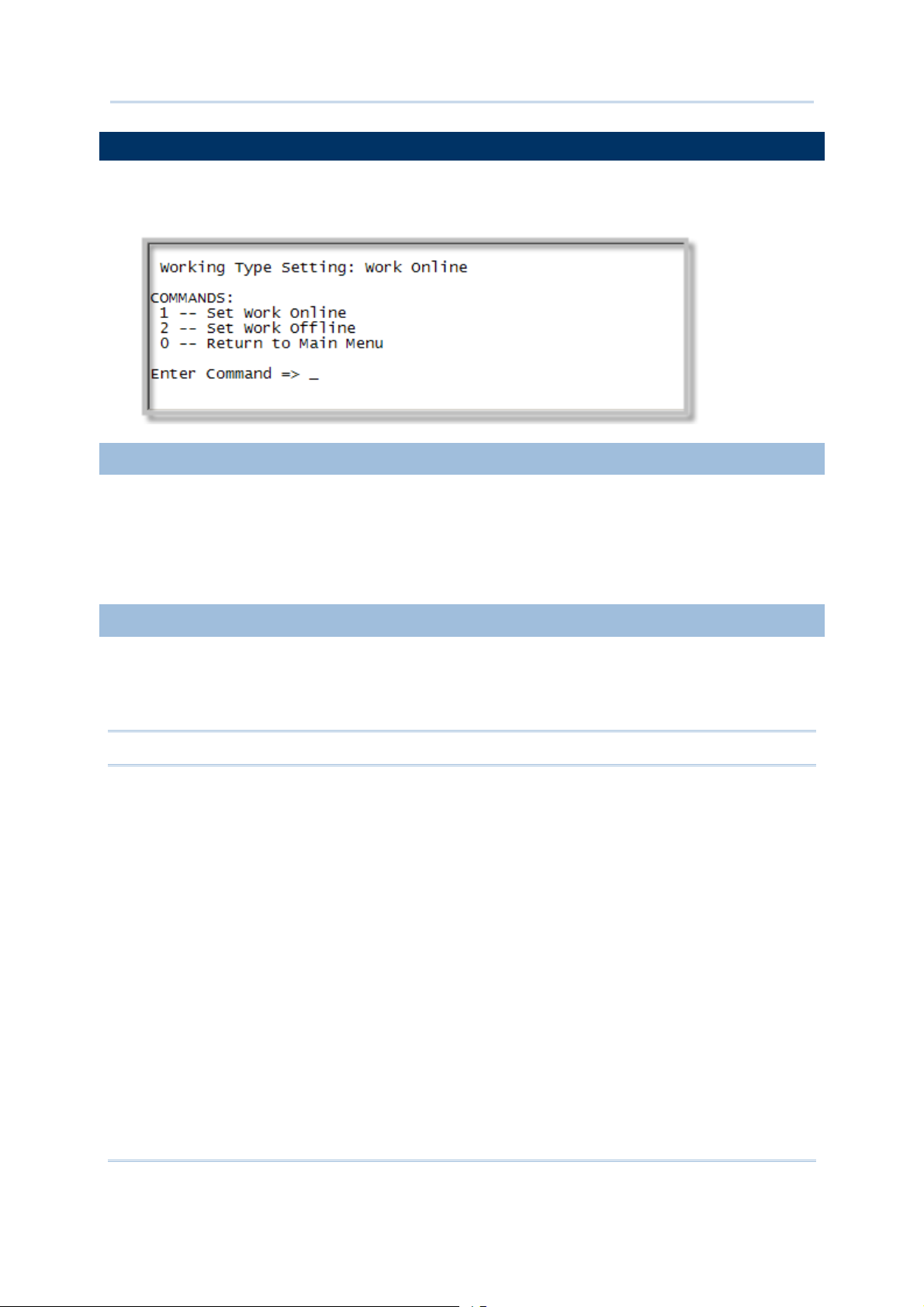

5. Set Working Type Select Work Online/Offline
Transparent Mode Description
1. Set Local IP, Subnet Mask, Default Router IP & Local Name View IP settings
4. Set Working Mode Select working mode
5
Ethernet Cradles Reference Manual
1.1.1 DATA MODE
Pros
This working mode is exactl y the same as supported on CipherLab 350 Ethernet Box.
It can automatically connect to any specific IP via assigned port number.
It will automaticall y reconnect to the target device when disconnection occurs.
It supports TCP/UDP, server/client mode.
Cons
The mobile computer cannot detect the connection status.
Noise is also packed into a complete data packet.
No configuration is allowed because everythi ng is treated as a data packet.
6
Chapter 1 Using Ethernet Cradles
1.1.2 TRANSPARENT MODE
Features
Ethernet Cradle acts as a physical layer bridge.
Everything is controlled by the mobile computer or remote computer.
It is possible for the mobile computer to work as an FTP client.
Virtual MAC ID & software MAC ID filter
In transparent mode, the mobile computer will use a virtual MAC ID to transmit/receive data. This
virtual MAC ID is a number, which is based on and add one to the MAC ID of Ethernet Cradle. For
example, if the MAC ID of Ethernet Cradle is 0x00d017c00100, its virtual MAC ID will be
0x00d017c00101.
In order to reduce the traffic of communications on the IR side, a software filter is implemented so
that packets destined to any MAC ID other than that of the mobile computer will be discarded. Only
DHCP broadcasting packets or packets for the specified MAC ID (the virtual one) will be forwarded
to the mobile computer. Ethernet Cradle will automatically detect the transaction from the mobile
computer.
Note: For the 8000/8300 Ethernet Cradle, once the transaction is confirmed, the 1st LED
(POWER) will flash, indicating that (1) the mobile computer is connected to
Ethernet through the cradle, and (2) the filter is active. However, for infrared
safety concerns, the cradle will stop forwarding packets when there is no packet
received from the mobile computer for more than 3 minutes. The 1
will become solid red indicating the status is “wait ing to connect”.
st
LED (POWER)
7
Ethernet Cradles Reference Manual
1.1.3 MODEM MODE
Features
It works almost the same as a modem device.
It can connect to any specific IP via an assigned port number, using syntax as in the following
examples —
“ATDT162.168.1.1:5000” (IP address: port number)
“ATDTwww.cipherlab.com:1024” (Host name: port number)
It supports TCP server/client mode.
It supports AT commands to configure the cradle.
It supports “+++” to escape to command mode.
AT Commands
Ethernet Cradle can be controlled via the use of a DTE (Data Terminal Equipment) platform. Issue
AT commands via IR interface in Modem mode.
The attention: “AT” prefix is required prior to entering any command.
All commands require a carriage return or <CR> followi ng the entry of the desired command,
and are not case-sensitive.
All command responses are encapsul ated by a carriage return a nd line feed or <CR><LF>. The
ASCII display of these characters is suppressed with only the modem response being
presented.
Ethernet Cradle does not support multiple command such as “ATE0=1&W”.
Normally, the cradle is in TCP server mode and waiting for the connection request call from a
remote device. When “\r\nRING\r\n” is received, the mobile computer has to accept it by issuing
“ATA”. However, when the mobile computer issues “ATDTxxx.xxx.xxx.xxx:kkkk” to create a
connection with a remote device, the cradle will be in TCP client mode.
8
Chapter 1 Using Ethernet Cradles
Note: The “RING” message will be sent to the mobile computer up to ten times at an
interval of 7.5 seconds. The mobile computer has to respond before the counter
times out.

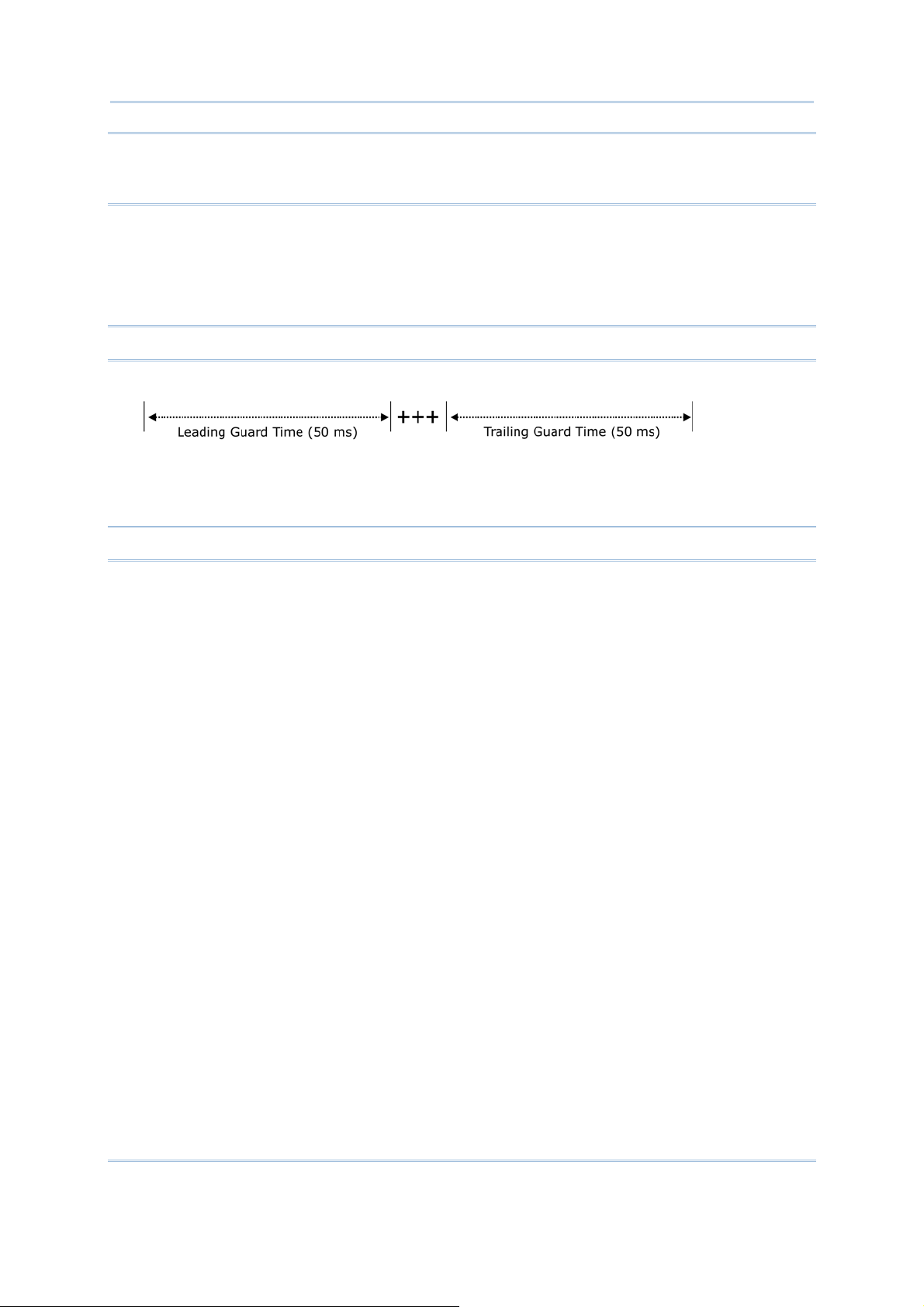

Escape Sequence <+++>
The escape sequence consists of three characters (+++). Once a connection has been
established, type the escape sequence to return to command state. When entering the next
command after an escape sequence, always wait to receive “\r\nOK\r\n”. The escape
sequence only works after dialing out and the connection is established.
Note: The escape sequence will break the connection.
There are equal guard time periods before (leading) and after (traili ng), as illustrated below.
If the escape sequence is not followed by another command within 50 milliseconds (trailing
guard time), the cradle will hang up after another 10 seconds. Normally, the mobile computer
will receive “\r\nOK\r\n” during the 10-second interval unless the line is abnormally busy.
Note: The Guard Time is 50 milliseconds and cannot be changed.
9
Ethernet Cradles Reference Manual
AT Commands Tasks
ATDT Ethernet Cradle will create a connection with a remote PC:
By IP address, for example, 192. 168.6.123, via port 5000 —
ATDT192.168.6.123:5000
By host name, for example, www.cipherlab.com.tw, via port 1024. The
IP address associated with the host name will be obtained from the
DNS server —
ATDTwww.cipherlab.com.tw:1024
AT+MACID? Ethernet Cradle will respond with its MAC ID to the mobile computer.
AT+GCI? Ethernet Cradle will respond with its country code, which is fixed to FE
(=Taiwan), to the mobile computer.
ATXX… Ethernet Cradle will simply respond with “\r\nOK\r\n” to the mobile
computer.
AT+DHCP= Determine whether the Ethernet Cradle will be assigned an IP address via
DHCP (0: disable, 1: enable).
AT+DHCP? Ethernet Cradle will respond with “\r\nENABLE\r\n” to the mobile
computer when DHCP is enabled; otherwise, it will respond with
“\r\nDISABLE\r\n”.
ATA The mobile computer accepts the connection request when it receives
“\r\nRING\r\n”.
AT+IP= Assign the Ethernet Cradle an IP address.
AT+IP? Ethernet Cradle will respond with its IP address to the mobile computer.
AT+SUBNETMASK= Assign the Ethernet Cradle the subnet mask.
AT+SUBNETMASK? Ethernet Cradle will respond with its subnet mask.
AT+DNS= Ethernet Cradle will be assigned the IP address of DNS server.
AT+DNS? Ethernet Cradle will respond with the IP address of DNS server.
AT+GWY= Ethernet Cradle will be assigned the IP address of Gateway.
AT+GWY? Ethernet Cradle will respond with the IP address of Gateway.
ATS7= Ethernet Cradle will wait for the specified period of time (5~50 sec.) for
receiving a carrier from the remote modem before hanging up.
By default, it is set to 10 seconds.
S7 – wait for carrier after dialing (ATDT…)
ATS7? Ethernet Cradle will respond with the current setting of waiting time for
receiving a carrier from the remote modem before hanging up.
AT+IDLETIMEOUT= Ethernet Cradle will wait for the specified period of time (10~180 sec.) for
sending/receiving data before hanging up.
By default, it is set to 30 seconds.
For Ethernet Cradle to wait permanently, set 0.
AT+IDLETIMEOUT? Ethernet Cradle will respond with the current setting of waiting time for
sending/receiving data before hanging up.
AT+LOCALNAME= Ethernet Cradle will be identified by the new name.
10
Chapter 1 Using Ethernet Cradles
This human readable name wil l be converted to an IP address by DNS
server. Refer to
AT+LOCALNAME? Ethernet Cradle will respond with its human readable name to the mobile
computer.
AT+WMODE= Set new working mode for the Ethernet Cradle. When the command
succeeds, the Ethernet Cradle will reboot and start working in the newly
set mode.
“AT+WMODE=0” sets the Ethernet Cradle to Data Mode.
“AT+WMODE=1” sets the Ethernet Cradle to Transparent Mode.
ATW Save Ethernet Cradle parameters.
Note: New settings are only valid for the current configuration if you are using AT
commands. User’s previous settings will be restored after re-conn ecting the power
to the cradle. To change settings permanently, access the configuration menus.
2.1.6 Set Local Name.
1.2 CONNECTING ETHERNET CRADLES
No matter which connection or mode is in use, you can always use cradle commands to
switch between RS-232 and Ethernet when both cables are connected.
1.2.1 AUTO-DETECT MODE
If you connect both cables, the default connection is via RS-232. That is, the RS-232
connection will override Ethernet connection.
When a connection via RS-232 is desired, simply connect the RS-232 cable.
When Ethernet connection is desired, simply connect the networking cable.
1.2.2 LAN MODE (8500 ONLY)
If the 8500 Ethernet Cradle is set with “LAN” enabled, only Ethernet connection is
allowed.
Note: To enable “Auto-detect”, toggle the DIP switch to your left on the 8500 Ethernet
Cradle; and vice versa.
11
Ethernet Cradles Reference Manual
1.3 STATUS INDICATORS
1.3.1 8000/8300 ETHERNET CRADLES
The cradle provides three LED indicators on the front panel to indicate connection status.
Front Panel LED
Power Line status
TX / RX Transmission
LAN (or Link) Network status
Tasks Indication of Connection Status
Solid red Waiting to connect to network
Flashing red Connected to network
Off Power off or hardware initializing*
Flashing red Data transmission
status
Off No activity
Flashing green 10 Mbps network available
Flashing red 100 Mbps network available
Off Network unavailable
*Configurable when working mode set to
Data or Modem mode
Note: Hardware initializing occurs when you connect the cradle to power (or the cradle
re-boots after being configured), and the LED for TX/RX will come o n for a while
with the Power LED off. Upon completion of initia lization, the LED for TX/RX goes
off and the Power LED comes on.
12
Chapter 1 Using Ethernet Cradles
1.3.2 8500 ETHERNET CRADLE
The cradle provides four LED indicators on the front panel to indicate connection and
charging status.
Front Panel LED
RX Receiving
TX Transmitting
POWER Line status
Tasks Indication of Connection Status
Spare battery
charging status
status
status
Solid red Charging
Solid green Charging done
Flashing red/green Error occurs
Off Battery not ready (No redundant
battery)
Solid red Receiving data from Ethernet or host
Off No activity
Solid red Transmitting data to Ethernet or host
Off No activity
Solid red Ethernet connection via RJ-45
Solid green D irect connection via RS-232
Off Power off
13
Ethernet Cradles Reference Manual
14
Chapter 2
CONFIGURING ETHERNET CRADLES
Ethernet Cradle can be configured through the provided Main Menu over Ethernet
connection. You can configure related networking parameters, as well as working mode
or type over the networks.
1) Connect the networking cable from the cradle to the computer.
2) Connect the cradle to power.
3) Run a telnet client program on your computer and connect to the cradle via port 8000.
If you forgot the current IP of the cradle, you will n eed to press the “IP Reset” switch
while connecting the power cord to the cradle. This toggle switch is right next to the
RJ-45 port at the back panel of the cradle. The IP address of the cradle will be reset
to 192.168.1.1 (default) temporarily for configuration.
Note: This default IP is used for accessing the Main Menu and will not override the
current IP.
Ethernet Cradle as a telnet server Default Settings of Ethernet Cradle
Current IP or 192.168.1.1 (default)
Port: 8000
4) The Main Menu is displayed for configuring the cradle. Proceed with related settings
for a specific working mode.
Working mode set to Modem mode
DHCP enabled
15
Ethernet Cradles Reference Manual
5) If you are satisfied with the new settings, type [9] and press [Enter]. The cradle will
reboot and re-initialize with the new settings.
Main Menu Options
1. Set Local IP, Subnet Mask,
Default Router IP & Local Name
2. Set LED Indicator Setting
(8000/8300 Ethernet Cradle only)
3. Set Connection Settings Data mode
4. Set Working Mode Select working mode Default to Modem mode
5. Set Working Type Data mode Default to Work Online
6. Reset Configuration to Default Any
7. Set Modem Configuration Modem mode Default to 10 seconds for
8. Set Password Configuration Any
9. Save and Exit Any
0. Exit without Saving Any
Applicable to Working Mode Default Settings
Any Check local IP if you don’t
remember
Data mode or Modem mode Default to Network Rx/Tx
Status
Default to TCP Server…
Modem mode: Timer only
dialing time-out and 30
seconds for idle time-out
Note: In the sample screenshots, the default settings are highlighted in red box.
16
Chapter 2 Configuring Ethernet Cradles
2.1 IP CONFIGURATION
1) From the Main Menu, type [1] and press [Enter].
2) The following submenu will be displayed for configuring Ethernet networking settings.
2.1.1 LOCAL IP ADDRESS
This is the IP address of Ethernet Cradle on your local area network (LAN).
To assign a new IP address, e.g. “168.95.192.1”:
Type “1 168.95.192.1” and press [Enter].
Note: By default, it is set to “192.168.1.1”.
2.1.2 SUBNET MASK
A subnet mask is used to determine which bits of the IP address are considered to be
part of the Network Number, and which bits of the IP address are considered to be part
of the Host ID. Normally, it is set to “255.255.255.0”; that is, the “Natural Mask” of a
Class C network.
Note: By default, the subnet mask IP is obtained from the DHCP server.
17
Ethernet Cradles Reference Manual
2.1.3 DEFAULT ROUTER IP
If the remote IP is not on the same segment of the network, data will need to be
transmitted through a router. When DHCP is disabled, you need to specify the IP address
for the router (Gateway).
For example, type “3 192.168.1.254” and press [Enter].
Note: By default, the router IP is obtained from the DHCP server.
2.1.4 DHCP
If static IP addresses are desired, disable the DHCP server.
Type “4 0” and press [Enter].
Note: By default, DHCP is enabled and all of the settings can be obtained from the D HCP
server.
2.1.5 DNS SERVER
When DHCP is disabled, you need to specify the IP address for the DNS server.
For example, type “5 192.168.70.1” and press [Enter].
Note: By default, the DNS server IP is obtained from the DHCP server.
2.1.6 SET LOCAL NAME
The local name is displayed on the Main Menu. It is also the host name of the Ethernet
Cradle. You can specify a new string for identification, and this human readable n ame w ill
be converted to an IP address by DNS server. The local name allows 32 alphanumeric
characters at most, case-sensitive. The hyphen character is acceptable while the “dot”
and “space” characters are not. If you give a string longer than 32 characters, not
including the terminating null character, it will be rejected.
For networking with Microsoft operating systems, you should be aware that a NetBIOS
name is often the same as the host name, although it may be truncated to 15 characters.
(The NetBIOS name allows for 16 characters, however, Microsoft limits the host name to
15 characters and reserves the 16
th
character as a NetBIOS Suffix.)
For example, type “6 ENetCradle_User1” and press [Enter].
Note: By default, the local name is set to “ENetCradle-XXXXXX” where XXXXXX
represent the last six digits MAC ID. Since the host name is not case-sensitive, it
makes no difference between “ENetCradle_usa” and “enetcradle_usa”, unless you
keep a unique part such as the digits for MAC ID.
18
Chapter 2 Configuring Ethernet Cradles
2.2 LED SETTING (DATA/MODEM MODE)
1) From the Main Menu, type [2] and press [Enter].
2) The following submenu will be displayed for configuring LED indicators setting.
nd
For the 8000/8300 Ethernet Cradle, the 2
transmission activity occurs, regardless of which working mode you select. However,
it can be further configured here, when in
data transmission over Ethernet or IR.
Note: This setting applicable to Data mode or Modem mode on the 8000/8300 Ethernet
Cradle only.
LED (TX/RX) will flash when data
Data Mode or Modem Mode, to indicate
2.2.1 NETWORK RX/TX STATUS (DEFAULT)
By default, the 2nd LED flashes to indicate data transmission occurs over Ethernet port.
2.2.2 IR RX/TX STATUS
You may change the setting so that the 2nd LED flashes to indicate data transmission
occurs over IR port.
Type “2” and press [Enter].
19
Ethernet Cradles Reference Manual
2.3 CONNECTION SETTINGS (DATA MODE)
1) From the Main Menu, type [3] and press [Enter].
2) The following submenu will be displayed for configuring connection settings.
Note: The Timer setting is applicable to Modem mode as well.
20
Chapter 2 Configuring Ethernet Cradles
2.3.1 CONNECTION TYPE, REMOTE IP ADDRESS, LOCAL PORT & REMOTE PORT
1) From the Setup Connection menu, type [1] and press [Enter].
2) The following submenu will be displayed.
Connection Type
The cradle can be configured as a server or client, and you can choose to use TCP or UDP as the
transport layer protocol of data communications.
By default, the connection type of the cradle is TCP Server.
To change the connection type, e.g. to UDP SERVER, type “1 2” and press [Enter].
Connection Type: Local Port Remote IP Address Remote Port
0= TCP Server Available N/A N/A
1= TCP Client N/A Available Available
2= UDP Server Available N/A N/A
3= UDP Client N/A Available Available
Local Port
When the cradle is configured as a TCP server or UDP server, you have to define a port number for
the clients to connect.
Note: Port 8000 is reserved for the use of configuring the cradle over Ethernet
connection. Port 3000 is reserved for downloading, such as a firmware download.
Remote IP Address & Port Number
When the cradle is configured as a TCP client or UDP client, you have to define the remote IP and
port number for setting up a connection. For example, type “3 192.168.6.36” and press [Enter].
21
Ethernet Cradles Reference Manual
2.3.2 TIMER & LINE TERMINATOR
1) From the Setup Connection menu, type [2] and press [Enter].
2) The following submenu will be displayed.
Data sent to the cradle over IR is first buffered in the memory. Th e cradle will then
transmit the buffered data to a remote host when an y of the following conditions is
met:
The amount of data reaches the maximum data byte count that can be held in an
IP packet.
The cradle has not received any data for a period of time longer than the value of
the Timer setting.
The Line Terminator configured is received.
Timer
Specify a timer setting from 1 to 10,000, in units of millisecond.
By default, the timer is set to 10 milliseconds.
To change the timer setting, e.g. to 20 milliseconds, type “1 20” and press [Enter].
Transmit on Line Terminator
By default, this setting is enabled so that data received over IR will not be sent out as a TCP/IP
packet until the Line Terminator character is received.
To disable it, type “2 0” and press [Enter].
Transmit Line Terminator
By default, this setting is enabled so that the Line Terminator character will be included in the
TCP/IP packet and sent out.
To disable it, type “3 0” and press [Enter]. The Line Terminator character will be discarded
from the received buffer before transmission.
22
Chapter 2 Configuring Ethernet Cradles
Line Terminator
Specify a Line Terminator character from 00h to FFh.
By default, the Line Terminator is “0Dh” (Carriage Return).
Below are examples for setti ng a new Line Terminator character.
To set “$” as the Line Terminator, type “4 24” and press [Enter].
To set “A” (41h) as the Line Terminator, type “4 41” and press [Enter].
23
Ethernet Cradles Reference Manual

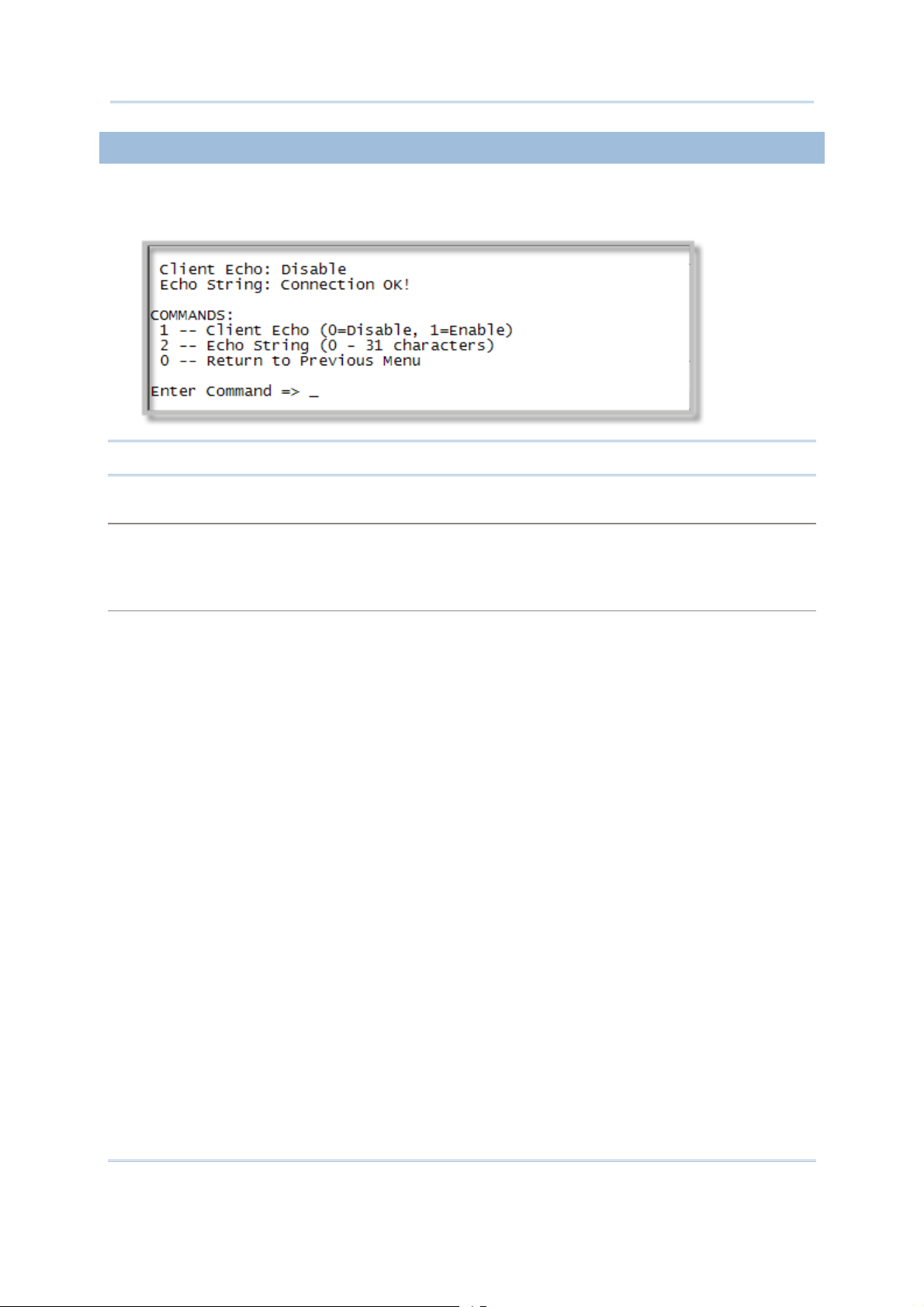

2.3.3 ECHO SETTINGS
1) From the Setup Connection menu, type [3] and press [Enter].
2) The following submenu will be displayed.
Note: The cradle must be configured as a TCP server or UDP server.
Client Echo
By default, thi s setting is disabled.
To enable Echo, type “1 1” and press [Enter].
Echo String
When Echo is enabled, the cradle will send a predefined string to a remote device (client) as soon
as the connection is established. The client will then start to communicate with the cradle after it
receives the Echo String.
By default, the Echo String is “Connection OK!”
You can specify a new string, which allows 31 characters at most. Type “2 NewString” and
press [Enter].
24
Chapter 2 Configuring Ethernet Cradles
2.4 WORKING MODE
1) From the Main Menu, type [4] and press [Enter].
2) The following submenu will be displayed for selecting a working mode. The cradle
supports three working modes.
Note: By default, the cradle is set to Modem mode.
2.4.1 DATA MODE
If you select Data Mode, proceed to configure the following items in the Main Menu:
LED Indicator Setting (for 8000/8300 Ethernet Cradle only)
Connection Settings
Working Type
2.4.2 TRANSPARENT MODE
If you select Transparent Mode, you only need to configure general settings in the Main
Menu, such as Local IP, Subnet Mask, Router IP, etc. Either the mobile computer or the
remote computer will control and handle data.
2.4.3 MODEM MODE (DEFAULT)
This is the default mode. Proceed to configure the following items in the Main Menu:
LED Indicator Setting (for 8000/8300 Ethernet Cradle only)
Working Type
25
Ethernet Cradles Reference Manual
2.5 WORKING TYPE (DATA MODE)
1) From the Main Menu, type [5] and press [Enter].
2) The following submenu will be displayed for selecting a working type.
2.5.1 SET WORK ONLINE (DEFAULT)
This refers to real-time transmission. However, data loss may occur because the buffer
will be cleared in the following conditions:
Timer times out.
The cradle is unexpectedly disconnected with a remote host.
2.5.2 SET WORK OFFLINE
This means data will not be sent out immediately. When the cradle is unexpectedly
disconnected with a remote host, data received over IR will be temporarily saved in the
buffer, and then sent out when the connection is re-established.
Note: Ethernet Cradle can buffer up to 128 Kbytes of data.
26
Chapter 2 Configuring Ethernet Cradles
2.6 RESET TO DEFAULT
From the Main Menu, type [6] and press [Enter]. Th is will restore the default settings.
2.7 MODEM CONFIGURATION
1) From the Main Menu, type [7] and press [Enter].
2) The following submenu will be displayed for changing the elapsed time before
hanging up.
Dialing time-out: 10 seconds by default.
Idle time-out: 30 seconds by default.
2.7.1 DIALING WAIT TIME
By default, the dialing time-out is set to 10 seconds.
Note: This setting is applicable to Modem mode only.
2.7.2 IDLE TIME OUT
By default, the idle time-out is set to 30 seconds.
Note: This setting is applicable to Modem mode only.
27
Ethernet Cradles Reference Manual
2.8 PASSWORD CONFIGURATION
1) From the Main Menu, type [8] and press [Enter].
2) The following submenu will be displayed for selecting a working type.
2.8.1 PASSWORD SETTING
For security concerns, you may specify a password to prevent unauthorized user
intervention.
Type “1 1” and press [Enter].
When password protection is enabled, users are required to give the matching password
to enter the Main Menu.
Note: By default, password protection is disabled.
2.8.2 NEW PASSWORD
You can specify a new string for password. It allows 16 ASCII characters at most,
case-sensitive; the hyphen character “-” is also acceptable.
Type “2 NewString” and press [Enter].
Note: By default, the password is “0000”.
28
Chapter 2 Configuring Ethernet Cradles
2.9 SAVE AND EXIT
From the Main Menu, type [9] and press [Enter]. This will save th e current settings and
exit the configuration mode.
If you want to abort the current settings and exit the configuration mode, type [0] and
press [Enter].
29
Ethernet Cradles Reference Manual
30
Chapter 3
UPGRADING FIRMWARE
Ethernet Cradle allows for firmware upgrade via Ethernet or the mobile computer. We
suggest that you first download the kernel program (Kernel.SHX), and then the user
program (User.SHX).
Warning: DO NOT upgrade firmware unless the version of new firmware is greater
than that of your cradle. For information of the current firmware version,
check the Main Menu for configuration.
3.1 DOWNLOAD VIA ETHERNET
1) Connect the networking cable from the cradle to the computer.
When in “Auto-detect” mode, you must disconnect the RS-232 connection or use
cradle command
2) Connect the power supply cord from the cradle to a nearby outlet.
If you forgot the current IP of the cradle, yo u will need to press the “IP Reset” switch
when connecting the power cord to the cradle. This toggle switch is right next to the
RJ-45 port at the back panel of the cradle. The IP address of the cradle will be reset
to 192.168.1.1 (default) temporarily for configurations.
Note: This default IP is used for accessing the Main Menu and will not override the
current IP you set.

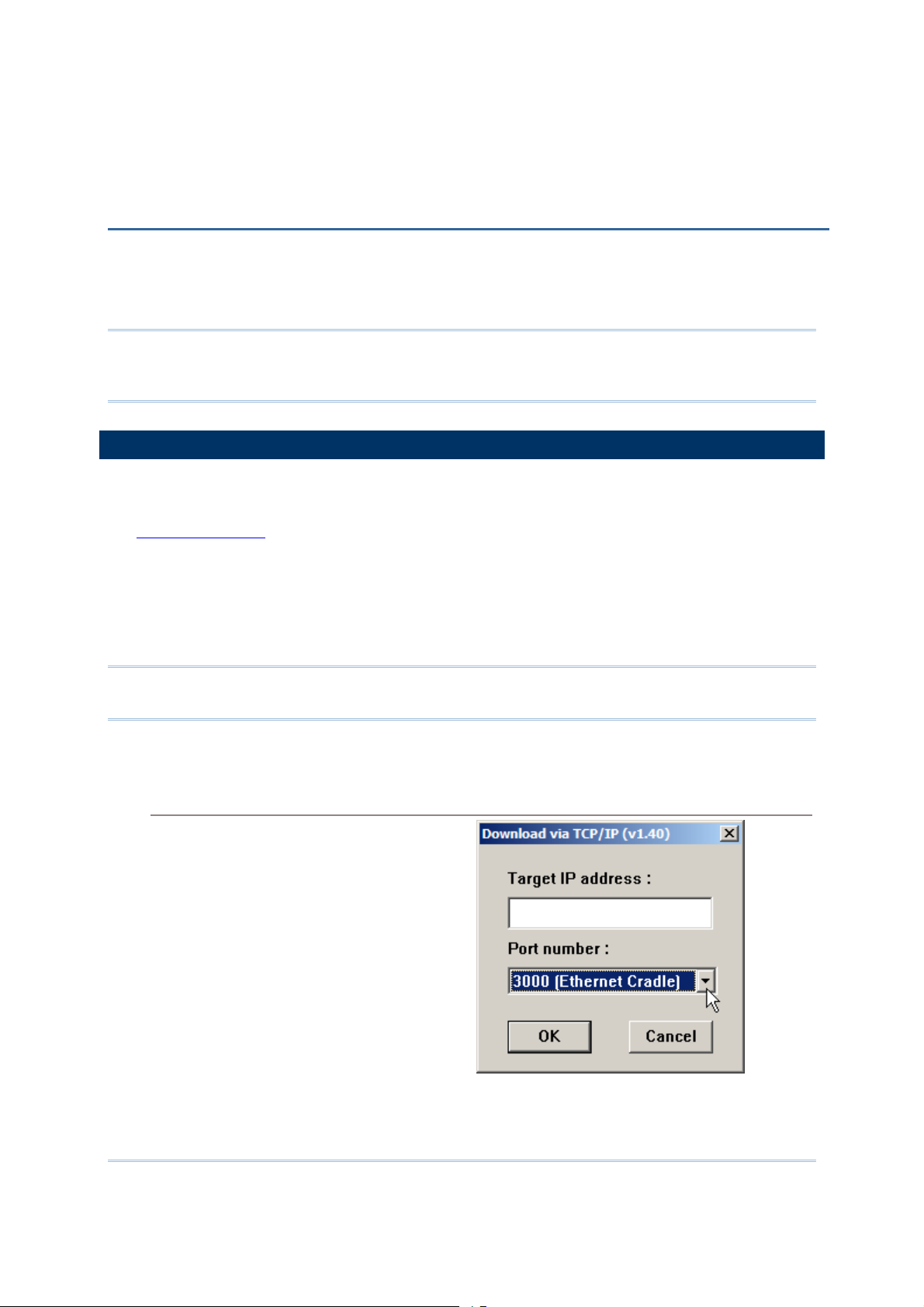

3) Run CipherLab utility on your computer and connect to the cradle via port 3000 f or
updating firmware.
UDP_Load.exe
to switch to Ethernet.
Ethernet Cradle as a UDP server
Current IP or 192.168.1.1 (default)
Port: 3000
31
Ethernet Cradles Reference Manual
4) During downloading, the 1st LED (POWER) and 2nd LED (TX/RX) on the 8000/8300
Ethernet Cradle will be flashing by turns. Then, they will become solid red for
approximately 3 seconds.
(There is no such LED indication on the 8500 Ethernet Cradle.)
st
5) The downloading process will not be completed until the 1
red and the 2
nd
LED (TX/RX) goes off.
LED (POWER) turns solid
(There is no such LED indication on the 8500 Ethernet Cradle.)
Note: After the “Download Successfully” message appears on your computer, wait for
approximately 5 seconds.
6) The cradle will reboot itself.
Warning: DO NOT disconnect the power to the cradle before the downloading
process is completed.
3.2 DOWNLOAD VIA MOBILE COMPUTER
1) Download the latest version of Ethernet Cradle firmware from our website to a
specific mobile computer (8000/8300/8500). The mobile computer will display a
selection menu.
2) Disconnect the power supply cord to the cradle.
3) Press the “IP Reset” switch while re-connecting the power cord to the cradle.
4) Seat the mobile computer in the cradle.
5) From the menu on the mobile computer, select “Kernel (version x.xx)” to download
new kernel or select “User (version x.xx)” to download new user program.
32
Chapter 4
PROGRAMMING YOUR MOBILE COMPUTER
You may write your own code for the mobile computer to communication with Ethernet
Cradle via the Cradle-IR interface.
4.1 PROGRAMMING IN C LANGUAGE
The associated functions are listed below. Refer to CipherLab C Programming Guide for
details.
Working Mode
Data Mode open_com(), read_com(), nwrite_com(), write_com(), close_com(),
clear_com(), com_eot(), com_overrun(), com_cts(), com_rts(),
AT Commands
4.2 CRADLE COMMANDS
No matter which connection or mode is in use, you can always use cradle commands to
switch between RS-232 and Ethernet when both connections are ready.
8000 / 8300
Ethernet Cradle
When both RS-232 cable & Ethernet cable are present…
Auto-detect: The RS-232 connection will override Ethernet connection.
To enable Ethernet connection, you must use cradle
commands.
8500 Ethernet
Cradle
Note: To enable “Auto-detect”, toggle the DIP switch to your left on the 8500 Ethernet
Cradle; and vice versa.
33
Auto-detect: The RS-232 connection will override Ethernet connection.
To switch to Ethernet connection, you must use cradle
commands.
LAN: Only Ethernet connection can be established unless you
use cradle commands to switch to RS-232.
Ethernet Cradles Reference Manual
Below are functions provided in C and BASIC languages for enabling cradle commands.
Refer to CipherLab C and BASIC Programming Guide for details.
C
SetCommType(1, COMM_IR);
open_com(1,Baud_115200|DATA_BIT8|PARITY_NONE|HANDSHAKE_NONE|CRADLE_COMMAND);
// Pass the factory setting BAUD_115200 for Ethernet Cradle.
write_com(1, “#vErSiOn?\r”);
while(!com_eot(1));
…
SetCommType(1,COMM_IR);
open_com(1,BAUD_115200|DATA_BIT8|PARITY_NONE|HANDSHAKE_NONE|CRADLE_COMMAND);
write_com(1,“#fOrMaT:2\r”); // set to 7,O,2 mode
while (!com_eot(1));
BASIC
SET_COM_TYPE(1, 3)
SET_COM(1, Baudrate%, Parity%, Data%, 1);
// Pass the factory setting 1 (115200 bps) for Ethernet Cradle.
// Parity% = 4 for cradle commands
// Data% = 2 for 8 data bits
OPEN_COM(1)
Sendbase$ = ”#vErSiOn?”
WRITE_COM(1, Sendbase$)
…
Note: (1) Always pass the factory setting BAUD_115200 for Ethernet Cradle.
(2) If you are programming in BASIC language, make sure the default delimiter
0x0d (CR) is in use; otherwise, call COM_DELIMITER().
34
Chapter 4 Programming Your Mobile Computer
4.2.1 SELECT MODEM (=ETHERNET)
Set the working mode of cradle to Ethernet mode.
Command
#mOdEm<CR>
Response
#DONE<CR>
Example in C
SetCommType(1,COMM_IR);
open_com(1,BAUD_115200|DATA_BIT8|PARITY_NONE|HANDSHAKE_NONE|CRADLE_COMMAND);
write_com(1,“#mOdEm\r”); // set to MODEM mode
while (!com_eot(1));
…
Remarks
“Select Modem” here actually means “Select Ethernet” because the Modem board has been
replaced by the Ethernet board.
4.2.2 SELECT RS-232
Reset the serial port settings of the cradle to defaults — N, 8, 1.
Command
#SeRiAl<CR>
Response
#DONE<CR> OK
#CABLE!<CR> No RS-232 cable detected!
Example in C
SetCommType(1,COMM_IR);
open_com(1,BAUD_115200|DATA_BIT8|PARITY_NONE|HANDSHAKE_NONE|CRADLE_COMMAND);
write_com(1,“#SeRiAl\r”); // set to default
while (!com_eot(1));
…
Remarks
This cradle command is supported by firmware version 3.30 and later.
35
Ethernet Cradles Reference Manual
4.2.3 GET VERSION INFORMATION
Retrieve the version information of the IR board.
Command
#vErSiOn?<CR>
Response
#Ver02.20<CR>
Example in C
SetCommType(1,COMM_IR);
open_com(1,BAUD_115200|DATA_BIT8|PARITY_NONE|HANDSHAKE_NONE|CRADLE_COMMAND);
write_com(1,“#vErSiOn?\r”);
while (!com_eot(1));
…
Remarks
There will be no response if the IR board version is no later than v3.00!
4.2.4 CHANGE SERIAL PORT SETTINGS
Change the serial port settings of the cradle.
Command
#fOrMaT:x<CR>
x Meaning
0 Set serial port mode to 8, N, 1
1 Set serial port mode to 7, N, 2
2 Set serial port mode to 7, O, 2
Response
#DONE<CR>
Example in C
SetCommType(1,COMM_IR);
open_com(1,BAUD_115200|DATA_BIT8|PARITY_NONE|HANDSHAKE_NONE|CRADLE_COMMAND);
write_com(1,“#fOrMaT:2\r”); // set to 7,O,2 mode
while (!com_eot(1));
…
3 Set serial port mode to 7, E, 2
36
Chapter 4 Programming Your Mobile Computer
Remarks
This cradle command is supported by firmware version 3.50 and later.
CPU 16-bit CMOS, low power consumption
Memory Firmware upgradeable
Up to 128K bytes of buffer provided in Data mode when only one
connection is established and set to work offline
Power Adapter
Input 100~240 V, 50/60 Hz
Output 5V DC 5V DC 6V DC
Power Consumption* (5V DC)
Standby
Operating
(dial-out &
transmission)
275 mW : 55 mA for cradle only
455 mW : 91 mA when battery is charged to full
3025 mW : 605 mA while charging
3375 mW : 675 mA while charging with backlight on
1275 mW : 255 mA when battery is charged to full
3775 mW : 755 mA while charging
3875 mW : 775 mA while charging with backlight on
Enclosures
Materials ABS plastic
Dimensions
Weight Approx. 220g Approx. 230g Approx. 730g
110 mm (L) 110 mm (L) 190 mm (L)
100 mm (W) 100 mm (W) 125 mm (W)
60 mm (H) 78 mm (H) 124 mm (H)
Notifications
Status Indicators 3 LEDs for connection
status
Same as 8000 Ethernet
Cradle
Same as 8000 Ethernet
Cradle, plus 1 LED for
charging status
Communication Ports
Ethernet TCP/UDP, Server/Client
IP address set to 192. 168.1.1 by default
39
Ethernet Cradles Reference Manual
RS-232 Peer-to-peer
Transmission rate set to 115,200 bps by defaul t
Temperature
Operating 0 °C to 60 °C
Storage -20 °C to 70 °C
Humidity
Operating 10% to 90%, non-condensing
Storage 5% to 95%, non-condensing
Regulations
EMC Regulations FCC, CE, C-Tick
Note: Power consumption data is obtained based on connecting the cradle to a
100BASE-TX network.
40
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
