CipherLab 1861 User Manual

1800 Series Handheld RFID Reader

CP50/9600/8400/Universal

Version 1.00

The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided under a license agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.

Due to continued product development this information may change without notice. The information and intellectual property contained herein is confidential between CIPHERLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing. CIPHERLAB does not warrant that this document is error-free.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.

For product consultancy and technical support, please contact your local sales representative. Also, you may visit our web site for more information.

The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD.

All brand, product and service, and trademark names are the property of their registered owners.

The editorial use of these names is for identification as well as to the benefit of the owners, with no intention of infringement.

CIPHERLAB CO., LTD.

Website: http://www.cipherlab.com

IMPORTANT NOTICES

FOR USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

This devic e co mp li es w it h Part 15 of t h e F CC Ru les. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

FOR EUROPE

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

- EN 60950-1: 2006+A11:2009

Safety of Information Technology Equipment

- EN 301 908-1 V4.2.1: 2010

Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation cellular networks; Part 1: Harmonized EN for IMT-2000, introduction and common requirements, covering essential requirements of article 3.2 of the R&TTE Directive

- EN 301 908-1 V5.2.1: 2011

- EN 301 489-1 V1.8.1: 2008

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

- EN 301 489-3 V1.4.1 2002

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 40 GHz

- EN 301 489-17 V2.1.1 2009

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

- EN 300 328 V1.7.1: 2006

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

- EN 302 208-1 V1.4.1: 2011

Electromagnetic compatibility and Radio spectrum Matters (ERM); Radio Frequency Identification Equipment operating in the band 865 MHz to 868 MHz with power levels up to 2 W; Part 1: Technical requirements and methods of measurement

- EN 302 208-2 V1.3.1: 2010

Electromagnetic compatibility and Radio spectrum Matters (ERM); Radio Frequency Identification Equipment operating in the band 865 MHz to 868 MHz with power levels up to 2 W; Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive

- EN50371 : 2002

Generic standard to demonstrate the compliance of low power electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields (10 MHz - 300 GHz) -- General public

SAFETY PRECAUTIONS

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

 The use of any battery or charging devices, which are not originally sold or

manufactured by CipherLab, will void your warranty and may cause damage to human body or the product itself.

 DO NOT disassemble, incinerate or short circuit the battery.  DO NOT expose the reader or the battery to any flammable sources.  For green-environment issue, it's important that battery should be recycled in a proper

way.

 Under no circumstances, internal components are self-serviceable.  The charging uses an AC power adapter. A socket outlet shall be installed near the

equipment and shall be easily accessible. Make sure there is stable power supply for the reader or its peripherals to operate properly.

CARE & MAINTENANCE

 This reader is intended for industrial use. The reader is rated IP64, however, it may do

damage to the reader when being exposed to extreme temperatures or soaked wet.

 DO NOT use any pointed or sharp object to move any cover that is included on the

reader.

 If you want to put away the reader for a period of time, download the collected data to

a host computer, and then take out the battery pack. Store the reader and battery pack separately.

 When the reader resumes its work, the battery will take a certain time to become fully

charged.

 If you shall find the reader malfunctioning, write down the specific scenario and consult

your local sales representative.

RELEASE NOTES

Version Date Notes

1.00

0.76 Jun. 29, 2012 Modify: Modify default value of command indicating beep to disable

0.75 Jun. 26, 2012

0.70 Jun. 12, 2012

0.60 May. 25, 2012

0.55 May. 10, 2012

0.50 Apr. 20, 2012

Initial Release

Modify: Modify default value of EPC tag type to “SGTIN96”

Modify: The sequences of Introduce and Quick Start Delete: Reader switcher – wrong switcher confgiuration related

information Delete: USB charging & communication about “charging” wording Modify: 186xconfiguration about HyperTerminal descriptions Modify: 1.1.3 Remove bt_ps related command and descriptions to BT

chapter Modify: 1.1.4 Low Battery Alarm: modify batter voltage value with

persent specified. Delete: 1.2 Memory – “flash” wording Delete: 1.2.1 Bluttooth connection Modify: 1.2.3 Memory Mode – clear memory Modify: 1.3 Function Key action and PIN code form Modify: 1.4.1 Normal mode – LED form : LED5-Memory status

Modify: 1.4.2 Temporary mode – Note descriptions Modify: chapter 2 and 2.2 topic Modify: Remove 3.1 USB Connection to Quick Start Modify: Remove 3.4.3 Restore to default to Quick Start Add: 4.2 descriptions to output data format Remove: 4.3 illustrations Remove: 4.3 Press “Space” key (character) to clear the inputted data

description Modify: 4.3.2 RFID power on to UHF Power on and default value=0 Modify: 4.4 Descriptions to Prefix/Suffix Code and delete example 3 Modify: Remove 4.6 Alternate Mode to Chapter 6 Modify: 5.1 Multi-Tag description Delete: 5.2.1 “operation time will not be refreshed when a new timeout

is configured.” description. Delete: 5.3 RFID Host Mode Modify: 5.3 selected / eliminated to included/excluded Modify: 5.3 Length Max. value to 256 Remove 5.4.3 EPC Encoding Scheme to 5.4.1 Add: 2.3.4 and 2.6.4 Inter-Function Delay, 2.3.5 and 2.6.5 HID

Character Transmit Mode

Draft Version

CONTENTS

IMPORTANT NOTICES ...................................................................................................................... - 2 -

For USA .......................................................................................................................................... - 3 -

For Europe ..................................................................................................................................... - 1 -

Safety Precautions ........................................................................................................................ - 2 -

Care & Maintenance ..................................................................................................................... - 2 -

RELEASE NOTES .............................................................................................................................. - 3 -

INTRODUCTION .................................................................................................................................... 1

Getting Familiarized with RFID Reader ............................................................................................ 1

Installing Battery to RFID Reader ................................................................................................ 1

Charging the Battery for RFID Reader ........................................................................................ 2

Charging the Battery via Charger ................................................................................................ 3

Inside the Package ............................................................................................................................ 5

Features ............................................................................................................................................. 5

Accessories ........................................................................................................................................ 5

QUICK START ....................................................................................................................................... 6

Overview ............................................................................................................................................. 7

Power on RFID Reader ...................................................................................................................... 8

Connecting USB Cable ...................................................................................................................... 8

Issuing Commands via USB Connection .......................................................................................... 9

Using HyperTerminal .................................................................................................................... 9

Confirming the USB Connection ................................................................................................ 14

Default Settings ............................................................................................................................... 15

Save User Settings as Defaults ................................................................................................. 15

Restore User/Factory Defaults .................................................................................................. 15

Reader Switcher .............................................................................................................................. 16

Combining with a Terminal ............................................................................................................. 16

186xConfiguration .......................................................................................................................... 18

UNDERSTANDING RFID READER....................................................................................................... 19

1.1 Power ......................................................................................................................................... 21

1.1.1 Power ON .......................................................................................................................... 21

1.1.2 Power OFF ......................................................................................................................... 21

1.1.3 Power Saving Mode ......................................................................................................... 22

1.1.4 Low Battery Alarm ............................................................................................................ 23

1.2 Memory ..................................................................................................................................... 24

1.2.1 Transmit Buffer ................................................................................................................ 25

1.2.2 Memory Mode .................................................................................................................. 27

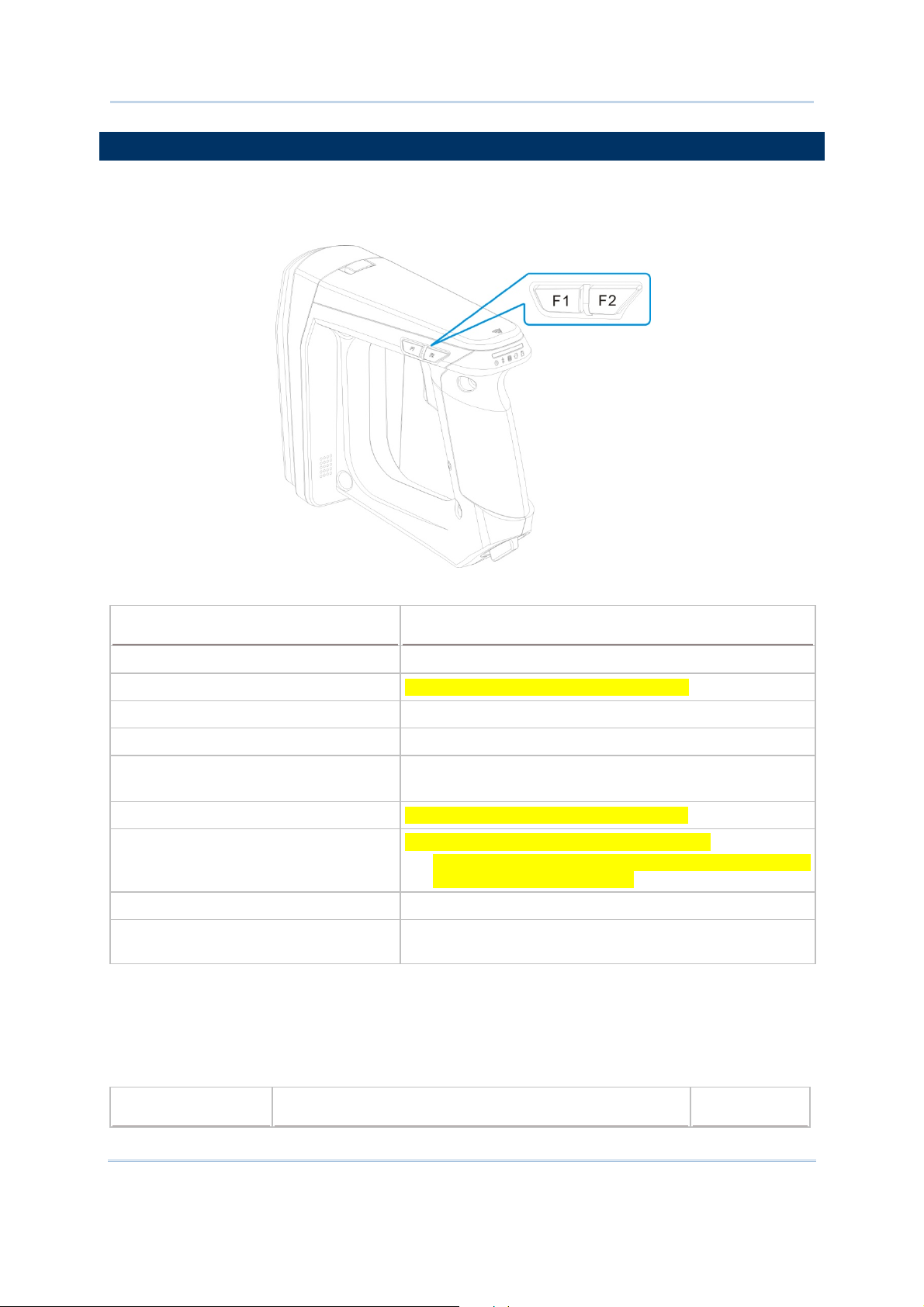

1.3 Function Key ............................................................................................................................. 31

1.4 LED Indicators ........................................................................................................................... 33

1.4.1 Normal Mode .................................................................................................................... 33

1.4.2 Temporary Mode .............................................................................................................. 34

1.4.3 Bluetooth

1.5 Buzzer ........................................................................................................................................ 38

Pairing Mode ................................................................................................ 37

1800 Series Handheld RFID Reader Reference Manual

1.6 Vibrator ...................................................................................................................................... 42

1.7 RTC ............................................................................................................................................ 43

COMMUNICATION INTERFACE ........................................................................................................... 45

2.1 USB Interface ............................................................................................................................ 46

2.2 Bluetooth

2.3 Bluetooth

2.3.1 Activate Bluetooth

Connection Type .................................................................................................... 46

HID .......................................................................................................................... 48

HID & Select Keyboard Type .......................................................... 48

2.3.2 Keyboard Settings ............................................................................................................ 51

2.3.3 Inter-Character Delay ....................................................................................................... 55

2.3.4 Inter-Function Delay ......................................................................................................... 56

2.3.5 HID Character Transmit Mode ......................................................................................... 56

2.4 Bluetooth

2.5 Bluetooth

2.5.1 Activate Bluetooth

SPP Slave ............................................................................................................... 57

SPP Master ............................................................................................................ 58

SPP Master Mode ........................................................................... 58

2.6 USB HID via 3610 ..................................................................................................................... 59

2.6.1 Activate USB HID & Select Keyboard Type ..................................................................... 60

2.6.2 Keyboard Settings ............................................................................................................ 63

2.6.3 Inter-Character Delay ....................................................................................................... 67

2.6.4 Inter-Function Delay ......................................................................................................... 68

2.6.5 HID Character Transmit Mode ......................................................................................... 68

2.7 USB VCOM via 3610 ................................................................................................................. 69

SET UP A WPAN CONNECTION .......................................................................................................... 71

3.1 Connecting via Bluetooth

Dongle .......................................................................................... 72

3.1.1 Change Interface .............................................................................................................. 72

3.1.2 Configure Related Settings .............................................................................................. 73

3.1.3 Bluetooth

3.1.4 Bluetooth

HID and SPP Slave ........................................................................................ 75

SPP Master .................................................................................................... 84

3.2 Connecting via 3610 ................................................................................................................ 88

3.2.1 USB HID via 3610 Connection ........................................................................................ 89

3.2.2 USB VCOM via 3610 Connection .................................................................................... 90

3.3 Disconnection ........................................................................................................................... 92

3.3.1 Break a Connection .......................................................................................................... 92

3.3.2 Reset a Connection .......................................................................................................... 92

3.4 Bluetooth

Power Saving ......................................................................................................... 92

DEFINE OUTPUT FORMAT .................................................................................................................. 95

4.1 Letter Case (HID Mode Only) .................................................................................................... 96

4.2 Output Format ........................................................................................................................... 96

4.3 Data Output ............................................................................................................................... 97

4.3.1 Time stamp Section ......................................................................................................... 98

4.3.2 Data Count Section ........................................................................................................ 103

4.3.3 Data Section ................................................................................................................... 106

4.4 Prefix/Suffix Code ................................................................................................................... 110

4.5 Section Sequence ................................................................................................................... 113

RFID SCAN ....................................................................................................................................... 117

5.1 Scan Mode .............................................................................................................................. 117

5.2 Scan Time ............................................................................................................................... 119

5.2.1 Timeout ........................................................................................................................... 119

1800 Series Handheld RFID Reader Reference Manual

5.2.2 Delay Time ...................................................................................................................... 121

5.3 Filter ......................................................................................................................................... 122

5.3.1 EPC Encoding Scheme ................................................................................................... 122

5.3.2 Included EPC .................................................................................................................. 124

5.3.3 Excluded EPC .................................................................................................................. 127

5.3.4 EPC Encoding ................................................................................................................. 129

5.4 Multi-Tag .................................................................................................................................. 131

5.4.1 Counter ........................................................................................................................... 131

5.4.2 Counter Reload .............................................................................................................. 132

5.4.3 Multi-Tag Beep ............................................................................................................... 133

5.5 Access Tag .............................................................................................................................. 134

5.5.1 Tag Memory .................................................................................................................... 134

5.5.2 Read/Write Tag .............................................................................................................. 136

ALTERNATE MODE ........................................................................................................................... 141

SPECIFICATIONS .............................................................................................................................. 145

System ........................................................................................................................................... 145

Communications ........................................................................................................................... 145

Electrical Characteristics .............................................................................................................. 146

Physical Characteristics ................................................................................................................ 146

Environmental Characteristics ..................................................................................................... 147

Programming Support ................................................................................................................... 147

Accessories .................................................................................................................................... 147

FIRMWARE UPGRADE ...................................................................................................................... 149

Before Upgrading .......................................................................................................................... 149

How to Upgrade Firmware ............................................................................................................ 149

Use 3610 .................................................................................................................................. 149

Use Direct USB Virtual COM .................................................................................................... 150

Use Bluetooth

Dongle ............................................................................................................ 151

Use <F2>+<Trigger> ................................................................................................................ 152

How to Upgrade 3610 Firmware .................................................................................................. 152

Upgrade 3610 CPU Firmware ................................................................................................. 152

Upgrade 3610 USB Bridge Firmware...................................................................................... 153

ASCII TABLE ..................................................................................................................................... 155

SCAN CODE ...................................................................................................................................... 157

STATUS CODE .................................................................................................................................. 159

INTRODUCTION

1800 Series RFID Reader is designed to be the most flexible and reliable rugged RFID gun with ergonomic form factor on the market. In terms of hardware specifically designed to work as lightweight, ergonomic design, user-friendly LED display, easy snap-on structure, storage capability and aggressive read-and-write range, 1800 Series RFID Reader provides an efficient and complete solution for various applications upon combine with the terminals via mobile computer mount.

Integrated with terminals’ functions via USB or Bluetooth to collect a larger data than general reader, you may take diversification application for different user demands or environment. For the environment, 1800 Series RFID Reader is also equipped with IP64 and

1.5m drop resistance features.

This manual serves to guide you through how to install, configure, and operate 1800 Series RFID Reader. We recommend you to keep one copy of the manual at hand for quick reference or maintenance purposes. To avoid any improper disposal or operation, please read the manual thoroughly before use.

Thank you for choosing CipherLab products!

GETTING FAMILIARIZED WITH RFID READER

INSTALLING BATTERY TO RFID READER

This RFID Reader is powered by a removable 2500 mAh Li-ion battery. For intensive data collection, we suggest it is better to purchase a spare battery for non-stop operation.

1) Turn the battery latch to unlock position.

2) Remove the battery cover.

3) Insert the battery into the battery compartment directly so that the metal contacts on

the battery are met with the charging contacts inside the compartment. Make sure that the battery is snugly fit into the compartment.

1800 Series Handheld RFID Reader Reference Manual

4) Shut the battery cover back to the RFID Reader until it clicks into place.

5) If the battery is charged successfully, press the <Trigger>, RFID Reader will be powered

on. If you can not power on the RFID Reader, maybe one of the issues comes from battery. Then charge the battery to full. It may take approximately 4 hours to charge the battery to full capacity.

Note: (1) Any improper handling may reduce the battery life.

(2) When the main battery charge becomes low, you need to charge the battery as soon as possible or replace it with a charged one. While replacing the battery, make sure the power is turned off.

CHARGING THE BATTERY FOR RFID READER

The battery may not be charged to full for shipment. When you first receive the package, you will need to charge the battery to full before using the RFID Reader. For RFID Reader, use the adapter to charger the battery. It takes approximately 3 hours to charge the battery to full.

1) Install the battery to RFID Reader.

2) Remove the power cover.

3) Connect the power cord to the power jack.

4) Connect the other end of the power cord to a suitable power outlet.

5) The RFID Reader LED1 will be flashing red during charging. When the charging is done,

the LED1 will turn off. When charging error occurs, the LED1 will turn solid red. For example, a bad or missing battery.

Introduction

Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It is

recommended to charge the battery at room temperature (18°C to 25°C) for optimal performance.

CHARGING THE BATTERY VIA CHARGER

Instead of direct charging with adapter, you may use a charger to charge the battery. However, the charging time may vary by working condition.

1) Connect the power supply cord to the power port located on the back of the charger.

2) Insert the battery to the end.

3) Confirm the lock bolt locks the battery certainly.

4) Connect the other end of the power cord to a suitable power outlet.

5) Once the power and battery are ready, the LED indicator lights.

6) After finishing charge, press down the lock bolt directly to pull out the battery.

1800 Series Handheld RFID Reader Reference Manual

Status LED

Meaning

Blue, Solid Charger power ON

Red, Solid Charging battery

Green, Solid Charging done

Blue/Red Ratio 0.5s:0.5s Error

Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It is

recommended to charge the battery at room temperature (18°C to 25°C) for optimal performance.

Introduction

INSIDE THE PACKAGE

The following items are included in the package. Save the box and packaging material for future use in case you need to store or ship device.

 1800 Series Handheld RFID Reader  Rechargeable Li-ion Battery  Direct USB Cable  Power Adapter  Product CD  Quick Guide  Test Tags

FEATURES

 Ergonomic design - ruggedized yet streamlined, with ergonomics handheld  Built tough to survive drop test and sealed against moisture/dust to industrial standard

IP64

 CipherLab Proprietary operating system  4MB flash memory for Memory Mode operation  Provides up to 2KB SRAM for reserve buffer while getting out of range over a wireless

personal area network (WPAN)

 UHF RFID Reader  Ambidextrous friendly Trigger  Connectivity includes Bluetooth

and USB

 Programmable feedback includes beeper and vibrator  Support user-friendly LED1~5 display with 3 colors  Support distance scan up to 100cm reading performance and 50cm writing ability.  Programming support includes System API, 8/9 and CP Series (LIB and DLL).  Accessory for single-split-type battery charger

ACCESSORIES

Rich choices of optional accessories are available for you to enhance the total performance of the RFID Reader.

 Spare Rechargeable Li-ion Battery  External Battery Charger  Direct USB Cable  Power Cable  Mobile Computer Mount

1800 Series Handheld RFID Reader Reference Manual

QUICK START

Quick Start

OVERVIEW

LED Icon

Meaning

Power

Bluetooth

RFID Tag Access

Data Transmission

Reader Indicator/Memory Low

Communication

1800 Series Handheld RFID Reader Reference Manual

POWER ON RFID READER

Be sure the battery is full charging before you power on the RFID Reader. Press the <Trigger> to power on RFID Reader directly.

Note: The LED2 will flash blue when you power on the RFID Reader successfully.

CONNECTING USB CABLE

RFID Reader supports a USB port for connecting to the host computer. You can issue commands via an available USB cable.

1) Remove the USB port cover.

2) Connect the USB communication cable to USB port. (USB logo shall face down)

3) Connect the other end of USB cable to the host computer.

Quick Start

ISSUING COMMANDS VIA USB CONNECTION

USB connection can be used for issuing commands and upload data to host computer. Below are the procedures to create a USB connection before using RFID Reader.

USING HYPERTERMINAL

On the host computer:

1) Go to the “Device Manager” on the host computer to confirm used COM port. For

example below, the USB Virtual COM_CDC - COM3 is used.

Note: For USB Interface type, the default value is VCOM CDC. Refer to 2.1 USB Interface

Function Key used for selecting USB type during operation. Before beginning to use

RFID Reader, you have to install the available driver on the host computer firstly. The USB virtual COM driver (CDC or Silicon) between RFID Reader and host computer must be the same.

2) Use a test application to confirm the connection between host computer and RFID

Reader. E.g. HyperTerminal. Open the HyperTerminal on the host computer.

3) Enter a name and choose an icon for the connection. Click “OK” to continue.

1800 Series Handheld RFID Reader Reference Manual

4) According to Step 1 to select the proper connected COM port, e.g. COM3.

5) Click “OK”.

Quick Start

6) In the COM3 Properties window, you can click the “Restore Defaults” to use default

values for connection. Then, click “OK”.

Note: After finishing the COM Properties configuration, the connected icon on the

HyperTerminal will be changed from to automatically.

1800 Series Handheld RFID Reader Reference Manual

7) In the HyperTerminal window, click on the tool bar to open Properties

configuration window, see below. Click “Settings” tab.

8) Click [ASCII Setup] to open ASCII Setup window and some check boxes need to be

selected for normalized issuing commands, see below. Click “OK”.

Quick Start

9) After finishing ASCII Setup, in the Properties configuration window, click OK.

1800 Series Handheld RFID Reader Reference Manual

CONFIRMING THE USB CONNECTION

Now, it begins to issue commands between the host computer and RFID Reader. For example, you can issue “#@sys_info?” command for testing. If the connection is successfully, the HyperTerminal will take a response.

Note: If the connection fails, check the USB Interface type whether configured correctly,

the default value is ‘127’ for virtual COM CDC. Refer to 2.1 USB Interface.

Quick Start

DEFAULT SETTINGS

SAVE USER SETTINGS AS DEFAULTS

For the RFID Reader to keep the customized settings as user defaults, you must issue “#@sys_svusrtbl” command.

Note: After issuing the command, the current settings will be saved as user defaults.

Command:

#@sys_svusrtbl\r

Purpose Save User Defined Setting

Response OK\r

ERR,[code]\r

RESTORE USER/FACTORY DEFAULTS

For the RFID Reader to restore the User Defaults, which you have saved earlier, you must issue “#@sys_ldstbl=1” command. Alternatively, you can also issue “#@sys_ldstbl=0” command to restore Factory Default.

Command:

#@sys_ldstbl=[m]\r

Purpose Load Default Setting

Request #@sys_ldstbl=[m]\r

[m]: ‘0’ – Factory Default ‘1’ – User Default

Response OK\r

ERR,[code]\r

Note: Restore the default values will discount the Bluetooth

connected devices.

connection and erase all

1800 Series Handheld RFID Reader Reference Manual

READER SWITCHER

RFID Reader supports a switcher that is used to switch between RFID Reader and Alternate trigger scan. Switch to right for RFID and left for Alternate trigger.

Make sure the reader switcher is set to correct location based on RFID or Alternate mode. For more Alternate mode information, please refer to Alternate Mode.

COMBINING WITH A TERMINAL

If you wish to combine with a terminal, you have to remove the mounting plate cover and install the mobile computer mount, follow these steps to remove the mounting plate cover:

1) Place the RFID Reader erectly on a flat and clean surface.

2) Slide the mounting plate cover latch to unlock position.

Quick Start

3) Remove the mounting plate cover.

1800 Series Handheld RFID Reader Reference Manual

186XCONFIGURATION

You can configure the RFID Reader by issuing commands or 186xConfiguration Utility.

For HyperTerminal:

You may run HyperTerminal.exe on the host computer to send commands to RFID Reader via USB Cable. The commands are not case sensitive. The example command common format is showed as below:

Example:

#@sys_time?<CR>

Get the system time → information.

#@sys_time=[Y],[M],[D],[h],[m],[s]<CR>

Set the system time. → [Y],[M],[D],[h],[m],[s] are the parameters of system time.

Note: A serial command consists of Prefix, Text and Suffix. The prefix consists of “#” and

“@”. “?” or “=” is specified to suffix. \r or <CR> is specified for the “Enter” of your keyboard.

For 186xConfiguration Utility:

CipherLab supports a Windows Reader easily. For more information, refer to 186xConfiguration User Guide.

-based Software Utility to allow you to configure RFID

Chapter 1

UNDERSTANDING RFID READER

This chapter explains the features and usage of RFID Reader. Before configuring RFID Reader, you have to understand the information by issuing “#@sys_info?” command firstly.

Command:

#@sys_info?\r

Purpose Get System Information

Response OK,[m]\r[n]\r[o]\r[p]\r[Q]\r

[m]: string that indicates model name “1861E” – Basic UHF type Europe Band “1861U” – Basic UHF type US Band “1861J” – Basic UHF type Japan Band [n]: string that indicates serial number [o]: string that indicates kernel version [p]: string that indicates user version [q]: string that indicates BTMACID ERR,[code]\r

Example:

IN THIS CHAPTER

1.1 Power ...................................................................... 21

1.2 Memory .................................................................... 24

1.3 Function Key ............................................................. 31

1.4 LED Indicators ........................................................... 33

1.5 Buzzer ..................................................................... 38

1.6 Vibrator .................................................................... 42

1.7 RTC ......................................................................... 43

1800 Series Handheld RFID Reader Reference Manual

Chapter 1 Understanding RFID Reader

1.1 POWER

RFID Reader is powered by a rechargeable 3.7V/2500mAh Li-ion battery pack, and it takes approximately 4 hours to fully charge it via charger or adapter. However, the charging time may vary by working condition. During normal operation, the RFID Reader can work for up to 10 hours.

Warning: The battery cover must be in position. If not, the RFID Reader cannot turn on.

For a new battery, make sure it is fully charged before you begin to use it. Always prepare a spare batter, especially when you are working on a non-stop operation.

1.1.1 POWER ON

After installing the battery, press the <Trigger> for 2 seconds. The RFID Reader will respond with a long beep (high tone), and LED1 will become solid red for 1 second and go off.

1.1.2 POWER OFF

The RFID Reader will stay active at power-on, which may be followed by a transition from full CPU speed to low CPU speed (Power-Saving) to auto shutdown (Auto Power Off). You can power off the RFID Reader by pressing both <F1>+<F2> keys or issuing command on the host computer described below.

Auto Power Off (1~254 min.; 0= Disable): By default, it is set to automatically shut down after idling 10 minutes. If this feature is not desired, set it to 0.

Command:

#@sys_off\r

Purpose System Shutdown

Response OK\r

ERR,[code]\r

#@sys_tpoff?\r

Purpose Get the Delay Time of System Shutdown

Response OK,[m]\r (Default m= ‘10’)

[m]: ‘0’ ~ ‘254’ (Unit=minute) ERR,[code]\r

#@sys_tpoff=[m]\r

Purpose Set the Delay Time of System Shutdown

Response OK\r

ERR,[code]\r

If you want to keep system always alive, you can issue “#@sys_kalive” command. If the delay time for system shutdown and power saving mode are not zero, this command will prevent the RFID Reader from entering the power saving mode or shutting down itself.

1800 Series Handheld RFID Reader Reference Manual

Command:

#@sys_kalive\r

Purpose Keep the System Alive

Response OK\r

ERR,[code]\r

1.1.3 POWER SAVING MODE

Power Saving (1~254 min.; 0= Disable): By default, it is set to idle at full-speed for 2 minutes before it enters power saving mode. If this feature is not desired, set it to 0. However, the Power Saving setting will not take effect when data is transmitting via

Bluetooth

HID or SPP.

Command:

#@sys_tps?\r

Purpose Get the Delay Time of Power Saving Mode

Chapter 1 Understanding RFID Reader

Response OK,[m]\r (Default m= ‘2’)

[m]: ‘0’ ~ ‘254’ (Unit=minute) ERR,[code]\r

#@sys_tps=[m]\r

Purpose Set the Delay Time of Power Saving Mode

Response OK\r

ERR,[code]\r

Note: Power Saving will not take effect when one of the following conditions is met:

(1) RFID Reader is in the configuration mode. (2) The scanning mode is set to Test Mode. (3) The setting value of Power Saving is greater than Auto Power Off.

1.1.4 LOW BATTERY ALARM

By default, the battery alarm will beep when the battery charge gets low. In order to prevent data loss, it is advised to replace the battery immediately when hearing two short beeps (high tone).

Command:

#@sys_battery?\r

Purpose Get Voltage of Battery

Response OK,[m]\r

[m]: battery voltage. (e.g. 100%) ERR,[code]\r

#@sys_lbalarm?\r

Purpose Get Low Battery Alarm

Response OK,[m]\r (Default m= ‘1’)

[m]: ‘0’ – Disable ‘1’ – Enable ERR,[code]\r

#@sys_lbalarm=[m]\r

Purpose Set Low Battery Alarm

Response OK\r

ERR,[code]\r

Warning: Using Bluetooth

the Bluetooth

connection will substantially reduce battery power. Disable

function when it is uselessly.

1800 Series Handheld RFID Reader Reference Manual

1.2 MEMORY

 Memory Mode

4MB memory for Memory Mode data access.

 Transmit Buffer Memory

2KB buffer while getting out of range over a wireless personal area network (WPAN)

The collected data can be sent back to a host computer one by one via the Bluetooth

connection or stored in memory when RFID Reader is set to Memory mode.

Chapter 1 Understanding RFID Reader

1.2.1 TRANSMIT BUFFER

By default, transmit buffer is enabled for using when the RFID Reader is out of range. Upon reading a tag successfully within range, the RFID Reader responds with one short beep (high tone) and LED3 indicator becomes solid green and goes off. However, the host computer may not receive the data immediately if getting out of range. With the 2KB transmit buffer, the RFID Reader can ignore the transmission range and keep on reading tags until the buffer is full.

When transmit buffer is enabled…

If the RFID Reader is out of range, it will respond with two short beeps, high-low tone, upon reading a tag successfully.

When transmit buffer is full, the RFID Reader will respond with one long beep (low tone). You are advised to get back to range.

When transmit buffer is disabled…

If the RFID Reader is out of range, it will respond with one long beep (low tone). You are advised to get back to range.

1800 Series Handheld RFID Reader Reference Manual

Command:

#@sys_txben?\r

Purpose Get Transmission Buffer Status

Response OK,[m]\r (Default m= ‘1’)

[m]: ‘0’ – Disable ‘1’ – Enable ERR,[code]\r

#@sys_txben=[m]\r

Purpose Set Transmission Buffer Status

Response OK\r

ERR,[code]\r

#@sys_txbdly?\r

Purpose Get Transmission Buffer Delay

Response OK,[m]\r (Default m= ‘0’)

[m] Send TX Buffer Delay

‘0’ 0 ms

‘1’ 250 ms

‘2’ 500 ms

‘3’ 1 sec

‘4’ 2 sec

‘5’ 3 sec

‘6’ 5 sec

‘7’ 8 sec

ERR,[code]\r

#@sys_txbdly=[m]\r

Purpose Set Transmission Buffer Delay

Response OK\r

ERR,[code]\r

Chapter 1 Understanding RFID Reader

1.2.2 MEMORY MODE

The RFID Reader keeps 4MB memory for memory mode operation. When the RFID Reader is in memory mode with green LED5 flashing and blue LED2 off that means any real-time connection established with the host is disabled.

Warning: No real-time connection is allowed unless the memory mode is disabled.

STATUS

You have to disable the memory mode to allow a real-time connection. And confirm the memory size by issuing “#@sys_memsize?” command.

Command:

#@sys_memen?\r

Purpose Get Memory Mode Status

Response OK,[m]\r (Default m= ‘0’)

[m]: ‘0’ – Disable ‘1’ – Enable ERR,[code]\r

#@sys_memen=[m]\r

Purpose Set Memory Mode

Response OK\r

ERR,[code]\r

Note: You can also enter/exit memory mode by pressing function key. Refer to 1.4.2

Temporary Mode.

#@sys_memsize?\r

Purpose Get Free Memory Size

Response OK,[m]\r (Default m is 4072)

[m]: Free Memory Size string in KB ERR,[code]\r

DATA DELAY

You may set a delay time between each data record while transmitting data back to the host computer.

1800 Series Handheld RFID Reader Reference Manual

Command:

#@sys_memdly?\r

Purpose Get Data Transmission Delay

Response

OK,[m]\r (Default m= ‘0’)

[m]: ‘0’~’7’

Data Transmission Delay

Value Delay ‘0’ 0 ms ‘1’ 250 ms ‘2’ 500 ms ‘3’ 1 sec ‘4’ 2 sec ‘5’ 3 sec ‘6’ 5 sec ‘7’ 8 sec

ERR,[code]\r

#@sys_memdly=[m]\r

Purpose Set Data Transmission Delay

Response OK\r

ERR,[code]\r

SEND DATA

The RFID Reader will respond with two short beeps (high-low tone) as a warning when sending data. You are advised to send data to the host computer immediately by issuing “#@sys_memup”

command. The RFID Reader will restore the previous connection with the host computer temporarily so that you can transmit data to the host computer.

Command:

Chapter 1 Understanding RFID Reader

#@sys_memup\r

Purpose Upload Memory Data

Request #@sys_memup\r

OK,[m]\r [m]: Data string

Response OK\r

ERR,[code]\r

CLEAR MEMORY

Even though data has been sent back to the host, the flash memory is still occupied unless you erase the memory by issuing “#@sys_memclr” command to clear memory.

Note: The bluetooth

connection will be broken once entering the memory mode.

Command:

#@sys_memclr\r

Purpose Clear Memory

Response OK\r

ERR,[code]\r

1800 Series Handheld RFID Reader Reference Manual

Example:

Note: You can disable the COM port or disconnect the USB cable to end the data

transmission upon memory mode.

Chapter 1 Understanding RFID Reader

1.3 FUNCTION KEY

The function key serves as a modifier key, and the functionality of each key combination is application-dependent.

Keys or Combination

<F1> Switch status LED or Process configuration <F2> Save the PIN CODE (Bluetooth

<F1>+<F2> Switch among status LED modes

<F1>+<F2> Power off system

<F1>+<Trigger> Select number 6~0 (Bluetooth

<F1>+<F2>+<Trigger> Cancel the Pairing (Bluetooth

Reader Switcher

Action

pairing)

 Press <Trigger> once to scan  Select Number 1~5 (Bluetooth

 Send the PIN code (Bluetooth

pairing)

 Firmware upgrade, press <F2>+<Trigger> for 3

seconds to power off system

pairing)

Used to switch between RFID Reader and External Reader (terminal)

PIN CODE Input for Bluetooth

Number Input

Key Operation LEDs Status

Pairing:

1800 Series Handheld RFID Reader Reference Manual

Number 1 <Trigger> once <F2> →

Number 2 <Trigger> twice <F2> →

Number 3 <Trigger> three times <F2> →

Number 4 <Trigger> four times <F2> →

Number 5 <Trigger> five times <F2> →

Number 6 <F1+Trigger> once <F2> →

Number 7 <F1+Trigger> twice <F2>→

Number 8 <F1+Trigger> three times <F2> →

Number 9 <F1+Trigger> four times <F2> →

Number 0 <F1+Trigger> five times <F2> →

Send PIN Code <F2>+<Trigger>

Erase the PIN Code <F1>+<F2>

Cancel the Pairing <F1>+<F2>+<Trigger>

Note: Here <F2> is specified for saving the PIN CODE. <F2>+<Trigger> is specified as Enter to send the PIN CODE for pairing.

Chapter 1 Understanding RFID Reader

1.4 LED INDICATORS

The five LEDs on the RFID Reader are used to provide a feedback to user about the behavior comes from RFID Reader. For example, the LED1 becomes solid red and goes off upon powering on.

The LED indicators status can be divided into 3 parts ─ Normal, Temporary Status and

Bluetooth

Pairing Modes.

1.4.1 NORMAL MODE

Normal mode shows you the normal LED status without any advanced configuration.

LED

LED1-Power Red On-Off Power on, with one long beeps (high tone,

Color Status Description

LED1 on for 1 second and then off.)

Red On

 Charging Fail  Power Off (Press F1+F2 to power off

simultaneously, until both of the function keys are released)

Red Flashing Charging (On/Off ratio 0.5s:0.5s)

Green Flashing Charging Done (On/Off ratio 0.5s:0.5s)

LED2-Bluetooth Communication

Blue Flashing On/Off ratio 0.5s:0.5s for two minutes

indicates the RFID Reader is waiting for connection, and goes off if no connection is established.

On/Off ratio 0.1s:0.1s indicates the RFID Reader receives a PIN code request from host (flashing more quickly than waiting connection)

On/Off ratio 0.02s:3s indicates the RFID Reader has established a Bluetooth connection successfully.

LED3-RFID Tag Access Green On-Off Good Read/Write with one short beeps (high

tone). The pitch and duration are programmable.

LED4-Data Transmission

LED5-Memory Status Green Flashing Flashing ((On/Off ratio 0.02s:3s) indicates

Green Flashing Indicate the data is transmitted between

RFID Reader and host. The speed of flashing varies with data rate.

Free memory size > 10% ** Only for memory mode

Red Flashing Flashing (On/Off ratio 0.02s:3s) indicates

memory under 10% ** Only for memory mode

Note: You can configure the good read LED3 status (disable/enable) and duration (ranging

from 1 to 254 in units of 10 milliseconds) by command. When you set the LED3 feedback as disable, the LED3 will always off for each good read.

1800 Series Handheld RFID Reader Reference Manual

GOOD READ LED STATUS

You may configure the LED3 status for a feedback about good read.

Command:

#@sys_leden?\r

Purpose Get Good Read LED Status

Response OK,[m]\r (Default m= ‘1’)

[m]: ‘0’ – Disable ‘1’ – Enable ERR,[code]\r

#@sys_leden=[m]\r

Purpose Set LED Good Read Status

Response OK\r

ERR,[code]\r

GOOD READ LED DURATION

For a good read for LED3, you may configure the duration time.

Command:

#@sys_leddu?\r

Purpose Get Good Read LED Duration

Response OK,[m]\r (Default m= ‘4’)

[m]: Duration=‘1’ ~ ‘254’ ERR,[code]\r

#@sys_leddu=[m]\r

Purpose Set LED Duration

Response OK\r

ERR,[code]\r

1.4.2 TEMPORARY MODE

In this mode, combine with five LEDs and function keys, the LED status can be classified into 3 Groups that are described below, also refer to 1.3 Function Key

Chapter 1 Understanding RFID Reader

Note: Press <F1>+<F2> to switch Group1, Group2 or Group3. The 3 Groups function key

commands are only available upon RFID mode. In the Alternate mode, the function keys are only used for keypad output strings.

Group1 (Green LED1):

Press <F1>+<F2> to enter Group1 with Green LED1. In the Group1, you can press <F1>

to switch among Battery Status, Bluetooth

Signal Quality and Data Memory Space. After

idling 3-seconds timeout, the LED status will return to normal mode.

 Power Level (Red LED)

Exhaustion Low Battery Full Battery

 Bluetooth

Strength (RSSI) (Blue LED)

1800 Series Handheld RFID Reader Reference Manual

Poor Very good

 Free Memory Size (Green LED)

Empty Full

Note: Press <F1> to switch to Bluetooth

successfully.

Group2 (White LED1):

Press <F1>+<F2> to switch to Group2 with White LED1. The Group2 is defined to 2 commands (Command1 and 2). Press <F2> to switch between Command1 and Command2 or press <F1> to execute the command directly. The LED status will return to normal mode when you idle about 3 seconds during configuration.

Strength showing upon a Bluetooth

connection

 Command1: Set Single or Multi-Tag Scan Mode.  Command2: Clear repeated tag list for Multi-Tag Scan Mode.

Press <F2> to switch between Command 1 and 2

Command1 Command2

Executing:

Function

Command1 <F1>+<F2> <F→ 1: Executing>

Command2 <F1>+<F2> <F2>→ <→ F1: Executing>

Group3 (Yellow LED1):

Press <F1>+<F2> to switch to Group3 with Yellow LED1. The Group3 is defined to 4 commands. Press <F2> to switch among the Commands or press <F1> to execute the command. The LED status will return to normal mode when you idle about 3 seconds during configuration.

Key Operation LEDs Status

 Command1: Enter/Exit memory mode.  Command2: Clear data memory.  Command3: Select USB virtual COM driver (CDC or Silicon).

Chapter 1 Understanding RFID Reader

Note: Power on RFID Reader, the default value for USB Virtual COM driver is CDC. Press

<F1> one time upon command3 to switch to Silicon type if you are using Silicon drive as a Virtual COM connection. Wrong VCOM type selection will make disconnection.

 Command4:

a. Break the current connection when Bluetooth b. Reset the connection type to default – SPP slave when Bluetooth

Press <F2> to switch between Command 1, 2, 3 and 4

Command1 Command2 Command3 Command4

is connected.

is not connected.

Note: Except for function keys, you can also issue command to break or reset the

Bluetooth

connection. Refer to 3.3.1 Break a Connection and 3.3.2 Reset a

Connection.

1.4.3 BLUETOOTH

For Bluetooth

Function key and <Trigger> to input numeric code. Refer to 1.3 Function Key

PAIRING MODE

connection or numeric input required situations; you have to combine

Various numeric input will show you different LED status illustrated below:

No.1~5 No.6~0

1800 Series Handheld RFID Reader Reference Manual

1.5 BUZZER

The RFID Reader has a buzzer to provide feedback in various operating conditions.

Beeping

One long beep, high tone Power on, with Red LED1 on (1 second) and off

One short beep, high tone

 Programmable, default to 4KHz

Meaning

 Good read, with Green LED3 on-off  Enter PIN code  Switch among status LED mode

One short beep, low tone

 Select PIN code  Multi_Tag Mode: Get a repeated tag (Default: Disable)

One long beep, low tone

 Fail to send data or response

- Transmit buffer full

- Transmit buffer is disabled while Bluetooth connected or out of range.

 Command fail

Two short beeps, high-low tone

 Data saved to buffer when transmit buffer is enabled and

the RFID Reader is out of range

 Memory Mode: Memory full

Two short beeps, low-high tone

 Command success  Send PIN code  Running out of transmit buffer

Two short beeps, high tone

 Low battery alarm  Clear PIN code  Power off

Three short beeps, tone ascending from low to high

Three short beeps, tone ascending from high to low

 Bluetooth  Bluetooth

blue

Bluetooth

connection is established

connection is resumed, with LED2 flashing

connection out of range or suspended

is not

Six short beeps, low-mid-high-low-mid-high

Continual beeps

Multi_Tag Mode: Tag list is full (scan session completes) (Default: Disable)

 Low voltage (under 5%) with warning continual beeps

Chapter 1 Understanding RFID Reader

 The battery is removed during charging

When the battery voltage is under 5%, it will continual beeps. We suggest it is better to charge the battery immediately before the RFID Reader is powered off. You can get the voltage information by issue “sys_battery?” command.

The commands below describe the buzzer related configurations:

VOLUME

There are four volume levels defined to beeping setting.

Command:

#@sys_bpvol?\r

Purpose Get Beeper Volume

Response

OK,[m]\r (Default m= ‘High’)

[m]: Volume

‘0’ Mute ‘1’ Low ‘2’ Medium ‘3’ High

ERR,[code]\r

#@sys_bpvol=[m]\r

Purpose Set Beeper Volume

Response OK\r

ERR,[code]\r

COMMAND BEEP

By default, this function is enabled.

Command:

#@sys_cmdbp?\r

Purpose Get Status of Command Indicating Beep

Response OK,[m]\r (Default m= ‘0’)

[m]: ‘0’ – Disable ‘1’ – Enable ERR,[code]\r

1800 Series Handheld RFID Reader Reference Manual

#@sys_cmdbp=[m]\r

Purpose Set Command indicating Beep

Response OK\r

ERR,[code]\r

GOOD READ

You have to enable the buzzer beeping function when you want to get a feedback from RFID Reader.

Command:

#@sys_grdbp?\r

Purpose Get Status of Good-Read Beep

Response OK,[m]\r (Default m= ‘1’)

[m]: ‘0’ – Disable ‘1’ – Enable ERR,[code]\r

#@sys_grdbp=[m]\r

Purpose Set Status of Good-Read Beep

Response OK\r

ERR,[code]\r

FREQUENCY

By default, the frequency for a buzzer is configured to 4KHz. This function is upon Good-Read beep is enabled.

Command:

#@sys_grdbf?\r

Purpose Get Beeper Frequency

Response

OK,[m]\r (Default m= ‘1’)

[m]: Frequency

‘0’ 8 kHz ‘1’ 4 kHz ‘2’ 2 kHz ‘3’ 1 kHz

ERR,[code]\r

#@sys_grdbf=[m]\r

Purpose Set Beeper Frequency

Response OK\r

Chapter 1 Understanding RFID Reader

ERR,[code]\r

DURATION

You can configure the beeping duration to shortest, short, longer or longest. This function is upon Good-Read beep is enabled.

Command:

#@sys_grdbdu?\r

Purpose Get Beeper Duration

Response

OK,[m]\r (Default m= ‘Shortest’)

[m]: Duration

‘0’ Shortest ‘1’ Short ‘2’ Longer ‘3’ Longest

ERR,[code]\r

#@sys_grdbdu=[m]\r

Purpose Set Beeper Duration

Response OK\r

ERR,[code]\r

Note: When you set the volume of beeper to mute, the feedback from RFID Reader will be

mute.

1800 Series Handheld RFID Reader Reference Manual

1.6 VIBRATOR

The RFID Reader has a built-in vibrator, which can be issued command for feedback. This can be helpful when working in noisy environments.

For good read/write, the vibrator will make the duration of 1 second feedback with on-off vibrating. The vibrating and duration are programmable.

STATUS

RFID Reader supports a good feedback with mute vibrator, you can enable/disable by issuing “#@sys_viben=” command.

Command:

#@sys_viben?\r

Purpose Get Vibrator Status

Response OK,[m]\r (Default m= ‘0’)

[m]: ‘0’ – Disable ‘1’ – Enable ERR,[code]\r

#@sys_viben=[m]\r

Purpose Set Vibrator Status

Response OK\r

ERR,[code]\r

DURATION

By default, the good reader vibrator stays on for 1 second. Specify a value, ranging from 1 to 254 in units of 100 milliseconds.

Command:

#@sys_vibdu?\r

Purpose Get Vibrator Duration

Response OK,[m]\r (Default m= ‘10’)

[m]: Duration=‘1’ ~ ‘254’ ERR,[code]\r

#@sys_vibdu=[m]\r

Purpose Set Vibrator Duration

Response OK\r

ERR,[code]\r

Chapter 1 Understanding RFID Reader

1.7 RTC

RFID Reader supports a system clock to keep track of the current time.

Command:

#@sys_time?\r

Purpose Get System Clock

Response OK,[Y],[M],[D],[h],[m],[s]\r

[Y]: ‘00’ ~ ‘99’ [M]: ‘01’ ~ ‘12’ [D]: ‘01’ ~ ‘31’ [h]: ‘00’ ~ ‘23’ [m]: ‘00’ ~ ‘59’ [s]: ‘00’ ~ ‘59’ ERR,[code]\r

#@sys_time=[Y],[M],[D],[h],[m],[s]\r

Purpose Set System Clock

Response OK\r

ERR,[code]\r

Example:

Chapter 2

COMMUNICATION INTERFACE

Follow the sections below for output interfaces supported to establish a WPAN connection with RFID Reader.

IN THIS CHAPTER

2.1 USB Interface .......................................................... 46

2.2 Bluetooth

2.3 Bluetooth

2.4 Bluetooth

2.5 Bluetooth

Connection Type ........................................ 46

HID ......................................................... 48

SPP Slave ................................................. 57

SPP Master ............................................... 58

2.6 USB HID via 3610 ...................................................... 59

2.7 USB VCOM via 3610 ................................................... 69

Note: By default, the output interface is set to “SPP Slave”.

1800 Series Handheld RFID Reader Reference Manual

2.1 USB INTERFACE

Create a connection between RFID Reader and host computer; you have to select the available USB interface type by “#@usb_type=” command. Wrong USB interface type setting will make disconnection. You can also use the function key to switch the USB interface type, refer to 1.4.2 Temporary Mode.

Command:

#@usb_type?\r

Purpose Get USB Interface Type

Response OK,[m]\r (Default m=‘127’)

[m]: USB Type ‘127’ – Virtual COM CDC ‘128’ – Virtual COM (Silicon Lab driver) ERR,[code]\r

#@usb_type=[m]\r

Purpose Set USB Interface

Response OK\r

ERR,[code]\r

2.2 BLUETOOTH® CONNECTION TYPE

Based on the connection type, you have to select the proper Bluetooth

connection type is configured to “SPP Slave”.

type. By default, the

Command:

Chapter 2 Communication Interface

#@bt_type?\r

Purpose Get Bluetooth

Response

OK,[m]\r (Default m= ’0’) [m]: Bluetooth

Bluetooth

‘0’ SPP Slave R/W ‘3’ SPP Master R/W ‘5’ HID R/W ‘6’ 3610 Read only

ERR,[code]\r

#@bt_type=[m]\r

Purpose Set Bluetooth

Response OK\r

ERR,[code]\r

Interface Type

TYPE

Type Description Read only / R/W

Interface Type

1800 Series Handheld RFID Reader Reference Manual

2.3 BLUETOOTH® HID

For Bluetooth HyperTerminal to change the output interface to Bluetooth

HID connection, issue the “#@bt_type=” command to parameter ‘5’ on the

HID. Refer to Using

HyperTerminal for related connection settings. To capture the data run any text editor on

host computer and the scanned data will be transmitted to the host computer.

HID Settings

Keyboard Type PCAT (US)

Alphabets Layout Normal

Numeric Layout Normal

Capital Lock Type Normal

Capital Lock State Off

Alphabets Transmission Case-sensitive

Numeric Transmission Alphanumeric keypad

Inter-Character Delay 0 (ms)

Defaults

2.3.1 ACTIVATE BLUETOOTH® HID & SELECT KEYBOARD TYPE

When Bluetooth complete this setting. By default, Bluetooth

RFID Reader.

HID interface is activated, you will have to select a keyboard type to

HID is activated with PCAT (US) type on the

Bluetooth

HID

The following keyboard types are supported —

No. Keyboard Type No. Keyboard Type

64 PCAT (US) (Default) 71 PCAT (Belgium)

65 PCAT (French) 72 PCAT (Spanish)

66 PCAT (German) 73 PCAT (Portuguese)

67 PCAT (Italy) 74 PS55 A01-2 (Japanese)

68 PCAT (Swedish) 75 User-defined table

69 PCAT (Norwegian) 76 PCAT (Turkish)

70 PCAT (UK) 77 PCAT (Hungarian)

Chapter 2 Communication Interface

Command:

#@bt_hididx?\r

Purpose Get Bluetooth

Response OK,[m]\r

[m]: Parameter

[m] Description Valid Parameters

HID Parameter

‘0’ ‘3’ ‘4’ ‘5’

‘7’

‘8’

‘9’

‘10’

‘12’

ERR,[code]\r

HID KBD Type ‘64’~ ‘77’ (Default m=‘64’)

Inter-function Delay ‘0’ ~ ‘254’ (Default m=‘0’)

Inter-character Delay ‘0’ ~ ‘254’ (Default m=‘0’)

Caps Lock State ‘0’ – OFF (Default m=‘0’)

Alphabets Transmission ‘0’ – Case Sensitive

Digits Transmission ‘0’ – Alpha Numeric Keypad

Digits Position ‘0’ – Normal

Keyboard Layout ‘0’ – Normal

HID Character Transmit Mode ‘0’ – Batch Processing

‘1’ – ON ‘2’ – Auto

‘1’ – Ignore Case

‘1’– Numeric Keypad

‘1’– Lower Row ‘2’– Upper Row

‘1’ – AZERTY ‘2’ – QWERTZ

‘1’ – By Character

#@bt_hididx=[m]\r

Purpose Set Bluetooth

Response OK\r\r

ERR,[code]

HID Parameter

1800 Series Handheld RFID Reader Reference Manual

#@bt_hidpr?\r

Purpose Get Bluetooth

Response OK,[m]\r

[m]: Parameter ERR,[code]\r

#@bt_hidpr=[m]\r

Purpose Set Bluetooth

Response OK\r

ERR,[code]\r

Example:

HID Parameter

Chapter 2 Communication Interface

2.3.2 KEYBOARD SETTINGS

 Alphabets Layout  Numeric Layout  Capital Lock Setting  Alphabets Transmission  Numeric Transmission

ALPHABETS LAYOUT

By default, the alphabets layout is set to normal mode, also known as the standard English layout. Se lect Fre nch or G erman ke yboard l ayout if n ecessary. The RFID Reader will make adjustments when sending the "A", "Q", "W", "Z", "Y", and "M" characters according to this setting.

Options Parameter Description

Normal (Default) ‘0’ US keyboard.

AZERTY ‘1’ French keyboard.

QWERTZ ‘2’ German keyboard.

Note: This setting only works when the keyboard type selected is US keyboard, such as

PCAT (US). The Alphabets Layout and Numeric Layout setting must match your keyboard.

US KEYBOARD STYLE – NORMAL

1800 Series Handheld RFID Reader Reference Manual

QWERTY layout, which is normally used in western countries.

 Select “Lower Row” for the “Numeric Layout” setting for the upper row is for special characters.

FRENCH KEYBOARD STYLE – AZERTY

French layout; see below for French Keyboard Style.

 Select “Upper Row” for the “Numeric Layout” setting for the lower row is for special characters.

GERMAN KEYBOARD LAYOUT – QWERTZ

German layout; see below for German Keyboard Style.

 Select “Lower Row” for the “Numeric Layout” setting for the upper row is for special characters.

NUMERIC LAYOUT

Select a proper layout that matches the alphabets layout. The RFID Reader will make adjustments according to this setting.

Chapter 2 Communication Interface

Options Parameter Description

Normal (Default) ‘0’ Depend on the [Shift] key or [Shift Lock] setting.

Lower Row ‘1’ For QWERTY or QWERTZ keyboard.

Upper Row ‘2’ For AZERTY keyboard.

Note: This setting is to be used with the Character Substitution setting when support to

certain keyboard types (languages) is unavailable but required.

CAPITAL LOCK SETTING

In order to send the alphabets with correct case, the RFID Reader needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.

Options Parameter Description

Capital Lock OFF (Default)

Capital Lock ON ‘1’ Assuming that the status of Caps Lock on the keyboard is ON,

‘0’ Assuming that the status of Caps Lock on the keyboard is OFF,

transmitted characters are exactly the same as in the tag (when "case-sensitive" is selected for Alphabets Transmission).

 Refer to the Capital Lock Type above.

Auto Detection ‘2’ The RFID Reader will automatically detect the status of Caps

Lock on the keyboard before data is transmitted; transmitted characters are exactly the same as in the tag (when "case-sensitive" is selected for Alphabets Transmission).

ALPHABETS TRANSMISSION

By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of Caps Lock on the keyboard only.

1800 Series Handheld RFID Reader Reference Manual

Options Parameter Description

Case Sensitive (Default)

Ignore Case ‘1’ Alphabets will be transmitted according to the status of Caps Lock

‘0’ Alphabets will be transmitted according to the original case.

on the keyboard only.

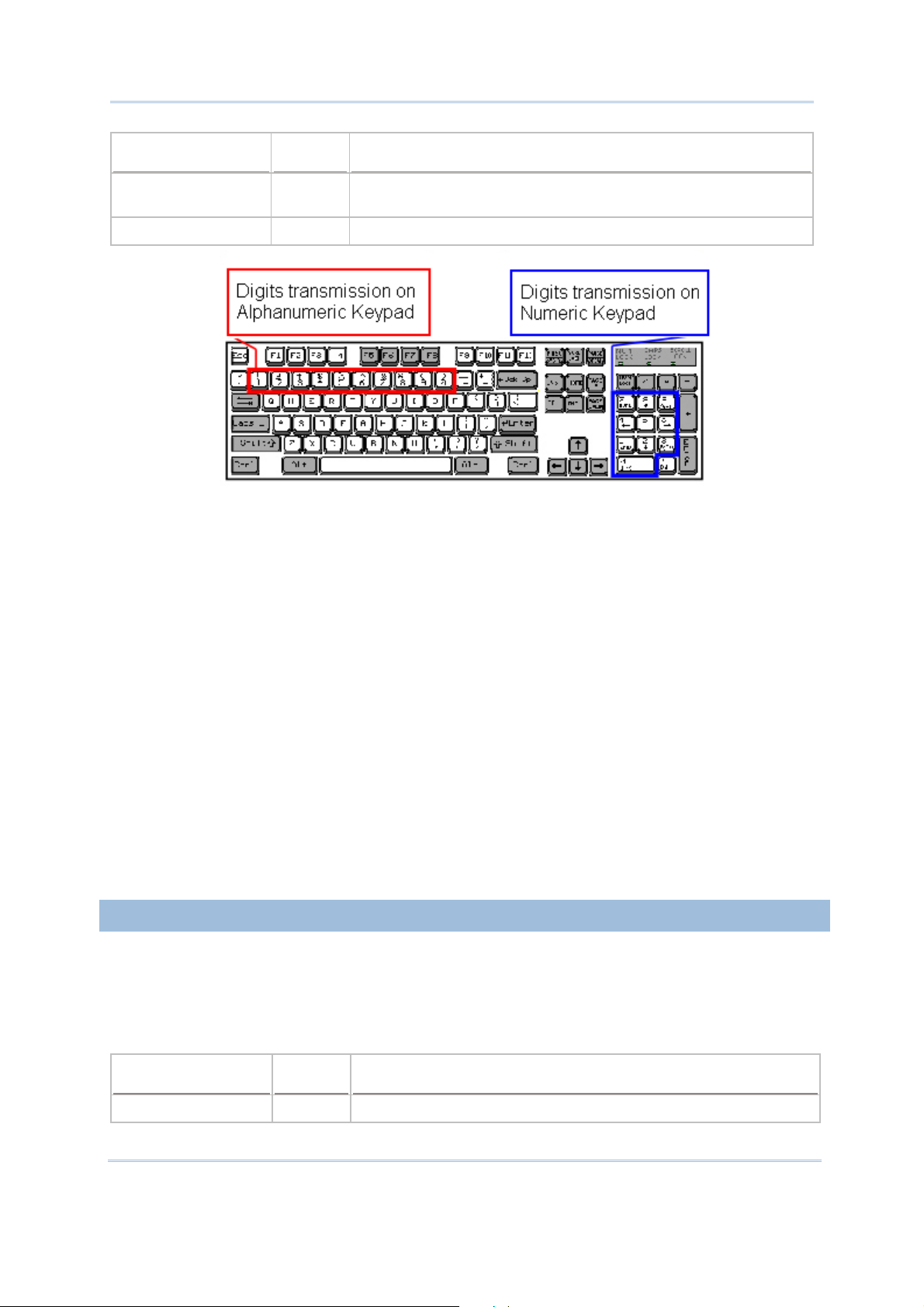

NUMERIC TRANSMISSION

By default, the alphanumeric keypad is used for transmitting numeric. Select “Numeric Keypad” if you wish to use the numeric keypad.

Chapter 2 Communication Interface

Options Parameter Description

Alphanumeric

‘0’ Alphanumeric Keypad will be used for transmitting numeric.

Keypad (Default)

Numeric Keypad ‘1’ Numeric Keypad will be used for transmitting numeric.

2.3.3 INTER-CHARACTER DELAY

By default, the inter-character delay is set to zero. Specify a value, ranging from 0 to 254 in units of millisecond, to match the computer response time of the keyboard interface. Such delay time is inserted between every character being transmitted. The longer the delay time is, the slower the transmission speed will be.

Options

Parameter Description

‘0’ (Default) ‘0’~‘254’ The range is from 0 to 254 in units of millisecond.

1800 Series Handheld RFID Reader Reference Manual

2.3.4 INTER-FUNCTION DELAY

By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254 in units of milliseconds, to match the computer response time of the keyboard interface. Such delay time is inserted between every function code (0x01 ~ 0x1F) being transmitted. The longer the delay time is, the slower the transmission speed will be.

Options Parameter Description

‘0’ (Default) ‘0’~‘254’ The range is from 0 to 254 in units of millisecond.

2.3.5 HID CHARACTER TRANSMIT MODE

By default, HID interface sends data to the host in batch. You may configure the RFID Reader to “By Character” to process data one character at a time.

Options Parameter Description

Batch Processing (Default)

By Character ‘1’ Process data by Character

‘0’ Process data by Batch.

Note: “By Character” transmit mode is required when working with iPhone or iPad.

Chapter 2 Communication Interface

2.4 BLUETOOTH® SPP SLAVE

For Bluetooth

Then, refer to Set Up a WPAN Connection

SPP Slave, issue the “#@bt_type=” to parameter ‘0’ for output interface.

for related connection settings. By default, RFID

Reader connection type is configured to “SPP Slave”.

Example:

1800 Series Handheld RFID Reader Reference Manual

2.5 BLUETOOTH® SPP MASTER

As a SPP master device, RFID Reader will be able to resume connection with the host computer upon powering on again, as long as the host application is running. If RFID Reader fails to resume connection, it will try every 5 seconds to re-connect to the host computer unless you issue the “#@bt_reset” or “#@sys_ldstbl=” command.

For Bluetooth

SPP Master Connection, refer to 3.1.4 Bluetooth® SPP Master.

Note: In SPP Master Mode, RFID Reader has to connect within the specified period of time (2

minutes by default). During the connection, the RFID Reader will enter to Power Saving Mode to save power. It will automatically power off when the time is up. Refer to 1.1 Power

2.5.1 ACTIVATE BLUETOOTH® SPP MASTER MODE

Configure the output interface to SPP Master by issuing the “bt_type=” and to parameter ‘3’.

How to connect with the target machine?

There are two parameters for “#@bt_target=” command to SPP Master target machine. One is

Bluetooth

Command:

targe – SPP Master and another is the symbolical No. of target machine.

#@bt_target?\r

Purpose Get Bluetooth

Response OK,[m],[n]\r

[m]: Bluetooth [n]: MACID of target Machine or S/N of 3610 ERR,[code]\r

Target Machine

Type, ‘0’ – SPP Master, ‘1’ – 3610

#@bt_target=[m],[n]\r

Purpose Set Bluetooth

Response OK

ERR,[code]

Target Machine

Exit SPP Master Mode

To stop such re-connection, you can issue the “#@bt_reset” or “#@sys_ldstbl=” command so that the current connection record (= MACID) will be cleared. Then, the RFID Reader will restart itself automatically. Go through the whole process in Set Up a WPAN Connection connection.

to establish a new WPAN

Chapter 2 Communication Interface

2.6 USB HID VIA 3610

For USB HID via 3610, connect 3610 to the USB port of host computer, and then connect

RFID Reader to 3610 via Bluetooth

. Configure the interface to USB HID via 3610 by issuing

the “#@bt_type=” command to parameter ‘6’.

To capture the data run any text editor on host computer. The scanned data will be transmitted to the host computer.

Note: As above for a read only interface, you can not issue “#@BT_TYPE=” command to

change the Bluetooth

interface to 3610 directly by command.

How to connect with the 3610?

There are two parameters for “#@bt_target” command to 3610. One is Bluetooth another is the serial No. of 3610.

target – 3610 and

Command:

#@bt_target?\r

Purpose Get Bluetooth

Response OK,[m],[n]\r

[m]: Bluetooth [n]: MACID of target Machine or S/N of 3610 ERR,[code]\r

Target Machine

Type, ‘0’ – SPP Master, ‘1’ – 3610

#@bt_target=[m],[N]\r

Purpose Set Bluetooth

Response OK\r

ERR,[code]\r

Target Machine

Example:

HID Settings

Keyboard Type PCAT (US)

Defaults

Alphabets Layout Normal

1800 Series Handheld RFID Reader Reference Manual

Numeric Layout Normal

Capital Lock Type Normal

Capital Lock State Off

Alphabets Transmission Case-sensitive

Numeric Transmission Alphanumeric keypad

Inter-Character Delay 0 (ms)

2.6.1 ACTIVATE USB HID & SELECT KEYBOARD TYPE

When USB HID via 3610 interface is activated, you have to select a keyboard type from parameter ‘097’ to ‘110’ so that you can complete this setting. Parameter ‘096’ is for USB VCOM via 3610 connection.

USB HID via 3610 TYPE

The following keyboard types are supported —

No. Keyboard Type No. Keyboard Type

096 USB VCOM via 3610 104 3610 PCAT (Belgium)

097 3610 PCAT (US) 105 3610 PCAT (Spanish)

098 3610 PCAT (French) 106 3610 PCAT (Portuguese)

099 3610 PCAT (German) 107 3610 PS55 A01-2 (Japanese)

100 3610 PCAT (Italy) 108 3610 User-defined table

101 3610 PCAT (Swedish) 109 3610 PCAT (Turkish)

102 3610 PCAT (Norwegian) 110 3610 PCAT (Hungarian)

103 3610 PCAT (UK)

Chapter 2 Communication Interface

Command:

#@bt_aclidx?\r

Purpose Get Bluetooth

Response OK,[m]\r

[m]: Parameter

[m] Description Valid Parameters

3610 Parameter

‘0’ ‘3’ ‘4’ ‘5’

‘7’

‘8’

‘9’

‘10’

‘12’

ERR,[code]

3610 Type ‘096’ ~ ‘110’

Inter-function Delay ‘0’ ~ ‘254’ (Default m=‘0’)

Inter-character Delay ‘0’ ~ ‘254’

Caps Lock State ‘0’ – OFF

‘1’ – ON ‘2’ – Auto

Alphabets Transmission ‘0’ – Case Sensitive

‘1’ – Ignore Case

Digits Transmission ‘0’ – Alpha Numeric Keypad

‘1’– Numeric Keypad

Digits Position ‘0’ – Normal

‘1’– Lower Row ‘2’– Upper Row

Keyboard Layout ‘0’ – Normal

‘1’ – AZERTY ‘2’ – QWERTZ

HID Character Transmit Mode ‘0’– Batch Processing

‘1’– By Character

#@bt_aclidx=[m]\r

Purpose Set Bluetooth

Response OK\r

ERR,[code]\r

3610 Parameter

#@bt_aclpr?\r

Purpose Get Bluetooth

Response OK,[m]\r

[m]: Parameter ERR,[code]\r

3610 Parameter

#@bt_aclpr=[m]\r

Purpose Set Bluetooth

Response OK\r

3610 Parameter

1800 Series Handheld RFID Reader Reference Manual

ERR,[code]\r

#@bt_aclact\r

Purpose Activate Bluetooth

Request #@bt_aclact\r

[m]: Parameter

Response OK\r

ERR,[code]\r

3610 Setting

Chapter 2 Communication Interface

2.6.2 KEYBOARD SETTINGS

 Alphabets Layout  Numeric Layout  Capital Lock Setting  Alphabets Transmission  Numeric Transmission

ALPHABETS LAYOUT

By default, the alphabets layout is set to normal mode, also known as the standard English layout. Select French or German keyboard layout if necessary. RFID Reader will make adjustments when sending the "A", "Q", "W", "Z", "Y", and "M" characters according to this setting.

Options Parameter Description

Normal (Default) ‘0’ US Keyboard Style

AZERTY ‘1’ French Keyboard Style

QWERTZ ‘2’ German Keyboard Style

Note: This setting only works when the keyboard type selected is US keyboard, such as

PCAT (US). The Alphabets Layout and Digits Layout setting must match your keyboard.

1800 Series Handheld RFID Reader Reference Manual

US KEYBOARD STYLE – NORMAL

QWERTY layout, which is normally used in western countries.

 Select “Lower Row” for the “Numeric Layout” setting for the upper row is for special characters.

FRENCH KEYBOARD STYLE – AZERTY

French layout; see below for French Keyboard Style.

 Select “Upper Row” for the “Numeric Layout” setting for the lower row is for special characters.

GERMAN KEYBOARD LAYOUT – QWERTZ

German layout; see below for German Keyboard Style.

 Select “Lower Row” for the “Numeric Layout” setting for the upper row is for special characters.

NUMERIC LAYOUT

Select a proper layout that matches the alphabets layout. RFID Reader will make adjustments according to this setting.

Chapter 2 Communication Interface

Options Parameter Description

Normal (Default) ‘0’ Depends on the [Shift] key or [Shift Lock] setting

Lower Row ‘1’ For QWERTY or QWERTZ keyboard

Upper Row ‘2’ For AZERTY keyboard

Note: This setting is to be used with the Character Substitution setting when support to

certain keyboard types (languages) is unavailable but required.

CAPITAL LOCK SETTING

In order to send the alphabets with correct case, RFID Reader needs to know the status of Caps Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being transmitted.

Status Options Parameter Description

Capital Lock OFF (Default)

Capital Lock ON ‘1’ Assuming that the status of Caps Lock on the keyboard is ON,

‘0’ Assuming that the status of Caps Lock on the keyboard is OFF,

transmitted characters are exactly the same as in the tag (when "case-sensitive" is selected for Alphabets Transmission).

 Refer to the Capital Lock Type above.

Auto Detection ‘2’ RFID Reader will automatically detect the status of Caps Lock on

the keyboard before data is transmitted; transmitted characters are exactly the same as in the tag (when "case-sensitive" is selected for Alphabets Transmission).

ALPHABETS TRANSMISSION

1800 Series Handheld RFID Reader Reference Manual

Options Parameter Description

Case Sensitive (Default)

Ignore Case ‘1’ Alphabets will be transmitted according to the status of Caps Lock

‘0’ Alphabets will be transmitted according to the original case.

on the keyboard only.

NUMERIC TRANSMISSION

By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you wish to use the keys on the numeric keypad.

Options Parameter Description

Chapter 2 Communication Interface

Alphanumeric Keypad (Default)

Numeric Keypad ‘1’ Numeric Keypad will be used for transmitting numeric.

‘0’ Alphanumeric Keypad will be used for transmitting numeric.

2.6.3 INTER-CHARACTER DELAY

Options

Parameter Description

‘0’ (Default) ‘0’~‘254’ The range is from 0 to 254 in units of millisecond.

1800 Series Handheld RFID Reader Reference Manual

2.6.4 INTER-FUNCTION DELAY

Options Parameter Description

‘0’ (Default) ‘0’~‘254’ The range is from 0 to 254 in units of millisecond.

2.6.5 HID CHARACTER TRANSMIT MODE

By default, HID interface sends data to the host in batch. You may configure the RFID Reader to “By Character” to process data one character at a time.

Options Parameter Description

Batch Processing (Default)

By Character ‘1’ Process data by Character

‘0’ Process data by Batch.

Note: “By Character” transmit mode is required when working with iPhone or iPad.

Chapter 2 Communication Interface

2.7 USB VCOM VIA 3610

Connect 3610 to the USB port of host computer, and then connect RFID Reader to 3610 via

Bluetooth

. Configure the output interface to USB VCOM via 3610 by issuing the “#@bt_type=” command to parameter ‘6’. You may run HyperTerminal.exe on the host computer to view and capture the data transmission from RFID Reader.

Note: As above for a read only interface, you can not issue “#@bt_type=” command to

change the Bluetooth

interface to 3610 directly by command.

How to connect with the 3610?

There are two parameters for “#@bt_target” command to 3610. One is Bluetooth is the serial No. of 3610.

type and another

Command:

#@bt_target?\r

Purpose Get Bluetooth

Response OK,[m],[n]\r

[m]: Bluetooth [n]: MACID of target Machine or S/N of 3610 ERR,[code]\r

Target Machine

Type, ‘0’ – SPP Master, ‘1’ – 3610

#@bt_target=[m],[N]\r

Purpose Set Bluetooth

Response OK\r

ERR,[code]\r

Target Machine

Example:

Note: If you are using USB VCOM for the first time, you must install its driver from the

CD-ROM. Driver version 5.4 or later is required. Please remove older versions before installing new ones!

For a COM Port connection, you have to configure the USB interface type firstly by “#@usb_type=” command. Wrong USB interface type configured will make disconnection. Refer to 2.1 USB Interface

1800 Series Handheld RFID Reader Reference Manual

Options

VCOM - CDC (Default)

VCOM - Silicon ‘128’ Use Silicon for a virtual com output interface.

Parameter Description

‘127’ Use CDC for a virtual com output interface.

SET UP A WPAN CONNECTION

Chapter 3

RFID Reader can be configured to send data to a host computer wirelessly via the

Bluetooth

and 3610. Upon powering up, RFID Reader will be ready to establish a WPAN connection.

To establish a connection via Bluetooth

dongle after pairing…

Interface Option Reference

Bluetooth® HID 2.3 Bluetooth® HID Bluetooth® SPP (Slave/Master) 2.4 Bluetooth® SPP Slave, 2.5 Bluetooth®

Master

SPP

To establish a connection via 3610 after finishing relative configurations…

Interface Option Reference

USB HID via 3610 2.6 USB HID via 3610

USB VCOM via 3610 2.7 USB VCOM via 3610

IN THIS CHAPTER

3.1 Connecting via Bluetooth

3.2 Connecting via 3610 .................................................. 88

3.3 Disconnection ............................................................ 92

Dongle ................................ 72

1800 Series Handheld RFID Reader Reference Manual

3.1 CONNECTING VIA BLUETOOTH® DONGLE

3.1.1 CHANGE INTERFACE

Once the USB connection between host computer and RFID Reader is successfully, you have to change the connected interface type before establishing a WPAN connection via

Bluetooth

In the HyperTerminal window, issue “#@bt_type=” command to change the connected interface and issue “#@bt_type?” command to confirm the used interface at present.

 “Activate Bluetooth  “Activate Bluetooth  “Activate Bluetooth

For example, if you want to use SPP Slave for a connection type, see below:

dongle.

HID”, the parameter is ‘5’.

SPP Slave Mode”, the parameter is ‘0’.

SPP Master Mode”, the parameter is ‘3’.

Chapter 3 Set Up a WPAN Connection

3.1.2 CONFIGURE RELATED SETTINGS

BROADCASTING

RFID Reader can be configured to hide itself from other devices equipped with Bluetooth technology. Simply disable the device name broadcasting setting so that it won’t be discovered by any other computer. However, broadcasting must be enabled for establishing an initial connection with RFID Reader. For example, disable device name broadcasting after successfully connecting RFID Reader to one WorkStation. Such connection will be maintained automatically unless RFID Reader is removed from the paired device list (called unpairing) by the WorkStation or any changes made to authentication and the PIN code. If you want another WorkStation to connect to RFID Reader, you have to enable device name broadcasting firstly.

Command:

#@bt_visible?\r

Purpose Get Bluetooth

Response OK,[m]\r (Default m= ‘1’)

[m]: Discoverable ‘0’ – Disable ‘1’ – Enable ERR,[code]\r

Parameter

wireless

#@bt_visible=[m]\r

Purpose Set Bluetooth

Response OK\r

ERR,[code]\r

Parameter

Note: By default, device name broadcasting is enabled (which is required for initial

connection).

AUTHENTICATION

When the authentication and PIN code are changed on the RFID Reader, you have to remove the RFID Reader from the paired device list (called unpairing) and go through the whole process to re-establish the connection.

1800 Series Handheld RFID Reader Reference Manual

Command:

#@bt_secure?\r

Purpose Get Bluetooth

Response OK,[m]\r (Default m= ‘0’)

[m]: Authentication ‘0’ – Disable ‘1’ – Enable ERR,[code]\r

#@bt_secure=[m]\r

Purpose Set Bluetooth

Response OK\r

ERR,[code]\r

PIN CODE

RFID Reader allows up to 16 characters for a PIN code. If the PIN or passkey is incorrect, any connection requirement will be rejected by RFID Reader. See step 8 in 3.1.3 Bluetooth®

Slave. By default, the PIN code value is “0000”.

Authentication

HID and SPP

Command:

#@bt_pin?\r

Purpose Get Bluetooth® PIN Code

Response OK,[m],[n]\r (Default m= ‘0000’, n= ‘4’)

[m]: length of PIN ‘0’ ~ ‘16’, ‘0’ means no PIN [n]: PIN, 1~16 characters, only exists when [m]!= ‘0’ (m≠0) ERR,[code]\r

#@bt_pin=[m],[n]\r

Purpose Set Bluetooth

Response OK\r

ERR,[code]\r

PIN Code

Use random PIN

No PIN required

Chapter 3 Set Up a WPAN Connection

Note: When using Bluetooth

HID, some device driver may not support pre-defined PIN code for authentication. In this case, make sure you have RFID Reader set to “No PIN or use random PIN” before pairing. While pairing, the host PIN code will be displayed on the host computer. Have RFID Reader to input the matching PIN code for

connection. Refer to 1.4.3 Bluetooth®

Bluetooth Simple Security Pairing Mode

Command:

#@bt_ssp?\r

Purpose Get Bluetooth® Parameter

Response OK,[m]\r

[m]:SSP Mode ‘0’ – Didable ‘1’ – Enable (Default) ERR, [code]\r

#@bt_ssp=[m]\r

Purpose Set Bluetooth

Response OK\r

ERR,[code]\r

Parameter

Pairing Mode.

Note: SSP feature is only for iOS currently.

3.1.3 BLUETOOTH® HID AND SPP SLAVE

The procedure goes through associating devices for establishing a WPAN connection, which is pretty much the same except for the software you are using. If your computer is running Microsoft 7, you can use the software support that Windows the device manufacturer provides. Now, let’s try using the software support that Windows XP Service Pack 2 includes.

BLUETOOTH

By default, the keyboard type of Bluetooth® HID is set to PCAT (US). When Bluetooth re-activated, you have to select a keyboard type to complete this setting. Refer to 2.3.1 Activate

Bluetooth®

Windows® XP (SP1 to SP3), Windows Vista® Service Pack 1 (SP1) and Windows

HID

HID & Select Keyboard Type.

includes, or you can use the driver that

HID is

1800 Series Handheld RFID Reader Reference Manual

Refer to steps 1~11 below for a Bluetooth

BLUETOOTH® SPP SLAVE

1) Enable the Bluetooth

Double-click the Bluetooth Alternatively, you may go to Control Panel > Bluetooth Devices.

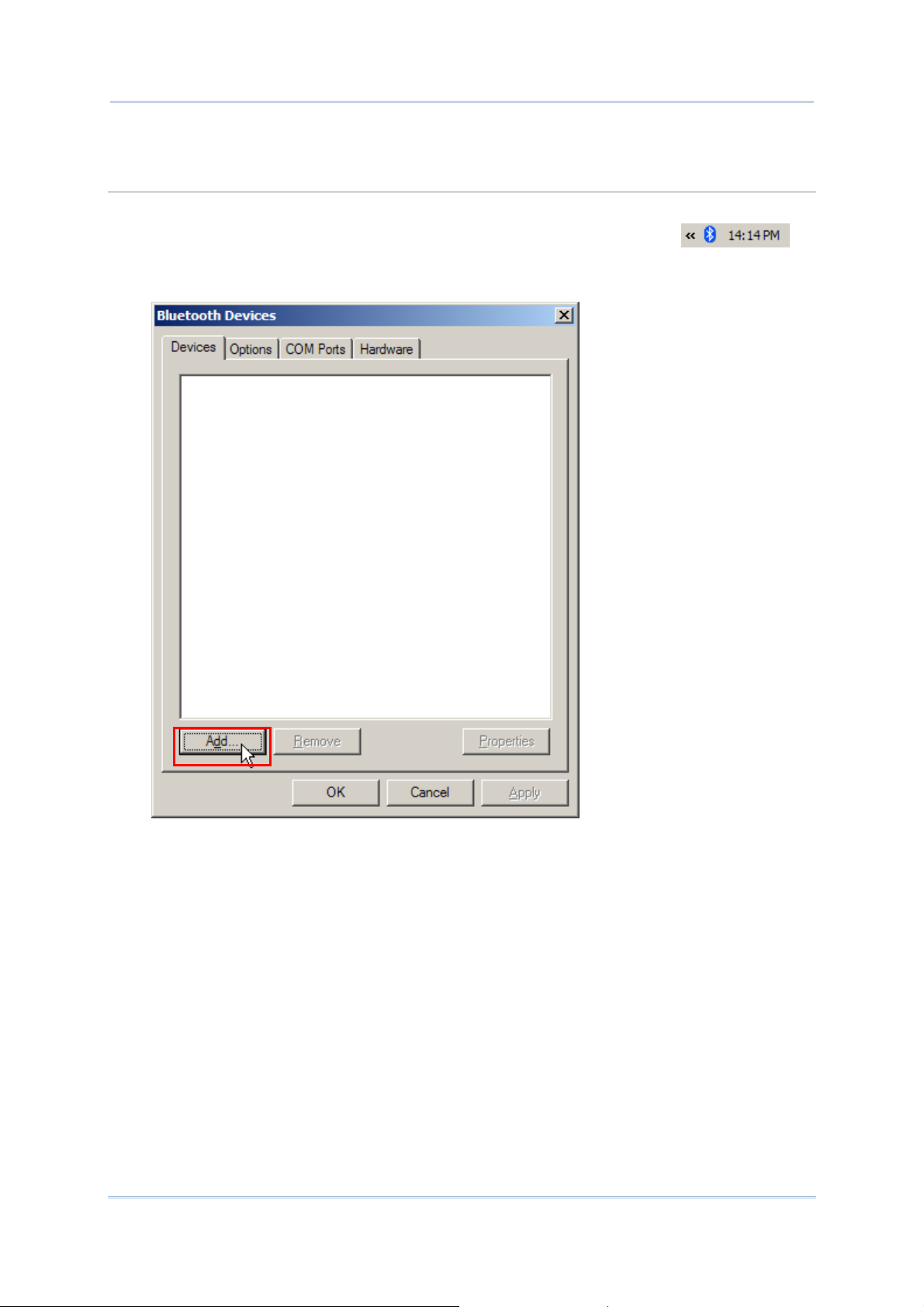

3) Click [Add] to search devices nearby.

function on host computer. (Windows® XP only)

icon located on the lower right of the taskbar.

connection.

4) Turn on RFID Reader with correct WPAN settings, such as select Bluetooth

SPP Slave or HID,

broadcasting enabled, authentication enabled, and PIN code specified, etc if you want to use a passkey. Select “My device is set up and ready to be found” check box on the “Add Bluetooth Device Wizard” window.

5) Click [Next].

Chapter 3 Set Up a WPAN Connection

6) Wait for a few seconds for the Wizard to search available devices nearby. All available devices will appear on the search window. Select the device (e.g. RFID Reader) that

you want to connect. If the target device does not appear on the list, click [Search Again] to refresh the list. The RFID

Reader might enter power-saving mode during an idling time (=discoverable), and you can press the <Trigger> to have it active again. It will then stay active for a specified period of time (2 minutes by default) and wait for the host computer to establish a connection.

7) See SPP Slave connection below, click [Next].

1800 Series Handheld RFID Reader Reference Manual

See BT HID connection below, click [Next].

8) Enter the passkey for authentication, which must be exactly the same as configured for RFID Reader. Click [Next].

Chapter 3 Set Up a WPAN Connection

9) Wait for a few seconds for Windows to confirm the Passkey.

10) See SPP Slave connection below, click [Finish].

1800 Series Handheld RFID Reader Reference Manual

See BT HID connection below, click [Finish].

RFID Reader as

Bluetooth

SPP Slave

Note: When Bluetooth

random of PIN code is supported.

security is enabled without providing a pre-set PIN code, the

Chapter 3 Set Up a WPAN Connection

11) Now the RFID Reader will be listed as shown below.

Select and Remove

Note: When any changes are made to authentication and PIN code on the RFID Reader, or

you want to change RFID Reader to use Bluetooth

the connected RFID Reader from the paired device list (called unpairing) firstly and go through the whole process to re-establish the connection.

12) Run the desired application on your computer, such as HyperTerminal.exe if using Bluetooth

SPP or Notepad.exe if using Bluetooth Once the desired application is configured completely, the status of the RFID Reader listed on

the device list will be showed as “Connected”, indicating the WPAN connection is established successfully via the outgoing COM port if using Bluetooth

HID.

Note: Even though the RFID Reader is connected to the host with authentication disabled

(= no PIN code required), the host may still request a PIN code while the application is opening COM port. A random PIN code is supported so that you can input a matching PIN code on the RFID Reader. Refer to 3.1.2 Configure Related Settings

HID, it is suggested to remove

SPP Slave.

See the comparisons between Bluetooth

HyperTerminal configurations; refer to Using HyperTerminal

SPP and HyperTerminal below, for

1800 Series Handheld RFID Reader Reference Manual

luetooth

PP Connected

See the comparisons between Bluetooth

luetooth

HID and Notepad below:

PP Disconnected

Chapter 3 Set Up a WPAN Connection

luetooth

ID Connected

luetooth

ID Disconnected

1800 Series Handheld RFID Reader Reference Manual

3.1.4 BLUETOOTH® SPP MASTER

BLUETOOTH® SPP MASTER

1) Enable the Bluetooth

2) Double-click the Bluetooth

Alternatively, you may go to Control Panel > Bluetooth Devices.

3) Select Hardware tab and click [Properties].

function on the host computer.

icon located on the lower right of the taskbar.

4) In the Generic Bluetooth MACID of host computer.

Radio Properties window, select Advanced tab to see the Bluetooth

Chapter 3 Set Up a WPAN Connection

5) Enable HyperTerminal on the host computer and configure all the pre-processing about

Bluetooth

SPP Master connection.

Note: When any changes are made to Bluetooth

Bluetooth

connection by “#@bt_reset” command. Refer to 3.3.2 Reset a

type, it is suggested to reset the

1800 Series Handheld RFID Reader Reference Manual

Connection.

6) On the host computer, a Bluetooth the taskbar. Click it.

7) In the Add Bluetooth entered on the RFID Reader. The default value is 0000. Click [Next].

Device Wizard window, key in the passkey that is the same as you have

connection information box will pop-up on the lower right of

8) Click [Finish].

Chapter 3 Set Up a WPAN Connection

9) In the Bluetooth

Devices configured window will show you connected Device.

1800 Series Handheld RFID Reader Reference Manual

Note: When any changes are made to authentication and PIN code on the RFID Reader, or

you want to change to use Bluetooth

HID, it is suggested to remove the connected RFID Reader from the paired device list (called unpairing) firstly and go through the whole process to re-establish the connection.

10) Run the desired application on host computer, such as HyperTerminal.exe if using Bluetooth SPP or Notepad.exe if using Bluetooth

Once the desired application is configured completely, the status of the RFID Reader listed on the device list will be showed as “Connected”, indicating the WPAN connection is established successfully.

HID.

3.2 CONNECTING VIA 3610

Before 3610 connection, you have to configure the pre-processing about 3610 relative configurations by issuing command firstly. Refer to 2.6 USB HID via 3610

via 3610

or 2.7 USB VCOM

Note: If you are using USB VCOM for the first time, you must install its driver from the

CD-ROM. Driver version 5.4 or later is required. Please remove older versions! Refer to 2.1 USB Interface
