Cinelli Esperia VLB 40 Specification

Made with pride
in Canada

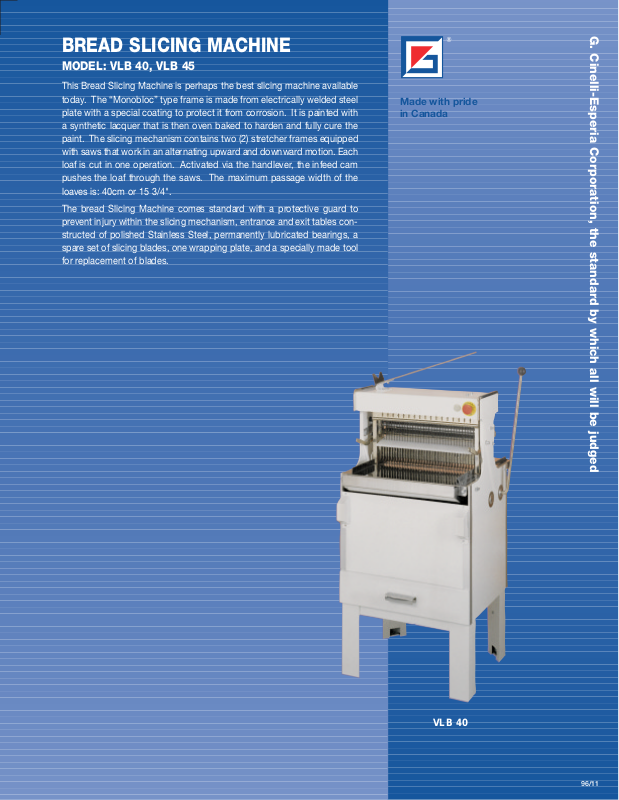

BREAD SLICING MACHINE

MODEL: VLB 40, VLB 45

This Bread Slicing Machine is perhaps the best slicing machine available
today. The “Monobloc” type frame is made from electrically welded steel
plate with a special coating to protect it from corrosion. It is painted with
a synthetic lacquer that is then oven baked to harden and fully cure the
paint. The slicing mechanism contains two (2) stretcher frames equipped
with saws that work in an alternating upward and downward motion. Each
loaf is cut in one operation. Activated via the handlever, the infeed cam
pushes the loaf through the saws. The maximum passage width of the
loaves is: 40cm or 15 3/4".

The bread Slicing Machine comes standard with a protective guard to
prevent injury within the slicing mechanism, entrance and exit tables con­structed of polished Stainless Steel, permanently lubricated bearings, a
spare set of slicing blades, one wrapping plate, and a specially made tool
for replacement of blades.

G. Cinelli-Esperia Corporation, the standard by which all will be judged

96/11

®

VLB 40

®

CINELLI

ESPERIA

CORPORATION

380 Chrislea Road,

Woodbridge, Ontario

L4L 8A8 Canada

Tel: [phone]

Fax: [phone]

www.gcinelli-esperia.com

® DESIGNATED TRADEMARK REGISTERED IN

CANADA, USA & MEXICO.

OWNED BY G. CINELLI - ESPERIA CORPORATION

96/13

TECHNICAL DATA

BREAD SLICING MACHINE MODEL VLB 40, VLB 45

METRIC IMPERIAL

SLICE THICKNESS [mm] 7, 9, 11, & 12.5 [in.] 1/4, 3/8, 7/16, 1/2
DIMENSIONS [cm] 63 x 68 x 132 avg. [in] 25 x 27 x 52 avg.
INSTALLED POWER [kW] .37 [hp] 1/2
WEIGHT [kg] 120 - 140 approx. [lb.] 264 - 308 approx.
PACKING VOLUME [m3] .56 avg. [cu.ft] 20 avg.
