Cinelli Esperia L4A-1P Specification

CINELLI

ESPERIA

CORPORATION

®

Manufacturers of

Quality Bakery Machinery

Since 1972.

Our Goal is Simple...

To Help You Reach Yours

G. CINELLI-ESPERIA CORPORATION®, the standard by which all will be judged

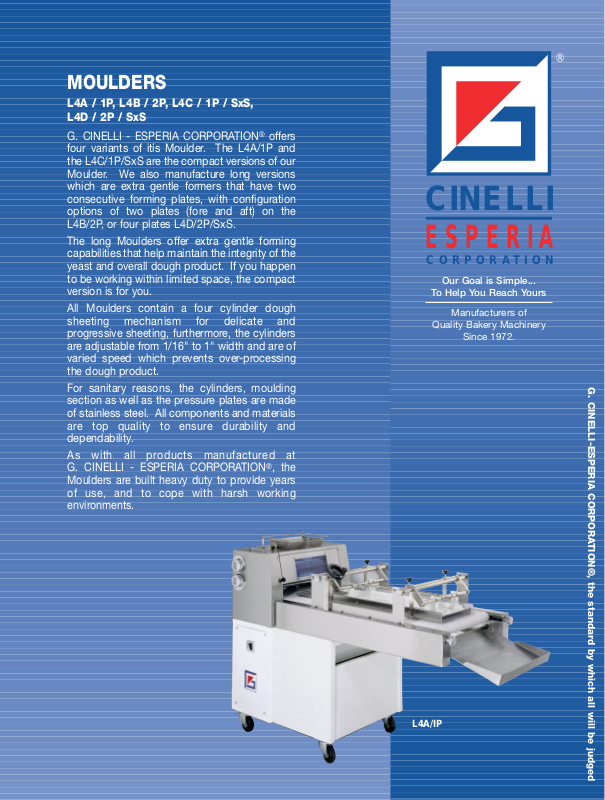

MOULDERS

L4A / 1P, L4B / 2P, L4C / 1P / SxS,
L4D / 2P / SxS

G. CINELLI - ESPERIA CORPORATION

®

offers
four variants of itís Moulder. The L4A/1P and
the L4C/1P/SxS are the compact versions of our
Moulder. We also manufacture long versions
which are extra gentle formers that have two
consecutive forming plates, with configuration
options of two plates (fore and aft) on the
L4B/2P, or four plates L4D/2P/SxS.

The long Moulders offer extra gentle forming
capabilities that help maintain the integrity of the
yeast and overall dough product. If you happen
to be working within limited space, the compact
version is for you.

All Moulders contain a four cylinder dough
sheeting mechanism for delicate and
progressive sheeting, furthermore, the cylinders
are adjustable from 1/16" to 1" width and are of
varied speed which prevents over-processing
the dough product.

For sanitary reasons, the cylinders, moulding
section as well as the pressure plates are made
of stainless steel. All components and materials
are top quality to ensure durability and
dependability.

As with all products manufactured at
G. CINELLI - ESPERIA CORPORATION

®

, the
Moulders are built heavy duty to provide years
of use, and to cope with harsh working
environments.

L4A/IP

®

TECHNICAL DATA

MOULDER MODELS L4A/1P, L4B/2P, L4C/1P/SxS, L4D/2P/SxS

METRIC IMPERIAL

End-product weight range [gr.] 60 - 1.36kg. [oz] 2oz - 3lb
DIMENSIONS [cm] 210x80x134 [in] 84x32x53 1/2
INSTALLED POWER [kW] .75 [hp] 1
WEIGHT [kg] 272 approx. [lb.] 600 approx.
PACKING VOLUME [m3] 2.25 [cu.ft.] 117.5

METRIC IMPERIAL

End-product weight range [gr.] 60 - 1.36kg. [oz] 2oz - 3lb
DIMENSIONS [cm] 244x80x134 [in] 97 1/2x32x53 1/2
Installed power [kW] 1.5 [hp] 2
Weight [kg] 363 approx. [lb.] 800 approx.
Packing volume [m3] 2.62 [cu.ft.] 135

G. CINELLI - ESPERIA CORPORATION®RESERVES THE RIGHT TO EFFECT CHANGES PRIOR TO NOTIFICATION. ALL DATA NOT BINDING.

L4A/1P - L4C/1P/SxS

L4B/2P - L4D/2P/SxS

CINELLI

®

ESPERIA

CORPORATION

380 Chrislea Road,

Woodbridge, Ontario

L4L 8A8 Canada

Tel: [phone]

Fax: [phone]

Web Site: www.gcinelli-esperia.com

Printed in Canada

® DESIGNATED TRADEMARK REGISTERED IN

CANADA, USA, MEXICO & RUSSIA

OWNED BY G. CINELLI - ESPERIA CORPORATION
