Cinelli Esperia CG-BAG Specification

CINELLI

ESPERIA

CORPORATION

®

Manufacturers of

Quality Bakery Machinery

Since 1972.

Our Goal is Simple...

To Help You Reach Yours

G. CINELLI-ESPERIA CORPORATION®, the standard by which all will be judged

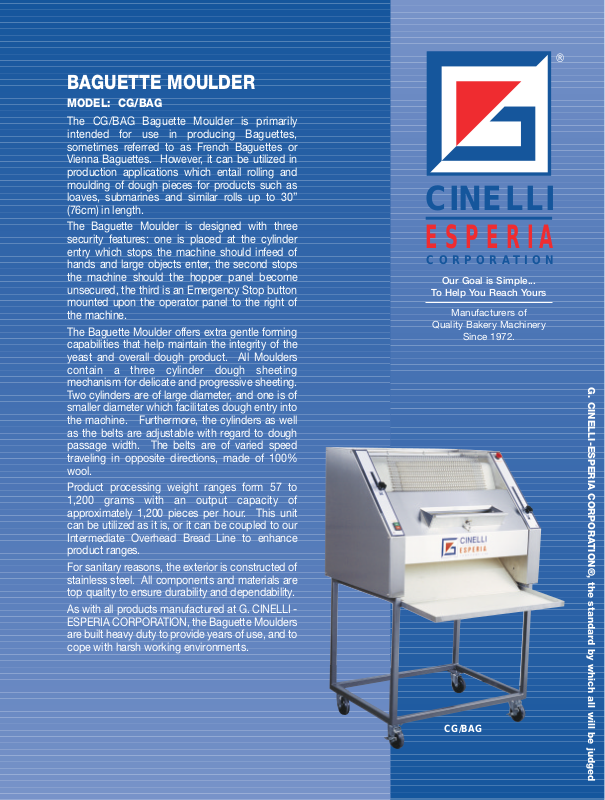

BAGUETTE MOULDER

MODEL: CG/BAG

The CG/BAG Baguette Moulder is primarily
intended for use in producing Baguettes,
sometimes referred to as French Baguettes or
Vienna Baguettes. However, it can be utilized in
production applications which entail rolling and
moulding of dough pieces for products such as
loaves, submarines and similar rolls up to 30”
(76cm) in length.

The Baguette Moulder is designed with three
security features: one is placed at the cylinder
entry which stops the machine should infeed of
hands and large objects enter, the second stops
the machine should the hopper panel become
unsecured, the third is an Emergency Stop button
mounted upon the operator panel to the right of
the machine.

The Baguette Moulder offers extra gentle forming
capabilities that help maintain the integrity of the
yeast and overall dough product. All Moulders
contain a three cylinder dough sheeting
mechanism for delicate and progressive sheeting.
Two cylinders are of large diameter, and one is of
smaller diameter which facilitates dough entry into
the machine. Furthermore, the cylinders as well
as the belts are adjustable with regard to dough
passage width. The belts are of varied speed
traveling in opposite directions, made of 100%
wool.

Product processing weight ranges form 57 to
1,200 grams with an output capacity of
approximately 1,200 pieces per hour. This unit
can be utilized as it is, or it can be coupled to our
Intermediate Overhead Bread Line to enhance
product ranges.

For sanitary reasons, the exterior is constructed of
stainless steel. All components and materials are
top quality to ensure durability and dependability.

As with all products manufactured at G. CINELLI ­ESPERIA CORPORATION, the Baguette Moulders
are built heavy duty to provide years of use, and to
cope with harsh working environments.

CG/BAG

®

TECHNICAL DATA

BAGUETTE MOULDER MODEL: CG/BAG

METRIC IMPERIAL

Dimensions [cm] 69 x 97 x 150 [in] 27" x 38" x 59"
Weight [kg] 225 approx. [lb] 496 approx.
Shipping Volume [m3] 1.9 [cu.ft.] 65
Installed Power [kW] .75 [HP] 1
Total Amperage [Amps] 3.8 @ 208/230-3-60

2.3 @ 380-3-50
Product Weight Range [grams] 57 - 1,200 [oz.] 3 - 42
Production Capacity 1,200 pieces per hour Maximum.

DIMENSIONS = (L x H x H)

ALL DATA NOT BINDING. G. CINELLI - ESPERIA CORPORATION®RESERVES THE RIGHT TO EFFECT MODIFICATIONS WITHOUT PRIOR NOTIFICATION.
