Cinelli Esperia CG-104 Specification

CG/104

Kaiser Roll Machine

CINELLI

ESPERIA

CORPORATION

®

Manufacturers of

Quality Bakery Machinery

Since 1972.

Our Goal is Simple...

To Help You Reach Yours

G. CINELLI-ESPERIA CORPORATION®, the standard by which all will be judged

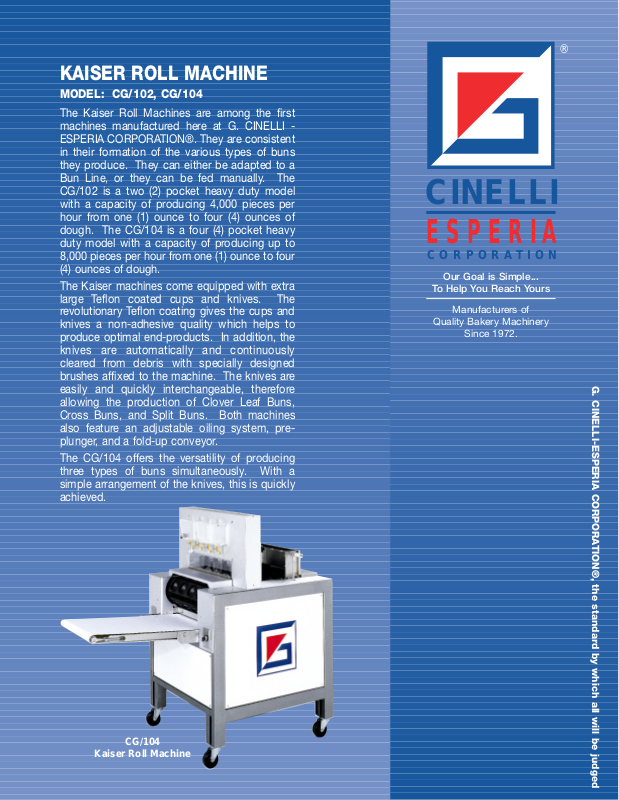

KAISER ROLL MACHINE

MODEL: CG/102, CG/104

The Kaiser Roll Machines are among the first
machines manufactured here at G. CINELLI ­ESPERIA CORPORATION®. They are consistent
in their formation of the various types of buns
they produce. They can either be adapted to a
Bun Line, or they can be fed manually. The
CG/102 is a two (2) pocket heavy duty model
with a capacity of producing 4,000 pieces per
hour from one (1) ounce to four (4) ounces of
dough. The CG/104 is a four (4) pocket heavy
duty model with a capacity of producing up to
8,000 pieces per hour from one (1) ounce to four
(4) ounces of dough.

The Kaiser machines come equipped with extra
large Teflon coated cups and knives. The
revolutionary Teflon coating gives the cups and
knives a non-adhesive quality which helps to
produce optimal end-products. In addition, the
knives are automatically and continuously
cleared from debris with specially designed
brushes affixed to the machine. The knives are
easily and quickly interchangeable, therefore
allowing the production of Clover Leaf Buns,
Cross Buns, and Split Buns. Both machines
also feature an adjustable oiling system, pre­plunger, and a fold-up conveyor.

The CG/104 offers the versatility of producing
three types of buns simultaneously. With a
simple arrangement of the knives, this is quickly
achieved.

®

TECHNICAL DATA

KAISER ROLL MACHINE MODEL CG/102 , CG/104

METRIC IMPERIAL

End-product weight range [gr.] 28.5 - 114 / 28.5 - 114 [oz.] 1 - 4 / 1 - 4
DIMENSIONS [cm] 117x61x147 / 117x83x147 [in] 46 x 24 x 58 / 46 x 32 1/2 x 58
INSTALLED POWER [kW] .4 / .4 [hp] 1/2 / 1/2
WEIGHT [kg] 181 / 250 approx. [lb.] 400 / 550 approx.
PACKING VOLUME [m3] 1.05 / 1.5 [cu.ft] 36 / 49

G. CINELLI - ESPERIA CORPORATION® RESERVES THE RIGHT TO EFFECT CHANGES PRIOR TO NOTIFICATION. ALL DATA NOT BINDING.
