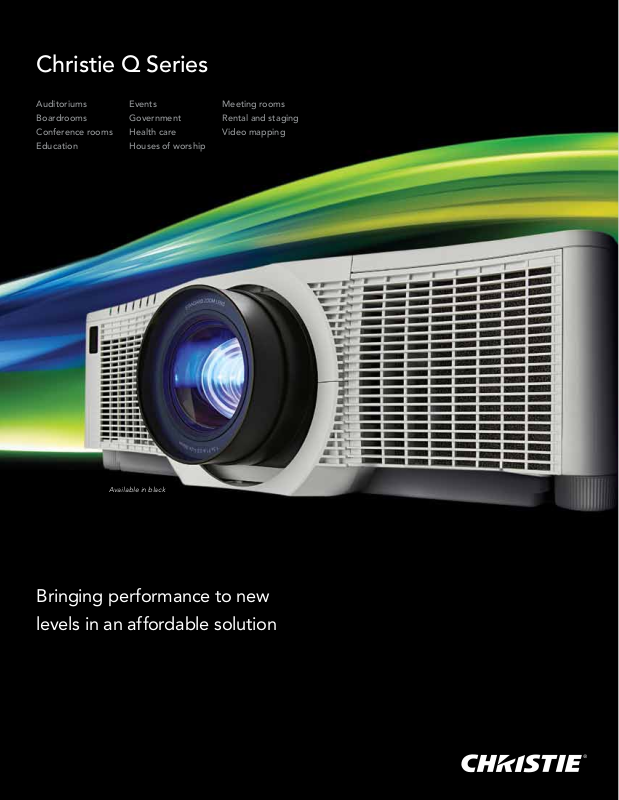

Christie DHD851-Q, DWU851-Q, DWX851-Q, DWX951-Q Product Sheet

Christie Q Series

Auditoriums

Boardrooms

Conference rooms

Education

Events

Government

Health care

Houses of worship

Meeting rooms

Rental and staging

Video mapping

Available in black

Bringing performance to new

levels in an affordable solution

Christie

Q Series

The Christie® Q Series takes projectors to a
new level of high-brightness to bring you the

®

industry’s highest-quality 1-chip DLP
Deliver your presentations and video content
clearly with image quality that you would expect
from Christie. With a range of projection options,
sleek overall style and high-performance features,
the Christie Q Series brings you superior image
processing, versatility and affordability.

projector.

Best-in-class brightness

Christie DWX851-Q
WXGA – 7500
ANSI lumens

Christie DWX951-Q
WXGA – 8500
ANSI lumens

Christie DXG1051-Q
XGA – 10,000
ANSI lumens

Christie DHD851-Q
HD – 7200
ANSI lumens

Christie DHD951-Q
HD – 8200
ANSI lumens

Christie DWU851-Q
WUXGA – 7500
ANSI lumens

Christie DWU951-Q
WUXGA – 8500
ANSI lumens

Advanced features for
superior image quality

CHRISTIE Q SERIES FEATURES

eClarity

Our eClarity advanced image processing enhances
your content by improving sharpness, gloss and
shading, perfect for making non-HD content look
like HD. Use eClarity to improve your standard and
high-definition content for a brilliant, true-to-life
image reproduction.

Unadjusted image

Sharpen Shade Gloss

Adjusted image

High Dynamic Contrast Range

High Dynamic Contrast Range (HDCR) improves
visual contrast to avoid giving content a washed
out effect in environments with a lot of ambient
light. HDCR helps by adjusting the dynamic contrast
level which will help recapture detail lost by excess
ambient light on the screen.

HDCR off

HDCR on

Built-in dual-color wheel

A set of two color wheels are built into the projector
and can be selected at a touch of a button. The built­in color wheels allow for easy switching between
high-brightness or ultra-rich color reproduction
mode, perfect for your presentation needs. In large
venues the high-brightness color wheel gives you
maximum output and superior white levels. The
ultra-rich color wheel expands the color gamut
for incredible reproduction that rivals cinema
color standards.

Rich color wheel

(RBGCY)

Brightness wheel

(RBGYW)

Advanced image control

Motion-adaptive de-interlace delivers improved
viewing of video content and fast-moving motion
graphics. On-image display of gamma and color
balance equalization allows you to manipulate
your image configuration in real time.

Standard video capture

Digital rapid motion-adaptive

de-interlacer

CHRISTIE Q SERIES DESIGN

Designed for
performance

Blending or
warping capabilities

Blending or warping are easy with the
new Q Series software and the use

1

of off-the-shelf standard cameras
The software and camera option allow
for easy and quick edge-blending
capabilities. You can also use the software
to setup multiple projectors for warping
images (advanced geometry correction)
or for multi-projector blending to create
large panoramic seamless displays.

Broad variety of lensing options

New lens shift capability with our ultra­short throw lenses allows you to install
projectors as close as necessary to your
projected image without compromising
display size.

.

360 degree projection Standard mode DICOM simulation mode

Portrait mode and
360 degree projection

Projectors can be used in portrait
orientation using existing lamps, reducing
your set-up time and minimizing extra
costs for special lamps. They can also be

Digital Imaging and Communication
in Medical (DICOM) simulation

DICOM simulation mode provides
enhanced grey scale levels for medical

3

training
part 14 specifications.

applications requiring DICOM

installed in a 360 degree configuration.

Built-in LCD information display

Enhanced lamp options

Dual-lamp design lets you maximize
brightness or extend lamp life. Lamps
can be used in relay, eco, auto backup
and balance mode. Lamp life is up to
2000 hours for standard mode, up to
4000 hours for eco 2-lamp and up to
8000 hours in optional lamp relay
modes. The lamps are also designed
to be swapped out without shutting

2

down the projector

.

The LCD display gives you real-time
diagnostic information, assisting
in network setup or helping with
troubleshooting. Examples of
some display options:

Lamp time
Filter hours
Projector usage
IP address

Multiple screens, or creative projection

Connectivity

on multiple areas, are not a problem with
up to three memory settings for lens shift,
zoom and focus recalls.

HDBaseT provides the latest in
intelligent and flexible connectivity,
simplifying installation and management
by allowing for video content, audio
and control to be delivered over low
cost CAT5/6e cabling to HDBaseT­compatible products.

1

Logitech : HD Pro Webcam C910 / HD Pro Webcam C920; Canon Digital SLR: T1i / T2i / T3 / T3i.

2

Please reference manual for activating feature.

3

Simulation mode is for training purposes only, not for medical diagnostics of actual patients.

3

Lens options4

Description Part number

0.8-1.0 extra short throw zoom 121-118101-01

1.2-1.8/1.1-1.7 short throw zoom 121-119102-01

1.7-2.6/1.6-2.4 standard zoom (WXGA/WUXGA) 121-120104-01

1.7-2.5 standard zoom (XGA) 121-121105-01

2.5-3.8/2.4-3.6 middle throw zoom 121-122106-01

3.6-5.8/3.7-5.9/3.5-5.6 long throw zoom 121-123107-01

5.7-9.1/5.8-9.2/5.5-8.8 extra long throw zoom 121-124108-01

Variety of
lens options
to choose from

Our suite of lenses give you
the range to install from a 0.8:1

4

all the way to a 9.2:1 throw ratio

Choice between black or white models in every resolution

.

LENS OPTIONS

Wireless presentation
and projector control

Using Christie® Q Series projectors and the
Christie QuickConnect App you can project

®

photos, documents and websites over Wi-Fi

™

from your iOS or Android
digital devices.

based mobile

Christie support and service

All Christie products are backed by industry-leading warranties,
renowned service and support. We ensure our customers are well
supported with training, service and technical support through our
extensive distribution and support network.

Christie has local support on five continents offering support for
international installations and global deployments.

We offer customer-centric service with years of extensive experience
in varieties of applications.

4

Throw ratio varies by resolution. See www.christiedigital.com for further information.

4


174.0
[6.8]

463.0
[18.2]

537.0
[21.1]

174.0
[6.8]

86.0
[3.4]

174.0
[6.8]

463.0

[18.2]

438.0
[17.2]

537.0
[21.1]

463.0
[18.2]

537.0
[21.1]

Display

Lamp

TECHNICAL SPECIFICATIONS

Inputs

Outputs
Control and networking
Lenses
Accessories

Enhanced feature sets

Power
requirements

Physical specs

Operating
environment

Regulatory

Limited warranty

brightness

contrast
uniformity
type
native resolution
color wheels
type
typical lifetime

standard

optional
signals
pixel clock
standard

standard

optional

operating voltage
consumption

operating current
dissipation
size
shipping size
weight
shipping weight
noise
operating temperature

altitude
humidity

Christie DWX851-Q Christie DHD851-Q Christie DWU851-Q

•

7500 ANSI lumen –
(7900 center lumens)

•

2500:1 full on/off

•

≤90% brightness uniformity

•

1-chip 0.65" DLP

•

WXGA (1280 x 800)

•

Built-in color wheel (CW) options: high-brightness CW segments = RGBYW/ultra rich CW segments = RGBYC

•

350W UHP x 2

•

Standard mode: up to 2000 hrs • Eco mode: up to 4000 hrs

•

Portrait mode: up to 1000 hrs

•

Computer D-sub 15 pin mini jack x 1 • BNC connector x 1 (composite) • HDMI connector x 2

•

DVI-D connector x 1 /RJ-45 x 1 (HDBaseT) • D-sub 9 pin x 1 (RS232c) • RJ-45 x 1 (LAN)

•

USB type A connector x 1 (Optional Wireless USB or PC-less) • Wired remote control (3.5mm)

•

5BNC connector x 1 • BNC connector
x 1 (composite)

•

Optional wireless dongle (USB)

•

525i(480i) • 525p(480p) • 625i(576i) • 1125i(1080i@50/60) • 750p(720p@50/60) • 1125p(1080p@50/60)

•

27 ~ 150 MHz

•

Computer out D-sub 15 pin mini jack x 1 • Wired remote control (3.5mm)

•

RJ-45 x 1 (LAN) • RJ-45 x 1 (HDBaseT) • D-sub 9 pin x 1 (RS232c)

•

For further details on lenses, please see www.christiedigital.com

•

Power cord (US cord, 3m) / (Euro code, 3m) /Power cord (China cord, 3m only for China models) • RGB cable (2m)

•

Wireless remote control / AA batteries x 2 • Adapter cover • Ferrite core and band x 2 • Cable tie x 2

•

User’s manual CD (safety guide) • Quick setup guide • Network quick setup guide • Operating guide • Network guide

•

Network guide • Instant stack guide • Technical guide • Software license agreement x 1 • User’s manual

•

Replacement lamp (003-005160-01)

•

Replacement hybrid filter (003-004775-X)

•

Optional wireless dongle (USB) (121-116109-XX) • Replacement remote

•

2 HDMI input • eClarity and HDCR • Built-in ultra-rich color wheel • HDBaseT • Portrait mode capable

•

Edge blending • Geometric correction • Status monitor display • Motorized zoom, focus and lens shift with memory

•

PC-less presentation • 3G-SDI (HD models only)

•

110-120 VAC • 220-240 VAC

•

AC110-120V, 50/60Hz 860W • AC220-240V, 50/60Hz 810W

•

Less than 0.5W @ standby with saving. (AC230V) • Saving mode disables MONITOR OUT, AUDIO OUT, speaker sound,
LAN communication and RS232C control except Power ON command in standby

•

8.8A +10% or less at 110-120 VAC • 4.3A+10% or less at 220-240 VAC

•

2935 BTU/hr (110-120V) • 2765 BTU/hr (220-240V)

•

(LxWxH) 18.2 x 21.1 x 6.9" (463 x 537 x 174mm) without lens and feet in minimum position

•

(LxWxH) 22.1 x 29.3 x 12.4" (561 x 743 x 315mm) without lens and feet in minimum position

•

37.5lbs (17kg)

•

49.6lbs (22.5kg)

•

Standard mode: 36dBA • Eco mode: 29dBA

•

32-113°F (0-45°C) from sea level to 5249ft (1600m)

•

32-104°F (0-40°C) from 5249ft (1600m) to 10,000ft (3048m)

•

0-10,000ft (3048m)

•

10-80% non-condensing

•

This product conforms to the following regulations related to product safety, environmental requirements and
electromagnetic compatibility (EMC)

•

EN55024 / CISPR24 • IEC 60950-1 • UL 60950-1 • EN 60950-1 • CAN/CSA C22.2 No. 60950-1 • Directive 2011/65/EU (RoHS)

•

Directive 2012/19/EU (WEEE) • EU Regulation (EC) No. 1907/2006 (REACH)

•

Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), EAC (Russia), RCM
(Australia and New Zealand), India (BIS), Mexico (NOM), Saudi Arabia, South Africa

•

Three years parts and labor limited warranty • Lamp: 500 hours or one year (whichever comes first)

•

Contact an authorized Christie representative for full details of our limited warranty

•

7200 ANSI lumens –
(7500 center lumens)

•

1-chip 0.65" DLP

•

HD (1920 x 1080)

•

3G-SDI
(only available on DHD851-Q)

•

FCC, Part 15, Subpart B, Class A • EN55022/CISPR22 Class A • ICES/NMB003 (A)

•

7500 ANSI lumens –
(7900 center lumens)

•

1-chip 0.67" DLP

•

WUXGA (1920 x 1200)

•

5BNC connector x 1 • BNC connector
x 1 (composite)

Top view

5

537.0
[21.1]

438.0
[17.2]

463.0
[18.2]

Bottom view

200.0
[7.9]

100.0
[3.9]

200.0

A

A

[7.9]

176.0
[6.9]


Operational

24 7

FOR

174.0
[6.8]

463.0

[18.2]

438.0
[17.2]

537.0
[21.1]

463.0
[18.2]

537.0
[21.1]

174.0
[6.8]

463.0

[18.2]

438.0
[17.2]

537.0
[21.1]

463.0
[18.2]

537.0
[21.1]

brightness

contrast
uniformity

Display

type
native resolution
color wheels

Lamp

type
typical lifetime

Inputs

standard

optional
signals
pixel clock

Outputs

standard

Control and networking
Lenses
Accessories

standard

optional

Enhanced feature sets

Power
requirements

operating voltage
consumption

operating current
dissipation

Physical specs

size
shipping size
weight
shipping weight

Operating
environment

noise
operating temperature

altitude

Regulatory

humidity

Limited warranty

Front view

Christie DWX951-Q Christie DHD951-Q Christie DWU951-Q Christie DXG1051-Q

•

8500 ANSI lumen –
(8900 center lumens)

•

2500:1 full on/off

•

≤90% brightness uniformity

•

1-chip 0.65" DLP

•

WXGA (1280 x 800)

•

Built-in color wheel (CW) options: high-brightness CW segments = RGBYW/ultra rich CW segments = RGBYC

•

370W P-VIP x 2

•

Standard mode: up to 2000 hrs • Eco mode: up to 4000 hrs

•

Portrait mode: up to 500 hrs•Portrait mode: up to 1000 hrs•Portrait mode: up to 500 hrs•Portrait mode: up to 500 hrs

•

Computer D-sub 15 pin mini jack x 1 • BNC connector x 1 (composite) • HDMI connector x 2

•

DVI-D connector x 1 /RJ-45 x 1 (HDBaseT) • D-sub 9 pin x 1 (RS232c) • RJ-45 x 1 (LAN)

•

USB type A connector x 1 (Optional Wireless USB or PC-less) • Wired remote control (3.5mm)

•

5BNC connector x 1

•

BNC connector x 1
(composite)

•

Optional wireless dongle (USB)

•

525i(480i) • 525p(480p) • 625i(576i) • 1125i(1080i@50/60) • 750p(720p@50/60) • 1125p(1080p@50/60)

•

27 ~ 150 MHz

•

Computer out D-sub 15 pin mini jack x 1 • Wired remote control (3.5mm)

•

RJ-45 x 1 (LAN) • RJ-45 x 1 (HDBaseT) • D-sub 9 pin x 1 (RS232c)

•

For further details on lenses, please see www.christiedigital.com

•

Power cord (US cord, 3m) / (Euro code, 3m) /Power cord (China cord, 3m only for China models) • RGB cable (2m)

•

Wireless remote control / AA batteries x 2 • Adapter cover • Ferrite core and band x 2 • Cable tie x 2

•

User’s manual CD (safety guide) • Quick setup guide • Network quick setup guide • Operating guide • Network guide

•

Network guide • Instant stack guide • Technical guide • Software license agreement x 1 • User’s manual

•

Replacement lamp
(003-004774-XX)

•

Replacement hybrid filter (003-004775-X)

•

Optional wireless dongle (USB) (121-116109-XX) • Replacement remote

•

2 HDMI input • eClarity and HDCR • Built-in ultra-rich color wheel • HDBaseT • Portrait mode capable

•

Edge blending • Geometric correction • Status monitor display • Motorized zoom, focus and lens shift with memory

•

PC-less presentation • 3G-SDI

•

110-120 VAC • 220-240 VAC

•

AC110-120V, 50/60Hz 1060W • AC220-240V, 50/60Hz 990W

•

Less than 0.5W @ standby with saving. (AC230V) • Saving mode disables MONITOR OUT, AUDIO OUT, speaker sound,
LAN communication and RS232C control except Power ON command in standby

•

10.5A +10% or less at 110-120 VAC • 5.2A+10% or less at 220-240 VAC

•

3618 BTU/hr (110-120V) • 3379 BTU/hr (220-240V)

•

(LxWxH) 18.2 x 21.1 x 6.9" (463 x 537 x 174mm) without lens and feet in minimum position

•

(LxWxH) 22.1 x 29.3 x 12.4" (561 x 743 x 315mm) without lens and feet in minimum position

•

37.5lbs (17kg)

•

49.6lbs (22.5kg)

•

Standard mode: 36dBA • Eco mode: 29dBA

•

32-113°F (0-45°C) from sea level to 5249ft (1600m)

•

32-104°F (0-40°C) from 5249ft (1600m) to 10,000ft (3048m)

•

0-10,000ft (3048m)

•

10-80% non-condensing

•

This product conforms to the following regulations related to product safety, environmental requirements and
electromagnetic compatibility (EMC)

•

EN55024 / CISPR24 • IEC 60950-1 • UL 60950-1 • EN 60950-1 • CAN/CSA C22.2 No. 60950-1 • Directive 2011/65/EU (RoHS)

•

Directive 2012/19/EU (WEEE) • EU Regulation (EC) No. 1907/2006 (REACH)

•

Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), EAC (Russia), RCM
(Australia and New Zealand), India (BIS), Mexico (NOM), Saudi Arabia, South Africa

•

Three years parts and labor limited warranty • Lamp: 500 hours or one year (whichever comes first)

•

Contact an authorized Christie representative for full details of our limited warranty

•

8200 ANSI lumens –
(8500 center lumens)

•

1-chip 0.65" DLP

•

HD (1920 x 1080)

•

3G-SDI
(only available on DHD951-Q)

•

Replacement lamp
(003-005053-01)

•

FCC, Part 15, Subpart B, Class A • EN55022/CISPR22 Class A • ICES/NMB003 (A)

•

8500 ANSI lumens –
(8900 center lumens)

•

1-chip 0.67" DLP

•

WUXGA (1920 x 1200)

•

5BNC connector x 1

•

BNC connector x 1
(composite)

•

Replacement lamp
(003-004774-XX)

•

10,000 ANSI lumens –
(10,400 center lumens)

•

2000:1 full on/off

•

1-chip 0.7" DLP

•

XGA (1024 x 768)

•

5BNC connector x 1

•

BNC connector x 1
(composite)

•

Replacement lamp
(003-004774-XX

Right side view

86.0
[3.4]

174.0
[6.8]

463.0
[18.2]

TECHNICAL SPECIFICATIONS

24 7

Operation

CHRISTIE LCD,

1-CHIP AND 3-CHIP DLP

®

6

Corporate offices Worldwide offices

Christie Digital Systems USA, Inc
USA – Cypress
ph: 714 236 8610

Christie Digital Systems Canada Inc.
Canada – Kitchener
ph: 519 744 8005

Independent sales
consultant offices

Italy
ph: [phone]

For the most current specification information, please visit www.christiedigital.com

Copyright 2014 Christie Digital Systems USA, Inc. All rights reserved. All brand names and product names are trademarks, registered trademarks

or tradenames of their respective holders. Christie Digital Systems Canada Inc.’s management system is registered to ISO 9001 and ISO 14001.
Performance specifications are typical. Due to constant research, specifications are subject to change without notice.
Printed in Canada on recycled paper. 3983 Dec 14

Australia
ph: [phone]

Brazil
ph: [phone]

China (Beijing)
ph: [phone]

China (Shanghai)
ph: [phone]

Eastern Europe and
Russian Federation
ph: [phone]

France
ph: [phone]

Germany
ph: [phone]

India
ph: [phone]

Japan (Tokyo)
ph: 81 3 3599 7481

Korea (Seoul)
ph: [phone]

Republic of South Africa
ph: [phone]

Singapore
ph: [phone]

Spain
ph: [phone]

United Arab Emirates
ph: [phone]

United Kingdom
ph: [phone]
