The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
Version Date Page Description
0.0 Jan.18, 2011 All Spec Ver.0.0 was first issued.
REVISION HISTORY
www.jxlcd.com
www.jxlcd.com
Version 0.0 18 January 2011 3 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N097XCE-LB1 is a 9.7” (9.7” diagonal) TFT Liquid Crystal Display module with LED Backlight unit
and 30 pins LVDS interface. This module supports 1024 x 768 WSVGA mode and can display
262,144 colors.
1.2 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Screen Size 9.7 diagonal
Driver Element a-si TFT active matrix - Pixel Number 1024 x R.G.B. x 768 pixel Pixel Pitch 0.192 (H) x 0.192 (V) mm Pixel Arrange ment RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally Black - Surface Treatment Glare - Luminance, White 400nits Cd/m2
Power Consumption
Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS =
Total 3 W (Typ.) @ Logic 0.9 W (Typ.), LED Backlight 2.1
W(Typ.)
(1)(2)
3.3 V, fv = 60 Hz and Ta = 25 ± 2 ºC, whereas mosaic pattern is displayed.
Note (2) The LED Backlight power consumption shown above does not include power of external LED
driver circuit for typical current condition.
www.jxlcd.com
www.jxlcd.com
Version 0.0 18 January 2011 4 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
2. MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 210.23 210.53 210.83 mm
Module Size
Bezel Area
Active Area
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
2.1 CONNECTOR TYPE
Vertical (V) 166.23 166.53 166.83 mm
Thickness (T) - - 5.82 mm
Horizontal 201.81 202.01 202.21 mm
Vertical 156.66 152.86 153.06 mm
Horizontal - 196.61 - mm
Vertical - 147.46 - mm
Weight - - 156 g
(1)
Pin1
www.jxlcd.com
www.jxlcd.com

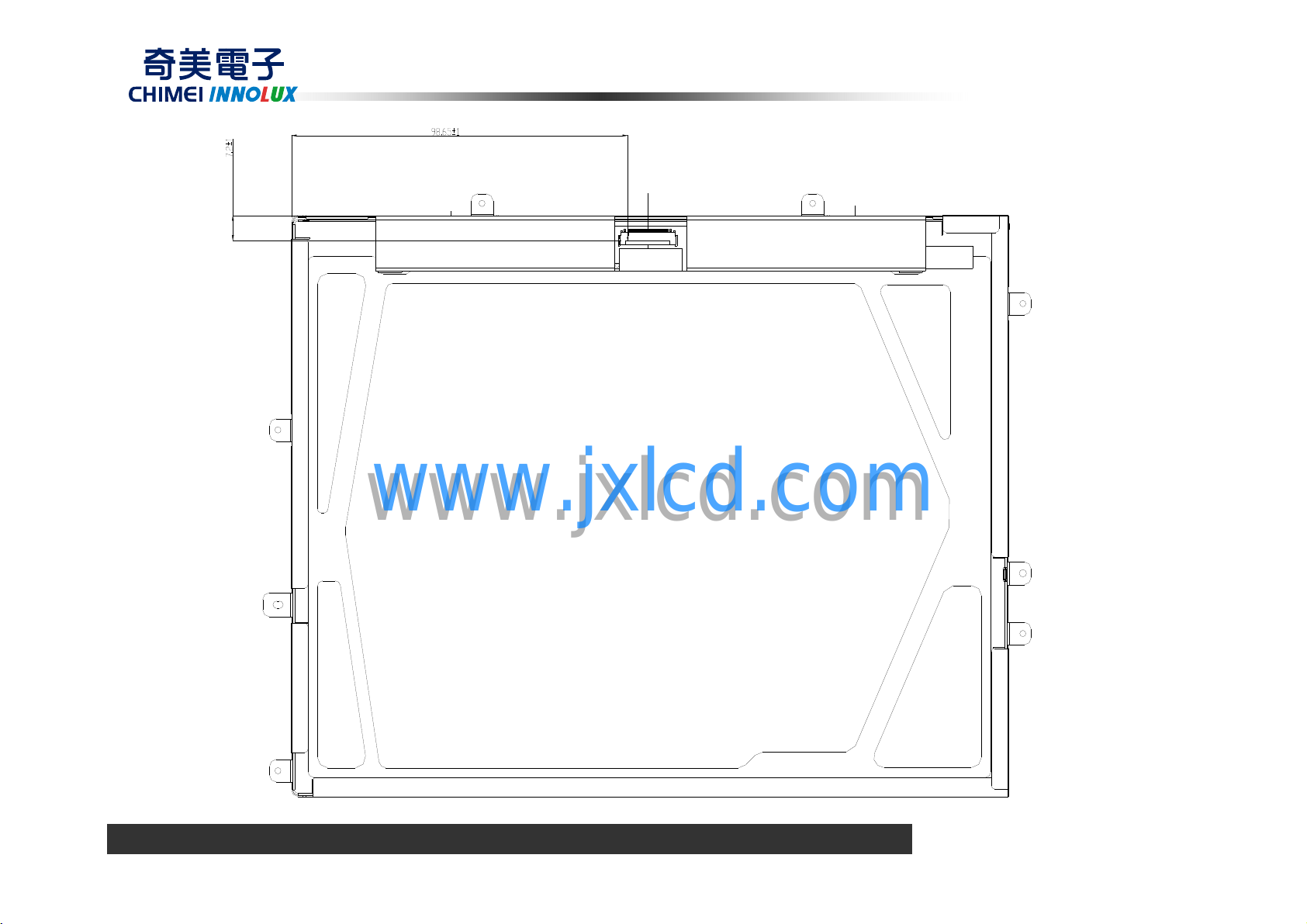

Please refer Appendix Outline Drawing for detail design.
Connector Part No.: IPEX 20474-030E-12
User’s connector Part No: IPEX 20472-030T-10 or equivalent
Pin30
Version 0.0 18 January 2011 5 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
3. ABSOLUTE MAXIMUM RATINGS
3.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +70 ºC (1)
Operating Ambient T emperature TOP -10 +60 ºC (1), (2)
Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be -10 ºC min. and 70 ºC max.
www.jxlcd.com
www.jxlcd.com
-50-30-101030507090
Rel a ti v e Humi d it y
(%RH)
100
90
80
70
60
50
40
30
20
10
0
Temperature (ºC)
Min. Max.
Value
Unit Note
3.2 ELECTRICAL ABSOLUTE RATINGS
3.2.1 TFT LCD MODULE
Item Symbol
Min. Typ Max.
Logic/LCD Drive Voltage Vcc -0.3 - 3.8 V (1)
Note (1) Stresses beyond those listed in above “ELECTRICAL ABSOLUTE RATINGS” may cause
permanent damage to the device. Normal operation should be restricted to the conditions
described in “ELECTRICAL CHARACTERISTICS”.
Value
Unit Note
Version 0.0 18 January 2011 6 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Vcc Power Supply (+3.3V Typ.)
Vcc Power Supply (+3.3V Typ.)
NC NC
DATA EDID DDC Data
Rin0- LVDS Differential Data Input
Rin0+ LVDS Differential Data Input
GND Ground
Rin1- LVDS Differential Data Input
Rin1+ LVDS Differential Data Input
GND Ground
Rin2- LVDS Differential Data Input
Rin2+ LVDS Differential Data Input
GND Ground
CLK in- LVDS Diff erential Clock Input
CLK in+ LVDS Diff erential Clock Input
GND Ground
NC NC
Vdc LED Annold (Positive)
Version 0.0 18 January 2011 7 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
22
23
24
25
26
27
28
29
30
Vdc LED Annold (Positive)
NC NC
Vdc1 LED Cathode (Negative)
Vdc2 LED Cathode (Negative)
Vdc3 LED Cathode (Negative)
Vdc4 LED Cathode (Negative)
Vdc5 LED Cathode (Negative)
Vdc6 LED Cathode (Negative)
NC NC
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD ELETRONICS SPECIFICATION
Parameter Symbol
Min. Typ. Max.
Logic/LCD Drive Voltage Vcc 3.0 3.3 3.6 VDC
Icc Current Icc -- 270 280 mA 1
Icc Power Pcc -- 0.9 0.95 Watt 1
Inrush Current IRush -- -- 1.5 A 2
Allowable
Logic/LCD Drive Ripple Voltage
Vcc
Ripple
-- -- 100 mV
Value
Unit Note
p-p
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

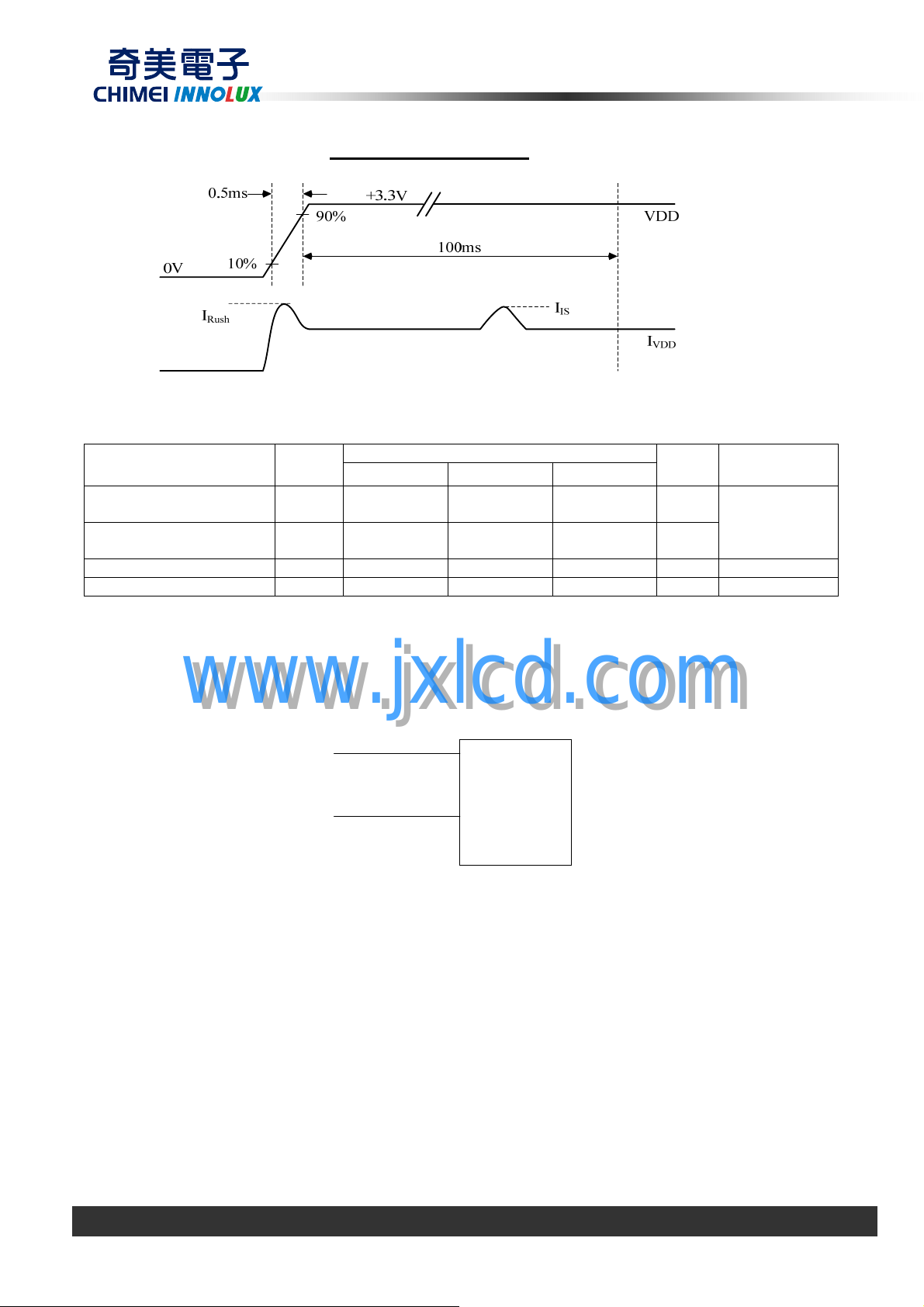

Note (2) I
: the maximum current when VDD is rising
RUSH
www.jxlcd.com
I
: the maximum current of the first 100ms after power-on
www.jxlcd.com
IS
Measurement Conditions: Shown as the following figure. Test pattern: black.
+3.3V
Q1 2SK1475
VR1
R1
47K
Q2
2SK1470
C2
47K
R2
1K
0.01uF
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
FUSE
C3
1uF
VDD
(LCD Module Input)
Version 0.0 18 January 2011 8 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
VDD rising time is 0.5ms
4.3.2 BACKLIGHT UNIT
Ta = 25 ± 2 ºC
Parameter Symbol
LED Light Bar Power
Supply Volt age
LED Light Bar Power
Supply Current
Power Consumption PL - 2.1 2.3 W (3)
LED Life Time LBL 12000 - - Hrs (4)
L - 17.1 17.7 V
V
I
L - 120 - mA
Min. Typ. Max.
Value
Unit Note
(1)(2)(Duty100%)
Note (1) LED current is measured by utilizing a high frequency current meter as shown below :
Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with
current balancing function to drive LED light-bar.
Note (3) P
Note (4) The lifetime of LED is defined as the time when it continues to operate under the cond itions at Ta = 25 ±2
o
www.jxlcd.com
www.jxlcd.com
V
L, IL
LED
Light Bar Feedback
Channels
= IL ×VL (Without LED converter transfer efficiency)
L
C and IL = 20 mA(Per EA) until the brightness becomes 50% of its original value.≦
Light Bar
Version 0.0 18 January 2011 9 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
|
|

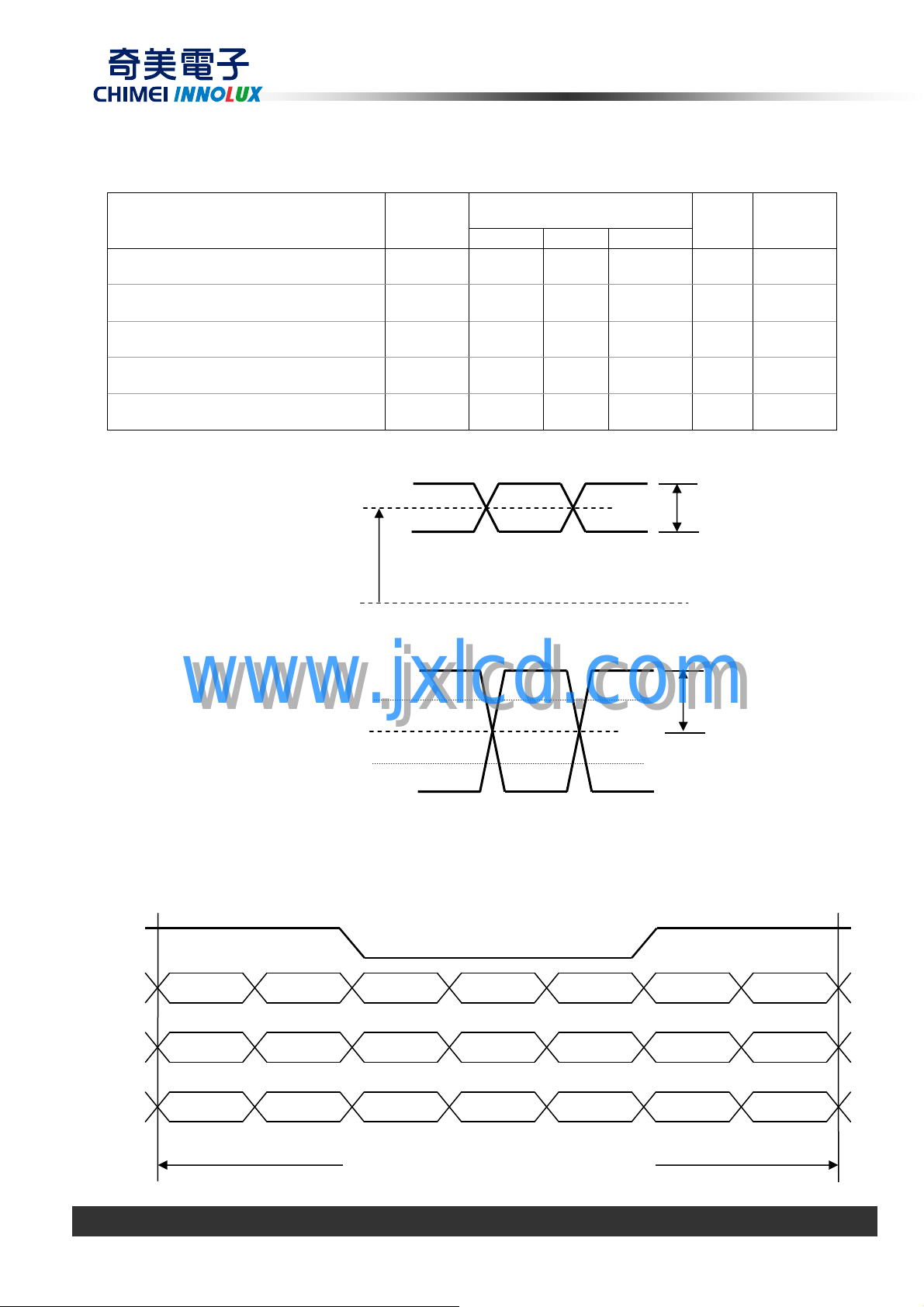

4.4 LVDS INPUT SIGNAL TIMING SPECIFICATIONS
4.4.1 LVDS DC SPECIFICATIONS
Parameter Symbol
Min. Typ. Max.
LVDS Differential Input High Threshold V
LVDS Differential Input Low Threshold V
LVDS Common Mode V oltage VCM |VID|/2 - 2.4-|VID|/2 V (1)
LVDS Differential Input Voltage |VID| 200 - 600 mV (1)
L VDS Terminating Resistor RT - 100 - Ohm -
Note (1) The parameters of LVDS signals are defined as the following figures.
V
CM
TH(LVDS)
-100 - - mV
TL(LVDS)
- - +100 mV
Value
Unit Note
V
V
VID|
Single Ended
0V
(1),
=1.2V
CM
(1)
=1.2V
CM
www.jxlcd.com
www.jxlcd.com
Differential
4.4.2 LVDS DATA FORMAT
6 bit LVDS input:
CLK+
Rxin0
Rxin1
Rxin2
G0 R5 R4 R3 R2 R1 R0
B1 B0 G5 G4 G3 G2 G1
DE
V
0V
V
VS HS B5 B4 B3 B2
VID|
Signal for 1 DCLK Cycle (T)
Version 0.0 18 January 2011 10 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
4.4.3 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 6/8-bit gray scale data input
for the color. The higher the binary input the brighter the color. The table below provides the assignment
of color versus data input.
6 bits data input:
Data Signal
Color
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green
Basic
Colors
Gray
Scale
Of
Red
Gray
Scale
Of
Green
Gray
Scale
Of
Blue
Note (1) 0: Low Level Volt age, 1: High Level Voltage
Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
4.5 DISPLAY TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item SymbolMin. Typ. Max. Unit Note
DCLK Frequency 1/Tc TBD 64 TBD MHz -
Vertical Total Time TV TBD 806 TBD TH -
Vertical Active Display Period TVD 768 768 768 TH -
DE
Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.
DE
DCLK
DE
Vertical Active Blanking Period TVB TV-TVD38 TV-TVD TH -
Horizontal Total Time TH TBD 1344TBD Tc -
Horizontal Active Display Period THD 102410241024 Tc -
Horizontal Active Blanking Period THB
INPUT SIGNAL TIMING DIAGRAM
www.jxlcd.com
www.jxlcd.com
TC
TH-THD
HD
T
320
TH-THD
Tc -
DATA
Version 0.0 18 January 2011 12 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION

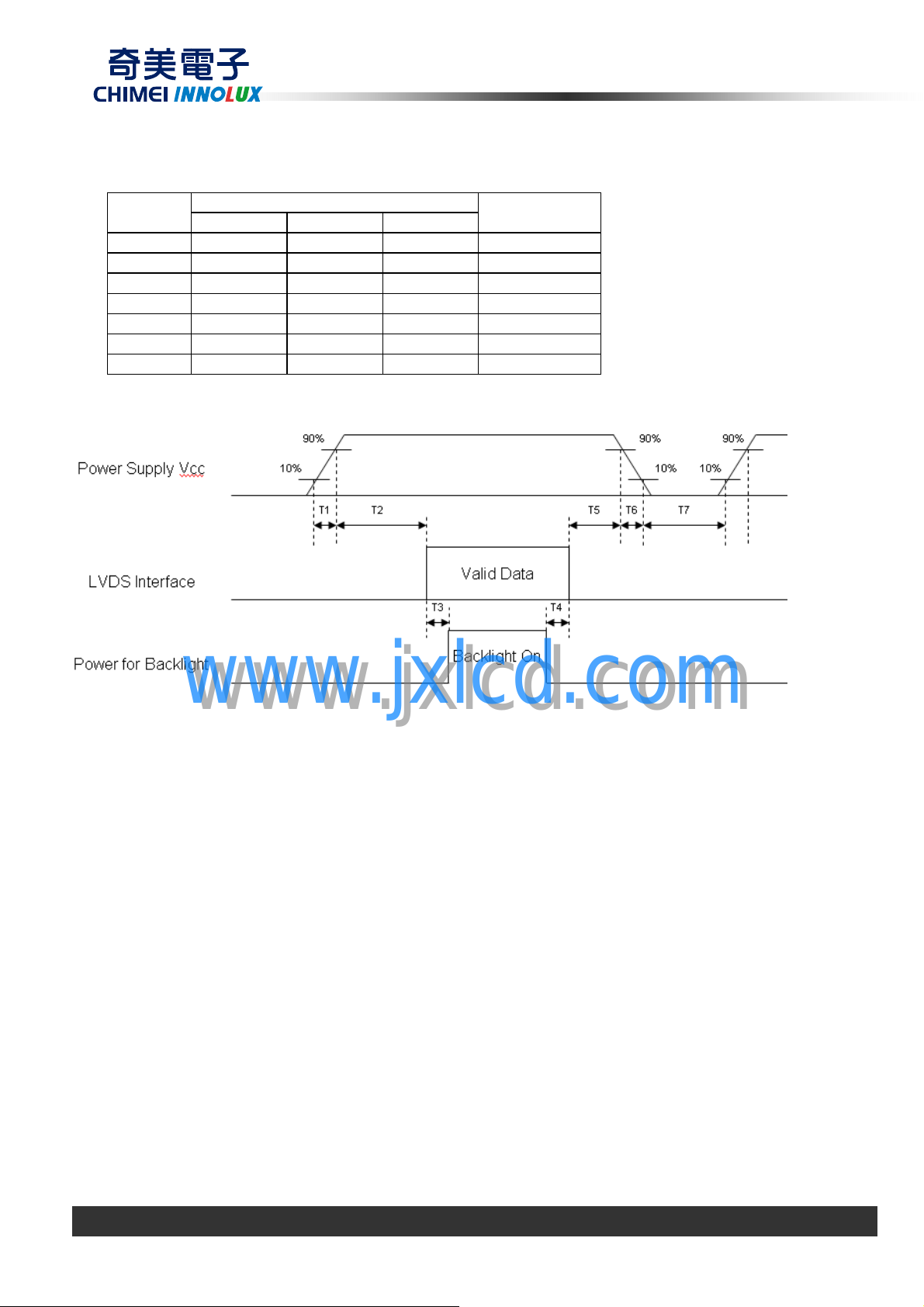

4.6 POWER ON/OFF SEQUENCE
The power sequence specifications are shown as the following table and diagram.
Symbol
T1 0.5 -- 10 ms
T2 0 -- 50 ms
T3 200 -- -- ms
T4 200 -- -- ms
T5 0 -- 50 ms
T6 0 -- 10 ms
T7 500 -- -- ms
Min. Typ. Max.
Value
Unit
www.jxlcd.com
www.jxlcd.com
Note (1) Please don’t plug the interfa ce cable of on when system is turned on.
Note (2) Please avoid floating state of the interface signal during signal invalid period.
Note (3) It is recommended that the backlight power must be turned on after the power supply for LCD and the
interface signal is valid.
Version 0.0 18 January 2011 13 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
θ
θx−
θx+
θ
θ
y
5. OPTICAL CHARACTERISTICS
5.1 TEST CONDITIONS
Item Symbol Value Unit
Ambient Temperature T a
Ambient Humidity Ha
Supply Volt age VCC 3.3 V
Input Signal According to typical value i n "3. ELECTRICAL CHARACTERISTICS"
LED Light Bar Input Current IL 120 mA
The measurement methods of optical characteristics are shown in Section 5.2. The following items
should be measured under the test conditions described in Section 5.1 and stable environment shown in
Note (5).
25±2
50±10
5.2 OPTICAL SPECIFICATIONS
Item Symbol Condition Min. Typ. Max. UnitNote
Contrast Ratio CR 600 800 - -
Response Time
Average Luminance of White
Red
Color
Chromaticity
Viewing Angle
White Variation of 5 Points
Note (1) Definition of Viewing Angle (θx, θy):
www.jxlcd.com
www.jxlcd.com
Green
Blue
White
Horizontal
Vertical
TR - (13) - ms
T
- (12) - ms
F
L
AVE
Rx
Ry
Gx
Gy
Bx
By
Wx (0.313) Wy
θ
+
x
θ
-
x
θ
+
Y
-
θ
Y
δW
5p
=0°, θY =0°
θ
x
Viewing Normal Angle
CR≥10
θ
=0°, θY =0°
x
Normal
x =
= 0º
θy- θy+
350 400 - cd/m
TBD
TBD
TBD
Typ -
0.05
70 80 - %
TBD
TBD
TBD
(0.329)
- 85 -
- 85 -
- 85 -
- 85 -
Typ +
0.05
o
C
%RH
-
-
-
-
-
-
-
Deg.
2
(2),
(5),(7)
(3),(7)
(4),
(6),(7)
(1),(7)
(1),(5),
(7)
(5),(6),
(7)
θX- = 90º
6 o’clock
θ
y- = 90º
x-
y-
12 o’clock direction
y+
y+ = 90º
x+
θX+ = 90º
Version 0.0 18 January 2011 14 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0
CR = CR (1)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
PRODUCT SPECIFICATION
Note (3) Definition of Response Time (T
Note (4) Definition of Average Luminance of White (L
100%
90%
Optical
Response
10%
0%
www.jxlcd.com
www.jxlcd.com
66.67 ms
Measure the luminance of gray level 63 at 5 points
L
= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5
AVE
L (x) is corresponding to the luminance of the point X at Figure in Note (6)
R
T
F
, TF):
AVE
):
66.67 ms
Time
T
R
Version 0.0 18 January 2011 15 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
Note (5) Measurement Setup:
(
A
)
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
LCD M odule
LCD P anel
USB2000
or equivalent
PRODUCT SPECIFICATION
or equivalent
CS-2000T
Center of the S creen
500 mm
Note (6) Definition of White Variation (δW):
Measure the luminance of gray level 63 at 5 points
= {Minimum [L (1) ~ L (5)] / Maximum [L (1) ~ L (5)]}*100%
δW
5p
www.jxlcd.com
www.jxlcd.com
10mm
6
H/4
H
9
2
Light Shield Room
mbient Luminance < 2 l u x
7
3
1
8
10
X
: Test Point
X=1 to 13
45
H/4H/4H/4
Note (7) The listed optical specifications refer to the initial value of manufacture, but the condition of
the specifications after long-term operation will not be warranted.
10mm
11
10mm10mm
W/4W/4W/4W/4
12
W
13
Active area
Version 0.0 18 January 2011 16 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
6. RELIABILITY TEST ITEM
Test Item Test Condition Note
High Temperature S torage Test 65ºC, 240 hours
Low Temperature Storage Test -25ºC, 240 hours
Thermal Shock Storage Test
-25ºC, 0.5hour←→65℃, 0.5hour; 100cycles, 1hour/cycle
High Temperature Operation Test 50ºC, 240 hours
Low Temperature Operation Test 0ºC, 240 hours
High Temperature & High Humidity
Operation Test
ESD Test (Operation)
Shock (Non-Operating)
Vibration (Non-Operating) 3Grms random vibration, 5~500Hz, 15Min/ axis (1)(3)
Note (1) criteria : Normal display image with no obvious non-uniformity and no line defect.
Note (2) Evaluation should be tested after storage at room temperature for more than two hour
Note (3) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough
www.jxlcd.com
www.jxlcd.com
so that the module would not be twisted or bent by the fixture.
220G, 2ms, half sine wave,1 time for each direction of
±X,±Y,±Z
(1) (2)
(1)
(1)(3)
Version 0.0 18 January 2011 17 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
7. PACKING
7.1 MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.
TBD
(a) Model Name: N097XCE – LB1
(b) Revision: Rev. XX, for example: C1, C2 …etc.
(c) Serial ID: X X
Serial ID includes the information as below:
(a) Manufactured Date: Year: 0~9, for 2010~2019
www.jxlcd.com
www.jxlcd.com
Day: 1~9, A~Y, for 1
(b) Revision Code: cover all the change
(c) Serial No.: Manufacturing sequence of product
X X X X X Y M D L N N N N
Month: 1~9, A~C, for Jan. ~ De c.
Serial No.
Product Line
Year, Month, Date
CMO Internal Use
Revision
CMO Internal Use
st
to 31st, exclude I , O and U
(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.
Version 0.0 18 January 2011 18 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
7.2 CARTON
PRODUCT SPECIFICATION
www.jxlcd.com
www.jxlcd.com

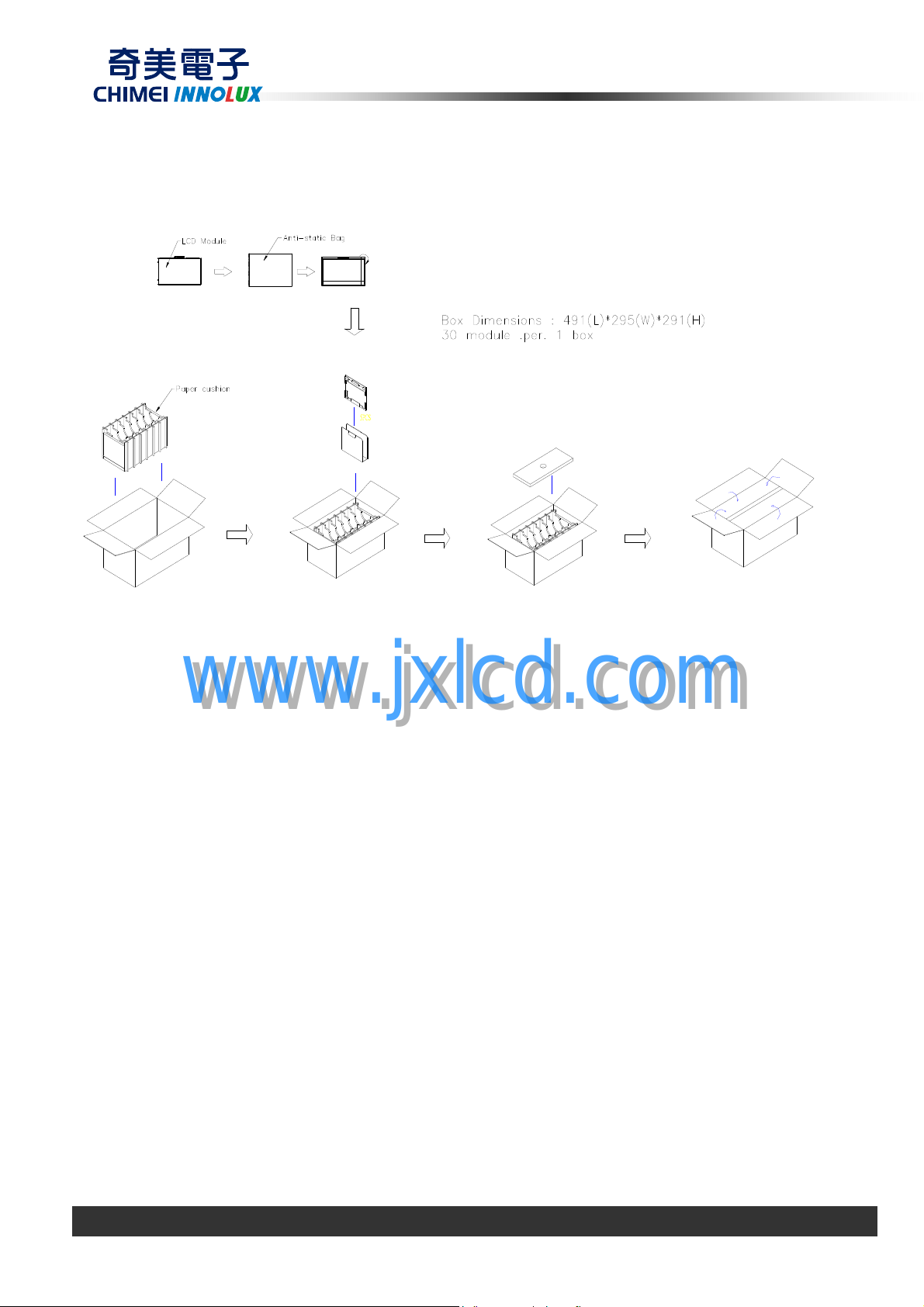

Figure. 7-2 Packing method
Version 0.0 18 January 2011 19 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
7.3 PALLET
PRODUCT SPECIFICATION
www.jxlcd.com
www.jxlcd.com
Figure. 7-3 Packing method
Version 0.0 18 January 2011 20 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
8. PRECAUTIONS
8.1 HANDLING PRECAUTIONS
(1) The module should be assembled into the system firmly by using every mounting hole. Be careful
not to twist or bend the module.
(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause
electrical short or damage the polarizer.
(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and
assembly process.
(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer
is very soft and easily scratched.
(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not
use Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It
might permanently damage the polarizer due to chemical reaction.
(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel
for a long time.
(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.
(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.
(9) Do not disassemble the module.
(10) Do not pull or fold the LED wire.
www.jxlcd.com
(11) Pins of I/F connector should not be touched directly with bare hands.
8.2 STORAGE PRECAUTIONS
(1) High temperature or humidity may reduce the performance of module. Please store LCD module
within the specified storage conditions.
(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may
damage LCD module when it is operating.
(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the
response time will become slowly, and the starting voltage of LED will be higher than the room
temperature.
www.jxlcd.com
8.3 OPERATION PRECAUTIONS
(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating.
This can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with converter . Do not disassemble the module or insert anything into the Backlight unit.
Version 0.0 18 January 2011 21 / 26
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
Appendix. EDID DATA STRUCTURE
The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.
Byte #
(decimal)
0 0 Header 00
1 1 Header FF
2 2 Header FF
3 3 Header FF
4 4 Header FF
5 5 Header FF
6 6 Header FF
7 7 Header 00
8 8 EISA ID manufacturer name (“CMO”) 0D
9 9 EISA ID manufacturer name (Compressed ASCII) AF
10 0A ID product code (N097XCE- LB1) 29
11 0B ID product code (hex LSB first; N097XCE- LB1) 10
12 0C ID S/N (fixed “0”) 00
13 0D ID S/N (fixed “0”) 00
14 0E ID S/N (fixed “0”) 00
15 0F ID S/N (fixed “0”) 00
16 10 Week of manufacture (fixed week code)TBD 00
17 11 Year of manufacture (fixed year code) 15
18 12 EDID structure version # (“1”) 01
19 13 EDID revision # (“3”) 03
20 14 Video I/P definition (“digital”) 80
21 15 Max H image size (“19cm”) 13
22 16 Max V image size (“14cm”) 0E
23 17 Display Gamma (Gamma = ”2.2”) 78
24 18 Feature support (“Active off, RGB Color”) 0A
25 19 Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0 TBD 00
26 1A Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0 TBD 00
27 1B Rx= TBD 00
28 1C Ry= TBD 00
29 1D Gx= TBD 00
30 1E Gy= TBD 00
31 1F Bx= TBD 00
32 20 By= TBD 00
33 21 Wx= TBD 00
34 22 Wy= TBD 00
35 23 Established timings 1 00
36 24 Established timings 2 00
37 25 Manufacturer’s reserved timings 00
38 26 Standard timing ID # 1 01
39 27 Standard timing ID # 1 01
40 28 Standard timing ID # 2 01
41 29 Standard timing ID # 2 01
42 2A Standard timing ID # 3 01
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
43 2B Standard timing ID # 3 01
44 2C Standard timing ID # 4 01
45 2D Standard timing ID # 4 01
46 2E Standard timing ID # 5 01
47 2F Standard timing ID # 5 01
48 30 Standard timing ID # 6 01
49 31 Standard timing ID # 6 01
50 32 Standard timing ID # 7 01
51 33 Standard timing ID # 7 01
52 34 Standard timing ID # 8 01
53 35 Standard timing ID # 8 01
54 36 Detailed timing description # 1 Pixel clock (“64MHz”, According to
VESA CVT Rev1.1)
55 37 # 1 Pixel clock (hex LSB first) 19
56 38 # 1 H active (“1024”) 00
57 39 # 1 H blank (“320”) 40
58 3A # 1 H active : H blank (“1024 : 320”) 41
59 3B # 1 V active (”768”) 00
60 3C # 1 V blank (”38”) 26
61 3D # 1 V active : V blank (”768 :38”) 30
62 3E # 1 H sync offset (”33”) 21
63 3F # 1 H sync pulse width ("69”) 45
64 40 # 1 V sync offset : V sync pulse width (”4 : 12”) 4C
65 41 # 1 H sync offset : H sync pulse width : V sync offset : V sync wid t h
(”33 : 69 : 4 : 12”)
66 42 # 1 H image size (”196 mm”) C4
67 43 # 1 V image size (”147 mm”) 93
68 44 # 1 H image size : V image size (”196 : 147”) 00
69 45 # 1 H boarder (”0”) 00
70 46 # 1 V boarder (”0”) 00
71 47 # 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
72 48 Detailed timing description # 2 00
73 49 # 2 Flag 00
74 4A # 2 Reserved 00
75 4B # 2 FE (hex) defines ASCII string (Mod el Name “N097XCE-LB1”,
76 4C # 2 Flag 00
77 4D # 2 1st character of name (“N”) 4E
78 4E # 2 2nd character of name (“0”) 30
79 4F # 2 3rd character of name (“9”) 39
80 50 # 2 4th character of name (“7”) 37
81 51 # 2 5th character of name (“X”) 58
82 52 # 2 6th character of name (“C”) 43
83 53 # 2 7th character of name (“E”) 45
84 54 # 2 8th character of name (“-”) 2D
85 55 # 2 9th character of name (“L”) 20
86 56 # 2 9th character of name (“B”) 4C
87 57 # 2 Ath character of name (“1”) 42
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
PRODUCT SPECIFICATION
88 58 # 2 New line character indicates end of ASCII string 31
89 59 # 2 Padding with “Blank” character 0A
90 5A Detailed timing description # 3 00
91 5B # 3 Flag 00
92 5C # 3 Reserved 00
93 5D # 3 FE (hex) defines ASCII string (Vendor “CMI”, ASCII) FE
94 5E # 3 Flag 00
95 5F # 3 1st character of string (“C”) 43
96 60 # 3 2nd character of string (“M”) 4D
97 61 # 3 3rd character of string (“I”) 49
98 62 # 3 New line character indicates end of ASCII string 0A
99 63 # 3 Padding with “Blank” character 20
100 64 # 3 Padding with “Blank” character 20
101 65 # 3 Padding with “Blank” character 20
102 66 # 3 Padding with “Blank” character 20
103 67 # 3 Padding with “Blank” character 20
104 68 # 3 Padding with “Blank” character 20
105 69 # 3 Padding with “Blank” character 20
106 6A # 3 Padding with “Blank” character 20
107 6B # 3 Padding with “Blank” character 20
108 6C Detailed timing description # 4 00
109 6D # 4 Flag 00
110 6E # 4 Reserved 00
111 6F # 4 FE (hex) defines ASCII string (Model Name“N097XCE-LB1”,
ASCII)
112 70 # 4 Flag 00
113 71 # 4 1st character of name (“N”) 4E
114 72 # 4 2nd character of name (“0”) 30
115 73 # 4 3rd character of name (“9”) 39
116 74 # 4 4th character of name (“7”) 37
117 75 # 4 5th character of name (“X”) 58
118 76 # 4 6th character of name (“C”) 43
119 77 # 4 7th character of name (“E”) 45
120 78 # 4 8th character of name (“-”) 2D
121 79 # 4 9th character of name (“L”) 20
122 7A # 4 9th character of name (“B”) 4C
123 7B # 4 Ath character of name (“1”) 42
124 7C # 4 New line character indicates end of ASCII string 31
125 7D # 4 Padding with “Blank” character 0A
126 7E Extension flag 00
127 7F Checksum F5
