CHIMEI INNOLUX M230HGE-L20 Specification
Global LCD Panel Exchange Center
MODEL NO.: M230HGE
www.panelook.com
PRODUCT SPECIFICATION
ϭTentative Specification
ϭPreliminary Specification
ϮApproval Specification
SUFFIX: L20
Customer:
APPROVED BY SIGNATURE
Name / Title
Note
Product Version C1
Please return 1 copy for your confirmation with your
signature and comments.
Approved By Checked By Prepared By
Version 4.0 28 July 2011 1 / 29
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT SPECIFICATION
CONTENTS
1. GENERAL DESCRIPTION ...................................................................................................... 5
1.1 OVERVIEW ....................................................................................................................... 5
1.2 GENERAL SPECIFICATIONS ........................................................................................... 5
2. MECHANICAL SPECIFICATIONS .......................................................................................... 5
3. ABSOLUTE MAXIMUM RATINGS ..........................................................................................6
3.1 ABSOLUTE RATINGS OF ENVIRONMENT ...................................................................... 6
3.2 ELECTRICAL ABSOLUTE RATINGS ................................................................................ 6
3.2.1 TFT LCD MODULE .................................................................................................... 6
3.2.3 BACKLIGHT UNIT...................................................................................................... 7
4. ELECTRICAL SPECIFICATIONS ............................................................................................ 7
4.1 FUNCTION BLOCK DIAGRAM .........................................................................................7
4.2. INTERFACE CONNECTIONS .......................................................................................... 8
4.3 ELECTRICAL CHARACTERISTICS..................................................................................9
4.3.1 LCD ELETRONICS SPECIFICATION ........................................................................ 9
4.3.2 Vcc Power Dip Condition.......................................................................................... 12
4.3.3 BACKLIGHT UNIT (LED matrix is 14S4P) ............................................................... 12

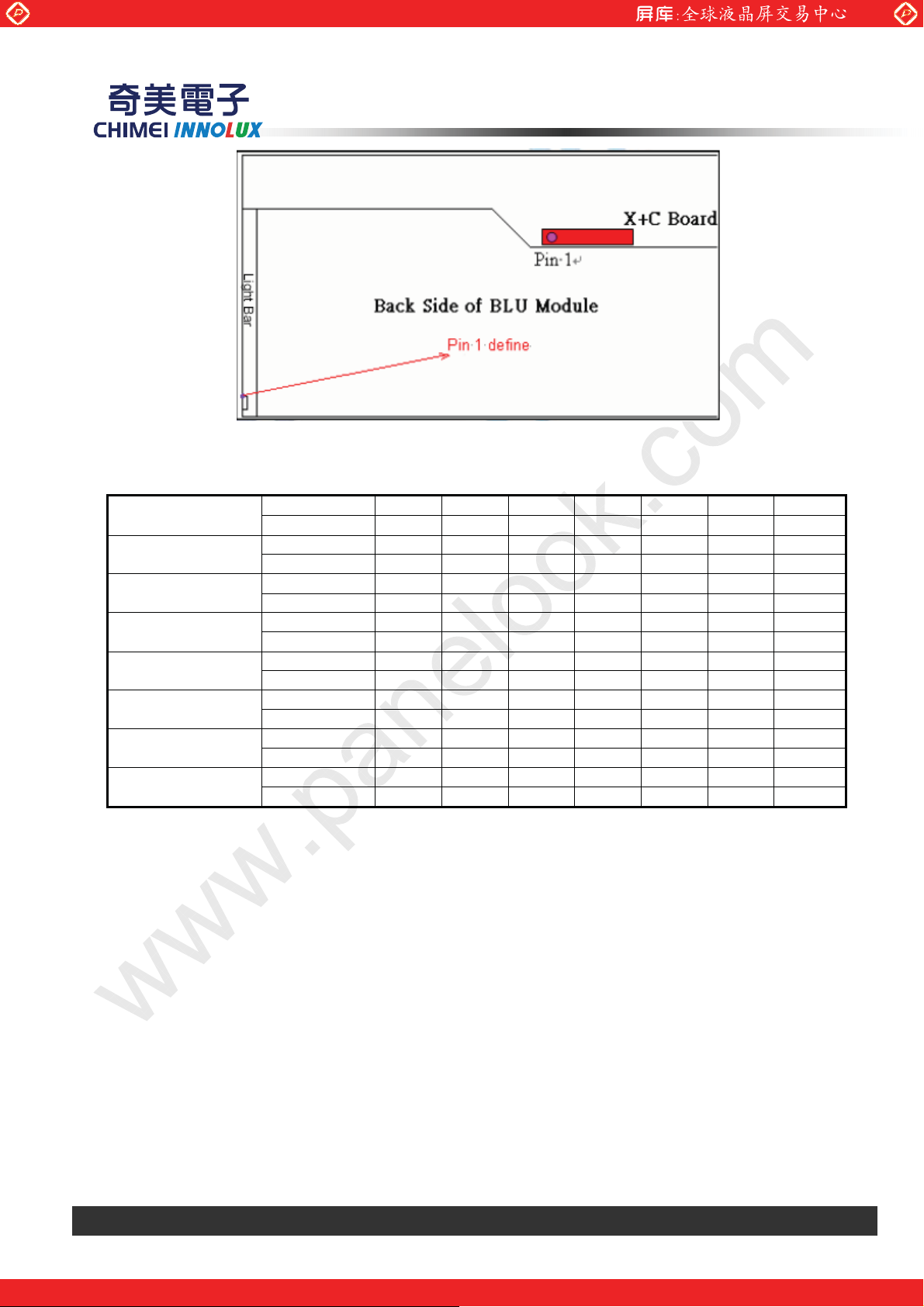

4.3.4 LIGHTBAR Connector Pin Assignment .................................................................... 13
4.4 LVDS INPUT SIGNAL SPECIFICATIONS .......................................................................14
4.4.1 LVDS DATA MAPPING TABLE................................................................................. 14
4.4.2 COLOR DATA INPUT ASSIGNMENT....................................................................... 15
4.5 DISPLAY TIMING SPECIFICATIONS .............................................................................. 16
4.6 POWER ON/OFF SEQUENCE........................................................................................ 18
5. OPTICAL CHARACTERISTICS ............................................................................................ 19
5.1 TEST CONDITIONS ........................................................................................................ 19
5.2 OPTICAL SPECIFICATIONS ........................................................................................... 19
6. RELIABILITY TEST ITEM .....................................................................................................22
7. PACKING............................................................................................................................... 23
7.1 PACKING SPECIFICATIONS .......................................................................................... 23
7.2 PACKING METHOD ........................................................................................................ 23
7.3 PALLET............................................................................................................................ 24
8. CMI MODULE LABEL ........................................................................................................... 25
9. PRECAUTIONS ..................................................................................................................... 26
9.1 ASSEMBLY AND HANDLING PRECAUTIONS ............................................................... 26
9.2 STORAGE PRECAUTIONS ............................................................................................27
9.3 OPERATION PRECAUTIONS ......................................................................................... 27
Version 4.0 28 July 2011 2 / 29
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT SPECIFICATION
9.4 SAFETY PRECAUTIONS................................................................................................ 27
9.5 SAFETY STANDARDS .................................................................................................... 27
9.6 OTHER ............................................................................................................................ 27
Appendix. OUTLINE DRAWING ............................................................................................... 27
Version 4.0 28 July 2011 3 / 29
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT SPECIFICATION
REVISION HISTORY
Version Date Page Description
2.0 2010-11-16 All Spec Ver.2.0 was first issued.
Spec Ver.3.0 Luminance 250 Cd/m
2.1 2011-2-21 All
Luminance 300 Cd/m
Spec Ver.4.0 the Power Consumption˄BL˅was changed into
2
2
changed From Spec Ver.2.0
2.2 2011-4-19
5ˈ6ˈ11ˈ18
13.3W ˄max˅and the LED Light Bar Current Per Input Pin was
changed into 65mA
Version 4.0 28 July 2011 4 / 29
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M230HGE-L20 is a 23W” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins
2ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors.
The converter module for Backlight is not built in.
1.2 GENERAL SPECIFICATIONS
Item Specification Unit Note
Screen Size 23” real diagonal
Driver Element a-si TFT active matrix - -
Pixel Number 1920 x R.G.B. x 1080 pixel -
Pixel Pitch 0.2652 (H) x 0.2652 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 16.7M color -
Transmissive Mode Normally white - -
Surface Treatment Anti-Glare option,3H hard coating -
Luminance, White 250(Typ) Cd/m2
Color Gamut 72% of NTSC(Typ.) - -
TCO TCO 5.0 compliance -
Power Consumption Total 20.45 W (Max.) @ cell 7.15 W (Max.), BL 13.3 W (Max.) (1)
www.panelook.com
PRODUCT SPECIFICATION
Note (1) The specified power consumption : Total= cell (reference 4.3.1)+BL (reference 4.3.3).
2. MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 532.7 533.2 533.7 mm
Module Size
Bezel Area
Active Area
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical (V) 311.5 312.0 312.5 mm
Thickness (T) 10.5 11 11.5 mm
Horizontal 513.484 513.784 514.084 mm
Vertical 290.716 291.016 291.316 mm
Horizontal - 509.184 - mm
Vertical - 286.416 - mm
Weight 2200 2300 g
(1)
Version 4.0 28 July 2011 5 / 29
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
3. ABSOLUTE MAXIMUM RATINGS
3.1 ABSOLUTE RATINGS OF ENVIRONMENT
PRODUCT SPECIFICATION
Item Symbol
Min. Max.
Storage Temperature TST -20 60 ºC (1)
Operating Ambient Temperature TOP 0 50 ºC (1), (2)
Note (1)
(a) 90 %RH Max. (Ta <= 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.
Value
Unit Note
3.2 ELECTRICAL ABSOLUTE RATINGS
3.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage VCCS -0.3 6.0 V
Logic Input Voltage VIN -0.3 4.3 V
Value
Min. Max.
Unit Note
Version 4.0 28 July 2011 6 / 29
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(1)
www.panelook.com
Global LCD Panel Exchange Center
3.2.3 BACKLIGHT UNIT
Item Symbol
LED Forward Current Per
Input Pin
LED Pulse Forward
Current Per Input Pin
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation
should be restricted to the conditions described under Normal Operating Conditions.
Note (2) Specified values are for input pin of LED light bar at Ta=25±2 к (Refer to 4.3.3 and 4.3.4 for
further information).
4. ELECTRICAL SPECIFICATIONS
www.panelook.com
PRODUCT SPECIFICATION
Value
Min. Typ Max.
0 65 70 mA
I
F
--- --- 100 mA
I
P
Unit Note
Pulse WidthЉ10msec.
(1), (2)
Duty=100%
(1), (2)
and DutyЉ30%
4.1 FUNCTION BLOCK DIAGRAM
Version 4.0 28 July 2011 7 / 29
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
4.2. INTERFACE CONNECTIONS
PIN ASSIGNMENT Κ
Pin Name Description
Frame GND Ground
1 RXO0- Negative LVDS differential data input. Channel O0 (odd)
2 RXO0+ Positive LVDS differential data input. Channel O0 (odd)
3 RXO1- Negative LVDS differential data input. Channel O1 (odd)
4 RXO1+ Positive LVDS differential data input. Channel O1 (odd)
5 RXO2- Negative LVDS differential data input. Channel O2 (odd)
6 RXO2+ Positive LVDS differential data input. Channel O2 (odd)
7 GND Ground
8 RXOC- Negative LVDS differential clock input. (odd)
9 RXOC+ Positive LVDS differential clock input. (odd)
10 RXO3- Negative LVDS differential data input. Channel O3(odd)
11 RXO3+ Positive LVDS differential data input. Channel O3 (odd)
12 RXE0- Negative LVDS differential data input. Channel E0 (even)
13 RXE0+ Positive LVDS differential data input. Channel E0 (even)
14 GND Ground
15 RXE1- Negative LVDS differential data input. Channel E1 (even)
16 RXE1+ Positive LVDS differential data input. Channel E1 (even)
17 GND Ground
18 RXE2- Negative LVDS differential data input. Channel E2 (even)
19 RXE2+ Positive LVDS differential data input. Channel E2 (even)
20 RXEC- Negative LVDS differential clock input. (even)
21 RXEC+ Positive LVDS differential clock input. (even)
22 RXE3- Negative LVDS differential data input. Channel E3 (even)
23 RXE3+ Positive LVDS differential data input. Channel E3 (even)
24 GND Ground
25 NC For LCD internal use only, Do not connect
26 NC For LCD internal use only, Do not connect
27 NC For LCD internal use only, Do not connect
28 Vcc +5.0V power supply
29 Vcc +5.0V power supply
30 Vcc +5.0V power supply
Frame GND Ground
Note (1) Connector Part No.:
www.panelook.com
PRODUCT SPECIFICATION
GS23302-0311R-7H (FOXCONN) or 187007-30091 (P-TWO) or equivalent
Note (2) The first pixel is odd.
Note (3) Input signal of even and odd clock should be the same timing.
Version 4.0 28 July 2011 8 / 29
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
PRODUCT SPECIFICATION
1,1
(odd)
2,1
3,1
1,2
(even)
2,2
1,3
(odd)
1,4
(even)
1,Xmax
Pitch
Pitch
Ymax,1
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD ELETRONICS SPECIFICATION
Parameter Symbol
Power Supply Voltage Vcc 4.5 5 5.5 V -
Ripple Voltage VRP 0.3 V -
Rush Current I
White 400 700 mA (3)a
Power Supply Current
Power Consumption PLCD 5.0 7.15 Watt (4)
LVDS differential input voltage Vid 100 - 600 mV (5)
LVDS common input voltage Vic 1.2 V
Logic High Input Voltage VIH - 100 mV
Logic Low Input Voltage VIL -100 - mV
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Black 900 1200 mA (3)b
Vertical Stripe
RUSH
Icc
Ymax,
Xmax
Value
Min. Typ. Max.
3 A (2)
1000 1300 mA (3)c
Unit Note
Note (2) Measurement Conditions:
Version 4.0 28 July 2011 9 / 29
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
