USER'S MANUAL

ENGLISH

July 2008

ENGLISH

CONTENTS

BEFORE YOU START ............................................................................................. 5

Make sure you have everything ..................................................................................... 5

Familiarize yourself with the computer ........................................................................ 6

OPENING THE DISPLAY PANEL ................................................................................ 6

FRONT OVERVIEW .................................................................................................... 7

LEFT SIDE OVERVIEW .............................................................................................. 9

RIGHT SIDE OVERVIEW .......................................................................................... 10

BACK OVERVIEW ..................................................................................................... 12

FRANÇAIS

DEUTSCH

ESPAÑOL

BOTTOM OVERVIEW ................................................................................................ 12

GETTING STARTED ............................................................................................. 13

Power Sources ............................................................................................................. 13

CONNECTING THE POWER ADAPTERS ............................................................... 13

RECHARGING THE BATTERY ................................................................................. 14

Starting Your Notebook................................................................................................. 15

POWER ON .............................................................................................................. 15

Status Indicators ...................................................................................................... 16

Using Function Keys ................................................................................................ 18

Using the TouchPad................................................................................................. 19

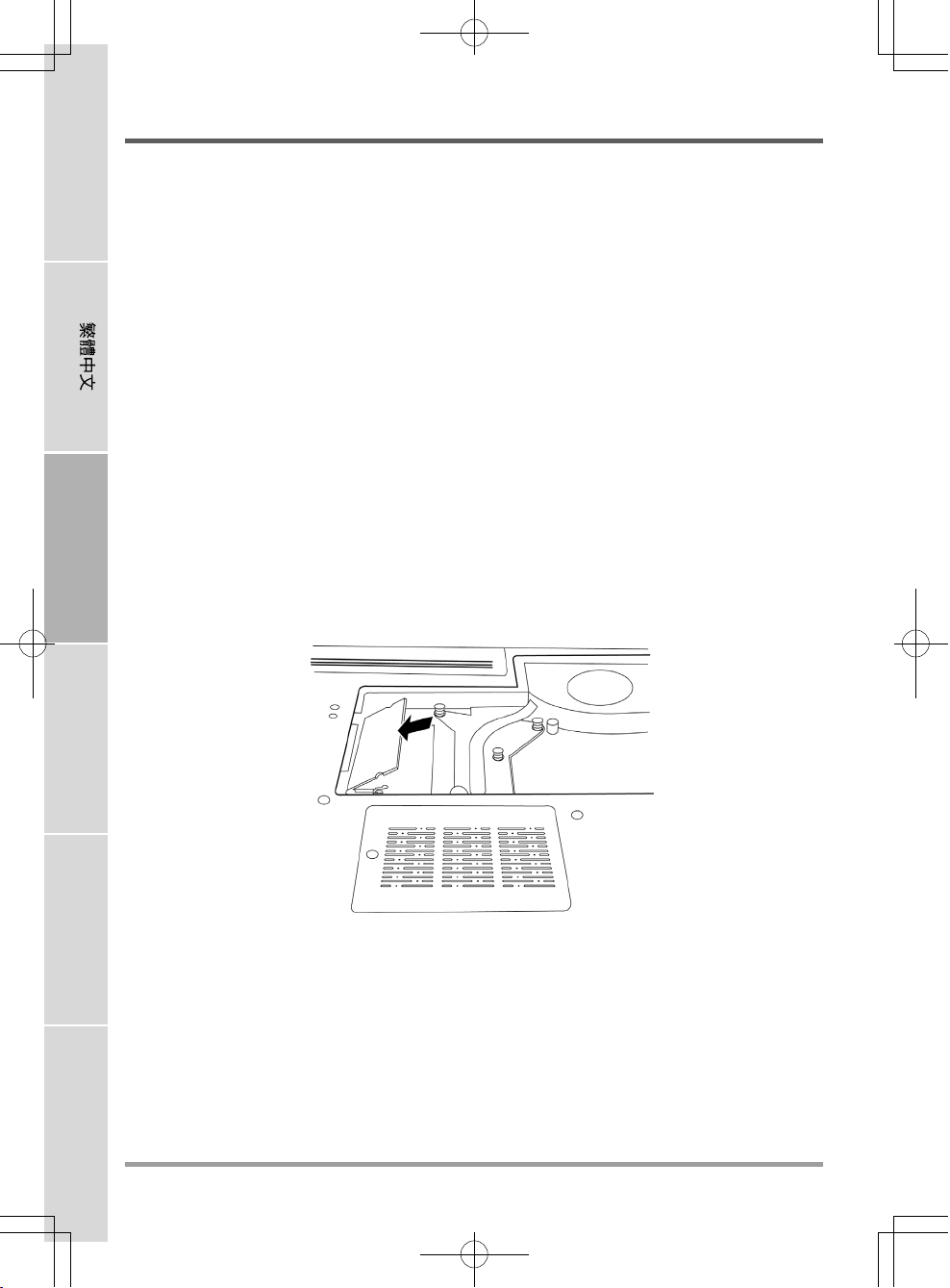

Memory Module Upgrade......................................................................................... 20

TROUBLESHOOTING ........................................................................................... 21

Identifying the Problem................................................................................................. 21

APPENDIX ............................................................................................................ 22

Notebook Specifications .............................................................................................. 22

ITALIANO

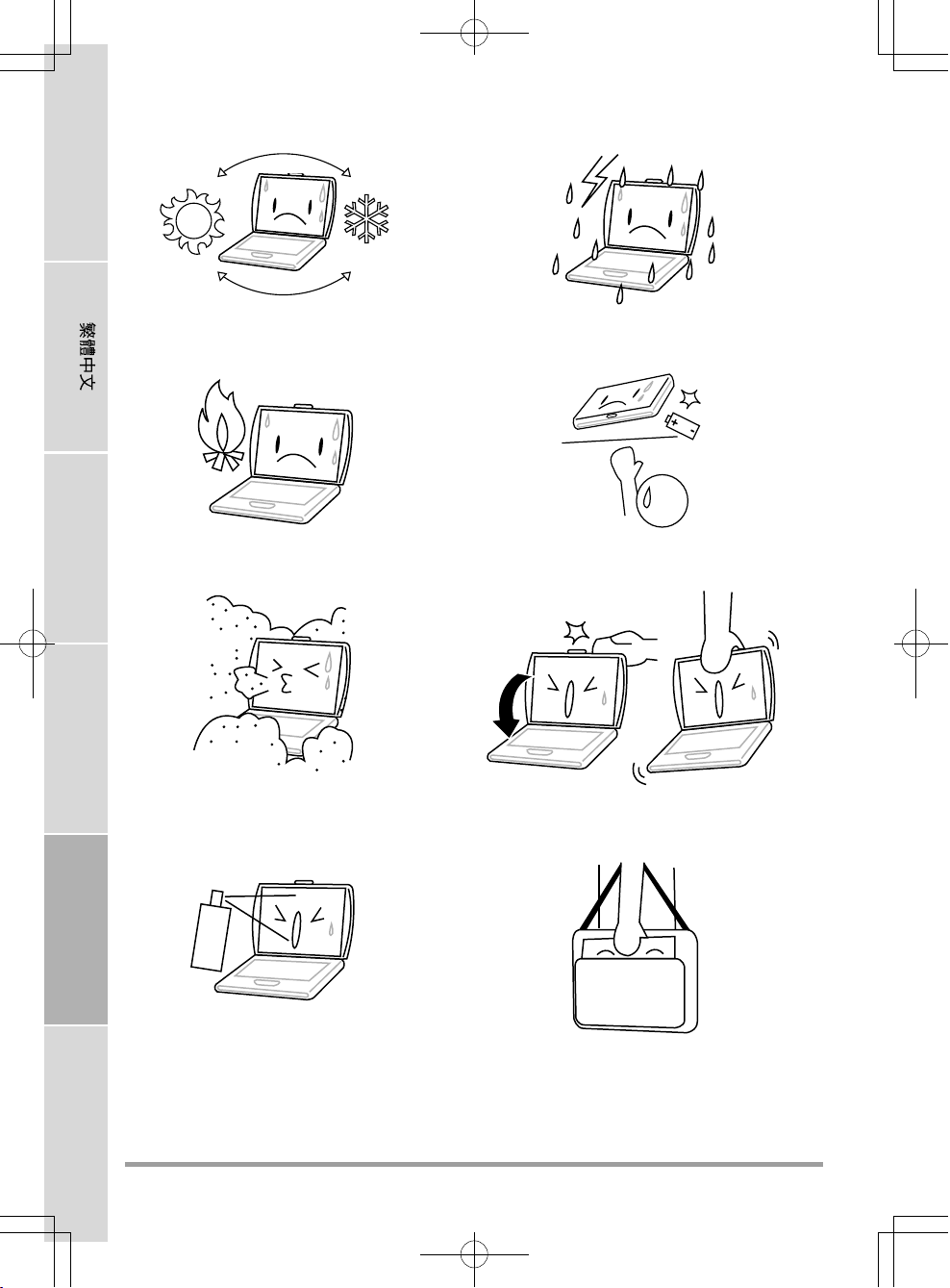

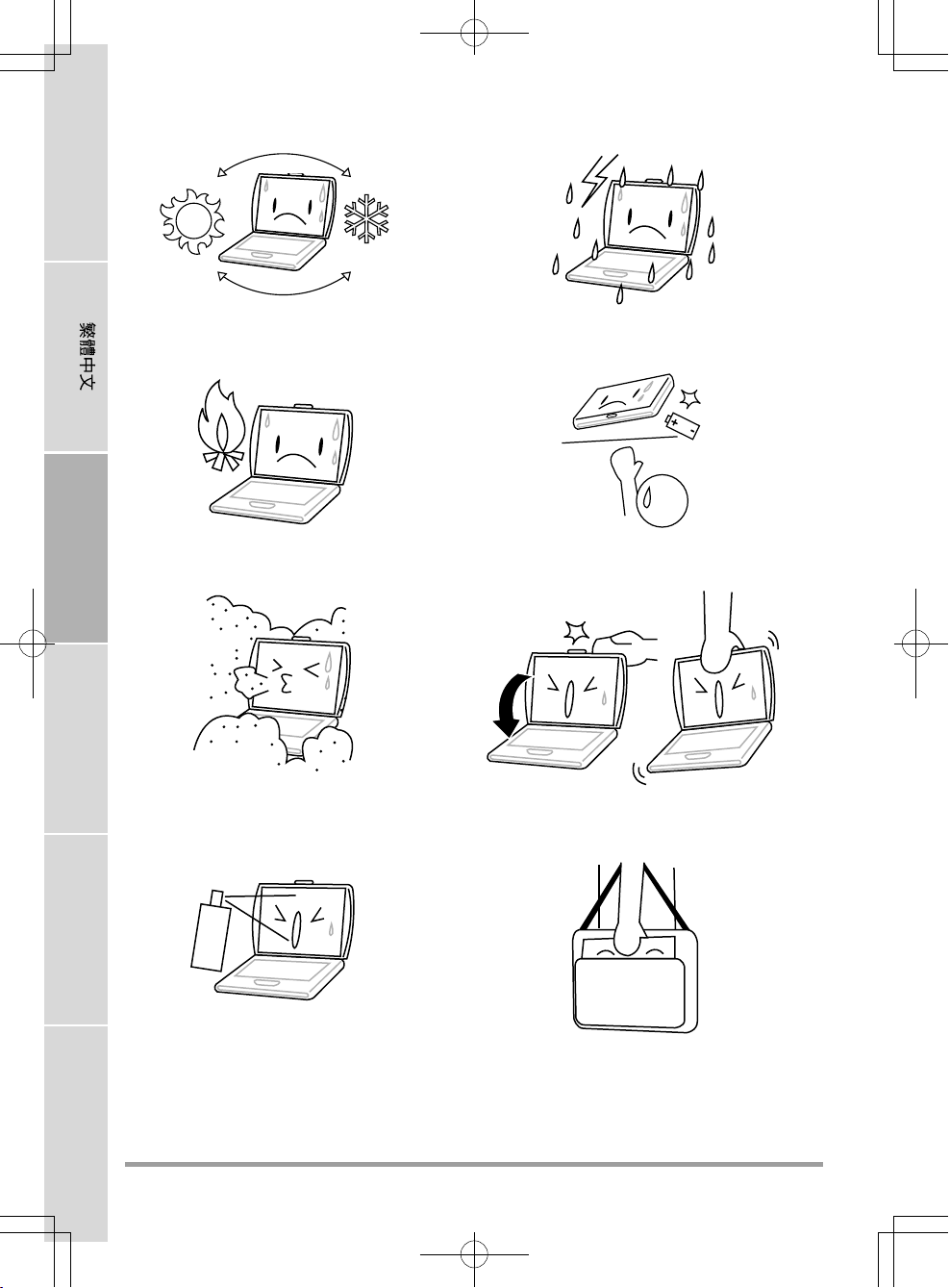

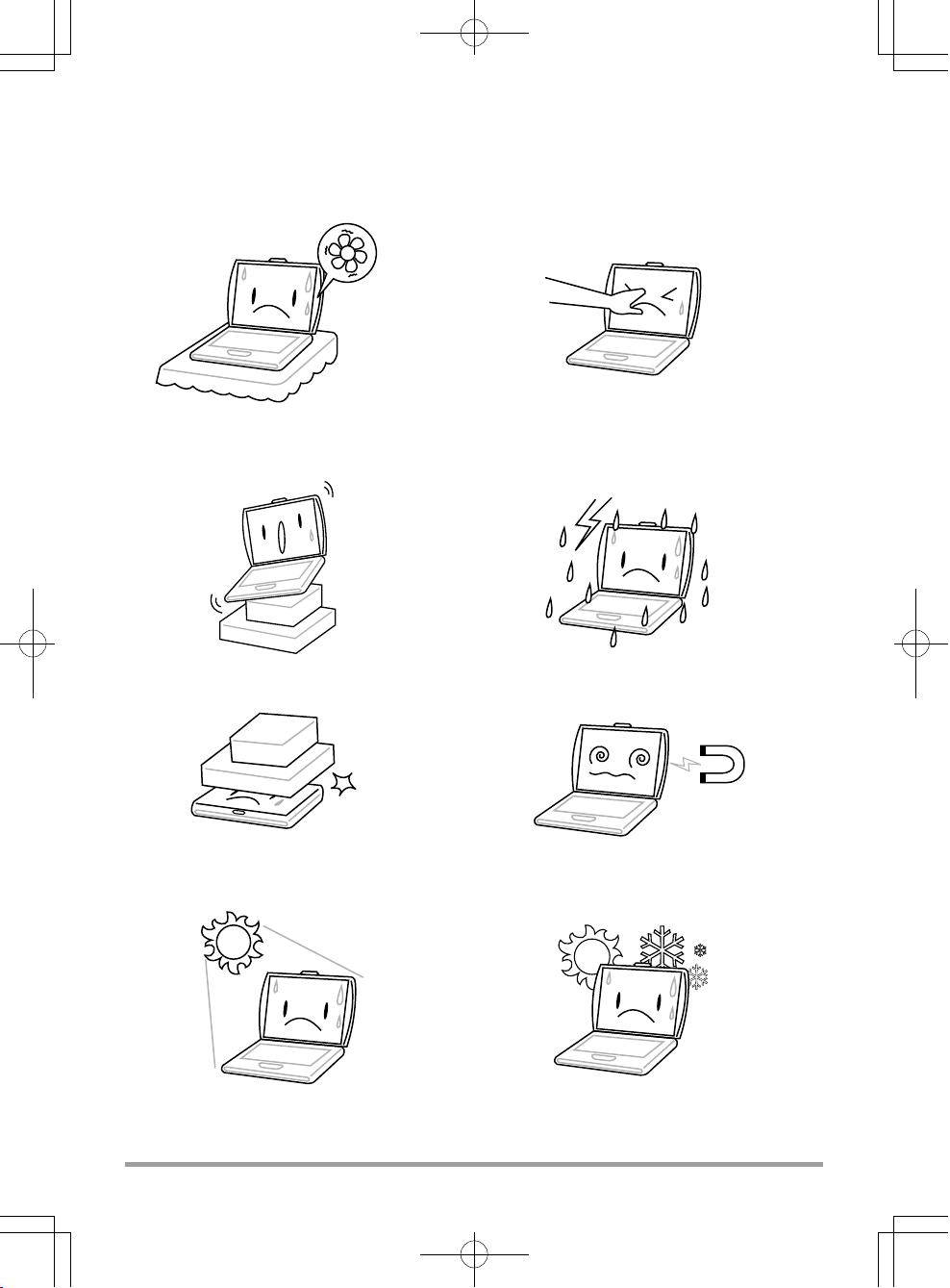

TAKING CARE OF YOUR NOTEBOOK PC

To prevent possible overheating of the computer's processor, make sure you don't block the openings provided for ventilation.

DO NOT place on uneven or unstable work surfaces.

DO NOT place or drop objects on the computer and DO NOT apply heavy pressure on it.

DO NOT press or touch the display panel.

DO NOT use your notebook computer under

harsh conditions.

DO NOT subject the computer to magnetic fields.

DO NOT expose to direct sunlight. DO NOT use or store in extreme temperatures.

ENGLISH

Avoid sudden changes in temperature or humidity by keeping it away fromA/C and heating vents.

FRANÇAIS

DO NOT place near fire or other sources of heat. DO NOT tamper with the batteries. Keep them

DEUTSCH

DO NOT expose to dust and/or corrosive chemicals.

ESPAÑOL

DO NOT expose the computer to rain or moisture.

away from children.

DO NOT slam your notebook shut and never pick up or hold your notebook by the display.

ITALIANO

DO NOT spray water or any other cleaning fluids directly on the display.

If you are traveling with your computer, remember to carry it as hand luggage. Do not check it in as baggage.

BEFORE YOU START

Make sure you have everything

When you receive your notebook PC, unpack it carefully, and check to make sure you have all the items listed below. For a pre-configured model you should have the following:

• Notebook Computer

• Lithium-Ion battery

• AC adapter with power cord

• Driver and Applications CD

• Quick Start Guide or User Guide

Depending upon the configuration of your notebook, you may also need the following items:

• DVD / CD-RW Combo Application CD

• Dual DVD+/-RW Application CD

• Super Multi DVD RW Application CD

Once you have checked and confirmed that your notebook system is complete, read through the following pages to learn about all of your notebook components.

NOTE

Depending on the model you purchased, the actual appearance of your notebook may vary from that shown in this manual.

ENGLISH

BEFORE YOU START

Familiarize yourself with the computer

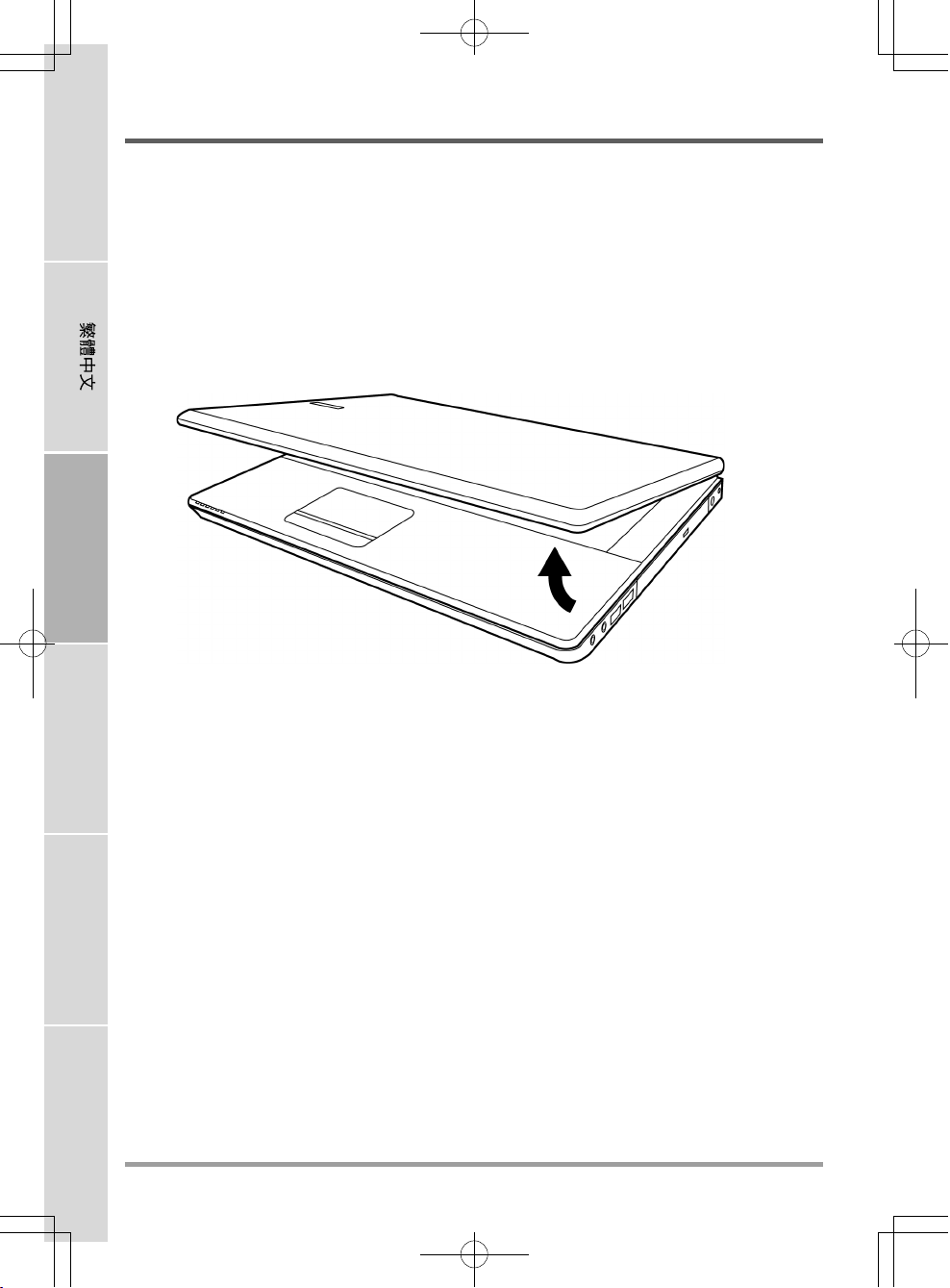

OPENING THE DISPLAY PANEL

To open the display panel, simply lift the lid up.

When closing it, be sure not to slam it shut.

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

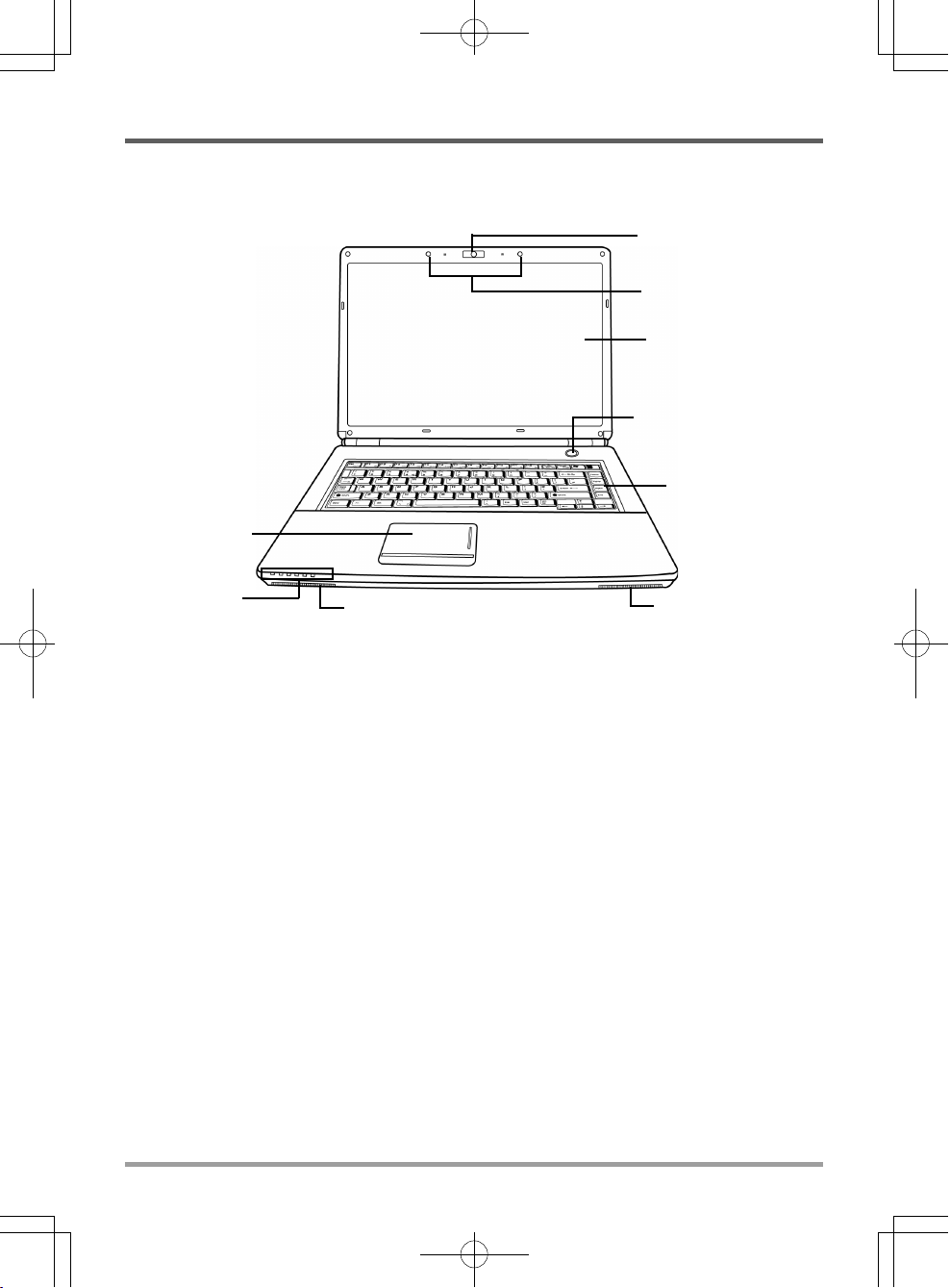

FRONT OVERVIEW

The following is an overview of the front of the notebook.

TouchPad

Pointing Device

BEFORE YOU START

Camera

Array Microphones

Display Panel

Suspend/Power On Button

Keyboard

Status Indicator

Lights

Stereo Speakers

Array Microphones

The built-in array microphones are omni-directional audio input devices. They allow for the stereo reception and transmission of voice and/or other audio data to any program capable of accepting such input.

Camera

The built-in 2.0 megapixel camera allows you to snap a photo or create a video chat or video conference with just a click. (Not available in all configurations.)

Display Panel

The display panel is a color LCD panel with back lighting for the display of text and graphics.

Suspend/ Power On Button

This button turns your notebook on and off or puts it to sleep. (See Suspend/Power On Button in the Power On section for more information.)

Stereo Speakers

The built-in dual speakers allow for stereo sound.

ENGLISH

BEFORE YOU START

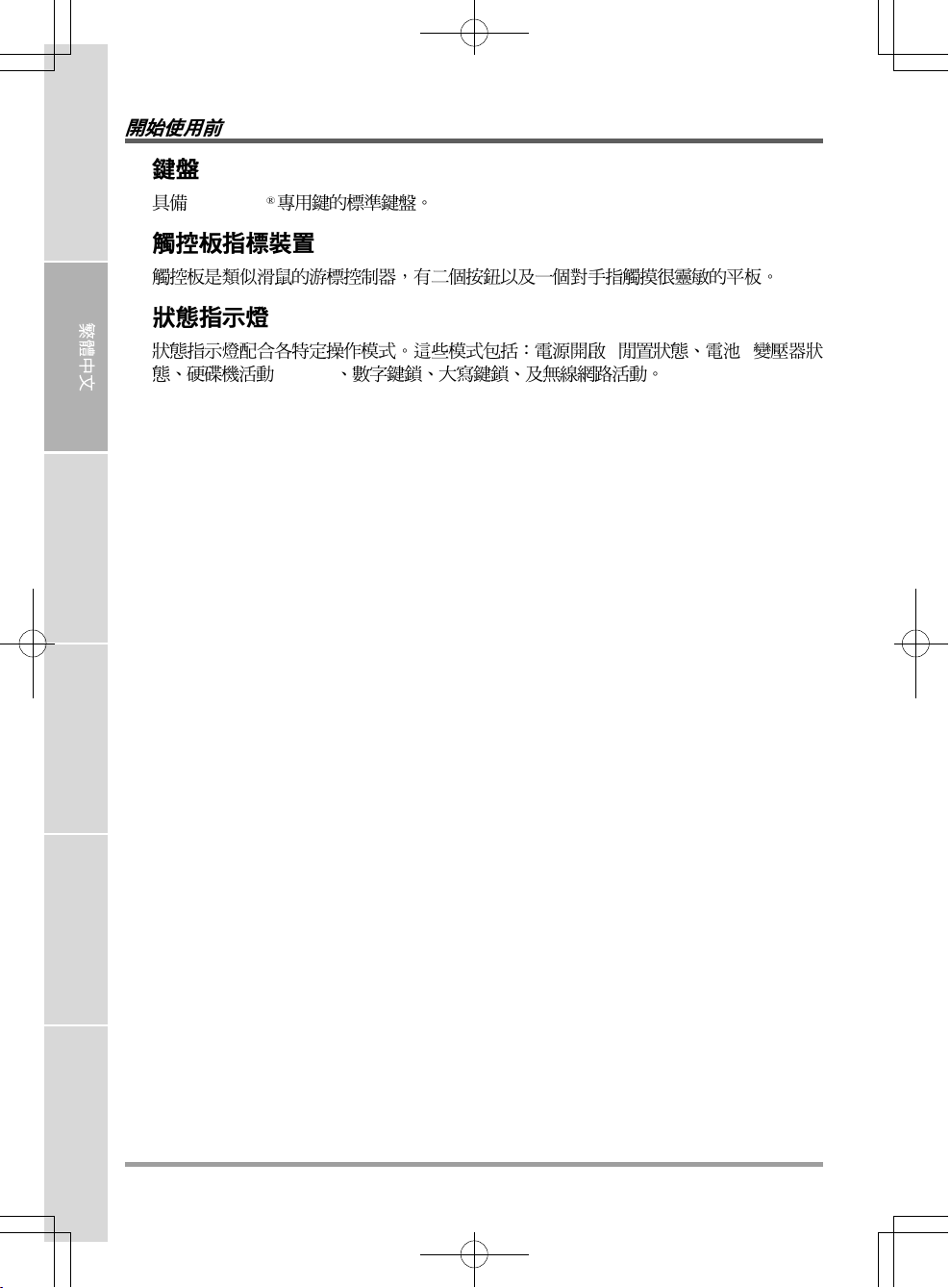

Keyboard

A full-size keyboard with dedicated Windows® keys.

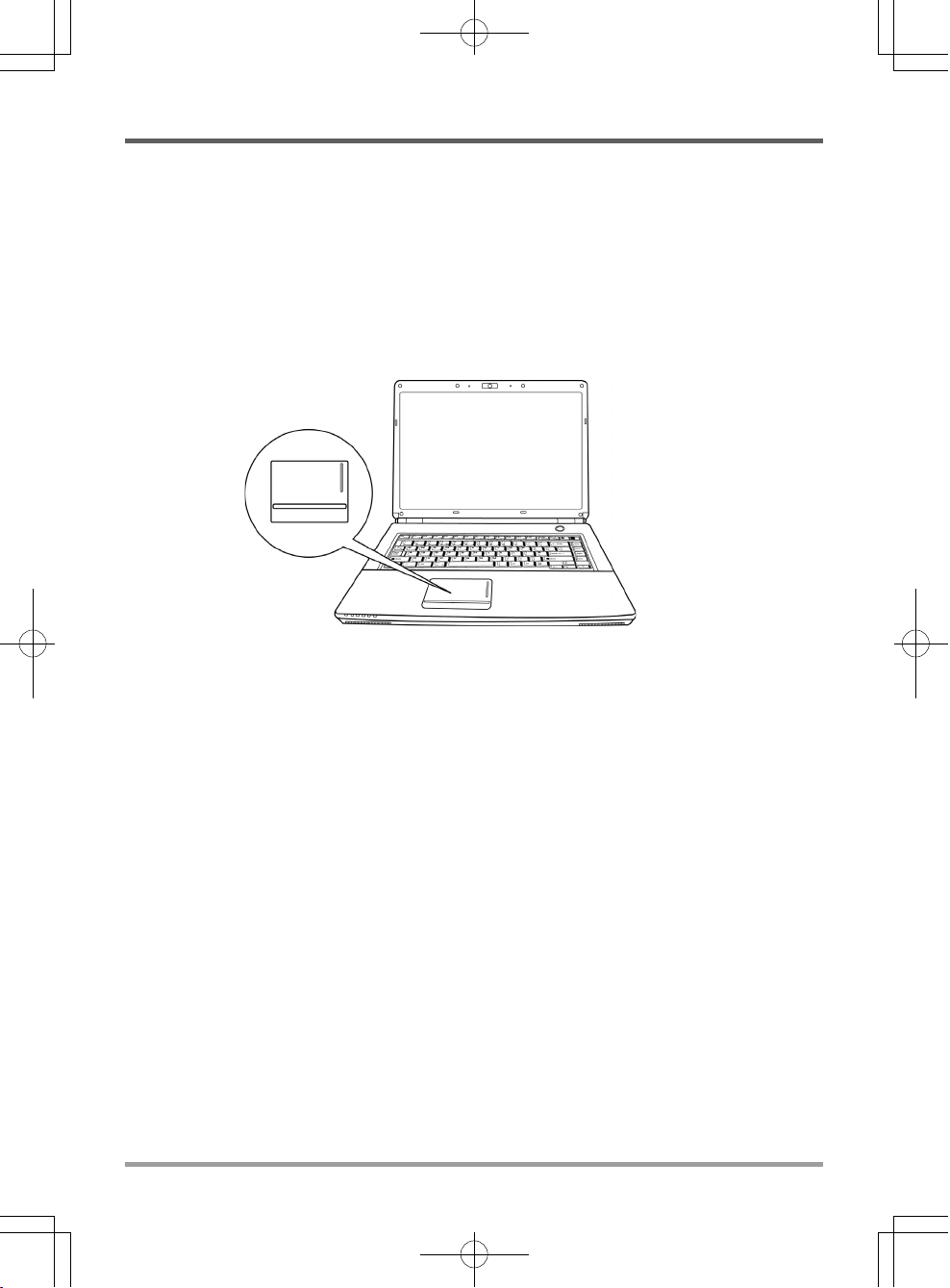

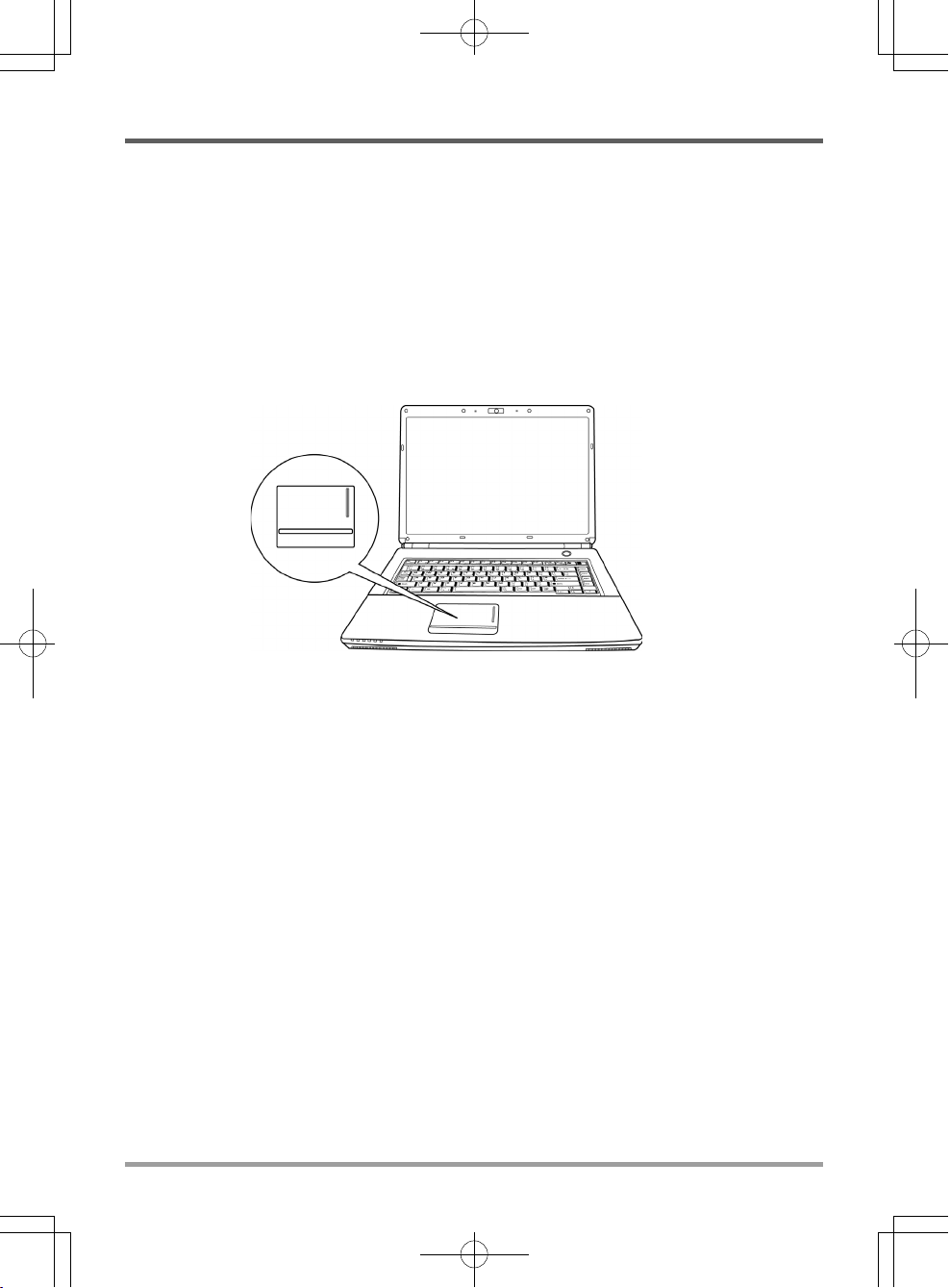

TouchPad Pointing Device

The TouchPad pointing device is a mouse-like cursor control with two buttons and a touch sensitive movement pad.

Status Indicator Lights

The Status indicator lights correspond to specific operating modes. These modes are: Power on/ Suspend status, battery/AC adapter status, hard drive activity (HDD), Num Lock, Caps Lock, and Wireless LAN activity.

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

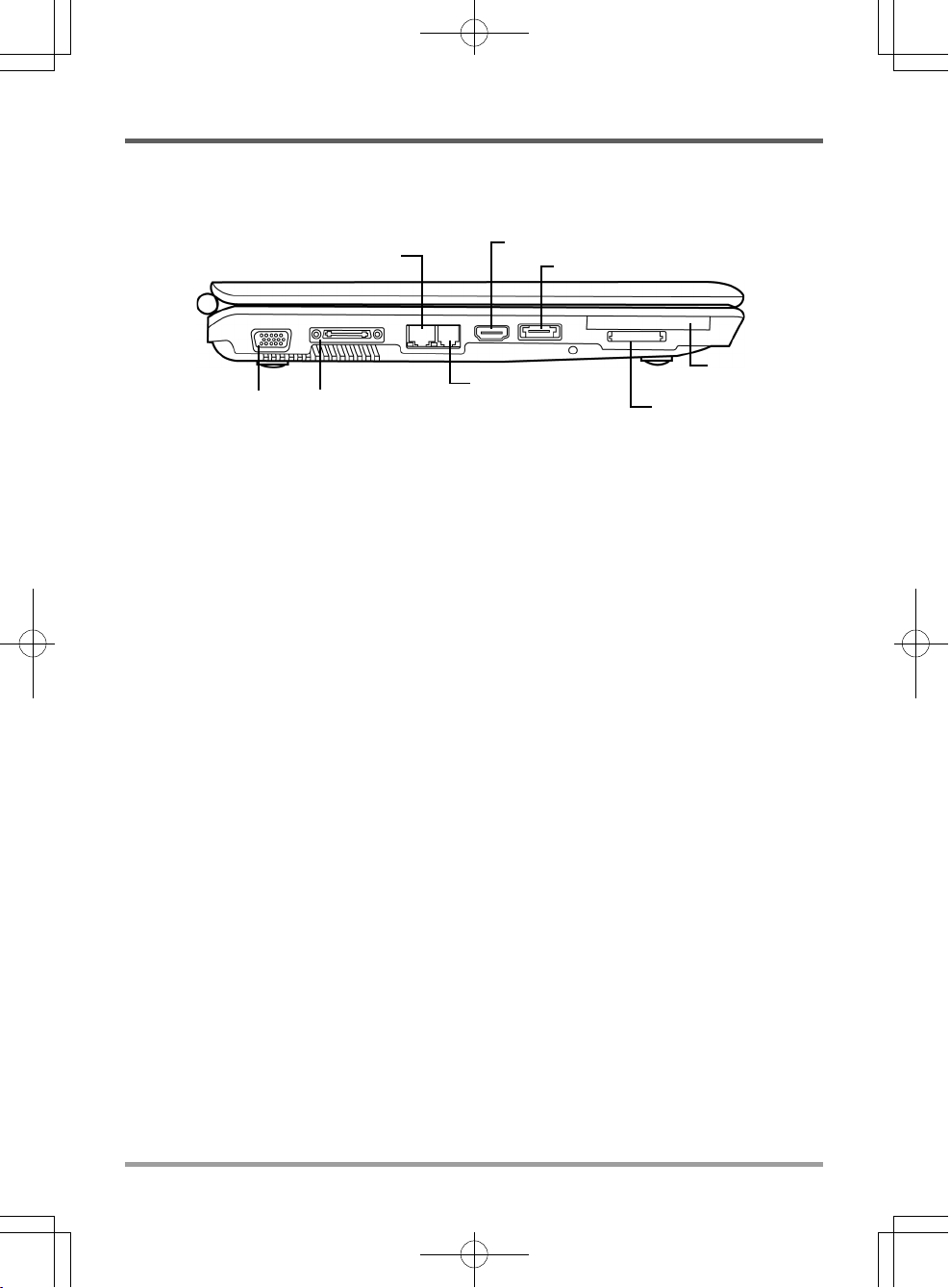

LEFT SIDE OVERVIEW

The following is a brief description of the left side of the notebook.

BEFORE YOU START

HDMI Port

e-SATA/USB combo port

Modem (RJ-11) Port

Memory Card Reader

PC Express Card Slot

External Monitor Port

LAN (RJ-45) Port

Port Replicator Interface

External Monitor Port

The external monitor port allows you to connect an external monitor.

Port Replicator Interface

The Port Replicator Interface allows you to connect additional peripheral devices to your computer through a "universal" port. The Port Replicator itself contains all the necessary additional ports, and connects to your computer through a single port on the left side of the computer. (Not available in all configurations.)

LAN (RJ-45) Port

The LAN port is designed to support a 10/100/1000 Base-TX standard RJ-45 plug.

Modem (RJ-11) Port

The modem (RJ-11) port is used to attach a telephone line to the internal 56k modem. (Not available in all configurations.)

HDMI Port

The HDMI port allows you to connect a video device such as a television, a projector, or a VCR to your computer.

e-SATA/USB combo port

The e-SATA/USB combo port allows you to connect an external device such as an external hard disk drive or optical drive.

PC Express Card Slot

The PC Express Card Slot allows you to install one Type-II PC Express Card.

Memory Card Reader

The memory card reader offers the fastest and most convenient method to transfer pictures, music and data between your notebook and flash compatible devices such as digital cameras, MP3 players, mobile phones, and PDAs.

ENGLISH

BEFORE YOU START

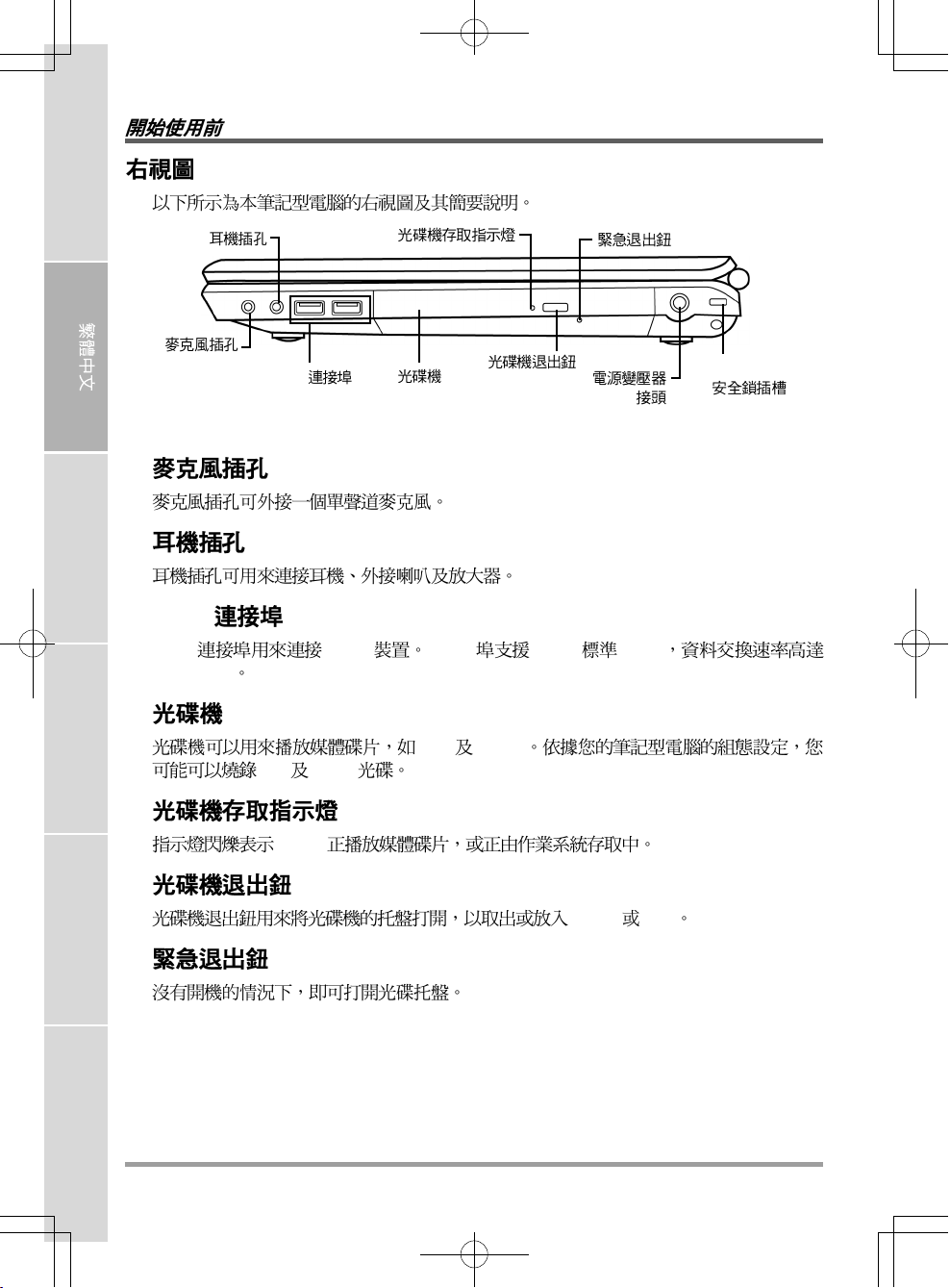

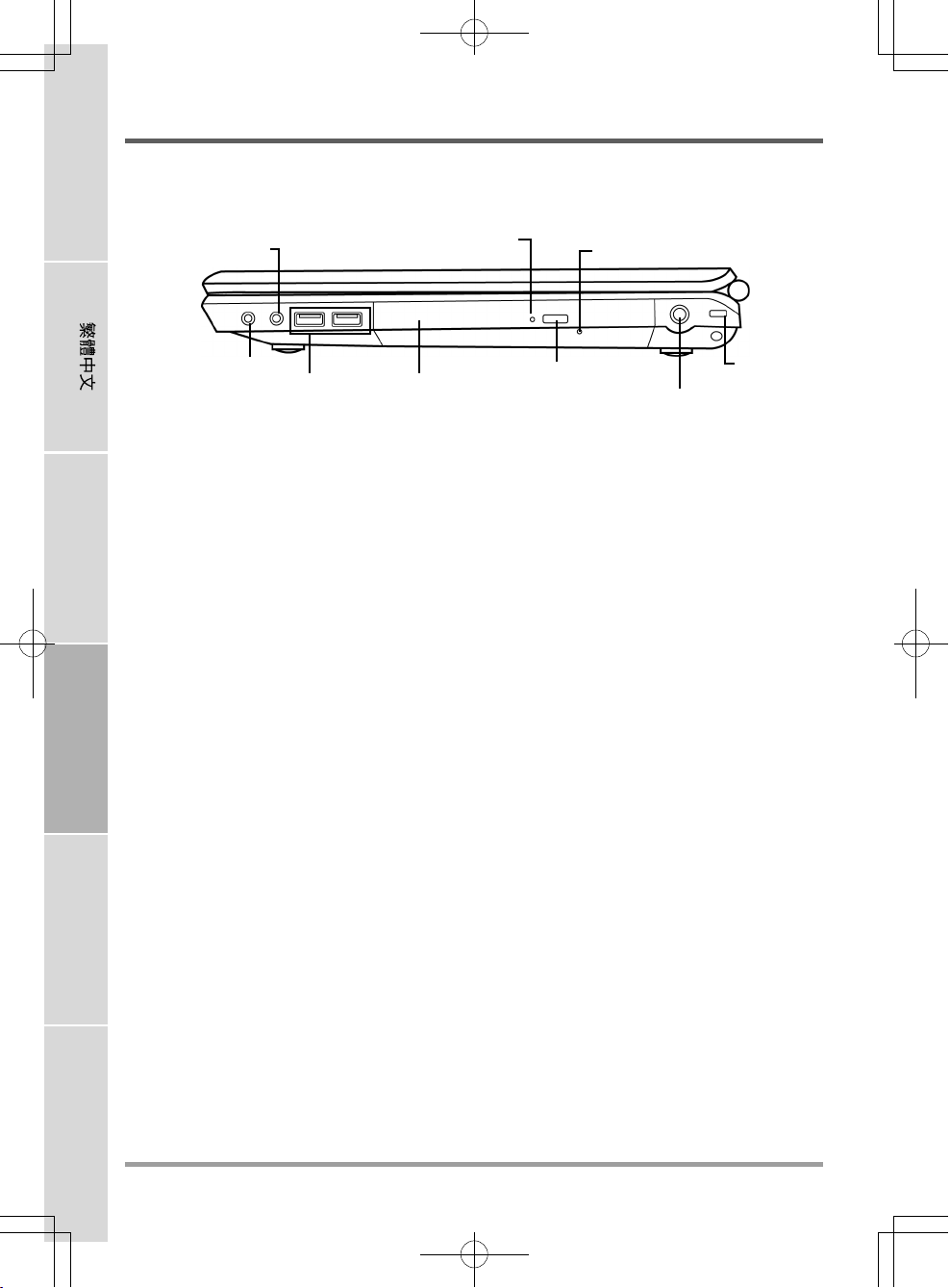

RIGHT SIDE OVERVIEW

The following is a brief description of the right side of the notebook.

Headphone Jack

Optical Drive Activity Indicator

Emergency Tray Release

Microphone

Microphone Jack

FRANÇAIS

The microphone jack allows you to connect an external mono microphone.

Headphone Jack

The headphone jack allows you to connect headphones or external speakers and amplifiers.

USB Ports

The USB ports allow you to connect Universal Serial Bus devices. They support v2.0 of the USB standard, which allows data exchange rates as high as 480 Mb/s.

DEUTSCH

Optical Drive

The optical drive allows you to play back media discs such as CDs and DVDs. Depending on the configuration of your notebook, it may also allow you to burn CDs and DVDs.

Optical Drive Activity Indicator

This light flickers to indicate activity when the ODD is playing a media disc or is being accessed by the operating system.

ESPAÑOL

Optical Drive Eject Button

The optical drive eject Button allows you to open the optical drive tray to remove or insert a DVD or CD.

Jack

USB Ports

Optical Drive

Eject Button

Power

Adapter Port

Kensington Lock Slot

Emergency Tray Release

The emergency tray release allows you to open the optical drive tray without powering on your notebook.

ITALIANO

BEFORE YOU START

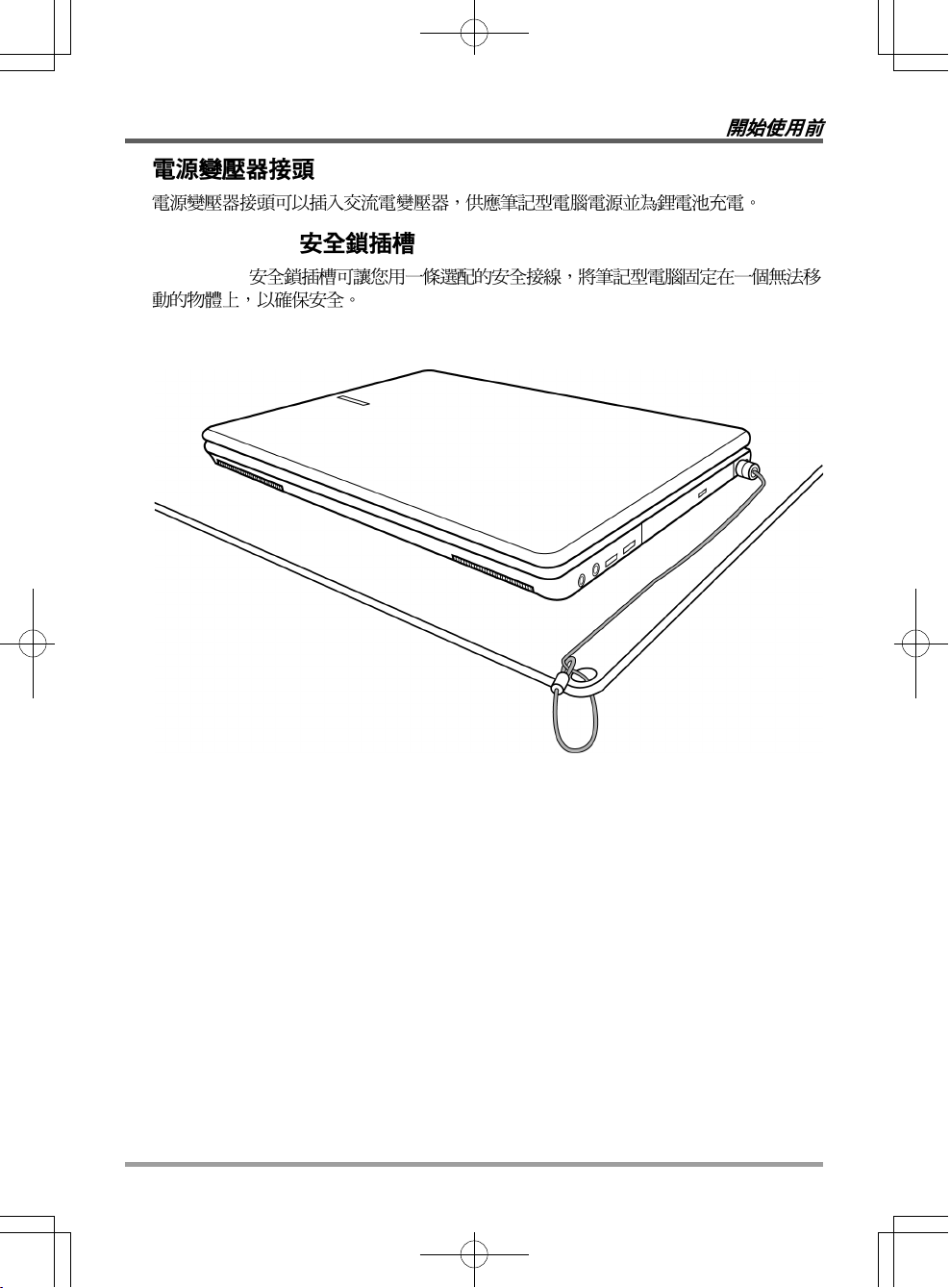

Power Adapter Port

The power adapter port allows you to plug in the AC adapter to power your notebook and charge the internal Lithium-Ion battery.

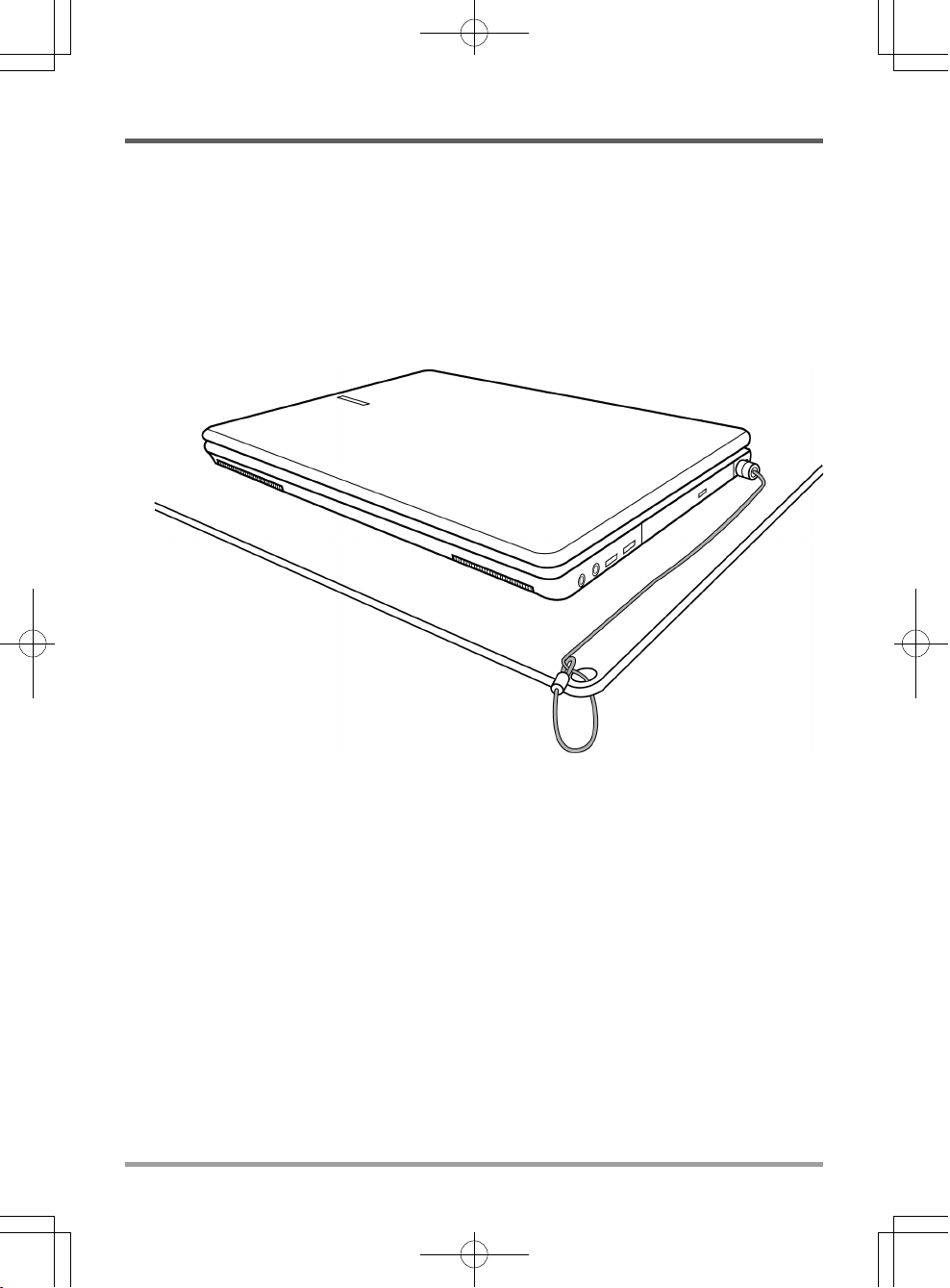

Kensington Lock Slot

The Kensington lock slot allows you to secure your notebook to an immovable object with an optional security cable.

ENGLISH

BEFORE YOU START

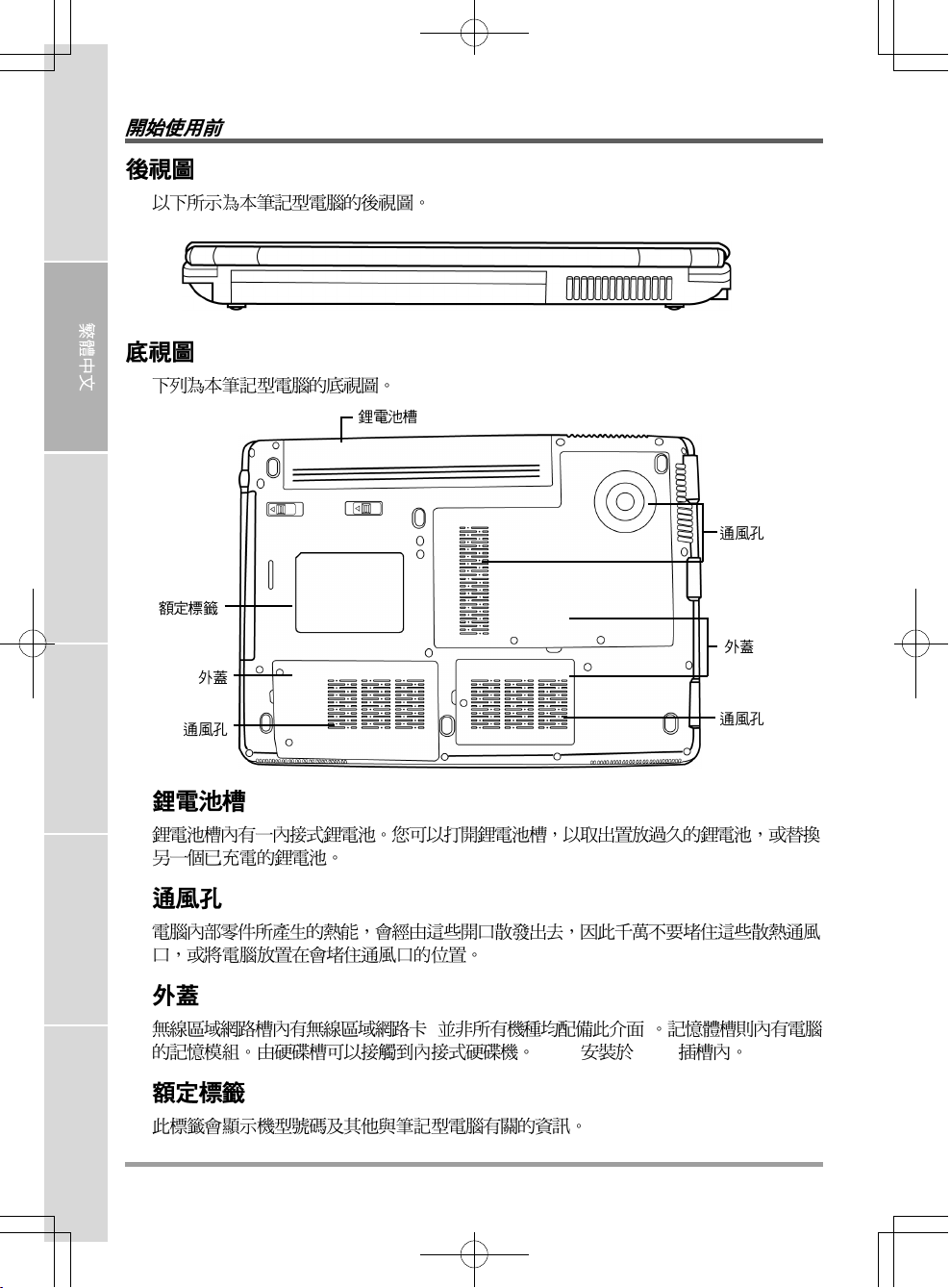

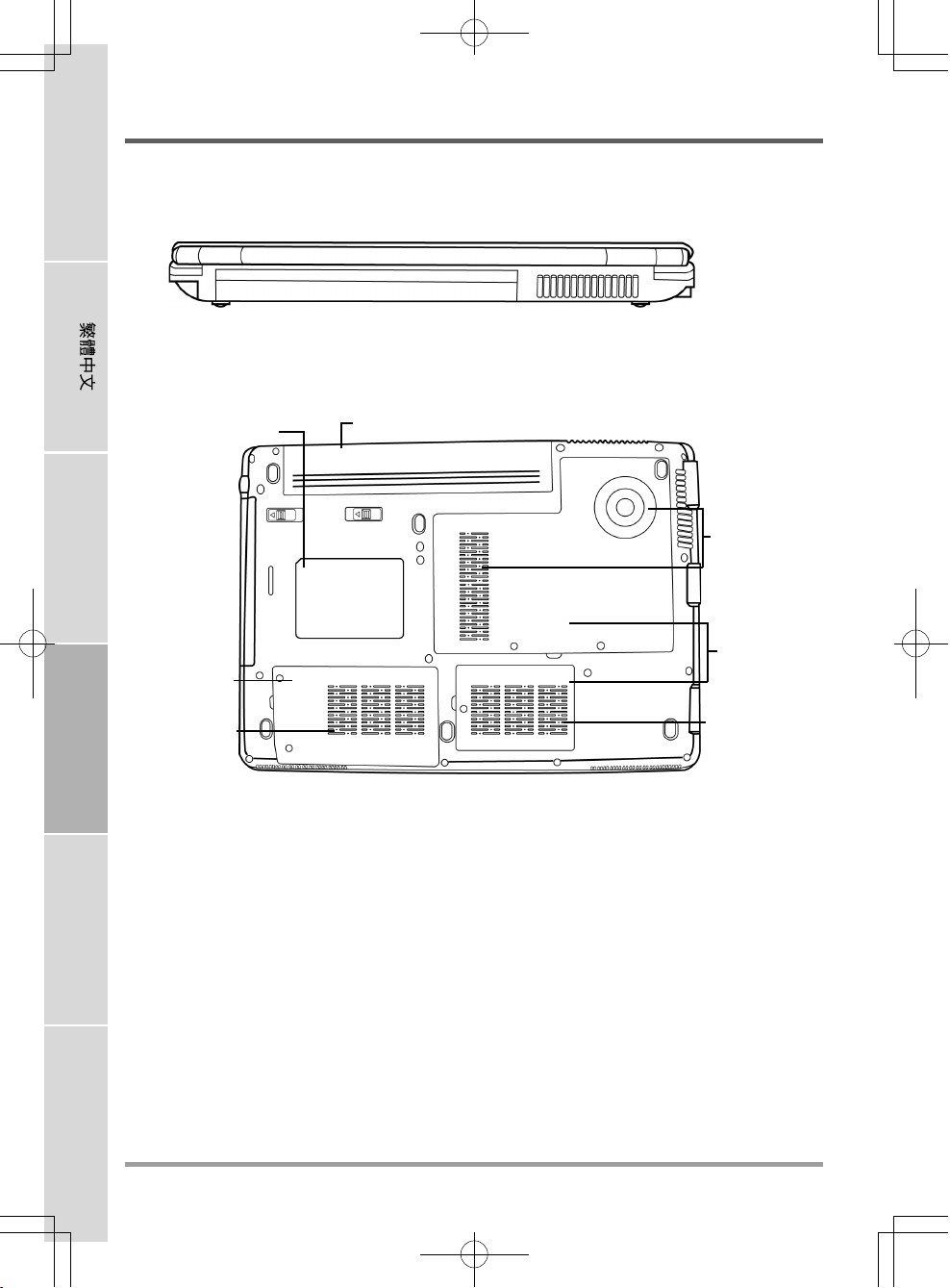

BACK OVERVIEW

The following is an overview of the back of the notebook.

BOTTOM OVERVIEW

The following is an overview of the bottom of the notebook.

FRANÇAIS

Rating Label

Compartment

DEUTSCH

Cover

Fan Outlets

Lithium-Ion Battery Bay

Fan Outlets

Compartment Cover

Fan Outlets

Lithium-Ion Battery Bay

The battery bay contains the internal Lithium-Ion battery. It can be opened for the removal of the

ESPAÑOL

battery when stored over a long period of time or for swapping a discharged battery with a charged Lithium-Ion battery.

Fan Outlets

These are open ports for the fan to dissipate heat from the computer's internal components. Do not block or place the computer in such a position that you inadvertently allow the outlets to become blocked.

Compartment Covers

The Wireless LAN compartment contains the Wireless LAN card (Not available in all

ITALIANO

configurations). The memory compartment contains the computer's memory modules. The internal hard disk drive is accessible through the hard disk drive bay. The CPU sits in the CPU bay.

Rating Label

The label shows the model number and other information about your notebook.

GETTING STARTED

Power Sources

Your computer has two types of power source: a Lithium-Ion battery or an AC adapter.

CONNECTING THE POWER ADAPTERS

The AC adapter provides power for operating your notebook PC and charging the battery.

Connecting the AC Adapter

1. Plug the DC output cable into the DC power jack of your notebook PC.

2. Plug the AC adapter into an AC electrical outlet.

Switching from AC Adapter Power to Battery Power

1. Be sure that you have at least one charged battery installed.

2. Remove the AC adapter. Your notebook will automatically switch from DC power to battery power.

NOTE

The Lithium-Ion battery is not charged upon purchase. Initially, you will need to connect the AC adapter to use your notebook PC.

ENGLISH

GETTING STARTED

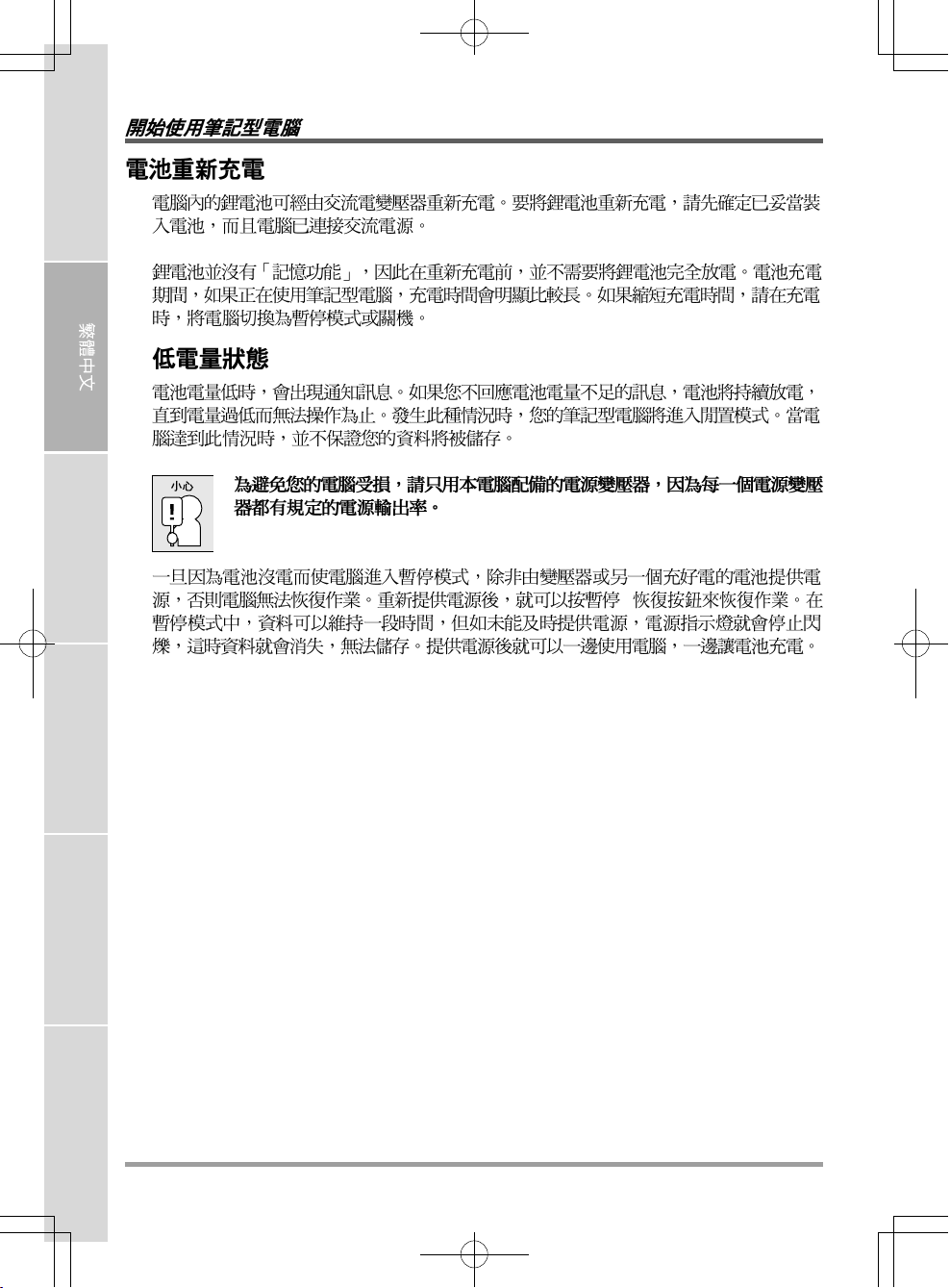

RECHARGING THE BATTERY

The Lithium-Ion battery is recharged internally using the AC adapter. To recharge the battery, make sure the battery is installed and the computer is connected to the AC.

There is no "memory effect" in Lithium-Ion batteries; therefore you do not need to discharge the battery completely before recharging. The charge times will be significantly longer if your notebook PC is in use while the battery is charging. If you want to charge the battery more quickly, put your computer into Suspend mode, or turn it off while the adapter is charging the battery.

Low Battery State

When the battery charge is low, a notification message appears. If you do not respond to the low battery message, the battery continues to discharge until it is too low to operate. When this happens, your notebook PC goes into Suspend mode. There is no guarantee your data will be

FRANÇAIS

saved once the notebook reaches this point.

CAUTION

Once your note computer goes into Suspend mode as a result of a dead battery you will be unable to resume operation until you provide a source of power either from an adapter, or a charged

DEUTSCH

ESPAÑOL

ITALIANO

battery. Once you have provided power, you can press the Suspend/ Resume button to resume operation. In Suspend mode, your data is maintained for some time, but if a power source is not provided promptly, the Power indicator stops flashing and the goes out, in which case you have lost the data that was not saved. Once you provide power, you can continue to use your computer while an adapter charges the battery.

To protect your computer from damage, use only the power adapter that came with it because each power adapter has its own power output rating.

GETTING STARTED

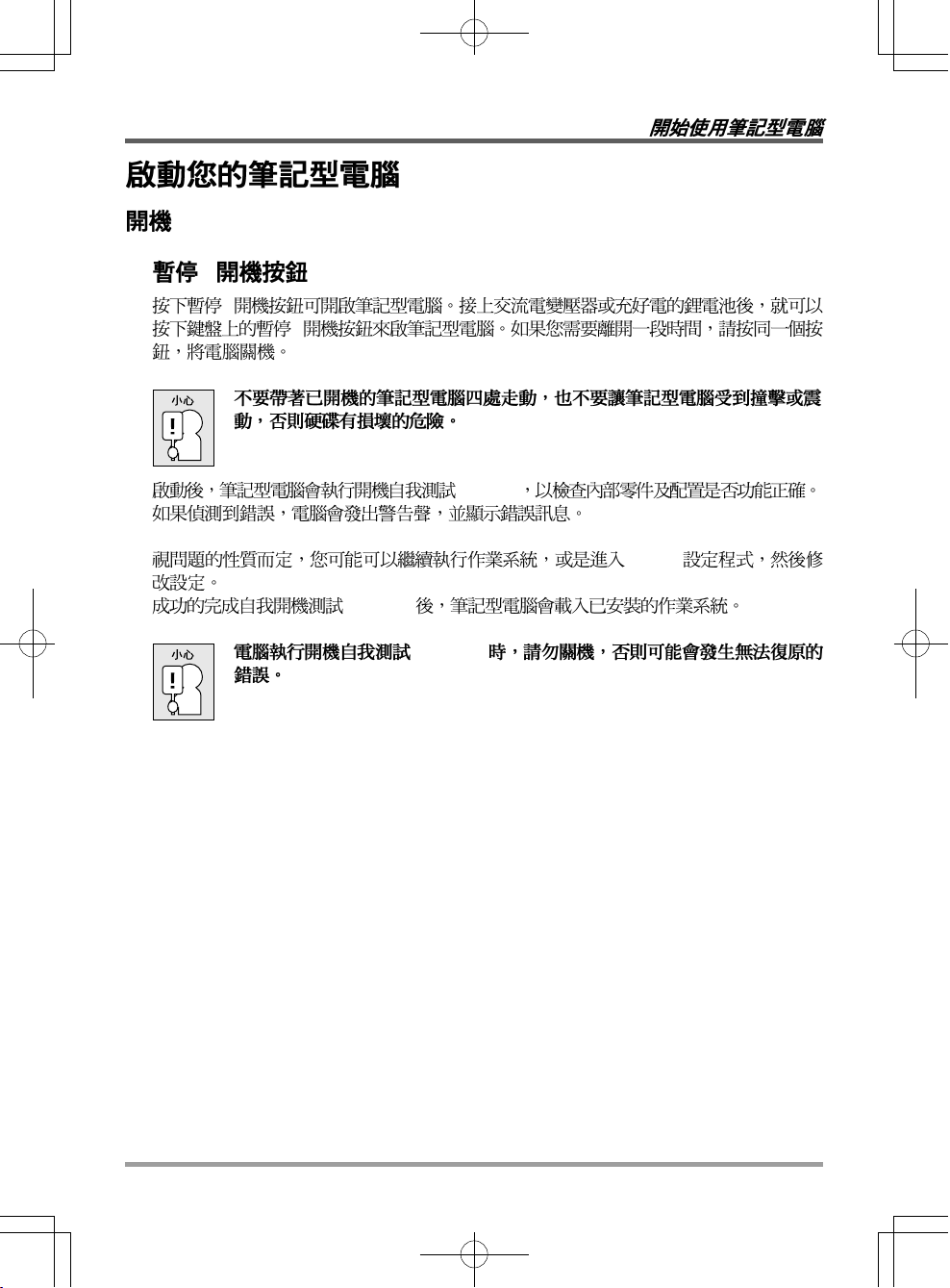

Starting Your Notebook

POWER ON

Suspend/Power On Button

The suspend/power on switch is used to turn on your notebook from its off state. Once you have connected your AC adapter or charged the internal Lithium-Ion battery, you can power on your notebook by pressing the suspend/power on button located above the keyboard. If you need to take an extended break press the button again to turn it off.

CAUTION

When you power on your notebook, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your computer emits an audio warning and or displays and error message.

Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings. After satisfactory completion of the Power On Self Test (POST), your notebook loads the installed operating system.

CAUTION

Do not carry your notebook around with the power on or subject it to shocks or vibration, as you risk damaging the hard disk.

Never turn off your notebook during the Power On Self Test (POST), or an unrecoverable error may occur.

ENGLISH

GETTING STARTED

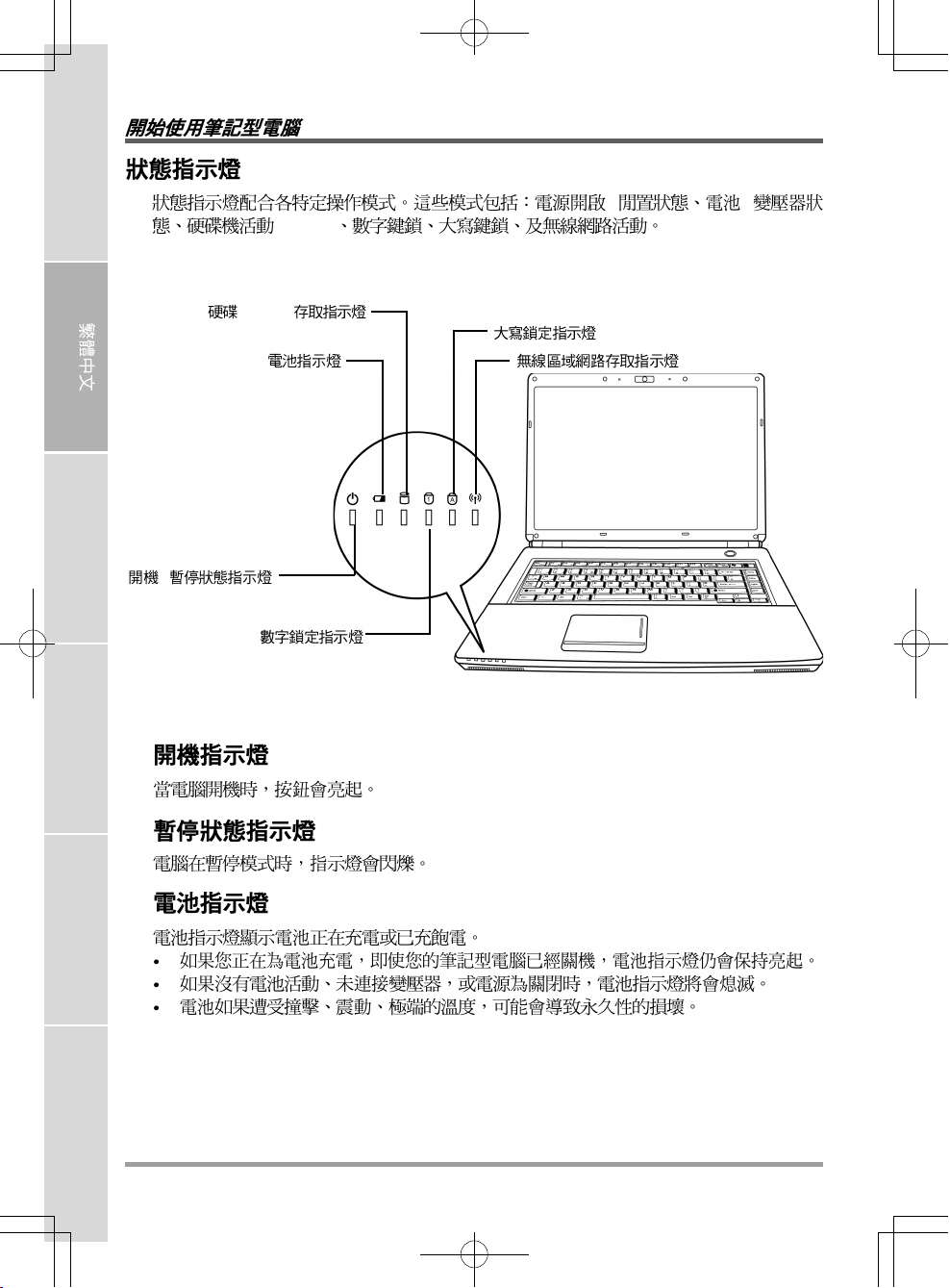

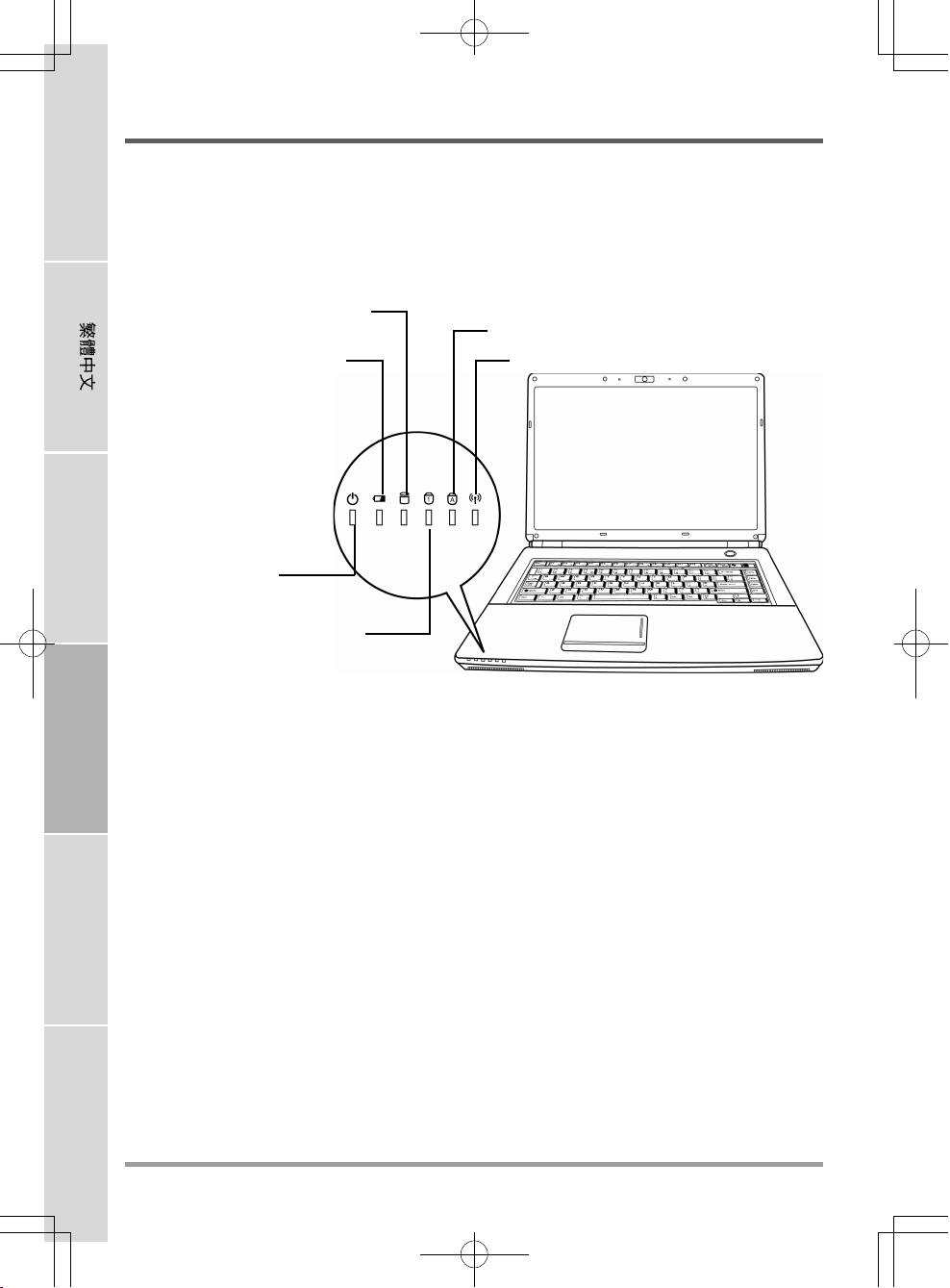

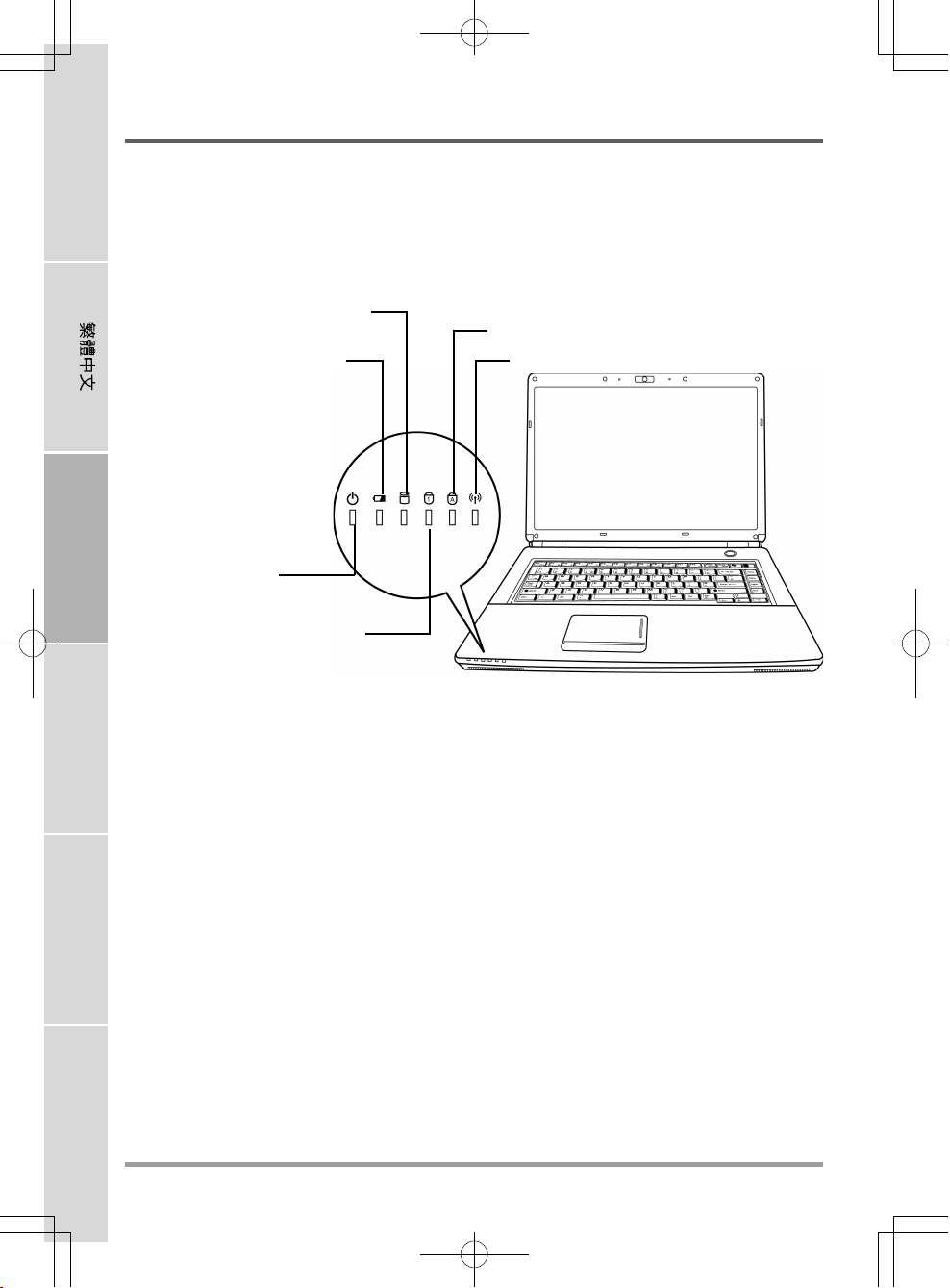

Status Indicators

The status indicator lights correspond to specific operating modes. These modes are: Power on/ Suspend status, Battery/AC Adapter status, hard drive activity (HDD), Num Lock, Caps Lock, and Wireless LAN activity.

Hard Disk Drive (HDD) Activity

FRANÇAIS

Power on/Suspend

Indicator

Battery Indicator

Indicator

Num Lock Indicator

Caps Lock Indicator

Wireless LAN Activity Indicator

DEUTSCH

Power On Indicator

This light on the power button illuminates when the computer is powered on.

Suspend Status Indicator

ESPAÑOL

This light flashes when the computer is in the Suspend mode.

Battery Indicator

The Battery indicator tells you whether the Lithium-Ion battery is charging or is already fully charged.

• If you are charging your battery, the Battery indicator remains on even if your notebook is

• If there is no battery activity, the power adapters are not connected, or the power switch is

ITALIANO

• Batteries subjected to shocks, vibrations or extreme temperatures can be permanently damaged.

shut off.

Off, the Battery indicator will also be off.

GETTING STARTED

Hard Disk Drive (HDD) Activity Indicator

The Hard Disk Drive (HDD) Activity indicator tells you whether your internal hard drive is being accessed and, if so, how fast.

The Num Lock Indicator

This indicator shows when the internal keyboard is in ten-key numeric keypad mode.

The Caps Lock Indicator

This indicator tells you that the keyboard is set to type in all capital letters.

Wireless LAN Activity Indicator

The Wireless LAN Activity indicator tells you whether your computer is connected to a wireless network or not.

ENGLISH

GETTING STARTED

Using Function Keys

Your computer has 12 function keys, F1 through F12. The functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used.

The [FN] key provides extended functions for the notebook and is always used in conjunction with another key.

• [FN+F1]: Places the notebook in Suspend mode. Pressing the Power button returns it to active mode.

• [FN+F2]: Enables or disables the wireless network connection.

FRANÇAIS

DEUTSCH

ESPAÑOL

• [FN+F3]: Allows you to change your selection of where to send your display video. Each time you press the combination of keys you will step to the next choice. The choices, in order, are: built-in display panel only, both built-in display panel and external monitor, or external monitor only.

• [FN+F4]: Decreases the screen Brightness.

• [FN+F5]: Increases the screen Brightness.

• [FN+F6]: Mutes the computer's volume.

• [FN+F7]: Decreases the computer's volume.

• [FN+F8]: Increases the computer's volume.

• [FN+F9]: Plays or pauses the current multimedia track.

• [FN+F10]: Stops the current multimedia track.

• [FN+F11]: Goes to the previous multimedia track.

• [FN+F12]: Goes to the next multimedia track.

• [FN+Esc]: Enables or disables the Bluetooth function.

ITALIANO

GETTING STARTED

Using the TouchPad

A TouchPad pointing device comes built into your computer. It is used to control the movement of the pointer to select items on your display panel.

The TouchPad consists of a cursor control, a left and right button, and two scroll buttons. The cursor control works the same way a mouse does, and moves the cursor around the display. It only requires light pressure from the tip of your finger. The left and right buttons function the same as mouse buttons. The actual functionality of the buttons may vary depending on the application that is being used. Finally, the scroll buttons allow you to navigate quickly through pages, without having to use the on-screen cursor to manipulate the up and down scroll bars.

Clicking

Clicking means pushing and releasing a button. To left-click, move the cursor to the item you wish to select, press the left button once, and then immediately release it. To right click, move the mouse cursor to the item you wish to select, press the right button once, and then immediately release it. You also have the option to perform the clicking operation by tapping lightly on the TouchPad once.

Double-Clicking

Double-clicking means pushing and releasing the left button twice in rapid succession. This procedure does not function with the right button. To double-click, move the cursor to the item you wish to select, press the left button twice, and then immediately release it. You also have the option to perform the double-click operation by tapping lightly on the TouchPad twice.

Dragging

Dragging means pressing and holding the left button, while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the left button while moving the item to its new location and then release it. Dragging can also be done using the TouchPad. First, tap the TouchPad twice over the item you wish to move making sure to leave your finger on the pad after the final tap. Next, move the object to its new location by moving your finger across the TouchPad, and then release your finger. Using the Scroll buttons allows you to navigate through a document quickly without using the window's scroll bars. This is particularly useful when you are navigating through on-line pages.

ENGLISH

GETTING STARTED

Memory Module Upgrade

To increase your notebook's memory capacity (up to 8 GB maximum), additional memory modules may be installed. The memory upgrade must be a dual-in-line (DIMM) SDRAM module.

Do not remove any screws from the memory upgrade module compartment except for the ones specifically shown in the directions here.

Installing a Memory Module

The following steps describe how to install a memory upgrade module. We do not recommend that you do this yourself.

1. Turn off power to your notebook using the power switch, disconnect the power adapter, and/ or remove the battery pack.

2. Place your notebook upside-down on a clean work surface.

FRANÇAIS

3. Open the top cover all the way, so that it is lying flat on the work surface.

4. Remove the five screws securing the compartment cover. The memory upgrade module can be severely damaged by electrostatic discharge (ESD). Be sure you are properly grounded when handling and installing the module.

5. Align the connector edge of the memory upgrade module, chip side up, with the connector slot in the compartment.

DEUTSCH

ESPAÑOL

6. Insert the memory upgrade module at a 45

7. Press the memory upgrade module down into the compartment until it locks into the retaining

8. Replace the cover and screws that were removed previously. Installation of the new memory

ITALIANO

The memory upgrade module is not something you routinely remove from your notebook PC. Once it is installed, you should leave it in place unless you want to increase system memory capacity.

angle and press it firmly onto the connector.

clips on either side. You will hear a click when it is properly in place.

module is now complete.

TROUBLESHOOTING

Your notebook PC is sturdy and subject to few problems in the field. However, you may encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices, that you can solve by replacing the device. The information in this section helps you isolate and resolve some of these straightforward problems and identify failures that require service.

Identifying the Problem

If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:

1. Turn off your notebook.

2. Make sure the AC adapter is plugged into your notebook and to an active AC power source.

3. Make sure that any card installed in the PC Card slot is seated properly. You can also remove the card from the slot, thus eliminating it as a possible cause of failure.

4. Make sure that any devices connected to the external connectors are plugged in properly. You can also disconnect such devices, thus eliminating them as possible causes of failure.

5. Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it on.

6. Go through the boot sequence.

7. If the problem has not been resolved, contact your support representative.

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

• Purchase date

• Conditions under which the problem occurred

• Any error messages that have occurred

• Hardware configuration

• Type of device connected, if any

See the Configuration Label on the bottom of your notebook for configuration and serial numbers.

ENGLISH

APPENDIX

Notebook Specifications

Processor (Penryn)  Intel® Centrino® 2 Processor Technology

BIOS  1M BB Flash ROM Chipset (Cantiga)  Intel GM/PM45 + ICH9M Main Memory  Zero on board and two SO-DIMM memory sockets

LCD Display  15.4" TFT-LCD WXGA, 1280x800 Graphics  Intel Cantiga GM Integrated graphics controller

FRANÇAIS

CRT Display Modes  Up to 1920 x 1200 external resolution @ 75Hz Hard Disk Drive  One 2.5" 9.5mm SATA HDD 5400 rpm

Floppy Disk Drive  N/A Optical Disk Drive  One ODD Bay type 5.25"/12.7mm SATA optical

Modem and Bluetooth  56K Modem, V.90/92 support (Factory option)

PC Cards Slot  Expresscard/54 support LAN & WLAN  Ethernet 10/100/1000 Base T on board

DEUTSCH

Interface I/O Port  2 Audio jacks: Headphone-out, Mic-In

ESPAÑOL

Audio  Built-in High Definition Audio (2 channel)

Card Reader  Support Memory Stick(MS-Pro), Multi Media Card,

Mini card  2 Mini card slots for WLAN and Intel Turbo

System Status LED  Power on/Suspend, Battery Charging, Wireless

 45nm Intel

 PGA Package 478 pins, Socket P  1066MHz FSB

 512MB to maximum 8GB 800MHz DDR2 SDRAM

 nVIDIA Geforce 9600M GS -512M/ Geforce

 Supported capacities of 120/160/250/320 GB

 Bluetooth : USB interface (Option)

 Support dual band antenna  Intel Shirley Peak 1x2 a/g/n (Mini card interface )

 1 CRT  2 USB ports (v2.0)  1 e-SATA/USB combo port  1 HDMI port  1 RJ11 connector (Factory option)  1 RJ45 connector  1 Port replicator port (Factory option)  1 2.0M Camera (Factory option)

 Built-in two stereo speakers  Two omni-directional Digital Microphones

CoreTM 2 Duo processor (Penryn)

2.26G ~ 2.8G

(4G x 2)

X4500

9300M GS - 256M (factory option)

storage device(G-base)

 Super Multi DVD RW (Factory option)

(Factory option)

and Secure Digital(MS/MS PRO/MMC/SD)

Memory

LAN, Caps Lock, Number Lock, HDD Access

Keyboard  86(US)/87(EU)/88(JP)-key with Windows func-

Hot Keys on Keyboard  Function Keys

Power Management  Full feature ACPI power management, Stand-by,

Battery Pack & Life  Li-Ion 6 cells, 2200mAh/cell

AC adapter  Output: 19V DC, 3.42A, 65W or 4.74A 90W (for

Pointing Device  Built-in touch pad with 2-way scroll function.

Dimensions/Weight  Dimensions: 357 (W) x 262 (D) x 37.8~42.4 (H) mm

Security  Kensington lock hole OS & S/W  Windows XP compliance

tion keys

 Fn+F1 Suspend switch  Fn+F2 Wireless Enable/Disable  Fn+F3 LCD/CRT/LCD+CRT Switch  Fn+F4 Brightness down  Fn+F5 Brightness up  Fn+F6 Mute  Fn+F7 Volume Down  Fn+F8 Volume Up  Fn+F9 Media Play/Pause  Fn+F10 Media Stop  Fn+F11 Media Play Backward  Fn+F12 Media Play Forward  Fn+ESC Blue tooth Enable/Disable

Suspend to Disk, Suspend to RAM

 ACPI 3.0 supported with Intel SpeedStep

 Li-Ion 9 cells, 2400mAh/cell

Discrete)

 Input: 100~240V AC, 50/60Hz Universal

 2 click buttons

 Weight: ~2.7Kg (with 15.4"W TFT LCD, ODD

Drive, 6-cells)

 Windows Vista compliance

ITALIANO

Copyright-protected technology This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

MEMO

2008 7

ENGLISH

FRANÇAIS

DEUTSCH

.......................................................................................................................

ESPAÑOL

..............................................................................................................

....................................................................................................................

..............................................................................................................

.........................................................................................................................

.......................................................................................................................

.............................................................................................

.................................................................................................................................

.........................................................................................................

............................................................................................................

.......................................................................................................

...........................................................................................................................

................................................................................................................

.........................................................................................................

................................................................................................................

..........................................................................................................................

..............................................................................................................

5 6

6 7

9 10 12 12

13 14

15 16 18 19 20

ITALIANO

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

•

DVD/CD-RW CD

•

Dual DVD+/-RW CD

•

Super Multi DVD RW

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

+ 186 hidden pages
