USER'S MANUAL
ENGLISH
December 2009
ENGLISH
CONTENTS
BEFORE YOU START ............................................................................................. 5
Make sure you have everything ..................................................................................... 5
Familiarize yourself with the computer ........................................................................ 6
OPENING THE DISPLAY PANEL ................................................................................ 6
FRONT OVERVIEW .................................................................................................... 7
LEFT SIDE OVERVIEW .............................................................................................. 9
RIGHT SIDE OVERVIEW .......................................................................................... 10
BACK OVERVIEW ..................................................................................................... 11
FRANÇAIS
DEUTSCH
BOTTOM OVERVIEW ................................................................................................ 12
GETTING STARTED ............................................................................................. 13
Power Sources ............................................................................................................. 13
CONNECTING THE POWER ADAPTERS ............................................................... 13
RECHARGING THE BATTERY ................................................................................. 14
Starting Your Notebook................................................................................................. 15
POWER ON .............................................................................................................. 15
Status Indicators ...................................................................................................... 16
Using Function Keys ................................................................................................ 18
Using the TouchPad................................................................................................. 19
TROUBLESHOOTING ........................................................................................... 20
Identifying the Problem................................................................................................. 20
ESPAÑOL
ITALIANO
2
TAKING CARE OF YOUR NOTEBOOK PC
To prevent possible overheating of the computer's
processor, make sure you don't block the openings provided for ventilation.
DO NOT place on uneven or unstable work
surfaces.
DO NOT place or drop objects on the computer
and DO NOT apply heavy pressure on it.
DO NOT press or touch the display panel.
DO NOT use your notebook computer under
harsh conditions.
DO NOT subject the computer to magnetic
fields.
DO NOT expose to direct sunlight. DO NOT use or store in extreme temperatures.
3
ENGLISH
Avoid sudden changes in temperature or humidity
by keeping it away from A/C and heating vents.
FRANÇAIS
DO NOT place near fire or other sources of heat. DO NOT tamper with the batteries. Keep them
DEUTSCH
DO NOT expose to dust and/or corrosive
chemicals.
ESPAÑOL
DO NOT expose the computer to rain or
moisture.
away from children.
DO NOT slam your notebook shut and never
pick up or hold your notebook by the display.
ITALIANO
DO NOT spray water or any other cleaning fluids
directly on the display.
4
If you are traveling with your computer, remember to carry it as hand luggage. Do not check it in
as baggage.
BEFORE YOU START
Make sure you have everything
When you receive your notebook PC, unpack it carefully and check to make sure you have all the
items listed below. For a pre-configured model you should have the following:
• Notebook Computer
• Lithium-Ion battery
• AC adapter with power cord
• Driver and Applications CD
• Quick Start Guide or User Guide
Depending on the configuration of your notebook, you may also need the following items:
• Dual DVD+/-RW Application Disc
• Super Multi DVD RW Application Disc
• Blu-ray/DVD RW Application Disc
Once you have checked and confirmed that your notebook system is complete, read through the
following pages to learn about all of your notebook components.
NOTE
Depending on the model you purchased, the actual appearance of your notebook may vary from that shown in this manual.
5
ENGLISH
BEFORE YOU START
Familiarize yourself with the computer

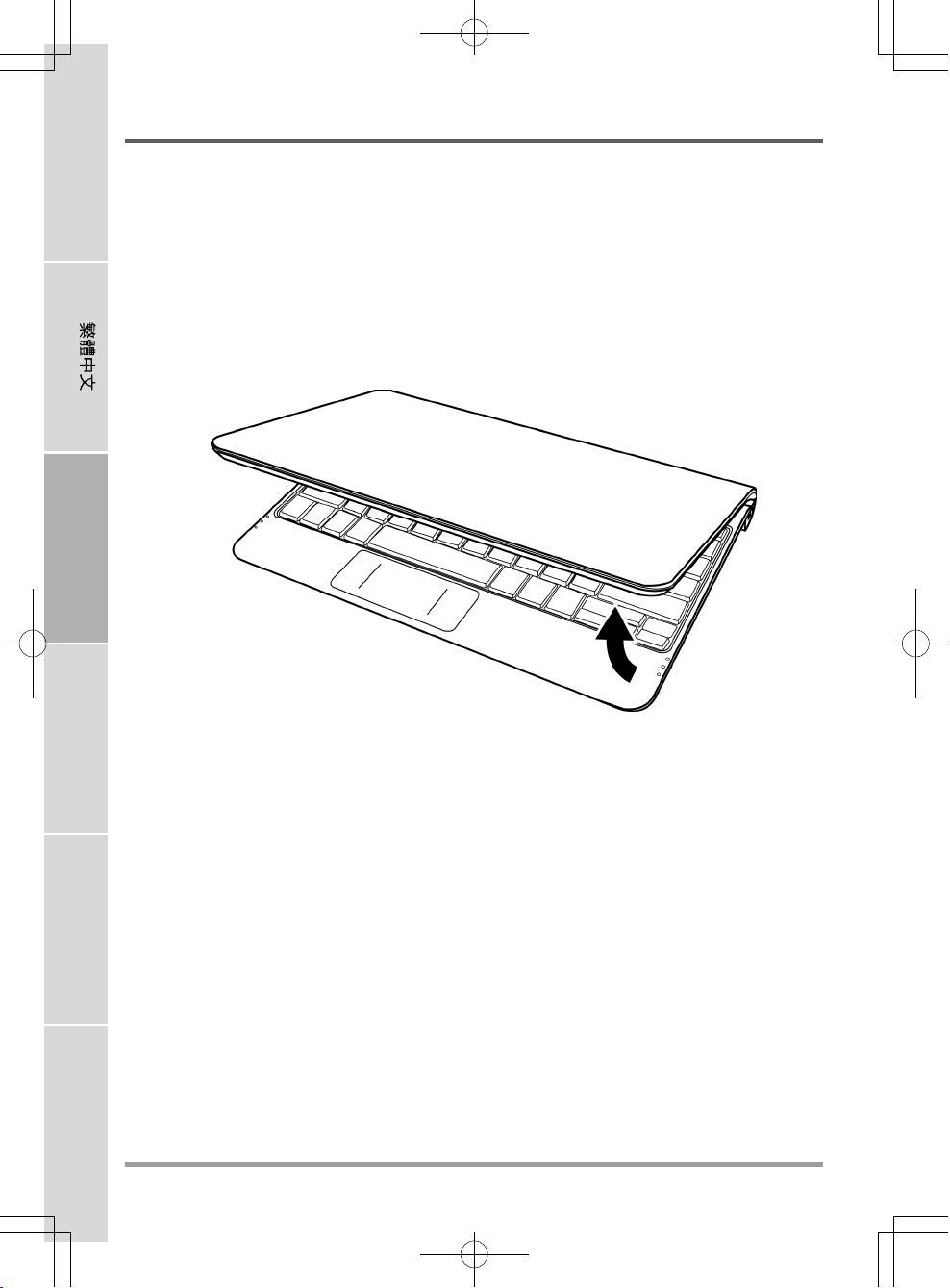

OPENING THE DISPLAY PANEL
To open the display panel, simply lift the lid up.
When closing it, be sure not to slam it shut.
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
6

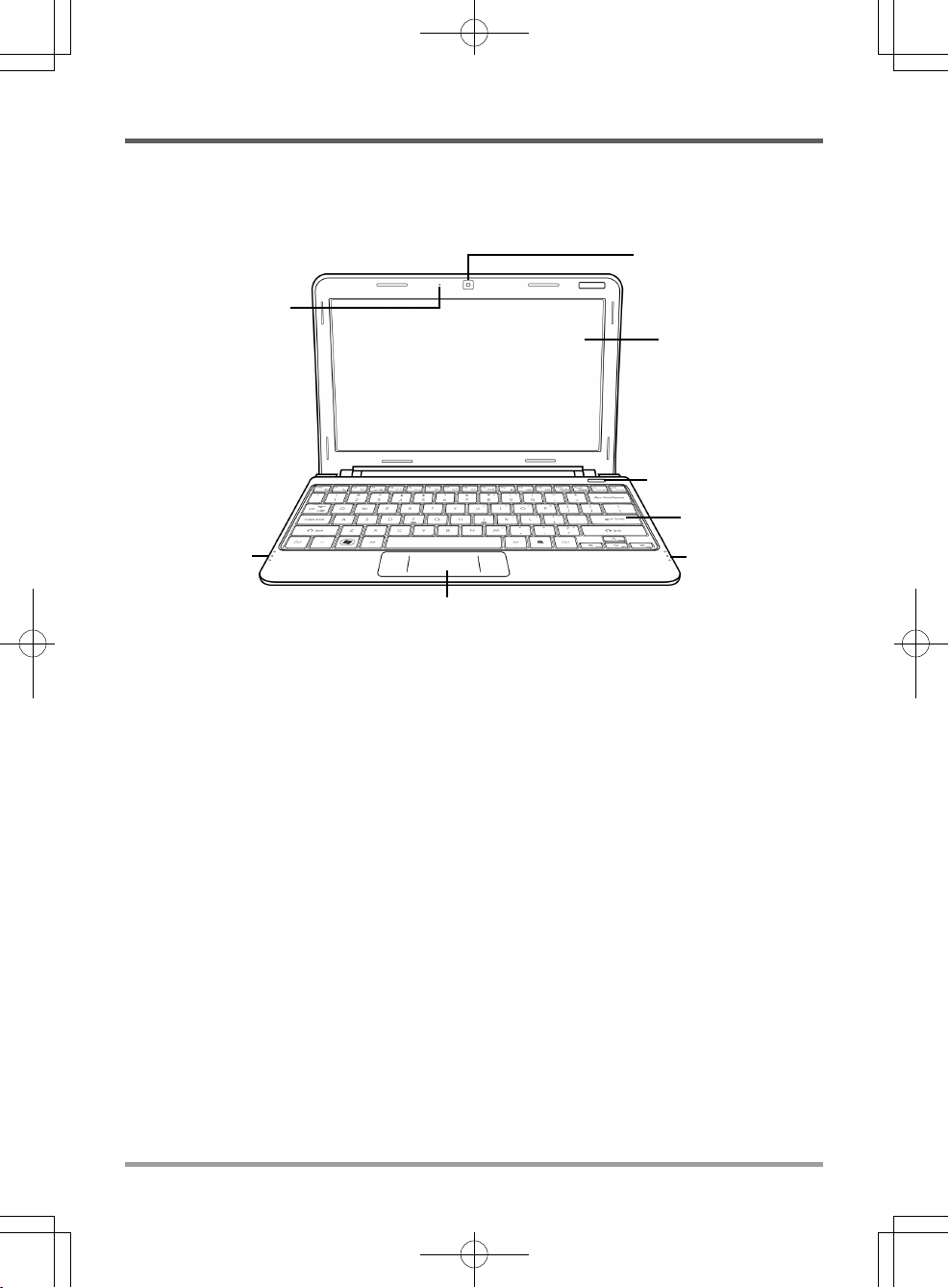

FRONT OVERVIEW
The following is an overview of the front of the notebook.
Microphone
BEFORE YOU START
Camera
Display Panel
Suspend / Power On
Button
Keyboard
Status Indicator
Lights
TouchPad Pointing Device
Status Indicator
Lights
Camera
The built-in 0.3 or 1.3 megapixel camera allows you to snap a photo or create a video chat or video
conference with just a click.
Display Panel
The display panel is a color LCD panel with back lighting for the display of text and graphics.
Suspend/ Power On Button
This button turns your notebook on and off or puts it to sleep. (See Suspend/Power On Button
in the Power On section for more information.)
Keyboard
A full-size keyboard with dedicated Windows® keys.
7
ENGLISH
BEFORE YOU START
Status Indicator Lights
The Status indicator lights correspond to specific operating modes. These modes are: Power on/
Suspend status, battery/AC adapter status, hard drive activity (HDD), Num Lock, Caps Lock,
and wireless transmission activity.

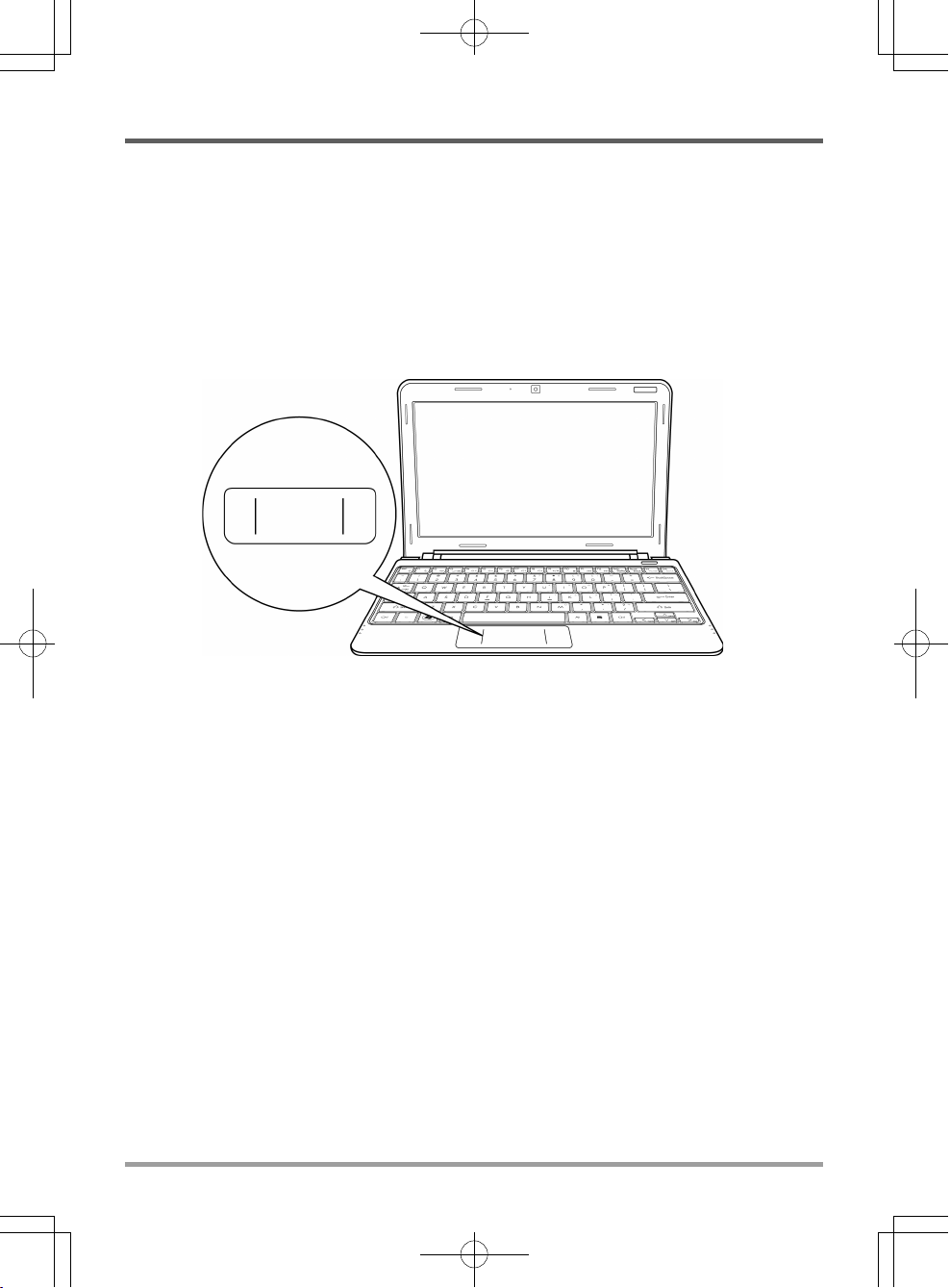

TouchPad Pointing Device
The TouchPad pointing device is a mouse-like cursor control with two buttons and a touch
sensitive movement pad.
Microphone
The built-in microphone allows for the reception and transmission of voice and/or other audio data
to any program capable of accepting such input.
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
8

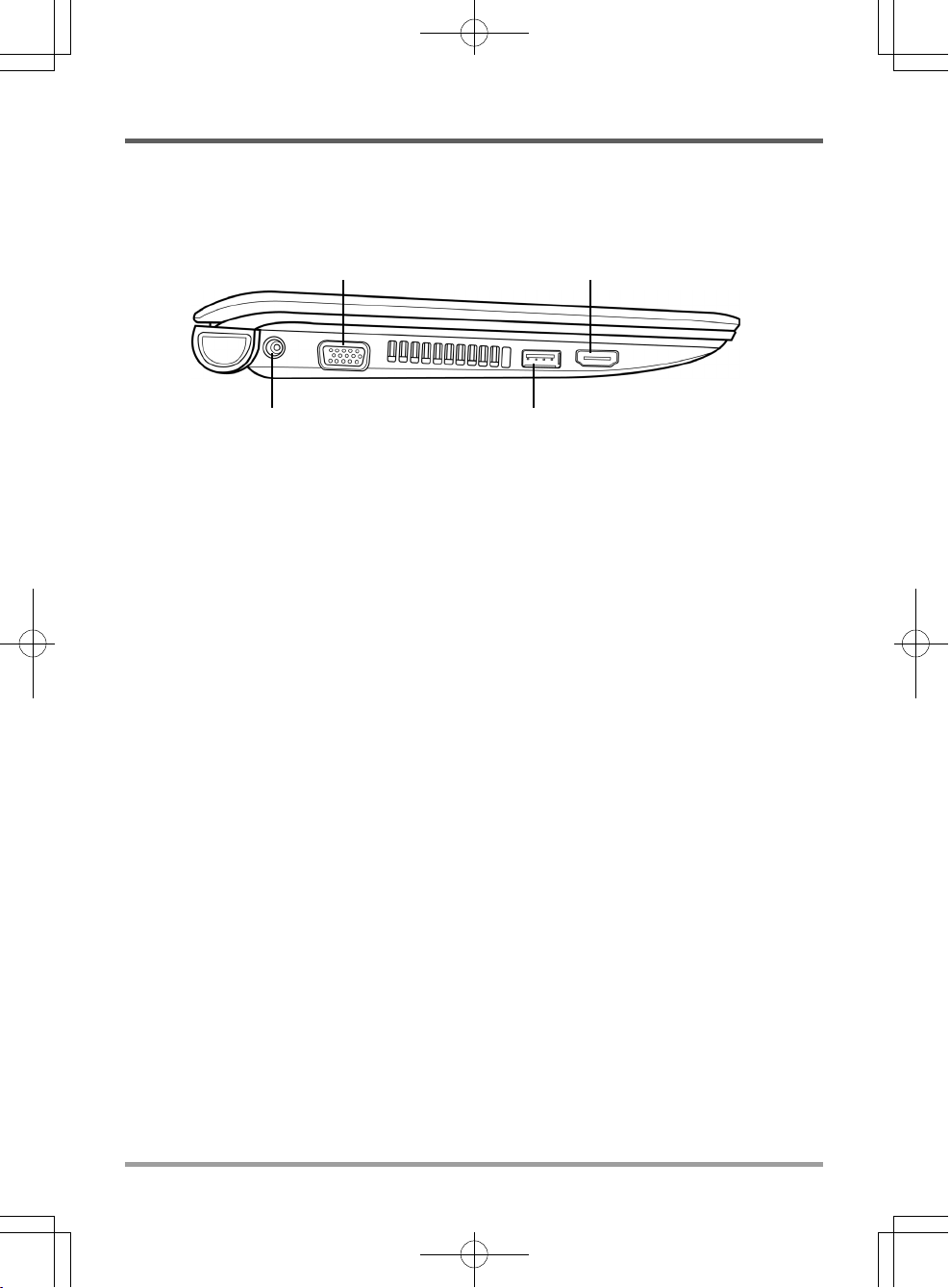

LEFT SIDE OVERVIEW
The following is a brief description of the left side of the notebook.
BEFORE YOU START
External Monitor Port
Power Adapter Port USB Port
HDMI Port
Power Adapter Port
The power adapter port allows you to plug in the AC adapter to power your notebook and charge
the internal Lithium-Ion battery.
External Monitor Port
The external monitor port allows you to connect an external monitor.
USB Port
The USB port allows you to connect Universal Serial Bus devices. It supports v2.0 of the USB
standard, which allows data exchange rates as high as 480 Mb/s.
HDMI Port
The HDMI port allows you to connect a video device such as a television, a projector, or a VCR.
9
ENGLISH
BEFORE YOU START
RIGHT SIDE OVERVIEW
The following is a brief description of the right side of the notebook.
FRANÇAIS
Memory Card Reader
The memory card reader offers the fastest and most convenient method to transfer pictures, music
and data between your notebook and flash compatible devices such as digital cameras, MP3
players, mobile phones, and PDAs.
Headphone Jack
DEUTSCH
The headphone jack allows you to connect headphones or external speakers and amplifiers.
Microphone Jack
The microphone jack allows you to connect an external microphone.
USB Ports
The USB ports allow you to connect Universal Serial Bus devices. They support v2.0 of the USB
ESPAÑOL
standard, which allows data exchange rates as high as 480 Mb/s.
LAN (RJ-45) Port
The LAN port is designed to support a 10/100 Base-T standard RJ-45 plug.
Microphone Jack
Headphone Jack
Memory Card Reader Kensington Lock SlotUSB Ports
LAN (RJ-45) Port
ITALIANO
10
BEFORE YOU START

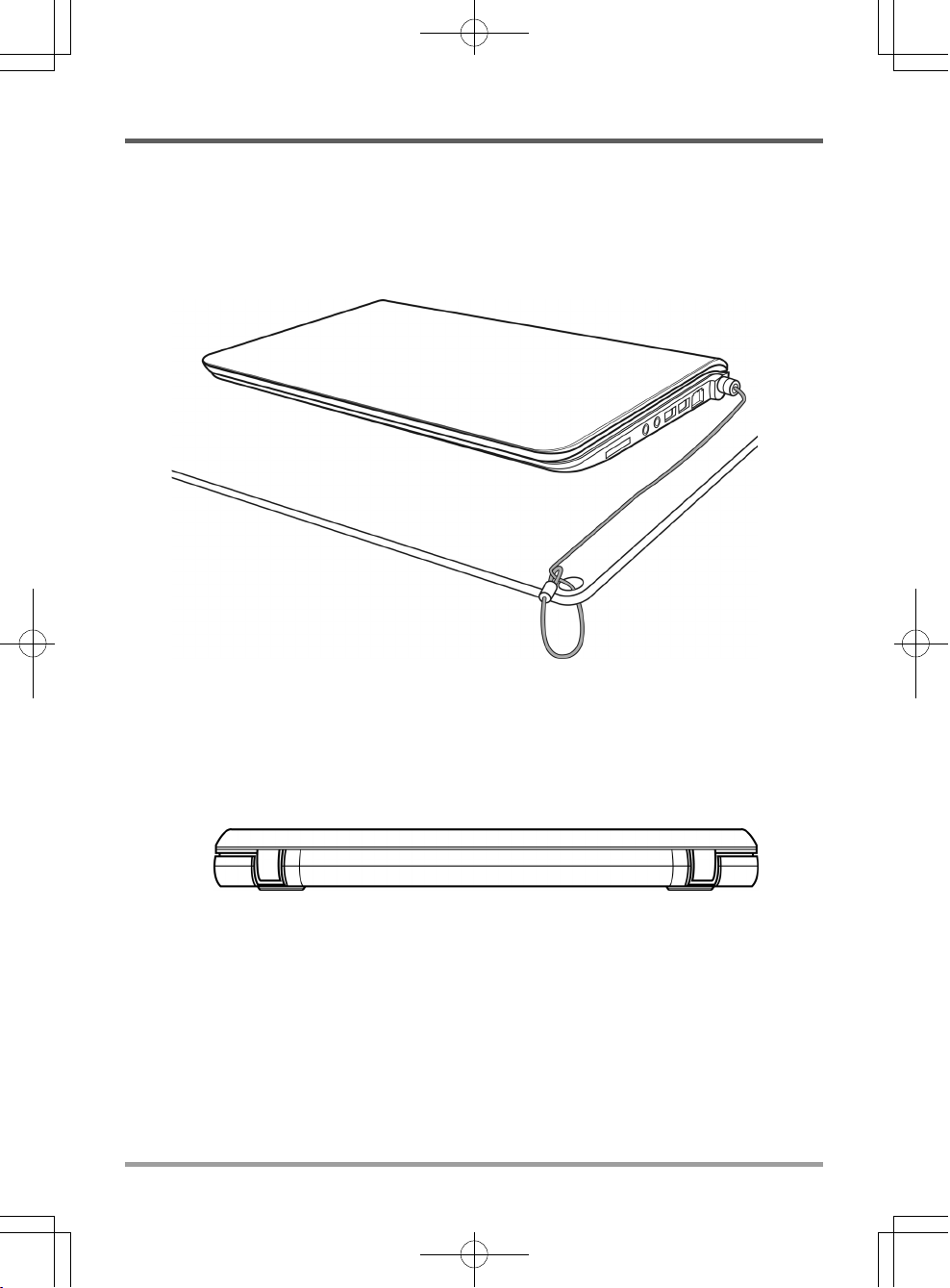

Kensington Lock Slot
The Kensington lock slot allows you to secure your notebook to an immovable object with an
optional security cable.
BACK OVERVIEW
The following is an overview of the back of the notebook.
11
ENGLISH
BEFORE YOU START
BOTTOM OVERVIEW
The following is an overview of the bottom of the notebook.
Rating Label
Compartment
FRANÇAIS
Cover
Lithium-Ion Battery Bay
Compartment
Cover
Fan Outlets
Stereo Speakers
DEUTSCH
Lithium-Ion Battery Bay
The battery bay contains the internal Lithium-Ion battery. It can be opened for the removal of the
battery when stored over a long period of time or for swapping a discharged battery with a
charged Lithium-Ion battery.
Compartment Covers
The Wi-Fi compartment contains the Wireless LAN card and the 3G module (Not available in all
ESPAÑOL
configurations). The memory compartment contains the computer's memory module.
Fan Outlets
These are open ports for the fan to dissipate heat from the computer's internal components. Do
not block or place the computer in such a position that you inadvertently allow the outlets to
become blocked.
Stereo Speakers
ITALIANO
The built-in dual speakers allow for stereo sound.
Rating Label
The label shows the model number and other information about your notebook.
12
GETTING STARTED
Power Sources
Your computer has two types of power sources: a Lithium-Ion battery or an AC adapter.
CONNECTING THE POWER ADAPTERS
The AC adapter provides power for operating your notebook PC and charging the battery.
Connecting the AC Adapter
1. Plug the DC output cable into the DC power jack of your notebook PC.
2. Plug the AC adapter into an AC electrical outlet.
Switching from AC Adapter Power to Battery Power
1. Be sure that you have at least one charged battery installed.
2. Remove the AC adapter. Your notebook will automatically switch from DC power to battery
power.
NOTE
The Lithium-Ion battery is not charged upon purchase. Initially, you will need
to connect the AC adapter to use your notebook PC.
13
ENGLISH
GETTING STARTED
RECHARGING THE BATTERY
The Lithium-Ion battery is recharged internally using the AC adapter. To recharge the battery,
make sure the battery is installed and the computer is connected to the AC adapter.
There is no "memory effect" in Lithium-Ion batteries; therefore you do not need to discharge the
battery completely before recharging. The charge times will be significantly longer if your notebook PC is in use while the battery is charging. If you want to charge the battery more quickly,
put your computer into Suspend mode or turn it off while the adapter is charging the battery.
Low Battery State
When the battery charge is low, a notification message appears. If you do not respond to the low
battery message, the battery continues to discharge until it is too low to operate. When this
happens, your notebook PC goes into Suspend mode. There is no guarantee your data will be
FRANÇAIS
saved once the notebook reaches this point.
CAUTION
Once your notebook PC goes into Suspend mode as a result of a dead battery, you will be unable
to resume operation until you provide a source of power either from an adapter or a charged
DEUTSCH
battery. Once you have provided power, you can press the Suspend/ Resume button to resume
operation. In Suspend mode, your data is maintained for some time, but if a power source is not
provided promptly, the Power indicator stops flashing and then goes out, in which case you have
lost the data that was not saved. Once you provide power, you can continue to use your computer while an adapter charges the battery.
Battery Replacement
ESPAÑOL
ITALIANO
There is danger of explosion if an incorrect battery type is used for replacement. For computers
equipped with a replaceable lithium-ion battery pack, the following applies:
- if the battery is placed in an OPERATOR ACCESS AREA, there shall be a marking close to
- if the battery is placed elsewhere in the computer, there shall be a marking close to the battery
The marking or statement shall include the following or similar text:
CAUTION
To protect your notebook from damage, use only the power adapter that came
with it because each power adapter has its own power output rating.
the battery, or a statement in both the operating and the servicing instructions;
or a statement in the servicing instructions.
Risk of explosion if battery is replaced with an incorrect type. Dispose of used
batteries according to the instructions.
14
GETTING STARTED
Starting Your Notebook
POWER ON
Suspend/Power On Button
The suspend/power on switch is used to turn on your notebook from its off state. Once you have
connected your AC adapter or charged the internal Lithium-Ion battery, you can power on your
notebook by pressing the suspend/power on button located above the keyboard. If you need to
take an extended break, press the button again to turn it off.
CAUTION
When you power on your notebook, it will perform a Power On Self Test (POST) to check the
internal parts and configuration for correct functionality. If a fault is found, your computer emits
an audio warning and/or displays an error message.
Depending on the nature of the problem, you may be able to continue by starting the operating
system or by entering the BIOS setup utility and revising the settings.
After satisfactory completion of the Power On Self Test (POST), your notebook loads the
installed operating system.
CAUTION
Do not carry your notebook around with the power on or subject it to shocks or
vibration, as you risk damaging the hard disk.
Never turn off your notebook during the Power On Self Test (POST), or an
unrecoverable error may occur.
15
ENGLISH
GETTING STARTED
Status Indicators
The status indicator lights correspond to specific operating modes. These modes are: Power on/
Suspend status, Battery/AC Adapter status, hard drive activity (HDD), Num Lock, Caps Lock,
and wireless transmission activity.
Caps Lock
FRANÇAIS
Indicator
Wireless Transmission
DEUTSCH
Power On/Suspend Status Indicator
This light illuminates when the computer is powered on, and flashes when the computer is in the
Suspend mode.
Battery Indicator
ESPAÑOL
The Battery indicator tells you whether the Lithium-Ion battery is charging or is already fully
charged.
• If you are charging your battery, the Battery indicator remains on even if your notebook is
shut off.
• If there is no battery activity, the power adapters are not connected, or the power switch is
Off, the Battery indicator will also be off.
• Batteries subjected to shocks, vibrations or extreme temperatures can be permanently damaged.
Num Lock
Indicator
Activity Indicator
Power On/Suspend Status
Indicator
Battery Indicator
Hard Disk Drive (HDD) Activity
Indicator
ITALIANO
16
GETTING STARTED
Hard Disk Drive (HDD) Activity Indicator
The Hard Disk Drive (HDD) Activity indicator tells you whether your internal hard drive is being
accessed and, if so, how fast.
The Num Lock Indicator
This indicator shows when the internal keyboard is in ten-key numeric keypad mode.
The Caps Lock Indicator
This indicator tells you that the keyboard is set to type in all capital letters.
Wireless Transmission Activity Indicator
The Wireless Transmission Activity indicator tells you whether your computer is connected to a
Bluetooth/wireless network or not.
17
ENGLISH
GETTING STARTED
Using Function Keys
Your computer has 12 function keys, F1 through F12. The functions assigned to these keys differ
for each application. You should refer to your software documentation to find out how these keys
are used.
The [FN] key provides extended functions for the notebook and is always used in conjunction
with another key.
• [FN+F1]: Places the notebook in Suspend mode. Pressing the Power button returns it to
active mode.
• [FN+F2]: Enables or disables the wireless network connection. Press this key combination
to enable Wireless LAN connection. Press and hold this key combination to enable 3G
FRANÇAIS
network connection.
• [FN+F3]: Allows you to change your selection of where to send your display video. Each
time you press the combination of keys you will step to the next choice. The choices, in
order, are: built-in display panel only, both built-in display panel and external monitor, or
external monitor only.
• [FN+F4]: Decreases the screen Brightness.
DEUTSCH
ESPAÑOL
ITALIANO
• [FN+F5]: Increases the screen Brightness.
• [FN+F6]: Mutes the computer's volume.
• [FN+F7]: Decreases the computer's volume.
• [FN+F8]: Increases the computer's volume.
• [FN+F9]: Plays or pauses the current multimedia track.
• [FN+F10]: Stops the current multimedia track.
• [FN+F11]: Goes to the previous multimedia track.
• [FN+F12]: Goes to the next multimedia track.
• [FN+Esc]: Enables or disables the Bluetooth function.
18
GETTING STARTED
Using the TouchPad
A TouchPad pointing device comes built into your computer. It is used to control the movement
of the pointer to select items on your display panel.
The TouchPad consists of a cursor control, a left and right button, and a scroll bar. The cursor
control works the same way a mouse does, and moves the cursor around the display. It only
requires light pressure from the tip of your finger. The left and right buttons function the same as
mouse buttons. The actual functionality of the buttons may vary depending on the application
that is being used.
Clicking
Clicking means pushing and releasing a button. To left-click, move the cursor to the item you wish
to select, press the left button once, and then immediately release it. To right click, move the
mouse cursor to the item you wish to select, press the right button once, and then immediately
release it. You also have the option to perform the clicking operation by tapping lightly on the
TouchPad once.
Double-Clicking
Double-clicking means pushing and releasing the left button twice in rapid succession. This
procedure does not function with the right button. To double-click, move the cursor to the item
you wish to select, press the left button twice, and then immediately release it. You also have the
option to perform the double-click operation by tapping lightly on the TouchPad twice.
Dragging
Dragging means pressing and holding the left button while moving the cursor. To drag, move the
cursor to the item you wish to move. Press and hold the left button while moving the item to its
new location and then release it. Dragging can also be done using the TouchPad. First, tap the
TouchPad twice over the item you wish to move, making sure to leave your finger on the pad after
the final tap. Next, move the object to its new location by moving your finger across the TouchPad,
and then release your finger.
19
ENGLISH
TROUBLESHOOTING
Your notebook PC is sturdy and subject to few problems in the field. However, you may encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices, that you can solve by replacing the device. The information in this section helps you
isolate and resolve some of these straightforward problems and identify failures that require
service.
Identifying the Problem
If you encounter a problem, go through the following procedure before pursuing complex
FRANÇAIS
DEUTSCH
troubleshooting:
1. Turn off your notebook.
2. Make sure the AC adapter is plugged into your notebook and to an active AC power source.
3. Make sure that any card installed in the PC Card slot is seated properly. You can also remove
the card from the slot, thus eliminating it as a possible cause of failure.
4. Make sure that any devices connected to the external connectors are plugged in properly. You
can also disconnect such devices, thus eliminating them as possible causes of failure.
5. Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it on.
6. Go through the boot sequence.
7. If the problem has not been resolved, contact your support representative.
Before you place the call, you should have the following information ready so that the customer
support representative can provide you with the fastest possible solution:
• Product name
• Product configuration number
• Product serial number
ESPAÑOL
ITALIANO
• Purchase date
• Conditions under which the problem occurred
• Any error messages that have occurred
• Hardware configuration
• Type of device connected, if any
See the Configuration Label on the bottom of your notebook for configuration and serial numbers.
20
Copyright-protected technology
This product incorporates copyright protection technology that is protected by U.S. patents and
other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
21
MEMO
2009 12
ENGLISH
FRANÇAIS
.................................................................................................................................
DEUTSCH
..............................................................................................................
....................................................................................................................
....................................................................................................................
..............................................................................................................
.........................................................................................................................
.........................................................................................................................
.......................................................................................................................
.......................................................................................................................
.......................................................................................................................
.............................................................................................
.........................................................................................................
............................................................................................................
.......................................................................................................
...........................................................................................................................
................................................................................................................
................................................................................................................
................................................................................................................
................................................................................................................
..........................................................................................................................
5
5
6
6
7
9
10
11
12
13
13
13
14
15
15
16
18
19
20
20
ESPAÑOL
ITALIANO
2
3
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
4
•
•
•
•
•
•
Dual DVD+/-RW
•
Super Multi DVD RW
•
Blu-ray/DVD RW
CD
5
ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
6
30 130
/
Windows
/
(
/ )
7
ENGLISH
FRANÇAIS
/ /AC
(HDD) Num Lock Caps Lock
DEUTSCH
ESPAÑOL
ITALIANO
8
Loading...
