chiliGREEN P4VMA-M User Manual

FCC Statement

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.

Any changes or modification made to this equipment void the user’s authority
to operate this equipment.

This equipment generates, uses, and radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

* All external cables connecting to this basic unit must be shielded.

C. D. C. Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the radio interference regulations or the Canadian
Department of Communications.

CE Mark

This equipment is in conformity with the EMC directive.

11

1

11

EnglishEnglish

English

EnglishEnglish

Overview

The information in this document is subject to change without notice and
should not be construed as a commitment by the manufacturer.

The manufacturer assumes no responsibility for any errors that might appear
in this document.

The software described in this document is furnished under a license and may
be used or copied only in accordance with the terms of such license. No responsibility
is assumed for the use or reliability of software or equipment that is not supplied by the
manufacturer or its affiliated companies.

Copyright Notice

No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, photocopying, recording or otherwise, stored in any
retrieval system of any nature without the prior written permission of the manufacturer.

Trademark

Other product and company names mentioned herein may be trademarks and/
or service marks of their respective owners.

Intel and Pentium are registered trademarks of Intel Corporation.

Nvidia and nforce is registered trademark of Nvidia.

Sis is registered trademark of Silicon Integrated Systems Corporation.

PS/2 is registered trademark of International Business Machines Corporation.

VIA is registered trademark of VIA T echnologies, Inc.

ATI is registered trademark of ATI Technologies, Inc.

AMD is registered trademark of Advanced Micro Devices, Inc.

EnglishEnglish

English

EnglishEnglish

22

2

22

Important Safety Information

1. Please read these safety instructions carefully.

2. Please keep this User’s Manual for later reference.

3. Please disconnect this equipment from AC outlet before cleaning. Don’t use
liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for
cleaning.

4. For pluggable equipment, the socket-outlet shall be installed near the equipment
and shall be easily accessible.

5. Please keep this equipment from humidity.

6. Lay this equipment on a reliable surface when install. A drop or fall could cause
injury.

7. Do not leave this equipment in an environment unconditioned, storage
temperature above 40°C, it may damage the equipment.

8. The openings on the enclosure are for air convection hence protect the equipment
from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source when connect the equipment to the
power outlet.

10. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord. The power cord must be rated for the product
and for the voltage and current marked on the product’s electrical ratings label.
The voltage and current rating of the cord should be greater than the voltage and
current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not use for long time, disconnect the equipment from mains
to avoid being damaged by transient over-voltage.

13. Never pour any liquid into ventilation openings, this could cause fire or electrical
shock.

14. Never open the equipment. For safety reason, qualified service personnel
should only open the equipment.

15. If one of the following situations arises, get the equipment checked by service
personnel:

a. The Power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment has not work well or you can not get it work according to

user’s manual.
e. The equipment has dropped and damaged.
f. If the equipment has obvious sign of breakage

33

3

33

EnglishEnglish

English

EnglishEnglish

Table of Contents

FCC Statement....................................................................... 1

C. D. C. Statement ............................................................................... 1

CE Mark .............................................................................................. 1

Overview ................................................................................ 2

Copyright Notice................................................................................. 2

Trademark ........................................................................................... 2

Important Safety Information ............................................ 3

English

Section 1. Layout of P4VMA-M V.2.x ........................................... 5

Section 2. Layout of P4VMA-M V.7.x ........................................... 6

Section 3. P4VMA-M System Structure ........................................ 6

Section 4. P4VMA-M Features ....................................................... 8

A. Hardware ............................................................................... 8

B. BIOS & Software .................................................................... 9

Section 5. Package contents .......................................................... 10

Section 6. Installation and Setup ................................................. 11

EnglishEnglish

English

EnglishEnglish

Francais

Caracteristiques de P4VMA-M.................................................... 19

Trouble Shooting................................................................ 22

TM

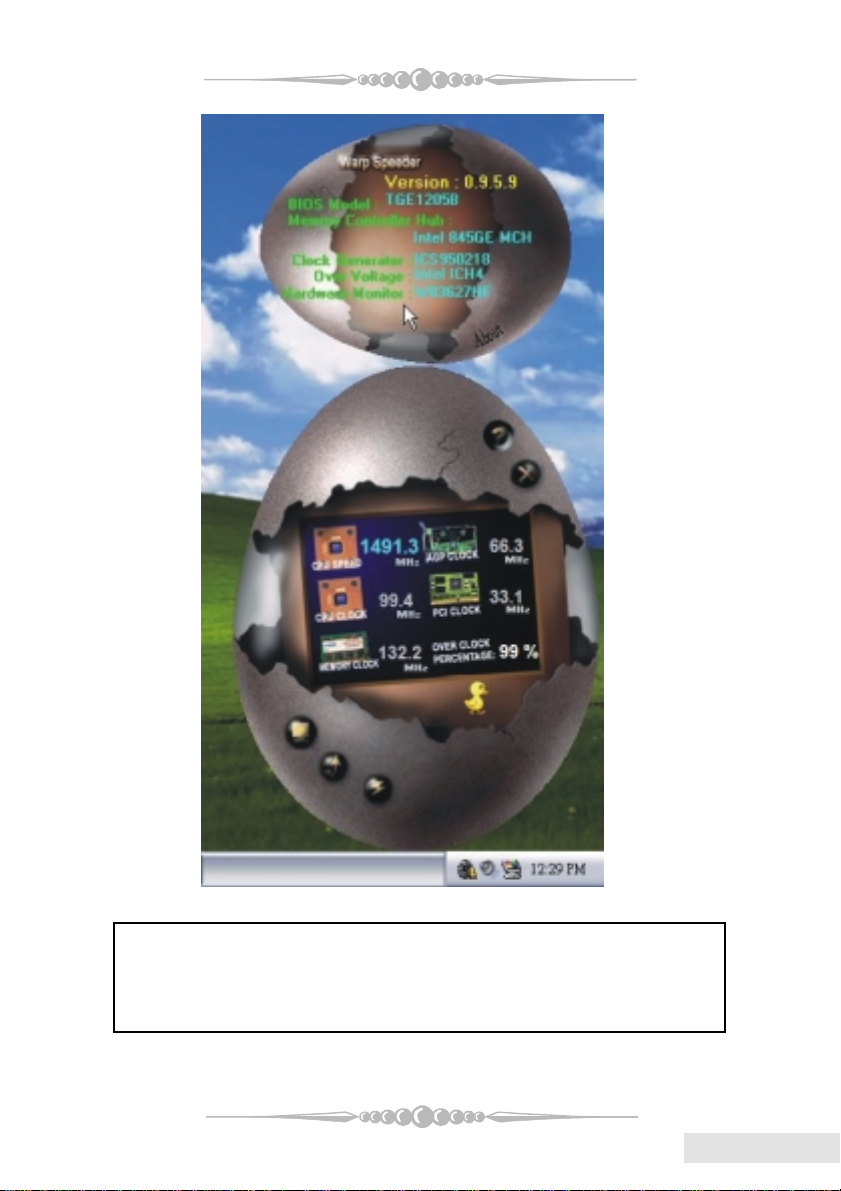

WarpSpeeder

.....................................................................................................................

24

StudioFun!TM (Optional) .................................................... 32

44

4

44

Section 1. Layout of P4VMA-M V.2.x

JCOM1

JVGA1

J1394_USB1

JUSBLAN1

JAUDIO

JAUDIO1

1

CODEC

CODEC

1

J1394A1

IEEE 1394
VIA
VT 6307

JKBMS1

1

9

JUSBV2

1

14

JCDIN1

9

1

JKBV1

1

2
10

RTL8100C

1

JCOM2-HEADER

JUSBV1

1

JSPDIFO1

JFM1

1

CNR1

1

JNFAN1

DIMM1

JUSB4

1

1

9

JUSB3

19

JWOL1

1

JCFAN1

JSFAN1

1

1

VT 8237

Super I/O
IT 8705

BIOS

BIOS

11

IDE2

IDE1

JCMOS1
1

BAT1

24

JSATA1
JSATA2

JCI1

1

2

JPANEL1

23

1

1
1

JDJ1

1

FDD1

1

Socket 478

AGP1

JGAME1

16

PCI1

PCI2

PCI3

1

CPU1

PM 800

JUSBV3

JWOM1
1

NOTE: “ ” represents the first pin.

55

5

55

EnglishEnglish

English

EnglishEnglish

Section 2. Layout of P4VMA-M V.7.x

JKBMS1

1

JCFAN1

JCOM1

Socket 478

CPU1

JVGA1

JUSB1

JUSBLAN1

Super I/O
IT 8705

JAUDIO

BIOS

VT 6103

14

JCDIN1

JSPDIFO1

JAUDIO1

1

1

(Optional)

CNR1

1

1

CODEC

CODEC

NOTE: “ ” represents the first pin.

PM 800

AGP1

PCI1

PCI2

PCI3

FDD1

DIMM1

JUSB3

1

9
JUSB4
19

JSFAN1

VT 8237

2

1

1

JPANEL1

11

IDE1

IDE2

BAT1

JSATA1

JSATA2

1

JCI1

1

JCMOS1
1

1

24

23

EnglishEnglish

English

EnglishEnglish

66

6

66

Section 3. P4VMA-M System Structure

CPU+Socket478

PM800

CRT

AGP4X/8X

8 USB2.0

VT6103 (for v7.x)/
RTL8100C(for v2.x)

10Mb/s, 100Mb/s
LAN

VT8237

3 PCI Master

Floopy/Printer/Keyboard/Mouse

ITE I/O

DDR200/266/333/400

AC’97

ATA66/100/133

IDE1/IDE2

BIOS

77

7

77

EnglishEnglish

English

EnglishEnglish

Section 4. P4VMA-M Features

In this section, you shall find all the information about the
motherboard in your computer, including its features, various
jumpers, headers, connectors, and also the installation guide to
help you a quick and correct installation of your system.

A. Hardware

CPUCPU

CPU

CPUCPU

* Supports Socket 478.
* Supports the Intel

Processor.
* Supports the Intel

478-pin Prescott CPU.
* Front Side Bus at 400/533/800 MHz.

ChipsetChipset

Chipset

ChipsetChipset

* North Bridge: VIA PM800
* South Bridge: VIA VT8237

Super I/OSuper I/O

Super I/O

Super I/OSuper I/O

* Chip: ITE IT8705F
* Provides the most commonly used

legacy Super I/O functionality.
* Environment Control initiatives,

- H/W Monitor

- Fan Speed Controller (optional)

- ITE's “Smart Guardian” function

SlotsSlots

Slots

SlotsSlots

* Three 32-bit PCI bus master slots.
* One AGP 4X/8X compatible slot.
* One CNR slot. (optional)

LAN PHY(optional for v7.x)LAN PHY(optional for v7.x)

LAN PHY(optional for v7.x)

LAN PHY(optional for v7.x)LAN PHY(optional for v7.x)

* Chip: VT6103
* Support 10 Mb/s, 100 Mb/s auto-

negotiation operation.
* Half/Full duplex capability.

* Supports ACPI, PCI power

management.

®

Pentium 4

®

Pentium 4

On Board IDEOn Board IDE

On Board IDE

On Board IDEOn Board IDE

* Supports four IDE disk drives.
* Supports PIO Mode 4, Block Mode

and Ultra DMA 33/66/100/133 Bus

Master Mode.

IEEE 1394 Chip (Optional)IEEE 1394 Chip (Optional)

IEEE 1394 Chip (Optional)

IEEE 1394 Chip (Optional)IEEE 1394 Chip (Optional)

* Chip: VIA VT6307.
* Supports 2 ports with transferrate

up to 400Mb/s.

On Board ACOn Board AC

On Board AC’

On Board ACOn Board AC
CodecCodec

Codec

CodecCodec

* Chip: CMI9739A/9761A.
* Compliant with AC’97

specification.

* AC’97 2.2 interface (for
CMI9739A)/AC’97 2.3 interface
(for CMI9761A)

* Supports S/PDIF-Out.

* Supports 6 channels.

* Supports stereo microphone (for
CMI9761A).

LAN (for v2.x)LAN (for v2.x)

LAN (for v2.x)

LAN (for v2.x)LAN (for v2.x)

* Chip: RTL8100C/RTL8110S
* Support 10 Mb/s, 100 Mb/s

(1000Mb/s for RTL8110S) auto-

negotiation operation.

* Half/Full duplex capability.
* Supports ACPI, PCI power
management.

97 Sound97 Sound

97 Sound

97 Sound97 Sound

EnglishEnglish

English

EnglishEnglish

88

8

88

Main MemoryMain Memory

Main Memory

Main MemoryMain Memory

* Supports up to two DDR devices.
* Supports 266/333/400 MHz DDR devices.
* Maximum memory size is 2GB.

Total Memory Size with Unbuffered DIMMs

tekcoSMMID

noitacoL

1AMMID

1BMMID

On Board PeripheralsOn Board Peripherals

On Board Peripherals

On Board PeripheralsOn Board Peripherals

a. Rear side

- 1 x serial port.

- 1 x Parallel Port, 1 x VGA Port

- 1 x Audio ports in vertical.

- 1 x RJ-45 LAN jack.

- 1 x PS/2 mouse and PS/2 keyboard.

- 4 x USB2.0 ports.

- 1 x IEEE 1394 Firewire
(optional)

DimensionDimension

Dimension

DimensionDimension

* Micro ATX Form Factor: 24.4 cm x 24.4 cm. (W x L) (for version 2.0)
* Micro ATX Form Factor: 19.9 cm x 24.4 cm. (W x L) (for version 7.x)

TM

port

eludoMRDD

/BM215/BM652/BM821/BM46

1*/BG1

/BM215/BM652/BM821/BM46

1*/BG1

b. Front Side

- 1 floppy port supports 2 FDDs with
360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 4 x USB2.0 ports.

- 1 S/PDIF-Out connector (optional)

eziSyromeMlatoT

)BM(

BG2sixaM

B. BIOS & Software

BIOSBIOS

BIOS

BIOSBIOS

* A ward legal BIOS.
* Supports APM1.2, ACPI, USB Function.
* The BIOS configuration manual can be found in the Setup Driver CD.

SoftwareSoftware

Software

SoftwareSoftware

* Supports WarpspeederTM, 9th TouchTM, FLASHERTM, BootblockerTM,

WinFlasher

* Offers the highest performance for Windows 98SE, Windows ME, Windows

2000, Windows XP, Linux, UNIX series, etc.

TM

and StudioFun!(Optional)

99

9

99

EnglishEnglish

English

EnglishEnglish

Section 5. Package contents

Check what you have bought before you start your DIY action.
If there are anything missing, please contact your dealer
immediately.

* HDD Cable X 1

* FDD Cable X 1

* User's Manual X1

* USB 2.0 Cable X1 (optional)

* Rear I/O Panel for ATX Case X1 (optional)

* Fully Setup Driver CD X1

* StudioFun! Application CD X1 (optional)

* S/PDIF-Out Cable X 1 (optional)

* IEEE 1394 Cable X 1 (optional)

* Serial ATA Cable X 2 ( optional)

EnglishEnglish

English

EnglishEnglish

1010

10

1010

Section 6. Installation and Setup

In this section, you will learn how to install the CPU, DDR
Module, and also how to set up jumpers and all the information
about the components on the motherboard. Not only can you find
the installation steps, but also the details and locations of the
components on the motherboard.

1. CPU Installation1. CPU Installation

1. CPU Installation

1. CPU Installation1. CPU Installation

The motherboard supports the Intel Pentium® Socket-478 processor. When
you are installing the CPU, make sure the CPU has a cooling fan attached on the right
to prevent overheating. If you do not find the cooling fan, contact your dealer and make
sure to install them before turning on the computer.

Step1: Pull the lever sideways away from the socket and then raise the

lever up to a 90-degree angle.

Step2: Look for the white dot/cut edge. The white dot/cut edge should

point towards the lever pivot. The CPU will fit only in the cor­rect orientation.

Step3: Hold the CPU down firmly, and then close the lever.
Step4: Put the CPU fan on the CPU and buckle it. Connect the CPU fan

power cable to the JCFAN1. This completes the installation.

2 Central Processing Unit: CPU2 Central Processing Unit: CPU

2 Central Processing Unit: CPU

2 Central Processing Unit: CPU2 Central Processing Unit: CPU

These fan headers support cooling fans built in the computer. The fan wiring and
plug may be different according to the fan manufacturer. Connect the fan cable to the
connector while matching the black wire to the pin 1.

(1) CPU Fan Headers: JCFAN1

1

Pin Assignment
1 Ground
2 +12V
3 FAN RPM Rate Sense

1111

11

1111

EnglishEnglish

English

EnglishEnglish

(2) System Fan Headers/North Bridge Fan Header: JSFAN1/(JNFAN1: optional)

Pin Assignment
1 Ground
2 +12V
3 FAN RPM Rate Sense

3. Installing DDR Module3. Installing DDR Module

3. Installing DDR Module

3. Installing DDR Module3. Installing DDR Module

1. Unlock a DIMM slot by
pressing the retaining clips
outward. Align a DIMM to the
slot in the way that the notch
of the DIMM matches the
break of the slot.

2. Insert the DIMM firmly and
vertically into the slot until the
retaining chip snap back in place
and the Dimm is properly
seated.

4. How to set up Jumpers?4. How to set up Jumpers?

4. How to set up Jumpers?

4. How to set up Jumpers?4. How to set up Jumpers?

The illustration shows how to set up jumpers. When the Jumper cap is placed
on pins, the jumper is “close”. If no jumper cap is placed on the pins, the jumper is
”open”. The illustration shows a 3-pin jumper whose pin 1 and 2 are “close” when
jumper cap is placed on these 2 pins.

1

EnglishEnglish

English

EnglishEnglish

Jumper open Jumper close Pin1-2 close

5. Jumpers, Headers, Connectors & Slots:5. Jumpers, Headers, Connectors & Slots:

5. Jumpers, Headers, Connectors & Slots:

5. Jumpers, Headers, Connectors & Slots:5. Jumpers, Headers, Connectors & Slots:

(1) Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that supports

360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector

supports the provided floppy drive ribbon cables.

1212

12

1212

(2) Hard Disk Connectors: IDE1/ IDE2

1

1

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality. It has
two HDD connectors IDE1 (primary) and IDE2 (secondary).
The IDE connectors can connect a master and a slave drive, so you can connect
up to four hard disk drives. The first hard drive should always be connected to
IDE1.

(3) Peripheral Component Interconnect Slots: PCI1-3

This motherboard is equipped with 3 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designed as 32 bits.

(4) Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard supports
video cards for PCI slots, but it is also equipped with an Accelerated Graphics
Port (AGP). An AGP card will take advantage of AGP technology to improve
video efficiency and performance, especially with 3D graphics.

(5) Communication Network Riser Slot: CNR1 (optional)

The CNR specification is an open Industry Standard Architecture, and it defines
a hardware scalable riser card interface, which supports modem only.

(6) Clear CMOS Jumper: JCMOS1

This jumper helps you to clear the Real Time Clock (R TC) Ram in CMOS. You
can erase the CMOS RTC Ram data to clear the CMOS memory of date, time,
and system setup parameters.

JCMOS1 Assignment
Pin 1-2 Close Normal Operation (default)

Pin 2-3 Close Clear CMOS Data

* Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to "Pin 2-3 Close".

3. W ait for five seconds.

4. Set the jumper to "Pin 1-2 Close".

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

(7) Wake On LAN Header: JWOL1/JWOM1 ( optional)

This connector allows you to connect to a LAN card with Wake On LAN
function. Y ou can wake up the computer by remote control through a local area
network.

Pin Assignment
1 +3.3V Standby Voltage
2 Ground
3 Wake up

1

1313

13

1313

EnglishEnglish

English

EnglishEnglish

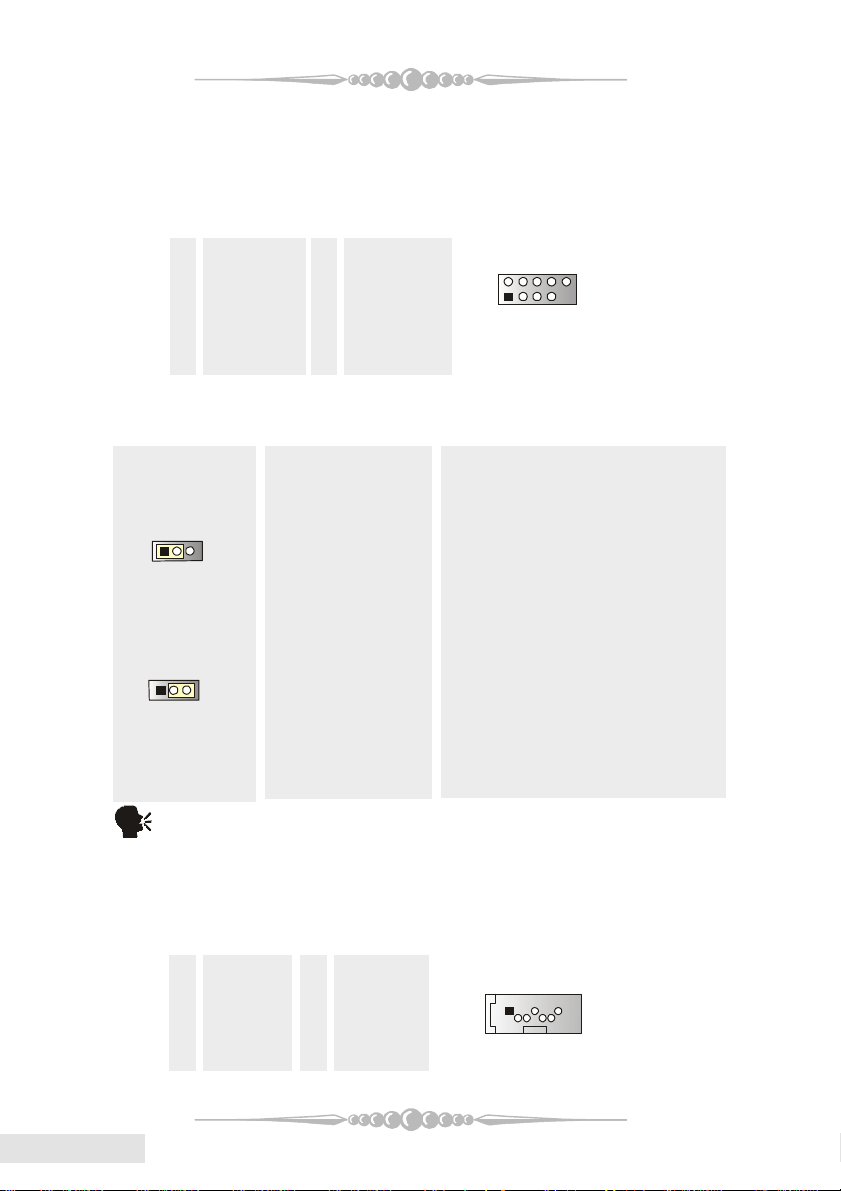

(8) Front USB Header: JUSB3/ JUSB4

1

1

The motherboard provides two USB 2.0 Pin Header. USB 2.0 technology

increases Data transfer rate up to a maximum throughput of 480 Mbps, which

is 40 times faster than USB 1.1, and is ideal for connecting high-speed USB

interface peripherals such as USB HDD, digital cameras, MP3 players, printers,

modems, etc.

Pin Assignment Pin Assignment
1 +5V(fused) 2 +5V(fused)
3 USBP-0 4 USBP-1
5 USBP+0 6 USBP+1
7 Ground 8 Ground
9 KEY 10 NC

(9) Power Source Selection for USB: JUSBV1/JUSBV2/JUSBV3 (for version

2.0 only)

JUSBV1/JUSBV2 Assignment Description
JUSBV3

1

9

Pin 1-2 close +5V JUSBV1: 5V for USB at the

JUSBV2: 5V for USB at the

JUSBLAN1port connector.

JUSBV3: 5V for USB at the JUSB3/

Pin 2-3 close +5V Standby Voltage JUSBV1: 5V Standby voltage for USB

JUSBV2: 5V Standby voltage for USB

JUSBV3: 5V Standby voltage for USB
at the JUSB3/JUSB4 port connectors.

Note: In order to support the function “Power-on the system via USB devices

function,” " JUSBV1/JUSBV2/ JUSBV3" jumper cap should be placed on pin

2-3 respectively.

(10) Serial ATA Connector: JSATA1/JSATA2

The motherboard has a PCI to SA TA Controller with 2 channels ST AT interface.

It satisfies the SATA 1.0 spec and can transfer data with 1.5GHz speed.

Pin Assignment Pin Assignment

1 Ground 2 TX+

3 TX- 4 Ground

5 RX- 6 RX+

7 Ground

J1394_USB1 port connector.

JUSB4 port connectors.

at the J1394_USB1 port connector.

at the JUSBLAN1 port connector.

1

EnglishEnglish

English

EnglishEnglish

1414

14

1414

(11) CD-ROM Audio-In Header: JCDIN1

PWR_LED

HLED

24

23

IR

1

1

This header allows you to receive stereo audio input from sound sources, such
as CD-ROM, TV Tuner, MPEG card, etc.

Pin Assignment
1 Left Channel Input
2 Ground
3 Ground
4 Right Channel Input

(12) Front Panel Connector: JPANEL1

The connector is for electrical connection to the front panel switches and
LEDs.

Pin Assignment Function Pin Assignment Function
1 + 5V Speaker 2 Sleep Control SleepButton
3 NA Connector 4 Ground
5 NA 6 NA NA
7 Speaker 8 Power LED (+) POWER LED
9 HDD LED (+) Hard DriveLED 10 Power LED (+)
11 HDD LED (-) 12 Power LED (-)
13 Ground Reset Button 14 Power Button Power-on Button
15 Reset Control 16 Ground
17 NA 18 KEY
19 NA IrDA 20 KEY IrDA
21 +5V Connector 22 Ground Connector
23 IRTX 24 IRRX

SLP

(+)

2
1

SPK

(+)

ON/OFF

(-)(+)

(-)

RST

1

IR

(13) Power Source Selection for Keyboard/Mouse: JKBV1 (for v2.0 only)

JKBV1 Assignment Description
Pin 1-2 close +5V 5V for keyboard and mouse

Pin 2-3 close +5V_Standby PS/2 Mouse and PS/2 Keyboard

are powered with +5V standby
voltage.

Note: In order to support the function “power-on the system via keyboard and
mouse function, ” “JKBV1” jumper cap should be placed on pin 2-3.

1515

15

1515

EnglishEnglish

English

EnglishEnglish

(14) Power Connector: JA TXPWR1/JATXPWR2

The motherboard supports ATX power supply for the power system. Before
installing the power supply connector, please make sure that all components are
installed properly.

PIN Assignment PIN Assignment
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 Ground 13 Ground
4 +5V 14 PS_ON
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 PW_OK 18 -5V
9 +5V_SB 19 +5V
10 +12V 20 +5V

PIN Assignment PIN Assignment
1 +12V 3 Ground
2 +12V 4 Ground

(15) Front 1394 Header: J1394A1 (optional)

Pin Assignment Pin Assignment
1 A1+ 2 A1­3 Ground 4 Ground
5 B1+ 6 B1­7 +12V 8 +12V
9 KEY 10 Ground

10

1

2

1

J1394A1

20

11

1

9

EnglishEnglish

English

EnglishEnglish

(16) Digital Audio Connector: JSPDIFO1

The connector is used to connect SPDIF (Sony & Philips Digital Interconnect
Format) interface for digital audio transmission.

Pin Assignment
1 +5V
2 SPDIF_OUT
3 Ground

1616

16

1616

JSPDIFO1

1

(17) Case Open Connector: JCI1 (optional)

Pin Assignment
1 Case Open Signal
2 Ground

(18) Front Panel Audio Header: JAUDIO1

The connector allows you to connect to the front panel audio.

Pin Assignment Pin Assignment

1 Mic In/Center 2 Ground

3 Mic Power/Bass 4 Audio Power

5 RT Line Out/Speaker 6 RT Line Out/

Out Right Speaker Out Right
7 Reserved 8 Key
9 LFT Line Out/Speaker 10 LFT Line Out/

Out Left Speaker Out Left
11 RT Line In/Rear 12 RT Line In/Rear

Speaker Right Speaker Right
13 LFT Line In/Rear 14 LFT Line In/

Speaker Left Rear Speaker Left

(19) AUDIO DJ Connector: JDJ1 (optional)

Pin Assignment Pin Assignment
1 SMBDATA 2 SMBCLK
3 INT_B 4 KEY
5 ATX_PWROK

JCI1

1

14

1

JDJ1

1

(20) COM2 Header: JCOM2-HEADER (optional)

Pin Assignment Pin Assignment
1 RIN1 2 RIN3
3 DOUT2 4 DOUT3
5 Ground 6 RIN2
7 DOUT1 8 RIN4
9 -XRI1 10 NA

2

1

10

9

1717

17

1717

EnglishEnglish

English

EnglishEnglish

(21) Game Header: JGAME1 (optional)

1

16

Pin Assignment Pin Assignment
1 +5V 2 +5V
3 Joystick B Button 1 4 Joystick A Button 1
5 Joystick B Coordinate X 6 Joystick A Coordinate X
7 MIDI Output 8 Ground
9 Joystick B Coordinate Y 10 Ground
11 Joystick B Button 2 12 Joystick A Coordinate Y
13 MIDI Input 14 Joystick A Button 2
15 NA 16 +5V

(22) Back Panel Connectors

EnglishEnglish

English

EnglishEnglish

1818

18

1818

6 Channel Speakers

Speaker Out/

Right & Left

Line In/
Rear Speaker (Left & Right)

Mic In/ Cent e r & Bass

Francais
Caracteristiques de P4VMA-M

CPUCPU

CPU

CPUCPU

* Offre les Socket-478.
* Supporte le processeur Intel Pentium 4 jusqu'a 3.2GHz.
* Fonctionnant en Bus Frontal de 400/ 533/ 800MHz.
* Supporte Hyper-Threading.

ChipsetChipset

Chipset

ChipsetChipset

* North Bridge: VIAPM800
* South Bridge: VIA VT8237

Memoire PrincipaleMemoire Principale

Memoire Principale

Memoire PrincipaleMemoire Principale

* Prend en charge un ou deux canaux de donnees DDR de 64 bits de large avec

1 DIMM par canal.

* Bande passant disponible jusqu'a 3.2Go/s (DDR400) pour le mode canal

simple et 6.4Go/s (DDR 400) pour mode canal double.

* Prend en charge les technologies DDR 64Mo, 128 Mo, 256 Mo, 512 Mo, 1Go
* Prend en charge seulement les peripheriques DDR x8, x16. (Ne prend pas en

charge les DIMM et ECC en registres)
* Prend en charge quatre banques de memoire.
* La taille maximum de la memoire est de 2Go.

Super E/SSuper E/S

Super E/S

Super E/SSuper E/S

* Puce: ITE IT8705F.
* Interface de Comptage de Broche Faible.
* Offre la fonctionnalite Super E/S heritee la plus couramment utilisee.
* Initiatives de Controle d'Environnement,

- Moniteur H/W

- Fonction "Smart Guardian" de ITE

SlotsSlots

Slots

SlotsSlots

* 3 slots de maitrise de bus PCI 32 bits.
* Un slot CNR. (optionnel)
* Un slot AGP 4X/8X.

1919

19

1919

EnglishEnglish

English

EnglishEnglish

IDE InterneIDE Interne

IDE Interne

IDE InterneIDE Interne

* Supporte quatre disques durs IDE.
* Supporte PIO Mode 4, le Mode Maitre et le Mode de Maitrise de Bus Ultra

DMA 33/66/100/133.

LAN PHY (pour v7.x)LAN PHY (pour v7.x)

LAN PHY (pour v7.x)

LAN PHY (pour v7.x)LAN PHY (pour v7.x)

* PHY : VIA VT6103
* Double Vitesse: 10/100Mbps Negociation automatique .
* Full/Half Duplex.

LAN (pour v2.x)LAN (pour v2.x)

LAN (pour v2.x)

LAN (pour v2.x)LAN (pour v2.x)

* PHY : RTL8100C/RTL8110S
* Double Vitesse: 10/100Mbps(/1000Mbps pour RTL8100C) Negociation
automatique.
* Full/Half Duplex.

IEEE 1394 Puce (optionnel)IEEE 1394 Puce (optionnel)

IEEE 1394 Puce (optionnel)

IEEE 1394 Puce (optionnel)IEEE 1394 Puce (optionnel)

* Puce : VIA VT6307
* Prise 2 ports IEEE 1394.

Codec Son AC'97 InterneCodec Son AC'97 Interne

Codec Son AC'97 Interne

Codec Son AC'97 InterneCodec Son AC'97 Interne

* CMI9739A/9761A
* Conforme aux specifications du codec AC'97.
* Supporte 6 canaux.
* Interface AC’97 2.2 (pour CMI9739A)/ Interface AC’97 2.3 (pour 9761A).
* Supporte S/PDIF-Out.

EnglishEnglish

English

EnglishEnglish

Peripheriques InternesPeripheriques Internes

Peripheriques Internes

Peripheriques InternesPeripheriques Internes

a. Cote arriere

- 1 port serie, 1 port VGA

- 1 port parallele (mode SPP/EPP/ECP)

- Ports audio en position vertical

- 1 RJ-45 LAN jack.

- Souris PS/2 et clavier PS/2.

- 4 ports USB2.0

- 1 port IEEE1394 (optionnel)

b. Cote frontal :

- 1 port disquette prenant en charge 2 FDD avec 360K, 720K, 1.2M, 1.44M

2020

20

2020

et 2,88Mo.

- 4 ports USB2.0. (optionnel)

- 1 Embase de Sortie S/PDIF.

DimensionsDimensions

Dimensions

DimensionsDimensions

* Facteur de Forme Micro ATX: 24.4 cm X 24.4 cm (l X L) (pour v2.0)
* Facteur de Forme Micro ATX: 19.9 cm X 24.4 cm (l X L) (pour v7.2)

BIOSBIOS

BIOS

BIOSBIOS

* A WARD legal Bios.
* Supporte APM1.2, ACPI, la Fonction USB.

Systeme d'ExploitationSysteme d'Exploitation

Systeme d'Exploitation

Systeme d'ExploitationSysteme d'Exploitation

* Offre les meilleures performances pour Windows 98SE, Windows ME,

Windows 2000, Windows XP, Linux, SCO UNIX, etc.

* Supporte Warspeeder

FLASHER

Contenu de l'EmballageContenu de l'Emballage

Contenu de l'Emballage

Contenu de l'EmballageContenu de l'Emballage

* Cable de Disque Dur X1
* Cable de Lecteur de Disquette X1
* Manuel d'utilisation X1
* Cable USB2.0 X1 (optionnel)
* Panneau d'E/S Arriere pour Boitier Flex X 1 (optionnel)
* CD de Pilote Complet X 1
* CD de StudioFun! X 1 (optionnel)
* Cable Sortie S/PDIF X 1 (optionnel)
* Cable ATA Serie X 1 (optionnel)
* Cable IEEE1394 X 1 (optionnel)

TM

, StudioFun! (optionnel)

TM

, 9th TouchTM, BootBlockerTM, WinFlasherTM,

2121

21

2121

EnglishEnglish

English

EnglishEnglish

Trouble Shooting

PROBABLE

No power to the system at all; power light
doesn't illuminate; fan inside power supply
does not turn on. Indicator light on keyboard
does not turn on.

System inoperative. Keyboard lights are on,
power indicator lights are lit, and hard drive
is spinning.

System does not boot from hard disk drive,
but it can be booted from CD-ROM drive.

System only boots from CD-ROM. Hard
disk can be read and applications can be
used but booting from hard disk is
impossible.

Screen message says "Invalid
Configuration" or "CMOS Failure."

SOLUTION

* Make sure power cable is securely

plugged in.* Replace cable.

* Contact technical support.

* Using even pressure on both ends of

the DIMM, press down firmly until the
module snaps back in places.

* Check cable running from disk to disk

controller board. Make sure both ends
are securely plugged in; check the drive
type in the standard CMOS setup.

* Backing up the hard drive is extremely

important. All hard disks are capable
of breaking down at any time.

* Back up data and applications files.

Reformat the hard drive. Re-install
applications and data using backup
disks.

* Review system's equipment. Make sure

correct information is in setup.

EnglishEnglish

English

EnglishEnglish

Cannot boot system after installing second
hard drive.

Error message reading "SECTOR NOT
FOUND" or other error messages not
allowing certain data to be retrieved.

2222

22

2222

* Set master/slave jumpers correctly.
* Run SETUP program and select correct

drive types. Call drive manufacturers
for compatibility with other drives.

* Back up any salvageable data. Then,

low-level format, partition, and high­level format the hard drive. Re-install
all saved data when completed.

PROBABLE

SOLUTION

Scree is blank.

Screen goes blank periodically.

Memory problem.

Computer virus.

Keyboard failure.

No display on screen.

C: drive failure.

Missing operating system on hard drive.
Certain keys do not function.

Keyboard is locked, no keys function.

* Check the power connectors to monitor

and to system. Make sure monitor is
connected to display card.

* Disable screen saver.

* Reboot computer. Reinstall memory,

and make sure that all memory modules
are installed in correct sockets.

* Use anti-virus programs to detect and

clean viruses.

* Reconnect keyborad. Check keys

again. If no improvement, replace
keyboard.

* If possible, connect monitor to another

system. If no color still, replace
monitor.

* Check hard drive cable.

* Run setup and select correct drive type.
* Replace keyboard.

* Unlock keyboard.

2323

23

2323

EnglishEnglish

English

EnglishEnglish

WarpSpeeder

TM

Introduction

[ W arpSpeederTM ], a new powerful control utility, features three user-friendly

functions including Overclock Manager, Overvoltage Manager, and Hardware Monitor.

With the Overclock Manager, users can easily adjust the frequency they prefer
or they can get the best CPU performance with just one click. The Overvoltage Manager,
on the other hand, helps to power up CPU core voltage and Memory voltage. The cool
Hardware Monitor smartly indicates the temperatures, voltage and CPU fan speed as
well as the chipset information. Also, in the About panel, you can get detail descriptions
about BIOS model and chipsets. In addition, the frequency status of CPU, memory,
AGP and PCI along with the CPU speed are synchronically shown on our main panel.

EnglishEnglish

English

EnglishEnglish

Moreover, to protect users' computer systems if the setting is not appropriate
when testing and results in system fail or hang, [ W arpSpeeder
the system stability by automatically rebooting the computer and then restart to a
speed that is either the original system speed or a suitable one.

TM

] technology assures

System Requirement

OS Support: Windows 98 SE, Windows Me, Windows 2000, Windows XP
DirectX: DirectX 8.1 or above. (The Windows XP operating system includes DirectX

8.1. If you use Windows XP, you do not need to install DirectX 8.1.)

Installation

1. Execute the setup execution file, and then the following dialog will pop up.
Please click "Next" button and follow the default procedure to install.

2424

24

2424

2. When you see the following dialog in setup procedure, it means setup is
completed. If the "Launch the W arpSpeeder Tray Utility" checkbox is checked,
the Tray Icon utility and [WarpSpeeder
immediately launched after you click "Finish" button.

TM

] utility will be automatically and

2525

25

2525

EnglishEnglish

English

EnglishEnglish

Usage

The following figures are just only for reference, the screen printed in

this user manual will change according to your motherboard on hand.

[WarpSpeederTM] includes 1 tray icon and 5 panels:

1. Tray Icon:
Whenever the Tray Icon utility is launched, it will display a little tray icon on

the right side of Windows Taskbar.

This utility is responsible for conveniently invoking [WarpSpeederTM] Utility.
You can use the mouse by clicking the left button in order to invoke [WarpSpeeder
directly from the little tray icon or you can right-click the little tray icon to pop up a
popup menu as following figure. The "Launch Utility" item in the popup menu has the
same function as mouse left-click on tray icon and "Exit" item will close Tray Icon
utility if selected.

2. Main Panel

If you click the tray icon, [ W arpSpeeder
do the following figure; the utility's first window you will see is Main Panel.
Main Panel contains features as follows:

a. Display the CPU Speed, CPU external clock, Memory clock, AGP clock,
and PCI clock information.

b. Contains About, Voltage, Overclock, and Hardware Monitor Buttons for
invoking respective panels.

TM

] utility will be invoked. Please refer

TM

]

EnglishEnglish

English

EnglishEnglish

2626

26

2626

c. With a user-friendly Status Animation, it can represent 3 overclock percentage
stages:

Duck walking => overclock percentage from 100% ~ 110 %

Duck running => overclock percentage from 110% ~ 120%

Duck burning => overclock percentage from 120% ~ above

3. Voltage Panel

Click the Voltage button in Main Panel, the button will be highlighted and the
Voltage Panel will slide out to up as the following figure.

In this panel, you can decide to increase CPU core voltage and Memory voltage
or not. The default setting is "No". If you want to get the best performance of
overclocking, we recommend you click the option "Yes".

2727

27

2727

EnglishEnglish

English

EnglishEnglish

EnglishEnglish

English

EnglishEnglish

4. Overclock Panel

Click the Overclock button in Main Panel, the button will be highlighted and
the Overclock Panel will slide out to left as the following figure.

Overclock Panel contains these features:

2828

28

2828

a. "-3MHz button", "-1MHz button", "+1MHz button", and "+3MHz button":
provide user the ability to do real-time overclock adjustment.

Warning: Manually overclock is potentially dangerous, especially when
the overclocking percentage is over 110 %. We strongly recommend you
verify every speed you overclock by click the Verify button. Or, you can

TM

just click Auto overclock button and let [ WarpSpeeder
gets the best result for you.

b. "Recovery Dialog button": Pop up the following dialog. Let user select a
restoring way if system need to do a fail-safe reboot.

] automatically

TM

TM

] will

2929

29

2929

c. "Auto-overclock button": User can click this button and [ W arpSpeeder
will set the best and stable performance and frequency automatically. [WarpSpeederTM]
utility will execute a series of testing until system fail. Then system will do fail-safe
reboot by using Watchdog function. After reboot, the [ WarpSpeeder
restore to the hardware default setting or load the verified best and stable frequency
according to the Recovery Dialog's setting.

d. "Verify button": User can click this button and [ WarpSpeeder
proceed a testing for current frequency. If the testing is ok, then the current frequency
will be saved into system registry. If the testing fail, system will do a fail-safe rebooting.
After reboot, the [ WarpSpeeder
or load the verified best and stable frequency according to the Recovery Dialog's setting.

Note: Because the testing programs, invoked in Auto-overclock and Verify, include
DirectDraw, Direct3D and DirectShow tests, the DirectX 8.1 or newer runtime
library is required. And please make sure your display card's color depth is High
color (16 bit) or True color( 24/32 bit ) that is required for Direct3D rendering.

TM

] utility will restore to the hardware default setting

TM

] utility will

]

EnglishEnglish

English

EnglishEnglish

5. Hardware Monitor Panel

Click the Hardware Monitor button in Main Panel, the button will be high­lighted and the Hardware Monitor panel will slide out to left as the following figure.

In this panel, you can get the real-time status information of your system. The information
will be refreshed every 1 second.

6. About Panel

Click the About button in Main Panel, the button will be highlighted and the
About Panel will slide out to up as the following figure.
In this panel, you can get model name and detail information in hints of all the chipset
that are related to overclocking. You can also get the mainboard's BIOS model and the
Version number of [ WarpSpeeder

TM

] utility.

EnglishEnglish

English

EnglishEnglish

3030

30

3030

Note: Because the overclock, overvoltage, and hardware monitor features are
controlled by several separate chipset, [ W arpSpeederTM ] divide these features to
separate panels. If one chipset is not on board, the correlative button in Main
panel will be disabled, but will not interfere other panels' functions. This property
can make [ WarpSpeeder

TM

] utility more robust.

3131

31

3131

EnglishEnglish

English

EnglishEnglish

EnglishEnglish

English

EnglishEnglish

3232

32

3232

03/03/2004
