Layout of P4TSP-D2
NOTE: ●represents the first pin.
1
Component Index
A. Power Source Selection for Keyboard and N. Communication Network Riser Slot (CNR1)
Mouse (JKBV1) O. System FAN Header (JSFAN1)
B. Power Source Selection for USB P. Front USB Header (JUSB2)
(JUSBV1) Q. Front USB Header (JUSB3)
C. Back Panel Connector R. Power Source Selection for USB
D. Power Source Selection for USB (JUSBV3_4)
(JUSBV2) S. Game Port Header (JGAME1)
E. ATX Power Connector (JATXPW R2) T. Front Panel Connector (JPANEL1)
F. ATX Power Connector (JATXPWR1) U. Serial ATA Connector (SATA1-2)
G. Front Audio Header (JAUDIO1) V. Case Open Connector (JCL1)
H. Accelerated Graphics Port Slot (AGP1) W. Clear CMOS Function (JCMOS1)
I. Digital Audio Connector (JSP DIF_O UT1) X. IDE Connectors (IDE1-2)
J. CD-ROM Audio-In Header (JCDIN2) Y. DDR DIMM Modules (DDRA1/ DDRA2)
K. CD-ROM Audio-In Header (JCDIN1) Z. Floppy Disk Connector (FDD1)
L. PCI BUS Slots (PCI 1-5) A1. CPU Fan Connector (JCFAN1)
M. Wake On LAN Header (WOL1) B1. Audio DJ Connector (JDJ1)
2
English
P4TSP-D2 Features
A. Hardware
CPU
Provides Socket 478.
Supports the Intel Pentium 4 processor to 3.2GH z.
Front Side Bus at 400/533/800MHz.
Supports Hyper-Thr eading Technology.
Supports Northwood CPU. (Willamette not supported)
Chipset
Nor th Bridge: Intel 848P.
South Bridge: Intel ICH5.
Main Memory
Supports 64-bit wide DDR data channel s w ith 1 DIMMs per-channel.
Available bandwidth up to 3.2GB/s (DDR400) for single-channel mode.
Supports 128-Mb, 256-Mb, 512-Mb DDR technologies.
Supports only x8, x16, DDR devices.
Suppor ts four bank devices.
Maximum memory size is 2GB.
Super I/O
Chip: ITE IT8712.
Low Pin Count Interface.
Pro vides the most commonly used legacy Super I/O functionality.
Environment Control initiatives,
- H/W Monitor
- Fan Speed Controller
- ITE's "Smart Guardian" function
Slots
Five 32-bit PCI bus master slots.
One CNR slot.
One AGP 4X/8X slot.
On Board IDE
Suppor ts four IDE disk drives.
Supports PIO Mode 5, Bride Mode and Ultra DMA 33/66/100 Bus Master Mode.
LAN (optional)
Chip: RTL8100C/ RTL8110S(B).
Supports 10 Mb/s, 100 Mb/s and 1000Mb/s auto-negotiation operation.
Half/ Full duplex capability.
3
Supports ACPI, PCI power management.
On Board AC’97 Sound Codec
Chip: CMI9739A.
Compliant with AC’97 specification.
AC97 2.2 interface.
Supports 6 channels.
On Board Peripherals
a. Rear side
2 serial ports.
1 parallel port. (SPP/EPP/ECP mode)
Audio ports in vertical position.
1 RJ-45 LAN jack. (optional)
PS/2 mouse and PS/2 keyboard.
4 USB2.0 ports.
b. Front Side
1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
4 USB2.0 ports.
1 front audio header.
1 S/PDIF header.
1 Audio DJ header.
Dimensions
ATX Form Factor: 20.3 X 30.5cm (W X L)
B. BIOS & Software
BIOS
Award legal BIOS.
APM1.2.
ACPI.
USB Function.
Software
Supports Warpspeeder™, 9th Touch™, BootBlockerTM, WinFlasherTM, FLASHER™
and StudioFun! ™ (optional ).
Offers the highest perf ormance for Windows 98 SE, Windows 2000, Window s Me,
Windows XP, SCO UNIX etc.
Package contents
HDD Cable X 1
FDD Cable X 1
User’s Manual X 1
Fully Setup Driver CD X 1
4
StudioFun! Application CD X 1 (optional)
USB 2.0 Cable X1 (optional)
S/PDIF Cable X 1 (optional)
Rear I/O Panel for ATX Case X 1
Serial ATA Cable X 1 (optional)
Serial ATA Power Switch Cable X 1 (optional)
How to set up Jumper
The illustration shows to how set up jumper. When the Jumper cap is placed on pins, the
jumper is “close”. If no jumper cap is placed on the pins, the jumper is ”open”. The
illustration shows a 3-pin jumper whose pin1and 2 are “close” when jumper cap is placed
on these 2 pins.
Jumper open Jumper close Pin 1-2 close
CPU Inst a l l ation
Step1: Pull the lever sideways away from the socket and then raise the lever up to a
90-degree angle.
Step2: Look for the white dot/c ut edge. The whit e dot/cu t edg e should point wa rds th e lever
pivot. The CPU will fit only in the correct orientati on.
Step3: Hold the CPU down firmly, and then close the lever to complete the installation.
Step4: Put the CPU Fan on the CPU and buckle it. Connect the CPU fan power cable to
the JCFAN1. This completes the installation.
Step1 Step2 Step3 Step4
5
CPU Fan Header: JCFAN1
3
1
JCFAN1
Pin Assignment
1
2
3
System Fan Head e r: JS F A N1
Pin Assignment
31
JSFAN1
1
2
Ground
+12V
FAN RPM rate Sense
Ground
+12V
3
FAN RPM rate Sense
DDR DIMM Modules: DDRA1/ DDRA2
DRAM Access Time: 2.5V Un b uffer ed / no regi ste red (wi thou t ECC ) DDR SD RAM
PC2100/ PC2700/ PC3200 Type required.
DRAM Type: 128MB/ 256MB/ 512MB/ 1GB DIMM Module. (184 pin)
DIMM Socket
Location
DDRA1 64MB/128MB/256MB/512MB/1GB
DDRA2 64MB/128MB/256MB/512MB/1GB
DDR Module Total Mem or y
Size (MB)
*1
*1
***Only for reference***
Max is
2GB
Installing DDR Module
1. Unlock a DIMM slot by pressing the retaining clips
outward. Align a DIMM on the slot such that the
notch on the DIMM matches the break on the slot.
2. Insert the DIMM vertically and firmly into the slot
until the re taining ch ip sn ap back in place and the
DIMM is properly seated.
6
Jumpers, Headers, Connectors & Slots
Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the
provided floppy drive ribbon cables.
Hard Disk Connectors: IDE1/ IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~5, Bus Master, and Ultra DMA 33/ 66/ 100 functionality. It has two HDD
connectors IDE1 (primary) and IDE2 (secondary).
The IDE connectors can connect a master and a slave drive, so you can connect
up to four hard disk drives. The first hard drive should always be connected to
IDE1.
Peripheral Component Interconnect Slots: PCI 1-5
This motherboard is equipped with 5 standard PCI slots. PCI stands for Peripheral
Component Interconnect, and it is a bus standard for expansion cards. This PCI
slot is designated as 32 bits.
Accelerated Graphics Port Slot: AGP1
Your monitor will attach directly to that video card. This motherboard supports
video cards for PCI slots, but it is also equipped with an Accelerated Graphics Port
(AGP). An AGP card will take advantage of AGP technology for improved video
efficiency and performance, especially with 3D graphics.
Communication Network Riser Slot: CNR1
The CNR specification is an open Industry Standard Architecture, and it defines a
hardware scalabl e ri ser card interface, which supports m odem only.
Serial ATA Connector: JSATA1/ JSATA2
The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it
satisfies the SATA 1.0 spec and with transfer rate of 1.5Gb/s.
7
Front Panel C onnector: JPANEL1
SLP
JPANEL1
2
1
Pin Assignment Function Pin Assignment Function
1
3
5
7
9
11
13
15
17
19
21
23
+5V
NA
NA
Speaker
HDD LED (+)
HDD LED (-)
Ground
Reset Con trol
NA
NA
+5V
IRTX
PWR_LED
(+) (-)(+)
SPK
Speaker
Connector
Hard Drive
LED
Reset
Button
IrDA
Connector
(+) (-)
HLED
RST
10
12
14
16
18
20
22
24
2
4
6
8
Power LED (+)
Power LED (+)
Power LED (-)
IRON/OFF
24
23
IR
Sleep Control
Ground
NA NA
Power Button
Ground
KEY
KEY
Ground
IRRX
Sleep
Button
POWER
LED
Power-on
Button
IrDA
Connector
11
12
13
14
15
16
17
18
19
20
+3.3V
-12V
Ground
PS_ON
Ground
Ground
Ground
-5V
+5V
+5V
Power Connectors: JATXPWR1/ JATXPWR2
PIN Assignment PIN Assignment
1
2
3
4
5
6
7
8
9
10
+3.3V
+3.3V
Ground
+5V
Ground
+5V
Ground
PW_OK
Standby Voltage
+5V
+12V
10
1
JATXPWR1
20
11
8
1
3
2
JATXPWR2
PIN Assignment PIN Assignment
1
2
+12V
+12V
3
4
Ground
Ground
Power Source Selection for Keyboard/ Mouse: JKBV1
JKBV1 Assignment Description
3
1
Pin 1-2 close
3
1
Pin 2-3 close
+5V
+5V Standby
Voltage
+5V for keyboard and mouse
PS/2 Mouse and PS/2 Keyboard are
powered with +5V standby voltage
Note: In order to support this function “Power-on system via keyboard and
mouse”, “JKBV1” jumper cap should be placed on pin 2-3.
Power Source Selection for USB: JUSBV1/ JUSBV2/ JUSBV3_4
JUSBV1/JUSBV2/
JUSBV3_4
1 3
Pin 1-2 close
Assignment Description
+5V
JUSBV1: 5V for USB at the JUSB1
connector port
JUSBV2: 5V for USB at the JR J45USB1
coonector port
1 3
Pin 2-3 close
+5V Standby
Voltage
JUSBV3_4: 5V for USB at the JUSB2/3
JUSBV1: JUSB1 port powered with
JUSBV2: JRJ45USB1 port power ed
JUSBV3_4: JUSB2/3 ports powered
9
connector ports
standby voltage of 5V
with standby voltage of 5V
with standby voltage of 5V
Note: In order to support this function “Power-on system via USB device”,
“JUSBV1/JUSBV2/ JUSBV3_4” jumper cap should be placed on pin 2-3
individually.
Clear CMOS Jumper: JCMOS1
JCMOS1 Assignment
3
1
3
1
Pin 1-2 Close
Pin 2-3 Close
Normal Operation (default)
Clear CMOS Data
※
Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 Close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 Close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
Serial ATA Connectors: SATA1/ SATA2
1234567
SATA1/ SATA2
Pin Assignment Pin Assignment
1
3
5
7
Ground
TX-
RX-
Ground
2
4
6
Case Open Connector: JCL1
Pin
Assignment
TX+
Ground
RX+
1
JCL1
1
2
10
Case Open Signal
Ground
AUDIO DJ Connector: JDJ1
15
JDJ1
Pin Assignment Pin Assignment
1
SMBDATA
3
5
INT_B
ATX_PWROK
2
4
Game Header: JGAME1
15
Pin Assignment Pin Assignment
1
3
5
7
9
11
13
15
Joystick B Coordin ate X
Joystick B Coordin ate Y
+5V
Joystick B Button 1
MIDI Output
Joystick B Button 2
MIDI Input
NA
CD-ROM Audio-In Header: JCDIN1/ JCDIN2
1
JCDIN1/ JCDIN2
Front Panel Audio Header: JAUDIO1
1
216
JGAME1
2
4
6
8
10
12
14
16
Joystick A Button 1
Joystick A Coordi nate X
Joystick A Coordi nate Y
Joystick A Button 2
Pin Assignment
1
2
3
4
Left Channel Input
Ground
Ground
Right Channel Input
SMBCLK
KEY
+5V
Ground
Ground
+5V
2
1
JAUDIO1
Pin Assignment Pin Assignment
1
Mic In/ Center
11
14
13
2
Ground
3
5
7
9
11
13
Mic Power/ Bass
Right Line Out/ Speaker Out
Right
Reserved
Left Line Out/ Speaker Out
Left
Right Line In/ Rear Speaker
Right
Left Line In/ Rear Spe aker Left
4
6
Right Line Out/ S pe aker Ou t R i ght
8
10
Left Line Out/ Speaker Out Left
12
Right Line In/ Rear Speaker Right
14
Left Line In/ Rear Speaker Left
Digital Audio Connector: JSPDIF_OUT1
1
JSPDIF_OUT1
Pin Assignment
1
2
3
Wake On LAN Header: WOL1
1
WOL1
Pin Assignment
1
2
3
+5V_SB
Ground
Wake up
Front USB Head er: JUSB2, JUSB3
9
10
JUSB2/3
Pin Assignment Pin Assignment
1
1
2
3
5
7
9
+5V(fused)
USB-
USB+
Ground
KEY
2
4
6
8
10
Audio Power
Key
+5V
SPDIF_OUT
Ground
+5V(fused)
USBUSB+
Ground
NC
12
Back Panel Connectors
JKBMS1
Keyboard
PS/2
Mouse
JUSB1
JPRNT1
Parallel Port
USB
PS/2
COM1
JCOM1
6 Channel Speakers
Speak e r O u t
JRJ45USB1
(optional)
COM2 USB
JCOM2
Line In/ Rear Speaker
Mic In / Center & Bass
LAN
Line In
Speaker Out
MIC In
JAUDIO
13
Deutsch
Die Spezifikationen von P4TSP-D2
A. Hardware
CPU
Uterstützung für Sockel 478.
Unterstützung für den Intel Pentium® 4 Prozessor bis zu 3.2GHz.
FSB mit 400/533/800MHz.
Uterstützung für die Hyper-Threading Technologie.
Unterstützung für Intel CPU Northwood. (Willamette wird nicht untergestützt)
Chipsatz
Die Northbridge: Intel 848P.
Die Southbridge: Intel ICH5.
Hauptspeicher
Unterstützung für 64-bit Breite DDR-Datenkanal mit ei n oder zwei DIMMs pro
Kanal.
Verfügbare Bandbreite bis zu 3.2GB/s (DDR400) für Einzeln-Kanal-Modus.
Unterstützung für 128-MB, 256-Mb und 512-Mb DDR Technologie.
Unterstützung für x8, x16 DDR Geräte.
Vier DDR Speicherbänke.
Die maximale Spe ichergröße ist 2GB.
Super I/O
Chip: ITE IT8712.
Low Pin Count Interface.
Die meisten gemeinsamen vergebrauchten Super I/O Funktionen werden geliefert.
Umweltkontroll-Initiative:
- H/W Monitor
- Vetilator-Geschwindigkeit-Controller
- ITE's "Smart Guardian" Funktion
Steckplätze
Fünf 32-bit PCI-Bus-Slots.
Ein CNR-Slot.
Ein 4X/8X AGP-Slot.
Onboard-IDE
Unterstützung für vier IDE Diskettenlaufwerke.
Unterstützung für PIO Modus 5, Bride Modus und Ultra DMA 33/66/100 Bus
Master Modus.
LAN (optional)
Chip: RTL8100C/ RTL8110S(B).
14
Unterstützung für 10 Mb/s, 100 Mb/s und 1000Mb/s Auto-Negotiation.
Halb/Voll- Duplex Fähigkeit.
Unterstützung für ACPI, PCI Power Management.
Onboard AC’97 Sound Codec
Chip: CMI9739A.
Entspricht der Spezifikation von AC’97.
AC97 2.2 Interface.
Unterstützung für 6-Kanal.
Onboard-Peripheriegeräte
a. Rückwand
2 serielle Schnittstellen.
1 parallele Schnittstelle. (SPP/EPP/ECP-Modus)
Audio-Schnittstellen auf der vertikalen Position.
1 RJ-45 LAN Buchse.(optional)
PS/2-Maus und PS/2-Tastatur.
4 USB2.0-Ports.
b. Vorderseite
1 Floppy-Port mit Unterstützung für 2 Diskettenlaufwerke.(360KB, 720KB, 1.2MB,
1.44MB und 2.88MB)
4 USB2.0-Ports.
1 Front- Audio-Header.
1 S/PDIF-Header.
1 Audio-DJ-Header.
Abmessung
ATX Form-Factor: 20 .3 X 30.5cm (W X L)
B. BIOS & Software
BIOS
Award legal BIOS.
Unterstützung für APM1.2.
Unterstützung ACPI.
Unterstützung USB Funkion.
Software
Unterstützung für Warpspeeder™, 9th To uch™, BootBlockerTM, WinFlasherTM,
FLASHER™ und StudioFun! ™ ( opti onal) .
Unterstützung für die am meisten verbreiteten Betriebsysteme wie Windows
98SE., Windows 2000, Windows ME, Windows XP and SCO UNIX usw..
15
Verpackungsinhalt
HDD Kable X 1
FDD Kable X 1
Benutzer Handbuch X1
Treiber CD für Installation X1
StudioFun! Anwendung CD X 1 (optional)
USB 2.0 Kable X1 (optional)
S/PDIF Kable X 1 (optional)
I/O-Rückwand für ATX Gehäuse X 1
Serial ATA Kable X 1 (optional)
Serial ATA Netzschalter Kable X 1 (optional)
Einstellung der Jumpe r
Die Abbildung verdeutlicht, wie Jumper eingestellt werden. Pins werden durch die
Jumper-Kapp e verdeck t, ist de r Jumper ”geschlossen”. Keine Pins werden durch die
Jumper-Kappe verdeckt, ist der Jumper “geöffnet”. Die Abbiildung zeigt einen 3-Pin
Jumper dessen Pin1 und Pin2 ”geschlossen“ sind, bzw. es befindet sich eine
Jumper-Kappe auf diesen beiden Pins.
Jumper geschlossen Jumper geöffnet Pin1-2 geschlossen
Installation der CPU
Schritt 1:
Schritt 2: Suchen Sie nach der scharfen Kante, die auf Drehpunkt des Hebels
Schritt 3:
Schritt 4: Stecken Sie Ihren CPU-Lüfter auf die CPU. Schließen Sie die
Ziehen Sie den Hebel seitlich vom Sockel weg. Heben Si e den Hebel dann
in 90-Grad-Winkel nach oben.
weisen muss. Die CPU passt nur, wenn sie richtig ausgerichtet ist.
Drücken Sie die CPU fest in den Sockel und schließen Sie den Hebel.
Str omversorgungsstecker für CPU-Lüfter an JCFAN1 an. Dann beenden
16
Sie die Installation.
Schritt 1 Schritt 2 Schritt 3 Schritt 4
CPU-Lüfter Header: JCFAN1
3
1
JCFAN1
Pin Beschreibung
1
2
3
Lüfter RPM Geschwindigkeit Sensor
Masse
+12V
System-Lüfter Header: JSFAN1
Pin Beschreibung
31
JSFAN1
1
2
3
Lüfter RPM Geschwindigkeit Sensor
Masse
+12V
DDR-DIMM-Modules: DDRA1/ DDRA2
DRAM-Zugriffszeit : 2.5V unbuffered/ nicht registrierte r (ohne ECC) DDR SDRAM
PC2100/ PC2700/ PC3200 Typ erforderlich.
DRAM-Typ: 128MB/ 256MB/ 512MB/ 1GB DIMM-Module (184-Pin)
DIMM-Sockel
Standort
DDRA1
DDRA2
64MB/128MB/256MB/512MB/1GB
64MB/128MB/256MB/512MB/1GB
DDR-Module Speichergröße
(MB)
*1
*1
***Nur als Referenz***
Maximal is t
2GB
17
Installation von DDR-Modul
1. Öffnen Sie einen DIMM-Slots, indem Sie die
seitlich Chips nach außen drücken. Richten Sie
das DIMM-Modul so über dem Slot aus, dass das
Modul mit der Kerbe in den Slot passt.
2. Drücken Sie das DIMM-Modul in den Slot, bis die
seitlichen Clips zuschnappen und das Modul fest
sitzt.
Jumpers, Headers, Anschlüsse & Slots
Diskettenanschluss: FDD1
Das Motherboard enthält einen standardmäßigen Diskettenanschluss, der 360K-,
720K-, 1.2M-, 1.44M- und 2.88M-Disketten unterstützt. Dieser Anschluss
unterstützt die mitgelieferte Bandkabel des Diskettenlaufwerks.
Festplattenanschlüsse: IDE1 und IDE2
Das Mainboard hat einen 32-Bit Enhanced PCI IDE-Controller, der die Modi
PIO0~4, Bus M aster sowie die Ultra DMA/33/66/100/133- Funktion zur Verfügung
stellt. Dieser ist mit zweii HDD-Anschlüssen versehen IDE1 (primär) und IDE2
(sekundär).
Die IDE-Anschlüsse können eine Master- und eine Slave-Festplatte verbinden, so
dass bis zu 4 Festplatten angeschlossen werden können. Die erste Festplatte
sollte immer an IDE1 angeschlossen werden.
Peripheral Component Interconnect Slots: PCI 1-5
Dieses Motherboard ist mit 5 standardmäßigen PCI-Slots ausgestattet. PCI steht
für Peripheral Com pone nt Int erconn ect und bezi eht sich au f einem Bussta ndard für
Erweiterungskarten, der den älteren ISA-Busstandard in den meisten
Schnittstell en ersetzt hat. Dieser PC I-Slot ist für 32 bits vorgesehen.
Accelerated Graphics Port Slot: AGP1
Ihr Monitor wird direkt an die Grafikkarte angeschlossen. Dieses Motherboard
unterstützt Grafikkarten für PCI-Slots, aber es ist auch mit einem Accelerated
Graphics Port ausgestattet. AGP-Karten verwenden die AGP-Technologie, um die
Wirksamkeit und Leistung von Videosignalen zu verbessern, besonders wenn es
sich um 3D-Grafiken handelt.
Communication Network Riser Slot: CNR1
Die CNR-Angaben entsprechen einer offenen Industry Standard Architecture, und sie
definieren eine Hardware-skalierbare Riser-Card-Schnittstelle, welche nur Audio,
Netzwerk und Modem unter stützt.
Serial ATA Connector: JSATA1/JSATA2
Auf diesen Motherboard gibt es ein PCI-to-SATA Controller mit 2-Kanal Interface,
18
die der Spezifikati on von S ATA 1.0 entspricht ( Dtenübertragung mit 1.5Gb/S)
Anschlüsse für die Vorderseite: JPANEL1
PWR_LED
SLP
(+) (-)(+)
JPANEL1
Pin Belegung Funktion Pin Belegung Funktion
1
3
5
7
9
11
13
15
17
19
21
23
+5V
Kein
Kein
Lautsprecher
HDD LED (+)
HDD LED (-)
Masse
Reset-Kontroll
Kein
Kein
+5V
IRTX
2
1
SPK
Lautsprecher-
Anschluss
Festplatte
LED
Rückstell-
knopf
IrDA-
Anschluss
(+) (-)
HLED
2
4
6
8
10
12
14
16
18
20
22
24
RST
Schlaf- Kontroll
Power LED (+)
Power LED (+)
Power LED (-)
Power Connectors: JATXPWR1/ JATXPWR2
10
1
JATXPWR1
PIN Belegung PIN Belegung
20
11
1
2
3
4
5
6
7
8
9
+5V reservierte Spannung
10
+3.3V
+3.3V
Masse
+5V
Masse
+5V
Masse
PW_OK
+12V
IRON/OFF
24
23
IR
Schlaf-
Masse
Kein Kein
Power-Knopf
Masse
Schlüsse
Schlüsse
Masse
IRRX
Knopf
POWER
LED
Power-On
Knopf
IrDA
Anschluss
11
12
13
14
15
16
17
18
19
20
+3.3V
-12V
Masse
PS_ON
Masse
Masse
Masse
-5V
+5V
+5V
19
1
3
2
JATXPWR2
PIN Belegung PIN Belegung
1
2
+12V
+12V
3
4
Auswahl von Strom smodi für Tastatur/ Maus: JKBV1
JKBV1 Pin-Belegung Beschreibung
3
Masse
Masse
1
Pin 1-2 geschlossen
3
1
Pin 2-3 geschlossen
+5V +5V für Tastatur und Maus
+5V reservierte
Spannung
Durch +5V reservierte Spannung für
PS/2-Maus und PS/2-Tastatur z um
Erwecken vom System
Anmerkung: Um die Funktion ─“Erwecken durch Tastatur/Maus“ ─ zu
aktivieren, müssen Pins 2-3 von JKBV1 durch die Jumperkappe verdeckt
werden.
Auswahl von Stromsmodi für USB: JUSBV1/ JUSBV2/
JUSBV3_4
JUSBV1/JUSBV2/
JUSBV3_4
1 3
Pin 1-2 geschlossen
Pin-Belegung Beschreibung
JUSBV1: 5V für USB-Port von JUSB1
JUSBV2: 5V für USB-Port von
+5V
JRJ45USB1
JUSBV3_4: 5V für USB-Port von
JUSB2/3
20
JUSBV1: 5V reservierte Spannung für
JUSB1 zum Erwecken
1 3
Pin 2-3 geschlossen
+5V reservierte
Spannung
JUSBV2: 5V reservierte Spannung für
JRJ45USB1 zum Erwecken
JUSBV3_4: 5V reservierte Spannung
für JUSB2/3 zum Erwecken
Anmerkung: Um die Funktion ─“Erwecken durch USB-Geräte“─zu
aktivieren, müssen Pins 2-3 von “JUSBV1/JUSBV2/ JUSBV3_4”durch
die Jumperkappe verdeckt werden.
Jumper zum Löschen des CMOS: JCMOS1
3
JCMOS1 Beschreibung
1
Pin 1-2 geschlossen
3
1
Pin 2-3 geschlossen
Normale Operation (Default)
CMOS-Daten zum Löschen
※
Prozeduren zum Löschen des CMOS:
1. Ausschalten Sie das System.
2. Lassen Sie Pin 2-3 von JCOMS1 geshclossen sein.
3. Bitte warten Sie 15 Sekunden.
4. Lassen Sie Pin 1-2 von JCOMS1 geshclossen sein.
5. Einschalten Sie das System wieder.
6. Zurücksetzen Sie ihr gewunschtes Kennwort oder löschen Sie die
CMOS-Daten.
Serial ATA Anschlüsse: SATA1/ SATA2
1234567
SATA1/ SATA2
Pin Belegung Pin Belegung
1
3
5
7
Masse
TX-
RX-
Masse
2
4
6
TX+
Masse
RX+
21
Warnmeldung für Chassis- Öffnen Anschluss: JCL1
Pin
Belegung
Warnmeldung für Chassis-Öffnen
Masse
SMBDATA
INT_B
ATX_PWROK
2
4
SMBCLK
Schlüsse
1
JCL1
1
2
AUDIO DJ Anschluss: JDJ1
15
JDJ1
Pin Belegung Pin Belegung
1
3
5
Game Header: JGAME1
15
Pin Belegung Pin Belegung
1
3
5
7
9
11
13
15
Joystick B Koordie rung X
Joystick B Koordie rung Y
+5V
Joystick B Knopf 1
MIDI Ausgabe
Joystick B Knopf 2
MIDI Eingabe
Kein
CD-ROM Audio-In Header: JCDIN1/ JCDIN2
1
JCDIN1/ JCDIN2
1
216
JGAME1
2
4
6
8
10
12
14
16
Joystick A Koordierung X
Joystick A Koordierung Y
+5V
Joystick A Knopf 1
Masse
Masse
Joystick A Knopf 2
+5V
Pin Belegung
1
2
3
4
Linkkanal Eingabe
Masse
Masse
Rechtkanal Eingabe
22
Digital Audio Anschluss: JSPDIF_OUT1
JSPDIF_OUT1
1
Pin Belegung
1
2
3
SPDIF_Ausgabe
Front Panel Audio Header: JAUDIO1
+5V
Masse
2
1
JAUDIO1
Pin Belegung Pin Belegung
1
3
5
7
9
11
13
Mikrofon-Eingang/
Zentrum
Mikrofon-Betriebsspannung
/Bass
Audio-Signal des rech ten
Kanals zur Vorderseite /
Lautsprecher-Si gnal de s r ech ten
Kanals zur Vorderseite
Reservieret für spät.
Verwendung durch
Kopfhörer-Verstärker
Audio-Signal des linken Kanals
zur Vorderseite /
Lautsprecher-Signal des linken
Kanals zur Vorderseite
Audio-Signal des rec hten
Kanals von der Vorderseite /
Lautsprecher-Si gnal de s r ech ten
Kanals von der Vorderseite
Audio-Signal des linken Kanals
von der Vorderseite/
Lautsprecher-Signal des linken
Kanals von der Vorderseite
14
13
2
4
6
8
10
12
14
Audio-Betriebsspannung
Audio-Signal des rechten Kanals zur
Vorderseite / Lautsprecher-Signal
des rechten Kanals zur Vorderseite
Audio-Signal des linken Kanals zur
Vorderseite / Lautsprecher-Signal
des linken Kanals zur Vorderseite
Audio-Signal des rechten Kanals
Lautsprecher-Signal des rechten
Kanals von der Vordersei te
Audio-Signal des linken Kanals von
Lautsprecher-Signal des linken
Kanals von der Vordersei te
Masse
Schlüsse
von der Vorderseite/
der Vorderseite/
Wake On LAN Header: WOL1
Pin
1
Beschreibung
+5V_SB
23
1
WOL1
2
3
Front USB Head er: JUSB2, JUSB3
9
10
JUSB2/3
Pin Belegung Pin Belegung
1
1
2
+5V(geschmelzt)
3
5
7
9
USB-
USB+
Masse
Schlüsse
Anschlüsse für die Rückwand
Masse
Wake-up
2
+5V(geschmelzt)
4
6
8
10
USBUSB+
Masse
Kein
24
6 Kanal Lautsprecher
Lautsprecher Ausgang/
Fornt-Lautsprecher
(L/R)
Line-In/ R cklaut s precher
(L/R)
Zentrallautsprecher & Bass
ü
Mikrofon Eingang/
WarpSpeederTM
Introduction
[ WarpSpeeder™ ], a new powerful control utility, features three user-friendly functions
including Overclock Manager, Overvoltage Manager, and Hardware Monitor.
25
With the Overcl ock Mana ge r, use r s can ea si ly adjust the fre quency they prefer or they can
get the best CPU performance with just one click. The Overv oltage Manager, on the other
hand, helps to power up CPU core voltage and Memory voltage. The cool Hardware
Monitor smartly indicates the temperatures, voltage and CPU fan speed as well as the
chipset information. Also, in the About panel, you can get detail descriptions about BIOS
model and chipsets. In addition, the frequency status of CPU, memory, AGP and PCI
along with the CPU speed are sy nchronically shown on our main panel.
Moreover, to protect users' computer systems if the setting is not appropriate when testing
and results in system fail or hang, [ WarpSpeeder™ ] technology assures the system
stability by automatically rebooting the computer and then restart to a speed that is either
the original system speed or a suitable one.
System Requirement
OS Support: Windows 98 SE, Windows Me, Windows 2000, Windows XP
DirectX: DirectX 8.1 or above. (The W indows XP operating system includes DirectX 8.1. If
you use Windows XP, you do not need to install DirectX 8.1.)
Installation
1. Execute the setup execution file, and then the following dialog will pop up.
Please click “N ext” button and follow the default procedure to install.
26
2. When you see the following dialog in setup procedure, it means setup is
completed. If the “Launch the WarpSpeeder Tray Utility” checkbox is checked,
the Tray Icon utility and [WarpSpeeder™] utility will be automatically and
immediately launched after you click “Finish” button.
Usage
The following figures are just only for reference, the screen printed in this user manual will
change according to your motherboard on hand.
27
[WarpSpeeder™] includes 1 tray icon and 5 panels:
1. Tray Icon:
Whenever the Tray Icon util i ty is laun ched, it will displ ay a little t ray ico n on th e r igh t side o f
Windows Taskbar.
This utility is responsible for conveniently invoking [WarpSpeeder™] Utility. You can use
the mouse by clicking the left button in order to invoke [WarpSpeeder™] directly from the
little tray icon or you can right-click the little tray icon to pop up a popup menu as following
figure. The “Launch Utility” item in the popup menu has the same function as mouse
left-click on tray icon and “Exit” item will cl ose Tray Icon utility if selected.
2. Main Panel

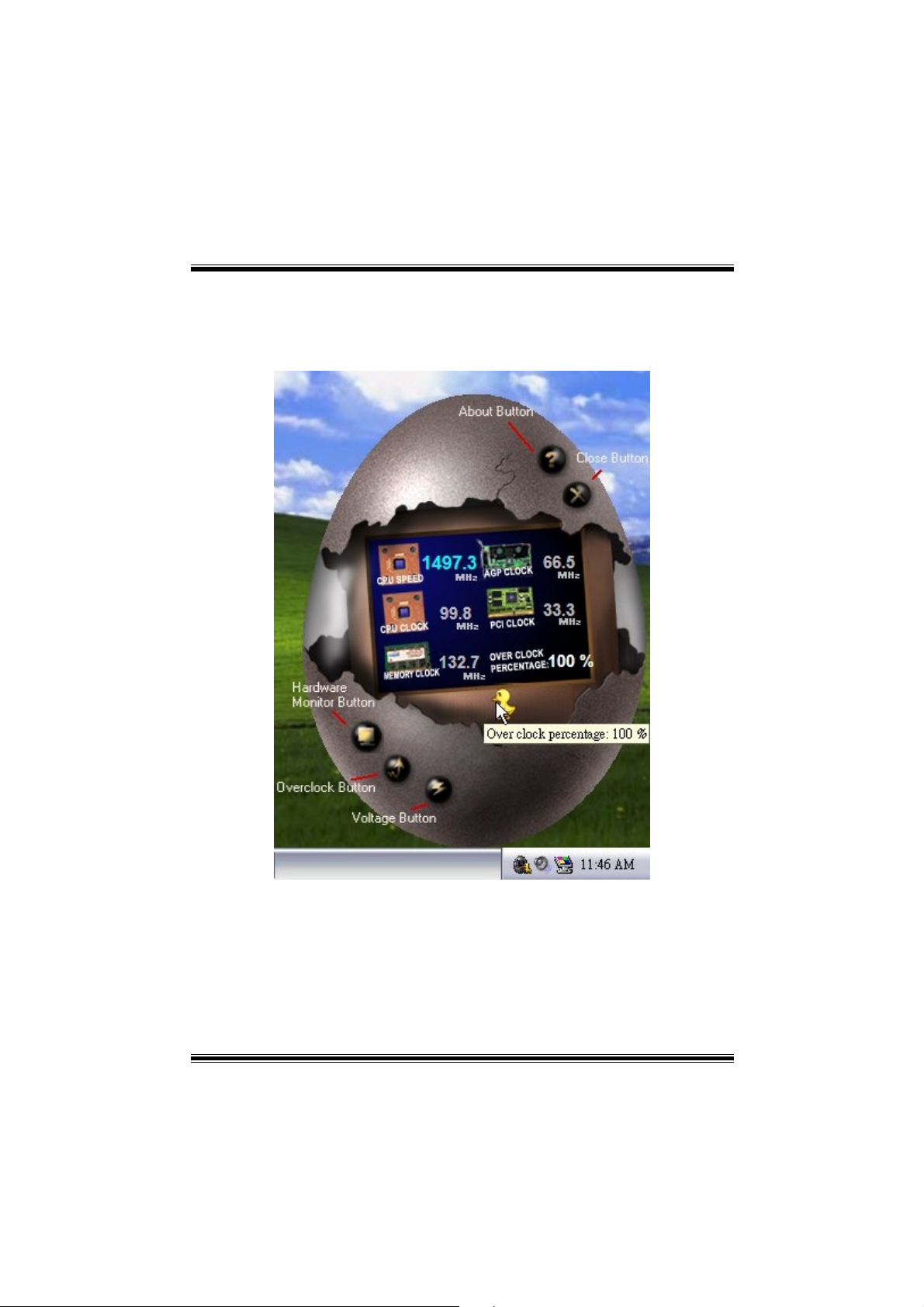

If you click the tray icon, [ WarpSpeeder™ ] utility will be invoked. Please refer
do the following figure; the utility’s first window you will see is Main Panel.
Main Panel contains features as follows:
a. Display the CPU Speed, CPU external clock, Memory clock, AGP clock, and PCI
clock information.
b. Contains About, Voltage, Overclock, and Hardware Monitor Buttons for invoking
respective panels.
c. With a user-friendly Status Animation, it can represent 3 overclock percentage
stages:
28
Duck walking => overclock percentage from 100% ~ 110 %
Duck running => overclock percentage from 110% ~ 120%
Duck Burning => overclock percentage from 120% ~ above
3. Voltage Panel
Click the Voltage button in Main Panel, the button will be highlighted and the Voltage
Panel will slide out to up as the following figure .
In this panel, you can decide to increase CPU core voltage and Memory voltage or not.
The default setting is “No”. If you want to get the best performance of overclocking, we
recommend you click the option “Yes”.
29
30
4. Overclock Panel
Click the Overclock button in Main Panel, the button will be highlighted and the Overclock
Panel will slide out to left as the following figure.
Overclock Panel contains t he these features:
a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”: provide
user the ability to do real-time overcl ock adjustment.
Warning: Manually overclock is potentially dangerous, especially when the
overclocking percentage is over 110 %. We strongly recommend you verify
every speed you overclock by click the Verify button. Or, you can just click
Auto overclock button and let [ WarpSpeeder™ ] automatically gets the best
result for you.
b. “Recovery Dialog button”: Pop up the following dialog. Let user select a restoring
way if system need to do a fail-safe reboot.
31
c. “Auto-overclock button”: User can click this button and [ WarpSpeeder™ ] will set
the best and stable performance and frequency automatically. [ WarpSpeeder™ ]
utility will execute a serie s of testin g until s ystem fail. Then system w ill do fail-saf e
reboot by using W atchdog function. After reboot, the [ WarpSpeeder™ ] utility will
restore to the hardware default setting or load the verified best and stable
frequency according to the Recovery Dialog’s setting.
d. “Verify button”: User can click this button and [ WarpSpeeder™ ] will proceed a
testing for current frequency. If the testing is ok, then the current frequency will be
saved into system registry. If the testing fail, system will do a fail-safe rebooting.
After reboot, the [ WarpSpeeder™ ] utility will restore to the hardware default
setting or load the verified best and stable frequency according to the Recovery
Dialog’s setting.
Note: Because the testing programs, invoked in Auto-overclock and Verify,
include DirectDraw, Direct3D and DirectShow tests, the DirectX 8.1 or newer
runtime library is required. And please make sure your display card’s color
depth is High color (16 bit) or True color( 24/32 bit ) that is required for
Direct3D rendering.
32
5. Hardware Monitor Panel
Click the Hardware Monitor button in Main Panel, the button will be highlighted and the
Hardware Monitor panel will slide out to left as the following figu re.
In this panel, you can get the real-time status information of your system. The information
will be refreshed every 1 second.
6. About Panel
Click the About button in Main Panel, the button will be highlighted and the About Panel
will slide out to up as the following figure.
In this panel, you can get model name a nd detail informati on in hints of all th e chipset that
are related to overclocking. You can also get the mainboard’s BIOS model and the
Version number of [ WarpSpeeder™ ] utility.
33
Note: Because the overclock, overvoltage, and hardware monitor features
are controlled by several separate chipset, [ WarpSpeeder™ ] divide these
34
features to separate panels. If one chipset is not on board, the correlative
button in Main panel will be disabled, but will not interfere other panels’
functions. This property can make [ WarpSpeeder™ ] utility more robust.
StudioFun!TM
Introduction
StudioFun!TM is a media-player based on optimized GNU/Linux distribution to bring a
“Room Theater” experience into life. It plays DVD, VCD, MP3, Audio CD and other
multimedia. Furthermore, Users can take snapshots of video and customize the saved
images as screensavers or photo slideshow s. Of co u rse, t he i m ages can b e st ore d in USB
mass storage devices like flash disks and USB floppy disks.
Hardware Requirement s
The supported hardware list of StudioFun! updates regularly. So please check the
“hwreq.txt” located in the root of StudioFun! Application Pack CD to get the latest
supporting information.
Installation Procedure
Insert the “StudioFun! Application Pack CD” in a CD/DVD ROM drive and let the system
boot through th e C D. Th e di s k wi ll boo t and bri ng u p t he g rub boot l oad er i nstal l ation menu.
Two options are specified: “ S tudioFun Install” and “StudioFun Recover”.
35
StudioF un! Insta ll
This option will do the basic installation of the distribution. The installation works on
pre-installed windows or GNU/Linux distribution.
On selecting the “StudioFun Install” option the installer boots and displays a dialog box
indicating the space required and waits for a confirmation. Selecting “Ok” will continue the
installation while selecting “Cancel” will terminate the installation and reboot the machine.
If Windows or GNU/Linux is the only OS installed on the hard disk with no free space, it
will resize the partition, either NTFS or FAT32 or ext2, and install StudioFun!. If the hard
disk has a 128MB of free space available, the installation will use the free space.
After installing the base system you will be prompted to select the resolution from the
following choices
1. 1024x768 (recommended)
2. 800x600
3. 640x480
Select the desired resolution. The default is 1024x768 for high- end graphics.
Next you will be prompted to choose the DVD area/region selection code. Choose this
based on the type of DVDs you will be playing.
The installation procedure will then probe for the type of mouse installed. The distribution
currently supports PS/2, USB and Serial mice. In case of serial mouse you will have to
move the mouse when prompted. The other two are probed and installed automatically.
The installation procedure will now finish, the CD is ejected and a dialog box prompting to
reboot the machine is displ ayed. Press “OK” button and enjoy StudioFun!.
3.1.1 Error Messages
1. Media corrupted!! Please check the media! The CD-ROM is corrupted.
2. Extraction of base system fai led!!
3.Unsupported hardware found, Aborting...
Please try again later!! The CD-ROM is corrupted.
If you try to install StudioFun! on an
36
unsupported and undocumented hardware the above error message is popped.
4. No device found!
This error message is give n if there is no hard disk in the system.
StudioFun! Recover
Where there is a MBR (Master Boot record) corruption, the “StudioFun Recover” will
automatically probe the hard disk master boot record and find out the installed operating
system(s). Once success, it will re-install the boot loader with correct options in the MBR.
Please be noted that the newly probed one will over write any custom boot loader option
specified from other GNU/Linux installations.
Booting to StudioFun!
After the Installation, remove the CD from the CD-ROM and restart the system. After the
rebooting, you will get the “GR UB boot loader men u scr een”. Sel ect the Stu di oFun! Opti on
to boot to the StudioFun! Partition.
After executing th e boot up, you will see the main Desktop scre en. The fol low i ng secti on is
37
a complete description of the Desktop application.
Desktop
This is the main shell of the StudioFun! software. It illustrates two main categories, one is
the main "Media Control
" part and the other is the "Control Panel".
Media control
The Media Control consists of the following functionalities:
1. VCD
This control i con w ill gl ow wh enever a VC D i s d ete cted in a DVD/CD-ROM drive. The VCD
will be auto-played only when it is put in to the drive when the Desktop (StudioFun! shell)
is up and running whereas the control will simply glow to inform the user about a VCD
present in the DVD/CD-ROM drive when the Desktop is not launched.
38
2. DVD
This control will glow whenever a DVD is detected in a DVD drive. The DVD will be
auto-played only when it is put in to the drive when the Desktop (StudioFun! shell) is up
and running, otherwise, the control will simply glow to inform the user about a DVD
present in the DVD/CD-ROM.
3. MP3
This control will glow whenever a MP3 is detected in a DVD/CD-ROM drive. The MP3 will
be auto-play ed only when it is put in to the drive when the Desktop (StudioFun! shell) is up
and running, otherwise, the control will simply glow to inform the user about a MP3
present in the DVD/CD-ROM drive.
4. AUDIO
This control will glow wheneve r a AUDIO is dete cted in a DVD/ CD-R OM drive. The AUDI O
will be auto-played only when it is put in to the drive when the Desktop (StudioFun! shell)
is up and running, otherwise, the control will simply glow to inform the user about a AUDIO
present in the DVD/CD-ROM drive.
5. FILE
This control will glow whenever a File CD (CDs with other media ty pe files) is de tected in a
DVD/CD-ROM drive. The File CD will be auto-played only when it is put in to the drive
when the Desktop (StudioFun! shell) is up and running, otherwise, the control will simply
glow to inform the user about a File CD present in the DVD/CD-ROM drive.
6. EJECT MEDIA
When clicked this control, the file disk from the DVD/CDROM drives will be ejected.
7. EXIT
This is the "Power on/off" control of the Desktop (StudioFun! shell).
Control Panel
The Control panel part has five icons, which are shortcuts to other applications present in
the StudioFun!. Tool tips will pop up once the mouse is rolled to the icons
1. Select Region
Clicking this icon will invoke the application for selection DVD region settings. Refer to
section 5.2 Select DVD Region application for more details.
39
2. Screensaver
Clicking this icon will invoke the screensaver application. Refer to section 5.3
Screensaver for more details.
3. Display Settings
Clicking this icon will invoke the application for changing the screen resolutions. Refer to
section 5.4,
Display Settings
for more details.
4. File Manager
Clicking this icon will invoke the file manager. Refer to section 5.6 File manager for more
details.
When user has a DVD and a CD-ROM Driv e, DVD Drive has the priorit y:
If user has both DVD and a CD-ROM drive, DVD drive will be given the preference when
both the drives h ol d valid media in them, i.e., if the CD-R OM drive has a media and a DVD
drive also has a media, and th e Studi oFun ! is s tar te d, the dis k i nside th e DVD dr ive will be
played.
Other general user scenarios
When a user clicks on any of the media-controls when it is not glowing, except the eject
media and exit, the media-player will just come up and wait for user input.
40
Software Details
XINE
XINE is a multimedia player. It plays back Audio CD, DVD, and VCD. It also decodes
multimedia files like AVI, MOV, WMV, and MP3 from local disk drives. It interprets most of
the common multimedia formats.
• Features of Xine
a. Skinnable GUI
b. Navigation c ontrols (seeking, pause, fast, slow, next
chapter, etc)
c. On Screen Display (OSD) features
d. DVD and external subtitles
e. DVD/VCD menus (requires external plug-in)
f. Audio and subtitle channel selection
g. Closed Caption support
h. Brightness, contrast, audio volume, hue, saturation
adjusting requires hardware/driver s up p ort)
i. Playlist
j. Image snapshot
k. Audio re-sampling
l. Software de-interlacing algorithms
m. Configuration dialog
n. Aspect ratio changing
o. Full-screen display
• Supported File Formats
a. Video CD
b. MPEG program streams (.mpg, .mpeg)
c. ogg (.ogg) avi (.avi)
d. asf (.asf, .wmv)
e. QuickTime (.mov)
f. MPEG-Video (.mpv, .m2v)
41
g. MPEG-Audio (.mp2, .mp3)
h. WAV (.wav) Video CODEC
i. MPEG 1/2
j. MPEG 4 (aka OpenDivX)
k. MS MPEG 4
a. Chapter 5: Software Details 10
l. Windows Media Video 7
m. Motion JPEG
• Remote Control Support.
a. Infrared interface
b. User-friendly
• Usage of StudioFun! with CelomaChrome skin
a. Select VCD button to play a VCD disc
b. Select DVD button to play a DVD disc
c. Select CDDA button to play a Audio CD
d. Select next chapter or MRL (>>|) button to play next track
in Audio CD, VCD and MP3 songs and to play next
chapter in DVD
e. Select previous chapter or MRL (|<<) button to play
previous track in Audio CD, VCD and MP3 song s an d to
play previous chapter in DVD
f. Select slow motion (<<) button to play the video / audio in
slow motion (Select play button after reaching the required
position)
g. Select fast motion (>>) button to play the video / audio in
fast motion (Select play button after reaching the required
position)
h. Select subs + / - button to select the appropriate subtitle
(Usable while playing
i. Select audio + / - button to select the appropriate audio
track (For example when
j. The DVD contains one audio track in English and the
other with some other language,
k. Usable while playing DVD’s)
l. Select “hide button” to hide the control panel of the player
42
m. Select “menu” button to use menu while playing DVD
n. Select “control” button to adjust brightness / color
o. Select “setup” button to modify the settings of the player
p. Select ”f.scr” button to show the video output of the player
in full screen mode
q. Select “snap” button to take a snapshot of the currently
playing video
r. Select “p list” button to add / remove / manage playlis t
s. Select “mrl” button to add new file to play
Select Region
Overview
Select region is a utility to set a DVD region. With the help of this application user can set
or change a DVD region. Only one region can be set at a time.
About Select Region
With the help of this application you can set a region for DVD. Only one region can be set
at a time. If you keep the mouse pointer on any region, y ou can view the countries, which
comes under that region.
“Ok” - Click to set the selected region.
“Cancel” - Click to quit the application.
How to select DVD region
You can select only one region at a time. You can change your selection by clicking on
any other region.
• A snapshot of the application is shown below:
43
Screensaver
Screensaver
The xscreensaver da emo n w ait s un ti l the key boar d and mou se ha ve be en idl e for a peri od,
and then runs a graphics demo chosen at random. The demo is terminated as soon as
there is any mouse or keyboard activity.
The xscreensaver-demo program is the graphical user interface to xscreensaver. It lets
you tune the various parameters used by the xscreensaver daemon, and browse through
the graphics demos.
StudioFun! comes with xscreensaver when you click on the screensaver icon t he
application comes up. Then user can choose various graphics demos like
chbg,halo,hypercube or hyperball.
Screensaver comes with various options
• Preview Option: When a user selects a particular graphics demo and clicks on preview
button the demo comes up.
• Blank After Option: The screensaver will blank the screen after the keyboard and mouse
have been idle default time is 1minute and user can change the settings.
• Cycle After Option: When screensaver is running this cycle time defines the time limit for
each screensaver.
• Mode Screensaver comes with various modes:
1. Random Screen Saver: When user chooses this option, Screensaver cycles through
44
various graphics demos randomly
2. Only one Screen Saver: When user chooses this opti on, screensaver displays only one
graphics demo.
3. Blank Screen Onl y: When user chooses thi s op ti on, scre e nsa ver onl y bl anks the scr ee n
instead of displaying the graphics demo.
4. Disable Screen Saver: When user chooses this option, screensaver is disabled.
• Various Graphics Demos
XScreensaver comes with various screensaver
Chbg: This screensaver displays the images stored in StudioFun! the time gap between
images is 5 seconds.
Hyperball
Hypercube
Halo
Strange
• A snapshot of the application is shown below:
Display Settings
Display Settings
Display setting is a program to change the current resolution settings of the Display.
45
By default user of StudioFun! will be given a choice to select between any of the following
three resolutions.
• 640x480
• 800x600
• 1024x768
The current resolution of the Display will be selected by default. It requires restart of the
StudioFun! to reflect the changes made.
File Manager
Overview
File manger is a u ti lity to copy files from deferent devi ce s to h ar d dis k an d vice vers a. U ser
can copy files from devices such as, floppy, CD-Rom and Flashdisk to hard disk and also
from hard disk to floppy and Flashdisk.
About File manager
The hard disk files are stored in a directory called “/studiofun” on the hard disk. You can
also delete files from hard disk, but you cannot delete files from any device.
Select device - Contains the device names /floppy, /cdrom and /flashdisk. Select a
device from /to w hi ch y ou want to co py files.
twice to m ou n t th e de vice .
List Directories - Shows the list of directories of the selected device after double
clicking it .
Floppy/cdrom/Flashdisk - Shows the content s of the selected directory from the “List
directories“ field after double clicking it.
Hard disk - Shows the contents of a directory called “/studiofun”.
Add (>>) - Click to copy selected files from a device to hard disk.
Add (<<) - Click to copy selected files from hard disk to a device.
Remove - Click to delete files from hard disk.
Exit - Click to quit the application.
Please doubl e cl ick the device option
46
47
Trouble Shooting
PROBABLE SOLUTION
No power to the system at all Power light don’t
illuminate, fa n ins ide po wer s upp l y does not tu rn
on. Indicator light on keyboard does not turn on
PROBABLE SOLUTION
System inoperative. Keyboard lights are on,
power indicator lights are lit, hard drive is
spinning.
PROBABLE SOLUTION
System does not bo ot from hard disk drive, can
be booted from CD-ROM drive.
PROBABLE SOLUTION
System only boots fr om CD- RO M. H ard di sk can
be read and applications can be used but
booting from hard disk is impossible.
* Make sure power cable is securely plugged in
* Replace cable
* Contact technical support
* Using even pressure on both ends of the
DIMM, press down firmly until the module
snaps into place.
* Check ca bl e r unning from disk to disk con tr oller
board. Make sure both ends are securely
plugged in; check the drive type in the
standard CMOS setup.
* Backing up the hard drive is extremely
important. All hard disks are capable of
breaking down at any time.
* Back up data and app li c ati ons file s. Refor mat
the hard drive. Re-install applications and data
using backup disks.
PROBABLE SOLUTION
Screen message s ays “Invalid C onfiguratio n” or
“CMOS Failu re.”
PROBABLE SOLUTION
Cannot boot syst em af ter ins tallin g sec ond h ard
drive.
* Review system’s equipment . Make sure
correct inform ation is in setup.
* Set master/slave jumpers correctly.
* Run SET UP program and sele ct correct drive
types. Call drive manufacturers for
compatibility with other drives.
48
A
A
Problemlösung
MÖGLICHE URSACHE LÖSUNG
Das System hat keine Spannungsversorgung.
Die Stromanzeige leuchtet nicht, der Lüfter im
Inneren der Stromversorgung wird nicht
eingeschaltet. Tastaturleuchten sind nicht an.
MÖGLICHE URSACHE LÖSUNG
Das System funktioniert nicht. Die
Tastaturleuchten sind an, die Stromanzeige
leuchtet, die Festplatte dreht sich.
MÖGLICHE URSACHE LÖSUNG
Das System wird von der Festplatte nicht
hochgefahren, vom CD-ROM-Treiber aber ja.
MÖGLICHE URSACHE LÖSUNG
Das System wird nur von der CD-ROM
hochgefahren. Die Festplatte wird gelesen und
die Anwendungen sind funktionsfähig, aber es
ist nicht möglich, das System von der Festplatte
zu starten.
uf dem Bildschirm erscheint die Meldung
“Ungültige Konfiguration” oder “CMOS Fehler.”
Das System kann nach der Installation einer
zweiten Festplatte nicht hochgefahren werden.
MÖGLICHE URSACHE LÖSUNG
MÖGLICHE URSACHE LÖSUNG
* Versichern Sie sich, dass das Stromkabelrichtig
angebracht ist
* Ersetzen Sie das Stromkabel
* Wenden Sie sich an Ihre Kundendienststelle
* Drücken Sie das DIMM-Modul bei gleichem
Druck an beide Seiten, bis es einrast et.
* Überprüfen Sie das Kabel zwischen Festplatte
und Festplatten-Controller. Versichern Sie
sich, dass beide Enden richtig angebracht
sind; überprüfen Sie den Laufwerktyp in der
standardmäßigen CMOS-Einrichtung.
* Ein Backup der Fes tplatte i st sehr wi chtig. Alle
Festplatten können irgendwann beschädigt
werden.
* Machen Sie eine Sicherungskopie von allen
Daten und Anwendungsdat eien. Formatieren
Sie die Festplatte und reinstallieren Sie die
nwendungen und Daten mit Hilfe von
Backup-Disks.
* Überprüfen Sie die Systemkomponenten und
versichern Sie sich, das diese richtig
eingerichtet sind.
* Setzen Sie die Master/Slave-Jumper richtig ein.
* Führen Sie das SETUP-Programm aus und
wählen Sie die richtigen Laufwerktypen.
Wenden Sie sich an den Lau fwerkhersteller,
um die Kompati bilität mit an deren Lauf werk en
zu überprüfen.
49
08/4/2003
50
Loading...
