chiliGREEN Mitac 9515 User Manual

Download

User’s Manual

(July 2008)

TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies.

NOTE The information in this manual is subject to change without notice.

Preface ........................................................................................v

Notational Conventions.......................................................vi

Chapter 1 Getting Started...................................................1-1

Getting the Computer Running ............................................ 1-2

Unpacking ........................................................................ 1-2

Connecting to AC Power ................................................. 1-2

Opening the Cover ........................................................... 1-4

Turning On and Off the Computer................................... 1-4

Taking a Look at the Computer............................................ 1-6

Right-Side Components ................................................... 1-6

Left-Side Components ..................................................... 1-7

Rear Components ............................................................. 1-8

Front Components............................................................ 1-9

Bottom Components....................................................... 1-10

Top-open Components................................................... 1-11

Where to Go from Here...................................................... 1-13

Chapter 2 Operating Your Computer.................................2-1

Starting and Stopping the Computer .................................... 2-2

Starting the Computer ...................................................... 2-2

Stopping the Computer .................................................... 2-2

Using the Easy Start Buttons................................................ 2-4

Using the Keyboard.............................................................. 2-5

Typewriter Keys............................................................... 2-5

Cursor-Control Keys ........................................................ 2-6

Numeric Keypad .............................................................. 2-8

Euro Symbol .................................................................... 2-8

Windows Keys ................................................................. 2-9

Function Keys .................................................................. 2-9

Fn Key.............................................................................. 2-9

Hot Keys ........................................................................ 2-10

Using the Touchpad ........................................................... 2-12

Configuring the Touchpad ............................................. 2-14

Using the DVD Drive......................................................... 2-15

Inserting and Removing a Disc ...................................... 2-16

Using the Video Features ................................................... 2-17

Configuring the Display Modes ..................................... 2-17

Using the Audio Features................................................... 2-18

Connecting Audio Devices ............................................ 2-19

Using the Communication Features ................................... 2-20

Using the Modem........................................................... 2-20

Using the LAN ............................................................... 2-21

Using the Wireless LAN (Optional)............................... 2-22

Using the Bluetooth® Wireless Feature (Optional) ........ 2-25

Chapter 3

Managing Power ................................................3-1

AC Adapter .......................................................................... 3-2

Battery Pack ......................................................................... 3-3

Charging the Battery Pack ............................................... 3-3

Initializing the Battery Pack............................................. 3-4

Checking the Battery Level.............................................. 3-4

Replacing the Battery Pack .............................................. 3-5

Battery Low Signals and Actions..................................... 3-7

Power Management.............................................................. 3-8

Hibernation....................................................................... 3-9

Power-Saving Tips ............................................................. 3-10

Chapter 4 Expanding Your Computer ...............................4-1

Connecting an External Monitor .......................................... 4-2

Connecting a USB Device.................................................... 4-3

Using ExpressCards ............................................................. 4-4

ExpressCard Type ............................................................ 4-4

Inserting and Removing an ExpressCard ......................... 4-5

Using the Card Reader ......................................................... 4-6

Internal Components Upgrade.............................................. 4-8

Chapter 5 Using BIOS Setup ..............................................5-1

When and How to Use BIOS Setup ..................................... 5-2

When to Use..................................................................... 5-2

Starting BIOS Setup......................................................... 5-2

Moving Around and Making Selections .......................... 5-4

Main Menu ........................................................................... 5-5

Advanced Menu ................................................................... 5-6

Security Menu ...................................................................... 5-8

Boot Menu............................................................................ 5-9

Exit Menu........................................................................... 5-10

Chapter 6 Installing Software Drivers................................6-1

How to Use the Driver Disc ................................................. 6-2

Installing Drivers.................................................................. 6-3

P1 Quick Launch Key Utility (Optional) ......................... 6-4

Chapter 7

Caring for the Computer ...................................7-1

Protecting the Computer....................................................... 7-2

Using the Windows Security Center ................................ 7-2

Using the Cable Lock....................................................... 7-3

Taking Care of the Computer............................................... 7-4

Location Guidelines ......................................................... 7-4

General Guidelines........................................................... 7-4

Cleaning Guidelines ......................................................... 7-5

Battery Pack Guidelines................................................... 7-5

When Traveling.................................................................... 7-6

Chapter 8 Troubleshooting.................................................8-1

Preliminary Checklist........................................................... 8-2

Solving Common Problems.................................................. 8-3

Battery Problems.............................................................. 8-4

Bluetooth Wireless Problems........................................... 8-4

iii

DVD Drive Problems....................................................... 8-5

Display Problems ............................................................. 8-6

ExpressCard Problems ..................................................... 8-7

Hardware Device Problems.............................................. 8-7

Hard Disk Drive Problems ............................................... 8-7

Keyboard, Mouse, and Touchpad Problems .................... 8-8

LAN Problems ................................................................. 8-8

WLAN Problems.............................................................. 8-9

Modem Problems ........................................................... 8-10

Power Management Problems........................................ 8-11

Software Problems ......................................................... 8-11

Sound Problems ............................................................. 8-12

Startup Problems ............................................................ 8-13

Other Problems............................................................... 8-14

Resetting the Computer...................................................... 8-15

Appendix A Specifications ................................................... A-1

Appendix B Regulatory Information .................................... B-1

On the Use of the System.....................................................B-2

Class B Regulations .........................................................B-2

Safety Notices ..................................................................B-3

On the Use of the RF Device................................................B-6

USA and Canada Safety Requirements and Notices........B-6

European Union CE Marking and Compliance Notices ..B-9

Index .........................................................................................I-1

Preface

This manual contains information that will help you operate the computer. It is divided into 8 chapters, 2 appendices, and an index.

z Chapter 1, Getting Started, takes you through the process of setting

up the computer and identifying its external components.

z Chapter 2, Operating Your Computer, tells you how to use the

computer’s components and features.

z Chapter 3, Managing Power, provides information on power.

z Chapter 4, Expanding Your Computer, provides information on

installing and using peripheral devices.

z Chapter 5, Using BIOS Setup, describes the BIOS Setup program

that configures the computer’s BIOS settings.

z Chapter 6, Installing Software Drivers, describes how to install the

drivers and utilities supplied with the computer.

z Chapter 7, Caring for the Computer, gives you tips in care and

maintenance.

z Chapter 8, Troubleshooting, gives solutions to common problems

you may encounter when using the computer.

z Appendix A, Specifications, gives a brief specification of the

computer.

z Appendix B, Regulatory Information, provides regulatory

statements and safety notices on your computer.

Notational Conventions

Throughout this manual, the following conventions are used to distinguish elements of text.

NOTE: identifies additional information that requires special attention.

CAUTION: identifies important information that, if not followed, may result in loss of

data or damage to the computer.

Keyboard keys are shown in a bold typeset. For example:

Press the

Enter key to complete.

When keys are joined by a plus sign (+), press the first key, and, while keeping the first key down, press the remaining keys, finally release all the keys. When necessary, keys are also shown in graphics.

A title, command, setup item, or button that you can see on the screen is shown in boldface. A value or an option that you can select for a setup item is shown in italic. For example:

Select When I press the power button, set it to Shut down, and then click the Save changes button.

Chapter 1

CHAPTER

Getting Started

Congratulations on purchasing this computer.

Your computer incorporates desktop computer capabilities into a compact notebook-sized package. It can greatly enhance your productivity either in the office or at home. And, of course, wherever you need it, the computer is ready and easy “to go.”

This chapter first tells you step by step how to get the computer up and running. You will find instructions for these procedures:

z Unpacking

z Connecting to AC power

z Opening the cover

z Turning on the computer

z Turning off the computer

Then, you will find a section briefly introducing the external components of the computer. And the last section navigates you to the information you may need after the computer is ready for use.

Getting Started 1-1

Getting the Computer Running

This section guides you through the procedures for getting the computer ready for operation.

Unpacking

After unpacking the shipping carton, you should find these standard items:

z Notebook computer

z Accessories:

− AC adapter

− AC power cord

− Driver disc

Inspect all the items. If any item is damaged or missing, notify your dealer immediately.

Keep the shipping carton and packing materials in case you need to ship or store the computer in the future.

Connecting to AC Power

The computer operates either on the external AC power or internal battery power. It is suggested that you use AC power when you start up the computer for the very first time.

CAUTION: Use only the AC adapter included with your computer. Using other AC

Getting Started 1-2

adapters may damage the computer.

1. Make sure that the computer is turned off.

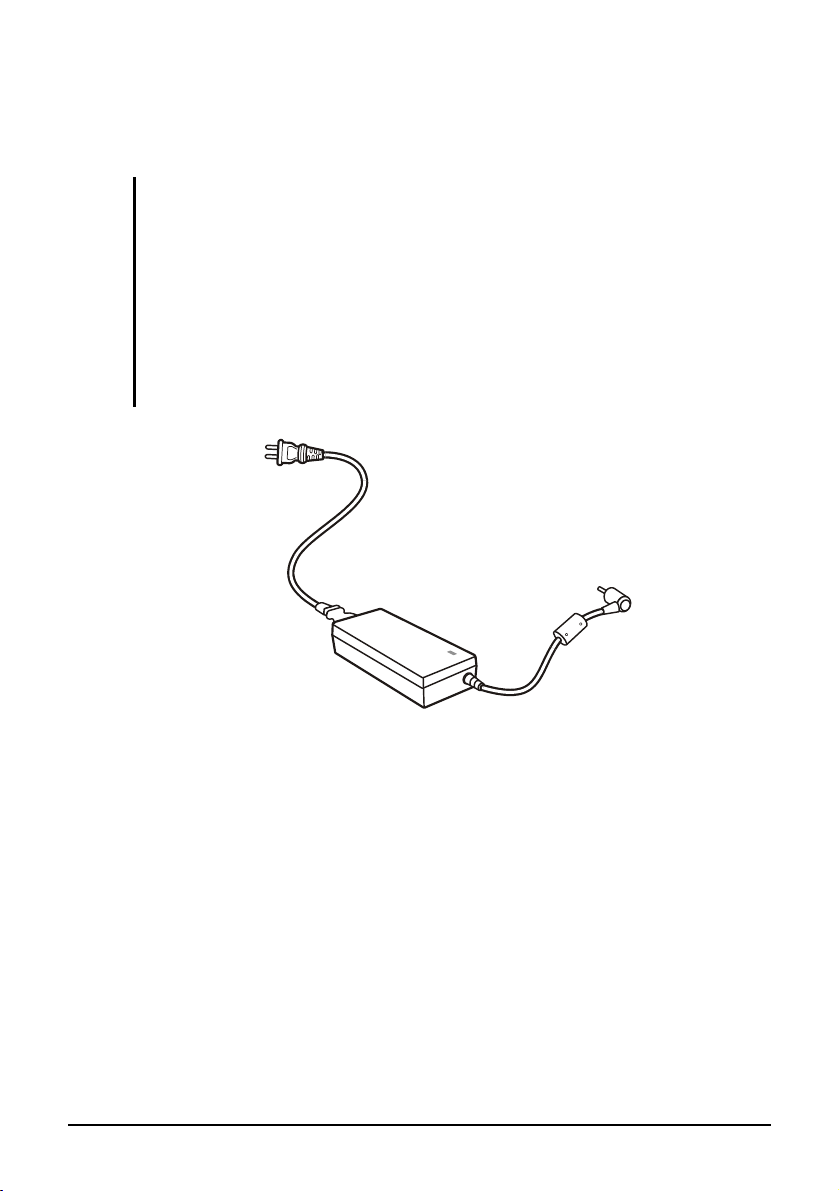

2. Plug the DC cord of the AC adapter to the power connector of the

computer (n).

3. Plug the female end of the AC power cord to the AC adapter and the

male end to an electrical outlet (o).

4. When the AC adapter is connected, power is being supplied from the

electrical outlet to the AC adapter and onto your computer. Now, you are ready to turn on the computer.

CAUTION:

z When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the computer. A reverse procedure may damage the AC adapter or the computer.

z When unplugging the connector, always hold the plug head. Never pull on the cord.

NOTE: When the AC adapter is connected, it also charges the battery pack. For information on using battery power, see Chapter 3.

Getting Started 1-3

Opening the Cover

CAUTION: Be gentle when opening and closing the cover. Opening it vigorously or slamming it shut could damage the computer.

Open the top cover by sliding the cover latch toward the right (n) and lifting up the cover (o). You can tilt the cover forward or backward for optimal viewing clarity.

Turning On and Off the Computer

Turning On

1. Make sure that the computer is connected to AC power.

Getting Started 1-4

2. Press the power button.

3. Each time the computer is turned on, it performs a Power-On Self

Test (POST), and the operating system such as Windows should start.

Turning Off

To turn off the computer power, use the “Shut Down” command of your operating system.

NOTE: There are other ways you can stop the computer so that you will be back to where you left off when you next turn on the computer. (See “Stopping the Computer” in

Getting Started 1-5

Chapter 2 for information.)

CAUTION: If you have to turn the computer on again immediately after turning it off, wait for at least five seconds. Turning the computer off and on rapidly can damage it.

Taking a Look at the Computer

This section identifies the external components of the computer and briefly describes the function of each component.

NOTE: Depending on the model you purchased, the appearance of your computer may not be exactly the same as those shown in this manual.

Right-Side Components

Ref Component Description See Also

Combo Drive/

DVD Dual Drive/ Super Multi Drive

Getting Started 1-6

Accepts a compact disc for installing or loading software, accessing data, and playing music/video.

2-15

Left-Side Components

Ref Component Description See Also

Power Connector

USB Port

Audio Output

Connector

Microphone

Connector

ExpressCard Slot

Connects the AC adapter. P.

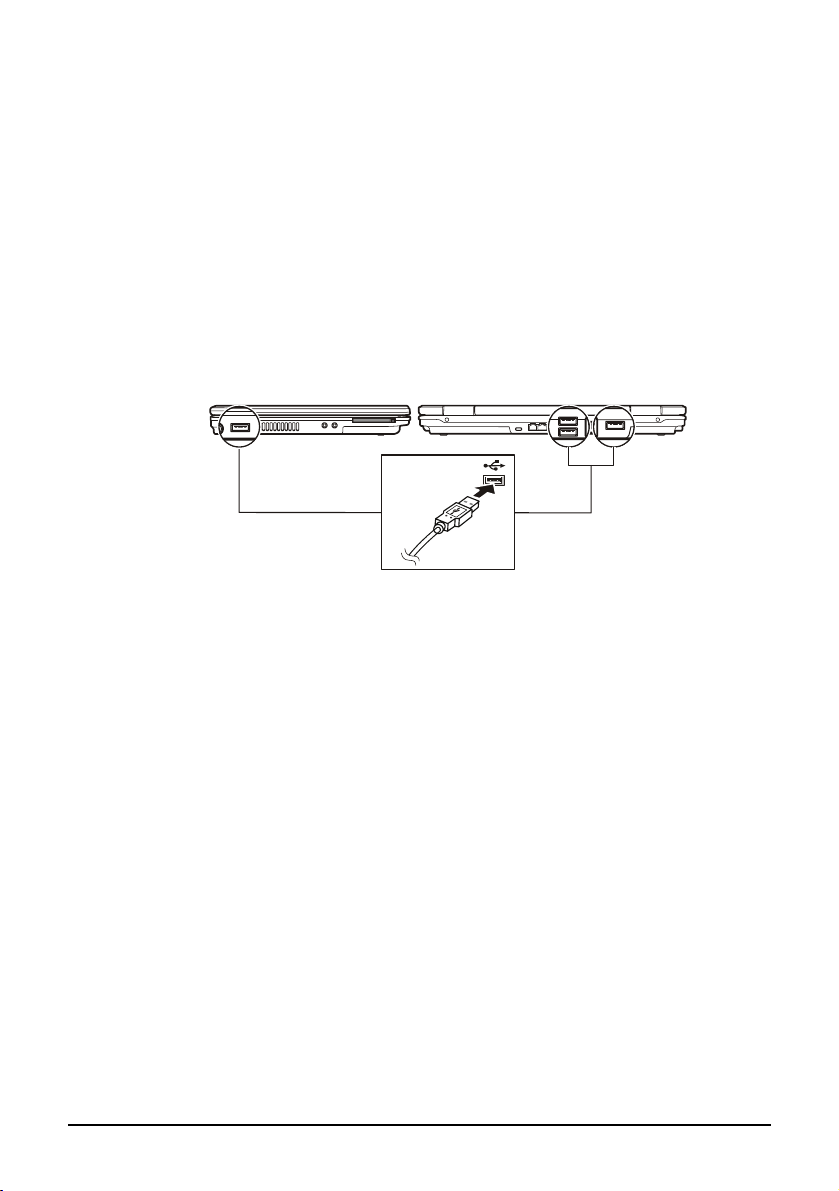

Connects a USB device, such as a USB flash disk, printer, digital camera, joystick, and more.

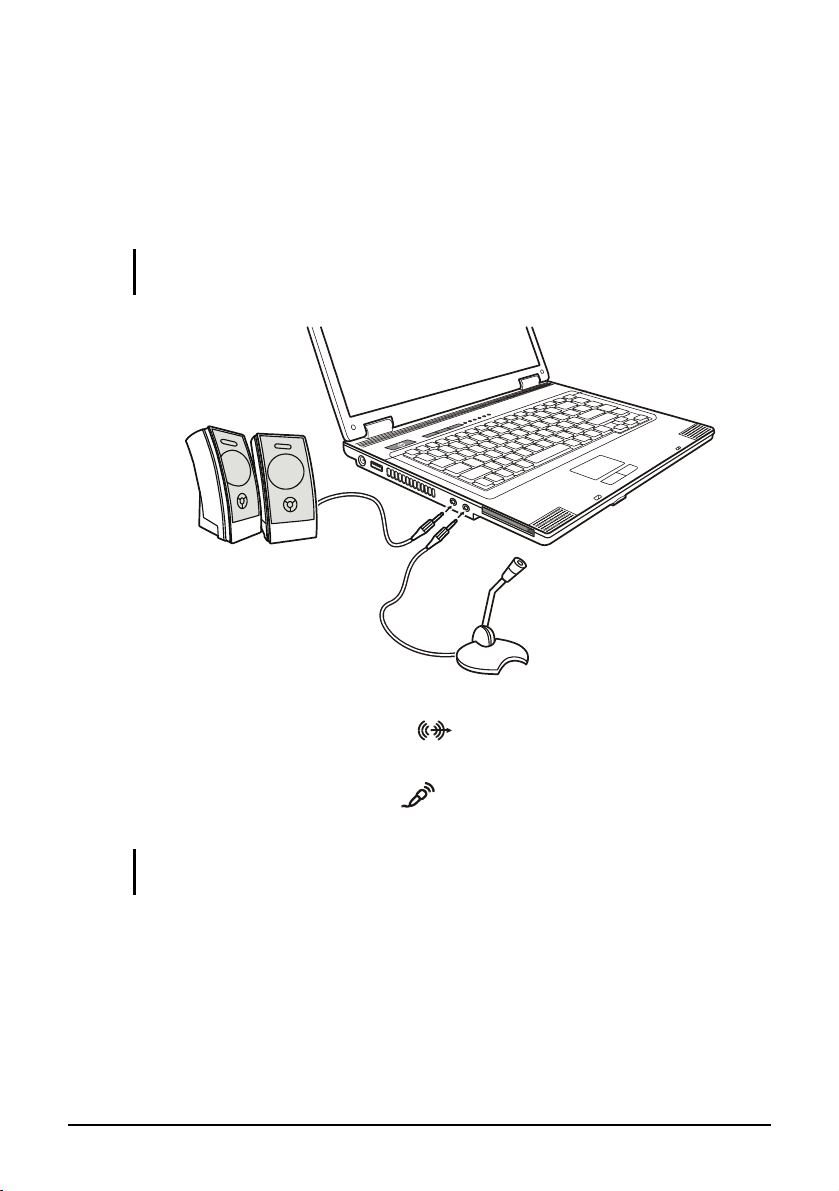

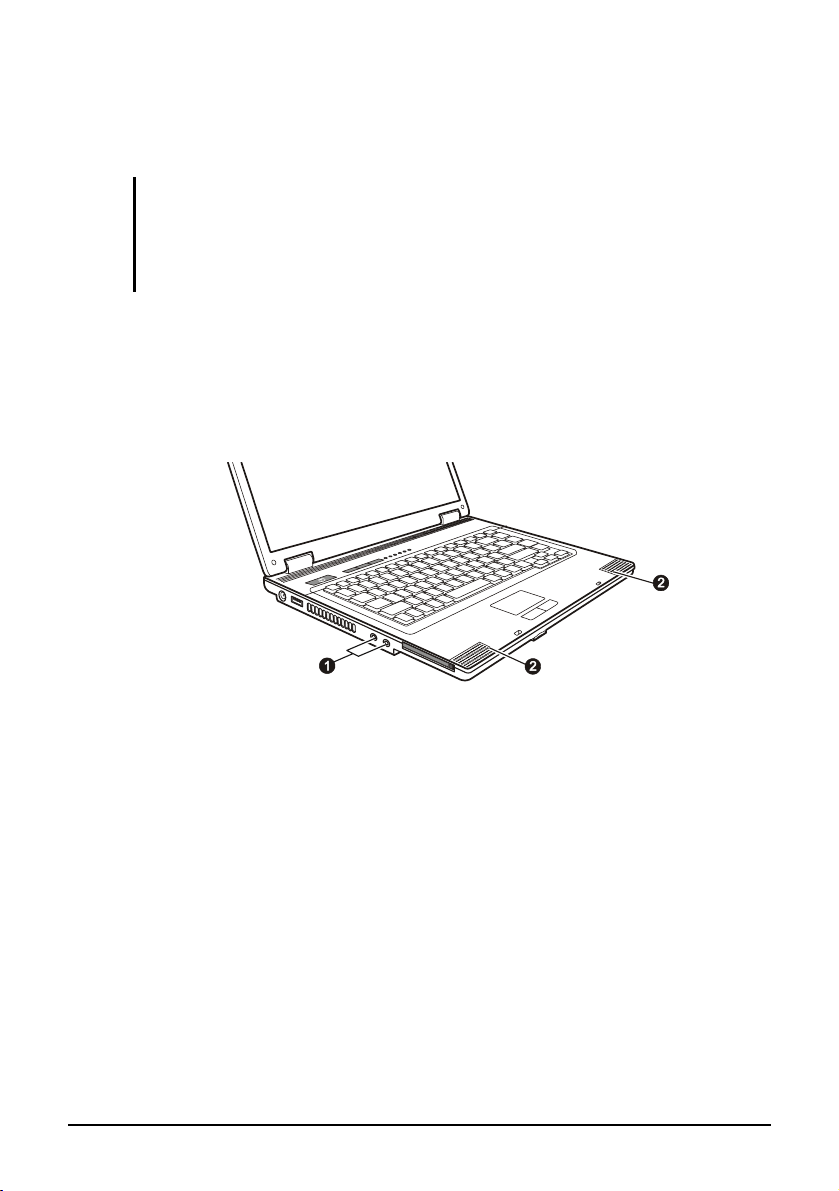

Connects a set of headphones, external speakers with amplifier, or an audio recording device.

Connects an external microphone. P.

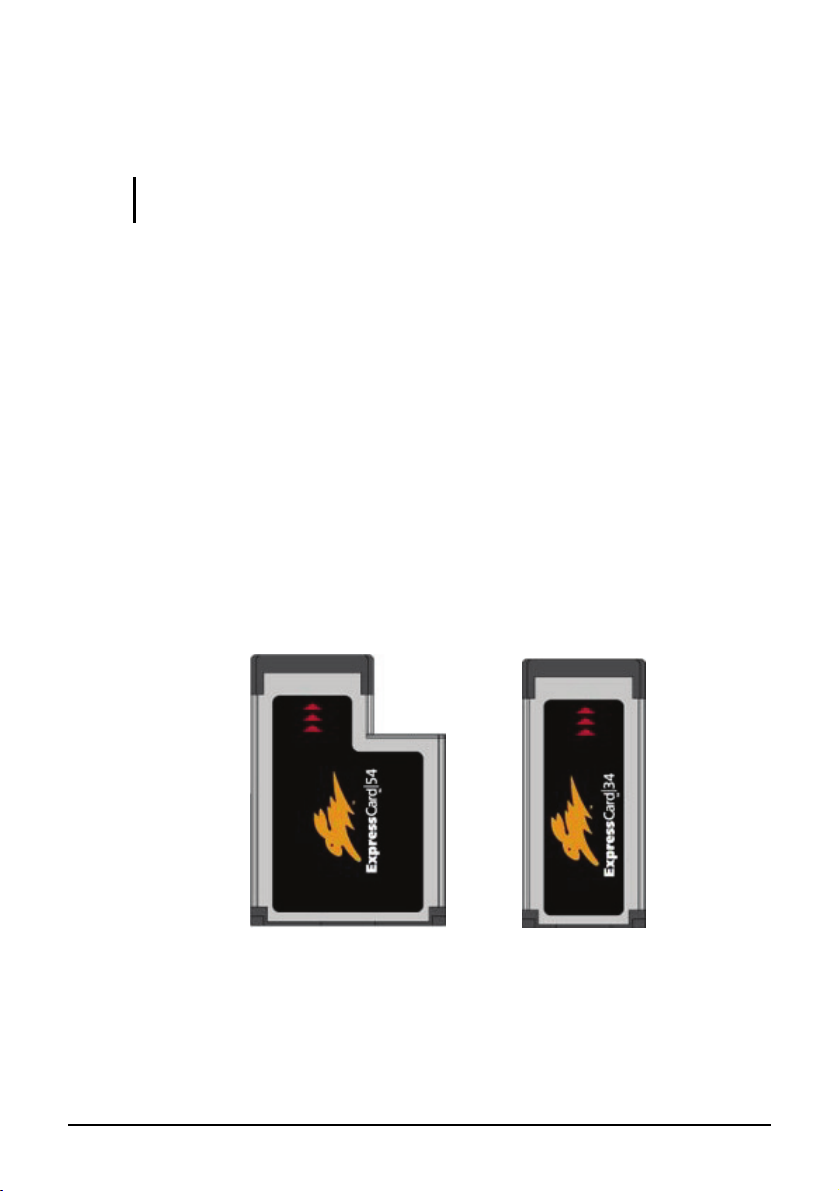

Accepts an ExpressCard for additional functions.

2-19

1-2

4-3

4-5

Getting Started 1-7

Rear Components

Ref Component Description See Also

USB Ports

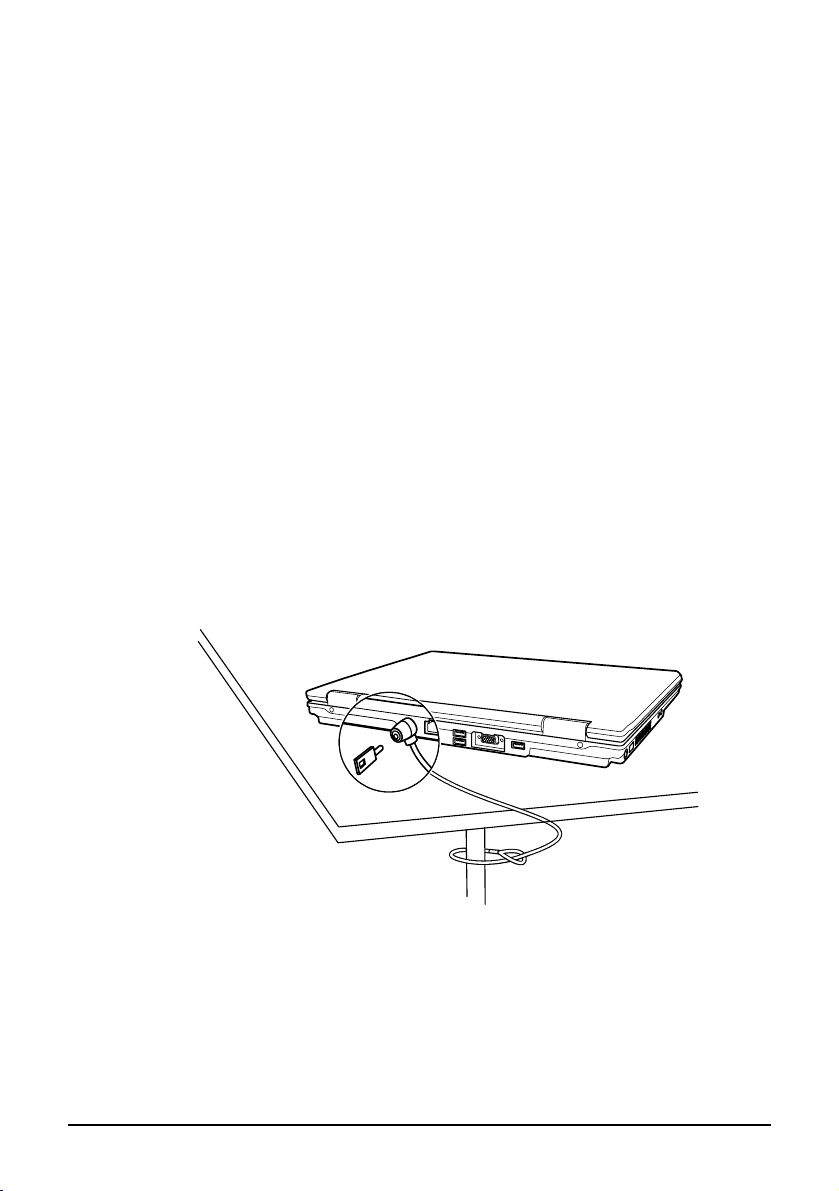

Kensington Lock

RJ-11 Connector

RJ-45 Connector

VGA Port

Connect a USB device, such as a USB flash disk, printer, digital camera, joystick, and more.

Locks the computer to a stationery object for security.

Connects the telephone line. P.

Connects the LAN cable. P.

Connects an external monitor. P.

4-3

7-3

2-20

2-21

4-2

Getting Started 1-8

Front Components

Ref Component Description See Also

Top Cover Latch

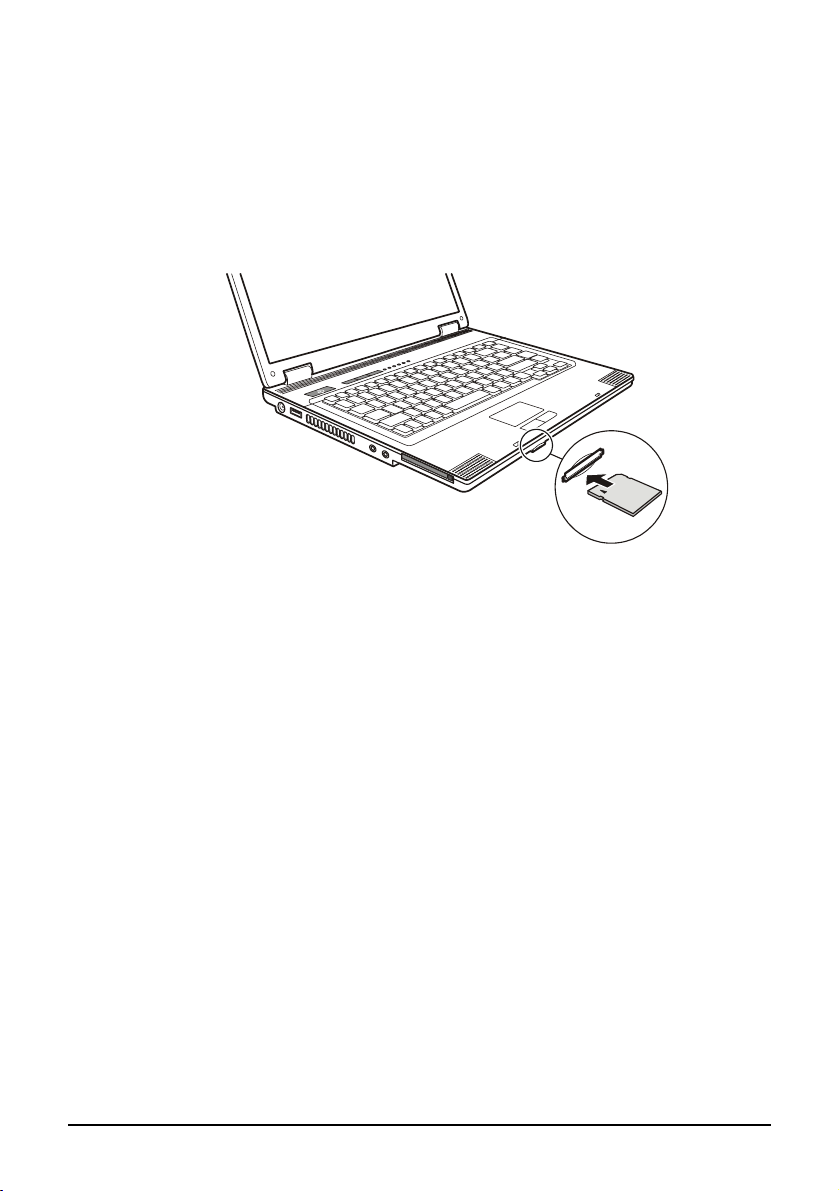

Card Reader

Locks the top cover.

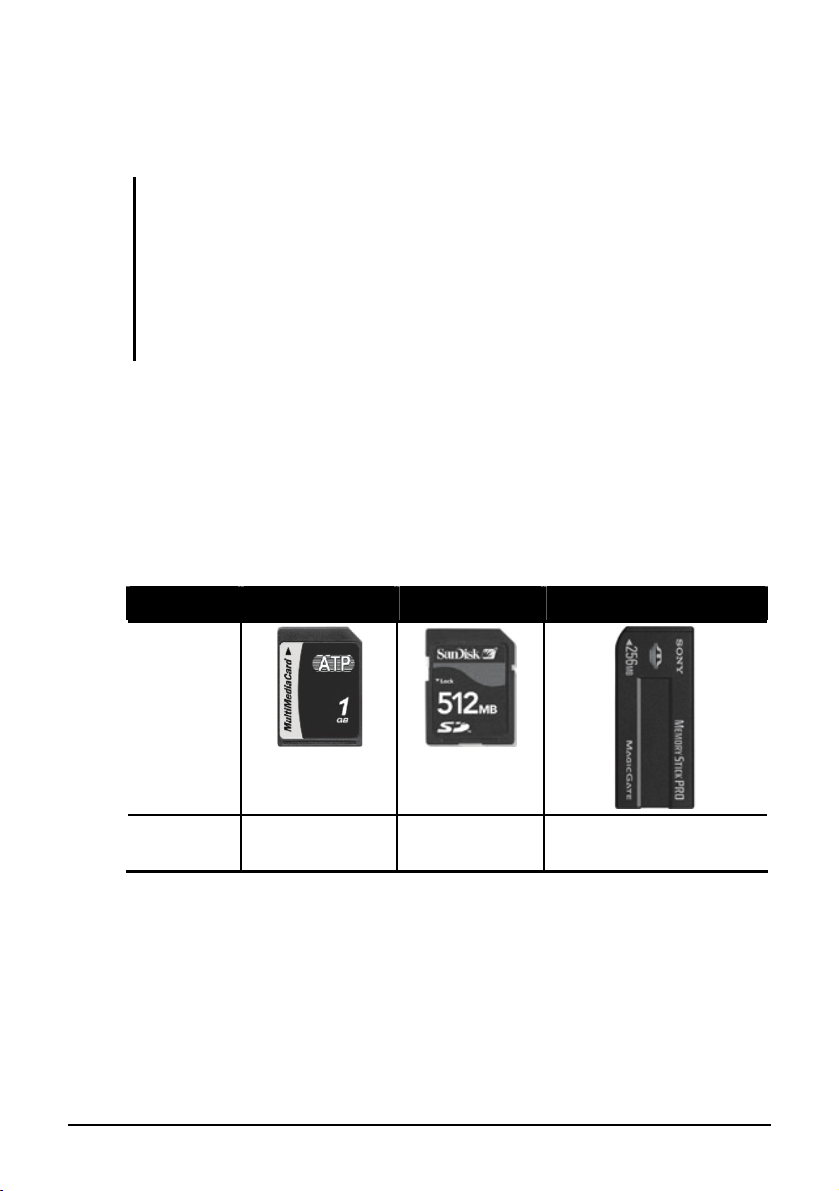

Accepts a MultiMediaCard (MMC), Secure Digital (SD), Memory Stick (MS) or Memory Stick PRO (MS PRO) card for removable storage media.

4-6

Getting Started 1-9

Bottom Components

Ref Component Description See Also

Battery Pack

Bluetooth® Wireless

Card Slot

Memory Slot

WLAN Card Slot

CPU Socket

Hard Disk Drive

Compartment

Getting Started 1-10

Supplies power to your computer when external power is not connected.

Inside is the optional Bluetooth card.

Inside is the memory slot for expanding the memory size.

Inside is the optional Mini PCI-E WLAN card.

Inside is the CPU.

Inside is the hard disk drive.

wireless

3-3

P. 2-25

2-22

Top-open Components

Ref Component Description See Also

CMOS Camera

Lens (Optional)

LCD Screen

Getting Started 1-11

Allows you to use your computer’s optional camera function.

Displays the output of the computer. P.

2-17

Ref Component Description See Also

Indicators

Easy Start Buttons

Show the current status of the computer’s devices.

WLAN indicator

Power status indicator

Battery Charge indicator

Caps Lock indicator P.

Num Lock indicator P.

DVD drive / Hard disk drive in-use indicator P.

Provide a quick way to launch programs.

Glows in green when the WLAN radio is on.

Glows in green when the computer is turned on.

Blinks green the computer is in Sleep mode.

Glows in green when the battery is fully charged and connected to AC power.

Glows in amber when the battery is being charged.

Blinks red when the battery is almost completely discharged.

2-23

2-6

Power Button

Keyboard

Touchpad

Stereo Speaker

Getting Started 1-12

Starts Internet Explorer. P.

Starts Microsoft

Turns the Bluetooth wireless feature ON and OFF (optional), OR P1 (Program 1 – user customized) quick launch key.

Turns the computer power ON and OFF. P. 1-4

Serves as the data input device of the computer.

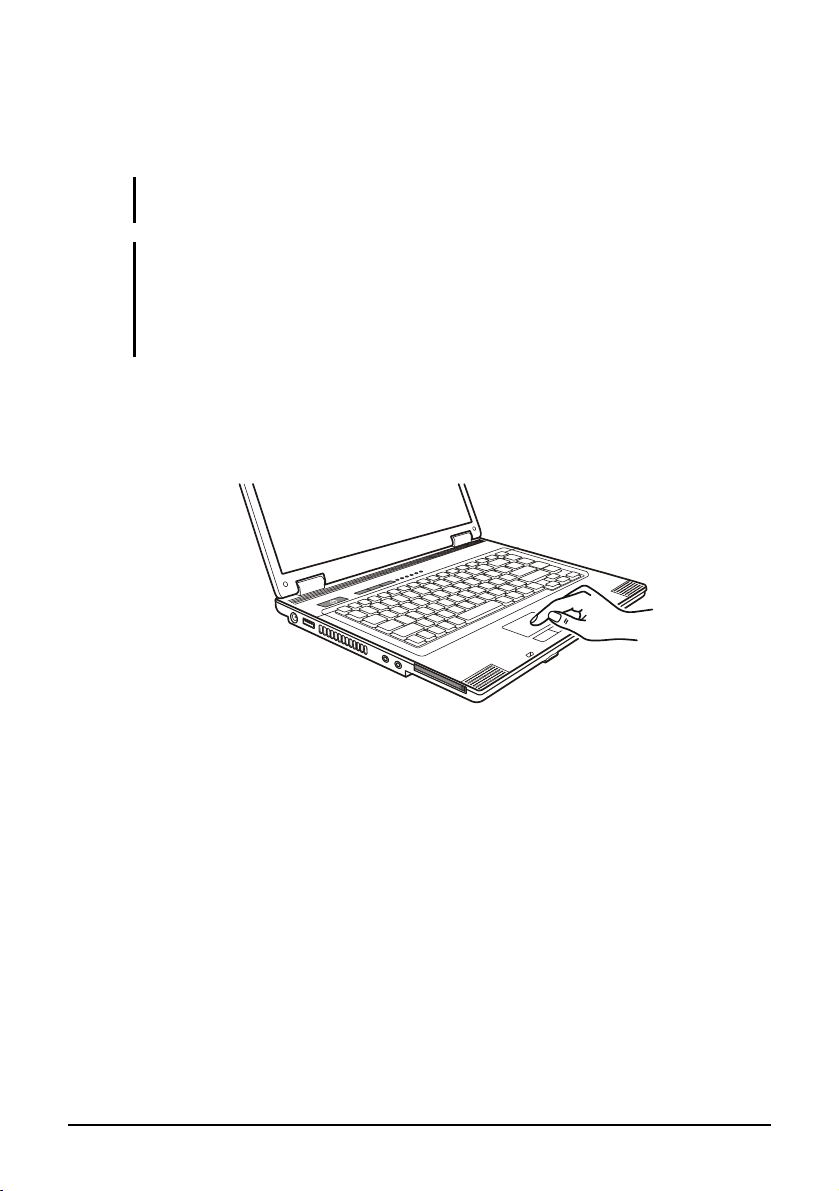

Serves as the pointing device of the computer. P.

Sends out sound and voice from the computer. P.

Outlook. P. 2-4

2-25

2-12

2-18

2-4

6-4

2-4

Where to Go from Here

As your computer is ready for operation, you may want to do any of the following now:

For this purpose... Do this...

To know more about the computer... Go on to the next chapter.

To install the operating system if your dealer has not already done so...

To know more about the operating system...

To install the drivers if your dealer has not already done so...

To set a power-on password... Read the operating system manual.

To charge the battery pack for the first time...

See the operating system manual.

Read the operating system manual.

See Chapter 6.

See “Charging the Battery Pack” in Chapter 3.

Getting Started 1-13

Chapter 2

CHAPTER

Operating Your Computer

This chapter provides information about the use of the computer.

If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user but are new to notebook computers, you may choose to read only the parts containing information unique to your computer.

Described in this chapter are the operating basics of these components:

z Keyboard

z Touchpad

z DVD drive

And these features:

z Starting and stopping the computer

z Video features

z Audio features

z Communication features

Operating Your Computer 2-1

Starting and Stopping the Computer

There are a number of ways to start and stop the computer.

Starting the Computer

You always start the computer using the power button.

A computer starts up with an operating system (OS) existing on the storage device such as the hard disk and optical disc. The computer will automatically load the OS after you turn it on. This process is called booting.

NOTE: An operating system is the platform for all your software application programs to run on. Your computer uses the Microsoft Windows Vista operating system.

Stopping the Computer

When you finish a working session, you can stop the computer by turning off the power or leaving the computer in Sleep or Hibernation mode:

To stop in

this mode...

Off Follow the shutdown procedure of your

operating system. This can prevent loss of unsaved data or damage to your software programs.

If the system is locked up because of hardware or software problems, press the power button to turn off the computer.

Sleep Depending on your settings in Windows,

you can place the computer in Sleep mode by:

• Closing the display cover

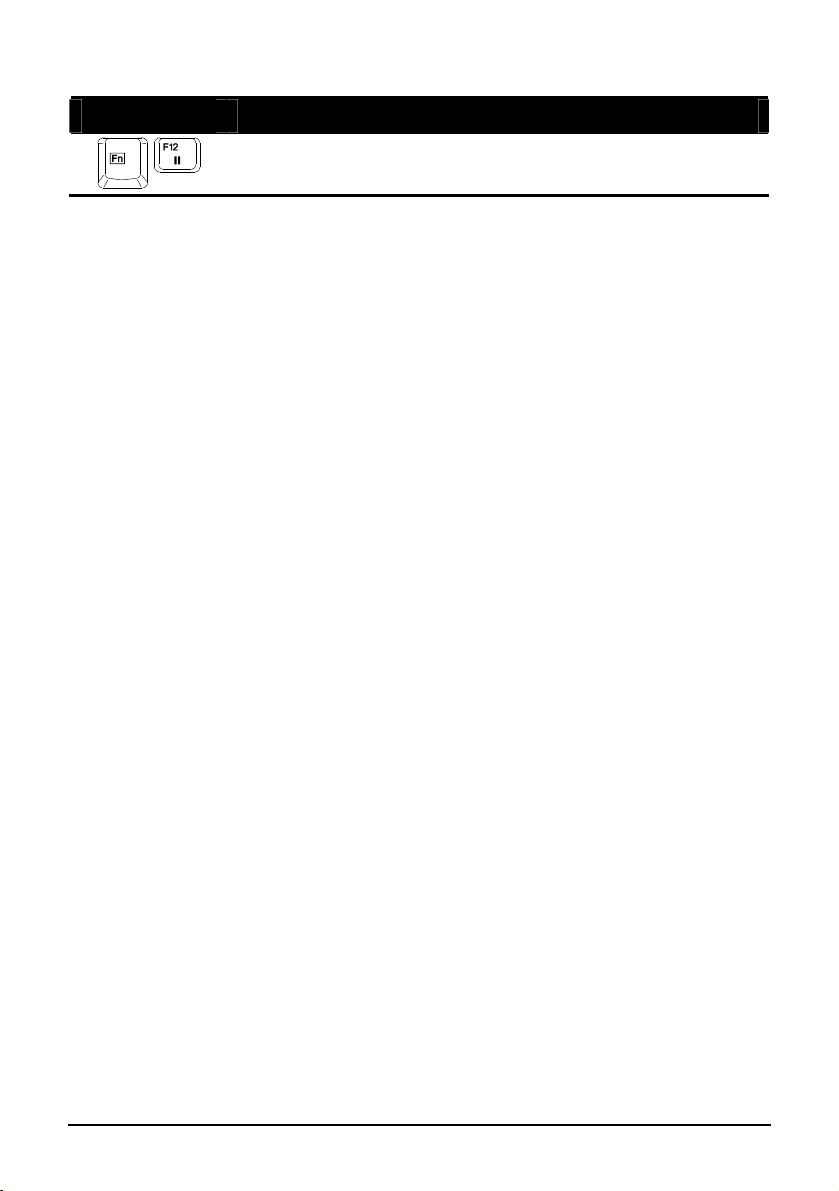

• Pressing the Fn+F12 hot key

• Pressing the power button

Operating Your Computer 2-2

Do this... To start up or

resume again

Press the power button.

Press any key.

To stop in

this mode...

Hibernation Depending on your settings in Windows,

you can place the computer in

Do this... To start up or

resume again

Press the power button.

Hibernation mode by:

• Closing the display cover

• Pressing the power button

If you choose to stop in Sleep or Hibernation mode, you can return to where you left off the next time you start up the computer. (See “Power Management” in Chapter 3 for more information.)

Operating Your Computer 2-3

Using the Easy Start Buttons

The Easy Start buttons are three pre-defined buttons located on the left above the keyboard.

The Easy Start buttons allow you to start the frequently-used programs with one single press of a button (from left to right):

z Internet Explorer

z Microsoft

z P1 Bluetooth

comes with the Bluetooth

Outlook

wireless feature ON/OFF (optional – if your model

wireless card), OR P1 (Program 1 – user customized) quick launch key (see chapter 6 for details)

Operating Your Computer 2-4

Using the Keyboard

Your keyboard has all the standard functions of a full-sized computer keyboard plus an

The standard functions of the keyboard can be further divided into four major categories:

z Typewriter keys

z Cursor-control keys

z Numeric keys

z Function keys

Typewriter Keys

Typewriter keys are similar to the keys on a typewriter. Several keys are added, such as the When the lock keys are pressed, their corresponding indicators light up.

Fn key added for specific functions.

Ctrl, Alt, Esc keys and lock keys, for special purposes.

Key Description

The Control key is normally used in combination with other keys for program-specific functions.

The Alternate key is normally used in combination with other keys for program-specific functions.

The Escape key is usually used for stopping a process. Examples are exiting a program and canceling a command. The function depends on the program you are using.

The Shift key is used with alphabet letter keys to produce uppercase letters when typing. It is also used in combination with other keys for program-specific functions.

The Backspace key moves the cursor left one space and deletes the character in that space.

Operating Your Computer 2-5

Key Description

Pressing Fn and this key toggles the Num Lock on and off. When on

light on), the Num Lock activates the numeric keys.

(

Pressing Fn and this key toggle Scroll Lock on and off. When on the screen moves one line up or down when you press ↑ or ↓ arrow key. Scroll Lock does not work for all programs.

Pressing this key toggles the Caps Lock on and off. When on

light on), the Caps Lock keeps the letter keys in uppercase.

(

The Pause key temporarily stops screen scrolling. Scroll Lock does not work for all programs.

The Print Screen key prints the displayed screen. Print screen does not work for all programs.

Cursor-Control Keys

NOTE: The word “cursor” refers to the indicator on the screen that lets you know exactly where on your screen anything you type will appear. It can take the form of a

Operating Your Computer 2-6

vertical or horizontal line, a block, or one of many other shapes.

Cursor-control keys are generally used for editing purposes. They are:

Key Description

Moves the cursor left one space.

Moves the cursor right one space.

Moves the cursor up one line.

Moves the cursor down one line.

Moves the page up.

Moves the page down.

Moves the cursor to the beginning of the line or document.

Moves the cursor to the end of the line or document.

Switches typing between insert and overtype modes. Insert mode means any character typed will be inserted to the current cursor position; overtype mode means any character typed will overwrite the text in the current cursor position.

Deletes the character to the right of the cursor and moves the following text left one space.

Operating Your Computer 2-7

Numeric Keypad

A 15-key numeric keypad is embedded in the typewriter keys as shown next:

Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated, which means you can use these keys to enter numerals.

NOTE:

z When the numeric keypad is activated and you need to type the English letter in the

keypad area, you can either turn Num Lock off or you can press the Fn key and then the letter key without turning Num Lock off.

z Some software may not be able to use the numeric keypad on the computer. If so,

use the numeric keypad on an external keyboard instead.

Euro Symbol

Windows supports the Euro dollar sign €, you can press the sign on the US and UK keyboards.

z To press the Euro sign on a United States-International keyboard,

hold down either of the it).

z To press the Euro sign on a United States 101 keyboard, hold down

either of the

Alt keys and type 0128 on the numeric keypad of your

keyboard.

Operating Your Computer 2-8

Alt keys and press 5 (which has a Euro sign on

z To press the Euro sign on an UK keyboard, hold down the Alt Gr key

and press

4 (which has a Euro sign on it).

Windows Keys

The keyboard has two keys that perform Windows-specific functions:

Windows Logo key and

Application key.

The software-specific functions when used in combination with other keys. The click. (See your Windows manual for more information.)

Windows Logo key opens the Start menu and performs

Application key usually has the same effect as a right mouse

Function Keys

On the top row of the keys are the function keys: F1 to F12. Function keys are multi-purpose keys that perform functions defined by individual programs.

Hot key functions are assigned to the keys by your computer. (See “Hot Keys” later in this chapter for information.)

F1, F3, F4, F5, F6, F7, F10, F11, and F12

Fn Key

The Fn key, at the lower left corner of the keyboard, is used with another key to perform the alternative function of a key. The letter “Fn” and the alternative functions are identified by the color of blue on the keytop. To perform a desired function, first press and hold the other key.

Fn key, then press the

Operating Your Computer 2-9

Hot Keys

Hot keys refer to a combination of keys that can be pressed any time to activate special functions of the computer. Most hot keys operate in a cyclic way. Each time a hot key combination is pressed, it shifts the corresponding function to the other or next choice.

You can easily identify the hot keys with the icons imprinted on the keytop. The hot keys are described next.

Key Description

Switches the wireless LAN radio on and off.

NOTE: This function works only if an optional mini PCI-E wireless LAN card is installed.

Decreases the sound volume.

Increases the sound volume.

Switches the display output to one of the following when external devices are connected.

Upon booting the system with CRT:

NOTE: This function only applies to Plug & Play display devices.

Decreases the LCD brightness (8 levels).

Increases the LCD brightness (8 levels).

Switches the system sound output off (mute) and on.

Switches the LCD display on and off.

Operating Your Computer 2-10

Key Description

Serves as the sleep button that you can define with Windows’ Power Options. (See the “Power Management” in Chapter 3.)

Operating Your Computer 2-11

Using the Touchpad

CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may damage the touchpad surface.

NOTE:

z Make sure to install the pointing device driver to take advantage of the touchpad

feature.

z For optimal performance of the touchpad, keep your fingers and the pads clean and

dry. When tapping on the pad, tap lightly. Do not use excessive force.

The touchpad is a pointing device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons.

The touchpad consists of a rectangular pad and a left and right buttons. To use the touchpad, place your forefinger or thumb on the pad. The rectangular pad acts like a miniature duplicate of your display. As you slide your fingertip across the pad, the pointer (also called cursor) on the screen moves accordingly. When your finger reaches the edge of the pad, simply relocate yourself by lifting the finger and placing it on the other side of the pad.

Operating Your Computer 2-12

Here are some common terms that you should know when using the touchpad:

Term Action

Point Move your finger on the pad until the cursor points to the

selection on the screen.

Click Press and release the left button.

–or–

Tap gently anywhere on the pad.

Double-click Press and release the left button twice in quick succession.

–or–

Tap twice on the pad rapidly.

Drag and drop

Scroll To scroll is to move up and down or left and right in the

TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad as an alternative method of pressing the left button will no longer be valid.

Press and hold the left button, then move your finger until you reach your destination (drag). Finally, release the button (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

–or–

Gently tap twice on the pad and on the second tap, keep your finger in contact with the pad. Then, move your finger across the pad to drag the selected object to your destination. When you lift your finger from the pad, the selected object will drop into place.

working area on the screen.

To move vertically, place your finger on the right or left edge of the pad and slide your finger up and down along the edge. To move horizontally, place your finger on the top or bottom edge of the pad and slide your finger left and right.

This function works only after you install the touchpad driver supplied with the computer and it may not work for all applications.

Operating Your Computer 2-13

Configuring the Touchpad

You may want to configure the touchpad to suit your needs. For example, if you are a left-handed user, you can swap the two buttons so that you can use the right button as the left button and vice versa. You can also change the size of the on-screen pointer, the speed of the pointer, and so on.

To configure the touchpad, go to Control Panel Æ Hardware and Sounds Æ Mouse Properties. However, you can install the pointing device driver supplied with your computer to take advantage of more powerful features. (For information on installing the driver, see “How to Use the Driver Disc” in Chapter 6.)

Operating Your Computer 2-14

Using the DVD Drive

Your computer comes with a DVD drive, usually configured as drive D.

Depending on the model, your drive is one of the following:

z Combo drive can work both as a DVD drive (reading DVD discs in

addition to CDs, audio CDs and CD-R/-RW discs), and also as a CD recorder (writing to CD-R/-RW discs).

z DVD Dual drive besides the Combo drive function, can write to

DVD+R/+RW/-R/-RW discs.

z Super Multi drive besides the Combo drive function, can write to

DVD+R/+RW/-R/-RW and DVD-RAM discs.

CAUTION:

z When inserting a disc, do not use force. z Make sure that the disc is correctly inserted into the tray, and then close the tray. z Do not leave the DVD tray open. Also, avoid touching the lens in the tray with your

hand. If the lens becomes dirty, the DVD drive may malfunction.

z Do not wipe the lens using materials with rough surface (such as paper towel).

Instead, use a cotton swab to gently wipe the lens.

FDA regulations require the following statement for all laser-based devices: “Caution, Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.”

NOTE: The DVD drive is classified as a Class 1 laser product. This label is located on the DVD drive.

NOTE: For DVD and Combo drives only. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Operating Your Computer 2-15

Inserting and Removing a Disc

Follow this procedure to insert or remove a disc:

1. Turn on the computer.

2. Press the eject button and the DVD tray will slide out partially.

Gently pull on it until it is fully extended.

3. To insert a disc, place down the disc in the tray with its label facing

up. Slightly press the center of the disc until it clicks into place.

Eject Button

To remove a disc, hold the disc by its outer edge and lift it up from the tray.

4. Gently push the tray back into the drive.

NOTE: In the unlikely event that you are unable to release the DVD tray by pressing the eject button, you can manually release the disc. (See “DVD Drive Problems” in Chapter

8.)

Operating Your Computer 2-16

Using the Video Features

The video subsystem of your computer features:

z 15.4-inch TFT (Thin-Film Transistor) color LCD display with

1280×800 WXGA resolution

z Multi-display capability, which allows you to expand your desktop

on the screen to another display device so that you have more desktop space to work on.

z Power Management

NOTE:

z Before using the multi-display capability or taking advantage of the enhanced video

capabilities, the VGA driver supplied with your computer must be installed. (See chapter 6 for details.)

z The computer enters the Sleep or Hibernation mode when the LCD is closed. If you

want to use the computer with the LCD closed, set Do Nothing to the “When I Close the lid” option in the Power Options Æ System Settings Properties. Thus the computer does not enter the Sleep or Hibernation mode when the LCD is closed.

Configuring the Display Modes

NOTE: When using an external CRT monitor, the resolution depends on the CRT

Operating Your Computer 2-17

monitor’s supported resolution.

Your computer has been set to a default resolution and number of colors before shipment. You can view and change display settings through your operating system. See your operating system documentation or online help for specific information.

For displaying in higher resolutions, you can connect an external monitor that supports higher resolutions. (See “

Connecting an External Monitor”

in Chapter 4 for more information.)

Using the Audio Features

NOTE:

z To take advantage of the enhanced audio capabilities, the audio driver supplied

with your computer must be installed. (See chapter 6 for details.)

z If you experience interference while recording, try lowering the microphone

recording volume.

The audio subsystem of your computer features:

z External audio connectors (n) and

z Set of speakers (o)

Ways of playing and recording sound vary with the operating system used. See your operating system documentation or online help for specific information.

Operating Your Computer 2-18

Connecting Audio Devices

For higher audio quality, you can send or receive sound through external audio devices.

NOTE: After connecting an external audio device, make sure that you specify the use of the correct audio device in Windows.

z Audio Output Connector (

) can be connected to speakers,

headphones, or earphone set.

z Microphone Connector (

) can be connected to an external

microphone for recording voice or sound.

NOTE: When using the external speakers/headphones or microphone, you cannot use

Operating Your Computer 2-19

the internal one.

Using the Communication Features

Using the Modem

NOTE: To take advantage of the modem feature, the modem driver supplied with your computer must be installed. (See chapter 6 for details.)

The optional internal 56 K fax/data modem allows you to use the telephone line to communicate with others by fax, email, or connect to an online service or bulletin board.

To connect the telephone line to the modem, connect one end of the modem cable to the RJ-11 connector on the computer and the other end to the telephone line.

NOTE:

z When using the communication software, you may have to disable power

management.

z Set the COM port of the modem to COM3. z Set parameters such as modem speed (baud rate) and line type (pulse dialing or

tone dialing).

z Do not enter the Sleep mode when using the communication software.

Operating Your Computer 2-20

Using the LAN

NOTE: To take advantage of the network feature, the chipset driver supplied with your computer must be installed. (See chapter 6 for details.)

The internal 10/100/1000 Mbps LAN (Local Area Network) module allows you to connect your computer to a network. It supports data transfer rate up to 1000 Mbps.

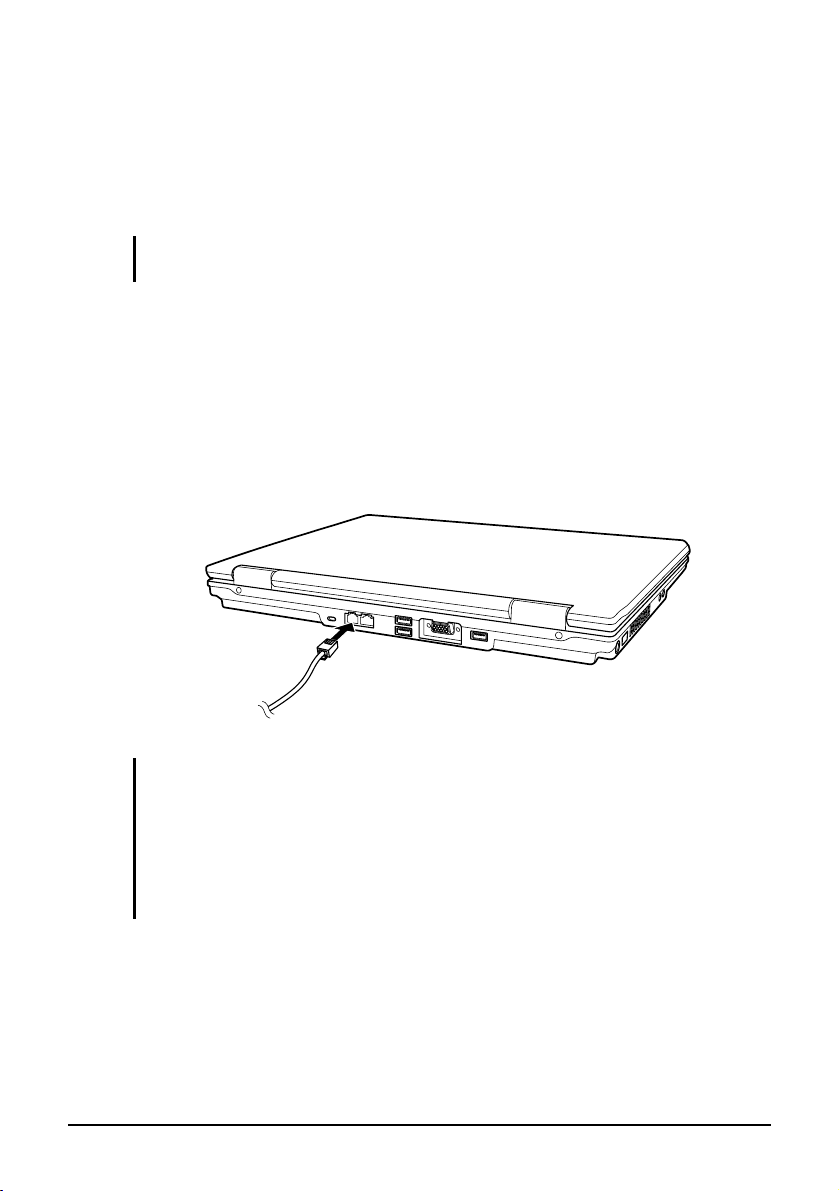

To connect the network cable to the LAN module, connect one end of the LAN cable to the RJ-45 connector on the computer and the other end to the network hub.

Operating Your Computer 2-21

Using the Wireless LAN (Optional)

Depending on your model, an internal mini PCI-E wireless LAN (WLAN) card may have been pre-installed by your computer manufacturer at the factory. This card allows you to access corporate networks or the Internet in a wireless environment.

The WLAN features include:

z Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes

support

z WEP (Wired Equivalent Privacy) 64/128-bit data encryption

z IEEE 802.11a/b/g or 802.11b/g or 802.11b/g/n standard compliance

Technology

802.11a 54 54, 48, 36,

802.11b 11 11, 5.5, 2, 1 2.412 ~ 2.462 DSSS (Direct Sequence Spread

802.11g 54 54, 36, 18, 9 2.4 OFDM (Orthogonal Frequency

802.11n 100 or more 100 ~ 210 2.4 / 5 Spatial multiplexing, uses MIMO

NOTE: 802.11g mode is backward compatible with 802.11b mode.

To take advantage of the WLAN feature, make sure that the wireless LAN driver is installed correctly. (See chapter 6 for details.) If your WLAN card was provided by your dealer instead of the computer manufacturer, contact your dealer for the correct driver to use.

Stated

Maximum

Throughput

(Mbps)

Data Rates

(Mbps)

24, 18, 12, 9, 6

Band (GHz)

5.15 ~ 5.35 OFDM (Orthogonal Frequency

Modulation Technology

Division Multiplexing)

Spectrum)

Division Multiplexing)

(multiple-input multiple-output)

Operating Your Computer 2-22

Turning Off/On the WLAN Radio

NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate wireless devices in aircraft as this may interfere with flight safety. Remember to turn off wireless LAN when using your computer in the airplane.

Your computer has a built-in Fn+F1 WLAN hot key to switch the WLAN on/off (see “Hot Keys” in Chapter 2).

If you need to temporarily turn off the radio, press network connection, press

Fn+F1 again.

Fn+F1. To resume

It takes approximately 30 seconds for your computer to make a successful WLAN connection and approximately 10 seconds to disconnect.

Operating Your Computer 2-23

Connecting to a Wireless Network

1. Make sure that the WLAN radio is on.

2. Right-click the Wireless Network Connection icon

Windows system tray and select Connect to a network.

3. If any wireless network is detected, the following window appears on

screen. Click the Show drop down menu and select Wireless.

located on the

4. Select a wireless network to connect to by clicking a selection, then

click Connect.

5. Depending on the settings, you may be asked to enter a WEP key

(refer to your Windows online help for more information on setting a wireless network connection).

Operating Your Computer 2-24

Using the Bluetooth® Wireless Feature (Optional)

NOTE: To take advantage of the Bluetooth feature, the Bluetooth driver supplied with your computer must be installed. (See chapter 6 for details.)

Depending on your model, your computer may incorporate the Bluetooth capability for short-range (about 10 meters) wireless communications between devices without requiring a cable connection.

With Bluetooth, data can be transmitted through walls, pockets and briefcases as long as two devices are within range.

Turning Off/On the Bluetooth® Wireless Feature

Your computer has a built-in P1 Easy Start button to switch the

Bluetooth

Wireless Feature on/off (see “Using the Easy Start Buttons” in

Chapter 2).

If you need to temporarily turn off the Bluetooth

P1 Easy Start button. To resume connection, press P1 Easy Start button

Wireless Feature, press

again.

The status of the Bluetooth connection is indicated by the Bluetooth icon located in the system tray in the lower-right part of the screen.

Status Icon

Off

Connected

® (blue with red logo)

(blue with white logo).

(blue with green logo)

You can use the Bluetooth Utility to configure Bluetooth connection settings and transfer files.

Connecting to Another Bluetooth Device

1. Make sure that the target Bluetooth device is turned on, discoverable

and within close range. (See the documentation that came with the Bluetooth device.)

Operating Your Computer 2-25

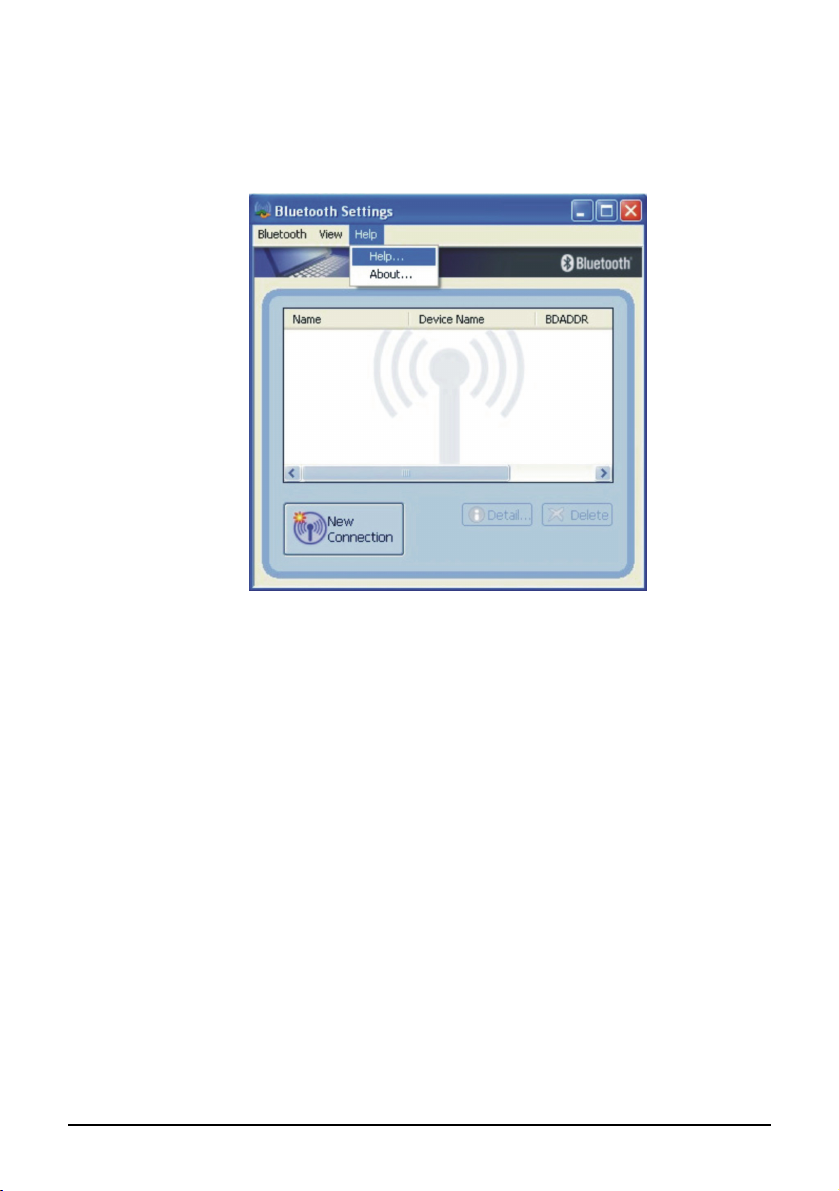

2. Double-click the icon, then click on New Connection or click on

Bluetooth, then Add New Connection . . .

Or right-click the

icon, and then click on Add New Connection.

3. The Add New Connection Wizard window appears. Select Express

Mode (Recommended), then click on Next.

Operating Your Computer 2-26

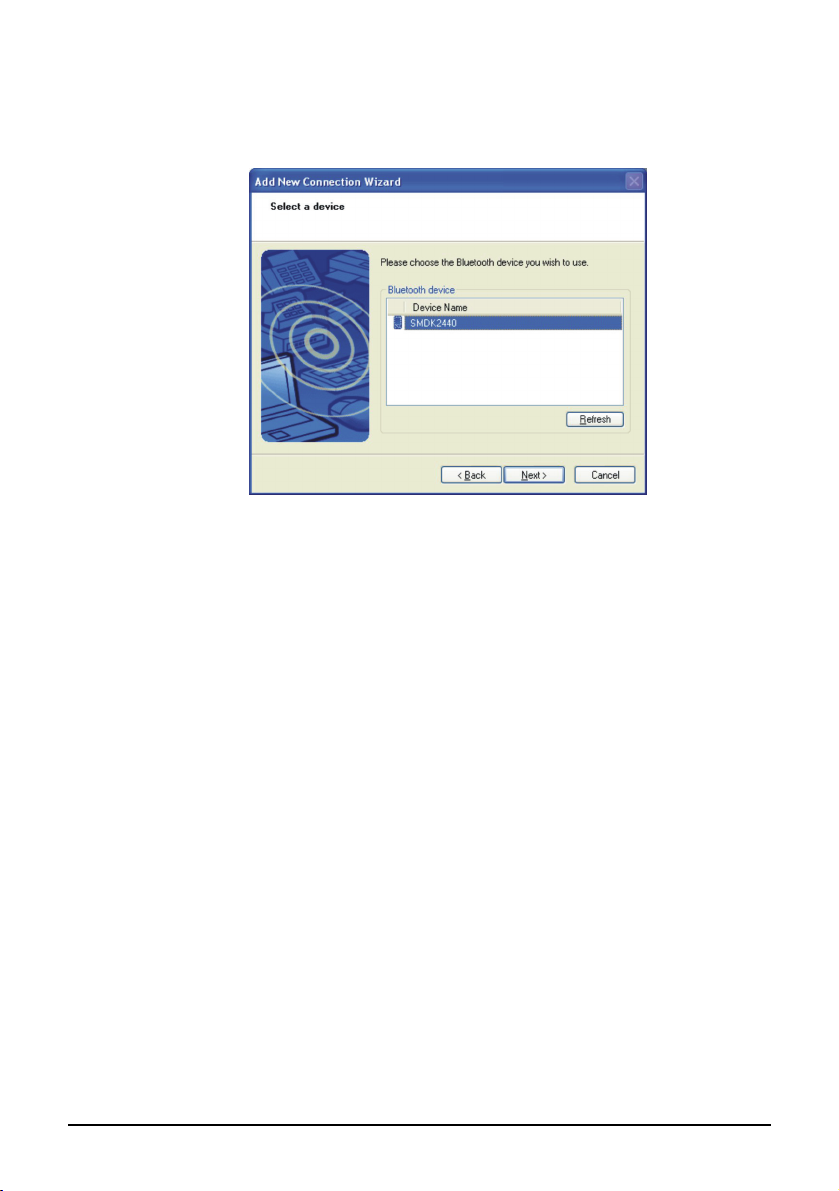

4. Select the device to connect to and click on Next.

5. Depending on the type of Bluetooth device that you want to connect

to, you will need to enter the pertinent information.

Operating Your Computer 2-27

Sending a File

1. Right-click the icon, and then click Wireless File Transfer. The

following screen appears.

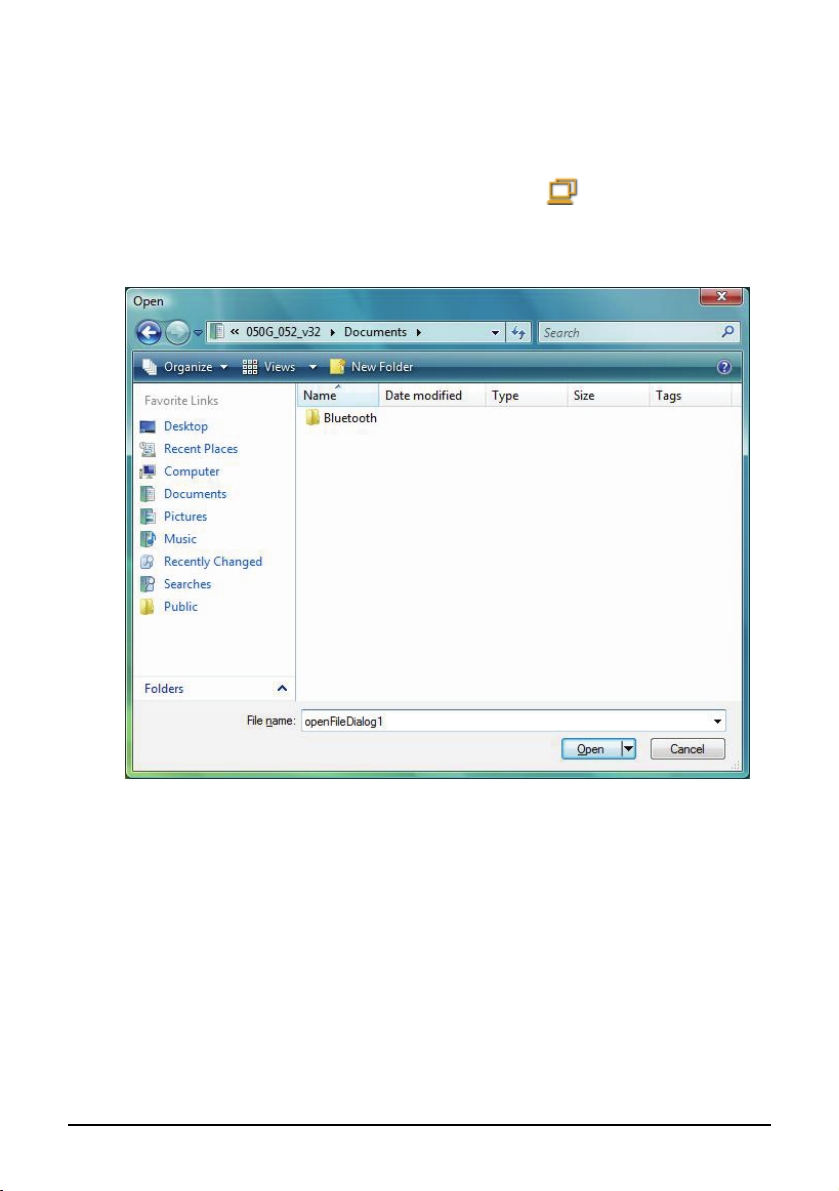

2. In the Wireless File Transfer window, click Add to browse for the file

to send. The file(s) will show on the File/Folder window.

3. Click the target device from the Transfer-enabled device window, and

then click Send to start the transfer procedure.

Operating Your Computer 2-28

For detailed information on using the Bluetooth Utility, see the Bluetooth Utility Help on your computer by clicking on Help, then Help . . .

Operating Your Computer 2-29

Chapter 3

CHAPTER

Managing Power

Your computer operates either on external AC power or on internal battery power.

This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

The topics in this chapter include:

z What is an AC adapter

z How to charge the battery pack

z When and how to initialize the battery pack

z How to check the battery level

z How to replace the battery pack

z What happens when the battery is low and what actions to take

z What is Power Management

z How to save power

Managing Power 3-1

AC Adapter

CAUTION:

z The AC adapter is designed for use with your computer only. Connecting the AC

adapter to another device can damage the adapter.

z The AC power cord supplied with your computer is for use in the country where you

purchased your computer. If you plan to go overseas with the computer, consult your dealer for the appropriate power cord.

z When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the computer. A reverse procedure may damage the AC adapter or computer.

z When unplugging the connector, always hold the plug head. Never pull on the cord.

The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your computer runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.

The adapter operates on any voltage in the range of 100~240 V AC.

Managing Power 3-2

Battery Pack

The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter.

The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time.

NOTE: Care and maintenance information for the battery is provided in the “Battery Pack Guidelines” section in Chapter 7.

Charging the Battery Pack

NOTE:

z Charging will not start if the battery’s temperature is below 0 °C (32 °F) or above

45 °C (113 °F).

z The charging process will stop and the Battery Charge Indicator flashes red when

the battery’s temperature gets above 60 °C (140 °F). If this happens, the battery pack may be damaged. Please contact your dealer.

z During charging, do not disconnect the AC adapter before the battery has been fully

charged; otherwise you will get a prematurely charged battery.

To charge the battery pack, connect the AC adapter to the computer and an electrical outlet. The Battery Charge Indicator (

) on the computer glows amber to indicate that charging is in progress. You are advised to keep the computer power off while the battery is being charged. When the battery is fully charged, the Battery Charge Indicator glows green.

The charging times are as follows:

Charging Time

Battery Type

4-cell

(2250 mAH)

6-cell

(4500 mAH)

Managing Power 3-3

Computer is Off Computer is On and

in Idle State

1.7 hours 2.7 hours

3.0 hours 5.3 hours

CAUTION: After the computer has been fully recharged, do not immediately disconnect and reconnect the AC adapter to charge it again. Doing so may damage the battery.

NOTE: The battery level may automatically lessen due to the self-discharge process (0.21 % per day), even when the battery pack is fully charged (100 %). This happens no matter if the battery pack is installed in the computer.

Initializing the Battery Pack

You need to initialize a new battery pack before using it for the first time or when the actual operating time of a battery pack is much less than expected.

Initializing is the process of fully charging, discharging, and then charging. It can take several hours.

1. Make sure that the computer power is turned off. Connect the AC

adapter to fully charge the battery pack.

2. After the battery pack is fully charged, turn on the computer. When

the message “

F2 key to invoke the program.

Press F2 to Enter BIOS Setup” appears, press the

3. Disconnect the AC adapter and leave the computer on until the

battery is fully discharged. The computer will shut down automatically.

4. Connect the AC adapter to fully charge the battery pack.

Checking the Battery Level

NOTE: Any battery level indication is an estimated result. The actual operating time can

Managing Power 3-4

be different from the estimated time, depending on how you are using the computer.

You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, click the

icon on the system tray.

Replacing the Battery Pack

CAUTION:

z There is danger of explosion if the battery is incorrectly replaced. Replace the

battery only with the computer manufacturer’s optional battery packs. Discard used batteries according to the dealer’s instructions.

z Do not attempt to disassemble the battery pack.

If you often rely on battery power for a long period of time while traveling, you may consider the purchase of an additional battery pack from your dealer and keep it with you in a fully charged state as a backup.

To replace the battery pack, follow these steps:

1. Make sure that the computer is not turned on or connected to AC

power.

2. Place the computer upside down.

3. Press the two battery release levers inward and lift it up to remove the

battery pack off the computer.

Managing Power 3-5

4. Align the side of a spare battery pack with the side of the battery

compartment and gently push the battery pack into place. The two battery release levers would click into position.

Managing Power 3-6

Battery Low Signals and Actions

The battery icon

changes appearance to display the current state of the battery so that you can see how much charge remains (Windows default setting). When the battery charge is above 25 % the battery icon is green. When the battery charge reaches 25 % a yellow triangle with an exclamation point (!) appears above the green battery icon. When the charge reaches the low battery level a red circle with a white “X” appears

above the green icon. The computer’s Battery Charge Indicator (

)

blinks red to alert you to take actions.

Immediately save your data upon Battery Low. The remaining operating time depends on how you are using the computer. If you are using the audio subsystem, ExpressCard, hard or USB flash disk, the battery might run out of charge very quickly.

Always respond to Battery Low by placing your computer on Hibernation mode, turning off the computer, or connecting the AC adapter.

CAUTION:

z If you are using an ExpressCard, do not access the card during battery low periods.

This is because the access may take longer than the time it takes the battery to run out of charge, thus making your access to the card unsuccessful.

z If you fail to save your data when the battery completely runs out of charge, then

you lose your data.

Managing Power 3-7

Power Management

Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving.

With an ACPI-compliant operating system such as Windows Vista, power supply to different computer components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time.

In general, Windows’ power management works in this way:

What... When...

Power to the hard disk is turned off When the hard disk has been idle for a

set period.

Power to the display is turned off When the display has been idle for a

set period.

The computer enters the Sleep mode. The hard disk and display are turned off and the entire system consumes less power.

The computer enters the Hibernation mode. (See the next subsection for more information.)

* Depends on your settings in Windows.

When the entire system has been idle for a set period.

When you press the Fn+F12 hot key. *

When you close the cover. *

When you press the power button. *

When the entire system has been idle for a set period.

When you press the Fn+F12 hot key. *

When you close the cover. *

When you press the power button. *

For detailed information on power management, see Windows’ Help.

Managing Power 3-8

Hibernation

NOTE: Make sure that the hibernation feature is enabled in the “When I press the power button,” “When I press the sleep button,” and “When I close the lid” of the Power Options Æ System Settings Properties from the Control Panel Æ Mobile PC in Windows Vista.

Hibernation is a very useful feature. People frequently open many applications when they use computers. It takes some time to get all these applications open and running, and normally they all have to be closed before the computer can be turned off.

When you use the hibernation feature, you do not have to close the applications. The computer stores the state of your computer to a file on the hard disk and then shuts down. The next time you turn on your computer, you return to exactly where you left off.

Managing Power 3-9

Power-Saving Tips

Aside from enabling your computer’s power saving mode (see previous section), you can do your part to maximize the battery’s operating time by following these suggestions.

z Do not disable Power Management. Choose a Windows power plan

that saves power. A power plan is a collection of hardware and system settings that control how your computer manages power.

z Decrease the LCD brightness to the lowest comfortable level.

z Shorten the length of time before Windows turn off the display.

z Many USB devices use power just by being connected. If you use a

USB mouse, you can save power by disconnecting the mouse and using the touchpad. If you use a USB flash drive, unplug it when you are not using it.

z If you work with an application that uses an ExpressCard, exit the

application when you finish using it.

z If you have an ExpressCard installed, remove it when not in use.

Some ExpressCards drain power even while they are inactive.

z Deactivate the WLAN function if you are not using it. (See “Turning

Off/On the WLAN Radio” in Chapter 2.)

z Deactivate the Bluetooth

(See “Turning Off/On the Bluetooth

Wireless Feature if you are not using it.

Wireless Feature” in Chapter

2.)

z Turn off the computer when you are not using it.

Managing Power 3-10

Chapter 4

CHAPTER

Expanding Your Computer

You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter.

This chapter gives guidelines on installing and using these devices:

z External monitor

z USB device

z ExpressCard

z Card Reader

Expanding Your Computer 4-1

Connecting an External Monitor

If you want the benefits of a larger display screen with higher resolution, you can connect an external CRT monitor to your computer. Follow this procedure to connect an external monitor:

1. Make sure that the computer is not turned on.

2. Plug the monitor’s signal connector to the computer’s VGA

connector.

3. Plug one end of the monitor’s power cord into the power socket on

the monitor and the other end to an electrical outlet.

4. To use the monitor, turn on the monitor before turning on the

computer.

5. The monitor should respond by default. If not, you can switch the

display to the monitor or to both (simultaneous display), or to multi-display by pressing the

Fn+F5 hot key. In Windows, you can

also change the display through the Display Settings Properties.

6. You can change display settings through your operating system. See

your operating system documentation or online help for specific information.

CAUTION: Do not disconnect the external monitor while the computer is in Sleep or Hibernation mode. If no external monitor is connected when the computer resumes, the

Expanding Your Computer 4-2

LCD might not display properly.

NOTE: Make sure that the VGA driver is installed correctly.

Connecting a USB Device

Your computer has four USB ports for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse.

The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices.

To connect a USB device, simply plug the device cable to one of the USB ports.

Expanding Your Computer 4-3

Using ExpressCards

NOTE: The ExpressCard interface is not compatible with the PC card interface. You

ExpressCard Type

need optional adapters for using PC cards on your computer.

Your computer has an ExpressCard slot.

ExpressCard supports the PCI Express and USB 2.0 serial data interfaces (supporting speeds of up to 2.5 Gbps and 480 Mbps respectively), improving speed in data transfer while conserving power usage.

The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm (ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very extensive range of applications including memory, wired and wireless communication cards, and security devices.

Shown next are the appearances of ExpressCards for your reference.

ExpressCard/54 ExpressCard/34

Expanding Your Computer 4-4

Inserting and Removing an ExpressCard

To insert an ExpressCard:

1. Locate the ExpressCard slot on the left side of the computer.

2. Slide the ExpressCard, with its label facing up, all the way into the

slot until the rear connectors click into place.

3. When a new card is seated, the computer will detect it and try to

install the appropriate driver. Follow the on-screen instructions to complete the process.

To remove an ExpressCard:

1. Double-click the Safely Remove Hardware icon

found on the

Windows system tray and the Safely Remove Hardware window appears on screen.

2. Select (highlight) the ExpressCard from the list to disable the card.

3. Push the ExpressCard slightly to release the card.

4. Pull the card out of the slot.

Expanding Your Computer 4-5

Using the Card Reader

NOTE:

z To take advantage of the Card Reader, the Card Reader driver supplied with your

computer must be installed. (See chapter 6 for details.)

z If your hard disk is divided into several drives, make sure that all drives have been

formatted before using the Card Reader. Otherwise, you may encounter problems when using the Card Reader.

z You can use only storage cards. Your Card Reader does not support cards with I/O

(input/output) functions such as a wireless network card or Bluetooth card.

Your computer has a Card Reader. The Card Reader is a small drive for reading from and writing to removable storage cards (or called memory cards). The Card Reader supports the MultiMediaCard (MMC), Secure Digital (SD), Memory Stick (MS) and Memory Stick PRO (MS PRO) cards.

Shown next are the appearance and size of each card type for your reference.

Type MMC Card SD Card MS/MS PRO Card

Appearance

Size

×32×1.4

(mm)

24×32×2.1

(mm)

21.5×50×2.8

(mm)

Expanding Your Computer 4-6

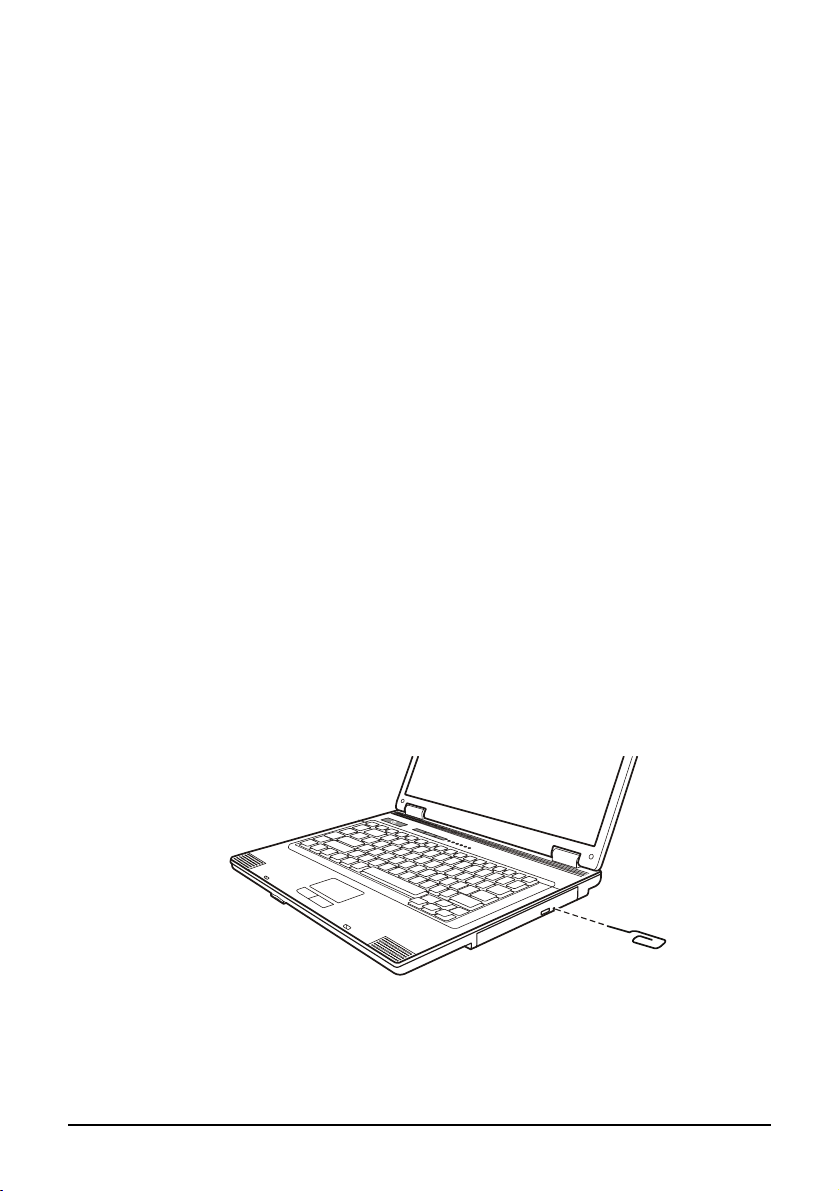

To insert a storage card:

1. Locate the Card Reader slot on the left side of the computer.

2. Align the card with its connector pointing to the slot and its label

facing up. Slide the card into the slot until it reaches the end.

3. Windows will detect the card and assign it a drive name (typically E).

To remove a storage card:

1. Click Start, then Computer.

2. Right-click the drive with the card and select Safely Remove.

3. Pull the card out of the slot.

Expanding Your Computer 4-7

Internal Components Upgrade

You can upgrade your computer by changing the CPU and hard disk or adding memory. However, to avoid damage during the installation procedure, please ask your dealer for help. Do not install an internal component by yourself.

Expanding Your Computer 4-8

Chapter 5

CHAPTER

Using BIOS Setup

BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer.

BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand. The BIOS settings are needed by your computer to identify the types of installed devices and establish special features.

This chapter tells you how to use the BIOS Setup program.

Using BIOS Setup 5-1

When and How to Use BIOS Setup

When to Use

You need to run BIOS Setup Utility when:

z You see an error message on the screen requesting you to run BIOS

Setup Utility.

z You want to restore the factory default settings.

z You want to modify some specific settings according to the hardware.

z You want to modify some specific settings to optimize the system

performance.

Starting BIOS Setup

NOTE:

z The BIOS Setup Utility screens shown in this chapter are for your reference only.

The actual items or settings on your computer may differ.

z The BIOS Setup Utility program may have been updated after the publication of this

manual.

z The settings you select in your operating system might override similar settings in

BIOS Setup Utility.

To run BIOS Setup Utility, press the F2 key when the prompt appears on the screen during system startup. The prompt shows up on the screen for only a few seconds. You must press the

F2 key quickly. The BIOS Setup

Utility main screen appears as shown next.

Using BIOS Setup 5-2

The BIOS Setup Utility screen can be divided into four areas:

z On the top is the menu bar containing the titles of the available

menus. Each menu title brings a specific menu.

z The center column of the menu displays the current configuration

information of the system, devices, and memory items.

z The right column of the menu provides more detailed information

when a menu item is highlighted.

z On the bottom keyboard keys are displayed for navigating the screen.

Using BIOS Setup 5-3

Moving Around and Making Selections

In most cases, you must go through two levels to complete the setting for an item: menu title and submenu.

Use the keyboard to move around and make selections. A brief description of keyboard usage is listed next:

Key Function

← , →

↑ , ↓

+, – Changes the value.

Enter

Esc

F10

Selects a menu title.

Selects an item or option.

1) Brings up the sub-menu when available.

2) Opens or closes the option window when an item is selected.

1) Displays the Exit menu.

2) Closes the option window if one is open.

Displays help information.

Changes the values to the setup defaults.

Saves and exit the BIOS Setup Utility.

Using BIOS Setup 5-4

Main Menu

The Main menu contains the system date and time settings of the system.

System Time sets the system time.

System Date sets the system date.

Using BIOS Setup 5-5

Advanced Menu

The Advanced menu contains the various system settings.

Legacy USB Support enables the system's support for Legacy USB device (e.g., mouse, flash disk, except keyboard) in DOS mode. The options are Enabled and Disabled. Default is Enabled.

Frame Buffer Size sets the shared memory size of the video controller. The options are 64MB, 128MB, and 256MB. Default setting is 64MB.

NOTE:

z This item is for Legacy VGA and SVGA mode only. When under Windows mode,

the frame buffer size is allocated directly by the VGA driver based on the size of your system memory.

z Increasing the frame buffer size may improve the video subsystem’s performance,

however it may decrease your system memory.

SATA0 Mode set to AHCI if your system supports AHCI. AHCI allows you to take advantage of Advanced Host Controller Interface features such as Native Command Queuing. The options are IDE and AHCI. Default is AHCI.

SATA AHCI Mode specifies the integrated IDE controller. This item only appears if the above item is set at AHCI. Native AHCI enables all SATA and PATA resources. Currently only Native AHCI is supported.

Using BIOS Setup 5-6

Native Mode Operation this item only appears if the item SATA0 Mode is set at IDE. Currently only Serial ATA is supported.

Using BIOS Setup 5-7

Security Menu

The Security menu contains the security settings, which safeguard your system against unauthorized use.

Supervisor/User Password Is shows whether you have set the supervisor/user password or not for the system.

Set Supervisor/User Password sets the supervisor/user password. When typing the password, first make sure that Num Lock is off, and then type the password in the entry fields and press password by typing it again and pressing

Enter. Confirm your

Enter. You can set the

supervisor/user password to be required for starting up the system and/or entering SCU.

NOTE:

z You can set the user password only when the supervisor password has been set. z If both the administrator and user passwords are set, you can enter any of them for

starting up the system and/or entering SCU. However, the user password only allows you to view/change the settings of certain items.

Password on Boot allows you to enable or disable the entering of password for booting up your system. Once the password is successfully set and this item is enabled, it is required for booting up the system.

Using BIOS Setup 5-8

Boot Menu

The Boot menu sets the sequence of the devices to be searched for the operating system.

The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS use to look for a boot device from which to load the operating system.

A brief description of keyboard usage is listed next:

Key Function

↑ , ↓

+, – Changes the boot sequence.

1 to 4 Loads the four default boot sequence.

Shift + 1 Deactivates/activates the highlighted boot device on the “Boot

Using BIOS Setup 5-9

Selects (highlight) a boot device.

Moves the highlighted boot device from the “Boot priority order” list to the “Excluded from boot order” list, and vice versa.

priority order” list. When a device has been deactivated, an “!” (exclamation) symbol appears beside the item and system will bypass it when detecting boot device during POST.

Exit Menu

The Exit menu displays ways of exiting BIOS Setup Utility. After finishing with your settings, you must save and exit so that the changes can take effect.

Exit Saving Changes saves the changes you have made and exits BIOS Setup Utility.

Exit Discarding Changes exits BIOS Setup Utility without saving the changes you have made.

Load Setup Defaults loads the factory default values for all the items.

Discard Changes restores the previous values for all the items.

Save Changes saves the changes you have made.

Using BIOS Setup 5-10

Chapter 6

CHAPTER

Installing Software Drivers

To take full advantage of the unique features of your computer, some operating systems require custom software, known as drivers, to be installed.

If you purchased the computer with Windows pre-installed, your dealer may have already installed the drivers. If not, you need to install the drivers using the disc supplied with your computer.

This chapter describes how to install the drivers as well as using the P1 Quick Launch Key Utility.

Installing Software Drivers 6-1

How to Use the Driver Disc

NOTE:

z The drivers may have been updated after this manual was published. For driver

upgrade, please contact your dealer.

z This disc supports Windows Vista. z The available items may differ according to your computer model. z Do not remove the driver disc when installing the driver.

An autorun program is provided on the driver disc to help you easily install the drivers. As you insert the disc, the autorun program automatically starts. If you need to start the program manually, run the Setup.exe program from the Wsetup directory of the disc.

The main screen appears as shown next:

Installing Software Drivers 6-2

Installing Drivers

To install the intended driver, click on the particular item and installation will start. The drivers are described next:

Name Description

Chipset

VGA

Audio

Modem

Card Reader

Pointing Device

Camera (Optional)

Bluetooth (Optional)

Wireless LAN

(Optional)

Quick Key

Installs the LAN driver that allows you to use the network function of the computer as well as ensures the full function of the following drivers. Install this driver before installing the other device drivers.

Installs the video driver that allows you to select high-resolution displays with richer colors.

Installs the audio driver that allows you to take full advantage of the audio subsystem.

Installs the modem driver that allows you to use the modem function of the computer.

Installs the driver that allows the Card Reader to access MultiMediaCard (MMC), Secure Digital (SD), Memory Stick (MS) or Memory Stick PRO (MS PRO) card for removable storage media.

Installs the touchpad driver that allows you to take full advantage of the touchpad features.

Installs the web camera application that allows you to use the computer’s built-in camera function.

Installs the Bluetooth driver and application program that allows you to use the Bluetooth feature.

Installs the WLAN driver and application program that allows you to use the computer’s internal mini PCI-E WLAN card’s network function.

NOTE: The Windows Plug-and-Play capability may automatically detect the new device (mini PCI-E WLAN card) and display the wizard requesting for drivers. Click Cancel to bypass the wizard screen(s).

Installs the Quick Key driver that allows you to use the P1 quick launch key utility.

Installing Software Drivers 6-3

Name Description

Acrobat

Installs the Adobe Acrobat Reader program if you do not have it on your computer. You need Adobe Acrobat Reader to open the manual file supplied on this driver disc.

User’s Manual

Exit

Allows you to view the User’s Manual.

Allows you to exit driver installation (located on the right upper portion).

P1 Quick Launch Key Utility (Optional)

NOTE:

z The P1 Quick Launch Key utility is only available when your model DO NOT have

the Bluetooth® wireless module installed.

z Make sure to install the Quick Key driver to take advantage of the P1 quick launch

key utility.

The quick launch key utility allows you to define the “P1” quick launch key.

To start the utility, double-click the

icon. The Quick Button Definition

window appears as shown next.

Box

Cancel

Installing Software Drivers 6-4

Open

Defining the buttons:

The box in the window represents the user-definable button.

To assign a program to a button, click the Open

icon under the box to

pop up the Open dialog box as shown next and select the desired program. Then, click Open to complete the process.

The appropriate icon will then appear in the box. To launch the program, press the P1 quick launch key, or, if the Quick Button Definition window is open, click the box containing the icon.

Installing Software Drivers 6-5

Chapter 7

CHAPTER

Caring for the Computer

Taking good care of your computer will ensure a trouble-free operation and reduce the risk of damage to your computer.

This chapter gives you guidelines covering these areas of maintenance:

z How to protect the computer

z What to note when using and storing the computer

z How to clean the computer

z What to note when using the battery pack

z What to note when traveling with the computer

Caring for the Computer 7-1

Protecting the Computer

To safeguard the integrity of your computer data as well as the computer itself, you can protect the computer in several ways as described in this section.

Using the Windows Security Center

Windows Security Center protects your computer against intrusion.

Caring for the Computer 7-2

Windows Security Center alerts you to take action on the following security essentials:

z Windows Firewall

z Windows Update

z Malware Protection (anti-virus, anti-spyware)

z Others (Internet security, user account control)

For detailed information on Windows Security Center, see Windows’ Help.

Using the Cable Lock

You can use a Kensington-type cable lock to protect your computer against theft. The cable lock is available in most computer stores.

To use the lock, loop the lock cable around a stationary object such as a table. Insert the lock to the Kensington lock hole and turn the key to secure the lock. Store the key in a safe place.

Caring for the Computer 7-3

Taking Care of the Computer

Location Guidelines

z Use the computer where the temperature is between 10 °C (50 °F) and

35 °C (95 °F).

z Avoid placing the computer in a location subject to high humidity,

extreme temperatures, mechanical vibration, direct sunlight, or heavy dust.

z Do not cover or block any ventilation openings on the computer. For

example, do not place the computer on a bed, sofa, rug, or other similar surface. Otherwise, overheating may occur that results in damage to the computer.

z Keep the computer at least 13 cm (5 inches) away from electrical

appliances that can generate a strong magnetic field such as a TV, refrigerator, motor, or a large audio speaker.

z Do not move the computer abruptly from a cold to a warm place.

A temperature difference of more than 10 °C (18 °F) will cause condensation inside the unit, which may damage the storage media.

z Do not place the computer on an unsteady surface.

General Guidelines

z Do not place heavy objects on top of the computer when it is closed as

this may damage the display.

z The screen surface is easily scratched. Do not use paper towels to

clean the display. Avoid touching it with your fingers, pen, or pencil.

z To maximize the life of the backlight in the display, allow the

backlight to automatically turn off as a result of power management. Avoid using a screen saver or other software that prevents the power management from working.

Caring for the Computer 7-4

Cleaning Guidelines

z Never clean the computer with its power on.

z Use a soft cloth moistened with water or a non-alkaline detergent to

wipe the exterior of the computer.

z Gently wipe the display with a soft, lint-free cloth. Do not use alcohol

or detergent on the display.

z Dust or grease on the touchpad can affect its sensitivity. Clean the pad

by using adhesive tape to remove the dust and grease on its surface.

Battery Pack Guidelines

z Recharge the battery pack when it is nearly discharged. When

recharging, make sure that the battery pack is fully charged. Doing so may avoid harm to the battery pack.

z Operate the computer with the battery pack installed even when using

external power. This ensures that the battery is fully charged.

z If you will not be using the computer for a long period of time (more

than two weeks), remove the battery pack from the computer.

z If you remove the battery pack, make sure that the battery terminals

do not contact any conductors such as metal objects or water. Otherwise, the battery may become unusable as a result of a short circuit.

z If you need to store the battery pack, store it in a cool, dry place.

Never allow the temperature to exceed 60 °C (140 °F).

z Do not leave the battery pack in storage for more than six months

without recharging it.

Caring for the Computer 7-5

When Traveling

z Before traveling with your computer, make a backup of your hard

disk data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data.

z Make sure that the battery pack is fully charged.

z Make sure that the computer is turned off and the top cover is

securely closed.

z Do not leave objects in between the keyboard and closed display.

z Disconnect the AC adapter from the computer and take it with you.

Use the AC adapter as the power source and as a battery-charger.

z Hand-carry the computer. Do not check it in as luggage.

z If you need to leave the computer in the car, put it in the trunk of the

car to avoid exposing the computer to excessive heat.

z When going through airport security, it is recommended that you

send the computer and flash disks through the X-ray machine (the device you set your bags on). Avoid the magnetic detector (the device you walk through) or the magnetic wand (the handheld device used by security personnel).

z If you plan to travel abroad with your computer, consult your dealer

for the appropriate AC power cord for use in your country of destination.

Caring for the Computer 7-6

Chapter 8

CHAPTER

Troubleshooting

Computer problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved.

This chapter tells you what actions to take when solving common computer problems. It is divided into three sections:

z Preliminary checklist

z Solving common problems

z Resetting the computer

Troubleshooting 8-1

Preliminary Checklist

Here are helpful hints to follow before you take further actions when you encounter any problem:

z Try to isolate which part of the computer is causing the problem.

z Make sure that you turn on all peripheral devices before turning on

the computer.

z If an external device has a problem, make sure that the cable

connections are correct and secure.

z Make sure that the configuration information is properly set in the

BIOS Setup program.

z Make sure that all the device drivers are correctly installed.

z Make notes of your observations. Are there any messages on the

screen? Do any indicators light? Do you hear any beeps? Detailed descriptions are useful to the service personnel when you need to consult one for assistance.

If any problem persists after you follow the instructions in this chapter, contact an authorized dealer for help.

Troubleshooting 8-2

Solving Common Problems

For easy reference, the problems are divided into these categories.

Problem Type Go to

Battery Problems P. 8-4

Bluetooth Wireless Problems P. 8-4

DVD Drive Problems P. 8-4

Display Problems P. 8-6

ExpressCard Problems P. 8-7

Hardware Device Problems P. 8-7

Hard Disk Drive Problems P. 8-7

Keyboard, Mouse, and Touchpad Problems P. 8-8

LAN Problems P. 8-8

WLAN Problems P. 8-9

Modem Problems P. 8-9

Power Management Problems P. 8-11

Software Problems P. 8-11

Sound Problems P. 8-12

Startup Problems P. 8-13

Battery Problems

The battery does not charge (Battery Charge indicator does not light amber).

z Make sure that the AC adapter is properly connected.

z Make sure that the battery is not too hot or cold. Allow time for the

battery pack to return to room temperature.

z Make sure that the battery pack is installed correctly.

z Make sure that the battery terminals are clean.

The operating time of a fully charged battery becomes shorter.

z If you often partially recharge and discharge, the battery might not be

charged to its full potential. Initialize the battery to solve the problem. (See “Initializing the Battery Pack” in Chapter 3 for instructions.)

The battery operating time indicated by the battery meter does not match the actual operating time.

z The actual operating time can be different from the estimated time,

depending on how you are using the computer. If the actual operating time is much less than the estimated time, initialize the battery. (See “Initializing the Battery Pack” in Chapter 3 for instructions.)

Bluetooth Wireless Problems

I cannot connect to another Bluetooth-enabled device.

z Make sure that the Bluetooth card is correctly installed.

z Make sure that the Bluetooth driver is correctly installed.

z Make sure that both devices have activated Bluetooth.

z Make sure that the distance between the two devices are not over

10 meters or that there are no walls or other obstructions between the devices.

z Make sure that the other device is not in “Hidden” mode.

Troubleshooting 8-4

z Make sure that both devices are compatible.

DVD Drive Problems

The DVD drive cannot read a disc.

z Make sure that the disc is correctly seated in the tray, with the label

facing up.

z Make sure that the disc is not dirty. Clean the disc with a disc

cleaning kit, available in most computer stores.

z Make sure that the DVD drive driver is installed correctly.

z Make sure that the computer supports the disc or the files contained.

You cannot eject a disc.

z The disc is not properly seated in the drive. Manually release the disc

following the method described next:

1. Turn off the computer.

2. Insert a small rod, such as a straightened paperclip, into the

drive’s manual eject hole and push firmly to release the tray.

3. Pull the tray out until fully extended, and then remove the disc.

Troubleshooting 8-5

Display Problems

Nothing appears on the screen.

z During operation, the screen may automatically turn off as a result of

power management. Press any key to see if the screen comes back.

z The brightness level might be too low. Increase brightness by

pressing the

z The display output might be set to an external device. To switch the

display back to the LCD, press the display through the settings in Display Settings Properties.

The characters on the screen are dim.

z Adjust the brightness and/or contrast.

Bad dots appear on the display at all times.

z A small number of missing, discolored, or bright dots on the screen

are an intrinsic characteristic of TFT LCD technology. It is not regarded as a LCD defect.

Fn+F7 hot key.

Fn+F5 hot key or change the

Resolution cannot be adjusted to desired setting.

z Make sure that the VGA driver is installed correctly.

The external monitor displays nothing.

z Make sure that the monitor is turned on.

z Make sure that the monitor’s signal cable is properly connected.

z Switch the display to the monitor by pressing the Fn+F5 hot key or

change the display through the settings in Display Settings Properties.

Simultaneous display/multi-display does not work.

z Make sure that you turn on the external monitor before turning on the

computer.

z Press the Fn+F5 hot key to toggle through the display options or

change the settings in Display Settings Properties in Windows.

Troubleshooting 8-6

ExpressCard Problems

The ExpressCard does not work.

z Make sure that the ExpressCard is correctly seated.

z If the card requires an IRQ (Interrupt ReQuest), make sure that there

is one available.

The ExpressCard stops communicating properly.

z The application may have been reset when the computer is turned off

or in Sleep mode. Exit and restart the application.

Hardware Device Problems

The computer does not recognize a newly installed device.

z The device may not be correctly configured in the BIOS Setup

program. Run the BIOS Setup program to identify the new type.

z Make sure if any device driver needs to be installed. (Refer to the

documentation that came with the device.)

z Make sure if the device needs any jumper or switch settings. (Refer to

the documentation that came with the device.)

z Check the cables or power cords for correct connections.

z For an external device that has its own power switch, make sure that

the power is turned on.

Hard Disk Drive Problems

The hard disk drive error message appears on the screen.

z The hard disk drive has defects. Ask your dealer for help.

The hard disk drive operations seem slow.

z The data files stored on the hard disk drive may be fragmented. Use a

tool such as Window’s Disk Defragmenter to defragment the files.

Troubleshooting 8-7

The hard disk drive in-use indicator glows without blinking.

z The data files stored on the hard disk drive may be fragmented. Use a

tool such as Window’s Disk Defragmenter to defragment the files.

Keyboard, Mouse, and Touchpad Problems

The keyboard does not respond.

z Try connecting an external keyboard. If it works, contact an

authorized dealer, as the internal keyboard cable might be loose.

The numeric keypad is disabled.

z Make sure that the Num Lock is switched on. (Check if the Num Lock

Indicator

The external keyboard does not work.

z Make sure that the keyboard cable is properly connected.

The USB mouse does not work.

glows or not.)

z Make sure that the mouse cable is properly connected.

The touchpad does not work, or the pointer is difficult to control with the touchpad.

z Make sure that the pointing device driver is correctly installed.

z Make sure that the touchpad is clean.

LAN Problems

I cannot access the network.

z Make sure that the chipset driver is correctly installed.

z Make sure that the LAN cable is properly connected to the RJ-45

connector and the network hub.

z Make sure that the network configuration is appropriate.

Troubleshooting 8-8

z Make sure that the user name or password is correct.

WLAN Problems

I cannot use the WLAN feature.

z Make sure that the mini PCI-E WLAN card is correctly installed.

z Make sure that the necessary driver(s) is correctly installed.

z Make sure that the WLAN feature is turned on.

Transmission quality is poor.

z Your computer may be in an out-of-range situation. Move your

computer closer to the Access Point or another WLAN device it is associated with.

z Check if there is high interference around the environment and solve

the problem as described next.

Radio interference exists.

z Move your computer away from the device causing the radio

interference such as microwave oven and large metal objects.

z Plug your computer into an outlet on a different branch circuit from

that used by the affecting device.

z Consult your dealer or an experienced radio technician for help.

I cannot connect to another WLAN device.

z Make sure that the WLAN feature is turned on.

z Make sure that the SSID setting is the same for every WLAN device

in the network.

z Your computer is not recognizing changes. Restart the computer.

z Make sure that the IP address or subnet mask setting is correct.

Troubleshooting 8-9

I cannot communicate with the computer in the network when Infrastructure mode is configured.

z Make sure that the Access Point your computer is associated with is

powered on and all the LEDs are working properly.

z If the operating radio channel is in poor quality, change the Access

Point and all the wireless station(s) within the BSSID to another radio channel.

z Your computer may be in an out-of-range situation. Move your

computer closer to the Access Point it is associated with.

z Make sure that your computer is configured with the same security

option (encryption) to the Access Point.

z Use the Web Manager/Telnet of the Access Point to check whether it

is connected to the network.

z Reconfigure and reset the Access Point.

I cannot access the network.

z Make sure that the necessary driver(s) is correctly installed.

z Make sure that the network configuration is appropriate.

z Make sure that the user name or password is correct.

z You have moved out of range of the network.

z Turn off power management.

Modem Problems

The modem does not work.

z Make sure that your model comes with the modem function.

z Make sure that the modem driver is correctly installed.

z Make sure that the telephone line is properly connected.

z Make sure that the COM port in the communication software is

correctly set.

Troubleshooting 8-10

z Turn off power management.

Power Management Problems

The computer does not enter Sleep or Hibernation mode automatically.

z If you have a connection to another computer, the computer does not

enter Sleep or Hibernation mode if the connection is actively in use.

z Make sure that the Sleep or Hibernation time-out is enabled.

The computer does not enter Sleep or Hibernation mode immediately.

z If the computer is performing an operation, it normally waits for the

operation to finish.

The computer does not resume from Sleep or Hibernation mode.

z The computer automatically enters Sleep or Hibernation mode when

the battery pack is empty. Do any one of the following:

− Connect the AC adapter to the computer.

− Replace the empty battery pack with a fully charged one.

The computer does not enter Sleep or Hibernation mode with the
