chiliGREEN 9270D User Manual [en, fr, it]

Download
User’s Manual
March 2010
TRADEMARKS The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. All brand and product names are trademarks or registered trademarks of their respective companies.
NOTE The information in this manual is subject to change without notice.

Table of Contents

Chapter 1 Getting Started ................................................... 1-1
Getting the Computer Running ............................................ 1-2
Unpacking ........................................................................ 1-2
Connecting to AC Power ................................................. 1-2
Opening the Cover ........................................................... 1-4
Turning On and Off the Computer ................................ ... 1-4
Taking a Look at the Computer ............................................ 1-6
Right-Side Components ................................................... 1-6
Left-Side Components ..................................................... 1-7
Bottom Components ......................................................... 1-8
Top-open Components ..................................................... 1-9
Chapter 2 Operating Your Computer ................................. 2-1
Starting and Stopping the Computer .................................... 2-2
Starting the Computer ...................................................... 2-2
Stopping the Computer .................................................... 2-2
Using the Multimedia Buttons ............................................. 2-4
Using the Keyboard .............................................................. 2-5
Hot Keys .......................................................................... 2-6
Using the Touchpad ............................................................. 2-8
Configuring the Touchpad ............................................. 2-10
Using the DVD Drive ......................................................... 2-11
Inserting and Removing a Disc ...................................... 2-11
Using the Video Features ................................................... 2-13
Configuring the Display Modes ..................................... 2-13
Using the Audio Features ................................................... 2-14
Connecting Audio Devices ............................................ 2-15
Using the Communication Features ................................... 2-18
i
Using the LAN ............................................................... 2-18
Using the Wireless LAN ................................................ 2-18
Using the Bluetooth Wireless Feature (Optional) .......... 2-21
Chapter 3 Managing Power ................................................ 3-1
AC Adapter .......................................................................... 3-2
Battery Pack ......................................................................... 3-3
Charging the Battery Pack ............................................... 3-3
Initializing the Battery Pack ............................................. 3-4
Checking the Battery Level .............................................. 3-4
Replacing the Battery Pack .............................................. 3-5
Battery Low Signals and Actions ..................................... 3-6
Power Management .............................................................. 3-8
Hibernation ....................................................................... 3-9
Power-Saving Tips ............................................................. 3-10
Chapter 4 Expanding Your Computer ............................... 4-1
Connecting an External Monitor .......................................... 4-2
Connecting a USB Device .................................................... 4-7
Connecting an eSATA Device ............................................. 4-8
Using ExpressCards ............................................................. 4-9
ExpressCard Type ............................................................ 4-9
Inserting and Removing an ExpressCard ....................... 4-10
Using the Card Reader ....................................................... 4-12
Internal Components Upgrade ............................................ 4-14
Chapter 5 Using BIOS Setup .............................................. 5-1
When and How to Use BIOS Setup ..................................... 5-2
When to Use ..................................................................... 5-2
Starting BIOS Setup ......................................................... 5-2
Moving Around and Making Selections .......................... 5-4
Main Menu ........................................................................... 5-5
Advanced Menu ................................................................... 5-6
Security Menu ...................................................................... 5-7
Boot Menu ............................................................................ 5-8
ii
Exit Menu ............................................................................. 5-9
Chapter 6 Installing Software Drivers ................................ 6-1
How to Use the Driver Disc ................................................. 6-2
Install Driver ........................................................................ 6-3
Chapter 7 Caring for the Computer ................................... 7-1
Protecting the Computer ....................................................... 7-2
Using an Anti-Virus Strategy ........................................... 7-2
Using Action Center ......................................................... 7-2
Using the Password .......................................................... 7-2
Using the Cable Lock ....................................................... 7-3
Taking Care of the Computer ............................................... 7-4
Location Guidelines ......................................................... 7-4
General Guidelines ........................................................... 7-4
Cleaning Guidelines ......................................................... 7-5
Battery Pack Guidelines ................................................... 7-5
When Traveling .................................................................... 7-6
Chapter 8 Troubleshooting................................................. 8-1
Preliminary Checklist ........................................................... 8-2
Solving Common Problems .................................................. 8-3
Battery Problems .............................................................. 8-3
Bluetooth Wireless Problems ........................................... 8-3
DVD Drive Problems ....................................................... 8-4
Display Problems ............................................................. 8-5
ExpressCard Problems ..................................................... 8-6
Hardware Device Problems .............................................. 8-6
Hard Disk Drive Problems ............................................... 8-6
Keyboard, Mouse, and Touchpad Problems .................... 8-7
LAN Problems ................................................................. 8-7
WLAN Problems .............................................................. 8-8
Power Management Problems .......................................... 8-9
Software Problems ......................................................... 8-10
Sound Problems ............................................................. 8-10
iii
Startup Problems ............................................................ 8-11
Other Problems ............................................................... 8-12
Resetting the Computer ...................................................... 8-13
Appendix A Specifications ................................................... A-1
Appendix B Regulatory Information .................................... B-1
On the Use of the System ..................................................... B-2
Class B Regulations ......................................................... B-2
Safety Notices .................................................................. B-3
On the Use of the RF Device ................................................ B-5
USA and Canada Safety Requirements and Notices ........ B-5
European Union CE Marking and Compliance Notices .. B-8
iv
Chapter 1
CHAPTER

Getting Started

Congratulations on purchasing this multimedia-enhanced computer. Your computer incorporates desktop computer and multimedia-enhanced
capabilities into a notebook-sized package. It can greatly enhance your productivity either in the office or at home. And, of course, wherever you need it, the computer is ready and easy “to go.”
This chapter first tells you step by step how to get the computer up and running. You will find instructions for these procedures:
Unpacking Connecting to AC power Opening the cover Turning on the computer Turning off the computer
Then, you will find a section briefly introducing the external components of the computer. And the last section navigates you to the information you may need after the computer is ready for use.
Getting Started 1-1

Getting the Computer Running

This section guides you through the procedures for getting the computer ready for operation.

Unpacking

After unpacking the shipping carton, you should find these standard items:
Notebook computer Accessories:
AC adapter AC power cord Driver disc
Inspect all the items. If any item is damaged or missing, notify your dealer immediately.
Keep the shipping carton and packing materials in case you need to ship or store the computer in the future.

Connecting to AC Power

The computer operates either on the external AC power or internal battery power. It is suggested that you use AC power when you start up the computer for the very first time.
CAUTION: Use only the AC adapter included with your computer. Using other AC
Getting Started 1-2
adapters may damage the computer.
1. Make sure that the computer is turned off.
2. Plug the DC cord of the AC adapter to the power connector of the
computer ().
3. Plug the female end of the AC power cord to the AC adapter and the
male end to an electrical outlet ().
4. When the AC adapter is connected and turned on, power is being
supplied from the electrical outlet to the AC adapter and onto your computer. Now, you are ready to turn on the computer.
CAUTION:
When you disconnect the AC adapter, disconnect from the electrical outlet first and
then from the computer. A reverse procedure may damage the AC adapter or the computer.
Getting Started 1-3
When unplugging the connector, always hold the plug head. Never pull on the cord.
NOTE: When the AC adapter is connected, it also charges the battery pack. For information on using battery power, see Chapter 3.

Opening the Cover

CAUTION: Be gentle when opening and closing the cover. Opening it vigorously or slamming it shut could damage the computer.
Open the top cover by lifting up the cover. You can tilt the cover forward or backward for optimal viewing clarity.

Turning On and Off the Computer

Turning On
1. Make sure that the computer is connected to AC power.
Getting Started 1-4
2. Press the power button.
3. Each time the computer is turned on, it performs a Power-On Self
Test (POST), and the operating system such as Windows should start.
Turning Off
To turn off the computer power, use the “Shut Down” command of your
operating system.
NOTE: There are other ways you can stop the computer so that you will be back to
where you left off when you next turn on the computer. (See “Stopping the Computer” in
Getting Started 1-5
Chapter 2 for information.)
CAUTION: If you have to turn the computer on again immediately after turning it off, wait for at least five seconds. Turning the computer off and on rapidly can damage it.
Ref
Component
Description
See Also
Headphone Connector
Connects a set of headphones, external speakers with amplifier, or an audio recording device.
P. 2-15
Microphone-in Connector
Connects an external microphone.
P. 2-15
S/PDIF Connector
Connects a S/PDIF device such as a digital speaker set for digital audio output.
P. 2-15
DVD Super Multi Drive
Accepts a DVD disc for installing or loading software, accessing data, and playing music/video.
P. 2-11
USB Port
Connects a USB device, such as a flash disk, printer, digital camera, joystick, and more.
P. 4-7
Power Connector
Connects the AC adapter.
P. 1-2

Taking a Look at the Computer

This section identifies the external components of the computer and briefly describes the function of each component.
NOTE: Depending on the model you purchased, the appearance of your computer may not be exactly the same as those shown in this manual.

Right-Side Components

Getting Started 1-6
Ref
Component
Description
See Also
Kensington Lock
Locks the computer to a stationery object for security.
P. 7-3
VGA Connector
Connects an external display.
P. 4-2
RJ-45 Connector
Connects the LAN cable.
P. 2-18
HDMI Connector (hdmi)
Connects an external video device, such as a TV, supporting HDMI input.
NOTE: Availability depends on your model.
P. 4-2
eSATA/USB Combo Connector
(eSATA)
Connects an eSATA device such as an external hard drive or optical drive. Can also connect a USB device, such as a flash disk, printer, digital camera, joystick, and more.
P. 4-8
4-7

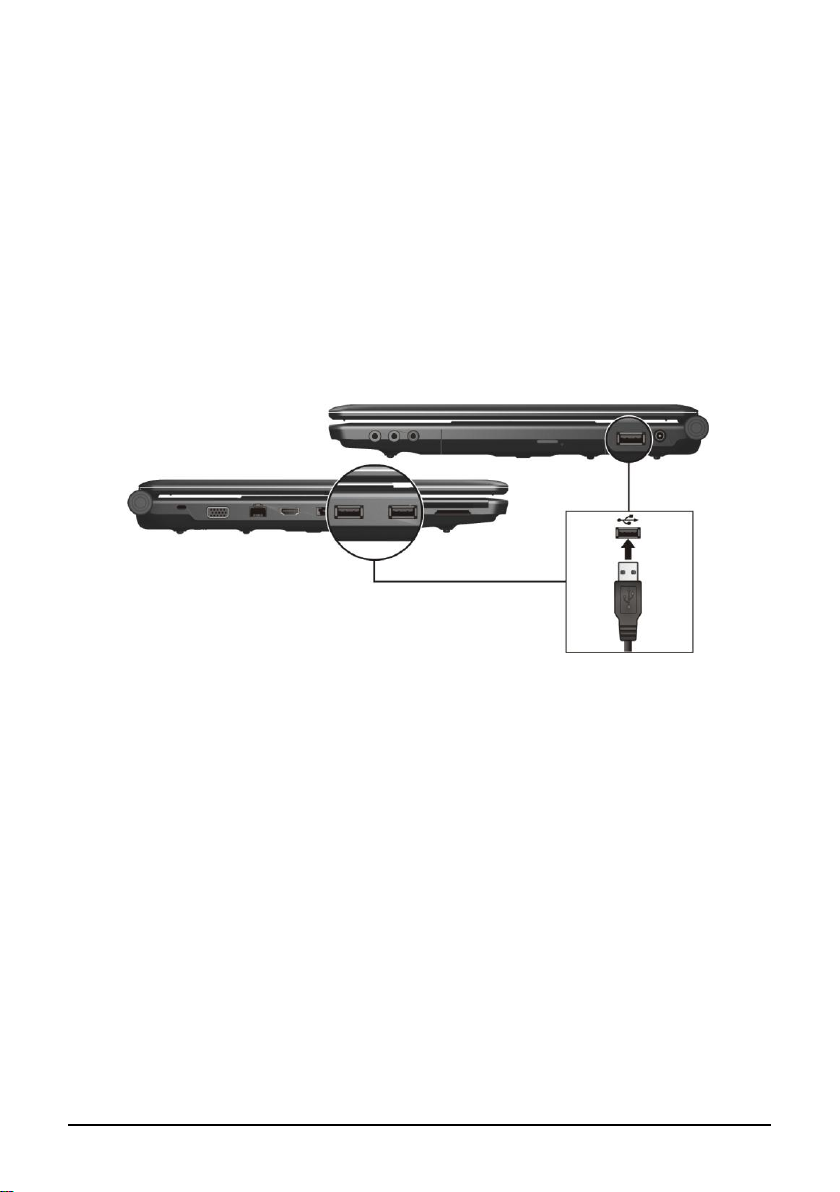

USB Ports
Each of the two ports connects a USB device, such as a flash disk, printer, digital camera, joystick, and more.
P. 4-7
Card Reader
Accepts a MultiMediaCard (MMC), Secure Digital (SD), Memory Stick (MS) or Memory Stick PRO (MS PRO) card for removable storage media.
P. 4-12
ExpressCard/54 Slot
Accepts an ExpressCard/34 or ExpressCard/54 for additional functions.
P. 4-8

Left-Side Components

Getting Started 1-7
Ref
Component
Description
See Also
Battery Pack
Supplies power to your computer when external power is not connected.
P. 3-3
Subwoofer
Sends out the low frequency sound from the computer.
P. 2-14
Bluetooth Card Slot
(option)
Inside is the slot for using an optional Bluetooth wireless card.
P. 2-18
CPU Socket
Inside is the CPU of your computer.
Memory Slot
Inside are the memory slots for expanding the memory size of your computer.
Wireless LAN (WLAN) Card Slot
Inside is the mini PCI-E slot for using a mini PCI-E WLAN card (standard or half-size).
P. 2-18
Hard Disk Drive Compartment
Inside is the hard disk drive.

Bottom Components

Getting Started 1-8
Ref
Component
Description
See Also
CMOS Camera Lens
Allows you to use your computer’s camera function.
NOTE: Availability depends on your model.
LCD Screen
Displays the output of the computer.
P. 2-13
Stereo Speaker
Sends out sound and voice from the computer.
P. 2-14
Power Button
Turns the computer power ON and OFF.
P. 1-4
Glows when the computer is turned on.

Top-open Components

Getting Started 1-9
Ref
Component
Description
See Also
Multimedia Buttons/ Indicators
Controls the computer’s current multimedia status.
P. 2-4
MEDIA
Launches the Windows Media Center. When Media Center is open and performing a task, toggles between the two screens.
Play/pause
Stop
Next track
Previous track
Microphone
Receives sound and voice for the computer.
P. 2-14
Keyboard
Serves as the data input device of the computer.
P. 2-4
Device Indicators
Show the current status of the computer’s
devices.
Battery Charge indicator
P. 3-3
Lights when the battery is being charged.
Blinks when battery power is low.
Wireless LAN indicator
P. 2-19
Glows when wireless LAN radio is on.
Bluetooth wireless indicator
P. 2-21
Glows when Bluetooth wireless radio is on.
Caps Lock indicator
P. 2-5
Num Lock indicator
P. 2-5
DVD drive / Hard disk drive in-use indicator
P. 2-11
Touchpad
Serves as the pointing device of the computer.
P. 2-7
Getting Started 1-10
Chapter 2
CHAPTER

Operating Your Computer

This chapter provides information about the use of the computer. If you are new to computers, reading this chapter will help you learn the
operating basics. If you are already a computer user but are new to notebook computers, you may choose to read only the parts containing information unique to your computer.
Described in this chapter are the operating basics of these components:
Keyboard Touchpad DVD drive
And these features:
Starting and stopping the computer Multimedia features Video features Audio features Communication features
Operating Your Computer 2-1
To stop in
this mode...
Do this...
To start up or resume again
Off
Follow the shutdown procedure of your operating system. This can prevent loss of unsaved data or damage to your software programs.
If the system is locked up because of hardware or software problems, press the power button to turn off the computer.
Press the power button.
Sleep
Depending on your settings in Windows, you can place the computer in Sleep mode by:
Closing the display cover Pressing the Fn+F12 hot key Pressing the power button
Press any key.

Starting and Stopping the Computer

There are a number of ways to start and stop the computer.

Starting the Computer

You always start the computer using the power button. A computer starts up with an operating system (OS) existing on the
storage device such as the hard disk and optical disc. The computer will automatically load the OS after you turn it on. This process is called booting.
NOTE: An operating system is the platform for all your software application programs to run on. Your computer uses the Microsoft Windows operating system.

Stopping the Computer

When you finish a working session, you can stop the computer by turning off the power or leaving the computer in Sleep or Hibernation mode:
Operating Your Computer 2-2
To stop in
this mode...
Do this...
To start up or resume again
Hibernation
Depending on your settings in Windows, you can place the computer in Hibernation mode by:
Closing the display cover Pressing the power button
Press the power button.
If you choose to stop in Sleep or Hibernation mode, you can return to
where you left off the next time you start up the computer. (See “Power
Management” in Chapter 3 for more information.)
Operating Your Computer 2-3
Play/pause
Media
Previous track
Next track
Stop

Using the Multimedia Buttons

Your computer features multimedia buttons.
Operating Your Computer 2-4
1. Press the MEDIA button to launch Windows Media Center.
NOTE:
When Windows Media Center is open, pressing the Media button does not close
Windows Media Center.
When Windows Media Center is running an application, pressing the Media button
toggles between both screens.
2. Press the play/pause button ( ) to start the playback.
3. You can use the previous track (
), next track ( ), play/pause
( ), and stop ( ) buttons for controls.
Ref
Component
Description
Typewriter Keys
Typewriter keys are similar to the keys on a typewriter. Several keys are added, such as the Ctrl, Alt, Esc and lock keys, for special purposes. When the lock keys are pressed, their corresponding indicators light up.
Function Keys
Function keys are multi-purpose keys that perform functions defined by individual programs.
Fn Key
The Fn key, at the lower left corner of the keyboard, is used with another key to perform the alternative function of a key.
The letter “Fn” and the alternative functions are identified
by the color of blue on the keytop. To perform a desired function, first press and hold Fn, then press the other key..
Cursor-Control Keys
Cursor-control keys are generally used for moving and editing purposes. They are Home, End, Page Up, and Page Down. When used with Fn key, they become Left, Right, Up, and Down arrow keys.
Numeric Keypad
When Num Lock is on, the numeric keys are activated, which means you can use these keys to enter numerals. When Num Lock is off, they become cursor-control keys.

Using the Keyboard

The keyboard can be divided into four major areas plus an Fn key.
Operating Your Computer 2-5
Key
Description
Switches the wireless LAN radio on and off.
Switches the Bluetooth wireless feature on and off.
Decreases the sound volume.
Increases the sound volume.
Switches the display output to one of the following when external devices are connected.
Upon booting the system with CRT:
Upon booting the system with HDMI:
Upon booting the system with CRT and HDMI:
NOTE: This function only applies to Plug & Play display devices.
Decreases the LCD brightness (8 levels).
Increases the LCD brightness (8 levels).

Hot Keys

Hot keys refer to a combination of keys that can be pressed any time to activate special functions of the computer. Most hot keys operate in a cyclic way. Each time a hot key combination is pressed, it shifts the corresponding function to the other or next choice.
You can easily identify the hot keys with the icons imprinted on the keytop. The hot keys are described next.
Operating Your Computer 2-6
Key
Description
Switches the multimedia buttons and indicators off and on.
Switches the system sound output off (mute) and on.
Switches the LCD panel on and off.
Serves as the sleep button that you can define with Windows’ Power Options. (See the “Power Management” in Chapter 3.)
Windows Keys
The keyboard has two keys that perform Windows-specific functions. The Windows Logo key opens the Start menu and performs
software-specific functions when used in combination with other keys. The Application key usually has the same effect as a right mouse click. (See your Windows manual for more information.)
Operating Your Computer 2-7

Using the Touchpad

CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may damage the touchpad surface.
NOTE: For optimal performance of the touchpad, keep your fingers and the pads clean and dry. When tapping on the pad, tap lightly. Do not use excessive force.
The touchpad is a pointing device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons.
The touchpad consists of a rectangular pad and a left and right buttons. To use the touchpad, place your forefinger or thumb on the pad. The rectangular pad acts like a miniature duplicate of your display. As you slide your fingertip across the pad, the pointer (also called cursor) on the screen moves accordingly. When your finger reaches the edge of the pad, simply relocate yourself by lifting the finger and placing it on the other side of the pad.
Operating Your Computer 2-8
Term
Action
Point
Move your finger on the pad until the cursor points to the selection on the screen.
Click
Press and release the left button. –or– Tap gently anywhere on the pad.
Double-click
Press and release the left button twice in quick succession. –or– Tap twice on the pad rapidly.
Drag and drop
Press and hold the left button, then move your finger until you reach your destination (drag). Finally, release the button (drop) when you finish dragging your selection to the destination. The object will drop into the new location.
–or– Gently tap twice on the pad and on the second tap, keep
your finger in contact with the pad. Then, move your finger across the pad to drag the selected object to your destination. When you lift your finger from the pad, the selected object will drop into place.
Scroll
To scroll is to move up and down or left and right in the working area on the screen.
To move vertically, place your finger on the right or left edge of the pad and slide your finger up and down along the edge. To move horizontally, place your finger on the top or bottom edge of the pad and slide your finger left and right.
This function works only after you install the touchpad driver supplied with the computer and it may not work for all applications.
Here are some common terms that you should know when using the touchpad:
TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad as an alternative method of pressing the left button will no longer be valid.
Operating Your Computer 2-9

Configuring the Touchpad

You may want to configure the touchpad to suit your needs. For example, if you are a left-handed user, you can swap the two buttons so that you can use the right button as the left button and vice versa. You can also change the size of the on-screen pointer, the speed of the pointer, and so on.
To configure the touchpad, go to Control Panel Hardware and Sounds Mouse Properties. However, you can install the pointing device driver supplied with your computer to take advantage of more powerful features.
Operating Your Computer 2-10

Using the DVD Drive

Your computer comes with a DVD drive, usually configured as drive D. The Super Multi drive can work as a DVD-ROM drive for reading DVD
(Digital Versatile Disc) discs in addition to CDs, audio CDs and CD-R/
-RW discs, and CD-RW drive; can also write to DVD+R/+RW/-R/-RW and DVD-RAM discs.
CAUTION:
When inserting a disc, do not use force. Make sure that the disc is correctly inserted into the tray, and then close the tray. Do not leave the DVD tray open. Also, avoid touching the lens in the tray with your
hand. If the lens becomes dirty, the DVD drive may malfunction.
Do not wipe the lens using materials with rough surface (such as paper towel).
Instead, use a cotton swab to gently wipe the lens.
FDA regulations require the following statement for all laser-based devices:
“Caution, Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.”
NOTE: The DVD drive is classified as a Class 1 laser product. This label is located on the DVD drive.
NOTE: For DVD and Combo drives only. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Inserting and Removing a Disc

Follow this procedure to insert or remove a disc:
1. Turn on the computer.
Operating Your Computer 2-11
Eject button
2. Press the eject button and the DVD tray will slide out partially.
Gently pull on it until it is fully extended.
3. To insert a disc, place down the disc in the tray with its label facing
up. Slightly press the center of the disc until it clicks into place.
Operating Your Computer 2-12
To remove a disc, hold the disc by its outer edge and lift it up from the tray.
4. Gently push the tray back into the drive.
NOTE: In the unlikely event that you are unable to release the DVD tray by pressing the eject button, you can manually release the disc. (See “DVD Drive Problems” in Chapter
8.)

Using the Video Features

The video subsystem of your computer features:
18.4-inch TFT (Thin-Film Transistor) color LCD display with
1680×945 pixel resolution (16:9)
Simultaneous display on LCD and external display, which is useful
when you have a presentation as you can control the screen from your computer and face the audience at the same time.
Multi-display capability, which allows you to expand your desktop
on the screen to another display device so that you have more desktop space to work on.
Power Management
NOTE:
Before using the multi-display capability or taking advantage of the enhanced video
capabilities, the video driver supplied with your computer must be installed.
The computer enters the Sleep or Hibernation mode when the LCD is closed.
If you want to use the computer with the LCD closed, set Do Nothing to the “When I Close the lid” option in the Power Options System Settings Properties. Thus the computer does not enter the Sleep or Hibernation mode when the LCD is closed.

Configuring the Display Modes

NOTE: When using an external CRT monitor, the resolution depends on the CRT
Operating Your Computer 2-13
monitor’s supported resolution.
Your computer has been set to a default resolution and number of colors before shipment. You can view and change display settings through your operating system. See your operating system documentation or online help for specific information.
For displaying in higher resolutions, you can connect an external monitor that supports higher resolutions. (See “Connecting an External Monitor” in Chapter 4 for more information.)

Using the Audio Features

NOTE:
To take advantage of the enhanced audio capabilities, the audio driver supplied
with your computer must be installed.
If you experience interference while recording, try lowering the microphone
recording volume.
The audio subsystem of your computer features:
Built-in sound system for recording and playing sound on your
computer
Azalia interface (high density audio codec) Set of speakers () Built-in microphone () External audio connectors (), and Subwoofer on the bottom
Operating Your Computer 2-14
Ways of playing and recording sound vary with the operating system used. See your operating system documentation or online help for specific information.

Connecting Audio Devices

For higher audio quality, you can send or receive sound through external audio devices.
NOTE: After connecting an external audio device, make sure that you specify the use of the correct audio device in Windows.
Headphone Connector (
) can be connected to speakers,
headphones, or earphone set.
Microphone Connector (
) can be connected to an external
microphone for recording voice or sound.
S/PDIF Connector ( S/PDIF
) can be connected to the line-in
connector of S/PDIF (Sony/Philips Digital InterFace) compliant as well as ordinary powered speakers with built-in amplifiers, headphones, or earphone set. S/PDIF is a new audio transfer file format that ensures a high quality digital audio output through optical fibers.
Operating Your Computer 2-15
NOTE:
The S/PDIF connector is classified as a Class 1 laser product. When using the external speakers/headphones or microphone, you cannot use the
internal one.
Connecting a 6-channel Speaker System
Your computer can connect a 5.1 6-channel speaker system for ultimate surround sound effect. You need to set the proper speaker configuration of the computer for your speaker system.
1. Double-click the Sound Effect icon on the task bar.
2. Click the Speakers tab.
3. Select 5.1 Speaker on the Speaker Configuration item.
Operating Your Computer 2-16
Audio Connector
6-channel Mode Connection
Headphone connector ( )
Connects to the front speakers
Microphone connector ( )
Connects to the rear speakers
S/PDIF Connector ( S/PDIF )
Connects to the center and subwoofer speakers
4. Click OK.
5. Connect the speaker system to the computer properly.
Operating Your Computer 2-17

Using the Communication Features

Using the LAN

NOTE: To take advantage of the LAN feature, the Ethernet driver supplied with your computer must be installed.
The internal 10/100/1000Base-T LAN (Local Area Network) module allows you to connect your computer to a network. It supports data transfer rate up to 1000 Mbps.
To connect the network cable to the LAN module, connect one end of the LAN cable to the RJ-45 connector on the computer and the other end to the network hub.

Using the Wireless LAN

Depending on your model, an internal mini PCI-E wireless LAN (WLAN) card may have been pre-installed by your computer manufacturer at the factory. This card allows you to access corporate networks or the Internet in a wireless environment.
The WLAN features include:
Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes
support
WEP (Wired Equivalent Privacy) 64/128-bit data encryption IEEE 802.11b/g/n standard compliance
Operating Your Computer 2-18
Technology
Stated
Maximum
Throughput
(Mbps)
Data Rates
(Mbps)
Band (GHz)
Modulation Technology
802.11b
11
11, 5.5, 2, 1
2.412 ~ 2.462
DSSS (Direct Sequence Spread Spectrum)
802.11g
54
54, 36, 18, 9
2.4
OFDM (Orthogonal Frequency Division Multiplexing)
802.11n
100 or more
100 ~ 210
2.4 / 5
Spatial multiplexing, uses MIMO (multiple-input multiple-output)
To take advantage of the WLAN feature, make sure that the wireless LAN driver is installed correctly. If your WLAN card was provided by your dealer instead of the computer manufacturer, contact your dealer for the correct driver to use.
Turning Off/On the WLAN Radio
NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate wireless devices in aircraft as this may interfere with flight safety. Remember to turn off wireless LAN when using your computer in the airplane.
Your computer has a built-in Fn+F1 WLAN hot key to switch the WLAN on/off (see “Hot Keys” in Chapter 2).
If you need to temporarily turn off the radio, press Fn+F1. To resume network connection, press Fn+F1 again.
It takes approximately 30 seconds for your computer to make a successful WLAN connection and approximately 10 seconds to disconnect.
Connecting to a Wireless Network
To connect to a wireless network:
1. Make sure that the WLAN radio is on (controlled by Fn+F1 and
Windows Mobility Center has Wireless Network turned on (accessed from Windows Control Panel).
2. Tap the Wireless Network icon on the taskbar. (An orange light in
the icon indicates connections are available.)
Operating Your Computer 2-19
3. In the list of available wireless networks, tap a network, and then tap
Connect.
4. Some networks require a network security key or passphrase. To
connect to one of those networks, ask your network administrator or Internet service provider (ISP) for the security key or passphrase.
NOTE: Refer to your Windows online help for more information on setting a wireless network connection.
Operating Your Computer 2-20
Status
Icon
Off
(blue with red logo)
On
(blue with white logo).
Connected
(blue with green logo)

Using the Bluetooth Wireless Feature (Optional)

NOTE: Make sure that the Bluetooth driver is installed properly.
Depending on your model, your computer may incorporate the Bluetooth capability for short-range (about 10 meters – may be shorter due to physical barriers like walls, etc.) wireless communications between devices without requiring a cable connection.
With Bluetooth, data can be transmitted through walls, pockets and briefcases as long as two devices are within range.
Turning Off/On the Bluetooth Wireless Feature
Your computer has a built-in Fn+F2 hot key to switch the Bluetooth Wireless Feature on/off (see “Hot Keys” in Chapter 2).
If you need to temporarily turn off the Bluetooth Wireless Feature, press
Fn+F2. To resume wireless connection, press Fn+F2 again.
The status of the Bluetooth connection is indicated by the Bluetooth icon located in the system tray in the lower-right part of the screen.
You can use the Bluetooth Utility to configure Bluetooth connection settings and transfer files.
Connecting to Another Bluetooth Device
1. Make sure that the target Bluetooth device is turned on, discoverable
and within close range. (See the documentation that came with the Bluetooth device.)
Operating Your Computer 2-21
2. Double-click the icon, then click on New Connection or click on
Bluetooth, then Add New Connection . . .
Or right-click the icon, and then click on Add New Connection.
or
3. The Add New Connection Wizard window appears. Select Express
Mode (Recommended), then click on Next.
Operating Your Computer 2-22

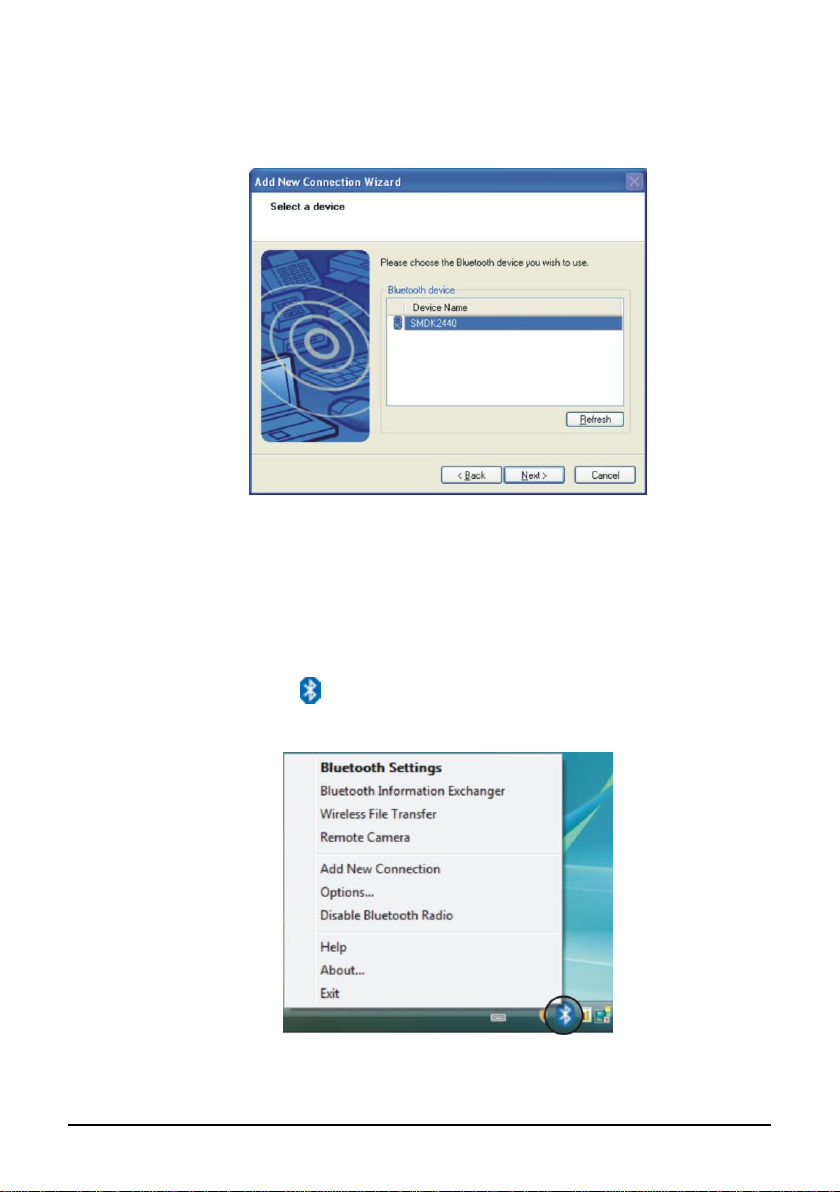

4. Select the device to connect to and click on Next.
5. Depending on the type of Bluetooth device that you want to connect
to, you will need to enter the pertinent information.
Sending a File
1. Right-click the icon, and then click Wireless File Transfer.
Operating Your Computer 2-23
2. The following screen appears.
3. In the Wireless File Transfer window, click Add to browse for the file
to send. The file(s) will show on the File/Folder window.
4. Click the target device from the Transfer-enabled device window, and
then click Send to start the transfer procedure.
Operating Your Computer 2-24

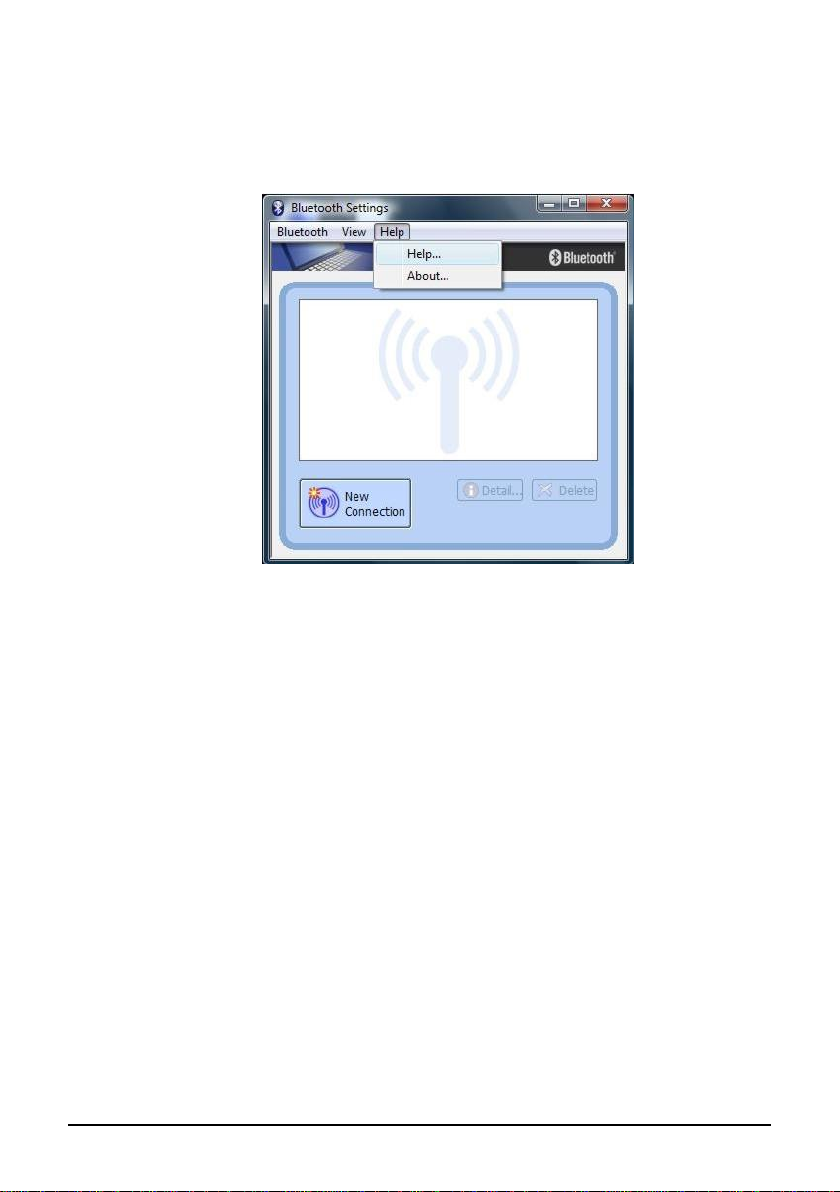

For detailed information on using the Bluetooth Utility, see the Bluetooth Utility Help on your computer by clicking on Help, then Help . . .
Operating Your Computer 2-25
Chapter 3
CHAPTER

Managing Power

Your computer operates either on external AC power or on internal battery power.
This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.
The topics in this chapter include:
What is an AC adapter How to charge the battery pack When and how to initialize the battery pack How to check the battery level How to replace the battery pack What happens when the battery is low and what actions to take What is Power Management How to save power
Managing Power 3-1

AC Adapter

CAUTION:
The AC adapter is designed for use with your computer only. Connecting the AC
adapter to another device can damage the adapter.
The AC power cord supplied with your computer is for use in the country where you
purchased your computer. If you plan to go overseas with the computer, consult your dealer for the appropriate power cord.
When you disconnect the AC adapter, disconnect from the electrical outlet first and
then from the computer. A reverse procedure may damage the AC adapter or computer.
When unplugging the connector, always hold the plug head. Never pull on the cord.
The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your computer runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.
The adapter operates on any voltage in the range of 100~240 V AC.
Managing Power 3-2
Battery Type
Charging Time
Computer is Off
Computer is On and
in Idle State
9-cell
2 hours
3.5 hours

Battery Pack

The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter.
The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time.
NOTE: Care and maintenance information for the battery is provided in the “Battery Pack Guidelines” section in Chapter 7.

Charging the Battery Pack

NOTE:
Charging will not start if the battery’s temperature is below 0 C (32 F) or above
45 C (113 F).
The charging process will stop and the Battery Charge Indicator flashes red when
the battery’s temperature gets above 60 C (140 F). If this happens, the battery pack may be damaged. Please contact your dealer.
During charging, do not disconnect the AC adapter before the battery has been fully
charged; otherwise you will get a prematurely charged battery.
To charge the battery pack, connect the AC adapter to the computer and an electrical outlet. The Battery Charge Indicator (
) on the computer
glows to indicate that charging is in progress. You are advised to keep the computer power off while the battery is being charged. When the battery is fully charged, the Battery Charge Indicator is off.
The charging times are as follows:
CAUTION: After the computer has been fully recharged, do not immediately disconnect and reconnect the AC adapter to charge it again. Doing so may damage the battery.
Managing Power 3-3
NOTE: The battery level may automatically lessen due to the self-discharge process (0.21 % per day), even when the battery pack is fully charged (100 %). This happens no matter if the battery pack is installed in the computer.

Initializing the Battery Pack

You need to initialize a new battery pack before using it for the first time or when the actual operating time of a battery pack is much less than expected.
Initializing is the process of fully charging, discharging, and then charging. It can take several hours.
1. Make sure that the computer power is turned off. Connect the AC
adapter to fully charge the battery pack.
2. After the battery pack is fully charged, turn on the computer. When
the message “Press F2 to enter Setup” appears, press the F2 key to display the BIOS Setup initial screen.
3. Disconnect the AC adapter and leave the computer on until the
battery is fully discharged. The computer will shut down automatically.
4. Connect the AC adapter to fully charge the battery pack.

Checking the Battery Level

NOTE: Any battery level indication is an estimated result. The actual operating time can
Managing Power 3-4
be different from the estimated time, depending on how you are using the computer.
You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, click the battery icon on the system tray.

Replacing the Battery Pack

CAUTION:
There is danger of explosion if the battery is incorrectly replaced. Replace the
battery only with the computer manufacturer’s optional battery packs. Discard used batteries according to the dealer’s instructions.
Do not attempt to disassemble the battery pack.
If you often rely on battery power for a long period of time while traveling, you may consider the purchase of an additional battery pack from your dealer and keep it with you in a fully charged state as a backup.
To replace the battery pack, follow these steps:
1. Make sure that computer is not turned on or connected to AC power.
2. Place the computer upside down.
3. Slide the battery security lock outward to the unlock (
) position
().
4. Slide the battery release lever outward to the unlock ( ) position
() and, while holding it in the unlock position, remove the battery pack off the computer ().
Managing Power 3-5
Battery
Icon
Battery Level
Description
Discharging
The icon shows the charge remaining in 10-percent increments until the charge reaches the low-battery level.
Low
The battery charge has reached the low-battery level.*
Critically low
The battery charge has reached the critical battery level.* By default, Windows will display a notification and put your computer into Hibernation.
5. Fit another battery pack into place () and slide the battery security
lock to the lock (
) position ().

Battery Low Signals and Actions

The battery icon changes appearance to indicate the current state of the battery.
* To know the default percentage value, see Windows’ Help.
Managing Power 3-6
When the battery is low, the computer’s Battery Charge Indicator ( ) also blinks to alert you to take actions. Always respond to low-battery by
connecting the AC adapter, placing your computer in Hibernation mode, or turning off the computer.
Managing Power 3-7
What...
When...
Power to the hard disk is turned off
When the hard disk has been idle for a set period.
Power to the display is turned off
When the display has been idle for a set period.
The computer enters the Sleep mode. The hard disk and display are turned off and the entire system consumes less power.
When the entire system has been idle for a set period.
When you press the Fn+F12 hot key. *
When you close the cover. *
When you press the power button. *
The computer enters the Hibernation mode. (See the next subsection for more information.)
When the entire system has been idle for a set period.
When you press the Fn+F12 hot key. *
When you close the cover. *
When you press the power button. *

Power Management

Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving.
With an ACPI-compliant operating system such as Windows, power supply to different computer components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time.
In general, Windows’ power management works in this way:
* Depends on your settings in Windows.
For detailed information on power management, see Windows’ Help.
Managing Power 3-8

Hibernation

Hibernation is a very useful feature. People frequently open many applications when they use computers. It takes some time to get all these applications open and running, and normally they all have to be closed before the computer can be turned off.
When you use the hibernation feature, you do not have to close the applications. The computer stores the state of your computer to a file on the hard disk and then shuts down. The next time you turn on your computer, you return to exactly where you left off.
Managing Power 3-9

Power-Saving Tips

Aside from enabling your computer’s power saving mode (see previous section), you can do your part to maximize the battery’s operating time by following these suggestions.
Do not disable Power Management. Choose a power plan that saves
power when using Windows. A power plan is a collection of hardware and system settings that control how your computer manages power.
Decrease the LCD brightness to the lowest comfortable level. Shorten the length of time before Windows turn off the display. Many USB devices use power just by being connected. If you use a
USB mouse, you can save power by disconnecting the mouse and using the touchpad. If you use a USB flash drive, unplug it when you are not using it.
If you work with an application that uses an ExpressCard, exit the
application when you finish using it.
If you have an ExpressCard installed, remove it when not in use.
Some ExpressCards drain power even while they are inactive.
Turn off the wireless radio frequency if you are not using it. Turn off the computer when you are not using it.
Managing Power 3-10
Chapter 4
CHAPTER

Expanding Your Computer

You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter.
This chapter gives guidelines on installing and using these devices:
External monitor USB device eSATA device ExpressCard MMC/SD/MS/MS PRO card
Expanding Your Computer 4-1

Connecting an External Monitor

NOTE: Make sure that the video driver is installed correctly (see chapter 6 for details).
If you want the benefits of a larger display screen with higher resolution, you can connect an external CRT monitor or LCD monitor to your computer. Follow this procedure to connect an external monitor:
1. Make sure that the computer is not turned on.

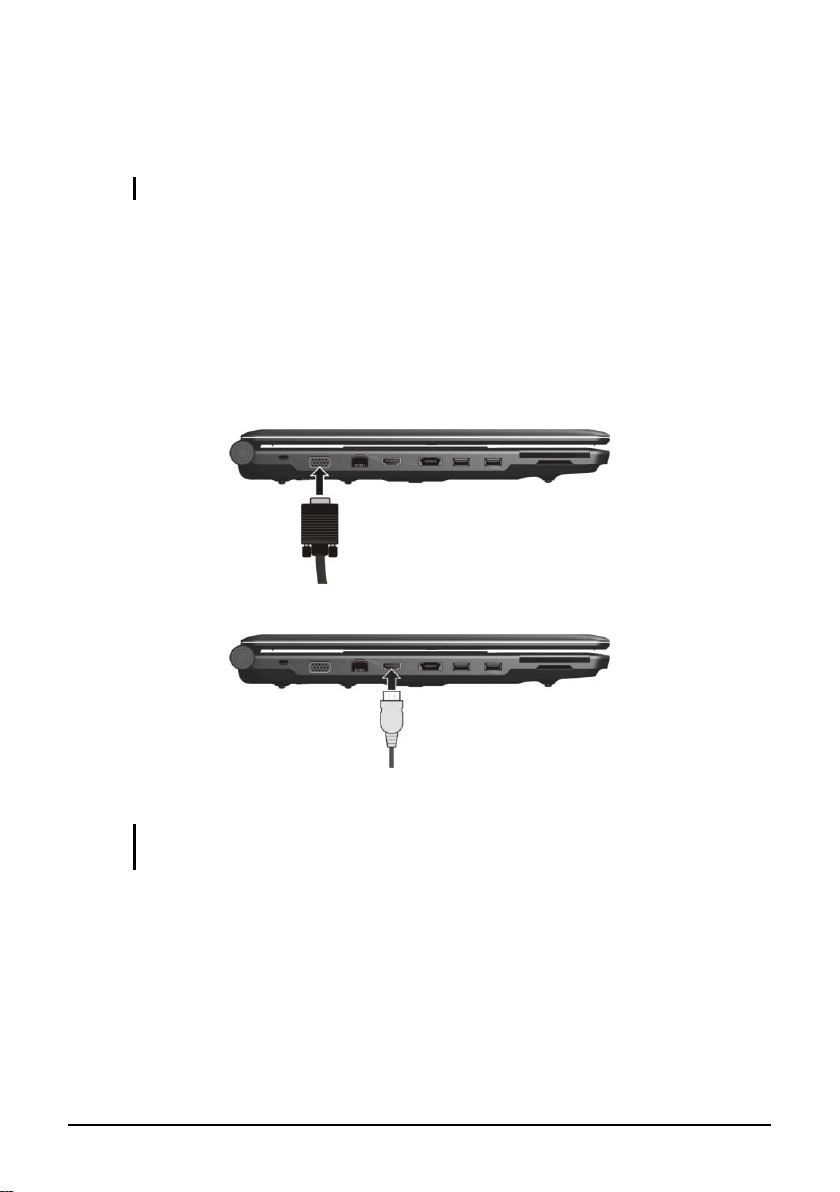

2. Plug the monitor’s signal connector to the computer’s VGA / HDMI
connector.
or
NOTE: Your computer allows you to only use either VGA or HDMI display one at a time,
Expanding Your Computer 4-2
not simultaneously.
3. Plug one end of the monitor’s power cord into the power socket on
the monitor and the other end to an electrical outlet.
4. To use the monitor, turn on the monitor before turning on the
computer.
5. The monitor should respond by default. If not, you can switch the
display to the monitor or to both (simultaneous display), or to multi-display through the Display Settings Properties in Windows (see your operating system documentation or online help for specific information).
CAUTION: Do not disconnect the external monitor while the computer is in the Sleep mode or Hibernation mode. If no external monitor is connected when the computer resumes, the LCD might not display properly.

Sound Output For HDMI Video

Normally, before you connect HDMI video, Speakers is the default setting.
Expanding Your Computer 4-3
Upon connecting HDMI video, the setting may automatically be changed to NVIDIA HDMI Output to be able to have sound output.
If in case there is no sound output upon connecting HDMI video, then you may need to perform the following:
1. Right-click the Speaker icon on the task bar and select Playback
Devices .
Expanding Your Computer 4-4

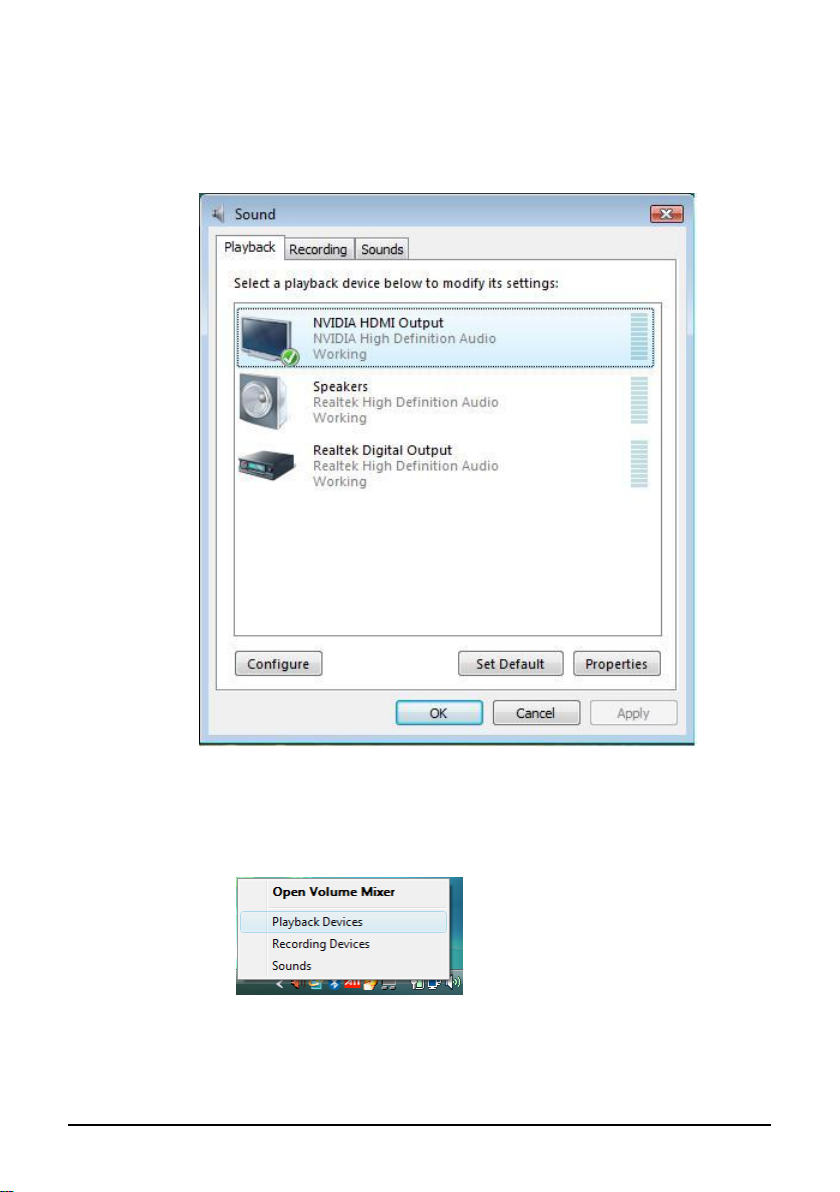

2. The following screen appears.
3. Click NVIDIA HDMI Output then click Set Default.
Expanding Your Computer 4-5
4. Notice that the checkmark () appears on the item you have just
selected.
5. Click OK.
Expanding Your Computer 4-6

Connecting a USB Device

Your computer has three USB ports for connecting USB devices, such as a flash disk, digital camera, scanner, printer, modem, and mouse.
The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices.

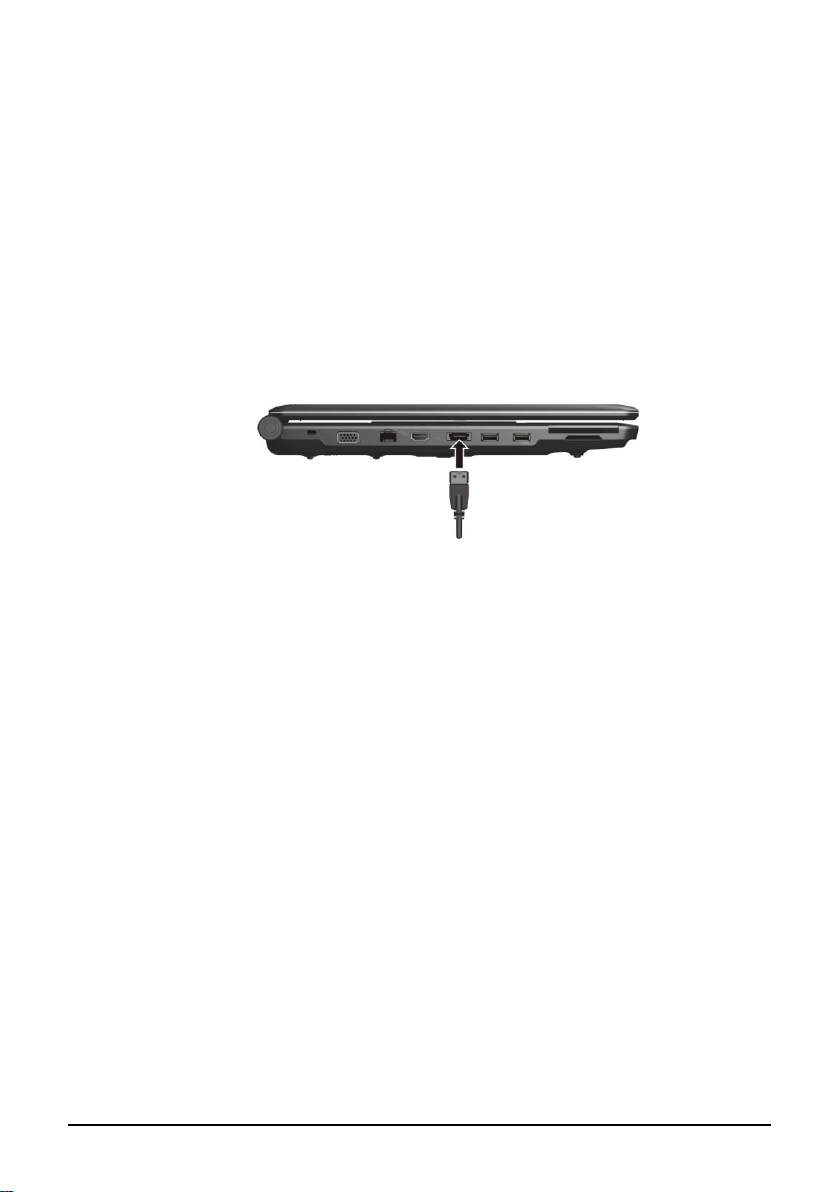

To connect a USB device, simply plug the device cable to one of the USB ports.
Expanding Your Computer 4-7

Connecting an eSATA Device

Your computer has an eSATA/USB Combo port for connecting eSATA devices (such as an external hard drive and external optical drive) / USB devices (see previous section).
The eSATA port supports transfer rates up to almost 120 MB/s. To connect an external eSATA device, simply plug the device cable to the
eSATA port.
Expanding Your Computer 4-8

Using ExpressCards

NOTE: The ExpressCard interface is not compatible with the PC card interface. You

ExpressCard Type

need optional adapters for using PC cards on your computer.
Your computer has an ExpressCard slot. ExpressCard supports the PCI Express and USB 2.0 serial data interfaces
(supporting speeds of up to 2.5 Gbps and 480 Mbps respectively), improving speed in data transfer while conserving power usage.
The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm (ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very extensive range of applications including memory, wired and wireless communication cards, and security devices.
Shown next are the appearances of ExpressCards for your reference.
ExpressCard/54 ExpressCard/34
Expanding Your Computer 4-9

Inserting and Removing an ExpressCard

To insert an ExpressCard:
1. Locate the ExpressCard slot on the computer.
2. Press the cover tray () and pull it out ().
3. Slide the ExpressCard, with its label facing up, all the way into the
slot until the rear connectors click into place.
4. When a new card is seated, the computer will detect it and try to
install the appropriate driver. Follow the on-screen instructions to complete the process.
Expanding Your Computer 4-10
To remove an ExpressCard:
1. Double-click on the Safely Remove Hardware icon found on the
Windows taskbar and the Safely Remove Hardware window appears on screen.
2. Select (highlight) the ExpressCard from the list to disable the card.
3. Push the ExpressCard slightly to release the card.
4. Pull the card out of the slot.
Expanding Your Computer 4-11
Type
MMC Card
SD Card
MS/MS PRO Card
Appearance
Size
24×32×1.4
(mm)
24×32×2.1
(mm)
21.5×50×2.8
(mm)

Using the Card Reader

NOTE:
To take advantage of the Card Reader, the Card Reader driver supplied with your
computer must be installed.
If your hard disk is divided into several drives, make sure that all drives have been
formatted before using the Card Reader. Otherwise, you may encounter problems when using the Card Reader.
You can use only storage cards. Your Card Reader does not support cards with I/O
(input/output) functions such as a wireless network card or Bluetooth card.
Your computer has a Card Reader. The Card Reader is a small drive for reading from and writing to removable storage cards (or called memory cards). The Card Reader supports the MultiMediaCard (MMC), Secure Digital (SD), Memory Stick (MS) and Memory Stick PRO (MS PRO) cards.

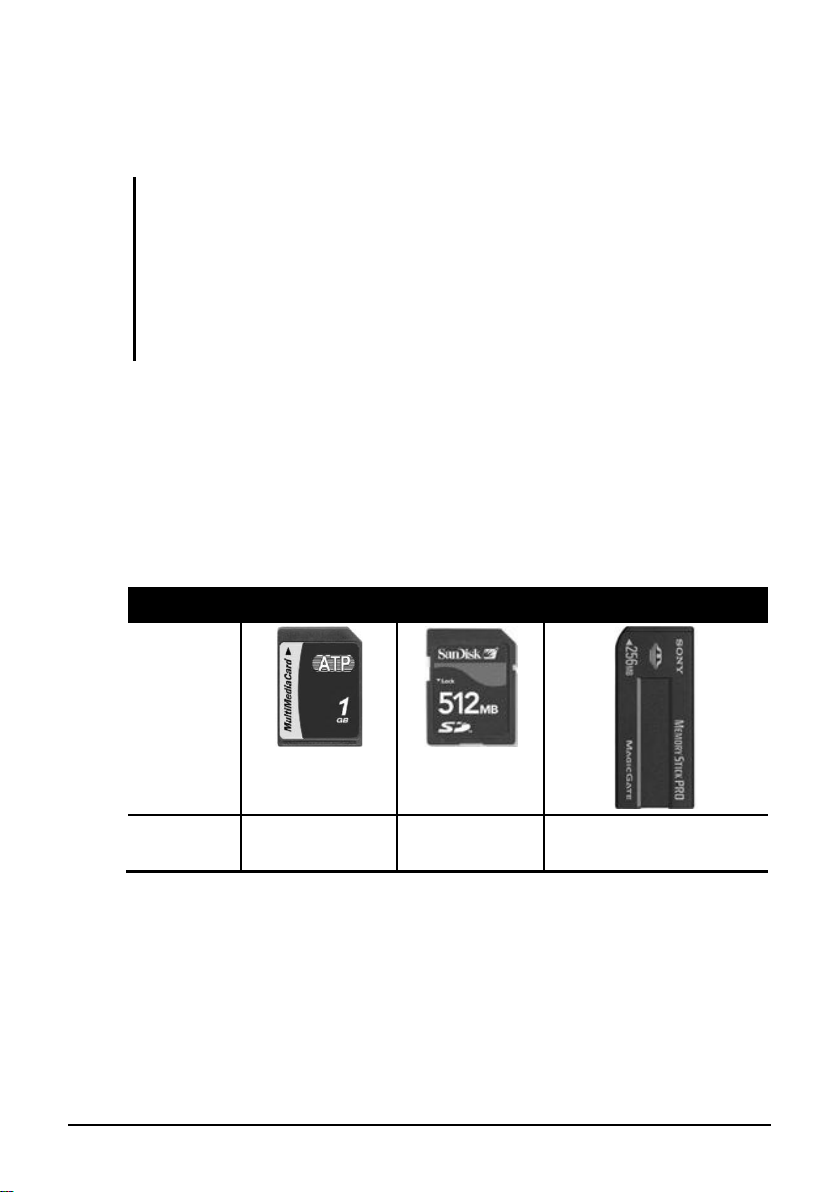

Shown next are the appearance and size of each card type for your reference.
Expanding Your Computer 4-12
To insert a storage card:
1. Locate the Card Reader slot on the computer.
2. Align the card with its connector pointing to the slot and its label
facing up. Slide the card into the slot until it reaches the end.
3. Windows will detect the card and assign it a drive name.
To remove a storage card:
1. Click Start, then Computer.
2. Right-click the drive with the card and select Safely Remove.
3. Pull the card out of the slot.
Expanding Your Computer 4-13

Internal Components Upgrade

You can upgrade your computer by changing the CPU and hard disk or adding memory. However, to avoid damage during the installation procedure, please ask your dealer for help. Do not install an internal component by yourself.
Expanding Your Computer 4-14
Chapter 5
CHAPTER

Using BIOS Setup

BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer.
BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand. The BIOS settings are needed by your computer to identify the types of installed devices and establish special features.
This chapter tells you how to use the BIOS Setup program.
Using BIOS Setup 5-1

When and How to Use BIOS Setup

When to Use

You need to run BIOS Setup Utility when:
You see an error message on the screen requesting you to run BIOS
Setup Utility.
You want to restore the factory default settings. You want to modify some specific settings according to the hardware. You want to modify some specific settings to optimize the system
performance.

Starting BIOS Setup

NOTE:
The BIOS Setup Utility screens shown in this chapter are for your reference only.
The actual items or settings on your computer may differ.
The BIOS Setup Utility program may have been updated after the publication of this
manual.
The settings you select in your operating system might override similar settings in
BIOS Setup Utility.
To run BIOS Setup Utility, press the F2 key when the prompt appears on the screen during the system startup. The prompt shows up on the screen for only a few seconds. You must press the F2 key quickly. The BIOS Setup Utility main screen appears as shown next.
Using BIOS Setup 5-2
The BIOS Setup Utility screen can be divided into three areas:
On the top is the menu bar containing the titles of the available
menus. Each menu title brings a specific menu.
The left column of the menu displays the menu items. The top-right of the menu provides more detailed information when a
menu item is highlighted.
The bottom of the menu provides keyboard instructions for moving
around and making selections. When a menu item is highlighted.
Using BIOS Setup 5-3
Key
Function
,
Selects a menu title.
,
Selects an item or option.
Enter
1) Brings up the sub-menu when available.
2) Opens or closes the option window when an item is selected.
Esc
1) Exits BIOS Setup Utility.
2) Closes the option window if one is open.
F9
Loads setup defaults.
F10
Saves and exit the BIOS Setup Utility.

Moving Around and Making Selections

You must go through two or three levels to complete the setting for an item. In most cases, there are three levels: menu title, pull-down menu, and submenu.
Use the keyboard to move around and make selections. Keyboard information can be found at the bottom of the screen. A brief description of keyboard usage is listed next:
Using BIOS Setup 5-4

Main Menu

The Main menu contains the system date and time settings as well as shows the basic configuration of the system.
System Time sets the system time. System Date sets the system date.
Using BIOS Setup 5-5

Advanced Menu

The Advanced menu contains various system settings.
USB BIOS Legacy Support allows you to enable support for Legacy USB device in DOS mode.
SATA0 Mode allows you to select the mode of the serial ATA device.
Using BIOS Setup 5-6

Security Menu

The Security menu contains the security settings, which safeguard your system against unauthorized use.
Supervisor/User Password Is shows whether you have set the supervisor/user password or not for the system.
Set Supervisor/User Password sets the supervisor/user password. When typing the password, first make sure that Num Lock is off, and then type the password in the entry fields and press Enter. Confirm your password by typing it again and pressing Enter. You can set the supervisor/user password to be required for starting up the system and/or entering BIOS SETUP.
NOTE:
You can set the user password only when the supervisor password has been set. If both the administrator and user passwords are set, you can enter any of them for
starting up the system and/or entering BIOS SETUP. However, the user password only allows you to view/change the settings of certain items.
Password on Boot allows you to enable or disable the entering of password for booting up your system. Once the password is successfully set and this item is enabled, it is required for booting up the system.
Using BIOS Setup 5-7
Key
Function
,
Selects (highlight) a boot device.
+, –
Changes the boot sequence.
1 to 4
Loads the four default boot sequence.
f, r
Specifies if the device is fixed or removable.
Shift + 1
Deactivates/activates the highlighted boot device on the “Boot priority order” list. When a device has been deactivated, an “!” (exclamation) symbol appears beside the item and system will bypass it when detecting boot device during POST.
X
Moves the highlighted boot device from the “Boot priority order” list to the “Excluded from boot order” list, and vice versa.
Boot Menu
The Boot menu sets the sequence of the devices to be searched for the operating system.
The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS use to look for a boot device from which to load the operating system. A brief description of keyboard usage is listed next:
Using BIOS Setup 5-8
Exit Menu

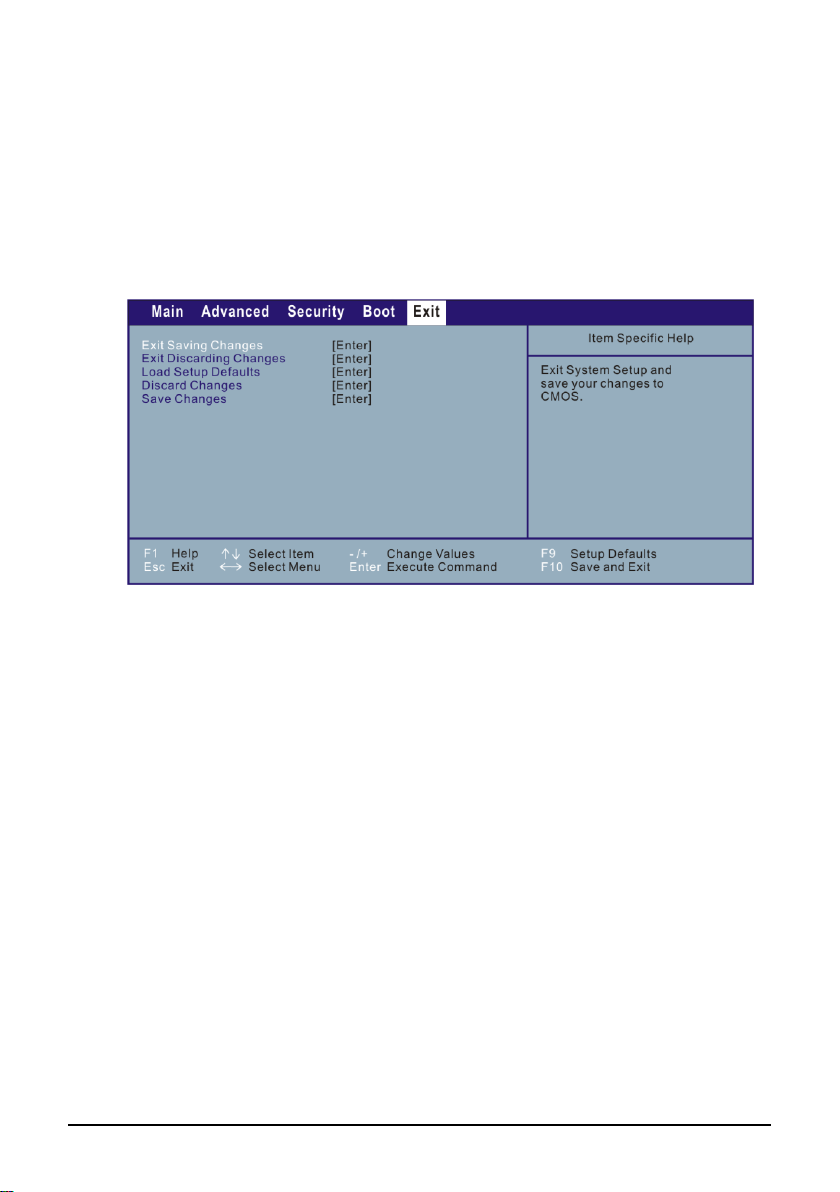

The Exit menu displays ways of exiting BIOS Setup Utility. After finishing with your settings, you must save and exit so that the changes can take effect.
Exit Saving Changes saves the changes you have made and exits BIOS Setup Utility.
Exit Discarding Changes exits BIOS Setup Utility without saving the changes you have made.
Load Setup Defaults loads the factory default values for all the items. Discard Changes restores the previous values for all the items. Save Changes saves the changes you have made.
Using BIOS Setup 5-9
Chapter 6
CHAPTER

Installing Software Drivers

To take full advantage of the unique features of your computer, some operating systems require custom software, known as drivers, to be installed.
If you purchased the computer with Windows pre-installed, your dealer may have already installed the drivers. If not, you need to install the drivers using the disc supplied with your computer.
This chapter describes how to install the drivers.
Installing Software Drivers 6-1

How to Use the Driver Disc

NOTE:
The drivers may have been updated after this manual was published. For driver
upgrade, please contact your dealer.
This disc supports Windows 7. The available items may differ according to your computer model. Do not remove the driver disc when installing the driver.
An autorun program is provided on the driver disc to help you easily install the drivers. As you insert the disc, the autorun program automatically starts. If you need to start the program manually, run the Setup.exe program from the Wsetup directory of the disc.
The main screen appears as shown next:
Installing Software Drivers 6-2
Name
Description
Chipset Driver
Ensures the full function of the following drivers. Install this driver before installing the other device drivers.
Storage (AHCI) Driver
Installs the AHCI (Advance Host Controller Interface) SATA (Serial ATA) storage driver for advanced Serial ATA features.
VGA Driver
Installs the video driver that allows you to take full advantage of the computer’s video subsystem.
High Definition Audio Driver
Installs the audio driver that allows you to take full advantage of the computer’s audio subsystem.
LAN Driver
Installs the LAN driver for using Ethernet network.
Card Reader Driver
Allows you to use the Card Reader to access optional MMC/SD/MS/MS PRO cards.
Pointing Device Driver
Installs the touchpad driver that allows you to take full advantage of the touchpad features.
Camera Application
Installs the Camera application for taking pictures.
Wireless Network Driver
Installs the WLAN driver and application program that
allows you to use the computer’s internal mini PCI-E WLAN card’s network function.
NOTE: This icon would not appear if the mini PCI-E WLAN card is not installed.
Bluetooth Driver
Installs the Bluetooth driver and application program that allows you to use the Bluetooth wireless feature.
Acrobat
Installs the Adobe Acrobat Reader program if you do not have it on your computer. You need Adobe Acrobat Reader to open the manual file supplied on this driver disc.
User’s Manual
Allows you to view the User’s Manual.
Exit (at the top right corner of the screen)
Closes the installation wizard.

Install Driver

To install the intended driver, click on the corresponding icon and installation will start. The drivers are described next:
Installing Software Drivers 6-3
Chapter 7
CHAPTER

Caring for the Computer

Taking good care of your computer will ensure a trouble-free operation and reduce the risk of damage to your computer.
This chapter gives you guidelines covering these areas of maintenance:
How to protect the computer What to note when using and storing the computer How to clean the computer What to note when using the battery pack What to note when traveling with the computer
Caring for the Computer 7-1

Protecting the Computer

To safeguard the integrity of your computer data as well as the computer itself, you can protect the computer in several ways as described in this section.

Using an Anti-Virus Strategy

You can install a virus-detecting program to monitor potential viruses that could damage your files.

Using Action Center

Action Center of Windows 7 alerts you to take action on the following security essentials:
Windows Firewall Windows Update Malware Protection (anti-virus, anti-spyware) Others (Internet security, user account control)
For detailed information, see Windows’ Help.

Using the Password

The power-on password protects your computer against unauthorized use. If the password is set, the prompt requesting for the password appears on the screen whenever the computer is turned on.
The password is set via the BIOS Setup program. See “Security Menu” in Chapter 5 for instructions.
Caring for the Computer 7-2

Using the Cable Lock

You can use a Kensington-type cable lock to protect your computer against theft. The cable lock is available in most computer stores.
To use the lock, loop the lock cable around a stationary object such as a table. Insert the lock to the Kensington lock hole and turn the key to secure the lock. Store the key in a safe place.
Caring for the Computer 7-3

Taking Care of the Computer

Location Guidelines

Use the computer where the temperature is between 10 C (50 F) and
35 C (95 F).
Avoid placing the computer in a location subject to high humidity,
extreme temperatures, mechanical vibration, direct sunlight, or heavy dust.
Do not cover or block any ventilation openings on the computer. For
example, do not place the computer on a bed, sofa, rug, or other similar surface. Otherwise, overheating may occur that results in damage to the computer.
Keep the computer at least 13 cm (5 inches) away from electrical
appliances that can generate a strong magnetic field such as a TV, refrigerator, motor, or a large audio speaker.
Do not move the computer abruptly from a cold to a warm place. A
temperature difference of more than 10 C (18 F) will cause condensation inside the unit, which may damage the storage media.
Do not place the computer on an unsteady surface.

General Guidelines

Wear protective gloves to prevent injury to your fingers when using
the computer in higher than normal temperature.
Do not place heavy objects on top of the computer when it is closed as
this may damage the display.
The screen surface is easily scratched. Do not use paper towels to
clean the display. Avoid touching it with your fingers, pen, or pencil.
To maximize the life of the backlight in the display, allow the
backlight to automatically turn off as a result of power management.
Caring for the Computer 7-4
Avoid using a screen saver or other software that prevents the power management from working.

Cleaning Guidelines

Never clean the computer with its power on. Use a soft cloth moistened with water or a non-alkaline detergent to
wipe the exterior of the computer.
Gently wipe the display with a soft, lint-free cloth. Do not use alcohol
or detergent on the display.
Dust or grease on the touchpad can affect its sensitivity. Clean the pad
by using adhesive tape to remove the dust and grease on its surface.

Battery Pack Guidelines

Recharge the battery pack when it is nearly discharged. When
recharging, make sure that the battery pack is fully charged. Doing so may avoid harm to the battery pack.
Operate the computer with the battery pack installed even when using
external power. This ensures that the battery is fully charged.
If you will not be using the computer for a long period of time (more
than two weeks), remove the battery pack from the computer.
If you remove the battery pack, make sure that the battery terminals
do not contact any conductors such as metal objects or water. Otherwise, the battery may become unusable as a result of a short circuit.
If you need to store the battery pack, store it in a cool, dry place.
Never allow the temperature to exceed 60 C (140 F).
Do not leave the battery pack in storage for more than 6 months
without recharging it.
Caring for the Computer 7-5

When Traveling

Before traveling with your computer, make a backup of your hard
disk data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data.
Make sure that the battery pack is fully charged. Make sure that the computer is turned off and the top cover is
securely closed.
Do not leave objects in between the keyboard and closed display. Disconnect the AC adapter from the computer and take it with you.
Use the AC adapter as the power source and as a battery-charger.
Hand-carry the computer. Do not check it in as luggage. If you need to leave the computer in the car, put it in the trunk of the
car to avoid exposing the computer to excessive heat.
When going through airport security, it is recommended that you
send the computer and flash disks through the X-ray machine (the device you set your bags on). Avoid the magnetic detector (the device you walk through) or the magnetic wand (the handheld device used by security personnel).
If you plan to travel abroad with your computer, consult your dealer
for the appropriate AC power cord for use in your country of destination.
Caring for the Computer 7-6
Chapter 8
CHAPTER

Troubleshooting

Computer problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved.
This chapter tells you what actions to take when solving common computer problems. It is divided into three sections:
Preliminary checklist Solving common problems Resetting the computer
Troubleshooting 8-1

Preliminary Checklist

Here are helpful hints to follow before you take further actions when you encounter any problem:
Try to isolate which part of the computer is causing the problem. Make sure that you turn on all peripheral devices before turning on
the computer.
If an external device has a problem, make sure that the cable
connections are correct and secure.
Make sure that the configuration information is properly set in the
BIOS Setup program.
Make sure that all the device drivers are correctly installed. Make notes of your observations. Are there any messages on the
screen? Do any indicators light? Do you hear any beeps? Detailed descriptions are useful to the service personnel when you need to consult one for assistance.
If any problem persists after you follow the instructions in this chapter, contact an authorized dealer for help.
Troubleshooting 8-2

Solving Common Problems

Battery Problems

The battery does not charge (Battery Charge indicator does not light).
Make sure that the AC adapter is properly connected. Make sure that the battery is not too hot or cold. Allow time for the
battery pack to return to room temperature.
Make sure that the battery pack is installed correctly. Make sure that the battery terminals are clean.
The operating time of a fully charged battery becomes shorter.
If you often partially recharge and discharge, the battery might not be
charged to its full potential. Initialize the battery to solve the problem. (See “Initializing the Battery Pack” in Chapter 3 for instructions.)
The battery operating time indicated by the battery meter does not match the actual operating time.
The actual operating time can be different from the estimated time,
depending on how you are using the computer. If the actual operating time is much less than the estimated time, initialize the battery. (See “Initializing the Battery Pack” in Chapter 3 for instructions.)

Bluetooth Wireless Problems

I cannot connect to another Bluetooth-enabled device.
Make sure that the Bluetooth card is correctly installed. Make sure that the Bluetooth driver is correctly installed. Make sure that both devices have activated Bluetooth.
Troubleshooting 8-3
Make sure that the distance between the two devices are not over
10 meters or that there are no walls or other obstructions between the devices.
Make sure that the other device is not in “Hidden” mode. Make sure that both devices are compatible.

DVD Drive Problems

The DVD drive cannot read a disc.
Make sure that the disc is correctly seated in the tray, with the label
facing up.
Make sure that the disc is not dirty. Clean the disc with a disc
cleaning kit, available in most computer stores.
Make sure that the DVD drive driver is installed correctly. Make sure that the computer supports the disc or the files contained.
You cannot eject a disc.
The disc is not properly seated in the drive. Manually release the disc
following the method described next:
1. Turn off the computer.
2. Insert a small rod, such as a straightened paperclip, into the
drive’s manual eject hole and push firmly to release the tray.
3. Pull the tray out until fully extended, and then remove the disc.
Troubleshooting 8-4

Display Problems

Nothing appears on the screen.
During operation, the screen may automatically turn off as a result of
power management. Press any key to see if the screen comes back.
The brightness level might be too low. Increase brightness by
pressing the Fn+F7 hot key.
The display output might be set to an external device. To switch the
display back to the LCD, press the Fn+F5 hot key or change the display through the Display Settings Properties of Windows.
The characters on the screen are dim.
Adjust the brightness and/or contrast.
Bad dots appear on the display at all times.
A small number of missing, discolored, or bright dots on the screen
are an intrinsic characteristic of TFT LCD technology. It is not regarded as a LCD defect.
The external monitor displays nothing.
Make sure that the monitor is turned on. Make sure that the monitor’s signal cable is properly connected. Switch the display to the monitor by pressing the Fn+F5 hot key or
change the display through the Display Settings Properties of Windows.
Simultaneous display/multi-display does not work.
Make sure that you turn on the external monitor before turning on the
computer.
Press the Fn+F5 hot key to toggle through the display options or
change the Display Settings Properties of Windows.
Troubleshooting 8-5

ExpressCard Problems

The ExpressCard does not work.
Make sure that the ExpressCard is correctly seated. If the card requires an IRQ (Interrupt ReQuest), make sure that there
is one available.
The ExpressCard stops communicating properly.
The application may have been reset when the computer is turned off
or in Sleep mode. Exit and restart the application.

Hardware Device Problems

The computer does not recognize a newly installed device.
The device may not be correctly configured in the BIOS Setup
program. Run the BIOS Setup program to identify the new type.
Make sure if any device driver needs to be installed. (Refer to the
documentation that came with the device.)
Make sure if the device needs any jumper or switch settings. (Refer to
the documentation that came with the device.)
Check the cables or power cords for correct connections. For an external device that has its own power switch, make sure that
the power is turned on.

Hard Disk Drive Problems

The hard disk drive error message appears on the screen.
The hard disk drive has defects. Ask your dealer for help.
The hard disk drive operations seem slow.
The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.
Troubleshooting 8-6
The hard disk drive in-use indicator glows without blinking.
The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.

Keyboard, Mouse, and Touchpad Problems

The keyboard does not respond.
Try connecting an external keyboard. If it works, contact an
authorized dealer, as the internal keyboard cable might be loose.
The numeric keypad is disabled.
Make sure that the Num Lock is switched on. (Check if the Num Lock
Indicator glows or not.)
The external keyboard does not work.
Make sure that the keyboard cable is properly connected.
The USB mouse does not work.
Make sure that the mouse cable is properly connected.
The touchpad does not work, or the pointer is difficult to control with the touchpad.
Make sure that the pointing device driver is correctly installed. Make sure that the touchpad is clean.

LAN Problems

I cannot access the network.
Make sure that the Ethernet driver is correctly installed. Make sure that the LAN cable is properly connected to the RJ-45
connector and the network hub.
Make sure that the network configuration is appropriate.
Troubleshooting 8-7
Make sure that the user name or password is correct.

WLAN Problems

I cannot use the WLAN feature.
Make sure that the mini PCI-E WLAN card is correctly installed. Make sure that the necessary driver(s) is correctly installed. Make sure that the WLAN feature is turned on.
Transmission quality is poor.
Your computer may be in an out-of-range situation. Move your
computer closer to the Access Point or another WLAN device it is associated with.
Check if there is high interference around the environment and solve
the problem as described next.
Radio interference exists.
Move your computer away from the device causing the radio
interference such as microwave oven and large metal objects.
Plug your computer into an outlet on a different branch circuit from
that used by the affecting device.
Consult your dealer or an experienced radio technician for help.
I cannot connect to another WLAN device.
Make sure that the WLAN feature is turned on. Make sure that the SSID setting is the same for every WLAN device
in the network.
Your computer is not recognizing changes. Restart the computer. Make sure that the IP address or subnet mask setting is correct.
Troubleshooting 8-8
I cannot communicate with the computer in the network when Infrastructure mode is configured.
Make sure that the Access Point your computer is associated with is
powered on and all the LEDs are working properly.
If the operating radio channel is in poor quality, change the Access
Point and all the wireless station(s) within the BSSID to another radio channel.
Your computer may be in an out-of-range situation. Move your
computer closer to the Access Point it is associated with.
Make sure that your computer is configured with the same security
option (encryption) to the Access Point.
Use the Web Manager/Telnet of the Access Point to check whether it
is connected to the network.
Reconfigure and reset the Access Point.
I cannot access the network.
Make sure that the necessary driver(s) is correctly installed. Make sure that the network configuration is appropriate. Make sure that the user name or password is correct. You have moved out of range of the network. Turn off power management.

Power Management Problems

The computer does not enter Sleep or Hibernation mode automatically.
If you have a connection to another computer, the computer does not
enter Sleep or Hibernation mode if the connection is actively in use.
Make sure that the Sleep or Hibernation time-out is enabled.
Troubleshooting 8-9
The computer does not enter Sleep or Hibernation mode immediately.
If the computer is performing an operation, it normally waits for the
operation to finish.
The computer does not resume from Sleep or Hibernation mode.
The computer automatically enters Sleep or Hibernation mode when
the battery pack is empty. Do any one of the following:
Connect the AC adapter to the computer. Replace the empty battery pack with a fully charged one.
The computer does not enter Hibernation mode with the Fn+F12 hot keys.
Make sure that the Hibernation function is specified for the sleep
button.
You might be using an ExpressCard that prevents the computer from
entering Hibernation mode. To enter the mode, stop the communication program and then remove the card or stop the card.

Software Problems

An application program does not work correctly.
Make sure that the software is correctly installed. If an error message appears on the screen, consult the software
program’s documentation for further information.
If you are sure the operation has stop, reset the computer. (See
“Resetting the Computer” later in this chapter.)

Sound Problems

No sound is produced.
Make sure that the volume control is not set too low. Make sure that the audio driver is correctly installed.
Troubleshooting 8-10
Make sure that the computer is not in Sleep mode. If using an external speaker, make sure that the speaker is properly
connected.
Distorted sound is produced.
Make sure that the volume control is not set too high or too low. In
most cases, a high setting can cause the audio electronics to distort the sound.
The sound system does not record.
Adjust the playback or recording sound levels.
The external microphone or audio device does not work.
Make sure that the microphone is connected to the proper connector
on the computer.
Make sure that your computer is equipped with the driver needed. Click the speaker symbol on the taskbar and check the Windows
volume control.
Check the volume control of your computer.

Startup Problems

When you turn on the computer, it does not respond and the Power Indicator does not light.
If you are using an external AC power, make sure that the AC adapter
is correctly and securely connected. If so, make sure that the electrical outlet works properly.
If you are using the battery power, make sure that the battery is not
discharged.
When you turn on the computer, it stops after POST.
Restart your computer.
Troubleshooting 8-11
The message “Operating system not found” appears on the
screen after you turn on the computer.
If this message appears when you are booting from the hard disk,
insert a bootable disc in the DVD drive and check the condition of the hard disk.
The message “Invalid system disk” or “Disk error” appears
on the screen after you turn on the computer.
If you are deliberately trying to boot from a disc, replace the disc with
a bootable one and press any key to continue booting.
If this message appears when you are booting from the hard disk,
insert a bootable disc in the DVD drive and check the condition of the hard disk.

Other Problems

The date/time is incorrect.
Correct the date and time via the operating system or BIOS Setup
program.
After you have performed everything as described above and still
have the incorrect date and time every time you turn on the computer, the RTC (Real-Time Clock) battery is at the end of its life. Call an authorized dealer to replace the RTC battery.
Troubleshooting 8-12

Resetting the Computer

You may have to reset (reboot) your computer on some occasions when an error occurs and the program you are using hangs up.
If the computer operation seems to hang up, first wait. It is possible that the computer is processing data. Periodically check the hard disk drive in-use indicator, if it flashes irregularly, the program may be accessing data and preventing you from using the keyboard. If you are sure the operation has stopped and you cannot use the “restart” function of the operating system, reset the computer.
Reset the computer by any one of these methods:
Press Ctrl+Alt+Del. If the above action does not work, turn off the computer. Wait for at
least five seconds and turn it on again.
CAUTION: Resetting will cause any unsaved data to be lost.
Troubleshooting 8-13
Appendix A
Parts
Specifications
CPU
Mobile Intel® Core™ i5, Intel® Core™ i3 processor Thermal specifications 35 W
Chipset
Intel PM 55
ROM BIOS
2 MB Flash EEPROM
Memory
System
Up to 4 GB, DDRIII 1066 MHz SO-DIMM
Display
Panel
18.4-inch TFT LCD, resolution up to 1680x945, 1920×1080 pixel (16:9)
Video controller
ATI Mobility Radeon™ HD 5165
Video ports
VGA port, HDMI port
Audio
Audio subsystem
Azalia interface, 5.1-channel analog output
Audio ports
Three audio ports for Headphone / Mic-in / S/PDIF
Speakers
2 × 2.5 Watt stereo
Subwoofer
3 Watt
Microphone
Internal
Keyboard
Standard keys, numeric keypad, 12 function keys, a special Fn (Function) key and Windows keys
Multimedia buttons
Media, play/pause, stop, previous track, next track
Pointing device
Underplastic touchpad with 2 buttons
Storage device
Hard disk drive
2.5-inch diameter, 9.5 mm high, SATA interface, 5400 rpm support
Optical drive
DVD Super Multi (12.7 mm high)
ExpressCard/54
ExpressCard/34 / ExpressCard/54 support
Card Reader
SD / MS / MS Pro / MMC
I/O ports
3 × USB ports (USB 2.0 support), RJ-45 port, eSATA/USB combo port
LAN
10/100/1000 Mbps
APPENDIX
Specifications
NOTE: Specifications are subject to change without any prior notice.
Specifications A-1
Parts
Specifications
Wireless LAN
One mini PCI-E slot for full/half-size wireless LAN card, compliant with IEEE 802.11b/g/n
Bluetooth (option)
Specification 2.1 module (EDR)
Camera
1.3 M webcam
Security
Kensington lock
Power AC adapter
Universal AC adapter 120 Watt; input: 100240 Volt, output: 19 Volt
Battery
9-cell Li-ion, 6600 mAH (average) 6300 mAH (minimum) / 11.1 V
Dimension (W×D×H)
441×298.5×25~39 mm (17.36×11.75×0.98~1.54 inch)
Weight
3.7 kg (8.16 lb)
Environment
Temperature
Operating: 0 C (32 F) to 35 C (95 F) Storage: –20 C (–4 F) to 60 C (140 F)
Humidity
Operating: 10 % to 90 % non-condensing Storage: 5 % to 95 % non-condensing
Specifications A-2
Appendix B
APPENDIX
Regulatory Information
This appendix provides regulatory statements and safety notices on your computer.
NOTE: Marking labels located on the exterior of your computer indicate the regulations that your model complies with. Please check the marking labels and refer to the corresponding statements in this appendix. Some notices apply to specific models only.
Regulatory Information B-1

On the Use of the System

Class B Regulations

USA
Federal Communications Commission Radio Frequency Interference Statement
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with this equipment is prohibited.
Regulatory Information B-2
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
