Page 1
INSTALLATION INSTRUCTIONS

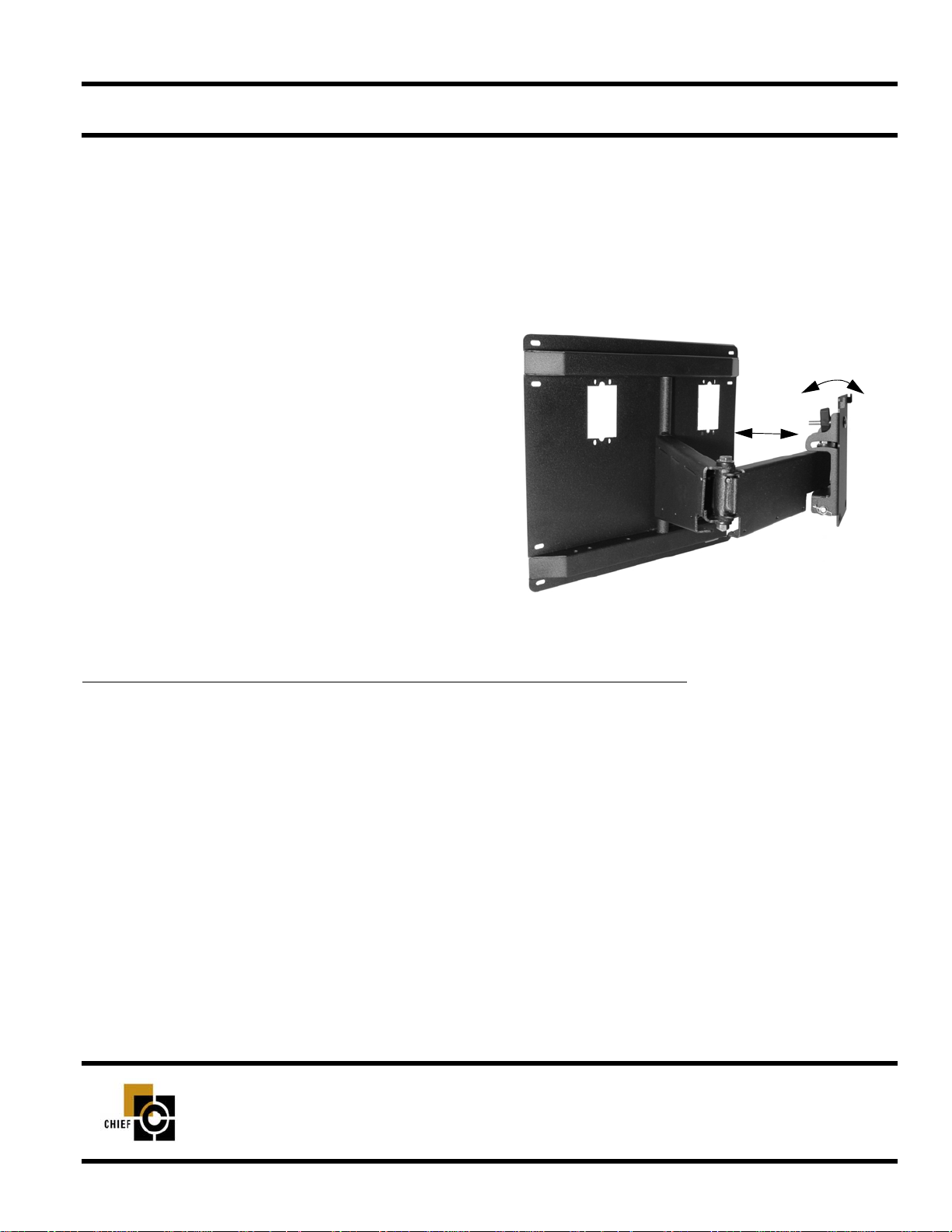

Plasma Wall Swing-Out (PWS Series)
Wall Mount
The PWS wall mount is a rugged, versatile, and installer-friendly
solution to unique display mounting requirements.
With the brackets attached to the display and the PWS securely
mounted on a wall, simply hang your plasma like a picture (vertical or
horizontal). Alignment hooks support your screen in place while
mounting hardware is secured.
The PWS allows you pull your display (max. 50”) out 21” from the
wall, pivot it up to 90 degrees (max. 42”) left or right of center, traverset up to 22” left or right of center, and adjust the pitch 5 degrees up
and 15 degrees down. The PWS also provides 2 degrees roll adjustment right and left for screen leveling.
Two electrical box openings in the wall plate is provided for cabling.
The cable tray hides cables for aesthetics and cable protection.
BEFORE YOU BEGIN
• Caution: To prevent damage to the PWS, which could affect or void the Factory warranty, and to the equipment that
will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particular attention to the “Important Warnings and Precautions” on Page 1.
• The PWS wall mount is designed to be installed using wall studs or supporting framework. The wall to which the PWS wall
mount is anchored must be capable of supporting five times the total weight of the mount and all attached equipment.
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
12800 HIGHWAY 13 SOUTH, SUITE 500
SAVAGE, MINNESOTA 55378 USA
PART NO. 8831-000001 (Rev. A)
2000 Chief Manufacturing
www.chiefmfg.com
Printed in USA 08-01
Page 2
Installation Instructions PWS
IMPORTANT WARNINGS AND PRECAUTIONS!
WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.
CAUTION:
• WARNING: Improper installation can result in serious personal injury! Make sure that the structural members can
•
WARNING: Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.
•
WARNING: The installer is responsible for verifying that the wall, to which the PWS is anchored, will safely support
•
WARNING: The weight of the display placed on the PWS must not exceed 100 lbs. (45.36 kg), the maximum load
•
WARNING: Watch for pinch points. Do not put your fingers between movable parts.
• CAUTION: Check the unit for shipping damage before you begin the installation.
NOTE: Hardware for attaching this unit to the wall is not supplied.
A
CAUTION
sponding instructions.
support a redundant weight factor five times the total weight of the equipment: if not, reinforce the structure before installing the PWS.
the combined load of all attached components or other equipment
capacity of the PWS
alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-
.
.
TOOLS REQUIRED FOR INSTALLATION
• Electric drill and bit set
• Socket set with extension and open wrenches
NOTE: Other tools may be required depending on the
method of installing the lift in the ceiling.
CONTENTS
DIMENSIONAL DRAWING ........................................ 2
INSPECT THE UNIT BEFORE INSTALLING ............ 3
PWS INSTALLATION ................................................ 3
MOUNT THE DISPLAY ............................................. 4
ADJUSTMENTS ........................................................ 4
Roll Adjustment .................................................................. 4
Pitch Adjustment ................................................................. 4
Horizontal Adjustment ........................................................ 4
REMOVE THE DISPLAY ........................................... 4
1
Page 3
Installation Instructions PWS

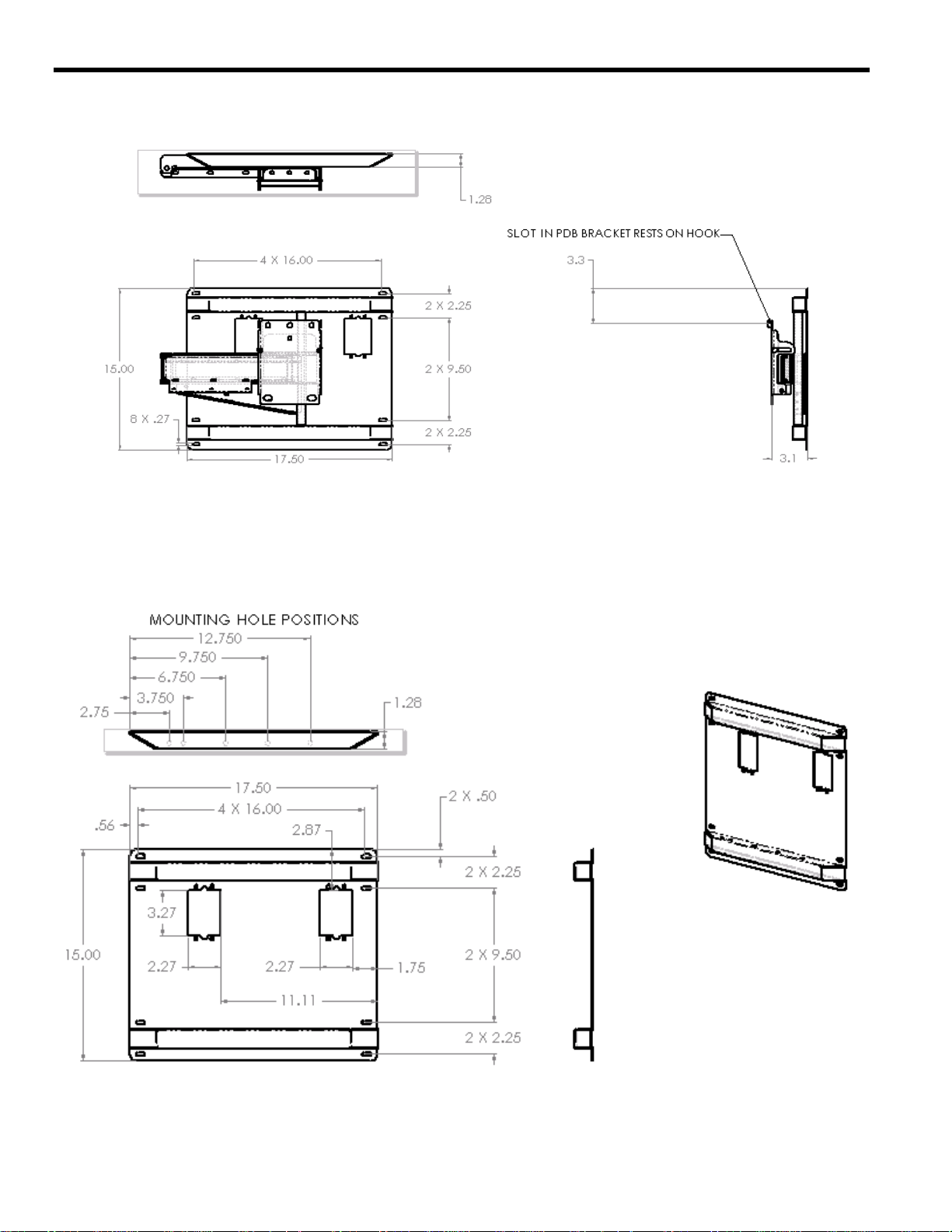

DIMENSIONAL DRAWING
PWS
PWS Backing Plate Dimensions
2
Page 4
Installation Instructions PWS
INSPECT THE UNIT BEFORE INSTALLING
WARNING: Watch for pinch points. Do not put your fingers
between movable parts.
1. Carefully inspect the PWS for shipping damage. If any damage
is apparent, call your carrier claims agent and do not continue
with the installation until the carrier has reviewed the damage.
NOTE: Read all instructions before starting installation.
2. Lay out components to ensure you have all the required parts
before proceeding:
1 PWS (see PWS dimensional drawing on page 2)
1 PDB Package (see PDB Instruction Sheet for
contents of this package)
PWS INSTALLATION
WARNING: It is the responsibility of the installer to verify that
the wall to which the PWS is anchored will safely
support the combined load of all attached components and equipment.
CAUTION:
Install the PWS as follows:
1. Determine the exact mounting location prior to installation,
considering the unit’s total swing arm radius.
2. Using the wall plate as a pattern, transfer the mounting hole
pattern to the wall.
NOTE:
accommodate a duplex wall outlet.
3. Drill pilot holes at the desired height.
WARNING: Improper installation can result in serious per-
DO NOT attempt to mount the Plasma Display Panel
(PDP) in an inverted position. Mounting the PDP in
an inverted position may cause overheating and
extensive damage to the PDP.
Notice the wall plate has a nominal hole (2”X4”) to
sonal injury! Make sure that the structural members can support a redundant weight factor five
times the total weight of the equipment: if not,
reinforce the structure before installing the PWS.
4. With the PWS correctly oriented and level, secure the PWS to
the wall using a minimum of four fasteners (not included). Fasteners must be driven into the supporting wall studs or other
supporting framework.
3
Page 5
Installation Instructions PWS
MOUNT THE DISPLAY
1. Following the instructions for mounting the hanging bracket of
your specific plasma display panel, install the mounting
bracket on your plasma display panel.
WARNING: Watch for pinch points. Do not put your fingers
between movable parts.
2. Using two people, slide the display down over the PWS. Make
sure the slots of the mounting bracket fully engage both hooks
on the PWS.
3. Secure the mounting bracket to the PWS using four 5/16-18
hex head bolts and lock washers (included with the PDB).
4. Connect and secure power/audio/video cables, making sure to
leave sufficient slack to allow for movement of the swing arms.
ADJUSTMENTS
Roll Adjustment
1. Loosen four 5/16-18 hex head bolts.
2. Using the bottom two slotted holes, adjust roll.
3. Tighten four 5/16-18 hex head bolts.
Pitch Adjustment
1. Turn the T-knob handle until desired angle is achieved.
2. Make sure the carriage bolt is properly seated.
Horizontal Adjustment
1. Turn the display to desired horizontal position (max. 90
degrees).
2. Pull display from wall or push display back to wall.
REMOVE THE DISPLAY
1. Disconnect power/audio/video cables.
2. Remove the four 5/16-18 hex head bolts and lock washers from
the mounting bracket.
3. Using two people, lift the display up from the PWS.
4
