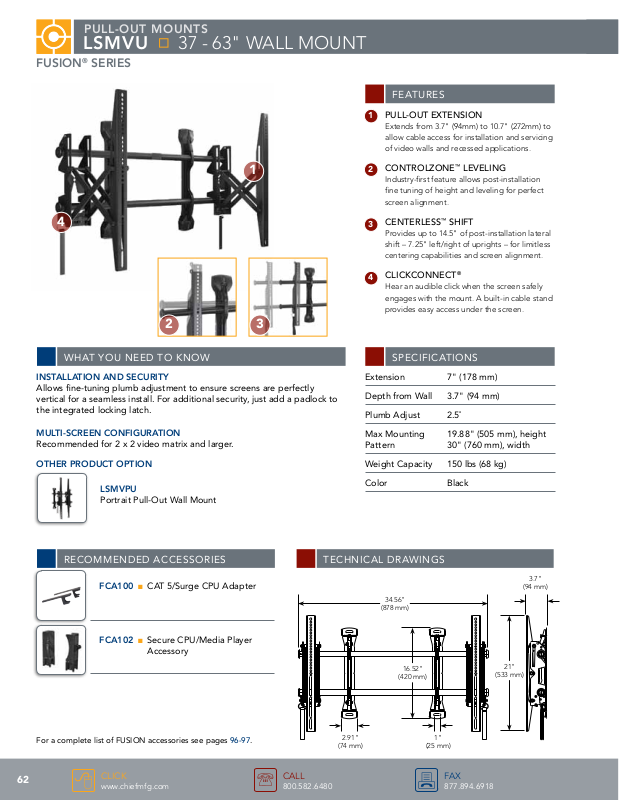

Chief LSMVU Datasheet

Pull-out Mounts

lsMVu 37 - 63" WALL MOUNT

Fusion® series

FEATURES

pull-out EXtEnsion

1

Extends from 3.7" (94mm) to 10.7" (272mm) to
allow cable access for installation and servicing
of video walls and recessed applications.

ControlzonE™ lEvEling

1

2

Industry-first feature allows post-installation
fine tuning of height and leveling for perfect
screen alignment.

4

2

WHAT YOU NEED TO KNOW

installation anD security

Allows fine-tuning plumb adjustment to ensure screens are perfectly
vertical for a seamless install. For additional security, just add a padlock to
the integrated locking latch.

Multi-screen conFiguration

Recommended for 2 x 2 video matrix and larger.

otHer ProDuct oPtion

lsMVPu

Portrait Pull-Out Wall Mount

3

CEntErlEss™ sHiFt

3

Provides up to 14.5" of post-installation lateral
shift – 7.25" left/right of uprights – for limitless
centering capabilities and screen alignment.

CliCkConnECt®

4

Hear an audible click when the screen safely
engages with the mount. A built-in cable stand
provides easy access under the screen.

SPECIFICATIONS

Extension 7" (178 mm)

Depth from Wall 3.7" (94 mm)

Plumb Adjust 2.5˚

Max Mounting 19.88" (505 mm), height
Pattern 30" (760 mm), width

Weight Capacity 150 lbs (68 kg)

Color Black

RECOMMENDED ACCESSORIES

Fca100 n CAT 5/Surge CPU Adapter

Fca102 n Secure CPU/Media Player

Accessory

For a complete list of FUSION accessories see pages 96-97.

62

CLICK

www.chiefmfg.com

TECHNICAL DRAWINGS

CALL

800.582.6480

2.91"

(74 mm)

34.56"

(878 mm)

(420 mm)

16.52"

3.7"

(94 mm)

21"

(533 mm)

1"

(25 mm)

FAX

877.894.6918
